Operation and maintenance manual
Before using the machine, please read the attached operating instructions. Carefully read the safety rules.
FOR HOUSEHOLD USE ONLY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the following:
1.Read all instructions.
2.Do not touch hot surfaces. Use handles or knobs.
3.To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid.
4.Close supervision is necessary when the appliance is used by or near children.
5.Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6.Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7.The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
8.Do not use outdoors.
9.Do not let cord hang over edge of table or counter, or touch hot surfaces.
10.Do not place on or near a hot gas or electric burner, or in a heated oven.
11.Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
12.Do not use appliance for other than intended use.
13.Save these instructions.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.
1Check voltage to be sure that the voltage indicated on the nameplate corresponds with your voltage.
2Never use warm or hot water to fill the water tank. Use cold water only.
3Keep your hands and the cord away from hot parts of the appliance during operation.
4Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.
5For optimal taste of your coffee, use purified or bottled water. Periodic descaling is still recommended every 2-3 months.
6Do not use flavored or caramelized coffee.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A.A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
B.Longer detachable power-supply cords or extension cords are available and may used if care is exercised in their use.
C.If a long detachable power-supply cord or extension cord is used,
1.The marker electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance
2.If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3.The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.
2 |
CONTENTS |
|
GENERAL INFORMATION ......................................................................................................................... |
3 |
|
TECHNICAL DATA...................................................................................................................................... |
3 |
|
APPLIANCE................................................................................................................................................ |
4 |
|
ACCESSORIES ............................................................................................................................................................. |
4 |
|
INSTALLATION........................................................................................................................................... |
5 |
|
STARTING THE MACHINE................................................................................................................................................. |
5 |
|
SETTING THE LANGUAGE................................................................................................................................................ |
6 |
|
SETTING THE WATER HARDNESS ...................................................................................................................................... |
6 |
|
THE INTENZA WATER FILTER............................................................................................................................................ |
7 |
|
CONTROL PANEL...................................................................................................................................... |
8 |
|
ADJUSTMENTS ......................................................................................................................................... |
9 |
|
AROMA OPTI-DOSE (ADJUSTS THE COFFEE DOSE PER CUP)................................................................................................... |
9 |
|
COFFEE STRENGTH....................................................................................................................................................... |
9 |
|
DRIP TRAY HEIGHT ADJUSTMENT.................................................................................................................................... |
10 |
|
SAECO ADAPTING SYSTEM............................................................................................................................................ |
10 |
|
COFFEE GRINDER ADJUSTMENT ..................................................................................................................................... |
11 |
|
BEVERAGE DISPENSING ....................................................................................................................... |
12 |
|
BREWING WITH WHOLE BEANS....................................................................................................................................... |
12 |
|
BREWING WITH PRE-GROUND COFFEE............................................................................................................................. |
13 |
|

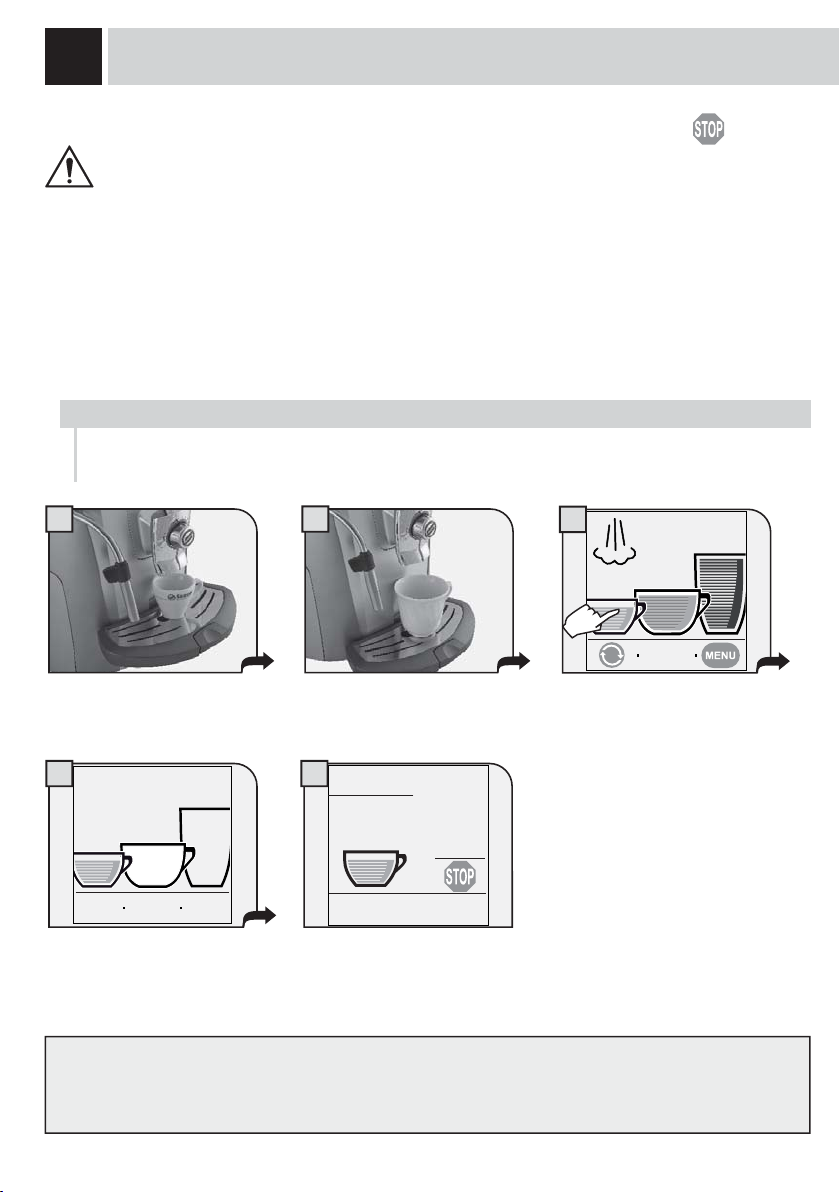

HOT WATER DISPENSING .............................................................................................................................................. |
14 |
|
STEAM DISPENSING .................................................................................................................................................... |
15 |
|

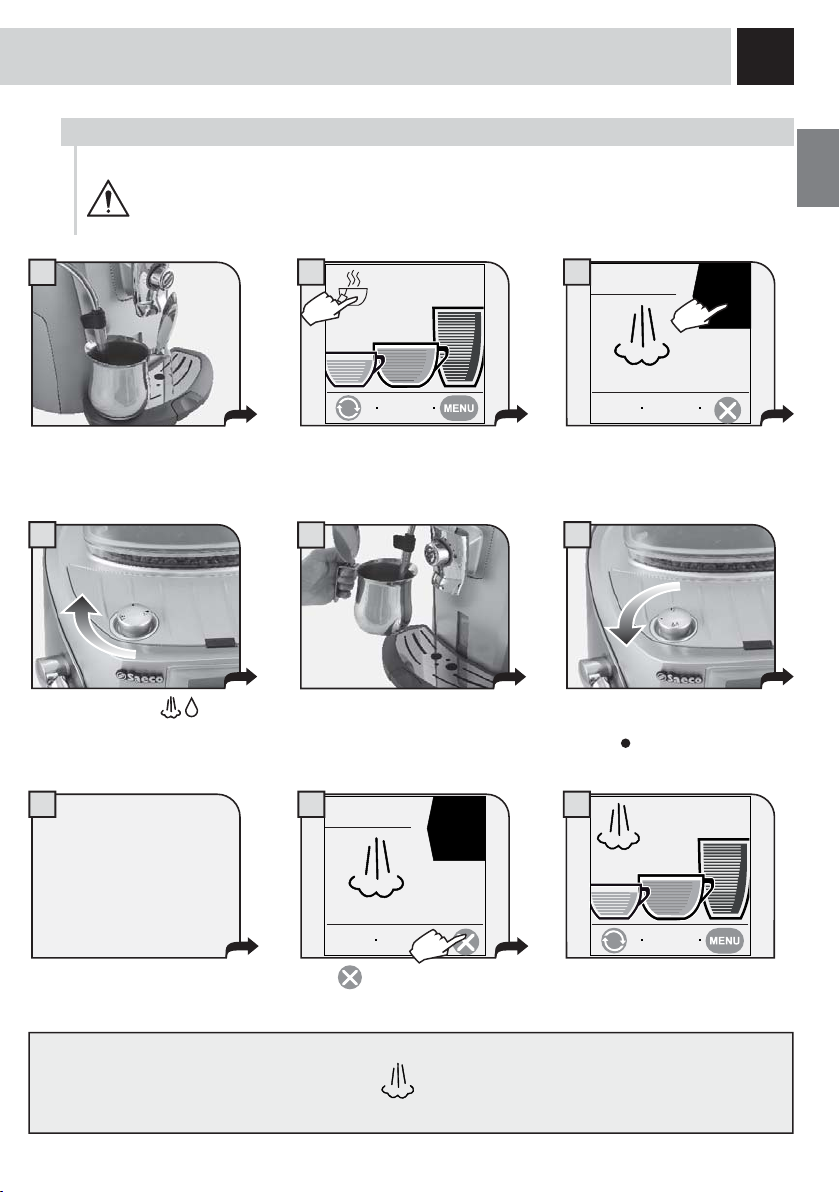

CAPPUCCINO............................................................................................................................................................. |
16 |
|
MILK ISLAND (OPTIONAL).............................................................................................................................................. |
17 |
|
BEVERAGE SETTINGS ........................................................................................................................... |
18 |
|
BEVERAGE PROGRAMMING MENU ................................................................................................................................... |
18 |
|
COFFEE SETTINGS...................................................................................................................................................... |
19 |
|

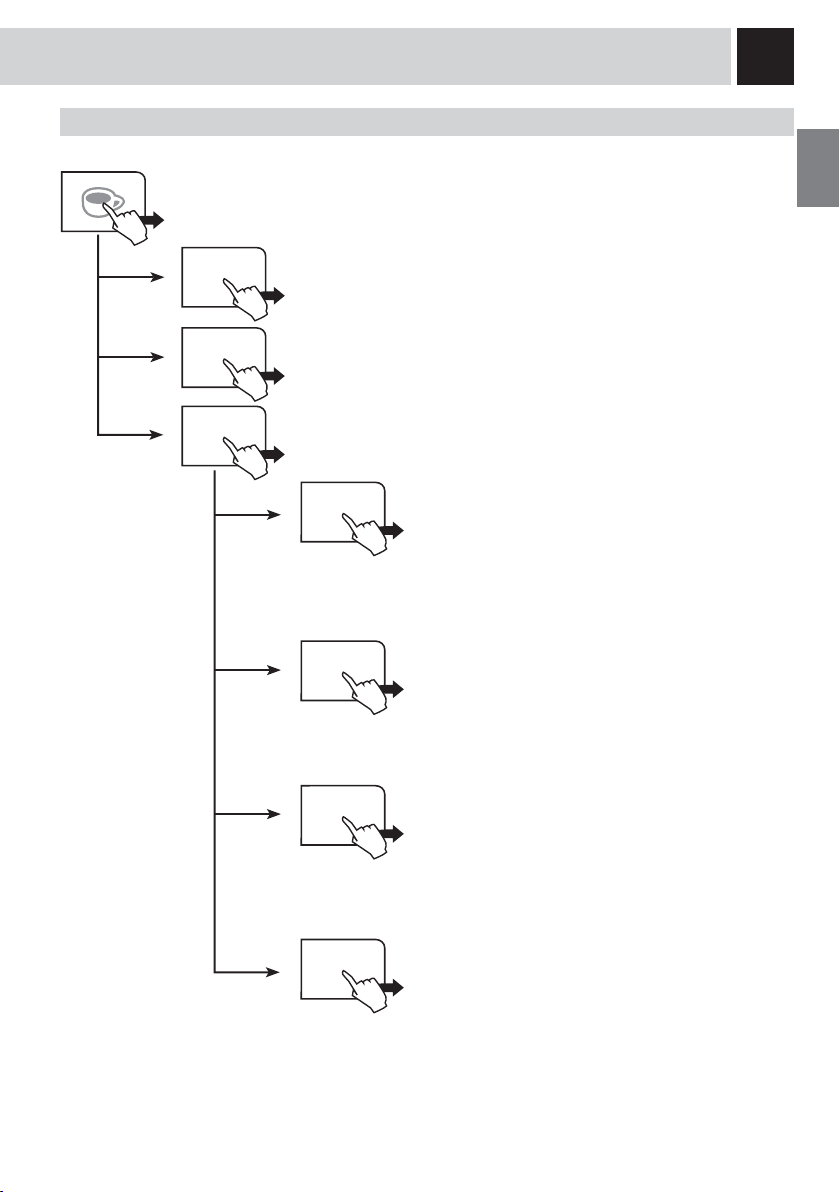

PROGRAMMING THE MACHINE............................................................................................................. |
20 |
|

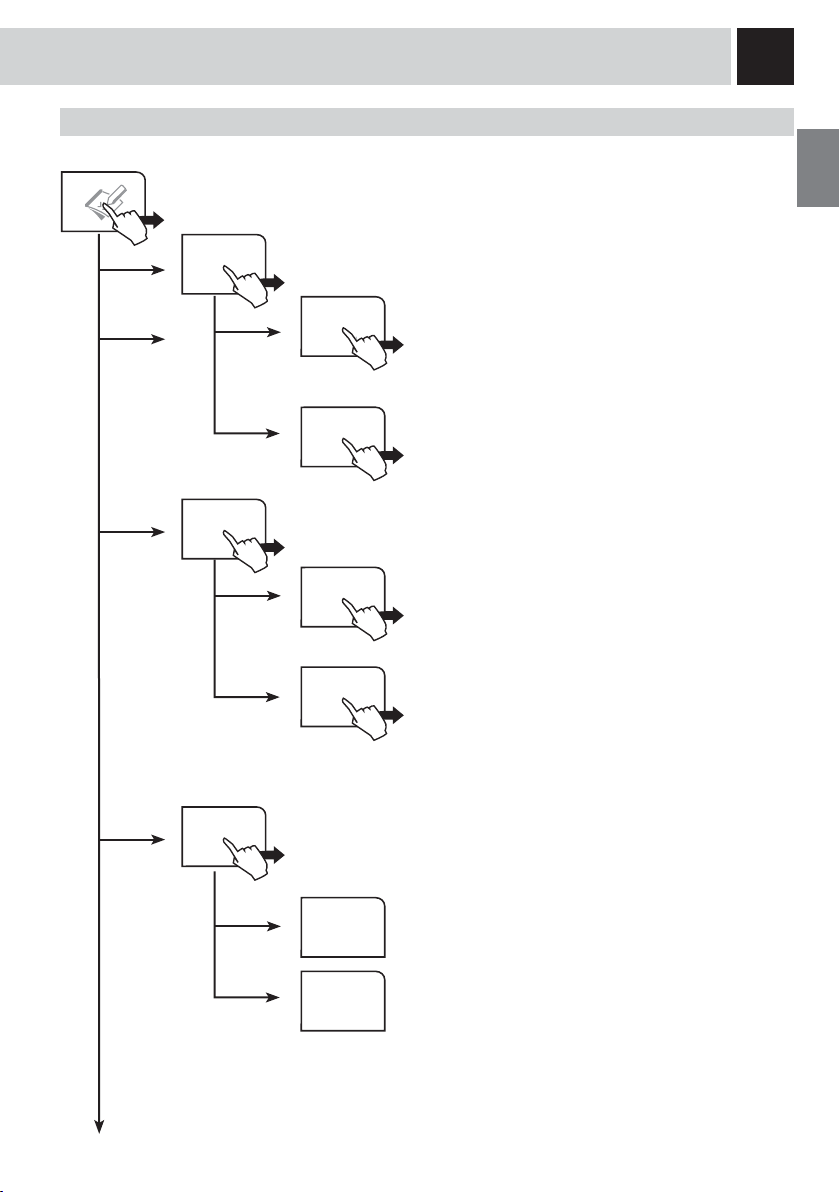

MACHINE SETTINGS .................................................................................................................................................... |
21 |
|
|
LANGUAGE |
|
|
CONTRAST |
|
|
MACHINE READY |
|
|
KEY TONE |
|
|
CUP WARMING SURFACE |
|
|
RINSE |
|
|
WATER FILTER |
|
|
WATER HARDNESS |
|
BEVERAGE SETTINGS .................................................................................................................................................. |
23 |
|
|
PREBREWING |
|
|
TEMPERATURE |
|
|
AROMA (OPTI-DOSE) |
|
|
COFFEE VOLUME |
|

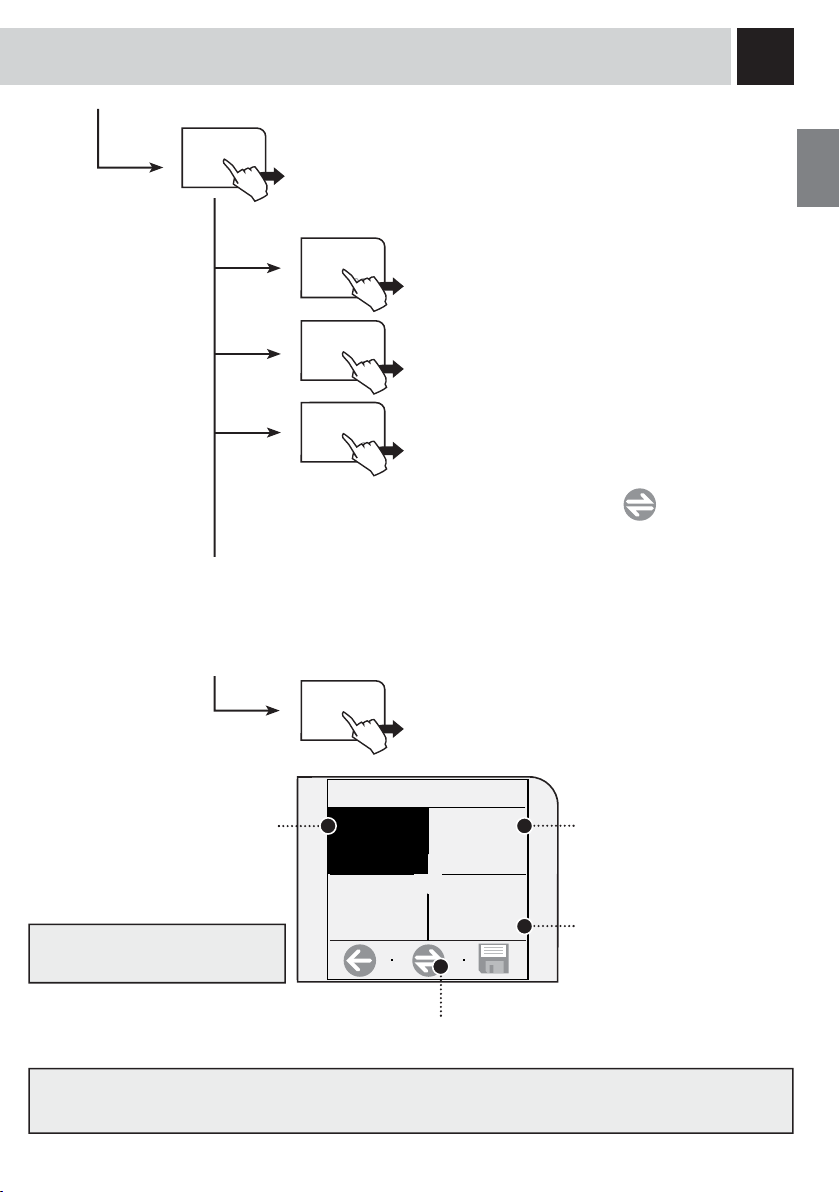

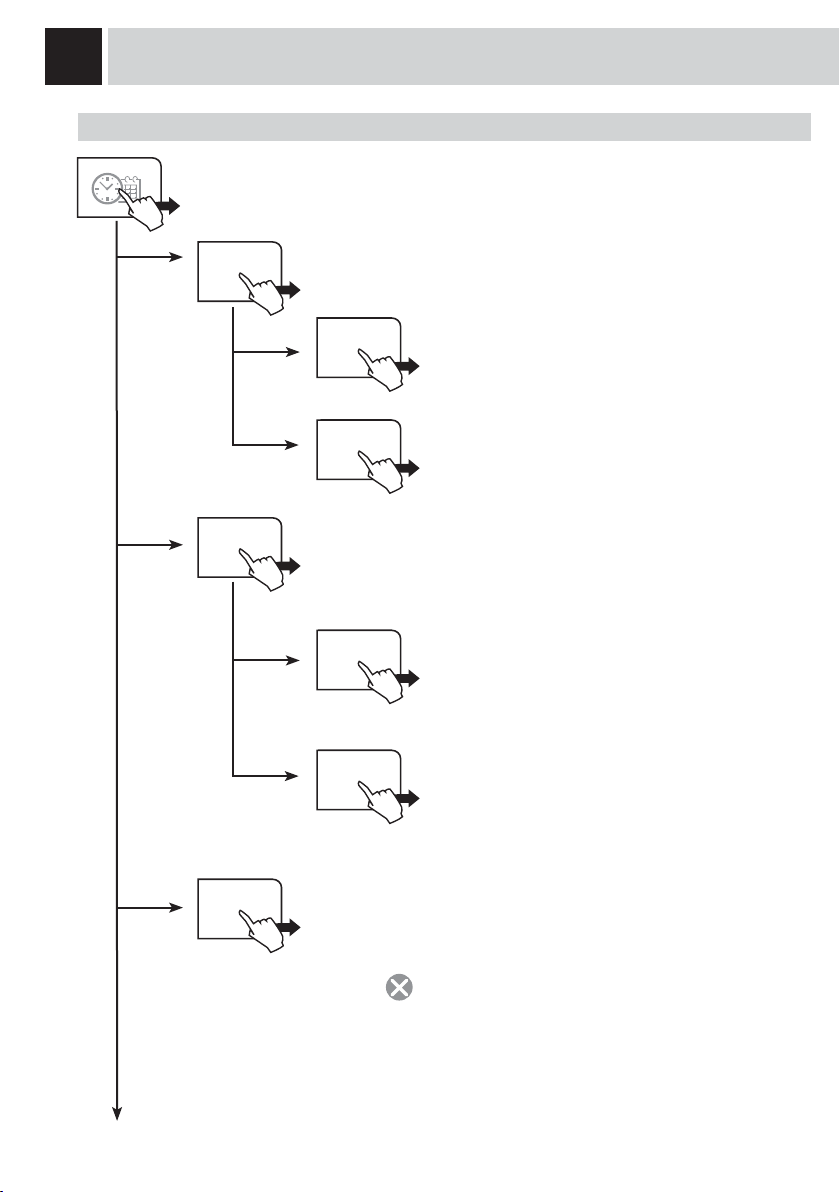

TIME/DATE SETTINGS................................................................................................................................................... |
24 |
|
|
SET CLOCK |
|
|
DATE SETTINGS |
|
|
STAND-BY SETTINGS |
|
|
MACHINE ON/OFF |
|

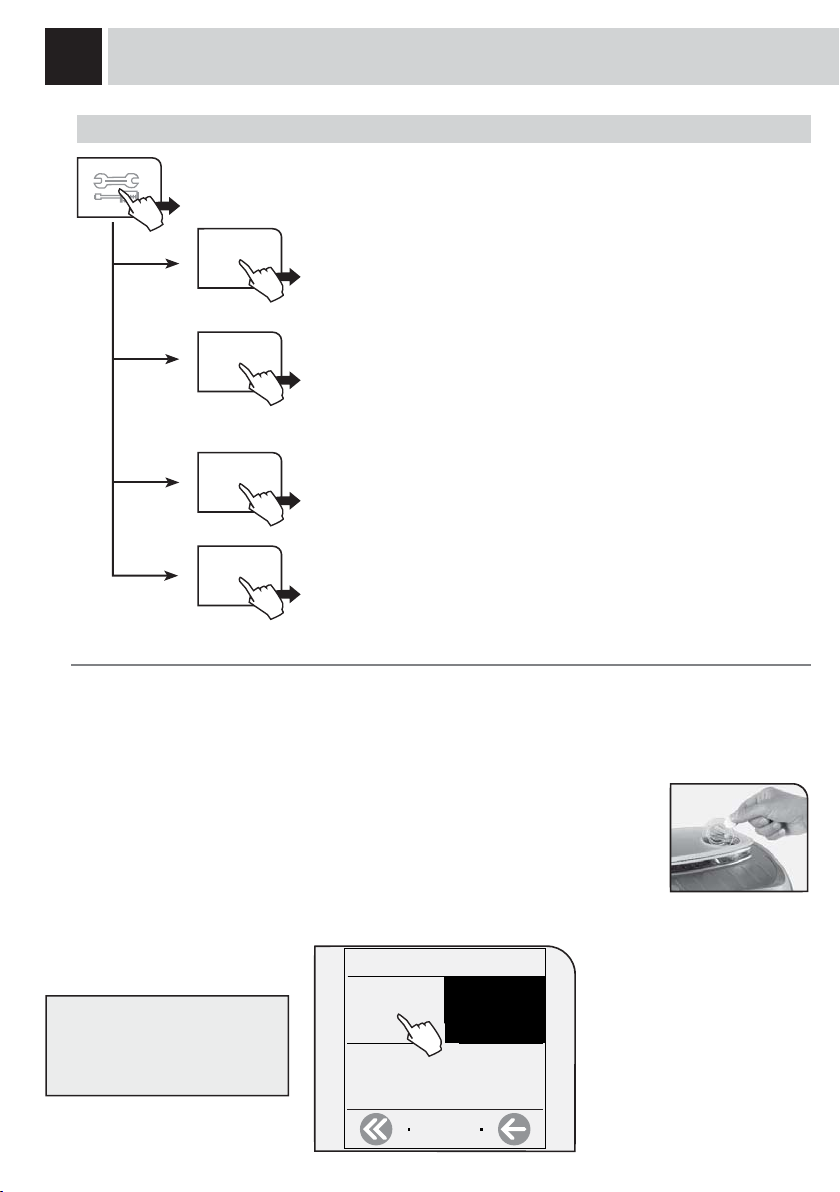

MAINTENANCE SETTINGS.............................................................................................................................................. |
26 |
|
|
PRODUCT COUNTERS |
|
|
CLEANING CYCLE |
|
|

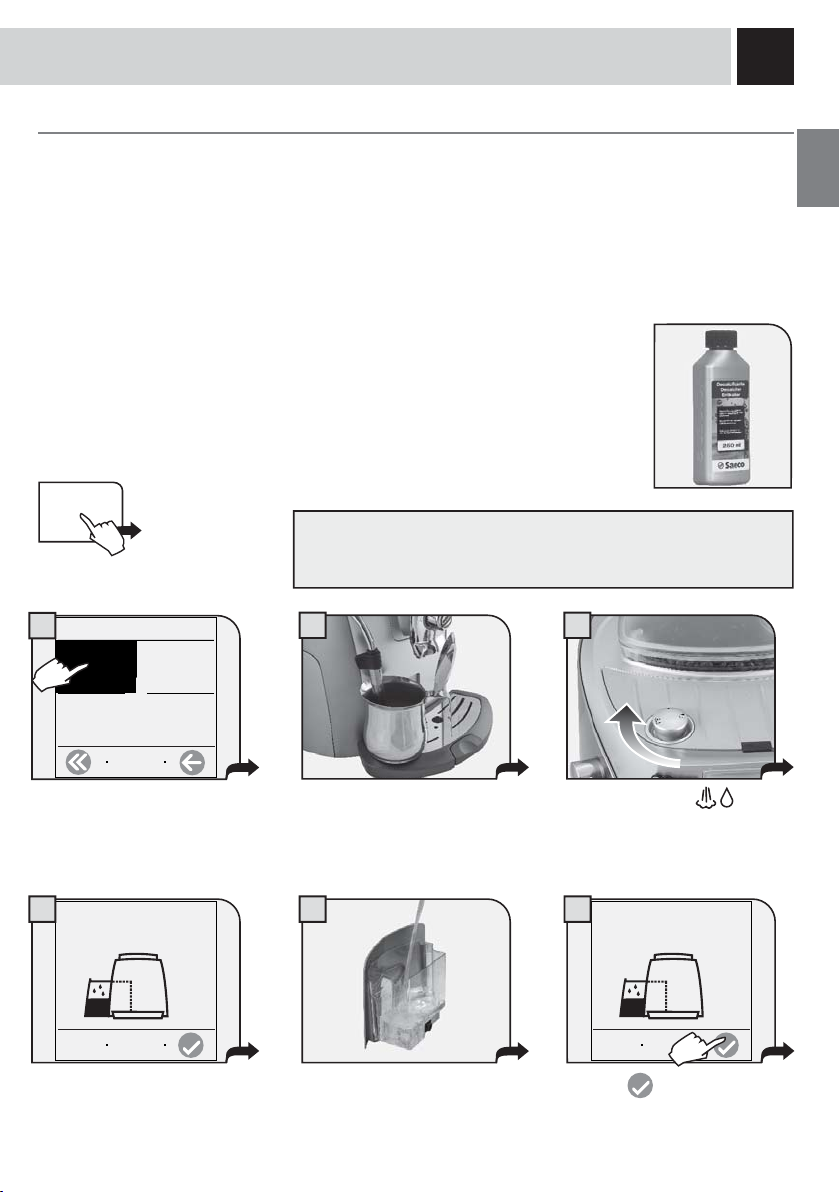

BOILER DESCALING CYCLE |
|
|
LOCK DISPLAY |
|

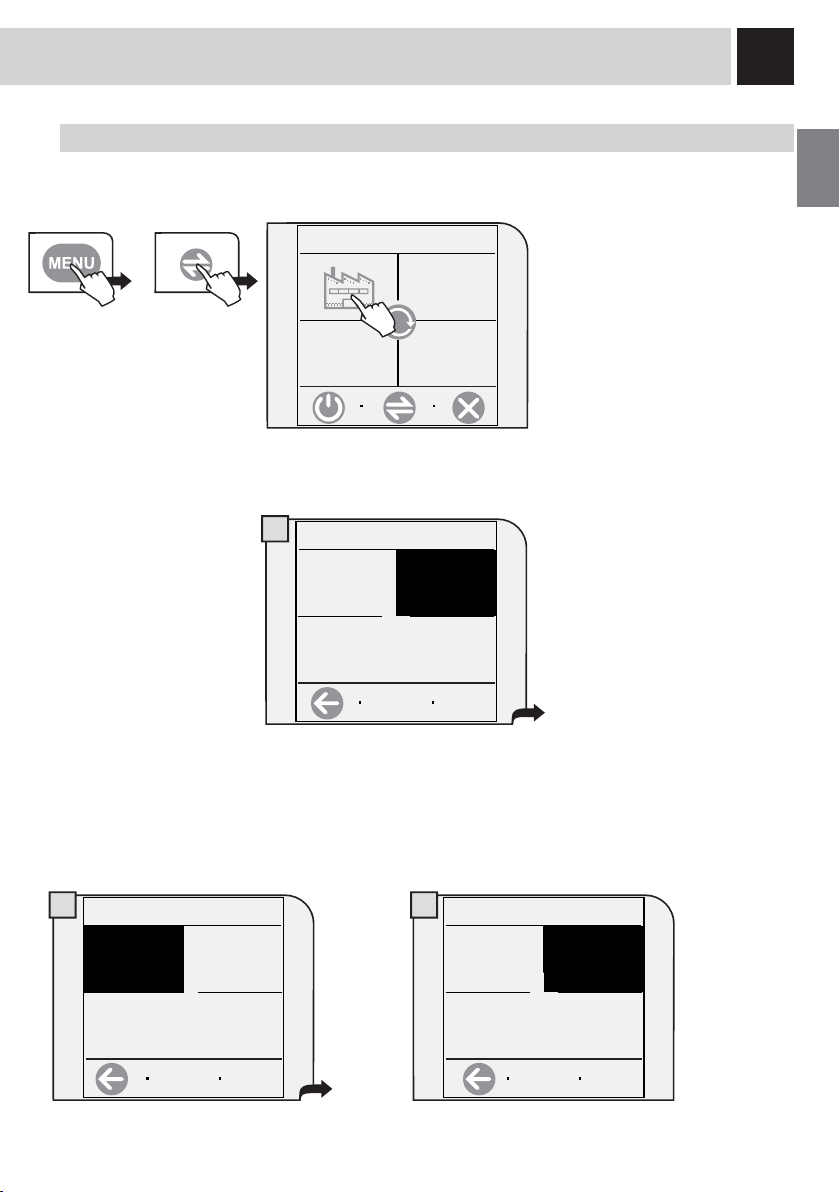

FACTORY SETTINGS ....................................................................................................................................................... |
29 |
|
CLEANING AND MAINTENANCE ............................................................................................................ |
30 |
|

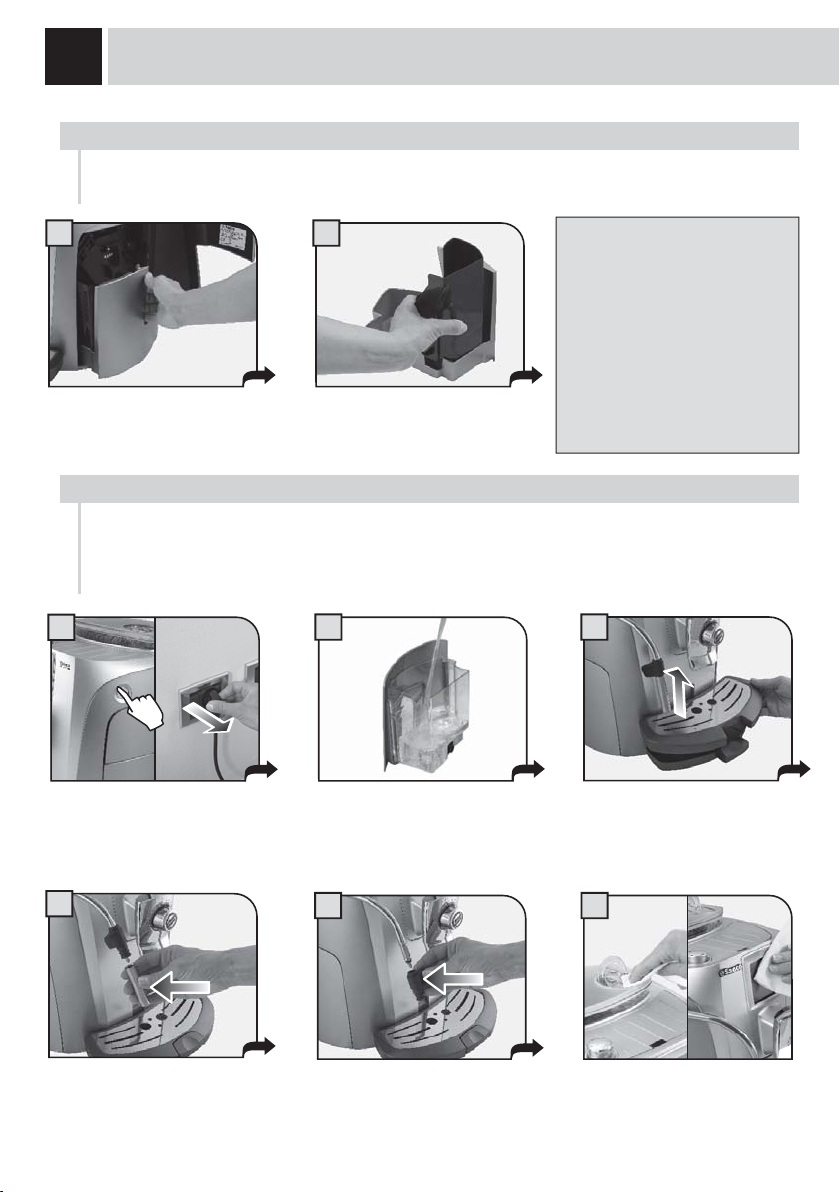

MAINTENANCE DURING OPERATION ................................................................................................................................. |
30 |
|
GENERAL MACHINE CLEANING ....................................................................................................................................... |
30 |
|

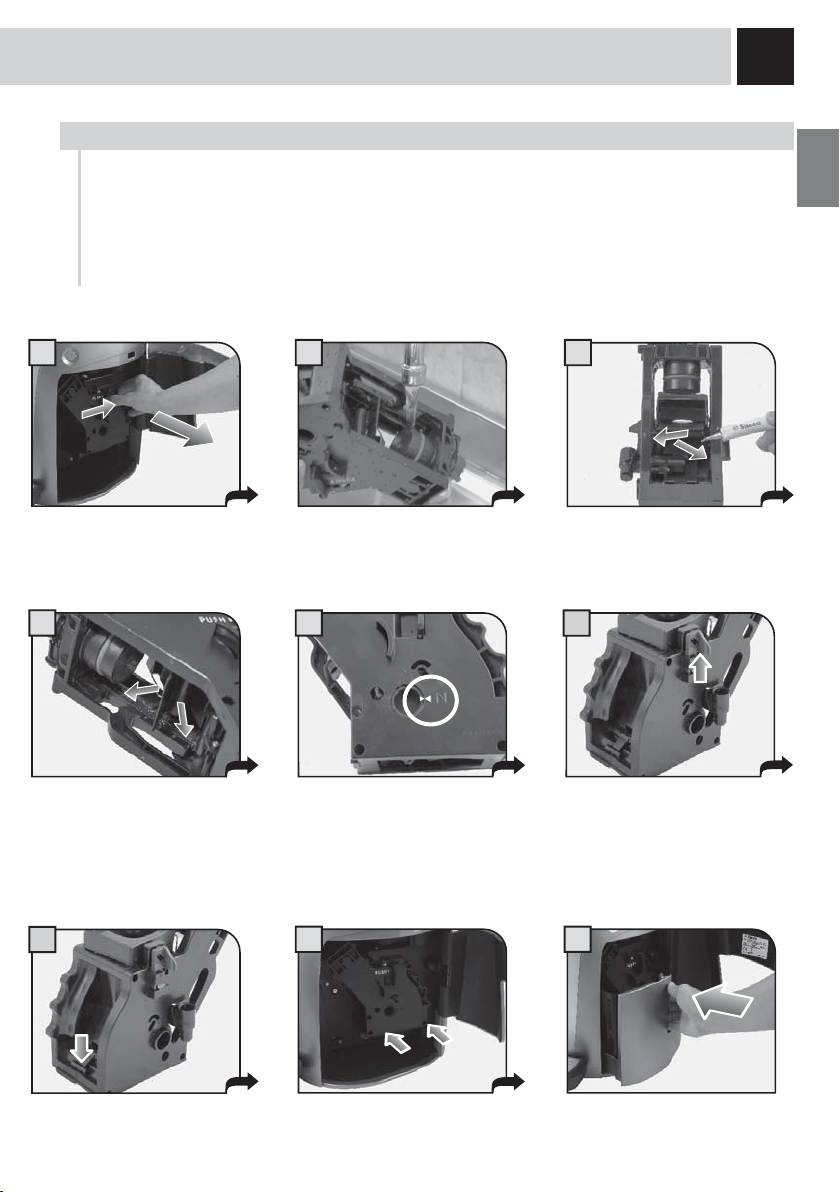

CLEANING THE BREW GROUP. ....................................................................................................................................... |
31 |
|

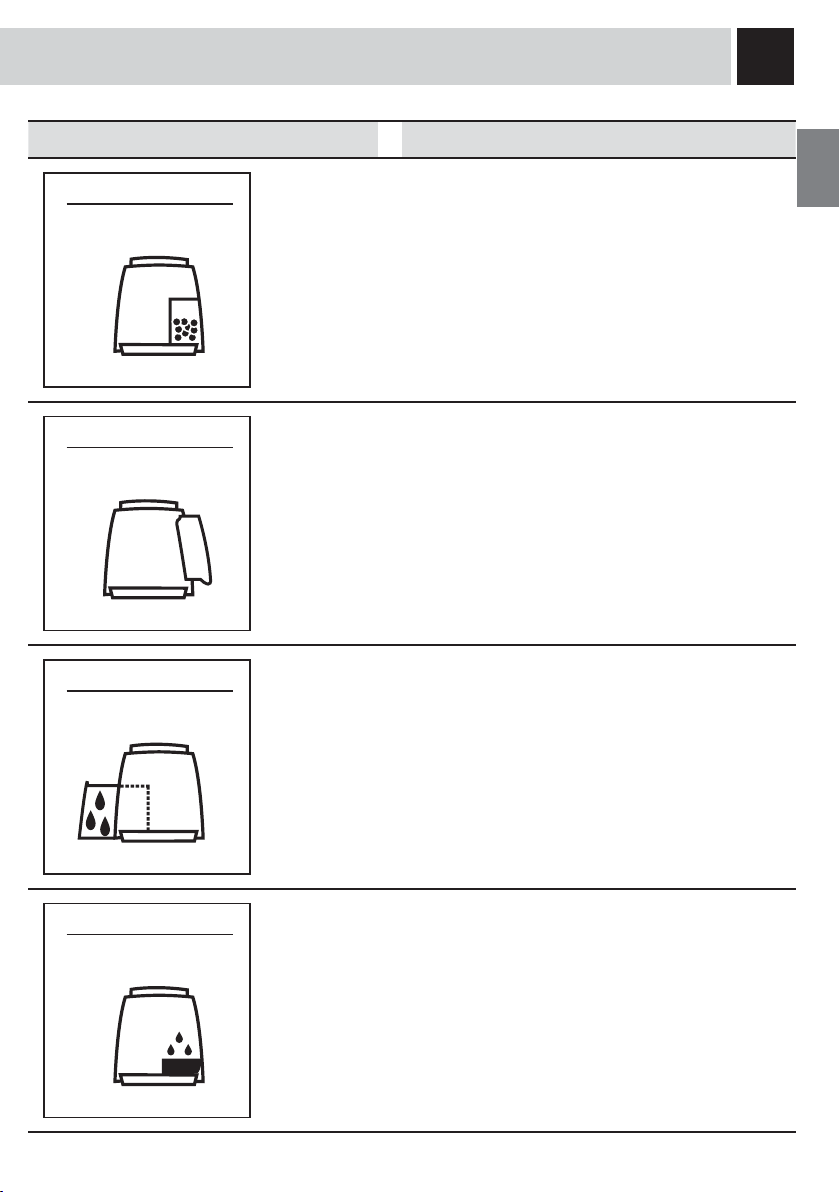

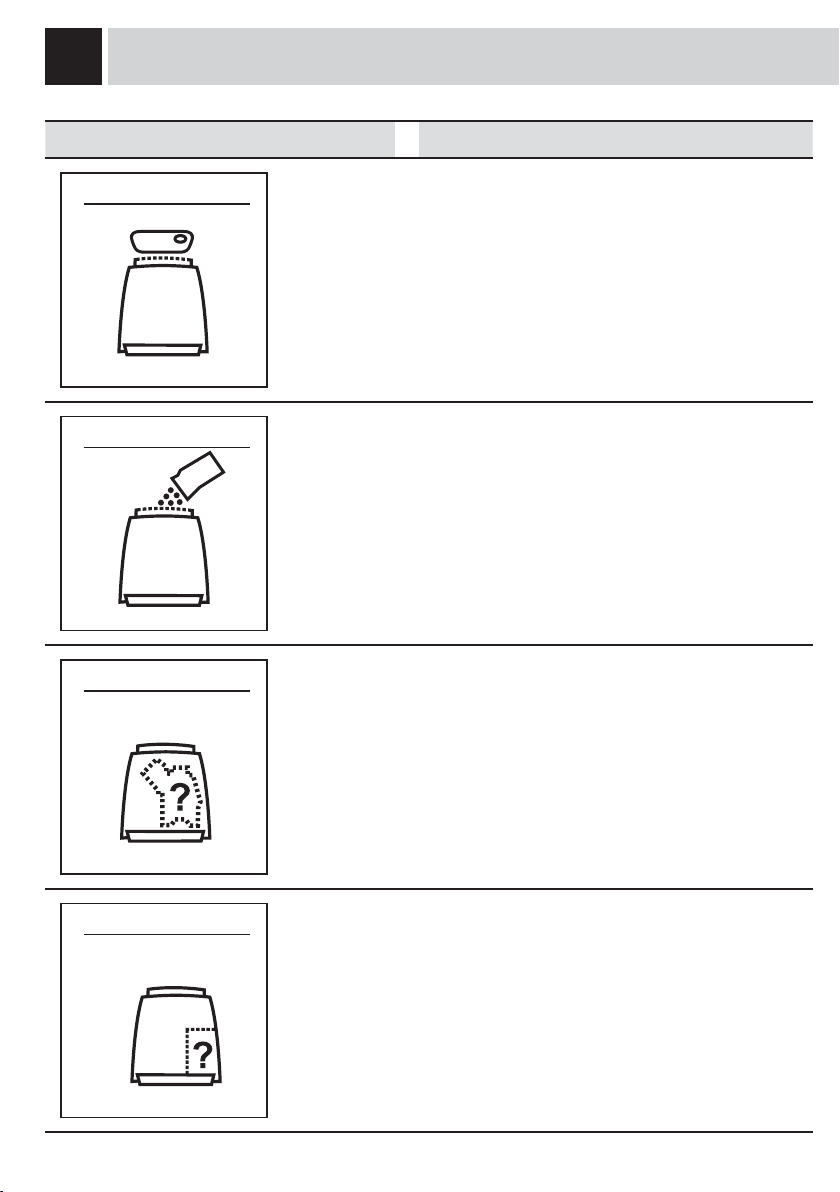

ERROR CODES ....................................................................................................................................... |
32 |

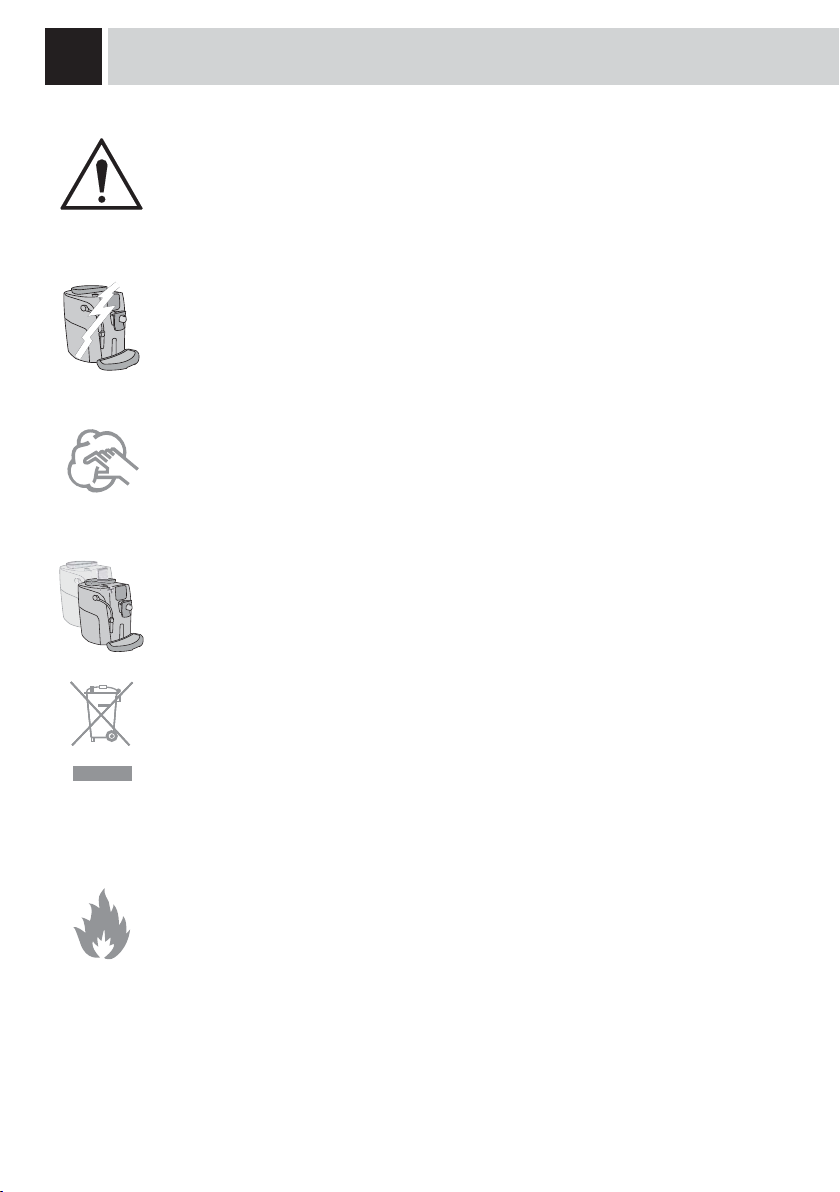

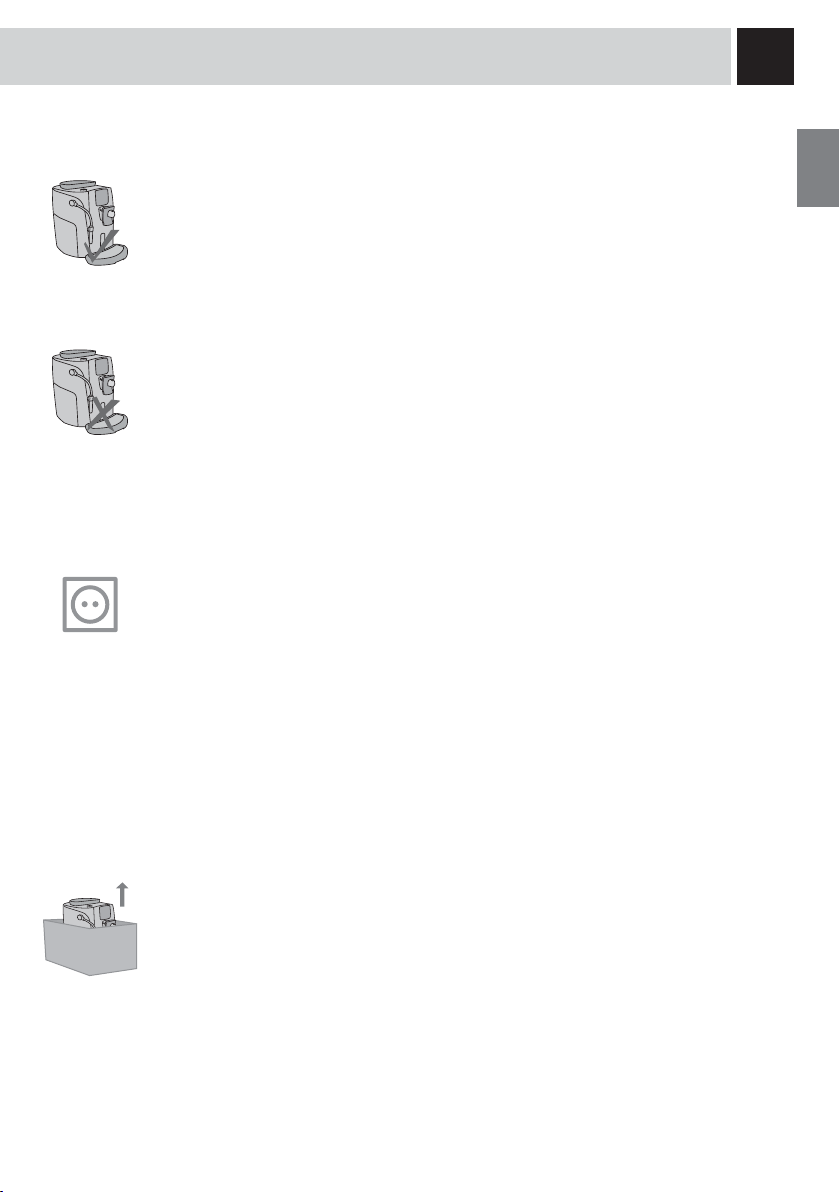

SAFETY RULES....................................................................................................................................... |
35 |
TECHNICAL DATA 3
GENERAL INFORMATION
This coffee machine is made for brewing espresso coffee using coffee beans, and it is equipped with a device to dispense steam and hot water.
The machine is designed for domestic use only, and is not suitable for heavy or professional use. Warning: no liability is assumed for any damage caused by:
•incorrect use not in accordance with the intended uses;
•repairs not carried out by authorized customer service centers;
•tampering with the power cord;
•tampering with any part of the machine;
•the use of non-original spare parts and accessories;
•failure to descale the machine or use at temperatures below 0°C (32°F)
IN THESE CASES, THE WARRANTY IS NOT VALID.
THE WARNING TRIANGLE INDICATES ALL IMPORTANT INSTRUCTIONS FOR THE USER’S SAFETY. PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO PREVENT SERIOUS INJURIES!
HOW TO USE THESE OPERATING INSTRUCTIONS.
Keep these operating instructions in a safe place and make them available to anyone else who may use the coffee machine. For further information or in case of problems, please refer to any authorized service center.
For Saeco customer service, call 1-800-933-7876 in the U.S., or 1-514-385-5551 in Canada.
TECHNICAL DATA
Nominal voltage Power rating Power supply Shell material Size (w x h x d) Weight
Cable length Control panel Water tank
Coffee bean hopper capacity Pump pressure
Boiler
Coffee grinder
Quantity of ground coffee Dregdrawer
Safety devices
See label on the appliance See label on the appliance See label on the appliance ABS - Thermoplastic
313 x 372 x 426 mm - 12.60 x 14.57 x 15.75 in 9 Kg - 19.8 lbs
1200 mm - 47.24 in Front
1.7 liters - 57.5 oz (removable)
250 grams - 8.9 oz of coffee beans
15 bar Stainless steel Ceramic
7 - 10.5 grams / 0.25 - 0.37 oz.
14 portions
Boiler pressure safety valve – Double safety thermostat.
Subject to engineering and manufacturing changes due to technological developments.
4APPLIANCE
Coffee bean hopper lid |
Pre-ground bypass doser |
|
|
||
Coffee bean hopper |
|
|
|
Cup warming surface |
|
Touch screen display |
Power button |
|
|
||
SBS dial |
Service door |
|
Dispensing head |
||
|
||
Drip tray + grill |
Dregdrawer |
|
Hot water / steam knob |
Brew group |
|
|
Button for raising/lowering the drip tray
Hot water / steam wand
Drip tray
Milk Island connection |
|
Water tank |
Socket for power cord |
ACCESSORIES
Intenza water filter |
Water hardness test strip |
|
Pre-ground coffee measuring scoop and grinder adjustment key
Lubricant for the brew group |
Power cord |
INSTALLATION 5
STARTING THE MACHINE
Make sure the power button is not pressed and the machine is turned off. Check the machine features on the label on the bottom of the appliance.
1 |
|
2 |
|
3 |
Remove the coffee bean hopper lid. Fill the hopper with coffee beans.
Close the lid pushing it down completely.
Remove the water tank. Install the water filter as recommended on page 7.
4 |
|
5 |
|
|
6 |
|
|
|
|
|
|
Fill the tank with fresh drinking water. Do not exceed the “max” level indicated on the water tank. Once filled, place the tank back into the machine.
Insert the plug into the socket located on the back of the machine and insert the other end into a power outlet with suitable current.
Place a container beneath the hot hot water / steam wand.
7
Press the main power button to the “ON” position.
When the correct temperature is reached, the machine performs a priming of the water circuit and a rinse cycle of the internal circuits. A small quantity of water is dispensed. Wait for this cycle to be completed automatically.
(See page 22 to enable/disable the rinse function.)
6INSTALLATION
SETTING THE LANGUAGE
When the machine is switched on for the first time, it requires the selection of the desired language. This allows you to adjust the parameters of the beverage to the typical parameters of the country where the machine is used. This is why some languages are differentiated also by country.
11.2.1.1.1 language
English |
italiano (it) |
Italiano (ch) |
Deutsch |
Select the desired language. If necessary, press the
key to display additional languages.
4 |
rinse |
|
When the correct temperature is reached, the machine performs a rinse cycle of the internal circuits.
2 |
1.2.1.1.1 language |
|
|
English |
italiano (it) |
|
Italiano (ch) |
Deutsch |
Press |
. |
|
5 |
rinse |
|
A small quantity of water is dispensed. Wait for this cycle to be completed automatically. Refer to page 22 to enable/disable the rinse function.
3warming up
Wait until the machine completes the warming phase.
6
8:30 am 15/06/06
The main screen for beverage selection appears on the display. Set the clock and the calendar of the machine as shown on page 24.
SETTING THE WATER HARDNESS
|
The test strip can only be used for one measurement. |
|
|
|
||
|
|
|
|
Intenza Aroma System |
|
|
1 |
|
2 |
|
C |
||
|
|
|
|
A |
B |
|
1 |
2 |
3 |
4 |
|
Machine water hardness setting |
||
Immerse the water hardness test strip in water for 1 second.
Check the water hardness value and set:
-the machine water hardness level (page 22);
-the Intenza Aroma System (page 7).
7
INTENZA WATER FILTER
To improve the quality of the water you use, and extend the life of your machine at the same time, it is recommended that you install the water filter. After installation, select the water filter function under the machine settings menu (see page 22). By setting the water filter status to ON, the machine informs the user when the filter must be replaced.
Remove the water filter from its packaging, immerse it vertically (with the opening facing upwards) in cold water and gently press its sides so as to let the air bubbles out.
1 |
|
2 |
|
3 |
Remove the small white filter from the tank and store it in a dry place sheltered from dust.
4
Fill the tank with fresh drinking water and re-insert it into the machine.
Set the Intenza Aroma System: A = Soft water
B = Medium water (standard) C = Hard water
5
Place a container beneath the hot water / steam wand.
Insert the filter in the empty tank. The reference mark and the groove must match. Push firmly until it is completely inserted.
6 |
1.2.4 water settings |
|
|
rinse |
water filter |
|
on |
|
|
water |
|
|
hardness |
|
|
3/4 |
|
Access the machine settings menu (see page 20 and 22). Press “water settings”. Press “water filter”.
7 |
1.2.4.2. water filter |
|
|
on |
off |
|
water |
|
|
lter |
|
Press “reload water filter”. |
||
8 Have you replaced the old water
filter with a new one?
Press the key to confirm and activate of the new water filter.
9
Turn the knob until the
position is reached. Water dispensing begins.
Once finished, the “close steam knob” message appears on the display. Turn the knob back to the rest position ( ). Fill the water tank if necessary.
The machine is now ready for use and the water filter is activated (see page 22).
NOTE: if the Intenza water filter is not used, insert the small white filter previously removed (see step 1) into the tank.

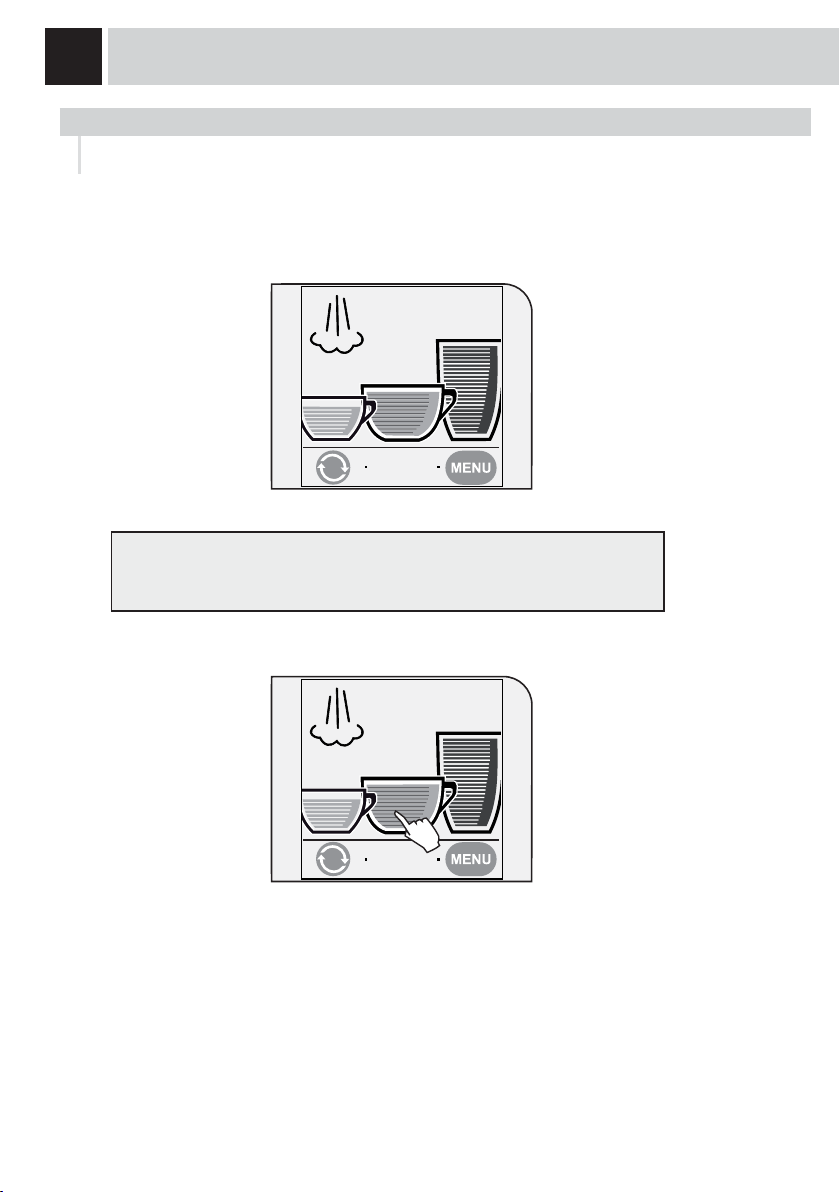

8CONTROL PANEL
It is possible to change the type of display to either icon format or text format.
ICON FORMAT
8:30 am 15/06/06
Switch to text format |
Enter the clock menu |
Enter the programming menu |
TEXT FORMAT
steam |
|
|
|
|
|
|
|
|
|
espresso |
|
coffee |
|
long |
|
|
|||
|
|
|
|
coffee |
mild |
|
medium |
|
strong |
|
|
|
|
|
|
|
8:30 am |
|
|
|
15/06/06 |
|
|
|
Switch to icon format
•To brew the desired coffee, press the corresponding symbol on the display. The machine automatically performs all the necessary operations.
•Press the icon twice to make 2 cups.
press twice
ADJUSTMENTS 9
AROMA OPTI-DOSE (ADJUSTS THE COFFEE DOSE PER CUP)
The color intensity of the icon indicates the aroma - the quantity of coffee to be ground for each beverage. The greater the quantity of coffee ground, the stronger the coffee will taste.
light |
medium |
strong |
pre-ground |
COFFEE STRENGTH
The SBS dial has been carefully designed to give your coffee the fullness and intensity you desire. Simply turn the dial, and you will notice that the coffee brewed will adjust to the setting selected.
SBS – SAECO BREWING SYSTEM
SBS adjusts the fullness of the brewed coffee. The coffee may even be adjusted while brewing. This adjustment has an immediate effect on the selected type of brewing.
MILD
COFFEE
MEDIUM
COFFEE
STRONG
COFFEE
10 ADJUSTMENTS
DRIP TRAY HEIGHT ADJUSTMENT
Adjust the drip tray to the appropriate cup size before selecting the beverage.
To raise the drip tray, press lightly on the lower part of the button. To lower the drip tray, press lightly on the upper part of the button. When the desired height is reached, release the button.
SAECO ADAPTING SYSTEM
Coffee is a natural product and its characteristics may change according to its origin, blend and roast. The Saeco coffee machine is equipped with a self-adjusting system that allows the use of all types of coffee beans available on the market (not including flavored or carmelized).
•The machine automatically adjusts itself in order to optimize the extraction of the coffee, ensuring perfect compression of the beans to obtain a creamy espresso coffee that is able to release all the aromas, regardless of the type of coffee used.
•The optimization process is a learning process that requires the brewing of a certain number of coffees to allow the machine to adjust the compactness of the ground coffee.
•Attention should be given to special blends, which require grinder adjustments in order to optimize the extraction of the coffee (see page 11).
Loading...
