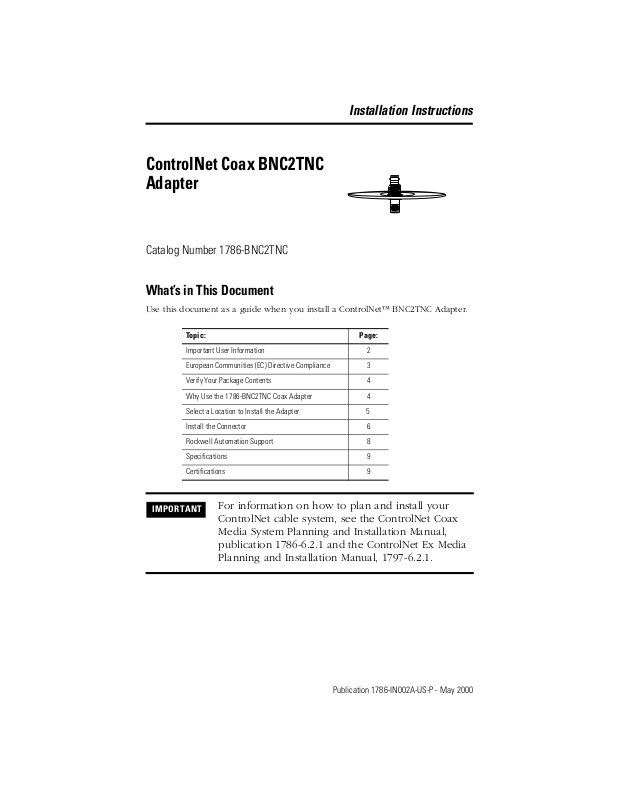

Installation Instructions
ControlNet Coax BNC2TNC Adapter
Catalog Number 1786-BNC2TNC
What’s in This Document
Use this document as a guide when you install a ControlNet™ BNC2TNC Adapter.
Topic: Page:
Important User Information 2
European Communities (EC) Directive Compliance 3
Verify Your Package Contents 4
Why Use the 1786-BNC2TNC Coax Adapter 4
Select a Location to Install the Adapter 5
Install the Connector 6
Rockwell Automation Support 8
Specifications 9
Certifications 9
IMPORTANT
For information on how to plan and install your
ControlNet cable system, see the ControlNet Coax
Media System Planning and Installation Manual,
publication 1786-6.2.1 and the ControlNet Ex Media
Planning and Installation Manual, 1797-6.2.1.
Publication 1786-IN002A-US-P - May 2000
2 ControlNet Coax BNC2TNC Adapter
ATTENTION
!
Important User Information
Because of the variety of uses for the products described in this publication, those
responsible for the application and use of this control equipment must satisfy
themselves that all necessary steps have been taken to assure that each application
and use meets all performance and safety requirements, including and applicable
laws, regulations codes and standards.
The illustrations, charts, sample programs and layout examples shown in this guide
are intended solely for purposes of example. Since there are many variables and
requirements associated with any particular installation, Rockwell Automation does
not assume responsibility or liability (to include intellectual property liability) for
actual use based upon the examples shown in this publication.
Allen-Bradley publication SGI-1.1, Safety Guidelines for the Application,
Installation, and Maintenance of Solid State Control (available from your local
Allen-Bradley office), describes some important differences between solid-state
equipment and electromechanical devices that should be taken into consideration
when applying products such as those described in this publication.
Reproduction of the contents of this copyrighted publication, in whole or in part,
without written permission of Allen-Bradley Company, Inc. is prohibited.
Throughout this document we use notes to make you aware of safety
considerations:
Attention statements help you to:
• identify a hazard
• avoid a hazard
• recognize the consequences
IMPORTANT
Identifies information that is critical for successful
application and understanding of the product.
Publication 1786-IN002A-US-P - May 2000
Identifies information about practices or
circumstances that can lead to personal injury or
death, property damage or economic loss.
ControlNet Coax BNC2TNC Adapter 3
European Communities (EC) Directive Compliance
If this product has the CE mark it is approved for installation within the European
Union and EEA regions. It has been designed and tested to meet the following
directives.
EMC Directive
This product is tested to meet the Council Directive 89/336/EC Electromagnetic
Compatibility (EMC) by applying the following standards, in whole or in part,
documented in a technical construction file:
• EN 50081-2 EMC — Generic Emission Standard, Part 2 — Industrial
Environment
• EN 5001082-2 EMC — Generic Immunity Standard, Part 2 — Industrial
Environment
This product is intended for use in an industrial environment.
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC Low Voltage, by
applying the safety requirements of EN 61131-2 Programmable Controllers, Part 2 Equipment Requirements and Tests.
For specific information required by EN 61131-2, see the appropriate section in the
following Allen-Bradley publications:
• Industrial Automation Wiring and Grounding Guidelines, publication
1770-4.1
• Automation Systems Catalog, publication B111
• ControlNet Coax Planning and Installation Guide, publication 1786-6.2.1
Publication 1786-IN002A-US-P - May 2000
4 ControlNet Coax BNC2TNC Adapter
Verify Your Package Contents
Be certain that you have these items before you discard any packing material.
D ring
BNC
lock washer
nut
If an item is missing or incorrect, contact your distributor or sales office.
TNC
adapter
Why Use the 1786-BNC2TNC Coax Adapter
Use the BNC2TNC Coax adapter to connect a BNC coax cable segment to a TNC
coax cable segment. With the adapter you can:
• isolate a segment
• install the adapter in a cabinet
• install the adapter in a wall
Publication 1786-IN002A-US-P - May 2000
ControlNet Coax BNC2TNC Adapter 5
ATTENTION
!
Select a Location to Install the Adapter
Use these guidelines to select where to install the adapter.
• There is no minimum or maximum space requirements between conversion
adapters.
• Be certain that the install location is convenient to route your cable.
• Inside enclosures that provide appropriate environmental isolation.
IMPORTANT
• Do not install the adapter in a position that routes the dropline cable over
any ac power terminals on nearby modules.
ControlNet is an isolated system, connectors and the
shield must not come in direct contact with me tal
enclosure or other ground equipment. This BNC2TNC
provides an isolation from ground when properly
installed.
Do not allow any metal portions of the tap, such as the
universal mounting bracket screws or connectors to contact
any conductive material. This contact could cause noise on
the network.
Publication 1786-IN002A-US-P - May 2000
6 ControlNet Coax BNC2TNC Adapter
Install the Connector
You can mount your ControlNet Coax BNC2TNC Adapter:
• to a cabinet mount
• through a wall
1. Determine the side for the BNC and TNC connections.
2. Center the connector in the drilled or punched hole.
3. With the hardware provided with the adapter, attach the adapter to the flat
surface.
Adapter Mount
Dimensions
17.2 mm
16.2 mm
Publication 1786-IN002A-US-P - May 2000
ML 22
31019
ControlNet Coax BNC2TNC Adapter 7
ATTENTION
!
4. Attach cables according to your network topology.
Harsh Environment
Enclosure
Sealed
ControlNet
Media
Sealed
ControlNet
Media
TNC
T-tap
IP67
Device
To Node
TNC
T-tap
TNC
TNC
TNC
BNC
BNC
BNC
1786-RPA
1786-RPCD
Standard ControlNet Media
Outside Enclosure
1786-RPA
1786-RPCD
1786-RPCD
1786-RPCD
REPEATER DUAL COPPER MODULE
REPEATER DUAL COPPER MODULE
1786-RPCD
REPEATER DUAL COPPER MODULE
1786-RPCD
1786-RPCD
1786-RPCD
REPEATER DUAL COPPER MODULE
1786-RPCD
1786-RPCD
1786-RPCD
REPEATER DUAL COPPER MODULE
REPEATER DUAL COPPER MODULE
1786-RPCD
Standard Controlnet Media
Inside Enclosure
1786-RPCD
REPEATER DUAL COPPER MODULE
REPEATER DUAL COPPER MODULE
1786-RPCD
1786-RPCD
1786-RPCD
Use only the hardware that we
provide with the connector. They are
the proper design and if you use
other hardware it can diminish the
integrity of your connection.
FLEX I/O
FLEX I/O
ACN
FLEX I/O
FLEX I/O
FLEX I/O
42347
Do not over tighten the hardware. You can damage the
adapter if you over tighten the hardware. Apply the torque at
0.2-0.4 N-m (1-2 ft.-lbs). Only use the hardware that we
provide with the BNC2TNC connector. If you substitute
hardware, we cannot guarantee the integrity of your network.
Publication 1786-IN002A-US-P - May 2000
8 ControlNet Coax BNC2TNC Adapter
Rockwell Automation Support
Rockwell Automation offers support services worldwide, with over 75 sales/support
offices, over 500 authorized distributors, and 260 authorized systems integrators
located throughout the United States alone, plus Rockwell Automation
representatives in every major country around the world. Contact your local
Rockwell Automation representative for:
• sales and order support
• product technical training
• warranty support
• support service agreements
Obtain Pre-Sales Product Support
If you need to contact Rockwell Automation for pre-sales product support, try one
of the following methods:
• Call your local Rockwell Automation representative
• Network Pre-sales support line, 1.440.646.3638 (3NET)
• Pre-Sales e-mail, RACle3net@ra.rockwell.com
Obtain Technical Product Support
If you need to contact Rockwell Automation for technical assistance, try one of the
following methods:
• Call your local Rockwell Automation representative
• Post-Sales Technical Support, 1.440.646.5800
• Fax Back system, 1.440.646.5436 (requires a touch-tone telephone)
• Web Linkshttp://www.ab.com — as a registered member, open to
http://www.ab.com/mem/technotes/techmain.html
Publication 1786-IN002A-US-P - May 2000
ControlNet Coax BNC2TNC Adapter 9
Specifications
The following table lists the specifications for the ControlNet BNC2TNC Adapter.
Environmental Specifications
Operating temperature -0 to 60°C (32 to 140°F)
Storage temperature -40 to 85°C (-40 to 185°F)
Relative humidity 5 to 95% noncondensing
Certifications
IP67 truck/tap connection When adapter is wired and locked on:
Class 1 Division 2
Publication 1786-IN002A-US-P - May 2000
ControlNet Coax BNC2TNC Adapter 10
Publication 1786-IN002A-US-P - May 2000
ControlNet Coax BNC2TNC Adapter 11
Publication 1786-IN002A-US-P - May 2000
ControlNet is a trademark of ControlNet International.
Publication 1786-IN002A-US-P - May 2000 PN 957259-81
© 2000 Rockwell International Corporation. Printed in the U.S.A.
