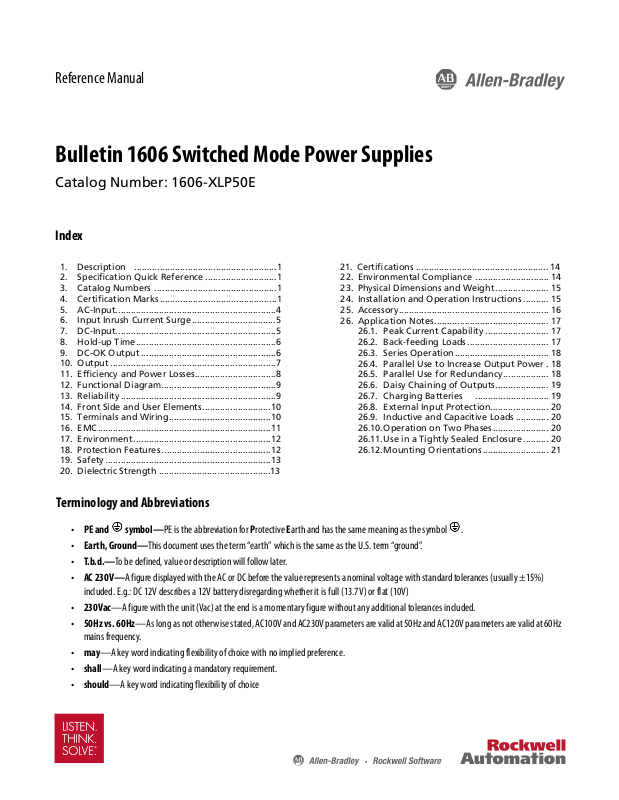

Reference Manual

1. Description ........................................................1

2. Specication Quick Reference

............................1

3. Catalog Numbers ................................................1

4. Certication Marks..............................................1

5. AC-Input...............................................................4

6. Input Inrush Current Surge .................................5

7. DC-Input...............................................................5

8. Hold-up Time.......................................................6

9. DC-OK Output .....................................................6

10. Output .................................................................7

11. Efciency and Power Losses................................8

12. Functional Diagram.............................................9

13. Reliability .............................................................9

14. Front Side and User Elements...........................10

15. Terminals and Wiring........................................10

16. EMC....................................................................11

17. Environment ......................................................12

18. Protection Features ...........................................12

19. Safety .................................................................13

20. Dielectric Strength ............................................13

21. Certications .................................................... 14

22. Environmental Compliance ............................. 14

23. Physical Dimensions and Weight ..................... 15

24. Installation and Operation Instructions .......... 15

25. Accessory........................................................... 16

26. Application Notes............................................. 17

26.1. Peak Current Capability ......................... 17

26.2. Back-feeding Loads ................................ 17

26.3. Series Operation ..................................... 18

26.4. Parallel Use to Increase Output Power . 18

26.5. Parallel Use for Redundancy .................. 18

26.6. Daisy Chaining of Outputs..................... 19

26.7. Charging Batteries ............................. 19

26.8. External Input Protection....................... 20

26.9. Inductive and Capacitive Loads ............. 20

26.10. Operation on Two Phases...................... 20

26.11. Use in a Tightly Sealed Enclosure .......... 20

26.12. Mounting Orientations.......................... 21

Bulletin 1606 Switched Mode Power Supplies

Catalog Number: 1606-XLP50E

Index

Terminology and Abbreviations

•PE and symbol—PE is the abbreviation for Protective Earth and has the same meaning as the symbol .

•Earth, Ground—This document uses the term “earth” which is the same as the U.S. term “ground”.

• T.b.d.—To be defined, value or description will follow later.

• AC 230V—A figure displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%)

included. E.g.: DC 12V describes a 12V battery disregarding whether it is full (13.7V) or flat (10V)

• 230Vac—A figure with the unit (Vac) at the end is a momentary figure without any additional tolerances included.

• 50Hz vs. 60Hz—As long as not otherwise stated, AC100V and AC230V parameters are valid at 50Hz and AC120V parameters are valid at 60Hz

mains frequency.

•may—A key word indicating flexibility of choice with no implied preference.

•shall—A key word indicating a mandatory requirement.

•should—A key word indicating flexibility of choice

Bulletin 1606 Switched Mode Power Supplies

Power Supply

AC 100-240V Wide Range Input
NEC Class 2 Compliant
Adjustable Output Voltage
Eciency up to 89%
Compact Design, Width only 45mm
Full Output Power Between -10°C and +60°C
DC-OK Signal Included
Large International Approval Package
DIN Rail Bracket for Wall or Panel Mount Included
3 Year Warranty

1. Description

2. Specication Quick Reference

Output voltage DC 24V
Adjustment range 24-28V
Output current 2.1–1.8A 24-28V

Output power 50W

Output ripple < 50mVpp 20Hz to 20MHz
Input voltage AC 100-240V Wide Range Input
Mains frequency 50-60Hz ±6%
AC Input current typ. 0.77 / 0.44A at 120 / 230Vac
Power factor typ. 0.56 / 0.52 at 120 / 230Vac
AC Inrush current 17 / 35A typ. peak value

at 120 / 230Vac

40°C and cold start
DC Input 85-375Vdc
Eciency typ. 88.4 / 89.0% at 120 / 230Vac
Losses typ. 6.6 / 6.2W at 120 / 230Vac
Temperature range -10°C to +70°C operational
Derating 1.3W/°C +60 to +70°C
Hold-up time typ. 35 / 190ms at 120 / 230Vac
Dimensions 45x75x91mm WxHxD

A compact size, light weight, simple mounting on
the DIN rail and the quick connect spring-clamp
terminals are what makes the 1606-XLP power
supplies so easy to use and install in seconds.

A rugged electrical and mechanical design as well as
a high immunity against electrical disturbances on
the mains provides reliable output power. This oers
superior protection for equipment connected
to the public mains network or exposed to a critical
industrial environment.

The 1606-XLP series oers output voltages from 5 to
56Vdc and a power rating of up to 100W. A DC-OK
signal allows remote diagnostics.

The supplementary decoupling diode
module 1606-XLPRED helps you build redundant
systems or protect against back-feed voltages.

3. Catalog Numbers

4. Certication Marks

Power Supply

1606-XLP50E

Standard unit

IND. CONT. EQ.

UL 508

UL 60950-1

Class I Div 2

Accessory 1606-XLPRED Decoupling /

Redundancy module

GL

Marine

EMC, LVD

Marine RINA

GOST R

C-Tick

•

•

•

•

•

•

•

•

•

•

2 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Bulletin 1606 Switched Mode Power Supplies

Intended Use

• This device is designed for installation in an enclosure and is intended for the general professional use such as in industrial control, office,
communication, and instrumentation equipment.

• Do not use this power supply in aircraft, trains, nuclear equipment or similar systems where malfunction may cause severe personal injury or
threaten human life.

Installation Requirements

• This device may only be installed and put into operation by qualified personnel.

• This device does not contain serviceable parts. The tripping of an internal fuse is caused by an internal defect.

• If damage or malfunction should occur during installation or operation, immediately turn power off and send unit to the factory for inspection.

• Mount the unit on a DIN rail so that the terminals are located on the bottom of the unit. For other mounting orientations, refer to derating

requirements in this document.

• This device is designed for convection cooling and does not require an external fan. Do not obstruct airflow and do not cover ventilation grid
(e.g. cable conduits) by more than 15%!

• Keep the following installation clearances: 40mm on top, 20mm on the bottom, 5mm on the left and right sides are recommended when the
device is loaded permanently with more than 50% of the rated power. Increase this clearance to 15mm in case the adjacent device is a heat
source (e.g. another power supply).

SHOCK HAZARD: Do not use the power supply without proper grounding (Protective Earth). Use the terminal on the input

block for earth connection and not one of the screws on the housing.

- Turn power off before working on the device. Protect against inadvertent re-powering

- Make sure that the wiring is correct by following all local and national codes

- Do not modify or repair the unit

- Do not open the unit as high voltages are present inside

- Use caution to prevent any foreign objects from entering the housing

- Do not use in wet locations or in areas where moisture or condensation can be expected

- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.

WARNING: EXPLOSION HAZARDS!

Substitution of components may impair suitability for this environment. Do not disconnect the unit or operate the voltage adjustment or S/P jumper unless
power has been switched off or the area is known to be non-hazardous.

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 3

Bulletin 1606 Switched Mode Power Supplies

5. AC-Input

AC input

nom. AC 100-240V Wide-range input, TN-, TT-, IT-Mains, see Fig. 5-1

AC input range

85-264Vac Continuous operation

60-85Vac Full power for 200ms, no damage between 0 and 85Vac

264-300Vac < 0.5s

Input frequency

nom. 50 – 60Hz ±6%
Turn-on voltage typ. 65Vac Steady-state value, see Fig. 5-1
Shut-down voltage typ. 55Vac Steady-state value, see Fig. 5-1

AC 100V AC 120V AC 230V

Input current

typ. 0.91A 0.77A 0.47A at 24V, 2.1A see Fig. 5-3.
Power factor *) typ. 0.58 0.56 0.52 at 24V, 2.1A see Fig. 5-1.
Crest factor **) typ. 3.05 3.26 3.91 at 24V, 2.1A
Start-up delay typ. 32ms 32ms 32ms See Fig. 5-2.
Rise time typ. 33ms 33ms 48ms 0mF, 24V, 2.1A, see Fig. 5-2.

typ. 45ms 45ms 60ms 2mF, 24V, 2.1A, see Fig. 5-2.
Turn-on overshoot

max. 400mV 400mV 400mV See Fig. 5-2.

*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.

**) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform

Fig. 5-1

Input voltage range

Fig. 5-2 Turn-on behavior, denitions

Turn-on

85V

Rated

input range

max.

500ms

V

IN

P

OUT

caV003V06

full

power

for

200ms

264V

Shut-down

Start-up

delay

Rise

Time

Overshoot

- 5%

Output
Voltage

Intput
Voltage

Fig. 5-3 Input current vs. output load Fig. 5-4 Power Factor vs. output load

2.1A

0.1

0.5 0.9

1.3

0

0.2

0.4

1.0A

Input Current, typ.

1.7

Output Current

0.6

0.8

a) 100Vac
b) 120Vac
c) 230Vac

b

c

a

2.1A

0.1

0.5 0.9

1.3

0.4

0.45

1.7

Output Current

0.5

0.55

0.6

0.65

Power Factor, typ.

a) 100Vac
b) 120Vac
c) 230Vac

b

c

a

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

4 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

Bulletin 1606 Switched Mode Power Supplies

6. Input Inrush Current Surge

A NTC limits the input inrush current after turn-on of the input voltage. The inrush current is input voltage- and
ambient temperature-dependent.

Inrush current max.

Inrush energy

Fig. 6-1

Input inrush current, typical behavior

typ.
typ.

AC 100V AC 120V AC 230V

18A

23A

peak

14A

17A

peak

0.3A2s 0.4A2s 1.5A

48A

peak

35A

peak

Fig. 6-2

Input inrush current, zoom into the rst peak

peak

peak

2

s 40°C ambient, cold start

40°C ambient, cold start
40°C ambient, cold start

Input: 230Vac
Output: 24V, 2.1A
Ambient: 40°C
Upper curve: Input current 20A / DIV
Middle curve: Input voltage 1000V / DIV
Lower curve: Output voltage 20V / DIV
Time scale: 20ms / DIV

Input: 30Vac
Output: 24V, 2.1A
Ambient: 40°C
Input current curve: 10A / DIV, 1ms / DIV

Ipeak 32.4A

The charging current into EMI suppression capacitors is
disregarded in the rst microseconds after switch-on.

7. DC-Input

Shut-down voltage typ. 58Vdc Steady state value

Battery

+

-

Fig. 7-1

Fuse

Power Supply

AC

internal

fused

L

N

PE

DC

Wiring for DC Input

Instructions for DC use:

a) Use a battery or similar DC source.
b) Connect +pole to L and – pole to N.

+

Load

-

c) Connect the PE terminal to a earth wire or

d) In case the – pole of the battery is not

%03+/%52- V092-011 CD .mon tupni CD

to the machine ground.

connected to earth, use an appropriate fuse
to protect the N terminal.

noitarepo suounitnoC cdV573-58 .nim egnar tupni CD

A1.2 dna V42 ta cdV003 / cdV011 A91.0 / A05.0 .pyt tnerruc tupni CD

eulav etats ydaetS cdV18 .pyt egatlov no-nruT

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 5

Bulletin 1606 Switched Mode Power Supplies

8. Hold-up Time

AC 100V AC 120V AC 230V

Hold-up Time typ. 54ms 82ms 360ms 1.05A, 24V, see Fig. 8-1
typ. 26ms 40ms 180ms 2.1A, 24V, see Fig. 8-1

Fig. 8-1 Hold-up time vs. input voltage Fig. 8-2 Shut-down behavior, denitions

0

20

40

100

120ms

85 120 155 190 230Vac

Input Voltage

Hold-up Time

60

80

a) 24V 1.05A typ.
b) 24V 1.05Amin.
c) 24V 2.1A typ.
d) 24V 2.1A min.

a b c d

- 5%

Hold-up Time

Zero Transition

Output
Voltage

Intput
Voltage

Note: At no load, the hold-up time can be up to several seconds. The green DC-ok lamp is also on at this time.

9. DC-OK Output

This feature monitors the output voltage, which is present on the output terminals.
The signal is a source output which can feed loads up to 30mA. Loads can be a 24V relay (Rcoil < 700Ohm), a LED or

the input of a PLC system. The relays operates or the LED is on if output voltage exceeds the threshold level.
A wheeling diode (necessary when the load is a relay) is already included in the power supply.

Threshold value 20V +/-4%
Output current min. 30mA For typical values see Fig. 9-2
Output voltage min Vout – 1V

at 30mA

The open collector is internally linked to the positive output pole. The
DC-OK voltage is approximately the output voltage if the output voltage
is higher than the threshold level.

Fig. 9-1 DC-ok wiring diagram

Fig. 9-2 Output characteristic DC-OK signal

+ +

DC

ok

- -

24-28V

N

L

DC-ok

Relay

LED

DC-OK Voltage

0

01020

4

8

12

28V

16

20

24

40m

25155 30 35

DC-OK Current

-

DC
OK

-

+

+

ML50

V

A

Load

Test Setup

6 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

A

10. Output

Output voltage

nom.

24V

Adjustment range

min.

24-28V Guaranteed

max. 30V At clockwise end position of potentiometer

Factory setting

24.5V

±0.2%,

at full load, cold unit

Line regulation

max. 10mV 85 to 264Vac
Load regulation max. 100mV Static value, 0A 2.1A 0A
Ripple and noise voltage

max. 50mVpp 20Hz to 20MHz, 50Ohm
Output capacitance typ. 1600μF
Output current nom. 2.1A At 24V, see

Fig. 10-1

nom. 1.8A

At 28V, see

Fig. 10-1

Output power nom. 50W
Short-circuit current min. 3.1A Load impedance 400mOhm, see

Fig. 10-1

max. 5A Load impedance 400mOhm, see

Fig. 10-1

Fig. 10-1 Output voltage vs. output current,

230Vac, typ.

Output Voltage

0

012

4

8

12

28V

16

20

24

4

2.51.50.5 33.5

Adjustment

Range

Output Current

Peak current capability (up to several ms)

The power supply can deliver a peak current which is higher than the specied short term current. This helps to start
current demanding loads or to safely operate subsequent circuit breakers.

The extra current is supplied by the output capacitors inside the power supply. During this event, the capacitors will
be discharged and cause a voltage dip on the output. Detailed curves can be found in section 27.1.

Peak current voltage dips typ. from 24V to 16V at 4.2A for 50ms, resistive load
typ. from 24V to 15V

at 10.5A for 2ms, resistive load

typ. from 24V to 10.5V

at 10.5A for 5ms, resistive load

A

Bulletin 1606 Switched Mode Power Supplies

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 7

Bulletin 1606 Switched Mode Power Supplies

11. Eciency and Power Losses

AC 100V AC 120V AC 230V

%5.78 .pyt ycneiciffE 88.4% 89.0% 2.1A, 24V

W 0A3.1 W7.0 W6.0 .pytPower losses
W 1.05A, 24V4.4 W1.4 W0.4 .pyt
W 2.1A, 24V2.6 W6.6 W2.7 .pyt

Fig. 11-1 Eciency vs. output current at 24V Fig. 11-2 Losses vs. output current at 24V

Eciency

0.3

76

78

80

82

84

86

88

74

90%

2.1

0.9 1.2 1.8

Output Current

0.6 1.5

a) 100Vac
b) 120Vac
c) 230Vac

b

c

a

Power Losses

1.23.00

0

1

3

4

5

6

8W

2

7

0.6 0.9 1.2

Output Current

1.5 1.8

a) 100Vac
b) 120Vac
c) 230Vac

a

b

c

a

b

c

Fig. 11-3 Eciency vs. input voltage, 24V, 2.1A Fig. 11-4 Losses vs. input voltage, 24V, 2.1A

Eciency

85 120 155 190 225 260

Va

c

85

86

87

88

Input Voltage

89

90

91%

Power Losses

5

6

7

8

Input Voltage

9W

85 120 155 190 225 260

Va

c

A

8 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

A

12. Functional Diagram

Fig. 12-1 Functional diagram

Input Fuse
&
Input Filter

L

N

Output Over-

Voltage

Protection

DC-OK

Transistor

Signal

Input
Rectier
&
Inrush
Limiter

Power

Converter

Output

Voltage

Regulator

+

+

-

-

Output

Filter

V

OUT

DC
ok

DC-ok
Signal

13. Reliability

These units are extremely reliable and use only the highest quality materials. the number of critical components such
as electrolytic capacitors has been reduced.

AC 100V AC 120V AC 230V

Lifetime expectancy min. 34,000h 44,000h 54,000h 40ºC, 24V 2.1A
min. 112,000h 117,000h 111,000h 40ºC, 24V, 1.05A
min. 96,000h 125,000h 152,000h 25ºC, 24V, 2.1A

MTBF SN 29500, IEC 61709 2,383,000h 2,456,000h 2,613,000h 40°C, 24V, 2.1A
3,977,000h 4,100,000h 4,362,000h 25ºC, 24V, 2.1A

MTBF MIL HDBK 217F 1,021,000h 1,053,000h 1,120,000h 40ºC, 24V, 2.1A, Ground Benign GB40
1,370,000h 1,413,000h 1,503,000h 25ºC, 24V, 2.1A, Ground Benign GB25

The Lifetime expectancy shown in the table indicates the operating hours (service life) and is determined by the
lifetime expectancy of the built-in electrolytic capacitors.

Lifetime expectancy is specied in operational hours. Lifetime expectancy is calculated according to specications
from the manufacturer of the capacitor. The prediction model allows a calculation of up to 15 years from shipping date.

MTBF stands for Mean Time Between Failures; it is calculated according to statistical device failures and indicates
reliability of a device. It is the statistical representation of the likelihood of failure of a unit and does not necessarily
represent the life of a product.

Bulletin 1606 Switched Mode Power Supplies

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 9

Bulletin 1606 Switched Mode Power Supplies

14. Front Side and User Elements

Fig. 14-1 Front side

DC-OK LED (green)

On when the voltage at the
output terminals is > 20 V

DC-OK LED and DC-OK signal
functions are synchronized

Output Voltage
Potentiometer

Turn to set the output voltage.
Factory set: 24.5V

Input Terminals

Output & Signal Terminals

Spring-clamp terminals
Dual terminals per pole

+ Positive output

- Negative (return) output

Dual pins per pole
DC-OK Open collector output
Indicates an output
voltage higher than
20Vdc

Spring-clamp terminals

N … Neutral input
L … Line (hot) input

... PE (Protective Earth) input

15. Terminals and Wiring

All terminals are easy to access when mounted on the panel. Input and output terminals are separated from each
other (input below, output above) to help in error-free wiring. Mounting and wiring do not require a screwdriver.

2

mm4-3.0 eriw diloS

2

mm5.2-3.0 eriw dednartS

American wire gauge 26-12 AWG

Wire stripping length 6mm / 0.25inch

Fig. 15-1 Connecting a wire

(according to UL486E)

deriuqer ton tub ,dewollA selurreF

Instructions:

a) Use appropriate copper cables
b) Follow local and national installation codes and

c) Ensure that all strands of a stranded wire enter

d) Do not use the unit without PE connection.

slanimret pmalc-gnirps tcennoc-kciuQ epyT

N04:GWA61 ,N05:GWA41 ,N06:GWA21 ecrof tuo-lluP

regulations!

the terminal connection!

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

10 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

Bulletin 1606 Switched Mode Power Supplies

16. EMC

The CE mark indicates conformance with EMC guideline 89/336/EEC, 93/68/EEC and the low-voltage directive (LVD)
73/23/EWG.

EMC Immunity

Electrostatic discharge EN 61000-4-2 Contact discharge

Electromagnetic RF eld EN 61000-4-3 80MHz-1Ghz 10V/m Criterion A

Fast transients (Burst) EN 61000-4-4 Input lines 4kV Criterion A

Surge voltage on input EN 61000-4-5 L

Surge voltage on output EN 61000-4-5 +

Conducted disturbance EN 61000-4-6 0,15-80MHz 10V Criterion A

Mains voltage dips EN 61000-4-11 0% of 100Vac

Input voltage swells Rockwell Automation internal standard

Powerful transients VDE 0160 over entire load

Criteria:
A: Power supply shows normal operation behavior within the dened limits.
C: Temporary loss of function is possible. Power supply might shut-down and restarts by itself. The power supply will incur no

damage or hazard.

EMC Emission

Conducted emission EN 55011, EN 55022, FCC Part 15, CISPR 11, CISPR 22 Class B, input lines

Voltage uctuations, icker dellifluF 3-3-00016 NE

This device complies with FCC Part 15 rules.
Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) THIS
device must accept any interference received, including interference that may cause undesirable operation.

Switching frequency

EN 61000-6-2, EN 61000-6-1

Air discharge

Output lines

N

N / L

PE

­ PE

+ / -

40% of 100Vac
70% of 100Vac
0% of 200Vac
40% of 200Vac
70% of 200Vac

range

variable, typ. 100kHz, (60-275kHz) Input voltage and output load dependent

Generic standards

8kV
8kV

2kV Criterion A
2kV

4kV
500V

500V

0Vac, 20ms
40Vac, 200ms
70Vac, 500ms
0Vac, 20ms
80Vac, 200ms
140Vac, 500ms

750V, 1.3ms Criterion A

B ssalC 22055 NE ,11055 NE noissime detaidaR

dellifluF 2-3-00016 NE tnerruc tupni cinomraH

Criterion A
Criterion A

Criterion A
Criterion A

Criterion A
Criterion A

Criterion A
Criterion C
Criterion A
Criterion A
Criterion A
Criterion A

sdradnats cireneG 4-6-00016 NE ,3-6-00016 NE

senil tuptuo ,B ssalC 22055 NE

C noiretirC sm0005 ,caV0 Voltage interruptions EN 61000-4-11

A noiretirC sm005 ,caV003

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 11

Bulletin 1606 Switched Mode Power Supplies

17. Environment

Operational temperature -10°C to +70°C (14°F to 158°F) Reduce output power according to Fig. 17-1

Fig. 17-1

ees ,)F°851 ot F°041( C°07-06 C°/W3.1 gnitar-ed tuptuO

tneibma ro rewop tuptuo ecudeR )tf00002 ot 0( m0006 ot 0 edutitlA

m0006 ot m0002 morf sedutitlA II

evitcudnoc non ,30126 CEI ,87105 NE 2 noitullop fo eergeD

Storage temperature -40 to +85°C (-40°F to 185°F) Storage and transportation

Vibration sinusoidal 2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g

2 hours / axis

sm11 g01 ,sm6 g02 kcohS

3 bumps / direction, 18 bumps in total

Do not energize while condensation is present
IEC 60068-2-6

IEC 60068-2-27

03-2-86006 CEI .H.r %59 ot 5 ytidimuH

temperature above 2000m sea level.

Output de-rating (for altitude) 3W/1000m or 5°C/1000m Above 2000m (6500ft), see Fig 17-2

05 NE III yrogetac egatlov-revO 178, IEC 62103 al titudes < 2000m

Fig. 17-1 Output current vs. ambient temp. Fig. 17-2 Output current vs. altitude, 24V

Allowable Output
Current at 24V

2.4A

2.0

1.6

1.2

0.8

0.4

0

-10 0 20 40

Ambient Temperature

60

70° C

The ambient temperature is dened 2cm below the unit.

Allowable Output
Current at 24V

2.4A

2.0

1.6

1.2

0.8

0.4

.

A

.

.

a

T

b

m

<

B

.

.

C

.

.

0

0 2000 4000

6

.

a

T

b

m

5

<

.

a

T

b

m

4

<

C

B

A

°

0

C

0

C

°

C

°

0

Altitude

6000m

18. Protection Features

Output protection Electronically protected against overload, no-load and short-circuits.
Output over-voltage protection typ. 36V

max. 39V

Output over-current protection electronically limited see Fig. 10-1
Degree of protection IP 20 EN/IEC 60529
Penetration protection > 2.5mm in diameter E.g. screws, small parts
Over-temperature protection not included
Input transient protection MOV Metal Oxide Varistor
Internal input fuse T3.15A H.B.C. Not user replaceable

Note: In case of a over-voltage, overload, no-load or short-circuit event, an audible noise may be heard.

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

12 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

In case of an internal power supply fault, a redundant
circuit limits the maximum output voltage. The output
shuts down and automatically attempts to restart.

Bulletin 1606 Switched Mode Power Supplies

19. Safety

Input / output separation SELV IEC/EN 60950-1

14-4-46306 CEI ,30126 CEI ,87105 NE ,1-40206 NE VLEP

nier ro elbuod forced insulation

deriuqer noitcennoc )htraE ev

itcetorP( EP I noitcetorp fo ssalC
Isolation resistance > 5MOhm input to output, 500Vdc
Touch current (leakage current) typ. 0.12mA 100Vac, 50Hz, TN mains

sniam NT ,zH06 ,caV021 Am71.0 .pyt
sniam NT ,zH05 ,caV032 Am92.0 .pyt
sniam NT ,zH05 ,caV011 Am61.

0 <

sniam NT ,zH06 ,caV231 Am32.0 <
sniam NT ,zH05 ,caV462 Am04.0 <

20. Dielectric Strength

Fig. 20-1 Dielectric strength

A B C

Type test 60s 2500Vac 3000Vac 500Vac
Factory test 5s 2500Vac 2500Vac 500Vac
Field test 5s 2000Vac 2000Vac 500Vac

A

C

N

L

Input

Earth, PE

B

Output

-

+

DC­Ok

Type tests and factory tests:
Conducted by the manufacturer. Do not repeat test in eld!
Rules for eld test:
Use appropriate test equipment which applies the voltage
with a slow ramp! Connect L and N together as well as all
output poles.

The output voltage is oating and had no ohmic connection to ground.
To fulll the PELV requirements according to EN60204-1 § 6.4.1, it is recommended that either the + pole, the - pole

or any other part of the output circuit be connected to the protective earth system. This helps to avoid
situations in which a load starts unexpectedly or cannot be switched o in the occurence of unnoticed earth faults.

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 13

Bulletin 1606 Switched Mode Power Supplies

21. Certications

UL 508

IND. CONT. EQ.

LISTED as Industrial Control Equipment E198865

UL 60950-1

RECOGNIZED E168663 recognized for use in the U.S.A. (UL 60950-1) and Canada
(C22.2 No. 60950). Information Technology Equipment, Level 3

NEC Class 2

Listed as Limited Power Source (LPS) in the UL 60950-1 UL report.

ISA 12.12.01, CSA

C22.2 No. 213

RECOGNIZED UNDER FILE NUMBER E244404 for use in the U.S.A. (ISA 12.12.01)
and Canada (C22.2 No. 213)
Hazardous Location Class I, Div. 2, Groups A, B, C, D

Marine GL

GL

GL (Germanischer Lloyd) classied for marine and oshore applications.
Environmental category: C, EMC2. See below for link to Certicate.

SEMI F47

SEMI F47-0706 Voltage Sag Immunity Compliance. See below for link to
Certicate.

EN 60950-1,
EN 61204-3

Complies with CE EMC and CE Low Voltage Directives

Marine RINA

RINA (Registro Italiana Navale) certied. See below for link to Certicate.

GOST R

GOST R certication is applicable for products intended for sale and use
within Russia. See below for link to Certicate.

C-TICK

C-tick compliance is for products intended for sale and use within the
Australian market. See below for the link to the C-Tick Declarations
of Conformity.

22. Environment Compliance

Electrolytic capacitors included in this unit do not use electrolytes such as Quaternary Ammonium Salt Systems.

Plastic housings and other molded plastic materials are fre e of halogens, wires and cables are not PVC insulated.

The unit conforms to the RoHS directive 2002/96/EC

The materials used in our production process do not include the following toxic chemicals:
Polychlorinated Biphenyl (PCB), Pentachlorophenol (PCP), Polychlorinated naphthalene (PCN), Polybrominated
Biphenyl (PBB), Polybrominated Biphenyl Oxide (PBO), Polybrominated Diphenyl Ether (PBDE), Polychlorinated
Diphenyl Ether (PCDE), Polybrominated Diphenyl Oxide (PBDO), Cadmium, Asbestos, Mercury, Silica

Product certification information (including Certificates and Declarations of Conformity) can be found at www.ab.com/certifications.

14 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Bulletin 1606 Switched Mode Power Supplies

23. Physical Dimensions and Weigth

Weight 240g / 0.53lb
DIN Rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.

The DIN rail height must be added to the de pth (91mm) to calculate the total required
installation depth.

Fig. 23-1 Front view Fig. 23-2 Side view

24. Installation and Operation Instructions

Mounting:

Output terminal must be located on top and input terminal on the bottom. For other orientations, see section 26-12.
An appropriate electrical and re end-product enclosure should be considered in the end use application.

Cooling:

Convection cooled, no forced cooling required. Do not cover ventilation grille (e.g. cable conduits) by more than 30%!

Installation clearances:

25mm on top and bottom.

Risk of electrical shock, re, personal injury or death!

Do not use the unit without proper ground connection (Protective Earth).
Turn power o before working on the power supply. Protect against inadvertent re-powering.
Make sure the wiring is correct by following all local and national codes.
Do not open, modify or repair the unit.
Use caution to prevent any foreign objects from entering into the housing.
Do not use in wet locations or in areas where moisture or condensation is likely to occur.

Service parts:
The unit does not contain any service parts. The tripping of an internal fuse is caused by an internal fault. Should
damage or malfunction occur during operation, turn power o immediately and return the unit to the factory for
inspection!

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 15

Bulletin 1606 Switched Mode Power Supplies

25. Accessory

DIN Rail bracket for wall or panel mount

A DIN rail bracket is included in each shipping box.

1606-XLPRED Dual decoupling module 2x5A

Fig. 25-2 1606-XLPRED Dual Decoupling Module

Fig. 25-1 DIN Rail Bracket Dimensions

Hole diameter: 4.2mm

Fig. 25-3

Redundant System with two 1606-XLP50E

and one 1606-XLPRED

PS1 ok PS2 ok

DC

- -

+ +

ok

adj.

1606­XLP50E

L N

II

L
N

+ +

adj.

1606­XLP50E

L N

DC

- -

ok

+-+

VIN 1

XLPRED

V

+ +

-

VIN 2

Load

OUT

- -

-

+

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

16 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

Bulletin 1606 Switched Mode Power Supplies

26. Application Notes

26.1. Peak Current Capability

Solenoids, contactors and pneumatic modules often have a steady state (sealed) coil and a pick-up coil. The inrush
current demand of the pick-up coil is several times higher than the steady state curre nt and usually exceeds the
nominal output current. The same situation applies when starting a capacitive load.

Branch circuits are often protected with circuit breakers or fuses. In case of a short or an overload in the branch
circuit, the protective device (fuse, circuit breaker) needs a certain amount of over-current to trip or to blow. The
peak current capability ensures the safe operation of subsequent circuit breakers.

Assuming the input voltage is turned on before such an event, the built-in large sized output capacitors inside the
power supply can deliver extra current. Discharging this capacitor causes a voltage dip on the output. The following
examples show typical voltage dips:

Fig. 26-1 Peak load 4.2A for 50ms, typ. Fig. 26-2 Peak load 10.5A for 5ms, typ.

16V

Output
Current

Output
Voltage

24.0V

t

u

p

t

u

e

g

O

a

t

l

10.5A

0A

1ms/DIV

Peak load 10.5A (resistive) for 5ms

Output voltage dips from 24V to 10.5V.

V

10.5V

Output
Current

o

24.0V

4.2A

0A

10ms/DIV

Peak load 4.2A (resistive) for 50ms

Output voltage dips from 24V to 16V.

26.2. Back-feeding Loads

Loads such as decelerating motors and inductors can feed voltag e back to the power supply. This feature is also called
return voltage immunity or resistance against Back-EMF (Electro Magnetic Force).

This power supply is resistant and does not show malfunction when a load feeds back voltage to the power
supply. It does not matter, whether the power supply is on or o.

The maximum allowed feed back voltage is 35Vdc. The absorbing energy can be calculated according to the built-in
large sized output capacitor which is specied in section 10.

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 17

Bulletin 1606 Switched Mode Power Supplies

26.3. Series Operation

The power supply can be put in series to increase the output voltage.

Fig. 26-3 Schematic for series operation

Instructions for use in series:

Earth

Unit A

AC

DC

Unit B

AC

DC

-

+

-

+

Load

+

-

a) It is possible to connect as many units in series as needed,

providing the sum of the output voltage does not exceed
150Vdc.

b) Voltages with a potential above 60Vdc are no longer SELV

and can be dangerous. Such voltages must be installed

with a protection against touching.
c) For serial operation use power supplies of the same type.
d) Earthing of the output is required when the sum of the

output voltage is above 60Vdc.

Note:

Avoid return voltage (e.g. from a decelerating motor or

battery) which is applied to the output terminals.

26.4. Parallel Use to Increase Output Power

Several power supplies can be paralleled to increase the output power. The 1606-XLP50E does not include a feature
to balance the load current between the power supplies. Usually the power supply with the higher adjusted output
voltage draws current until it goes into current limitation. This causes no harm to the power supply as long as the
ambient temperature stays below 50°C.

Fig. 26-4 Schematic for parallel operation

Instructions for parallel use:

Unit A

AC

DC

Unit B

AC

DC

-

+

-

+

Load

+

-

a) Use only power supplies from the same series.
b) Adjust the output voltages of all power supplies to

approximately the same value (±200mV).
c) A fuse (or diode) on the output is only required if more than

three units are connected in parallel.
d) Do not load terminals with more than 13A. Follow wiring

instructions according to section 27.6.
e) Ensure that the ambient temperature of the power supply

does not exceed 50°C.

26.5. Parallel Use for Redundancy

Power supplies can be paralleled for redundancy to gain a higher system reliability. Redundant systems require a
certain amount of extra power to support the load in case one power unit fails. The simplest way is to put to
power supplies in parallel. This is called a 1+1 redundancy. Should one power supply fail, the second
is automatically able to support the load current without any interruption. Redundant systems for a higher power
demand are usually built in a N+1 method. E.g. Five power supplies, each rated for 2.1A are paralleled to build a 8A
redundant system. If one unit fails, the 8A can still be drawn.

18 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Bulletin 1606 Switched Mode Power Supplies

Please note: This simple way to build a redundant system has two major disadvantages.

- The faulty power supply cannot be identied. The green LED will still be on since it is reverse-powered from
the other power supply.

- It does not cover failures such as an internal short circuit in the secondary side of the power supply. In such a
situation the defective unit becomes a load for the other power supplies and the output voltage can no
longer be maintained.

The above conditions can be avoided by using decoupling diodes which are included in the 1606-XLPRED
decoupling module.

Other recommendations for building redundant power systems:
a) Use separate input fuses for each power supply.
b) Monitor the individual power s upply units. A DC-ok output is included in the 1606-XLP50E and 1606-XLP50EZ

In all other cases, use the the 1606-XLERED redundancy module which includes a monitoring circuit for
each input.

c) When possible, connect each power supply to dierent phases of the mains network.

26.6. Daisy Chaining of Outputs

Daisy chaining (jumping from one power supply output to the next) is allowed as long as the maximum current
through one terminal pin does not exceed 13A. If the current is higher, use a separate distribution terminal block.

Fig. 26-5 Daisy chaining of outputs

Fig. 26-6 Using distribution terminals

Power
Supply

+ +

- -

Input

Output

Load

+

-

max 13A!

Power
Supply

+ +

- -

Input

Output

Load

+

-

Distribution
Terminals

Power

Supply

+ +

- -

Input

Output

Power

Supply

+ +

- -

Input

Output

26.7. Charging Batteries

The power supply can be used for oat-charging of lead-acid or maintenance-free 24V VRLA batteries.

Instructions for charging batteries:

a) Ensure that the ambient temperature of the power supply does not exceed 50°C.
b) Set the output voltage on a disconnected load, very precisely to the end-of-charge voltage according to the

expected battery temperature.
End-of-charge voltage 27.8V 27.5V 27.15V 26.8V
Battery temperature 10°C 20°C 30°C 40°C

c) Use a 4A or 6A circuit breaker (or blocking diode ) between the power supply and the battery.
d) Ensure that the output current of the power supply is below the allowed charging current of the battery.
e) Use only matched batteries when putting 12V types in series.
f) The return current to the power supply is typ. 10.7mA at 25Vdc

when the power supply is switched o (except if

using a blocking diode).

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 19

Bulletin 1606 Switched Mode Power Supplies

T

T

26.8. External Input Protection

he unit is tested and approved for branch circuits up to 15A (UL) or 16A (IEC). External protection is required only if
the supplying branch has an ampacity greater than this. In some countries, local regulations may apply, so check local
codes and requirements.

If using an external protective device, a minimum value is required to avoid undesired tripping of the fuse.

Ampacity max.
min. 10A 6A

15A (UL), 16A (IEC) 15A (UL), 16A (IEC)

citsiretcarahC-C citsiretcarahC-B

26.9. Inductive and Capacitive Loads

he unit is designed to supply any type of load, including unlimited capacitive and inductive loads.

26.10. Operation on Two Phases

Fig. 26-7 Schematic for two phase operation

L1

max.

L3

L2

+10%

240V

Power Supp ly

L

Fuse

N

PE

AC

internal

fuse

DC

Instructions for two phase operation:
a) A phase to phase connection is allowed as long as the

supplying voltage is below 240V

+10%

.

b) Use a fuse or a circuit breaker to protect the N input. The

N input is not protected internally; in this case it is
connected to a hot wire.

Appropriate fuses or circuit breakers are specied in section 27-6,
“External Input Protection”.

26.11. Use in a Tigthly Sealed Enclosure

When the power supply is installed in a tightly sealed enclosure, the temperature inside the enclosure will be higher
than the outside. The inside temperature denes the ambient temperature for the power supply.

Results from such an installation:
Power supply is placed in the middle of the box; no other heat producing equipment is inside the box.
Enclosure: Rittal Type IP66 Box PK 9510 100, plastic, 130x130x75mm

Input: 230Vac

Load: 24V, 2.1A; load is placed outside the box.
Temperature inside the box: 40.8°C (in the middle of the right side of the power supply with a distannce of 1cm)
Temperature outside the box: 21.9°C
Temperature rise: 18.9K

Load: 24V, 1.7A; load is placed outside the box.
Temperature inside the box: 38.7°C (in the middle of the right side of the power supply with a distance of 1cm)
Temperature outside the box: 21.7°C
Temperature rise: 17.0K

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

20 Rockwell Automation Publication 1606-RM034A-EN-P — March 2014

Bulletin 1606 Switched Mode Power Supplies

26.12. Mounting Orientations

Mounting orientations other than input terminals on the bottom and output on the top require a reduction in
continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction
inuences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous
operation can be found below:

Curve A1 Recommended output current.
Curve A2 Max allowed output current (results in approximately half the lifetime expectancy of A1).

Fig. 26-8
Mounting
Orientation A

(Standard
orientation)

Power

Supply

INPUT

OUTPUT

Output Current

0

10 20 30 40

60°C

4

12

16

20A

50

A

1

8

Ambient Temperature

Fig. 26-9
Mounting
Orientation B

(Upside down)

Power

Supply

INPUT

OUTPUT

Output Current

0

10 20 30 40

60°C

4

12

16

20A

50

A

1

8

Ambient Temperature

Fig. 26-10
Mounting
Orientation C

(Table-top
mounting)

Output Current

0

10 20 30 40

60°C

4

12

16

20A

50

8

A

1

A

2

Ambient Temperature

Fig. 26-11
Mounting
Orientation D

(Horizontal cw)

Power

Supply

INPUT

OUTPUT

Output Current

0

10 20 30 40

60°C

4

12

16

20A

50

8

A

1

A

2

Ambient Temperature

Fig. 26-12
Mounting
Orientation E

(Horizontal ccw)

Power

Supply

INPUT

OUTPUT

Output Current

0

10 20 30 40

60°C

4

12

16

20A

50

8

A

1

A

2

Ambient Temperature

All parameters are specified at 24V, 2.1A, 230Vac input, 25ªC ambient and after a 5 minutes run-in time unless noted otherwise.

Rockwell Automation Publication 1606-RM034A-EN-P — March 2014 21

Rockwell Automation Support

Rockwell Automation provides technical information on the Web to assist you in using its products.
At http://www.rockwellautomation.com/support
notes, sample code and links to software service packs, and a MySupport feature that you can customize to
make the best use of these tools. You can also visit our Knowledgebase at http://

www.rockwellautomation.com/knowledgebase for FAQs, technical information, support chat and forums,

software updates, and to sign up for product notification updates.

, you can find technical manuals, technical and application

For an additional level of technical phone support for installation, configuration, and troubleshooting, we offer
Tech Co nn ec t
representative, or visit http://www.rockwellautomation.com/support/

SM

support programs. For more information, contact your local distributor or Rockwell Automation

.

Installation Assistance

If you experience a problem within the first 24 hours of installation, review the information that is contained in
this manual. You can contact Customer Support for initial help in getting your product up and running.

United States or Canada 1.440.646.3434

Outside United States or Canada Use the Wor ldwi de Lo cato r at http://www.rockwellautomation.com/rockwellautomation/support/overview.page, or contact your local

Rockwell Automation representative.

New Product Satisfaction Return

Rockwell Automation tests all of its products to help ensure that they are fully operational when shipped from
the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these
procedures.

United States Contact your distributor. You must provide a Customer Support case number (call the phone number above to obtain one) to your

Outside United States Please contact your local Rockwell Automation representative for the return procedure.

distributor to complete the return process.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to
improve this document, complete this form, publication RA-DU002

literature.rockwellautomation.com/idc/groups/literature/documents/du/ra-du002_-en-e.pdf.

Publication 1606-RM034A-EN-P — March 2014

, available at http://

Copyright © 2014 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
