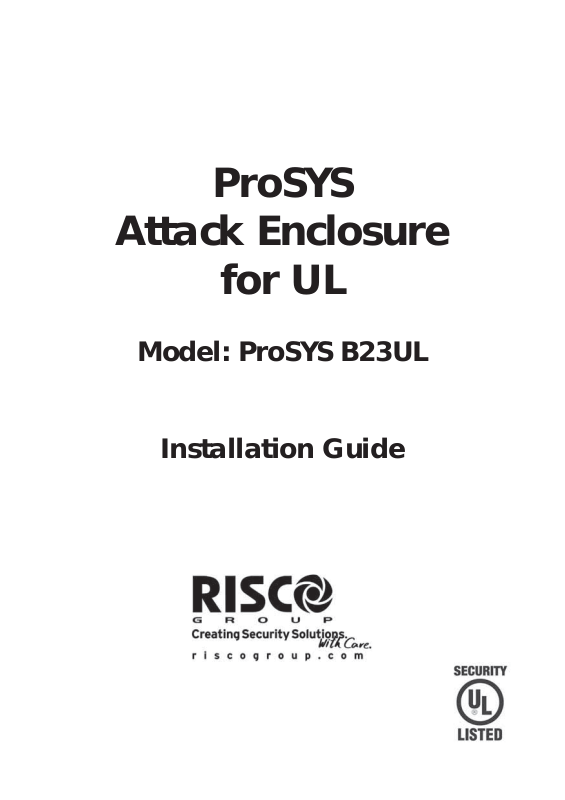

ProSYS

Attack Enclosure

for UL

Model: ProSYS B23UL

Installation Guide

ȱ

Mounting the Attack Enclosure

To mount the attack enclosure, follow this procedure:

1. Remove all the metal knockouts from the cabinet.

2. Plug unused knockout holes with a pair of disc plugs, bolts and nuts as described in
Figure 2 A+B.
Bigger knockouts may be used for wire transfer.
Pay attention: There are 2 sizes of knockout holes.

3. Mounting the cabinet lock:

i Insert the key in to the lock.
i Position the lock in the designated hole, making certain that the latch will make

contact with the latch bracket when the door is closed.

i When positioned, push the lock until it is secured by its snap tabs.

4. After all wiring, accessories assembly and programming checkout have been
completed, fasten the cabinet door to the cabinet itself using the supplied screws
(Fig.3).

Fig.1 ProSYS box

2

Fig.2 Knockouts disc plug

Fig.3 Implementation of cabinet attack resistance

3

Installing ProSYS Accessories inside the

Attack Enclosure Box B23UL

Installation Modules Mapping

4

Accessories on the Right Side

2A

GSM Module

1

J15=NR
J13=ON

J14=OFF

(1 pin)

BAB

A

A

Telephone connection

Telephone Set

GSM

ProSYS

SETLINE

PHONE

Telephone Line

B

B

BUS connection

ProSYS

GSM

REDYELBLKGRN

BUS

SET LINE

PHONE

RED YELBLK GRN

AUXCOM

BUS

2B

1

Connection Holes Optional Modules Model Name

1

2A
2B

ProSYS 16 Zone ProSYS EZ16
ProSYS 16 Zone G3 ProSYS EZ16G3
ProSYS AGM Module AGM 128GSX
ProSYS 16 Zone ProSYS EZ16
ProSYS 16 Zone G3 ProSYS EZ16G3

2A

2B

5

Accessories on the Top Side

4

Connection Holes Optional Modules Model Name

3

4

ProSYS 8 Zones ProSYS EZ8
ProSYS 8 Zones G3 ProSYS EZ8G3
ProSYS BUS Zone Expander ProSYS BZE
ProSYS 4 Relay Output ProSYS E04
ProSYS 8 O.C. Output ProSYS E08
ProSYS Event Log 999 ProSYS EL9
ProSYS Event Log 512 ProSYS EL5
Printer module (Not UL listed) ProSYS PRT
X-10 Expansion Module (Not UL listed) ProSYS EXT
ProSYS 8 Zones ProSYS EZ8
ProSYS 8 Zones G3 ProSYS EZ8G3
ProSYS BUS Zone Expander ProSYS BZE
ProSYS 4 Relay Output ProSYS E04
ProSYS 8 O.C. Output ProSYS E08
ProSYS Event Log 999 ProSYS EL9
ProSYS Event Log 512 ProSYS EL5
Printer module (Not UL listed) ProSYS PRT
X-10 Expansion Module (Not UL listed) ProSYS EXT

3

6

Accessories on the Left Side

5

6

Connection Holes Optional Modules Model Name

5

6

ProSYS 8 Zones ProSYS EZ8
ProSYS 8 Zones G3 ProSYS EZ8G3
ProSYS BUS Zone Expander ProSYS BZE
ProSYS 4 Relay Output ProSYS E04
ProSYS 8 O.C. Output ProSYS E08
ProSYS Event Log 999 ProSYS EL9
ProSYS Event Log 512 ProSYS EL5
ProSYS printer module (Not UL listed) ProSYS PRT
ProSYS X-10 Expansion Module (Not
UL listed)
ProSYS 16 Zone ProSYS EZ16
ProSYS 16 Zone G3 ProSYS EZ16G3
ProSYS voice module ProSYS EV

ProSYS EXT

Technical Specifications

Dimensions:

Ordering Information

Model Description

ProSYS B23UL ProSYS Attack Enclosure UL Box

103 mm x 376 mm x 467 mm

7

RISCO Group Limited Warranty

RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from
defects in materials and workmanship under normal use for 24 months from the date of production.
Because Seller does not install or connect the product and because the product may be used in
conjunction with products not manufactured by the Seller, Seller cannot guarantee the performance
of the security system which uses this product. Seller's obligation and liability under this warranty is
expressly limited to repairing and replacing, at Seller's option, within a reasonable time after the
date of delivery, any product not meeting the specifications. Seller makes no other warranty,
expressed or implied, and makes no warranty of merchantability or of fitness for any particular
purpose. In no case shall seller be liable for any consequential or incidental damages for breach of
this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever.
Seller's obligation under this warranty shall not include any transportation charges or costs of
installation or any liability for direct, indirect, or consequential damages or delay. Seller does not
represent that its product may not be compromised or circumvented; that the product will prevent
any personal injury or property loss by burglary, robbery, fire or otherwise; or that the product will in
all cases provide adequate warning or protection. Buyer understands that a properly installed and
maintained alarm may only reduce the risk of burglary, robbery or fire without warning, but is not
insurance or a guaranty that such event will not occur or that there will be no personal injury or
property loss as a result thereof. Consequently seller shall have no liability for any personal injury,
property damage or loss based on a claim that the product fails to give warning. However, if seller is
held liable, whether directly or indirectly, for any loss or damage arising under this limited warranty
or otherwise, regardless of cause or origin, seller's maximum liability shall not exceed the purchase
price of the product, which shall be complete and exclusive remedy against seller. No employee or
representative of Seller is authorized to change this warranty in any way or grant any other
warranty.
WARNING: This product should be tested at least once a week.
