Quadra-Fire QVI-25FB-S User Manual

Model: QVI-25FB-S
R
Owner’s Manual
Installation and Operation
CAUTION
DO NOT DISCARD THIS MANUAL
• Important operating and maintenance instructions included.
WARNING: If the information in these instructions is not followed exactly, a fi re or explosion may result causing property damage, personal injury, or death.
• Do not store or use gasoline or other fl am- mable vapors and liquids in the vicinity of this or any other appliance.
• What to do if you smell gas
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli­er’s instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed by a qualifi ed installer, service agency , or the gas supplier.
This appliance may be installed as an OEM installation in manufactured home (USA only) or mobile home and must be installed in accordance with the manufacturer’s instructions and the manufactured home construction and safety standard, Title
24 CFR, Part 3280 or Standard for Installation in Mobile Homes, CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indicated on the rating plate.
• Read, understand and follow these instructions for safe installation and operation.
DO NOT
DISCARD
• Leave this manual with party responsible for use and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during operation AND cool down.
Hot glass will cause burns.
DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable materials.
• Keep clothing, furniture, draperies and other fl ammable materials away.
This appliance has been supplied with an integral barrier to prevent direct contact with the fi xed glass panel. DO NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the barrier is not present or help is needed to properly install one.
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber or gas fi tter;
• a CO detector shall be installed in the room where the appliance is installed.
Installation and service of this appliance should be performed by qualifi ed personnel. Hearth & Home Technologies suggests NFI certifi ed or factory trained professionals, or technicians supervised by an NFI certifi ed professional.
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08 1
Read this manual before installing or operating this appliance.
Not
for
use
with
solid
fuel .
Ne
doit
pas
entre
utilise
avec
un
combustible
solide).
This
appliance
must
be
installed
in
a ccordance
with
local
codes,
if
any;
if
not,
follow
ANSI
Z 223.1
in
th e
US A
or
CAN/CG A
B149
installation
codes.
(Installer
l’ appa re il
selon
les
codes
ou
regl emen ts
lo caux
ou ,
en
l’absence
de
te ls
reglements,
selon
les
codes
d’in stallation
CAN/CGA-B149.)
Ty pe
of
Gas
(Sorte
De
Gaz) : :
TURA L
GA S
MADE
IN
US A
Minimum
Permissible
Gas
Supply
for
Purpos es
of
Input
Adjustment .
Approved
Minimum
(De
Gaz)
Acceptabl e
0. 0
in
w. c.
(Po.
Col.
d’eau)
Maximum
Pressure
(Pression)
0. 0
in
w. c.
(Po.
Col.
d’eau)
Maximum
Manifold
Pressure
(Pression)
0. 0
in
w. c.
(Po.
Col.
d’eau)
Minimum
Manifold
Pressure
(Pression)
0. 0
in
w. c.
(Po.
Col.
d’eau)
Mode l:
(Modele):
Serial
(Serie):
ANSI
Z21X X-XXXX
·
CS A
2.XX-MXX
·
UL307B
XXXXXXXX
IN
CANADA
AL TI TUDE :
0-0000
FT .
0000-0000FT .
MAX.
INPU T
BTUH:
00,000
00,000
MIN.
INPU T
BTUH:
00,000
00,000
ORIFICE
SIZE:
#XXXXX
#XXXXX
X XXXXXXX
To tal
Electrical
Requirements:
000V ac,
00Hz.,
less
than
00
Ampere s
Please retain this owner’s manual for future reference.
Congratulations
Congratulations on selecting a Quadra-Fire gas appliance —an elegant and clean alternative to wood burning appliances. The Quadra-Fire gas appliance you have selected is designed to provide the utmost in safety, reliability, and effi ciency.
As the owner of a new appliance, you’ll want to read and carefully follow all of the instructions contained in this Owner’s Manual. Pay special attention to all Cautions and Warnings.
Homeowner Reference Information
This Owner’s Manual should be retained for future reference. We suggest that you keep it with your other important documents and product manuals.
The information contained in this Owner’s Manual, unless noted otherwise, applies to all models and gas control systems.
Y our new Quadra-Fire gas appliance will give you years of durable use and trouble-free enjoyment. Welcome to the Quadra-Fire family of appliance products!
We recommend that you record the following pertinent information about your appliance.
Model Name: ___________________________________________ Date purchased/installed: __________________ Serial Number: __________________________________________ Location on appliance: ____________________ Dealership purchased from: _______________________________ Dealer Phone: __________________________ Notes: _______________________________________________________________________________________ _____________________________________________________________________________________________
Listing Label Information/Location
This product may be covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevet s suivants): (United States) 4593510, 4686807, 4766876, 4793322, 481 1534, 5000162, 5016609, 5076254, 51 13843, 5191877, 5218953, 5263471, 5328356, 5341794, 5 347983, 5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947 11 2, 5996575, 6006743, 6 019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, D320652, D445174, D462436; (Canada)1297749, 2195264, 2225408; or other U.S. and foreign pa t ents pending (ou autres brevets americains et etrangers en attente) .
Type of Gas
Not ( ( Ne
Ty pe
N N A A TURA L
Gas and Electric Information
2
AL TI TUDE : MAX. MIN. ORIFICE
Minimum
Approved
Maximum
Maximum
Minimum
To tal
for
use
doit
pas
of
Gas
(Sorte
Electrical
INPU T
INPU T
SIZE:
The model information regarding your specifi c appliance can be found on the rating plate usually located in the control area of the appliance.
R
Quadra-Fire, a brand of Hearth & Home Technologies, Inc. 1445 North Highway, Colville, WA 99114
with
solid
fuel .
entre
utilise
avec
un
combustible
This
appliance
De
Gaz)
GA S
Permissible
Minimum
Pressure
Manifold
Manifold
Requirements:
BTUH:
BTUH:
in
lo caux
Gas
(De
(Pression)
Pressure
Pressure
0-0000 00,000 00,000 #XXXXX
th e
US A
or
CAN/CG A
ou ,
en
Supply
Gaz)
Acceptabl e
(Pression)
(Pression)
000V ac,
IN
FT .
0000-0000FT . 00,000 00,000 #XXXXX
must
l’absence
for
CANADA
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08
be
installed B149
de
ANSI
Z21X X-XXXX
Purpos es
0. 0
00Hz.,
solide).
in
a ccordance
installation
te ls
reglements,
of
0. 0
in
in
0. 0
in
0. 0
in
less
codes.
Input
w. c.
w. c.
w. c.
w. c.
than
with
local
(Installer
selon
·
CS A
Adjustment .
(Po.
(Po.
(Po.
(Po.
00
Ampere s
Mode l:
(Modele):
Serial
(Serie):
codes,
l’ appa re il
les
codes
2.XX-MXX
Col.
d’eau)
Col.
d’eau)
Col.
d’eau)
Col.
d’eau)
XXXXXXXX
X XXXXXXX
if
any;
if
not,
selon
les
d’in stallation
·
UL307B
MADE
follow
ANSI
codes
ou
regl emen ts
CAN/CGA-B149.)
IN
US A
Z 223.1
Model Number
Serial Number
Table of Contents
1 Listing and Code Approvals
A. Appliance Certifi cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. BTU Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. Non-Combustible Materials Specifi cation. . . . . . . . . . . . . . 4
E. Combustible Materials Specifi cation . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 5
C. Inspect Appliance and Components . . . . . . . . . . . . . . . . . . 5
3 Fireplace Size Requirements
A. Minimum Fireplace Opening . . . . . . . . . . . . . . . . . . . . . . . 6
B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . . 8
5 Vent Information and Diagrams
A. Vent Table Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
B. Horizontal Venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C. Measuring Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Installation Preparation
A. Flue Damper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

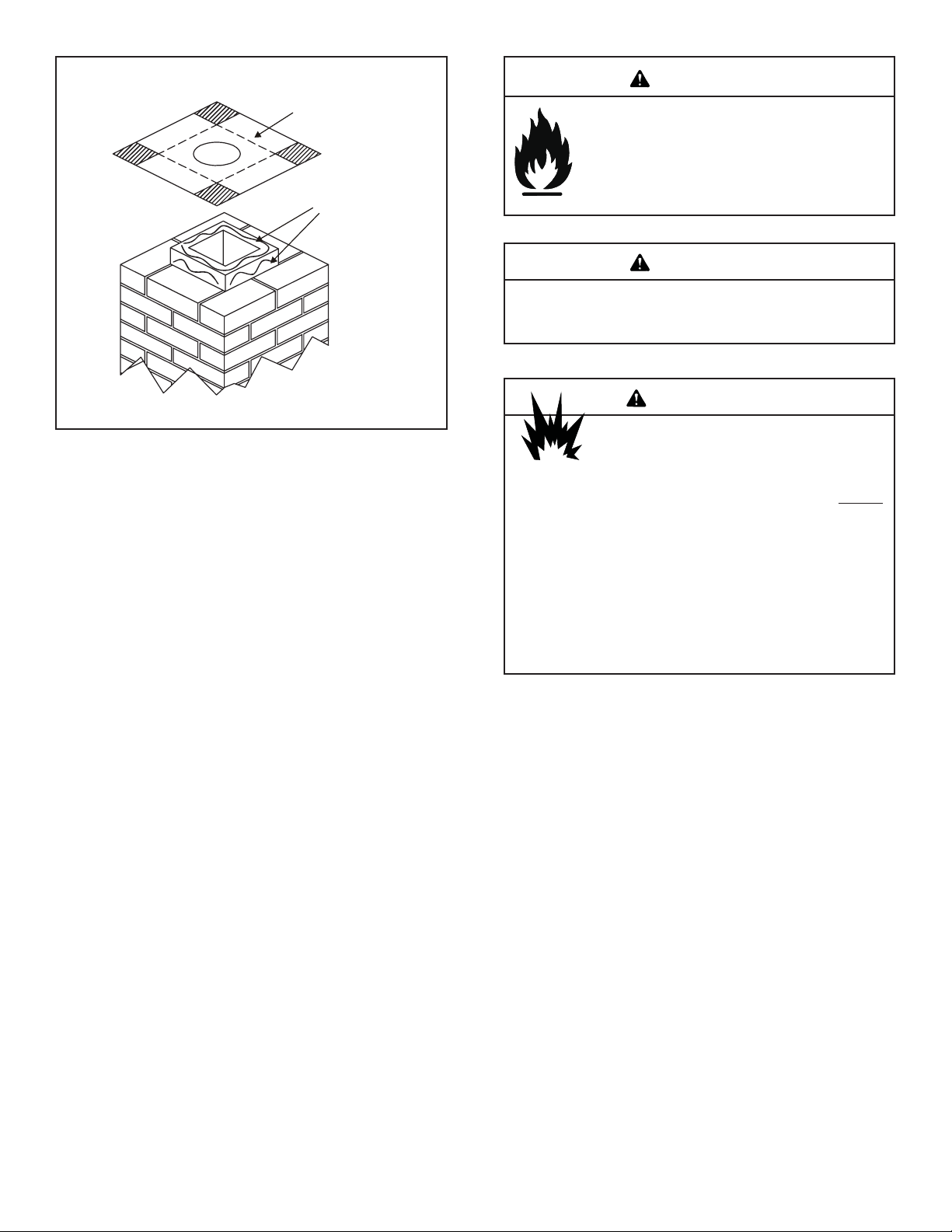

B. Chimney . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. Gas Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
D. Hearth or Hearth Extension . . . . . . . . . . . . . . . . . . . . . . . 10
E. Fireplace Conversion Notice . . . . . . . . . . . . . . . . . . . . . . 10
F. Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Gas Information
A. Fuel Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
B. Gas Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

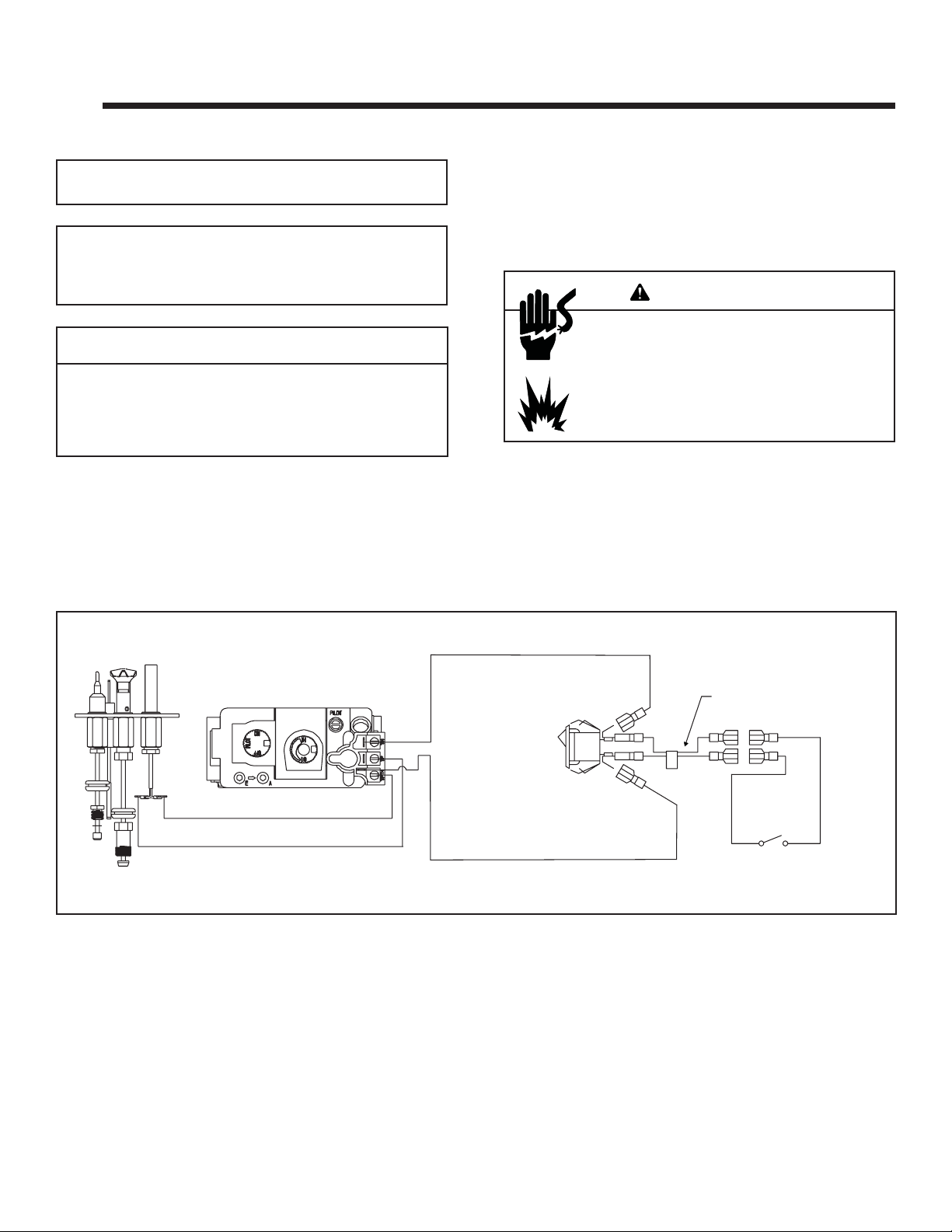

9 Electrical Information
A. Wiring the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

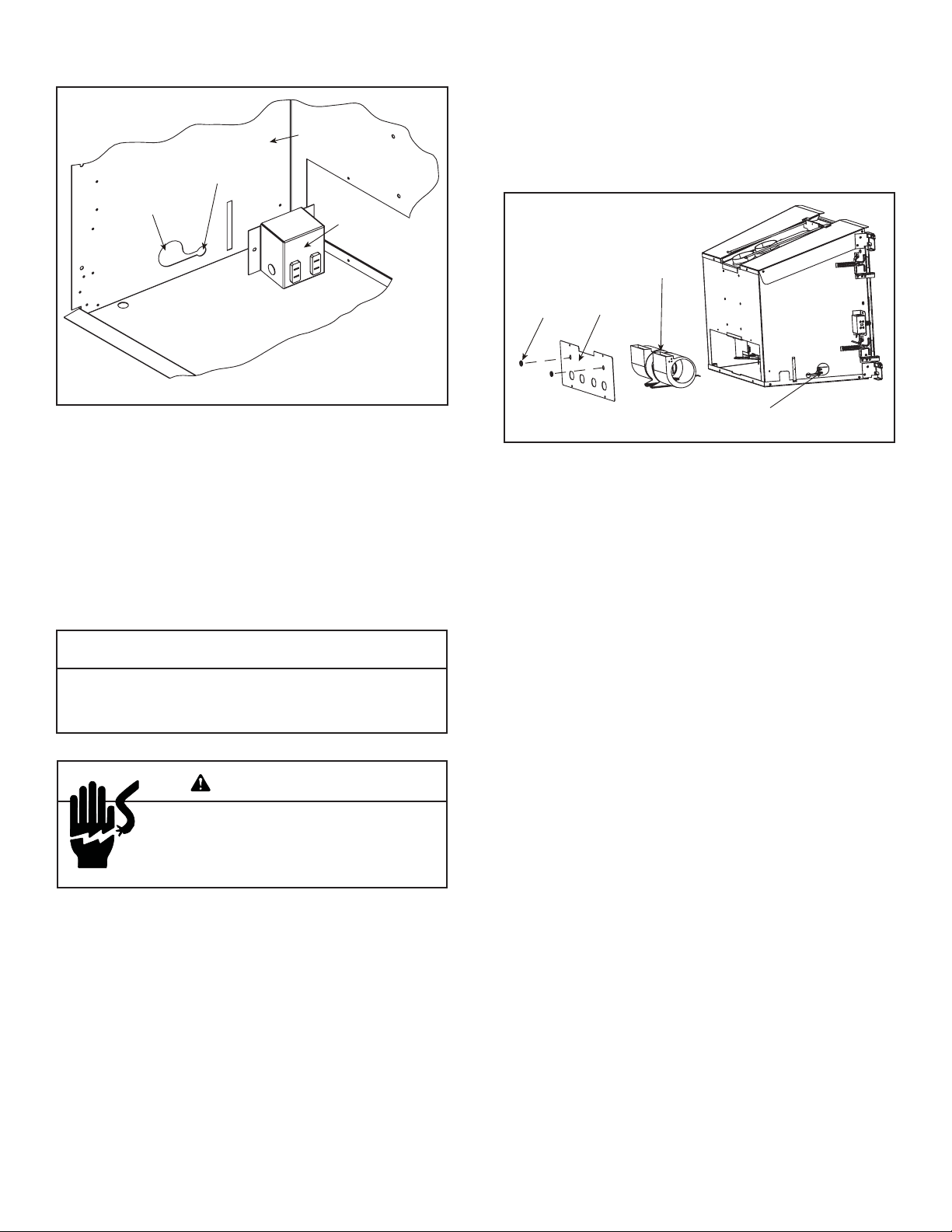

B. Junction Box Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 18

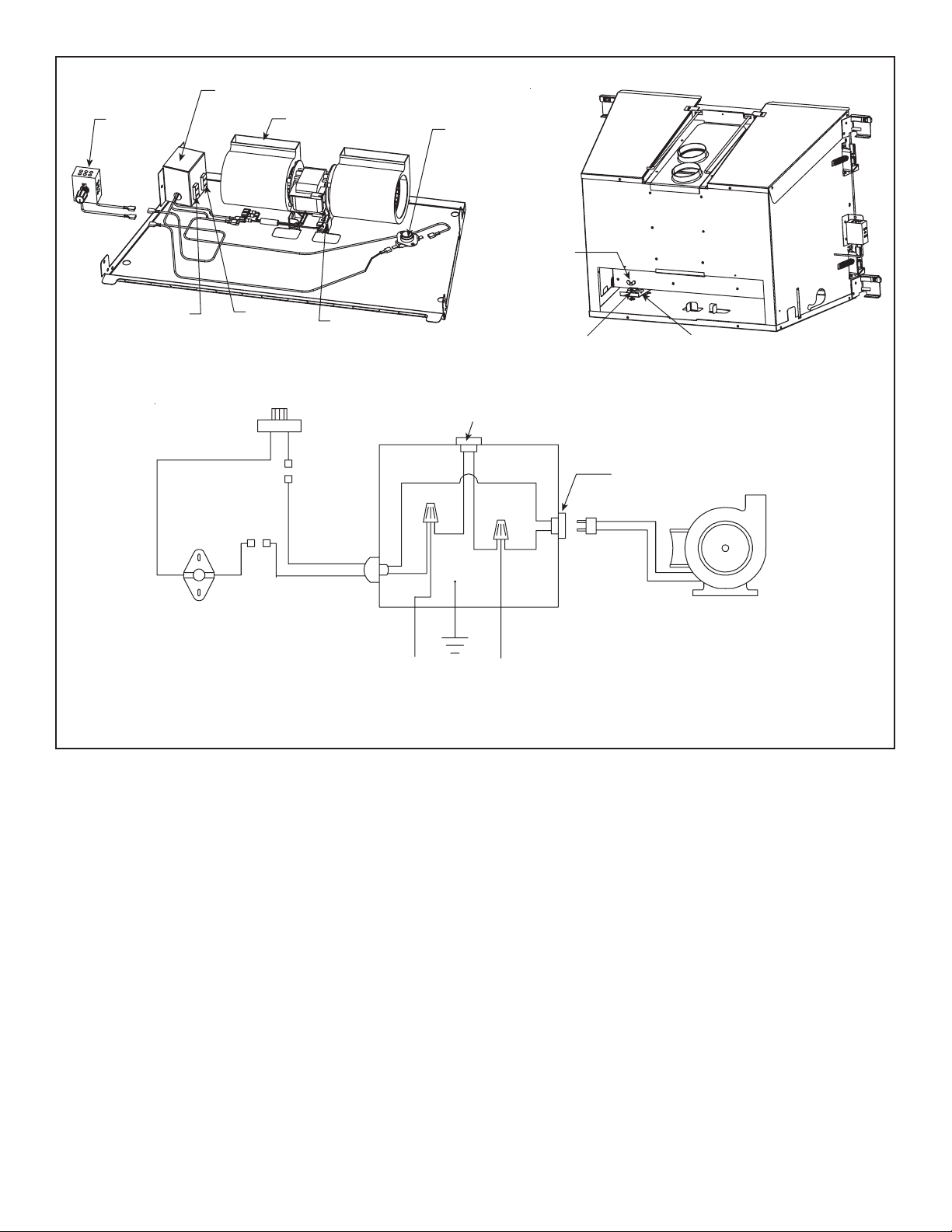

C. Installation for Fan (Optional) . . . . . . . . . . . . . . . . . . . . . . 18
10 Finishing

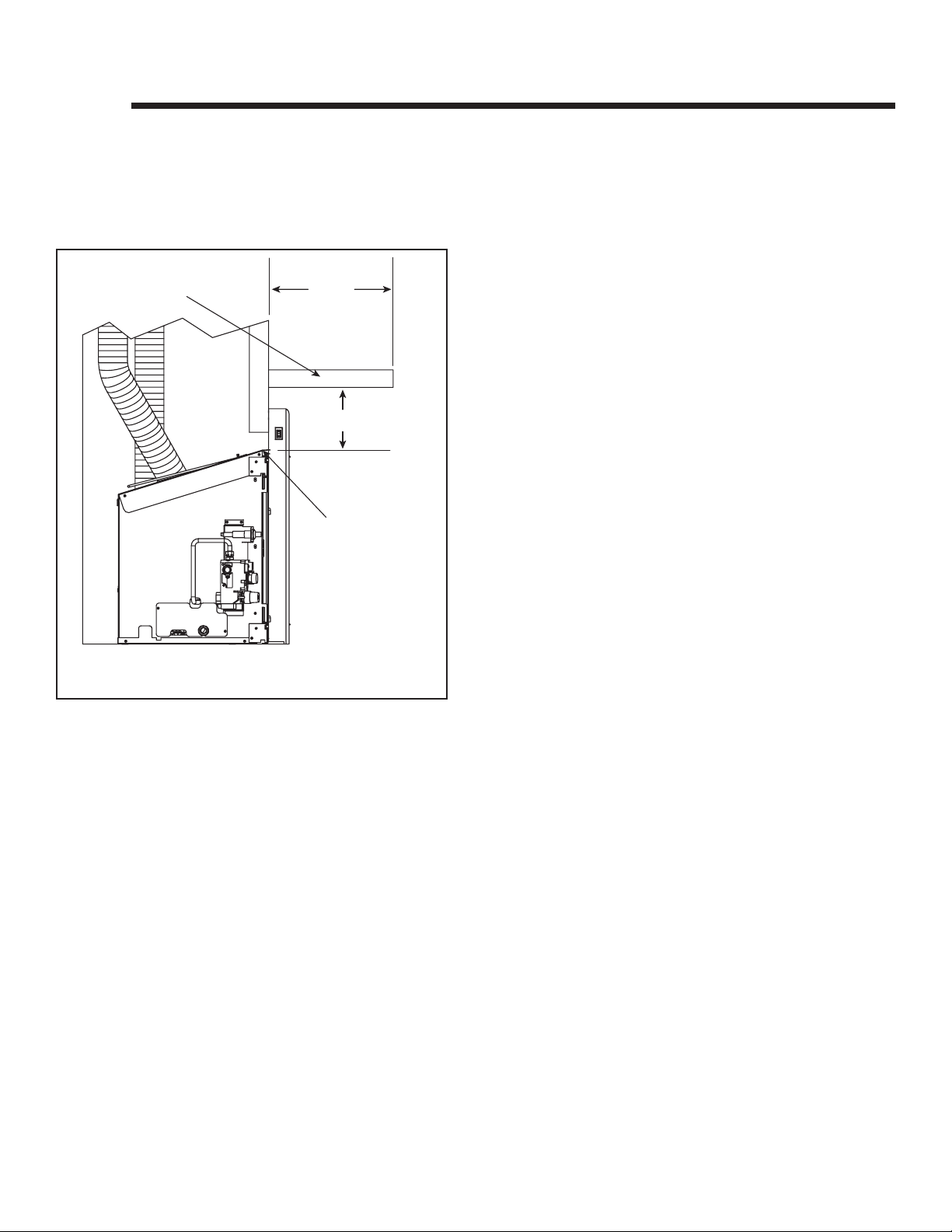

A. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Appliance Setup
A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 21
B. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
D. Ember Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

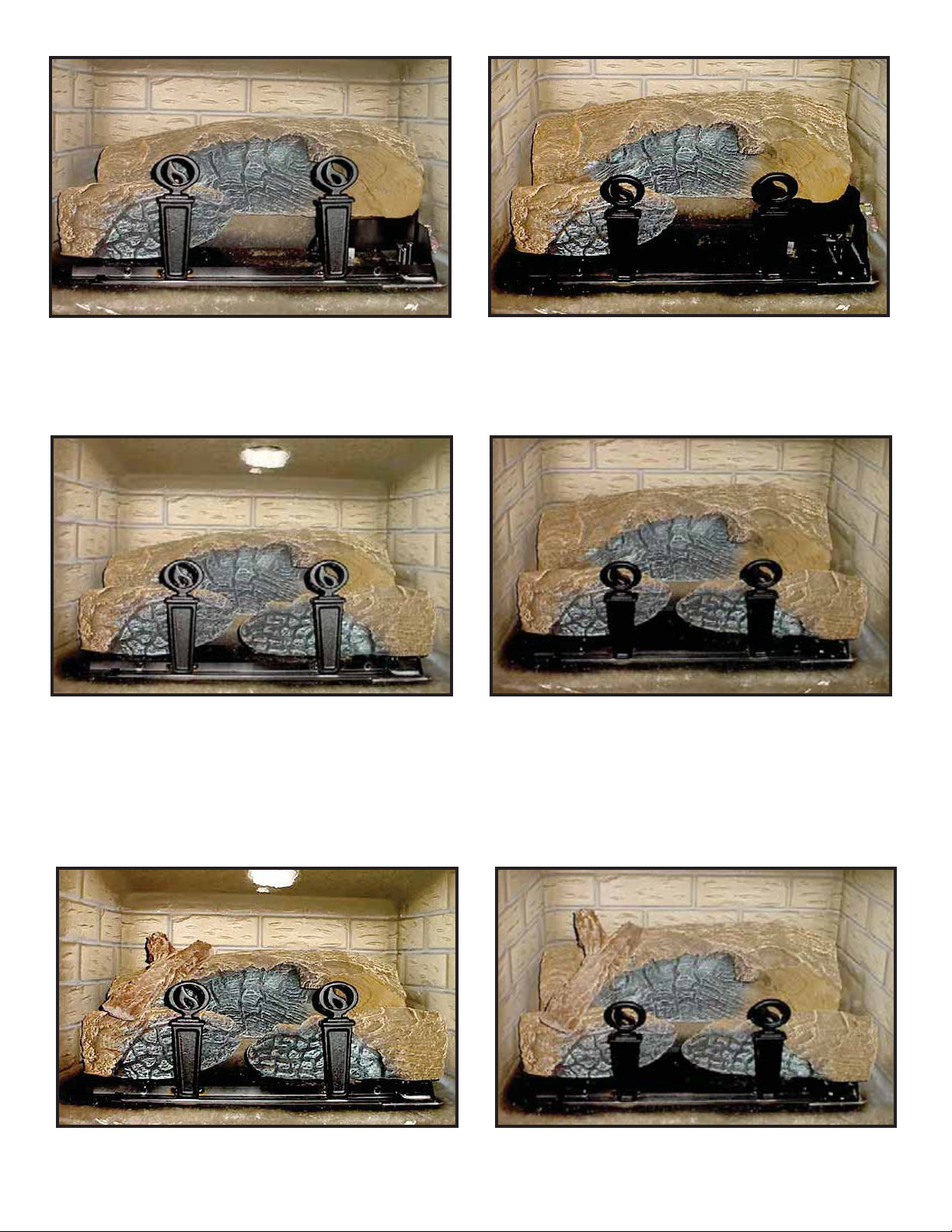

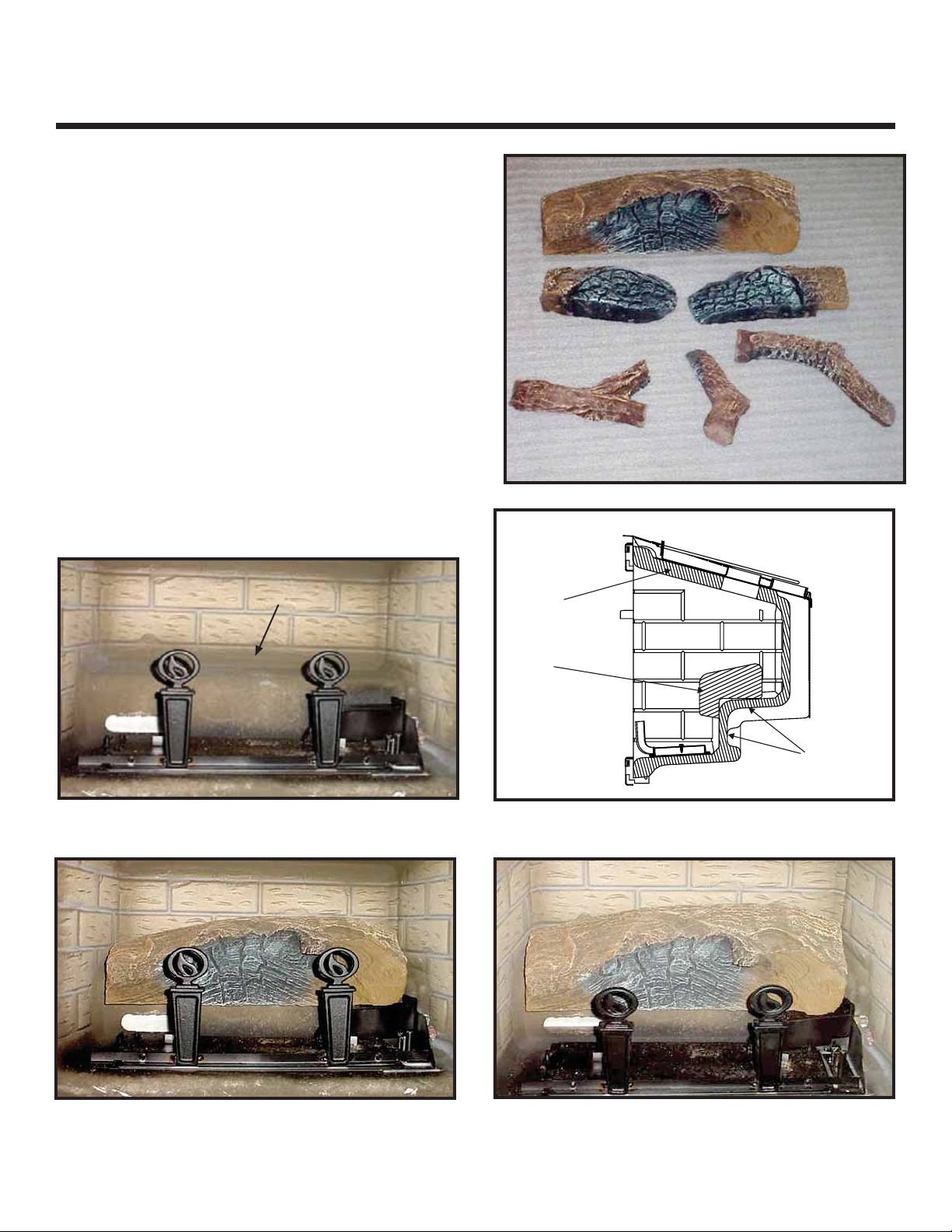

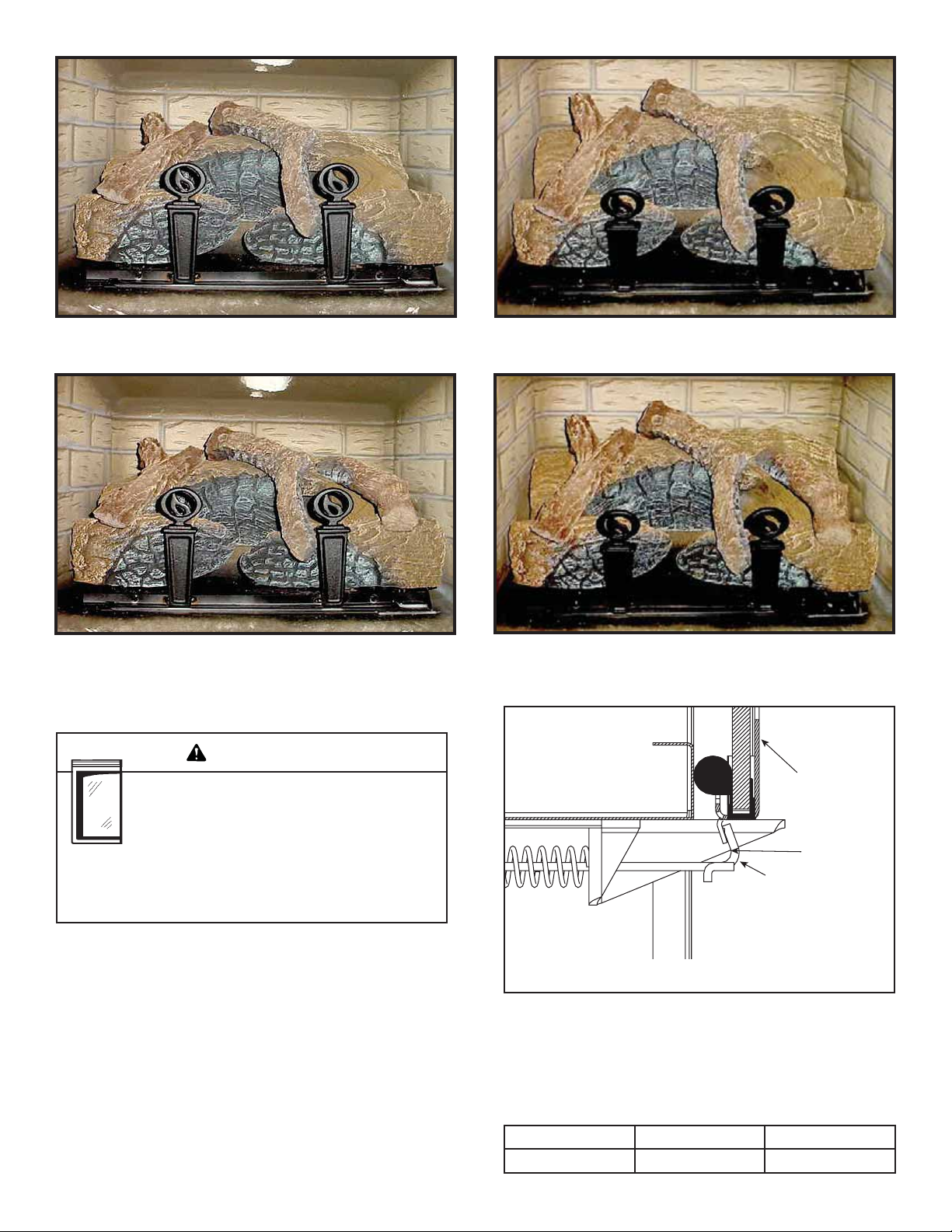

E. Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
F. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
G. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
12 Operating Instructions
A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 25

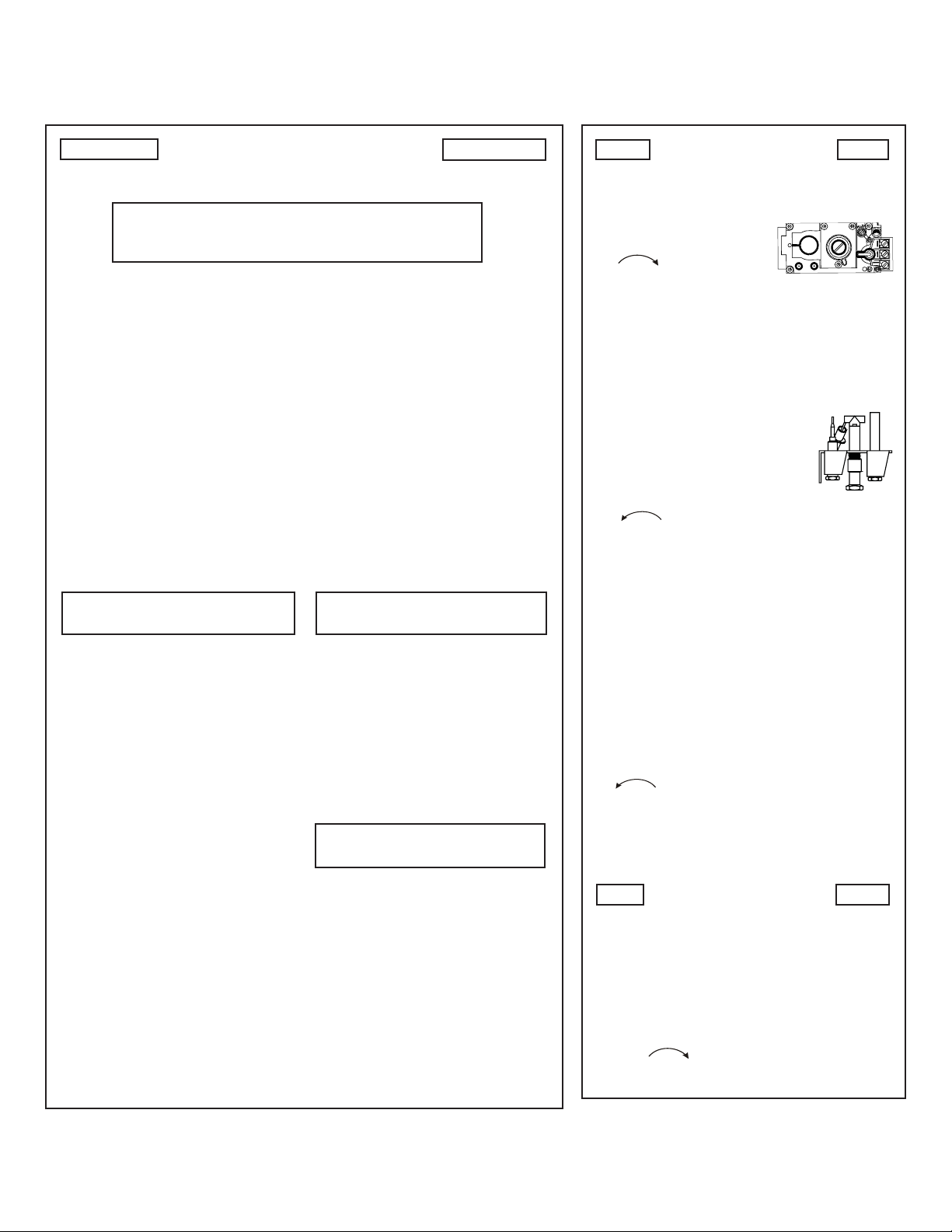

B. Lighting Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

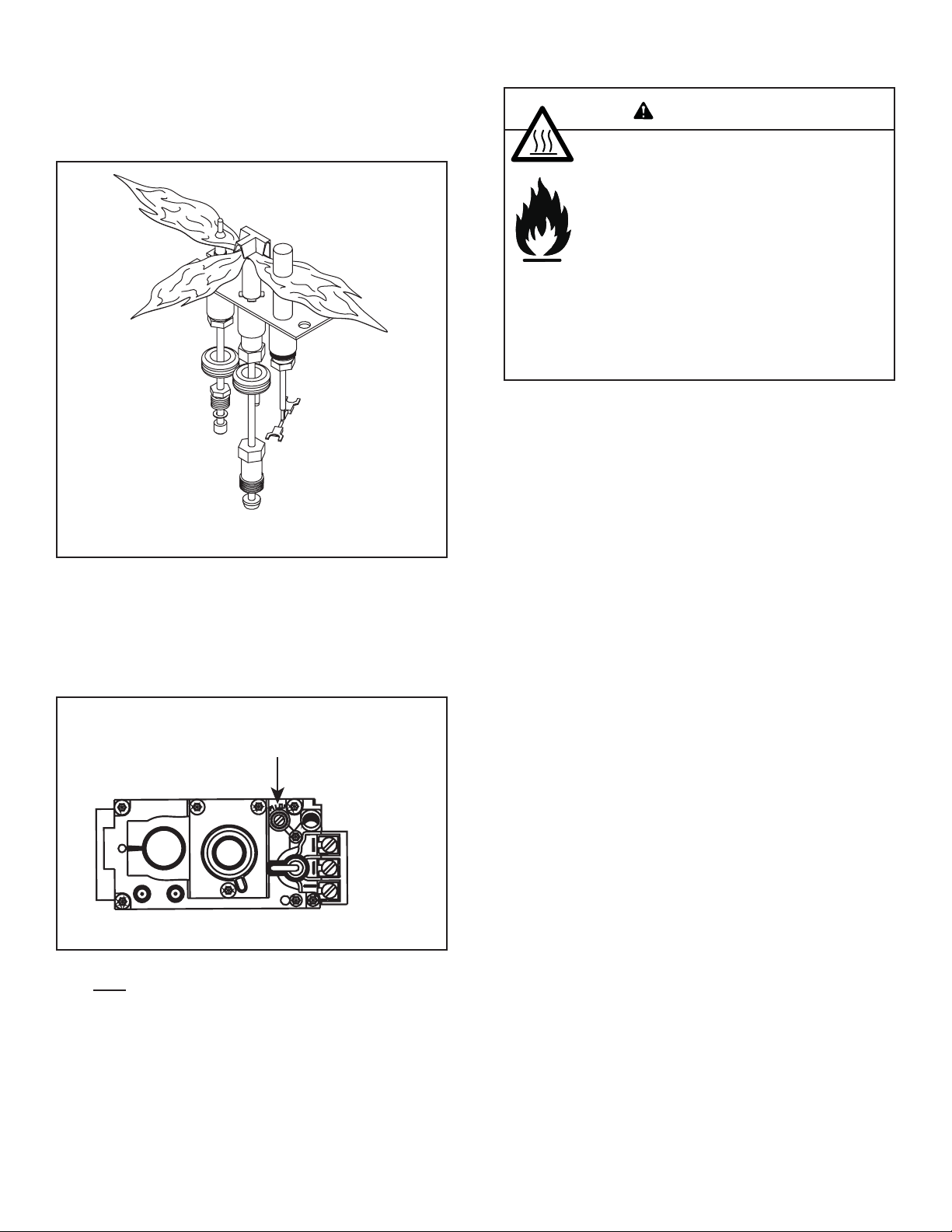

C. Check Pilot Flame Appearance . . . . . . . . . . . . . . . . . . . . 27
D. After Appliance is Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
E. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 28
13 Troubleshooting
A. Standing Pilot Ignition System . . . . . . . . . . . . . . . . . . . . . 29
7 Installing Vent Pipe and Appliance

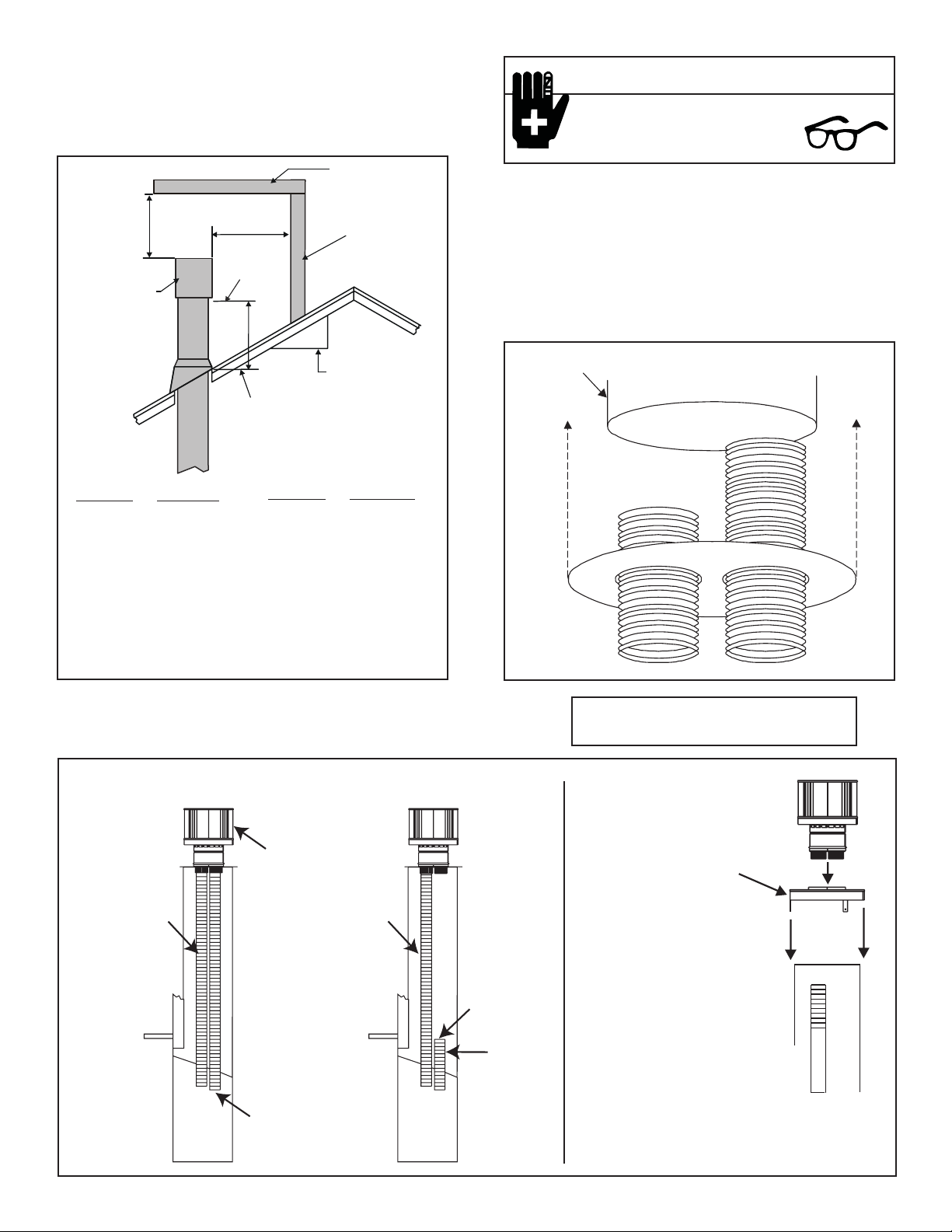

A. Venting Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
B. Connecting Vent Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
C. Placing, Securing and Leveling the Appliance . . . . . . . . . 13
D. Installing Adaptor and Termination Cap . . . . . . . . . . . . . . 14
Î = Contains updated information.
14 Maintaining and Servicing Appliance
A. Maintenance Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
15 Reference Materials

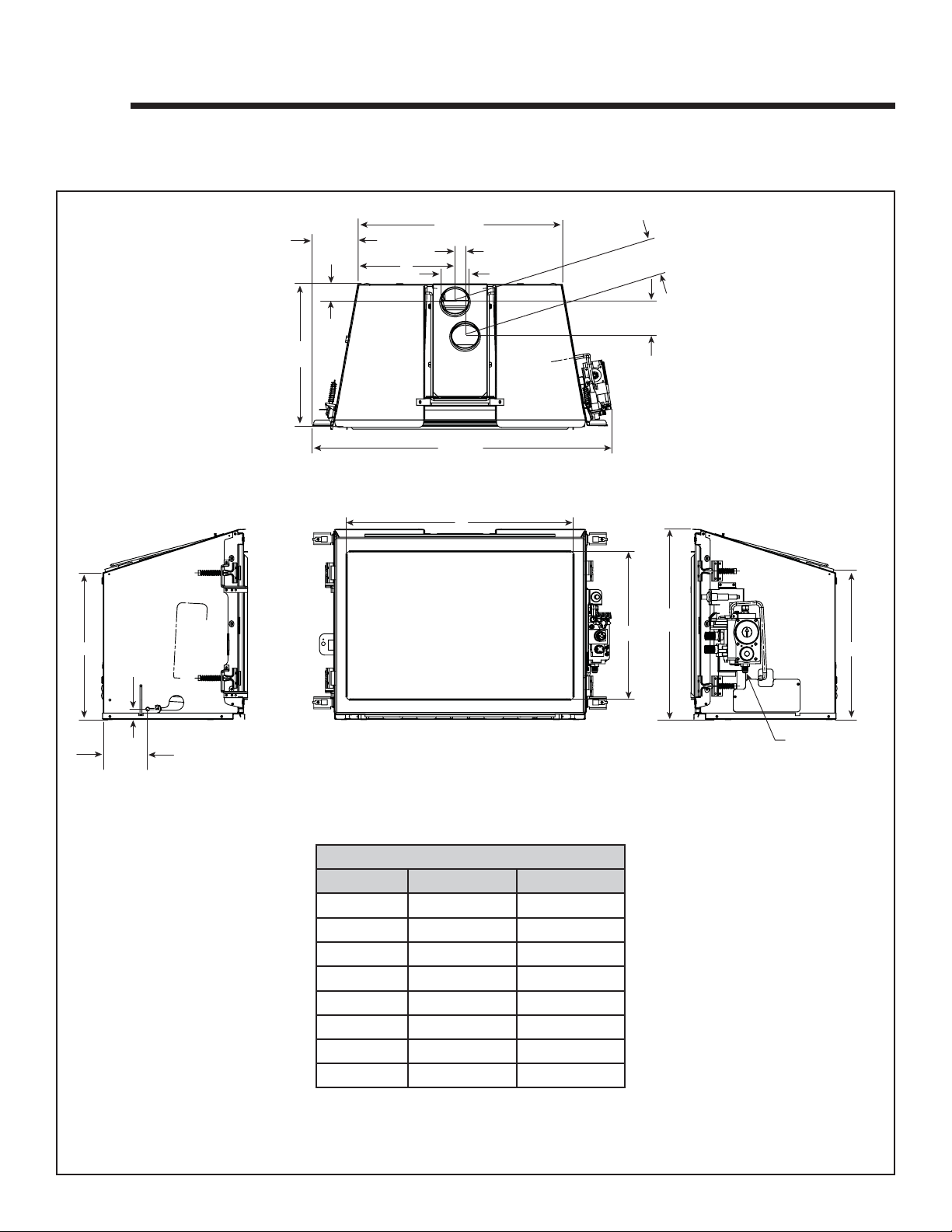

A. Appliance Dimension Diagram . . . . . . . . . . . . . . . . . . . . . 33

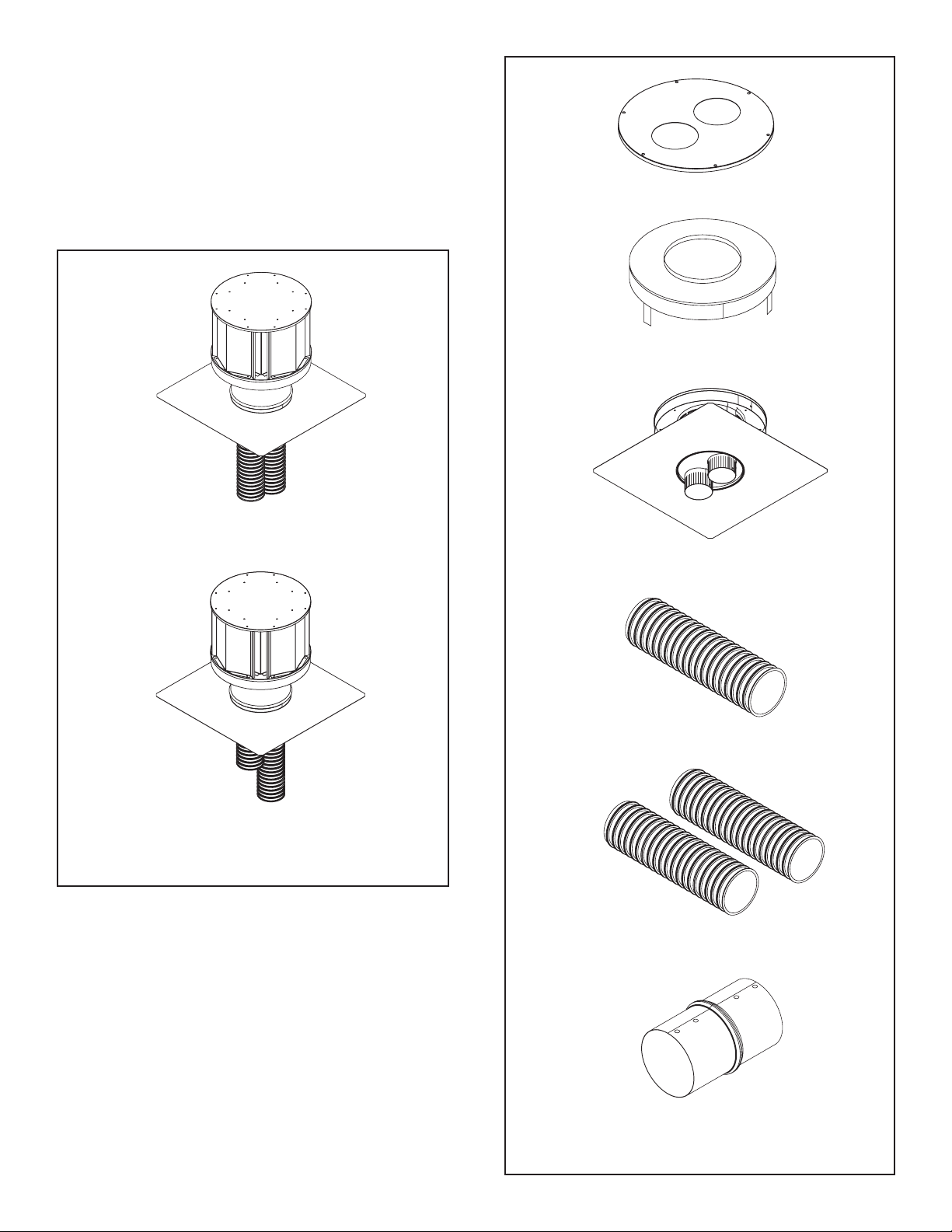

B. Vent Kits Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

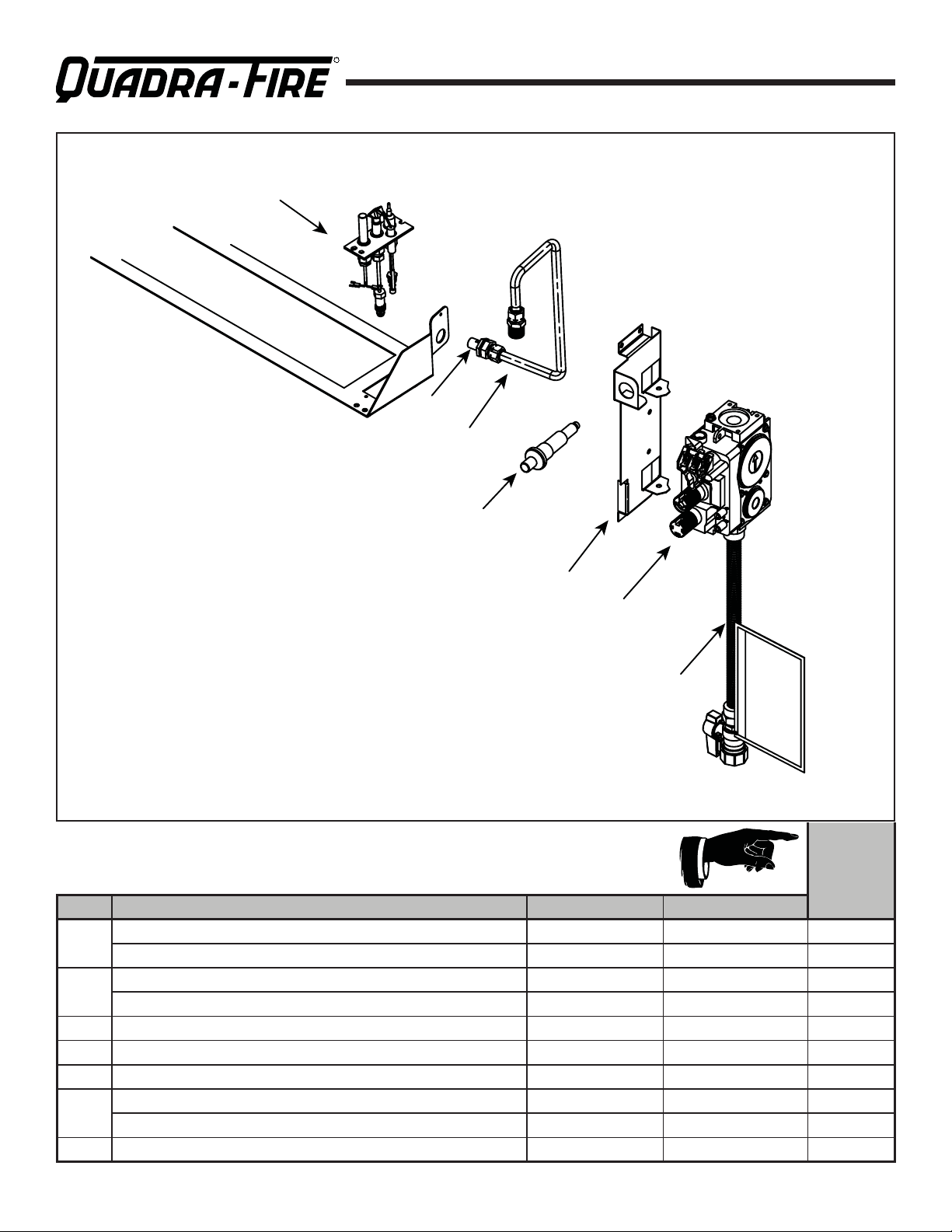

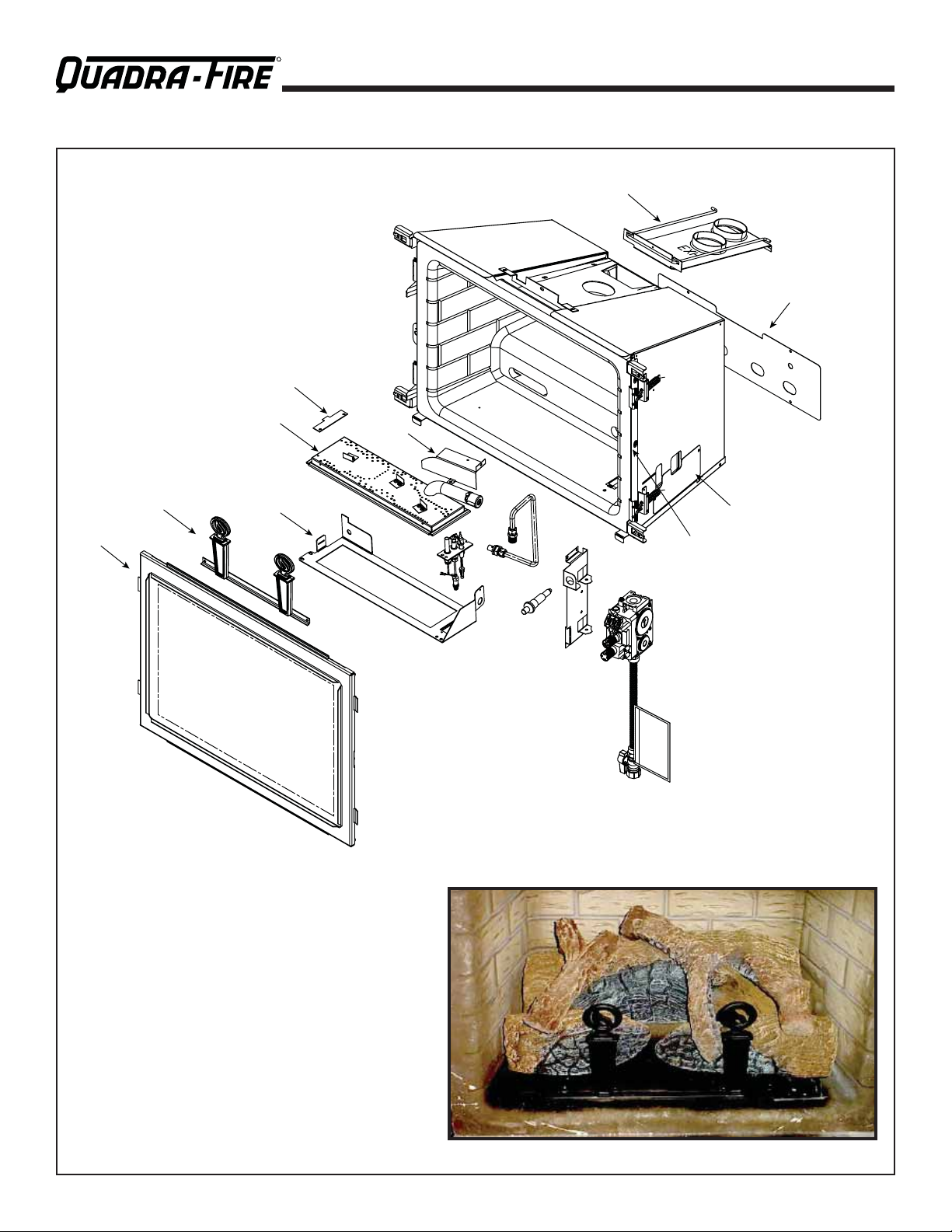

C. Service Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
D. Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 38
E. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08 3
1
1
Listing and Code Approvals
A. Appliance Certifi cation
MODELS: QVI-25FB-S LABORATORY: Underwriters Laboratories, Inc. (UL) TYPE: Vented Gas Appliance Heaters STANDARD: ANSI Z21.88-2002 • CSA2.33-M2003 • UL307B
This product is listed to ANSI standards for “Vented Gas Appliance Heaters” and applicable sections of “Gas Burn­ing Heating Appliances for Manufactured Homes and Recreational Vehicles”, and “Gas Fired Appliances for Use at High Altitudes”.
NOT INTENDED FOR USE AS A PRIMAR Y HEA T SOURCE.
This appliance is tested and approved as either supplemen­tal room heat or as a decorative appliance. It should not be factored as primary heat in residential heating calculations.
Note: To assure top performance, safety and effi ciency, inserts must be installed with an approved fl ue liner as per CAN/CGA B-149 or National Fuel Gas Code ANSI Z223 and these instructions.
Note: This installation must conform with local codes. In the absence of local c odes you must comply w ith the National Fuel Gas Code, ANSI Z223.1 -latest edition in the U.S.A. and the CAN/CGA B149 Installation Codes in Canada.
B. BTU Specifi cations
Models
(U.S. or Canada)
QVI-25FB-S (NG)
QVI25FB-S (LP)
US
(0-2000 FT)
CANADA
(2000-4500 FT)
US
(0-2000 FT)
CANADA
(2000-4500 FT)
Maximum
Input
BTU/h
29,650 21,000 #36 26,600 18,900 #37 27,000 16,000 #52 24,300 14,400 #53
Minimum
Input
BTU/h
Orifi ce
Size
(DMS)
C. High Altitude Installations
U.L. Listed gas appliances are tested and approved with­out requiring changes for elevations from 0 to 2000 feet in the U.S.A. and Canada.
When installing this appliance at an elevation above 2000 feet, it may be necessary to decrease the input rat­ing by changing the existing burner orifi ce to a smaller size. Input rate should be reduced by 4% for each 1000 feet above a 2000 foot elevation in the U.S.A., or 10% for elevations between 2000 and 4500 feet in Canada. If the heating value of the gas has been reduced, these rules do not apply. To identify the proper orifi ce size, check with the local gas utility.
If installing this appliance at an elevation above 4500 feet (in Canada), check with local authorities.
WARNING
Do NOT use this appliance if any part has been under water. Immediately call a qualifi ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.
D. Non-Combustible Materials Specifi cation
Material which will not ignite and burn. Such materials are those consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750º C, shall be considered
non-combustible materials.
E. Combustible Materials Specifi cation
Materials made of or surfaced with wood, compressed paper, plant fi bers, plastics, or other material that can ig- nite and burn, whether fl ame proofed or not, or whether plastered or unplastered shall be considered combustible materials.
4
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08
2
2
Getting Started
A. Design and Installation Considerations
Quadra-Fire direct vent gas appliances are designed to operate with all combustion air siphoned from outside of the building and all exhaust gases expelled to the outside. No additional outside air source is required.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and national codes and regulations.
• Consult insurance carrier, local building, fi re offi cials or authorities having jurisdiction about restrictions, installation inspection, and permits.
Quadra-Fire gas inserts are designed for recessed installa­tions into solid fuel masonry or factory built non-combustible replaces that have been installed in accordance with the National, Provincial, State and local building codes.
Prior to installing the gas insert:
• Have the chimney and adjacent structure inspected and cleaned by qualifi ed professionals. Hearth & Home Technologies recommends that NFI or CSIA certifi ed professionals, or technicians under the direction of certi­ ed professionals, conduct a minimum of a NFPA 211 Level 2 inspection of the chimney.
• Replace component parts of the chimney and fi replace as specifi ed by the professionals.
• Ensure all joints are properly engaged and the chimney is properly secured.
When planning an appliance installation, it’s necessary to determine the following information before installing:
• Minimum fi replace size. See Section 3.A.
• Gas supply piping.
• Electrical wiring.
• Finishing details.
• Existing mantel projections. See Section 10.
• Whether optional accessories—devices such as a fan, wall switch, or remote control—are desired.
C. Inspect Appliance and Components
WARNING
Inspect appliance and components for damage. Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components. Report damaged parts to dealer.
• Carefully remove the appliance and components from the packaging.
• The vent system components, surrounds and fronts are shipped in separate packages.
• The fi ber logs may be packaged separately and must be fi eld installed.
• Report to your dealer any parts damaged in shipment, particularly the condition of the glass.
• Read all of the instructions before starting the insta­llation. Follow these instructions carefully during the installation to ensure maximum safety and benefi t.
WARNING
Hearth & Home Technologies disclaims any responsibility for, and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent system component.
• Modifi cation of the appliance or vent system.
• Installation other than as instructed by Hearth & Home Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved by Hearth & Home Technologies.
Any such action may cause a fi re hazard.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following tools and building supplies are available.
Pliers Hi temp caulking material Hammer Flat blade screwdriver Voltmeter Framing square Gloves Variable speed drill 1/4 Hex drive Safety glasses Manometer Phillips screwdriver Tape measure Non-corrosive leak check solution 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08 5
WARNING
Keep appliance dry.
• Mold or rust may cause odors.
• Water may damage controls.
3
3
Fireplace Size Requirements
A. Minimum Fireplace Opening
Minimum fi replace opening requirements are shown in Figure 3.1.
• The fi rebrick (refractory), glass doors, screen rails, screen mesh and log grates can be removed from a factory built fi rebox in order to gain minimum gas insert opening requirements.
Î
• Any smoke shelves, shields, baffl es and the metal fl oor of the unit may be removed from a factory built fi rebox if attached with mechanical fasteners. If the appliance is placed on the base of the outer wrap, a ¼ inch airspace must be provided between the insert and the fl oor of the outer wrap.
Î
• Cutting of any sheet metal parts of the fi replace in which the gas fi replace insert is to be installed is prohibited.
WARNING
Fire Risk Provide adequate clearance:
• Around air openings
• To combustibles
• For service access Locate appliance away from traffi c areas.
NOTE: For actual appliance dimensions refer to Section 15.
20-3/8 in.
15 in.
1-1/16 in.
5-9/16 in.
14-7/16 in.
29-3/4 in.
18-15/16 in.
(GAS BALL VALVE NOT SHOWN)
EXISTING MINIMUM WOODBURNING FIREPLACE SIZE
Location Inches Millimeters
A Front Width 30-7/8 784 B Rear Width 25-5/8 651 C Depth 15 381 D Height 19-1/2 495
* NOTE: If exhaust collar on insert and fi replace damper do not line up, add 4 inches (102 mm) to minimum
replace height for bends in vent pipe.
GAS INLET
Figure 3.1 Fireplace Opening
6
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08
B. Clearances
Fire Risk. Odor Risk.
• Clearance to combustible material under the insert is 1/4 inch (0.6 cm).
• Use leveling legs to raise insert minimum 1/4 inch above combustible material or outer wrap of factory built fi rebox.
Fire Risk.
• Locate and install appliance to all clearance specifi cations in manual.
WARNING
WARNING
MANTEL
Figure 3.2 Clearances to Mantels or other Combustibles above Appliance
12 in. MAX.
12 in. MAX.
TOP OF UNIT
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08 7
4
4
Termination Locations
A. Vent Termination Minimum Clearances
Figure 4.1 specifi es minimum vent heights for various pitched roofs.
HORIZONTAL
OVERHANG
2 FT. MIN.
GAS DIRECT VENT TERMINATION CAP
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12 .................................................1.25*
Over 7/12 to 8/12 .................................................1.5*
Over 8/12 to 9/12 .................................................2.0*
Over 9/12 to 10/12 ...............................................2.5*
Over 10/12 to 11/12 .............................................3.25
Over 11/12 to 12/12 .............................................4.0
Over 12/12 to 14/12 .............................................5.0
Over 14/12 to 16/12 .............................................6.0
Over 16/12 to 18/12 .............................................7.0
Over 18/12 to 20/12 .............................................7.5
Over 20/12 to 21/12 .............................................8.0
* 3 foot minimum in snow regions
Figure 4.1 Minimum height from roof to lowest discharge opening
20 INCHES MIN.
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF TO LOWEST DISCHARGE OPENING
X
12
ROOF PITCH
IS X/ 12
VERTICAL
WALL
WARNING
Fire Risk. Asphyxiation Risk.
• Terminations MUST meet minimum clearances.
• Exhaust gases are hot.
• Nearby vents may draw fumes into house.
8
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08
5
5
Vent Information and Diagrams
A. Vent Table Key
The abbreviations listed in this vent table key are used in the vent diagrams.
Symbol Description
V
MIN
V
MAX
Minimum Vertical Run Length 14 ft.
Maximum Vertical Run Length 50 ft.
B. Horizontal Venting
Horizontal venting is NOT allowed.
C. Measuring Standards
Vertical measurements listed in the vent diagram (Figure
5.1) were made using the following standard:
• Vertical terminations are measured to top of chimney.
WARNING
Fire Hazard. Explosion Risk. Asphyxiation Risk. Do NOT connect this gas appliance to a
chimney fl ue serving a separate solid fuel or gas burning appliance.
• May impair safe operation of this appliance or other appliances connected to the fl ue.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
CAUTION
ALL vent specifi cations MUST be followed.
• This product is tested and listed to these specifi cations.
• Appliance performance will suffer if specifi cations are not followed.
TERMINATION
INLET AIR COLLAR
EXHAUST COLLAR
V= 14 FT. MINIMUM
50FT. MAXIMUM
3 INCH COLLAR
(Factory installed to
stainless steel section)
WARNING: DO NOT
BLOCK PIPE END WITH
INSULATION OR ANY OTHER
SEALING MATERIAL
STAINLESS STEEL
PIPE - 3 FT. MIN.
REQUIRED (INCLUDED)
SEAL DAMPER
CAP
FLASHING
EXHAUST
VENT PIPE
AREA
Figure 5.1
INLET AIR
VENT PIPE
COLLAR ATT ACHMENT
BRACKET
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08 9
6
6
Installation Preparation
Prepare the existing solid fuel masonry or factory built non-combustible fi rebox for installation.
A. Flue Damper
Fully lock the solid fuel fi replace’s fl ue damper in the open position, OR completely remove it.
B. Chimney
• Ensure chimney is constructed of non-combustible materials.
• Ensure chimney is clean and in good working order.
• Ensure that all chimney cleanouts fi t properly to prevent air leakage into chimney.
C. Gas Line
Note: If the factor y built replace has no gas acces s hole
provided, an acces s hole of 1 inch (25 mm) diam eter or less may be drilled through the lower sides or bottom of the rebox in a proper workmanship - like manner. This access hole must be plugged with non-combustible insulation after the gas supply line has been installed.
• Install gas line into fi rebox cavity.
• Check local codes and gas line sizing requirements following NFPA51. See Section 8.
E. Fireplace Conversion Notice
Permanently attach the label with the following warning to the inside lower back of the fi replace fi rebox into which the insert is being installed. Silicone may be required to properly secure the label.
WARNING
Fire Risk. This fi replace has been converted for use with
a gas fi replace insert only and cannot be used for burning wood or solid fuels unless all original parts have been replaced, and the fi replace re- approved by the authority having jurisdiction.
Prior to installing the gas insert:
• Have the chimney and adjacent structure inspected and cleaned by qualifi ed professionals. Hearth & Home Technologies recommends that NFI or CSIA certifi ed professionals, or technicians under the direction of certi­ ed professionals, conduct a minimum of a NFPA 211 Level 2 inspection of the chimney.
• Replace component parts of the chimney and fi replace as specifi ed by the professionals.
• Ensure all joints are properly engaged and the chimney is properly secured.
D. Hearth or Hearth Extension
WARNING
Fire Risk. A hearth or hearth extension (if present) must
comply with either of the following:
• The solid fuel burning fi replace manufacturer’s specifi cation.
• Local building codes required by authority having jurisdiction.
• NFPA 211
F. Remote Control
The receiver for the remotes must be installed BETWEEN the base pan of the insert and the fi rebox of the wood- burning fi replace (see photo below).
EXISTING SIDE
REFRACTORY
REMOTE
RECEIVER
UNIT
EXISTING BOTTOM OF
FIREPLACE
10
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08
7
7
Installing Vent Pipe and Appliance
A. Venting Components
CAUTION
Sharp Edges
• Wear protective gloves and safety glasses during installation.
The vertical vent termination system installed on this model includes:
• One 3-foot section stainless steel fl exible pipe (included with insert).
• One length of 3-inch fl exible vent pipe for combustion air (included with vent kit).
• Flexible vent pipe for exhaust air (included with vent kit).
• One pipe-to-cap adaptor (included with vent kit).
• One vertical termination cap (included with vent kit).
B. Connecting Vent Pipe
Reference instructions in the termination kit.
• Install the 3-inch fl exible vent pipe(s) down through the chimney.
• Secure the exhaust fl exible vent pipe to the 3 foot section stainless steel flexible vent pipe using the factory­installed 3-inch collar in the stainless steel section of pipe (see Figure 7.1).
• Use 3 screws to attach either a 4 foot or 30 foot section of inlet air vent to the inlet collar on the collar slide plate (see Figure 7.1). NOTE: The collar slide plate may be removed from appliance to aid installation.
• Seal opening between fl ex vent and chimney just above insert. Unfaced fi berglass insulation may be used for this purpose.
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08 11
LOCKING
TAB
Note: Inspect for exhaust collar gasket to insure positive exhaust seal.
SLIDING PLATE
LOCKING
HANDLE
ALTERNATIVE INSTALLATION
FOR VENTING THROUGH
WOOD-BURNING
CLASS A PIPE
TERMINATION
CAP
(SQUARE FLASHING
REMOVED)
EXHAUST VENT PIPE SUPPLIED
WITH TERMINATION KIT
INLET AIR VENT COLLAR
(LINK-DV30 SHOWN)
OPTIONAL
LINK-ZC-ADPB
(For Flashing Class-A Pipe)
CLASS A
WOOD PIPE
Figure 7.1
INLET AIR VENT PIPE
STAINLESS STEEL
ADAPTER FOR EXHAUST
(MUST BE INSTALLED)
3 INCH
COLLAR
12
Quadra-Fire • QVI-25FB-S • 2031-910 Rev. D • 3/08
