Quadra-Fire QV36A-FB User Manual

Download

Para obtener un ejemplar en Español de este Manual del propietario, visite www.heatnglo.com.

Model: Expression 36 (QV36A-FB)

Pour demander un exemplaire en français de ce Manuel

du propriétaire, visitez www.heatnglo.com.

Owner’s Manual

Installation and Operation

CAUTION

DO NOT DISCARD THIS MANUAL

• Important operating and maintenance instructions included.

WARNING: If the information in these instructions is not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury, or death.

• Do not store or use gasoline or other ﬂ am- mable vapors and liquids in the vicinity of this or any other appliance.

• What to do if you smell gas

- Do not try to light any appliance.

- Do not touch any electrical switch. Do not

use any phone in your building.

- Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call

the ﬁ re department.

• Installation and service must be performed by a qualiﬁ ed installer, service agency , or the gas supplier.

This appliance may be installed as an OEM installation in manufactured home (USA only) or mobile home and must be installed in accordance with the manufacturer’s instructions and the manufactured home construction and safety standard, Title

24 CFR, Part 3280 or Standard for Installation in Mobile Homes, CAN/CSA Z240MH.

This appliance is only for use with the type(s) of gas indicated on the rating plate.

• Read, understand and follow these instructions for safe installation and operation.

DO NOT

DISCARD

• Leave this manual with party responsible for use and operation.

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation AND cool down.

Hot glass will cause burns.

• DO NOT touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as ﬁ replace.

• Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other ﬂ ammable materials.

• Keep clothing, furniture, draperies and other ﬂ ammable materials away.

This appliance has been supplied with an integral barrier to prevent direct contact with the ﬁ xed glass panel. DO NOT operate the appliance with the barrier removed.

Contact your dealer or Hearth & Home Technologies if the barrier is not present or help is needed to properly install one.

In the Commonwealth of Massachusetts:

• installation must be performed by a licensed plumber or gas ﬁ tter;

See Table of Contents for location of additional Commonwealth of Massachusetts requirements.

Installation and service of this appliance should be performed by qualiﬁ ed personnel. Hearth & Home Technologies suggests NFI certiﬁ ed or factory trained professionals, or technicians supervised by an NFI certiﬁ ed professional.

1Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Read this manual before installing or operating this appliance.

Please retain this owner’s manual for future reference.

Congratulations

Congratulations on selecting a Quadra-Fire gas appliance —an elegant and clean alternative to wood burning appliances. The Quadra-Fire gas appliance you have selected is designed to provide the utmost in safety, reliability, and efﬁ ciency .

As the owner of a new appliance, you’ll want to read and carefully follow all of the instructions contained in this Owner’s Manual. Pay special attention to all Cautions and Warnings.

Homeowner Reference Information

This Owner’s Manual should be retained for future reference. We suggest that you keep it with your other important documents and product manuals.

The information contained in this Owner’s Manual, unless Noted otherwise, applies to all models and gas control systems.

Y our new Quadra-Fire gas appliance will give you years of durable use and trouble-free enjoyment. Welcome to the Quadra-Fire family of appliance products!

We recommend that you record the following pertinent information about your appliance.

Model Name: ___________________________________________ Date purchased/installed: __________________ Serial Number: __________________________________________ Location on appliance: ____________________ Dealership purchased from: _______________________________ Dealer Phone: __________________________ Notes: _______________________________________________________________________________________ _____________________________________________________________________________________________

Listing Label Information/Location

Type of Gas

Not for use with solid fuel. (Ne doit pas entre utilise avec un combustible solide).

Type of Gas (Sorte De Gaz):

NATURAL GAS

Gas and Electric Information

Minimum Minimum Permissible Permissible Approved Approved Minimum Minimum (De (De Gaz) Gaz) AcceptableAcceptable 0.00.0 in in w.c.w.c. (Po. (Po. Col. Col. d’eau)d’eau) Maximum Maximum Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c.w.c. (Po. (Po. Col. Col. d’eau)d’eau) Maximum Maximum Manifold Manifold Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c.w.c. (Po. (Po. Col. Col. d’eau)d’eau) Minimum Minimum Manifold Manifold Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c.w.c. (Po. (Po. Col. Col. d’eau)d’eau) Total Total Electrical Electrical Requirements: Requirements: 000Vac, 000Vac, 00Hz., less than 00 Amperes

ALTITUDE:ALTITUDE: 0-0000 0-0000 FT.FT. 0000-0000FT.0000-0000FT. MAX. MAX. INPUT INPUT BTUH:BTUH: 00,00000,000 00,00000,000 MIN. MIN. INPUT INPUT BTUH:BTUH: 00,00000,000 00,00000,000 ORIFICE ORIFICE SIZE:SIZE: #XXXXX#XXXXX #XXXXX#XXXXX

The model information regarding your speciﬁ c appliance can be found on the rating plate usually located in the control area of the appliance.

Quadra-Fire, a brand of Hearth & Home Technologies, Inc. 7571 215th Street West, Lakeville, MN 55044

This appliance must be installed in accordance with local codes, if any; if not, follow ANSI Z223.1 in the USA or CAN/CGA B149 installation codes. (Installer l’appareil selon les codes ou reglements

locaux ou, en l’absence de tels reglements, selon les codes d’installation

Gas Gas Supply Supply for for Purposes Purposes of of Input Input Adjustment.Adjustment.

ANSI Z21XX-XXXX · CSA 2.XX-MXX · UL307B

IN IN CANADACANADA

Model:Model:

(Modele):(Modele):

SerialSerial

(Serie):(Serie):

XXXXXXXXXXXXXXXX

MADE MADE IN IN USAUSA

Model Number

Serial Number

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/112

Table of Contents

1 Listing and Code Approvals

A. Appliance Certiﬁ cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

B. BTU Speciﬁ cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

C. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . . . . . 4

D. Non-Combustible Materials Speciﬁ cation. . . . . . . . . . . . . . 4

E. Combustible Materials Speciﬁ cation . . . . . . . . . . . . . . . . . 4

F. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

G. Requirements for the Commonwealth of Massachusetts . . 5

2 Getting Started

A. Design and Installation Considerations . . . . . . . . . . . . . . . 6

B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 6

C. Inspect Appliance and Components . . . . . . . . . . . . . . . . . . 6

D. Inspect Firebox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Framing and Clearances

A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . . 8

B. Constructing the Appliance Chase . . . . . . . . . . . . . . . . . . . 9

C. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

D. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Termination Locations

A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . .11

5 Vent Information and Diagrams

A. Vent Table Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

B. Use of Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

C. Measuring Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

D. Vent Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6 Vent Clearances and Framing

A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 18

B. Wall Penetration Framing . . . . . . . . . . . . . . . . . . . . . . . . . 18

C. Vertical Penetration Framing . . . . . . . . . . . . . . . . . . . . . . 19

7 Appliance Preparation

A. Removing Non-combustible Facing Material Assembly . . 20



B. Installing the Optional Heat-Zone

C. Securing and Leveling the Appliance . . . . . . . . . . . . . . . . 21

D. Installing Non-combustible Facing Material . . . . . . . . . . . 22

Gas Kit . . . . . . . . . . . 20

8 Installing Vent Pipe

A. Assembly of Vent Sections . . . . . . . . . . . . . . . . . . . . . . . . 23

B. Disassembly of Vent Sections . . . . . . . . . . . . . . . . . . . . . 25

C. Installing Heat Shield and Horizontal Termination Cap . . 26 D. Installing Roof Flashing and Vertical Termination Cap . . . 27

9 Gas Information

A. Fuel Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

B. Gas Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

10 Electrical Information

A. Recommendation for Wire . . . . . . . . . . . . . . . . . . . . . . . . 31

B. Connecting to the Appliance. . . . . . . . . . . . . . . . . . . . . . . 31

C. IntelliFire Ignition System Wiring . . . . . . . . . . . . . . . . . . . 31

D. Optional Accessories Requirements . . . . . . . . . . . . . . . . 32

E. QWSK-MLT Wall Switch Kit . . . . . . . . . . . . . . . . . . . . . . . 32

F. Junction Box Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 35

11 Finishing

A. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

B. Facing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

12 Appliance Setup

A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 37

B. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

D. Ember Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

E. Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

F. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

G. Burner Removal (Only for Servicing) . . . . . . . . . . . . . . . . 41

H. Grilles and Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

I. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

13 Operating Instructions

A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 43

B. Lighting Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

C. After Appliance is Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

D. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 45

14 Troubleshooting

A. IntelliFire Ignition System . . . . . . . . . . . . . . . . . . . . . . . . . 46

15 Maintaining and Servicing Appliance

A. Maintenance Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

16 Reference Materials

A. Appliance Dimension Diagram . . . . . . . . . . . . . . . . . . . . . 50

B. Vent Components Diagrams . . . . . . . . . . . . . . . . . . . . . . 51

C. Service Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

D. Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 57

E. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59



 = Contains updated information.

3Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Listing and Code Approvals

A. Appliance Certiﬁ cation

MODELS: QV36A-FB LABORATORY: Underwriters Laboratories, Inc. (UL) TYPE: Direct Vent Gas Appliance Heater STANDARD: ANSI Z21.88-2002 • CSA2.33-M02 • UL307B

This product is listed to ANSI standards for “Vented Gas Appliance Heaters” and applicable sections of “Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles”, and “Gas Fired Appliances for Use at High Altitudes”.

NOT INTENDED FOR USE AS A PRIMAR Y HEAT SOURCE.

This appliance is tested and approved as either supplemental room heat or as a decorative appliance. It should not be factored as primary heat in residential heating calculations.

Note: This installation must conform with local codes. In the absence of loc al codes you must co mply with the Natio nal Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and the CAN/CGA B149 Installation Codes in Canada.

B. BTU Speciﬁ cations

Expression 36

(QV36A-FB)

(NG)

(2000-4500 FT)

(LP)

(2000-4500 FT)

(0-2000 FT)

CANADA

(0-2000 FT)

Maximum

BTUH

37,000 24,000 32

33,300 21,600 33

36,000 26,000 50

32,400 23,400 51

Input

Minimum

Input

BTUH

Oriﬁ ce

Size

(DMS)

C. High Altitude Installations

U.L. Listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 feet in the U.S.A. and Canada.

When installing this appliance at an elevation above 2000 feet, it may be necessary to decrease the input rating by changing the existing burner oriﬁ ce to a smaller size. Input rate should be reduced by 4% for each 1000 feet above a 2000 foot elevation in the U.S.A., or 10% for elevations between 2000 and 4500 feet in Canada. If the heating value of the gas has been reduced, these rules do not apply . To identify the proper oriﬁ ce size, check with the local gas utility.

If installing this appliance at an elevation above 4500 feet (in Canada), check with local authorities.

WARNING

Do NOT use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

D. Non-Combustible Materials Speciﬁ cation

Material which will not ignite and burn. Such materials are those consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination thereof.

Materials that are reported as passing ASTM E 136,

Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750ºC, shall be considered

non-combustible materials.

E. Combustible Materials Speciﬁ cation

Materials made of or surfaced with wood, compressed paper, plant ﬁ bers, plastics, or other material that can ig- nite and burn, whether ﬂ ame proofed or not, or whether plastered or unplastered shall be considered combustible materials.

F. Electrical Codes

NOTICE: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with National Electric Code ANSI/NFPA

70-latest edition or the Canadian Electric Code CSA C22.1.

• A 110-120 VAC circuit for this product must be protected

with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/114

Note: The following requirements reference various Massachuset ts and national codes not contain ed in this document.

G. Requirements for the Commonwealth of

Massachusetts

For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above ﬁ nished grade in the area of the venting, in- cluding but not limited to decks and porches, the following requirements shall be satisﬁ ed:

Installation of Carbon Monoxide Detectors

At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gas ﬁ tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the ﬂ oor level where the gas equipment is to be installed. In addition, the installing plumber or gas ﬁ tter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualiﬁ ed licensed professionals for the installation of hard wired carbon monoxide detectors.

In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent ﬂ oor level. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

Inspection

The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.

Exemptions

The following equipment is exempt from 248 CMR

5.08(2)(a)1 through 4:

• The equipment listed in Chapter 10 entitled “Equip-

ment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

• Product Approved side wall horizontally vented gas fu-

eled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS Gas Equipment Venting System Provided

When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

• Detailed instructions for the installation of the venting

system design or the venting system components; and

• A complete parts list for the venting system design or

venting system.

Gas Equipment Venting System NOT Provided

When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ﬂ ue gases, but identiﬁ es “special venting systems”, the following requirements shall be satisﬁ ed by the manufacturer:

Approved Carbon Monoxide Detectors

Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certiﬁ ed.

Signage

A metal or plastic identiﬁ cation plate shall be permanent- ly mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS

VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.

• The referenced “special venting system” instructions

shall be included with the appliance or equipment installation instructions; and

• The “special venting systems” shall be Product Ap-

proved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

See Gas Connection section for additional Commonwealth of Massachusetts requirements.

5Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Getting Started

A. Design and Installation Considerations

Quadra-Fire direct vent gas appliances are designed to operate with all combustion air siphoned from outside of the building and all exhaust gases expelled to the outside. No additional outside air source is required.

CAUTION

Check building codes prior to installation.

• Installation MUST comply with local, regional, state and national codes and regulations.

• Consult local building, ﬁ re ofﬁ cials or authorities having jurisdic- tion about restrictions, installation inspection, and permits.

When planning an appliance installation, it’s necessary to determine the following information before installing:

• Where the appliance is to be installed.

• The vent system conﬁ guration to be used.

• Gas supply piping.

• Electrical wiring.

• Framing and ﬁ nishing details.

• Whether optional accessories—devices such as a fan, wall switch, or remote control—are desired.

C. Inspect Appliance and Components

WARNING

Inspect appliance and components for damage. Damaged parts may impair safe operation.

• Do NOT install damaged components.

• Do NOT install incomplete components.

• Do NOT install substitute components. Report damaged parts to dealer.

• Carefully remove the appliance and components from the packaging.

• The vent system components and trim doors are shipped in separate packages.

• The gas logs may be packaged separately and must be ﬁ eld installed.

• Report to your dealer any parts damaged in shipment, particularly the condition of the glass.

• Read all of the instructions before starting the installation. Follow these instructions carefully during the installation to ensure maximum safety and beneﬁ t.

WARNING

Keep appliance dry.

• Mold or rust may cause odors.

• Water may damage controls.

B. Tools and Supplies Needed

Before beginning the installation be sure that the following tools and building supplies are available.

Reciprocating saw Framing material Pliers Noncorrosive leak check solution Hammer Gloves Phillips screwdriver Framing square Flat blade screwdriver Electric drill and bits (1/4 in.) Plumb line Safety glasses Level Tape measure Manometer Voltmeter 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws Caulking material (300ºF minimum continuous exposure rating)

Hearth & Home Technologies disclaims any responsibility for, and the warranty will be voided by, the following actions:

• Installation and use of any damaged appliance or vent system component.

• Modiﬁ cation of the appliance or vent system.

• Installation other than as instructed by Hearth & Home Technologies.

• Improper positioning of the gas logs or the glass door.

• Installation and/or use of any component part not approved by Hearth & Home Technologies.

Any such action may cause a ﬁ re hazard.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/116

D. Inspect Firebox

Surface cracking or crazing of ﬁ rebrick material is normal and expected. The following types of cracks are acceptable and do not require replacement of the unit or the ﬁ rebox:

• Cracks that do not propagate entirely through the

material.

• Light fracture lines or “spider-webbing” on the surface of

the material.

• Cracks that are less than 1/32 in. wide and less than 3

in. long.

• If cosmetically unacceptable, such cracks may be

repaired with the SRV-PACK service kit. See Service Parts List.

Cracks that are unacceptable:

• Cracks greater than 1/32 in. wide and 3 in. long are at

risk of growing.

• Cracks that penetrate entirely through the firebrick

material.

Inspection for cracking should be run when the appliance is cool. Cracks tend to close as the appliance heats up.

7Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Framing and Clearances

Note:

• Illustrations reflect typical installations and are FOR

DESIGN PURPOSES ONLY.

• Illustrations/diagrams are not drawn to scale.

• Actual installation may vary due to individual design

preference.

A. Selecting Appliance Location

When selecting a location for your appliance it is important to consider the required clearances to walls (see ﬁ gure 3.1).

WARNING

Fire Risk Provide adequate clearance:

• Around air openings

• To combustibles

• For service access Locate appliance away from trafﬁ c areas.

Note: For actual appliance dimensions refer to Section 16.

In addition to these framing dimensions, also reference the following sections:

• Clearances and Mantel Projections (Sections 3.C and 3.D)

• Vent Clearances and Framing (Section 6).

1/2 in.

Figure 3.1 Appliance Locations

Model A B C D E F

Expression 36

(QV36A-FB)

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/118

Inches 41-1/2 17-1/4 32 45-1/4 64 12

Millimeters 1054 439 813 1150 1626 305

B. Constructing the Appliance Chase

A chase is a vertical boxlike structure built to enclose the gas appliance and/or its vent system. Vertical vents that run on the outside of a building may be, but are not required to be, installed inside a chase.

Construction of the chase may vary with the type of building. These instructions are not substitutes for the requirements of local building codes. Local building codes MUST be checked.

Chases should be constructed in the manner of all outside walls of the home to prevent cold air drafting problems. The chase should not break the outside building envelope in any manner.

Walls, ceiling, base plate and cantilever ﬂ oor of the chase should be insulated. Vapor and air inﬁ ltration barriers should be installed in the chase as per regional codes for the rest of the home. Additionally, in regions where cold air inﬁ ltration may be an issue, the inside surfaces may be sheetrocked and taped for maximum air tightness.

To further prevent drafts, the wall shield and ceiling ﬁ restops should be caulked with caulk with a minimum of 300ºF continuous exposure rating to seal gaps. Gas line holes and other openings should be caulked with caulk with a minimum of 300ºF continuous exposure rating or stuffed with unfaced insulation. If the appliance is being installed on a cement surface, a layer of plywood may be placed underneath to prevent conducting cold up into the room.

C. Mantel Projections

3 IN. MIN.

D. Clearances

Fire Risk. Odor Risk.

• Install appliance on hard metal or wood surfaces extending full width and depth of appliance.

• Do NOT install appliance directly on carpeting, vinyl, tile or any combustible material other than wood.

Fire Risk.

• Construct chase to all clearance speciﬁ cations in manual.

• Locate and install appliance to all clearance speciﬁ cations in manual.

Note: Dimensi ons shown in inches.

WARNING

1/2

12 IN. MAX.

23 IN.

14 IN.

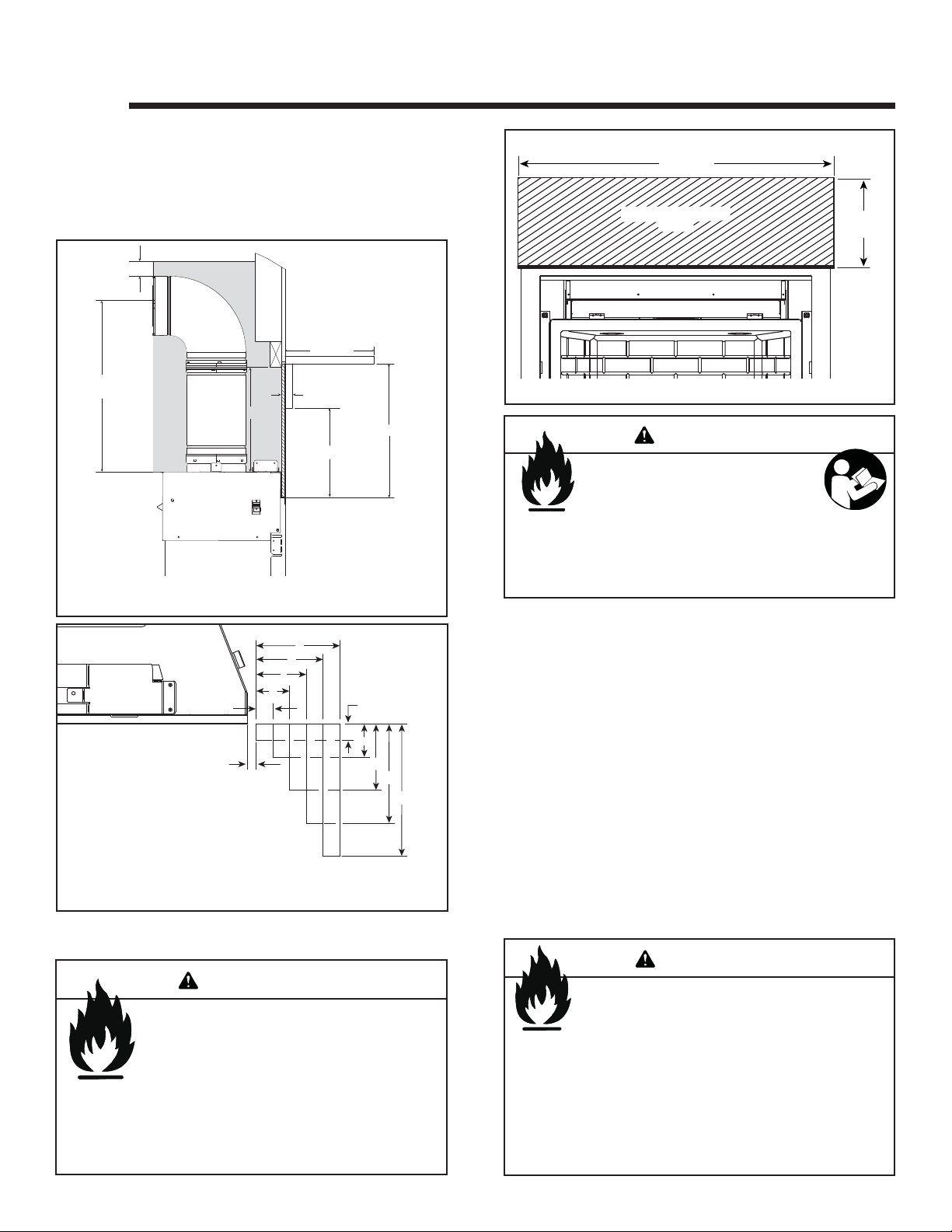

Figure 3.2 Clearances to Mantels or Other Combustibles Above Appliance

1 IN. MAX.

12 IN. MIN.

Figure 3.3 Clearances to Mantel Legs or Wall Projections (Acceptable on both sides of opening.)

18 IN. MIN.

9Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Note: Framing should be constructed of 2 X 4 lumber or heavier. The framing headers may rest on the appliance stand-offs.

Clearance to Combustibles

ABCDE F GHI J

Rough

Opening

(Vent Pipe)

Inches 10 52 17-1/4 41-1/2 32-1/2 0 0 1 1/2 36

Millimeters 254 1321 438 1054 825 0 0 25 13 914

Rough

Opening

(Height)

Rough

Opening

(Depth)

NON-COMBUSTIBLE ZONE IS DEFINED BY 3 INCHES ABOVE THE ELBOW FOR THE ENTIRE WIDTH AND DEPTH (BEHIND THE FRONT HEADER) OF THE FIREBOX.

WALL STUD

Rough

Opening

(Width)

Clearance

to Ceiling

Combustible

Floor

Combustible

Flooring

Behind

Appliance

Sides of

Appliance

Front of

Appliance

Figure 3.4 Clearances to Combustibles

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1110

3 IN.

Termination Locations

A. Vent Termination Minimum Clearances

WARNING

Fire Risk. Explosion Risk. Inspect external vent cap regularly.

• Ensure no debris blocks cap.

• Combustible materials blocking cap may ignite.

• Restricted air ﬂ ow affects burner operation.

WARNING

Fire Risk. Explosion Risk. Maintain vent clearance to combustibles as

speciﬁ ed.

• Do not pack air space with insulation or other materials.

Failure to keep insulation or other materials away from vent pipe may cause ﬁ re.

Measure vertical clearances from this surface.

HORIZONTAL

OVERHANG

2 FT. MIN.

GAS DIRECT VENT TERMINATION CAP

Roof Pitch H (Min.) Ft.

Flat to 6/12...........................................................1.0*

Over 6/12 to 7/12 .................................................1.25*

Over 7/12 to 8/12 .................................................1.5*

Over 8/12 to 9/12 .................................................2.0*

Over 9/12 to 10/12 ...............................................2.5

Over 10/12 to 11/12 .............................................3.25

Over 11/12 to 12/12 .............................................4.0

Over 12/12 to 14/12 .............................................5.0

Over 14/12 to 16/12 .............................................6.0

Over 16/12 to 18/12 .............................................7.0

Over 18/12 to 20/12 .............................................7.5

Over 20/12 to 21/12 .............................................8.0

* 3 foot minimum in snow regions

Figure 4.2 Minimum height from roof to lowest discharge opening

20 INCHES MIN.

LOWEST

DISCHARGE

OPENING

H (MIN.) - MINIMUM HEIGHT FROM ROOF TO LOWEST DISCHARGE OPENING

ROOF PITCH

VERTICAL

WALL

IS X/ 12

Figure 4.2 speciﬁ es minimum vent heights for various pitched roofs.

6 in. (minimum) up to 20 in.

152 mm/508 mm

20 in. and over 0 in. minimum

18 in. minimum

457 mm

Measure horizontal clearances from this surface.

(See Figure 4.4 for speciﬁ c clearances)

Figure 4.1

Gas, Wood or Fuel Oil

Termination Cap

A *

Gas

Termination

Cap **

If using decorative cap cover(s), this distance may need to be

increased. Refer to the installation instructions supplied with the decorative cap cover.

In a staggered installation with both gas and wood or fuel oil

terminations, the wood or fuel oil termination cap must be higher than the gas termination cap.

Figure 4.3 Multiple Vertical Termination

11Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

= VENT TERMINAL

= AIR SUPPLY INLET

H or I

= AREA WHERE TERMINAL IS NOT PERMITTED

Electrical

Service

A = 12 inches.................clearances above grade, veranda,

porch, deck or balcony

12 inches.................clearance to window or door that may

B =

be opened, or to permanently closed

window

C = 18 inches.................clearance below unventilated sofﬁ t

18 inches.................clearance below ventilated sofﬁ t

inches ................clearance below vinyl soffits and

electrical service

D = 6 inches...................clearance to outside corner

E = 6 inches...................clearance to inside corner

F = 3 ft. (Canada) ..........not to be installed above a gas me-

ter/regulator assembly within 3 feet horizontally from the center-line of the regulator

G = 3 ft ...........................clearance to gas service regulator

vent outlet H =

12 inches.................clearance to non-mechanical (unpow-

ered) air supply inlet, combustion air

inlet or direct-vent termination i = 3 ft. (U.S.A.)

6 ft. (Canada) ...........clearance to a mechanical (powered)

air supply inlet

All mechanical air intakes within 10 feet of a termination cap must be a minimum of 3 feet below termination.

J = 7 ft. ......................... On public property: clearance above

paved sidewalk or a paved driveway.

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

K = 6 inches................. clearance from sides of electrical

service

L = 12 inches................ clearance above electrical service

Location of the vent termination must not interfere with access to the electrical service.

M = 18 inches ....................clearance under veranda, porch, deck,

balcony or overhang

inches ................vinyl or composite overhang

Permitted when veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the ﬂ oor.

Figure 4.4 Minimum Clearances for Termination

Covered Alcove Applications

(Spaces open only on one side and with an overhang)

N = 6 inches ...........non-vinyl sidewalls

12 inches ......... vinyl sidewalls

O = 18 inches ......... non-vinyl sofﬁ t and overhang

42 inches ......... vinyl sofﬁ t and overhang

P = 8 ft.

MIN

1 cap 3 feet 2 x Q 2 caps 6 feet 1 x Q 3 caps 9 feet 2/3 x Q 4 caps 12 feet 1/2 x Q

= # termination caps x 3 R

MIN

Measure vertical clearances from this surface.

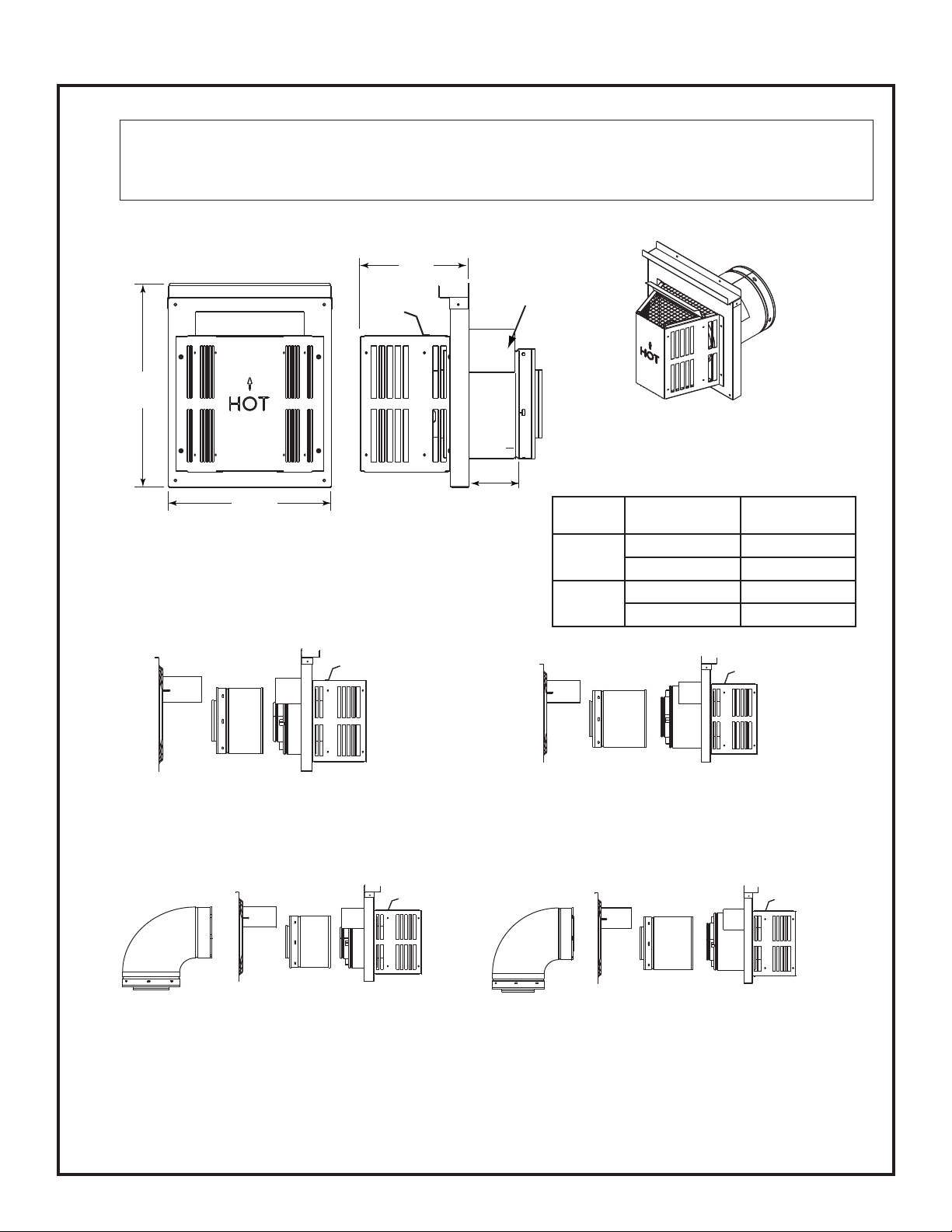

Measure horizontal clearances from this surface.

= (2 / # termination caps) x Q

MAX

ACTUAL

CAUTION! Risk of Burns! Termination caps are HOT, consider proximity to doors, trafﬁ c areas or where people may pass or gather (sidewalk, deck, patio, etc.). Listed cap shields available. Contact your dealer.

• Local codes or regulations may require different clearances.

• Vent system termination is NOT permitted in screened porches.

• Vent system termination is permitted in porch areas with two or more sides open.

• Hearth & Home Technologies assumes no responsibility for the improper performance of the appliance when the venting system does not meet these requirements.

• Vinyl protection kits are suggested for use with vinyl siding.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1112

Vent Information and Diagrams

A. Vent Table Key

The abbreviations listed in this vent table key are used in the vent diagrams.

Symbol Description

First section (closest to appliance) of vertical length

Second section of vertical length

First section (closest to appliance) of horizontal length

Second section of horizontal length

Vertical

12 in.

8-1/2 in.

WARNING

Fire Hazard. Explosion Risk. Asphyxiation Risk. Do NOT connect this gas appliance to a chimney

ﬂ ue serving a separate solid-fuel or gas burning appliance.

• Vent this appliance directly outside.

• Use separate vent system for this appliance. May impair safe operation of this appliance or

other appliances connected to the ﬂ ue.

B. Use of Elbows

CAUTION

ALL vent conﬁ guration speciﬁ cations MUST be followed.

• This product is tested and listed to these speciﬁ cations.

• Appliance performance will suffer if speciﬁ cations are not followed.

Diagonal runs have both vertical and horizontal vent aspects when calculating the effects. Use the rise for the vertical aspect and the run for the horizontal aspect (see Figure 5.1).

Two 45º elbows may be used in place of one 90º elbow . On 45º runs, one foot of diagonal is equal to 8-1/2 (216 mm) inches horizontal run and 8-1/2 (216 mm) inches vertical run. A length of straight pipe is allowed between two 45º elbows (see Figure 5.1).

Horizontal

Figure 5.1

C. Measuring Standards

Vertical and horizontal measurements listed in the vent diagrams were made using the following standards.

1. Pipe measurements are shown using the effective length of pipe (see Figure 5.2).

2. Measurements are made from the appliance outer wrap, not from the standoffs.

3. Horizontal terminations are measured to the outside mounting surface (ﬂ ange of termination cap) (see Figure 4.1).

4. Vertical terminations are measured to bottom of termination cap.

5. Horizontal pipe installed level with no rise.

Effective Length

Inches Millimeters

Effective

Height/Length

Pipe

DVP4 4 102

DVP6 6 152 DVP12 12 305 DVP24 24 610 DVP36 36 914 DVP48 48 1219 DVP6A 3 to 6 76 to 152

DVP12A 3 to 12 76 to 305 DVP12MI 3 to 12 76 to 305 DVP24MI 3 to 24 76 to 610

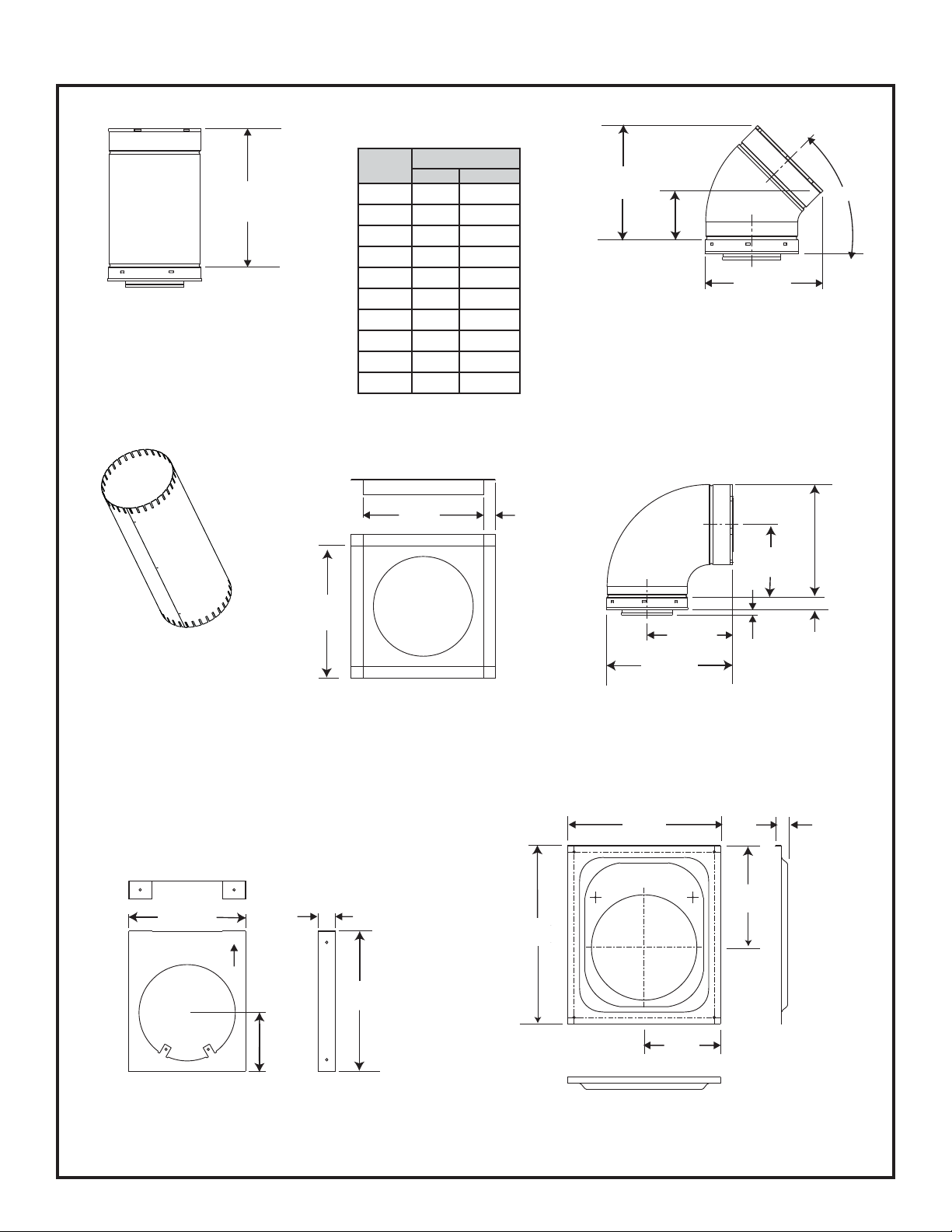

Figure 5.2 DVP Pipe Effective Length

13Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

D. Vent Diagrams

Fire Risk. Explosion Risk. Do NOT pack insulation or other combustibles between ceiling ﬁ restops.

• ALWAYS maintain speciﬁ ed clearances around venting and ﬁ restop systems.

• Install wall shield and ceiling ﬁ restops as speciﬁ ed. Failure to keep insulation or other material away from vent pipe may cause ﬁ re.

1. Top Vent - Horizontal Termination

WARNING

One Elbow

Figure 5.3

Two Elbows

Note: Must have a 12 inches minimum vertical vent before attaching a 90° elbow to the unit.

V1 Minimum H1 Maximum

1 ft. 305 mm 3 ft 924 mm 2-1/2 ft. 762 mm 6 ft 1.8 m 3-1/2 ft. 1.7 m 9 ft 2.7 m

4 ft. 1.2 m 10 ft 3.1 m 4-1/2 ft. 1.4 m 12 ft 3.7 m 5-1/2 ft. 1.7 m 15 ft 4.6 m 6-1/2 ft. 2 m 18 ft 5.5 m

7-1/2 ft. 2.3 m 21 ft 6.4 m

= 21 ft. (6.4 m) Maximum

V1 = 40 ft. (12.2 m) Maximum

V1 + H1 = 30 ft. (9.1 m) Maximum*

Note: Must have a 12 inch minimum

vertical vent before attaching a 90° elbow

to the unit.

* If the horizontal component is less than

5 feet then the total vent run can be extended to 40 feet.

V1 Minimum H1 + H2 Maximum

1 ft. 305 mm 3 ft 924 mm 2-1/2 ft. 762 mm 6 ft 1.8 m 3-1/2 ft. 1.7 m 9 ft 2.7 m

4 ft. 1.2 m 10 ft 3.1 m 4-1/2 ft. 1.4 m 12 ft 3.7 m 5-1/2 ft. 1.7 m 15 ft 4.6 m 6-1/2 ft. 2 m 18 ft 5.5 m 7-1/2 ft. 2.3 m 21 ft 6.4 m

= 40 ft. (12.2 m) Maximum

H1 + H2 = 21 ft. (6.4 m) Maximum

+ H1 + H2= 30 ft. (9.1 m) Maximum*

* If the horizontal component is less than

5 feet then the total vent run can be extended to 40 feet.

Figure 5.4

INSTALLED

HORIZONTALLY

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1114

1. Top Vent - Horizontal Termination - (continued)

Three Elbows

VT Min. HT Max.

1 ft. 6 in. 3 ft. 2 ft. 6 in. 6 ft. 3 ft. 6 in. 9 ft.

4 ft. 10 ft. 4 ft. 6 in. 12 ft. 5 ft. 6 in. 15 ft. 6 ft. 6 in. 18 ft. 7 ft. 6 in. 21 ft.

= 21 ft. Max

VT = 40 ft. Max

VT + HT = 30 ft. Max*

Note: A section of vert ic al pip e (12 inches minimum) MUST be installed prior to attaching a 90° elbow.

* If the horizontal component is less than

5 feet then the total vent run can be extended to 40 feet.

Figure 5.5

15Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

2. Top Vent - Vertical Termination

No Elbow

Figure 5.6

V1 = 40 ft. Max. (12.2 m)

Two Elbows

Note: A section of vert ic al pip e (12 inches minimum)

MUST be installed prior to attaching a 90° elbow.

VT Min. HT Max.

1 ft. 6 in. 3 ft. 2 ft. 6 in. 6 ft. 3 ft. 6 in. 9 ft.

4 ft. 10 ft. 4 ft. 6 in. 12 ft. 5 ft. 6 in. 15 ft. 6 ft. 6 in. 18 ft. 7 ft. 6 in. 21 ft.

= 21 ft. Max

VT = 40 ft. Max

+ HT = 30 ft. Max*

* If the horizontal component is less than

5 feet then the total vent run can be extended to 40 feet.

Figure 5.7

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1116

2. Top Vent - Vertical Termination - (continued)

Three Elbows

Note: A section of vert ic al pip e (12 inches minimum)

MUST be installed prior to attaching a 90° elbow.

VT Min. HT Max.

1 ft. 6 in. 3 ft. 2 ft. 6 in. 6 ft. 3 ft. 6 in. 9 ft.

4 ft. 10 ft. 4 ft. 6 in. 12 ft. 5 ft. 6 in. 15 ft. 6 ft. 6 in. 18 ft. 7 ft. 6 in. 21 ft.

= 21 ft. Max

= 40 ft. Max

VT + HT = 30 ft. Max*

* If the horizontal component is less than

5 feet then the total vent run can be extended to 40 feet.

INSTALLED

HORIZONTALLY

Figure 5.8

17Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

53-3/4 in. 1365 mm

54-3/4 in. 1391 mm

VENT FRAMING HOLE*

(Do NOT pack with

Insulation)

Vent Clearances and Framing

A. Pipe Clearances to Combustibles

WARNING

Fire Risk. Explosion Risk. Maintain vent clearance to combustibles as

speciﬁ ed.

• Do not pack air space with insulation or other materials.

Failure to keep insulation or other materials away from vent pipe may cause ﬁ re.

3 in. TOP

CLEARANCE

1 in. CLEARANCE

AROUND VERTICAL

SECTIONS

1 in. SIDE AND

BOTTOM CLEARANCE

B. Wall Penetration Framing

Combustible Wall Penetration

Frame a hole in a combustible wall for an interior wall shield ﬁ restop, (Figure 6.2) whenever a wall is penetrated. Use same size framing materials as those used in the wall construction. The wall shield ﬁ restop maintains minimum clearances and prevents cold air inﬁ ltration.

Non-Combustible Wall Penetration

If the hole being penetrated is surrounded by noncombustible materials such as concrete, a hole with diameter one inch greater than the pipe is acceptable.

Whenever a non-combustible wall is penetrated, the wall shield ﬁ restop is only required on one side and no heat shield is necessary.

If your local inspector requires the wall shield ﬁ restop on both sides, then both wall shield ﬁ restops must have a heat shield attached to them.

Figure 6.1 Pipe Clearances

Note: The top standoff is ﬂ at on top of the unit for shipping

purposes. T he two pieces sh ould be folded up as shown and connected to gether by interlocking t abs and slots on each piece.

* Shows center of vent framing hole for top venting.

The center of the hole is one (1) inch (25.4 mm) above the center of the horizontal vent pipe.

Figure 6.2 Exterior Wall Hole

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1118

C. Vertical Penetration Framing

ATTIC ABOVE

10 IN. (254 MM)

HOLE SHOULD MEASURE

10 IN. X 10 IN.

(254 MM X 254 MM)

INSIDE TO INSIDE

10 IN.

(254 MM)

WARNING

Fire Hazard Keep loose materials or blown

insulation from touching the vent pipe.

• National building codes recommend using attic shield to keep loose materials/ blown insulation from contacting vent.

• Hearth & Home Technologies requires the use of an attic shield.

Installing the Ceiling Firestop

• Frame an opening 10 inches by 10 inches whenever the vent system penetrates a ceiling/ﬂ oor (see Figure 6.3).

• Frame the area with the same sized lumber as used in ceiling/ﬂ oor joist.

• When installing a top vent vertical termination appliance the hole should be directly above the appliance, unless the ﬂ ue is offset.

• Do not pack insulation around the vent. Insulation must be kept away from the pipe.

Installing Attic Shield Note: An additional ceiling ﬁ restop is not

required if attic shield is used.

• Frame opening for attic shield.

• Attic shield may be installed above or below ceiling (see Figure 6.4).

• Secure with three fasteners on each side.

• Fold tabs at top of attic shield in toward vent pipe. Tabs must keep vent pipe centered within shield.

• Field construct additional shield height if insulation is deeper than height of attic shield.

Figure 6.3

ATTIC SHIELD INSTALLED

BELOW CEILING

BEND TABS IN

AROUND PIPE

3 FASTENERS

PER SIDE

ATTIC SHIELD INSTALLED

ABOVE CEILING

Figure 6.4 Installing the Attic Shield

19Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Appliance Preparation

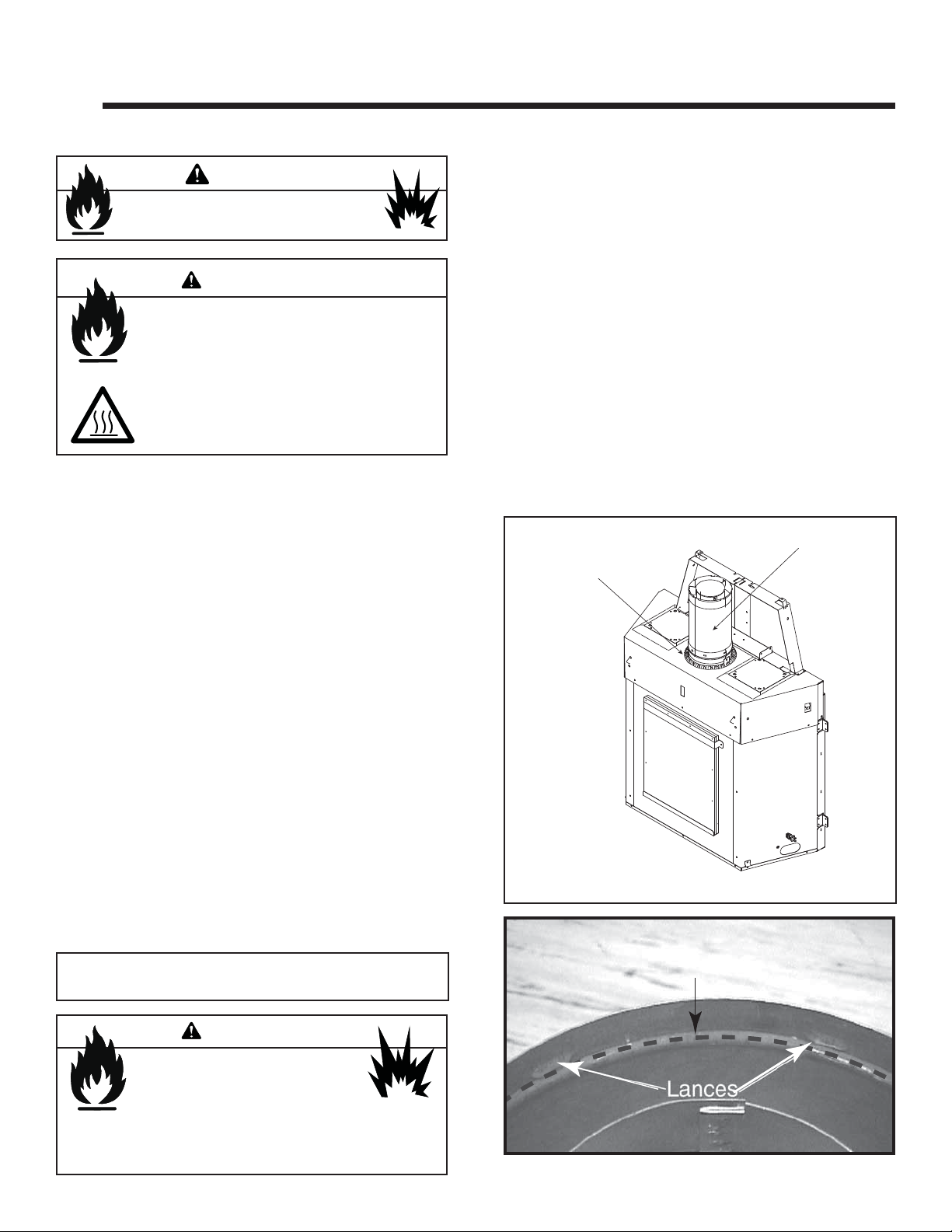

A. Removing Non-combustible Facing Mate-

rial Assembly

The non-combustible assembly is located on the back side of appliance.

CAUTION

Handle with care

• Non-combustible material may be damaged if dropped.

CUT LINE

BEND TABS UP

• Hold non-combustible pieces in place.

• Remove and save two screws from upper bracket.

• Remove non-combustible pieces.

• Remove and save three screws from lower bracket.

• Discard brackets.

• Replace screws in holes where brackets were attached to appliance.



B. Installing the Optional Heat-Zone

Kit

Before installing ﬁ nishing materials, use these instructions to attach the Heat-Zone® Gas kit to the top of the QV36A-FB.

CAUTION

Sharp Edges

• Wear protective gloves and safety glasses during installation.

1. Remove the four screws that attach the Heat Zone Cover Plate to the top of the appliance.

Gas

Figure 7.2. Bend Tabs and Cut Insulation.

3. Discard the Heat-Zone® cover plate and insulation piece that was cut out. See Figure 7.3. With a selftapping screw or drill bit, drill out the three holes on the cover plate of the appliance. This will make it easier to mount the Heat-Zone® Gas collar.

COVER PLATE HOLES

REMOVE SCREWS

Figure 7.1. Remove Screws.

2. Bend the four pre-cut tabs up to expose the top of the appliance. Place the Heat-Zone® cover plate on the insulation inside the unit centered between the three pre-cut tabs that are the same size as shown in Figure

7.2. Use the Heat-Zone® cover plate as a template and cut around it carefully with a utility knife.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1120

Figure 7.3.

4. Remove the four screws securing the cover plate to the inside of the appliance and discard them along with the cover plate. See Figure 7.4.

Figure 7.4.

5. Attach the collar that is included with the Heat-Zone® Gas Kit.

Figure 7.5. Heat-Zone-Gas Collar Installed.

6. Attach the insulated ﬂ ex that is included in the Heat- Zone® Gas kit with the provided hose clamp.

C. Securing and Leveling the Appliance

WARNING

Fire Risk.

• Prevent contact with sagging, loose insulation.

• Do NOT install against combustible materials such as exposed insulation, plastic and insulation backer.

The diagram shows how to properly position, level, and secure the appliance (see Figure 7.8). Nailing tabs are provided to secure the appliance to the framing members.

• Venting - refer to V ent Clearances and Framing (Section

6) for hole location.

• Place the appliance into position.

• Level the appliance from side to side and front to back.

• Shim the appliance as necessary . It is acceptable to use wood shims.

• Bend out nailing tabs on each side.

• Keep nailing tabs ﬂ ush with the framing.

• Secure the appliance to the framing by using nails or screws through the nailing tabs.

Figure 7.6. Install Insulated Flex.

7. Close the top of the appliance by bending the four precut tabs back to their original orientation as shown in Figure 7.7.

WARNING

Fire Risk.

• ALWAYS maintain speciﬁ ed clearances around the appliance.

• Do NOT notch into the framing around the appliance spacers. Failure to keep insulation, framing or other material away from

the appliance may cause ﬁ re.

COVER PLATES

Figure 7.7. Bend Pre-cut Tabs Down.

STEEL BACK

SUPPORT

Figure 7.8 Proper positioning, leveling and securing of an appliance

21Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

NON-COMBUSTIBLE

FACING MATERIAL

(SUPPLIED ATTACHED

TO BACK OF APPLIANCE).

APPLY FASTENERS FROM

FASTENER PACKET IN

THESE AREAS

Figure 7.9 Attaching Non-combustible Facing Material

STEEL BACK SUPPORT

(SUPPLIED ATTACHED TO

TOP OF APPLIANCE).

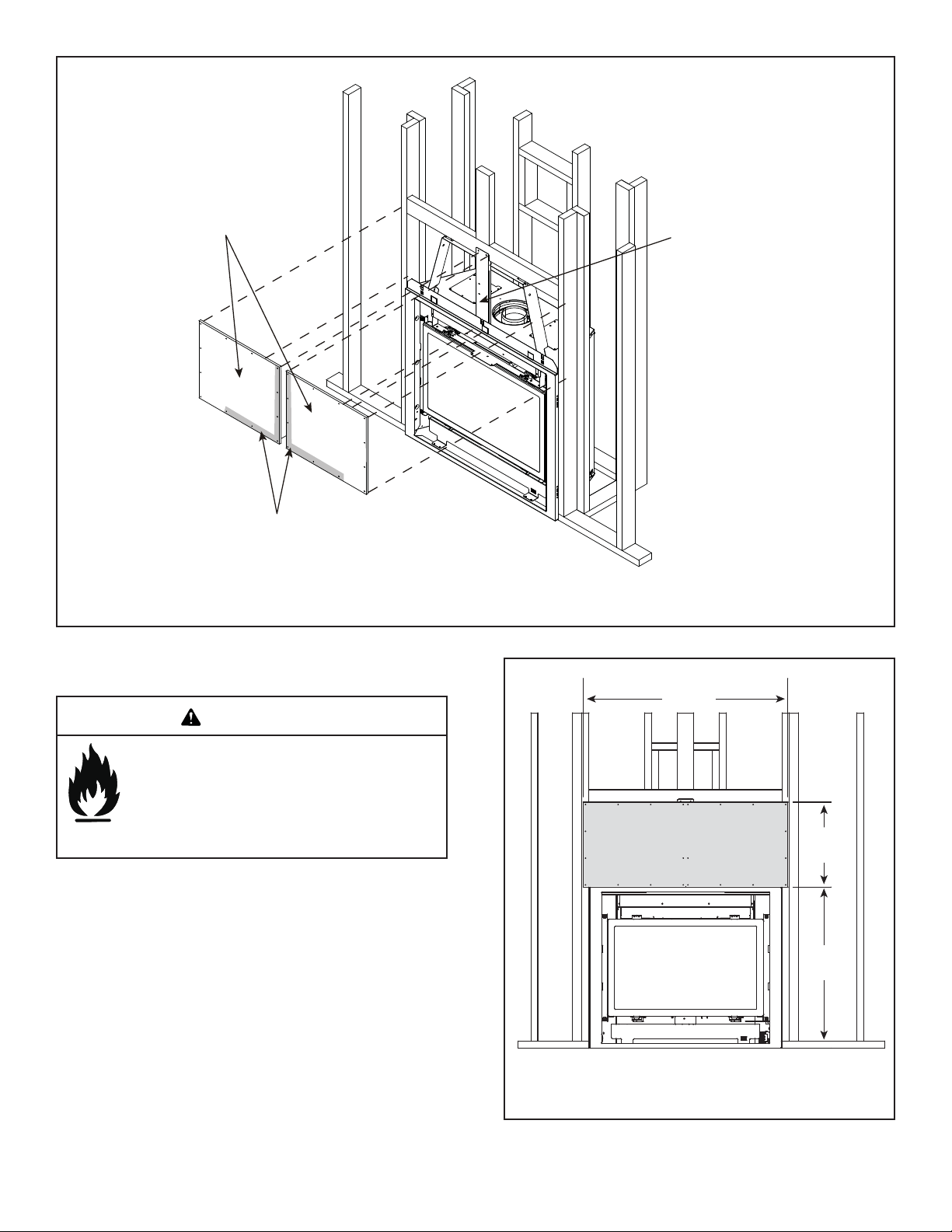

D. Installing Non-combustible Facing Material

WARNING

Fire Risk.

• Follow these instructions exactly.

• Facing materials must be installed properly to prevent ﬁ re.

• No materials may be substituted without authorization by Hearth & Home Technologies.

• Center and attach two top boards to the framing members. See Figure 7.10.

• Use fasteners from fastener packet (in manual bag) in shaded areas.

• Use regular sheetrock screws in non-shaded areas.

• Use a wet or dry towel or soft brush to remove dust or dirt from facing material.

• Apply a non-combustible adhesive to attach tile, stone or other non-combustible ﬁ nishing materials per manufacturer’s instructions.

44 in.

1117 mm

Non-combustible

Zone

Figure 7.10 Complete Installation of Non-combustible Facing Material

18-1/4 in.

463 mm

34-5/8 in.

879 mm

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1122

Installing Vent Pipe

A. Assembly of Vent Sections

WARNING

Do not mix pipe, ﬁ ttings or joining methods from different manufacturers.

WARNING

Fire Risk Exhaust Fumes Risk Impaired Performance of Appliance

• Overlap pipe slip sections at least 1-1/2 inches.

• Use pilot holes for screws.

• Screws must not exceed one inch long.

• Pipe may separate if not properly joined.

Attaching Vent to the Firebox Assembly

T o attach the ﬁ rst pipe section to the collars, slide the male end of the inner vent of the pipe section over the inner collar on the ﬁ rebox assembly. At the same time, slide the outer ﬂ ue over the outer collar on the appliance. Push the pipe section into the appliance collar until all the lances (see Figure 8.2) have snapped in place. Tug slightly on the section to conﬁ rm it has completely locked into place.

Make sure that the ﬁ berglass rope ring supplied in the manual bag seals between the ﬁ rst vent component and the outer appliance wrap (see Figure 8.1)

Assembling Pipe Sections

Insert the inner ﬂ ue of section A into the ﬂ ared inner ﬂ ue of section B.

Start the outer ﬂ ue of section A over the outer ﬂ ue of section B (see Figure 8.3). Note: The end of the pipe sections with the lances/tabs on it will face towards the appliance. Once both inner and outer ﬂ ues are started, press section A onto section B ﬁ rmly until all lances have snapped into place. Check to make sure they have snapped together (see Figure 8.4) and the seams are not aligned (see Figure 8.5). Tug slightly on section A to conﬁ rm it has completely locked into place. It is acceptable to use screws no longer than 1 inch to hold outer pipe sections together. If predrilling holes, do NOT penetrate inner pipe.

For 90° and 45° elbows that are changing the vent direction from horizontal to vertical, one screw minimum should be put in the outer ﬂ ue at the horizontal elbow joint to prevent the elbow from rotating. Use screws no longer than 1 inch. If predrilling screw holes, do NOT penetrate inner pipe.

FIRST VENT COMPONENT

FIBERGLASS ROPE RING

Commercial, Multi-family (Multi-level exceeding two stories), & High-Rise Applications

For Installation into Commercial, multi-family (multi-level exceeding two stories) or high-rise applications: All pipe joints must be sealed with silicone with a minimum of 300ºF continuous exposure rating, including the slip section that connects directly to the horizontal termination cap.

• Apply a bead of silicone sealant inside the female outer pipe joint prior to joining sections. See Figure 8.2

• Only outer pipes are sealed. Do not seal the inner ﬂ ue. All unit collar, pipe, slip section, elbow and cap outer ﬂ ues shall be sealed in this manner, unless otherwise stated.

Note: The end of the pipe sections with the lanc es/ tabs on it will face toward the appliance.

WARNING

Fire Risk Explosion Risk If slip section seals are broken during the

removal of the termination cap, gas will leak and a ﬁ re or explosion may occur.

Do not break silicone seals on slip sections.

Figure 8.1 Fiberglass Rope Ring

High Temperature Silicone Sealant

Commercial, Multi-family (multi-level exceeding two

stories), or High-rise Applications only

Figure 8.2 Lances

23Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Figure 8.3

Note: Make sure that the seams are not aligned to prevent

unintentional disconnection.

Figure 8.4

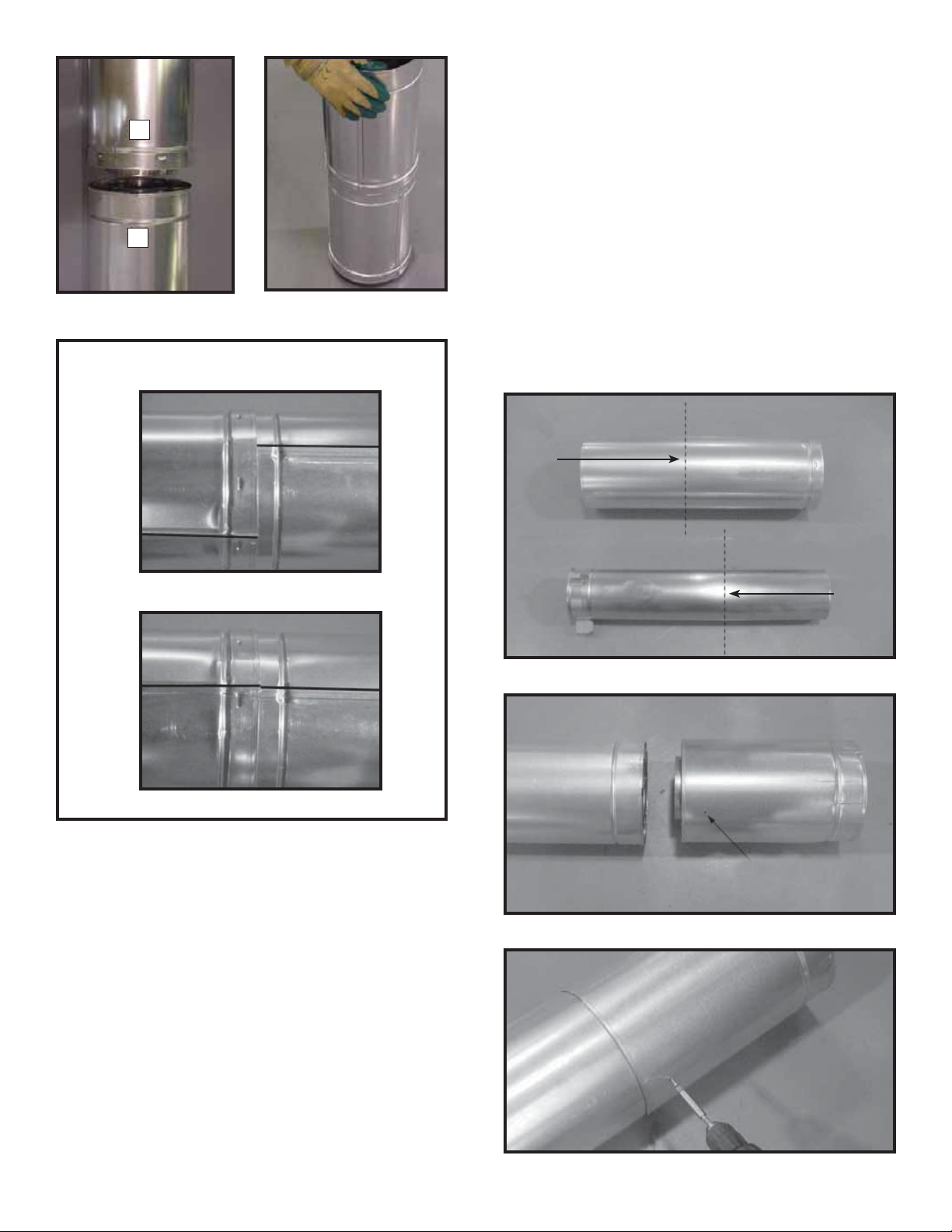

Assembling DVP-12A Slip Sections

The outer ﬂ ue of the slip section should slide over the outer ﬂ ue of the pipe section and into (inner ﬂ ue) the last pipe

section (see Figure 8.7) . Slide together to the desired length, making sure that a

1-1/2 inch outer ﬂ ue overlap is maintained between the pipe section and slip section.

The pipe and slip section need to be secured by driving two screws through the overlapping portions of the outer ﬂ ues using the pilot holes (see Figure 8.8).

This will secure the slip section to the desired length and prevent it from separating. The slip section can then be attached to the next pipe section.

If the slip section is too long, the inner and outer ﬂ ues of the slip section can be cut to the desired length.

Cut from this end

(outer)

CORRECT

Figure 8.5 Seams

INCORRECT

Assembling Minimum Installations (MI) Sections

MI sections are non-unitized so that they can be cut to a certain length. Cut these sections to length from the nonexpanded end (see Figure 8.6).

They can then be attached by ﬁ rst connecting the expanded end of the MI inner ﬂ ue with the inner pipe from the adjacent pipe section and securing with three screws. The expanded portion of the MI inner ﬂ ue must overlap completely with the unexpanded end of the adjacent pipe section.

(inner)

Figure 8.6

Figure 8.7 Slip Section Pilot Holes

Cut from this end

Pilot hole

The outer ﬂ ue can then be inserted into the adjacent outer ﬂ ue expanded end and attached to the next pipe section with three screws. The other end of the MI pipe section can then be attached by ﬁ tting another pipe section to it and snapping it together, as normal.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1124

Figure 8.8 Screws into Slip Section

Securing the Vent Sections

Vertical Sections

Vertical sections of pipe must be supported every 8 feet after the 25 foot maximum unsupported rise. The vent support or plumber’s strap (spaced 120° apart) may be used to do this (see Figure 8.9).

B. Disassembly of Vent Sections

T o disassemble any two pieces of pipe, rotate either section (see Figure 8.1 1), so that the seams on both pipe sections are aligned (see Figure 8.12). They can then be carefully pulled apart.

Horizontal Sections

Horizontal sections of vent must be supported every 5 feet with a vent support or plumber’s strap.

Figure 8.9 Securing Vertical Pipe Sections

WARNING

Fire Risk. Explosion Risk. Combustion Fume Risk.

Use vent run supports per installation instructions.

Connect vent sections per installation instructions.

• Maintain all clearances to combustibles.

• Do NOT allow vent to sag below connection point to appliance.

Improper support may allow vent to sag or separate.

Figure 8.10 Securing Horizontal Pipe Sections

Figure 8.11 Rotate Seams for Disassembly

Figure 8.12 Align and Disassemble Vent Sections

25Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

C. Installing Heat Shield and Horizontal Termination Cap

Installing the Horizontal Termination Cap

WARNING

Fire Hazard Impaired performance of appliance

• Telescoping flue section of termination cap MUST be used when connecting pipe section to termination cap.

• Maintain a 1-1/2 inch minimum overlap on telescoping ﬂ ue section of termination cap.

Vent termination must not be recessed in the wall. Siding may be brought to the edge of the cap base.

Flash and seal as appropriate for siding material at outside edges of cap.

When installing a horizontal termination cap, follow the cap location guidelines as prescribed by current ANSI Z223.1 and CAN/CGA-B149 installation codes.

WARNING

Fire Risk Exhaust Fumes Risk Impaired Performance of Appliance

• Overlap pipe slip sections at least 1-1/2 inches.

• Use pilot holes for screws.

• Screws must not exceed 1 inch long.

• Pipe may separate if not properly joined.

Heat Shield Requirements for Horizontal Termination

For all horizontally vented appliances, a heat shield MUST be placed one inch above the top of the vent between the wall shield ﬁ restop and the base of the termination cap.

There are two sections of the heat shield. One section is factory-attached to the wall shield ﬁ restop. The other section is factory-attached to the cap. See Figure 8.13.

If the wall thickness does not allow the required 1-1/2 inch (38 mm) heat shield overlap when installed, an extended heat shield (DVP-HSM-B) must be used.

Important Notice: Heat shields may not be ﬁ eld constructed.

Burn Risk

• Local codes may require installation of a cap shield to prevent anything or anyone from touching the hot cap.

HEAT SHIELD OR

EXTENDED

HEAT SHIELD

WALL SHIELD FIRESTOP

INNER VENT

INTERIOR

OUTER VENT

HEAT SHIELD EXTENSION NOT SHOWN.

Figure 8.13 Venting through the Wall

SHEATHING

REAR VENT

HEAT SHIELD

1-1/2 IN. (38 MM) MIN.

OVERLAP

EXTERIOR

The extended heat shield (DVP-HSM-B) may need to be cut to length. You will attach the cut heat shield to the existing cap heat shield or wall shield ﬁ restop heat shield (refer to Figure 8.13) using the supplied screws. You MUST maintain a 1-1/2 in. (38 mm) overlap of the extended heat shield and the existing shields (both ends of the heat shield). The small leg on the extended heat shield should rest on the top of the vent (pipe section) to properly space it from the pipe section.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1126

NOTE: Where required, an exterior wall ﬂ ashing is available. When penetrating a brick wall, a brick extension kit is available

for framing the brick.

D. Installing Roof Flashing and Vertical Ter-

mination Cap

For installation of vertical termination cap see minimum vent heights for various pitched roofs (see Figure 8.14).

Caulk the gap between the roof ﬂ ashing and the outside diameter of the pipe. Also caulk the perimeter of ﬂ ashing that contacts roof surface and the overlap seam of any exposed pipe sections that are located above the roof line as shown in Figure 8.16.

2 FT. MIN.

GAS DIRECT VENT TERMINATION CAP

Roof Pitch H (Min.) Ft.

Flat to 6/12........................................1.0*

Over 6/12 to 7/12 ............................1.25*

Over 7/12 to 8/12 ..............................1.5*

Over 8/12 to 9/12 ..............................2.0*

Over 9/12 to 10/12 ............................. 2.5

Over 10/12 to 11/12 ......................... 3.25

Over 11/12 to 12/12 ........................... 4.0

Over 12/12 to 14/12 ........................... 5.0

Over 14/12 to 16/12 ........................... 6.0

Over 16/12 to 18/12 ........................... 7.0

Over 18/12 to 20/12 ........................... 7.5

Over 20/12 to 21/12 ........................... 8.0

20 INCHES MIN.

LOWEST

DISCHARGE

OPENING

ROOF PITCH

H (MIN.) - MINIMUM HEIGHT FROM ROOF TO LOWEST DISCHARGE OPENING

* 3 foot minimum in snow regions

HORIZONTAL

OVERHANG

VERTICAL

WALL

IS X/ 12

To attach the vertical termination cap, slide the inner collar of the cap into the inner ﬂ ue of the pipe section and place the outer collar of the cap over the outer ﬂ ue of the pipe section.

Secure with three screws into the outer ﬂ ue. Secure the cap by driving the three self-tapping screws (supplied) through the pilot holes in the outer collar of the cap into the outer ﬂ ue of the pipe (see Figure 8.15).

TERMINATION CAP

(1 of 3)

STORM COLLAR

SCREWS

CAULK

Figure 8.14 Minimum height from roof to lowest discharge opening

WARNING

Fire Risk. Explosion Risk. Inspect external vent cap regularly.

• Ensure no debris blocks cap.

• Combustible materials blocking cap may ignite.

• Restricted air ﬂ ow affects burner operation.

NOTICE: Failure to properly caulk the roof ﬂ ashing and pipe seams may permit entry of water.

Figure 8.15

CAULK

Figure 8.16

27Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Assembling and Installing Storm Collar

CAUTION

Sharp Edges

• Wear protective gloves and safety glasses during installation.

Connect both halves of the storm collar with two screws (see Figure 8.17).

Wrap the storm collar around the exposed pipe section and align brackets. Insert a bolt (provided) through the brackets and tighten nut to complete storm collar assembly (see Figure 8.18).

Slide the assembled storm collar down the pipe section until it rests on the roof ﬂ ashing.

Caulk around the top of the storm collar (see Figure 8.15).

Figure 8.18 Assembling the Storm Collar Around the Pipe

Figure 8.17 Assembling the Storm Collar

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1128

Gas Information

A. Fuel Conversions

Before making gas connections ensure that appliance being installed is compatible with the available gas type.

Any natural or propane gas conversions necessary to meet the appliance and locality needs must be made by a qualiﬁ ed technician using Hearth & Home Technologies speciﬁ ed and approved parts.

B. Gas Pressures

Proper input pressures are required for optimum appliance performance. Gas line sizing requirements need to be made following NFPA54.

WARNING

Fire Risk. Explosion Hazard. High pressure will damage valve.

• Disconnect gas supply piping BEFORE pressure testing gas line at test pressures above 1/2 psig.

• Close the manual shutoff valve BEFORE pressure testing gas line at test pressures equal to or less than 1/2 psig.

C. Gas Connection

Note: Have the gas supply line installed in accordanc e

with local building codes, if any. If not, follow ANSI

223.1. Installation should be done by a qualiﬁ ed installer approved and/or licensed as required by the locality. (In the Commonwealth of M assachuset ts instal lation must be performed by a licensed plumber or gas ﬁ tter ) .

Note: A listed (and Commonwealth of Massachusetts approved) 1/2 inch (13 mm) T-handle manual shut-of f valve and ﬂ exible gas connector are connected to the 1/2 inch (13 mm) control valve inlet.

• If substituting for these components, please consult local codes for compliance.

Refer to Reference Section 16 for location of gas line access in appliance.

Note: Gas line may be run from either side of the appliance provided the hol e in t he o uter w r ap do e s N OT exceed 2-1/2 inches in diameter and does not penetrate the ﬁ rebox.

WARNING

Verify inlet pressures.

• High pressure may cause overﬁ re condition.

• Low pressure may cause explosion.

• Verify minimum pressures when other household gas appliances are operating.

Install regulator upstream of valve if line pressure is greater than 1/2 psig.

Pressure requirements for appliance are shown in the table below. Minimum pressures must be met when other household gas appliances are operating.

Pressure Natural Gas Propane

Minimum inlet pressure

Maximum inlet gas pressure

Manifold pressure

5.0 inches w.c.

14.0 inches w.c.

3.5 inches w.c.

11.0 inches w.c.

14.0 inches w.c.

10.0 inches w.c.

Gas Leak Risk

• Support control when attaching pipe to prevent bending gas line.

Note: The gap between supply piping and gas access hole may be caulked with

continuous exposure rating or stuffed with non-combustible,

unfaced insulation to prevent cold air inﬁ ltration.

caulk with a minimum of 300ºF

29Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

• Ensure that gas line does not come in contact with outer wrap of appliance. Follow local codes.

• Incoming gas line should be piped into the valve compartment and connected to the 1/2 inch connection on the manual shutoff valve.

WARNING

Fire or Explosion Hazard

• Gas buildup during line purge may ignite.

• Purge should be performed by qualiﬁ ed technician.

• Ensure adequate ventilation.

• Ensure there are no ignition sources such as sparks or open ﬂ ames.

• A small amount of air will be in the gas supply lines. When ﬁ rst lighting appliance it will take a short time for air to purge from lines. When purging is complete the appliance will light and operate normally.

WARNING

CHECK FOR GAS LEAKS Explosion Risk Fire Risk Asphyxiation Risk

• Check all ﬁ ttings and connections.

• Do not use open ﬂ ame.

• After the gas line installation is complete, all connections must be tightened and checked for leaks with a commercially-available, non-corrosive leak check solution. Be sure to rinse off all leak check solution following testing.

Fittings and connections may have loosened during shipping and handling.

HIGH AL TITUDE INST ALLATIONS

U.L. Listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 feet in the U.S.A. and Canada.

When installing this appliance at an elevation above 2000 feet, it may be necessary to decrease the input rating by changing the existing burner oriﬁ ce to a smaller size. Input rate should be reduced by 4% for each 1000 feet above a 2000 foot elevation in the U.S.A., or 10% for elevations between 2000 and 4500 feet in Canada. If the heating value of the gas has been reduced, these rules do not apply . T o identify the proper oriﬁ ce size, check with the local gas utility.

If installing this appliance at an elevation above 4500 feet (in Canada), check with local authorities.

WARNING

Fire hazard. Do NOT change the valve settings.

• This valve has been preset at the factory.

• Changing valve settings may result in ﬁ re hazard or bodily injury.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1130

Electrical Information

A. Recommendation for Wire

This appliance requires 110-120 VAC be wired to the junction box either for use of optional accessories or for proper operation of the appliance.

Note: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition or the Canadian Electric Code, CSA C221.1.

• A 110-120 V AC circuit for this product must be protected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks.

B. Connecting to the Appliance

WARNING

Wire 110V to electrical junction box. Do NOT wire 110V to valve. Do NOT wire 110V to wall switch.

• Incorrect wiring will damage millivolt valves.

• Uninterrupted or continuous power is required at all times in IPI system EXCEPT when using battery back-up.

• Incorrect wiring will override IPI safety lockout and may cause explosion.

C. IntelliFire Ignition System Wiring

This appliance requires a 110 VAC supply to the appliance junction box for operation. A wiring diagram is shown in Figure 10.1.

This appliance is equipped with an IntelliFire control valve which operates on a 3 volt system.

This appliance is supplied with a battery pack and a 3 volt AC transformer, which requires the installation of the supplied junction box. It is highly recommended that the junction box be installed at this time to avoid reconstruction.

The battery pack requires two D cell batteries (not included). Batteries cannot be placed in the battery pack while using the 3 volt AC transformer. Conversely, the transformer must be unplugged if the battery pack is used.

CAUTION

Battery polarity must be correct or module damage will occur.

WIRES WITH LABEL “FOR USE WITH REMOTE OR WALL SWITCH ONLY”

(LOCATED UNDER FIREPLACE)

ORANGE

IPI

VALVE

FLAME

SOLENOID

ADAPTER WIRES

GROUND

BLACK

RED

(FEMALE/MALE)

FIREBOX LIGHTS

BLACK

WHITE

GROUND

CONTINUOUS

110VAC

SUPPLY

GREEN

IPI

MODULE

RED

(MALE/FEMALE)

FLAME ON

FLAME HIGH/LOW

Figure 10.1 IntelliFire Pilot Ignition (IPI) Wiring Diagram

1 2 3 4 5 6 7 8

RED RED

PLUG

BROWN BROWN

CONNECTION

3V DC

AUX

HOT

NEUTRAL

BLACK

IPI PILOT

BLACK

TRANS

RED

BLACK

BROWN

RED

BLACK

ORANGE

BLACK

GROUND

PIGTAIL

GREEN

REM/AUX

BATTERIES

BATTERY

RED

FAN

YELLOW (HNG)

WHITE (HTL)

G Y R

RED

GREEN

YELLOW YELLOW

FAN THERMOSTAT

REAR VIEW

RYG

FRONT VIEW

FACTORY

CONNECTED

TOGETHER

FAN

CONNECTION

Note 1 : Ignition module, valve, pilot and wall switch operate on 3 volts.

Note 2: Plug QWSK-MLT wall switch kit into the REM/AUX outl et on the junction box.

31Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

E. QWSK-MLT Wall Switch KitD. Optional Accessories Requirements

Wiring for optional accessories should be done now to avoid reconstruction.

CAUTION

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

WARNING

Shock hazard.

• Replace damaged wire with type 105º C rated wire.

• Wire must have high temperature insulation.

LIGHT BULBS

This appliance has standard ﬁ rebox lighting. The 20 watt halogen bulbs are not factory installed. The lights are accessible from under the ﬁ rebox in the valve area.

To Replace a Light Bulb:

The lights are shipped in boxes in the light enclosures. Reach behind the valve and locate the light boxes. Cut the rubber band and slide out the back of the light box. Remove the light bulb from the box and install it in the socket. Replace the back of the enclosure.

Introduction

The QWSK-MLT multifunctional wall switch is designed to control ﬂ ame height, blower speed, and auxiliary functions on your gas ﬁ replace. For models equipped with the Intelliﬁ re system (IPI), the cold climate function can control the pilot ﬂ ame as well. The wall switch is equipped with thermostat functions which can automatically control the temperature in the room in which it is installed. The wall switch interfaces with both intermittent and standing pilot systems. An auxiliary function provides 110-120 VAC source for added features the ﬁ replace may have installed. Electrical ratings for the control box are 110 VAC, 60 Hz, and is required for operation of this device.

Installation precautions

This remote is tested and safe when installed in accordance with this installation manual. It is your responsibility to read all instructions before starting installation and to follow these instructions carefully during installation. Do not install any components that may be damaged. Do not modify, disassemble, or substitute any of the components included with this kit. Installation of this unit must be done by a qualiﬁ ed service technician.

Placement of this wall switch may affect performance or accuracy of the automatic (thermostat) control. An assessment of the space should be done prior to installation for optimal performance. See the installation instructions section I for recommendations.

Figure 10.2 Light enclosure

NOTE: The electrical junction box provided with the

ﬁ replace must be wired with 110 VAC.

All wiring should be done by a qualiﬁ ed electrician and shall be in compliance with local codes and with the National Electric Code ANSI/NFGA No. 70- current (in the United States), or with the current CSA C22.1 CANADIAN ELECTRIC CODE (in Canada).

WARNING

Shock Hazard Do not provide any power to this unit until all

wiring is completed. Failure to do so may destroy parts of this device and render it unusable, and may lead to possible electrical shock.

Fire Hazard Modiﬁ cation of any parts or installation of

damaged components will void the warranty, and you may possibly cause a ﬁ re hazard.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1132

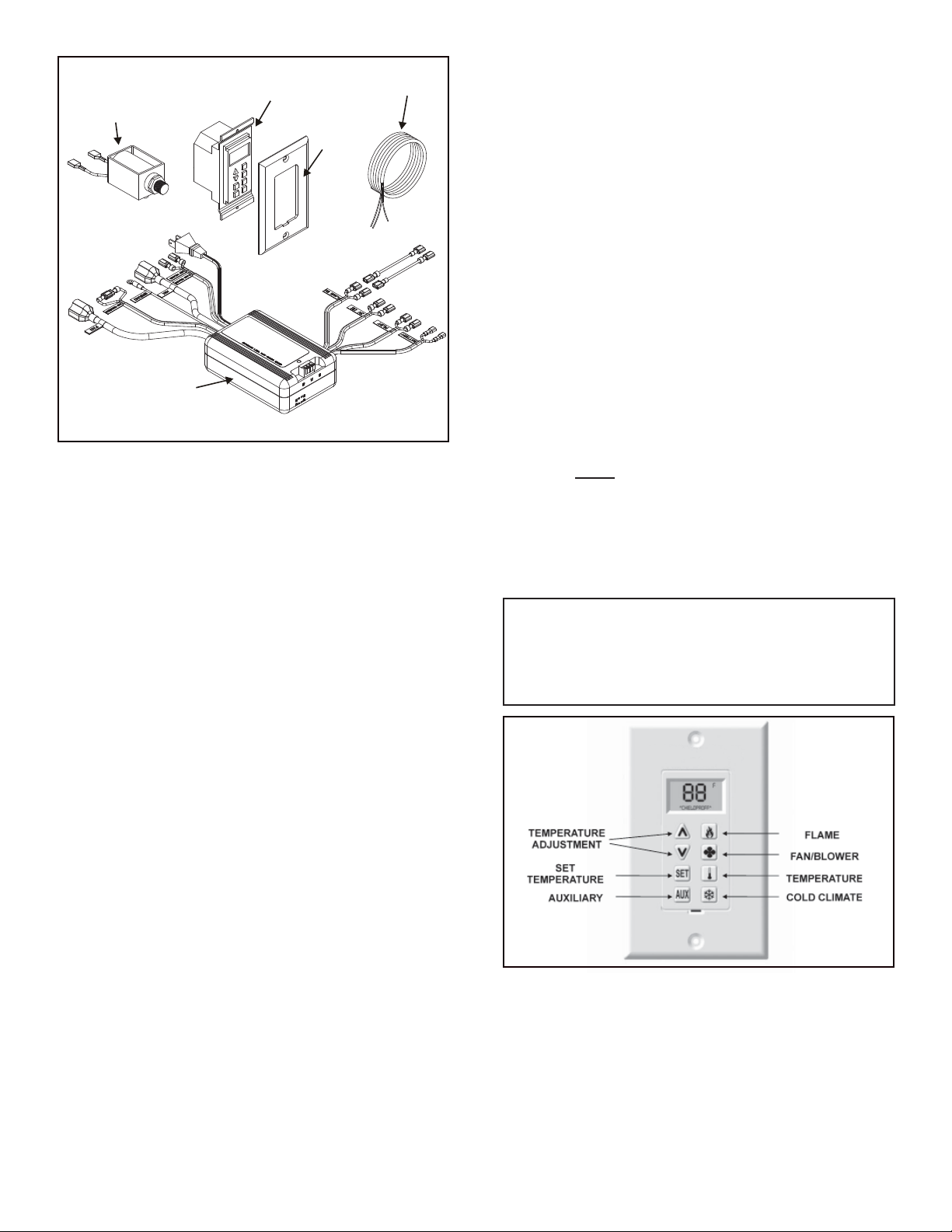

FLAME

SOLENOID

CONTROL

BOX

WALL SWITCH

COVER

PLATE

CONTROL

WIRE

Wiring the wall switch

Once a location is chosen and the electrical box is installed proceed as follows. Install the provided control wire from the ﬁ replace to the switch location. Use caution not to stress the wire around tight or sharp corners. Do not run the control wire adjacent to existing or future phone, data, cable, or electrical lines. The wire should not come into contact with any part of the ﬁ replace exterior with the exception of where it exits the outer wrap. Feed the wire to the electrical junction box and through a provided or approved strain relief. Using a screw driver, connect the red wire to the “R” terminal, the yellow or white wire to the “W” or “Y” terminal, and the green wire to the “G” terminal. Do not over-tighten. Using the screws provided, mount the switch to the electrical junction box right side up. Install provided cover plate using the screws provided. Do not use a substitute cover even though it may ﬁ t. The provided one is speciﬁ cally designed for the automatic (thermostat) function of the unit.

Figure 10.3.

Installation instructions Determine location

Determine the location for the wall switch. The chosen location should provide an accessible location in the same space as the gas ﬁ replace. Never place this unit in a separate room. The control wire supplied with this switch is 33 ft (10M) in length. The distance from the ﬁ replace to the switch may be lengthened provided that the wire used never exceeds 50 ft, and that the distance from the ﬁ replace to the switch never exceeds 30 ft.

The switch should be mounted into a listed electrical junction box. The junction box should be dedicated to this wall switch. Never install this wall switch into a junction box that is shared with other electrical service or devices. If possible, install this unit on an interior wall of the residence at a recommended height of 5 ft from the ﬂ ooring. Should the switch be installed on an exterior wall, be certain wall insulation is kept intact and not damaged or dislodged during the installation of the electrical junction box.

For exterior wall installations, it is recommended that the junction box be sealed with caulking material. This will minimize heat loss through this location and improve the accuracy of the automatic (thermostat) operation.

Operating Instructions

For units WITH factory installed rocker switch.

The ON/OFF rocker switch on the ﬁ replace (located near the gas valve) must be in the “OFF” position for use with the WSK-MLT system. The ON/OFF rocker switch will NOT function with this device on Intelliﬁ re (IPI) models except during a power outage.

NOTE: The temperature displayed by the wall switch may take up to 30 minutes to stabilize on initial power-up.

NOTE: Check control box and assure switch is in the “OFF” position. This switch is only used on Intelliﬁ re (IPI) control systems under battery operation.

Figure 10.4

33Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Setting Flame Height/manifold pressure

(To be done by a qualiﬁ ed service technician). Upon initial power-up of this device, valve pressure must be set for ﬂ ame adjustment.

• Loosen output pressure tap on valve and connect with pressure manometer.

• Press ﬂ ame button once (Fig. 10.4); ﬁ replace will light with ﬂ ames on high.

• Turn solenoid clockwise to increase pressure, counterclockwise to decrease pressure until manifold pressure on high is 3.5” water column for natural gas (NG), 10.0” water column for propane (LP).

• Once pressure is achieved spin jam-nut on solenoid

stem tight against regulator face to prevent rotation. Do not overtighten.

• Press ﬂ ame button twice to turn ﬁ replace off.

• Remove manometer tube and tighten or close pressure

tap. Use a soap solution to carefully check the pressure tap for leaks.

Wall Switch Button Operation

See Figure 10.4.

Flame Button

• Button Press: Unit On / Flames High, Turns on auxiliary

power

• Button Press: Flames Low

• Button Press: Unit Off / Flames Off, Turns off auxiliary

power

Fan / Blower Button

• Button Press: Fan High (“3”)

• Button Press: Fan Medium (“2”)

• Button Press: Fan Low (“1”)

• Button Press: Fan Off

Temperature Button

• Button Press will toggle between Automatic and Manual

Operation

• Press and Hold the button for 3 seconds to toggle between

Fahrenheit and Centigrade Temperature Display.

Automatic Operation: Controller will monitor temperature and control unit according to the set point.

Manual Operation: Controller will not automatically change settings.

SET

Set Temperature Button

• Button Press: Displays Set Point

• Use Up and Down Arrows to Adjust Set Point

• Press Set Button to Store New Set Point

Temperature Set Point can be adjusted between the ranges of: 45-900 Fahrenheit or 7-320 Centigrade NOTE: The controller will turn off the ﬁ replace at 20 F over

set point and turn it back on at 20 F below set point.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1134

Up and Down Arrows

• Push to adjust set point temperature under automatic control.

AUX

Auxiliary Button

• Button Press: Turns on auxiliary power

• Button Press: Turns off auxiliary power

Can be operated independently of all functions

Child Proof Mode To Enter Child Proof Mode:

• Press the Up Arrow Button twice and Down Arrow Button once. The unit will send out 3 beeps and an indicator in the LCD panel will show that the child proof is on.

To Leave Child Proof Mode:

• Press the Up Arrow Button twice and Down Arrow Button once. The unit will send out 3 beeps and the indicator in the LCD panel that shows that the child proof is on will disappear.

NOTE: When in Child Proof Mode, only the arrow buttons will have functionality. Unit can enter Child Proof when the ﬁ replace is on or off.

INTELLIFIRE (IPI) MODELS ONLY Cold Climate Button

• Button Press: Turns on Climate Control

• Button Press: Turns off Climate Control

This allows the pilot ﬂ ame to stay lit when activated, a beneﬁ t of this is reduced condensation on the glass at start-up in colder climate conditions.

Operation Under Battery Power

A switch on the control box allows for battery power under no-power conditions. See Figure 10.6. By controlling the power supply with this switch, the batteries are supplying power only when needed, thus extending battery life. The switch also provides a convenient means for switching to battery power should there be a loss of 1 10 VAC power to the control box.

• In the event of a power failure, switch the battery operation switch to the “Battery ON” position.

• The ﬁ replace can now be turned on and off with the ON/ OFF rocker switch located near the gas valve.

• The wall switch functions will not operate under battery power.

• Under battery control the only available function is ﬂ ame “On” and “Off” in the high position.

• To maximize battery life, and to restore full function capability of the wall switch, ﬂ ip switch to “OFF” position after 120 VAC power is restored.

WHT

BLK

GRN wire inside box

Copper ground attached to GRN screw with GRN wire

14/2WG

Cover Plate outside firebox

Romex Connector

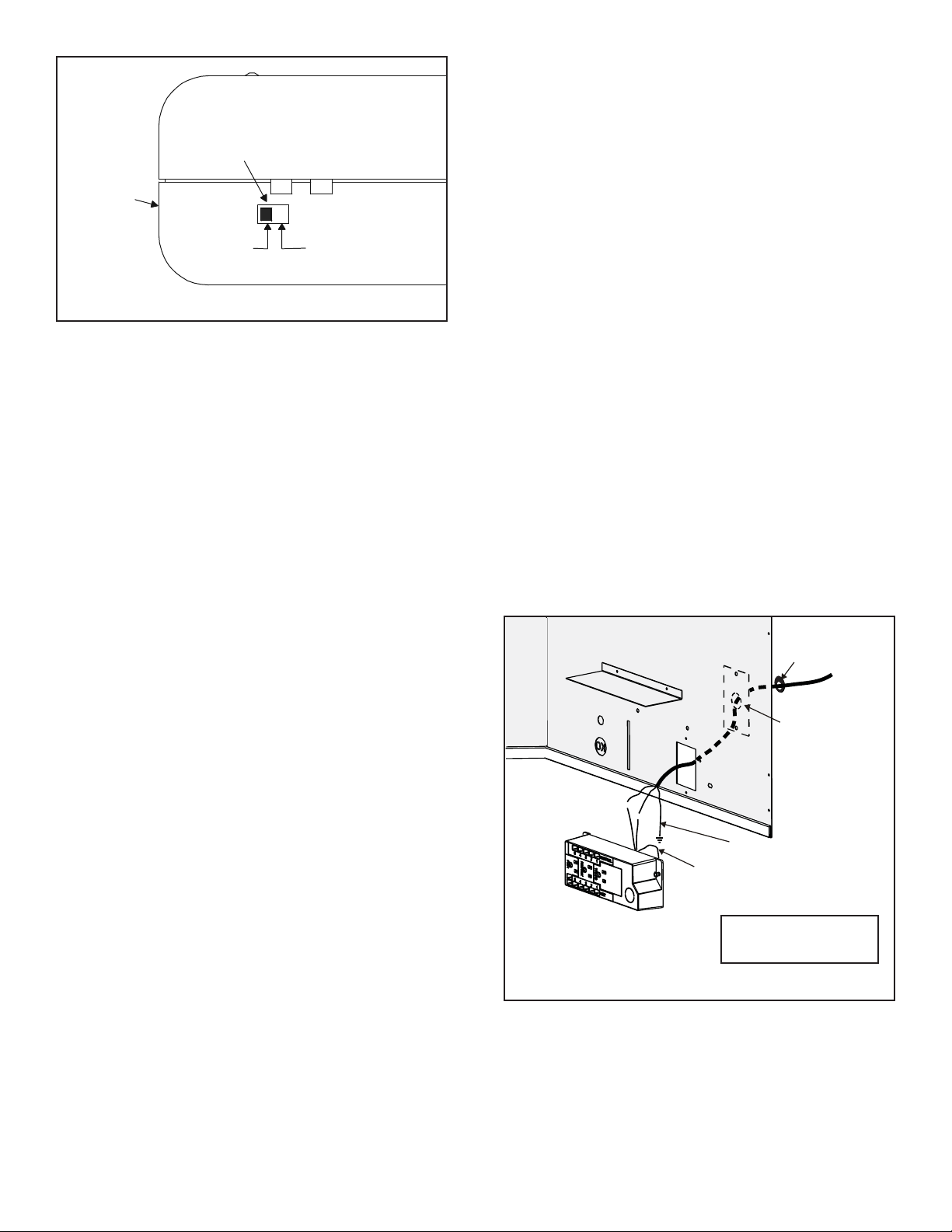

CONTROL

BOX

BATTERY

OPERATION

SWITCH

“OFF”

POSITION

“BATTER Y ON”

POSITION

F. Junction Box Installation

If the box is being wired from the OUTSIDE of the appliance:

• Remove the cover plate located on the outer shell - right side (see Figure 10.6).

• Install the supplied Romex™ connector in the cover plate.

• Feed the necessary length of wire through the connector.

• Make all necessary wire connections and reattach the cover plate to the outer shell.

Figure 10.5.

If the box is being wired from the INSIDE of the appliance:

• Remove the screw attaching the junction box/receptacle to the outer shell, rotate the junction box inward to disengage it from the outer shell (see Figure 10.6).

• Pull the electrical wires from outside the appliance through this opening into the valve compartment.

• Feed the necessary length of wire through the connector.

• Make all necessary wire connections to the junction box/ receptacle and reassemble the junction box/receptacle to the outer shell.

Note: Do NOT wire 110VAC to wall switch.

Figure 10.6 Junction Box Detail

35Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

14 IN.

23 IN.

12 IN. MIN.

18 IN. MIN.

12 IN. MAX.

1 IN. MAX.

3 IN. MIN.

Finishing

A. Mantel Projections

Figure 11.1 shows the minimum vertical and corresponding maximum horizontal dimensions of appliance mantels or other combustible projections above the top front edge of the appliance.

Figure 11.1 Clearances to mantels or other combustibles above appliance

1/2

Note: All measurements in inches.

Figure 11.2 Mantel leg or Wall projections (Acceptable on both sides of opening.)

B. Facing Material

WARNING

Fire Risk. Do NOT obstruct air inlet or outlet grilles. Do NOT modify grilles.

• Modifying or covering grilles could cause temperature rise and ﬁ re hazard.

Finishing materials must not interfere with:

• Air ﬂ ow through grilles or louvers.

• Operation of louvers or doors.

• Access for service.

44 in.

1117 mm

NON-COMBUSTIBLE

ZONE

Figure 11.3 Noncombustible Facing

18-1/4 in.

463 mm

WARNING

Risk of Fire

• Non-combustible clearances MUST be maintained.

• Sheetrock, wood or other combustibles must NOT be used as sheathing or facing in the non-combustible zone.

• See Section 11 for proper clearances.

• See Section 1 for combustible/non-combustible deﬁ nitions.

Facing Requirements

This appliance requires the supplied non-combustible facing material from the top of the appliance face up 18-1/4 inches and extending across from framing stud to framing stud (see Figure 11.3).

Combustible ﬁ nishing materials may be used along the sides of the appliance face but may not overlap the face. Non-combustible materials can overlap the black metal

face of the unit on the sides, top and bottom, but must never overlap or obstruct the appliance opening or louvers.

Fronts

Remington Avenue fronts are attached to the appliance with carriage bolts and overlap the face of the appliance. Tile or other non-combustible materials may be tucked behind the Remington Avenue front on the top and sides. Other front options ﬁ t inside the appliance.

WARNING

Fire Risk. Finish all edges and fronts to clearances and

speciﬁ cations listed in manual.

• Black metal appliance front may be covered with noncombustible material only.

• Do NOT overlap combustible materials onto appliance front.

• Install combustible materials only up to speciﬁ ed clearances on top, front and side.

• Seal joints between the ﬁ nished wall and appliance top and sides using only a 300º F minimum sealant.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1136

Appliance Setup

A. Remove Shipping Materials

Remove shipping materials from inside or underneath the ﬁ rebox.

B. Clean the Appliance

Clean/vacuum any sawdust that may have accumulated inside the ﬁ rebox or underneath in the control cavity.

C. Accessories

Install approved accessories per instructions included with accessories. See Service Parts List for appropriate accessories. Refer to Section 16.

WARNING

Shock or ﬁ re risk. Use ONLY optional accessories approved for

this appliance.

• Using non-listed accessories voids warranty.

• Using non-listed accessories may result in a safety hazard.

• Only Hearth & Home Technologies approved accessories may be used safely.

D. Ember Placement

WARNING

Explosion Risk.

• Follow ember placement instructions in manual.

• Do NOT place embers directly over burner ports.

• Replace ember material annually.

Improperly placed embers interferes with proper burner operation.

Placing the Ember Material

Ember material is shipped with this gas appliance. T o place the ember material:

• Embers CANNOT be placed directly over ports. Care should be taken not to cover the lighting trail of ports (from back to front).

• When placing Glowing Embers® onto the burner care should be taken so that the ports are not covered. Place the dime-size ember pieces just in front of the port trail, but not on or in between the ports. Failure to follow this procedure will likely cause lighting and sooting problems.

• Place Mystic Embers on areas of base refractory away from port holes. Use this material to give the appliance a realistic ash bed.

• Save the remaining ember materials for use during appliance servicing. The embers provided should be enough for 3 to 5 applications.

37Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

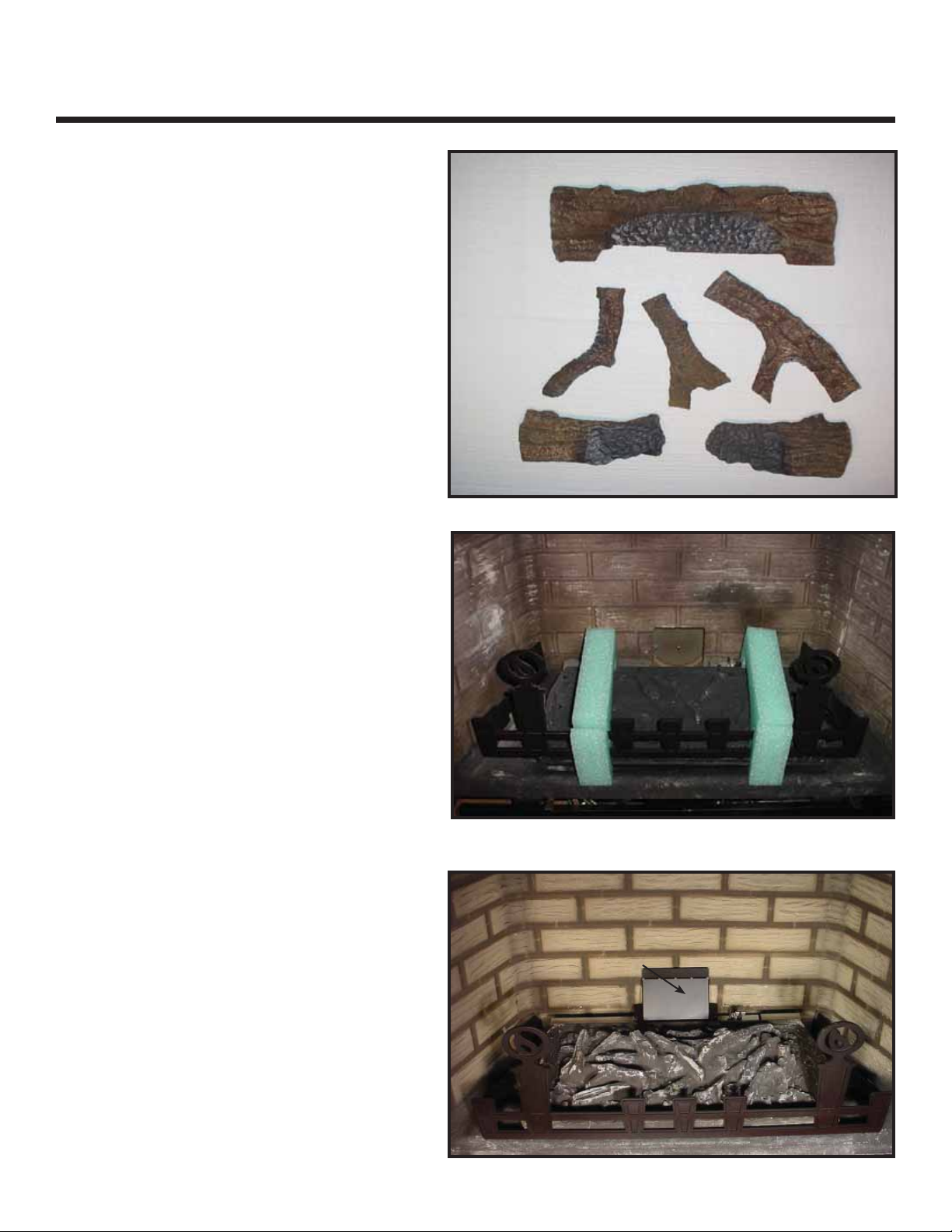

E. Positioning the Logs

Carefully remove the logs from the packaging. CAUTION: Logs are fragile!

Log Assembly: LOGS-2062

Carefully remove the grate from the foam supports and then remove the foam supports from around the burner.

Place grate on the base of the ﬁ rebox surround- ing the burner. The grate should be centered on the burner and pushed back until it contacts the burner.

Figure 12.1

Figure 12.2

AIR

BAFFLE

Figure 12.3

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1138

LOG #1: (SRV2062-701)

Place log #1 on the back of burner. Rest log on back of the grate. The notches located on the bottom of the log should rest over the back corners of burner.

LOG #2: (SRV2062-702)

Place log #2 on the burner so that the bottom of the log conforms with the contour of the burner. The outside of the log should rest on the grate. The front of the log will rest against the right andiron.

Figure 12.4

LOG #3: (SRV2062-703)

Place log #3 on the burner in the same way but on the left front of the burner.

Figure 12.5

Figure 12.6

39Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

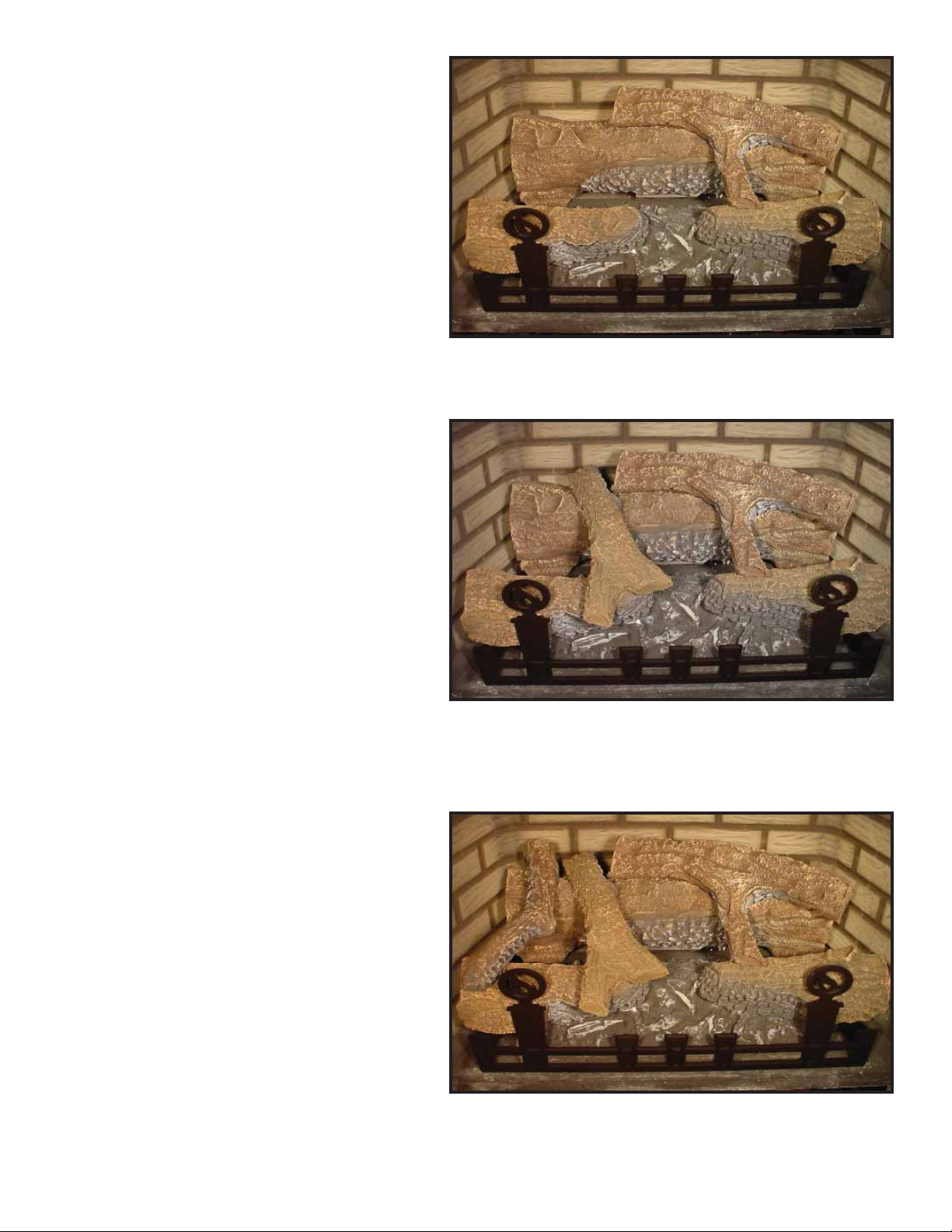

LOG #4: (SRV330-706)

Nest log #4 in the cut-out area on the right side of log #1. The thinnest “arm” of log #4 rests on top of log #2.

LOG #5: (SRV330-704)

Place the “Y” end of log #5 against the corresponding bump on log #3. The other end of the log should rest in the second smooth cut-out area on top of log #1.

Figure 12.7

LOG #6: (SRV340-705)

Rest log #6 on the left smooth cut-out area on top of log #1 and place the lower end on log #3. The notch on the bottom of log #6 should rest on the wedge shape on the end of log #3.

Figure 12.8

Figure 12.9

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1140

F. Glass Assembly

Wing nut

Oriﬁ ce Holder

Shutter Sleeve

Burner Neck

Open Closed

WARNING

Handle glass doors with care.

• Inspect the gasket to ensure it is undamaged.

• Inspect the glass for cracks, chips or scratches.

• Do NOT strike, slam or scratch glass.

• Do NOT operate appliance with glass door removed, cracked, broken or scratched.

• Replace glass door assembly as a complete appliance.

Removing Glass Assembly

Unlatch the two latches at the bottom of the glass door. Carefully pull the bottom of the door away from the unit and lower the top tabs on the door out of the top latches as tension is relieved.

Replacing Glass Assembly

Angle the top of the glass door in toward the appliance and insert the tabs on top of the glass frame into the top latches. Rotate the bottom of the glass door toward the ﬁ rebox with slight upward pressure. Latch the bottom spring latches securely onto the bottom glass door tabs.

Figure 12.11

Slide the burner to the right while angling the right side of the burner forward until the burner is free of the shutter sleeve, then lift out burner (see Figure 12.12).

G. Burner Removal (Only for Servicing)

Loosen the shutter adjustment wing nut and move the shutter to the closed position (see Figure 12.10).

Open Closed

Figure 12.10

Remove the air bafﬂ e by removing the two screws at- taching it to the burner. Remove the two screws holding the pilot and the one screw from the front of the burner (see Figure 12.11).

Wing nut

Figure 12.12

Using a 3/8” nut driver or wrench, remove the natural gas oriﬁ ce and replace it with the LP oriﬁ ce provided in this kit (see Figure 12.13).

Burner Neck

Oriﬁ ce Holder

Figure 12.13

Shutter Sleeve

41Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Replace the burner by ﬁ rst tipping the front of the burner up to get the burner neck started into the shutter sleeve (see Figure 12.14).

Figure 12.14

Once the neck is in the sleeve, slide the burner all the way to the left until the oriﬁ ce goes into the burner neck and the neck contacts the oriﬁ ce holder, and all the way back until the neck contacts the burner support.

While sliding the burner into position, make sure the pilot is not pushed aside and it is lined up for reattaching to the burner (see Figure 12.15).

H. Grilles and Trim

Install optional marble and brass trim surround kits as desired. Marble, brass, brick, tile, or other noncombustible materials can be used to cover up the gap between the sheet rock and the appliance.

Do not obstruct or modify the air inlet/outlet grilles. When overlapping on both sides, leave enough space so that the bottom grille can be lowered and the trim door removed.

I. Air Shutter Setting

This appliance has an adjustable air shutter (which controls the primary air) factory set for the minimum vertical vent run (see Figure 12.10). If your installation has more than the minimum required vertical vent length, adjustment of the air shutter may be necessary to obtain optimal ﬂ ame appearance. This should be adjusted by a quali-

ﬁ ed installer at the time of installation.

By sliding the air shutter handle to the right, you will be closing the air shutter. To adjust loosen the wing nut. Care should be taken when adjusting the air shutter so as not to cause the appliance to soot. If sooting occurs the air shutter will need to be opened by sliding the handle to the left. When ﬁ nished tighten wing nut.

Figure 12.15

Replace the screw in front of the burner to the burner bracket. Reattach the pilot assembly with two screws. Reattach the air bafﬂ e, sliding it back to contact the back of the ﬁ rebox and replacing two screws (see Figure

12.11). Move the air shutter to the open position and tighten the

wing nut to secure it (see Figure 12.10).

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1142

Operating Instructions

A. Before Lighting Appliance

This appliance has an IntelliFire ignition system.

CAUTION

If installing IntelliFire ignition battery backup:

• Do not install batteries if the backup mode may not be used for extended time.

• Batteries may leak.

• Install batteries only when needed for power outage.

Before operating this appliance have a qualiﬁ ed tech- nician:

• Remove all shipping materials from inside and/or underneath the ﬁ rebox.

• Review proper placement of logs, rockwool, lava rock, and vermiculite.

• Check the wiring.

• Check the air shutter adjustment.

• Ensure that there are no gas leaks.

• Ensure that the glass is sealed and in the proper position.

• Ensure that the ﬂ ow of combustion and ventilation air is not obstructed (front grilles and vent caps).

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation AND cool down.

Hot glass will cause burns.

• DO NOT touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as ﬁ replace.

• Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other ﬂ ammable materials.

• Keep clothing, furniture, draperies and other ﬂ ammable materials away.

This appliance has been supplied with an integral barrier to prevent direct contact with the ﬁ xed glass panel. DO NOT operate the appliance with the barrier removed.

Contact your dealer or Hearth & Home Technologies if the barrier is not present or help is needed to properly install one.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualiﬁ ed installer, service agency or the gas supplier.

Glass door must be in place when appliance is operating.

Risk of:

• Combustion Fumes

• Fire Do NOT operate appliance with glass

door removed.

• Open viewing glass for servicing only.

• Glass door MUST be in place and sealed before operating appliance.

• Only use glass door certiﬁ ed for use with appliance.

• Glass replacement should be done by qualiﬁ ed technician.

WARNING

43Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

B. Lighting Appliance IPI Ignition

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a ﬁ re or explosion

may result causing property damage, personal injury or loss of life.

A. This appliance is equipped with an

intermittent pilot ignition (IPI) device which automatically lights the burner. DO NOT try to light the burner by hand.

B. BEFORE LIGHTING, smell all around

the appliance area for gas. Be sure to smell next to the ﬂ oor because some gas is heavier than air and will settle on the ﬂ oor.

WHA T TO DO IF YOU SMELL GAS

• DO NOT try to light any appliance.

• DO NOT touch any electric switch; do not use any phone in your building.

WARNING:

DO NOT CONNECT LINE VOLTAGE (110/120 VAC OR 220/240 V AC) TO THE CONTROL VALVE.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance.

This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.

If not installed, operated, and maintained in accordance with the manufacturer’s instructions, this product could expose you to substances in fuel or fuel combustion which are known to the State of California to cause cancer, birth defects, or other reproductive harm.

Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁ re department.

C. DO NOT use this appliance if any

part has been under water. Immediately call a qualiﬁ ed service tech- nician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

CAUTION:

Hot while in operation. DO NOT touch. Keep children, clothing, furniture, gasoline and other liquids having ﬂ ammable vapors away.

DO NOT operate the appliance with ﬁ xed glass assembly removed, cracked or broken. Replacement of the ﬁ xed glass assembly should be done by a licensed or qualiﬁ ed service person.

NOT FOR USE

WITH SOLID FUEL

For use with natural gas and propane. A conversion kit, as supplied by the manufacturer, shall be used to convert this appliance to the alternate fuel.

Also Certiﬁ ed for Installation in a Bedroom or a Bedsitting Room.

For assistance or additional information, consult a qualiﬁ ed installer, ser- vice agency or the gas supplier.

LIGHTING

INSTRUCTIONS (IPI)

1. This appliance is equipped with an ignition

device which automatically lights the burner.

DO NOT try to light the burner by hand.

GAS

VALVE

2. Wait ﬁ ve (5) minutes to clear out any gas.

Then smell for gas, including near the ﬂ oor. If you smell gas, STOP! Follow “B” in the Safety Information located on the left side of this label. If you do not smell gas, go to next step.

3. To light the burner: Equipped with wall switch: Turn ON/OFF switch

to ON.

Equipped with remote or wall control: Press

ON or FLAME button.

Equipped with thermostat: Set temperature to

desired setting.

4. If the appliance does not light after three tries, call your service technician or gas supplier.

TO TURN OFF

GAS TO APPLIANCE

1. Equipped with wall switch: Turn ON/OFF switch

to OFF.

Equipped with remote or wall control: Press

OFF button.

Equipped with thermostat: Set temperature to

lowest setting.

2. Service technician should turn off electric power to the control when performing service.

593-913G

Hearth & Home Technologies ﬁ replace, please refer to www.ﬁ replaces.com.

For additional information on operating your

Final inspection by

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1144

C. After Appliance is Lit

Initial Break-in Procedure

When you light the appliance, you may notice that it produces heat which does have an associated odor or smell. If you feel this odor is excessive it may require the initial three to four hour continuous burn on high followed by a second burn up to 12 hours to fully drive off any odor from paint and lubricants used in the manufacturing process. Condensation of the glass is normal.

CAUTION

• Prevent accidental appliance operation when not attended.

• Unplug or remove batteries from remote control if absent or if appliance will not be used for an extended period of time.

• Property damage possible from elevated temperatures.

Note: The appliance should be run three to four hours on the initial start-up. Turn it off and let it cool completely. Remove and clean the glass. Replace the glass and run the appliance for an additional 12 hours. This will help to cure the products used in the paint and logs.

During this break-in period it is recommended that some windows in the house be opened for air circulation. This will help avoid setting off smoke detectors, and help eliminate any odors associated with the appliance’s initial burning.

WARNING

Fire Risk. High Temperatures. Keep combustible household items away from

appliance. Do NOT obstruct combustion and ventilation air.

• Do NOT place combustible items on top of or in front of appliance.

• Keep furniture, draperies away from appliance.

CAUTION

Smoke and odors released during initial operation.

• Open windows for air circulation.

• Leave room during initial operation.

• Smoke may set off smoke detectors.

Smoke and odors may be irritating to sensitive individuals.

WARNING

Fire Hazard. Keep combustible materials, gasoline and

other ﬂ ammable vapors and liquids clear of appliance.

• Do NOT store ﬂ ammable materials in the appliance’s vicinity.

• Do NOT use gasoline, lantern fuel, kerosene, charcoal lighter ﬂ uid or similar liquids in this appliance.

• Combustible materials may ignite.

D. Frequently Asked Questions

ISSUE SOLUTIONS

Condensation on the glass

Blue ﬂ ames

Odor from appliance

Film on the glass

Metallic noise

Is it normal to see the pilot ﬂ ame burn continually?

This is a result of gas combustion and temperature variations. As the appliance warms, this condensation will disappear.

This is a result of normal operation and the ﬂ ames will begin to yellow as the appliance is al- lowed to burn for 20 to 40 minutes.

When ﬁ rst operated, this appliance may release an odor for the ﬁ rst several hours. This is caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Odor may also be released from ﬁ nishing materials and adhesives used around the appliance.

This is a normal result of the curing process of the paint and logs. Glass should be cleaned within 3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing process. A non-abrasive cleaner such as gas ﬁ replace glass cleaner may be necessary. See your dealer.

Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of the appliance.

In an intermittent pilot ignition system (IPI), the pilot ﬂ ame should turn off when appliance is turned off. Some optional control systems available with IPI models may allow pilot ﬂ ame to remain lit.

45Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Troubleshooting

With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualiﬁ ed service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualiﬁ ed service technician.

A. IntelliFire Ignition System

Symptom Possible Cause Corrective Action

1. The ignitor/module makes noise, but no spark.

2. Pilot won’t light, there is no noise or spark.

a. Incorrect wiring. Verify “S” wire (white) for sensor and “I” wire (orange) for ignitor

are connected to correct terminals on module and pilot assembly. Reversed wires at the module may cause system to make sparking noise, but spark may not be present at pilot hood.

b. Loose connections or electrical shorts in the wiring.

c. Ignitor gap is too large. Verify gap of igniter to pilot hood. The gap should be approximately

d. Faulty module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove

a. Transformer installed correctly. Verify that transformer is installed and plugged into module. Check

b. A shorted or loose connection in wiring conﬁ guration or wiring harness.

Verify no loose connections or electrical shorts in wiring from module to pilot assembly. Rod closest to pilot hood should be ignitor. Verify connections underneath pilot assembly are tight; also verify connections are not grounding out to metal chassis, pilot burner, pilot enclosure, mesh screen if present, or any other metal object.

.17 inch or 1/8 inch.

ignitor wire “I” from module. Place ON/OFF Rocker switch or wall switch in ON position. Hold ground wire about 3/16 inch away from “I” terminal on module. If there is no spark at “I” terminal module must be replaced. If there is a spark at “I” terminal, module is ﬁ ne. Inspect pilot assembly for shorted sparker wire or cracked insulator around electrode.

voltage of transformer under load at spade connection on module with ON/OFF switch in ON position. Acceptable readings of a good transformer are between 3.2 and 2.8 volts AC.

Remove and reinstall the wiring harness that plugs into module. Verify there is a tight ﬁ t. Verify pilot assembly wiring to module. Remove and verify continuity of each wire in wiring harness.

3. Pilot lights but continues to spark, and main burner will not ignite. (If the pilot continues to spark after the pilot ﬂ ame has been lit, ﬂ ame rectiﬁ cation has not occurred.)

c. Improper wall switch wiring. Verify that 110/VAC power is “ON” to junction box. d. Module not grounded. Verify black ground wire from module wire harness is grounded to

metal chassis of appliance.

e. Faulty module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove

a. A shorted or loose connection in sensor rod.

b. Poor ﬂ ame rectiﬁ cation or contami- nated sensor rod.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1146

Verify all connections to wiring diagram in manual. Verify connections underneath pilot assembly are tight. Verify connections are not grounding out to metal chassis, pilot burner, pilot enclosure or screen if present, or any other metal object.

Verify that ﬂ ame is engulﬁ ng sensor rod. If the pilot assembly does not have a ground strap, consider installing one to increase ﬂ ame rectiﬁ cation. Verify correct pilot oriﬁ ce is installed and inlet gas speciﬁ cations. Flame carries rectiﬁ cation current, not the gas. If ﬂ ame lifts from pilot hood, the circuit is broken. A wrong oriﬁ ce or too high an inlet pressure can cause pilot ﬂ ame to lift. The sensor rod may be contaminated. Clean sensor rod with emery cloth.

IntelliFire Ignition System - (continued)

Symptom Possible Cause Corrective Action

3. (Continued) Pilot lights but continues to spark, and main burner will not ignite. (If the pilot continues to spark after the pilot ﬂ ame has been lit, ﬂ ame rectiﬁ cation has not oc- curred.)

4. Pilot sparks, but Pilot will not light.

c. Module is not grounded. Verify that module is securely grounded to metal chassis

of appliance. Verify that wire harness is ﬁ rmly connected to module.

d. Damaged pilot assembly or dirty sensor rod.

e. Faulty module. Turn ON/OFF rocker switch or wall switch to OFF posi-

a. Correct gas supply. Verify that incoming gas line ball valve is “open”. Verify that

b. Ignitor gap is too large. Verify that spark gap from ignitor to pilot hood is .17 in. or

c. Module is not grounded. Verify module is securely grounded to metal chassis of

Verify that ceramic insulator around the sensor rod is not cracked, damaged, or loose. Verify connection from sensor rod to white sensor wire. Polish sensor rod with ﬁ ne steel woolA to remove any contaminants that may have accumulated on sensor rod. Verify continuity with a multimeter with ohms set at lowest range.

tion. Remove ignitor wire “I” from module. Place ON/OFF Rocker switch or wall switch in ON position. Hold ground wire about 3/16 inch away from “I” terminal on module. If there is no spark at “I” terminal module must be replaced. If there is a spark at “I” terminal, module is ﬁ ne. Inspect pilot assembly for shorted sparker wire or cracked insulator around electrode.

inlet pressure reading is within acceptable limits.

1/8 in.

appliance.



d. Module voltage output / Valve/Pilot solenoid ohms readings.

Verify battery voltage is at least 2.7 volts. Replace batteries if voltage is below 2.7.

47Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Although the frequency of appliance servicing and maintenance will depend on use and the type of installation, a qualiﬁ ed service technician should perform an appliance checkup at the beginning of each heating season.

Maintaining and Servicing Appliance

WARNING

Risk of injury or property damage.

Before servicing:

• Turn off gas.

• Turn off electricity to appliance.

• Disable remote control, if one is present.

• Ensure appliance is completely cooled.

After servicing:

• Replace any screen or barrier that was removed.

• Reseal and reinstall any venting removed for servicing.

WARNING

Annual inspection by qualiﬁ ed technician recommended.

Check:

• Condition of doors, surrounds and fronts.

• Condition of glass, glass assembly and glass seal.

• Obstructions of combustion and ventilation air.

• Condition of logs.

• Condition of ﬁ rebox.

• Burner ignition and operation.

• Burner air shutter adjustment

• Gas connections and ﬁ ttings.

• Obstructions of termination cap.

Clean:

• Glass

• Air passageways, grilles, control compartment

• Burner, burner ports

Risk of:

• Fire

• Delayed ignition or explosion

• Exposure to combustion fumes

• Odors

CAUTION

Handle glass assembly with care.

Note: Clean glass after initial 3-4 hours operation. Longer operation without cleaning glass may cause a permanent white ﬁ lm on glass.

When cleaning glass door:

• Avoid striking, scratching or slamming glass.

• Do NOT use abrasive cleaners.

• Use a hard water deposit glass cleaner on white ﬁ lm.

• Do NOT clean glass when hot.

• Turn off appliance after 3-4 hours of operation and ALLOW TO COOL.

• Remove and clean glass assembly.

• Replace glass assembly and operate appliance for additional 12 hours.

Refer to maintenance instructions.

WARNING

Inspect external vent cap regularly.

• Ensure no debris blocks cap.

• Combustible materials blocking cap may ignite.

• Restricted air ﬂ ow affects burner operation.

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1148

A. Maintenance Tasks

Inspect Maintenance Tasks

Doors, Surrounds and Fronts

Gasket Seal, Glass Assembly and Glass

Valve Compartment and Firebox Top

Logs 1. Inspect for broken, damaged, or missing logs. Replace as necessary.

Firebox 1. Inspect for paint condition, warpage, corrosion or perforation. Sand and repaint as necessary.

Burner Ignition and Operation

Venting 1. Inspect venting for blockage or obstruction such as bird nests, leaves, etc.

Remote controls 1. Verify operation of remote.

Light Bulbs 1. Replace as needed. See Section 10 for instructions.

1. Assess condition of screen and replace as necessary. Recommend addition of screen if one is not present.

2. Inspect for scratches, dents or other damage and repair as necessary.

3. Verify no obstructions to airﬂ ow through the louvers.

4. Verify maintenance of proper clearance to combustible household objects.

1. Inspect gasket seal and its condition.

2. Inspect glass panels for scratches and nicks that can lead to breakage when exposed to heat.

3. Conﬁ rm there is no damage to glass or glass frame. Replace as necessary.

4. Verify that latches engage properly, clip studs are not stripped, and glass attachment components are intact and operating properly. Replace as necessary.

5. Clean glass. Replace glass assembly if severely coated with silicate deposits that cannot be removed.

1. Vacuum and wipe out dust, cobwebs, debris or pet hair. Use caution when cleaning these areas. Screw

tips that have penetrated the sheet metal are sharp and should be avoided.

2. Remove any foreign objects.

3. Verify unobstructed air circulation.

2. Verify correct log placement and no ﬂ ame impingement causing sooting. Correct as necessary.

2. Replace appliance if ﬁ rebox has been perforated.

1. Verify burner is properly secured and aligned with pilot or igniter.

2. Clean off burner top, inspect for plugged ports, corrosion or deterioration. Replace burner if necessary.

3. Replace ember materials with new dime-size and shape pieces. Do not block ports or obstruct lighting paths.

4. Check for smooth lighting and ignition carryover to all ports. Verify there is no ignition delay.

5. Inspect for lifting or other ﬂ ame problems.

6. Verify air shutter is clear of dust and debris.

7. Inspect oriﬁ ce for soot, dirt or corrosion.

8. Verify manifold and inlet pressures. Adjust regulator as required.

9. Inspect pilot ﬂ ame strength. Clean or replace oriﬁ ce as necessary.

10. Inspect thermocouple/thermopile or IPI sensor rod for soot, corrosion and deterioration. Clean with emery cloth or replace as required.

11. Verify millivolt output. Replace as necessary.

2. Conﬁ rm that termination cap remains clear and unobstructed by plants, etc.

3. Verify that termination cap clearance to subsequent construction (building additions, decks, fences or

sheds) has been maintained.

4. Inspect for corrosion or separation.

5. Verify weather stripping, sealing and ﬂ ashing remains intact.

6. Inspect draft shield to verify it is not bent, damaged or missing.

2. Replace batteries in remote transmitters and battery-powered receivers.

3. Verify batteries have been removed from battery back-up IPI systems to prevent premature battery failure

or leaking.

49Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

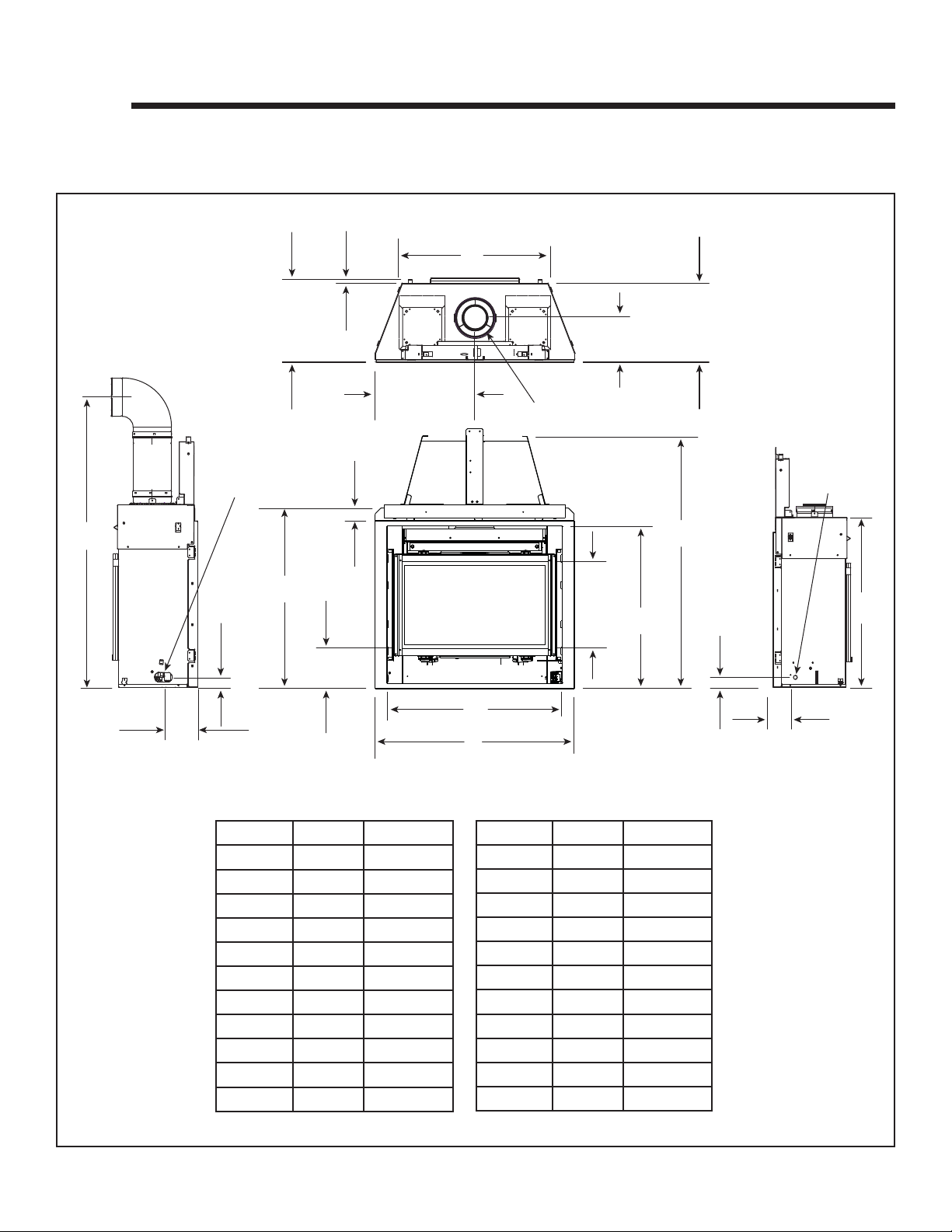

Reference Materials

A. Appliance Dimension Diagram

Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.

GAS LINE

ACCESS

ELECTRICAL

ACCESS

Location Inches Millimeters

A 17-1/4 437 B1 24 C 31-3/8 798 D 16-1/4 413 E 9-3/8 238

F 8 202 G 20-1/2 521 H 53-3/4 1365

I 2-1/8 54

J 7 177 K 2-5/8 67

Figure 16.1 Appliance Dimensions

Location Inches Millimeters

L 37-1/4 945

M 8-3/8 212

N 30-1/2 776 O 36-1/8 916 P 41 1043 Q 17-7/8 455 R 33-1/2 852 S 52 1321 T 2-1/4 56 U 5 126 V 34-1/2 876

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1150

B. Vent Components Diagrams

10-1/2 in. (267 mm)

10-7/8 in.

(276 mm)

7-3/8 in.

(187 mm)

11-3/8 in. (289 mm)

1-1/4 in. (32 mm)

9-1/4 in.

(235 mm)

13-1/4 in. (337 mm)

1/2 in.

TYP

DVP90ST (90° Elbow)

10 in.

(254 mm)

10 in.

(254 mm)

1 in.

(25 mm)

12 in.

(305 mm)

14 in.

(356 mm)

1 in. (25 mm)

8 in.

(203 mm)

6 in.

(152 mm)

10 in.

(254 mm)

1- 1/2 in. (38 mm)

5 in.

(127 mm)

12 in.

(305 mm)

DVP-HVS (Vent Support)

DVP-WS (Wall Shield Firestop)

DVP-FS (Ceiling Firestop)

DVP45 (45º Elbow)

DVP Pipe (see chart)

Effective

Height/Length

4-7/8 in.

( 276 mm)

(13 mm)

Assembled

Height: 24 in./610 mm

Diameter: 10 in./254 mm

DVP-AS2

Pipe

DVP4 4 102 DVP6 6 152 DVP12 12 305 DVP24 24 610 DVP36 36 914 DVP48 48 1219 DVP6A 3 to 6 76 to 152 DVP12A 3 to 12 76 to 305 DVP12MI 3 to 12 76 to 305 DVP24MI 3 to 24 76 to 610

Effective Length

Inches Millimeters

Figure 16.2 DVP vent components

51Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

B. Vent Components Diagrams (continued)

Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm) the

existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a DVP-HSM-B will be required.

8 in.

(203 mm)

15-1/8 in. (384 mm)

Heat

Shield

12 in.

(305 mm)

DVP-TRAP

Horizontal Termination Cap

DVP-TRAP1

Max

Effective

Length

Term Cap

Trap1

Trap2

DVP-TRAP2

Minimum

Effective Length

3-1/8 in. 4-5/8 in.

79 mm 117 mm 5-3/8 in. 9-3/8 in. 137 mm 238 mm

Effective Length

Maximum

DVP-TRAPK1

Figure 16.3 DVP vent components

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1152

DVP-TRAPK2

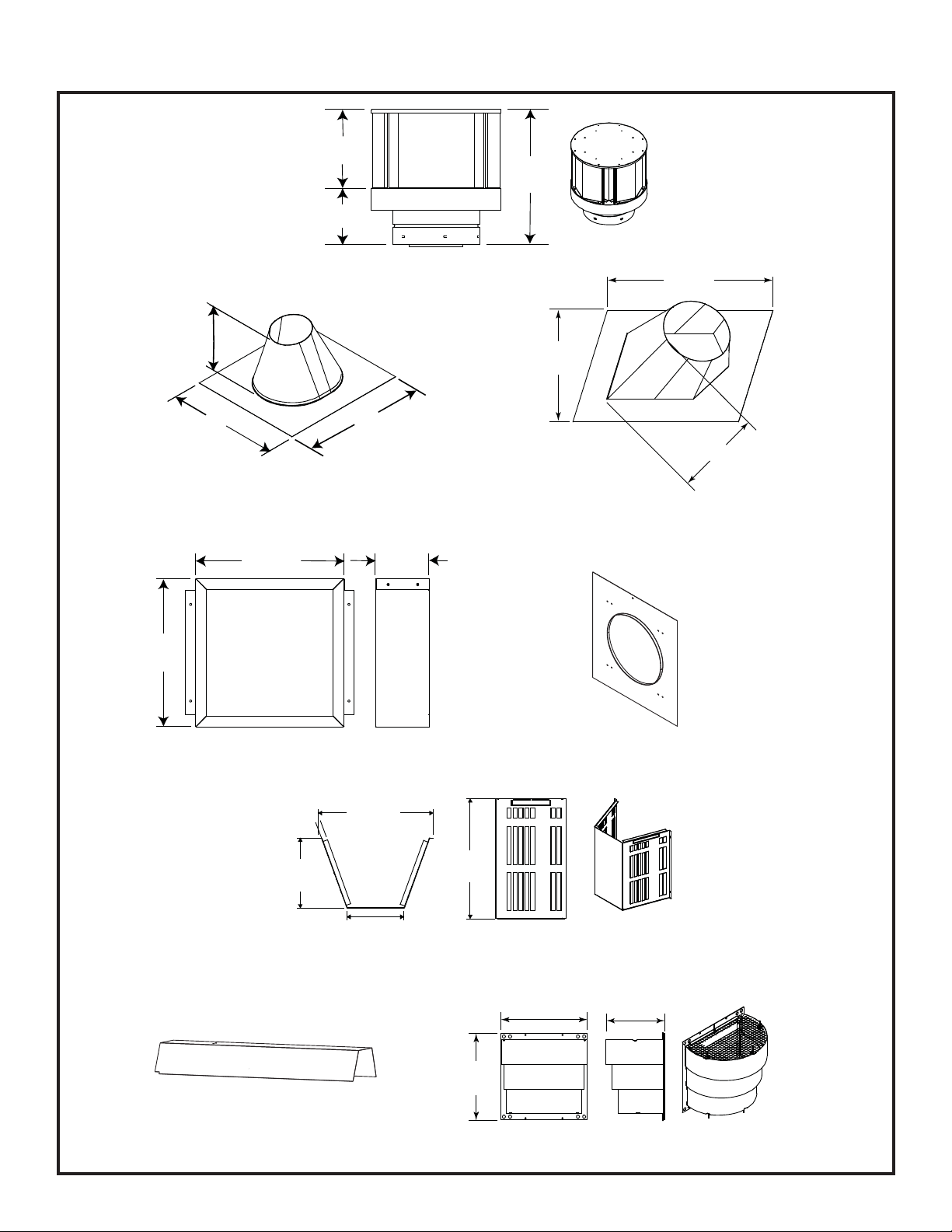

B. Vent Components Diagrams (continued)

7-1/4 in.

(184 mm)

5-1/4 in.

(133 mm)

12-1/2 in.

(318 mm)

13-1/4 in.

(367 mm)

24-5/8 in.

(625 mm)

13-3/4 in. (349 mm)

VerticalTermination Cap (Highwind)

RF6M

Roof Flashing Multi-pak

13-3/4 in. (349 mm)

27-1/2 in.

(127 mm)

5 in.

(127 mm)

DVP-TVHW

24-5/8 in.

(625 mm)

Roof Flashing Multi-pak

31 in.

(787 mm)

13-1/4 in.

(367 mm)

RF12M

Trap Cap Brick Extension

DVP-HSM-B Extended Heat Shield

Figure 16.4 DVP vent components

BEK

7-1/8 in.

(181 mm)

11-5/8 in. (295 mm)

5-3/4 in.

(146 mm)

12-1/8 in. (308 mm)

COOL-ADD

Cap Shield

14 in.

(356 mm)

13-7/8 in. (352 mm)

DRC-RADIUS

DVP-TRAPFL

9-1/2 in.

(241 mm)

Cap Shield

53Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

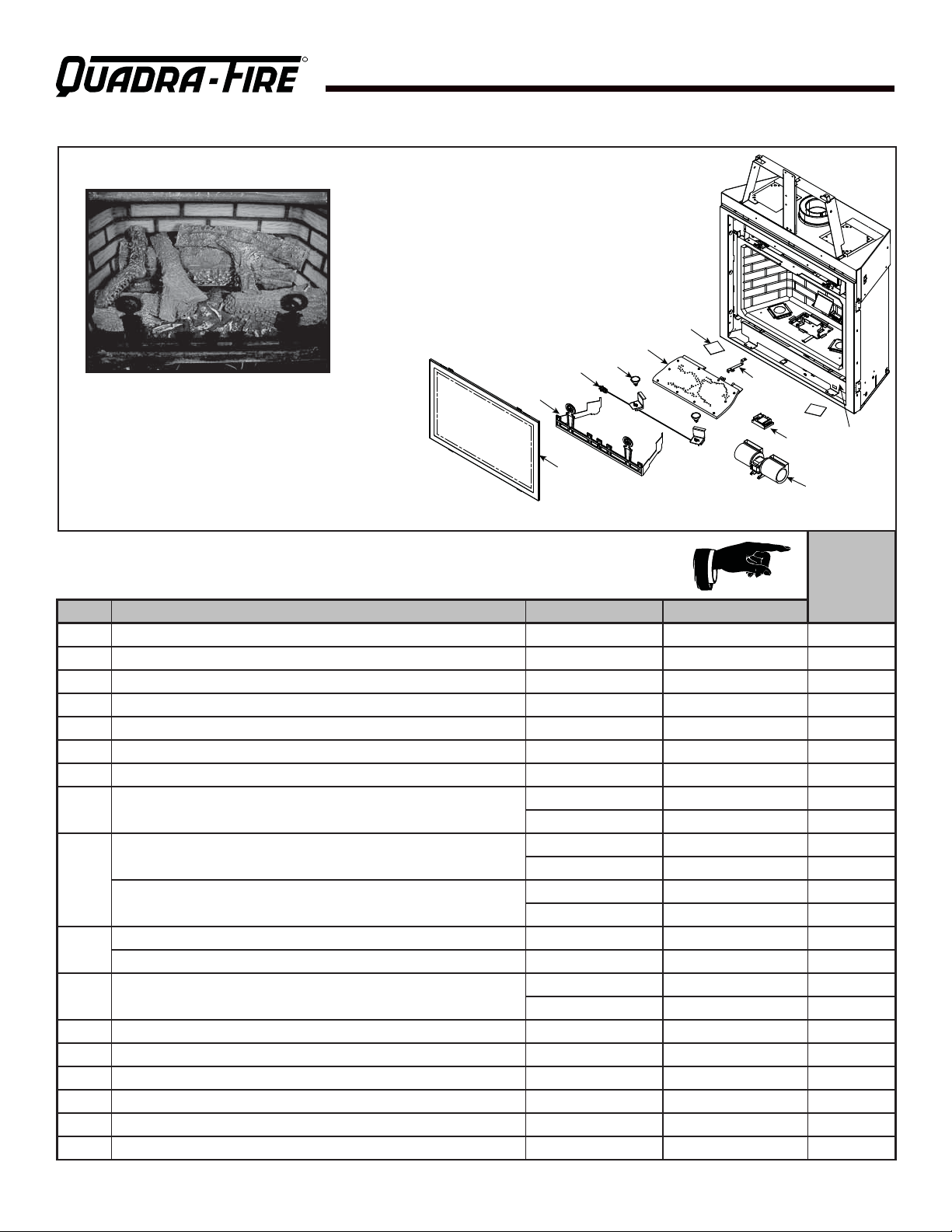

C. Service Parts

QV36A-FB

36” Direct Vent Gas Fireplace

Beginning Manufacturing Date: April 2004

Ending Manufacturing Date:______

Log Set Assembly

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.

ITEM DESCRIPTION COMMENTS PART NUMBER

Log Set Assembly 1 Log 1 2 Log 2 3 Log 3 4 Log 4 5 Log 5 6 Log 6

7 Kapton Lens

Burner NG Pre Feb 2006 SRV2062-004-NG

10 Light Assembly

1 1 Grate Assembly 12 Glass Door Assembly 13 Blower 14 Control Module 15 Shutter Arm Bottom 16 Access Plate

Additional service part numbers appear on following page.

If ordering SRV must also order Log SRV2062-701 Post Feb 2006 2062-004

Burner LP Pre Feb 2006 SRV2062-004-LP

If ordering SRV must also order Log SRV2062-701 Post Feb 2006 2062-004 Light Bulb Pre Sept 2007 700-540 Ember Bulb 20W

LOGS-2062 SRV2062-701 SRV2062-702 SRV2062-703 SRV330-706 SRV330-704

SRV340-705 Pre 002618815 2062-149 Post 002618815 2101-252

Post Sept 2007 2088-136 Pre Sept 2007 2062-073 Post Sept 2007 2141-041

2062-080

GLA-2062

GFK-160A

593-592

2062-133

2062-156

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1154

Stocked at Depot

Y Y Y Y Y Y Y Y

C. Service Parts

QV36A-FB

Beginning Manufacturing Date: April 2004

Ending Manufacturing Date:______

#17 Valve Assembly

17.6

17.3

17.4

17.5

17.2

17.1

17.8

17.7

ITEM DESCRIPTION COMMENTS PART NUMBER

Pilot Assembly NG

17.1 Pilot Assembly LP

17.2 Burner Support 2062-130

17.3

17.4 Shutter Arm 2062-132

17.5

17.6

17.7

17.8 Valve Bracket 2062-152

17.9 Shutter Bracket Assembly 319-316A

Additional service part numbers appear on following page.

Oriﬁ ce NG (#32C) 582-832 Oriﬁ ce LP (#50C) 582-850

Flexible Gas Connector 383-302A Flex Ball Valve Assembly 302-320A Valve NG 750-500 Valve LP 750-501

Wire Harness 20" 107-559A Temp Sensor 107-531

Pre Feb 2006 4021-025 Post Feb 2006 2090-012 Pre Feb 2006 4021-026 Post Feb 2006 2090-013

Stocked at Depot

Y Y Y Y

Y Y

Y Y Y Y

Y Y Y

55Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

C. Service Parts List QV36A-FB

ITEM DESCRIPTION COMMENTS PART NUMBER

Battery Pack Fiberglass Rope 060-455 Glass Latch Assembly Junction Box Multi Function Wall Switch Kit QWSK-MLT

Solenoid HTI-17-006 Wall Switch/ Key pad HTI-12-007 Control Wire HTI-23-007 Cover Plate HTI-21-007 Control box HTI-13-007 Actuator Pins HTI-17-116

Switch Kit HTI-25-007 Non-combustible Board On/Off Rocker Switch Patch Kit Surround Vermiculite Embers MYSTIC-EMBERS Wire Assembly

Pkg of 2 386-122A/2

593-594A

4021-013

2062-085 060-521A SRV-PACK 2026-108

593-590A

Stocked

at Depot

Y Y

Y Y Y Y Y Y Y

Conversion Kit NG NGK-2062 Conversion Kit LP LPK-2062

Pilot Oriﬁ ce NG

Pilot Oriﬁ ce LP

Regulator NG NGK-DXV

Regulator LP LPK-DXV

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1156

Pre Feb 2006 446-505 Post Feb 2006 593-528 Pre Feb 2006 446-517 Post Feb 2006 593-527

Y Y Y Y Y Y Y Y

D. Limited Lifetime Warranty

y p

Hearth & Home Technologies Inc.

LIMITED LIFETIME WARRANTY

Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.

WARRANTY COVERAGE:

HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered components manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty is subject to conditions, exclusions and limitations as described below.

WARRANTY PERIOD:

Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent, authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for parts and labor for covered components is produced in the following table.

The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These time periods reflect the minimum expected useful lives of the designated components under normal operating conditions.

Warranty Period HHT Manufactured Appliances and Venting

Parts Labor Gas Wood Pellet

1 Year

2 years

3 years

ears 1 year X X Castings and baffles

7 years 3 years X X X

ears

Limited

Lifetime

1 year X Burners, logs and refractory

3 yearsXXXXX Firebox and heat exchanger

XXXXXXX

XXX

XXXXX Factor

X Molded refractor

XFire

EPA

Wood

Coal Electric Venting

Components Covered

All parts and material except as

covered by Conditions,

Exclusions, and Limitations

listed

Igniters, electronic components,

lass

and

-installed blowers

ots and burnpots

Manifold tubes,

HHT chimne

and termination

anels

90 Days

4021-645C 12-29-10 Page 1 of 2

XXXXXXX

See conditions, exclusions, and limitations on next page.

All replacement parts

ond warranty period

57Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

D. Limited Lifetime Warranty (continued)

WARRANTY CONDITIONS:

 7KLVZDUUDQW\RQO\FRYHUV++7DSSOLDQFHVWKDWDUHSXUFKDVHGWKURXJKDQ++7DXWKRUL]HGGHDOHURUGLVWULEXWRU$OLVWRI

++7DXWKRUL]HGGHDOHUVLVDYDLODEOHRQWKH++7EUDQGHGZHEVLWHV  7KLVZDUUDQW\LVRQO\YDOLGZKLOHWKH++7DSSOLDQFHUHPDLQVDWWKHVLWHRIRULJLQDOLQVWDOODWLRQ  &RQWDFW\RXULQVWDOOLQJGHDOHUIRUZDUUDQW\VHUYLFH,IWKHLQVWDOOLQJGHDOHULVXQDEOHWRSURYLGHQHFHVVDU\SDUWVFRQWDFW

WKHQHDUHVW++7DXWKRUL]HGGHDOHURUVXSSOLHU$GGLWLRQDOVHUYLFHIHHVPD\DSSO\LI\RXDUHVHHNLQJZDUUDQW\VHUYLFH

IURPDGHDOHURWKHUWKDQWKHGHDOHUIURPZKRP\RXRULJLQDOO\SXUFKDVHGWKHSURGXFW  &KHFNZLWK\RXUGHDOHULQDGYDQFHIRUDQ\FRVWVWR\RXZKHQDUUDQJLQJDZDUUDQW\FDOO7UDYHODQGVKLSSLQJFKDUJHV

IRUSDUWVDUHQRWFRYHUHGE\WKLVZDUUDQW\

WARRANTY EXCLUSIONS:

7KLVZDUUDQW\GRHVQRWFRYHUWKHIROORZLQJ  &KDQJHVLQVXUIDFHILQLVKHVDVDUHVXOWRIQRUPDOXVH$VDKHDWLQJDSSOLDQFHVRPHFKDQJHVLQFRORURILQWHULRUDQG

H[WHULRUVXUIDFHILQLVKHVPD\RFFXU7KLVLVQRWDIODZDQGLVQRWFRYHUHGXQGHUZDUUDQW\

 'DPDJHWRSULQWHGSODWHGRUHQDPHOHGVXUIDFHVFDXVHGE\ILQJHUSULQWVDFFLGHQWVPLVXVHVFUDWFKHVPHOWHGLWHPV

RURWKHUH[WHUQDOVRXUFHVDQGUHVLGXHVOHIWRQWKHSODWHGVXUIDFHVIURPWKHXVHRIDEUDVLYHFOHDQHUVRUSROLVKHV

 5HSDLURUUHSODFHPHQWRISDUWVWKDWDUHVXEMHFWWRQRUPDOZHDUDQGWHDUGXULQJWKHZDUUDQW\SHULRG7KHVHSDUWV

LQFOXGHSDLQWZRRGSHOOHWDQGFRDOJDVNHWVILUHEULFNVJUDWHVIODPHJXLGHVOLJKWEXOEVEDWWHULHVDQGWKHGLVFRORU-

DWLRQRIJODVV

 0LQRUH[SDQVLRQFRQWUDFWLRQRUPRYHPHQWRIFHUWDLQSDUWVFDXVLQJQRLVH7KHVHFRQGLWLRQVDUHQRUPDODQGFRP-

SODLQWVUHODWHGWRWKLVQRLVHDUHQRWFRYHUHGE\WKLVZDUUDQW\

 'DPDJHVUHVXOWLQJIURPIDLOXUHWRLQVWDOORSHUDWHRUPDLQWDLQWKHDSSOLDQFHLQDFFRUGDQFHZLWKWKHLQVWDOODWLRQ

LQVWUXFWLRQVRSHUDWLQJLQVWUXFWLRQVDQGOLVWLQJDJHQWLGHQWLILFDWLRQODEHOIXUQLVKHGZLWKWKHDSSOLDQFHIDLOXUHWR

LQVWDOOWKHDSSOLDQFHLQDFFRUGDQFHZLWKORFDOEXLOGLQJFRGHVVKLSSLQJRULPSURSHUKDQGOLQJLPSURSHURSHUD-

WLRQDEXVHPLVXVHFRQWLQXHGRSHUDWLRQZLWKGDPDJHGFRUURGHGRUIDLOHGFRPSRQHQWVDFFLGHQWRULPSURSHUO\ LQFRUUHFWO\SHUIRUPHGUHSDLUVHQYLURQPHQWDOFRQGLWLRQVLQDGHTXDWHYHQWLODWLRQQHJDWLYHSUHVVXUHRUGUDIWLQJ FDXVHGE\WLJKWO\VHDOHGFRQVWUXFWLRQVLQVXIILFLHQWPDNHXSDLUVXSSO\RUKDQGOLQJGHYLFHVVXFKDVH[KDXVWIDQVRU IRUFHGDLUIXUQDFHVRURWKHUVXFKFDXVHVXVHRIIXHOVRWKHUWKDQWKRVHVSHFLILHGLQWKHRSHUDWLQJLQVWUXFWLRQV LQVWDOODWLRQRUXVHRIFRPSRQHQWVQRWVXSSOLHGZLWKWKHDSSOLDQFHRUDQ\RWKHUFRPSRQHQWVQRWH[SUHVVO\DXWKRUL]HG DQGDSSURYHGE\++7PRGLILFDWLRQRIWKHDSSOLDQFHQRWH[SUHVVO\DXWKRUL]HGDQGDSSURYHGE\++7LQZULWLQJ

DQGRULQWHUUXSWLRQVRUIOXFWXDWLRQVRIHOHFWULFDOSRZHUVXSSO\WRWKHDSSOLDQFH  1RQ++7YHQWLQJFRPSRQHQWVKHDUWKFRPSRQHQWVRURWKHUDFFHVVRULHVXVHGLQFRQMXQFWLRQZLWKWKHDSSOLDQFH  $Q\SDUWRIDSUHH[LVWLQJILUHSODFHV\VWHPLQZKLFKDQLQVHUWRUDGHFRUDWLYHJDVDSSOLDQFHLVLQVWDOOHG

 ++7¶VREOLJDWLRQXQGHUWKLVZDUUDQW\GRHVQRWH[WHQGWRWKHDSSOLDQFH¶VFDSDELOLW\WRKHDWWKHGHVLUHGVSDFH,QIRUPD-

WLRQLVSURYLGHGWRDVVLVWWKHFRQVXPHUDQGWKHGHDOHULQVHOHFWLQJWKHSURSHUDSSOLDQFHIRUWKHDSSOLFDWLRQ&RQVLGHU-

DWLRQPXVWEHJLYHQWRDSSOLDQFHORFDWLRQDQGFRQILJXUDWLRQHQYLURQPHQWDOFRQGLWLRQVLQVXODWLRQDQGDLUWLJKWQHVVRI

WKHVWUXFWXUH

This warranty is void if:

 7KHDSSOLDQFHKDVEHHQRYHUILUHGRURSHUDWHGLQDWPRVSKHUHVFRQWDPLQDWHGE\FKORULQHIOXRULQHRURWKHUGDPDJLQJ

FKHPLFDOV2YHUILULQJFDQEHLGHQWLILHGE\EXWQRWOLPLWHGWRZDUSHGSODWHVRUWXEHVUXVWFRORUHGFDVWLURQEXEEOLQJ

FUDFNLQJDQGGLVFRORUDWLRQRIVWHHORUHQDPHOILQLVKHV  7KHDSSOLDQFHLVVXEMHFWHGWRSURORQJHGSHULRGVRIGDPSQHVVRUFRQGHQVDWLRQ  7KHUHLVDQ\GDPDJHWRWKHDSSOLDQFHRURWKHUFRPSRQHQWVGXHWRZDWHURUZHDWKHUGDPDJHZKLFKLVWKHUHVXOWRIEXW

QRWOLPLWHGWRLPSURSHUFKLPQH\RUYHQWLQJLQVWDOODWLRQ

LIMITATIONS OF LIABILITY:

 7KHRZQHU¶VH[FOXVLYHUHPHG\DQG++7¶VVROHREOLJDWLRQXQGHUWKLVZDUUDQW\XQGHUDQ\RWKHUZDUUDQW\H[SUHVVRU

LPSOLHGRULQFRQWUDFWWRUWRURWKHUZLVHVKDOOEHOLPLWHGWRUHSODFHPHQWUHSDLURUUHIXQGDVVSHFLILHGDERYH,QQR

HYHQWZLOO++7EHOLDEOHIRUDQ\LQFLGHQWDORUFRQVHTXHQWLDOGDPDJHVFDXVHGE\GHIHFWVLQWKHDSSOLDQFH6RPHVWDWHV

GRQRWDOORZH[FOXVLRQVRUOLPLWDWLRQRILQFLGHQWDORUFRQVHTXHQWLDOGDPDJHVVRWKHVHOLPLWDWLRQVPD\QRWDSSO\WR\RX

7KLVZDUUDQW\JLYHV\RXVSHFLILFULJKWV\RXPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURPVWDWHWRVWDWH(;&(3772

7+((;7(173529,'('%</$:++70$.(612(;35(66:$55$17,(627+(57+$17+(:$55$17<

63(&,),('+(5(,17+('85$7,212)$1<,03/,(':$55$17<,6/,0,7('72'85$7,212)7+(

(;35(66(':$55$17<63(&,),('$%29(

4021-645C 12-29-10 Page 2 of 2

Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/1158

E. Contact Information

Quadra-Fire, a brand of Hearth & Home Technologies Inc.

7571 215th Street West, Lakeville, MN 55044

www.quadraﬁ re.com

Please contact your Quadra-Fire dealer with any questions or concerns.

For the location of your nearest Quadra-Fire dealer,

please visit www.quadraﬁ re.com.

- Notes -

________________________________________________________________________________

CAUTION

DO NOT DISCARD THIS MANUAL

• Important operating and maintenance instructions included.

• Read, understand and follow these instructions for safe installation and operation.

• Leave this manual with party responsible for use and operation.

This product may be covered by one or more of the following patents: (United States) 5328356, 5601073, 5613487, 5647340, 5890485, 5941237, 5947112, 5996575, 6006743, 6019099, 6053165, 6145502, 6170481, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729 or other U.S. and foreign patents pending.

2000-945

59Quadra-Fire • Expression 36 (QV36A-FB) • 2062-900 Rev. S • 11/11

Quadra-Fire QV36A-FB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
