Models:
QV26E-B
Electric Fireplace/Insert
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
• Important operating
and maintenance
instructions included.
• Read, understand
and follow these
instructions for safe
installation and
operation.
WARNING
If the information in these instructions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl ammable vapors and liquids in the vicinity of
this or any other appliance.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
Made in China
CAUTION
DO NOT
DISCARD
• Leave this manual with
party responsible for
use and operation.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot
during operation and cool down.
• Keep children away.
• CAREFULLY SUPERVISE children in same room
as heater.
• Alert children and adults to hazards of high
temperatures.
• Keep clothing, furniture, draperies and other
combustibles away.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
1
Read this manual before installing or operating this heater.
Please retain this owner’s manual for future reference.
Congratulations!
Congratulations on selecting a Quadra-Fire electric fi replace/
insert. The insert you have selected is designed to provide
the utmost in safety, reliability and effi ciency.
As the owner of a new fi replace/insert, you’ll want to read and
carefully follow all of the instructions contained in this owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual unless noted
otherwise, applies to all models.
Your new Quadra-Fire electric fi replace/insert will give you
years of durable use and trouble-free enjoyment. Welcome
to the Quadra-Fire family of fi replace products!
Homeowner Reference Information
Model Name: Date purchased/installed:
Serial Number: Location on heater:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information about your heater:
Listing Label Information/Location
The model information regarding your specifi c heater can be found on the rating plate located in the upper left corner of the
fi rebox opening..
Heater
Model
Serial #
Hearth & Home Technologies Inc.
1915 W. Saunders Street
Mt. Pleasant, IA 52641
UL 2021 FIXED AND LOCATION
DEDICATED ELECTRIC ROOM HEATER
MODEL XXXX DATE
SERIAL XXXXXXX
2
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
Made in China
VOLTS: 120V
WATTS: 1500W
FREQUENCY:60Hz
Table of Contents
1 Listing and Code Approvals
A. Certifi cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B. Important Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . 5
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . 5
C. Inspect Heater and Components . . . . . . . . . . . . . . . . . 5
3 Framing and Clearances
A. Selecting Heater Location . . . . . . . . . . . . . . . . . . . . . . 6
B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
C. Frame the Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4 Installation
A. As a Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
B. As an Insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Accessories
A. Install the Front Face . . . . . . . . . . . . . . . . . . . . . . . . . 13
B. Install other Optional Accessories . . . . . . . . . . . . . . .13
6 Finishing
A. Finishing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
B. Finishing Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . 14
C. Mantel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7 Operating Instructions
A. Main Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 15
B. Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8 Troubleshooting
A. Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . .16
9 Maintenance and Service
A. Access the Firebox . . . . . . . . . . . . . . . . . . . . . . . . . . 17
B. Clean the Firebox Compartment . . . . . . . . . . . . . . . . 17
C. Clean the Back Glass . . . . . . . . . . . . . . . . . . . . . . . . 17
D. Replace the Light Bulbs . . . . . . . . . . . . . . . . . . . . . . 17
E. Maintenance Task List . . . . . . . . . . . . . . . . . . . . . . . . 18
10 Reference Materials
A. Heater Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 19
B. Optional Components . . . . . . . . . . . . . . . . . . . . . . . . 20
C. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
D. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
E. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . .26
Note: An arrow () found in the text signifi es change in content.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
3
1
Listing and Code Approvals
1
A. Certifi cation
This heater has been tested in accordance with the UL2021
Standards for fi xed and location-dedicated electric room
heaters in the United States, the current CSA C22.2 No. 46
in Canada and has been listed by Underwriters Laboratories
Inc. for installation as described in this manual. All components are UL or CSA safety certifi ed.
This heater has been tested and listed for use with the optional components specifi ed in this manual. These optional
components may be purchased separately and installed at
a later date.
Quadra-Fire is a registered trademark of Hearth & Home
Technologies Inc.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this heater. For assistance or additional information
consult a qualifi ed installer, service agency or your
dealer.
Not intended for use as a primary heat source.
This heater is tested and approved as a decorative heater.
It should not be factored as a primary heat source in
residential heating calculations.
WARNING
Fire Risk
• Do not install or operate damaged heater.
• Do not modify heater.
• Installation other than as instructed by Hearth & Home
Technologies Inc. is strictly prohibited.
• Do not operate the heater without fully assembling all
components.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty and agency listing will be voided by
the above actions.
B. Important Instructions
When using electrical heaters, basic precautions should always be followed to reduce the risk of fi re, electric shock,
and injury to persons, including the following:
• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. If provided, use handles
when moving this heater. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes, and
curtains at least 12 in. (305 mm) from the front of the
heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used
by or near children or invalids and whenever the heater
is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug
or after the heater malfunctions, has been dropped or
damaged in any manner. Return heater to authorized
service facility for examination, electrical or mechanical
adjustment, or repair.
• Do not use outdoors.
4
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
• This heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater
where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or the like. Arrange cord away from
traffi c area and where it will not be tripped over. Do not
coil cord.
• To disconnect heater, turn controls to “OFF”, then remove
plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock
or fi re, or damage the heater.
• To prevent a possible fi re, do not block air intakes or
exhaust in any manner.
• A heater has hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint, or fl ammable
liquids are used or stored.
• Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause
fi re, electric shock, or injury to persons.
• Avoid the use of an extension cord because the extension
cord may overheat and cause a risk of fi re. However, if you
have to use an extension cord, the cord shall be No. 16
AWG minimum size and rated not less than 1875 watts.
Use minimum length and do not coil cord.
• Always use properly grounded fused and polarized
outlets.
• Always use ground fault protection where required by
electrical code.
• Always disconnect power before performing any cleaning,
maintenance or relocation of the heater.
• To prevent a possible fi re, do not burn wood or other
materials in this heater.
• To prevent electric shock or fi re, always use a certifi ed
electrician should new circuits or outlets be required.
• When transporting or storing the heater, keep in a dry
place free from excessive vibration and store as to avoid
damage.
• SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
2
Getting Started
A. Design and Installation Considerations
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional,
state and national codes and regulations.
• Consult insurance carrier, local building inspector,
fi re offi cials or authorities having jurisdiction about
restrictions, installation inspection, and permits.
When planning a heater installation, it is necessary to determine the following information before installing:
• Where the heater is to be installed. See Sections
3 and 4.
• Electrical wiring. See Section 4.
• Framing and fi nishing details. See Sections 3 and 6.
• Whether optional accessories—devices such as a fan, wall
switch or remote control —are desired. See Section 10.
B. Tools and Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
Reciprocating saw Framing material
Pliers Wall-fi nishing materials
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits
Plumb line Safety glasses
Level Tape measure
Surround
1/2-3/4 in. length, #6 or #8 self-drilling screws
Misc. screws and nails
C. Inspect Heater and Components
CAUTION
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
WARNING
Fire Risk
Inspect heater and components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components
Report damaged parts to dealer.
• Carefully remove the heater and components from the
packaging.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the
installation to ensure maximum safety and benefi t.
CAUTION
• Keep heater dry.
• Mold or rust may cause odors.
Note: Minimum and maximum clearances must be
maintained at all times. Illustrations throughout these
instructions refl ect typical installations and are for design
purposes only. Actual installation may vary slightly due to
individual design preferences.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
5
3
Framing and Clearances
WARNING
Fire Risk
Provide adequate clearances.
• Around air openings
• To combustibles
• For service access.
Locate heater away from traffi c areas.
A. Selecting Heater Location
Several options are available to you when choosing a location for your heater. This heater may be used as a room
divider, installed along a wall, across a corner or used in an
exterior chase. See Figure 3.1. This heater may be installed
directly on the fl oor, carpet or raised on a hearth.
DANGER
Electrocution Risk
• NEVER locate this heater where it may fall
into a bathtub or other water container.
Note:
• Illustrations and photos refl ect typical installations
and are FOR DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation/appearance may vary due to
individual design preference.
• Hearth & Home Technologies reserves the right to
alter its products.
B. Clearances
Figure 3.1 shows all clearances that must be maintained
around the heater.
WARNING
Fire Risk
Due to high temperature, this heater should
be located out of high traffi c areas.
• Keep combustible materials such as
furniture, pillows, bedding, papers,
clothes and curtains at least 12 in.
(305 mm) from the front of the heater.
WARNING
Fire Risk!
• Prevent contact with sagging, loose
insulation.
• Do NOT install against vapor barriers or
exposed insulation.
WARNING
Do NOT use this heater if any part has been under water.
Immediately call a qualifi ed service technician to inspect
the heater and to replace any part of the control system
which has been under water.
6
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
WARNING
Fire Risk
• Comply with all minimum clearances to
combustibles as specifi ed.
Failure to comply may cause fi re.
Note: Minimum and maximum clearances must be
maintained at all times. Illustrations throughout these
instructions refl ect typical installations and are for design
purposes only. Actual installation may vary slightly due to
individual design preferences.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.
D
9-3/4 in.
(248 mm)
A
B
C
1/2 in. min.
(13 mm)
QV26E-B

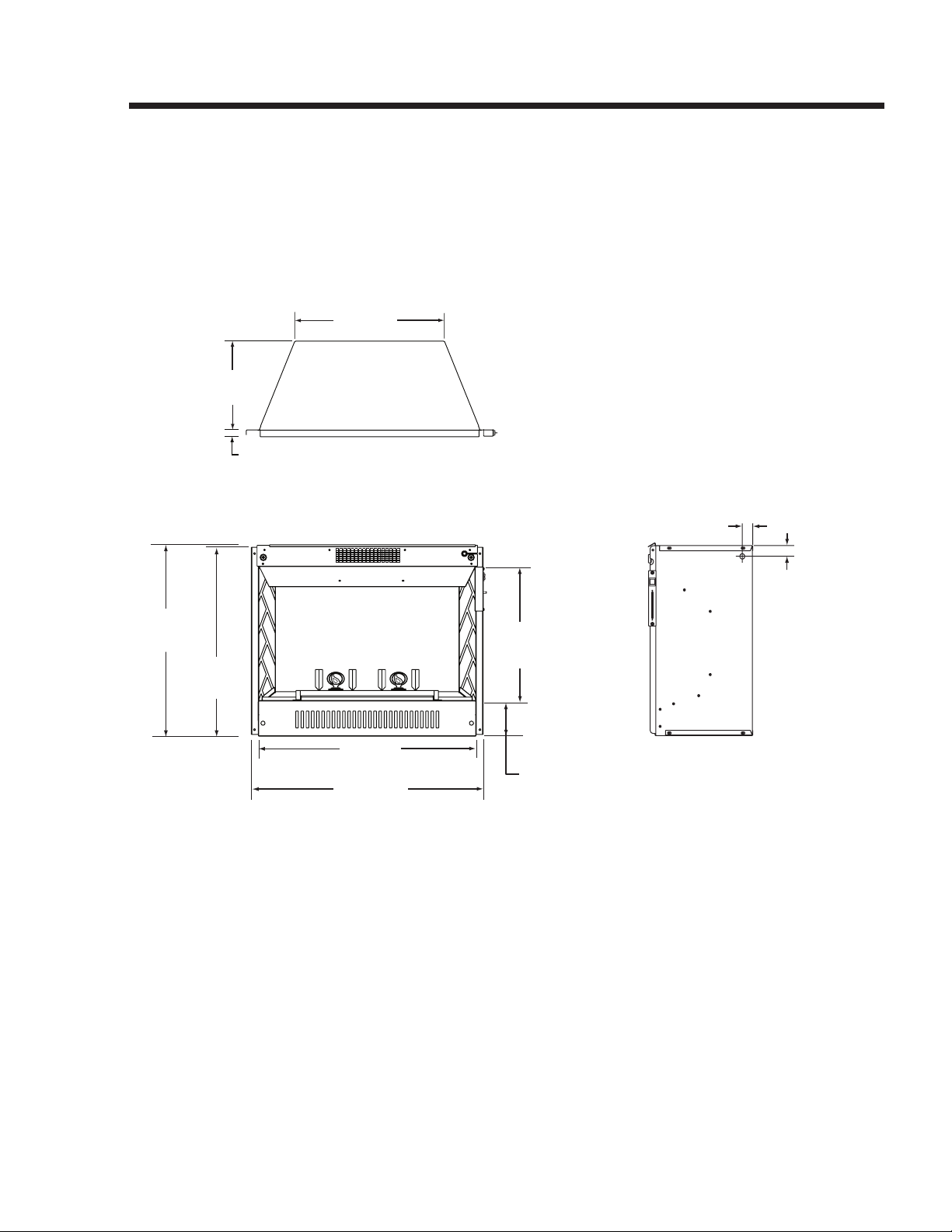

Figure 3.1 Heater Locations
A
9-3/4 in.
(248 mm)
A
1 in. min.
(26 mm)
Model # A B C D
in. 26-1/2 37 18-1/2 26-1/8
mm 673 940 470 664
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
7
C. Frame the Heater
Figure 3.2 shows a typical framing (using 2 x 4 lumber) of
the heater, assuming combustible materials are used. All required clearances to combustibles around the heater must
be adhered to.
NOTE: The height that a combustible
mantel is fitted above the heater is
dependent on the height of the front
selected. The minimum height is 1 in.
(25 mm) above the front. Fronts are
available in 24 in. (610 mm), 28 in.
(711 mm) and 32 in. (813 mm) high.
22-7/8 in.
(581 mm)
(header height)
9-3/4 in.
(248 mm)
Figure 3.2 Framing the Heater
26-1/2 in.
(673 mm)
8
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
4
Installation
4
CAUTION
Sharp Edges
• Wear protective gloves and safety
glasses during installation.
WARNING
Shock Risk
Improperly grounded outlets could cause
electrical shock.
• Always use properly grounded, fused and
polarized outlets.
• Always use ground fault protection where
required by electrical code.
WARNING
Shock Risk
Fire Risk
Improperly protected power cords could
cause electrical shock or fi re.
• Do not pinch the cord or lay against a
sharp object.
• Do not cover the cord with carpeting, throw
rugs or runners.
• Secure and arrange cord to avoid a
tripping hazard.
• Do not coil cord.
A. As a Fireplace
Select a suitable location that is not susceptible to moisture
and is away from drapes, furniture and high traffi c areas.
Note: Follow all national and local electrical
codes.
Wall Cabinet Kit, Corner Cabinet Kit or Custom
Cabinet Installation
The Cabinet must provide access to the wall outlet.
• For ease of electrical hookup, you may wish to install the
heater near an existing outlet. A 15 amp, 120 volt circuit is
required. A dedicated circuit is preferred but not essential
in all cases. A dedicated circuit will be required if, after
installation, the circuit trips or fuse blows on a regular basis
while the heater is operating. Additional heaters on the
same circuit may exceed the current rating of the circuit
breaker.
• If using a wall cabinet or corner cabinet, refer to the
installation instructions supplied with the kit. For custom
cabinets, frame and construct with the opening and depth
dimensions listed in Figures 3.1 and 3.2.
• Before plugging the heater into the wall outlet, make sure
all control switches are in the “OFF” position.
• Before fi nishing the cabinet, the heater must be set into the
cabinet and the power cord routed to the electrical outlet.
If the power cord does not reach the outlet, a No. 16-AWG
minimum wire size extension cord rated for a minimum of
1875 watts may be used. Use minimum length and do not
coil cord.
• To complete the heater installation, refer to Section 5.
Non-Cabinet or Chase Installation
• Follow recommended framing dimensions in Figures 3.1
and 3.2.
• Set the heater into the framed opening. Secure the heater
in place using the nailing fl anges on both sides of the
heater and nail to the framing.
• To fi nish out the heater, follow the instructions found in
Section 6.
• To complete heater installation, see Section 5.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
9
B. As an Insert
Pre-installation Preparation
This insert and its components are tested and safe when installed in accordance with this manual. Report to your dealer
any parts damaged in shipment, particularly the condition
of the glass. Do not install any heater with damaged, in-
complete or substitute parts.
WARNING
Fire Risk
• Do not install or operate damaged heater.
• Do not modify heater.
• Installation other than as instructed by Hearth & Home
Technologies Inc. is strictly prohibited.
• Do not operate the heater without fully assembling all
components.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• A retaining method may be needed to secure the heater
in place.
• Combustible facing material may be installed over the
original combustible or noncombustible facing material on
the solid fuel fi replace. The original specifi ed clearances
of a factory-built fireplace must be maintained, with
the exception of the hearth. Clearances on a masonry
fi replace must be maintained at 12 in. from the opening
for combustible projections over 1-1/2 in. Clearances for
combustible projections under 1-1/2 in. must be maintained
per NFPA 211. Plan the surround size accordingly. A front
face must be used with the insert.
• The insert front face is tested and approved with this insert
and may cover existing air circulation vents or grilles on the
solid fuel fi replace it is installed into. Should the face not
cover the entire ventilation grille surface, the grille should
be left open.
• The solid fuel fi replace’s fl ue damper must be fully locked
in the closed position or removed for installation.
Note: Decorative trim front faces have been
tested and approved to cover existing air
circulation vents or grills.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty and agency listing will be voided by
the above actions.
Installation
• These inserts are designed for installations into solid
fuel masonry or factory built noncombustible fi replaces
that have been installed in accordance with the national,
provincial, state or local building codes.
• You should seal off the area between the termination cap
and the top of the existing chimney opening to avoid down
drafts, moisture and/or cold air problems.
• Minimum fi replace opening requirements are shown in
Figures 3.1 and 3.2 of this installation manual. The fi rebrick
(refractory) can be removed from a factory built fi replace
in order to gain minimum insert opening requirements.
• This insert requires no hearth extensions. Combustible
material on the fl oor may be installed up to the insert. Do not
obstruct the lower grill of the insert. The original fi replace
cannot be returned to solid fuel in this condition.
• The metal fl oor of the solid fuel fi rebox may be removed
to facilitate the installation of the insert. The side walls
and top structure of the fi rebox may not be altered with
the exception of removable baffl es and dampers. The
original fi replace cannot be returned to solid fuel in this
condition.
• Position, Level and Secure Insert
• Place the heater into position.
• Level the heater from side to side and from front to
back. If necessary, use the leveling bolts included in
the manual bag. Screw the bolts into the nuts installed
in the bottom of the insert (see replacement parts
diagram). Turn bolts in until the insert is level.
• The chimney must be capped.
• Install the insert without the front face and make all
electrical connections.
Note: The warning label above, located in the
instruction package, must be affi xed to the
lower back wall of the existing fi replace prior
to installation of the insert.
Note: When the front is installed it will
cover the gap between the heater and the
framing, cabinet, fi nishing materials or existing
fi r e p l a c e .
10
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
C. Wiring
Note: This heater must be electrically wired and grounded
in accordance with local codes or, in the absence of local
codes, with National Electric Code ANSI/NFPA 70-latest
edition or the Canadian Electric Code, CSA C2.1 as
appropriate.
All wiring must be done by a qualifi ed electrician.
Use appropriate wire to meet local and national
codes for rated power consumption.
WARNING
Shock Risk
Improperly grounded outlets could cause
electrical shock.
• Always use properly grounded, fused and
polarized outlets.
• Always used ground fault protection where
required by electrical code.
CAUTION
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
• A dedicated circuit is preferred but not essential in
all cases. A dedicated circuit will be required if, after
installation, the circuit trips or fuse blows on a regular
basis when the heater is operated. Additional appliances
on the same circuit may exceed the current rating of the
circuit breaker.
• The heater is wired from the factory with a polarized plug.
No provisions have been made for hardwiring.
• For ease of electrical hook up, you may wish to install the
heater near an existing outlet. A 15 amp, 120 volt circuit
is required.
• Run the cord out the notch of the front face.
• Before plugging the heater into the wall outlet, make sure
the control switch is in the “OFF” position.
• If the cord does not reach the outlet, a No. 16-AWG
minimum wire size extension cord rated for a minimum
of 1875 watts may be used. Use minimum length and do
not coil cord.
• If installing inside a pre-existing fi replace and if permitted
by local codes, an electrician may install an outlet box
inside the existing fi replace. Place the outlet in the lower
back of the fi rebox.
CAUTION
Disconnect remote controls during your extended absence.
This will prevent accidental operation of the heater.
Amps
Model Description Voltage Watts
QV26E-B 26 in. fi replace/insert 120 1500 12.5
(120/208/240)
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
11
TEMPERATURE
ADJUSTMENT
POTENTIOMETER
ON_BRIGHT
OFF
ON_DIM
SELECTOR
ORANGE
3 PIN
3
2
1
BLK
75 WATT
LAMPS
WHT
BLK
BLK
BLK
RED
BROWN
BLK
BLK
WHT
BLK
123
4
YELLOW 4 PIN
BLK
RED
1
2
RED 2 PIN
FLAME
MOTOR
WHT
1
2
THERMOSTAT
CONTROL MODULE
1
2
3
DIODE
3
2
1
THERMAL
HIGH
LIMIT
1300 WATT
WHT
HEATER
16 Ga
WHT
16 Ga
123
NC
BLUE
BLK
1
2
REMOTE
THERMISTOR
SENSOR
110 VAC
60 HZ
PLUG AC MALE
2
1
RED 2 PIN
BLK
.35
AMP AC
BLOWER
MOTOR
Figure 4.1 110V/120V Wiring Diagram
Black
Red
White
Cable
Power Cord
Wire with Ribs
No Connection
Black Wire
to Heater
Power Cord
Black Wire
ORANGE 3 PIN
B R W W NC NO C
RW RT
Thermistor
Sensor
Brown
Red
Black
Switch
Assembly
Cable
Figure 4.2 110V/120V Wiring Diagram
12
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
5
Accessories
A. Install the Front Face
Install the front face following the instructions packaged with
the face.
B. Install other Optional Accessories
Installation of other optional accessories may be done at this
time.
The heater is now ready for operation. See Section 7.
WARNING
Shock Risk
Do NOT operate this heater without the front
face installed.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
13
6
Finishing
A. Finishing Material
• Combustible Material
Material which is made of or surfaced with wood,
compressed paper, plant fi bers, plastics, or any material
capable of igniting and burning, whether fl ame proofed or
not, plastered or not plastered.
• Non-Combustible Material
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Combustible
Finishing
Material
Grilles/
Mesh
C. Mantel
The height that a combustible mantel is fi tted above the
heater is dependent on the height of the front selected.
• The minimum height is 1 in. (25 mm) above the front.
• Fronts available for the 26 in. heater:
- 24 in. (610 mm) high
- 28 in. (711 mm) high
- 32 in. (813 mm) high
3/4 in. - 12 in.
(19 mm - 305 mm)
Figure 6.1 Finishing Materials
B. Finishing Checklist
• Power supply service must be completed prior to fi nishing
to avoid reconstruction.
• Grilles and air openings cannot be covered in any
circumstances.
Note: The heater is a zero clearance fi replace and may
be fi nished with combustible or noncombustible fi nishing
materials.
When using paint or lacquer to fi nish the mantel, they must
be heat-resistant to prevent discoloration.
Note: Finishing materials are normally installed behind
the nailing fl anges or up to the sides of the nailing fl anges.
Allow room for the front to be added and the heater to be
anchored.
Figure 6.2 Mantel Specifi cations
WARNING
Fire Risk
Do NOT obstruct air inlet or outlet grilles.
Do NOT modify grilles.
• Modifying or covering grilles could cause
temperature rise and fi re hazard.
Finishing materials must not interfere with:
• Air fl ow through grilles or louvers
• Operation of louvers or doors
• Access for service
14
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
7
Operating Instructions
WARNING
Fire Risk
• Do not operate heater before reading and
understanding operating instructions.
Failure to operate heater properly may
cause fi re.
The operating controls are located on the upper right edge
of the heater.
A. Main Power Switch
The main power switch is a three-position switch. See Figure 7.1.
• Heater “ON” - Lights bright, thermostat active.
• Heater “OFF” - All off.
• Heater “ON” - Lights dim, thermostat active
- When the main power switch is turned “ON”, it provides
power to all functions.
- When used in conjunction with the optional remote
control, the switch should remain in an “ON”
position.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot during
operation and cool down.
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
heater.
• Alert children and adults to hazards of high
temperatures.
• Do NOT operate with protective barriers removed.
• Keep clothing, furniture, draperies and other
combustibles away.
B. Thermostat
• Active only when lights are on.
• The thermostat allows you to adjust the desired room
temperature. See Figure 7.1.
- Set at maximum - always on when the room
temperature is below 104° F.
- Set at minimum - always off when the room temperature
is above 32° F.
Thermostat
Control
Figure 7.1 General Operating Parts
Main Power
Switch
CAUTION
Odors and vapors released during initial
operation.
• Curing of high temperature paint.
• Open windows for air circulation.
Odors may be irritating to sensitive individuals.
WARNING
Fire Risk
All electric heaters have hot and arcing or
sparking parts inside.
• Keep combustible materials, gasoline
and other fl ammable vapors and liquids
clear of heater.
• Do NOT store fl ammable materials close
to heater.
• Keep all such liquids well away from the
heater while it is in use.
Combustible materials may ignite.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
15
8
Troubleshooting
A. Troubleshooting Guide
Issues Possible Causes Solutions
Heater doesn’t turn on with the main
switch or remote transmitter.
Heater is on, but no fl ame or low fl ame
intensity.
Flames are frozen. 1. Loose wiring. 1. Check all wiring for loose connections.
Excessive noise in the lower portion of
the heater.
Heater system doesn’t come on. 1. Heater switch is off. 1. Turn the heater switch to the “ON” position.
Fan runs but not heat is put out. 1. Loose wiring. 1. Check all wiring for loose connections.
Heater element is on but fan doesn’t
run.
The heater system doesn’t turn off. 1. Thermostat is set too low. 1. Move the thermostat slide down until you hear a “click”.
Excessive noise in upper portion of the
heater.
Remote control doesn’t work. 1. Remote is out of range. 1. Move remote closer to the heater.
Odor. The heater may emit a slight, harmless
1. Power switch is off. 1. Turn the power switch to the “ON” position.
2. Circuit breaker is tripped 2. May need to put the heater on a dedicated service or
3. Heater is unplugged from wall outlet. 3. Plug the cord into an outlet.
4. Loose wiring. 4. Check all wiring for loose connections.
1. The bulbs are burned out 1. Replace the bulbs.
2. Loose wiring. 2. Check all wiring for loose connections.
2. Flame element is not attached to the
motor.
3. Motor is defective. 3. Replace the motor.
1. Flame element isn’t seated properly. 1. Reinstall the fl ame element.
2. Motor is defective. 2. Replace the motor.
2. Thermostat is set too low. 2. Move the thermostat slide until you hear a “click”.
3. Heater system is overheated. 3. The heater system is protected by a thermal cutout
4. Loose wiring. 4. Check all wiring for loose connections.
2. Bad heating element. 2. Replace the heater system.
1. Loose wiring. 1. Check all wiring for loose connections.
2. Fan is defective. 2. Replace the heater system.
1. Build up of dirt on the fans. 1. Clean all fans.
2. Heater fan is defective. 2. Replace the heater system.
2. Low batteries. 2. Replace the batteries.
odor when fi rst used. This is a normal
condition caused by initial heating of the
internal parts and will not occur again.
reduce the number of appliances on the circuit.
2. Reattach the fl ame element to the motor.
switch. Shut off the switch. Wait fi ve minuites, then turn
the heater on.
16
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
9
Maintenance and Service
A. Access the Firebox
• Turn the heater off and turn off the circuit breaker.
• Allow the heater to cool before cleaning.
• Remove the front face to access the log area.
- Remove the screws from the switch bracket.
- Remove by pulling out the bottom of the front and then
lifting up
• Replace all parts after cleaning or bulb replacement has
been completed.
• Reset the circuit breaker.
B. Clean the Firebox Compartment
Use the brush attachment and gently vacuum the compartment.
C. Clean the Back Acrylic Panel
• The panel is cleaned in the factory during the assembly
process. During shipment, installation, handling, etc., the
surface may collect dust particles. These can be removed
by buffi ng lightly with a clean dry cloth.
• To remove fi ngerprints or other marks, the panel can be
cleaned with a damp cloth using a mild soap and water
solution. DO NOT USE GLASS CLEANER! IT WILL
DAMAGE THE BACK ACRYLIC PANEL. The panel
should be completely dried with a lint free cloth or paper
towel.
WARNING
Shock Risk
Burn Risk
Cleaning, performing maintenance or moving
this electric heater without disconnecting
power and allowing the heater to cool could
create a shock or burn hazard.
• Turn controls to “OFF”.
• Remove plug from outlet or turn off the
circuit breaker to the heater.
Hearth
Assembly
D. Replace the Light Bulbs
The light bulbs need to be replaced when the fl ame and/or
ember bed is dark on one side. Replace the bulbs with 75
watt halogen bulbs with mini-candelabra base. Do not
exceed 75 watts per bulb. Light bulbs can be purchased at a
local hardware or lighting store, on-line or by phone. We recommend you use Sylvania model SL58884 or Satco model
S3157.
• Light bulb access is through the hearth assembly. See
Figure 9.1.
• Locate and lift the bent tabs holding the hearth assembly
located at each end of the assembly.
• Lift out the hearth assembly.
• Carefully remove the burned out bulb from the light socket.
Place the new bulb in the socket. See Figure 9.2. Follow
directions on the light bulb package for handling
requirements.
• Reinstall the hearth assembly.
Bulbs
Figure 9.1 - Bulb Access
Sockets
Bulbs
Figure 9.2 - Replacing the Bulbs
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
17
CAUTION
Handle glass assembly with care.
When cleaning glass door:
• Avoid striking, scratching or slamming
glass.
• Do NOT use abrasive cleaners.
• Use a hard water deposit glass cleaner on
white fi lm.
• Do NOT clean glass when it is hot.
E. Maintenance Task List
Inspect Maintenance Tasks
Glass Doors 1. Inspect glass panels for cracks. Replace if this condition is present.
2. Confi rm there is no damage to glass or glass frame. Replace as necessary.
3. Clean glass using a non-abrasive cleaner such as Brasso©.
Circulation Compartment 1. Remove any foreign objects.
2. Verify unobstructed air circulation.
18
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
10
10
A. Heater Dimensions
Reference Materials
9-1/4 in.
(235 mm)
(13 mm)
18-5/8 in.
(473 mm)
1/2 in.
1 in.
(26 mm)
22-7/8 in.
(581 mm)
22-5/8 in.
(575 mm)
26 in.
(661 mm)
27-5/8 in.
(702 mm)
1 in.
(26 mm)
16 in.
(407 mm)
4-1/4 in.
(108 mm)
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
19
B. Optional Components
Remote Control
RC-ELEC-QUAD
Remote Control
Trim Kits
PBT26EA
SST26EA
PBT = Polished Brass Trim
SST = Stainless Steel Trim
PBT26ER
SST26ER
Cabinets
Several styles of cabinets are available for use with these heaters. See your dealer/distributor for styles and sizes.
20
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
Fronts
DF-26ERA-BK2824 DF-26ESP-BK2824
DF-26ERA-BK4028 DF-26ESP-BK4028
DF-26ERA-BK4432 DF-26ESP-BK4432
Model Description Width Height
DF-26ERA-BK2824 Remington Avenue 28 in. 24 in.
DF-26ESP-BK2824 Sun Prairie 28 in. 24 in.
DF-26ERA-BK4028 Remington Avenue 40 in. 28 in.
DF-26ESP-BK4028 Sun Prairie 40 in. 28 in.
DF-26ERA-BK4432 Remington Avenue 44 in. 32 in.
DF-26ESP-BK4432 Sun Prairie 44 in. 32 in.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
21
C. Service Parts
Service Parts
Exploded Parts Diagram
QV26E-B
12
11
9
25
QV26E-B
Beginning Manufacturing Date: Apr 2005
Ending Manufacturing Date: Active
14
13
22
16
8
7
6
5
4
3
4
2
1
10
23
15
17
24
22
18 - Log Set
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
Service Parts
QV26E-B
Service Parts List
QV26E-B
# Description of Part QV26E-B Qty.
6 Grommet 25006 1
4 Halogen Light 33961 2
3 Light Receptacle 33962 2
11 Top Magnet Assembly 4038-109 2
Power Cord 4030-802 1
5 Flame Element Kit 4030-200 1
1 Motor 4035-860 1
25 Hearth Assembly 4038-042 1
8 Ember Bed 4038-217 1
22 QV26E Grate Assy. 4038-886 1
18 23/26 Log Assembly 4038-004 1
13 Refl ective Flame Decal 4021-190 1
2 Motor Bracket 4038-009 1
12 Heater/Blower Assembly 4038-107 1
9 26 in./31 in. Acrylic Panel 4038-810 1
10 26 in./31 in. Lenticular Lens 4030-840 1
14 Leveling Bolts 4038-823 4
15 Thermostat Control Assembly 4038-806 1
16 Control Board Assembly 4038-108 1
17 Switch Assembly 4038-110 1
Thermostat Wire Assembly (RBW) 4038-111 1
Control Switch Wire Assembly 4038-814 1
Thermistor 4038-849 1
Slide Pot Rubber Boot 4038-811 1
Beginning Manufacturing Date: Apr 2005
Ending Manufacturing Date: Active
Installation Manual 4038-897 1
23 26 in. Refractory - LH 4038-819 1
24 26 in. Refractory - RH 4038-820 1
Glass Retainer - Top 4038-012 1
Strain Relief Bushing (Switch Wires) 25756 1
Gasket Kit 4038-900 1
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
23
This page intentionally left blank.
24
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
D. Limited Warranty
Hearth & Home Technologies Inc. (HHT) Electric Fireplaces are tested and inspected prior to shipment and
are guaranteed from defect to the purchaser of each new product. Any part which proves to be defective
in material or workmanship under normal use within one year will be repaired or replaced without charge.*
The Company will not be responsible for any expense incurred for installation, removal from service, or
transportation costs. Any such defect should be brought to the attention of the Dealer where the product
was purchased and is authorized to repair or replace within the terms of this warranty.
The Company’s only obligation under this warranty will be at its sole option to repair or replace any part
proving defective or to refund the purchase price thereof.
The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss
or damage arising out of the use of or inability to use the product.
WARRANTY
The warranty will not apply if, in the sole judgement of the Company, damage or failure has resulted from
accident, alteration, misuse, abuse, incorrect installation, or operation on an incorrect power source.
The foregoing is in lieu of all other warranties expressed, implied, or statutory, and the Company neither
assumes, nor authorizes any person to assume for it any other obligation, or liability in connection with said
product.
*Light bulbs are not covered in the warranty.
How to Obtain Service.
To obtain service under this warranty you must:
1. Send written notice of the claimed condition to Quadra-Fire Technical Service Department, Hearth & Home
Technologies Inc., 1445 North Highway, Colville, WA 99114-2124.
2. Provide proof of purchase, model number, serial number, and manufacturing date code to HHT.
3. Provide HHT reasonable opportunity to investigate the claim, including reasonable opportunity to inspect the
Heater prior to any repair or replacement work and before the Heater or any component of the Heater has
been removed from the place of original installation.
4. Obtain HHT’s consent to any warranty work before the work is done.
ADDITIONAL INFORMATION. If you would like information on current Quadra-Fire products or want to locate a
dealer in your area, call 1-800-926-4356.
©2003 Quadra-Fire® is a Registered Trademark of Hearth & Home Technologies Inc.
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
25
E. Contact Information
Please contact your Quadra-Fire dealer with any questions or concerns. For
the number of your nearest Quadra-Fire dealer, please call 1-800-926-4356.
Hearth & Home Technologies Inc.
1445 North Highway
Colville, WA 99114-2124
– NOTES –
CAUTION
DO NOT
DISCARD
DO NOT DISCARD THIS MANUAL
• Important operating
and maintenance
instructions included.
This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322,
4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112,
5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226,
6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942,
6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884,
D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or
other U.S. and foreign patents pending.
26
Quadra-Fire • QV26E-B • 4038-897 Rev C • 11/05
• Read, understand
and follow these
instructions for safe
installation and
operation.
• Leave this manual with
party responsible for
use and operation.
Loading...
