REMOTE ACCESS

M A I N M E N U
V I D E O S E A R C H
BASICHDDSEARCH RECORD EXITADVANCE
A DV A N C E
In order to access your DVR remotely, you must connect it to a router or a modem. Using a router allows you to connect to your DVR from other computers on your LAN (Local Area Network) in addition to over the Web. Directly connecting to a modem makes your DVR available for connection through the Internet only.
If you are using a router and wish to access your DVR from outside your LAN either over the Internet, or from your mobile device, then that router must be connected to the Internet. The instructions below will guide you through the process of configuring your DVR for remote access. Once completed, you will be able to access and control your system using one of two addresses. You will have a local IP address usable by computers connected to the same router as your DVR. This address can also be used by wireless devices as long as they are able to also connect to your router’s WiFi signal. Once you leave the area covered by your local network, you will need to use a second address to access the DVR. This is the address which will allow you to connect to your system from anywhere in the world with Internet access. And, by using Q-See’s free DDNS service, MyQ-See.com (more on this later), you’ll be able to do so using a conventional web address.
If you are using a router, proceed with Section 1.1. If you are connecting directly to the Internet via a modem then begin with Section 1.3.
CHAPTER 1

1.1 CONNECTING YOUR DVR TO A NETWORK

First and foremost, you will need to physically connect your DVR to a router. This router can be part of an existing network of computers, or it can be the router/modem supplied by your Internet Service Provider (ISP) to connect you to the Internet. This connection will be made by plugging the included Ethernet cable into the port on the back of the DVR marked RJ45. Your DVR is not designed to be connected wirelessly to a network. It is also recommended that the router that the DVR is connected to should be connected directly to the Internet rather than to another router if Internet access is desired as multiple routers can create problems with connectivity. You will also need to have a computer connected to the same router - at least temporarily - to make certain settings. If, after following the instructions you are still not able to access your DVR, please see Section 1.6 Resolving Connection Issues later in this chapter.

OBTAINING AN IP ADDRESS

Each device on a network - both a LAN or the Internet - has a specific IP address. This address is what allows different devices on the network to communicate with each other. Your QS-series DVR displays its IP address in the Network Setup window.
STEP 1. Using the mouse, right-click
on the screen and then select Main Menu in the pop-up shortcut menu.
K E Y L O C K C H N S W I T C H D I G I T A L Z O O M
PICTURE 1-1
STEP 2. Select ADVANCE in the Main
Menu window.
PICTURE 1-2
STEP 3. Click on NETWORK in the
Advanced Settings Menu.

BEFORE YOU GET STARTED

You will need to have:
• Your router’s brand, model number and manual. The manual is also usually available on your router’s manufacturer’s website.
• The “Manuals and Software” CD that came with your DVR. It contains necessary software and links to other important programs which are mentioned in this guide.
• Your router’s password (the default password should be in your router’s manual).
6 7
PICTURE 1-3
STEP 4. Make sure that DHCP is
selected in the drop down menu at the top (item “a”). If it is not, select it, click Apply and then Exit before restarting the DVR and returning to this window.
Write down the DVR’s IP address
(Item “b”). At this time, you should consult your Router’s manual to determine it’s IP address, also known
TY PE
ME DI A P OR T
WE B P ORT
IP AD DR 1 96 .28 1. 941 .0 66
AU TO 07 5.0 04 .01 9. 001
DN S
DD NS SE TT ING S UP NP O PE N CLO SE
NETWORK SETUP
DH CP
09 00 0
00 08 0
1 99 . 21 0 .0 1 1. 7 01
DEFAULT
PICTURE 1-4
a
b
APPLY EXIT
as the Internet- or Network Gateway address.
For your convenience, the table below lists some common router manufacturers along with their most frequently used default gateway adresses.
Router Manufacturer Default IP Addresses
3Com 192.168.1.1
Apple 10.0.1.1
Asus 192.168.1.1, 192.168.1.220
Belkin 192.168.2.1, 10.1.1.1
Buffalo 192.168.11.1
Dell 192.168.1.1
D-Link 192.168.0.1, 0.30, 0.50, 1.1, 10.1.1.1
Linksys 192.168.0.1, 1.1
Microsoft 192.168.2.1
Motorola 192.168.10.1, 20.1, 30.1, 62.1, 100.1, 102.1, 1.254
MSI 192.168.1.254
Netgear 192.168.0.1, 0.227
Senao 192.168.0.1
SpeedTouch 10.0.0.138, 192.168.1.254
Trendnet 192.168.0.1, 1.1, 2.1, 10.1,
U.S. Robotics 192.168.1.1, 2.1, 123.254
Zyxel 192.168.1.1, 2.1, 4.1, 10.1, 1.254, 10.0.0.2, 0.138

STATIC IP

The first number you wrote down, the DVR’s IP address, is what you can use to access your DVR while you are on the same network. This address can be entered into a Windows Explorer browser as you would a regular web address. See Chapter 2 Remote Monitoring for full instructions on using this feature.
However, in the event of a power outage or other event that causes the router to restart, the router will often reassign a new IP address to connected devices and you will have to repeat the procedure above to be able to log into your DVR.
In some situations where only your router is disconnected or powered off whlle your DVR is unaffected, you may have to restart your DVR to refresh the information on the Network Setup page to get the new IP address.
To avoid this issue, return to the Network Setup window and change the pull-down Type menu to Static. Click on Apply to save your changes before exiting the menu.
IMPORTANT! As of this writing, 2Wire brand routers do not support Static IP. Because of this, in the event that your router has to restart, you will need to repeat the steps to obtain the new IP address. Connecting the router to an uninterruptible power supply (UPS) can prevent this issue.
8 9

1.2 OPENING PORTS

If you wish to access your DVR outside of your local network, you will need to configure your router to allow data to pass through its firewall using specified ports. This is referred to as Port Forwarding and does not constitute a security risk for your network as it only allows for specific communication to and from your DVR. For QS-series DVRs, the three ports that will be forwarded are; 80, 100 and 9000.
Below are two methods available which will forward ports for the vast majority of users; UPnP and DMZ. Please be advised that you will only need to use one process or the other to connect and implementing both will actually cause connection difficulties.

UPNP

UPnP or Universal Plug ‘n’ Play is an industry-standard set of networking protocols which allows networked devices to instantly locate each other and communicate. Most routers produced since 2009 feature UPnP. At this time you should consult your router’s manual to ensure that it features UPnP. As of this writing, 2Wire brand routers DO NOT have UPnP capability and users of these routers as well as other routers without UPnP functionality will need to use the DMZ method described immediately below this section to forward their ports.
DMZ
DMZ stands for Demilitiarized Zone and is a way to instruct your router to allow data to pass to and from the ports you specify. Most current models of routers feature DMZ.
Accessing your router’s DMZ controls:
The exact location of DMZ within the router’s settings vary by manufacturer so please consult your router’s manual for the location of this feature. The method for accessing your router’s settings, however, is pretty standard.
STEP 1. Open a web browser and enter
your router’s IP address into the address bar. This address is listed in your Router’s manual. This should open your router’s control panel.
Pictures 1-6 and 1-7 show two examples
of the location of the DMZ controls.
By default, your DVR comes pre-configured with UPnP turned on. This setting is accessible in the Network Setup window. If UPnP is not selected as Open, you will need to select that option and then click Apply.
Proceed to the end of this section for instructions on how to confirm that your ports are open using an online tool.
IMPORTANT! If you connect your system to your network using UPnP
you should NOT forward your ports as described in DMZ, as it will create connectivity problems. You may skip to Confirming that Ports are Opened.
NETWORK SETUP
TY PE
ME DI A P OR T
WE B P ORT
IP AD DR 1 96 .28 1. 941 .0 66
AU TO 07 5.0 04 .01 9. 001
DN S
DD NS SE TT ING S UP NP O PE N CLO SE
DH CP
09 00 0
00 08 0
1 99 . 21 0 .0 1 1. 7 01
DEFAULT
APPLY EXIT
PICTURE 1-5
STEP 2. Once you have located the
DMZ controls, ensure that they are enabled or turned on.
STEP 3. Enter the DVR’s IP address in
the area provided. This is the first string of numbers you wrote down in Section 1.1 Obtain an IP Address.
STEP 4. Click on Apply or Save as
appropriate to preserve your settings.
PICTURE 1-6
PICTURE 1-7
10 11

CONFIRMING THAT PORTS ARE OPENED

Page Safety Tools
Page Safety Tools
ADVANCED
All of your Internet and network connecon details are displayed on this page.
Whether you used UPnP or DMZ to open your ports, you should confirm that they have been opened without being blocked by going to www.canyouseeme.org using a computer connected to the same router as the DVR.
STEP 1. Enter “80” into the box labeled
What Port?
STEP 2. Click on the Check button
STEP 3. You should see a green
“Success” message.
If you get a red error message, you will need to return to the DVR’s Network Settings page and change the Web Port to 81, 83 or 85 and click Apply to save your changes. The DVR will need to reboot to use the new
Browser - Windows Internet Explorer
hp://canyouseeme.org/
Open Port Check Tool
CanYouSeeMe.org - Open Port Check Tool
This page will serve as a free utility for remotely verifying a port is open or closed. It will be useful for users who wish to check to see if a server or ISP is blocking certain ports.
Your IP: 81.919.622.24 What Port?
Check
Success: I can see your service on
81.919.622.24 on port (80)
Your ISP is not blocking port 80
PICTURE 1-8
settings. You can then reattempt the check by entering that new number in the Port field.
STEP 4. Repeat for ports 100 and 9000. If ports 100 and 9000 are blocked, then use a
number in that range (ie; 110, 9100, etc.)
This website will also display your Public IP address near the top of the page above the box where you entered your port number. This is the number which you will use to access the DVR using a web browser or your mobile device from outside of your local network (away from the building in which your DVR is located). Please note that if you had to use a different port number than 80 for the web port, you will have to add a colon (:) and that port number to the end of the address shown. Example 82.919.622.24:81.

1.3 CONNECTING VIA A MODEM

PPPOE

If you are going to attach the DVR directly to a DSL or Cable modem instead of a router you will want to select the PPPOE option in the NETWORK options. This method is instead of UPnP or DMZ and only applies if you are not using a router.
Contact your ISP for the User Name and Password needed for the router. Select
PPOE from the Type pull-down menu and hit OK. Enter the User Name and Password into
the appropriate fields.

1.4 ACTIVATING DNS (DOMAIN NAME SERVER)

Once you have completed the previous sections, you are able to operate your DVR remotely. However, in order to activate features such as the ability to send e-mail alerts from your system as well as being able to access it using a conventional web address, you will need to obtain the DNS (Domain Name Server) number. You will be obtaining this number from your router and entering it into the appropriate field within your DVR’s Network Setup window.
STEP 1. Open a web browser and enter
your router’s IP gateway address into the address bar. This address is the second set of numbers you wrote down in Section 1.1 Obtain an IP Address and it ends with 001. This should open your router’s control panel.
STEP 2. Locate your router’s Status
window (it may also be named “Information” or “Info”), it will list the
DNS number – copy this down.
Each brand of router is different. Picture 1-10 shows an example of the location of the DNS number in a router’s status window.
STEP 3. Return to the Network Setup
window in your DVR and enter the DNS number into the field marked DNS using the Virtual Keyboard.
In cases where the DNS number on
your router only shows one or two digits in a section you should enter zeroes BEFORE the number(s) to complete the three-digit section.
STEP 4. Click Apply to save your
changes before exiting the window. You will need to restart your DVR for the changes to take effect. If you are continuing on with the next section, Setting up DDNS, you can wait until making those settings before restarting.
Browser - Windows Internet Explorer
hp://81.919.622.24
Router
DEVICE INFO
LOGS
STATISTICS
INTERNET SESSIONS
ROUTING
WIRELESS
SETTINGS
DEVICE INFORMATION
WAN
MAC Address :
Subnet Mask :
Default Gateway :
Primary DNS Server :
Secondary DNS Server :
Advanced DNS :
IP Address :
STATUS
00:24:01:77:f9:00
81.919.622.249
255.255.255.0
81.919.622.24
10.6.196.6
(null) Disabled
PICTURE 1-10
NETWORK SETUP
TY PE
ME DI A P OR T
WE B P ORT
IP AD DR 1 96 .28 1. 941 .0 66
AU TO 07 5. 00 4.0 19 .00 1
DN S
DD NS SE TT ING S UP NP O PE N CLO SE
DH CP
09 00 0
00 08 0
0 10 . 00 6 .1 9 6. 0 06
DEFAULT
APPLY EXIT
PICTURE 1-11
PICTURE 1-9
12 13

1.5 SETTING UP DYNAMIC DOMAIN NAME SERVICE

This is an optional step which allows you to take advantage of Dynamic Domain Name Service, or DDNS. Not to be confused with DNS in the previous section, DDNS allows you to enter a conventional web address when remotely logging into your DVR from outside of your network. It also allows you to avoid having to repeat steps in Obtain an IP Address when/ if your ISP reassigns IP addresses. Q-See offers DDNS service for free at www.MyQ-See.com and your DVR is configured accept account information from that site.
STEP 1. Open a browser window and go
to www.MyQ-See.com
STEP 2. Register with the website and
follow the instructions for creating a domain name. The website will display your pubic IP address and your domain name which will look like this: http://example.MyQ-See.com
NEW USER REGISTRATION
EMAIL ADDRESS
PASSWORD
PASSWORD CONFIRM
FIRST NAME
LAST NAME
SECURITY QUESTION..
ANSWER
CONFRIM YOU’RE HUMAN
PICTURE 1-12
My first phone number
New Captcha
Enter the text you see above
Submit
Reset
Submit
Reset

1.6 RESOLVING CONNECTION ISSUES

There are several hardware-related situations which can prevent the DVR’s port from being properly forwarded. The presence of multiple routers or the routers not featuring UPnP or DMZ are the two most common issues.

DETERMINE THE NUMBER OF ROUTERS ON THE NETWORK

If there is more than one router between the DVR and the Internet it will block communication to and from your system. To find out the number of routers on your network, you will need to
download a FREE router detection program.
STEP 1. Go to http://www.pcwintech.
com/shanes-toolbox
STEP 2. Click on Detect Multiple
Routers to begin the download.
STEP 3. Return to the Network Setup
Window in your DVR and click on the DDNS Settings button to open the
DDNS Setup window.
STEP 4. In the DDNS Setup window,
turn DDNS on to reveal the other required fields. Select MyQ-See.com as the service and enter the domain name along with the user name and password you used to create your
NETWORK SETUP
TY PE
ME DI A P OR T
WE B P ORT
IP AD DR 1 96 .28 1. 941 .0 66
AU TO 07 5. 00 4.0 19 .00 1
DN S
DD NS SE TT ING S UP NP O PE N CLO SE
DH CP
09 00 0
00 08 0
0 10 . 00 6 .1 9 6. 0 06
DEFAULT
APPLY EXIT
PICTURE 1-13
DDNS SETUP
DD NS
SE RVI CE
HO ST NA ME
US ER NA ME
PA SS WOR D
ON
MY Q- SEE .C OM
STEP 3. Unzip the application to install it.
STEP 4. Click on the detect_routers
application to run it.
PICTURE 1-13
PICTURE 1-14
account.
STEP 5. Click on Apply and then exit the
window to return to Network Setup. Click Apply again and then exit. You
DEFAULT
PICTURE 1-14
APPLY EXIT
will need to restart your machine for the settings to take effect.
14 15
STEP 5. Click on CHECK NOW to
detect how many Routers are in the network.
PICTURE 1-15
STEP 6. If there is only one router detected, and you are using UPnP, then you will need
to turn off that setting and attempt to connect using DMZ as described in Section
1.2 Opening Ports.
If you are using DMZ, check to make sure that the UPnP option is turned off.
If Multiple Routers are Detected
If there are multiple routers, you will see a display similar to Picture 1-16.
If so, it may be preferable to connect your DVR and computer to the router that connects directly to the Internet. However, this is not always possible depending upon your particular situation.

SETTING UP DMZ IN ROUTER 2

STEP 1. Login into Router 1 by putting
the IP of Router 1 into the Internet Explorer browser, as in the example shown in Picture 1-17 where the IP address of Router 1 is 192.168.0.1
STEP 2. Find the status page on the
router settings that shows the WAN/ Internet IP address and write it down this WAN IP address.
STEP 3. Log into the Router 2 by putting
the IP of Router 2 into the Internet Explorer browser, as in example shown in Picture 1-17 where the IP address of Router 2 is 192.168.1.1
STEP 4. Find the DMZ page in the
router settings.
STEP 5. Enter the WAN IP for Router 1
into the DMZ page and enable DMZ.
NOTE! If you do not have a DMZ setting in the router, check to see if there is a Bridge setting. If so, then use the Bridge setting instead of DMZ.
STEP 6. Save your changes.
You have forwarded the ports on the router to which the DVR is connected, to the IP address of the DVR, and set the primary router to pass the connection to this router.
PICTURE 1-17
PICTURE 1-16
In this case, you will need to proceed with the next section and set up DMZ in the second router to allow communications to pass through it from the first. If only one router is detected you will need to consult your router’s manual.
16 17

REMOTE MONITORING

CHAPTER 2

2.1 ACCESSING YOUR DVR REMOTELY

Once you have configured the network settings on the DVR to match those on your router and forwarded the ports needed by the DVR to enable remote access over the Internet, you will be ready to remotely view your cameras using a webcam program based on an ActiveX control. For this to work, you will have to enable the ActiveX control options that are built into Internet Explorer. It is strongly suggested that you be running the latest version of Internet Explorer (currently IE9). As of this writing, the QS434 is being updated to work with IE9. In the interim, continue to use IE 8. The instructions below will describe the process using both version 8 and 9 of Internet Explorer.

ACCESSING THE DVR USING INTERNET EXPLORER

User Account Control for Windows Vista and Windows 7
Some users of computers using Windows Vista or Windows 7 operating systems may receive an error message informing of a codec that is missing or not installed. This conflict can be resolved by turning off User Account Control (UAC).
STEP 4. Select the desired user account.
STEP 5. Select Turn User Account
Control on or off
STEP 6. Uncheck the box next to “Use
User Account Control (UAC) to help protect your computer.”
PICTURE 2-4
PICTURE 2-5
Windows Vista
STEP 1. Open the Control Panel
(accessible by clicking on the Windows icon in the lower left of your screen.
STEP 2. Select User Accounts and
Family Safety.
STEP 3. Select “Add or Remove User
Account.”
PICTURE 2-1
PICTURE 2-2
PICTURE 2-3
STEP 7. You will then be asked to restart
your computer for the change to take effect.
Windows 7
STEP 1. Open up the Start Menu
(accessible by clicking on the Windows icon in the lower left of your screen.
STEP 2. Type “uac” into the search bar
and hit ENTER. The User Account Control will open or you will be offered a link to click to open it.
PICTURE 2-6
Microso Office Outlook 2007
Scky Notes
iTunes
Adobe Acrobat
All Programs
uac
PICTURE 2-7
Devices and Printers
Default Programs
Help and Support
Shut down
STEP 3. Move slider to lowest setting
and press OK.
18 19
Setting Up ActiveX Control
STEP 1. Open Internet Explorer
STEP 2. Click on Tools
STEP 3. Select Internet Options in the
pull-down menu
STEP 4. Click on the Security Tab
STEP 5. Select Trusted Sites
STEP 6. Click on the Sites button
PICTURE 2-8
PICTURE 2-9

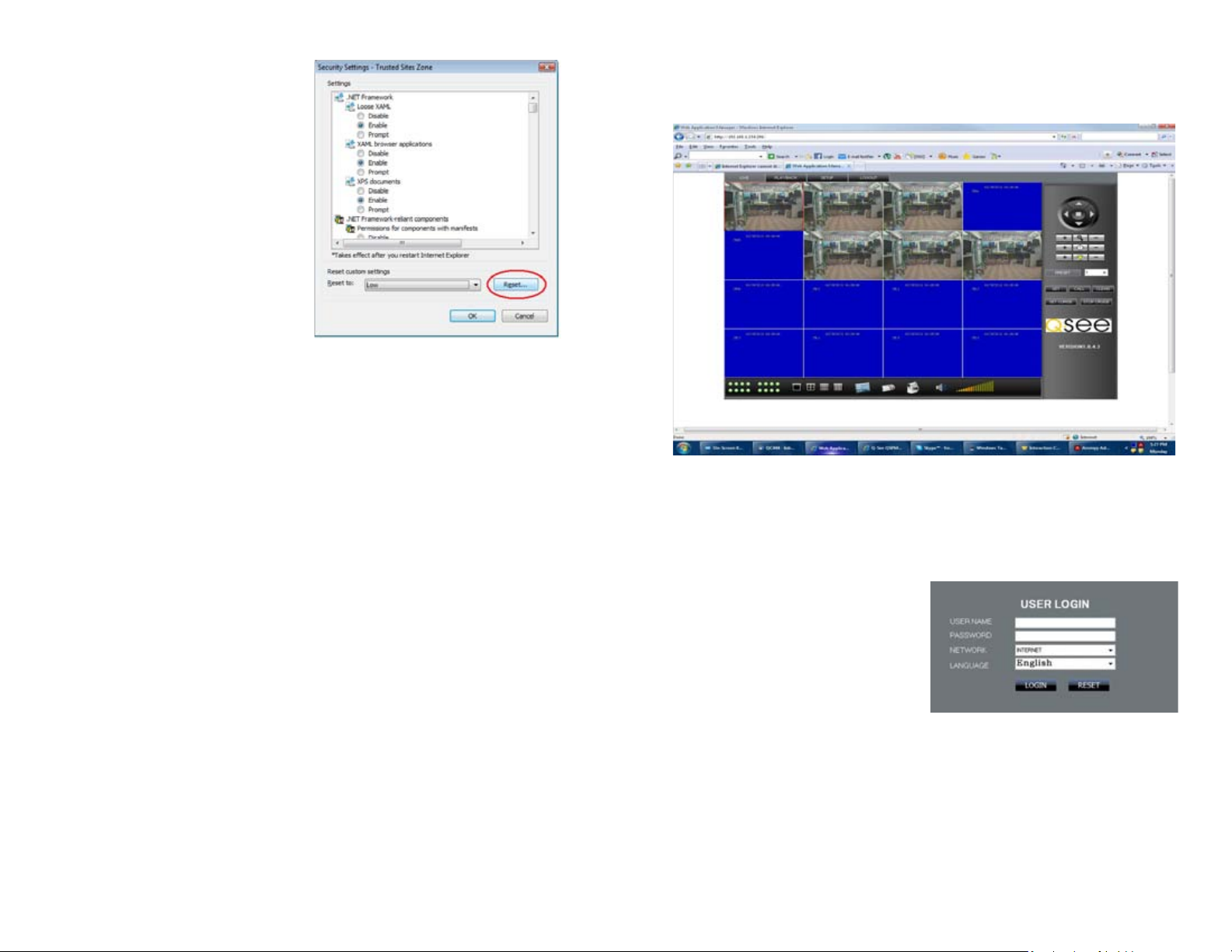

STEP 11. Click the Custom level…
button.
PICTURE 2-12
STEP 12. Pull down the “Reset to:
menu button and select Low
PICTURE 2-10
STEP 7. Uncheck the “Require server
verification (https:) for all sites in this zone” button.
STEP 8. Type the DVR’s IP address
(obtained during Network Setup) or DDNS domain name into the “Add this website to the zone:” box.
STEP 9. Click the Add button
STEP 10. Close the window.
PICTURE 2-11
PICTURE 2-13
20 21
STEP 13. Click the Reset button
STEP 14. Click “Yes” when asked, “Are
you sure you want to change the setting for this zone?”
STEP 15. Click OK
STEP 16. Click Apply
STEP 17. Click OK
STEP 18. Close Internet Explorer
You are now ready to access the DVR using Internet Explorer.

2.2 REMOTE MONITORING

The system features a built-in browser-based software that allows you to access your system remotely over your local area network (LAN) or over the Internet using Internet Explorer®.
PICTURE 2-14
PICTURE 2-15
The software will install the first time you access the DVR through Internet Explorer and will allow you to operate the network remotely. The DVR supports access over LAN and WAN, also supports IP and domain name access.

LOGGING IN REMOTELY

After you have installed the remote monitoring software, any time you acces the DVR from your computer you will have to sign onto the DVR through the Login window.
Select LAN or INTERNET from the drop­down menu and click LOGIN. The process will last for 1~2 minutes.
PICTURE 2-16
22 23

THE LIVE VIEW WINDOW

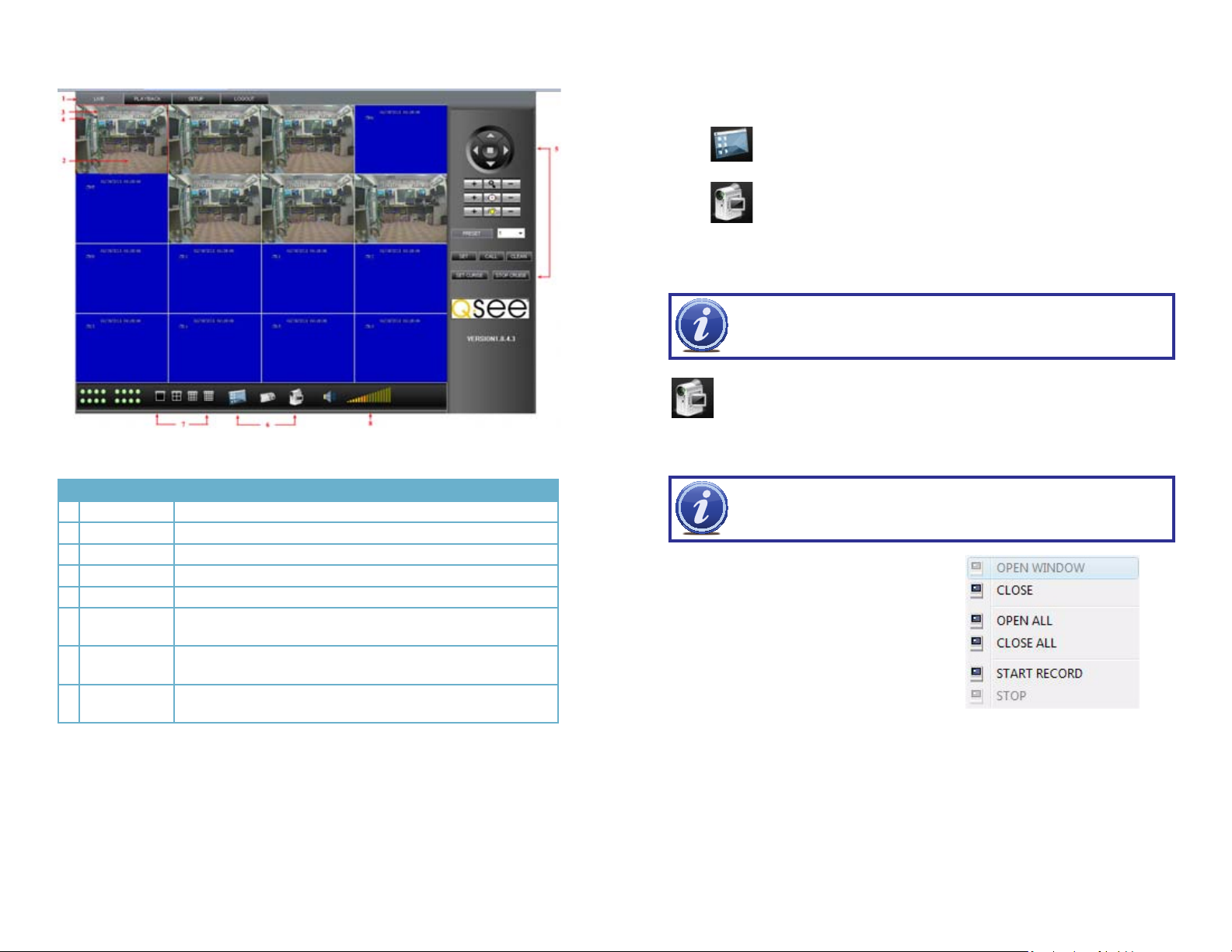

After logging in, the Remote Surveillance main screen will appear in your browser.
Live Viewing Controls
• Click LIVE at the top of the main screen.
• Click the display mode icons to view the main screen in single-channel, quad, or split-screen configurations. You can also double-click a channel at any time to view it in single-channel.
PICTURE 2-17
# Item Function
1 Modes LIVE, PLAYBACK, SETUP and LOGOUT.
2 Main Screen Main display screen for live viewing and playback.
3 Time Stamp Time stamp appears on each channel.
4 Channel Channel number appears in the top left corner.
5 PTZ Control PTZ control for any connected PTZ cameras (not included).
6 Functions Click the icons to show/hide channels, take screen captures, and
record.
7 Display Modes Click the icons to view channels in single-channel full-screen, quad,
and split-screen configurations.
8 Volume/Mute Select a channel (outlined in red) and then click the bars to increase/
decrease volume; click the icon to mute/un-mute volume.*
*Audio-capable cameras or powered microphones (not included) required for audio listening and recording.
• Click
• Click to start/stop manual recording to your PC on ALL channels. For more details see RECORDING.
• Select a channel (outlined in red) and then click the audio bars to increase or decrease listening volume. Click the icon to mute/unmute.
to show or hide all the channel windows.
NOTE! The Talk function is not enabled on this DVR.

RECORDING

You can record video directly to your PC using the remote surveillance software.
To record video to your PC:
From Live viewing, click to start/stop manual recording to your PC on ALL channels
NOTE! You will record video to your PC regardless of the recording mode on the system itself. By default, recorded files are saved in C:\DVR\[ip_address]\Record.
SHORTCUT MENU
Right-click any channel to open the Shortcut Menu.
PICTURE 2-18
24 25

PTZ CONTROL

You must have a PTZ camera (not included) connected to the system in order to use the PTZ controls.
Controlling a PTZ Camera
• Select the channel of the connected PTZ
camera(s).
• Click the navigation arrows to pan and tilt
the camera.
• Click + /- to control zoom, focus, and iris.
• Enter presets.
• Click SETTING, HAND, and CLEAR to
further control presets.
PICTURE 2-19

SCREEN CAPTURES

Use the remote surveillance software to take a snapshot of the channels on the main display screen. Screen Captures can be useful for your own records, or may be needed by authorities in case of a security incident.

PLAYBACK

Use the Playback menu to search and playback recorded video on your system.
NOTE! When playing back video files online, you can only view a single camera at a time.
To take a screen capture:
STEP 1. In Live Viewing, select the channel you want to capture. The selected channel
will be highlighted in a red frame.
STEP 2. Click .
STEP 3. Click OK in the confirmation window.
Screen captures are saved as BMP files to the default save location (C:\DVR\...).
To use the replay menu:
STEP 1. Click PLAYBACK at the top of the main screen. The main screen will be grey.
STEP 2. Click REFRESH below the calendar to view the recorded files for the current
month.
Normal recording is indicated by a clock icon; alarm recording (alarm, loss, and motion events) are indicated by an exclamation mark icon.
STEP 3. Double-click a file from the File List to playback the file in the main screen. The
icon in the file list changes to “ ” .Control playback using the buttons at the bottom of the main screen.
The blue bar above BACKUP indicates the download progress. The green marker above PLAY indicates playback progress. You can click and drag the playback marker to advance or rewind playback as needed.
PICTURE 2-20
PICTURE 2-21
Switch between pause/play
Stop play
Fast play
Slow play
26 27

SEARCH

Use the calendar and drop-down menus to search for recorded video on your system.
• Click < > to change the month on the
calendar. Dates with recorded video data will appear in bold.
• Click the date. Recorded video files will
populate the File List.
• In the Channel drop-down menu, select a
specific channel or select ALL CHANNEL and then click SEARCH.
• In the Type drop-down menu, select
COMMON (normal recording), ALARM, or ALL TYPE and then click SEARCH.
• Double-click the file from the File List to
playback the file in the main screen.

REMOTE BACKUP

You can backup recorded video files from your system to your PC using the Replay menu in the remote surveillance software.
To backup files remotely:
STEP 1. Click REPLAY at the top of the main screen.
STEP 2. Select a date(s) on the calendar and click REFRESH.
STEP 3. Double-click a file from the File List to begin playback.
STEP 4. Click BACKUP. Backup begins to C:/DVR/[ip_address]/Backup
NOTE! If you play back a file, you must wait for the file to load before backing it up otherwise you may receive an error message.
PICTURE 2-23
When file backup is complete, click OK in the confirmation window. The confirmation window will show the save path of the backup file.
The files will be saved with the .264 extension and can be viewed with the Player software included with your DVR. or available on our website.
PICTURE 2-24
PICTURE 2-22
28 29

REMOTE SETUP

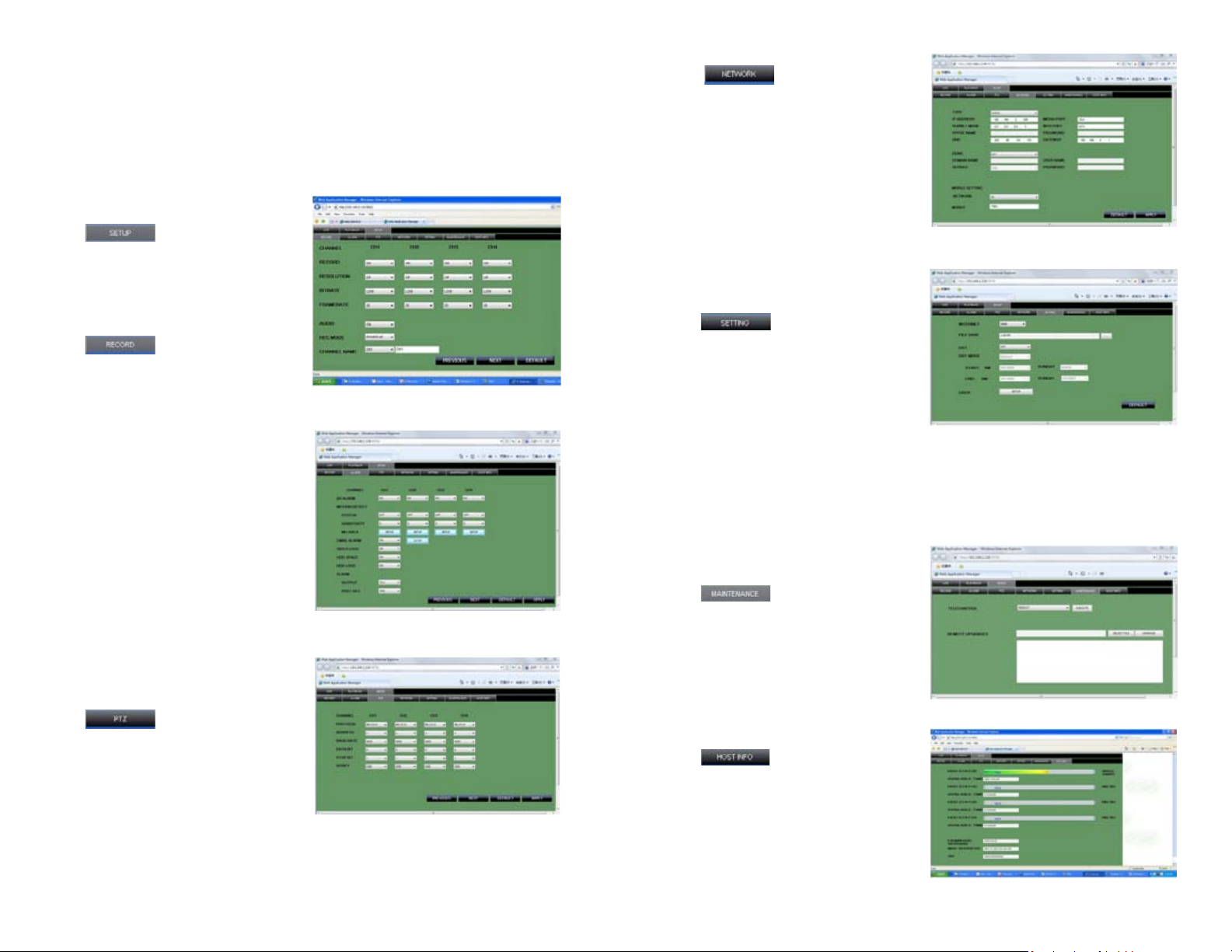

Use the Setup tab to configure the settings of your system from a remote location. If the Main Menu is open on the system, you will not be able to make changes to the system from the remote location.
Opening Remote Setup
Click SETUP at the top of the main screen. The Remote Setup menu features the following tabbed options: Record, Alarm, PTZ, Network, Setting, Host Info
Network
Click the parameter settings are the same as on the DVR.
to access setup interface;
Click to enter into setup interface, this interface include record, alarm, PTZ, network, setting and system information six menus.
Record
Click to enter into setup interface; the parameter settings are the same as on the DVR.
Alarm Setting
Click “ALARM” to enter into setup interface; the parameter settings are the same as on the DVR.
PICTURE 2-25
PICTURE 2-26
PICTURE 2-28
Setting
Click the parameter settings are the same as on the DVR.
BANDWIDTH: Set the bandwidth in kbps (128k, 192k, 256k, 384k, 512k, 1024k) that you want to allocate for traffic depending on the available internet bandwidth. This bandwidth does not include audio.
FILE SAVE PATH: The save path of captured picture and recording video. IE login password and DST settings you can set as DVR setting.
Maintenance
Click interface; you can reboot DVR or remotely upgrade firmware.
to access setup interface;
PICTURE 2-29
to access maintenance
PTZ
Click to access setup interface; the parameter settings are the same as on the DVR.
PICTURE 2-27
Host Info
Click to access system information interface (see Figure 4.3.14). This interface includes hard drive status, remaining recording time, firmware version and MAC Address. All the information is fixed, it cannot be changed.
PICTURE 2-30
PICTURE 2-31
30 31

E-MAIL NOTIFICATION

The system can send an email notification with a JPEG snapshot for triggered events on the system. Selecting Email Setup in the Alarm Setup menu will open the Email Setup menu. Your DVR will need to be connected to the Internet - either through a router or by being directly connected to a modem - in order to be able to send out email alerts.
NOTE! Depending upon your settings, the system can generate a lot of e-mail alerts. For that reason, we recommend setting up a dedicated e-mail address specifically for the system to send alert notices. If you do not have your own e-mail system (such as a corporate mail server) you should consider using a free e-mail provider. However, because many free e-mail services allow only a
limited amount of e-mail traffic we specifically recommend using Google’s Gmail service with its higher limit. Similarly, you will want the alert e-mails to go to a different account than the one sending them. This will ease your management of these alerts.
CHAPTER 3
MOBILE SURVEILLANCE
CHAPTER 4

4.1 ENABLING MOBILE SURVEILLANCE

You can access your DVR from your cellular phone running Windows Mobile Pro (6.0 or later), Symbian (S60 3rd or later), Android, Blackberry (Curve 8900, Bold 9700, Tour 9630), or iPhone on 3G networks. We have included the software - or the links to it - for your phone on the disk accompanying your DVR. Instructions for operating the software is included on the following pages as well as separately on the disk as well. Be sure to check our website from time to time to see if updated software has been released.
NOTE! Before you can use mobile access you need to setup the network configuration on the DVR and forward ports 80, 100, and 9000 from the router the DVR is attached to, to the IP address of the DVR as described in Chapter 1.
The Mobile Setup window is found in the Advanced Menu.
To configure mobile notification settings:
PICTURE 4-1
PICTURE 3-1
For the example below, we will use Gmail. The settings can be found under Options when logged into your Gmail account. If you have a corporate mail server, you will need to consult with your IT department regarding proper settings.
STEP 1. Select ON in the pull-down menu to the right of EMAIL.
STEP 2. SSL Leave SSL turned OFF. SSL deals with encryption. Only advanced users
should enable this option.
STEP 3. SMTP PORT Enter the SMTP port of your email server. Gmail’s is 465.
STEP 4. SMTP Enter the SMTP address of your email server. For example, smtp.gmail.
com
STEP 5. SEND EMAIL The “from” address of your alerts.
STEP 6. SEND PW Enter the password of your sending email account
STEP 7. RECV EMAIL Enter the destination email address for your notifications.
STEP 8. Click APPLY and then click CLOSE in the confirmation window.
STEP 9. Click EXIT in all menus until all windows are closed.
STEP 1. Under MOBILE NETWORK,
select 3G
STEP 2. Under MOBILE PORT, enter
your mobile port number.
STEP 3. Click APPLY. Click CLOSE in
the confirmation window.
PICTURE 4-2
32 33

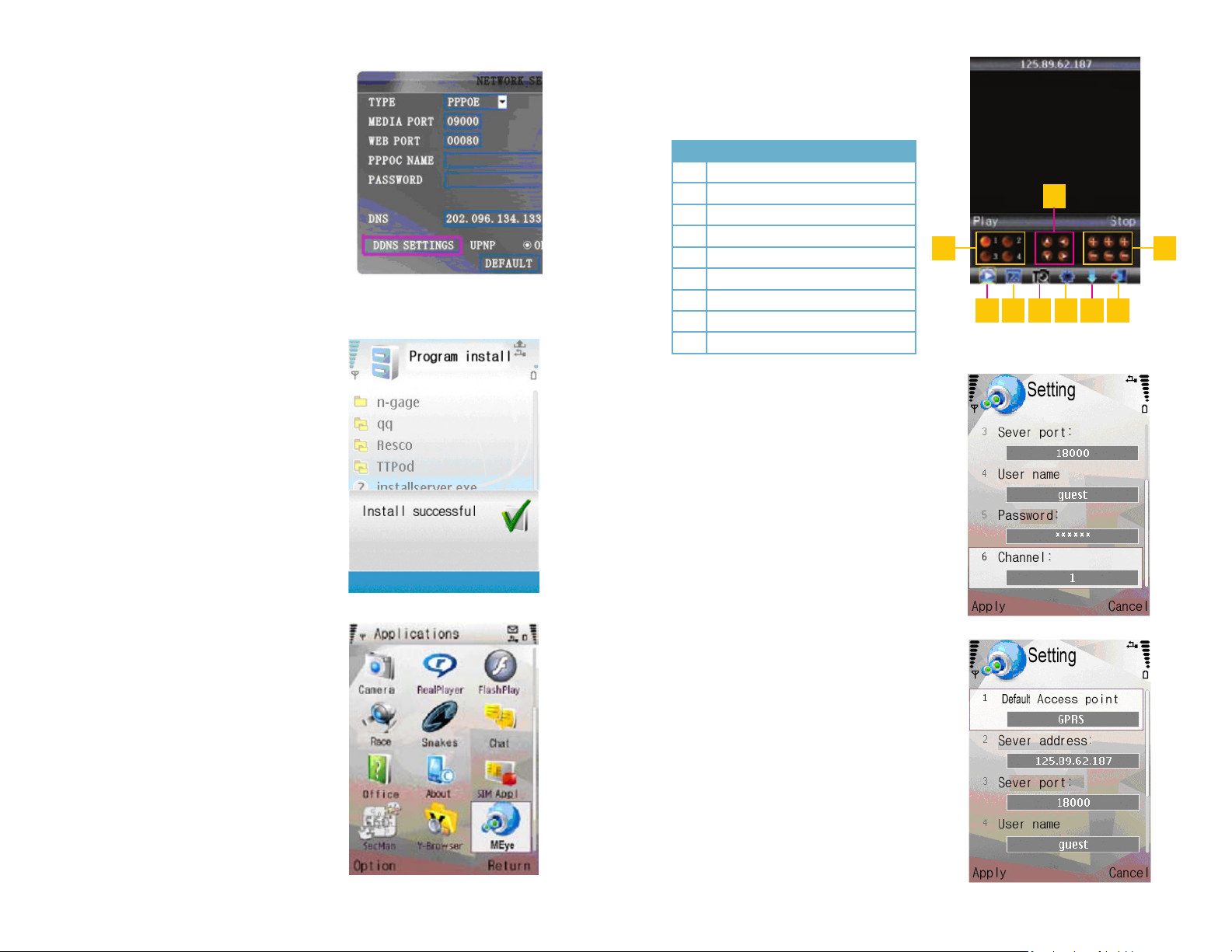

4.2 MOBILE SURVEILLANCE SOFTWARE

ANDROID

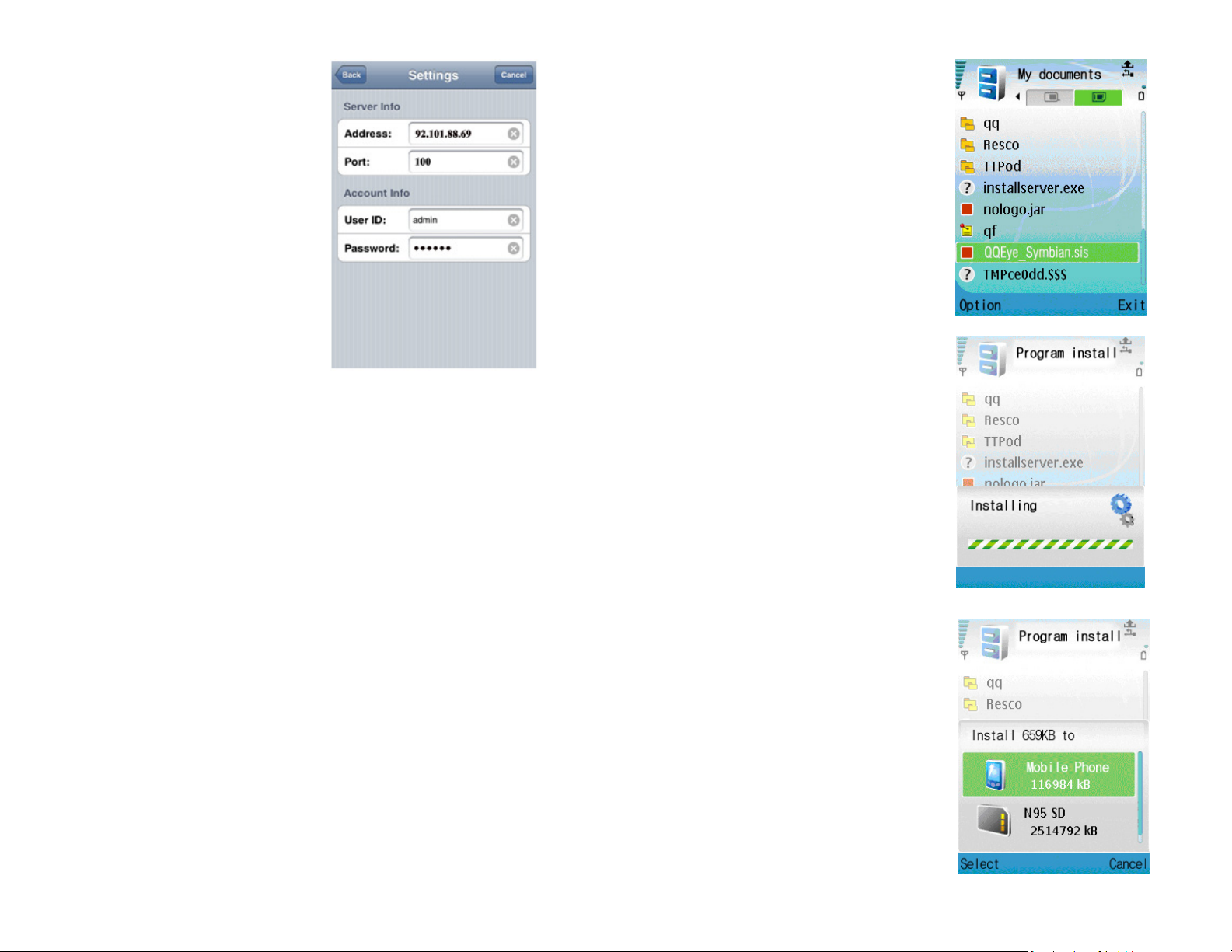

STEP 1. Insert the CD that comes with
your DVR into your computer.
STEP 2. Plug your phone into your
computer using a USB cable.
STEP 3. Open up your sync software for
your phone.
STEP 4. After clicking on the Application
installer (Red box in Picture 4-3), the installer will display the image shown in Picture 4-4.
STEP 5. Click the next button and
browse the CD to locate the Android1.5.apk file.
PICTURE 4-3
PICTURE 4-4
STEP 7. Go to your phone and install
Meye by clicking on the Install button on the screen.
STEP 8. Once installed, click on Open to
access the program.
Below Meye’s main screen are the program controls.
Icon Function
# Channel buttons
Start/Stop
Normal View/Magnified View
Snapshot
PICTURE 4-7
PICTURE 4-8
Settings
Next channel group
PICTURE 4-5
Program information
STEP 6. Click Next then Finish.
PICTURE 4-6
Snapshots are saved to the phone’s default gallery directory.
PICTURE 4-9
Channels
Select a channel by clicking on its button and the program will open the corresponding channel and show its video feed. By default, Meye will show the buttons for channels 1 through 8. By selecting the channel group button you can switch to channels 9 through 16.
34 35
Settings
Clicking on the gear icon will take you to the setup window.
Address: The DVR’s public IP address
or DDNS
Port: DVR’s port server setting (100 by
default)
User ID: The same User Name used on
the DVR
Password: The same User Password
used on the DVR

BLACKBERRY

System requirements: Smartphone OS: 5.0 or 6.0
Your phone must support H264 video.
Installation
The needed software files, MEye.cod and MEye.alx can be found on the disk that comes with your DVR.
STEP 1. Connect the BlackBerry to your
PC via USB Cable.
Video Display
You can switch between normal viewing mode (Picture 4-11) and a magnified view of the camera’s feed (Picture 4-12). In addition, the display will automatically switch to full screen mode (Picture 4-13) if you tilt your phone horizontally.
PICTURE 4-10
PICTURE 4-11
STEP 2. Launch BlackBerry Desktop
Manager and run select Import Files.
PICTURE 4-14
STEP 3. Locate MEye.alx (it may be
easier to copy the two files to your hard drive) and click on OPEN.
PICTURE 4-15
The files will be imported to your phone.
PICTURE 4-16
Deskop Manager will show that MEye is now installed on your phone.
PICTURE 4-13
PICTURE 4-12
PICTURE 4-17
36 37
STEP 6. Remove the USB Cable and go
the Download Menu on your phone.
STEP 7. Launch the software to reach
the main screen.
Icon Function
# Channel buttons
Start/Stop
PICTURE 4-18

IPHONE AND IPAD

System requirements:
iPhone or iPad with at least 800KB of free space.
STEP 1. Open your iPhone and click
App Store.
STEP 2. Under the search bar type
“Meye” and click search button. Download the Mobile Viewing Application for free, the file name is Meye.
STEP 3. Click the Meye icon, the
application will install on your iPhone.
Normal View/Magnified View
Snapshot
Settings
Next channel group
Program information
The icons which are not defined above are non-functional.
Settings
Click on the gear icon to open the settings window and enter the required information to allow the phone to connect with your DVR.
Server Address: The DVR’s public IP address or DDNS
Server Port: DVR’s port server setting (100 by default)
User ID: The same User Name used on the DVR
Password: The same User Password used on the DVR
Network Type: Select network mode, WIFI or 3G
PICTURE 4-19
PICTURE 4-20
PICTURE 4-21
Once the application is installed on your phone, you can log in and access your system.
Icon Function
# Channel buttons
Start/Stop
Normal View/Magnified View
Snapshot
Settings
Next channel group
Program information
PICTURE 4-22
38 39
Settings

SYMBIAN OPERATING SYSTEM

STEP 1. Click the MEye icon to launch
the program.
STEP 2. Click Settings. Enter the IP
address of your system or DDNS address into the Address field.
STEP 3. Enter the port number of your
system (Default setting is 100).
STEP 4. Enter the same username and
password that you use to log onto the DVR.
STEP 5. Click Back. And click play,
The Mobile Viewer will connect automatically.
STEP 6. Use the channel number
buttons to switch between cameras. You can only view one channel at a time.
If you are having trouble connecting, please check the wireless network configuration on your phone.
PICTURE 4-23
STEP 1. Copy the install program MEye.
sisx appropriate to your version of the Symbian operating system from the CD included with your DVR to your mobile phone. Use MEye.3rd for third edition and MEye_5th for fifth edition. The default save path is memory card.
PICTURE 4-24
STEP 2. Click the program to install it.
PICTURE 4-25
STEP 3. Choose to install the program to
the phone’s internal memory or onto an SD card.
PICTURE 4-26
40 41
STEP 4. Allow the program to connect to
the network.
STEP 5. The message, “Install
successful” will display after the program is finished installing.
STEP 6. Locate the MEye icon in the
Application menu and launch it.
PICTURE 4-27
PICTURE 4-28
STEP 7. When MEye launches, it will
open to the main window with controls appearing underneath the video viewing portion of the screen.
# Function
1 Channel Selection
2 PTZ Directional Control
3 PTZ Zoom, Focus and Iris Controls
4 Play/Pause
5 Full/Normal Screen View
6 Snapshot
7 Settings
8 Next Channel Group
9 Exit
The snapshot default save path is: “C:\Data\ Images\”
Settings
When you log in for the first time, you will need to configure your phone to connect to the DVR in the Settings menu
Default Access Point: Please select the
network, GPRS/EDGE/3G
Sever Address: The public IP or
dynamic domain name of DVR.
Server Port: The server port is the
mobile port you set up in DVR.
User Name: The same you use on the
DVR.
Password: The same you use on the
DVR.
Channel: Set the default channel you
want to check.
Select Apply after you are finished with
your settings.
2
1
4
5 6 7 8 9
PICTURE 4-30
PICTURE 4-32
3
PICTURE 4-29
PICTURE 4-33
42 43

WINDOWS MOBILE

STEP 1. Copy the installation program
named windows mobile.cab from the included CD to the Documents folder on your mobile phone.
STEP 2. Click on the program to begin
the installation. The program should be installed onto the phone rather than onto a removable memory card or other device.
STEP 3. Click the Install button to begin
the installation.
PICTURE 4-34
PICTURE 4-35
STEP 4. After installation is complete,
click the MEye icon to run the program.
STEP 5. The program will open to the
main window.
Channel: Select the channel you want to
monitor. When you select a channel, it will connect to the DVR automatically.
Connect/Disconnect: Connect to the
DVR or end your monitoring session
Settings: You will need to enter the
Settings menu when you first access this program in order to configure the phone to access the DVR.
# Function
1 PTZ Directional Controla
2 PTZ Zoom
3 PTZ Focus
4 PTZ Iris Controls
5 Snapshot
PICTURE 4-37
1 2
PICTURE 4-38
3
5
4
PICTURE 4-36
The default save path for Snapshot images is is: Program>MEye> photo
44 45
Settings
When you log in for the first time, you will need to configure your phone to connect to the DVR in the Settings menu

Q-SEE PRODUCT WARRANTY

Q-See is proud to back all of our products with a conditional service warranty covering all hardware for 12 months from the date of purchase. Additionally, our products also come with a free exchange policy that covers all manufacturing defects for one month from the date of purchase. Permanent upgrading service is provided for the software.
User Name: The same you use on the
DVR.
Password: The same you use on the
DVR.
Address: The public IP or dynamic
domain name of DVR.
Port: The server port is the mobile port
you set up in DVR.
Channel: Set the default channel you
want to check.
Display Mode
Tapping on the screen will switch between normal viewing mode and full-screen mode.
PICTURE 4-39
Liability Exclusions:
Any product malfunction or abnormalities in operation or damage caused by the following reasons are not within the free service scope of our company:
1. Equipment damage caused by improper operation.
2. Improper equipment operation environment and conditions (e.g., improper power, extreme environmental temperatures, humidity, lightning and sudden surges of electricity).
3. Damage caused by acts of nature (e.g., earthquake, fire, etc).
4. Equipment damage caused by the maintenance of personnel not authorized by Q-See.
5. Product sold over 12 months ago.
In order to fulfill the terms of your warranty, you must complete the registration process after purchasing our product. To do this, simply fill out the User’s Information Card on our website at www.Q-See.com
PICTURE 4-40
46 47

QUESTIONS OR COMMENTS? CONTACT US

PRODUCT SUPPORT, DOWNLOADS, FIRMWARE UPDATES & MANUALS
24/7 Technical Resources Live Chat (M-F, 9-5 PST)
www.Q-See.com/Support
Digital Peripheral Solutions, Inc.
8015 E. Crystal Drive
Anaheim, CA 92807
48 49
Loading...
