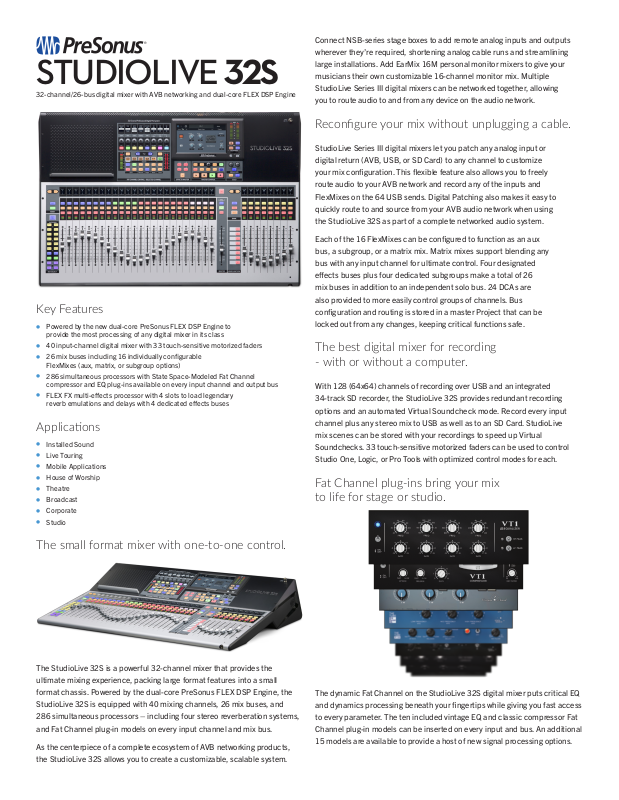

PreSonus StudioLive 32S User Manual

STUDIOLIVE 32S

32-channel/26-bus digital mixer with AVB networking and dual-core FLEX DSP Engine

Key Features

•

Powered by the new dual-core PreSonus FLEX DSP Engine to
provide the most processing of any digital mixer in its class

•

40 input-channel digital mixer with 33 touch-sensitive motorized faders

•

26 mix buses including 16 individually configurable
FlexMixes (aux, matrix, or subgroup options)

•

286 simultaneous processors with State Space-Modeled Fat Channel
compressor and EQ plug-ins available on every input channel and output bus

•

FLEX FX multi-eects processor with 4 slots to load legendary
reverb emulations and delays with 4 dedicated eects buses

Applicaons

•

Installed Sound

•

Live Touring

•

Mobile Applications

•

House of Worship

•

Theatre

•

Broadcast

•

Corporate

•

Studio

Connect NSB-series stage boxes to add remote analog inputs and outputs
wherever they’re required, shortening analog cable runs and streamlining
large installations. Add EarMix 16M personal monitor mixers to give your
musicians their own customizable 16-channel monitor mix. Multiple
StudioLive Series III digital mixers can be networked together, allowing
you to route audio to and from any device on the audio network.

Recongure your mix without unplugging a cable.

StudioLive Series III digital mixers let you patch any analog input or
digital return (AVB, USB, or SD Card) to any channel to customize
your mix configuration. This flexible feature also allows you to freely
route audio to your AVB network and record any of the inputs and
FlexMixes on the 64 USB sends. Digital Patching also makes it easy to
quickly route to and source from your AVB audio network when using
the StudioLive 32S as part of a complete networked audio system.

Each of the 16 FlexMixes can be configured to function as an aux
bus, a subgroup, or a matrix mix. Matrix mixes support blending any
bus with any input channel for ultimate control. Four designated
eects buses plus four dedicated subgroups make a total of 26
mix buses in addition to an independent solo bus. 24 DCAs are
also provided to more easily control groups of channels. Bus
configuration and routing is stored in a master Project that can be
locked out from any changes, keeping critical functions safe.

The best digital mixer for recording

- with or without a computer.

With 128 (64x64) channels of recording over USB and an integrated
34-track SD recorder, the StudioLive 32S provides redundant recording
options and an automated Virtual Soundcheck mode. Record every input
channel plus any stereo mix to USB as well as to an SD Card. StudioLive
mix scenes can be stored with your recordings to speed up Virtual
Soundchecks. 33 touch-sensitive motorized faders can be used to control
Studio One, Logic, or Pro Tools with optimized control modes for each.

Fat Channel plug-ins bring your mix
to life for stage or studio.

The small format mixer with one-to-one control.

The StudioLive 32S is a powerful 32-channel mixer that provides the
ultimate mixing experience, packing large format features into a small
format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the
StudioLive 32S is equipped with 40 mixing channels, 26 mix buses, and
286 simultaneous processors – including four stereo reverberation systems,
and Fat Channel plug-in models on every input channel and mix bus.

As the centerpiece of a complete ecosystem of AVB networking products,
the StudioLive 32S allows you to create a customizable, scalable system.

The dynamic Fat Channel on the StudioLive 32S digital mixer puts critical EQ
and dynamics processing beneath your fingertips while giving you fast access
to every parameter. The ten included vintage EQ and classic compressor Fat
Channel plug-in models can be inserted on every input and bus. An additional
15 models are available to provide a host of new signal processing options.

A complete networked soluon.

SW5E AVB Switch. PreSonus’ SW5E AVB switch supplies five AVB ports
with secure locking XLR Ethernet jacks. Four PoE ports provide power for
EarMix 16M personal monitor mixer and other PoE devices. Network Link/
Activity indicators help you ensure that network data is flowing properly.

StudioLive Shelf Mount. Up to three StudioLive Shelf Mounts can be
attached to a StudioLive 64S, allowing you to use UC Surface running on
your favorite Android™ tablet or iPad® as a second, third, or fourth screen.

The StudioLive Series III ecosystem of networked products are at the
forefront of AVB networking technology. Designed to complement
each other, the ecosystem is easily expanded and quickly configured.
The StudioLive 32S is your command center to create the ultimate
AVB network. Route audio to EarMix 16M personal monitor mixers.
Control the gain staging and add remote inputs and outputs using NSB­series stage boxes and other StudioLive Series III digital mixers. With
powerful plug-in processing, a fader for every channel, and integrated
networking onboard, the StudioLive 32S delivers an unmatched mixing
experience that combines digital power with analog ease of use.

Oponal Accessories (Sold Separately)

The following optional accessories are available:

NSB-series stage boxes. The NSB 8.8 and NSB 16.8 oers 8 or 16 locking
combo mic/line inputs with remote-controlled XMAX preamps that include
gain compensation for shared input scenarios. Eight outputs employ locking
XLR jacks. A built-in 2-port AVB switch lets you daisy-chain multiple units.

Technical Specicaons

Microphone Preamplifier

Type

Frequency Response to Main

Output (at unity gain)

Input Impedance 1 kΩ

THD to Main Output

S/N Ratio to Main Output (Ref = +4

dB, 20 kHz BW, unity gain, A-wtd)

Common Mode Rejection

Ratio (1 kHz at unity gain)

Gain Control Range (±1 dB) 0 dB to +60 dB

Maximum Input Level (unity gain) +12 dBu

Phantom Power (±2 VDC) 48 VDC, switchable per channel

Type

Frequency Response to Main

Output (at unity gain)

Input Impedance 10 kΩ

THD to Main Output

S/N Ratio to Main Output (Ref = +4

dB, 20 kHz BW, unity gain, A-wtd)

Maximum Input Level +18 dBu

32 XLR Female, balanced
(16 XLRF, 16 Combo)

20-20 kHz, ±0.5 dBu

<0.005%, +4 dBu,
20-20 kHz, unity gain, unwtd

94 dB

65 dB

Line Inputs

16 ¼” TRS Female,
balanced (Combo connectors)

20-20 kHz, ±0.5 dBu

<0.005%, +4 dBu,
20-20 kHz, unity gain, unwtd

94 dB

EarMix 16M Personal Monitor Mixer. The PreSonus EarMix 16M personal
monitor mixer provides 16 input channels over AVB each with 3-band
EQ and limiter. Power-over-Ethernet (PoE) allows for easy deployment.

Tape Inputs

Type

Maximum Input Level +12 dBu, ±0.5 dBu

FlexMix Outputs

Type 16 XLR Male, balanced

Maximum Output Level +24 dBu, ±0.5 dBu

Output Impedance 100Ω

RCA Female,
unbalanced (stereo pair)

Subgroup Outputs

Type

4 ¼” TRS balanced (Stereo
Left/Right, Main Mono)

Maximum Output Level +24 dBu, ±0.5 dBu

Output Impedance 100Ω

Main Outputs

Type

3 XLR Male, balanced (Stereo
Left/Right, Main Mono/Center)

Maximum Output Level +24 dBu, ±0.5 dBu

Output Impedance 100Ω

Monitor Outputs

Type

¼” TRS Female,
balanced (stereo pair)

Maximum Output Level +18 dBu, ±0.5 dBu

Output Impedance 100Ω

Tape Outputs

Type

RCA Female,
unbalanced (stereo pair)

Maximum Output Level +18 dBu, ±0.5 dBu

Output Impedance 100Ω

Headphone Output

Type ¼” TRS Female, active stereo

Maximum Output 100 mW/ch. @ 60Ω load

Frequency Response 20 Hz – 20 kHz (± 0.5 dB)

THD+N

S/N Ratio

0.01%, 1 kHz, max gain,
20 Hz BW, unwtd

96 dB, 1 kHz, max gain,
20 Hz BW, unwtd

System Crosstalk

Input to Output

Adjacent Channels

-90 dB (Ref = +4 dBu,
20 Hz-20 kHz, unwtd)

-87 dB (Ref = +4 dBu,
20 Hz-20 kHz, unwtd)

Power / Environmental

Connector IEC

Input-Voltage Range 90 to 230 VAC (±10%)

Power Requirements (continuous) 85W

Recommended Ambient

Operating Temperature

Physical

Height 6.51” (165.36 mm)

Width 32.37” (822.21 mm)

Depth 22.97” (583.48 mm)

Weight 37.2 lbs. (16.9 kg)
