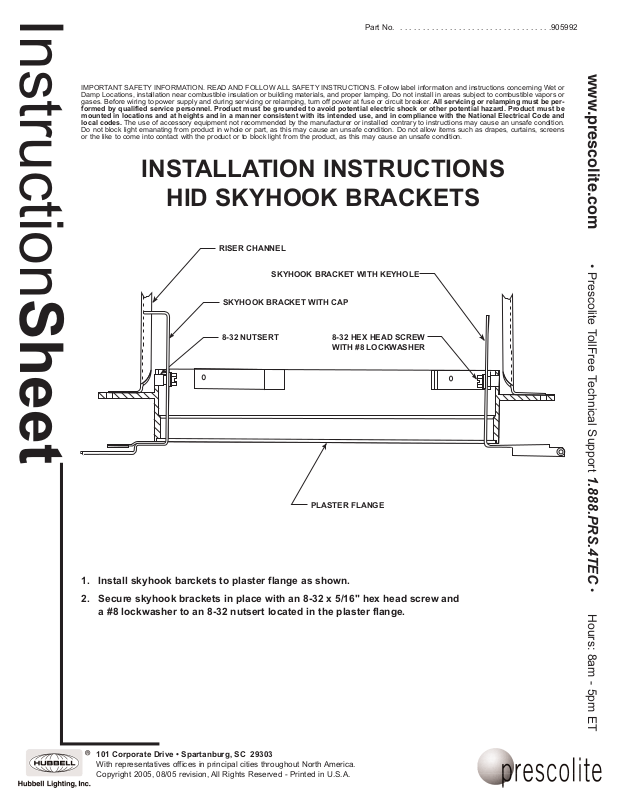

InstructionSheet
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and instructions concerning Wet or
Damp Locations, installation near combustible insulation or building materials, and proper lamping. Do not install in areas subject to combustible vapors or
gases. Before wiring to power supply and during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be per-
formed by qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard. Product must be
mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with the National Electrical Code and
local codes. The use of accessory equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition.
Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens
or the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS
HID SKYHOOK BRACKETS
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .905992
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
RISER CHANNEL
SKYHOOK BRACKET WITH KEYHOLE
SKYHOOK BRACKET WITH CAP
8-32 NUTSERT
1. Install skyhook barckets to plaster flange as shown.
2. Secure skyhook brackets in place with an 8-32 x 5/16" hex head screw and
a #8 lockwasher to an 8-32 nutsert located in the plaster flange.
8-32 HEX HEAD SCREW
WITH #8 LOCKWASHER
PLASTER FLANGE
101 Corporate Drive • Spartanburg, SC 29303
With representatives offices in principal cities throughout North America.
Copyright 2005, 08/05 revision, All Rights Reserved - Printed in U.S.A.
