IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.

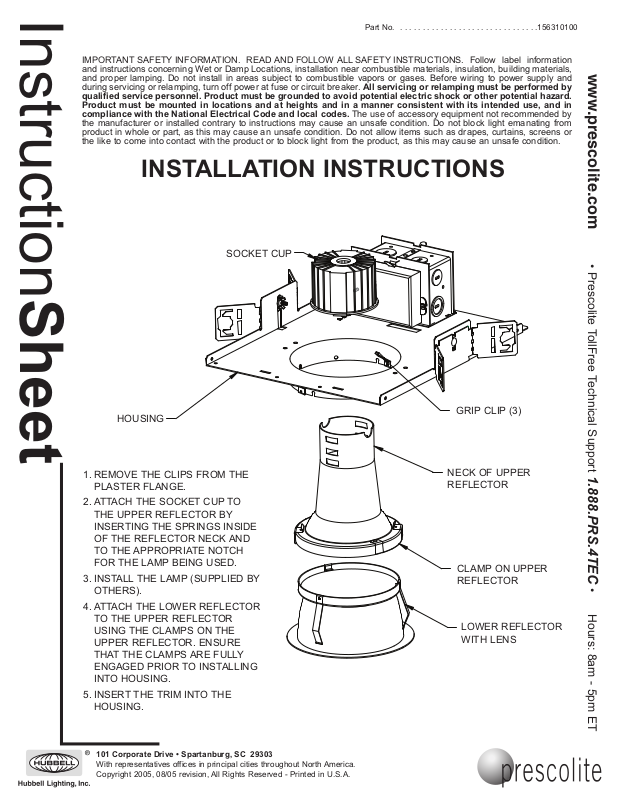

INSTALLATION INSTRUCTIONS
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156310100
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET

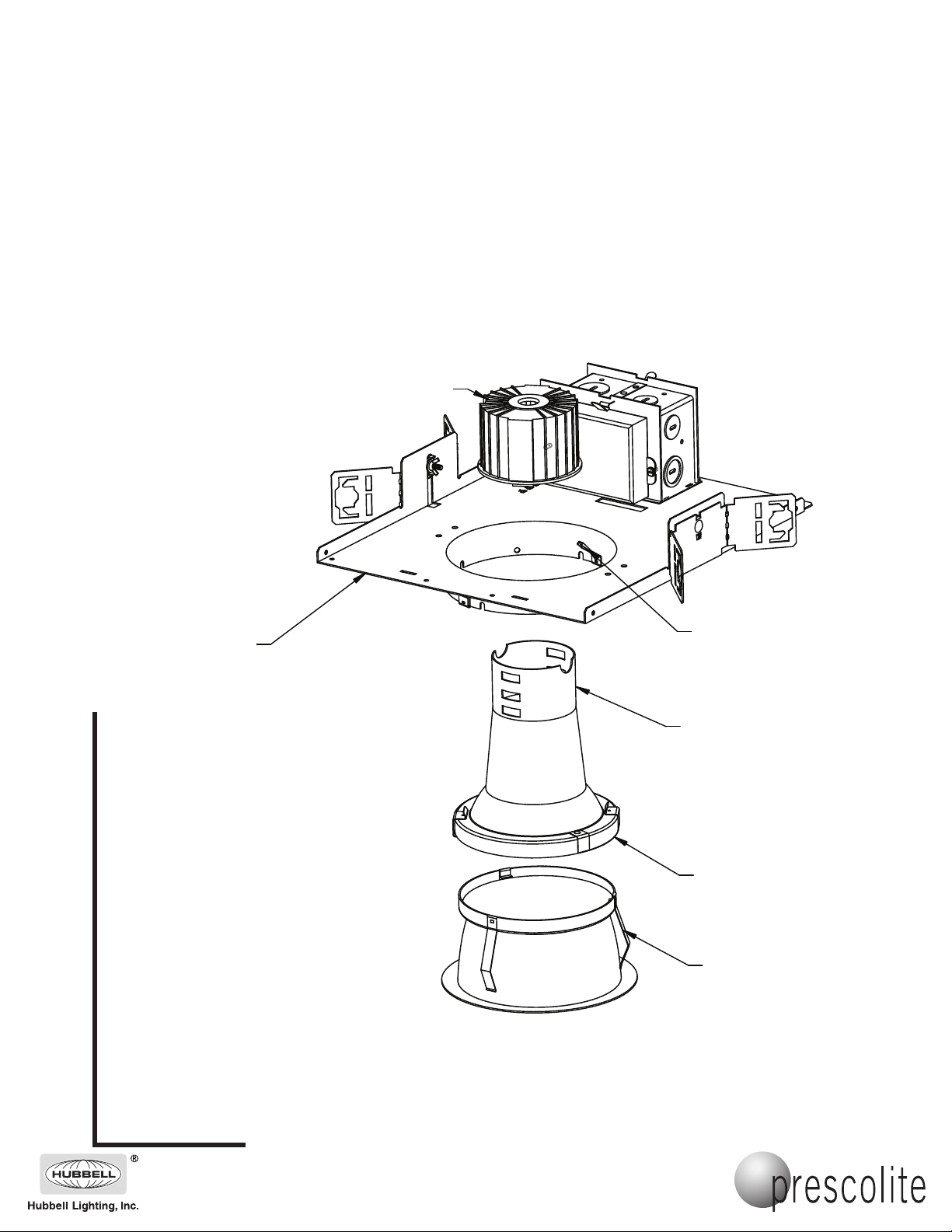

SOCKET CUP
HOUSING
1. REMOVE THE CLIPS FROM THE
PLASTER FLANGE.
2. ATTACH THE SOCKET CUP TO
THE UPPER REFLECTOR BY
INSERTING THE SPRINGS INSIDE
OF THE REFLECTOR NECK AND
TO THE APPROPRIATE NOTCH
FOR THE LAMP BEING USED.
3. INSTALL THE LAMP (SUPPLIED BY
OTHERS).
4. ATTACH THE LOWER REFLECTOR
TO THE UPPER REFLECTOR
USING THE CLAMPS ON THE
UPPER REFLECTOR. ENSURE
THAT THE CLAMPS ARE FULLY
ENGAGED PRIOR TO INSTALLING
INTO HOUSING.
5. INSERT THE TRIM INTO THE
HOUSING.
GRIP CLIP (3)
NECK OF UPPER
REFLECTOR
CLAMP ON UPPER
REFLECTOR
LOWER REFLECTOR
WITH LENS
