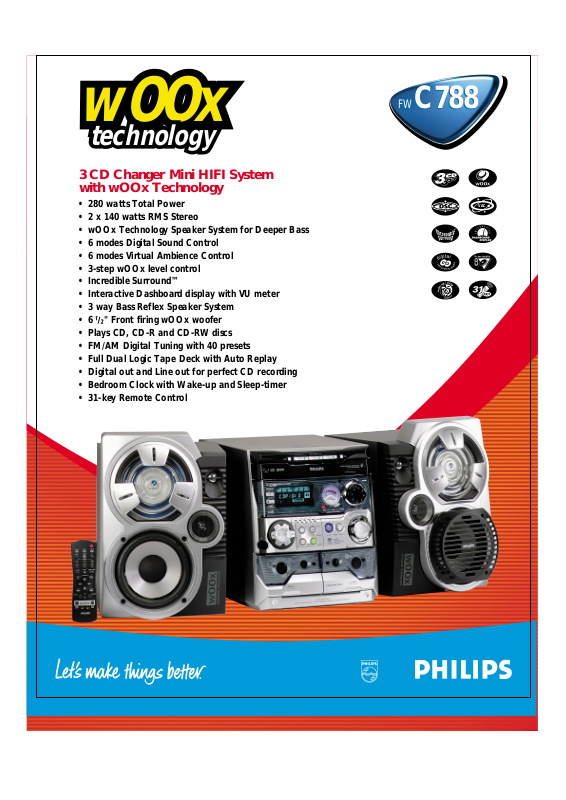

Philips FWC788 User Manual

wOOx

technology

3 CD Changer Mini HIFI System with wOOx Technology

• 280 watts Total Power

• 2 x 140 watts RMS Stereo

• wOOx Technology Speaker System for Deeper Bass

• 6 modes Digital Sound Control

• 6 modes Virtual Ambience Control

• 3-step wOOx level control

• Incredible Surround™

• Interactive Dashboard display with VU meter

• 3 way Bass Reflex Speaker System

• 6 " Front firing wOOx woofer

• Plays CD, CD-R and CD-RW discs

• FM/AM Digital Tuning with 40 presets

• Full Dual Logic Tape Deck with Auto Replay

• Digital out and Line out for perfect CD recording

• Bedroom Clock with Wake-up and Sleep-timer

• 31-key Remote Control

FWC788

VAC

FWC788

Sound Enhancement

2 x 140 Watts RMS Stereo

140 watts continuous RMS power output per channel, at 6 Ohms, from 120Hz-15kHz, with no more than 10% Total Harmonic Distortion (THD).

wOOx T echnology

Philips patented wOOx Techonolgy ensures superior bass results. The dual suspension bass radiator, together with dedicated amplifier circuitry, is especially designed to produce and handle high dynamic sound signals at very low frequencies. Because of the dual suspension, the excursion of the membrane can be extreme (see illustration). This is in combination with the symmetrical sandwich construction, provides for very low and precise bass without noticeable distortion. The net effect of using wOOx Technology is a tight bass sound that is significantly "lower and louder" than conventional mini shelf systems.

wOOx Technology double suspension = double excursion

3-Step wOOx Level Control

As the human ear does not perceive low frequencies at the same level as higher frequencies (though at the same "volume"), the bass sound needs to be enhanced to achieve maximum impact. The wOOx is progressively driven at different optimization levels in setting wOOx 1, 2 and 3.

Incredible Surround™

An exciting, new, psycho-acoustic method of widening the stereo spatial image especially suited for applications with limited separation of left and right speakers.

6 modes Digital Sound Control (digital, pop, classic, rock, newage, electric)

6 modes Virtual Ambience Control

(hall, cinema, arcade, concert, disco, cyber)

3-Way Bass Reflex Speaker System

Equipped with one 6 one 1" polydome piezo, 3-way enclosures feature a wider range of frequency response for greater listening pleasure and bass reflex enclosures for deep, rich bass response.

AM/FM Stereo Digital Tuner

State-of-the-art precision tuning system insures precise , accurate station selection every time, along with the greatest performance and reliability available.

excursion 2

excursion 1

excursion 2

/2" woofer and one 2" tweeter and

suspension 1suspension 2

Convenience

3-CD Changer with Motorized Drawer

Multi-disc play capability provides more than three hours of continuous music.

Plays CD, CDR and CD-RW discs

The player offers 100% playback guarantee of CD, CDRecordable and CD-Rewritable CD's over the entire life time of the player. Even CD-RW audio recordings on computers can be used.

Interactive Dashboard Display

An integrated Flourescent Tube Display (FTD) Volume Unit (VU) Meter shows volume level and musical amplitude during playback.

31-key Remote Control

This infrared remote control operates volume +/–, all CD functions (POWER, NEXT, PREVIOUS, PLAY, STOP, PAUSE, SHUFFLE, REPEAT, PROGRAM, CD123, CD DIRECT 1, 2, 3, G and F), AUX/CDR select, TUNER select, TAPE 1/2 select, AUTO REPLAY, TIMER ON/OFF, CLOCK, DISPLAY, SLEEP and sound enhancement features including MUTE, Digital Sound Control (DSC), Virtual Ambience Control (VAC), Incredible Surround, wOOx On/Off and wOOx Level.

Plug & Play

Press 'PLAY' to perform auto programming and storing of audio stations in presets as well as initiation of sound presets.

40-Random Channel Presets

Random memory presets allow pre-programming of up to 40 AM and FM station frequencies into the tuner memory.

Auto Store

Automatically stores up to 40 preset FM or AM stations .

40-Track CD Random Program

Store up to 40 of your favorite CD track selections, from one or multiple discs, to be played back in the order in which they are programmed anytime you like.

Auto Record Level Control

Micro electronic circuitry constantly monitors the final audio amplifier stage to insure accurate, distortion-free recordings every time.

Video/AUX Input For connection of audio accessory pieces such as a LD or DVD player, television, or external cassette deck.

Direct Source Selection

Automatically switch to a new source and pause the current source at the touch of a single button.

Demo Mode

Functions always. Press “STOP” for 5 secs to interr upt demo mode.

Direct Play Button

Allows you to select and play any CD in the carousel by touching only one button.

Change While Play

Flexiblility of changing 2 discs while still listening to the third disc being played.

One-Touch CD Synchro Recording

One button allows the cassette deck and CD player to communicate with one another to synchronize the start of a recording on an analog audio cassette deck with the start of a CD or a CD program.

Repeat

Repeat your favorite track.

Shuffle One/All Discs

Plays all selections on a particular disc or multiple discs in multi-disc players in random order, ignoring the sequential order in which they were originally recorded.

Next/Previous Skip This two button feature offers you the opportunity to skip back to the previous track or skip up to the next track instantly.

Dual Logic Tape Deck

Offer the ability to switch from one function, such as fast forward, to another function, such as play by remote control.

Auto Replay

The feature employs an auto rewind mechanism to sense the end of the tape of the same side and automatically rewind and playback at the beginning of the tape providing an uninterrupted, continuous flow of music.

Clock, Alarm & Sleep-Timer

Set the alarm por tion of a built-in digital clock to wake you to music from your favorite CD or an AM/FM radio station at any desired time of the day. Sleep timer settings of 60, 45, 30 or 15 minutes.

3 Display modes (including nite mode)

2 different display options showing different amounts of display activity can be selected and 1 nite mode display which shows minimal display activity and turns most of the lights off.

UPC Code: 0 37849918685

Product Dimensions:

10.4" W x 12.2" H x 15.4" D (electronics)

9.4" W x 13.8" H x 12.2" D (speakers) Package Dimensions:

21.4" W x 28" H x 15.7" D Product weight: 41.8 lbs. Carton contains: 3CD Changer Mini System, MultiFunction Remote Control, Operating instructions, Warranty information

Printed in Singapore Date printed : Oct 2001 ©2001 Royal Philips Electronics N.V. All rights reserved. A Division of Philips Electronics North America Corp. Specifications subject to change without notice.

Incredible Surround™ is a Trademark of Philips Consumer Electronics Company

http://www.philipsusa.com

TAPE 1/2TUNERCD 123

MUTE

CD DIRECT

SLEEPCLOCK DISPLAY

PAUSE

AUTO RE.

TIMER ON/OFF

VOLUME

REPEAT

PROGRAM

WOOX

ON/OFF

VAC

DSC

ISAUX/CDR

SHUFFLE

LEVEL
