3139 116 19381

avec Changeur de 3 CD

Mini Hi-Fi Systems

C38

FW-

Untitled-60 12/12/00, 6:32 PM1

3139 116 19381

Deutsch

∂ППЛУИО¿

Português

Suomi

Dansk

Svenska

Italiano

Nederlands

Español

Français

English

Norge

Typeskilt finnes på apparatens underside.

Observer:

Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio FWC38 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven, The Netherlands

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse. 2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type. 3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Untitled-60 12/12/00, 6:32 PM2

3139 116 19381

EnglishFrançais

Español

NederlandsItalianoSvenskaDanskSuomiPortuguês∂ППЛУИО¿

Deutsch

CLASS 1

LASER PRODUCT

English .....................................4

Français

.................................25

Español ..................................47

Deutsch ..................................69

Nederlands ............................ 91

Italiano .................................113

Svenska ...............................135

Dansk ...................................157

Suomi ...................................179

Português ............................199

∂ППЛУИО¿

............................ 221

Untitled-60 12/12/00, 6:32 PM3

3139 116 19381

English

Untitled-60 12/12/00, 6:33 PM4

3139 116 19381

English

General Information

• The type plate (which contains the serial number) is located at the rear of the system.

• Recording is permissible if copyright or other rights of third parties are not infringed.

• This product complies with the radio interference requirements of the European Community.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

CONTENTS GENERAL INFORMATION SAFETY INFORMATION

• Do not expose the system to excessive moisture, rain, sand or heat sources.

• Under no circumstances should you repair the system yourself, as this will invalidate the warranty!

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the CD unit inside the system. Should this occur, the CD player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

• Electrostatic discharge may cause unexpected problems. See whether these problems disappear if you unplug the AC power cord and plug it in again after a few seconds.

• To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

Accessories

(Supplied)

– Remote control – Batteries (two AA size) for remote

control

– AM loop antenna – FM wire antenna – AC power cord

Safety Information

• Before operating the system, check that the operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer. The typeplate is located at the rear of your system.

• When the system is switched on, do not move it around.

• Place the system on a solid base (e.g. a cabinet).

• Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10cm clearance from the rear and the top of the unit and 5cm from each side.

General Information ................. 5

Safety Information .................... 5

Preparation .......................... 6 - 7

Controls ................................. 8 - 9

Operating The System .... 10 - 12

CD ....................................... 12 - 14

Tuner.................................. 15 - 16

Tape ................................... 17 - 18

Aux .............................................18

Recording ......................... 19 - 20

Clock ......................................... 20

Timer.......................................... 21

Sleep Timer ............................. 21

Specifications ......................... 22

Maintenance ............................23

Troubleshooting .............. 23 - 24

Untitled-60 12/12/00, 6:33 PM5

3139 116 19381

English

PREPARATION

Rear Connections

Untitled-60 12/12/00, 6:33 PM6

3139 116 19381

English

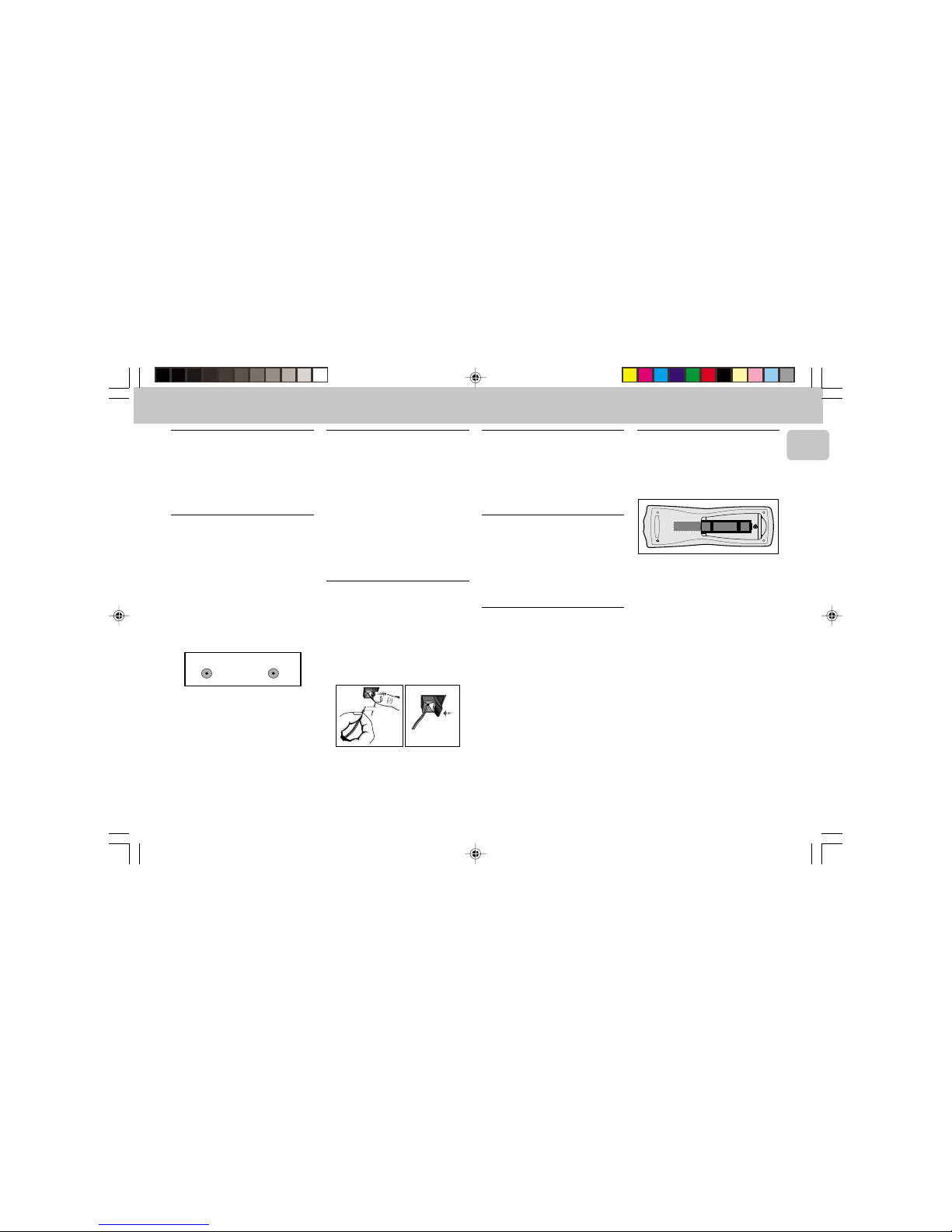

A AM Loop Antenna

Connection

Connect the supplied loop antenna to the AM ANTENNA terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception.

B FM Wire Antenna

Connection

Connect the supplied FM wire antenna to the FM AERIAL (FM ANTENNA) 75 Ω terminal. Adjust the position of the FM antenna for the best reception.

Outdoor Antenna

For better FM stereo reception, connect an outdoor FM antenna to the FM AERIAL (FM ANTENNA) 75 Ω terminal using a 75 Ω coaxial wire.

FM ANTENNA 75Ω

FM AERIAL 75Ω

C Digital Out Connection

You can record the digital sound from the CD, through this output, on any audio equipment with digital input (e.g. CD Recorder, Digital Audio Tape (DAT) deck, Digital to Analog Converter and Digital Signal Processor).

Connect one end of the cinch cable (not supplied) to the DIGITAL OUT socket and the other end to the audio equipment with digital input.When connecting the cinch cable, make sure it is fully inserted.

D Speakers Connection

• Connect the right speaker to Front

terminal R, with the colored wire to + and the black wire to -.

• Connect the left speaker to Front

terminal L, with the colored wire to + and the black wire to -.

• Clip the stripped portion of the speaker wire as shown.

lock

12 mm

unlock

PREPARATION

E Connecting other

equipment to your system

You can connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX IN terminals at the rear of the system.

F Subwoofer Out Connection

Connect the optional active subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effect (e.g. explosions, the rumble of spaceships, etc.). Be sure to follow the instructions supplied with the subwoofer.

G AC Power Supply

After all other connections have been made, connect the AC power cord to the system and to the wall outlet.

Inserting batteries into the Remote Control

• Insert the batteries (Type R06 or AA) into the remote control as shown in the battery compartment.

• To avoid damage from possible battery leakage, remove dead batteries or batteries that will not be used for a long time. For replacement, use type R06 or AA batteries.

Notes for remote control: – First select the source you wish to

control by pressing one of the source select keys on the remote control (e.g. CD ,TUNER, etc.).

– Then select the desired function

(É, í, ë, etc.).

Untitled-60 12/12/00, 6:33 PM7

3139 116 19381

English

CONTROLS

STANDBY-ON

TAPE 2

PLAYBACK

PLAY/REC

TAPE 1

FW-

C10

MINI HIFI SYSTEM

CD1 • 2 • 3 BAND

TAPE 1 • 2

TAPECD TUNER

AUX

PRESET

▲

TUNING

▲▲▲

▲

STOP•CLEAR

PLAY• PAUSE PREV NEXT

DISC CHANGE

DISC 3

OPEN•CLOSE

CHANGER

3 CD ROTARY CHANGER SYSTEM

•

CD SYNCHRO RECORDING

•

CDR/VIDEO

DISC 2

DISC 1

JOG

CONTROL

VOLUME

PROGRAM DIM

RECORD

DUBBING A.REPLAY

INCREDIBLE SURROUND

SOUND NAVIGATION - JOG

RDS

NEWS CLOCK•TIMER

∞

≥

•

TUNERTAPE 1/2CD

SLEEP AUXINC.SURR.

DSC VEC

DBB

REPEAT

PAUSE

SHUFFLE

CD DIRECT

VOLUME

(

)

≤

™

OPEN

▲

OPEN

▲

Untitled-60 12/12/00, 6:33 PM8

3139 116 19381

English

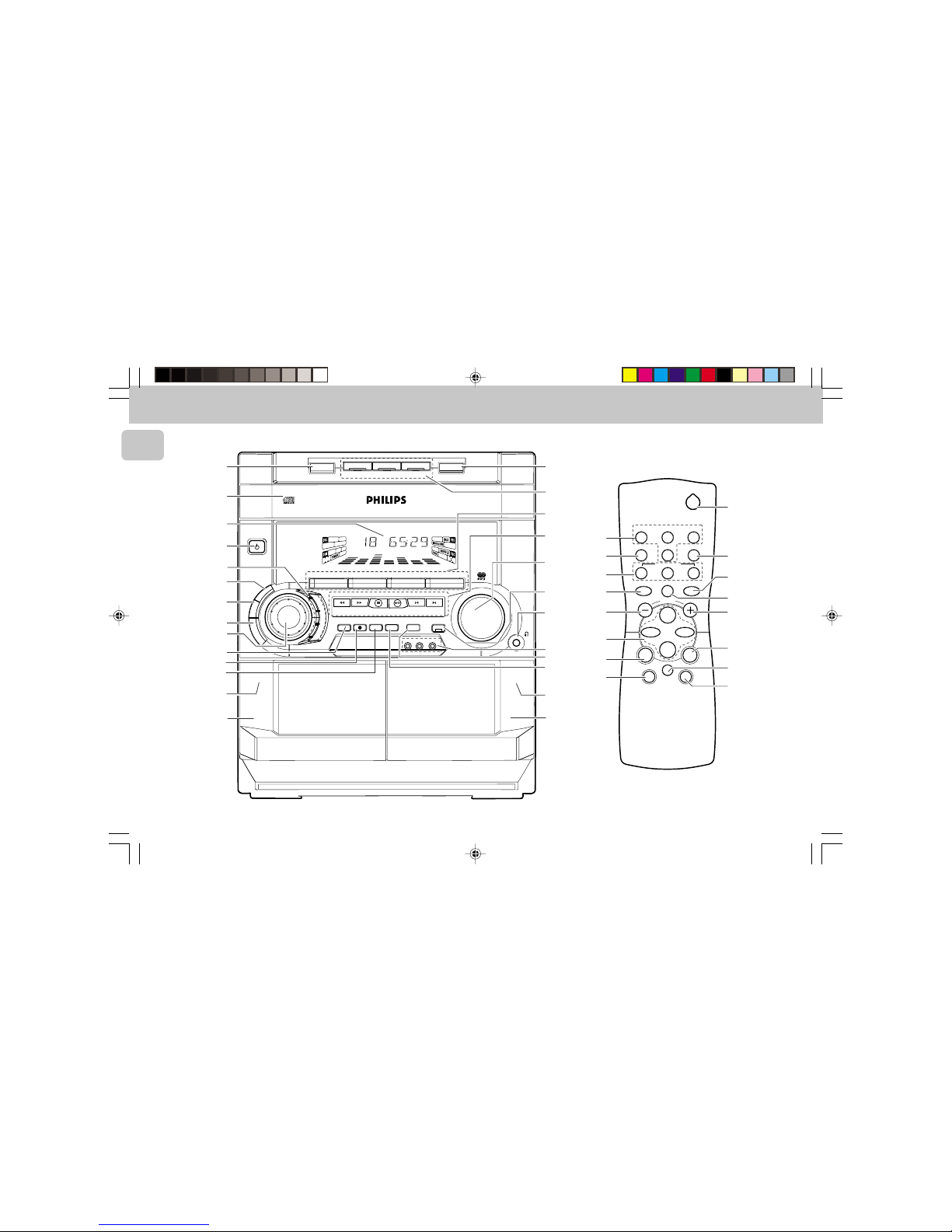

Controls on the system and remote control

1 STANDBY ON

– to switch the system on or to standby

mode.

– to use for EASY SET.

2 DIGITAL SOUND CONTROL

DISPLAY PANEL

– to view the desired DSC display.

3 DBB (DYNAMIC BASS BOOST)

– to switch on bass boost, to enhance

bass response or to switch off bass boost.

4 VEC

– to select the desired Virtual

Environment Control effect : HALL, CINEMA or CONCERT.

5 DSC

– to select the desired sound effect :

OPTIMAL, JAZZ, ROCK or TECHNO.

6 JOG CONTROL

– to select the desired DSC setting. You

must select the DSC feature first.

– to select the desired VEC setting. You

must select the VEC feature first.

7 PROGRAM

for CD ............ to program CD tracks.

for TUNER ..... to program preset radio

stations.

for CLOCK ..... to select 12- or 24-

hour in clock setting mode.

8 RECORD

– to start recording on tape deck 2 only.

9 DUBBING

– to dub a tape in normal speed.

0 DISPLAY SCREEN

– to view the current setting of the

system.

! CD CAROUSEL TRAY @ DISC CHANGE

– to change CD(s).

# OPEN•CLOSE

– to open or close the CD carousel tray.

$ DISC 1 / DISC 2 / DISC 3 (CD

DIRECT PLAY)

– to select a CD tray for playback.

% SOURCE – to select the following:

CD / (CD 1•2•3)

– to select CD mode. When CD playback

is stopped, press to select disc tray 1, 2 or 3.

TUNER / (BAND)

– to select Tuner mode. When in tuner

mode, press to select the waveband: FM, MW or LW.

TAPE / (TAPE 1• 2)

– to select Tape mode. When tape

playback is stopped, press to select either tape deck 1 or 2.

AUX (CDR/VIDEO)

– to select sound from an external

source (e.g. TV, VCR, Laser Disc player, DVD player or CD Recorder).

^ MODE SELECTION

SEARCH à á (TUNING à á)

for CD ............ to search backward/

forward.

for TUNER ...... to tune to a lower or

higher radio frequency.

for TAPE ....... to rewind or fast

forward on tape.

for CLOCK ..... to set the hour

(on the

system only)

STOP•CLEAR Ç

for CD ............ to stop CD playback or

to clear a program.

for TUNER ..... to stop programming.

for TAPE ........ to stop playback or

recording.

for DEMO ......

(on the system only)

to start or stop demonstration mode.

PLAY É / PAUSE Å

for CD ............ to start or interrupt

playback.

for TAPE ........ to start playback.

PREV í / NEXT ë(PRESET 43 )

for CD ............ to skip to the beginning

of the current, previous, or next track.

for TUNER ..... to select a preset

station in memory.

for CLOCK ..... to set the minute

(on

the system only).

& VOLUME

– to increase or decrease the volume.

* INCREDIBLE SURROUND

– to switch on or off the surround sound

effect.

( n

– to connect headphones.

) CLOCK•TIMER

– to view the clock, set the clock or set

the timer.

RDS

– to select RDS data in the following

order: station name, program type and radio text.

NEWS

– to hear news automatically.

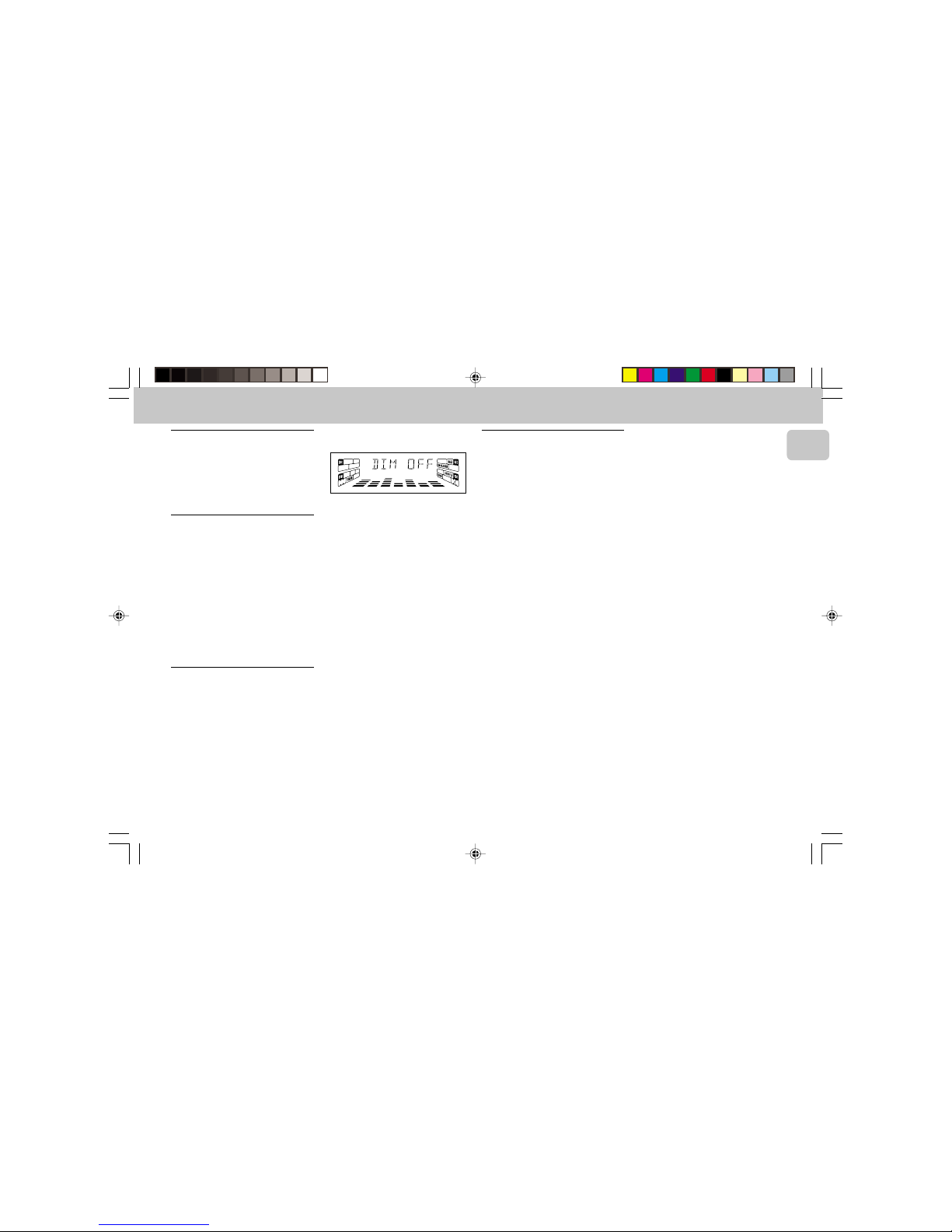

¡ DIM

– to select different brightness for the

display screen : DIM 1, DIM 2, DIM 3 or DIM OFF.

™ AUTO REPLAY

– to select playback mode either in

continuous AUTO REPLAY or ONCE only.

£ OPEN

– to open tape deck 2.

≤ TAPE DECK 2 ∞ TAPE DECK 1

§ OPEN

– to open tape deck 1.

≥ REPEAT

– to repeat a CD track, a disc, or all

available discs.

• SHUFFLE

– to play all the available discs and their

tracks in random order.

ª SLEEP

– to switch the system to standby mode

at a selected time.

º B

– to switch the system to standby mode.

CONTROLS

Untitled-60 12/12/00, 6:33 PM9

3139 116 19381

English

Important: Before you operate the system, complete the preparation procedures.

Demonstration mode

The system has a demonstration mode that shows the various features offered by the system.

When the system is switched on for the first time, the demonstration mode will start automatically.

Notes: – During the demonstration, if you press

any source (or standby-on) button, the system will switch to the respective mode (or standby).

– When the system is switched to standby

mode, the demonstration will resume 5 seconds later.

To stop the demonstration mode

• Press and hold Ç

(on the system only)

for

5 seconds

when the system is in

demonstration mode.

™ The demonstration will stop. ™ "DEMO OFF" is displayed. ™ The system will switch to standby

mode.

Note: – Even though the AC power cord is

removed from and reconnected to the wall socket, the demonstration will remain off until it is switched on again.

To start the demonstration mode

• Press and hold Ç

(on the system only)

for

5 seconds

when the system is in standby mode. ™ The demonstration will begin.

OPERATING THE SYSTEM

Easy Set

EASY SET allows you to store all available radio stations and RDS stations automatically.

1 Press and hold STANDBY ON

(on the

system only)

for

5 seconds

when the system is in standby or demonstration mode. ™ “EASY SET” will be displayed, and

followed by “TUNER” and then “AUTO”.

™ EASY SET will start searching for all

RDS radio stations with sufficient signal strength and then followed by radio stations on FM, MW and LW band respectively. Weak RDS radio stations may be stored in later presets.

™ All available RDS and radio stations

with sufficient signal strength will be stored. Up to 40 presets may be stored.

2 The system will proceed to set the RDS

time automatically with the stored RDS preset station.

• If no RDS station is available in the first preset station, the program will exit automatically.

™ After a radio station is found, “EASY

SET” will be displayed and followed

by “TIME”

• When searching RDS time;

™ “SEARCH RDS TIME” will be

displayed.

™ When RDS time is read, “RDS

TIME” will be displayed. The current

time will be displayed for 2 seconds and stored automatically.

Notes: – EASY SET will start with the RDS

station, if there are still presets available, it will continue to store the FM, MW and LW bands respectively.

– When EASY SET is used, all previously

stored radio stations will be replaced.

– The last preset radio station or the first

available RDS station will appear on the display when EASY SET is completed.

– If RDS station does not transmit RDS

time within 90 seconds, the program will exit automatically and the display will show “

NO RDS TIME

”.

Switching the system ON

• Press CD, TUNER, TAPE or AUX.

You can also switch on the system by pressing any one of the CD DIRECT PLAY buttons.

Untitled-60 12/12/00, 6:33 PM10

3139 116 19381

English

Switching the system to standby mode

• Press STANDBY ON or B on the

remote control. ™ The system will switch to standby

mode.

Selecting the Source

• Press the respective source selection

button: CD, TUNER, TAPE or AUX. ™ The display indicates the selected

source.

Note: – For an external source, make sure you

have connected the audio left and right OUT terminals of the external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX IN terminals.

DIM mode

You can select the desired brightness for the display.

• Press DIM to select DIM 1, DIM 2, DIM

3 or DIM OFF display mode.

™ The DIM appear on the display. ™ "DIM 1", "DIM 2", "DIM 3" or

"DIM OFF" will be displayed depending on the mode selected.

OPERATING THE SYSTEM

DIM OFF - normal brightness with Spectrum Analyzer On

DIM 1 - normal brightness with Spectrum Analyzer Off

DIM 2 - half brightness with Spectrum Analyzer On

DIM 3 - half brightness with Spectrum Analyzer Off and all LEDs on the system will be switched off.

Sound Control

VOLUME ADJUSTMENT

Adjust VOLUME to increase or decrease the sound level.

For Personal Listening

Connect the headphones plug to the n socket at the front of the system. The speakers will be muted.

DIGITAL SOUND CONTROL (DSC)

The DSC feature enables you to enjoy special sound effects that have preset equalizer settings, providing the best music reproduction.

1 Press to select the DSC feature. 2 Adjust JOG CONTROL to select

OPTIMAL, JAZZ, ROCK or TECHNO. ™ The Digital Sound Control display

panel will light up respectively.

™ “OPTIMAL, JAZZ, ROCK or

TECHNO” and the respective flag

will be displayed.

Note: – When ”OPTIMAL” sound is selected,

DBB will be switched on automatically.

DYNAMIC BASS BOOST (DBB)

The DBB mode enhances the bass response.

• Press DBB to switch on bass response.

™ The DBB button lights up. ™ “DBB ON” and the DBB flag will be

displayed.

To switch off DBB

• Press DBB again.

™ The DBB button light is switched off. ™ “DBB OFF” will be displayed. ™ The DBB flag disappear from the

display.

Note: – Some CDs or tapes might be recorded in

high modulation, which causes a distortion at high volume. If this occurs, switch off DBB or reduce the volume.

Untitled-60 12/12/00, 6:33 PM11

3139 116 19381

English

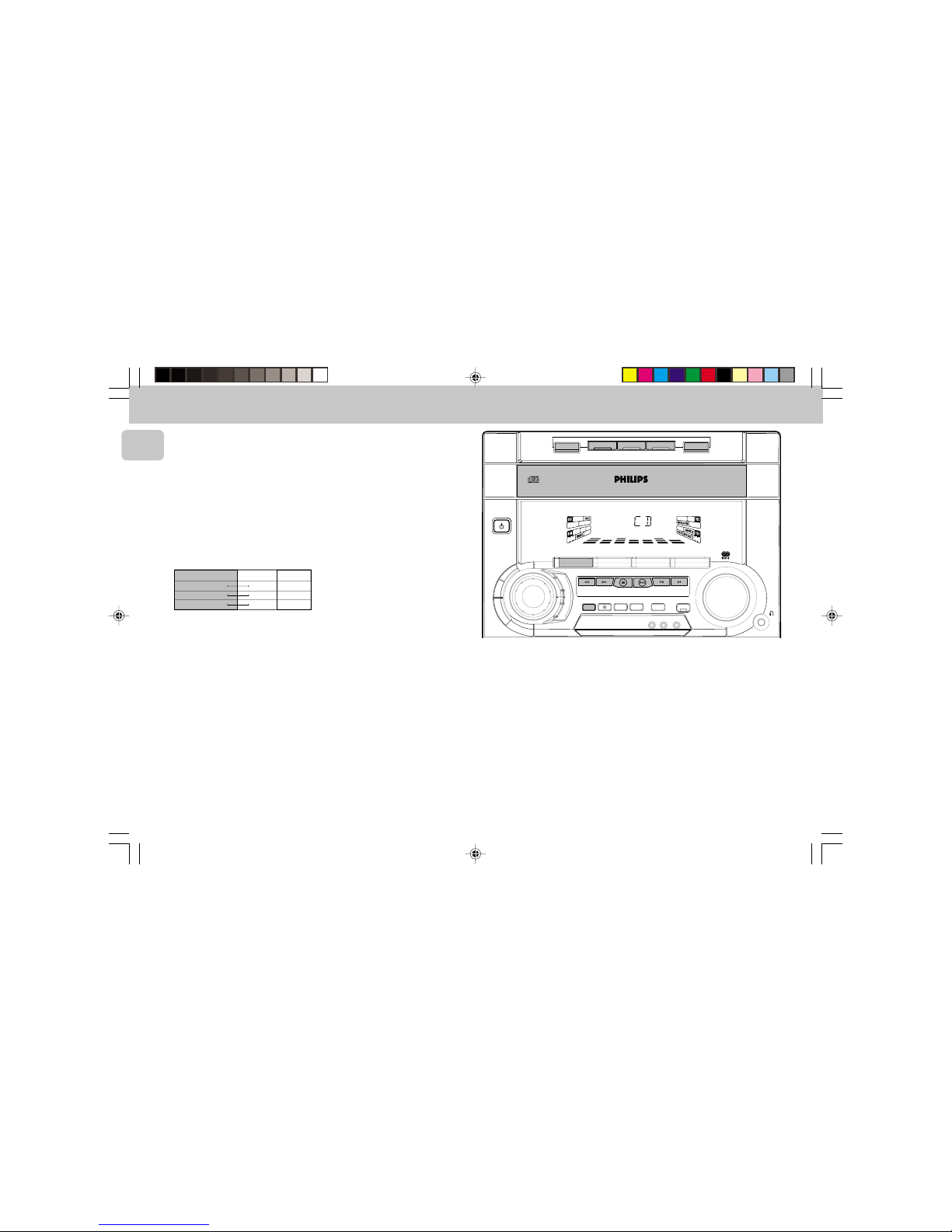

VIRTUAL ENVIRONMENT CONTROL (VEC)

The VEC feature enables you to adjust the system to select a type of environment.

1 Press to select the VEC feature. 2 Adjust the JOG CONTROL to select the

desired Virtual Environment Control setting : HALL, CINEMA or CONCERT. ™ "HALL, CINEMA or CONCERT"

and the respective flag will be displayed.

VEC Selection

HALL

CONCERT

CINEMA

DBB

Off

OPERATING THE SYSTEM CD

STANDBY-ON

FW-

C10

MINI HIFI SYSTEM

CD1 • 2 • 3 BAND

TAPE 1 • 2

TAPECD TUNER

AUX

PRESET

▲

TUNING

▲▲▲

▲

STOP•CLEAR

PLAY• PAUSE PREV NEXT

DISC CHANGE

DISC 3

OPEN•CLOSE

CDR/VIDEO

DISC 2

DISC 1

JOG

CONTROL

VOLUME

PROGRAM DIM

RECORD

DUBBING A.REPLAY

INCREDIBLE SURROUND

CHANGER

SOUND NAVIGATION - JOG

RDS

NEWS CLOCK•TIMER

3 CD ROTARY CHANGER SYSTEM

•

CD SYNCHRO RECORDING

•

Warning!

1) This system is designed for conventional CDs. Do not use any accessories such as disc stabilizer rings or CD treatment sheets, etc., which may damage the CD mechanism.

2) Do not load more than one disc into each tray.

3) When the CD changer is loaded with CDs, do not turn over or shake the system. This may jam the changer.

You may load three discs in the CD changer for continuous playback without interruption.

Incredible Surround

Normal stereo sound is determined by the distance between the front speakers. When Incredible Surround is switched on, it magnifies the virtual distance between the front speakers for an incredibly wide, enveloping, stereo effect.

• Press INCREDIBLE SURROUND to

switch on. ™ The INCREDIBLE SURROUND button

lights up.

™ “INC SURR” and the INCR. SURR

flag will be displayed.

To switch off Incredible Surround

• Press INCREDIBLE SURROUND again.

™ The INCREDIBLE SURROUND button

light is switched off.

™ “IS OFF” will be displayed. ™ The INCR. SURR flag disappear

from the display.

Untitled-60 12/12/00, 6:33 PM12

3139 116 19381

English

Discs for playback

This system can play all digital audio CD, finalized digital audio CD-Recordable and finalized digital audio CD-Rewritable format discs.

Loading the CD Changer

1 Press CD to select CD mode. 2 Press OPEN•CLOSE.

™ The CD carousel tray slides out.

3 Load a CD with the printed side up in

the right tray.

• You can load another disc in the left tray.

• To load the third disc, press the DISC CHANGE button.

™ The CD carousel tray will rotate until

the empty tray is ready for loading.

4 Press OPEN•CLOSE to close the CD

carousel tray. ™ The total number of tracks and the

playing time of the selected disc appear on the display.

Note: – To ensure good system performance,

wait until the CD changer completely reads the disc(s) before proceeding.

CD Direct Play

• You can play a CD directly by pressing

the DISC 1, DISC 2 or DISC 3 button. The CD player will stop at the end of playback of the selected disc. ™ A lit button indicates that a disc is

loaded in the disc tray.

™ A flashing button indicates that a

disc is playing.

Playing a CD

1 PressÉ to start playback.

™ The disc tray, track number and

elapsed playing time of the current track appear on the display.

• To interrupt playback, pressÅ.

™ The playing time flashes.

• To resume playback, pressÉ again. 2 To stop playback, press Ç.

Note: – All the available discs will play once,

then stop.

Disc Change

You can change the outer two discs while the third inner disc is stopped or is playing.

1 Press DISC CHANGE.

™ The CD carousel tray slides out.

2 Replace the discs in the left and right

disc trays.

• If you press DISC CHANGE again

during playback, the CD will stop playing.

™ The CD carousel tray will rotate until

the inner tray is rotated out and is ready for changing.

3 Press OPEN•CLOSE to close the CD

carousel tray.

Selecting a desired track

Selecting a desired track when playback is stopped 1 Press í or ë until the desired track

appears on the display.

2 PressÉ to start playback.

™ The selected track number and

elapsed playing time appear on the display.

Selecting a desired track during playback

• Press í or ë until the desired track

appears on the display. ™ The selected track number and

elapsed playing time appear on the display.

• If you press í once it will skip to the

beginning of the current track and play the track again.

Note: – Pressingí during shuffling can only

skip to the beginning of the current track.

Searching for a particular passage during playback

• Press and hold à or á until the

desired passage is located. ™ The volume will be reduced.

• Play returns to normal when à or á

is released.

Programming Tracks

Programming tracks of a loaded CD is possible when playback is stopped. The display will indicate the total tracks stored in the program. Up to 40 tracks can be stored in the memory in any order. When 40 tracks are stored and you attempt to store another track, the display will show “PROGRAM FULL”.

1 Load the desired discs in the disc trays. 2 Press PROGRAM to start programming.

™ The PROG flag starts flashing. ™ It will cancel any previously selected

repeat mode.

3 Press the CD (CD 1•2•3) or DISC 1/2/3

button to select the disc.

4 Pressí or ë to select the desired

track.

5 Press PROGRAM to store the track.

• Repeat steps 3 to 5 to store other discs and tracks.

6 Press Ç once to end programming.

™ The total number of tracks

programmed and total playing time appear on the display.

Untitled-60 12/12/00, 6:33 PM13

3139 116 19381

English

Notes:

– If the total playing time is more than

“99:59“ or if one of the programmed

tracks has a number greater than 30, then “--:--” appears on the display instead of the total playing time.

– If the system is reading the discs,

programming is not possible,

“

READING

” will be displayed and

followed by ”

DISC X

”. ”X” is the

current read disc number.

– During programming, if no button is

pressed within 20 seconds, the system will exit program mode automatically.

Reviewing the program

Reviewing of the program is possible only when playback is stopped.

• Pressí or ë repeatedly to review the

programmed tracks.

• Press Ç to exit review mode.

Playing the program

1 Press É to start program playback.

™ “PLAY PROGRAM” will be

displayed.

™ The track number and elapsed

playing time of the current track will appear on the display.

• If you press REPEAT during program

playback, the current track or all programmed tracks will be played repeatedly.

™ “TRACK” or "PROGRAM" will be

displayed.

™ The REPEAT and PROG flags appear

on the display.

2 Press Ç to stop program playback.

Notes: – If you press any of the CD DIRECT PLAY

buttons, the system will play the selected disc or track and the stored program will be ignored temporarily. The PROG display also will disappear temporarily from the display. It will reappear when playback of the selected disc ends.

– REPEAT DISC mode will be cancelled

when program playback begins.

Erasing the program

(when

playback is stopped)

• Press Ç.

™ “PROGRAM CLEARED” will be

displayed.

Note: – The program will be erased when the

system is disconnected from the power supply or when the CD carousel tray is opened.

Shuffle

(only on remote control)

In shuffle mode, the system plays all the available discs and their tracks in random order. Shuffle may be used also when tracks are programmed.

To shuffle all the discs and tracks 1 Press SHUFFLE.

™ “SHUFFLE” will be displayed. ™ The SHUFFLE flag, the disc and the

track selected at random appear on the display.

• The discs and the tracks will be played

in random order until you pressÇ.

• If you press REPEAT during shuffling,

the current track or all available discs will be played repeatedly. ™ “TRACK” or “ALL DISC” will be

displayed.

™ The REPEAT and SHUFFLE flags

appear on the display.

2 Press SHUFFLE again to resume normal

playback. ™ The SHUFFLE flag disappears from

the display.

Note: – REPEAT DISC mode will be cancelled

when shuffle is selected.

Repeat

(only on remote control)

You can play the current track, a disc or all available discs repeatedly.

1 Press REPEAT on the remote control to

select the various repeat modes. ™ “TRACK”, “DISC”, “ALL DISC”

or “OFF” will be displayed.

™ The REPEAT flag appears on the

display.

• The selected track, selected disc or all available discs will now be played repeatedly until you pressÇ.

2 Press REPEAT until the "OFF" mode is

displayed to resume normal playback. ™ The REPEAT flag disappears from

the display.

Notes: – REPEAT DISC mode is not available

during program play or shuffle mode.

– You can also repeat shuffling a program.

™ “TRACK“

“PROGRAM" will be

displayed.

™

The REPEAT, PROG, and SHUFFLE flags appear on the display.

Untitled-60 12/12/00, 6:33 PM14

3139 116 19381

English

TUNER

Note: – For 'EASY SET' feature, please refer to

page 10.

Tuning to radio stations

1 Press TUNER (BAND) to select TUNER

mode. ™ “TUNER” will be displayed.

A few seconds later, the current radio frequency will be displayed.

2 Press TUNER (BAND) again to select

the desired waveband : FM, MW or LW.

3 Press à or á for more than one

second, then release. ™ The display will show “SEARCH”

until a radio station with sufficient signal strength is found.

• Repeat this procedure until the desired station is reached.

• To tune to a weak station, briefly press

à or á repeatedly until the display shows the desired frequency and/or when the best reception has been obtained.

Storing Preset Stations

You can store up to 40 radio stations in the memory. When a preset radio station is selected, the preset number appears next to the frequency on the display.

Automatic programming 1 Press TUNER (BAND). 2 Press PROGRAM for more than one

second. ™ The PROG flag starts flashing and

“AUTO” will be displayed.

™ The system will search for every

available station in the FM waveband first, then search the MW and LW bands respectively.

™ All available stations will be stored

automatically. The frequency and preset number will be displayed briefly.

™ The system will stop searching when

all the available radio stations are stored or when the memory for 40 preset radio stations is used.

™ The system will remain tuned to the

last stored preset radio station.

Notes: – You can cancel the automatic

programming by pressing PROGRAM or

(on the system only).

– If you want to reserve a section of

preset numbers, for example preset numbers 1 to 9, select preset 10 before starting automatic programming, only the preset numbers 10 to 40 will be programmed.

Manual programming 1 Press TUNER (BAND). 2 Press TUNER (BAND) again to select

the desired waveband : FM, MW or LW.

3 Press PROGRAM for less than one

second.

™ The PROG flag starts flashing. ™ The next available preset number will

be displayed for selection.

4 Press à or á to tune to the desired

frequency.

• If you wish to store the radio station to another preset number, press 4 or 3 to select the desired preset number.

5 Press PROGRAM again.

™ The PROG flag disappears and the

radio station will be stored.

• Repeat

steps 3 – 5

to store other preset

radio stations.

Notes: – When 40 radio stations are stored and

you attempt to store another radio station, the display will show "

PROGRAM FULL

”. If you want to change an existing preset number, repeat steps 3 – 5.

– You can cancel manual programming by

pressing Ç (on the system only).

– During programming, if no button is

pressed within 20 seconds, the system will exit program mode automatically.

Untitled-60 12/12/00, 6:33 PM15

3139 116 19381

English

TUNER

Tuning to Preset Radio Stations

• Press 4 or 3 to select the desired preset number. ™ The preset number, radio frequency,

and waveband appear on the display.

Receiving RDS Radio Station

RDS (Radio Data System) is a broadcasting service that allows FM stations to send additional information along with the regular FM radio signal. This additional information can contain:

• STATION NAME: The radio station name is displayed.

• PROGRAM TYPE: The following program types exist and can be received by your tuner: News, Affairs, Info, Sport, Educate, Drama, Culture, Science, Varied, Pop M, Rock M, M.O.R. (middle of the road music), Light M, Classics, Other M, No type.

• RADIO TEXT (RT): text messages appear in the display.

When you have tuned to a RDS station, the RDS logo (Ç) and the radio station name will appear on the display:

• The display normally shows the radio station name if available.

By repeatedly pressing RDS button you can change the type of display information:

™ The display shows in turn:

STATION NAME ™ PROGRAM TYPE ™ RADIO TEXT ™ TUNED FREQUENCY ™ STATION NAME ...

Note: – When you press the RDS button and the

display shows "

NO RDS

", it indicates that either the tuned station is not transmitting RDS signal or it is a non RDS station.

RDS Clock

Some RDS station may be transmitting a real clock time at an interval of every minute.

Setting the time with RDS clock 1 Press CLOCK•TIMER.

™ "--:--" or current time appears on

the display.

2 Press CLOCK•TIMER once more to

enter clock setting mode. ™ "00:00" or current time starts

flashing.

3 Press RDS.

™ The message "SEARCH RDS

TIME" will be displayed.

™ If the current station is not receiving

any RDS information, "NO RDS TIME" will be displayed.

™ When the RDS clock is read, "RDS

TIME" will be displayed. The

current clock time is displayed for 2 seconds and will be stored automatically.

™ If within 90 seconds, the RDS time is

not detected, "NO RDS TIME" will be displayed.

Note: – Some RDS station may be transmitting a

real time clock at a minute interval. The accuracy of the transmitted time depends on the transmitting RDS station.

News

(only available in Radio Station

with RDS)

You can activate NEWS function in Standby or any source mode except Tuner mode. Once the News PTY (program type) is detected in a RDS station, it will switch to TUNER mode automatically.

To start NEWS function 1 Press NEWS.

• The NEWS and "NEWS" will be displayed.

• It will scan stations stored in the first 5

preset and wait for the News Program Type data to be available in any of these RDS stations. During the search : ™ The current source activity will

remain uninterrupted.

™ If no RDS station is found in the first

5 presets, the NEWS function will be switched off. The display will show "NO RDS NEWS" and NEWS will disappear from the display.

• When NEWS transmission is detected, the system will switch to Tuner mode.

™ The NEWS starts flashing.

To cancel NEWS function

• Press NEWS again.

™ The NEWS disappears and "NEWS

OFF" will be displayed.

Notes: – If you are listening to a non RDS TUNER

radio station and should you decide to hear NEWS, first select other source (e.g. CD, TAPE or AUX), then press NEWS.

– Before using the NEWS feature, ensure

that the first 5 presets are RDS stations.

– The NEWS works only once for each

activation.

– During News bulletin, you can press any

available source or Tuner function keys to cancel NEWS function and execute the relevant source mode.

– If set is switched to Tuner source, the

NEWS function will be cancelled, "

NEWS OFF

" will be displayed

immediately after the "

TUNER

message.

Untitled-60 12/12/00, 6:33 PM16

3139 116 19381

English

TAPE

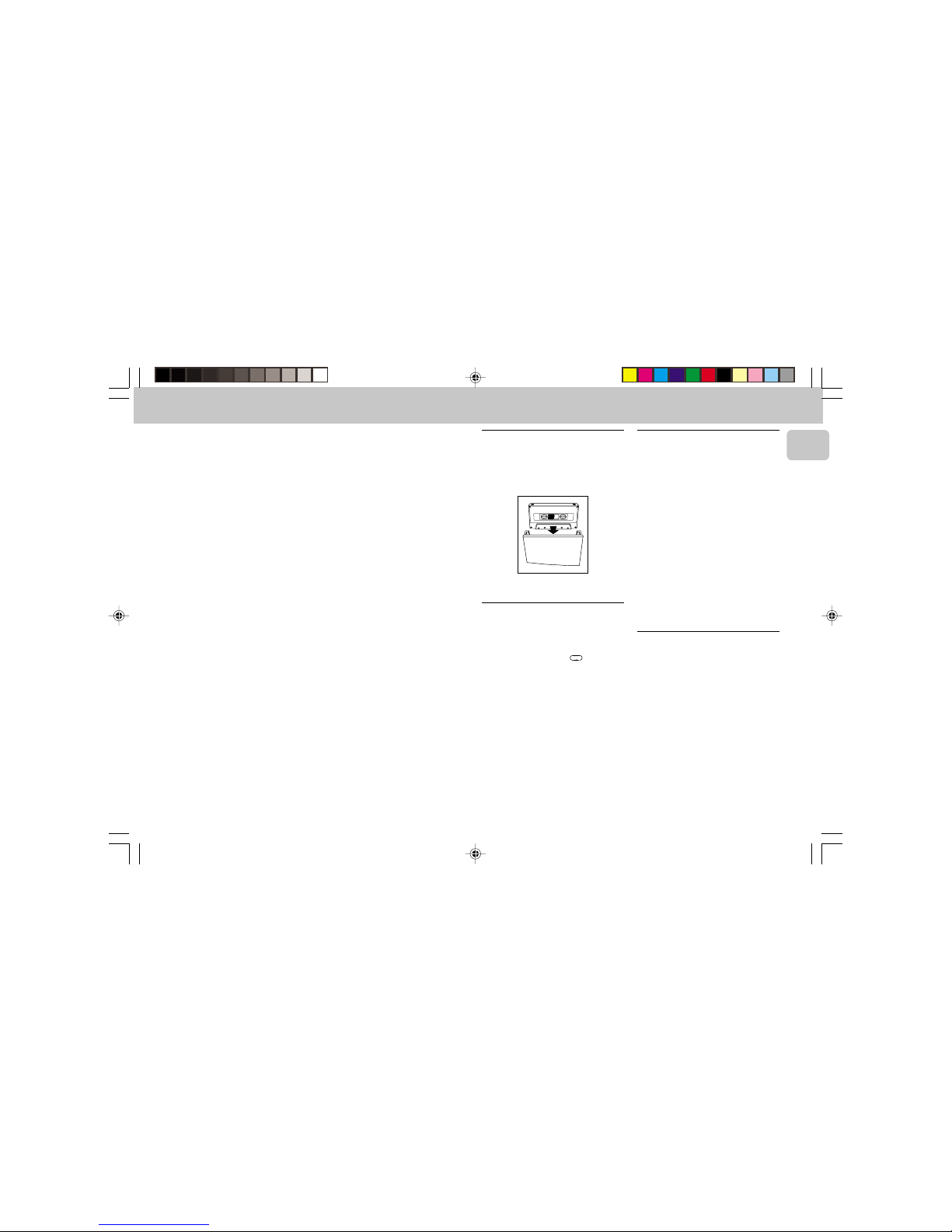

Loading a tape

1 Press OPEN. 2 The tape deck door opens. 3 Load the tape with the open side

downward and the full spool to the left.

4 Close the tape deck door.

Auto Replay

• Press A. REPLAY to select either

continuous AUTO REPLAY or ONCE during tape playback. ™ "AUTO REPLAY "( ) or "ONCE

"(È) will be displayed.

Notes: – This feature is available during tape

playback only.

– When "

AUTO REPLAY

" is selected, the tape will rewind automatically at the end of playback for the selected side. Then it will start playing again. It will replay up to a maximum of 20 times until you press Ç.

– When "

ONCE

" is selected, the tape will play the selected side once and then stop.

Tape Playback

1 Press TAPE (TAPE 1•2) to select TAPE

mode. ™ "TAPE 1" or "TAPE 2" will be

displayed and followed by "T1 222 " or "T2 222".

2 Load the tape into the selected tape

deck.

3 Press É to start playback.

™ "T1" or "T2" with "2" scrolling right

will be displayed.

• Press A.REPLAY to select the different

type of playback mode

(see Auto

Replay).

4 Press Ç to end playback.

™ "T1" or "T2" with "222" will be

displayed.

Rewind/Fast Forward

When playback is stopped 1 You can rewind or fast forward the tape

by pressing à or á respectively. ™ If rewinding, "T1 1 or T2 1" with

“1” scrolling left will be displayed.

™ If fast forwarding, "T1 2 or

T2 2" with “2” scrolling right will

be displayed.

™ The tape will stop automatically at

the end of rewinding or fast forwarding.

2 Press Ç to stop rewinding or fast

forwarding.

Untitled-60 12/12/00, 6:33 PM17

3139 116 19381

English

Selecting External Equipment

If you have connected the audio out terminals of the external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX IN terminals, you can hear the enhanced sound from the system.

• Press AUX (CDR/VIDEO) to select the

external equipment. ™ "AUX1 CDR" will be displayed.

Note: – All the sound control features (e.g. DSC,

DBB, etc.) are available for selection.

TAPE AUX

During playback

• Press and hold à or á until the

desired passage is located. ™ “T1 or T2” with “11 or 22”

scrolling left or right will be displayed depending on which button is pressed.

™ During searching, the sound is

reduced to a low volume.

™ When you release à or á, the

tape continues playing.

Notes: – During rewinding or fast forwarding of a

tape, it is also possible to select another source (e.g. CD, TUNER, or AUX).

– Before playing a tape, check and tighten

slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism.

– C-120 tape is extremely thin and is

easily deformed or damaged. It is not recommended for use in this system.

– Store the tapes at room temperature

and do not put them too close to a magnetic field (for example, a transformer, TV, or speaker).

Untitled-60 12/12/00, 6:33 PM18

3139 116 19381

English

Notes: – For recording, use only tape of IEC type I

(normal tape) or IEC type II (Cr02).

– The tape is secured at both ends with

leader tape. At the beginning and end of tape, nothing will be recorded for six to seven seconds.

– The recording level is set automatically,

regardless of the position of VOLUME, DBB, Incredible Surround, DSC or VEC.

– To prevent accidental recording, break

out the tab on the left shoulder of the tape side that you want to protect.

– If "

CHECK TAPE

" is displayed, the protection tab has been broken. Put a piece of clear adhesive tape over the opening. Do not cover the Cr02 tape detection hole when covering the tab opening.

One Touch Recording

• For One Touch Recording, as soon as you press RECORD, the current source (CD, TUNER or AUX) will be recorded on tape deck 2.

1 Load a blank tape in tape deck 2. 2 Press RECORD to start recording.

™ The REC flag starts flashing.

3 Press Ç to stop recording.

Note: – When you press RECORD while in TAPE

mode, "

SELECT SOURCE

" will be displayed. One Touch Recording is not possible in TAPE mode.

RECORDING

CD Synchro Start Recording

1 Load a blank tape into tape deck 2 and a

disc into a disc tray.

2 Press CD to select CD mode.

• You can program the tracks in the order you want them to be recorded (see Programming Tracks). If not, select the disc by pressing CD (CD 1•2•3) and the tracks are recorded according to the order on the selected disc.

3 Press RECORD to start recording.

™ The REC flag starts flashing.

• CD will start playback automatically.

4 Press Ç to stop recording.

Dubbing tapes

(from tape deck 1 to

tape deck 2)

1 Press TAPE ( TAPE 1•2 ) to select tape

deck 2.

2 Load the prerecorded tape into tape

deck 1 and a blank tape into tape deck 2 with full spool to the left.

3 Press DUBBING

™ "DUB" with "2" scrolling right will be

displayed.

• Dubbing will start immediately. ™ The REC flag starts flashing.

4 Press Ç to stop dubbing.

Untitled-60 12/12/00, 6:33 PM19

3139 116 19381

English

RECORDING CLOCK

Notes: – At the end of side A, flip the tapes to

side B and repeat the procedure.

– Dubbing of tapes is only possible from

tape deck 1 to tape deck 2.

– To ensure good dubbing, use tapes of

the same length.

– You can listen to other source while

dubbing.

Recording from other sources

(only on tape deck 2)

1 Press TAPE ( TAPE 1•2 ) to select tape

deck 2.

2 Load a blank tape into tape deck 2 with

the open side downward.

3 Press CD, TUNER or AUX.

• Start playback of the selected source. 4 Press RECORD to start recording.

™ The REC flag starts flashing.

5 Press Ç to stop recording.

Notes: – During recording, it is not possible to

listen to another source.

Digital Recording via Digital Out

For CD digital recording, please refer to the Instructions Manual of the CD Recorder, digital audio equipment, etc.

View Clock

You can view the clock (if it is set) if the system is in Standby mode or when any sound source is selected (CD, TUNER, etc.). The clock will be displayed for about seven seconds.

• Press CLOCK•TIMER briefly.

™ “10:38 PM or 22:38” (the current

time in either 12- or 24-hour mode) will be displayed depending on whether you have selected 12- or 24hour mode.

™ “--:--” will be displayed if the

clock is not set.

Clock Setting

The clock can be set in either 12- or 24hour mode, e.g. “12:00 AM“ or “00:00“. Before setting the clock, you must be in the View Clock mode.

1 Press CLOCK•TIMER to select clock

mode.

2 Press PROGRAM to select 12- and 24-

hour mode. ™ If 12-hour mode is selected,

“12:00“ starts flashing and the AM lights up.

™ If 24-hour mode is selected,

“00:00” starts flashing.

3 Set the hour with à or á on the

system.

4 Set the minute with í or ë on the

system.

Untitled-60 12/12/00, 6:33 PM20

3139 116 19381

English

TIMER SLEEP TIMER

5 Press CLOCK•TIMER again to store the

setting. ™ The clock starts.

• To exit without storing the setting, press

Ç on the system.

Notes: – During clock setting, if no button is

pressed within 90 seconds, the system will exit clock setting mode automatically.

– When a power interruption occurs, the

clock setting is erased.

– To set the time with RDS clock, see

"Receiving RDS Radio Station" under TUNER section.

Timer Setting

• The system can switch on to CD , TUNER or TAPE 2 mode automatically at a preset time. It can serve as an alarm to wake you up.

• Before setting the timer, make sure the clock is set correctly.

• The timer will always be switched on once it is set.

• The volume of the timer will increase from the minimum level until the volume level before the set is switched to standby mode.

1 Press and hold CLOCK•TIMER for more

than

2 seconds

to select timer mode.

™ “12:00 AM” or “00:00" or the last

timer setting starts flashing depending on whether you have selected 12- or 24-hour mode.

™ The TIMER flag starts flashing. ™ The selected source is lit while other

available sources are flashing.

2 Press CD, TUNER or TAPE to select the

desired source.

• Before selecting CD or TAPE, make sure a CD or tape is loaded in the CD carousel tray or tape deck 2

3 Press à or á on the system to set

the hour for the timer to start.

4 Press í or ë on the system to set the

minute for the timer to start.

5 Press CLOCK•TIMER to store the start

time.

™ The timer is now set. ™ The TIMER flag remains on the

display.

• At the preset time, the timer will be activated. ™ The selected source will be played.

Notes: – During timer setting, if no button is

pressed within 90 seconds, the system will exit timer setting mode automatically.

– If the source selected is TUNER, the last

tuned frequency will be switched on.

– If the source selected is CD, playback

will begin with the first track of the selected disc or program. If the CD trays are empty, the TUNER will be selected instead.

– The timer will not activate if a recording

is in progress.

To switch off the TIMER 1 Press and hold CLOCK•TIMER for more

than

2 seconds

2 Press Ç on the system to cancel the

timer.

™ The timer is now switched off. ™ The display will show "CANCEL"

and the TIMER flag disappears.

To start the TIMER again

(for the same

preset time and source)

1 Press and hold CLOCK•TIMER for more

than

2 seconds

2 Press CLOCK•TIMER again to store the

start time.

™ The timer is now on. ™ The TIMER flag appears on the

display.

Sleep Timer

(only on remote control)

This feature allows you to select a length of time after which the system will switch to the standby mode automatically.

1 Press SLEEP on the remote control

repeatedly to select a period of time. ™ The selections are as follows (time in

minutes):

60 ™ 45 ™ 30 ™ 15 ™ OFF ™ 60

…

™ “SLEEP XX” or “OFF” will be

displayed. "XX" is the time in minutes.

2 When you reach the desired length of

time, stop pressing the SLEEP button. ™ After this amount of time passes, the

system will switch to the standby mode.

To switch off the Sleep Timer

• Press SLEEP repeatedly until "OFF" is displayed, or press the STANDBY ON button.

Untitled-60 12/12/00, 6:33 PM21

3139 116 19381

English

Specifications

AMPLIFIER

Output power

Music Power ..................................................... 2 x 70 W

RMS

(1)

................................................................................... 2 x 30 W

Signal-to-noise ratio ..................................... ≥ 67 dBA (IEC)

Frequency response ........................... 50 – 15000 Hz, ± 3dB

Input sensitivity

AUX In ...............................................................700 mV

Output

Speakers ................................................................ ≥ 6 Ω

Headphones ............................................ 32 Ω – 1000 Ω

Subwoofer Out .........................................................1.5 V

Digital (Coax) out .................................. IEC 958, 44.1kHz

(1) (6Ω,1kHz, 10% THD)

CD PLAYER

Number of programmable tracks ..................................... 40

Frequency response ...................................... 20 – 20000 Hz

Signal-to-noise ratio ..............................................≥ 80 dBA

Channel separation ..................................... ≥ 60 dB (1 kHz)

Total harmonic distortion ..................................... < 0.003%

TUNER

FM wave range ........................................... 87.5 – 108 MHz

MW wave range ..........................................531 – 1602 kHz

LW wave range.............................................. 153 – 279 kHz

Number of presets ............................................................40

Antenna

FM .................................................................... 75 Ω wire

AM .............................................................. Loop antenna

TAPE DECK

Frequency range

Chrome tape (type II) ....................... 80 – 12500 Hz (8 dB)

Normal tape (type I) ......................... 80 – 12500 Hz (8 dB)

Signal-to-noise ratio

Chrome tape (type II) .......................................... ≥ 52 dBA

Normal tape (type I) ............................................≥ 48 dBA

Wow and flutter ................................................ ≤ 0.4% DIN

SPEAKERS

System ................................ 2 way; double port bass reflex

Impedance ..................................................................... 6 Ω

Woofer ....................................................................1 x 5.25"

Tweeter..................................................................... 1 x 2.5"

Dimensions (w x h x d) ........................ 210x 310x 240 (mm)

Weight .............................................................. 2.8 kg each

GENERAL INFORMATION

Material ............................................................. Polystyrene

AC Power ................................................ 220 - 230 V/ 50 Hz

Power Consumption

Active ..................................................................... 75 W

Standby ................................................................ < 25 W

Dimensions (w x h x d) ........................ 265x 310x 340 (mm)

Weight (without speakers) ......................................... 6.6 kg

Subject to modification

SPECIFICATIONS

Untitled-60 12/12/00, 6:33 PM22

3139 116 19381

English

MAINTENANCE TROUBLESHOOTING

Maintenance

Cleaning the Cabinet

• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

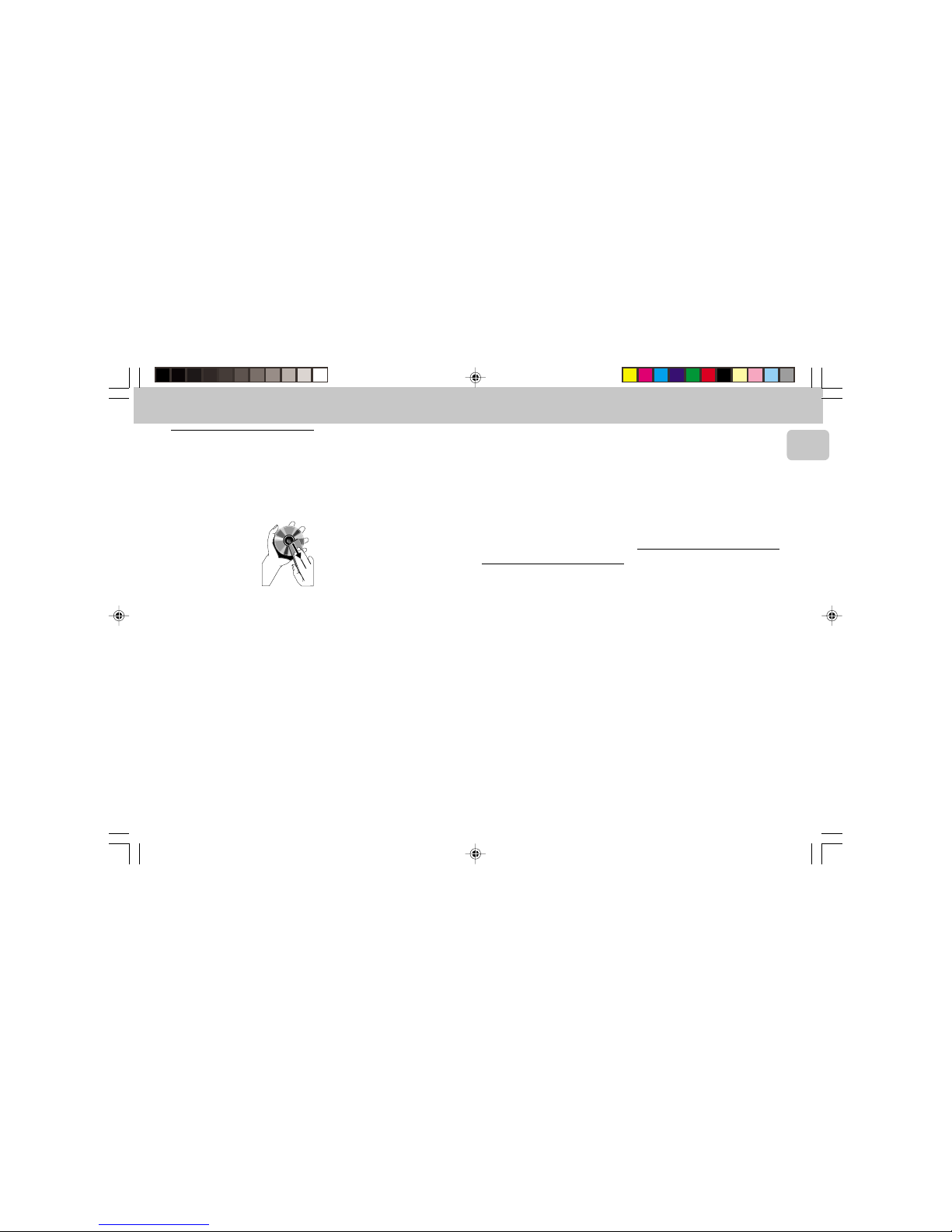

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog records.

Cleaning the CD lens

• After prolonged use, dirt or dust may accumulate at the CD lens. To ensure good playback quality, clean the CD lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the Heads and the Tape Paths

• To ensure good recording and playback quality, clean the heads, the capstan(s), and pressure roller(s) after every 50 hours of tape operation.

• Use a cotton swab slightly moistened with cleaning fluid or alcohol.

• You can also clean the heads by playing a cleaning tape once.

Demagnetizing the heads

• Use a demagnetizing tape available at your dealer.

Warning! Under no circumstances should you try to repair the set yourself as this will invalidate the guarantee. Do not open the set as there is a risk of electric shock.

• If a fault occurs, check the points listed below before taking the system for repair.

• Should any problems persist after you have made these checks, consult your nearest dealer or service center.

CD Player Operation

“NO DISC” is displayed.

• The disc is inserted upside down.

™

Place CD with printed side up.

• Moisture condensation at the lens.

™

Wait until lens has adjusted to normal room temperature.

• There is no disc in the CD tray.

™

Insert a CD.

• The CD is dirty, badly scratched or

warped.

™

Clean or replace the CD.

• The CD lens is dirty or dusty.

™

See section under Maintenance (page

23).

“DISC NOT FINALIZED” is displayed.

• The CD-RW or CD-R disc is not properly recorded for use with a standard CD player.

™

Read the instruction booklet of your CDRewritable or CD-Recorder on how to finalize a recording.

• The CD is badly scratched or dirty.

™

Replace or clean CD.

Radio Reception

Poor radio reception.

• The signal is too weak.

™

Adjust the antenna.

™

Connect an external antenna for better reception.

• The TV or VCR is too close to the stereo system.

™

Separate the stereo system from the TV or VCR.

“NO RDS TEXT” is displayed.

• RDS text message is not available.

™

Select another RDS station.

Untitled-60 12/12/00, 6:33 PM23

3139 116 19381

English

TROUBLESHOOTING

Tape Deck Operation

“RECORDING ACTIVE” is displayed.

• A recording is in progress.

™

Stop the recording or wait until it is finished.

“TAPE DUBBING ONLY” is displayed.

• Tape dubbing is only possible in tape mode.

™

Switch source to tape mode.

Recording or playback cannot be made or there is a decrease in audio level.

• Dirty tape heads, capstans or pressure rollers.

™

See section on tape deck maintenance (page 23).

• Magnetic build-up in the record/ playback head.

™

Use demagnetizing tape.

Tape deck door cannot open.

• Power failure or AC power plug disconnect from the wall outlet during tape playback.

™

Reconnect the AC power plug and switch on the system again.

General

System does not react when any button is pressed.

• Electrostatic discharge.

™

Press STANDBY ON to switch the system off. Remove the AC power plug from the wall outlet, then reconnect the power plug and switch on the system again.

No or poor sound.

• Volume is not turned up.

™

Adjust VOLUME.

• The headphones are connected.

™

Disconnect the headphones.

• Speakers are not connected or are connected wrongly.

™

Check that the speakers are connected correctly.

™

Make sure the stripped speaker wire is clamped.

Reversed left and right sound.

• Speakers are connected wrongly.

™

Check the speaker connections and location.

Lack of bass sound or apparently imprecise physical location of musical instruments.

• Speakers are connected wrongly.

™

Check the speaker connection for proper phasing, colored/black wires to colored/black terminals.

Remote control has no effect on the system.

• Wrong source is selected.

™

Select the source (CD, TUNER, etc.) before pressing the function button, (É, í, ë, etc.).

• The distance to the system is too large.

™

Reduce the distance.

• Batteries are inserted incorrectly.

™

Insert the batteries with their polarities (+/– signs) as indicated.

• Batteries are exhausted.

™

Replace the batteries.

Timer is not working.

• Clock is not set.

™

Set the clock.

• Timer is not switched on.

™

Press CLOCK•TIMER to switch on the timer.

• Recording is in progress.

™

Stop recording.

Clock setting is erased.

• There was a power failure.

™

Reset the clock.

System displays features automatically; buttons flash continuously.

• Demonstration mode is switched on.

™

Press and hold Ç (on the system) for 5 seconds to switch off the demonstration.

All lighted buttons are not lit.

• Display is switch on in DIM 3 mode.

™

Press DIM until DIM OFF display mode is shown.

Untitled-60 12/12/00, 6:33 PM24

Philips FW-C38/25, FW-C38/37, FW-C38 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
