Philips FW930/37 User Manual

Mini HiFi System

Toll Free Help Line

Ligne d'assistance en service libre Linea de ayuada telefónica sin cargo

800-531-0039

FW930R

Return your Warranty Registration card today to

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ensure you receive all the benefits you’re entitled to.

• Once your Philips purchase is registered, you’re eligible to receive all the privileges of owning a Philips product.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Know these

safety

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the

t s

safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

symbols

• So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. _______________________________

Serial No. ________________________________

WARNING:

HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION:

blade of plug to wide slot, and fully insert.

TO PREVENT FIRE OR SHOCK

To prevent electric shock, match wide

MAC5097

Visit our World Wide Web Site at http://www.philipsusa.com

Congratulations on your purchase, and welcome to the “family!”

Dear Philips product owner:

Thank you for your confidence in Philips.You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the Philips “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

•

Hurry!

And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome–and thanks for investing in a Philips product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

P.S. Remember, to get the most from your Philips

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

English

Este símbolo tiene por finalidad advertir al usuario de la presencia de tensión peligrosa no aislada dentro de la caja del aparato, que puede ser lo suficientemente fuerte para constituir un peligro de choque eléctrico.

Este símbolo sirve para advertir al usuario de la presencia de instrucciones de manejo y mantenimiento (servicio) importantes en el manual que acompaña al aparato.

AVISO

RIESGO DE CHOQUE ELÉCTRICO

NO ABRIR

Atención: Para reducir el riesgo de choque elécrico,

no quite la tapa (o el panel posterior).

En su interior no hay piezas que el usuario pueda reparar.

Para servicio dirijase a personal calificado.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

AVIS

RISQUE DE CHOCS ÉLECTRIQUES

NE PAS OUVRIR

Attention: Afin de prévenir le risque de chocs électriques,

Toute réparation devrait être confiée à un personnel qualifié.

ne pas retirer les vis.

Ce symbole indique la présence d’une tension suffisamment élevée pour engendrer un risque de chocs électriques.

Ce symbole indique que le manuel d’installation fourni avec l’appareil contient d’importantes recommandations quant au fonctionnement et à l’entretien de ce dernier.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure.

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.

Canada

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

AVIS

Afin de réduire tout risque d’incendie ou de choc

électrique, il ne faut pas exposer cet appareil à la pluie ou à l’humidité.

ATTENTION

L'utilisation des commandes ou réglages ou le non-

respect des procédures ci-incluses peuvent se traduire par une exposition dangereuse à l'irradiation.

L'appareil répond aux normes FCC, Part 15 et 21 CFR 1040.10.

Canada

Cet appareil numérique n'emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Class B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

AVISO

Para reducir el riesgo de fuego o choque eléctrico, no exponga el aparato a la lluvia o humedad.

ATENCIÓN

El uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.

El aparato cumple las normas FCC, Parte 15 y 21 CFR 1040.10.

CLASS 1

LASER PRODUCT

IMPORTANT SAFETY INSTRUCTIONS –

Read before operating equipment INDEX

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read these instructions – All the safety and

operating instructions should be read before the appliance is operated.

2. Keep these instructions – The safety and operating

instructions should be retained for future reference.

3. Heed all warnings – All warnings on the appliance

and in the operating instructions should be adhered to.

4. Follow all instructions – All operating and use

instructions should be followed.

5. Do not use this apparatus near water – for

example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Clean only with a damp cloth. The appliance

should be cleaned only as recommended by the manufacturer.

7. Install in accordance with the manufacturers instructions. Do not block any of the ventilation openings. For example, the appliance should not be

situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particulary at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

AC Polarized

Plug

EL 4562-E004: 99/3

English .....................................6

Français .................................36

Español ..................................70

EnglishFrançaisEspañol

AUDIO SYSTEM

One Year Free Labor

One Year Free Service on Parts

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, all parts will be repaired or replaced, and labor is free.After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges. All parts, including repaired and replaced parts, are covered only for the original warranty period.When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.This includes, but is not limited to, prerecorded material, whether copyrighted or

not copyrighted.)

LIMITED WARRANTY

• a product that is used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase.Attach it to this owner’s manual and keep both nearby.Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair.When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts. (In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct,indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record the model and serial numbers found on the product below.Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # ____________________________________

SERIAL # ____________________________________

This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.

Philips Service Solutions Group, P.O. Box 2976,

Longview,Texas 75606, USA, (903) 242-4800

EL4965E006 / MAC 4110 / 12-98

CONTENTS GENERAL INFORMATION SAFETY INFORMATION

General Information ........................ 7

Safety Information ........................... 7

Preparation ................................. 8 - 9

Controls ................................... 10 - 12

Operating the system .............13 - 15

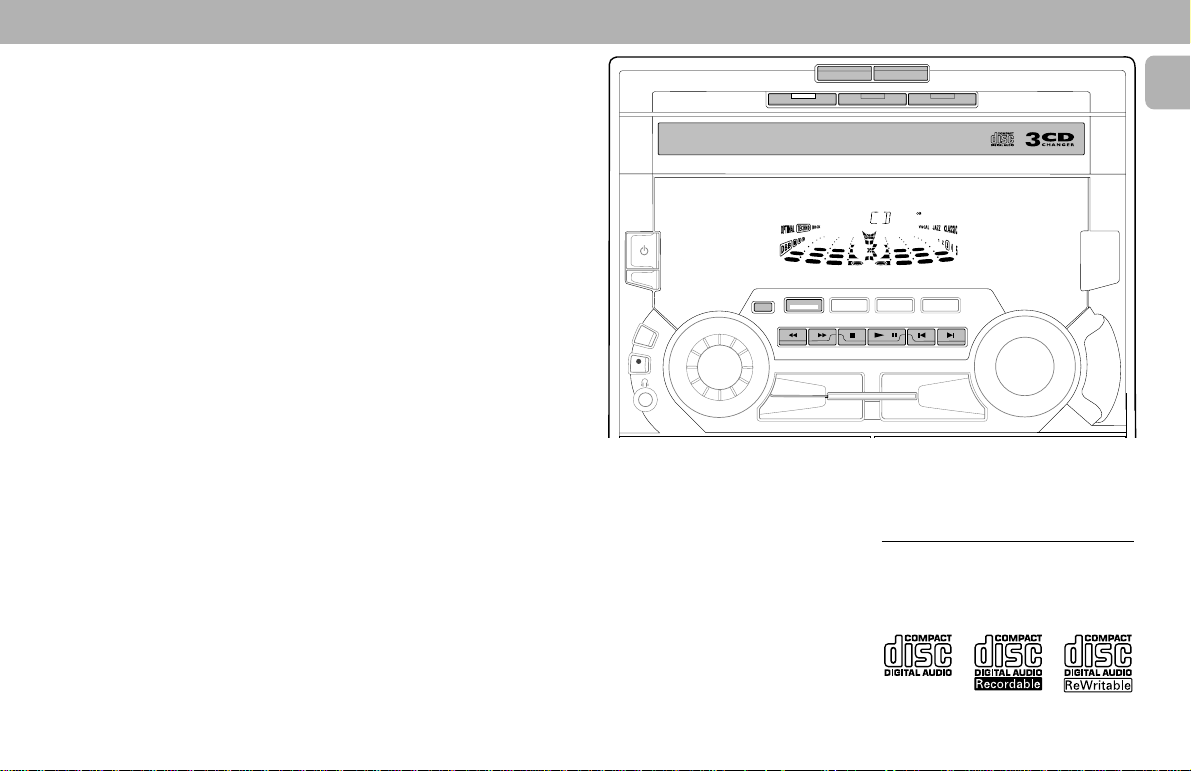

CD ............................................. 15 - 17

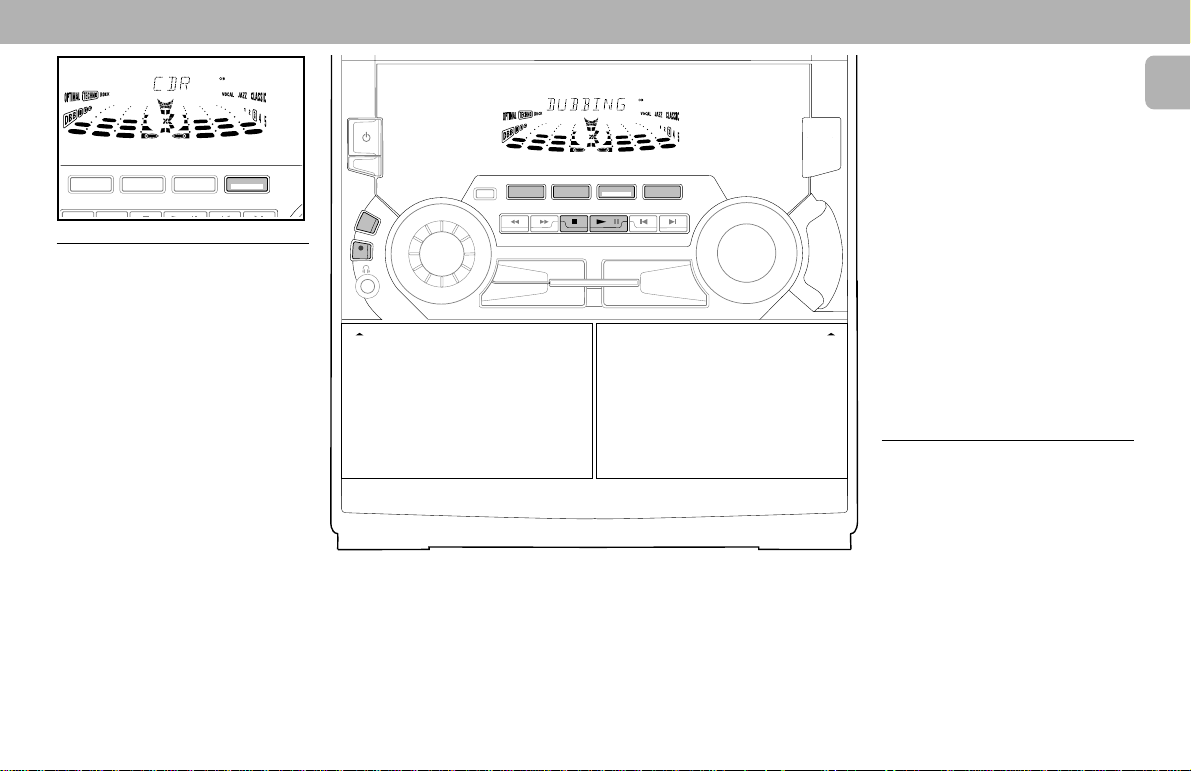

CD Recorder............................. 18 - 24

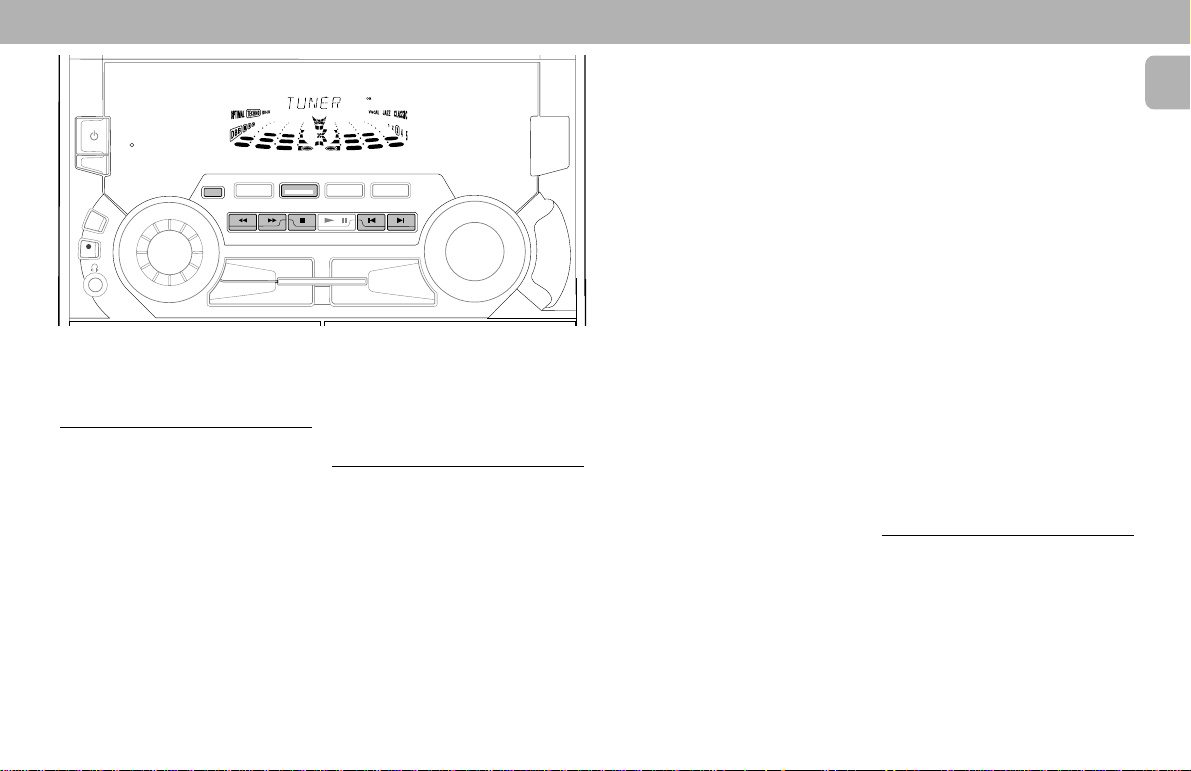

Tuner ................................................ 25

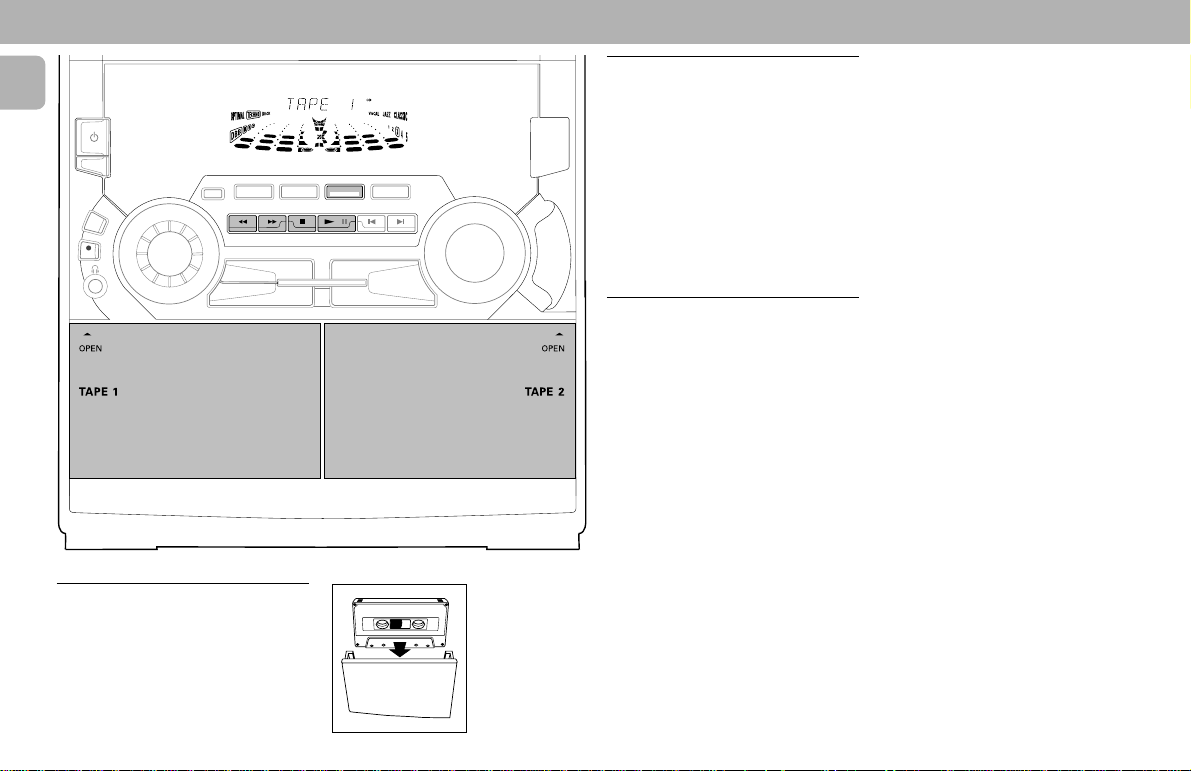

Tape.................................................. 26

AUX/CDR.......................................... 27

Recording .................................27 - 28

Clock ................................................ 29

Timer ......................................... 29 - 30

Maintenance .................................. 30

Specifications ................................ 31

Troubleshooting ..................... 32 - 33

General Information

• The typeplate (which contains the serial number) is located at the rear of the system.

• Recording is permissible if copyright or other rights of third parties are not infringed.

• This device complies with the Federal Communications Commission (FCC) rules, part 15 and with 21 CFR 1040.10. Operation is subjected to the following two conditions: – This device may not cause

harmful interference, and

– This device must accept any

interference received, including interference that may cause undesired operation.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Accessories

– Remote control – Batteries (two AA size) for remote

control – AM loop antenna – FM wire antenna – AC power cord – CD Recorder

(Supplied)

Safety Information

• Before operating the system, check that

the operating voltage indicated on the

typeplate (or the voltage indication

beside the voltage selector) of your

system is identical with the voltage of

your local power supply. If not, please

consult your dealer. The typeplate is

located at the rear of your system.

• When the system is switched on, do not

move it around.

• Place the system on a solid base (e.g. a

cabinet).

• Place the system in a location with

adequate ventilation to prevent internal

heat build-up in your system.

• The system incorporates a built-in

safety feature that prevents over

heating.

• Do not expose the system to excessive

moisture, rain, sand or heat sources.

• Under no circumstances should you

repair the system yourself, as this will

invalidate the warranty!

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the CD unit inside the system. Should this occur, the CD player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

• Electrostatic discharge may cause unexpected problems. See whether these problems disappear if you unplug the AC power cord and plug it in again after a few seconds.

• To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

PREPARATION

English

Rear Connections

HIGH POWER SUBWOOFER

MIN MAX

Connections general

The connections you make will depend upon the possibilities your audio equipment

STANDBY ON

CUT OFF FREQUENCY

60Hz 150Hz

IN ANALOG

OUT

DIGITAL

MAINS

OUT

CD PLAYER

DIGITAL OPTICAL OUTPUT

OPTICAL

CD RECORDER

LRLR

SUB-

DIGITAL

WOOFER

OUT

AUX/CDR IN

OUT LINE OUT

MAINS

FM ANTENNA 300Ω

AM ANTENNA

FRONT

– –

MINI SYSTEM

offers. Please refer to the user manuals for your other audio equipment first.

Digital recordings (optical or coaxial) give the best performance in audio and usability (e.g. auto-track). (The digital optical connection is less sensitive to external disturbances). If your equipment does not offer digital connections, the high quality Analog-Digital-Convertor of your CD recorder will ensure very good audio performance when recordings are made from the analog input.

Playback via the digital coaxial output of the CD recorder gives the best audio performance. If your equipment does not offer digital connections, the high quality Digital-Analog-Convertor of the CD recorder ensures a very good sound quality via the analog output.

We advise you to always establish both digital and analog connections. In this way you can always make analog recordings when digital recording is not possible.

PREPARATION

A AM Loop Antenna

Connection

Connect the supplied loop antenna to the AM ANTENNA terminal. Place the AM loop antenna far away from the system and adjust its position for the best reception.

B FM Wire Antenna

Connection

Connect the supplied FM wire antenna to the FM ANTENNA 300 Ω terminal. Adjust the position of the FM antenna for the best reception.

Outdoor Antenna

For better FM stereo reception, connect an outdoor FM antenna to the FM ANTENNA 300 Ω terminal using a 300 Ω dipole wire.

C Speakers Connection

• Connect the right speaker to Front terminal R, with the colored wire to + and the black wire to -.

• Connect the left speaker to Front terminal L, with the colored wire to + and the black wire to -.

• Clip the stripped portion of the speaker wire as shown.

12 mm

unlock lock

D Subwoofer Out Connection

Connect the optional active subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass effect (e.g. explosions, the rumble of spaceships, etc.). Be sure to follow the instructions supplied with the subwoofer.

E CD Recorder Connections

ANALOG CONNECTIONS

Connect the red plugs to the R sockets, and the white plugs to the L sockets.

For recording

Connect cable between the ANALOG INsockets on the CD recorder and the LINE OUT sockets on the mini system, or the CDR LINE- or TAPE OUT-sockets of an amplifier.

Note: – For recording directly from a CD player,

the analog input of the CD recorder should be connected to the analog output of the CD player.

For playback

Connect cable between the ANALOG OUTsockets on the CD recorder and the AUX/ CDR IN sockets on the mini system, or the input sockets of an amplifier e.g. TAPE IN, CDR or AUX.

Note: – Never use the PHONO input.

DIGITAL COAXIAL CONNECTIONS

For recording

Connect the cable between the DIGITAL INsocket on the CD recorder and the DIGITAL OUT-socket on the mini system or CD player.

For playback

Connect the cable between the DIGITAL OUT-socket on the CD recorder and the digital coaxial input of an amplifer or recording device.

Note: – Digital coaxial connection is only

required in case you wish to record from a CD player with digital coaxial output.

DIGITAL OPTICAL CONNECTIONS

For recording

Connect a fibre-optic cable between the IN OPTICAL of the CD recorder and the digital-optical output of a CD player.

Notes: – Digital optical connection is only

required in case you wish to record from a CD player with digital optical output.

– For playback, the digital coaxial output

or analog output should be connected to an amplifier.

– When connecting the Digital Optical

cable, make sure it is fully inserted until there is a click.

(not supplied)

F AC Power Supply

After all other connections have been made, connect the AC power cord to the system and to the wall outlet.

Inserting batteries into the Remote Control

• Insert the batteries (Type R06 or AA) into the remote control as shown in the battery compartment.

• To avoid damage from possible battery leakage, remove dead batteries or batteries that will not be used for a long time. For replacement, use type R06 or AA batteries.

English

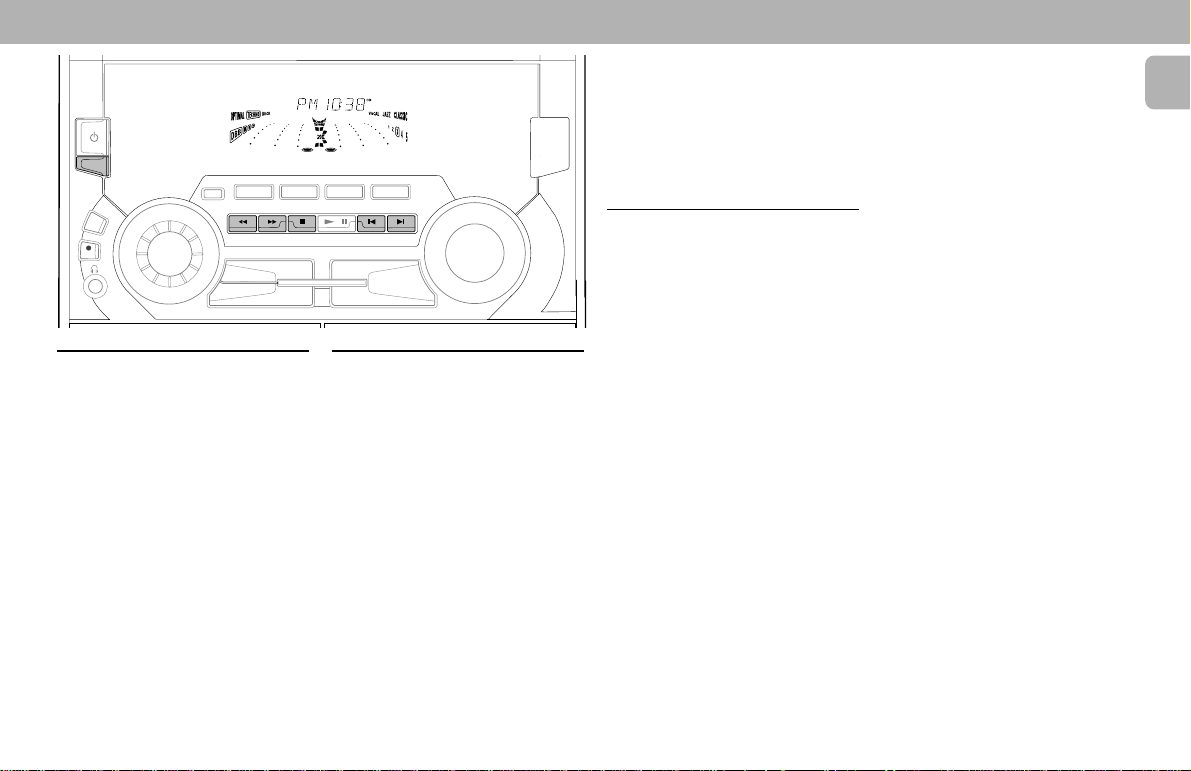

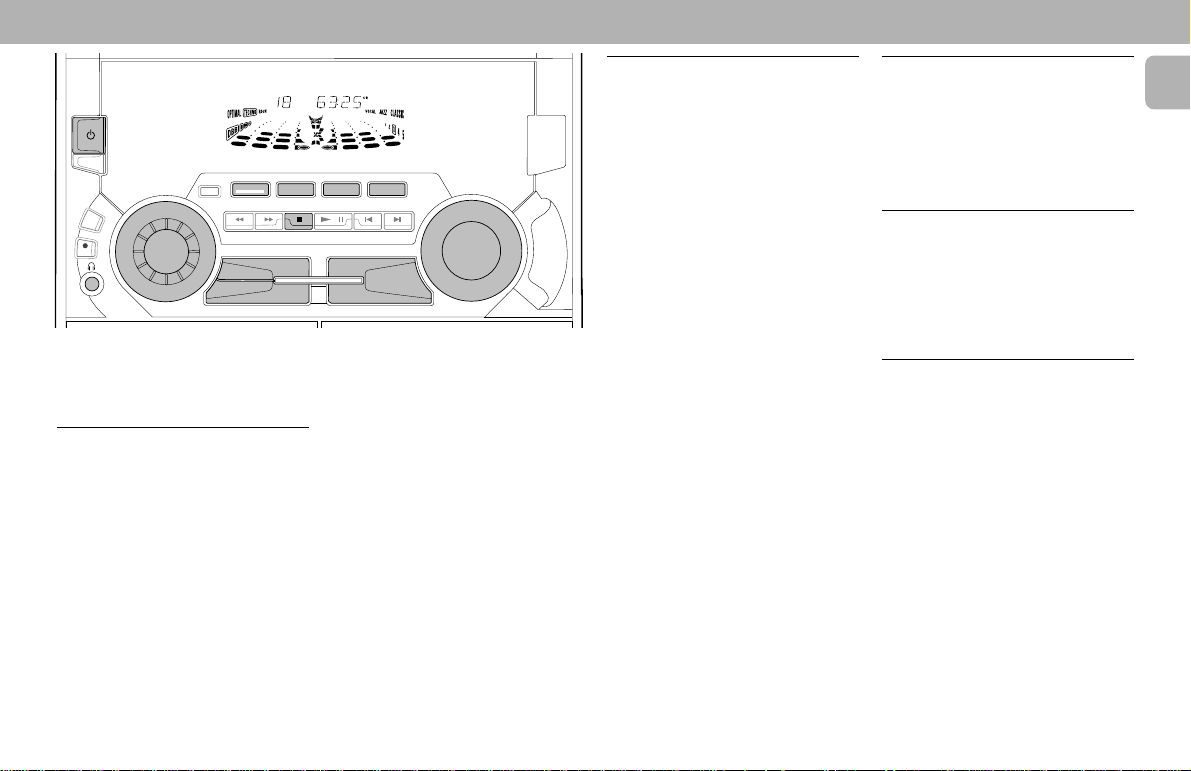

CONTROLS

English

# $ @

DISC CHANGE

DISC 1 DISC 2 DISC 3

OPEN•CLOSE

1 9

8 7

5 4

3 ™

¡

REC

DUB

(HSD)

MINI HIFI SYSTEM

STANDBY ON

CLOCK/ TIMER

PROG

PROGRAM REPEAT

TIMER

NEWS

T.A.

CD1 • 2 • 3

SEARCH • TUNING

SHUFFLE

REC LW

60Hz

250Hz

500Hz

1KHz

FM • AM

TUNER AUX

PLAY

STOP•CLEAR

SOUND NAVIGATION

INCREDIBLE SURROUND

DIGITAL

SOUND CONTROL

8KHz

4KHz

2KHz

TAPE 1 • 2

TAPECD

SIDEA•B

PAUSE PREV NEXT

DYNAMIC BASS BOOST

CHANGER

STEREO

BACK FRONT

HSD

DOLBY B

RDS

CDR

▲

A. REV

PRESET

▲

NEWS!

£

VOLUME

≤

(

)

AUX

CD 1/2/3

í

à

DBB DSC

TAPE 1/2

REPEAT

INTRO SCAN

VOLUME

É

Ç

Å

SIDE

TUNER

SHUFFLE

TRACK

INCREMENT

CDR

°

PROG.INC. SURR.

ë

á

2 ∞
