Philips EXP503, EXP501 User Manual [fr]

Portable MP3-CD player

EXP 501
EXP 503

Audio

Audio

Toll Free Help Line

Ligne d’assistance en service libre
Linea de ayuda telefónica sin cargo

800-531-0039

Return your Warranty Registration card today to

ensure you receive all the benefits you’re entitled to.

•

Once your Philips purchase is registered,
you’re eligible to receive all the privileges
of owning a Philips product.

• So complete and return the Warranty
Registration Card enclosed with your
purchase at once, and take advantage
of these important benefits.

Warranty

Verification

Registering your product
within 10 days confirms
your right to maximum
protection under the
terms and conditions of
your Philips warranty.

Owner

Confirmation

Your completed Warranty
Registration Card serves
as verification of owner­ship in the event of prod­uct theft or loss.

Model

Registration

Returning your Warranty
Registration Card right
away guarantees you’ll
receive all the information
and special offers which
you qualify for as the
owner of your model.

t

This “bolt of lightning” indi-

cates uninsulated material
within your unit may cause an elec­trical shock. For the safety of every­one in your household, please do not
remove product covering.

s

The “exclamation point” calls

attention to features for
which you should read the enclosed
literature closely to prevent operat­ing and maintenance problems.

WARNING: TO PREVENT FIRE

OR SHOCK HAZARD,DO NOT
EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.

CAUTION: To prevent electric

shock, match wide blade of plug to
wide slot, and fully insert.

For Customer Use

Enter below the Serial No. which is locat­ed on the rear of the cabinet. Retain this
information for future reference.

Model No. ________________________

Serial No. ________________________

Know these

ssaaffeettyy symbols

MAC5097

CAUTION

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DO NOT OPEN

3

English

9

0

!

@

#
$

%

^

&

*

8
7

A

L

B

U
M

•
T

I

T

L

E

S
E

A

E

L

IT

• T
LBUM

A

H
C

R
A

E
S

M

A

R

G

O

R

P

O

F

F

•
R

ES

UM

E

•
H

O

L

D

L

I

N

E

O

U

T

/

R
C

H

Y

A

L

P

IS

D

B

B

D

ESP

E

D

O

M

.

L

O

V

N

E

P

O

6

5
4

3

2

1

)

(

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus

near water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance
with the manufacturer´s
instructions.

8. Do not install near any heat

sources such as radiators, heat

registers, stoves,or other apparatus
(including amplifiers) that produce
heat.

9. Only use attachments/

accessories specified by the

manufacturer.

10 .

Use only with the
cart, stand, tripod,

bracket, or table

specified by the
manufacturer or sold with the
apparatus.When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.

11.

Refer all servicing to qualified

service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.

12 . Battery usage CAUTION

– To prevent battery leakage which
may result in bodily injury or
damage to the unit:

● Install all batteries correctly,

+ and - as marked on the unit.

● Do not mix batteries (old and new

or carbon and alkaline, etc.).

● Remove batteries when the unit is

not used for a long time.

EL 6474-E003: 01/6

IMPORTANT SAFETY INSTRUCTIONS

English ––––––––––––––––––––––––––––––––––––––––––––––––– 6

Français ––––––––––––––––––––––––––––––––––––––––––––––– 32

Español ––––––––––––––––––––––––––––––––––––––––––––––– 60

5

English

FrançaisEspañol

Canada

English:

This digital apparatus does not exceed the Class B limits
for radio noise emissions from digital apparatus as set
out in the Radio Interference Regulations of the
Canadian Department of Communications.

Français:

Cet appareil numérique n'émet pas de bruits
radioélectriques dépassant les limites applicables aux
appareils numériques de Classe B prescrites dans le
Règlement sur le Brouillage Radioélectrique édicté par

le Ministère des Communications du Canada.

Safety Instructions ––––––––––––––––––––––––––––––––––– 2, 4
Quick start ––––––––––––––––––––––––––––––––––––––––––– 7
Controls –––––––––––––––––––––––––––––––––––––––––––––– 8
General Information

Maintenance ––––––––––––––––––––––––––––––––––––––––– 9
Environmental information –––––––––––––––––––––––––––––– 9
MP3 and AAC music files –––––––––––––––––––––––––––––– 10

Power supply

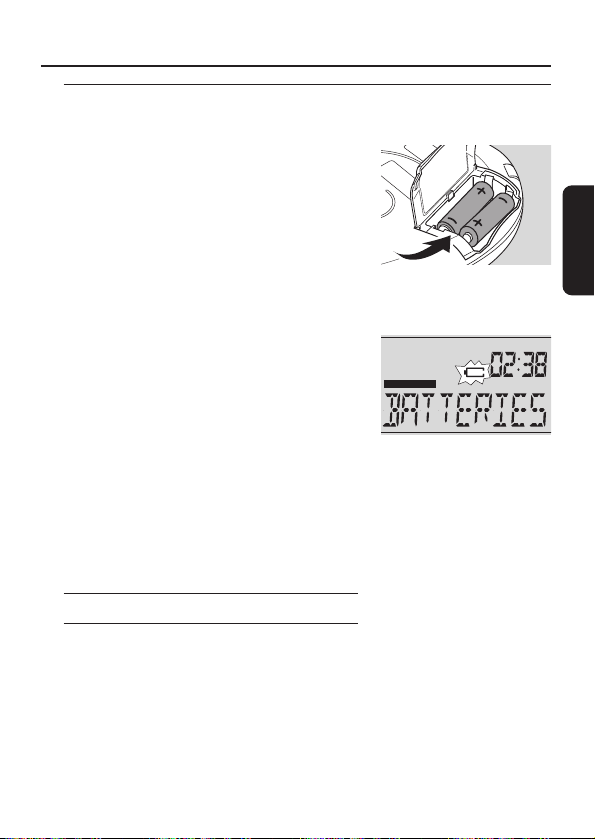

Batteries ––––––––––––––––––––––––––––––––––––––––––– 13

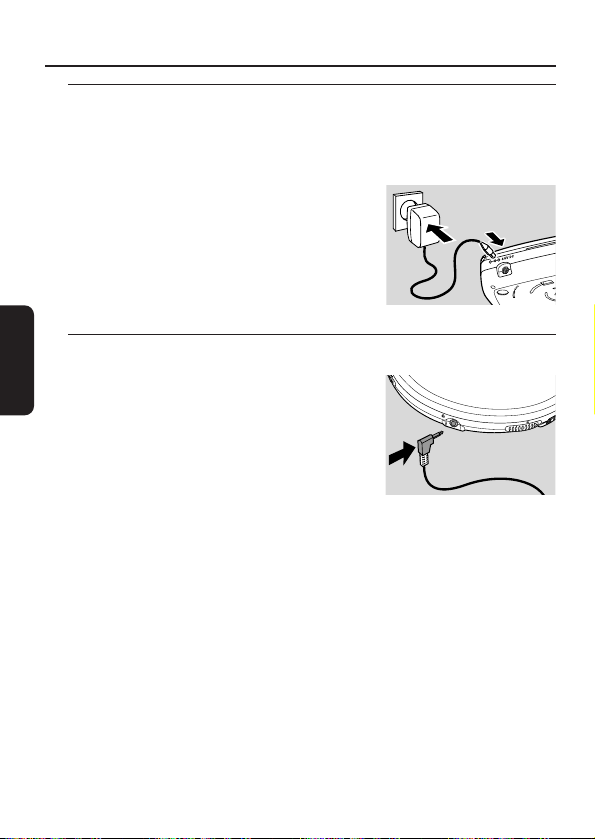

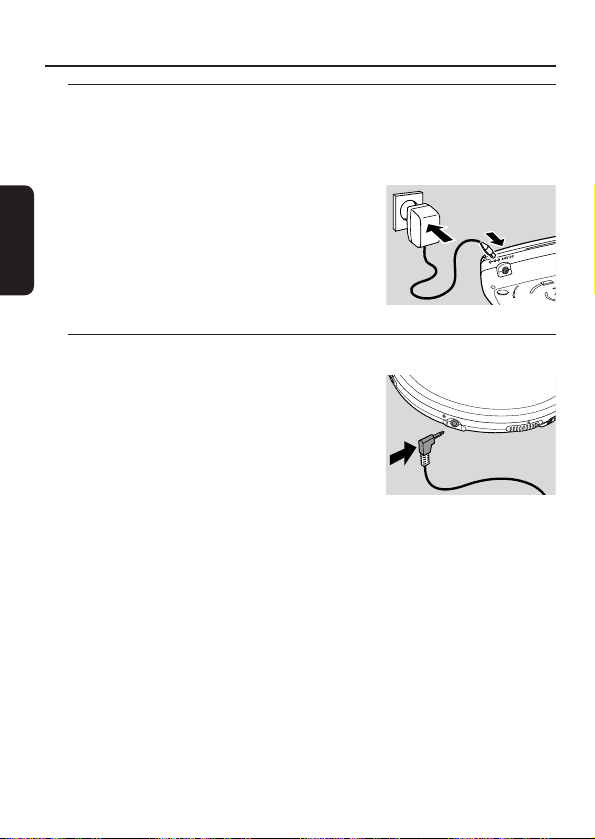

Power adapter –––––––––––––––––––––––––––––––––––––– 14

Headphones ––––––––––––––––––––––––––––––––––––––––– 14
Basic functions

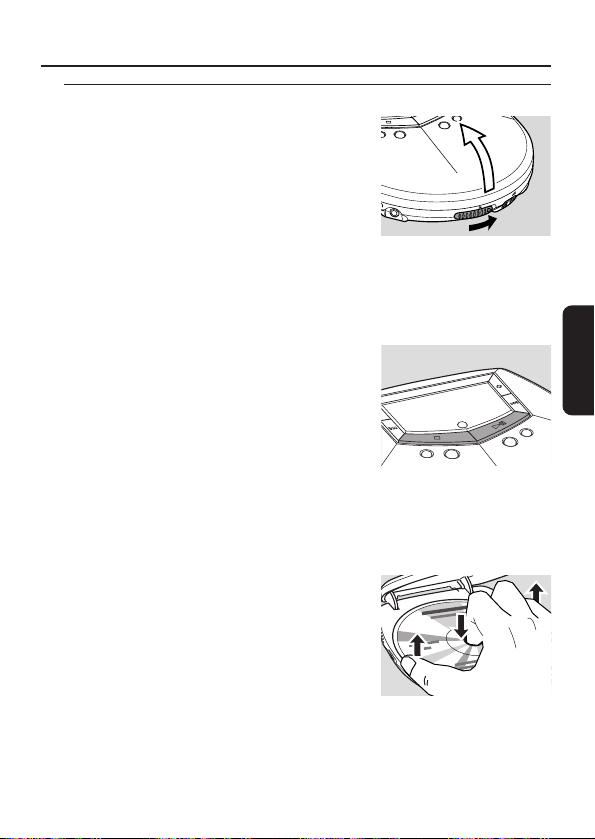

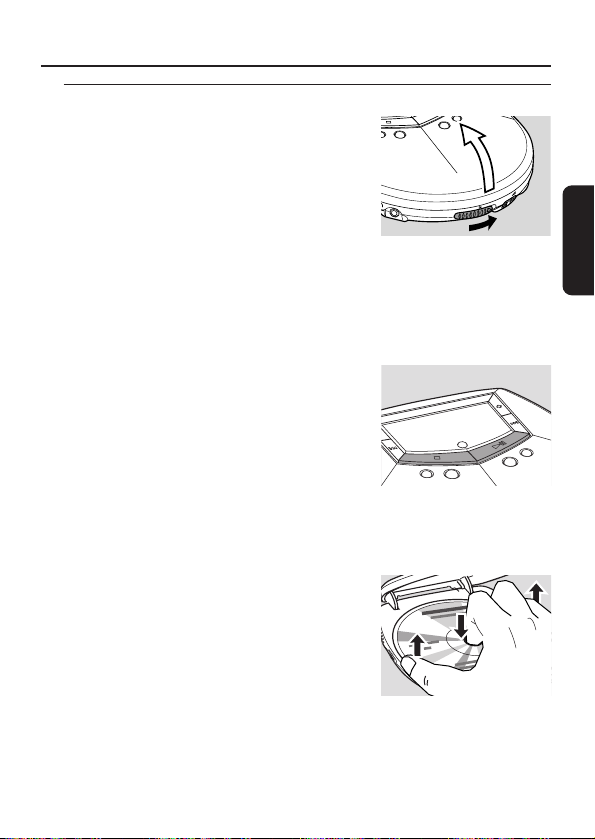

Playing a disc ––––––––––––––––––––––––––––––––––––––– 15
Playing Enhanced Music CDs and Mixed Mode CDs ––––––––– 16
Pause ––––––––––––––––––––––––––––––––––––––––––––– 16
Volume and sound ––––––––––––––––––––––––––––––––––– 17
Selecting and searching ––––––––––––––––––––––––––––––– 18
Selecting an album ––––––––––––––––––––––––––––––––––– 19

Features

Programming track numbers ––––––––––––––––––––––––––– 20
Clearing the program ––––––––––––––––––––––––––––––––– 20

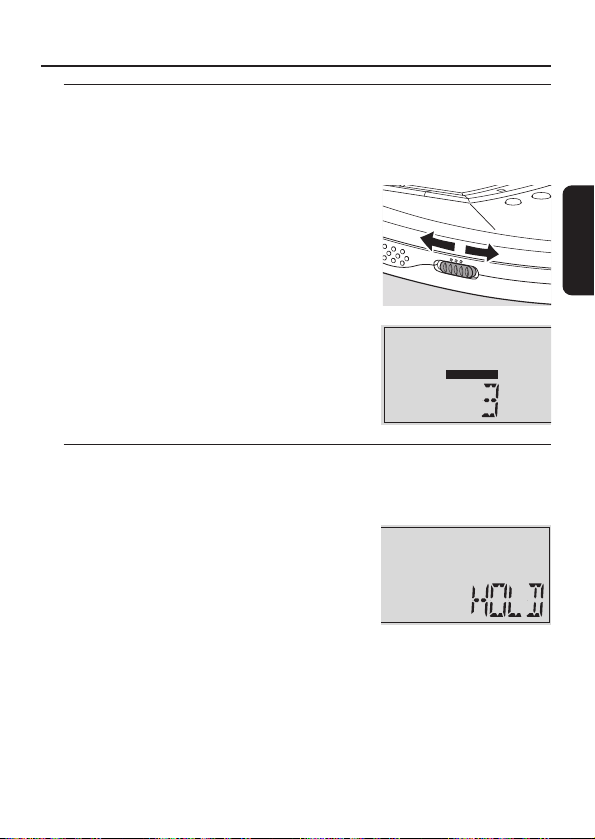

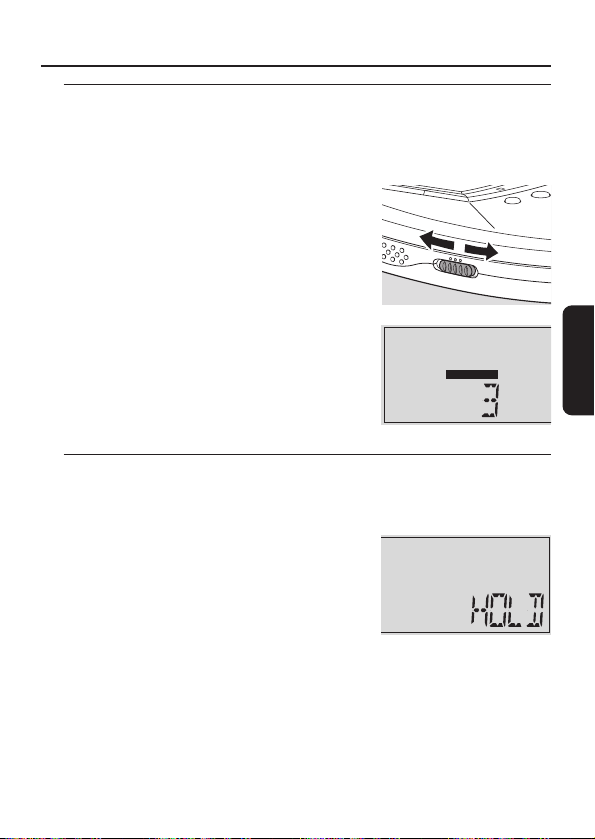

Storing the last position played – RESUME –––––––––––––––– 21
Locking all buttons – HOLD ––––––––––––––––––––––––––– 21
Selecting different playback possibilities – MODE ––––––––––– 22
Display of information –––––––––––––––––––––––––––––––– 23
ESP – Electronic Skip Protection –––––––––––––––––––––––– 24
Acoustic feedback ––––––––––––––––––––––––––––––––––– 24

Accessories

In-car connections ––––––––––––––––––––––––––––––––––– 25
Remote control ––––––––––––––––––––––––––––––––––––– 26
Belt clip ––––––––––––––––––––––––––––––––––––––––––– 26

Troubleshooting –––––––––––––––––––––––––––––––––––––– 27
Limited warranty ––––––––––––––––––––––––––––––––––––– 30

6

Contents

English

7

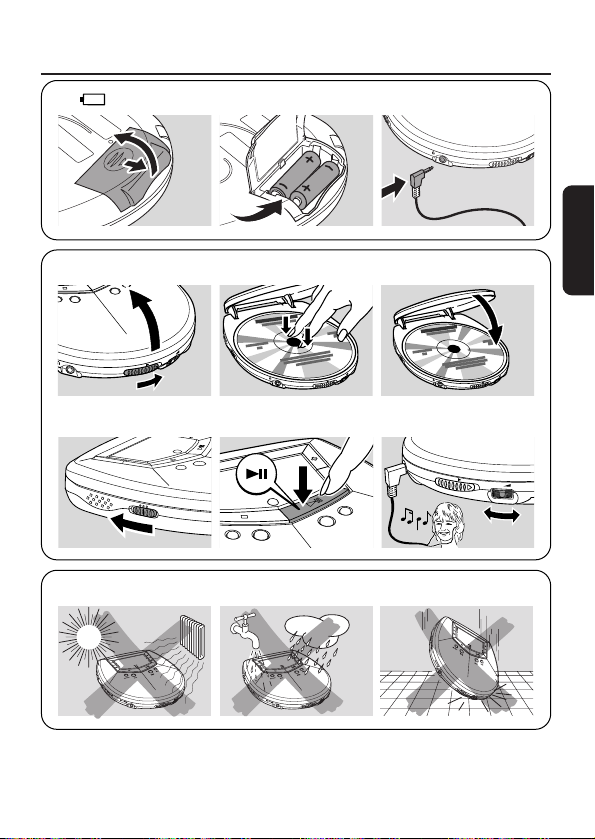

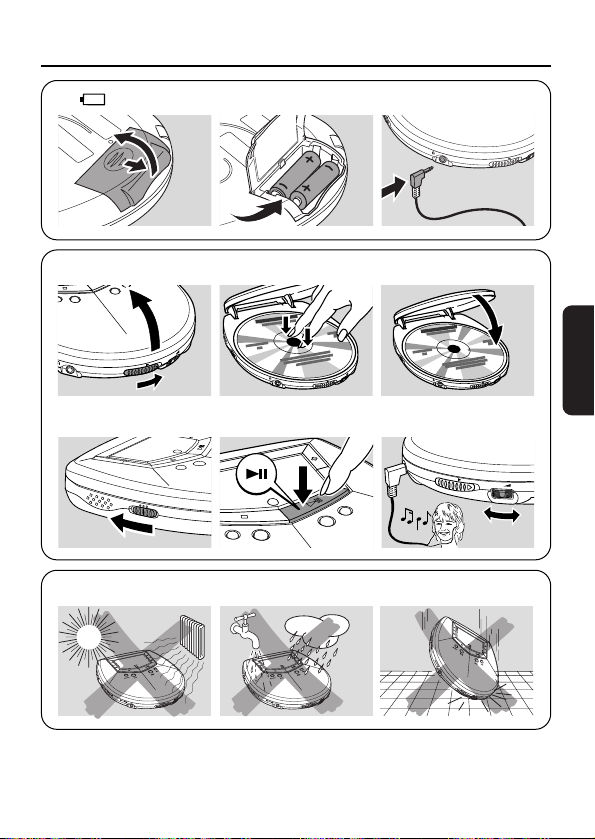

Quick start

English

!!!

12p

3 #

4 HOLD ➠ OFF 5 PLAY 2; 6 VOL E

G

T

I
T

O
F

F

•

R
E

S
U

M
E

•

H

O

L
D

L
I

N

E

O
U

T
/

M

A

R

B

B

D

P

S

E

E

D

O

M

.
L
O

V

N

E

P

O

L

E

Y

DISPLA

E

L

T
I

T

•

M

U

B
L

A

H

C

R

A
E

S

O

F

F

•

R

E

S

O
F
F

•R
E

S
U

M
E

•

H

O
L

D

L
I

N
E

O
U

T

/

S
E

A

R
C

H

E

D

O

M

M

A

R

G

O

R

P

Y

A

L

P

IS

OGRAM

D

MODE

U

M

E

•

H

O

L

D

.

L
O
V

N
E

P

O

A
L

B
U

M

•

T

I

T

L

E

S
E

A

R
C

H

P

S

E

O
F

F

•

R
E
S

U
M

E

•

H
O

L
D

L

I
N

E

O
U
T

/

O

DBB

L.

O

V

N

E

P

O

.
L

O
V

N
E
P

O

P

E

N

V

O

L

1 OPEN 2

opens the CD compartment

2 VOL E

adjusts the volume

3 2;

switches the unit on, starts
playback and interrupts playback

4 ESP

Electronic Skip Protection
prevents music interruptions
caused by shocks or vibrations

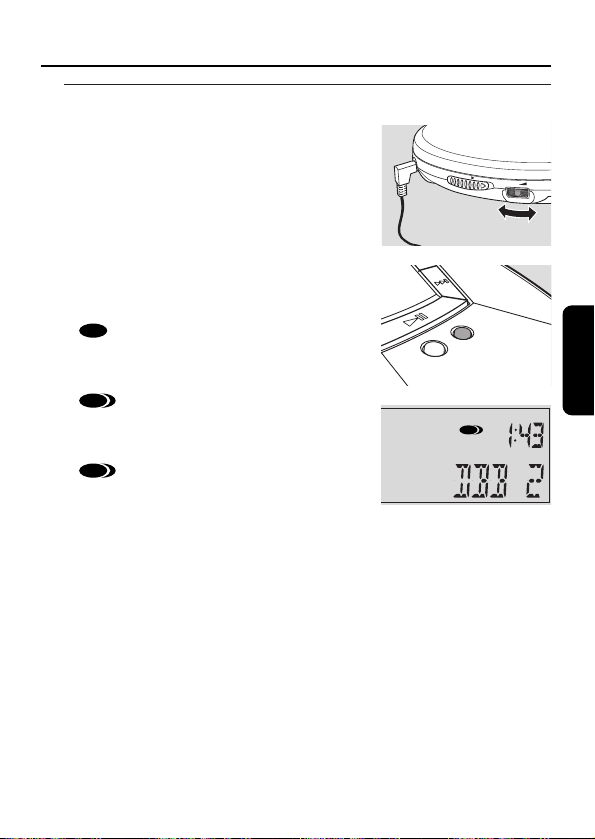

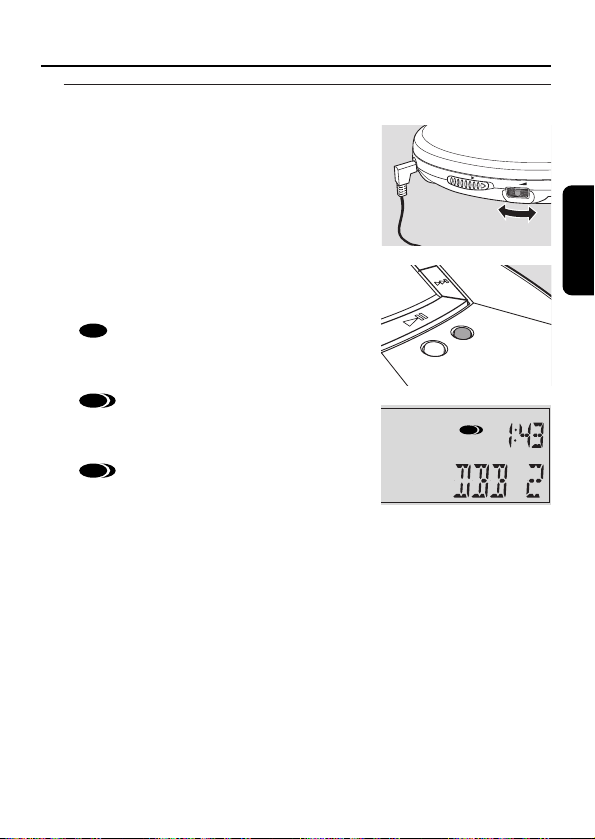

5 DBB

Dynamical Bass Boost, selects
the bass enhancement

6 §

skips forward and
searches forward

7 +

MP3-CD only: selects the next
album or skips forward

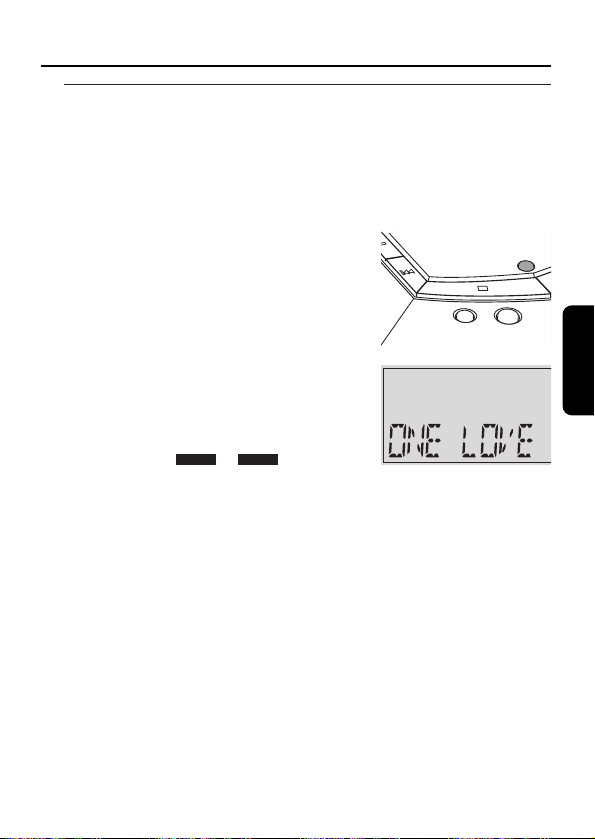

8 DISPLAY

selects the track and album
information for MP3-CDs

9 display
0 −

MP3-CD only: selects the previous
album or skips backward

! ∞

skips backward and
searches backward

@ OFF · RESUME · HOLD

OFF switches off RESUME and
HOLD
RESUME stores the last position
played
HOLD locks all buttons

# 9

stops playback, clears a program,
and switches off the unit

$ PROGRAM

programs tracks and lets you
review the program

% MODE

selects the different playing
possibilities such as SHUFFLE or

REPEAT

^ LINE OUT/p

3.5 mm line out to connect
– the headphones
– this unit to the audio input

of your stereo equipment

– the remote control

& 4.5V DC

to connect the external power
supply

* battery compartment
( type plate

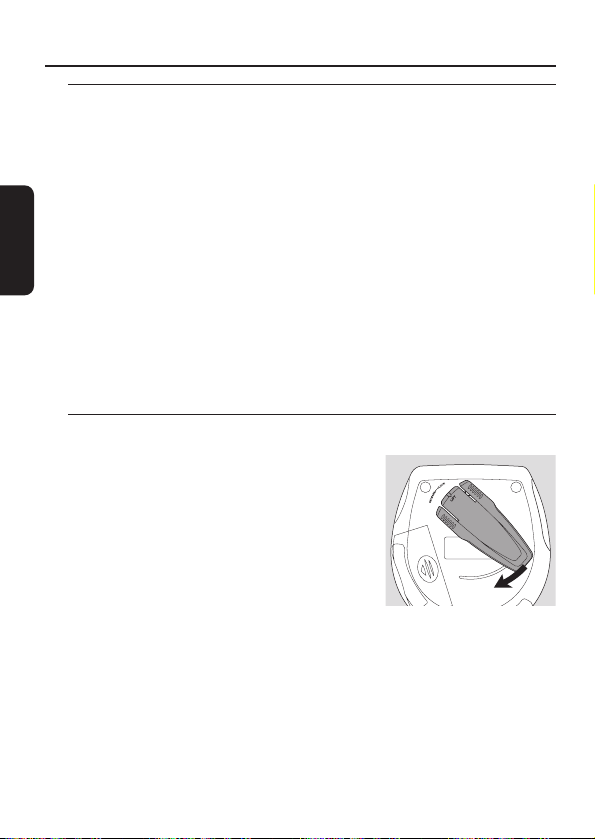

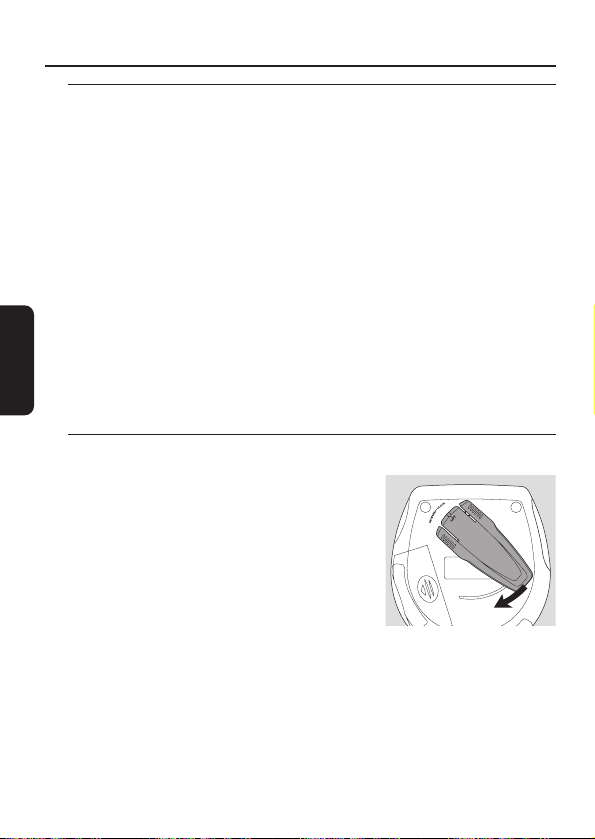

) belt clip hole

8

Controls,refer to the illustrations on page 3

English

Maintenance

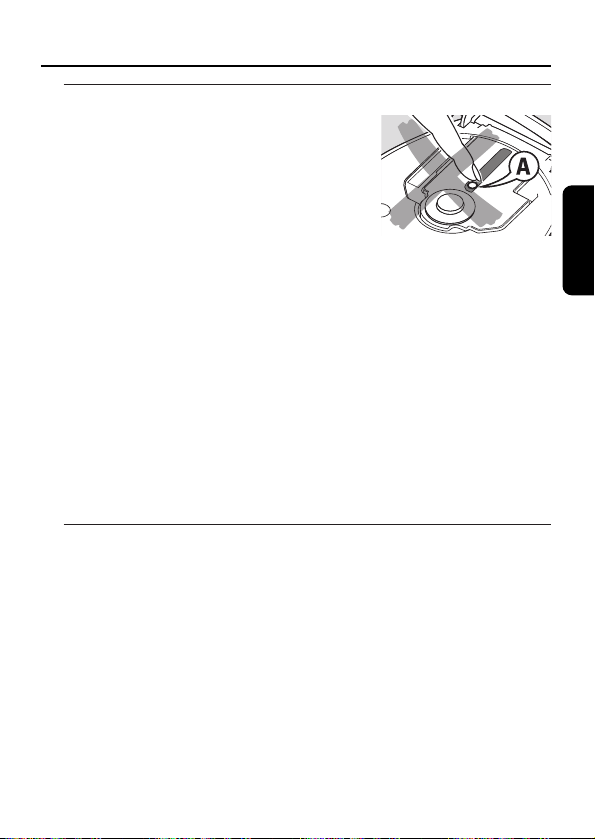

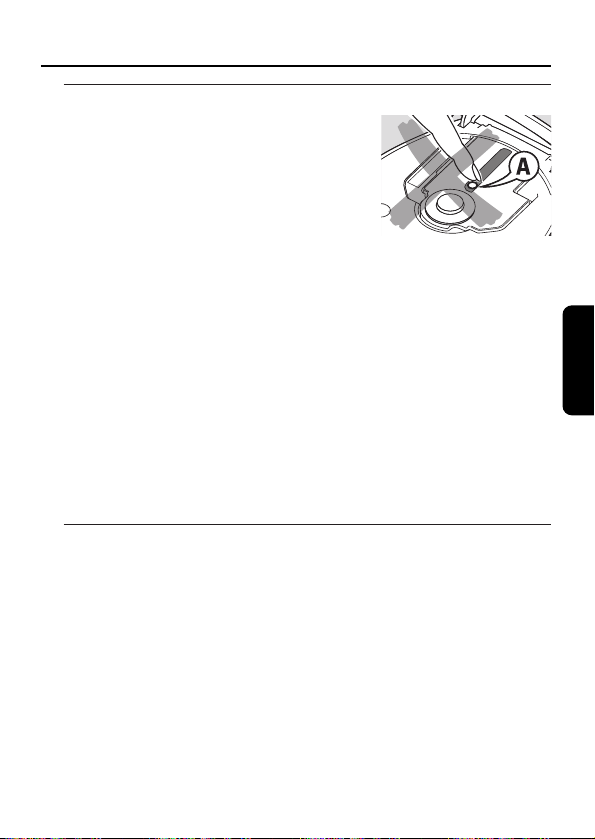

Do not touch the lens A of the unit.

Do not expose the unit, batteries or discs to
humidity, rain, sand or excessive heat (caused
by heating equipment or direct sunlight).

The lens may cloud over when the unit is
suddenly moved from cold to warm
surroundings. Playing is not possible then.
Leave the unit in a warm environment until the moisture evaporates.

Active mobile phones in the vicinity of this unit may cause malfunctions.

Avoid dropping the unit as this may cause damage.

Clean the unit with a soft, slightly dampened, lint-free cloth. Do not use
any cleaning agents as they may have a corrosive effect.

To clean a disc, wipe it in a straight line from the center toward the edge
using a soft, lint-free cloth.Cleaning agents may damage the disc.

Environmental information

All redundant packing material has been omitted.We have tried to make
the packaging easy to separate into three single materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your set consists of materials which can be recycled if disassembled by
a specialized company. Please observe the local regulations regarding the
disposal of packing materials, dead batteries and old equipment.

9

General information

English

MP3 and AAC music files

The music compression technologies MP3 (MPEG Audio Layer 3) and AAC
(Advanced Audio Coding) reduce the digital data of an audio CD significantly
while maintaining CD-like sound quality.With MP3, for example, you can
record up to 10 hours of CD-like music on a single CD-ROM.This unit plays
MP3 and AAC music files.

How to get music files

Either download legal music files from the internet to your computer
harddisc or create them from your own audio CDs. For this, insert an audio
CD into your computer´s CD-ROM drive and convert the music using an
appropriate encoder software.To achieve a good sound quality, a bit rate of
128 kbps or higher is recommended for MP3 music files.

Some encoder software offers an option to protect music files, i.e. the files
can only be played on the computer which created them. If you burn such
files on a CD-ROM, you cannot play them on this unit.Make sure to
deactivate the protection option in the encoder software before creating
the music files. In this case you are responsible for adherence to all local or
international copyrights.

How to organize music files

In order to easily handle the large number of music files on a CD-ROM,
you can organize them in folders (“albums”).

The tracks of an album will be played in alphabetical order. If you want to
arrange them in a certain order, let the file names start with numbers.
For example:

001-ONEWORLD.MP3
002-FIRESTARTER.MP3
003-DEEP.MP3

10

General information

English

This unit will play all albums in alphabetical
order.An album name includes all folders in
which the album is located, e. g.the album
VERDI in CLASSIC has the album name
CLASSIC\VERDI.

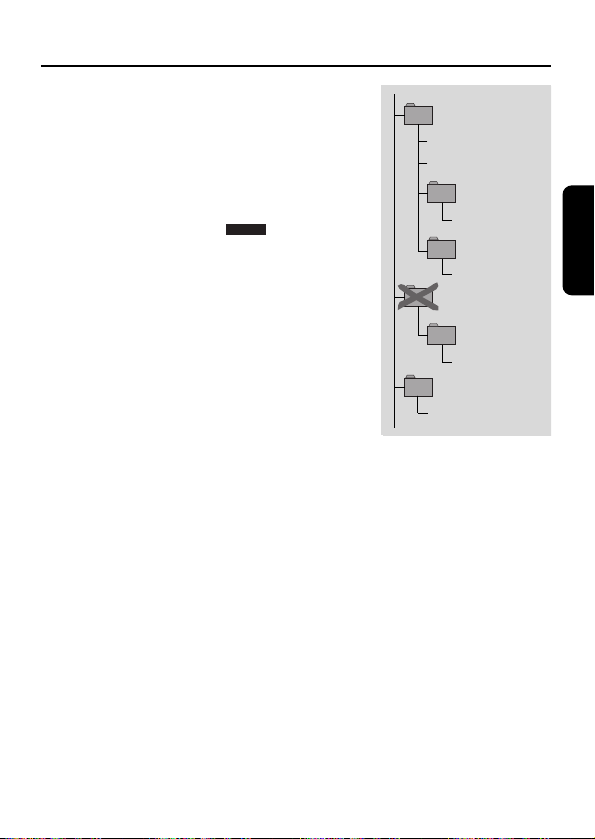

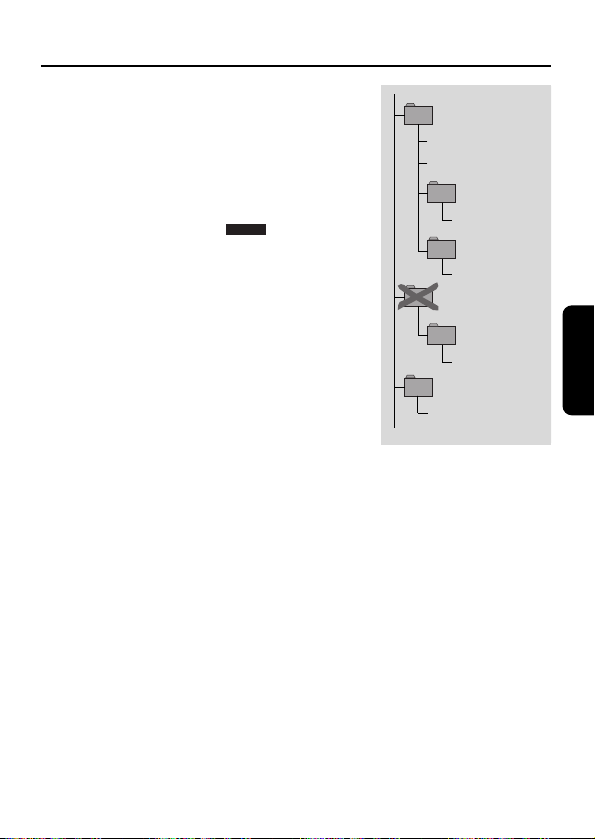

The albums in the illustration will be played
in the following way:

CLASSIC 1
CLASSIC\MOZART 2
CLASSIC\VERDI 3
POP\BLUR 4
REGGAE 5

In POP, there are no MP3 or AAC files.
POP is therefore skipped.

There may be an album VARIOUS with album
number 0 that will be played before all other
albums. VARIOUS contains all tracks which
you did not put into an album.

How to make a CD-ROM with MP3 or AAC files

Record (“burn”) the music files from your harddisc on a CD-ROM
with your computer´s CD burner.

Make sure the file names of the MP3 and AAC files end with .mp3
and .aac respectively.

When burning your MP3-CDs, use either ISO 9660 disc format or UDF.
CD burning software like “ Direct CD” or others support the UDF format.

11

General information

English

ALBUM

1 CLASSIC

.mp3
.mp3

2 MOZART

.mp3

3 VERDI

.mp3

4 BLUR

.mp3

5 REGGAE

.mp3

POP

Supported formats

This unit supports:
– Disc format: ISO 9660, Joliet, Multisession, UDF, Enhanced Music CD,

Mixed Mode CD

– Music file formats: MP3,AAC

MP3 bit rate (data rate): 32–320 kbps and variable bit rate
AAC format: ISO 13818-7 MPEG-2 (low complexity profile),stereo,

ADTS and ADIF headers,AAC bit rate ≤ 160 kbps

– Total number of music files and albums: around 350

(with a typical file name length of 20 characters)

Note:The number of music files that can be played depends on the length of
the file names.With short file names, more files will be supported.

Visit the EXPANIUM homepage

http://www.expanium.philips.com

All trademarks used are owned by their respective owners.

The set complies with the FCC-Rules, Part 15 and with
21 CFR 1040.10. Operation is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received,including
interference that may cause undesired operation.

CAUTION

Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.

12

General information

English

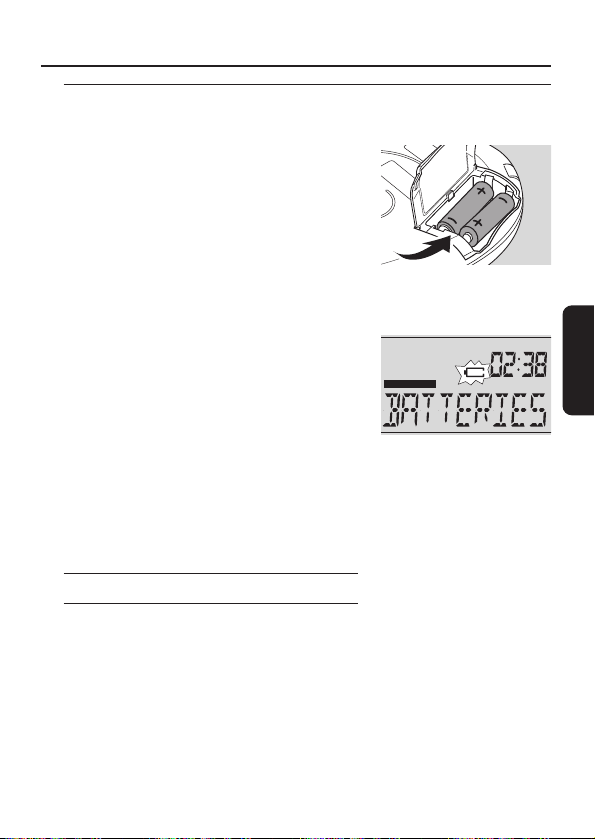

Batteries (not supplied)

Inserting batteries

Open the battery compar tment and insert
2 alkaline batteries of type AA (LR6, UM3).

Do not use old and new or different types of
batteries in combination.

Remove batteries if they are empty or if the
unit will not be used for a long time.

Indication of empty batteries

● Replace the batteries or connect the power

adapter as soon as A blinks and
REPLACE BATTERIES is scrolled.

Batteries contain chemical substances,
so they should be disposed of properly.

Average battery lifetime of 2 alkaline batteries
of type AA (LR6,UM3):

Playback of Audio disc MP3-CD

ESP off 20 hours 20 hours

ESP on 20 hours 13 hours

Note: 20 seconds after pressing 9, the display
is switched off.After 90 seconds, the unit switches
off automatically.

13

Power supply

English

TITLE

Power adapter

Only use the AY 3160 power adapter (4.5V/400 mA direct current, positive
pole to the center pin).Any other product may damage the unit.

1 Make sure the local voltage corresponds to

the adapter´s voltage.

2 Connect the power adapter to 4.5V DC on

the unit and to the power outlet.

Note:Always disconnect the adapter if you are
not using it.

Headphones

● Connect the supplied headphones to

LINE OUT/p.

Note: LINEOUT/p can also be used for
connecting this unit to your HiFi system. Set
VOL E on this unit to position 8 and adjust
volume and sound with your HiFi system.

Use your head when using headphones

Hearing safety
Do not play your headset a high volume. Hearing experts advise against
continuous extended play. If you experience a ringing in your ears, reduce
the volume or discontinue use.

Tr af fic safety
Do not use while operating a motorized vehicle. It may create a traffic hazard
and it’s illegal in many areas.You should use extreme caution or temporarily
discontinue use in potentially
hazardous situations. Even if your headset is an open-air type designed to let
you hear outside sounds, don’t turn up the volume so high that you can’t
hear what’s around you.

14

Power supply/Headphones

English

O
F
F

•

R

E
S

U

M

E

•

H

O

L

D

L

I
N

E

O

U

T

/

.

L

O

V

N

E

P

O

Playing a disc

With this unit you can play

– all pre-recorded audio CDs
– all finalized audio CDR(W)s
– MP3-CDs (CD-ROMs with MP3

or AAC files)

1 Push the OPEN2 slider to open the

CD compartment.

2 Insert a disc, printed side up,by pressing gently

on the disc´s center so that it fits onto the hub.
Close the compartment by pressing it down.

3 Press 2; to start playback.

➜ READING CD is displayed. Playback starts.

Audio disc:The current track number and
the elapsed playing time are displayed.
MP3-CD: MP3 or AAC is shown.
The current album number, track number
and the elapsed playing time are displayed.
The track title is scrolled once.

4 Press 9 to stop playback.

➜ Audio disc: The total number of tracks

and the total playing time of the disc are
displayed.
MP3-CD:The total number of albums
and tracks are displayed.

5 To remove the disc, hold it by its edge and

press the hub gently while lifting the disc.

Note:After pressing 2; it may take some time
until the first MP3 or AAC track is played.

15

Basic functions

English

G

B

B

D

P

S

E

M

E

A

D

R

O

M

.

L

O

V

N

E

P

O

ALBUM

• TITLE

E

L

IT

• T
M
U

B

L

A

H

C

R

A

E

S

OGRAM

O

F
F

•

RES

U

ME

•

H
O

L

D

L
I

N

E
O

U

T

/

SEARCH

Y

A

L

P

IS

D

DBB

ESP

MODE

N

E

P

.
L

O

V

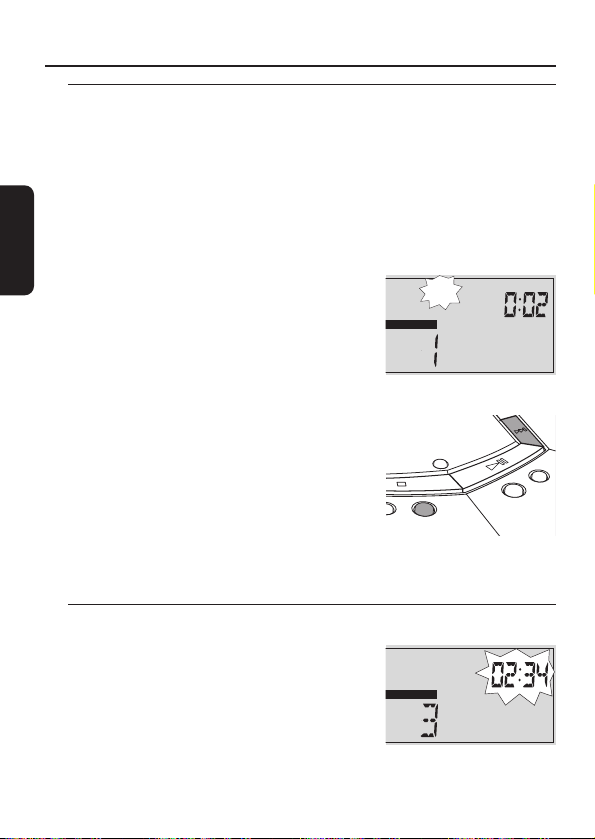

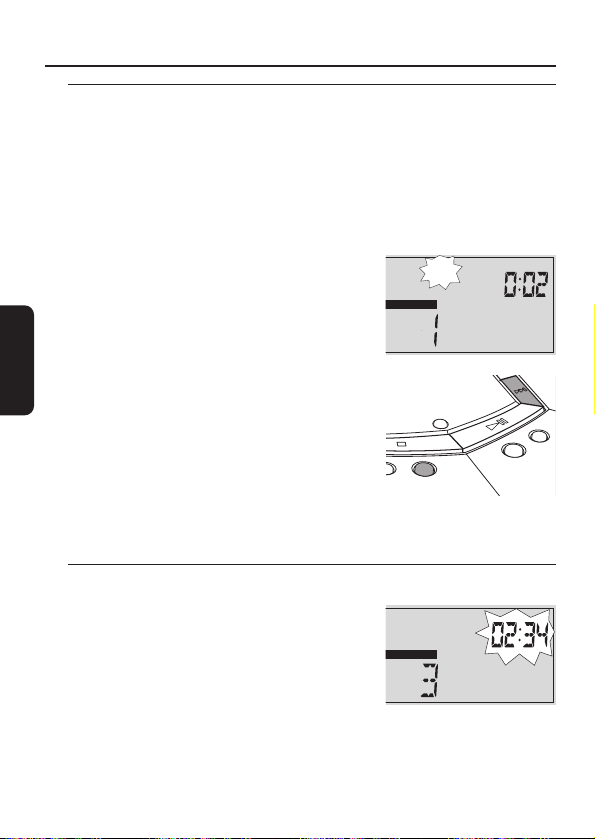

Playing Enhanced Music CDs and Mixed Mode CDs

On Enhanced Music CDs and Mixed Mode CDs there are audio CD tracks
as well as computer data (e. g.text files, pictures,MP3 files,…).

1 Insert the disc and press 2; to start playback.

➜ READING CD is displayed. Playback starts.All audio CD tracks will be played.

2 If there are MP3 and AAC files on the disc,

MP3 or AAC is blinking. Keep MODE pressed

for 2 seconds to select MP3 and AAC playback.

➜ READING CD is displayed. Playback starts

with the first track of the first album.
All MP3 and AAC tracks will be played.

3 To return to audio CD playback, keep MODE

pressed for 2 seconds.

Note:To protect your headphones and your Hi-Fi
system from damage, you will hear no sound when
a computer (data) file is played. Press § to skip
to the next track.

Pause

1 Press 2; to interrupt playback.

➜ The time where playback was interrupted

will blink.

2 To resume playback press 2; again.

16

Basic functions

English

B

T

TITLE

RAM

TITLE

D

IS

MODE

MP3
AAC

PLA

ITLE

SEARCH

Y

B

D

ESP

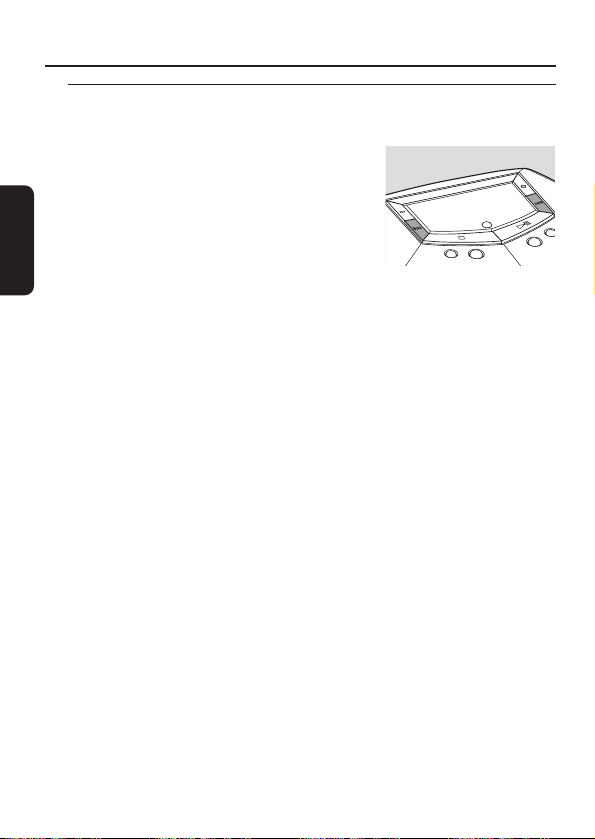

Volume and sound

Volume adjustment

● Adjust the volume by using VOL E.

Sound adjustment

1 Press DBB for a moderate bass enhancement.

➜ is shown and DBB1 is displayed.

2 Press DBB again for a strong bass

enhancement.

➜ is shown and DBB 2 is displayed.

3 Press DBB again to switch off the bass

enhancement.

➜ disappears.

17

Basic functions

English

T

DBB

DBB

DBB

O

P

E

N

V

O

L

IT

L

E

S
E

A

R

C

H

BB

D

ESP

DBB

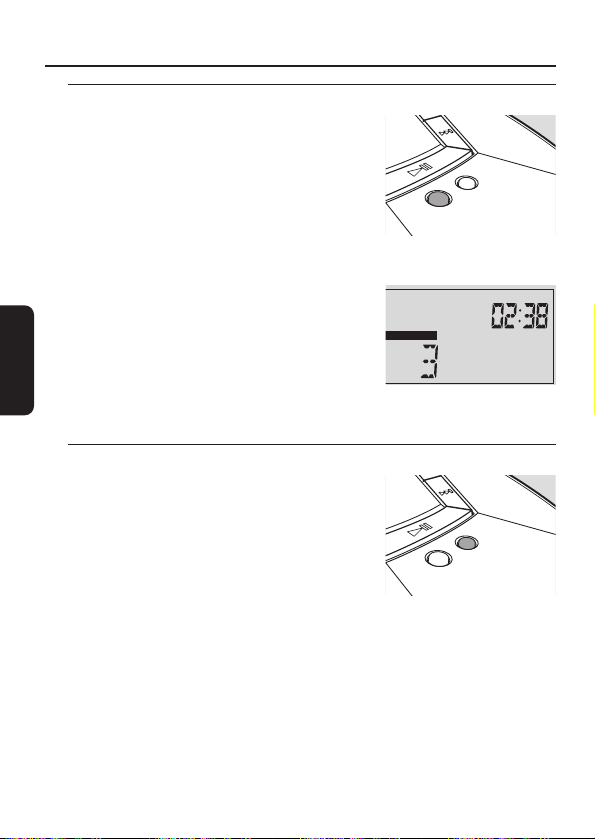

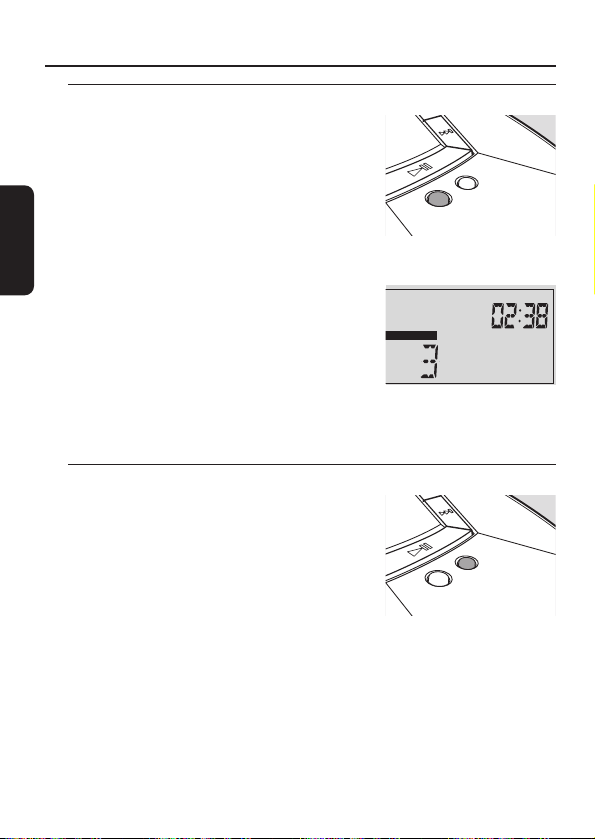

Selecting and searching (on all discs)

Selecting a track during playback

● Briefly press ∞ or § once or several times to

skip to the beginning of the current, previous
or subsequent track.

➜ Playback continues with the selected track.

Searching for a passage during playback

1 Keep ∞ or § pressed to find a particular

passage in backward or forward direction.

➜ Searching is started and playback continues

at a low volume.After 2 seconds, the search
speeds up.

2 Release the button at the desired passage.

➜ Normal playback continues.

Note: During REPEAT, SHUFFLE, SHUFFLE ALL,

MP3, AAC or while playing a program, searching is

only possible within the current track.

18

Basic functions

English

D

ALBUM

• TITLE

E

L

IT

• T
M

U

B

L

A

H

C

R

A

E

S

OGRAM

SEARCH

Y

A

L

P

S

I

D

ESP

MODE

Selecting an album (on MP3-CDs only)

Selecting an album during playback

● Briefly press − or + once or several times to

skip to the first track of the current, previous
or subsequent album.

➜ The first track of the selected album is

played.

Selecting a track during playback

1 Keep − or + pressed to skip quickly to

previous or subsequent MP3 or AAC tracks.

➜ Skipping starts and speeds up after 2 seconds.

2 Release the button at the desired track.

➜ Playback continues with the selected track.

Note:To skip from track to track at low speed,
use ∞ or §.

19

Basic functions

English

D

ALBUM

• TITLE

E

L
IT

• T
M

U

B

L

A

H

C

R

A

E

S

OGRAM

SEARCH

Y

A

L

P

IS

D

MODE

ESP

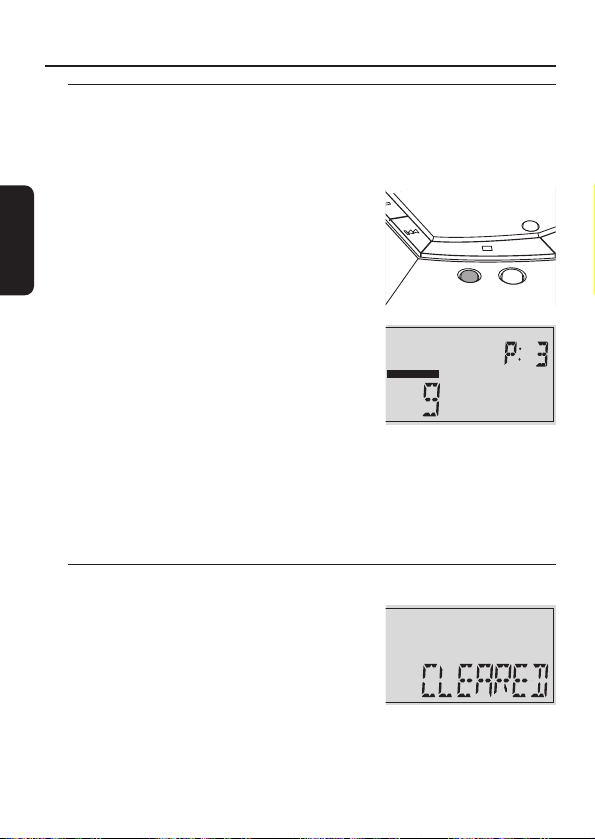

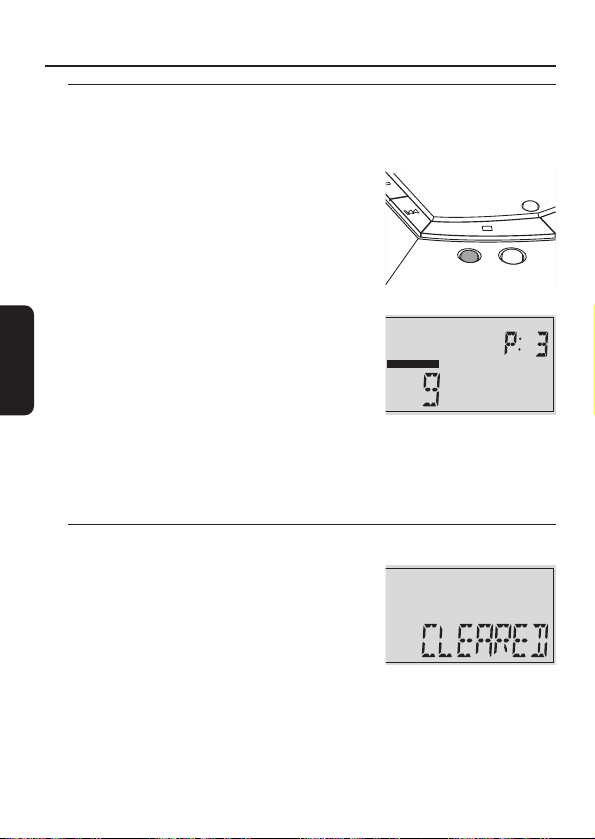

Programming track numbers

You can select up to 50 tracks and store them in the memor y in a desired
sequence.You can store any track more than once.

1 Select a track with ∞ or §.
2 Press PROGRAM to store the track.

➜ PROGRAM is shown and P with the number

of stored tracks is displayed.

3 Select and store all desired tracks in this way.
4 If necessary, press 9 to stop normal playback.

Press 2; to start playback of the program.

➜ Playback of the program starts.

00

To add additional tracks to your program, press
9 to stop playing the program and continue
with step 1.

00

You can review the program by pressing
PROGRAM for more than 3 seconds.

➜ All stored tracks are displayed in sequence.

Clearing the program
1 If necessary press 9 to stop playback.
2 Press 9 to clear the program.

➜ CLEARED is displayed, PROGRAM disappears

and the program is cleared.

Notes:

The program will also be cleared if you open
the CD compartment or interrupt the power
supply or if the unit switches off automatically.

After storing 50 tracks, PROGRAM FULL
is scrolled.

20

Features

English

PROGRAM

TITLE

PROGRAM

E

L

IT

T

•
M

U

B

L

A

H

C

R

A

E

S

GRAM

PRO

Y

A

L

P

IS

D

DE

O

M

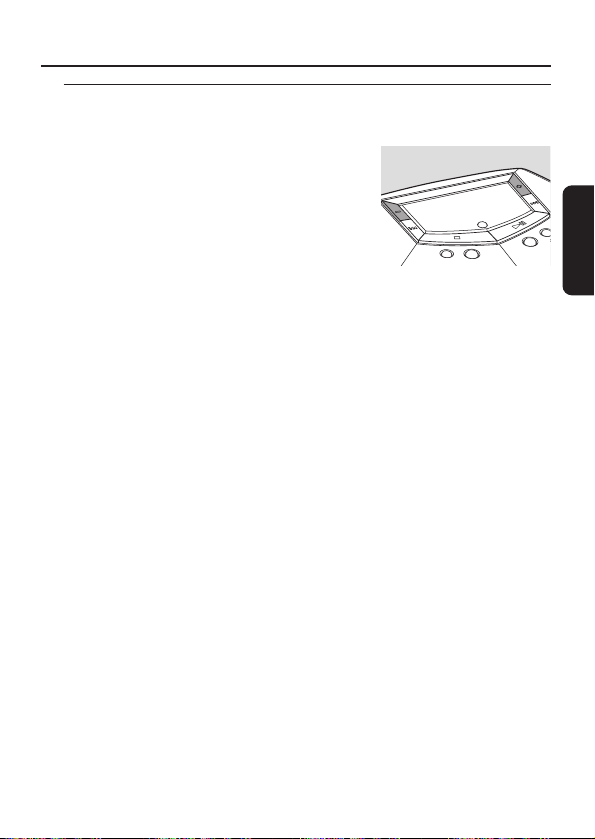

Storing the last position played – RESUME

You can store the last position played.When restarting, playback continues
from where you have stopped.

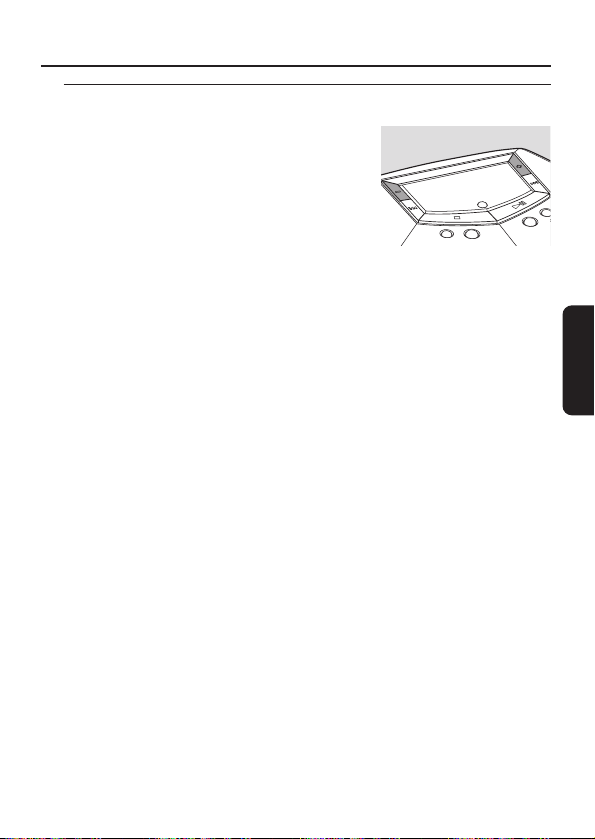

1 Switch the slider to RESUME during playback

to activate RESUME.

➜ RESUME is shown.

2 Press 9 whenever you want to stop playback.
3 Press 2; to resume playback.

➜ Playback continues from where you

have stopped.

00

To deactivate RESUME, switch the slider
to OFF.

➜ RESUME disappears.

Locking all buttons – HOLD

You can lock all buttons of the unit.When you
press any key, no action will be executed then.

● Switch the slider to HOLD to activate HOLD.
➜ HOLD is shown and all buttons are locked.

When pressing any key, HOLD is displayed.

00

To deactivate HOLD, switch the slider to OFF.

➜ HOLD disappears.

21

Features

English

M

O

B

U

M

L

A

H

C

R

A

E

RESUME

S

TITLE

O

F

F

•

R

HOLD

M

A

R

G

O

R

P

E

S

U

M

E

•

H

O

L

D

Selecting different playback possibilities – MODE

It is possible to play tracks in random order or to repeat a track, an album or
the entire disc.

1 Press MODE repeatedly during playback to

select either:
– SHUFFLE (with MP3-CDs only):

All tracks of the current album are played
in random order until all of them have
been played once.

– SHUFFLE ALL: All tracks of the disc are

played in random order until all of them
have been played once.

– SHUFFLE REPEAT (with MP3-CDs only):

All tracks of the current album are played
repeatedly in random order.

– SHUFFLE REPEAT ALL:All tracks of the disc

are played repeatedly in random order.

– REPEAT:

Audio disc:The current track is played repeatedly.
MP3-CD:The current album is played repeatedly.

– REPEAT ALL:The entire disc is played repeatedly.

When playing a program, you can select either:
– SHUFFLE PROGRAM:All tracks of the program are played in random

order until all of them have been played once.

– SHUFFLE REPEAT PROGRAM: All tracks of the program are played

repeatedly in random order.

– REPEAT PROGRAM: All tracks of the program are played repeatedly.

2 Playback starts in the chosen mode after 2 seconds.
3 To return to normal playback, press MODE repeatedly until the display

indication disappears.

22

Features

English

E

L

IT

T

•
M

U

B

L

A

H

C

R

A

E

S

GRAM

PRO

REPEAT ALL
SHUFFLE

TITLE

Y

A

L

P

IS

D

DE

O

M

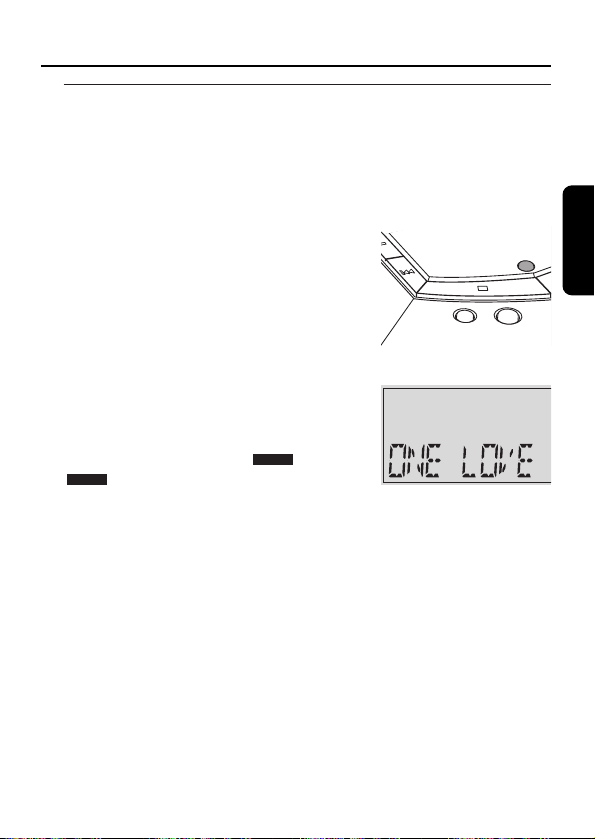

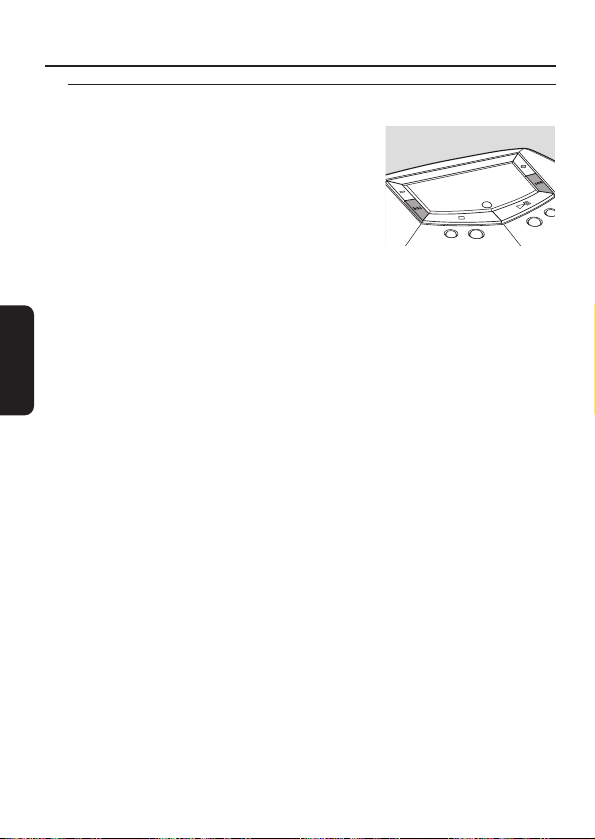

Display of information (with MP3-CDs only)

With MP3-CDs the display shows either the track´s file name, the album
name or ID3 tag information.The ID3 tag is par t of an MP3 file and contains
various track information such as the track´s title, the artist´s name or the
album name. Complete the ID3 tag information with your MP3 encoder
software before burning the MP3-CD.

1 Press DISPLAY repeatedly during playback to

select either:

– ARTIST

+

TITLE:The artist´s name and the

track title are scrolled, if this ID3 tag
information is available.

– FILENAME:The track´s file name is scrolled.

The extensions .mp3 and .aac will be
omitted.

– ALBUM:The album name is scrolled.

2 To display the album number and the

track number,press DISPLAY repeatedly
until and are shown.

23

Features

English

TITLEALBUM

E
L

IT

T

•
M

U

B

L

A

H

C

R

A

ARTIST+TITLE

E

S

M

RA

G

PRO

MP3

Y

A

L

P

IS

D

E

D

O

M

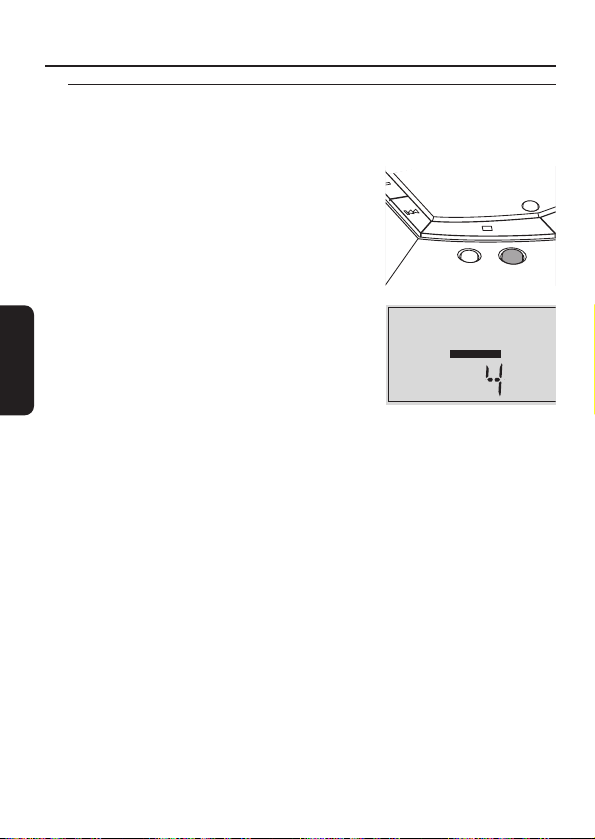

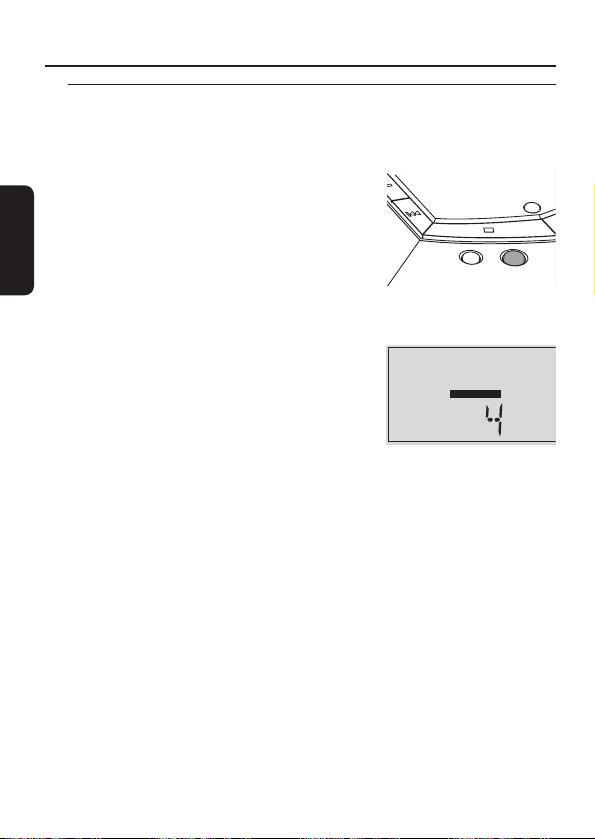

ESP – Electronic Skip Protection

With a conventional portable disc player,
the music may stop while you are jogging,
for example.The Electronic Skip Protection
protects this unit against loss of sound caused
by light vibrations or shocks. Continuous
playback is ensured. ESP does not protect

the unit against damage caused by
dropping!

● Press ESP during playback to activate the

skip protection.

➜ ESP is shown and the protection is activated.

00

To deactivate the skip protection, press
ESP again.

➜ ESP disappears and the protection is

deactivated.

Acoustic feedback

An acoustic signal accompanies various key
operations.

● Keep DBB pressed for more than 2 seconds.

If the acoustic feedback has been deactivated:

➜ BEEP ON is displayed and the acoustic

feedback is activated.

If the acoustic feedback has been activated:

➜ BEEP OFF is displayed and the acoustic

feedback is deactivated.

24

Features

English

T

T

IT

L

E

TITLE

S

E

A

R

C

H

BB

D

ESP

ESP

IT

L

E

S

E

A

R

C

H

BB

D

ESP

In-car connections (supplied or optionally available)

Only use the AY 3545 car voltage converter (4.5 V DC, positive pole to
the center pin) and the AY 3501 car adapter cassette. Any other product
may damage the unit.

1 Put the unit on a horizontal, vibration-free and

stable surface. Make sure it is in a safe place,
where the unit is neither a danger nor an
obstacle to the driver and the passengers.

2 Connect the DC plug of the voltage converter

to 4.5V DC on the unit (only for a 12 V car
battery,negative grounding).

3 Insert the voltage converter into the cigarette

lighter jack. If necessary, clean the cigarette lighter jack to obtain a good
electrical contact.

4 Turn down the volume and connect the adapter cassette plug to LINE OUT/p

on the unit.

5 Carefully insert the adapter cassette into the car radio’s cassette compartment.
6 Make sure the cord does not hinder your driving.
7 Set VOL E on the unit to position 8. Start playback on the unit and adjust

the sound with the car radio controls.

Always remove the voltage converter from the cigarette lighter jack
when the unit is not in use.

Note: If your car radio has a LINE IN jack, it is better to use it for the
car radio connection instead of the adapter cassette. Connect the signal lead
to this LINE IN jack and to LINE OUT/p on the unit.

25

Accessories

English

4.5 V DC

A

L
B
U

M

•

T
I
T
L
E

S
E
A

R

E

C

L

H

T
I
T

•

M
U

B
L
A

Y

A
L
P
S
I

H

D

C
R
A

E
S

DBB

P
S
E

M

E

A

D

R

O

G

M
O
R

P

O
F

F

•

R

E
SU

M

E

•

H
O

L
D

L

I
N
E

O
U

T

/

.
L
O

V

N
E

P

O

Remote control (supplied or optionally available)

Use the AY 3767 or AY 3768 cord remote control.The buttons on the
remote control have the same functions as the corresponding buttons on
the unit.

Connecting the remote control

1 Press 9 twice to switch off the unit.
2 Firmly connect the remote control to LINE OUT/p on the unit.
3 Firmly connect the headphones to the remote control´s jack.

Adjusting the volume

● Set VOL E on the unit to position 8 and adjust the volume with VOL E

on the remote control.

Note: Select HOLD on the unit to prevent the unit from being operated
accidentally.

Belt clip

1 Align the belt clip as indicated in the illustration

and press on PUSH to insert the shaped pin of
the clip into the hole in the unit.

2 Turn the clip clockwise as indicated to lock the

belt clip to the unit.

3 To detach, gently lift the belt clip at the

indicated end and turn it counter-clockwise.

26

Accessories

English

1

2

PUSH

WARNING

Under no circumstances should you try to repair the unit yourself
as this will invalidate the guarantee.

If a fault occurs, first check the points listed,before taking the unit
for repair.If you are unable to solve a problem by following these
hints, consult your dealer or service center.

Problem Solution

No power, playback – Insert the batteries correctly.
does not start – Replace the batteries.

– Connect the power adapter securely.

HOLD indication – Deactivate HOLD.
and/or no reaction – Disconnect the unit from the power supply
to controls or take out the batteries for a few seconds.

No sound or – Press 2; to resume playback.
bad sound quality – Adjust the volume.

– The track is a data file. Press § to skip to

the next CD audio track.

– Check and clean the connections.
– Keep this unit away from active mobile

phones or strong magnetic fields.

INSERT CD indication – Insert a disc, with the label facing up.

– Clean or replace the disc.
– Wait until the steamed up lens has cleared.

UNFINALIZED CD – Make sure the inserted CDR(W) is
indication finalized.

27

Troubleshooting

English
