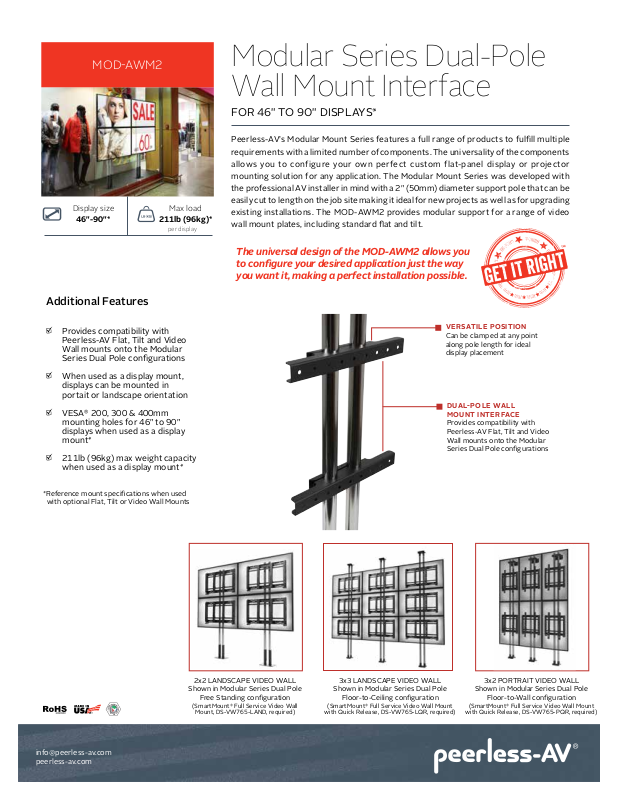

MOD-AWM2

Modular Series Dual-Pole

Wall Mount Interface

For 46" to 90" Displays*





Display size









Max load



























46"-90"*









211lb (96kg)*



























per display

















Additional Features

•• Provides compatibility with Peerless-AV Flat, Tilt and Video Wall mounts onto the Modular Series Dual Pole configurations

•• When used as a display mount, displays can be mounted in portait or landscape orientation

•• VESA® 200, 300 & 400mm mounting holes for 46" to 90" displays when used as a display mount*

•• 211lb (96kg) max weight capacity when used as a display mount*

*Reference mount specifications when used with optional Flat, Tilt or Video Wall Mounts

Peerless-AV’s Modular Mount Series features a full range of products to fulfill multiple requirements with a limited number of components. The universality of the components allows you to configure your own perfect custom flat-panel display or projector mounting solution for any application. The Modular Mount Series was developed with the professional AV installer in mind with a 2" (50mm) diameter support pole that can be easily cut to length on the job site making it ideal for new projects as well as for upgrading existing installations. The MOD-AWM2 provides modular support for a range of video wall mount plates, including standard flat and tilt.

The universal design of the MOD-AWM2 allows you to configure your desired application just the way you want it, making a perfect installation possible.

VERSATILE POSITION

Can be clamped at any point along pole length for ideal display placement

Dual-Pole Wall

Mount Interface

Provides compatibility with

Peerless-AV Flat, Tilt and Video

Wall mounts onto the Modular

Series Dual Pole configurations

2x2 LANDSCAPE VIDEO WALL

3x3 LANDSCAPE VIDEO WALL

3x2 PORTRAIT VIDEO WALL

Shown in Modular Series Dual Pole

Shown in Modular Series Dual Pole

Shown in Modular Series Dual Pole

Free Standing configuration

Floor-to-Ceiling configuration

Floor-to-Wall configuration

(SmartMount® Full Service Video Wall

(SmartMount® Full Service Video Wall Mount

(SmartMount® Full Service Video Wall Mount

Mount, DS-VW765-LAND, required)

with Quick Release, DS-VW765-LQR, required)

with Quick Release, DS-VW765-PQR, required)

info@peerless-av.com peerless-av.com
