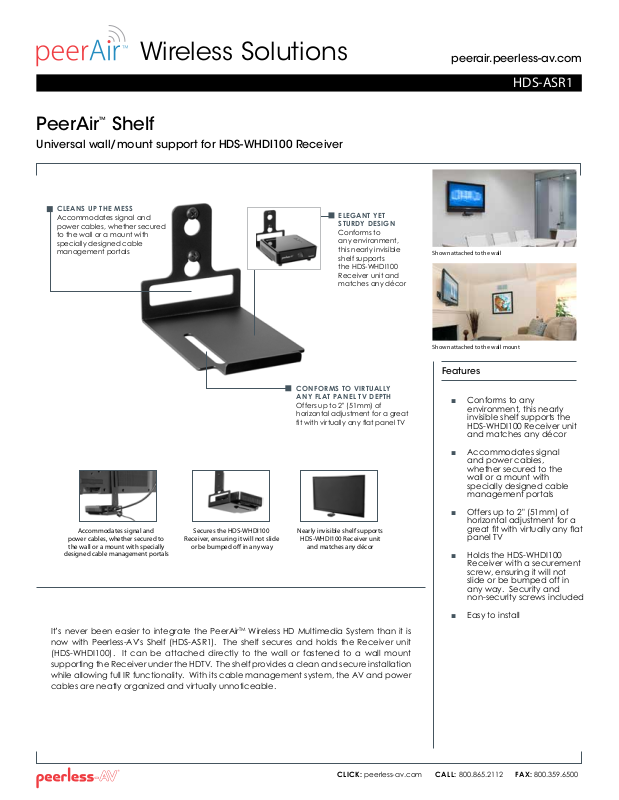

Peerless-AV HDS-ASR1 Specsheet
Wireless Solutions
PeerAir™ Shelf
Universal wall/mount support for HDS-WHDI100 Receiver
peerair.peerless-av.com
HDS-ASR1
CLEANS UP THE MESS
Accommodates signal and
power cables, whether secured
to the wall or a mount with
specially designed cable
management portals
Accommodates signal and
power cables, whether secured to
the wall or a mount with specially
designed cable management portals
Secures the HDS-WHDI100
Receiver, ensuring it will not slide
or be bumped o in any way
CONFORMS TO VIRTUALLY
ANY FLAT PANEL TV DEPTH
Offers up to 2" (51mm) of
horizontal adjustment for a great
t with virtually any at panel TV
Nearly invisible shelf supports
HDS-WHDI100 Receiver unit
and matches any décor
ELEGANT YET
STURDY DESIGN
Conforms to
any environment,
this nearly invisible
shelf supports
the HDS-WHDI100
Receiver unit and
matches any décor
It’s never been easier to integrate the PeerAirTM Wireless HD Multimedia System than it is
now with Peerless-AV's Shelf (HDS-ASR1). The shelf secures and holds the Receiver unit
(HDS-WHDI100). It can be attached directly to the wall or fastened to a wall mount
supporting the Receiver under the HDTV. The shelf provides a clean and secure installation
while allowing full IR functionality. With its cable management system, the AV and power
cables are neatly organized and virtually unnoticeable.
Shown attached to the wall
Shown attached to the wall mount
Features
■ Conforms to any
environment, this nearly
invisible shelf supports the
HDS-WHDI100 Receiver unit
and matches any décor
■ Accommodates signal
and power cables,
whether secured to the
wall or a mount with
specially designed cable
management portals
■ Offers up to 2" (51mm) of
horizontal adjustment for a
great t with virtually any at
panel TV
■ Holds the HDS-WHDI100
Receiver with a securement
screw, ensuring it will not
slide or be bumped off in
any way. Security and
non-security screws included
■ Easy to install
CLICK: peerless-av.com CALL: 800.865.2112 FAX: 800.359.6500
Wireless Solutions
HDS-ASR1: PeerAir™ Shelf Universal wall/mount support for HDS-WHDI100 Receiver
Product Specifications
DIMENSIONS (W x H x D) PRODUCT WEIGHT AVAILABLE COLOR(S)
peerair.peerless-av.com
HDS-ASR1
3.20" x 3.59" x 4.50" (81 x 91 x 114mm) w/o Adapter Bracket
3.20" x 11.31" x 4.50" (81 x 287 x 114mm) w/Adapter Bracket
Package Specifications
PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
HDS-ASR1
1.96"
(50mm)
14.25" x 6.75" x 3.00"
(362 x 171 x 76mm)
3.20"
(81mm)
0.61lb (0.28kg) w/Adapter Bracket Black
1.25lb (.57kg) 735029293934
Shelf, wall mount adapter bracket,
installation hardware, installation instructions
All dimensions = inch (mm)
1
1.25"
(32mm)
9.56"
(243mm)
7.00"
(91mm)
3.59"
(178mm)
TOP VIEW
4.50"
(114mm)
11.31"
(287mm)
.63"
3.33"
(16mm)
(85mm)
2.70"
(69mm)
SIDE VIEW
ADAPTER BRACKET
FRONT VIEW
A R C H I T E C T S S P E C I F I C A T I O N S
The PeerAir™ Shelf Universal wall/mount support for HDS-WHDI100 Receiver
shall be a Peerless-AV model HDS-ASR1 and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
Peerless-AV 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500 peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including wireless devices, interactive devices, at panel mounts, projector mounts, carts/stands, furniture, cables, screen
cleaners and a full assortment of accessories.
© 2013 Peerless Industries, Inc. All rights reserved. Peerless-AV® is a registered trademark
and PeerAirTM is trademark of Peerless Industries, Inc. Other parties’ marks are the property of their respective owners.
LIT-1074
