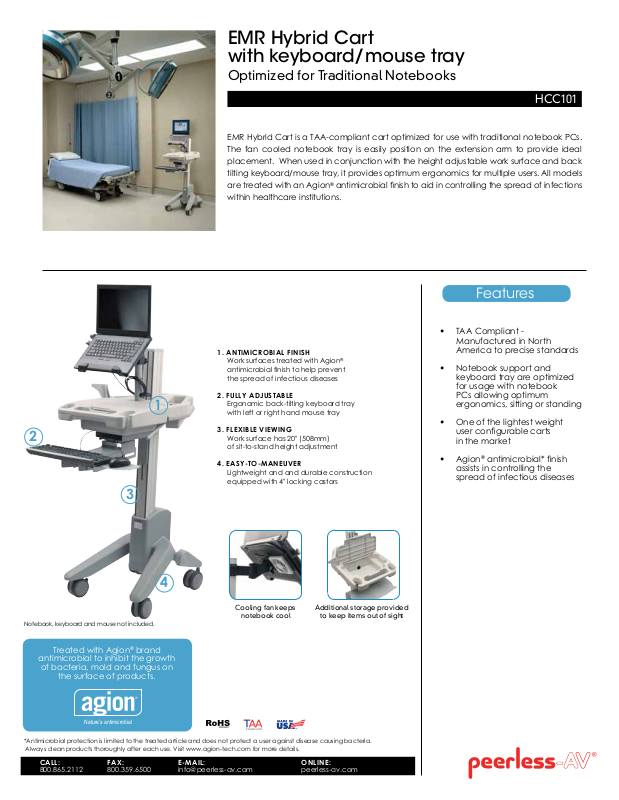

EMR Hybrid Cart
with keyboard/mouse tray
Optimized for Traditional Notebooks
HCC101
EMR Hybrid Cart is a TAA-compliant cart optimized for use with traditional notebook PCs.
The fan cooled notebook tray is easily position on the extension arm to provide ideal
placement. When used in conjunction with the height adjustable work surface and back
tilting keyboard/mouse tray, it provides optimum ergonomics for multiple users. All models
are treated with an Agion
within healthcare institutions.
1. ANTIMICROBIAL FINISH
Work surfaces treated with Agion
antimicrobial nish to help prevent
the spread of infectious diseases
2. FULLY ADJUSTABLE
1
2
3
Ergonomic back-tilting keyboard tray
with left or right hand mouse tray
3. FLEXIBLE VIEWING
Work surface has 20" (508mm)
of sit-to-stand height adjustment
4. EASY-TO-MANEUVER
Lightweight and and durable construction
equipped with 4" locking castors
®
antimicrobial nish to aid in controlling the spread of infections
Features
• TAA Compliant Manufactured in North
®
America to precise standards
• Notebook support and
keyboard tray are optimized
for usage with notebook
PCs allowing optimum
ergonomics, sitting or standing
• One of the lightest weight
user congurable carts
in the market
®
• Agion
antimicrobial* nish
assists in controlling the
spread of infectious diseases
4
Cooling fan keeps
Notebook, keyboard and mouse not included.
Treated with Agion® brand
antimicrobial to inhibit the growth
of bacteria, mold and fungus on
the surface of products.
Nature’s antimicrobial
*Antimicrobial protection is limited to the treated article and does not protect a user against disease causing bacteria.
Always clean products thoroughly after each use. Visit www.agion-tech.com for more details.
CALL:
800.865.2112
FAX:
800.359.6500
E-MAIL:
info@peerless-av.com
notebook cool
Additional storage provided
to keep items out of sight
ONLINE:
peerless-av.com
Model Numbers
Product Specifications
DIMENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITY FINISH* AVAILABLE COLORS
WARRANTY: Limited 5-year
HCC101
*Antimicrobial protection is limited to the treated article and does not protect a user against disease causing bacteria.
Always clean products thoroughly after each use. Visit agion-tech.com for more details.
20.03" x 46.26"-59.59" x 29.13"
(509 x 1175-1514 x 740mm)
56lb (25kg) 40lb (18kg)
Package Specifications
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
HCC101
32.13" x 24.00" x 53.63"
(816 x 610 x 1362mm)
==
20.03"
(509mm)
84lb (38kg) 735029293088
==
==
Aluminum
alloy, ABS
plastic
and brushed alum column
EMR cart, notebook
tray/arm, cooling fan,
security cable
Notebook, keyboard and mouse not included.
Two tone gray
1
All dimensions = inch (mm)
==
29.13"
==
(126mm)
==
4.95"
==
32.12"
(816mm)
==
(740mm)
TOP VIEW KEYBOARD
==
EXTENDED
==
SIDE VIEW
==
==
3.34"
(85mm)
9.88"
(251mm)
49.71"
(1263mm)
MAX
==
==
36.38"
(924mm)
MIN
11.77"
(299mm)
==
17.19"
(437mm)
==
==
FRONT VIEW
==
3.00"
(76mm)
59.59"
(1514mm)
MAX
==
46.26"
(1175mm)
MIN
42.38"
(1076mm)
A R C H I T E C T S S P E C I F I C A T I O N S
The Peerless-AV® EMR Hybrid Cart shall be a Peerless-AV® model HCC101 and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
