Panasonic SC-PM5DB Operating Instructions

Dear customer

Thank you for purchasing this product.
For optimum performance and safety, please read

these instructions thoroughly before connecting,
operating or adjusting this product.

Please keep this manual for future reference.

Operating Instructions

CD Stereo System

Model No. SC-PM5DB

SUPPLIED ACCESSORIESSUPPLIED ACCESSORIES

Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking
for replacement parts. (As of January 2009)

1 x AC mains lead

(K2CZ3YY00005)

1 x Remote control

(N2QAYB000393)

1 x FM antenna

(REXV0088A-1)

1 x DAB “T” antenna

(N1EADY000001)

Operations in these instructions are described using
remote control, but you can do the operations with the
main unit if the controls are the same.

Your unit may not look exactly as illustrated.

Note:

“EB” on the packaging indicates the United Kingdom.

Table of contents

Caution for AC Mains Lead .................... 3

Safety precautions ................................. 4

Placement of speakers ........................... 5

DEMO function ........................................ 5

Preparing the remote control ................ 5

Making the connections ......................... 6

Overview of controls .............................. 7

Discs ........................................................ 9

Using the FM radio ................................. 11

DAB .......................................................... 12

Using the timer ....................................... 15

Using sound effects ............................... 16

USB .......................................................... 16

Using other optional equipments ......... 17

Troubleshooting guide ........................... 18

Maintenance ............................................ 19

Specifi cations ......................................... 20

EB

RQTX0237-1B

These operating instructions are applicable to the
following system.

System SC-PM5DB

Main unit SA-PM5DB

Speakers SB-PM5

Back of product

Inside of product

■ Sales and Support Information

Customer Care Centre

• For customers within the UK: 0844 844 3852

• For customers within the Republic of Ireland:
01 289 8333

• Visit our website for product information

• E-mail: [e-mail]

Direct Sales at Panasonic UK

• For customer: 0844 844 3856

• Order accessory and consumable items for your
product with ease and confidence by phoning
our Customer Care Centre Monday-Thursday
9:00am-5:30pm, Friday 9:30am-5:30pm
(Excluding public holidays).

• Or go on line through our Internet Accessory
ordering application at www.panasonic.co.uk.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities
are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct
shopping for a wide range of finished products,
take a browse on our website for further details.

Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website
www.panasonic.co.uk/guarantee.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE,

• DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.

• USE ONLY THE RECOMMENDED
ACCESSORIES.

• DO NOT REMOVE THE COVER (OR BACK);
THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN
A BOOK CASE, BUILT-IN CABINET OR IN
ANOTHER CONFINED SPACE. ENSURE THE
UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD
DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.

• DO NOT OBSTRUCT THE UNIT’S
VENTILATION OPENINGS WITH
NEWSPAPERS, TABLECLOTHS, CURTAINS,
AND SIMILAR ITEMS.

• DO NOT PLACE SOURCES OF NAKED
FLAMES, SUCH AS LIGHTED CANDLES, ON
THE UNIT.

• DISPOSE OF BATTERIES IN AN
ENVIRONMENTALLY FRIENDLY MANNER.

THIS UNIT IS INTENDED FOR USE IN
MODERATE CLIMATES.

The socket outlet shall be installed near the
equipment and easily accessible.
The mains plug of the power supply cord shall
remain readily operable.
To completely disconnect this apparatus from the
AC Mains, disconnect the power supply cord plug
from AC receptacle.

This product may receive radio interference
caused by mobile telephones during use. If
such interference is apparent, please increase
separation between the product and the mobile
telephone.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVERS AND DO
NOT REPAIR YOURSELF. REFER SERVICING

RQTX0237

TO QUALIFIED PERSONNEL.

2

Caution for AC Mains Lead

For your safety, please read the following text
carefully.

This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fi tted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark m or the BSI mark o on
the body of the fuse.

If the plug contains a removable fuse cover you must
ensure that it is refi tted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME
THEN THE FUSE SHOULD BE RE MOVED
AND THE PLUG CUT OFF AND DIS POSED OF
SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS IN SERTED
INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fi tted please observe the wiring
code as stated below.
If in any doubt please consult a qualifi ed electrician.

WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL n OR
COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type
of AC mains plug (fi gures A and B). Confi rm the AC
mains plug fi tted and follow the instructions below.
Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

IMPORTANT

The wires in this mains lead are coloured in accor­dance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the
coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured Blue must be connected
to the terminal which is marked with the letter N or
col oured Black or Blue.
The wire which is coloured Brown must be connected
to the terminal which is marked with the letter L or
coloured Brown or Red.

2. Replace the fuse and close or attach the fuse
cover.

RQTX0237

3

Safety precautions

PlacementPlacement

Set the unit up on an even surface away from
direct sunlight, high temperatures, high humidity,
and excessive vibration. These conditions can
damage the cabinet and other components, thereby
shortening the unit’s service life.

Place it at least 15 cm away from wall surfaces to
avoid distortion and unwanted acoustical effects.

Do not place heavy items on the unit.

VoltageVoltage

Do not use high voltage power sources. This can
overload the unit and cause a fi re.

Do not use a DC power source. Check the source
carefully when setting the unit up on a ship or other
place where DC is used.

AC mains lead protectionAC mains lead protection

Ensure the AC mains lead is connected correctly
and not damaged. Poor connection and lead damage
can cause fi re or electric shock. Do not pull, bend, or
place heavy items on the lead.

Grasp the plug fi rmly when unplugging the lead.
Pulling the AC mains lead can cause electric shock.

Do not handle the plug with wet hands. This can
cause electric shock.

Foreign matterForeign matter

Do not let metal objects fall inside the unit. This can
cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause
electric shock or malfunction. If this occurs,
immediately disconnect the unit from the power
supply and contact your dealer.

Do not spray insecticides onto or into the unit. They
contain fl ammable gases which can ignite if sprayed
into the unit.

ServiceService

Do not attempt to repair this unit by yourself. If
sound is interrupted, indicators fail to light, smoke
appears, or any other problem that is not covered
in these instructions occurs, disconnect the AC
mains lead and contact your dealer or an authorized
service center. Electric shock or damage to the unit
can occur if the unit is repaired, disassembled or
reconstructed by unqualifi ed persons.

Extend operating life by disconnecting the unit from
the power source if it is not to be used for a long time.

Information for Users on Collection and
Disposal of Old Equipment and used
Batteries

These symbols on the products,
packaging, and/or accompanying
documents mean that used electrical
and electronic products and batteries
should not be mixed with general
household waste.
For proper treatment, recovery and
recycling of old products and used
batteries, please take them to applicable
collection points, in accordance with
your national legislation and the
Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to save
valuable resources and prevent any
potential negative effects on human
health and the environment which could
otherwise arise from inappropriate
waste handling.
For more information about collection
and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for
incorrect disposal of this waste, in
accordance with national legislation.

For business users in the European
Union

If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.

[Information on Disposal in other
Countries outside the European
Union]

These symbols are only valid in the
European Union. If you wish to discard
these items, please contact your local
authorities or dealer and ask for the
correct method of disposal.

Note for the battery symbol (bottom
two symbol examples):

This symbol might be used in
combination with a chemical symbol.

Cd

In this case it complies with the
requirement set by the Directive for the
chemical involved.

RQTX0237

4

Placement of speakers

Speakers are designed identically so that no left or
right channel orientation is necessary.

Use only the supplied speakers.

The combination of the main unit and speakers provide
the best sound. Using other speakers can damage the
unit and sound quality will be negatively affected.

Note:

• Keep your speakers at least 10mm away from the
system for proper ventilation.

• These speakers do not have magnetic shielding.
Do not place them near televisions, personal
computers or other devices easily infl uenced by
magnetism.

• You can damage your speakers and shorten their
useful life if you play sound at high levels over
extended periods.

• Reduce the volume in the following cases to avoid
damage.
– When playing distorted sound.
– When adjusting the sound quality.

• You cannot take the front net off the speakers.

Caution

• Use the speakers only with the recommended
system. Failure to do so can damage the
amplifi er and speakers, and can cause fi re.
Consult a qualifi ed service person if damage
occurs or if a sudden change in performance
is apparent.

• Do not attach these speakers to walls or
ceilings.

Preparing the remote control

Use alkaline or manganese batteries.
Insert so the poles (+ and –) match those in

the remote control.

LR6/R6, AA

(not included)

Aim at the remote control signal sensor (➡ page 7),
avoiding obstacles, at a maximum range of 7 m
directly in front of the unit.

Note on using the remote control

• Do not mix old and new batteries.

• Do not use different types of batteries at the same
time.

• Do not take apart or short circuit the batteries.

• Do not attempt to recharge alkaline or manganese
batteries.

• Do not use batteries if the covering has been
peeled off.

• Do not heat or expose to fl ame.

• Do not leave the battery(ies) in an automobile
exposed to direct sunlight for a long period of time
with doors and windows closed.

• Mishandling of batteries in the remote control can
cause electrolyte leakage, which may cause a fi re.

• Remove the batteries if the remote control is not
going to be used for a long period of time. Store in
a cool, dark place.

CAUTION

Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions.

DEMO function

7, -DEMO

When the unit is fi rst plugged in, a demonstration of its
functions may be shown on the display.
If the demo setting is off, you can show a demonstration
by selecting “DEMO ON”.

Press and hold [7, -DEMO] (demo).

The display changes each time you press and hold the
button.

While in standby mode, select “DEMO OFF” to reduce
power consumption.

RQTX0237

5

Making the connections

Connect the AC mains lead only after all other connections have been made.

Speaker connections Speaker connections

Black (·)

Red (ª)

Red (ª)

Black (·)

Incorrect connection can damage the unit.

Antenna connectionsAntenna connections

Place the antenna where
reception is best.

Adhesive tape

AC mains lead connectionsAC mains lead connections

READ THE CAUTION FOR AC MAINS LEAD ON PAGE
3 BEFORE CONNECTION.

Insertion of connector

Even when the connector is perfectly inserted, depending
on the type of inlet used, the front part of the connector
may jut out as shown in the drawing. However there is no
problem using the unit.

Appliance inlet

For your reference

To save power when the unit is not to be used for a long
time, unplug it from the household mains socket. You will
need to reset some memory items after plugging in the unit.

Note:

• The included AC mains lead is for use with this unit only.
Do not use it with other equipment.

• Do not use an AC mains lead from other equipment.

Connector

RQTX0237

6

FM indoor antenna

Optional antenna connectionsOptional antenna connections

■■ DAB outdoor antenna DAB outdoor antenna

DAB outdoor antenna

(not included)

Be sure to fully
tighten the screw.

Never use an outdoor antenna during a
lightning storm.

To household

mains socket

Connect the DAB “T” antennaConnect the DAB “T” antenna

The cross bar of the T should be kept fi rmly stretched.
Find a position with good reception.
There is a function on the unit to check signal quality.

Be sure to fully
tighten the screw.

Adhesive tape

For best reception

A DAB outdoor antenna is recommended. (➡ see left)

Overview of controls

Main unitMain unit

Refer to the numbers in parentheses for page reference. Buttons labelled such as 1 function in exactly the
same way as the controls on the remote control. (➡ page 8)

Top of unit

Music port jack (17)

Headphone jack ( )

Avoid listening for
prolonged periods of
time to prevent hearing
damage.
Excessive sound
pressure from
earphones and
headphones can cause
hearing loss.
Plug type: Ø 3.5 mm
stereo (not included)

Display panel

Remote control

signal sensor

7

1 Standby/on switch

(y/l)

Press to switch the

unit from on to standby

mode or vice versa. In

standby mode, the unit

is still consuming a small

amount of power.

2

6

BASS or TREBLE
selection (16)

8

USB port (16)

Stop playback,
Demonstration
function (5)

4

Disc tray open or
close (9)

Disc tray

5

3

RQTX0237

7

Overview of controls (continued)

Remote controlRemote control

Buttons labelled such as 1 function in exactly the same way as the controls on the main unit. (➡ page 7)

Clock or timer setting (15)

Play timer setting (15)

1

Dimmer function

Numeric selection

(9, 11, 13, 16, 17)

Delete function (10)

Sleep timer setting (15)

Auto off function
4 Volume control (9)

Muting function

Program function (10, 11, 13)

Repeat function (9)

2 USB play or pause (16)

3 DAB or FM selection

(11, 13)

RE-MASTER selection (16)

Preset EQ (16)

BASS selection selection (16)

7 [2 3],

Album selection (9, 14, 16)

[5 ∞],

Disc and USB play (9, 16)

[OK],

Confirm selection (9, 14, 16)

[OK]

Display function (9, 13)

Auto preset selection (11)

Tuning mode selection (11)

Play mode function (9, 11, 13)

5 Disc play or pause (9)

6 Music port selection (17)

7 Track skip or search, tune

or preset channel selection,
time adjustment, bass/treble
adjustment (9, 11, 13, 15, 16)

Stop playback or program clear
(9, 10, 16)

8 Surround selection (16)

TREBLE selection (16)

MP3 INFO (9)

DAB SECONDARY (13)

DAB MENU (14)

This auto off function allows you
to turn off the unit in disc or USB
mode only after left unused for 10
minutes.

• Press the button to activate the
function.

RQTX0237

• Press the button again to cancel.

• The setting is maintained even if

8

the unit is turned off.

To dim the display panel.

• Press the button to activate the
function.

• Press the button again to cancel.

To mute the sound.

• Press the button to activate the
function.

• Press the button again to cancel.

Discs

Basic playBasic play

1

Press [y] to turn the unit on.

2 Press [0, OPEN/CLOSE] to open the disc

tray and then load the disc. Press
[0, OPEN/CLOSE] again to close.

3 Press [6, CD] or [OK] to start play.

Checking the track informationChecking the track information

You can view the information of the current track
from the display panel.

Press [DISPLAY] repeatedly during play or
pause.

CD

Elapsed play time Remaining play time

4 Adjust the volume.

Stop playback

Pause play

Skip tracks

Search
through tracks

Skip album

Press [7] (stop).

Press [6, CD].
Press again to resume play.

Press [4/1] or [¡/¢].

During RANDOM or 1-ALBUM
RANDOM play, you cannot skip to
tracks that have been played.

During RANDOM play, you can
search backward or forward only
within the current track.
(➡ see “Play Mode function”)

CD

Press and hold [4/1] or
[¡/¢]

MP3

Press [5 / ∞, ALBUM] in the play
mode.
Press [

5 / ∞, ALBUM] once and

then the numeric buttons in the
stop mode.

during play or pause.

MP3

Elapsed play time Album name Track name

Press [MP3 INFO] repeatedly during play or
pause.

MP3

ID3 (Album) ID3 (Track) ID3 (Artist)

Elapsed play time

Note:

• This unit supports ver. 1.0 & 1.1 ID3 tags. Text data
that is not supported will not be displayed.

• ID3 is a tag embedded in MP3 tracks to provide
information about the track.

Advanced playAdvanced play

Repeat playRepeat play

CD MP3

You can repeat program play or other selected play
mode.

Press [REPEAT].

“ON REPEAT” and “ ” are displayed.

Play Mode functionPlay Mode function

CD MP3

Press [PLAY MODE] to select the desired
mode.

1-TRACK

1TR

1-ALBUM

1ALBUM

RANDOM

RND

1-ALBUM
RANDOM

1ALBUM RND

Plays one selected track on the disc.
Press the numeric buttons to select
the track.

MP3

Plays one selected album on the
disc.
Press [

5 / ∞, ALBUM] to select the

album.

Plays a disc randomly.

MP3

Play all tracks in one selected album
randomly.
Press [

5 / ∞, ALBUM] to select the

album.

To cancel

Press [REPEAT] again.

“OFF REPEAT” is displayed and “ ” is cleared.

RQTX0237

9

Discs (continued)

Program playProgram play

This function allows you to program up to 24 tracks.

CD

1 Press [6, CD] and then [7] (stop).
2 Press [PROGRAM].

3 Press the numeric buttons to select your

desired track.

Repeat this step to program other tracks.

4 Press [6, CD] to start play.

MP3

1 Press [6, CD] and then [7] (stop).
2 Press [PROGRAM].

NOTE about using a DualDisc

The digital audio content side of a DualDisc
does not meet the technical specifi cations of the
Compact Disc Digital Audio (CD-DA) format so
playback may not be possible.

NOTE on CDs

• This unit can access up to 99 tracks.

• This unit can play MP3 fi les and CD-DA format
audio CD-R/RW that have been fi nalised.

• It may not be able to play some CD-R/RW due to
the condition of the recording.

• Do not use irregularly shaped disc.

• Do not use disc with labels and stickers that are
coming off or with adhesive exuding from under
labels and stickers.

• Do not attach extra labels or stickers on the disc.

• Do not write anything on the disc.

3 Press [5 / ∞, ALBUM] to select your desired

album.

4 Press [¡/¢] once and then the

numeric buttons to select your desired
track.

5 Press [OK].

Repeat steps 3 to 5 to program other tracks.

6 Press [6, CD] to start play.

Cancel program
mode

Replay the
program

Check program
contents

Add to the
program

Clear the last
track

Clear all
programmed
tracks

Press [PROGRAM] in the stop
mode.

Press [PROGRAM] then
[6, CD] in the stop mode.

[4 /1] or [¡/¢]

Press
when “PGM” is displayed
in the stop mode. To check
while programming, press
[PROGRAM] twice after “PGM”
appears, then press
or [¡/¢].

CD

Repeat step 3 in the stop mode.

MP3

Repeat steps 3 to 5 in the stop
mode.

Press [DEL] in the stop mode.

7] (clear) in the stop

Press [
mode.
“CLR ALL” is displayed.
Press [

7] (clear) again to

confi rm.

[4 /1]

NOTE on MP3

• Files are treated as tracks and folders are
treated as albums.

• This unit can access up to 999 tracks, 255
albums and 20 sessions.

• Disc must conform to ISO9660 level 1 or 2
(except for extended formats).
To play in a certain order, prefi x the folder and fi le

•
names with 3-digits numbers in the order you want
to play them.

Limitations on MP3 play

• If you have recorded MP3 on the same disc
as CD-DA, only the format recorded in the fi rst
session can be played.

• Some MP3s may not be played due to the
condition of the disc or recording.

• Recordings will not necessarily be played in the
order you recorded them.

10

Note:

• When you try to program more than 24 tracks, “PGM
FULL” appears.

RQTX0237

• The program memory is cleared when you open
the disc tray.

Using the FM radio

Manual tuningManual tuning

1

Press [DAB/FM] to select “FM”.

Memory presetMemory preset

30 FM stations can be preset.

Preparation

Press [DAB/FM] to select “FM”.

2 Press [TUNE MODE] to select “MANUAL”.

3 Press [4/1] or [¡/¢] to select the

frequency of the required station.

To tune automatically

Press [4/1] or [¡/¢] for a moment until the
frequency starts changing rapidly. The unit begins
auto tuning, stopping when it fi nds a station.

• Auto tuning may not function when there is
excessive interference.

• To cancel auto tuning, press
once again.

To improve FM sound qualityTo improve FM sound quality

Press and hold [PLAY MODE] to display
“MONO”.

To cancel

Press and hold [PLAY MODE] again until
“MONO” disappears.

• MONO is also cancelled if the frequency is
changed.

• Turn off “MONO” for normal listening.

[4/1] or [¡/¢]

Automatic presettingAutomatic presetting

1 Press [PLAY MODE] repeatedly to select

either “CURRENT” or “LOWEST”.

CURRENT Tuning begins from the current

frequency.

LOWEST Tuning begins from the lowest

frequency.

2 Press [AUTO PRESET] to start presetting.

The tuner presets all the stations it can receive into
the channels in ascending order. When fi nished, the
last station memorised is tuned in.

Manual presettingManual presetting

1 Press [TUNE MODE] to select “MANUAL”.

2 Press [4/1] or [¡/¢] to tune to the

required station.

3 Press [PROGRAM].

4 Press the numeric buttons to select a

channel.

The station occupying a channel is erased if
another station is preset in that channel.

5 Repeat steps 2 to 4 to preset more

stations.

Selecting a preset stationSelecting a preset station

Press the numeric buttons to select the
channel.

For channels 10 to 30 press [h10], then the two
digits.

OR

1 Press [TUNE MODE] to select “PRESET”.

2 Press [4/1] or [¡/¢] to select the

channel.

RQTX0237

11

DAB

DAB stands for digital audio broadcasting. It is a new
form of radio that is broadcast digitally. Unlike regular
analogue broadcasting, digital radio deteriorates
less, and is thus able to provide quality sound close
to that of a disc.

DAB reception method on this unitDAB reception method on this unit

Depending on the region there is a difference
between broadcast frequency and stations broadcast
along the same frequency. For this reason, a
memory of receivable stations should fi rst be created
and then select from those memorised stations as
the reception method.

DAB structureDAB structure

Bands

There are two types of DAB bands, “BAND III”
(Receivable in this unit) and “L BAND”(Not broadcast
in the United Kingdom, and not receivable on this unit).

Frequencies

There are 41 frequencies on BAND III. Among
those frequencies, 7 are used in the United Kingdom
(current as of January, 2009).

Ensemble, station and service

The number of stations that make up one frequency
differ between DAB and analogue radio. Analogue
stations all broadcast on different frequencies, even
if it is the same company doing the broadcasting.
With DAB however, it is possible to broadcast a
number of stations on the same frequency.
In DAB terminology, a group of stations on the same
frequency is called an ensemble.

DAB Auto Scan

This function searches for currently receivable
stations and inputs them into unit memory.
When DAB is selected for the fi rst time, this function
starts automatically.

Note:

Even if the station is stored into memory, some
stations may not broadcast depending on the time of
day etc. If this occurs, “NO SERVICE” is displayed.

Station Memory Updating

When there is a station name change, or a new
station begins broadcasting, the unit memory is
automatically updated when:

• The previous station name is displayed by selecting
“STATION TUNE”.

• One of the stations already broadcasting on the
same frequency with the new station is displayed
by selecting “STATION TUNE”.

Note:

• Deleting stations that are no longer broadcasting
is not automatic. If you want to delete a station,
perform Auto scan again and the new memory is
created.

• When a new frequency begins broadcasting,
stations on that new frequency are not automatically
added to memory. Perform Auto scan to add them
to memory. Also, you may need to change the Auto
scan range if the new frequency is outside the
factory set Auto scan range (

➡ page 14).

12

STATION TUNE

You can select stations from the memory created as
shown above in alphanumeric order. You can easily
select your favourite stations by using presets
(➡ page 13).

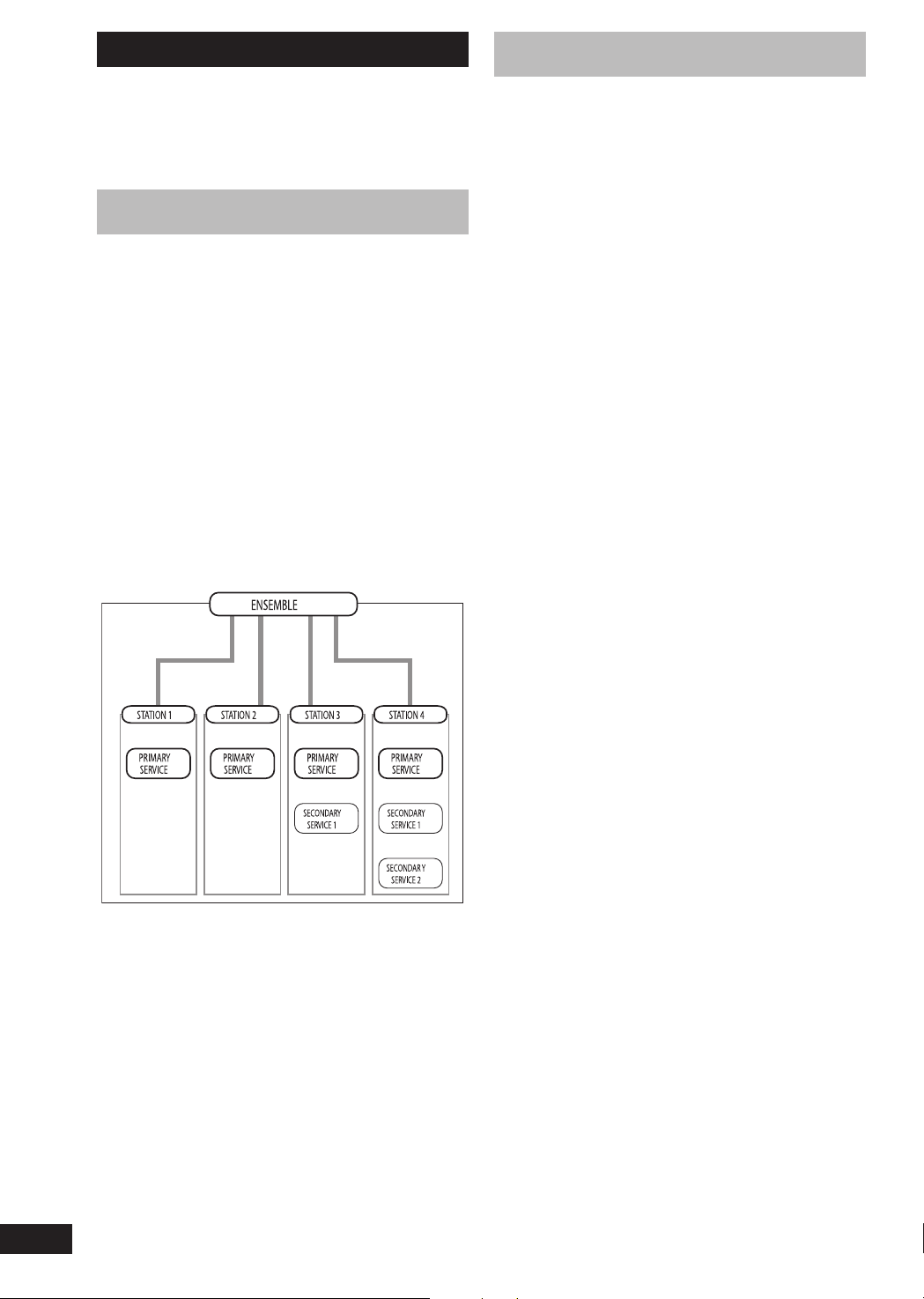

As shown in the diagram, an ensemble consists of a
group of stations which have primary services, they
can also have secondary services. This means, for
example, that commentary on sports events from
different areas can all be broadcast at once.

RQTX0237

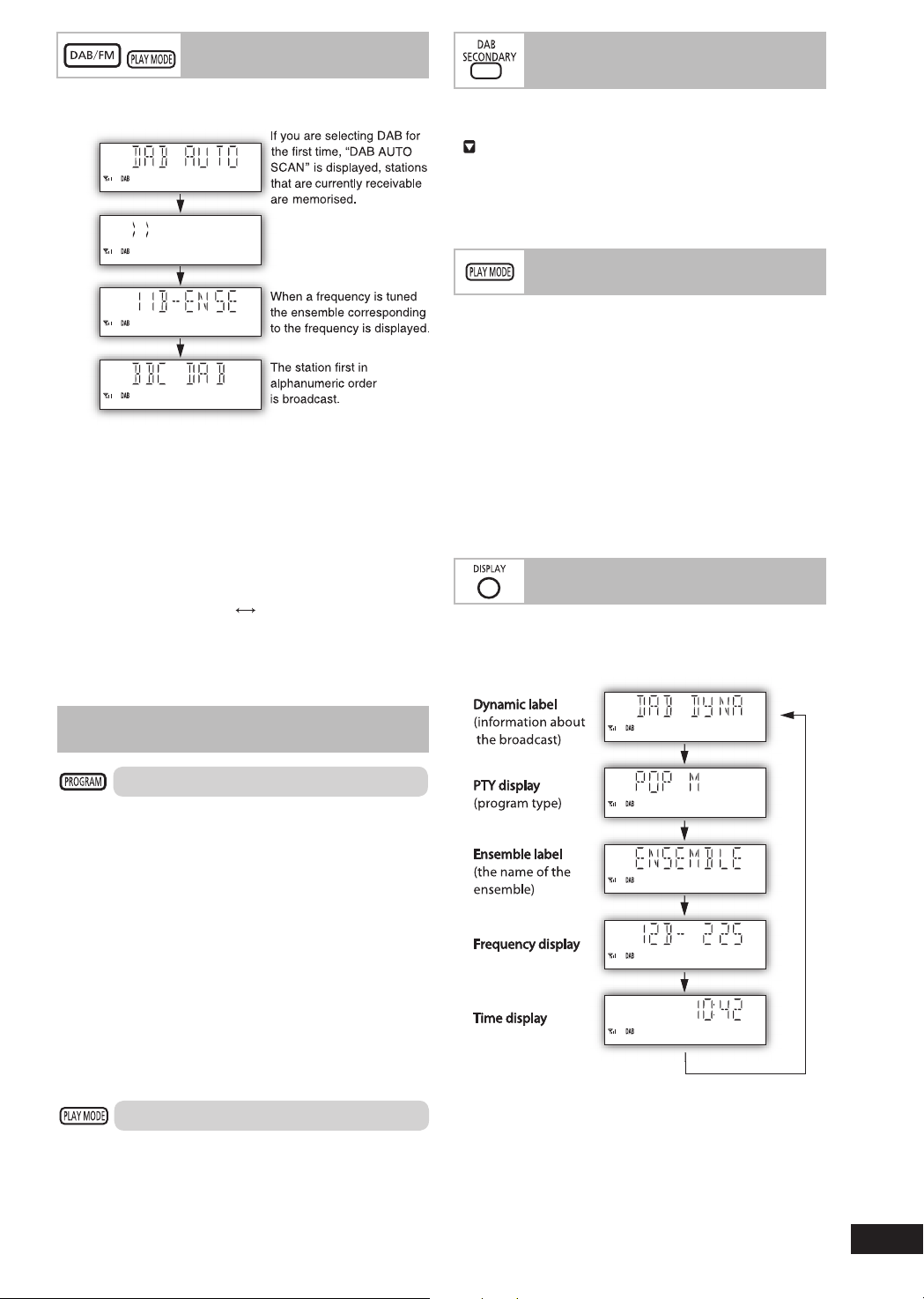

DAB operationDAB operation

1

Press [DAB/FM] to enter DAB mode.

The unit comes on.

Note:

“SCAN FAILED” appears if no stations are
memorised. If this occurs, adjust the antenna and try
Auto scanning or change the Auto scan frequency
range. (➡ page 14)

2 Press [PLAY MODE] to select “STATION

TUNE”.

Each time you press the button:

“STATION TUNE” “PRESET TUNE”

3 Press [4/1] or [¡/¢] to select a

station.

The station name changes in alphanumeric order.

Listening to the secondary Listening to the secondary
serviceservice

Press [DAB SECONDARY] to select the
secondary service.

“ ” is displayed if there is a secondary service
broadcast.
The secondary services are selected each time the
button is pressed. The primary service is returned to
after the last secondary service.

DAB Auto ScanDAB Auto Scan

Press and hold [PLAY MODE] until “DAB
AUTO SCAN” appears.

When a frequency is tuned by Auto scanning on this
unit, the ensemble corresponding to the frequency is
displayed for approximately 2 seconds.

Note:

• When updating memory with Auto scan, preset
stations are not erased or changed.

• When a frequency cannot be received, the previous
memory is restored.

• Total stations received is displayed for
approximately 2 seconds.

DisplayDisplay

Press [DISPLAY] to select the display.

The information scroll through the display.
Each time you press the button:

PresettingPresetting

Presetting channelPresetting channel

Up to 20 channels can be set.

1 Press [4/1] or [¡/¢] to select a

station.

2 Press [PROGRAM].
3 Press the numeric buttons to select a

channel.

4 To preset more stations, press

[PLAY MODE] to select “STATION TUNE”
and then repeat steps 1 to 3.

Note:

You cannot preset stations when the station is not
broadcasting or when you are selecting a secondary
service.

Selecting a preset channelSelecting a preset channel

1 Press [PLAY MODE] to select “PRESET

TUNE”.

“PGM” is displayed.

2 Press [4/1] or [¡/¢] or numeric

buttons to select a channel.

RQTX0237

13

DAB (continued)

Turning automatic clock Turning automatic clock
adjustment function onadjustment function on

To adjust the time information during DAB
broadcasting and automatic time adjustment.

1 Press [DAB MENU] to enter menu mode.
2 (

Within 10 seconds )

Press [3/4, ALBUM] to select “AUTO

CLOCK” and then press [OK].

3 (

Within 10 seconds )

Press [3/4, ALBUM] to select “ON

ADJUST” and then press [OK].

Select “OFF ADJUST” to turn the automatic clock
adjustment function off.

To exit

Press [DAB MENU] again.

Changing the Auto scan Changing the Auto scan
frequency rangefrequency range

Only the frequencies currently used in the UK as
of January 2009 on BAND III are Auto scanned
(“United Kingdom”, factory setting).

Select “ALL BAND III” when you want to store
stations on other frequencies to memory.

1 Press [DAB MENU] to enter menu mode.

2 (

Within 10 seconds )

Press [3/4, ALBUM] to select “DAB

SCAN MODE” and then press [OK].

2 (

Within 10 seconds )

Press [3/4, ALBUM] to select “UNITED

KINGDOM” or “ALL BAND III” and then
press [OK].

Checking the DAB signal Checking the DAB signal
qualityquality

To improve reception by adjusting the antenna while
monitoring signal quality on the display.

1 Press [DAB MENU] to enter menu mode.

“SCAN FAILED” appears if no stations are
memorised. If this occurs, adjust the antenna
and try Auto scanning or change the Auto scan
frequency range.

2 (

Within 10 seconds )

Press [3/4, ALBUM] to select “SIGNAL

QUALITY” and then press [OK].

3 Press [3/4, ALBUM] to select the

frequency.

Auto scan begins automatically after the change has
been made.

To exit

Press [DAB MENU] again

Note:

When the “DAB SCAN MODE” is changed, the DAB
preset channels are erased and if the DAB play timer
has been set the timer switches to off.

14

To exit

Press [DAB MENU] again.

Note:

RQTX0237

In order to enjoy the new stations after adjusting the
antenna, it is necessary to perform Auto scanning to
update the station memory.

Shaded areas are frequencies used currently as January 2009 in the
“United Kingdom”.

Using the timer

1 Press [CLOCK/TIMER] repeatedly to

select the play timer.

Setting the clockSetting the clock

This is a 24-hour clock.

1 Press [CLOCK/TIMER] to select “CLOCK”.

Each time you press the button:

CLOCK

2 (

Within 5 seconds or so )

Original display

˚ PLAY

Press [4/1] or [¡/¢] to set the

time.

3 Press [CLOCK/TIMER] again to finish

setting the time.

Displaying the clock

Press [CLOCK/TIMER] to display the clock for few
seconds.

Note:

Reset the clock regularly to maintain accuracy.

Using the sleep timerUsing the sleep timer

This function enables you to turn off the unit
automatically after the set time.

Press [SLEEP] repeatedly to select your
desired time.

CLOCK ˚ PLAY

Original display

2 (

Within 5 seconds or so )

Press [4/1] or [¡/¢] to set the

time.

Start time

Play timer indicator

3 Press [CLOCK/TIMER] to confi rm.
4 Repeat steps 2 and 3 to set the fi nishing

time.

Finish time

To activate the timer

5 Press [˚ PLAY] to turn on the timer.

˚ PLAY

no display (off)

6 Press [y] to turn off the unit.

The unit must be off for the timer to operate.

Sleep timer indicator

To cancel

Press [SLEEP] to select “OFF”.

Changing the remaining time

Press [SLEEP] to show the remaining time, and
press [SLEEP] again to select your desired time.

Note:

• The play and sleep timer can be used together.

• The sleep timer always has priority. Be sure not to
overlap timer settings.

Using the play timerUsing the play timer

You can set the timer to come on at a certain time to
wake you up.

Preparation

Turn the unit on and set the clock.
Prepare the music source you want to listen to; disc,
radio, DAB, USB or music port source, and set the
volume.

Change the
settings

Change the
source or
volume

Check the
settings
(when the
unit is on or in
standby mode)

Cancel Press [˚ PLAY] to clear the timer

Note:

• The play timer will start at the preset time, with the
volume increasing gradually to the preset level.

• The timer comes on at the set time every day if the
timer is on.

• The unit must be in the standby mode for the timer
to function.

• If you turn the unit off and on again while a timer
is functioning, the fi nish time setting will not be
activated.

Repeat steps 1 to 4 and 6.
(➡ see above)

1) Press [˚ PLAY] to clear the
timer indicator from the display.

2) Make changes to the source or
volume.

3) Perform steps 5 and 6. (➡ see
above)

Press [CLOCK/TIMER]
repeatedly to select ˚ PLAY.

indicator from the display.

RQTX0237

15

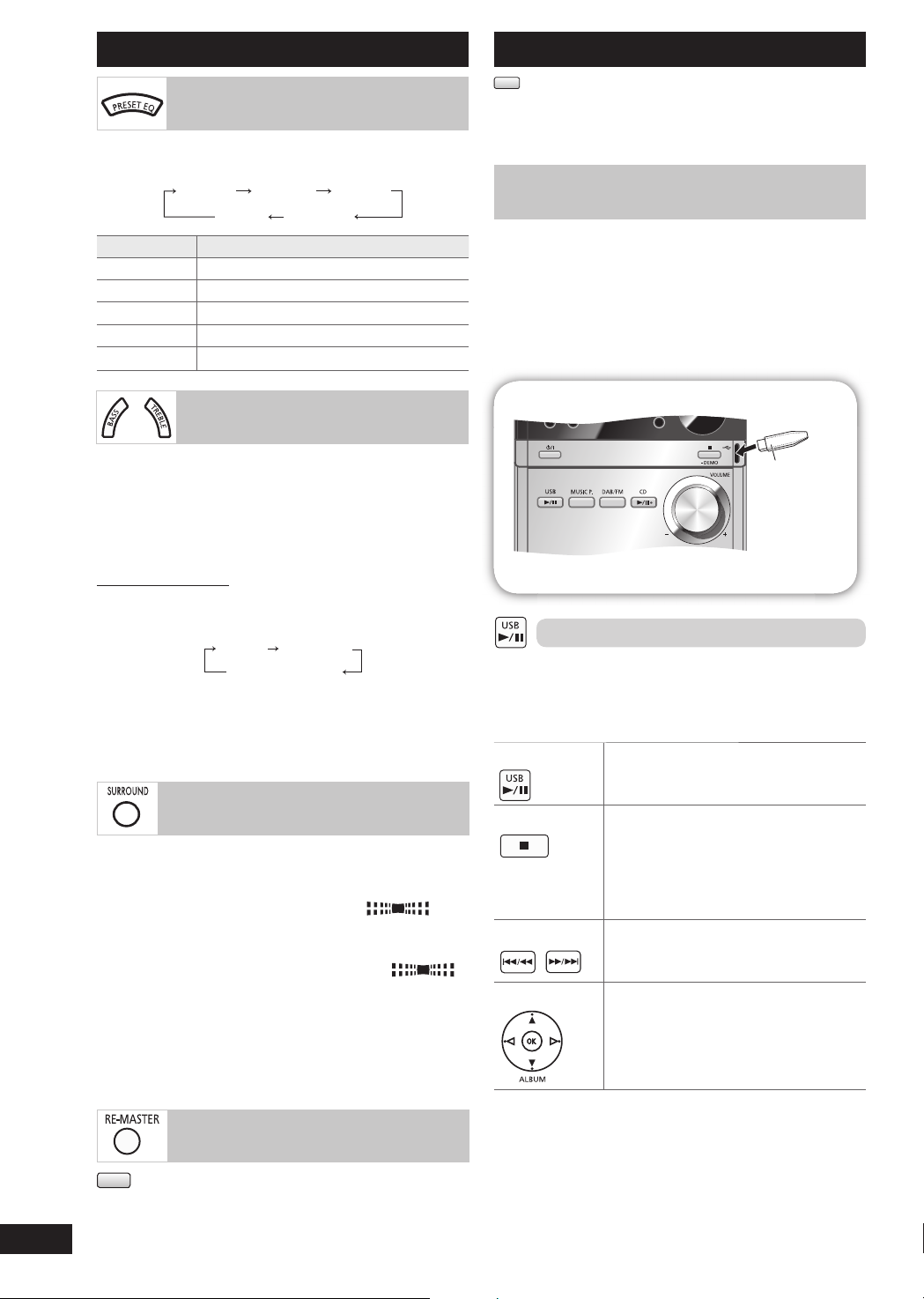

Using sound effects

Changing the sound Changing the sound
quality: Preset EQquality: Preset EQ

Press [PRESET EQ] repeatedly to select
your desired setting.

HEAVY SOFT

CLEAR

FLAT VOCAL

USB

MP3

The USB connectivity enables you to connect and
play MP3 tracks from USB mass storage class.
Typically, USB memory devices. (Bulk only transfer)

Connecting a USB mass storage Connecting a USB mass storage
devicedevice

Setting Effect

HEAVY Adds punch to rock
CLEAR Clarifi es higher frequencies
SOFT For background music
VOCAL Adds gloss to vocal
FLAT No effect

Changing the sound Changing the sound
quality: Bass or treblequality: Bass or treble

Enable you to enjoy the lower or higher pitch sound.

1 Press [BASS] or [TREBLE] to select your

desired setting.

2 Press [4/1] or [¡/¢] to adjust the

level.

By main unit only

1 Press [BASS/TREBLE] repeatedly to

select your desired setting.

BASS TREBLE

Original display

2 Press

[4/1] or [¡/¢] to adjust the

level.

Note:

The level of the pitch is between -4 to +4.

Enhancing the stereo sound: Enhancing the stereo sound:
Surround Surround

Enable you to add natural width and depth to the
stereo sound.

To activate

Press [SURROUND] to display “ ”
indicator.

To cancel

Press [SURROUND] again to clear “ ”
indicator.

Note:

• Surround sound is less discernible when listening
through headphones.

• If interference in FM stereo reception increases,
cancel the surround-sound effect.

soundsound

Preparation

Before connecting any USB mass storage device
to the unit, ensure that the data stored therein has
been backed up.

It is not recommended to use a USB extension
cable. The device connected via the cable will not be
recognised by this unit.

USB enabled
device

(not included)

Playing a USB mass storage devicePlaying a USB mass storage device

1 Reduce the volume and connect the USB

mass storage device to the USB port.

2 Press [6, USB] or [OK] to start play.

Pause play

Stop play

Skip tracks

Skip album

Press [6, USB].
Press again to resume play.

Press [7] (stop).
“RESUME” is displayed. The
position is memorised.
Press [6, USB] to resume play.
Press [7] (stop) again to clear the
position.

Press [4/1] or [¡/¢].

Press [5 / ∞, ALBUM] in the play
mode.
Press [

5 / ∞, ALBUM] once and

then the numeric buttons in the
stop mode.

16

Changing the sound Changing the sound
quality: RE-MASTERquality: RE-MASTER

MP3

This feature reproduces the frequencies lost during

RQTX0237

recording to give you a sound closer to the original.

Press [RE-MASTER] repeatedly to select either
“ON RE-MASTER” or “OFF RE-MASTER”.

NOTE on USB

Compatible devices

Devices which are defined as USB mass storage
class:

• USB devices that support bulk only transfer.

• USB devices that support USB 2.0 full speed.

Supported format

• Folders are defined as album.

• Files are defined as track.

• Track must have the extension “.mp3” or “.MP3”.

• CBI (Control/Bulk/Interrupt) is not supported.

• A device using NTFS file system is not
supported. [Only FAT 12/16/32 (File Allocation
Table 12/16/32) file system is supported.]

• Depending on the sector size, some files may
not work.

• Maximum album: 255 albums

• Maximum track: 2500 tracks

• Maximum track in one album: 999 tracks

Connecting to a portable audio Connecting to a portable audio
equipmentequipment

This feature enables you to enjoy music from a
portable audio equipment.

Audio cord (not included)

Using other optional
equipments

Note:

All peripheral components and cables are sold
separately.

Avoid interfering with other Avoid interfering with other
Panasonic equipmentPanasonic equipment

Other Panasonic audio or video equipment may
start functioning when you operate the unit using the
supplied remote control.

You can operate this unit in another mode by setting
the remote control operating mode to “REMOTE 2”.

The main unit and remote control must be set to
the same mode.

1 Press and hold [MUSIC P.] on the main

unit and [2] on the remote control until
the main unit’s display shows “REMOTE
2”.

2 Press and hold [OK] and [2] on the

remote control for at least 2 seconds.

To change the mode back to “REMOTE 1”, repeat
both steps above by replacing [2] with [1].

Portable audio equipment

(not included)

Playing a portable audio equipmentPlaying a portable audio equipment

Switch off the equaliser function (if there is any)
of the portable audio equipment before you plug
into the MUSIC P. jack. Otherwise, sound from the
speaker may be distorted.

1 Plug the audio cord into the MUSIC P.

jack.

2 Press [MUSIC PORT] (main unit:

[MUSIC P.]).

3 Play the portable audio equipment.

(See the portable audio equipment’s
instruction manual.)

Level adjustmentLevel adjustment

You can select the sound input level of your portable
audio equipment.

Press [PLAY MODE] to select your desired
setting.

NORMALHIGH

Note:

Select “NORMAL” if the sound is distorted when level
HIGH is activated.

RQTX0237

17

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if
the solutions indicated in the chart do not solve the problem, consult your dealer for instructions.

■ Common problems Page

No response when
remote control buttons
are pressed.

Distorted sound or no
sound

A “humming” sound can
be heard during play.

■ Discs

Incorrect display or play
will not start.

■ Radio

A beat sound is heard.

• Check that the batteries are installed correctly. 5

• Turn the volume up.

• The speaker cords may not be connected properly. Turn the unit off,
check and correct the connections and turn the unit on.

• An AC mains lead or fl uorescent light is near the unit. Keep other
appliances and cords away from the unit.

• You have not inserted the disc correctly; insert it correctly.

• Disc may be dirty. Wipe it clean.

• Replace the disc if it is scratched, warped, or non-standard.

• Condensation has formed: Wait 1 to 2 hours for it to evaporate.

• Turn the television off or move it away from the unit. —

—

—

—
—
—
—

6

■ Listening to DAB

DAB reception is poor

DATA

SCRAMBLED

NO SERVICE

NO SIGNAL

SCAN FAILED

STATION FULL

• Keep the antenna away from computers, televisions, other cables and
cords.

• Use an outdoor antennas.

• Data broadcast being received over the DAB broadcast signal.
Cannot be used on this unit.

• The broadcast station being received cannot be accessed.

• The station is currently not broadcasting.

• This station cannot be received. Check your antenna.

• Stations are not receivable. Check your antenna and try Auto
scanning.

DAB station memory is full. Use the following method to clear station
memory.

1. Press [DAB MENU].

2. Press [5/∞, ALBUM] to select “STATION CLEAR”.

3. Press [OK]. “OK? Push OK” is displayed.

4. Press [OK].

Station memory is erased and the unit automatically begins Auto
scanning.

—

6

—

—

—

6

6, 13

—

18

RQTX0237

■ USB

The USB drive or its
contents cannot be read.

Slow operation of the
USB device.

■ Unit displays

“NO PLAY”

“USB OVER CURRENT
ERROR”

“F76”

“ERROR”

“VBR–”

“– –:– –” (during standby
mode)

“MP3 ERROR” or
“PLAYERROR”

“UNSUPPORT”

• The USB drive format or its contents is/are not compatible with the
system, “NO PLAY” is displayed. Unplug the USB device and insert it
again.

• The USB host function of this product may not work with some USB
devices.

• USB devices with storage capacity of more than 8 gigabytes may not
work in some instances.

• Large fi le size numerous fi les or high memory USB fl ash drive takes
longer time to read.

• Check the content.

• Only MP3 format fi les can be played.

• The USB mass storage device rating exceeds 500mA. Disconnect
the USB device. Turn the unit off and then back on.

• There is a power supply problem. Consult the dealer. —

• Incorrect operation performed. Read the instructions and try again. —

• The unit cannot display the remaining play time for variable bit rate
(VBR) tracks.

• You plugged the AC mains lead in for the fi rst time or there was a
power failure recently.

• Set the time.

• You have played an unsupported format.
Check the contents.

• You have inserted an unsupported device. —

16

—

—

—

—
—

—

—

—

15

10

Maintenance

If the surfaces are dirtyIf the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

RQTX0237

19

Specifi cations

AMPLIFIER SECTIONAMPLIFIER SECTION

RMS Output Power Stereo Mode

Front Ch (both ch driven)

10 W per channel (4 Ω), 1 kHz, 10% THD

Total RMS Stereo mode power 20 W

FM TUNER, TERMINALS SECTIONFM TUNER, TERMINALS SECTION

Preset memory FM 30 stations
Frequency Modulation (FM)
Frequency range

87.50 to 108.00 MHz (50 kHz step)

Antenna terminals 75 Ω (unbalanced)
Music Port (front) jack
Sensitivity 100 mV, 4.7 kΩ

Terminal Stereo, 3.5 mm jack

Headphone jack

Terminal Stereo, 3.5 mm jack

DAB SECTIONDAB SECTION

DAB memories 20 channels
Frequency Band (wavelength)

Band III (UK Only)

Band III (Europe)

Sensitivity *BER 4x10

Max input power 0 dBm
Min requirement -98 dBm

Selectivity

Adjacent channel (Band III) 33 dB
Far-Off channel (Band III) 45 dB

DAB External Antenna

Terminal F-connector (75 Ω)

11B to 12D (218.640 MHz to 229.072 MHz)

5A to 13F (174.928 MHz to 239.200 MHz)

-4

DISC SECTIONDISC SECTION

Disc played (8 cm or 12 cm)

(1) CD-Audio (CD-DA)
(2) CD-R/RW (CD-DA, MP3
(3) MP3

*

Pick up

Wavelength 785 nm (CD)
Laser power CLASS 1 (CD)

Audio output (Disc)

Number of channels 2 (FL, FR)
FL = Front left channel
FR = Front right channel

*

MPEG-1 Layer 3, MPEG-2 Layer 3

*

formatted disc)

USB SECTIONUSB SECTION

USB port

Media fi le format support MP3 (
USB device fi le system FAT 12 / FAT 16 / FAT 32
USB port power 500 mA (max)

*

.mp3)

SPEAKER SECTIONSPEAKER SECTION

Typ e 1 way, 1 speaker system (Bass refl ex)
Speaker unit(s) Impedance 4 Ω

Full range 10 cm cone type

Input power (IEC) 10 W (Max)
Output sound pressure 83 dB/W (1.0 m)
Frequency range 61 Hz to 17 kHz (-16 dB)

95 Hz to 15 kHz (-10 dB)

Dimensions (W x H x D)

139 mm x 226 mm x 136 mm

Mass 1.3 kg

GENERALGENERAL

Power supply AC 220 to 240 V, 50 Hz
Power consumption 42 W
Dimensions (W x H x D)

153 mm x 226 mm x 300 mm

Mass 2.1 kg
Operating temperature range 0˚C to +40˚C
Operating humidity range

35 % to 80 % RH (no condensation)

Power consumption in standby mode:

Note:

1. Specifi cations are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital
spectrum analyzer.

0.8 W (approximate)

Panasonic Corporation

Web Site: http://panasonic.net

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre
Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

En

RQTX0237-1B

L0109CH1039
