Panasonic SC-PM41 User Manual

Operating Instructions

CD Stereo System

Model No. SC-PM41

For U.S.A.

As an ENERGY STAR® Partner, Panasonic has
determined that this product meets the ENERGY
STAR® guidelines for energy effi ciency.

Before connecting, operating or adjusting this product, please read
these instructions completely. Please keep this manual for future
reference.

Operations in these instructions are described mainly using
remote control, but you can do the operations on the main unit if
the controls are the same.

Table of contents

Supplied accessories ....................... 2

IMPORTANT SAFETY

INSTRUCTIONS ............................ 3

Getting started .................................. 4

Step 1 - Making the connections
Step 2 - Inserting batteries into the remote control
Step 3 - DEMO function
Placement of speakers

Overview of controls ........................ 6

Main unit
Remote control

CDs and MP3 – Play ......................... 7

Playing a disc
Advanced CDs and MP3 functions

Cassette tape – Play and record ..... 12

Basic play
TPS (Tape Program Sensor)
Before recording
Recording the radio
Recording CDs
Other basic operations

Radio – Tune ..................................... 13

Manual tuning
Memory preset
FM allocation setting

Timer .................................................. 14

Setting the clock
Using the sleep timer
Using the play or record timer

Sound adjustment ............................ 16

Selecting sound effects
Enhancing the bass
Enjoying surround sound

External unit ...................................... 16

Connecting external unit
Playing or recording from an external unit

Troubleshooting guide ..................... 17

Warranty (ONLY FOR U.S.A.) ........... 18

Customer Services Directory (ONLY

FOR U.S.A.) ................................... 18

Product Service ................................ 19

Listening caution .............................. 19

Maintenance
When moving the unit

Specifi cations ................................... 20

PPC

RQT8038-3P

Dear customer

Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.

These operating instructions are applicable to the following
system.

System SC-PM41

Main unit SA-PM41

Speakers SB-PM41

The model number and serial number of this product can
be found on either the back or the bottom of the unit.
Please note them in the space provided below and keep
for future reference.

MODEL NUMBER

SERIAL NUMBER

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

Supplied accessories

Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for
replacement parts. (As of January 2005)

In U.S.A. to order accessories, refer to “Accessory
Purchases” on page 18.

1 x Remote control

(N2QAJB000133)

1 x AC power supply

cord

(K2CB2CB00006)

2 x Remote control batteries

1 x FM indoor

antenna

(RSA0007-L)

1 x AM loop antenna

(N1DAAAA00001)

Except for U.S.A.

Inside of product

The socket outlet shall be installed near the equipment
and easily accessible or the mains plug or an appliance
coupler shall remain readily operable.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED. TO PREVENT RISK OF
ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING , ENSURE T H AT CUR TA I N S AND
ANY OTHER MATERIALS DO NOT OBSTRUCT
THE VENTILATION VENTS.

2

RQT8038

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety
instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.

9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated

dangerous voltage within the product s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11) Only use attachments/accessories specified by the
manufacturer.

12) Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart /apparatus
combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when
unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV
technician for help.

Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate
this device.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.

3

RQT8038

Getting started

StepStep 1 1

Connect the AC power supply cord only after all other connections have been made.

Preparation

Twist and pull off the vinyl tip of the speaker cords.
OR
If the speaker cords do not have vinyl tips, directly connect them to the terminals.

1

AM loop antenna

Stand the antenna up on its base. Keep loose antenna
cord away from other wires and cords.

3

- Making the connections - Making the connections

Connect the AM loop antenna.

AM ANT

EXT

Connect the speaker cords.

White

Blue

Red

Black

LOOP

2

Connect the FM indoor antenna.

FM ANT

Tape the antenna to a wall or column, in a position with
least amount of interference.

Adhesive
tape

FM indoor
antenna

75

4

RQT8038

Blue (–)

Grey (+)





()'(









,/7







Black (–)

Red (+)

Cords with white and blue tags are for high frequency.
Cords with red and black tags are for low frequency.

Incorrect connection can damage the unit.

2 ,



To household
AC outlet

4

Connect the AC power supply cord.

• The included AC power supply cord is for use with this unit
only. Do not use it with other equipment.

Optional antenna connectionsOptional antenna connections

FM outdoor antenna AM outdoor antenna

AM ANT

EXT

• Never use an outdoor antenna during a lightning storm.

• You can connect the FM outdoor antenna for better reception. Please consult your dealer for installation.

• Disconnect the FM indoor antenna if an FM outdoor antenna is installed.

• Connect the AM outdoor antenna without removing the AM loop antenna. Run 5 to 12 m of vinyl-covered wire horizontally
along a window or other convenient location.

FM outdoor antenna
(not included)

FM ANT

75

LOOP

75 coaxial
cable
(not included)

AM outdoor antenna
(not included)

FM ANT

AM ANT

75

LOOP

EXT

M

AM loop antenna
(included)

Step 2Step 2

- Inserting batteries into the remote control - Inserting batteries into the remote control







!!2,2



■ Batteries

• Insert so the poles (+ and –) match those in the remote control.

• Remove if the remote control is not going to be used for a long period of
time. Store in a cool, dark place.

• Do not use rechargeable type batteries.

• Mishandling of batteries can cause electrolyte leakage which can damage
items the fl uid contacts and may cause a fi re.

Do not:

• mix old and new batteries.

• use different types at the same time.

• heat or expose to fl ame.

• take apart or short circuit.

• attempt to recharge alkaline or manganese batteries.

• use batteries if the covering has been peeled off.

■ Use

• Aim at the remote control sensor, avoiding obstacles, at a maximum range
of 7 m (23 feet) directly in front of the unit.

Refer to page 6 for the remote control sensor position.

SStep tep 33

- - DEMO functionDEMO function

When the unit is fi rst plugged in, a demonstration of its functions may be shown
on the display.
If the demo setting is off, you can show a demonstration by selecting “DEMO
ON”.

Press and hold [STOP 7, –DEMO].

The display change each time the button is held down.

DEMO OFF DEMO ON

While in standby mode, select “DEMO OFF” to reduce power consumption.

Placement of speakersPlacement of speakers

Speakers are designed identically so that no left or right channel orientation is necessary.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices
easily infl uenced by magnetism.

• To avoid damage to the speakers, do not touch the speaker cones if you have taken the nets off.

Note

• Keep your speakers at least 10mm (

Use only the supplied speakers.

• The combination of the main unit and speakers provide the best sound. Using other speakers can damage the unit and

sound quality will be negatively affected.

13

/32˝)away from the system for proper ventilation.

Caution

• Use the speakers only with the recommended system. Failure to do so can damage the amplifi er and speakers,
and can cause fi re. Consult a qualifi ed service person if damage occurs or if a sudden change in performance
is apparent.

• Do not attach these speakers to walls or ceilings.

5

RQT8038

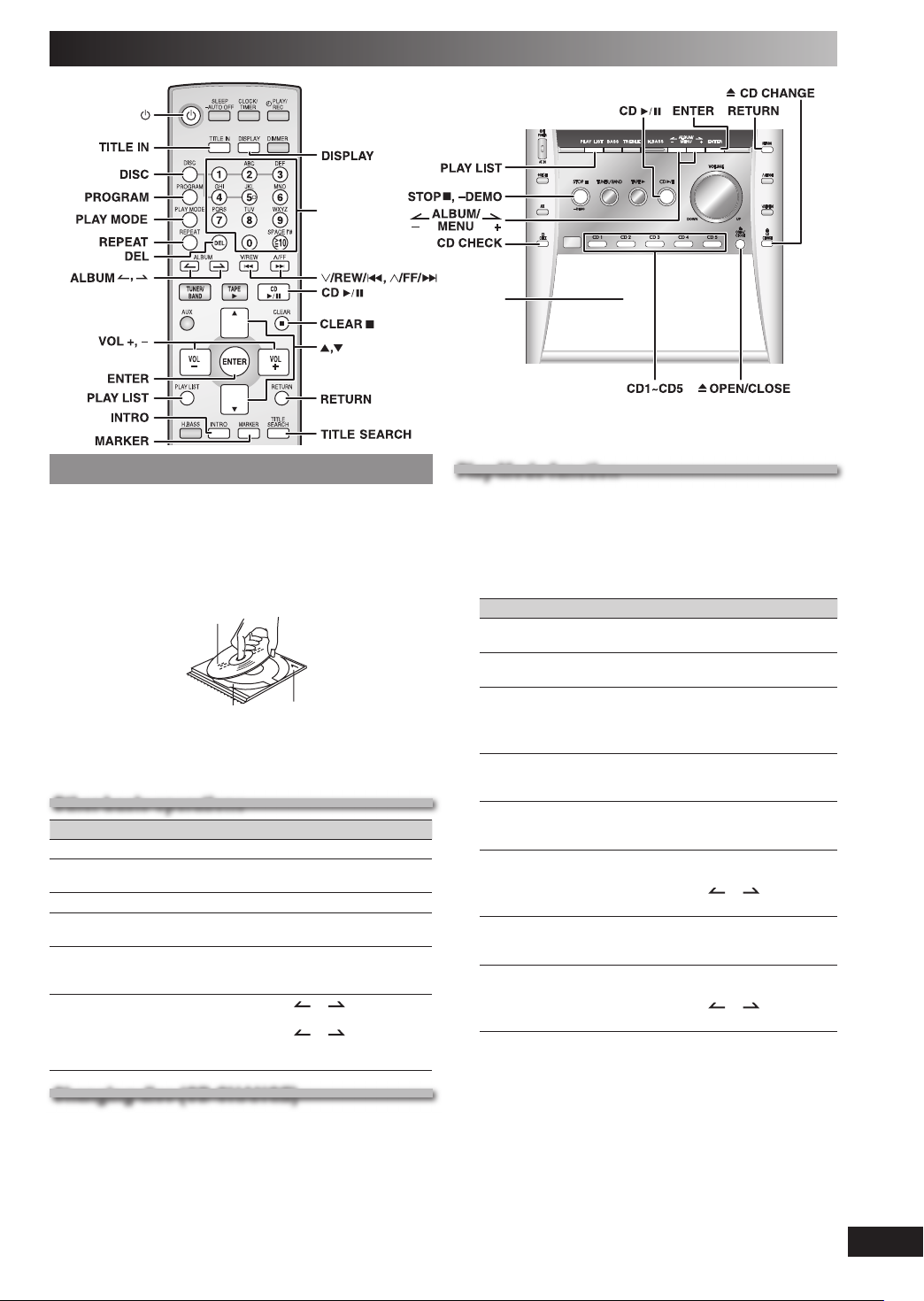

Overview of controls

Main unitMain unit

Refer numbers in parentheses for page reference.

Top of the unit

Cassette lid (12)

1 Standby/on switch (y/l POWER) (7, 14)

Press to switch the unit from on to standby

mode or vice versa. In standby mode, the unit

is still consuming a small amount of power.

AC supply indicator (AC IN)

This indicator lights when the

unit is connected to the AC

2 Bass and treble (16)

Recording start/pause (12, 16)

4 Tuner/Band selection (13)

Checking CD position (8)

Remote control sensor

power supply.

Stop/Demo (5, 12)

3 Aux (16)

Headphone jack (PHONES)

Avoid listening for prolonged
periods of time to prevent
hearing damage.
Plug type: 3.5 mm (1/8”) stereo
(not included)

Cassette open (12)

Display panel

6 Play list (10)

7 H.Bass (16)

8 Enter (8, 9, 10, 11)

9 Return (10)

Album/menu selection, treble/bass
adjustment (7, 9, 10, 16)

! CD skip/search, tape fast-forward/
rewind, tune/preset channel selection,
time adjustment (7, 8, 9, 10, 11, 12, 13,
14, 15)

" Volume control (7)

6

RQT8038

5 Tape play (12)

CD selection (7)

CD trays (7)

Remote controlRemote control

Buttons such as 1 function the same as the controls on the main unit.

1

Sleep timer/Auto off

Program (9, 13)

Play mode (7, 12, 13)

Album selection

Preset EQ (16)

(14)

Title in (8)

Disc (7, 9)

Repeat (10)

(7, 9, 10)

Intro (10)

4
5
3

"
8
6

7

2

Clock/timer (14, 15)

Play timer/record timer (15)

Display (8)

Dimmer

Numeric, characters
(7, 9, 10, 11, 13)

Delete (8, 9, 11)

!

#

Clear, stop (7, 8, 9, 10, 11, 12)

Treble/bass adjustment, play
list selection (10, 16)

9

Title search (11)

Marker (10)

Muting

Surround (16)

# CD play/pause (7, 8, 9, 10, 11, 12)

CD change (7)

CD tray open/close (7)

This auto off function allows
you to turn of f the unit in CD
or tape mode only after left
unused for 10 minutes.

• Press and hold [SLEEP,
–AUTO OFF] to activate the
function.

• Press and hold [SLEEP,
–AUTO OFF] again to
cancel.

• The setting is maintained
even if the unit is turned off.

To dim the display panel.

To mute the sound.

• Press the button to activate.

• Press again to cancel.
