CONTENTS

HT-R993

AV RECEIVER

Advanced Manual

AM/FM Radio Receiving Function 2

Tuning into a Radio Station 2 Presetting an AM/FM Radio Station 3 Using RDS (European model) 3

Playing Music Files on a USB Storage Device 5 Listening to Internet Radio 6

About Internet Radio 6 TuneIn 6

Pandora SiriusXM Internet Radio (North American only) 8 Slacker Personal Radio (North American only) 9 Registering Other Internet Radios 10

DLNA Music Streaming 12

About DLNA 12 Configuring the Windows Media DLNA Playback 12 Controlling Remote Playback from a PC 13

Music Streaming from a Shared Folder 14

About Shared Folder 14 Setting PC 14 Playing from a Shared Folder 14

Using Remote Controller for Playing Music Files 16

About the Remote Controller 16

–Getting Started (U.S. only) 7

Player 12

Remote Controller Buttons 16 Icons Displayed during Playback 16

Using the Listening Modes 17

Selecting Listening Mode 17 Effects of Listening Modes 18 Checking the Input Format 21

Advanced Settings 22

How to Set 22

1. Input/Output Assign 23

2. Speaker Setup 26

3. Audio Adjust 30

4. Source Setup 31

5. Listening Mode Preset 34

6. Miscellaneous 34

7. Hardware Setup 35

8. Remote Controller Setup 40

9. Lock Setup 40

Operating Other Components with the Remote Controller 41

Functions of REMOTE MODE Buttons 41 Programming Remote Control Codes 41 TV operation 42 Blu-ray Disc player/DVD player/DVD recorder operation 43

VCR/PVR operation 43 Satellite receiver / Cable receiver operation 44 CD player operation 44 Cassette tape deck operation 45 To operate CEC-compatible components 45

Installation and Connection of Height Speakers 46

Using the Height Speakers 46 Installation Method of the Height Speakers by Type 46

Connecting and Operating Onkyo RI Components 48

About RI Function 48 RI Connection and Setting 48 iPod/iPhone Operation 49

Firmware Update 50

About Firmware Update 50 Updating the Firmware via Network 50 Updating the Firmware via USB 51

Troubleshooting 53 Reference information 59

AM/FM Radio Receiving Function

Tuning into a Radio Station



Tuning into stations automatically

Press TUNER on the main unit several times to select

either "AM" or "FM".

Press TUNING MODE so that the "AUTO" indicator on

the display lights.

Press TUNING to start automatic tuning.

r Searching automatically stops when a station is

found. When tuned into a radio station, the " TUNED " indicator on the display lights. If FM stereo broadcasting is tuned, the "FM STEREO" indicator lights.

r No sound is output while the "

is off.

TUNED " indicator



Tuning into stations manually

Press TUNER on the main unit several times to select

either "AM" or "FM".

Press TUNING MODE so that the "AUTO" indicator on

the display goes off.

Press TUNING to select the desired radio station.

r The frequency changes by 1 step each time

you press the button. The frequency changes continuously if the button is held down and stops when the button is released. Tune by looking at the display.

To return the display to "AUTO": Press TUNING MODE on the main unit again. A station is automatically tuned. Normally "AUTO" should be displayed.



Tuning into stations by frequency

It allows you to directly enter the frequency of the radio station you want to listen to.

Press TUNER on the remote controller several times to

select either "AM" or "FM".

Press D.TUN.

Using the number buttons, enter the frequency of the

radio station within 8 seconds.

r To enter 87.5 (FM), for example, press 8, 7, 5, or 8,

7, 5, 0. If you entered a wrong number, press D.TUN and enter a correct one.

When the signal from an FM radio station is weak: Radio wave may be weak depending on the building structure and environmental conditions. In that case, manually tune into the radio station of your choice by referring to the next section.

AM/FM Radio Receiving Function

Presetting an AM/FM Radio Station

It allows you to register up to 40 of your favorite AM/FM radio stations. Registering radio stations in advance allows you to tune into your radio station of choice directly.



Registration Procedure

Tune into the AM/FM radio station you want to register.

Press MEMORY on the unit so that the preset number

on the display flashes.

Repeatedly press PRESET to select a number

between 1 and 40 while the preset number is flashing (about 8 seconds).

Press MEMORY again to register the station.

r When the station is registered, the preset number

stops flashing.

r Repeat this procedure for all of your favorite AM/FM

radio stations.



Selecting a Preset Radio Station

Press CH +/- on the remote controller to select a preset

number.

r Alternatively you can press

main unit. You can also select by directly entering the preset number with the number buttons on the remote controller.



Deleting a Preset Radio Station

Press CH +/- on the remote controller to select the

preset number to delete.

Press and hold MEMORY on the main unit and press

TUNING MODE to delete the preset number.

r When deleted, the number on the display goes off.

PRESET on the

Using RDS (European model)

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals.

rRDS works only in areas where RDS broadcasts are

available.

rIn some cases, the text information appeared on the

display is not identical to the content transmitted by the RDS station. Furthermore, unexpected characters may be displayed when the unit receives unsupported characters. However, this is not a malfunction.

rIf the signal from an RDS station is weak, the RDS data

may be displayed continuously or not at all.

PS (Program Service): Tuning into a radio station distributing Program Service information displays the radio station name. Pressing DISPLAY displays the frequency for 3 seconds.

RT (Radio Text): Tuning into a radio station transmitting Radio Text information displays text on the display of the unit.

PTY (Program Type): Allows you to search for RDS stations by program type.

TP (Traffic Program): Allows you to search for radio stations transmitting traffic information.



Displaying Radio Text (RT)

Press RT/PTY/TP on the main unit once.

r The Radio Text (RT) is displayed scrolling across

the display. "No Text Data" is displayed when no text information is available.



Searching by Type (PTY)

Press RT/PTY/TP on the main unit twice.

r The current program type appears on the display.

Press PRESET to select the type of program to

search for.

r The following RDS station types are displayed:

None News (News reports) Affairs (Current affairs) Info (Information) Sport Educate (Education) Drama Culture Science (Science and technology) Varied Pop M (Pop music) Rock M (Rock music) Easy M (Middle of the road music) Light M (Light classics) Classics (Serious classics) Other M (Other music) Weather Finance Children (Children’s programmes) Social (Social affairs) Religion Phone In Travel Leisure Jazz (Jazz music) Country (Country music) Nation M (National music) Oldies (Oldies music)

Folk M (Folk music) Document (Documentary)

Press ENTER to search the radio stations of the

selected type.

When such a radio station is found, the indication on the

display flashes. Then, press ENTER again.

r If no stations are found, the message “Not Found” is

displayed.



Listening to Traffic Information (TP)

Press RT/PTY/TP on the main unit three times.

r "[TP]" will be displayed if traffic information is

transmitted by the radio station you are tuned in. "TP" only is displayed if no traffic information is available.

Press ENTER to search a radio station distributing traffic

information.

When such a radio station is found, searching stops and

playing traffic information starts.

r "Not Found" is displayed if no radio station

distributing traffic information is found.

AM/FM Radio Receiving Function

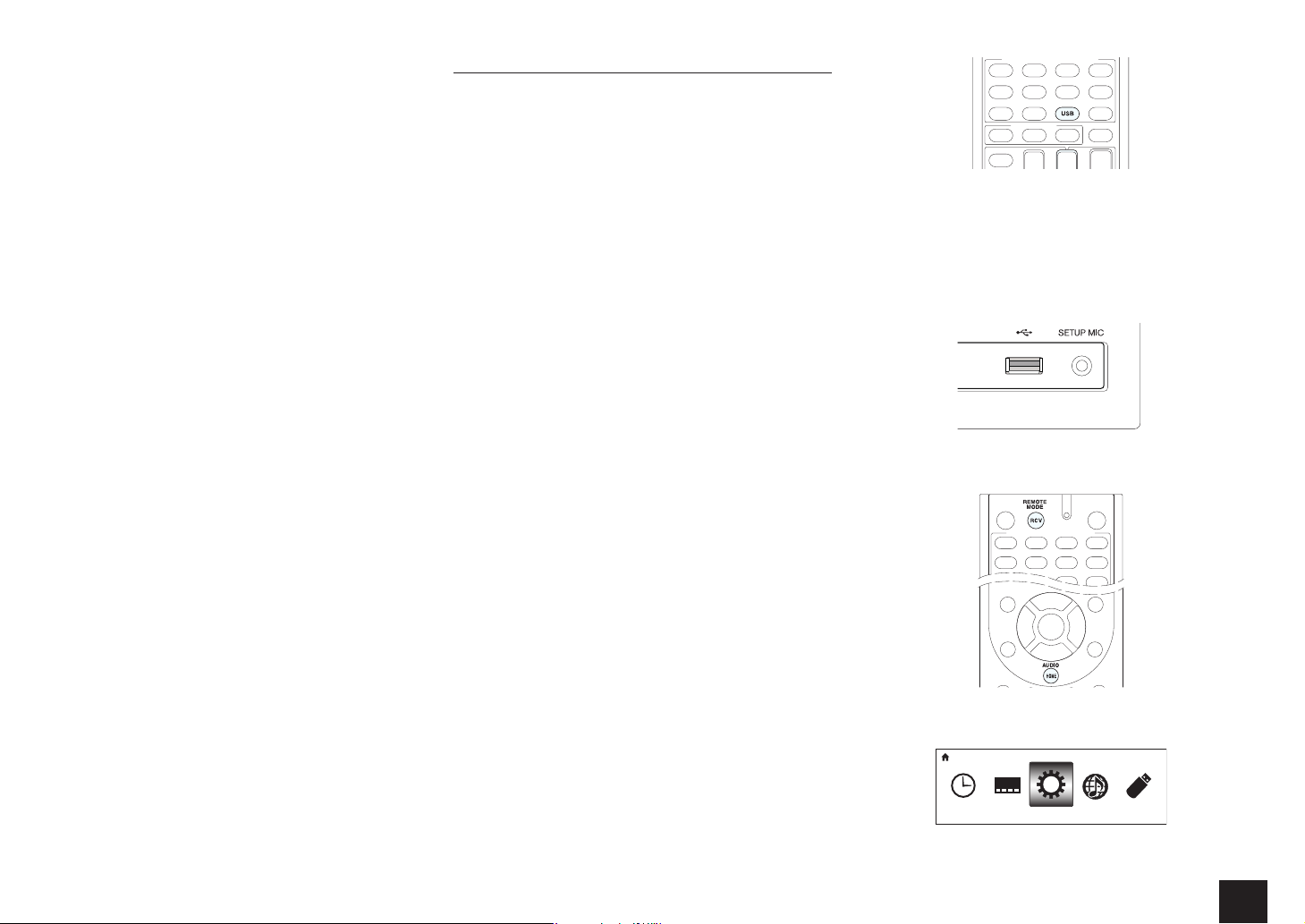

Playing Music Files on a USB

Storage Device

Operation: You can set up by viewing the guidance displayed on the TV screen. To display the guidance, you need to make HDMI connection between the unit and TV. Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN.

Plug your USB storage device with the music files into

the USB port of the unit so that "USB" lights on the display.

r If the "USB" indicator flashes, check whether the

USB storage device is plugged in properly.

r Do not unplug the USB storage device while

"Connecting..." is appeared on the display. This may cause data corruption or malfunction.

Press ENTER.

r The list of folders and music files on the USB storage

device are displayed. Select the folder with the cursors and press ENTER to confirm your selection.

With the cursors, select the music file to play, and then

press ENTER or

to start playback.

Playing Content from a USB Storage Device



Playing Back

Press USB on the remote controller to select "USB".

Listening to Internet Radio

About Internet Radio

Internet radio, also called net radio, web radio or streaming radio, is an audio service accessible at the websites of service providers who distribute music and audio programs in digital format. There are numerous websites all over the world, from terrestrial station, special station to personal website that provide such a service. The unit comes preset with Internet radio stations (¼) such as TuneIn for you to enjoy these services, just by connecting the unit to the Internet.

½

Network services or contents may become unavailable if the service provider terminates its service.

TuneIn

With more than 70,000 radio stations and 2 million ondemand programs registered, TuneIn is a service where you can enjoy music, sports and news from all over the world.



Playing Back

Press NET on the remote controller to display the NET

TOP screen.

r The "NET" indicator on the display stays lit. r Alternatively you can select "Network Service" in the

HOME menu.

Listening to Internet Radio

Select "TuneIn" with the cursors and press ENTER to

display the TuneIn top screen. With the cursors, select a radio station or program and

press ENTER to start playing.



Regarding the TuneIn Menu

To display the TuneIn menu, press MENU or ENTER while playing a radio station. Selecting the corresponding menu item with the cursors and pressing ENTER allows you to perform the following operations:

Add to My Presets: Registers radio stations and programs in your "My Presets" within TuneIn. This allows you to play registered radio stations and programs with a simple operation. ("My Presets" is not displayed if it is empty.)

Remove from My Presets: Deletes a radio station or program from your "My Presets" within TuneIn.

Report a problem: Reports a problem or interactively solves a problem related to TuneIn.

View Schedule: Displays the radio station or program schedule.

Clear recents: Clears all radio stations and programs from the "Recents" within TuneIn. (This menu is displayed only when a radio station or program inside the "Recents" is being played.)

Add to My Favorites: Registers radio stations and programs in "My Favorites" of "Network Service". This allows you to play registered radio stations and programs with a simple operation.

Listening to Internet Radio



Regarding the TuneIn Account

Creating an account on the TuneIn website (tunein.com) and logging in it from the unit allows you to automatically add radio stations and programs to your "My Presets" on the unit as you save them on the website . To display a radio station registered in "My Presets", you must log into TuneIn from the unit. To log in, select "Login" "I have a TuneIn account" in the "TuneIn" top list on the unit, and then enter your user name and password.

rIf you associate the device on My Page within the TuneIn

website using the registration code obtained by selecting "Login" - "Login with a registration code" on the unit, you can log in without entering the user name and password.

Pandora®–Getting Started (U.S. only)

Pandora is a free, personalized Internet radio service that plays the music you know and helps you discover music you’ll love.



Playing Back

Press NET on the remote controller to display NET TOP

screen.

r The "NET" indicator on the display stays lit. To

display the NET TOP screen, you can alternatively press HOME, select "Network Service" on the displayed HOME menu, and then press ENTER.

With the cursors on the remote controller, select

“Pandora”, and then press ENTER. Use / to select “I have a Pandora Account” or “I’m new

to Pandora” and then press ENTER. If you are new to Pandora select “I’m new to Pandora”. You will see an activation code on your TV screen. Please write down this code. Go to an Internet connected computer and point your browser to www. pandora.com/onkyo. Enter your activation code and then follow the instructions to create your Pandora account and your personalized Pandora stations. You can create your stations by entering your favorite tracks and artists when prompted. After you have created your account and stations you can return to your Onkyo receiver and press ENTER to begin listening to your personalized Pandora. If you have an existing Pandora account, you can add your Pandora account to your Onkyo receiver by selecting “I have a Pandora Account” and logging in with your email and password.

r If you want to use multiple user accounts, see “Using

Multiple Accounts”. Login can be made from the “Users” screen.

To play a station, use / to select the station from your

station list, and then press ENTER. Playback starts and the playback screen appears.



Create a New Station

Enter the name of a track, artist, or genre and Pandora will create a unique radio station for you based on the musical qualities of that track, artist, or genre.

I like this track: Give a track “thumbs-up” and Pandora will play more music like it.

I don’t like this track: Give a track “thumbs-down” and Pandora will ban that track from the current station.

Why is this track playing?: Discover some of the musical attributes that Pandora uses to create your personal radio stations.

I’m tired of this track: If you are tired of a track, you can put the track to sleep and Pandora will not play it for one month.

Create station from this artist: Creates a radio station from this artist.

Create station from this track: Creates a radio station from this track.

Delete this station: This will permanently delete a station from your Pandora account. All of your thumbs feedback will be lost should you choose to re-create the station with the same track or artist.

Rename this station: Lets you rename the current radio station.

Bookmark this artist: Pandora will bookmark your favorite artist for your profile on www.pandora.com.

Bookmark this track: Pandora will bookmark the current track and allow you to buy them all from Amazon or iTunes in one step!

Add to My Favorites: Adds a station to My Favorites list.

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

SiriusXM Internet Radio (North American only)

If you want to listen to the service, you must subscribe. To subscribe go to www.siriusxm.com/internetradio with your computer. When you subscribe, you will be provided with a username and password which has to be entered into the AV receiver. To use SiriusXM Internet Radio, you must have your AV receiver connected to the Internet. Using the remote control, follow these steps:



Playing Back

Press NET on the remote controller to display NET TOP

screen.

r The "NET" indicator on the display stays lit. To

display the NET TOP screen, you can alternatively press HOME, select "Network Service" on the displayed HOME menu, and then press ENTER.

With the cursors on the remote controller, select

“SiriusXM Internet Radio”, and then press ENTER. Select “Sign In”, and then press ENTER. If you have an

existing SIRIUS account, you can sign in by selecting “Sign In”. Enter your user name and password in the next keyboard screen, or in Web Setup. If you don’t know your username or password, call Sirius XM at (888) 539-7474 for assistance.

r If you want to use multiple user accounts, see “Using

Multiple Accounts”. Login can be made from the “Users” screen.

Using the keyboard screen

Use / / / and ENTER to enter your user name and password.

Select “OK”.

Press ENTER. The “Confirm your entries” screen appears.

Press ENTER. “Please wait...” appears and then “SiriusXM Internet Radio” screen appears which displays the category available for selection.

Use / to select the category and then press ENTER.

The channel list screen for the selected category appears. Use / to select the desired channel and then press

ENTER. The playback screen for the selected channel appears and you can listen to SiriusXM Internet Radio. You can control the tracks with the buttons on the remote control. Enabled buttons:

, , ,

Listening to Internet Radio

Add to My Favorites: Adds a channel to My Favorites list.

Add to Presets: Adds the currently playing station to presets list.

Delete from Presets: Deletes the currently playing station from presets list.

SiriusXM Internet Radio subscriptions are sold separately and are governed by the Sirius Terms and Conditions (see www.sirius.com). Be sure to read this agreement before you purchase your subscription. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved.

Slacker Personal Radio (North American only)



Playing Back

Press NET on the remote controller to display NET TOP

screen.

r The "NET" indicator on the display stays lit. To

display the NET TOP screen, you can alternatively press HOME, select "Network Service" on the displayed HOME menu, and then press ENTER.

With the cursors on the remote controller, select “Slacker

Personal Radio”, and then press ENTER. If you do not have an account, create one on the Slacker

website (www.slacker.com) with your computer. If you

already have a Slacker account, select “Sign in to your account” and then press ENTER. The keyboard screen appears. You can enter information from the remote control or the keys on the main unit. If there are no mistakes in the information you have

entered, use An account information confirmation screen appears. If you do not have an account, select “Access without

r If you want to use multiple user accounts, see “Using

Multiple Accounts”. Login can be made from the “Users” screen.

Use / to select a menu item and then press ENTER.

To sign out, use and then press ENTER. Use / to select a station and then press ENTER or

to start playback from the station. The playback screen appears. You can control the tracks with the buttons on the

remote control. Enabled buttons:

Rate Song as Favorite: Stores information to server, making it more likely that the song will be played again.

Ban Song: Stores information to server, making it less likely that the song will be played again.

Ban Artist: Stores information to server, making it less likely that the songs from this artist will be played again.

Mark Favorite: Adds the currently playing station to your favorites.

Unmark Favorite: Deletes the currently playing station from your favorites.

Add song to Library: Adds the currently playing track to your library.

Delete song from Library: Deletes the currently playing track from your library.

Add to My Favorites: Adds a station or song to My Favorites list.

/ / / to select “OK” then press ENTER.

/ to select “Sign out” from this screen

, , ,

Listening to Internet Radio

Using Multiple Accounts: The AV receiver supports multiple user accounts, which means you can freely switch between several logins. After registering user accounts, login is performed from the “Users” screen. Press MENU while the Users screen is displayed. "Add new user", "Remove this user" menu appear. You can either store a new user account, or delete an existing one.

rSome of the services don’t allow the use of multiple user

accounts. rYou can store up to 10 user accounts. rTo switch between accounts you must first log out from

the current account, and log in again on the "Users"

screen.

Listening to Internet Radio

Registering Other Internet Radios

To listen to other Internet radio program, register the program in the "My Favorites" list on the NET TOP screen as described below. The unit supports Internet radio stations stored in the following formats: PLS (URL ending in .pls), M3U (URL ending in .m3u) and RSS (URL ending in rss/rdf/xml).

rYou can register up to 40 Internet radio stations. rDepending on the data type and file format for playback,

you may not be able to play an Internet radio station even when its format is PLS, M3U or Podcast (RSS).

rAvailable services may vary depending on your area of

residence.



Registration Procedure

Before operation: The name and URL of the radio station

that you want to add are required for registration. Make the following preparations.

Press NET on the remote controller to display the NET

TOP screen.

r The "NET" indicator on the display stays lit.

Select "My Favorites" with the cursors and press ENTER

to display the "My Favorites" list screen. With the cursors, select a blank area of "My Favorites"

and press MENU to display the menu screen.

Select "Create new station" with the cursors and press

ENTER to display the keyboard screen. Enter the name and URL of the radio station to add.

r Select "Shift" and press ENTER to toggle between

upper and lower case. Select " ENTER to move the cursor to the selected direction. Select "Back Space" and press ENTER to delete the character at the left of the cursor position.

" or " " and press



Registering a Station with PC

Before operation: The name and URL of the radio station

that you want to add are required for registration. Make the following preparations.

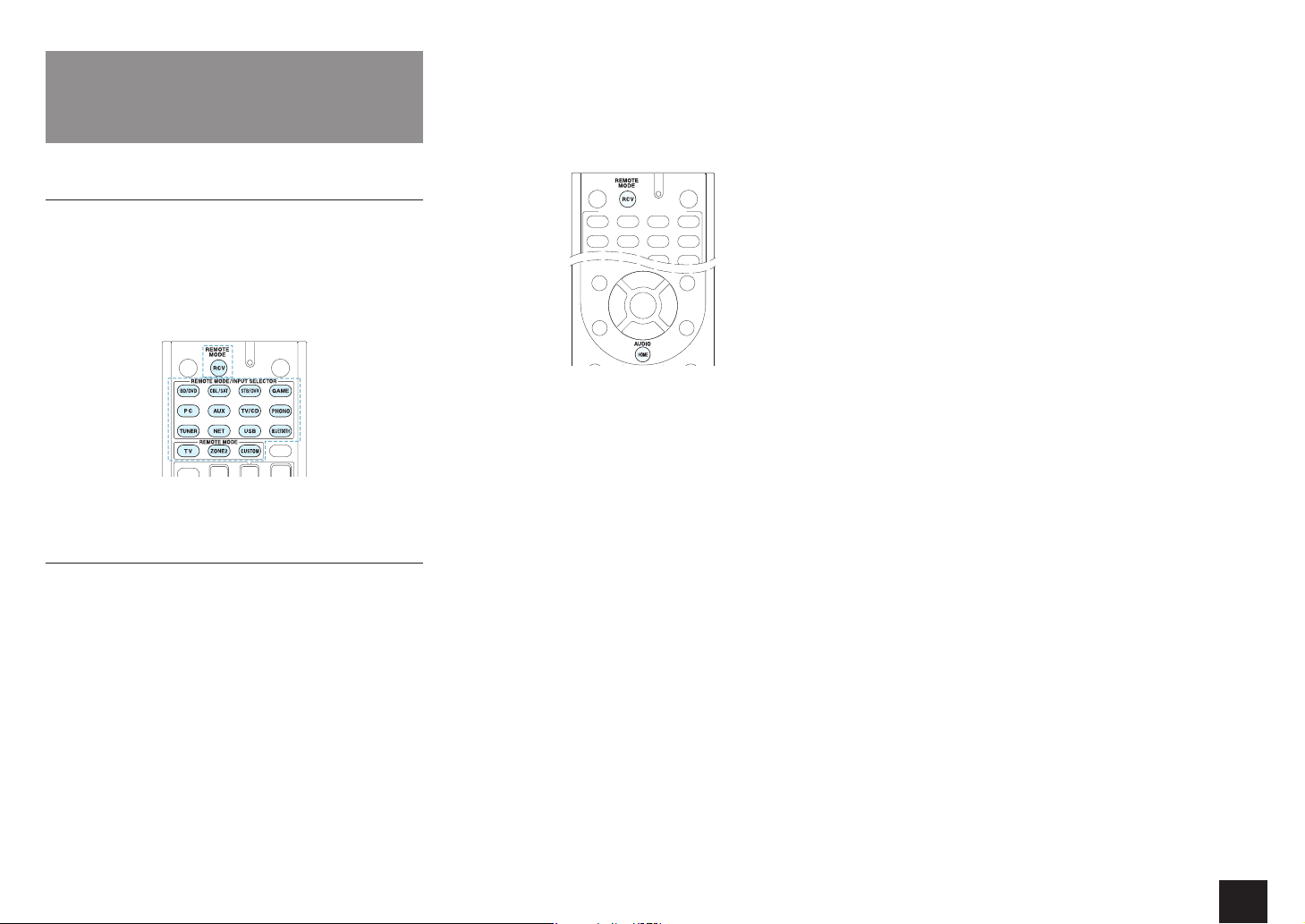

Press RCV on the remote controller.

r Always press RCV first to change the remote

controller to RECEIVER mode (the mode to operate this unit) since its mode may be changed to operate another component.

Press HOME to display the HOME menu.

With the cursors, select "Setup", and then press ENTER.

9KVJVJGEWTUQTUUGNGEV|*CTFYCTG5GVWR0GVYQTM

-" IP Address" to display the IP address. r Write down the IP address since you will need it

later.

Open the Internet browser on your PC or smartphone

and enter the IP address of the unit in the URL field.

r When using Internet Explorer, you can alternatively

select "Open" in the "File" menu to enter the IP address.

r Information of the unit is displayed on the browser.

("WEB Setup")

Click "My Favorites" tab, then enter the name and URL

of the Internet radio station. Click "Save" to register the entered Internet radio station

in "My Favorites".

To rename the registered radio station: When the radio station is selected from the "My Favorites" list, press MENU to display the menu screen. Select "Rename this station" with the cursors and press ENTER to display the keyboard screen. Rename the station as desired.

rRadio stations can be renamed also from "WEB Setup".



Playing a Registered Radio Station

Press NET on the remote controller to display the NET

TOP screen.

r The "NET" indicator on the display stays lit.

Select "My Favorites" with the cursors and press ENTER

display the registered Internet radio stations.

With the cursors, select a radio station and press

ENTER to start playing.



Deleting a Registered Radio Station

Press NET on the remote controller to display the NET

TOP screen.

r The "NET" indicator on the display stays lit.

With the cursors, select the radio station to delete and

press MENU to display the menu screen.

With the cursors, select "Delete from My Favorites", and

then press ENTER. A confirmation screen will appear. With the cursors, select "OK", and then press ENTER to

delete the radio station.

r Select "Back" if you return to the previous screen. r Radio stations can be deleted also from "WEB

Setup".

Listening to Internet Radio

Select "My Favorites" with the cursors and press ENTER

to display the registered Internet radio stations.

DLNA Music Streaming

About DLNA

Digital Living Network Alliance (DLNA) can be referred to as a technology standard or the industry group to develop the technology standard to interconnect and use AV components, computers and other devices in a home network. This unit allows you to use DLNA to play music files stored on a computer or a hard disk connected to your home network (NAS device). Make sure this unit and a computer or NAS device are connected to the same router.

Internet radio

Router

rTo stream a music file, you need a NAS device with

DLNA server functions or a PC where a player (e.g., Windows Media® Player 11 or12) with DLNA server functions is installed. To enable streaming with Windows Media® Player 11 or 12, you must first configure the settings.

NAS

Configuring the Windows Media® Player



Windows Media

Turn on your PC and start Windows Media® Player 11.

In the "Library" menu, select "Media Sharing" to display

a dialog box. Select the "Share my media" check box, and then click

"OK" to display the compatible devices. Select this unit, and then click "Allow".

r When it is clicked, the corresponding icon is

checked.

Click "OK" to close the dialog.



Windows Media

Turn on your PC and start Windows Media® Player 12.

In the "Stream" menu, select "Turn on media streaming"

to display a dialog box.

r If media streaming is already turned on, select "More

streaming options..." in the "Stream" menu to list players in the network, and then go to step 4.

Click "Turn on media streaming" to list players in the

network. Select this unit in "Media streaming options" and check

that it is set to "Allow". Click "OK" to close the dialog.

Player 11

Player 12

DLNA Playback



Playing Back

Start the server (Windows Media® Player 11, Windows

Media

Player 12, or NAS device) containing the music files to play. Press NET on the remote controller to display the NET TOP screen.

r The "NET" indicator on the display stays lit. If the

"NET" indicator flashes, the unit is not properly connected to the network. When using a wired LAN connection, check the Ethernet cable connection, and when using a wireless LAN connection, check whether the "Wi-Fi" indicator on the left side of the unit is lit.

Select "DLNA" with the cursors and press ENTER.

Select the target server with the cursors and press

ENTER to display the items list screen.

r Searching does not work in servers that do not

support search functions.

r The unit cannot access pictures and videos stored

on servers.

r Contents stored on the server may not be displayed

depending on the server sharing settings.

With the cursors, select the music file to play, and then

press ENTER or

r If "No Item" is displayed, check whether the network

is properly connected.

to start playback.

Controlling Remote Playback from a PC

You can use this unit to play music files stored on your PC by operating the PC inside your home network. The unit supports remote playback with Windows Media® Player 12. To use the remote playback function with Windows Media® Player 12, Windows Media® Player 12 must be configured in advance.

rUsing a DLNA-compatible controller (such as an

Android application), you can select a music file stored on Windows Media by operating the controller. For information on how to remotely play using the controller, refer to the controller's instruction manual.



Setting PC

Turn on your PC and start Windows Media® Player 12.

In the "Stream" menu, select "Turn on media streaming"

to display a dialog box.

r If media streaming is already turned on, select "More

streaming options..." in the "Stream" menu to list players in the network, and then go to step 4.

Player 12 and stream to this unit

Click "Turn on media streaming" to list players in the

network. Select this unit in "Media streaming options" and check

that it is set to "Allow". Click "OK" to close the dialog box.

Open the "Stream" menu and check that "Allow remote

control of my Player..." is checked.



Remote playback

Turn on the power of the unit.

Turn on your PC and start Windows Media® Player 12.

Select and right-click the music file to play with Windows

Media

Player 12.

r To remotely play a music file on another server, open

the target server from "Other Libraries" and select

the music file to play. Select this unit in "Play to" to open the "Play to" window of Windows Media unit.

r Operations during remote playback are possible from

the "Play to" window on the PC. The playback screen

is displayed on the TV connected to the HDMI output

of the unit. If your PC is running on Windows

"Play to", and then select this unit. Adjust the volume using the volume bar on the "Play to" window.

r Sometimes, the volume displayed on the remote

playback window may differ from that appeared on

the display of the unit.

r When the volume is adjusted from the unit, the value

is not reflected in the "Play to" window.

r This unit cannot play music files remotely in the

following conditions.

– It is using a network service. – It is playing a music file on a USB storage device. – "Agree" was not selected in the DISCLAIMER

screen that was displayed when the NET input was selected on the unit for the first time.

Player 12 and start playback on the

DLNA Music Streaming

8, click

Music Streaming from a Shared Folder

Music Streaming from a Shared

Folder

About Shared Folder

A shared folder is configured in a network device such as a PC or NAS (hard disk connected to your home network) for access from other users. You can play music files in a shared folder on your PC or NAS connected to the same home network as that of the unit. To play music files in a shared folder, you must first configure Windows and PC or NAS device are connected to the same router.

rThe sharing options must be configured and a shared

folder created on the PC in advance.

rFor information on how to configure the NAS device

and create a shared folder, refer to the NAS device's instruction manual.

8 or Windows® 7, Make sure the unit

Internet radio

Router

NAS

Setting PC



Configuring the Sharing Options

Select "Choose home group and sharing options" on the

"Control Panel".

r If the menu is not displayed, check whether "View

by" is set to "Category". Select "Change advanced sharing settings".

Check whether the following radio buttons are selected

in "Home or Work": "Enable network discovery" "Turn on file and printer sharing" "Turn on sharing so anyone with network access can open files" "Turn off password protected sharing" Select "Save Changes" and click "OK" on the dialog box.



Creating a Shared Folder

Select and right-click the folder to share.

Select "Properties".

Select "Advanced Sharing" on the "Sharing" tab.

Select the "Share this folder" check box and click "OK".

Select "Share" for "Network File and Folder Sharing".

Select "Everyone" from the pull-down menu. Click "Add",

and then "Share".

r To set user name and password to a shared folder,

set "Permissions" in "Advanced Sharing" on the

"Sharing" tab.

r Check whether a workgroup is set.

Playing from a Shared Folder



Playing Back

Press NET on the remote controller to display the NET

TOP screen.

r The "NET" indicator on the display stays lit. If the

With the cursors, select "Home Media", and then press

ENTER. With the cursors, select the target server, and then press

ENTER.

r You can check the server name of your PC from the

PC properties.

With the cursors, select the target shared folder, and

then press ENTER. If a username and password is required, enter the

necessary login information.

r The login information is the account information set

at the time of creating the shared folder.

r Once entered, the login information will be

remembered from the next time onward.

With the cursors, select the music file to play, and then

press ENTER or

to start playback.

Music Streaming from a Shared Folder

Using Remote Controller for

Playing Music Files

About the Remote Controller

The remote controller of this unit allows you to play music files stored on USB storage devices, Internet radio, PCs and NAS devices on your home network, as well as on Bluetooth-enabled devices. It also allows you to view information of the music file being played and perform various other operations.

rAvailable buttons may vary depending on the service

and device to play.

rSome buttons cannot be used with Bluetooth-enabled

devices. Furthermore, the Bluetooth-enabled devices must support the AVRCP profile. Some devices may not be operated, even when they support AVRCP profile.

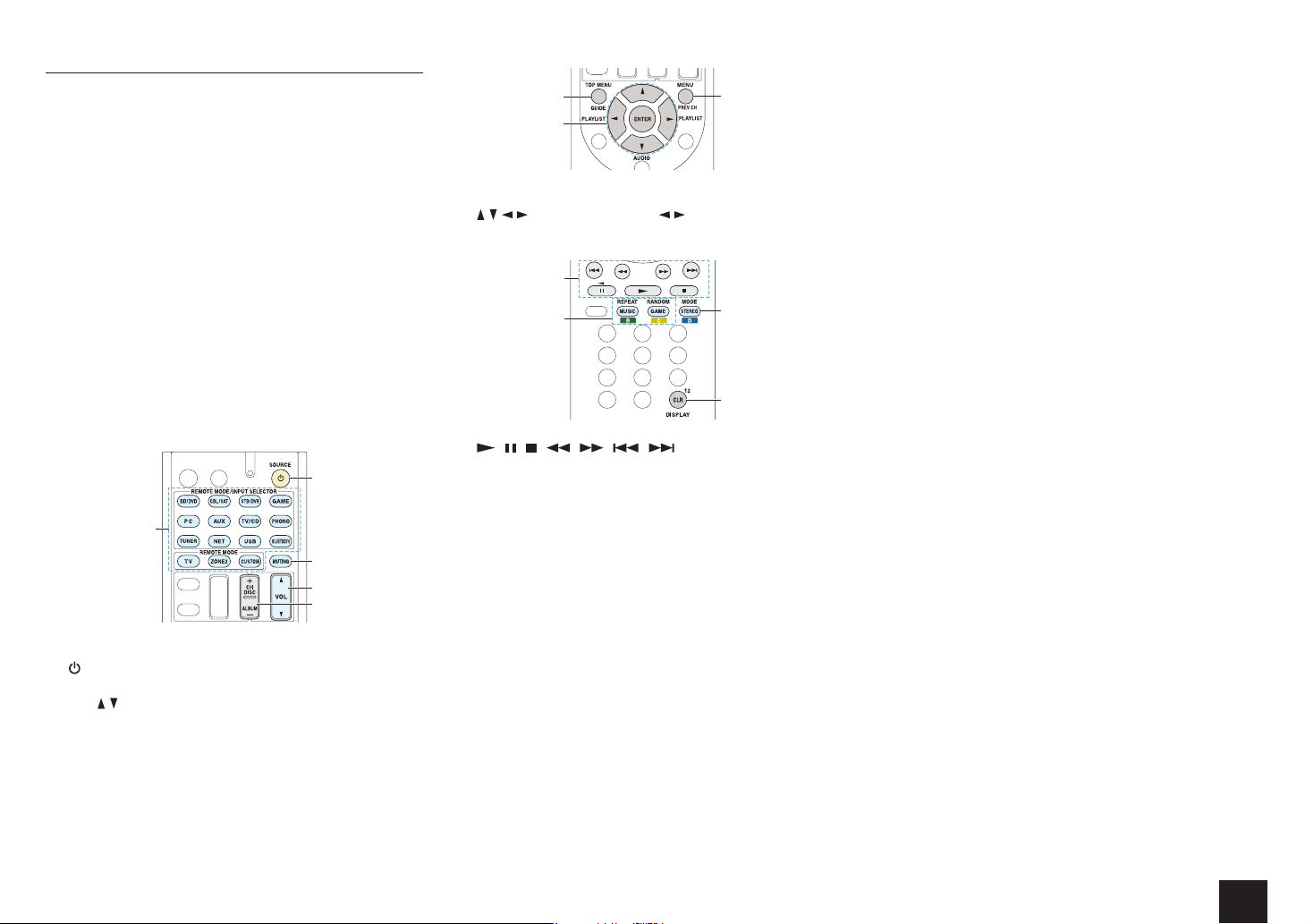

Remote Controller Buttons

Press INPUT SELECTOR (PC, NET, USB or

BLUETOOTH) appropriate for the input source on the remote controller.

Operate the remote controller by referring to the name

and function of each of the buttons.

3 4

TOP MENU: This button displays the top menu for each media or server.

/ , ENTER: These buttons navigate through items

and activate the selected item.

/ : These buttons allow you to navigate to another

page when the list is broken across several pages.

: This button fast-reverses the current track. This button is not operable from 10 seconds before the playback ends.

: This button plays the current track from the beginning. Pressing this button twice plays the previous track.

+/-: Moves the cursor on the Internet radio stations list in "My Favorites".

MENU: This button displays the menu of each Internet radio service.

RETURN: This button returns to the previous screen.

: This button fast-forwards the current track. This button is not operable from 10 seconds before the playback ends.

: This button plays the next track.

F G

8 9

J K

Using Remote Controller for Playing Music Files

SEARCH: This button toggles between the playback screen and list screen during playback.

: This button stops the playback.

RANDOM: This button performs random playback.

REPEAT: This button replays the track(or tracks). Pressing this button repeatedly cycles through the repeat modes.

DISPLAY: This button changes the displayed track information during playback. Pressing this button when the list screen is displayed toggles the screen to playback.

rBluetooth-enabled devices: Usable buttons are

, , , , , , and .

Icons Displayed during Playback

Icons are displayed on the display during music file playback. The meaning of each icon is as follows:

: Folder

: Track

: Play

: Pause

: Fast-forward

: Fast-reverse

: Artist

: Album

: Repeat One Track

Repeat within a folder

: Repeat

: This button starts the playback.

: This button pauses the playback.

: Shuffle

Using the Listening Modes

Selecting Listening Mode

The listening modes allow you to select the best sound effect for your input source.

Press RCV on the remote controller.

r Always press RCV first to change the remote

controller to RECEIVER mode (the mode to operate this unit) since its mode may be changed to operate another component.

Select the desired mode from the four listening modes

and press the corresponding button.

r The listening mode you selected will be enabled

when you press the button. Set the listening mode of your choice by listening to the actual sound.

For details on the types and difference of listening modes, see "Effects of Listening Modes".



MOVIE/TV button

You can select a mode suitable for movies and TV programs.

rSelectable listening modes:

All Ch Stereo Direct Dolby Atmos Dolby D (Dolby Digital) Dolby D+ (Dolby Digital Plus) Dolby Surround Dolby TrueHD DSD DTS DTS 96/24 DTS Express DTS-HD HR (DTS-HD High Resolution Audio) DTS-HD MSTR (DTS-HD Master Audio) DTS Neo:6 Cinema + THX Cinema DTS Neo:6 + THX Cinema ES Discrete (DTS-ES Discrete) ES Matrix (DTS-ES Matrix) Full Mono Mono Multichannel Neo:6 Neo:6 Cinema T-D (Theater-Dimensional) THX Cinema THX I/S Cinema THX Surr EX (THX Surround EX) TV Logic



MUSIC button

You can select a mode suitable for music.

rSelectable listening modes:

All Ch Stereo Direct Dolby Atmos Dolby D (Dolby Digital) Dolby D+ (Dolby Digital Plus) Dolby Surround Dolby TrueHD DSD DTS

Using the Listening Modes

DTS 96/24 DTS Express DTS-HD HR (DTS-HD High Resolution Audio) DTS-HD MSTR (DTS-HD Master Audio) DTS Neo:6 Music + THX Music DTS Neo:6 + THX Music ES Discrete (DTS-ES Discrete) ES Matrix (DTS-ES Matrix) Full Mono Multichannel Neo:6 Neo:6 Music Orchestra Pure Audio Stereo Studio-Mix THX I/S Music THX Music Unplugged



GAME button

You can select a mode suitable for games.

rSelectable listening modes:

All Ch Stereo Direct Dolby Atmos Dolby D (Dolby Digital) Dolby D+ (Dolby Digital Plus) Dolby Surround Dolby TrueHD DSD DTS DTS 96/24 DTS Express DTS-HD HR (DTS-HD High Resolution Audio) DTS-HD MSTR (DTS-HD Master Audio) DTS Neo:6 + THX Games ES Discrete (DTS-ES Discrete) ES Matrix (DTS-ES Matrix) Full Mono Game-Action Game-Rock Game-RPG Game-Sports

Multichannel Neo:6 T-D (Theater-Dimensional) THX Games THX I/S Games



STEREO button

You can select a listening mode for stereo and all channel stereo sources.

rSelectable listening modes:

All Ch Stereo Stereo



PURE AUDIO button (on the main unit only)

(European models)

The power of the display and analog video circuit is cut off to switch the unit to Pure Audio mode and provide purer sound. Selecting this mode lights the PURE AUDIO indicator on the unit. Pressing the button again reselects the previous listening mode.

rSelecting Pure Audio for listening mode turns off the

power to the display and analog video circuitry, but the video signals input through HDMI input are output from HDMI output.

Effects of Listening Modes

Selectable listening modes will differ depending on the number of input source channels and the actual speaker configuration. Listening modes available when headphones are connected are: Pure Audio (European models), Mono, Direct, and Stereo.

Lists in alphabetic order (A-Z)



All Ch Stereo

Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround, and surround back speakers.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch



Direct

In this mode, audio from the input source is output as-is. For example, if a 2 ch source from a music CD is input, the output will be stereo, or if Dolby Digital signal is input, the sound field will be controlled in accordance with the number of channels present.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch



Dolby Atmos

Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of dimension and immersion to the Home Theater experience. Dolby Atmos is an adaptable and scalable object based format that reproduces audio as independent sounds (or objects) that can be accurately positioned and move dynamically throughout the 3 dimensional listening space during playback. A key ingredient of Dolby Atmos is the introduction of a height plane of sound above the listener.

rSurround back speakers or height speakers need to be

installed.

rThis listening mode can be selected only if the input

signal is Dolby Atmos.



Dolby D

This mode is for use with Dolby Digital sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.

Using the Listening Modes



Dolby D+

This mode is for use with Dolby Digital Plus sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch, 7.1 ch rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.

rWhen playing back 3.1 ch or 5.1 ch sources from Blu-ray

Discs, Dolby Digital is automatically applied.



Dolby Surround

Dolby surround is a next generation surround technology that intelligently up mixes stereo; 5.1 and 7.1 content for playback through your surround speaker system. Dolby surround is compatible with traditional speaker layouts, as well as Dolby Atmos enabled playback systems that employ inceiling speakers or products with Dolby speaker technology.

rInput source: STEREO, 5.1 ch or 7.1 ch



Dolby TrueHD

This mode is for use with Dolby TrueHD sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch, 7.1 ch rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.



DSD

This mode is for use with DSD sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch rThis unit supports DSD signals input through HDMI IN.

However, depending on the connected player, better sound is possible when output from the PCM output of the player. In that case, configure the player for PCM output.

rThis listening mode can be selected only if your Blu-ray

Disc/DVD player's output setting is DSD.

Using the Listening Modes



DTS

This mode is for use with DTS sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.



DTS 96/24

This mode is for use with DTS 96/24 sources. The audio from the input source is output as-is, without surround sound processing. With 96 kHz sampling rate and 24-bit resolution, it provides superior fidelity.

rInput source: 5.1 ch rDepending on the settings, this listening mode becomes

DTS.

rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.



DTS Express

This mode is for use with DTS Express sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.



DTS-HD HR

This mode is for use with DTS-HD High Resolution Audio sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch, 7.1 ch rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.



DTS-HD MSTR

This mode is for use with DTS-HD Master Audio sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch, 7.1 ch rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.



DTS Neo:6

This mode expands any 2 ch source for 5.1 ch multichannel surround playback. It offers full-bandwidth on all channels, with great independence between the channels. There are two variants for this mode: one ideal for movies and another ideal for music.

– Neo:6 Cinema: Use this mode with any 2 ch movie.

rInput source: STEREO

– Neo:6 Music: Use this mode with any 2 ch music

source.

rInput source: STEREO

– Neo:6: Use this mode to expand any 5.1 ch music

source for 6.1 ch or 7.1 ch playback using Neo:6.

rInput source: 5.1 ch rSurround back speakers need to be installed.



ES Discrete

This mode is for use with DTS-ES Discrete sources and enables 6.1 ch or 7.1 ch playback using surround back channel. Completely discrete seven channels will improve spatial imaging and enable 360-degree sound localization producing a sound crossing between the surround channels.

rInput source: 6.1 ch rSurround back speakers need to be installed. rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.

rUse on the DVD with DTS ES logo, particularly on the

software containing DTS-ES Matrix soundtrack.

rPlayback becomes DTS if no surround back speaker is

connected.



ES Matrix

This mode is for use with DTS-ES Matrix soundtrack and enables 6.1 ch or 7.1 ch playback using matrix-encoded back channel.

rInput source: 6.1 ch rSurround back speakers need to be installed. rThis listening mode can be selected only if your Blu-ray

Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream.

rUse on the CD, DVD or LD with DTS ES logo,

particularly on the software containing DTS-ES Matrix soundtrack.

rPlayback becomes DTS if no surround back speaker is

connected.



Full Mono

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch



Game-Action

In this mode, sound localization is distinct with emphasis on bass.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



Game-Rock

In this mode, sound pressure is emphasized to heighten live feel.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



Game-RPG

In this mode, the sound has a dramatic feel with a similar atmosphere to Orchestra mode.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



Game-Sports

Suitable for audio source with much reverberation.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



Mono

Use this mode when watching an old movie with a mono soundtrack, or use it to separately reproduce soundtracks in two different languages recorded in the left and right channels of some movies. It is also suitable for DVDs or other sources containing multiplexed audio.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch



Multichannel

This mode is for use with PCM multichannel sources. The audio from the input source is output as-is, without surround sound processing.

rInput source: 5.1 ch, 7.1 ch



Orchestra

Suitable for classical or operatic music, This mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



Pure Audio (European models)

This mode reproduces the original sound accurately. Since the audio from the input source is output without surround sound processing and the display and video circuitry are turned off, possible noise sources are minimized for a realistic audio reproduction.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rThis mode cannot be selected when Zone 2 is

active. Activating Zone 2 when this mode is selected, automatically switches the listening mode to Direct.



Stereo

In this mode, sound is output from the front left and right speakers and subwoofer.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch



Studio-Mix

Suitable for rock or pop music, Listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



T- D

In this mode, you can enjoy a virtual playback of multichannel surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rGood results may not be possible if there is too much

reverb, so we recommend that you use this mode in an environment with little or no natural reverb.



THX

THX is a sound quality standard for movie theaters developed by Lucasfilm Limited. The standard sets up a strict quality criteria defining the level, noise, reverberation, audio equipment specifications, speaker installation positions and more details in order to enable high-fidelity audio reproduction as close as possible to the intentions of the filmmaker. There are more than 5,000 THX-certified theaters in the world and THX is considered synonymous with high acoustic quality theater.

rThe THX mode can finely adjust the acoustic and

spatial characteristics of the soundtrack for the best reproduction of home theater sound. It will work on 2 ch source and multichannel source. Surround back sound will differ depending on the source and selected listening mode.

– DTS Neo:6 Cinema + THX Cinema: The combination

mode of DTS Neo:6 Cinema and THX Cinema mode can be used. "Neo:6" and "THX" light on the unit’s display.

rInput source: STEREO rSurround speakers need to be installed.

– DTS Neo:6 Music + THX Music: The combination mode

of DTS Neo:6 Music and THX Music mode can be used. "Neo:6" and "THX" light on the unit’s display.

rInput source: STEREO rSurround speakers need to be installed.

– DTS Neo:6 + THX Cinema: The combination mode

of DTS Neo:6 and THX Cinema mode can be used.

Using the Listening Modes

"Neo:6" and "THX" light on the unit’s display.

rInput source: 5.1 ch rSurround back speakers need to be installed.

– DTS Neo:6 + THX Music: The combination mode of

DTS Neo:6 and THX Music mode can be used. "Neo:6" and "THX" light on the unit’s display.

rInput source: 5.1 ch rSurround back speakers need to be installed.

– DTS Neo:6 + THX Games: The combination mode of

DTS Neo:6 and THX Games can be used. "Neo:6" and "THX" light on the unit’s display.

rInput source: 5.1 ch rSurround back speakers need to be installed.

– THX Cinema : Use the mode in home theater

environment for playing a movie soundtrack recorded/ mixed to be played in a theater or such a large space. In this mode, THX Loudness is set to the theater level and Re-EQ, Timbre Matching, and Adaptive Decorrelation become active.

rInput source: 5.1 ch, 7.1 ch rSurround speakers need to be installed.

– THX Games : Use the mode for high-fidelity spatial

reproduction of game sound. Normally the same mixing as that for movie will be made but this mode is intended for a smaller environment. THX Loudness Plus is set to be suitable for the game sound level and Timbre Matching becomes active.

rInput source: 5.1 ch, 7.1 ch rSurround speakers need to be installed.

– THX Music : The mode is adjusted mainly for music

source mastered to be much higher quality than movie. THX Loudness Plus is set for music playback and Timbre Matching only becomes active.

rInput source: 5.1 ch, 7.1 ch rSurround speakers need to be installed.

– THX I/S Cinema : This mode expands 5.1-channel

sources for 7.1- channel playback. It does this by analyzing the composition of the surround source, optimizing the ambient and directional sounds to produce the surround back channel output.

rInput source: 5.1 ch

rSurround back speakers need to be installed.

– THX I/S Games : This mode is designed for use with

video games. It can expand 5.1-channel sources for

6.1/7.1-channel playback. rInput source: 5.1 ch rSurround back speakers need to be installed.

– THX I/S Music : This mode is designed for use with

music. It expands 5.1-channel sources for 7.1-channel playback.

rInput source: 5.1 ch rSurround back speakers need to be installed.

– THX Surr EX : The format for home theaters was co-

developed by Dolby Laboratories and THX Limited. The Dolby Digital EX technology produces 7.1 channels in total by creating a new sound field behind the listener in addition to the conventional channels of front L/R. center, surround L/R and subwoofer.

rInput source: 5.1 ch rSurround back speakers need to be installed.



TV Logic

Suitable for TV shows produced in a TV studio, This mode enhances the surround effects to the entire sound to give clarity to voices and create a realistic acoustic image.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



Unplugged

Suitable for acoustic instruments, vocals and jazz, This mode emphasizes the front stereo image, giving the impression of being right in front of the stage.

rInput source: MONO, STEREO, 5.1 ch, 7.1 ch rSurround speakers need to be installed.



Information

Dialog Normalization

Dialog Normalization (DialogNorm) is one of the Dolby Digital features that can stabilize the average volume level between the Dolby Digital, Dolby Digital Plus and Dolby TrueHD sources, eliminating the need to adjust the volume for each user or source. "DialogNorm: X dB" ("X" is a numerical value) may appear on the unit display

when a Dolby Digital, Dolby Digital Plus or Dolby TrueHD source is played. It indicates the relation between the source's volume level and the THX standard level. If you want to play the recorded source in theater level, adjust the volume. For example, if "DialogNorm: +4 dB" appears on the display, the source being played is recorded with 4 dB plus the THX standard level. If you play it in the THX standard level, lower the volume by 4dB. However, not as in the theater where the playback volume is prefixed, the unit allows you to adjust the volume to your favorite level.

THX Cinema Processing

THX is a sound quality standard for movie theaters developed by Lucasfilm Limited with the aim of reproducing high-fidelity audio as close as possible to the intentions of the filmmaker. A movie soundtrack is mixed in special theater called dubbing stage on the assumption that the soundtrack is played in such theaters with similar equipment and conditions. The movie soundtrack is also recorded on a Blu-ray disc and DVD, but not optimized for home theater environment. THX engineers developed the technology, now patentprotected, to reproduce the theater sound in home theater environment by minimizing acoustic and spatial deviation that occurs in home theater environment. On this unit, the THX functions are automatically added to the Cinema mode when THX is on. (Example: THX Cinema, THX Surround EX)

Timbre Matching

The human ears perception differs depending on the sound coming direction. Although movie theaters have many surround speakers to surround the room with sound, home theaters have only two surround speakers. The Timbre Matching function filters the signals sent to the surround speakers and adjusts the tonal characteristics of front speakers and surround speakers to create smooth sound movement from front speakers to surround speakers.

Adaptive Decorrelation

Although movie theaters have many surround speakers to surround the room with sound, home theaters normally have only two surround speakers. Such two surround speakers give a headphone-like sound, not

Using the Listening Modes

a broad and embracing surround sound. If the listener moves away from the middle of the surround speakers, sound from the surround speakers mixes with that from the near speakers and cannot be distinguished any more. Adaptive Decorrelation slightly changes the time axis and phase between the surround channels. In this way, the listener can stay in a wider listening position and enjoy theater-like sound with two surround speakers.

ASA (Advanced Speaker Array)

ASA is a technology patented by THX to provide a broad surround sound experience by processing the side and back surround speaker sounds respectively. When making home theater setting with eight speakers (front L, center, front R, surround R, surround R back, surround L back, surround L, and subwoofer), be sure to select the distance between the relative surround back speakers in the THX audio setting screen. This procedure optimizes again the surround sound environment. ASA is used in three modes: THX I/S Cinema, THX I/S Music and THX I/S Games.

Checking the Input Format

You can check the audio format of the input signals. While audio from the player is being input, press DISPLAY on the remote controller several times to switch the information shown on the main unit display. If "Dolby D 5.1" is displayed in Signal format, the Dolby Digital 5.1 ch signals are being input.

rThe number of channels is not displayed when the input

format is "Dolby Atmos".

Advanced Settings

How to Set

The unit allows you to configure advanced settings, such as to remap the input and input selector, or configure various speaker settings in order to provide even better experience. Make the settings in "Setup" of the HOME menu.



Operation

Press RCV on the remote controller.

r Always press RCV first to change the remote

controller to RECEIVER mode (the mode to operate this unit) since its mode may be changed to operate another component.

Press HOME to display the HOME menu.

Select "Setup" with the cursors / and press ENTER.

HOME

Advanced Settings

Press / to select the desired menu, and then press

ENTER.

SETUP

With the / / / cursors, select the desired item to

configure the settings.

r When "ENTER" is displayed on the setting item,

press ENTER.

1-1. Monitor Out

Monitor Out

Resolution

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Composite Video Input

5. Digital Audio Input

MAIN

Through

Setup

Select which HDMI output you connected to TV. HDCP 2. 2 is available for MAIN output.

To save the changes and exit the setup menu, press HOME.

Advanced Settings

1. Input/Output Assign

Monitor Out

The video input signals input to the unit will be converted when they are output from the HDMI OUT jack to the TV so that their resolution can match that of the TV used.

Setting Item Default Value Setting Details

Monitor Out MAIN Select the HDMI jack to be connected with the

TV. "MAIN": When connecting the TV to the HDMI OUT MAIN jack "SUB": When connecting the TV to the HDMI OUT SUB jack

rThe resolution of the input signal does not

change when output through HDMI OUT

SUB jack. "MAIN+SUB": When connecting to both the MAIN and SUB jacks

rVideo signals input to the composite video

input jack or the COMPONENT VIDEO input

jacks will be upconverted to HDMI signals

and then output from the HDMI output jack.

rIf "MAIN+SUB" is selected

– Only "Through" or "Auto" can be selected

in "Resolution".

– The resolution of the input signal does not

change when output through HDMI OUT SUB jack.

rThe HDMI jack of this unit is compliant with

HDCP2.2 (HDMI OUT MAIN and HDMI IN3

jacks only).

Setting Item Default Value Setting Details

Resolution Through Specify the output resolution of the HDMI OUT

jacks. The image resolution of the unit will be converted so that it can match the resolution supported by the TV used. "Through": The output resolution is not converted and will be the same as that of the input signals. "Auto": The resolution will automatically be converted according to the resolution supported by the TV. "480p (480p/576p)", "720p", "1680×720p", "1080i", "1080p" or "2560×1080p": Select the desired resolution. "4K": About four times as high resolution as 1080p (3840×2160 or 4096×2160 pixels depending on the resolution supported by the connected TV)

rIf "1080p" is selected, 1080p/24 input signals

will be output with an unchanged resolution.

rIf the monitor does not support the selected

resolution, the image will be displayed with the same resolution as that of the input signal.

rIf "4K" is selected, video signals may not be

output to some types of TV. For details, see "Resolution supported by HDMI OUT MAIN/ SUB jack" in "Reference Information".

rIf "Monitor Out" is set to "SUB", this setting

will be set to "Through".

rYou can check the video on the TV while

making this setting. Select the value with the cursors and press ENTER. Press RETURN if no video is displayed. (except when "NET", "USB" or "BLUETOOTH" is selected)

Advanced Settings

HDMI Input

You can change input assignment between the input selectors and HDMI IN jacks.

Setting Item Default Value Setting Details

BD/DVD HDMI 1 "HDMI 1" to "HDMI 6": Assign a desired HDMI

IN jack to the BD/DVD button. If you do not assign a jack, select "-----". To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first.

CBL/SAT HDMI 2 "HDMI 1" to "HDMI 6": Assign a desired HDMI

IN jack to the CBL/SAT button. If you do not assign a jack, select "-----". To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first.

STB/DVR HDMI 3

(HDCP 2.2)

GAME HDMI 4 "HDMI 1" to "HDMI 6": Assign a desired HDMI

PC HDMI 5 "HDMI 1" to "HDMI 6": Assign a desired HDMI IN

AUX Front/MHL The setting cannot be changed.

TV/CD ----- "HDMI 1" to "HDMI 6": Assign a desired HDMI

PHONO ----- "HDMI 1" to "HDMI 6": Assign a desired HDMI

"HDMI 1" to "HDMI 6": Assign a desired HDMI IN jack to the STB/DVR button. If you do not assign a jack, select "-----". To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first.

IN jack to the GAME button. If you do not assign a jack, select "-----". To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first.

jack to the PC button. If you do not assign a jack, select "-----". To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first.

IN jack to the TV/CD button. If you do not assign a jack, select "-----". To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first.

IN jack to the PHONO button. If you do not assign a jack, select "-----". To select an HDMI IN jack already assigned to another input selector, change its setting to "-----" first.

Component Video Input

The CBL/SAT button is preset to play the player connected to the COMPONENT VIDEO IN jacks. This assignment can be changed if necessary. If you do not assign a jack, select "-----".

Setting Item Default Value Setting Details

BD/DVD ----- "COMPONENT": Assign the COMPONENT

VIDEO IN jacks to the BD/DVD button.

CBL/SAT COMPONENT "COMPONENT": Assign the COMPONENT

VIDEO IN jacks to the CBL/SAT button.

STB/DVR ----- "COMPONENT": Assign the COMPONENT

VIDEO IN jacks to the STB/DVR button.

GAME ----- "COMPONENT": Assign the COMPONENT

VIDEO IN jacks to the GAME button.

PC ----- "COMPONENT": Assign the COMPONENT

VIDEO IN jacks to the PC button.

AUX ----- The setting cannot be changed.

TV/CD ----- "COMPONENT": Assign the COMPONENT

VIDEO IN jacks to the TV/CD button.

PHONO ----- "COMPONENT": Assign the COMPONENT

VIDEO IN jacks to the PHONO button.

rWhen you convert video signals input to the COMPONENT VIDEO IN jacks and output them from

the HDMI OUT jack, set the output resolution of the player to 480i. If the input has 480p or higher resolution, an error message will appear.

rWhen "1. Input/Output Assign" - "Monitor Out" - "Monitor Out" is set to "SUB", the 480i/576i

component signals only will be output with an unchanged resolution. Video will not be displayed if the TV does not support the resolution.

rWhen "1. Input/Output Assign" - "Monitor Out" - "Monitor Out" is set to "MAIN" or "MAIN+SUB" and

"Resolution" is set to "Through", the 480i/576i component signals will be output with an unchanged resolution. Video will not be displayed if the TV does not support the resolution.

Advanced Settings

Composite Video Input

You can change input assignment between the input selectors and COMPOSITE VIDEO IN V1 to 3 jacks.

Setting Item Default Value Setting Details

BD/DVD ----- "VIDEOI 1" to "VIDEO 3": Assign a desired

COMPOSITE VIDEO IN V jack to the BD/DVD button. If you do not assign a jack, select "-----".

CBL/SAT VIDEO 1 "VIDEOI 1" to "VIDEO 3": Assign a desired

COMPOSITE VIDEO IN V jack to the CBL/SAT button. If you do not assign a jack, select "-----".

STB/DVR VIDEO 2 "VIDEOI 1" to "VIDEO 3": Assign a desired

COMPOSITE VIDEO IN V jack to the STB/DVR button. If you do not assign a jack, select "-----".

GAME VIDEO 3 "VIDEOI 1" to "VIDEO 3": Assign a desired

COMPOSITE VIDEO IN V jack to the GAME button. If you do not assign a jack, select "-----".

PC ----- "VIDEOI 1" to "VIDEO 3": Assign a desired

COMPOSITE VIDEO IN V jack to the PC button. If you do not assign a jack, select "-----".

AUX ----- The setting cannot be changed.

TV/CD ----- "VIDEOI 1" to "VIDEO 3": Assign a desired

COMPOSITE VIDEO IN V jack to the TV/CD button. If you do not assign a jack, select "-----".

PHONO ----- "VIDEOI 1" to "VIDEO 3": Assign a desired

COMPOSITE VIDEO IN V jack to the PHONO button. If you do not assign a jack, select "-----".

Digital Audio Input

You can change input assignment between the input selectors and DIGITAL IN COAXIAL 1 to 2/OPTICAL jacks.

Setting Item Default Value Setting Details

BD/DVD COAXIAL 1 "COAXIAL 1", "COAXIAL 2", "OPTICAL": Assign a

desired DIGITAL IN jack to the BD/DVD button. If you do not assign a jack, select "-----".

CBL/SAT COAXIAL 2 "COAXIAL 1", "COAXIAL 2", "OPTICAL": Assign a

desired DIGITAL IN jack to the CBL/SAT button. If you do not assign a jack, select "-----".

STB/DVR ----- "COAXIAL 1", "COAXIAL 2", "OPTICAL": Assign a

desired DIGITAL IN jack to the STB/DVR button. If you do not assign a jack, select "-----".

GAME ----- "COAXIAL 1", "COAXIAL 2", "OPTICAL": Assign a

desired DIGITAL IN jack to the GAME button. If you do not assign a jack, select "-----".

PC ----- "COAXIAL 1", "COAXIAL 2", "OPTICAL": Assign a

desired DIGITAL IN jack to the PC button. If you do not assign a jack, select "-----".

AUX ----- The setting cannot be changed.

TV/CD OPTICAL "COAXIAL 1", "COAXIAL 2", "OPTICAL": Assign a

desired DIGITAL IN jack to the TV/CD button. If you do not assign a jack, select "-----".

PHONO ----- "COAXIAL 1", "COAXIAL 2", "OPTICAL": Assign a

desired DIGITAL IN jack to the PHONO button. If you do not assign a jack, select "-----".

rWhen "1. Input/Output Assign" - "Monitor Out" - "Monitor Out" is set to "SUB", the 480i/576i

component signals only will be output with an unchanged resolution. Video will not be displayed if the TV does not support the resolution.

rWhen "1. Input/Output Assign" - "Monitor Out" - "Monitor Out" is set to "MAIN" or "MAIN+SUB" and

"Resolution" is set to "Through", the 480i/576i composite signals will be output with their resolution unchanged. Video will not be displayed if the TV does not support the resolution.

rSupported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz/44.1 kHz/

|M*\M*\M*\DKVDKVDKV.

Advanced Settings

2. Speaker Setup

Allows you to change the speaker configuration such as presence or not of subwoofer, distance of speakers and so on. Settings are automatically configured if you use the Automatic Speaker Setup. This setting cannot be selected if headphones are connected or audio is output from the speakers of the TV.

Speaker Settings

Change the impedance of the connected speakers, the type of front speaker connection, and height speaker type.

Setting Item Default Value Setting Details

Speaker Impedance (European model)

Front Speakers Type

Height Speakers Type

Powered Zone 2 No Set the connection of speakers to Zone 2 speaker

rFor impedance, check the indications on the back of the speakers or their instruction manual.

6ohms Set the impedance of the connected speakers.

"4ohms": When any of the connected speakers have

ŝQTOQTGVQNGUUVJCPŝKORGFCPEG QJOU9JGPVJGEQPPGEVGFURGCMGTUCNNJCXGŝ

or more impedance

Normal The type of front speaker connection is fixed to

"Normal". The setting cannot be changed.

Not Use Set the speaker type if height speakers are

connected to the SPEAKERS BACK or HEIGHT terminals. Select from the following options according to the type and layout of the connected speakers: "Not Use", "Front High", "Top Front", "Top Middle", "Dolby Enabled Speaker (Front)" or "Dolby Enabled Speaker (Surround)".

r"Dolby Enabled Speaker (Surround)" cannot be

selected if "Speaker Configuration" - "Surround" is set to "None".

terminals. "Yes": When speakers are connected to Zone 2 speaker terminals "No": When speakers are not connected to Zone 2 speaker terminals

Speaker Configuration

Allows you to change the speaker configuration such as presence or not of each speaker and so on. Settings are automatically configured if you use the Automatic Speaker Setup. Audio will not be output while you are making this setting.

Setting Item Default Value Setting Details

Subwoofer Yes Set whether a subwoofer is connected or not.

"Yes": When subwoofer is connected "No": When subwoofer is not connected

Front Yes The front speaker setting is fixed to "Yes". The

setting cannot be changed.

rIf "Subwoofer" is set to "No", the bass

frequencies of the other channels will be output from the front speakers.

Center Yes Set whether the center speaker is connected or not.

"Yes": When the center speaker is connected "No": When the center speaker is not connected

Surround Yes Set whether the surround speaker is connected or

not. "Yes": When the surround speaker is connected "No": When the surround speaker is not connected

Back Yes Set whether the surround back speaker is connected

or not. "Yes": When the surround back speaker is connected "No": When the surround back speaker is not connected

rIn any of the following cases, the setting will be

set to "No".

– "Surround" is set to "No". – Any type is selected in "Speaker Settings" -

"Height Speakers Type".

– "Speaker Settings" - "Powered Zone 2" is set

to "Yes" and also Zone2 is set to on.

Back ch 2ch Select the number of channels of the connected

surround back speaker. "1ch": When one speaker is connected (Connect to the BACK or HEIGHT L terminal) "2ch": When two speakers are connected

rThe setting cannot be changed if "Back" is set to

"No".

Advanced Settings

Setting Item Default Value Setting Details

Height No rIf "Speaker Settings" - "Height Speakers Type" is

set to "Not Use", this setting will be set to "No".

rIf any type is selected in "Speaker Settings" -

"Height Speakers Type", this setting will be set to "Yes".

rIf "Speaker Settings" - "Powered Zone 2" is set to

"Yes" and also Zone2 is set to on, this setting will be set to "No".

Speaker Distance

Set the distance from each speaker to the listening position. Settings are automatically configured if you use the automatic speaker setup.

Setting Item Default Value Setting Details

Unit feet/meters Specify the unit of distance for configuring

settings. "feet": When setting in feet (0.1ft to 30.0ft, in increments of 0.1ft) "meters": When setting in meters (0.03m to

9.00m, in increments of 0.03m)

Front Left 12.0ft/3.60m Specify the distance between each speaker and

the listening position.

Center 12.0ft/3.60m Specify the distance between each speaker and

the listening position.

Front Right 12.0ft/3.60m Specify the distance between each speaker and

the listening position.

Surround Right 7.0ft/2.10m Specify the distance between each speaker and

the listening position.

Back Right 7.0ft/2.10m Specify the distance between each speaker and

the listening position.

rThe setting is not displayed if "Speaker

Configuration" - "Back" is set to "Yes" and also "Back ch" is set to "1ch".

rThe setting cannot be changed if any type

is selected in "Speaker Settings" - "Height Speakers Type".

rThe setting cannot be changed if "Speaker

Settings" - "Powered Zone 2" is set to "Yes" and also Zone2 is set to on.

Setting Item Default Value Setting Details

Back Left 7.0ft/2.10m Specify the distance between each speaker and

the listening position.

rThe setting is not displayed if "Speaker

Configuration" - "Back" is set to "Yes" and also "Back ch" is set to "1ch".

rThe setting cannot be changed if any type

is selected in "Speaker Settings" - "Height Speakers Type".

rThe setting cannot be changed if "Speaker

Settings" - "Powered Zone 2" is set to "Yes" and also Zone2 is set to on.

Back 7.0ft/2.10m Specify the distance between each speaker and

the listening position.

rThe setting is displayed only if "Speaker

Configuration" - "Back" is set to "Yes" and also "Back ch" is set to "1ch".

rThe setting cannot be changed if any type

is selected in "Speaker Settings" - "Height Speakers Type".

rThe setting cannot be changed if "Speaker

Settings" - "Powered Zone 2" is set to "Yes" and also Zone2 is set to on.

Surround Left 7.0ft/2.10m Specify the distance between each speaker and

the listening position.

Subwoofer 12.0ft/3.60m Specify the distance between each speaker and

the listening position.

Height Left 9.0ft/2.70m Specify the distance between each speaker and

the listening position.

rThis setting cannot be changed in any of the

following cases.

– "Speaker Settings" - "Height Speakers

Type" is set to "Not Use".

– "Speaker Settings" - "Powered Zone 2" is

set to "Yes" and also Zone2 is set to on.

Height Right 9.0ft/2.70m Specify the distance between each speaker and

the listening position.

rThis setting cannot be changed in any of the

following cases.

– "Speaker Settings" - "Height Speakers

Type" is set to "Not Use".

– "Speaker Settings" - "Powered Zone 2" is

set to "Yes" and also Zone2 is set to on.

rWhen the speaker is set to "No" in "Speaker Configuration", the settings for "Speaker Distance"

cannot be changed.

rDefault values vary depending on the regions.

Level Calibration

Adjust the level of each speaker with the built-in test tone. Settings are automatically configured if you use the Automatic Speaker Setup.

Setting Item Default Value Setting Details

Front Left 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

Center 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

Front Right 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

Surround Right 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

Back Right 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

rThe setting is not displayed if "Speaker

Configuration" - "Back" is set to "Yes" and

also "Back ch" is set to "1ch".

rThe setting cannot be changed if any type

is selected in "Speaker Settings" - "Height

Speakers Type".

rThe setting cannot be changed if "Speaker

Settings" - "Powered Zone 2" is set to "Yes"

and also Zone2 is set to on.

Advanced Settings

Setting Item Default Value Setting Details

Back Left 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

rThe setting is not displayed if "Speaker

Configuration" - "Back" is set to "Yes" and also "Back ch" is set to "1ch".

rThe setting cannot be changed if any type

is selected in "Speaker Settings" - "Height Speakers Type".

rThe setting cannot be changed if "Speaker

Settings" - "Powered Zone 2" is set to "Yes" and also Zone2 is set to on.

Back 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

rThe setting is displayed only if "Speaker

Configuration" - "Back" is set to "Yes" and also "Back ch" is set to "1ch".

rThe setting cannot be changed if any type

is selected in "Speaker Settings" - "Height Speakers Type".

rThe setting cannot be changed if "Speaker

Settings" - "Powered Zone 2" is set to "Yes" and also Zone2 is set to on.

Surround Left 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

Subwoofer 0dB Select a value between "-15dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

Height Left 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

rThis setting cannot be changed in any of the

following cases.

– "Speaker Settings" - "Height Speakers

Type" is set to "Not Use".

– "Speaker Settings" - "Powered Zone 2" is

set to "Yes" and also Zone2 is set to on.

Advanced Settings

Setting Item Default Value Setting Details

Height Right 0dB Select a value between "-12dB" to "+12dB". A

test tone will be output each time you change the value. Select the desired level.

rThis setting cannot be changed in any of the

following cases.

– "Speaker Settings" - "Height Speakers

Type" is set to "Not Use".

– "Speaker Settings" - "Powered Zone 2" is

set to "Yes" and also Zone2 is set to on.

rIn the following cases, the settings for "Level Calibration" cannot be changed:

– The speaker is set to "No" in "Speaker Configuration". – Mute (MUTING) is set.

rThe test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). Note

that the volume may suddenly become large if your normal volume setting is small.

rIf you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB

SPL at the listening position, measured with C-weighting and slow reading.

THX Audio Setup

Setting Item Default Value Setting Details

Surr Back Speaker Spacing

>4ft/>1.2m Select the distance between the surround back

speakers from the following values. When "Unit" is set to "feet" in "Speaker Distance": Select a value from "<1ft", "1ft-4ft", and ">4ft". When "Unit" is set to "meters" in "Speaker Distance": Select a value from "<0.3m", "0.3m-1.2m", and ">1.2m".

rThis setting cannot be changed in any of the

following cases.

– "Speaker Configuration" - "Back" is set to

"No".

– "Speaker Configuration" - "Back ch" is set

to "1ch".

– "Speaker Settings" - "Powered Zone 2" is

set to "Yes" and also Zone2 is set to on.

Setting Item Default Value Setting Details

BGC (Boundary Gain Compensation)

Off Correct a too strong bass sound when listening

to music close to the wall or in the end of the room due to layout limitation of the listening room. "On": Use this function "Off": Do not use this function

rWhen "Speaker Configuration" -

"Subwoofer" is set to "No", the setting is fixed to "Off".

Loudness Plus On When the setting is set to "On", it is possible to

enjoy even subtle nuances of audio expression at low volume. The setting can be enabled when a THX listening mode is selected. "On": Use this function "Off": Do not use this function

THX Loudness Plus

THX Loudness Plus is a new volume control technology featured in THX Ultra2 Plus™, THX Select2 Plus™ and THX I/S Plus™ certified receivers. With THX Loudness Plus, home theater audiences can experience the rich details of surround sound at any volume level. If the volume is turned down below the reference level, elements of sound in a certain range are lost or the sound is perceived differently by audience. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume level is reduced, by intelligently adjusting the levels of the surround channels and their frequency response in the environment. Thus audiences can experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus automatically turns on in any THX listening mode. In the newly developed THX Cinema, THX Music and THX Games modes, an optimum THX Loudness Plus setting will be obtained according to the type of content.

Advanced Settings

3. Audio Adjust

Configure various settings related to sound, such as settings for listening to multiplex audio or multilingual TV broadcasts and sound field settings for listening modes.

Multiplex/Mono

Setting Item Default Value Setting Details

Multiplex Input Channel

Mono Input Channel

Mono Output Speaker

Main Set the audio channel or language to be output

when playing multiplex audio or multilingual TV broadcasts etc. "Main": Main channel only "Sub": Sub channel only "Main/Sub": Main and sub channels will be output at the same time.

rIf multiplex audio is being played, "1+1" will

be displayed when DISPLAY is pressed.

Left+Right Set the input channel to use for playing any 2

ch digital source such as Dolby Digital, or 2-ch analog/PCM source in the Mono listening mode. "Left": Left channel only "Right": Right channel only "Left+Right": Left and right channels

Center Select the speaker to output monaural audio in

the Mono listening mode. "Center": Audio is output from the center speaker. "Left/Right": Audio is output from the front L/R speakers.

r The setting will be fixed to "Left/Right" if

"Speaker Configuration" - "Center" is set to

"None.

Dolby

Make the settings for Dolby listening mode.

Setting Item Default Value Setting Details

Loudness Management

Center Spread Off Adjust the width of the front sound field created

On Enable the Late Night function that allows

you to enjoy surround sound of Dolby TrueHD playback even in low volume. "On": Use this function "Off": Do not use this function

during Dolby Surround listening mode playback. "On": The sound field is spread to left and right. "Off": The sound field is centralized.

rThe setting will be fixed to "Off" if "Speaker

Configuration" - "Center" is set to "No".

DTS

Make the settings for DTS Neo:6 Music listening mode.

Setting Item Default Value Setting Details

Neo:6 Music Center Image

2 Adjust the width of the sound field of the front

channel when playing in the DTS Neo:6 Music listening mode. "0" to "5": Selecting a smaller value brings the sound field of the front channel to the center while selecting a larger value spreads the sound field of the front channel to left and right.

Theater-Dimensional

Make the settings for Theater-Dimensional mode.

Setting Item Default Value Setting Details

Listening Angle Wide Set the angle of the front left and right speakers

relative to the listening position when playing in the Theater-Dimensional listening mode. "Narrow": Less than 30° "Wide": Greater than 30°

rValues recommended for "Listening Angle" are: 20° when "Narrow" is selected and 40° when "Wide"

is selected.

Advanced Settings

LFE Level

Set the low-frequency effect (LFE) level of the Dolby Digital, DTS, Multichannel PCM, Dolby TrueHD, DTS-HD Master Audio and DSD signals.

Setting Item Default Value Setting Details

Dolby Digital 0dB Select the low-frequency effect (LFE) level of

GCEJV[RGQHUKIPCNHTQOF$VQŬF$+HVJG

low-frequency effect sound is too strong, select

F$QTŬF$

rThis setting works on LFE channel volume of

Dolby Digital and Dolby Digital Plus sources.

DTS 0dB Select the low-frequency effect (LFE) level of

GCEJV[RGQHUKIPCNHTQOF$VQŬF$+HVJG

low-frequency effect sound is too strong, select

F$QTŬF$

rThis setting works on LFE channel volume of

DTS and DTS-HD High Resolution sources.

Multich PCM 0dB Select the low-frequency effect (LFE) level of

GCEJV[RGQHUKIPCNHTQOF$VQŬF$+HVJG

low-frequency effect sound is too strong, select

F$QTŬF$

Dolby TrueHD 0dB Select the low-frequency effect (LFE) level of

GCEJV[RGQHUKIPCNHTQOF$VQŬF$+HVJG

low-frequency effect sound is too strong, select

F$QTŬF$

DTS-HD Master Audio

DSD 0dB Select the low-frequency effect (LFE) level of

0dB Select the low-frequency effect (LFE) level of

GCEJV[RGQHUKIPCNHTQOF$VQŬF$+HVJG

low-frequency effect sound is too strong, select

F$QTŬF$

GCEJV[RGQHUKIPCNHTQOF$VQŬF$+HVJG

low-frequency effect sound is too strong, select

F$QTŬF$

rThis setting works on LFE channel volume of

DSD (Super Audio CD) sources.

4. Source Setup

Adjust the volume level difference between the devices connected to the unit, change the names of inputs, or adjust the image quality. The setting can be separately set to each input selector button. When you select a desired input to check the video or audio, start playback of the connected device.

IntelliVolume

Setting Item Default Value Setting Details

IntelliVolume 0dB Adjust the volume level difference between the

devices connected to the unit. Select a value between "-12dB" to "+12dB". Set a negative value if the volume of the target device is larger than the others and a positive value if smaller.

rThis function is not effective in Zone 2.

Name Edit

Set an easy name to each input. The set name will be shown on the main unit display.

Setting Item Default Value Setting Details

Name Input name 1. Select a character or symbol with the

cursors and press ENTER. Repeat it to input 10 or less characters. "Shift": Switches between upper and lower cases. (Pressing +10 on the remote controller also toggles between upper and lower cases.)

" " ": Moves the cursor to the arrow

" direction. "Back Space": Removes a character on the left of the cursor. "Space": Puts a space.

rPressing CLR on the remote controller

will remove all the input characters.

2. After inputting, select "OK" with the cursors and press ENTER. The input name will be saved.

rTo name a preset radio station, press TUNER on the remote controller, select AM/FM and select the

preset number.

rIt cannot be set if the "NET", "USB" or "BLUETOOTH" input is selected.

Advanced Settings

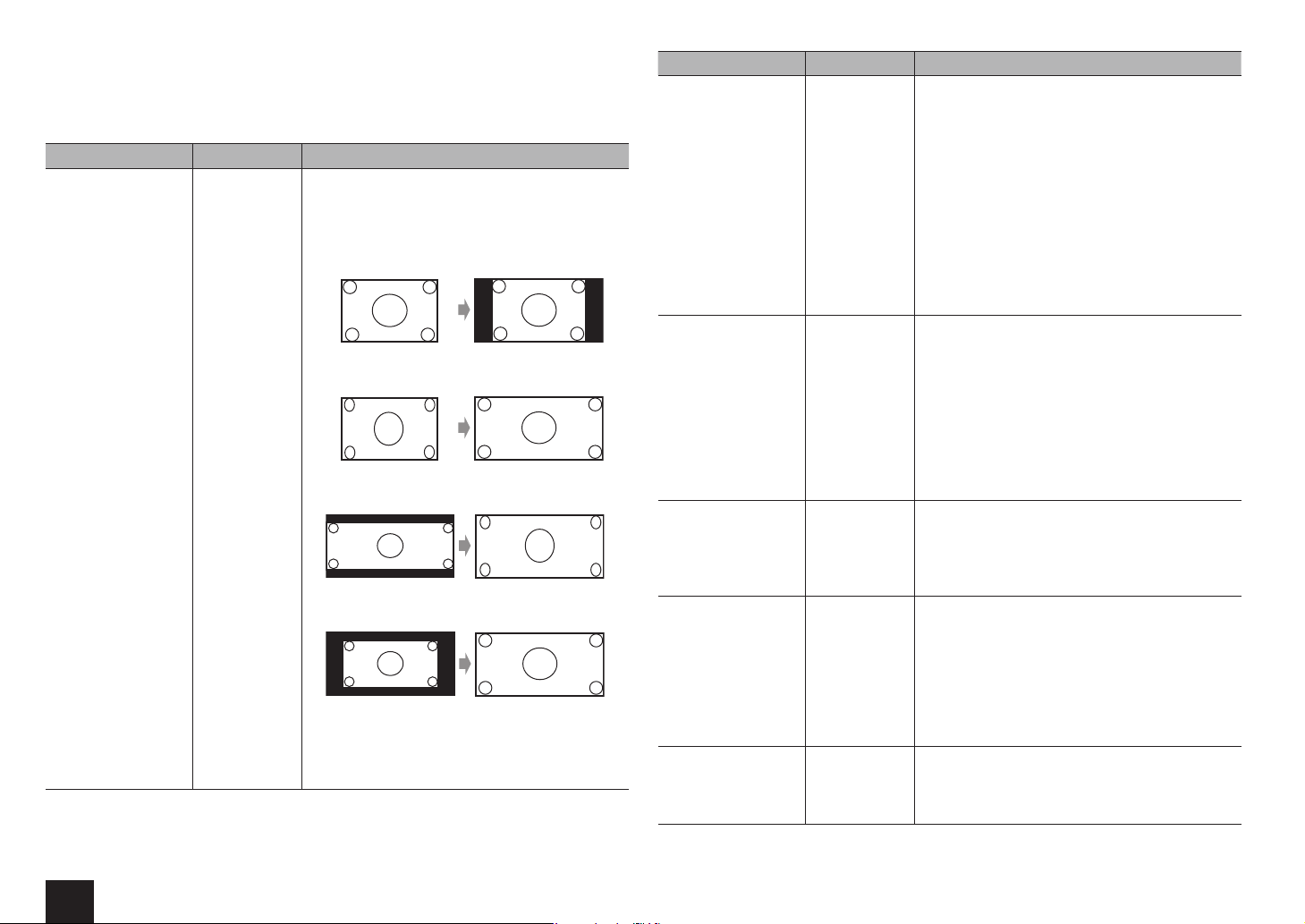

Picture Adjust

Adjust the image quality. (possible only when the video player is connected to the HDMI OUT MAIN jack) If you adjust it by checking the video, press ENTER. Press RETURN to return the screen to the previous status.

Setting Item Default Value Setting Details

Wide Mode Auto Set the aspect ratio.

"Auto": The aspect ratio will automatically be set according to the input signals and the monitor video output setting. "4:3":

"Full":

"Zoom":

"Wide Zoom":

rThe setting will be fixed to "Full" while 3D

or 4K video is being input. Also with some resolutions, the setting may be ignored and automatically set to "Full".

Setting Item Default Value Setting Details

Picture Mode Custom An appropriate image quality setting for cinema or

game can be selected. You can also adjust each item to obtain your favorite image quality. "Custom": The items from "Game Mode" to "Color Temperature" below can be adjusted as desired. "Cinema": When the video source is cinema "Game": When the video source is game "Standard": The resolution will be changed but the image quality will not be adjusted. "Bypass": Both the resolution and image quality will not be adjusted.

rIf you select "Bypass", the on-screen display

function will be disabled.

Game Mode Off Change to the setting suitable for game. Also

correct the delay of video signals of the game console if any. "On": Use this function "Off": Do not use this function

rIf you select "On", the delay will be corrected

but the image quality will be lower.

rThe setting will be fixed to "Off" if "1. Input/

Output Assign" - "Monitor Out" - "Resolution" is set to "4K".

Film Mode Auto Change to the setting suitable for film.

"Auto": Image processing suitable for film will be executed. "Video": "Film Mode" will not be applied and the input signals will be processed as video source.

Edge Enhancement Off Adjust the sharpness of the outline of image.

Select from "Off", "Low", "Mid" (Middle), and "High".

rThe setting will be fixed to "Off" if "Game

Mode" is set to "On".

rThe setting will be set to "Off" if the output

video has 2,000 or more lines horizontal resolution.

Noise Reduction Off Reduces the noise of the screen. Select from

"Off", "Low", "Mid" (Middle), and "High".

rThe setting will be fixed to "Off" if "Game

Mode" is set to "On".

Advanced Settings

Setting Item Default Value Setting Details

Brightness 0 Adjust brightness of the screen. Select a value

between "-50" to "+50".

Contrast 0 Adjust contrast of the screen. Select a value

between "-50" to "+50".

Hue 0 Correct hue of the screen. Select a value between

"-50" to "+50".

Saturation 0 Adjust saturation of the screen. Select a value

between "-50" to "+50".

Color Temperature Normal Set color temperature of the screen. Select from

"Warm", "Normal" and "Cool".

rIn the following cases, the settings for "Picture Adjust" cannot be changed:

– "NET", "USB" or "BLUETOOTH" is selected. – "1. Input/Output Assign" - "Monitor Out" - "Monitor Out" is set to "SUB".

rPress CLR on the remote controller if you return all the settings from "Game Mode" through "Color

Temperature" to their default value.

Audio Selector

Make the audio input setting. The setting can be separately set to each input selector button. Select the input selector to configure.

Setting Item Default Value Setting Details

Audio Selector – Allows you to select prior input source.

"ARC": When giving priority to input signal from ARC compatible TV.

rThe setting can be selected only when

|*CTFYCTG5GVWR*&/+#WFKQ4GVWTP

Channel" is set to "Auto" and also the "TV/CD"

input is selected. "HDMI": When giving priority to input signal from HDMI jacks

rThe setting can be selected only when the

input is assigned to the HDMI IN jack in the

"HDMI Input" setting. "COAXIAL" (Coaxial input): When giving priority to input signal from DIGITAL IN COAXIAL jacks.

rThe setting can be selected only when the

input is assigned to the COAXIAL jack in the

"Digital Audio Input" setting. "OPTICAL" (Optical input): When giving priority to input signal from DIGITAL IN OPTICAL jacks.

rThe setting can be selected only when the

input is assigned to the OPTICAL jack in the

"Digital Audio Input" setting. "Analog": To always output analog audio independently of the input signal

Fixed Mode Off Specify an input signal when "HDMI", "COAXIAL"

or "OPTICAL" is selected for "Audio Selector". Set this item if noise is produced, or truncation occurs at the beginning of a track that follows a gap when playing PCM or DTS sources. "Off": To play an analog signal when there is no digital signal. "PCM": To fix the input source to PCM (except for multichannel PCM) "DTS": To fix the input source to DTS (except for DTS-HD)

rChanging "Audio Selector" changes the setting

to "Off".

rThe setting cannot be changed when "PHONO", "TUNER", "NET", "USB" or "BLUETOOTH" input is

selected.

Advanced Settings

5. Listening Mode Preset

You can preset your favorite listening mode to each input. (For example, you can always apply straight decode to the Dolby TrueHD source of Blu-ray Disc to play it in unchanged sound field.) When the list of input sources is displayed, set the signal type and listening mode. Although it is possible to select the listening mode during playback, the selected mode will be reset when the unit enters standby mode.

Setting Item Default Value Setting Details

Analog/PCM Last Valid Set the listening mode for playing PCM signals

of CD and analog signals of record and cassette tape.

Mono/Multiplex Source

2 ch Source Last Valid Set the listening mode for playing Dolby Digital

Dolby D/Dolby D Plus/TrueHD

DTS/DTS-ES/DTS-HDLast Valid Set the listening mode for playing digital audio

Other Multich Source

rAvailable listening modes vary depending on the input signal. rSetting "Last Valid" will always select the last selected mode. rOnly "Analog" can be set to the "TUNER" input. r"Digital" and "TrueHD" can be set to the "NET" and "USB" inputs. rOnly "Digital" can be set to the "BLUETOOTH" input.

Last Valid Set the listening mode for playing Dolby Digital

and other digital signals recorded in monaural or multiplex audio.

and other digital signals recorded in 2 channels.

Last Valid Set the listening mode for playing Dolby Digital,

Dolby Digital Plus and Dolby TrueHD signals.

signals in DTS and DTS-HD High Resolution formats. Select the listening mode specified for Blu-ray or such other DTS-HD Master Audio source.

Last Valid Set the listening mode for playing DSD signals of

Super Audio CD etc. that are input from HDMI IN jack.

6. Miscellaneous

Volume Setup

Make the detailed volume setting of the unit.

Setting Item Default Value Setting Details

Volume Display Absolute Switch the volume display between the absolute

value and relative value. The absolute value 82 is equivalent to the relative value 0 dB. "Absolute": Absolute value such as "1" to "99" "Relative (THX)": Relative value such as "-81dB" and "+18dB"

rIf you set the volume of absolute value to

"82", "82Ref" appears and "THX" flashes on the display.

Muting Level ŬF$ Set the volume lowered from the listening

volume when muting is on.

5GNGEVCXCNWGHTQOŬF$F$VQF$

(in 10dB increments)

Maximum Volume Off Set the maximum value to avoid too high

volume. Select a value from "Off", "50" to "99".

Power On Volume Last Set the volume level of when the power is

turned on. Select a value from "Last" (Volume level before entering standby mode), "Min", "1" to "99" and "Max".

rYou cannot set a higher value than that of

"Maximum Volume".

Headphone Level 0dB Adjust the volume level difference between

speakers and headphones. Select a value between "-12dB" to "+12dB".

Advanced Settings

OSD Setup

Make the setting of on-screen display function that can be displayed on the TV when you use the setting menu or control the volume.

Setting Item Default Value Setting Details

On Screen Display On Set whether or not to display the operation

screen on the TV. "On": The operation screen will be displayed on the TV. "Off": The operation screen will not be displayed on the TV.

rThe operation screen may not be displayed

depending on the input signal even if "On" is selected. If the operation screen is not displayed, change the resolution of the connected device.

Language English Select the on-screen display language.

Screen Saver 3min Set the time to start the screen saver. Select a

value from "3min", "5min", "10min" and "Off".

7. Hardware Setup

Tuner

Setting Item Default Value Setting Details

AM/FM Frequency Step (North American models)

AM Frequency Step

'WTQRGCP|OQFGNU

10kHz/200kHz Select a frequency step depending on your

area of residence. Select "10kHz/200kHz" or "9kHz/50kHz".

rWhen this setting is changed, all radio

presets are deleted.

rDefault values vary depending on the

regions.

9kHz Select a frequency step depending on your

area of residence. Select "10kHz" or "9kHz".

rWhen this setting is changed, all radio

presets are deleted.

rDefault values vary depending on the

regions.

HDMI

Setting Item Default Value Setting Details

HDMI CEC (RIHD) Off Setting to "On" enables the input selection link

and other link functions with HDMI connected CEC compliant device. "On": Use this function "Off": Do not use this function

rDepending on the TV set, a link may need to

be configured on the TV.

rThis function is effective only when the

device is connected to the HDMI OUT MAIN terminal.

rSetting to "On" and closing the on-screen

menu displays the name of the CECcompatible components and "RIHD On" on the display.

rPower consumption in standby mode may

increase if "On" is set. (Depending on the TV status, the unit will enter the normal standby mode.)

rIf you operate the MASTER VOLUME control

on the main unit when this setting is "On" and audio is output from the TV speakers, audio will be output also from the speakers connected to the unit. If you want to output from only either of them, change the unit or TV settings, or reduce the volume of the unit.

rIf abnormal operation occurs when you set

the setting to "On", set it to "Off".

rWhen connecting a non-CEC compatible

component, or when you are not sure whether it is compatible, set the setting to "Off".

rWhen changing this setting, turn off and

then on again the power of all connected components.

Advanced Settings

Setting Item Default Value Setting Details

HDMI Through Off You can display the video of an HDMI connected

player on the TV even if the unit is in standby mode. This setting is effective only for an input selector to which an HDMI jack is assigned in "HDMI Input". It cannot be set to any other input selector unless an HDMI jack is assigned to it. "Off": The setting is disabled. Video of device connected to any jack will not be displayed. "BD/DVD", "CBL/SAT", "STB/DVR", "GAME", "PC", "AUX", "TV/CD", "PHONO": Video of the device connected to the HDMI IN jack assigned to each input will be displayed on the TV. "Last": Video of the device connected to the HDMI IN jack assigned to the input selector that was selected immediately before the unit enters standby mode will be displayed on the TV. "Auto": Video of all the devices connected to the HDMI IN jacks will be output to the TV. "Auto (Eco)": Video of all the devices connected to the HDMI IN jacks will be output to the TV. If you select this setting when using a CECcompatible TV, you can reduce the power consumption in standby mode.

rWhen "HDMI Through" is enabled, the power

consumption increases even when the unit is on standby. However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating.

r"Auto" and "Auto (Eco)" cannot be selected if

"HDMI CEC (RIHD)" is set to "Off".

rWhen changing the setting, turn off and

then on again the power of all connected components.

Setting Item Default Value Setting Details

Audio TV Out (MAIN) Off You can enjoy audio through the speakers of the

HDMI connected TV while this unit is on. "On": Use this function "Off": Do not use this function

rIf you select "On", set "HDMI CEC (RIHD)" to

"Off."

rThe setting is fixed to "Auto" if "HDMI CEC

(RIHD)" is set to "On".

rThe setting is fixed to "Off" if "1. Input/Output

Assign" - "Monitor Out" - "Monitor Out" is set to "SUB".

rListening mode cannot be changed if "Audio

TV Out (MAIN)" is set to "On" and audio is being output through the speakers of the TV.

rDepending on your TV set or input signal of

the component, audio may not output through the speakers of the TV even if this setting is set to "On". In such case, audio is output from the speakers of the unit.

rIf you operate the MASTER VOLUME control

on the main unit when "Audio TV Out (MAIN)" or "HDMI CEC (RIHD)" is "On" and audio is output from the TV speakers, audio will be output from the unit. If you do not want to output audio from the unit, change the unit or TV settings, or reduce the volume of the unit.

Advanced Settings

Setting Item Default Value Setting Details

Audio TV Out (SUB) Off You can enjoy audio through the speakers of the

HDMI connected TV while this unit is on. "On": Use this function "Off": Do not use this function

rThe setting is fixed to "Off" if "1. Input/Output

Assign" - "Monitor Out" - "Monitor Out" is set to "MAIN".

rListening mode cannot be changed while

"Audio TV Out (SUB)" is set to "On" and audio is being output through the speakers of the TV.

rDepending on your TV set or input signal of

the component, audio may not output through the speakers of the TV even if this setting is set to "On". In such case, audio is output from the speakers of the unit.

rIf you operate the MASTER VOLUME control

on the main unit when "Audio TV Out (SUB)" or "HDMI CEC (RIHD)" is "On" and audio is output from the TV speakers, audio will be output from the unit. If you do not want to output audio from the unit, change the unit or TV settings, or reduce the volume of the unit.

Audio Return Channel

Lip Sync On This setting automatically corrects any

- You can enjoy sound of the HDMI connected ARC compatible TV through the speakers connected to the unit. To use this function, set "HDMI CEC (RIHD)" to "On" in advance. "Auto": When enjoying the TV sound through the speakers connected to the unit "Off": When not using the ARC function

desynchronization between the video and audio signals based on data from the HDMI LipSync compatible TV. "On": Automatic correction will be enabled. "Off": Automatic correction will be disabled.

Setting Item Default Value Setting Details

InstaPrevue Sub Window

InstaPrevue Position

Multi Change the preview display of the video input

through HDMI, which will be displayed using "InstaPrevue" in the HOME menu. Set how to display preview thumbnails. "Multi": Displays all the thumbnails of HDMI IN1, 2, 3, 4 and Front at once. "Single": Displays each thumbnail individually.

rDepending on the video source, the preview

thumbnails configured in "InstaPrevue" may not be displayed properly.

Bottom/Lower Right

Change the preview display of the video input through HDMI, which will be displayed using "InstaPrevue" in the HOME menu. Set the position to display preview thumbnails. When "Multi" is selected for "Sub Window": Select from "Top", "Bottom", "Left" and "Right". When "Single" is selected for "Sub Window": Select from "Upper Left", "Upper Right", "Lower Left" and "Lower Right".

rDepending on the video source, the preview

thumbnails configured in "InstaPrevue" may not be displayed properly.

Auto Standby

Setting Item Default Value Setting Details

Auto Standby On/Off This setting places the unit on standby

automatically after 20 minutes of inactivity without any video or audio input. "On": The unit will automatically enter standby mode ("ASb" will stay lit). "Off": The unit will not automatically enter standby mode.

r"Auto Standby" is appeared on the display

and menu screen 30 seconds before the Auto Standby comes on.

r"Auto Standby" does not work when Zone 2

is active.

rDefault values vary depending on the

regions.

Advanced Settings

Setting Item Default Value Setting Details

HDMI Through Off Enable or disable "Auto Standby" while "HDMI

Through" is on. "On": The setting will be enabled. "Off": The setting will be disabled.

rThe setting cannot be set to "On" if "Auto

Standby" is set to "Off".

rWhen "HDMI Through" is used, the power consumption increases even when the unit is on standby.

However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating.

Network

Make the network setting.

rWhen LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the

setting automatically. ("Enable" is set by default) To assign fixed IP addresses to each components, you must set "DHCP" to "Disable" and assign an address to this unit in "IP Address" as well as set information related to your LAN, such as Subnet Mask and Gateway.

Setting Item Default Value Setting Details

Network Standby Off You can turn on the power of the unit via network

using an application such as Onkyo Remote. "On": Use this function "Off": Do not use this function

rWhen "Network Standby" is used, the power

Wi-Fi Off(Wired) Connect the unit to network via wireless LAN

router. "On": Wireless LAN connection "Off(Wired)": Wired LAN connection

Wi-Fi Setup – You can configure wireless LAN settings by

pressing ENTER when "Start" is displayed.

Setting Item Default Value Setting Details

Wi-Fi Status – The information of the connected access point

will be displayed. "SSID": SSID of the connected access point. "Security": Security method of the connected access point. "Signal": Signal strength of the connected access point. "Status": Status of the connected access point.

MAC Address – This is the MAC address of the AV receiver.

This value is specific to the component and cannot be changed.

DHCP Enable "Enable": Auto configuration by DHCP

"Disable": Manual configuration without DHCP

rIf selecting "Disable", you must set "IP

Address", "Subnet Mask", "Gateway", and "DNS Server" manually.

IP Address – Displays/Sets the IP address.

Subnet Mask – Displays/Sets the subnet mask.

Gateway – Displays/Sets the gateway.

DNS Server – Displays/Sets the primary DNS server.

Proxy URL – Displays/Sets the proxy server URL.

Proxy Port – Displays/Sets the proxy server port number when

you enter "Proxy URL".

Network Check – You can check the network connection.

Press ENTER when "Start" is displayed.

rWait for a while if "Network" cannot be selected. It will appear when the network function is started up.

Bluetooth

Setting Item Default Value Setting Details

Bluetooth On Select whether or not to use the Bluetooth

function. "On": Enables connection with a Bluetoothenabled device by using the Bluetooth function. Select "On" also when making various Bluetooth settings. "Off": When not using the Bluetooth function

Advanced Settings

Setting Item Default Value Setting Details

Direct Change On The input of the unit will automatically be

switched to "BLUETOOTH" when connection is made from a Bluetooth-enabled device to the unit. "On": The input will automatically become "BLUETOOTH" when a Bluetooth-enabled device is connected. "Off": The function is disabled.

rIf the input is not switched automatically, set

to "Off" and change the input manually.

Auto Reconnect On This function automatically reconnects to the

Bluetooth-enabled device connected last when you change the input selector to "BLUETOOTH". "On": Use this function "Off": Do not use this function

rThis function may not work depending on

your Bluetooth-enabled device.

Wakeup via Bluetooth

Off This function wakes up the unit on standby by

connecting a Bluetooth-enabled device. "On": Use this function "Off": Do not use this function

rSetting to "On" increases the power

consumption even when the unit is on standby. However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating.

rThe setting is fixed to "Off" if "Direct Change"

is set to "Off".

Setting Item Default Value Setting Details

Pairing Information - When paring is performed, the information of

the previous pairing stored in this unit will be initialized. Pressing ENTER when "Clear" is displayed initializes the pairing information stored in this unit.

rThis function does not initialize the pairing

information on the Bluetooth-enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the Bluetooth-enabled device in advance. For information on how to clear the pairing information, refer to the Bluetooth-enabled device's instruction manual.

Device – Displays the name of the Bluetooth-enabled

device connected to the unit.

rThe name is not displayed when "Status" is

"Ready" and "Now Pairing...".

Status – Displays the status of the Bluetooth-enabled

device connected to the unit. "Ready": Not paired "Now Pairing...": Paired "Connected": Successfully connected

rWait for a while if "Bluetooth" cannot be selected. It will appear when the network function is started

up.

Advanced Settings

Firmware Update

Setting Item Default Value Setting Details

Update Notice Enable Availability of a firmware update will be notified

via network. "Enable": Notify updates "Disable": Do not notify updates

Version – The current firmware version will be displayed.

Update via NET – Press ENTER to select when you want to

update the firmware via network.

rYou will not be able to select this setting if

you do not have Internet access or there is nothing to update.

Update via USB – Press ENTER to select when you want to

update the firmware via USB.

rYou will not be able to select this setting if

a USB storage device is not connected or there is nothing to update in the USB storage device.

rWait for a while if "Firmware Update" cannot be selected. It will appear when the network function is

started up.

Initial Setup

You can make the initial setup from the setup menu.

rSetting is not possible if "1. Input/Output Assign" - "Monitor Out" - "Monitor Out" is set to

"SUB".

rWait for a while if "Initial Setup" cannot be selected. It will appear when the network

function is started up.

8. Remote Controller Setup

Setting Item Default Value Setting Details

Remote ID 1 Select an ID for the unit's remote controller from

"1", "2", and "3" to prevent interference between the unit and other Onkyo components that are installed in the same room. After changing the ID on the main unit, change the ID on the remote controller accordingly with the following procedure.

1. While holding down RCV, press Q SETUP for about 3 seconds until the remote indicator lights.

2. With the number buttons, press one of 1, 2, and 3. The remote indicator flashes twice.

Remote Mode Setup – Input and register the remote controller code of

other devices.

rFor registration of the remote control code,

refer to "Operating Other Components with the Remote Controller".

9. Lock Setup

Setting Item Default Value Setting Details

Setup Unlocked The Setup menu will be locked to protect the

settings. "Locked": The menu is locked. "Unlocked": The menu is unlocked.

Operating Other Components with

the Remote Controller

Functions of REMOTE MODE Buttons

You can control any other device than this unit by programming a specified remote control code to a REMOTE MODE button of the remote controller. Register a remote control code to a desired REMOTE MODE button and press it to enter the remote mode that allows you to operate the corresponding device.

½

The RCV and ZONE2 buttons cannot be programmed.

Programming Remote Control Codes

For information on the configuration and operation of Onkyo components with RI jack, refer to "Connecting and Operating Onkyo RI Components". Furthermore, the following REMOTE MODE buttons are preprogrammed with remote control codes.

BD/DVD: Onkyo Blu-ray Disc/DVD player TV/CD: Onkyo CD player STB/DVR: Apple TV

Operating Other Components with the Remote Controller



Searching in the Setup Menu

You can search a remote control code and register it to a desired REMOTE MODE button in the unit's Setup menu.

After pressing RCV, press HOME on the remote

controller.

Select "Setup" with the cursors and press ENTER.

With the cursors, select "8. Remote Controller Setup" -

"Remote Mode Setup" and press ENTER. With the cursors, select a REMOTE MODE button for

which you want to register a remote control code and press ENTER to display the sub-category selection screen. With the cursors, select the target sub-category, and

then press ENTER to display the brand name input screen. Select a character with the cursors and press ENTER.

Repeat it to enter the first three characters of the brand name. Select "Search" with the cursors and press ENTER.

rAfter a search is done, the list of possible brand

names is displayed. If the brand name list is not displayed, select "Not Listed" with the cursors and press ENTER to return to the brand name input screen in step 6.

With the cursors, select the target brand name, and then

press ENTER.

rWhen the brand name is specified, the remote

control code of the brand and how to register it will be displayed on the TV screen.

Follow the guidance displayed on the TV screen.

If the component can successfully be operated with its

10.

registered remote control code, select "OK" with the cursors and press ENTER.

rOnly TV remote control codes can be entered for TV. rProgram a remote control code in accordance

with the input since each button also works as the input selector. (For example, when the CD player is connected to the TV/CD jack, program the remote control code for the CD player to TV/CD)

rIf the component cannot be operated, select "Try

Next Code" with the cursors and press ENTER to display another code.

rIt is possible to operate an MHL-enabled mobile

device with the unit's remote controller by registering the code of the MHL-enabled mobile device below to the unit's remote controller. Operation may be unstable or incorrect depending on the mobile device used.

33101 (North American models) 32910 (European models)



Consulting the Remote Control Code List

Find the remote control code in the remote control code list.

Look up the "Remote Control Code List" for the

corresponding remote control code.

rThe codes in the Remote Control Code List are

those known as of the date of publication and may be

changed. rOnly TV remote control codes can be entered for TV. rProgram a remote control code in accordance

with the input since each button also works as the

input selector. (For example, when the CD player is

connected to the TV/CD jack, program the remote

control code for the CD player to TV/CD)

Press DISPLAY for 3 or more seconds while holding

down the REMOTE MODE button to which you want to program the remote control code.

rThe remote indicator lights in the input mode.

With the number buttons, enter the 5-digit remote control

code within 30 seconds.

r Programming is complete when the remote indicator

flashes twice. The remote indicator flashes once slowly when programming the remote control code fails. Try programming again.



Remapping the Colored Buttons

The colored button assignment on the AV receiver's remote controller can be remapped to match that on the remote controller of the component whose remote control code you programmed to REMOTE MODE. However, you will not be able to remap the colored buttons if Zone 2 is selected.

Hold down the REMOTE MODE button to map and A

(Red) simultaneously until the remote indicator lights (about 3 seconds).

r Remapping is possible only for codes included in the

categories of the Remote Control Code List such as DVD player and TV.

Operating Other Components with the Remote Controller

controller of the other component are yellow, green, blue, and red from left to right, press the buttons on the AV receiver's remote controller in that order.

r Programming is complete when the remote indicator

flashes twice. The remote indicator flashes once slowly when programming the remote control code fails. Try programming again.

r Pressing any other button than a colored button

cancels the remap operation.



Resetting the REMOTE MODE Buttons

You can reset the remote control code registered in the REMOTE MODE button to its default status. This operation can be executed on a single REMOTE MODE button.

Press HOME for 3 or more seconds while holding down

the REMOTE MODE button you want to reset.

r The remote indicator will light.

Within 30 seconds, press the REMOTE MODE button

again.

r Resetting is complete when the remote indicator

flashes twice.

To reset all the remote controller settings, while holding down RCV, press and hold down HOME until the remote indicator stays lit (about 3 seconds). Within 30 seconds, press RCV again. Resetting is complete when the remote indicator flashes twice.

TV operation

Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons. Available buttons vary depending on the product category of the component. Operation may be incorrect or impossible depending on the product.

REMOTE MODE

, INPUT, VOL

MUTING

CH +/-

6 7

GUIDE

6 7

SETUP

PREV CH

RETURN

AUDIO (¼)

///

, ENTER

Within 30 seconds, press the colored buttons from left to

right, in the order you want to remap.

r For example, if the colored buttons on the remote

Operating Other Components with the Remote Controller

, , , , , , (¼)

A (Red), B (Green), C (Yellow), D (Blue)

Number 1 to 9, 0, +10

CLR, DISPLAY

½

Not CEC-compatible.

Blu-ray Disc player/DVD player/DVD recorder operation

6 7

TOP MENU

6 7

SETUP

RETURN

AUDIO(¼)

///

, ENTER

, , , , , ,

A (Red), B (Green), C (Yellow), D (Blue)

Number 1 to 9, 0, +10 (¼)

CLR, DISPLAY

½

Not CEC-compatible.

VCR/PVR operation

REMOTE MODE

SOURCE

MUTING

CH +/-

6 7

REMOTE MODE

SOURCE

MUTING

CH +/-, DISC +/-

GUIDE

/ / / , ENTER

SETUP

PREV CH

RETURN

Operating Other Components with the Remote Controller

, , , , , ,

Number 1 to 9, 0, +10

CLR, DISPLAY

Satellite receiver / Cable receiver operation

6 7

GUIDE

/ / / , ENTER

SETUP

PREV CH

RETURN

AUDIO

, , , , , ,

A (Red), B (Green), C (Yellow), D (Blue)

Number 1 to 9, 0, +10

CLR, DISPLAY

CD player operation

REMOTE MODE

SOURCE

MUTING

DISC +/-

5 6

REMOTE MODE

SOURCE

MUTING

CH +/-

/ / / , ENTER

SETUP

, , , , , ,

SEARCH, REPEAT, RANDOM, MODE

Number 1 to 9, 0, +10

CLR, DISPLAY

Cassette tape deck operation

Operating Other Components with the Remote Controller

To operate CEC-compatible components

The TV and BD/DVD buttons on the remote controller are preprogrammed with remote control codes for linked operation of some CEC(Consumer Electronics Control)compatible TV sets and Blu-ray Disk players. By connecting to the unit via HDMI, you may operate them using the AV receiver's remote controller.

rIf you cannot operate your CEC-compatible component,

program one of the following remote control codes to the TV or BD/DVD button. TV: 11807/13100/13500 (CEC-compatible TV) BD/DVD: 32910/33101/33501/31612 (CEC-compatible BD/DVD player)

REMOTE MODE

SOURCE

MUTING

, (Reverse Playback), , , , ,

Installation and Connection of Height Speakers

Installation and Connection of

Height Speakers

Using the Height Speakers

We recommend you to add Height speakers in order to ensure full effects of Aolby Atmos listening mode. There are several types of Height speakers. Refer to "Installation Method of the Height Speakers by Type".

rDolby recommends “Top Front” or "Top Middle" type to

obtain the best Dolby Atmos effect.

Connection: Connect the Height speakers to SPEAKERS BACK or HEIGHT terminals of the unit, regardless of the type of Height speakers.

Installation Method of the Height Speakers by Type



Front High

Install Front High speakers on the upper part of the front wall as shown in the figure.

Change the setting: Press RCV and then HOME on the remote controller, select "Setup" - "2. Speaker Setup" "Speaker Settings" and set "Height Speakers Type" to "Front High".



Top Front

Install the Top Front speakers in the position around the middle of just above the listening position and just above the front speakers as shown in the figure. Use Ceiling speakers as the Top Front speakers.

Change the setting: Press RCV and then HOME on the remote controller, select "Setup" - "2. Speaker Setup" "Speaker Settings" and set "Height Speakers Type" to "Top Front" as shown in the figure.

Installation and Connection of Height Speakers



Top Middle

Install the Top Middle speakers in the position just above the listening position. Use Ceiling speakers as the Top Middle speakers.

Change the setting: Press RCV and then HOME on the remote controller, select "Setup" - "2. Speaker Setup" "Speaker Settings" and set "Height Speakers Type" to "Top Middle".



Dolby Enabled Speaker (Front)

Dolby Enabled Speaker (Front) is specially designed to be used as a Height speaker. It is to be placed on the top board of front speakers as shown in the figure. Dolby Enabled Speakers placed with their diaphragms facing toward the ceiling create higher effect in the Dolby Atmos and Dolby Surround listening modes by providing sounds echoing off the ceiling.

rThere is integrated type of Dolby Enabled Speakers with

the normal speakers. When using the integrated type of Dolby Enabled Speakers, place it to the Front speakers position.



Dolby Enabled Speaker (Surround)

Dolby Enabled Speaker (Surround) is specially designed to be used as a Height speaker. It is to be placed on the top board of surround speakers as shown in the figure. Dolby Enabled Speakers placed with their diaphragms facing toward the ceiling create higher effect in the Dolby Atmos and Dolby Surround listening modes by providing sounds echoing off the ceiling.

rThere is integrated type of Dolby Enabled Speakers with

the normal speakers. When using the integrated type of Dolby Enabled Speakers, place it to the Surround speakers position.

Change the setting: Press RCV and then HOME on the remote controller, select "Setup" - "2. Speaker Setup" "Speaker Settings" and set "Height Speakers Type" to "Dolby Enabled Speaker (Front)" as shown in the figure.

Connecting and Operating

Onkyo RI Components

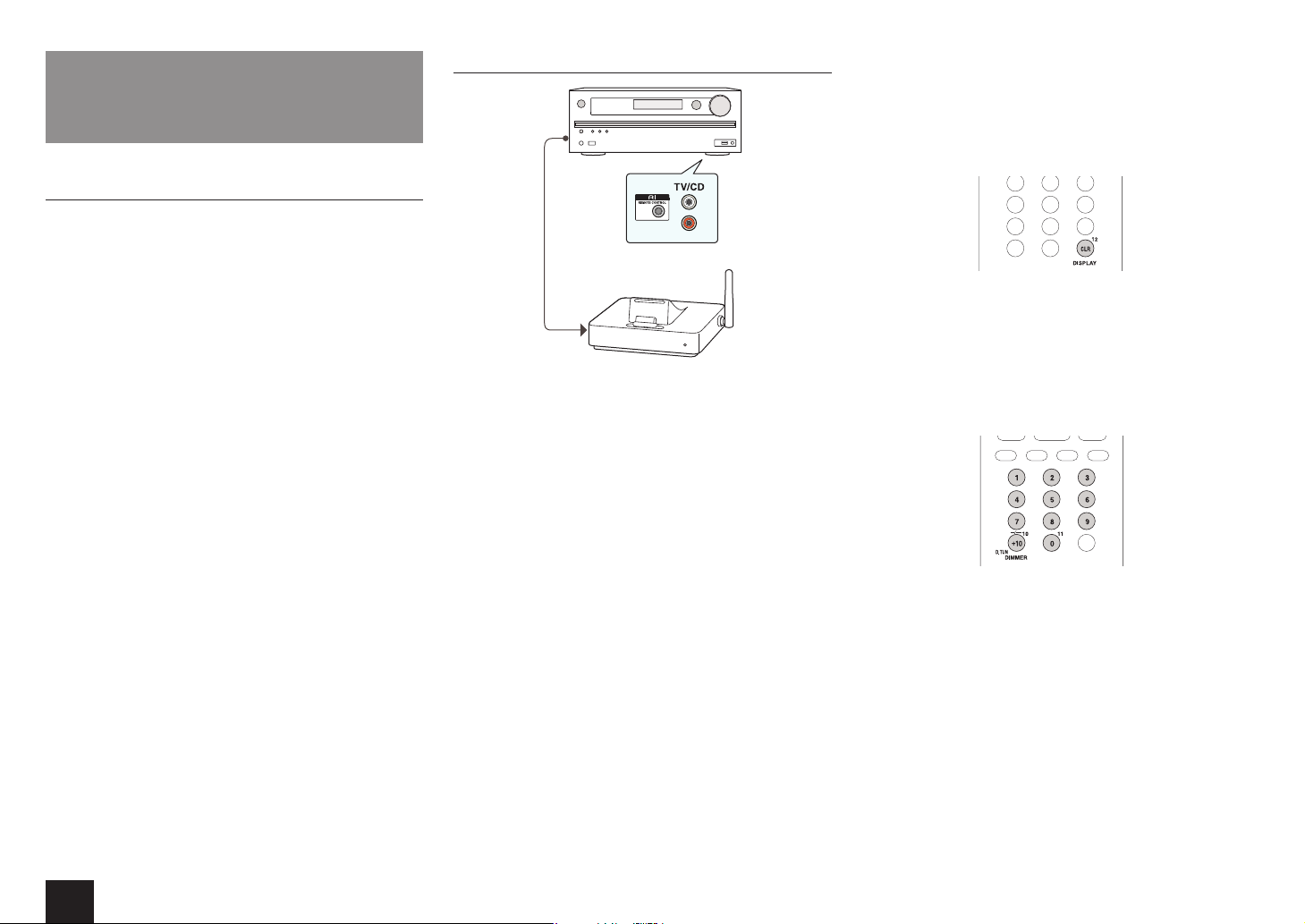

RI Connection and Setting

Connecting and Operating Onkyo RI Components

Press DISPLAY for 3 or more seconds while holding

down the REMOTE MODE button to which you want to program the remote control code.

r The remote indicator will light. r The RCV, ZONE2, and TV buttons cannot be

programmed.

About RI Function

Connecting an Onkyo component with RI jack such as the separately sold RI Dock to the unit by using an RI cable and an analog audio cable enables the following RI functions:

System On / Auto Power On: Starting playback on a component connected via RI when the unit is on standby mode, automatically turns on the unit to select the relevant component as its input source.

Direct Change: When playback is started on a component connected via RI, the unit selects that component as the input source.

Remote Controller Operation: Allows you to operate RIcompatible Onkyo components using the AV receiver's remote controller. Point the remote controller at remote control sensor of the unit. This operation is possible only when the RI remote control code is programmed.

rSome components may not support all RI functions. rThese functions do not work when Zone 2 is turned on. rFor information on the RI functions, also refer to each

component's instruction manual.

Connect an Onkyo component with RI jack to this unit using an RI cable and an analog audio cable. For details, refer to the instruction manual of the component with RI jack. The RI cable can be connected in any order. When there are two RI jacks, both jacks work in the same way and are interchangeable. To connect the RI Dock or cassette tape deck via RI, you must:



To rename the input selector

To make the RI functions work, you must rename the input selectors on the unit. Press TV/CD or GAME to display "TV/CD" or "GAME" on the main unit display. Then press and hold TV/CD or GAME 3 seconds or more to switch the display to "DOCK" or "TAPE".



To program the RI remote control code

Program the remote control code to any REMOTE MODE button on the remote controller. This will allow you to operate the component by pointing the remote controller at the unit instead of the component.

With the number buttons, enter the following 5-digit

remote control code within 30 seconds. RI Dock: 81993 Cassette tape deck with RI jack: 42157

r Programming is complete when the remote indicator

flashes twice. The remote indicator flashes once slowly when programming the remote control code fails. Try programming again.

Change the input selector on the RI Dock to "DOCK" or "TAPE". For details, refer to the RI Dock's instruction manual.

To operate Onkyo components directly or Onkyo components that are not connected via RI, use the following remote control codes: Onkyo DVD player: 30627 Onkyo CD player: 71817 RI Dock: 82990

rWith some models, operation may be not possible in

part or not possible at all.

iPod/iPhone Operation

Connecting and Operating Onkyo RI Components

The RI Dock allows you to use the AV receiver's remote controller to operate and play music on your iPod/iPhone. Moreover, it also allows you to view videos on your iPod/ iPhone on the screen of your TV, as well as perform RI operations if connected via RI. This operation is possible only when the RI remote control code is programmed.

Before performing any operation on your iPod/iPhone, be sure to have it updated to the latest version. Before performing any operation on your iPod/iPhone, make sure to have it updated to the latest version via iTunes. For details on the operation, refer to the RI Dock's instruction manual.

Switch the remote controller mode by pressing the REMOTE MODE button programmed with the remote control code for the iPod/iPhone, and operate by using the corresponding buttons. Point the remote controller at the unit.

4 5

TOP MENU

/ / / , ENTER, PLAYLIST /

, , , , , ,

REPEAT, RANDOM

MODE

DISPLAY

rPressing DISPLAY turns on the backlight for a few

seconds.

rMODE allows you to use the Resume function to

resume playing from the song that was playing when you removed your iPod/iPhone from the DS-A2 RI Dock.

REMOTE MODE

SOURCE

MUTING

VOL /

ALBUM +/-

Firmware Update

About Firmware Update

There are two methods for updating the firmware: via network and via USB. Use the one that best suits your environment.

rFor the latest information on updates, visit the Onkyo

website.

rBefore updating, make sure that the speaker setup

microphone is not connected.

rDuring an update, do not

– Disconnect and reconnect any cable, USB storage

device, speaker setup microphone or headphones, or perform any operation on the component such as turn off its power

– Access to this unit from a PC or smartphone using

Android application

rThe update may take about 20 minutes to complete for

either method: via network or via USB. Furthermore, existing settings are guaranteed regardless of the method used for update.

Updating the Firmware via Network

Before Start:

rCheck that the unit is turned on, and the connection to

the Internet is secured.

rTurn off the controller component (PC etc.) connected to

the network.

rStop any playing Internet radio, USB storage device, or

server content.

rIf the multi-zone function is active, press OFF on the

main unit to turn it off.

rIf "HDMI CEC (RIHD)" is set to "On", set it to "Off"

(default value).

– After pressing RCV, press HOME on the remote

controller. Select "Setup" with the cursors and press

'06'46JGPCHVGTUGNGEVKPI|*CTFYCTG5GVWR

- "HDMI" and pressing ENTER, select "HDMI CEC (RIHD)" to select "Off".

½

The description may differ from the on-screen display but that will not change the way to operate or the function.



Update

After pressing RCV, press HOME on the remote

controller.

Firmware Update

9KVJVJGEWTUQTUUGNGEV5GVWR|*CTFYCTG5GVWR

"Firmware Update" - "Update via NET", and then press ENTER.

r If "Firmware Update" is grayed out and cannot be

selected, wait for a while until it starts up.

r You will not be able to select "Update via NET" if

there is nothing to update.

Press ENTER with "Update" selected to start update.

r During the update, the TV screen may go black

depending on the updated program. In that case, check the progress on the display of the unit. The TV screen will remain black until the update is complete and the power is turned on again.

r "Completed!" is displayed when the update is

complete.

Press ON/STANDBY on the main unit to turn the unit

into standby mode. The process is completed and your firmware is updated to the latest version.

r Do not use

RECEIVER on the remote controller.

Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk. Onkyo will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

The HOME menu is displayed on the TV screen.

HOME

Setup

Firmware Update



If an Error Message is Displayed

When an error occurs, "¼-¼¼ Error!" is appeared on the display of the unit. ("¼" represents an alphanumeric character.) Check the following:

Error Code

-01, ¼-10:

Ethernet cable not found. Connect the Ethernet cable properly.

-02, ¼-03, ¼-04, ¼-05, ¼-06, ¼-11, ¼-13, ¼-14,

-16, ¼-17, ¼-18, ¼-20, ¼-21:

Internet connection error. Check the following:

– Whether the router is turned on – Whether this unit and router are connected to the

network Try to disconnect and then connect again the power to the unit and router. This may solve the problem. If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the service status with your ISP provider.

rOthers:

Disconnect then reconnect the AC power cord, from the beginning.

Updating the Firmware via USB

Before Start:

rPrepare a 64MB or larger USB storage device.

– Media inserted in a USB card reader may not be

used for this function.

– USB storage devices with security function are not

supported.

– USB hubs and USB devices with hub function are not

supported. Do not connect these devices to the unit. rDelete any data stored on the USB storage device. rTurn off the controller component (PC etc.) connected to

the network.

rStop any playing Internet radio, USB storage device, or

server content.

rIf the multi-zone function is active, press OFF on the

main unit to turn it off.

rIf "HDMI CEC (RIHD)" is set to "On", set it to "Off"

(default value).

– After pressing RCV, press HOME on the remote

controller. Select "Setup" with the cursors and press

'06'46JGPCHVGTUGNGEVKPI|*CTFYCTG5GVWR

- "HDMI" and pressing ENTER, select "HDMI CEC

(RIHD)" to select "Off".

½

Some USB storage devices may take long to load, may not be loaded correctly, or may not be correctly fed depending on the device or their content.

½

Onkyo will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device with this AV receiver. Thank you for your understanding.

½

The description may differ from the on-screen display but that will not change the way to operate or the function.

Connect the USB storage device to the USB port of the

unit.

r If you connect a USB hard disk drive to the USB

port of the unit, we recommend that you use its AC adapter to power it.

r If the USB storage device has been partitioned, each

section will be treated as an independent device.

After pressing RCV, press HOME on the remote

controller.



Update

Connect the USB storage device to your PC.

Download the firmware file from the Onkyo website to

your PC and unzip. Firmware files are named in the following way: ONKAVR

¼¼¼¼_¼¼¼¼¼¼¼¼¼¼¼¼

.zip Unzip the file on your PC. The number of unzipped files and folders varies depending on the model. Copy all unzipped files and folders to the root folder of

the USB storage device.

r Make sure to copy the unzipped files.

Press USB on the remote controller to select "USB".

The HOME menu is displayed on the TV screen.

HOME

Setup

9KVJVJGEWTUQTUUGNGEV5GVWR|*CTFYCTG5GVWR

"Firmware Update" - "Update via USB", and then press ENTER.

r If "Firmware Update" is grayed out and cannot be

selected, wait for a while until it starts up.

r You will not be able to select "Update via USB" if

there is nothing to update.

Press ENTER with "Update" selected to start update.

r During the update, the TV screen may go black

depending on the updated program. In that case, check the progress on the display of the unit. The TV screen will remain black until the update is complete and the power is turned on again.

r During the update, do not turn off, or disconnect then

reconnect the USB storage device.

r "Completed!" is displayed when the update is

complete.

Disconnect the USB storage device from the unit.

Press ON/STANDBY on the main unit to turn the unit

10.

into standby mode. The process is completed and your firmware is updated to the latest version.

r Do not use

RECEIVER on the remote controller.

Firmware Update

The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model. Retry from the download of the firmware file.

rOthers:

Disconnect then reconnect the AC power cord, from the beginning.



If an Error Message is Displayed

When an error occurs, "¼-¼¼ Error!" is appeared on the display of the unit. ("¼" represents an alphanumeric character.) Check the following:

Error Code

-01, ¼-10:

USB storage device not found. Check whether the USB storage device or USB cable is correctly inserted to the USB port of the unit. Connect the USB storage device to an external power source if it has its own power supply.

-05, ¼-13, ¼-20, ¼-21:

Troubleshooting

Before starting the procedure

Problems may be solved by simply turning the power on/ off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem is that the video or audio is not output or the HDMI linked operation does not work, disconnecting/connecting the HDMI cable may solve it. When reconnecting, be careful not to wind the HDMI cable since if wound the HDMI cable may not fit well. After reconnecting, turn off and on the unit and the connected device.

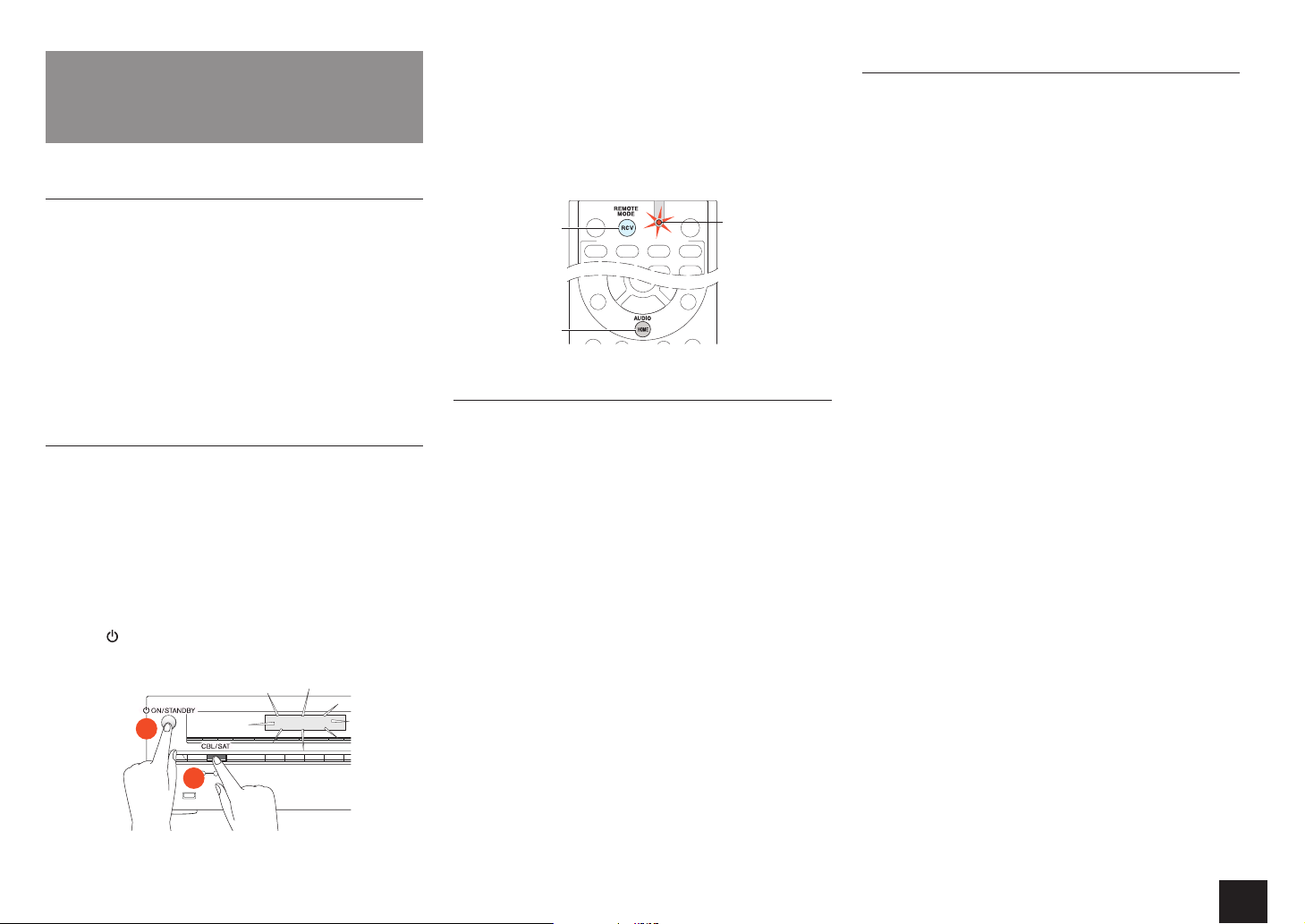

Resetting the unit

Resetting the unit to the status at the time of shipment may solve the problem. If the measures above do not solve the problem, reset the unit with the following procedure. If you reset the unit status, your preferences will be reset to the defaults. Note them down before starting reset.



How to reset

While holding down CBL/SAT on the main unit (note that

step 2 must be performed with this button pressed down)

Press ON/STANDBY on the unit.

on the display and the unit will enter standby mode.

“Clear” is appeared

Clear



How to reset the remote controller

While holding down 1RCV on the remote controller

(note that step 2 must be performed with this button pressed down)

Press and hold down 2HOME until the 3remote

indicator stays lit (about 3 seconds). Within 30 seconds,

press

RCV again.

Power



Cannot turn on the unit

rMake sure that the power cord is properly plugged into

the wall outlet.

rUnplug the power cord from the wall outlet, wait 5

seconds or more, then plug it in again.



The unit turns off unexpectedly

rThe unit will automatically enter standby mode when

Auto Standby has been set and launches.



The unit turns off and after restoring the power, it

turns off again

rThe protection circuit has been activated. Remove

the power cord from the wall outlet immediately. Make sure that all speaker cables and input sources are properly connected, and leave the unit with its power cord disconnected for 1 hour. After that, reconnect the power cord and turn the power on. If the unit turns off again, avoid resetting it and unplug the power cord. Then contact your Onkyo dealer.

Caution: If “CHECK SP WIRE” appears on the display, the speaker cables may be short-circuited.

WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the wall outlet immediately and contact the dealer or Onkyo Support.

Audio



There is no sound, or it is very quiet

rMake sure that the proper input source is selected. rMake sure that connecting plugs are pushed in all the

way.

rMake sure that the inputs and outputs of all components

are connected properly.

rMake sure that the polarity +/– of the speaker cables is

correct, and that no bare wires are in contact with the

metal part of speaker terminals. rMake sure that the input source is properly selected. rMake sure that the speaker cables are not shorting. rCheck the volume. The volume level is adjustable

between Min, 1 to 99, Max (100). It is normal that the

unit volume level is set up to 40 or around. rIf the MUTING indicator on the display flashes, press

MUTING on the remote controller to unmute the unit. rWhile headphones are connected to the PHONES jack,

no sound is output from the speakers. rIf there is no sound from a BD/DVD player connected to

an HDMI IN, check the BD/DVD player’s output settings,

and be sure to select a supported audio format. rCheck the digital audio output setting on the connected

component. On some game consoles, such as those

that support DVD, the default setting is off. rWith some DVD-Video discs, you need to select an

audio output format from a menu. rIf your turntable uses an MC cartridge, you must

connect an MC head amp, or an MC transformer. rMake sure that none of the connecting cables are bent,

twisted, or damaged. rNot all listening modes use all speakers. rPerform the automatic speaker setup again or manually

set the presence or absence, crossover frequency,

distance and level of each speaker. rMake sure that the speaker setup microphone is not still

connected. rSet to "Off" if "Audio Selector" - "Fixed Mode" is set to

"PCM" or "DTS".



Only the front speakers produce sound

rWhen the Stereo or Mono listening mode is selected,

only the front speakers and subwoofer produce sound. rMake sure the speakers are configured correctly.



Only the center speaker produces sound

rIf you use the Dolby Surround listening mode with a mono

source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.

rMake sure the speakers are configured correctly.



The surround speakers produce no sound

rWhen the T-D (Theater-Dimensional), Stereo or Mono

listening mode is selected, the surround speakers produce no sound.

rDepending on the source and current listening mode,

not much sound may be produced by the surround speakers. Try selecting another listening mode.

rMake sure the speakers are configured correctly.



The center speaker produces no sound

rWhen the Stereo or Mono listening mode is selected,

the center speaker produces no sound.

rMake sure the speakers are configured correctly.



There is no sound from surround back speakers or

height speakers.

rDepending on the source and current listening mode,

not much sound may be produced by the surround speakers. Try selecting another listening mode.

rMake sure the speakers are configured correctly.



The subwoofer produces no sound

rWhen you play source material that contains no

information in the LFE channel, the subwoofer produces no sound.

rMake sure the speakers are configured correctly.



There is no sound with a certain signal format

rWhen listening to Dolby Digital and/or DTS sound,

digital connection is necessary.

rCheck the digital input terminal setting. If the connection

is different from the default, re-setting is necessary.

rCheck the digital audio output setting on the connected

component. On some game consoles, such as those that support DVD, the default setting is off.



There is no sound with Dolby Atmos signal format

rSurround back speakers or height speakers need to be

installed. Make sure required speakers are connected and configured as connected in the "Speaker Configuration".

rMake sure the input signal is the Dolby Atmos format.



Cannot select the Pure Audio listening mode

(European models)

rThe Pure Audio listening mode can not be selected

while Zone 2 is on.



Cannot select a desired listening mode

rDepending on the connecting status of the speaker,

some listening modes may not be selected. Check the details in "Using the Listening Modes" section.



Cannot play 5.2ch

rMake sure the speakers are configured correctly. rNot all listening modes use all speakers.



Can not get 6.2 ch/7.2 ch playback

r6.2 ch/7.2 ch playback is not possible if surround back

speakers and height speakers are not connected.

rDepending on the number of connected speakers, it is

not always possible to select all of the listening modes.



The speaker volume cannot be set as required

rCheck to see if a maximum volume has been set.



Noise can be heard

rUsing cable ties to bundle audio cables with power

cords, speaker cables, etc. may degrade the audio performance, so refrain from doing it.

rAn audio cable may be picking up interference. Try

repositioning your cables.



The Late Night function does not work

rMake sure the source material is Dolby Digital, Dolby

Digital Plus, or Dolby TrueHD.



About DTS signals

rWhen DTS program material ends and the DTS

bitstream stops, the unit remains in DTS listening mode and the dts indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, you may not hear any sound because the unit does not switch formats immediately. In such case, you should stop your player for about 3 seconds and then resume playback.

rWith some CD and LD players, you will not be able

to playback DTS material properly even though your player is connected to a digital input on the unit. This is

Troubleshooting

usually because the DTS bitstream has been processed

(e.g., output level, sampling rate, or frequency response

changed) and the unit does not recognize it as a

genuine DTS signal. In such cases, you may hear noise. rPlaying DTS program material, using the pause, fast

forward, or fast reverse function on your player may

produce a short audible noise. This is not a malfunction.



The beginning of audio received by an HDMI IN

cannot be heard

rSince it takes longer to identify the format of an HDMI

signal than it does for other digital audio signals, audio

output may not start immediately.

Video



There is no picture

rMake sure that all video connecting plugs are pushed in

all the way. rMake sure that each video component is properly

connected. rIf the TV is connected to the HDMI OUT jack of the unit,

UGV|+PRWV1WVRWV#UUKIP/QPKVQT1WV/QPKVQT

Out" to "MAIN" or "SUB" according to the output

jack. If the playback source is connected to the video

(composite) jack or component video jacks and you want

to output the video to the TV via the HDMI OUT jack, set

"HDMI Input" to "-----". rIf the video source is connected to a component video

input, you must assign that input to an input selector,

and your TV must be connected to COMPONENT

VIDEO OUT terminal. rIf the video source is connected to a composite video

input, your TV must be connected to the MONITOR OUT

V terminal. rIf the video source is connected to an HDMI input, you

must assign that input to an input selector, and your TV

must be connected to the HDMI output(s). rWhile the Pure Audio (European models) listening mode

is selected, the analog video circuitry is turned off and

only video signals input through HDMI IN can be output. rMake sure the switching of input screens is proper at the

monitor side such as a TV. rWhen the image input from the composite video input

terminal does not get displayed, make sure that the component video input terminal is not set to the selected input. If selected, images input from the composite video input terminal cannot be output to this input switching. If only composite video input terminal connection is used, set the component video input terminal to "-----".

rImages of a component connected to the composite

video input terminal cannot be output by converting on the monitor of a TV or other components connected to COMPONENT VIDEO OUT terminal.

r+H|+PRWV1WVRWV#UUKIP/QPKVQT1WV/QPKVQT

Out" is set to "MAIN+SUB" or "MAIN" and Zone 2 is active, and also if on the unit you change to any other input from the TV connected to the HDMI OUT SUB jack, the image of the TV connected to the HDMI OUT MAIN jack will not be displayed.

r"Resolution" is effective only for the HDMI OUT MAIN

LCEMKH|+PRWV1WVRWV#UUKIP/QPKVQT1WV

"Monitor Out" is set to "MAIN+SUB".



There is no picture from a source connected to an

HDMI IN

rReliable operation with an HDMI-to-DVI adapter is not

guaranteed. In addition, video signals from a PC are not supported.

rCheck if "Resolution Error" is displayed on the main

unit display when video input via HDMI IN jack is not displayed. In this case, the TV does not support the resolution of the video input from the player. Change the setting on the player.



The on-screen menus do not appear

rOn your TV, make sure that the video input to which this

unit is connected is selected.

rSet "On Screen Display" to "On" in "6. Miscellaneous" -

"OSD Setup".

Tuner



Reception is noisy, FM stereo reception is noisy, or

the "FM STEREO" indicator does not stay lit

rRe-check the antenna connection. rRelocate your antenna. rMove the unit away from your TV or PC. rPassing cars and airplanes can cause interference.

rConcrete walls weaken radio signals. rListen to the station in mono. rWhen listening to an AM station, operating the remote

controller may cause noise.

rIf nothing improves the reception, install an outdoor

antenna.

Remote Controller



The remote controller does not work

rBefore operating this unit using remote controller, be

sure to press RCV.

rMake sure that the batteries are installed with the

correct polarity.

rInstall new batteries. Do not mix different types of

batteries, or old and new batteries.

rMake sure that the remote controller is not too far away

from the unit, and that there is no obstruction between the remote controller and the remote control sensor of the unit.

rMake sure that the unit is not subjected to direct

sunshine or inverter-type fluorescent lights. Relocate if necessary.

rIf the unit is installed in a rack or cabinet with colored-

glass doors or if the doors are closed, the remote controller may not work reliably.

rMake sure you have selected the correct remote

controller mode.

rWhen using the remote controller to control other

manufacturers’ AV components, some buttons may not work as expected.

rMake sure you have entered the correct remote control

code.

rMake sure to set the same ID on both the unit and

remote controller.



Operating other Onkyo component by using a RI

remote control code is not available

rMake sure that the Onkyo component is properly

connected with RI cable. When RI cable is used for connection, make sure to connect analog audio cable as well. (Connecting only an RI cable will not be enough.)

rMake sure you have selected the correct remote

controller mode.

rMake sure that the input display is correctly set.

Troubleshooting

rInput the RI remote control code again. rWhen the RI remote control code is input, point the

remote controller at remote control sensor of the unit.



Cannot operate Onkyo components (ones without RI

connection) and components of other makers

rMake sure that the connection with other components is

correct. rInput a correct remote control code again. If there are

several codes, try each code. rMake sure that the remote controller mode is correctly

selected. rOperate the remote controller by setting toward the light

receiving section of each component. rSome components may not start the operation.

RI Dock for iPod/iPhone



There is no sound

rMake sure your iPod/iPhone is actually playing. rMake sure your iPod/iPhone is properly inserted in the

Dock. rMake sure the unit is turned on, the correct input source

is selected, and the volume is turned up. rMake sure that connecting plugs are pushed in all the

way. rTry resetting your iPod/iPhone.



There is no video

rMake sure that your iPod/iPhone model’s TV OUT

setting is set to On. rMake sure the correct input is selected on your TV or the

unit. rSome versions of the iPod/iPhone do not output video.



The AV receiver’s remote controller does not control

my iPod/iPhone

rMake sure your iPod/iPhone is properly inserted in the

Dock. If your iPod/iPhone is in a case, it may not connect

properly to the Dock. Always remove your iPod/iPhone

from the case before inserting it into the Dock. rThe iPod/iPhone cannot be operated while it is

displaying the Apple logo. rMake sure you have selected the correct remote

controller mode.

rWhen you use the AV receiver’s remote controller, point

it toward this unit.

rBefore operating with the remote controller, you may

need to play on your iPod/iPhone to make the input

selector be recognized. rTry resetting your iPod/iPhone. rDepending on your iPod/iPhone model and generation,

some buttons may not work as expected.



The unit unexpectedly selects my iPod/iPhone as the

input source

rAlways pause iPod/iPhone playback before selecting

a different input source. If playback is not paused, the

Direct Change function may select your iPod/iPhone

as the input source by mistake during the transition

between tracks.



iPod/iPhone does not work properly

rTry reconnecting your iPod/iPhone.

Multi-zone Function



There is no sound

rWith multi-zone function, sound is output only when the

signal input source is an external component connected

to the analog audio input jacks of the unit, "NET", "USB",

"BLUETOOTH", "AM" or "FM". Zone audio output is not

possible if the player and the unit are connected via

HDMI cable or digital cable. Connect the RCA audio

output jacks of the player and the analog audio input

jacks of the unit with an analog audio (RCA) cable. Also,

some players require analog audio output setting.

Wi-Fi (Wireless LAN) Network



Cannot access to Wi-Fi (Wireless LAN) network or

sound playback is interrupted and communication does not work

rTry plugging/unplugging the power supply of wireless

LAN router and the unit, check the wireless LAN router

power-on status, and try reboot of the wireless LAN

router. rThe setting of SSID and encryption (WEP, etc.) is not

correct. Make sure the network settings of the unit is

properly set.

rConnection to an SSID that includes multi-byte

characters is not supported. Name the SSID of the wireless LAN router using single-byte alphanumeric characters only and try again.

rCannot receive radio wave due to a bad connection.

Shorten the distance from wireless LAN access point or remove obstacles for a good visibility, and try again. Place the unit away from microwave ovens or other access points. 2.4 GHz band for wireless LAN may not be enough. Connect ETHERNET terminal of the unit and the router via an Ethernet cable after selecting

|*CTFYCTG5GVWR0GVYQTMCPFEJCPIKPI9K(KVQ

"Off(Wired)".

rPlace the AV receiver away from the devices emitting

electromagnetic waves on the 2.4GHz band (microwave ovens, game consoles, etc.). If this does not solve the problem, stop using other components which emit electromagnetic waves.

rWhen other wireless LAN devices are used near the

unit, several issues such as interrupted playback and communication may occur. You can avoid these issues by changing the channel of your wireless LAN router. For instructions on changing channels, see the instruction manual provided with your wireless LAN router.

rIf there is a metallic object near the unit, wireless LAN

connection may not be possible as the metal can effect on the radio wave.

rIf there is more than one access point in the network,

separate each access point.

rIt is recommended to place the Wi-Fi router (access

point) and the unit in the same room.



The connection does not complete even when the automatic setting button is pressed on the wireless LAN router

rThe wireless LAN router setting may be switched to

Manual. Return the setting to Auto.

rTry the manual set-up. The connection may succeed.



On the list of SSID on the TV menu screen, there is no corresponding SSID

rWhen the wireless LAN router setting is at stealth mode

(mode to hide the SSID key) or when ANY connection is

off, the SSID is not displayed. Change the setting and try

again.

Troubleshooting

Bluetooth



Music playback is unavailable on the unit even after

successful Bluetooth connection

rDepending on the characteristics or specifications of

your Bluetooth-enabled device, playback on the unit is not guaranteed.

rWhen the audio volume of your Bluetooth-enabled

device is set low, the playback of audio may be unavailable. Volume up the Bluetooth-enabled device.

rDepending on the Bluetooth-enabled device, Send/

Receive selector switch may be provided. Select Send mode.

rEven when a music file is playing on the Bluetooth-

enabled device, the sound cannot be played if the connection is not established with the unit. Make sure that the unit is connected (this unit is selected as the sound output destination).



Sound is interrupted

rProblem may be occurring at the Bluetooth-enabled

device. Check the information on a web page.



The audio quality is poor after connection with a

Bluetooth-enabled device

rThe Bluetooth reception is poor. Move the Bluetooth-

enabled device closer to the unit or remove any obstacle between the Bluetooth-enabled device and this unit.



Cannot connect with this unit

rTry plugging/unplugging the power of the unit and try

turning on/off the Bluetooth-enabled device. Re-startup of the Bluetooth-enabled device may be effective.

rThe Bluetooth-enabled device does not support the

profiles required for this unit.

rThe Bluetooth function of the Bluetooth-enabled

device is not enabled. Refer to the user manual of the Bluetooth-enabled device for how to enable the Bluetooth function.

rNear components such as microwave oven or cordless

phone, which use the radio wave in the 2.4 GHz range, a radio wave interference may occur, which disables the use of this unit.



Bluetooth connection cannot be built

rWhen building a Bluetooth connection between this unit

and your Bluetooth-enabled device for the first time, if the connection fails, select "7.Hardware Setup" - " Bluetooth", execute "Clear" in "Pairing Information", turn off and then on again your Bluetooth-enabled device to clear the device name, and build the connection again.

rIf there is a metallic object near the unit, Bluetooth

connection may not be possible as the metal can effect on the radio wave.

rIf the wireless LAN and Bluetooth connections are

used at the same time, try to connect the ETHERNET port and router with the Ethernet cable after selecting

p|*CTFYCTG5GVWRq0GVYQTMCPFEJCPIKPIp9K(KqVQ

"Off(Wired)" for a better connection.



The Auto Reconnect function does not work

rThis function may not work depending on your

Bluetooth-enabled device. In that case, pair the unit and the Bluetooth-enabled device and then play again

NET/USB Function



Cannot access the network server

rWhen NET is blinking, the AV receiver is not properly

connected to the home network. rMake sure your network server has been started up. rMake sure your network server is properly connected to

the home network. rMake sure your network server is correctly set. rMake sure that the router LAN side port is properly

connected to the AV receiver. rMake sure that the correct IP address is allocated in

|*CTFYCTG5GVWR0GVYQTM



Playback stops while listening to music files on the

network server

rMake sure the network server is compatible with this

unit. rWhen the PC is serving as the network server, try

quitting any application software other than the server

software (Windows Media rIf the PC is downloading or copying large files, the

playback may be interrupted.

Player 12 etc.).



Cannot access the Internet radio

rCertain network service or contents available through

the unit may not be accessible in case the service provider terminates its service.

rIf a specific radio station is unavailable for listening,

make sure the registered URL is correct, or whether the format distributed from the radio station is supported by the AV receiver.

rWhen NET is blinking, the AV receiver is not properly

connected to the home network.

rMake sure that your modem and router are properly

connected, and make sure they are both turned on.

rMake sure that connecting to Internet from other

components is possible. If connecting is not possible, turn off all components connected to the network, wait for a while, and then turn on the components again.

rMake sure that the router LAN side port is properly

connected to the AV receiver.

rMake sure that the correct IP address is allocated in

|*CTFYCTG5GVWR0GVYQTM

rDepending on ISP, setting the proxy server is necessary. rMake sure that the used router and/or modem is

supported by your ISP.



Cannot connect to the AV receiver from a Web

browser

rMake sure that the IP address of the AV receiver is

correctly input to the Internet browser.

rWhen DHCP is used for allocating the IP address, the IP

address of this AV receiver may have been changed.

rMake sure that both AV receiver and PC are properly

connected to the network.



USB storage device is not displayed

rCheck whether the USB storage device or USB cable is

correctly inserted to the USB port of the unit.

rRemove the USB storage device from the AV receiver

once, and then try re-connecting.

rPerformance of the hard disk that receives power from

the USB port of the unit is not guaranteed.

rDepending on the type of format, the playback may not

be performed normally. Check the type of the file formats that is supported.

rUSB storage device with security functions may not be

played.

Troubleshooting

Others



Power consumption in standby mode

rIn the following cases, the power consumption in

standby mode may reach up to a maximum of 5 W:

– 9JGPp0GVYQTM5VCPFD[qKP|*CTFYCTG5GVWR

"Network" - "Network Standby" is set to "On".

– 9JGP|*CTFYCTG5GVWR*&/+p*&/+%'%

(RIHD)” is set to “On”. (Depending on the TV status, the AV receiver will enter normal standby mode.)

– 6JG|*CTFYCTG5GVWR*&/+p*&/+6JTQWIJq

setting is set to other than “Off”.

– 9JGPp9CMGWRXKC$NWGVQQVJqKP|*CTFYCTG5GVWR

- "Bluetooth" is set to "On".

rThe power consumption in standby mode may be larger

than the value above while the MHL (Mobile Highdefinition Link) enabled mobile device connected to the AUX INPUT HDMI/MHL jack is being charged.



The sound changes when I connect my headphones

rWhen a listening mode other than Direct, Pure Audio

(European models), or Mono is selected, connecting a headphone automatically selects Stereo.



The display does not work

rThe display is turned off when the Pure Audio

(European models) listening mode is selected.



How do I change the language of a multiplex source

rSelect “Main” or “Sub” for “Multiplex Input Channel” in “3.

Audio Adjust” -"Multiplex/Mono".



The RI functions do not work

rTo use RI, you must make an RI connection and an

analog audio connection (RCA) between the component and AV receiver, even if they are connected digitally.

rWhile Zone 2 is selected, the RI functions do not work.



The functions System On/Auto Power On and Direct

Change do not work for components connected via RI

rThese functions do not work when Zone 2 is turned on.



When performing Automatic Speaker Setup, the measurement fails and the message “Ambient noise is too high.” is displayed.

rThis can be caused by a malfunction in your speaker

unit. Check if the unit produces normal sounds.



The display is dark

rMake sure that Dimmer function is not working. Press

DIMMER button and change the brightness level of the display.



The following settings can be made for the

composite video inputs

rWhile holding down the input selector button to

configure, press HOME once at a time until “Video ATT:On” appears on the display. To resume the setup, repeat the above described step until “Video ATT: Off” is appeared on the display. This setting is possible for input selectors assigned with one of the video inputs "VIDEO 1" to "VIDEO 3" in "1. Input/Output Assign" - "Composite Video Input". If you have a game console connected to the composite video input, and the picture is not very clear, you can attenuate the gain.

Video ATT:Off: (default). Video ATT:On: (Gain is reduced by 2dB.)



If the picture on your TV/monitor connected to the

HDMI output(s) is unstable

rTry turning the DeepColor function off. To turn off

the DeepColor function, press STB/DVR and STANDBY on the AV receiver simultaneously. While holding down STB/DVR, press repeatedly until “Deep Color:Off” is appeared on the display. To reactivate the DeepColor function, repeat the above described step until “Deep Color:On” is appeared on the display.

ON/

ON/STANDBY

Troubleshooting

Before disconnecting the power cord from the wall outlet, set the AV receiver to standby.

The AV receiver contains a microPC for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

Reference information

Linked Operation with CEC-compatible Components

The AV receiver is compatible with the following components (as of January 2014).

TV (Random order):

rToshiba TV sets rSharp TV sets

Players/Recorders (Random order):

rOnkyo and Integra RIHD-compatible players rToshiba players and recorders rSharp players and recorders (only when used together

with Sharp TV sets)

Models other than those mentioned above may have some interoperability if compatible with CEC, which is part of the HDMI Standard, but operation cannot be guaranteed.

Caution: For RI functions to work properly, do not connect more RIHD-compatible components than the quantities specified below, to the HDMI jack. RI functions are not guaranteed when more RIHDcompatible components than the below mentioned quantities are connected. Furthermore, do not connect the AV receiver to another AV receiver/AV amplifier via HDMI.

rBlu-ray Disc/DVD players: up to 3. rBlu-ray Disc/DVD recorders: up to 3. rCable TV tuner, terrestrial digital tuner, and satellite broadcasting

tuner: up to 4 units.

Checking whether the HDMI Linked Operation Settings Are Enabled

1. Turn on the power of all connected components.

2. Turn off the power of the TV, and confirm that the power of the connected components is turned off automatically with the link operation.

3. Turn on the power of the Blu-ray Disc/DVD player/ recorder.

4. Start playback on the Blu-ray Disc/DVD player/recorder, and verify the following:

rThe AV receiver automatically turns on, and selects the

input to which the Blu-ray Disc/DVD player/recorder is connected.

rThe TV automatically turns on, and selects the input

to which the AV receiver is connected.

5. Following the operating instructions of the TV, select “Use the TV speakers” from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver.

6. Select “Use the speakers connected from the AV receiver” from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV receiver, and not from the TV speakers.

Caution :

rEven if you set to output audio on the TV speakers, audio will

be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver. To output audio from the TV speakers, redo the corresponding operations on the TV.

rIn case of an RIHD connection with RI and RI audio control

compatible components, do not connect the RI cable at the same time.

rOn the TV, when you select anything other than the HDMI jack to

which the AV receiver is connected, the input on the AV receiver will be switched to “TV/CD”.

rThe AV receiver will automatically power on in conjunction

when it determines it to be necessary. Even if the AV receiver is connected to an RIHD compatible TV or player/recorder, it will not power on if it is not necessary. It may not power on in conjunction when the TV is set to output audio from the TV.

rLinked system functions with the AV receiver may not work

depending on the component model connected. In such cases, operate the AV receiver directly.

Reference information

rWhen the player/recorder cannot be operated with the remote

controller of the AV receiver, the corresponding component may not be programmed to support the remote controller operation of CEC. Program the remote control code of the component maker to the remote controller for using.

About HDMI

HDMI (High Definition Multimedia Interface) is a digital interface standard for connecting TVs, projectors, Bluray Disc/DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals and digital audio, digital video (2-channel PCM, multichannel digital audio, and multichannel PCM). The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface) (¼1), so TVs and displays with a DVI input can be connected by using an HDMI-toDVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.) This unit supports HDCP (High-bandwidth Digital Content Protection) (¼2), so it can display picture only on HDCPcompatible components. HDMI of the unit supports the following functions. Audio Return Channel, 3D, x.v.Color, DeepColor, Lip Sync, 4K (Upscaling and Passthrough).

Audio Formats Supported by The Unit:

r2-channel linear PCM (32 - 192 kHz, 16/20/24 bit) rMultichannel linear PCM (up to 7.1 ch, 32 - 192 kHz,

16/20/24 bit)

rBitstream (Dolby Atmos, Dolby Digital, Dolby Digital

Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio)

rDSD Your Blu-ray Disc/DVD player must also support HDMI output of the above audio formats.

About Copyright Protection: The unit supports Revision 1.4 and Revision 2.2 (HDMI OUT MAIN and HDMI IN3 only) of the HDCP (Highbandwidth Digital Content Protection) (¼2), a copyprotection system for digital video signals. Other devices connected to the unit must also support HDCP.

DVI (Digital Visual Interface): The digital display interface standard set

by the DDWG (

HDCP (High-bandwidth Digital Content Protection): The video

encryption technology developed by Intel for HDMI/DVI. It is designed to protect video content and requires a HDCP-compatible HDMI/DVI receiver to display the encrypted video. DDWG (Digital Display Working Group): Lead by Intel, Compaq,

Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group’s objective is to address the industry’s requirements for a digital connectivity specification for high-performance PC and digital displays.

Caution :

rThere are some content that can be played only with HDCP Rev.

2.2 compatible devices. To play such content, connect an HDCP Rev.2.2 compatible TV or player to the HDMI OUT MAIN jack or HDMI IN3 jack of the unit.

rThe HDMI video stream (i.e., video signal) is compatible with

DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you will need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

rThe HDMI audio signal (sampling rate, bit length, etc.) may be

restricted by the connected source component. If the picture is poor or there is no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.

3) in 1999.

Resolution supported by HDMI OUT MAIN/SUB jack

See below the video signal types and resolutions that the unit can output when it receives the input signals of the following types and resolutions. The supported resolutions are shown as "Input : Output".

(North American models)



HDMI : HDMI

4K : 4K (¼1/¼2) 1080p/24: 4K, 1080p/24 (¼1), 2560 × 1080p 2560 × 1080p: 4K (¼3), 2560 × 1080p (¼1) 1680 × 720p : 4K (¼3), 1080p/24, 2560 × 1080p,

|³|R¼1), 1080p

1080p : 4K (¼4), 2560 × 1080p, 1080p (¼1) 1080i : 4K (¼4), 2560 × 1080p, 1680 × 720p, 1080p, 1080i (¼1), 720p 720p: 4K (¼R|³|R|³|R 1080p, 1080i, 720p (¼1) 480p : 4K (¼4), 2560 × 1080p, 1680 × 720p, 1080p, 1080i, 720p, 480p (¼1) 480i: 4K (¼4), 2560 × 1080p, 1680 × 720p, 1080p, 1080i, 720p, 480p, 480i (¼1)



HDMI : Component

No output



HDMI : Composite

No output



Component : HDMI

480i: 4K (¼4), 2560 × 1080p, 1680 × 720p, 1080p, 1080i, 720p, 480p, 480i (¼1)



Component : Component

1080i : 1080i 720p : 720p 480p: 480p 480i: 480i



Composite : HDMI

480i: 4K (¼4), 2560 × 1080p, 1680 × 720p, 1080p, 1080i, 720p, 480p, 480i (¼1)



Composite: Composite

480i: 480i

Reference information

Supported resolutions for HDMI OUT SUB.

Supported resolution: [3840 × 2160 24/30/60Hz], [4096 × 2160

24/30/60Hz] Supported resolution: [3840 × 2160 24/30Hz]

Supported resolution: [3840 × 2160 24/30Hz], [4096 × 2160 24/30Hz]

(European models)



HDMI : HDMI

4K : 4K (¼1/¼2) 1080p/24: 4K, 1080p/24 (¼1), 2560 × 1080p 2560 × 1080p: 4K (¼3), 2560 × 1080p (¼1) 1680 × 720p : 4K (¼3), 1080p/24, 2560 × 1080p,

|³|R¼1), 1080p

1080p : 4K (¼4), 2560 × 1080p, 1080p (¼1) 1080i : 4K (¼4), 2560 × 1080p, 1680 × 720p, 1080p, 1080i (¼1), 720p 720p: 4K (¼R|³|R|³|R 1080p, 1080i, 720p (¼1) 480p/576p: 4K (¼|³|R|³|RR 1080i, 720p, 480p/576p (¼1) 480i/576i: 4K (¼|³|R|³|RR 1080i, 720p, 480p/576p, 480i/576i (¼1)



HDMI : Component

No output



HDMI : Composite

No output



Component : HDMI

480i/576i: 4K (¼|³|R|³|R 1080p,1080i, 720p, 480p/576p, 480i/576i (¼1)



Component : Component

1080p : 1080p 1080i : 1080i 720p : 720p 480p/576p: 480p/576p 480i/576i: 480i/576i



Composite : HDMI

480i: 4K (¼|³|R|³|RRK 720p, 480p/576p, 480i/576i (¼1)



Composite: Composite

480i/576i: 480i/576i

Supported resolutions for HDMI OUT SUB.

Supported resolution: [3840 × 2160 24/25/30/50/60Hz], [4096 × 2160

24/25/30/50/60Hz] Supported resolution: [3840 × 2160 24/25/30Hz]

Supported resolution: [3840 × 2160 24/25/30Hz], [4096 × 2160

24/25/30Hz]

Home network (LAN)

The connection of several components via cables enabling the mutual communication is called a network. At households, many families create (generally, the term "build" is used) a network to connect PC and gaming machines to the Internet and to exchange data between PC. The network established in a relatively narrow area such as one household is called a LAN (Local Area Network). In this manual, a term "home network" (network for a family) is used instead of "LAN," so this LAN becomes more familiar. By connecting this unit with the network server such as a PC, playing music files in the network server (in the PC) is possible. Moreover, by connecting to the Internet, listening to the Internet radio is also possible. This unit, PC, and Internet are not directly connected. When connecting with a PC and/or Internet, several components (network components) are necessary.

Components necessary for establishing a home network (LAN):

Components necessary for the home network (LAN) for using the NET function of this unit are as follows.



Router

A router is a device that controls information (data) flow between the unit, PC, and the Internet. As a network term, the flow of information (data) is called "traffic". The router has a role to control the information flow as the traffic control, between connected components.

rA router with a built-in 100Base-TX switch is

recommended.

rIn addition, if your router has the DHCP function,

facilitating the network setting becomes possible.

rSome routers have a built-in modem, and some Internet

Service Providers (ISP) require you to use specific routers.

Please consult your ISP or PC dealer if you are unsure.



CAT5 Ethernet cable

The Ethernet cable is a cable that actually connects components that comprise the network. There are straight type and cross type Ethernet cables.

rUse a shielded CAT5 Ethernet cable (straight-type) to

connect the unit to your home network.

Consult your cable store for details of Ethernet cable.



Network server (When PC etc./network server is

used)

Component that stores music files and provides the unit with those files at the time of playback.

rRequirements for use with this unit depend on the

component that is used as a network server.

rConditions for pleasant playback of music files on

the unit depend on the using network server (PC performance). See instruction manuals of using components.



Modem (when Internet radio is used)

Device that connects home network (LAN) and Internet There are many kinds of modems depending on the forms of Internet connection. In addition, when connecting to the Internet, it is required to conclude an agreement with a company that provides Internet connection service, called ISP (Internet Service Provider). Use a modem that is recommended by your ISP company for the Internet connection. There are some devices that have both router and modem functions. Within above network components, prepare a router, Ethernet cable, and network server when the NET function "network server" is used. For enjoying the NET function "Internet radio," it is necessary to use the router, Ethernet cable, and modem (and agreement with ISP).

Reference information

Server Requirements



Server playback

This unit can play digital music files stored on a PC or media server and supports the following technologies:

rWindows Media

rWindows Media® Player 12

rDLNA-certified media server The network server must be connected to the same network as this unit. Up to 20,000 folders can be displayed, and folders may be nested up to 16 levels deep.

Caution: Depending on the media server, the unit may not recognize it, or may not be able to play its music files.



Remote playback

Remote playback is the function that enables this unit to play music files saved in different components by operating the DLNA-compliant controller component and PC in the home network.

rWindows Media

rDLNA-certified (within DLNA Interoperability Guidelines

version 1.5) media server or controller component.

½

The setting varies depending on the media server or controller components. Refer to your components’ instruction manual for details.

If the operating system of your personal PC is Windows® 8/Windows® 7, Windows Media® Player 12 is already installed. For more information, see the Microsoft web site.

USB Storage Device Requirements

rUSB mass storage device class (but not always

guaranteed). rFAT16 or FAT32 file system format. rIf the USB storage device has been partitioned, each

section will be treated as an independent device. rUp to 20,000 folders can be displayed, and folders may

be nested up to 16 levels deep. rUSB hubs and USB storage devices with hub functions

are not supported. Do not connect these devices to the

unit.

Player 11

Player 12

Caution :

rIf the media you connect is not supported, the message “No

Storage” will be displayed. rSound files that are protected by copyright cannot be played. rWhen the USB audio player and this unit are connected, the

audio player screen and the screen of the unit may be different.

In addition, control functions of the audio player (classifying and

sorting music files and adding information, etc.) are not available

on this unit. rDo not connect a PC to the USB port of the unit. Inputting sound

to the USB port of the unit from a PC is not possible. rMedia inserted to the USB card reader may not be available in

this function. rSome USB storage devices and its contents may require some

time to be read. rDepending on the USB storage device, proper reading of the

contents and proper supply of the power supply may not be

possible. rOnkyo accepts no responsibility whatsoever for the loss or

damage to data stored on a USB storage device when that

device is used with this unit. We recommend that you back up

your important music files beforehand. rPerformance of the hard disk that receives power from the USB

port of the unit is not guaranteed. rIf you connect a USB hard disk drive to the USB port of the unit,

we recommend that you use its AC adapter to power it. rWhen an audio player that are operated with batteries is used,

make sure that the batteries have enough remaining power. rUSB storage devices with security functions cannot be played.

Supported Audio Formats

rFor server playback and playback from a USB storage

device, this unit supports the following music file formats. rMusic files of the following formats that can be played

depend on the network server. For example, when using

Windows Media

can be played. The music files that can be played are the

ones registered to the Windows Media® Player 12 library. rVariable bit-rate (VBR) files are supported. However,

playback times may not be displayed correctly. rThis unit supports the gapless playback of the USB

storage device in the following conditions.

When WAV, FLAC and Apple Lossless files are

continuously played back with the same format,

sampling frequency, channels and quantization bit rate. rRemote playback does not support the gapless

Player 12, not all music files in the PC

playback.

rFor playback via wireless LAN, the sampling rate of

88.2 kHz or higher, DSD and Dolby TrueHD are not supported.

Caution :

rWith remote playback, this unit does not support the following

music file formats:

– FLAC, Ogg Vorbis, DSD and Dolby TrueHD.



MP3 (.mp3 or .MP3)

rSupported formats: MPEG-1/MPEG-2 Audio Layer 3 rSupported sampling rates: 8 kHz, 11.025 kHz, 12 kHz,

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

rSupported bitrates: Between 8 kbps and 320 kbps, and

VBR.



WMA (.wma or .WMA)

r5WRRQTVGFUCORNKPITCVGUM*\M*\|M*\

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

rSupported bitrates: Between 5 kbps and 320 kbps, and

VBR.

rWMA Pro/Voice formats are not supported.



WMA Lossless (.wma or .WMA)

rSupported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz,

96 kHz

rQuantization bit: 16 bit, 24 bit



WAV (.wav or .WAV)

WAV files contain uncompressed PCM digital audio.

rSupported sampling rates: 8 kHz, 11.025 kHz, 12 kHz,

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz

rQuantization bit: 8 bit, 16 bit, 24 bit

½

For playback from a USB storage device, sampling rates of 176.4 kHz and 192 kHz are not supported.

Reference information



AAC (aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP

or .3G2)

rSupported formats: MPEG-2/MPEG-4 Audio rSupported sampling rates: 8 kHz, 11.025 kHz, 12 kHz,

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz

rSupported bitrates: Between 8 kbps and 320 kbps, and

VBR.



FLAC (.flac or .FLAC)

rSupported sampling rates: 8 kHz, 11.025 kHz, 12 kHz,

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz

rQuantization bit: 8 bit, 16 bit, 24 bit

½

For playback from a USB storage device, sampling rates of 176.4 kHz and 192 kHz are not supported.



Ogg Vorbis (.ogg or .OGG)

rSupported sampling rates: 8 kHz, 11.025 kHz, 16 kHz,

22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

rSupported bitrates: Between 32 kbps and 500 kbps, and

VBR.

rIncompatible files cannot be played.



LPCM (Linear PCM)

rSupported sampling rates: 44.1 kHz, 48 kHz rQuantization bit: 16 bit

½

Only for playback via DLNA.



Apple Lossless (.m4a/.mp4/.M4A/.MP4)

rSupported sampling rates: 8 kHz, 11.025 kHz, 12 kHz,

16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz

rQuantization bit: 16 bit, 24 bit



DSD (.dsf or .DSF)

rSupported sampling rates: 2.8224 MHz, 5.6448 MHz

½

For playback from a USB storage device, 5.6448 MHz is not supported.



Dolby TrueHD (.vr/.mlp/.VR/.MLP)

rSupported sampling rates: 48 kHz, 64 kHz, 88.2 kHz,

|M*\M*\M*\

½

For playback from a USB storage device, only sampling rates of 48 kHz is supported.

½

Playback via DLNA is not supported.

Radio Wave Caution

The AV receiver uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems as 1 and 2 described below.

1. Devices which use a 2.4 GHz radio wave frequency rCordless phones

rCordless facsimiles rMicrowave ovens rWireless LAN devices (IEEE802.11b/g/n) rWireless AV equipment rWireless controllers for game systems rMicrowave oven-based health aids rVideo transmitter rSpecific type of external monitor and LCD display

2. Less common devices which use a 2.4 GHz radio wave

frequency

rAnti-theft systems rAmateur radio stations (HAM) rWarehouse logistic management systems rDiscrimination systems for train or emergency

vehicles If these devices and the AV receiver are used at the same time, the audio may be undesirably stopped or disturbed due to a radio wave interference. Suggestions for improvement

rSwitch off the devices which emit the radio wave. rPlace the interfering devices away from the AV

receiver.

rThe AV receiver uses radio wave, and a third person can

receive the wave on purpose or accidentally. Do not use the communication for important or fatal matters.

rWe assume no responsibility whatsoever for any error

or damage of network environment or access device resulting from the use of this apparatus. Confirm with the provider or access device maker for more information.

Scope of Operation

Use of the AV receiver is limited to home use. (Transmission distances may be reduced depending on communication environment.) In the following locations, poor condition or inability to

receive radio waves may cause the audio to be interrupted or stopped:

rIn reinforced concrete buildings or steel framed or iron

framed buildings. rNear large metallic furniture. rIn a crowd of people or near a building or obstacle. rIn a location exposed to the magnetic field, static

electricity or radio wave interference from radio

communication equipment using the same frequency

band (2.4 GHz) as the AV receiver, such as a 2.4 GHz

wireless LAN device (IEEE802.11b/g/n) or microwave

oven. rIf you live in a heavily populated residential area

(apartment, townhouse, etc.) and if your neighbor’s

microwave oven is placed near your AV receiver, you

may experience radio wave interference. If this occurs,

move your AV receiver to a different place.

When the microwave oven is not in use, there will be no

radio wave interference.

Radio Wave Reflections

The radio waves received by the AV receiver include the radio wave coming directly from the devices and waves coming from various directions due to reflections by walls, furniture and building (reflected waves). The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations. If the audio cannot be received properly due to this phenomenon, try moving the location of the wireless LAN device a little. Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between the AV receiver and the wireless LAN device.

rWe assume no responsibility whatsoever for any

damages resulting from the use of this apparatus except

in the cases deemed acceptable under the applicable

laws and regulations. rOperation in all environment is not guaranteed for

wireless LAN. The communication may not be possible

or have desirable communication speed.

Reference information

Precautions

rDo not use this apparatus near an electronic device

handling high-accuracy controls or weak signals. Doing so may cause an accident due to a malfunction of the device.

rDo not use this apparatus in use prohibited location

such as an aircraft equipment or a hospital. Doing so may cause an accident due to a malfunction of an electronic device or an electro-medical apparatus. Follow the instructions of the medical facilities.



Electronic device which requires cautions

Hearing aid, pace maker, other medical electronic devices, fire alarm, automatic door, and other automatic control device. When using a pace maker or other medical electronic devices, confirm with the medical electronic device maker or dealer for the effect of the radio wave.

Reference information

Remote control sensor



Television (A to E)

A.R. Systems 10037, 10556 Accent 10037 Acoustic Solutions 11667, 11585,

11037 Action 10650 Addison 10653, 11150 AEG 11037 Aiko 10037 Aim 10037 Akai 10037, 12676,

10208, 10714,

10556, 12414,

13183, 10178 Akiba 10037 Akito 10037 Akura 10037, 10714,

11667, 11585,

10171, 11037 Alba 11037, 12676,

10037, 10714,

11585 Alien 11037 Allstar 10037 Amstrad 10037, 10171,

11037 Anam 10037, 10650 Andersson 11585, 12676 Anitech 10037 Ansonic 10037 AOC 11365, 12769,

10178, 10625,

11150 Apex Digital 12397 Ardem 10714, 10037 Arena 10037 Ario 12397 Aristona 10556, 10037 ART 11037 Art Mito 11585

Asberg 10037 Astra 10037 ATD 10698 Atlantic 10037 Audiosonic 10714, 10037 Audioworld 10698 Autovox 12676 Aventura 10171 Axxon 10714 Baird 10208 Barco 10556 Base 10698 Basic Line 10037, 11037,

10556 Baur 10037, 10195 Beaumark 10178 Beijing 10208 Beko 10714, 10037 Bell & Howell 10017 Belson 10698 Belstar 11037 Beon 10037 Berthen 10556 Bestar 10037 Bexa 12493 BGH 12414 Black Diamond 11037 Blaupunkt 10195 Blue Sky 10714, 10037,

11037, 10556,

10625 BPL 10208, 10037 Brandt 10625, 11585,

10714 Brinkmann 10037 Brionvega 10037 Britania 12414 Bush 11037, 10037,

10714, 12676,

11667, 10208,

10556, 10698,

11585

Byd:sign 12209 Camper 10037 Carad 11037 Carena 10037 Carrefour 10037 Cascade 10037 Casio 10037 Cathay 10037 CCE 13782, 10037 Celcus 12676, 11585 Celebrity 10000 Centrum 11037 Centurion 10037 Changhong 13434, 12769,

10508 Chimei 12769 Chun Yun 10000, 11150 Chung Hsin 11150 Clarivox 10037 Clatronic 10037, 10714 Clayton 11037 Coby 13478 Commercial Solutions 11447 Condor 10037 Conrowa 10698 Contec 10037 Cosmel 10037 CPTEC 10625 Crown 10037, 10714,

10208, 11037 Crypton 11667 Curtis 12397 Cyberpix 11667 D-Vision 10037, 10556 Daewoo 10037, 10556,

10178, 11150 Dansai 10037, 10208 Dantax 11037, 10714,

12676 Datsura 10208 Dawa 10037

Daytron 10037 De Graaf 10208 Decca 10037 Denver 10037 Desmet 10037 Diamant 10037 Diamond 10698 Digatron 10037 Digihome 11667, 12676 Digiline 10037 Digisonic 11826 Digitor 10698, 10037 Dixi 10037 Drean 10037 DSE 10698 Dual 11667, 10037,

11037, 11585,

12676, 10714 Dumont 10017 Durabrand 10171, 10178,

10714, 11037 Dux 10037 DX Antenna 13817 Dynatron 10037 Dynex 12049 E.S.C. 10037 ECE 10037 Elbe 10037, 10556 Electroband 10000 Electrograph 11755 Elektra 10017 Elfunk 11037 ELG 10037 Elin 10037 Elite 10037 Emerson 11864, 10171,

11394, 10178,

10037, 10714 Envision 11365, 11506 Epson 11379 Erres 10037

Reference information

ESA 10171 Euroman 10037 Europa 10037 Europhon 10037 Evesham Technology 11667 Excello 11037 Exquisit 10037



Television (F to J)

F&U 12676 FairTec 11585 Ferguson 10625, 11037,

10037, 10195,

11585, 12676 Fidelity 10037, 10171 Finlandia 10208 Finlux 11667, 10714,

12676, 10037,

10556 Firstline 10714, 10037,

11037, 10208,

10556 Fisher 10208 Flint 10037 Formenti 10037 Fraba 10037 Freesat 11636 Friac 10037 Frigidaire 11826 Fujitsu 10809 Fujitsu Siemens 10809 Funai 13817, 10171,

11394, 11037,

10714 Gaba 11037 Galaxi 10037 Galaxis 10037 Gateway 11755 GE 11447, 10178,

10625, 11454 GEC 10037

Genesis 10037 Genexxa 10037 GFM 10171, 11864 Gibralter 10017 Gibson 11826 Gintai 11150 Godrej 11585 GoGen 12676 GoldStar 10178, 10037,

10714, 11150

Goodmans 10037, 11037,

11667, 10714, 11585, 10556,

10625, 12676 Gorenje 11585, 12676 Gradiente 10037 Graetz 10714 Granada 10208, 10037 Grandin 10037, 10714,

11037, 10556 Grundig 10195, 11223,

10556, 10037,

11667, 12676 H-Buster 13620 Haier 13620, 10698,

10037, 10508 Hallmark 10178 Hankook 10178 Hannspree 11826 Hanseatic 10037, 10714,

10625, 10556 Hantarex 10037 Hantor 10037 Harwood 10037 Hauppauge 10037 HB 10714 HCM 10037 Heran 11826 Herosonic 11826 Highline 10037 Hinari 10037, 10208 HiPlus 11826

Hisawa 10714 Hisense 10556, 10508,

10208

Hitachi 11643, 12676,

11576, 11585, 11691, 11037, 11667, 10037, 10150, 10178, 10508, 11150,

12170 Hitachi Fujian 10150 Hitec 10698 Hoher 10714 Hornyphon 10037 Hua Tun 11150 Hypson 10037, 10714,

10556, 11037 Hyundai 10698, 12676,

11037 Iberia 10037 ICE 10037 iLo 11394 Imperial 10037 Indiana 10037 Inno Hit 11037, 11585 Innova 10037 Insignia 12049, 10171 Integra 11807, 13100,

13500 Inteq 10017 Interbuy 10037 Interfunk 10037 Internal 10556 Intervision 10037 Irradio 10037 IRT 10698 Isis 12676 Isukai 10037 ITS 10037 ITT 12676, 10208 ITT Nokia 10208 ITV 10037

JCB 10000 Jinfeng 10208 Jinxing 10037, 10556,

10698 JMB 12676, 10556 Jubilee 10556 JVC 11774, 10653,

11601, 12271,

11428, 10508,

10650, 12676



Television (K to N)

Kaisui 10037 Karcher 10714 Kathrein 10556 Kendo 11037, 11585,

12676, 10037 Kennex 11037 Kioto 10556 Kiton 10037 KLL 10037 Kneissel 10037, 10556 Kolin 10150, 10037,

11150, 11755 Kolster 10037 Konka 10037, 10714 Konnig 10037 Korpel 10037 Kosmos 10037 Kunlun 10208 Kupperbusch 12676 L&S Electronic 10714 Lavis 11037 Lecson 10037 Lenco 10037, 11037 Leyco 10037

Reference information

LG 11840, 11860,

11423, 12731, 12182, 12358, 12362, 10178, 12424, 10037, 10714, 10017,

10556, 10698 LiesenKotter 10037 Lifetec 10037, 11037,

10714 Linetech 12676 Linsar 12676, 11667,

11585 Local India Brand 10208 Local Malaysia Brand 10698 Lodos 11037 Loewe 10633 Logik 11037, 10698,

11585 Luma 11037 Lumatron 10037 Lumenio 10037 Lux May 10037 Luxor 11037, 12676,

10208 LXI 10178 Madison 10037 Magnavox 12372, 11454,

11506, 10171,

11365, 11755,

11867 Magnum 10714, 10037 Manesth 10037 Manhattan 10037, 11037 Marantz 10037, 10556 Mark 10037, 10714 Mastro 10698 Masuda 10037 Matsui 10037, 10195,

10208, 11037,

10714, 10556,

11667, 12676

Matsushita 10650 Maxent 11755 Maxess 12493 Meck 10698 Mediator 10037, 10556 Medion 10714, 10037,

11037, 12676, 11667, 10556,

10698, 11585 Megatron 10178 MEI 11037 Melectronic 10037, 10195,

10714 Memorex 10178, 10150,

11037 Mercury 10037 Mermaid 10037 Metronic 10625 Metz 11037, 10195 MGA 10150, 10178 Micromaxx 10037, 10714,

11037 Midland 10017 Mikomi 11585, 11667 Minato 10037 Minerva 10195 Ministry Of Sound 11667 Minoka 10037 Mitsubishi 10150, 11250,

12313, 10178,

10037, 10556,

11150, 11037,

11171 Moree 10037 Morgan's 10037 Moserbaer 11585 MTlogic 10714 Mudan 10208 Multitec 11037, 10037 Multitech 10037 Myryad 10556 NAD 10037, 10178

Naiko 10037 Nakimura 10037 National 10208, 10508 NEC 12461, 10178,

10508, 10653,

11150 Neckermann 10037, 10556 NEI 10037, 11037 Neoka 11826 Netsat 10037 NetTV 11755 Neufunk 10556, 10714,

10037 Nevir 12676 New Sonic 11826 New Tech 10037, 10556 Newave 10178, 11150 Nikkai 10037 Nikkei 10714 Nikko 10178 Nokia 10208 Norcent 11365 Nordmende 10195, 11585,

10037, 10714,

11667 Normerel 10037 Novatronic 10037 Novita 11585 NPG 13434



Television (O to S)

Oceanic 10208 OK Line 11037 OK. 13434, 12676 Okano 10037 OKI 11667, 12676,

13434, 11585 Omni 10698 Onei 11667 Onida 10653, 12414 Onimax 10714

Onix 10698 Onkyo 11807, 13100,

13500 Onn 11667 Opera 10037, 10714 Optimus 10650 Orava 11037 Orbit 10037 Orion 10037, 10556,

10714, 11037,

12676 Orline 10037 Ormond 11037 Osaki 10037, 10556 Osio 10037 Osume 10037 Otto Versand 10037, 10556,

10195 2CEKƂE 10714, 11037,

10556 Palladium 10037, 10714,

10556 Palsonic 12461, 10698,

10037 Panama 10037 Panasonic 11636, 11291,

11480, 11650,

10650, 13825,

12170, 10037,

10208, 10508 Panavideo 13825 Panavision 10037 Panda 10208, 10508,

10698 Penney 10178 Perdio 10037 Perfekt 10037 Philco 13426, 12414,

10037, 10178

Reference information

Philips 10037, 12800,

10556, 11887, 11867, 11506, 12372, 12680, 11454, 10171, 11365, 10017, 10000, 10178,

11394 Phocus 10714 Phoenix 10037 Phonola 10037, 10556 Pioneer 11457, 10037,

10698, 11636,

12171 PJ 11506 Plantron 10037 Playsonic 10714, 10037 Polaroid 12676, 11826 Powerpoint 10037, 10698 Prima 12461 Prinston 11037 Pro Vision 10037, 10556,

10714 2TQƂVTQPKE 10037 Proline 10625, 10037,

11037, 12676 Proscan 11447 Prosonic 10714, 12676,

10037, 11585,

11667 Protech 10037, 11037 Proton 10178 Pulsar 10017 Pye 10037, 10556 Qingdao 10208 Quadro 11667 Quasar 11291, 10650 Quelle 10037, 11037,

10195 R-Line 10037 Radiola 10037, 10556 Radiomarelli 10037

RadioShack 10037, 10178 Radiotone 10037, 11037 RCA 11447, 12746,

10625, 12434, 12932, 12187, 10000, 10178, 10618, 11454,

13426 Realistic 10178 Recor 10037 Rectiligne 10037 Red Star 10037 4GƃGZ 10037, 11037 Relisys 11585 Relon 11826 Remotec 10037, 10171 Reoc 10714 Revox 10037 RFT 10037 Roadstar 11037, 10037,

10714 Rowa 10698, 10037 Runco 10017 Saba 10625, 10714,

12676 Sagem 10618 Saivod 11037, 10037 Salora 10208 Sampo 11755, 10171,

10178, 10650 Samsung 12051, 11632,

10618, 10037,

10556, 10178,

10208, 11150 Sansui 10037, 10714 Sanyo 10208, 11142,

11585, 12676,

12461, 11974,

12769, 10508,

11037, 11150,

11365, 11667 SBR 10037, 10556

Schaub Lorenz 10714, 12676,

11667

Schneider 10037, 10556,

10714, 11037,

11585, 12676 Schontech 11037 Scotch 10178 Scott 10178 Sears 10171, 10178 Seelver 11037 SEG 11037, 10037,

13434 SEI 10037 Sei-Sinudyne 10037 Semp Toshiba 13793 Sencor 10714 Senzu 12493 Serie Dorada 10178 Shanghai 10208 Sharp 11659, 12360,

10818, 11393,

12676, 10650,

11165, 11423 Sheng Chia 11150 Shintoshi 10037 Shivaki 10178, 10037 Siam 10037 Siemens 10195, 10037 Siera 10556, 10037 Silva 10037 Silva Schneider 10037 SilverCrest 12676, 11037 Sinudyne 10037 SKY 10037 Skyworth 12769, 10037,

10698 Solavox 10037 Soniko 10037 Soniq 12493 Sonitron 10208 Sonneclair 10037 Sonoko 10037

Sonolor 10208 Sontec 10037 Sony 12778, 11825,

10810, 10000, 11651, 11505,

11167 Soundesign 10178 Soundwave 10037, 11037 Sowa 10178, 11150 Soyea 10698 Soyo 11826 Squareview 10171 SR Standard 10037, 11037 Starlite 10037 STI 13793 Strato 10037 Sunny 10037 Sunstar 10037 Sunstech 12676 Sunwood 10037 Supersonic 10208 SuperTech 10037, 10556 Supra 10178 Supreme 10000 Svasa 10208 Sylvania 10171, 11864,

11394 Symphonic 10171, 11394 Synco 11755, 10000,

10178, 11826 Sysline 10037



Television (T to Z)

Tacico 10178, 11150 Tai Yi 11150 Talent 10178 Tashiko 10650, 11150 Tatung 10037, 11150 TCL 12434, 13183,

13426, 12414,

10698

Reference information

TCM 10714 Teac 10037, 11037,

10698, 10714, 11755, 10171,

10178 Tec 10037 Tech Line 10037, 11585 Technica 11037 Technics 10556, 10650 Technika 11667, 12676 TechniSat 10556 Technisson 10714 Techno 11585 Technosonic 10556, 10625 Techwood 11667, 11037,

12676 Tecnimagen 10556 Teco 10178, 10653 Tedelex 10208 Teknika 10150 TELE System 11585 Telecor 10037 Telefunken 10625, 12676,

12414, 10698,

11585, 10037,

10714, 11667 Telefusion 10037 Telegazi 10037 Telemeister 10037 Telesonic 10037 Telestar 10037, 10556 Teletech 10037, 11037 Teleview 10037 Tennessee 10037 Tensai 10037, 11037 Terris 11667 Tesla 11037, 10037,

10556, 10714 Tevion 10714, 11037,

10037, 10556,

11585, 11667

Thomson 10625, 11447,

10037 Thorn 10037 TMK 10178 TNCi 10017 Tokai 10037, 11037 Tokaido 11037 Topline 11037 Toshiba 11508, 11524,

11656, 12676,

10508, 13570,

10650, 11037,

10195, 10618,

11150, 11169 TRANS-continents 10037, 10556,

11037 Transonic 10037, 10698 Triad 10556 Triumph 10037, 10556 TVTEXT 95 10556 Uher 10037 Ultravox 10037 Unic Line 10037 Uniden 12122, 12676,

11667 United 10714, 11037,

10037, 10556 Universal 10037, 10714 Universum 10037, 11037,

10195, 10618 Univox 10037 V7 Videoseven 11755 Vestel 11037, 10037,

11585, 11667 Vexa 10037 Victor 11428, 10650,

10653 Videocon 10508, 10037 VideoSystem 10037 Vidtech 10178 Viewsonic 11755, 12049,

11365

Vision 11826, 10037 VIZIO 11758, 13758,

12209 Vortec 10037 Voxson 10037, 10178,

11667 VU 11365 Walker 12676, 11667,

11585 Waltham 10037, 11037 Wards 10017, 10000,

10178 Watson 11037, 10037,

10714 Wega 10037 Welltech 10714 Weltstar 11037 Westinghouse 11712, 11826,

11755, 12397 Westwood 11585 Wharfedale 11667, 10037,

10556 White Westinghouse 10037 Wilson 10556 Windsor 11037 Windy Sam 10556 Wintel 10714 Wyse 11365 Xiahua 10698 Xiron 11037 XLogic 10698 Xoceco 10037, 12461 Xrypton 10037 Yamaha 11576, 10650 Yamishi 10037 Yokan 10037 Yoko 10037 YU-MA-TU 10037 Zenith 10017, 10178,

11423, 12731,

11365, 12358,

12362

Zepto 11585 Zonda 10698



TV DVD Combination

Akai 12676, 32966 Alba 12676, 32966 Black Diamond 11037, 30713 Blue Sky 11037, 30713 Bush 12676, 10698,

11037, 30713,

32966 Centrum 11037, 30713 Crown 11037, 30713 Dual 11037, 30713 Dynex 12049 Elfunk 11037, 30713 Emerson 11864, 11394,

30675 Ferguson 11037, 30713 Funai 11394, 30675 Goodmans 11037, 12676,

30713, 32966 Grandin 30713 Grundig 30539 Hitachi 12676, 11037,

30713, 32966 Insignia 12049 JVC 12271, 11774 LG 11423 Linsar 12676, 32966 Logik 11037, 30713 Luxor 11037, 30713 Magnavox 12372 Matsui 11037, 12676,

30713 Medion 12676, 32966 Mitsubishi 34004 OK. 13434 OKI 12676, 32966 Orava 11037, 30713 Panasonic 12170

Reference information

Philips 10556, 11454,

11394, 12372,

30539 Polaroid 12676, 32966 Powerpoint 10698 Prosonic 12676, 32966 RCA 12187, 12746,

12932, 11447 Samsung 12051 Sanyo 12676 SEG 11037, 30713 Sharp 10818, 12360,

12676, 32966 Soniq 12493 Sony 12778 Sylvania 11864, 11394,

10171, 30675,

30630 Teac 10698 Technica 11037, 30713 Telefunken 10698 Teletech 11037, 30713 Thomson 10625, 30551 Toshiba 11524, 12676,

32966 United 11037, 30713 Universum 30713 Vestel 11037 Viewsonic 12049 Weltstar 11037, 30713 Westinghouse 11712 Xiron 11037, 30713



DVD

3D LAB 30539 Accurian 30675 Acoustic Solutions 30730, 30713 AEG 30675, 30770,

31233 Aiwa 30533

Akai 32966, 31233,

30675, 30770 Akura 31233 Alba 32966, 30713,

30730, 30539 Amitech 30770 Amstrad 30713, 30770,

32139 AMW 30872 Ansonic 30831 Aristona 30539, 30646 ASDA 32213 Audix 30713 Autovox 30713 Awa 30730, 30872 Axion 30730 Basic Line 30713 Bel Canto Design 31571 Belson 32139 Best Buy 32139 Black Diamond 30713 Blu:sens 31233 Blue Parade 30571 Blue Sky 30713 Brainwave 30770 Brandt 30551, 30503 Bush 30713, 30730,

30831, 32966 Byd:sign 30872 CCE 30730 Celcus 32966 Centrum 30713, 30675 Changhong 30627 Cinea 30831 Cineral 30730 Cinetec 30713, 30872 Classic 30730 Clatronic 30675, 31233 Clayton 30713 Coby 30730 Codex 31233 Continental Edison 30831, 30872

Craig 30831 Crown 30713, 30770 Cybercom 30831 Daenyx 30872 Daewoo 30770, 30872 Dansai 30770 Dantax 30713, 30539,

32966 Datsun 31233 Daytek 30872 Dayton Audio 30872 DCE 30831 Decca 30770 Denon 31634, 32258,

32748, 30490,

33851 Dewo 31634 Digihome 30713, 32966 DigiLogic 30713 DiK 30831 Disney 30675, 30831 DK Digital 30831 Dragon 30831 DSE 30675 Dual 30831, 30713,

30730, 32966 Durabrand 30675, 30713,

30831 Dynex 32596 E:max 30770, 31233 ECC 30730 Elfunk 30713 Elin 30770 Elite 32854 Elta 30770, 31233 Eltax 31233 Emerson 30675, 32213 EuroLine 30675, 31233 Ferguson 30713, 32966 Finlux 32966, 30770,

30741 Firstline 30713

Funai 30675 G-Hanz 32213 G-HanzS 32213 GE 30522 GFM 30675 Go Video 31044, 30741 GoldStar 30741 Goodmans 30713, 30730,

32966 GPX 30741 Gran Prix 30831 Grandin 30713, 31233 Grundig 30539, 30551,

30713, 32966 Grunkel 30770, 30831 GVG 30770 H & B 30713, 31233 Hanseatic 30741 Harman/Kardon 30582 HE 30730 Hello Kitty 30831 Henss 30713 Hitachi 32966, 30573,

30713, 31664 Hoher 30713, 30831 Home Electronics 30730, 30770 Humax 30646 HYD 31233 Hyundai 32966 Inno Hit 30713 Insignia 32596, 30675,

30741 Integra 32147, 30627,

31769, 30503,

31612, 30571,

31634 Irradio 31233, 30646 ITT 31233 JDB 30730 JMB 32966

Reference information

JVC 30623, 31602,

30503, 30539,

32966 Kansas Technologies 31233 Kendo 30713, 30831 Kennex 30713, 30770 Kenwood 30490 Kiiro 30770 Kupperbusch 32966 Leiker 30872 Lenco 30713, 30770 Lexicon 32545 LG 30741, 31602,

31233 Lifetec 30831 Linetech 32966 Linsar 32966 Lodos 30713 Loewe 30741, 30539 Logik 30713 Lumatron 30713, 30741 Lunatron 30741 Luxman 30573 Luxor 30713, 32966 Magnavox 30675, 30503,

30646, 30539,

31354, 30713 Manhattan 30713 Marantz 30539, 32414,

33444 Mark 30713 Marquant 30770 Matsui 30713, 32966 Maxim 30713, 30872 MBO 30730 MDS 30713 Mecotek 30770 Medion 30831, 32966,

30741, 30630 Memorex 30831, 32213 Metz 30713, 30571

Micromedia 30503, 30539 Micromega 30539 Microsoft 31708, 32083,

30522 Microstar 30831 Minax 30713 Minoka 30770 Mitsubishi 34004, 30713 Mizuda 30770 Mustek 30730 Mystral 30831 NAD 30741 Naiko 30770 NEC 30741, 31602 Nevir 30831, 30770 Nisato 31233 Noblex 31233 Norcent 30872 Nordmende 30831 OK. 32966 OKI 32966 Onkyo 30627, 32147,

31612, 31769,

30503, 30571,

31634 Oppo 32545, 30575 Orava 30713 Orbit 30872 Orion 30713, 31233 Ormond 30713 2CEKƂE 30831, 30713 Packard Bell 30831 Palladium 30713 Panasonic 30490, 31579,

31641, 32710,

33641, 33862,

32523 Philco 30675

Philips 32056, 30539,

31354, 32789, 32434, 30646, 31340, 30503, 30675, 32084

Pioneer 31571, 30631,

30571, 32442,

32854, 30142 Polaroid 32966 Polk Audio 30539 Portland 30770 Powerpoint 30872 Presidian 30675 Prinz 30831 Prism 30831 Pro Vision 30730 Proline 32966 Proscan 30522 Proson 30713 Prosonic 32966 Pye 30539, 30646 Radionette 30741 Radiotone 30713 RCA 30522, 32213,

30571, 31769 REC 30490 Red 32213 Red Star 30770 Richmond 31233 Roadstar 30713, 30730 Ronin 30872 Rotel 30623 Rowa 30872 Saba 30551 Saivod 30831 Salora 30741 Samsung 30199, 30573,

33195, 31635,

32369, 32489,

32329, 30490,

31044

Sanyo 32966, 30713,

31233 ScanMagic 30730 Schaub Lorenz 30770 Schneider 30539, 30831,

30646, 30713 Schontech 30713 Scott 31233 SEG 30713, 30872 Semp 30503 Semp Toshiba 30503 Sharp 30630, 32250,

30713, 32966,

30675 Sherwood 30741, 30770 Shinsonic 30533 Sigmatek 32139 Silva Schneider 30831, 30741 Skantic 30713, 30539 Skymaster 30730 SM Electronic 30730 Smart 30713 Sonashi 30831 Soniq 30831 Sony 31633, 31516,

30533, 31033,

31070, 30864,

32861, 31536,

32180 Sound Color 31233 Soundwave 30713 Spectra 30872 SR Standard 30831 Strong 30713 Sunkai 30770 Sunstech 30831, 32139,

32966 Supratech 32139 Sylvania 30675, 30630 Symphonic 30675 Sytech 30831 Tandberg 30713

Reference information

Targa 30741 Tascam 31818 Tatung 30770 TBoston 32139 Tchibo 30741 TCM 30741 Teac 30571, 30675,

30741, 31818,

32139, 34004 Technica 30713 Technics 30490 Technika 30770, 30831 Technosonic 30730 Techwood 30713, 32966 Telefunken 30551, 32966 Teletech 30713 Tensai 30770 Theta Digital 30571 Thomson 30551, 30522,

30831 Tokai 31233 Toshiba 30503, 32705,

32277, 31769,

33157, 32966,

32551 TRANS-continents 30831, 30872,

31233 Transonic 30730 Trevi 30831 TVE 30713 United 30713, 30675,

30730, 31233 Universum 30713, 30741 Urban Concepts 30503 Venturer 31769 Vestel 30713 VIZIO 32563 Voxson 30831, 30730 Waitec 30730, 31233 Walker 32966 Waltham 30713 Welkin 30831

Wellington 30713 Weltstar 30713 Wharfedale 30713 Wilson 31233, 30831 Windsor 30713 Windy Sam 30573 Woxter 32139 X-View 31233 Xbox 31708, 32083,

30522 Xiron 30713 XMS 30770 Yamada 30872, 32139 Yamaha 30539, 30817,

30490, 32298,

31354, 30646 Yamakawa 30872 Yukai 30730 Zenith 30741, 30503



Blu-ray Disc

Denon 32258, 32748,

33851 Elite 32854 Funai 30675 Insignia 32596, 30675 Integra 32147, 32900,

32910, 33100,

33101, 33500,

33501 Lexicon 32545 LG 31602, 30741 Magnavox 30675 Marantz 32414, 33444 Mitsubishi 34004 Onkyo 32147, 32900,

33101, 33501,

32910, 33100,

33500 Oppo 32545

Panasonic 31641, 33641,

33862, 32523, 32710

Philips 32789, 32434,

32084

Pioneer 32442, 32854,

30142 Samsung 30199, 33195 Sharp 32250 Sony 31516, 32180 Sylvania 30675 Tascam 31818, 34004 Toshiba 32705, 33157,

32551 VIZIO 32563 Yamaha 32298



DVD-R

Accurian 30675 Aristona 30646 Denon 30490 Emerson 30675 Funai 30675 Go Video 30741 GPX 30741 Hitachi 31664 Humax 30646 Irradio 30646 LG 30741 Loewe 30741 Magnavox 30675, 30646 Medion 30741 Panasonic 30490, 31579,

32710, 32523 Philips 30646, 31340 Pioneer 30631 Pye 30646 RCA 30522 Samsung 31635, 30490,

32489 Schneider 30646

Sharp 30630, 30675 Sony 32861, 31070,

31516, 31033, 31536, 32180,

31633 Sylvania 30675 Targa 30741 Thomson 30551 Toshiba 32277, 32551 Yamaha 30646 Zenith 30741



VCR

DirecTV 20739 Humax 20739 Panasonic 20616 Philips 20739 RCN 20739 ReplayTV 20616 Sonic Blue 20616 Sony 20636 TiVo 20739, 20636



Cable Set Top Box (A to E)

3 Rivers Telephone Cooperative Accelplus 01376, 01877,

Access Cable Television Access Communications Ace Communications 02586 ACTV Cablevision 01376, 01877,

Adams Cable TV 01376 ADB 02586, 01920,

Advanced Broadband 01376, 01877,

01376

01982

01376, 01877,

01982

01376, 01877

01982

01481, 01998,

02437, 03028

01982

Reference information

Advanced Telemedia 01376, 01877,

01982 Airwave Networks 01376, 01982 Akado 02043 Alabama Broadband 01376 Alcom 02437 Algona Municipal Utilities All West Communications Alleghany Cablevision 01376, 01877,

Allegiance Communications Alliance Communications Allied Telesis 01376, 01877,

Almega Cable 01376, 01877,

Alpine Cable 01376, 01877,

Alta Utilities 01877 Alternative Cable 01376, 01877,

Altibox 02437 Altitude Communications Americable International American Broadband 01376, 01877,

American Entertainment Network American Telecasting 01376, 01877,

Amherst Telephone 01376, 01877,

Amino 01615, 01481,

Anne Arundel Broadband

01376, 01877,

01982

01376

01982

01376

01982

01376

01877

01982

01376, 01877,

01982

01898, 01998,

03028

01376

Antietam Cable 01376, 01877,

01982

Arc One 01376, 01877,

01982

Arctic Cooperatives 01376, 01877,

01982 Argent Communications Arialink Broadband 01376, 01877,

Arkwest 01481, 01998,

Arledge Electronics 01376 Armstrong 01376, 01877 Arris 02187 Arvig Communication Systems Ashland Home Net 01376, 01877,

Askivision Systems 01376, 01877,

Astound Broadband 01376, 01877 AT&T 00858 ATC Communications 01376 Atlantic Broadband 01877, 01376 ATMC 01376, 01982,

Atwood Cable 01376, 01877,

Aurora Cable TV 01376, 01877,

Ayrshire Communications B & C Cablevision 01376, 01877,

B & L Technologies 01376, 01877,

Bailey Cable TV 01376, 01877,

Baja Broadband 01376 Baldwin County Internet Baldwin Telecom 01877

01376, 01877,

01982

03028

01376, 01982,

01998, 02345

01982

01998, 03028

01982

01376, 01877,

01982

01376, 01877,

01982

Ballard Rural Telephone Cooperative Barbourville Utility Commission Bardstown Cable 01376, 01877,

Bascom Communications Base Cablevision 01376, 01877,

Bay Cablevision 01376, 01877,

Bay City Cablevision 01376, 01877,

Bay Country Communications Bay Creek Communications Bayland Communications Bayou Cable 01376, 01877,

Beamspeed 01376, 01877,

Beaver Creek Telephone Beaver Valley Cable 01376, 01877,

Beck's Cable Systems 01376, 01877,

Bee Line Cable 01376 Beeline 03028 BELD Broadband 01376, 01877,

Belgacom TV 02132 Belhaven Cable TV 01376, 01877,

Bell 01998 Bell Aliant 01998 Bell Fibe TV 01998 Bellaire Cable 01376, 01877,

Bellevue Cable 01376, 01877,

02586

01376, 01877, 01982

01982 01376, 01877, 01982

01982

01982 01376, 01877, 01982 01376

02586

01982

01982 01877, 01982

01982

Bend Broadband 01376, 02187 Bentleyville Cable 01376, 01877,

01982 Benton Cooperative Telephone Beresford Cablevision 01376, 01877,

Berkshire Cable Corp 01376, 01877,

Beulah Cable TV 01376, 01877,

Bevcomm 01615, 01898 Beyond Communications Big Sandy Broadband 01376, 01877,

Biltmore Communications Blakely Cable Television Bledsoe Telephone Cooperative Bloomingdale Communications Blue Mountain TV Cable Blue Ridge Communications Blue Sky Cable 01376, 01877,

Blue Valley Telecommunications Bobcaygeon Cable 01376, 01877,

Booher Brothers Cable 01376, 01877,

Bouygues Telecom 03007 Bowen Cablevision 01376, 01877,

Boycom Cablevision 01376 Branch Cable 01376, 01877,

Brandenburg Telecom 01481, 01998,

01376, 01877,

01982

01376, 01877,

01982

01877, 01982

01376, 01877,

01982

01481, 01998,

03028

01481, 01998,

03028

01376, 01877,

01982

01877

01982

01898

01982

03028

Reference information

Brandywine Cablevision Bresnan 01376, 01877 Briand et Moreau Cable Bright Green Communications Bright House 01877, 01376 Bristol Tennessee Essential Services Bristol Virginia Utilities 01376, 01877,

British American 01376, 01877,

Broadstar Communications Broadstripe 01376 Brockway Television 01376, 01877,

Broken Bow Cable TV 01376, 01877,

Brooks Bay Cable 01376, 01877,

Brownwood TV Cable Service Bryan Municipal Utilities BT 02294 BTC Broadband 02586 Buckeye Cable System 01877, 01376,

Bulldog Cable 01376, 01877,

Bulloch Telephone Cooperative Burlington Telecom 01481, 01615 Butler Bremer Mutual Telephone Byron Cable TV 01376, 01877,

C & W Cable 01376, 01877,

C.L. Davis Cable Services

01376, 01877, 01982

01376, 01877, 01982 01376, 01877, 01982

01877, 01998

01982

01982 01376, 01877, 01982

01982

01982 01376, 01877, 01982 01376, 01877, 01982

02187

01982 01376, 01877, 01982

01898

01982

01982 01376, 01877, 01982

Cable & Communications Cable America 01376, 01877 Cable Axion Digitel 01376 Cable Communications of Willsboro Cable Cooperative 01376, 01877,

Cable Development Corporation Cable Management Assocication Cable Montana 01376, 01877,

Cable Nebraska 01376, 01877,

Cable Of The Carolinas Cable One 01376, 01877 Cable Plus 01376, 01877,

Cable Suite 01376 Cable Tech Cable TV 01376, 01877,

Cable TV of Camrose 01376 Cable TV of East Alabama Cable TV of Slave Lake Cable TV of St. Paul 01376, 01877,

Cable Vision Services 01877 Cablecom 01582 Cablecom Mexico 01376 Cablemas 01376, 01877 Cablenet 01376, 01877,

CableSouth Media 01376, 01877,

Cableview Communications Cablevision 01877, 01376 Cablevision du Nord 01376

01376

01376, 01877, 01982

01982 01376, 01877, 01982 01376, 01877, 01982

01982

01982 01376, 01877, 01982

01982

01376, 01877, 01982 01376, 01877, 01982

01982

01982 01376, 01877, 01982

Cablevision of Marion County Cablevision T.R.P. 01376, 01877,

Cabovis 02436 Caiway 02015, 0660 CalNeva Broadband 01376, 01877,

CalTel Connections 02586 Cameron Communications CAMS Cable 01376, 01877,

Canby Telcom 01481 Cannon Valley Cablevision Caprock TV 01376, 01877,

Carnegie Cable 01376, 01877,

Carolina Mountain Cable Carr Communications 01376, 01877,

Carrell Communications CAS Cable 01376 Cascade Communications Casey Cable 01376, 01877,

Caspian Community TV01376, 01877,

Cass Cable 01376 Castle Cable Service 01376, 01877,

Catalina Cable 01376, 01877,

Catawba Services 01376, 01877,

CBN 01376, 01877,

CBPU Cable 01376, 01877,

01376

01982

01376, 01877, 01982

01982

01481, 01998, 03028

01982

01982 01376, 01877, 01982

01376, 01877, 01982

01982

CCAP 01877 CDE Lightband 00858, 01615,

02586 Cedar Falls Utilities 01376 Celect Communications Cencom 01376, 01877,

CentraCom Interactive 01376, 01877,

Central Texas Communications Central Valley Cable 01376, 01877,

Centre TV Cable 01376, 01877,

Centrovision 01376, 01877,

Century Communications Century Telephone 01376, 01877,

CenturyLink 01998 CenturyTel TeleVideo 01376, 01877,

Chambers Cable 01376 Champion Broadband 01376, 01877,

Chaparral Cablevision 01376, 01877,

Chariton Valley Communications Charter 01376, 01877,

Chatmoss Cablevision 01376, 01877,

Chequamegon Telephone Cooperative Chesnee Communications Chester Telephone 01376 Chinook Progressive Club TV

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

02187

01982

01898, 01615

01376, 01877,

01982

01376, 01877,

01982

Reference information

Chippewa Valley Cable 01376, 01877,

01982

Choice Cable TV 01376, 01877,

01982 Choice Communications Choice Television 01376, 01877,

ChoiceCable 01376 Christy Cablevision 01376, 01877,

CimTel 01376 Cincinnati Bell 01877, 01376 Circle Bar Cable Television Cisco 01877, 01982,

Citizens Cable 01376 Citizens Cable TV 01376 Citizens Cablevision 01481 Citizens Mutual Telephone Citizens Telecom 01376, 01877,

Citizens Telephone 02586 City Cablevision 01376, 01877,

City of Barnesville Cable City of Baxter Springs Cable City of Hawarden Cable City of Norway Cable 01376, 01877,

City of Quitman Cable 01376, 01877,

City Of Salisaw 01376 City of Sumas TV Cable System

01376, 01877,

01982

01376, 01877,

01982

00858, 02589,

03028, 02132,

02345, 01582,

01883, 02378,

02401, 03265

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

City West 01376 Citycable 03477 Clarence Telephone 01376, 01877,

01982 Claro 01376 Clear Creek Communications Clearview Cable 01376, 01877,

Clearview Partners 01376, 01877,

Clearview TV Cable 01376, 01877,

Clearvision Cable TV 01376, 01877,

Click Network 01376 ClickOne 01376, 01877,

Clinton Cable 01376, 01877,

CLT Communications 01376, 01877,

ClubInternet 02132 CMA Communications 01376 CNS Television 01376, 01877,

Coast Cable Communications Coast Cablevision 01376, 01877,

Coast Communications 01376 Coastal Link 01376 Coaxial Cable TV 01376, 01877,

Cobridge 01376 Cobridge Communications Cogeco 01376, 01877,

Colane Cable TV 01376, 01877,

Colfax Highline Cable 01376, 01877,

01376

01982

01376

01982

01376

01982

Collinsville Cable 01376, 01877,

01982

Colonial Cablevision 01376, 01877,

01982 ColtonTel 02378 Columbia Power and Water Columbus Telephone 01376 Com Hem 00660, 02015 Com-Link 01376, 01877,

Comcast 01376, 01982,

Communication Services Communicomm 01376, 01877,

Community Antenna Service Community Antenna System Community Cable & Broadband Community Cable Service Community Communications Community Telecom 01376, 01877,

Community Television 01376, 01877 Compas Cable 01376, 01877,

Complete Communication Services Comserv Ltd 01376, 01877,

ComSouth 01376, 01877,

ComSpan Communications Comstar Cable TV 01376, 01877,

01376, 01877

01982

01877, 02187

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01481, 01898

01982

Consolidated Cable 01376, 01877,

01982 Consolidated Communications Conuma Cable Systems Conway Corporation Cable TV Conxxus 01376, 01877,

Coon Creek Telephone 01376 Coon Rapids Municipal Utilities Coop CSCF 01376 Cooperative Television Godahl CoopTel 00858, 01615,

Coosa Cable 01376 Copper Mountain Metropolitan Country Cable 01376, 01877,

Country Cable TV 01376, 01877,

Country Cablevision 01376 Country Cablevision Ltd. Cowley Telecable 01376, 01877,

Cox 01877, 01376 Craig Cable TV 01376, 01877,

Craw-Kan Telephone Cooperative Crestview Cable 01376, 01877,

Cross Country TV 01376, 01877,

Crosslake Communications Crow Cable TV 01376, 01877,

CRRS-TV 01376

01376

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01898

01376, 01877,

01982

01376

01982

02586

01982

01376, 01877,

01982

Reference information

CRST Telephone Authority Crystal Cable TV 01376, 01877,

CSI Cable 01376, 01877,

CT & R Cable 01376, 01877,

CTC 01376 Cunningham Telephone & Cable Curtis Cable TV 01376, 01877,

CUTV 01376, 01877,

CWA Cable 01376, 01877,

D & D Cable Systems 01376, 01877,

D & P Communications 01376 Daeryung 01877 Dairyland Cable Systems Dakota Central Telecommunications Dalton Cable Television Darty Box 02436 Davis Communications 01376, 01877,

Dawson City Television 01376, 01877,

DCA Cablevision 01376, 01877,

DDD Cablevision 01376, 01877,

Dean Hill Cable 01376, 01877,

Dean's Cablevision 01376, 01877,

Decca Cable 01376, 01877,

Deffner Cable TV 01376, 01877,

01481, 01998, 03028

01982

01376

01982

01376, 01877, 01982 02345

01877, 01982

01982

Delhi Telephone 01376, 01877,

01982 Delta 02015, 00660 Delta Cable 01376 Demopolis CATV 01376, 01877,

01982 Denali TV 01376, 01877,

01982 Dery Telecom 01376 Deutsche Telekom 02132 Dickey Rural Networks 01376, 01877,

01982 Digeo 02187 Diode Communications 01376, 01877,

01982 Diverse Communications Dixie Cable TV 01376, 01877,

Dixon Telephone 01376, 01877,

DMS Cable 01376, 01877,

Downsville Community Antenna Doylestown Cable TV 01376, 01877,

Drummond Cable TV 01376, 01877,

DTC 01376, 01877,

Du 02401 Dumont Telephone 01376, 01877,

Duncan Cable TV 01376, 01877,

Eagle Broadband 01481, 01998,

Eagle Cablevision 01376, 01877,

Eagle Communications 01376, 02187 Eagle Valley Telephone 01481, 01998,

01898, 01982

01982

01376, 01877,

01982

03028

01982

03028

EagleVision Wireless TV Services East Arkansas Video 01376 East Cleveland Cable 01376, 01877,

East Texas Cable 01376, 01877,

Eastern Cable 01376, 01877,

EastLink 01376 Easton Cable 01877 EasyTEL 01481, 01998,

Eatel 01877 Echostar 03452 Electron Enterprises 01376, 01877,

Elk River Cable TV 01376, 01877,

Elkhart TV Cable 01376, 01877,

Emery Telcom Video 01376, 01877,

Emily Coop Telephone 01481, 01615 Enhanced Telecommunications EnTouch 01376 EPB of Chattanooga 00858 Escape Broadband 01376, 01877,

Eston CATV Cooperative ETAN Industries 01376, 01877,

Etex 02586 Execulink 01376 Eyecom 01376, 01877,



Cable Set Top Box (F to J)

F & B Telephone 02586 FairPoint Communications

01376, 01877, 01982

01982

03028

01982

01376

01982 01376, 01877, 01982

01982

01376, 01877, 01982

Falls Earth Station 01376, 01877,

01982 FamilyView Cablevision Fannettsburg Cable TV 01376, 01877,

Farmer & Merchant Mutual Farmer's Telephone Cooperative Farmers Independent Telephone Farmers Mutual Telephone Fayetteville Electric System Federated Telephone 01376 Fenton Cablevision 01376, 01877,

FiberCast Cable Communications FiberNet Monticello 01376, 01877,

Fibrant 01376, 01877,

Fidelity Communications First Cable Of Missouri 01376, 01877,

FirstMile 01376, 01877,

Flint Cable TV 01376, 01877,

Florida Cable 01376 Foothills Rural Telephone Cooperative Forsyth CableNet 01376, 01877,

Fort Jennings Communications Fort Towson Cable 01376, 01877,

Foster Communications

01376, 01877,

01982

01376, 01877,

01982

01998, 03028

01376, 01877,

01982

01376, 01877,

01982

01877

01982

01376, 01877,

01982

01376

01982

01877

01982

02586

01982

01376, 01877,

01982

Reference information

Frank Howard TV Cable Frankfort Plant Board Cable Freebox 01976 FTC 01877, 01982,

Full Channel TV 01376, 01877,

Full Choice Communications Fusion Broadband 01376, 01877,

Futuristic Cablevision 01376, 01877,

Galaxy American Communication Galaxy Cable 01376, 01877,

Gardonville Cooperative Telephone Gatehouse Networks 01376, 01877,

Gauthier Cablevision & Electric GCI 01877 General Communications Genext 01376, 01877,

Geraldine Cable TV 01376, 01877,

Get Real Cable 01376, 01877,

GEUS 01376, 01877,

Giant Communications 01376, 01877,

Giles-Craig Communications Gilmer Cable Television Glasgow Electric Plant Board

01376, 01877, 01982 01376

01376

01982 01376, 01877, 01982

01982

01982 01376, 01877, 01982

01982 01998

01982 01376, 01877, 01982

01376

01982

01982 01376, 01877, 01982 01376, 01877, 01982 01376, 01877, 01982

Glass Antenna Systems Glenwood Telecommunications Glide Cablevision 01376, 01877,

Globalcom 01376, 01877,

Golden Belt Telephone 02586 Golden Communications Golden Rain Foundation Golden Valley Cable 01376, 01877,

Golden West Telecommunications

)QNFƂGNF

Communications Gorham Communications Gowrie Cablevision 01376, 01877,

Grafton Cable Communications Grand River Cable 01376, 01877,

Grande Communications Great Plains Communications Green Hills Communications Greene County Cable TV01376, 01877,

Greenlight Community Broadband Gridley Cable 01376, 01877,

Griswold Cooperative Telephone Grove Cable 01376, 01877,

Grundy Center Utilities 01376, 01877

01376, 01877, 01982 01376

01982

01376, 01877, 01982 01376, 01877, 01982

01982 01376, 01877, 01982 01376, 01877, 01982 01481

01982 01376, 01877, 01982

01982 01877, 01376

01376

01376, 01877, 01982

01982 01376, 01877, 01982

01982 01481, 01998, 03028

01982

GTI 01481, 01998,

03028 Guadalupe Valley 01877 Haefele TV 01376, 01877,

01982 Haines Cable TV 01376, 01877,

01982 Hall Beach Cooperative Hamilton County Cable TV01877, 01982,

Hancel 01376, 01877,

Hargray 01376, 01877,

Harlan Community TV 01376 Harlan Municipal Utilities Harmony Cable TV 01376, 01877,

Harris Broadband 01376 Harrisonville Telephone Harron Metrocast 01376, 01877 Hart Cable 01376, 01877,

Hart Electric 01376, 01877,

Hartelco 01376, 01877,

Hastings Cable Vision 01376, 01877,

Hathw@y 02043 Hawaiian Telcom 03028 HBC 01376, 01877,

HBL Communications 01376, 01877,

HCS 01376, 01877,

Healthcare Cable Systems Heart of Iowa Communications

01376, 01877,

01982

01376

01982

01376

01982

02586

01982

01376, 01877,

01982

01376, 01877,

01982

Heartland Cable 01376, 01877,

01982 Heartland Wireless Communications Heck's TV & Cable 01376, 01877,

Henderson Telephone 01376, 01877,

Hermosa Cablevision 01376, 01877,

Herr Cable 01376, 01877,

HFU Television 01376, 01877,

Hiawatha Broadband 01376, 01877,

HickoryTech 01898 High Plains Cablevision Highland 01376, 01877,

Hill Top Communications Hinton CATV 01376, 01877,

HLM Cable Corp 01376, 01877,

HomeTel 01376 Hometown Cable 01376, 01877,

Hometown Utilicom 01376, 01877,

Hood Canal Cablevision Hoonah Community Television Hooper Telephone 01376, 01877,

Horizon Cable TV 01376, 02586 Horizon Telecom 02586 Horry Telephone Cooperative Hospers Telephone 01376, 01877,

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376

01376, 01877,

01982

01376, 01877,

01982

Reference information

Hotwire 02586 Houston Cable 01376, 01877,

01982 Hrvatski Telekom 02132 HTC Communications 01481, 01998,

03028 HTC Services 01376, 01877,

01982 Humax 00660, 02620,

02043, 02165 HunTel Systems 01376 Huxley Communications Hydaburg Cable TV 01376, 01877,

HYDE County Cablevision i-CAN 02437 I-Speed 01376, 01877,

ICE Cable Holdings 01376 ICS Communications 01376, 01877,

Illini Cablevision Of Illinois ImOn Communications 01877 Indco Cable TV 01376, 01877,

Independence Telecom Utility Independent Cable Systems of Idaho Indevideo 01376, 01877,

Index Cable TV 01376, 01877,

Innovative Cable TV 01376 Innovative Systems 01898 Inotel 02437 Inside Connect Cable 01376 Insight 01376, 01877 Integra Telecom 02345 Inter Mountain Cable 01877

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01982

01376, 01877,

01982

Inter-County Cable 01376, 01877,

01982

Interstate Cablevision 01481, 01998,

03028

Intertech Private Cable 01376, 01877,

01982 InviTV 02437 Iron River Cooperative TV01376, 01877,

01982 Irvine Community TV 01376, 01877,

01982 ITV-3 01376, 01877,

01982, 03028 J & L Cable 01376, 01877,

01982 J & N Cable 01376, 01877,

01982 Jack McClanahan Cable TV Jackson Energy Authority Jaguar Communications James Cable Partners 01376, 01877,

James Valley Cooperative Telephone Jayroc Cablevision 01376, 01877,

Jefferson County Cable Jefferson Telecom 01376, 01877,

Jeffersonville Cable TV 01376, 01877,

Jet Broadband 01376 Johnston County Cable Journeyvision Cable 01376, 01877,

JP PTT 01615



Cable Set Top Box (K to N)

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

02586

01982

01376, 01877,

01982

01376, 01877,

01982

K-Communications 01376, 01877,

01982 Kabel Deutschland 02165 Kalida Telephone 01376, 01877,

01982 Kalona Cooperative Telephone Kaplan Telephone 02586 Karban TV Systems 01376, 01877,

KAS Cable TV 01376, 01877,

Kaslo Cable 01376, 01877,

KBS Cable TV 01376 Keene Valley Video 01376, 01877,

Kelley Communications Kennebec Telephone 01376, 01877,

Kennedy Cablevision 01376, 01877,

Kentucky Ridge Country Communications Keta Cable 01376, 01877,

KFW Communications 01376, 01877,

Kincardine Cable TV 01376 Kings Bay Communications Kiss 02132 KLiP 01376, 01877,

KM Telecom 01481 Knology 01877, 01376 KoolConnect 01481 Koomiut Cooperative 01376, 01877,

KPN 02952, 02437 Kraus Electronic Systems

02586

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

Kudzu Cable TV 01376, 01877,

01982

Kugluktuk Cooperative 01376, 01877,

01982 Kuhn Communications 01376, 01877 L & J Cable 01376, 01877,

01982 La Harpe Communications La Harpe Video and Data Services Lafayette Utilities System Laguna Serrano Cable 01376, 01877,

Lake Cable 01376, 01877,

Lakeland Cablevision 01376, 01481,

Lakeland Telecom 01481, 01998,

Lakeview Cable 01376, 01877,

Lamont Digital Systems Lang 01376, 01877,

Laurel Highland 01376, 01877,

LB Cable 01376, 01877,

Lehigh Valley Cooperative Telephone Lemonweir Valley Telephone Lexcom Cable Services Liberty Cablevision 01376 Liberty Communications Limestone Cablevision 01376, 01877,

01376, 01877,

01982

01376, 01877

01376

01982

01877, 01982,

01998

03028

01982

01376, 01877,

01982

01982, 02187

01982

01376, 01877,

01982

01481, 01998,

03028

01376, 01877,

01982

01481, 02586

01982

Reference information

Lincoln Cable Television Lincolnville 01376 Lindsey Communications LISCO 01376, 01877,

Litestream Holdings 01376, 01877,

LNE Telco 01376, 01877,

Localtel 01376, 01877,

Lockesburg Cablevision Lodgenet Entertainment Lone Pine Cable TV 01376, 01877,

Longview Communications Lonsdale Video Ventures Loretel Cablevision 01376, 01877,

Loretel Systems 01376 Lost Island Cable TV 01376, 01877,

Lumos Networks 01998, 03028 Lycom Communications M-Tek Systems 01376, 01877,

M.T.C. Cable 01376, 01877,

Maddock Cable TV 01376, 01877,

Madison Communications Madison County Cable 01376, 01877,

Magio Sat 02132 Magnet 01615

01376

01376, 01877, 01982

01982

01982 01376, 01877

01376, 01877, 01982

01982 01376, 01877, 01982 01481, 01998, 03028

01982

01376, 01877, 01982

01982

01982 01376, 01982

01982

Mahaska Communications Mainstreet Communications Maitland Cable TV 01376, 01877,

Mallard Cable 01376, 01877,

Manawa Telecom 02586 Manning Municipal Utilities Manti Telecom 01481, 01998,

Marco Island Cable 01376, 01877,

Markdale Cable TV 01376 Marne & Elk Horn Telephone Marquette-Adams Telephone Martelle Communications Cooperative Mascon Cable 01376 Masset-Haida TV Society Massillon Cable 01376 Matanuska Telephone Association Matrix Cablevision 01376, 01877,

Mattawamkeag Cablevision McDonough Telephone Cooperative McKee TV Enterprises 01376, 01877,

McNabb Cable 01376, 01877,

MCV Broadband 01877 Media One 01376, 01877,

Mediacom 01376, 01877,

01376, 01877, 01982 01376, 01877, 01982

01982

01376, 01877, 01982

03028

01982

01376, 01877, 01982 01376, 01877, 01982 01376, 01877, 01982

01376, 01877, 01982

01481, 02586

01982 01376, 01877, 01982 01376, 01877, 01982

01982

Mediapolis Telephone 01376, 01982 Mediastream 01376 Megacable 01376 Meo 02401 Merrimac Communications Metlakatla Indian Community TV MetroCast Cablevision 01376, 01982,

MetroNet 01877, 0858 Metropolitan Cable 01376, 01877,

MGS Cablevision 01376, 01877,

MHTC 01481, 01998,

Mi-Connection 01877 Microwave Satellite Technologies Mid Century Telecom 01481, 01615 Mid Missouri Broadband & Cable Mid Missouri Telephone Mid-Coast Cablevision 01376, 01877,

Mid-Hudson Cable 01376 Mid-Rivers Communications Mid-South Cablevision 01376, 01877,

Midamerican Cable Systems Midcontinent Communications Midstate Communications Midtel Cable TV 01376, 01877,

Milcom Cable 01376, 01877,

Milford Cable TV 01376, 01877,

01376, 01877, 01982 01376, 01877

01877

01982

03028

01481, 01998, 03028

01376, 01877, 01982 01376, 01877, 01982

01982

01376

01982 01376, 01877, 01982 01376, 01877, 01982 01376, 01877, 01982

01982

Milk River Cable Club 01376, 01877,

01982 Millennium Telecom 01481, 01998,

03028 Millheim TV Transmission Millington CATV 01376, 01877,

Minburn Communications Minerva Valley Cable 01376, 01877,

MINET 01877 MLGC Cable TV 01376, 01877,

MM&G Enterprises 01481, 01998,

MMDS Wireless East 01376, 01877,

Mobius Communications Monroe Cablevision 01376, 01877,

Monroe Utilities 01376, 01877,

Montana Opticom 01376, 01877,

Moosehead Enterprises Morris Broadband 01376 Morristown Utility Systems Mosaic Telecom 01376, 02586 Motorola 01376, 02437,

Moultrie Telecommunications Mountain Shadows Cable TV Mountain Telecommunications

01376, 01877,

01982

01481, 01998,

03028

01982

03028

01982

01376, 01877,

01982

01376, 01877,

01982

01877

02378, 01998,

00858, 02952,

01562, 01982,

02401

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

Reference information

Mountain Zone TV 01376, 01877,

01982 Movistar 03288 Moxi 02187 Mt. Baker Cable 01376, 01877,

01982 MTC 01376, 01877,

01982 MTC Technologies 01376, 01982 MTS 01998 Multiband Cable 01376, 01877,

01982 Municipality Cable Operator Murphy Cable 01376, 01877 Murray Electric System 01376, 01877,

Muscatine Power & Water N.W. Communications 01376, 01877,

National Cable 01376, 01877,

Naujat Cooperative 01376, 01877,

NDTC 01481, 01998,

Nebraska Central Telecom NEIT 01376, 01877,

Nelson County Cablevision Nelsonville TV Cable 01376, 01877,

Nemont Communications NET 01883 New Century Communication New Day Broadband 01376, 01877,

New England Cable 01376, 01877,

01376, 01877,

01982

01376

01982

03028

01376, 01877,

01982

01376, 01877,

01982

01376, 01877

01376, 01877,

01982

New Jersey Broadband New Knoxville Cable Systems New North Networks 01376, 01877,

New Paris Quality Cablevision New Visions Communications New Windsor Cable TV 01376, 01877,

Newcastle Cablevision 01376, 01877,

Newpath Communications NewWave Communications NexHorizon Communications Nexicom Communications Nextgen Communications Niagara Community TV Cooperative Nimpkish Valley Communcations Nittany Media 01376 Nor-Cal Cable Systems Nortex Communications North American Communications North Central Telephone North Crossroads Communications North Dakota Telephone North Star Cablevision 01376, 01877,

01376, 01877, 01982 01376, 01877, 01982

01982 01376, 01877, 01982 01376, 01877, 01982

01982

01982 01877, 01982

01376, 02187

01376, 01877, 01982 01376, 01877, 01982 01376, 01877

01376, 01877, 01982 01376, 01877, 01982

01376, 01877, 01982 01376, 01877, 01982 01376, 01877, 01982 02345

01376, 01877, 01982 02586

01982

North State Communications North Texas Broadband North Yellowstone Cable TV Northern Cable Holdings Northern Lakes Cable TV01376, 01877,

Northland Communications Northside TV 01376, 01877,

Northstar Broadband 01376, 01982 Northwest Communications Northwest Community 01877 Northwest Iowa Telephone Northwest Telephone Cooperative NorthwesTel 01376 Norvado 02586 Norwood Light Broadband Nova Cable Management Nova Cablevision 01376, 01877,

Novus 01376, 01877 NPG Cable 01376 Nsight 02345, 02586 NTC Cable Services 01376, 01877,

nTelos 01998 NTL 01060 NTS Communications 01376, 01877,

NU Telecom 01998, 03028 NuLink 01877, 01376,

Numericable 02436

00858

01376, 01877, 01982 01376, 01877, 01982 01376, 01877, 01982

01982 01376

01982

01376, 01877, 01982

01877

01376, 01877, 01982

01376

01376, 01877, 01982

01982

Nushagak Cooperative 01376, 01877,

01982



Cable Set Top Box (O to S)

Oak Cable Systems Of Iowa Oak Hill Cablevision 01376, 01877,

Oasis Communications 01376, 01877,

Oi TV 03452, 03454 Omni III Cable TV 01376, 01877,

Oneida Cablevision 01376, 01877,

OneLink 01376, 01877,

OneSource Communications Ono 01562 Open IPTV 01615 Opp Cablevision 01376, 01877,

Optimum 01877 Optimus Clix 02437 Optus 01060 Orange 02407 Orbitel Communications Oregon Cable Group 01376, 01877,

Orion Cablesystems 01376, 01877,

OTEC Communications Our Cable 01376, 01877,

Overton County Cable 01376, 01877,

Oxford Networks 01376, 01877,

01376, 01877, 01982

01982

01982 01376

01982

01376

01982

01982 02586

01982

Reference information

Pace 01877, 01060,

02620, 01982,

01582, 01376,

01883, 02401,

03454 Packerland Broadband 01376 Paleajook Cooperative 01376, 01877,

01982 Palmer Mutual Telephone Palmetto Rural Telephone Cooperative Panasonic 01982 Pangnirtung Cooperative Panhandle Telephone 01376 Panora Telecommunications Paragould Light & Water Parish Communications Park Region Mutual Telephone Park TV & Electronics 01376, 01877,

Partner Communications Pathway Com-Tel 01376, 01877,

Patterson Cable TV 01376, 01877,

Paul Bunyan Communications PBT Cable Services 01376, 01877,

PC One Cable 01376, 01877,

PDQ Cable TV 01376, 01877,

PEC Cablevision 01376, 01877,

Pegasus Communications

01376, 01877,

01982

00858

01376, 01877,

01982

01481

01376, 01877,

01982

01376, 01877,

01982

01481, 01998,

02345, 03028

01982

01376, 01877,

01982

02586

01982

01376, 01877,

01982

Peoples CATV 01376, 01877,

01982 Persona Communications Philippi Communications Philips 01582, 02294 Phoenix 01376 Phoenix Cable 01376, 01877,

Phonoscope Communications Pickwick Cablevision 01376, 01877,

Piedmont Cable Services Pine Bluff Cable 01376 Pine Island Telephone 01481, 01998,

Pine River Cable 01376, 01877,

Pine Tree Cablevision 01376, 01877,

Pineland Telephone Cooperative Pinpoint Communications Pioneer 01877 Pioneer Cable 01376, 01877,

Pioneer Communications Pioneer Long Distance 01898, 01615 Pitcairn Community Cable TV Plantation Cable System Pleasant Vision 01376, 01877,

Polar Communications 02586 Polaris Cable 01376, 01877,

Ponderosa Cablevision 01376, 01877,

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

03028

01982

01481, 01615,

01898, 02586

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

Poplar Bluff Municipal Utilities Portal Cablevision 01376, 01877,

Portugal Telecom 02401 Post Cablevision 01376, 01877,

Premier Communications Premiere 02620 Price County Telephone Prime Cable Corporation Prime Time Cable 01376, 01877,

Princetown Cable 01376, 01877,

Private Cable Systems 01376, 01877,

Private Network Cable Systems Project Mutual Telephone Project Services 01376, 01877,

PSC 01481, 01998,

PTCI 01376 PVT Networks 01376, 01877,

Quality Cable TV 01376, 01877,

Quality One Technologies Quinter Cable 01376, 01877,

Qwerty.TV 01898 R & R Cable 01376 Raftview Communications Rainbow Cable 01376, 01877,

01481, 01998, 03028

01982

01982 01376

01481, 01998, 03028 01376, 01877, 01982

01982

01982 01376, 01877, 01982 01481, 01998, 03028

01982

03028

01982

01982 01481, 01998, 03028

01982

01376, 01877, 01982

01982

Rainbow Communications Rainbow Lake Cable TV01376, 01877,

Rainier Connect 01376, 01877,

Ramapo Cable 01376, 01877,

Rancho Murieta Association Randolph Telephone 02586 Rapid Communications 01376, 01877,

RC Communications 01376, 01877,

RCN 01376 Reach Broadband 01376, 01877,

Readlyn Telephone 02586 Rebeltec Communications Red River Cable 01376, 01877,

Reds Cable TV 01376, 01877,

Regional Cable TV 01376, 01877,

Reinbeck Telecommunications Reservation Telephone 01376, 01998,

Reserve Long Distance Resnet Communications Resort Cable 01376 Reveille Broadband 01376, 01877,

Reynolds Cable 01376, 01877,

RGA Cablle 01376, 01877,

Ridgewood Cablevision

01376, 01877, 01982

01982

01982 01376

01982

01376, 01877, 01982

01982

01982 01376, 01877, 01982

02345 01376, 01877, 01982 01376, 01877, 01982

01982

01982 01376, 01877, 01982

Reference information

Ringgold Telephone 01376, 01877,

01982

Rio Virgin Telephone 01376, 01877,

01982 Riondel Community Cable Society Ripley Video Cable 01376, 01877,

Ritter Cable 01376, 01877,

River Road Cable 01376, 01877,

River Valley Cable TV 01376, 01877,

River Valley Telecommunications Riverside Cablevision 01376, 01877,

Riviera Cable TV 01376, 01877,

Robins Cable TV 01376, 01877,

Rock Port Cablevision 01376, 01877,

Rocky Mountain Cable Systems Rogers 01877, 01376 Roome Telecommunications Royal Telephone 01376, 01877,

RTC 01376, 01877,

RTEC Communications Runestone Telcom 01376, 01877,

Rural Route Video 01376, 01877,

Rural Telephone Company RuralWest 01376, 01877,

01376, 01877,

01982

01481, 01998,

03028

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376

01982

Russellville Electric Plant Board S & K TV Systems 01376, 01877,

S & T Communications 01376, 01877,

S-GO Video 01877, 01982 S.Bryer Cable TV 01376, 01877,

Sagem 02407, 02436,

Sagemcom 02407, 02436,

Sallisaw Municipal Authority Samsung 02407, 02015,

San Bruno Municipal Cable TV San Carlos Cablevision San Juan Cable 01376, 01877,

San Simeon Community Cable Santel Comm Cooperative Sasktel 01998 Satellite Cable Services Satview Broadband 01376, 01877,

Saugeen Telecable 01376, 01877,

Savage Communications Sayward Valley Communications Schindler Cable TV 01376, 01877,

SCI Cable 01376, 01877,

02586

01982

03288

03007 01376, 01877, 01982

01877, 03477, 01060, 01987, 02589, 03265 01376, 01877, 01982 01376, 01877, 01982

01982 01376, 01877, 01982 01376, 01877, 01982

01376, 01877, 01982

01982

01982 01376, 01877, 01982 01376, 01877, 01982

01982

5EKGPVKƂE#VNCPVC 01877, 01982,

00858, 01987, 02401, 02436, 02345, 03028

Scio Cablevision 01376, 01877,

01982 Scott Telecom And Electronics Scottsboro Cable TV 01376, 01877,

Sea Island 01877 Seaside Cable TV 01376, 01877,

Seaview Communications SecureVision 01376, 01877,

Semo Communications 01376, 01877,

Senior TV 01376, 01877,

Service Electric 01376, 01877,

Service One Cable 01376, 01877,

Shannon Vision 01376, 01877,

Shaw 01376, 01877,

Shawano Municipal Utilities Shellsburg Cablevision 01376, 01877,

Shen-Heights TV 01376, 01877,

Shenandoah Cable 01376, 01877,

Shenandoah Telecommunications Shentel 01376, 01877,

Sherburne Cable 01376, 01877,

01376, 01877,

01982

01376, 01877,

01982

02187

01376, 01877,

01982

01376, 01877,

01982

Sherman Cablevision 01376, 01877,

01982 Shrewsbury Electric & Cable Silver Star Communications Simpson Country Cable TV SingTel 01998 Siskiyou Cablevision 01376, 01877,

Sister Lakes Cable 01376, 01877,

Sjoberg's Cable TV 01376 Skisat 01376, 01877,

SKT 01376, 01877,

SKY 02620 Sky Angel 01376, 01877,

Sky Cablevision 01376, 01877,

SKY Deutschland 02620 Skyline Cable 02586 SkyPix 01481, 01998,

Sleepy Eye Telephone 02345 Small Town Cable 01376, 01877,

Smile Content 02437 Smithville 02586 Sogetel 01998 5QOGTƂGNF%CDNG68 01376, 01877,

Source Cable 01376 South Benton Cablevision South Central Communications South Holt Cablevision 01376, 01877,

South Slope Communications

01376, 01877

01481, 01998,

03028

01376, 01877,

01982

03028

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

Reference information

Southeast Cable TV 01376, 01877,

01982 Southern Cayuga County Cable Southern Coastal Cable Southern Kansas Telephone Southern Plains Cable 01376, 01877,

Southern Vermont Cable Southey Cable 01376, 01877,

Southside TV 01376, 01877,

Southwest MN Broadband Southwestern Bell Video Services Spanish Fork 01376, 01877,

Spencer Municipal Utilities Spillway Cablevision 01376, 01877,

Spirit Broadband 01376, 01877,

Spring Creek Cable 01376, 01877,

Springcom 01376, 01877,

5RTKPIƂGNF%CDNGXKUKQP 01376, 01877,

Springville Cable 01376, 01877,

St. George Island Cable St. John Cable 01376, 01877,

Stanley Cablevision 01376, 01877,

Stanton Telecom 01376, 01877,

01376, 01877,

01982

01376, 01877,

01982

01376

01982

01376, 01982

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

Star Cablevision 01376, 01877,

01982

Starkville Cablevision 01376, 01877,

01982 Starlight Communications Starview Cable of Delaware Starvision 01376, 01877,

Starwest 01376, 01877,

Stellar Communications Stellar Private Cable Systems Stofa 02015 Stowe Cablevision 01376, 01877,

Strategic Technologies 01376, 01877,

Stubbs Communications Suddenlink 01877, 01376 Summit Broadband 01376, 01877,

Summit Communications Sumner Cable TV 01376, 01877,

Sun Country Cable 01376 Sunrise Communications Supercanal 01376 Superior Cable & Data 01376, 01877,

Supervision Cable TV 01376, 01877,

SureWest 01481, 01998,

Surry Telephone 02586 SWAT Cooperative 01481, 01998,

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

02586

03028

Sweetwater Cable TV 01376, 01877,

01982

Swisher Telephone 02345



Cable Set Top Box (T to Z)

T-Home 02132 TA Communications 01376, 01877,

01982

Taloga Cable 01376, 01877,

01982

TAT Cablevision 01376, 01877,

01982 Tbaytel 03028 TCSI Huntsville 01376, 01877,

01982 TCT 01376, 01877,

01982 TDS 01376, 01877,

01982 TDS Telecom 03028 Technicolor 01982 Tekstar Cablevision 01376, 01877,

01982 Tel-Star Cablevision 01376, 01877,

01982 Tele-Media 01376, 01877,

01982 Tele-Services 01376, 01877,

01982 Tele2 00660 Telecentro 01376 Telecom Cable 01376, 01877,

01982 Teledistribution Amos 01376 Telefonica 03288, 03028 Telenet 01920, 03477 Telepak Networks 01376, 01877,

01982 TelePartners 01376, 01877,

01982 Telerent Leasing Corporation

01376, 01877,

01982

Telestar Systems 01376, 01877,

01982 Telewest 01987 Telmex 01376 Telsat Systems 01376, 01877,

01982 Telus 03028 Templeton Telephone 01376, 01877,

01982 TeNeT 01898 Tesco Cable TV 01376, 01877,

01982 Texas Mid-Gulf Cablevision Thames Valley Communications The Community Agency The Town of Mountain Village Cable Thomson 01582, 01982,

Three River Digital Cable Throckmorton Cablevision TiftNet 01376, 01877,

Time Warner 01877, 01376,

Tip-Top Communications TiVo 03265 Tobacco Valley Communications Tongue River Cable TV 01376, 01877,

Total Cable Service 01376 Touchet Valley Television TP 02407 Trans-Video 01376, 01877,

01376

01376, 01877,

01982

01376

01376, 01877,

01982

03007, 02407

01376, 01877,

01982

01376, 01877,

01982

02187

01376, 01877,

01982

01376, 01877,

01982

01376, 01877,

01982

Reference information

Trappers Loop Communications Trenton Cable 01376, 01877,

Tri-County Cable TV 01376 TrioTel Communications Troy Cablevision 01376 Trust Cable TV 01376, 01877,

TruVista 01376, 01877,

Tudjaat Cooperative 01376, 01877,

Tulalip Broadband 01376, 01877,

Tullahoma Utilities 02586 Tulugak Cooperative 01376, 01877,

Turquoise Turtle TV 01376, 01877,

TV Cable 01376 TV Cable Company of Andalusia TV Cable of Winamac 01376, 01877,

TV Northeast 01481, 01998,

TV Service 01376, 01877,

TVB 01615 TVC 01376, 01877,

TVision 01376, 01877,

TVMAX 01376, 01877,

TVS Cable 01376, 01877,

Twin Valley Communications Two Creeks Cable 01376, 01877,

01376, 01877, 01982

01982

01376, 01877, 01982

01982

01376

01982

03028

01982

01982 02586

01982

Ucluelet Video 01376, 01877,

01982 Uintah Basin Electronic Telecom UMBC 01376, 01877,

Union Telephone 01376, 01877,

Unitah-Strata Networks United Communications Association United States Gypsum 01376, 01877,

United Telephone 01376, 02586 Unitymedia 03477 Universal Cablevision 01376, 01877,

Universal Satellite Cable UPC 01582, 03477,

UPC Cablecom 01582, 03477 Upper Peninsula Communications US Online 01376, 01877,

US Sonet 01376, 01877,

USA Cablesystems 01376, 01877,

USA Companies 01376, 01877,

Utica Cablevision 01376, 01877,

Utilities Board City of Foley Utility Systems Development Uwharrie Communications Valley Cable & Satellite Communications

01376, 01877,

01982

01376

01982

01376, 01877,

01982

00660, 01060

01376, 01877,

01982

01376

01376, 01877,

01982

02586

01376, 01877,

01982

Valley Cable TV 01376, 01877,

01982 Valparaiso Communications Venture Communications Cooperative Venus Telephone Cooperative Veracity Communications Verizon 02378 Vernon Telephone Cooperative Vicksburg Video 01376 Videotron 01877 Vidia Communications 01376, 01877,

Vidion Cable 01376, 01877,

Viken Fibernett 02437 Viola Communications 01376, 01877,

Virgin Media 01987, 01060,

Vision Communications VisionComm 01376, 01877,

Vital Communications 01376, 01877,

Vivo 03288 Vodafone 02401 Vogtmann Engineering 01376, 01877,

Volcano Vision 01376 W.D.B . Communications Wabash Independent Networks Wadsworth Cable TV 01376 9CKVUƂGNF%CDNG 01376 Walnut Communications

01376

01481, 01998,

03028

01376, 01898

01376, 01877,

01982

02586

01982

03265

01376

01982

01376, 01877,

01982

01376, 01877,

01982

01376, 01982

Walnut Grove Cable TV01376, 01877,

01982

Ward Communications 01376, 01877,

01982 Warwick Valley Telephone Washington County Rural Telephone Cooperative Watch TV 01481, 01998,

Waterville Cable TV 01376, 01877,

Watson Cable 01376, 01877,

Wave Broadband 01376 Wavevision 01376, 01877,

WCTA 01376, 01877,

WEHCO Video 01376 Weiss Lake Cable 01376, 01877 West Alabama TV Cable West Carolina Telephone West Central Telephone West Lake Cablevision 01376, 01877,

West River Cable Television WesTel Systems 01376, 01877,

Western Broadband 01376, 01877,

Western Cable Service 01376, 01877,

Western Iowa Telephone Western Telephone Company Western Wisconsin Communications

01376, 01877,

01982

01376, 01877,

01982

03028

01982

01376, 01877,

01982

03028

01376, 01877,

01982

01376, 01877,

01982

01877

01376, 01877,

01982

01376, 02586

Reference information

Westman Communications Westphalia Broadband 02586 Wetherell Satellite Cable TV WFL Cable Television 01376, 01877,

White County Video 01376 WideOpenWest 01376, 01877,

Wikstrom Systems 01376, 01877,

Wilco Electronic Systems Wilkes Telecommunications Willamette Broadband 01376 Windbreak Cable TV 01376, 01877,

Windjammer Cable 01376, 01877 Windom Communications Windstream 01376, 01982 Winslow Communications Wire Tele-View 01376, 01877,

Wireless One 01376, 01877,

Wittenberg Telephone 01376, 01877,

Wood County Telephone

9QQFUƂGNF/WPKEKRCN

Cable Worth Cable TV 01376, 01877,

WT Services 01376, 01877,

WTC Communications 01376, 01877,

WTCI Cable 01376, 01877,

Wyandotte Municipal 01376, 01982

01376, 02187

01376, 01877, 01982

01982

02187

01982 01376, 01877, 01982 01481, 01998, 03028

01982

01877

01376, 01877, 01982

01982

01982 01376, 01877, 01982 01376, 01877, 01982

01982

Yadkin Valley Telecom 02345 Ycom Networks 01376, 01877,

01982

Yelcot Video Group 01376, 01877,

01982 Yelo 01376 Ygnition 01376, 01877,

01982 Zampelli Electronics 01376, 01877,

01982 Ziggo 02589, 02015,

00660, 02401 Zito Media 01376, 01982 Zoom Media 01376, 01877,

01982



Satellite Set top Box

@sat 01300 Acoustic Solutions 01284 ADB 00887 AEG 02738, 02813 Agora 01284 Airis 02813 Airtel 02248 Akira 02738 Alba 01284, 02034 Altech UEC 02059 Amstrad 00847, 01662,

01175, 01693,

02467 AMTC 02738, 02813 Arledge Electronics 00775 Arnion 01300 ASDA 01284 AssCom 00853 Astro 01100, 02026 Aurora 00879 Austar 00879 Auvisio 02738, 02813 Avanit 01631 Axil 02738

Ballard Rural Telephone Cooperative Bell 00775 Bell Satellite TV 00775 Biostek 02738 Black Diamond 01284 Boca 02026, 02813 Boshmann 01631 Boxer 02443, 01692 BskyB 01175, 00847,

Bulltech 02738 Bush 02376, 01284,

Cablecom 01195, 01197 Caiway 02443, 00253 Canal Digitaal 00853, 02957 Canal Digital 00853 Canal+ 00853, 02657,

CanalSat 00853, 02657 Century 00856 CGV 02034 Chess 02026 Cignal 02835 City of Cawker City Cable CityCom 01176 Claro 03787, 03790 Clatronic 02738 Com Hem 01176, 01915 Comag 02026, 02813 Coship 03787, 03790 Country Vision Cable 00775, 00869 Croner 02813 Crown 01284 Cyfra+ 00853, 01409 Cyfrowy Polsat 00253, 0853,

D-box 01114 DASAN 03321

00775

01662

02034, 02813

01195, 01197

00775

01409

Delta 02443 Denver 02738 Deutsche Telekabel 01195, 01197 Dgtec 01631 Dicra 02738 Digi 02026 Digiality 02813 Digihome 01284, 02034 DigiLogic 01284, 02034 DigiQuest 01300, 02738,

01631 DigitAlb 01195, 01197 DigitalBox 01631, 01100 Digiwave 01631 DirecTV 01377, 00099 Dish Network 00775 Dishpro 00775 DishTV 01300 DMT 03321 DMTech 02738 DRE 01176 Dream Multimedia 01237, 01652,

01923 DSE 02813 DSTV 00879 DTK Deutsche Telekabel Dual 02034 Durabrand 01284, 02034 Dyon 02738, 02813 Echostar 00775, 00853,

Edision 01631 Elta 02738 Energy Sistem 01631, 02813 Etisalat 02443 Evesham Technology 02034 Finlux 02034 FinnSat 01195, 01197 Fortec Star 01631

01195, 01197

01409

Reference information

Foxtel 01356, 00879,

01176 Freesat 01692, 02376 Freesat+ 02443 Frontier Communications Fuji Onkyo 01631 Galaxis 00853, 00879 General Instrument 00869 General Satellite 01176 Globo 02026, 02957 GoGen 02738 GOI 00775 Gold Box 00853 Gold Vision 01631 Goodmans 01284, 02376,

Gradiente 00887, 00856,

Grocos 01409 Grundig 00847, 02376,

Hanseatic 01100 HD+ 02443 HDT 03321 Hirschmann 02026 Hitachi 02034, 01284 Hornet 01300 HTS 00775 Huawei 03787 Hughes Network Systems Humax 01176, 02443,

ibox 01652 ID Digital 01176 Illusion 01631 Imagin 01195, 01197

00775

02034

00099

02034, 01284,

00853, 00879

01377

01808, 01915,

02408, 01377,

03321, 01989,

02616

Imperial 01195, 01197 Indovision 01989, 00856,

00887 iNETBOX 01652, 01237 Innova 00099 IQ 02813 ISkyB 00887 JVC 00775, 01284 Kabel Deutschland 01195, 01197 KabelBW 01195, 01197,

01915 KabelNoord 00253, 02443 Kaon 01300 Kenwood 00853 Koenig 01631 KT 03321 Lava 01631 LG 03321 Linsar 01284 Lodos 01284 Logik 01284, 02034 LogiSat 02026, 02813 Luxor 02034 Macab 00853 Majestic 02738 Manhattan 01300 Maplin 02034 Marusys 03543 Mascom 02738 Matsui 01284 Maximum 02813 Mediabox 00853 MediaSat 00853 Mediascape 02835 Medion 02026 Mega TV 03321 MegaSat 02034, 02813,

01631, 02738 Metronic 02738, 01631 Micro 02813 Micro electronic 02813

Milestone Communications Mitsai 02738 Morgan's 02026 Motorola 00869, 00856,

Movistar 01409 Multichoice 00879, 02059,

Murphy 02034 Mysat 02738 NET 01409 Netsat 00099, 00887 Next Level 00869 Nokia 00853 NPG 01631 NTV Plus 01692, 02443 Olleh TV 03321 Olleh-Skylife 03321 Onn 02034, 01284 Opticum 02957 Optus 00879, 01356 Orbitech 01100, 01195,

Orton 02957 Pace 00847, 01356,

2CEKƂE 01284 Palcom 01409 Palsonic 02813 Panasat 00879 Panasonic 00847

00775

03469

02060

01197

00887, 01175, 01693, 00853, 01662, 02467, 02657, 03469, 01377, 02059, 02060, 02211, 03787, 03790, 02620

Philips 00099, 00853,

01114, 02619, 00856, 00887,

02211, 03469 Pioneer 00853 PLDT 02835 Premiere 01114, 01195,

01197 Primacom 01176, 01195,

01197 Pro Basic 00853 Proline 01284 Qook TV 03321 Qook-SkyLife 03321 Qwest 01377 RadioShack 00869 Raduga TV 02957 RiksTV 01692 Roadstar 00853 SAB 01300, 01631 Sagem 01692, 01114 Sagemcom 01692 Samsung 03063, 00253,

01377, 01989,

02467, 00853,

03321, 01662,

01693, 03834 Sat Control 01300 SAT+ 01409 Satellite Operations 00775 Satplus 01100 SatyCon 01631 Schaub Lorenz 02034 Schwaiger 01631, 02813,

02957 Schwaiger CS 01631 Scott 02738 SEG 01284, 02034 Shark 01631 Sharp 02034 Shaw Direct 00869 Sherwood 01409

Reference information

Shinelco 02738 Sigmatek 02738, 02813 SilverCrest 02026 SKY 00856, 00847,

01662, 00887, 01175, 02619, 01693, 00099, 01114, 01377, 01915, 02467, 03469

Sky Brasil 00856, 00887,

01377, 02619

SKY Deutschland 02443, 01114,

01915, 02620

SKY Italia 01693, 02467,

00853, 01356

SKY Mexico 00856, 02619,

00887, 01377,

03469 SKY New Zealand 02211 SKY PerfecTV! 02616 SkyCable 01631 SkyLife 03321 Skylink 02443, 02957 Skymaster 01409 Skyplus 02026, 01175 SkySat 01100 Skyworth 01631, 02835 SL 02026 SM Electronic 01409 Smart 01631 Sony 00847, 00853 Star 00887 Star Choice 00869 Stream System 01300 Strong 01409, 00879,

02813, 01300,

00853, 01284 Sunny 01300 Sunstech 02738 Supernova 00887 T-Mobile 02443

TATA S k y 03575 TDS Telecom 00775 Teac 02813 Technicolor 03469 Technika 01284, 02034 TechniSat 01195, 01197,

01100, 02813 Techwood 01284, 02034 tekComm 02738 TELE System 01409, 02738,

02813 Tele2 01195, 01197 Telefonica 01692, 01409 Telestar 01100, 01197,

01195 Televes 01300 Teleview Communications Televisa 00887 Telsey 02738 Telstra 01356 Telus 00775 Tevion 01409, 02026,

Thomson 00847, 01175,

TNT SAT 01692, 01195,

Toshiba 01284 TrekStor 02738 Triangle Communication System Triax 00853, 01631 Tricolor TV 01176 True Visions 02408 TV Vlaanderen 00853 TVA Digital 01692, 01409 TVB 01989 UEC 00879, 01356

00775

02813

00853, 01662,

02619, 03469

01197

00775

United Satellite America United States Wireless 00775 Unitymedia 01915 Unixbox 01652 USA Wireless Satellite TV00775

Vectra 01195, 01197 Vestel 01284, 02034 Via Embratel 03787 Viasat 01197, 0253,

VisionNet 01631 Viva 00856 Vivo 01409 Voom 00869 VTC 03834 Vu+ 03543 Walker 02034, 01284 Wharfedale 02034 Windstream 00775 Wisi 02957 World Satellite Cable Systems Woxter 02813, 02738 Xoro 02813 Xtreme 01300 Yes 00887, 01631 Zehnder 02034, 03469 Zenith 00856, 00253 Ziggo 02443 Zircon 02957



Video - Accessory

A.C.Ryan 02709, 03350 ABS 01272 Acer 01272 Alienware 01272 Apple 02615 Boxee 03693 Claritas 01272

00775

01195

00775

CyberPower 01272 D-Link 03693 Daily Media 01272 Dell 01272 Digitech 02260 Elonex 01272 Eminent 02260 Emtec 02709 Fantec 02709 Fujitsu Siemens 01272 Gateway 01272 Hewlett Packard 01272 hFX 01272 Howard Computers 01272 Hush 01272 iBUYPOWER 01272 iconBIT 02709, 03350 ISTAR 02260 Linksys 01272 Mede8er 02709 Media Center PC 01272 Microsoft 01272, 01805 Mind 01272 NiveusMedia 01272 Northgate 01272 Packard Bell 01272 Philips 01272 PopBox 02260 Popcorn Hour 02260 Ricavision 01272 Roku 03061 Sony 02713, 01272 Stack 9 01272 Systemax 01272 Tagar Systems 01272 Toshiba 01272 Touch 01272 Trust 01272 VIA Technologies 01272 Viewsonic 01272 Voodoo 01272

Reference information

Western Digital 02558 Woxter 02709 Xbox 01805, 01272 ZT Group 01272



Advantage 70032 AH! 70157 Aiwa 70157 Arcam 70157 Atoll Electronique 70157 Audio Research 70157 Audiolab 70157 Audiomeca 70157 Audioton 70157 AVI 70157 Balanced Audio Technology Cairn 70157 California Audio Labs 70029, 70303 Cambridge 70157 Cambridge Audio 70157 Carver 70157 CCE 70157 Cyrus 70157 Denon 70766 DKK 70000 DMX Electronics 70157 Dynaco 70157 Genexxa 70032, 70000 Goldmund 70157 Grundig 70157 Harman/Kardon 70157 Hitachi 70032 Integra 71817 JVC 70072 Kenwood 70157, 70036 Krell 70157 Linn 70157 Loewe 70157

70157

Magnavox 70157 Marantz 70157, 70029 Matsui 70157 MCS 70029 Memorex 70032 Meridian 70157 Micromega 70157 Miro 70000 Mission 70157 Myryad 70157 NAD 70721, 70000 Naim 70157 NSM 70157 Onkyo 71817 Optimus 70032, 70000 Panasonic 70303, 70029 Philips 70157 Pioneer 70032 Polk Audio 70157 Primare 70157 Proton 70157 QED 70157 Quad 70157 Quasar 70029 Radiola 70157 RCA 70032 Restek 70157 Revox 70157 Rotel 70157 SAE 70157 Sansui 70157 SAST 70157 Siemens 70157 Silsonic 70036 Simaudio 70157 Sonic Frontiers 70157 Sony 70000, 70490 Sylvania 70157 TAG McLaren 70157 Tandy 70032

Tascam 73095, 73511,

73533

Teac 73531, 73532,

73551 Technics 70303, 70029 Thorens 70157 Thule Audio 70157 Universum 70157 Victor 70072 Wards 70032, 70000,

70157 Yamaha 70036, 70032,

70490 Zonda 70157



Cassette Deck

Aiwa 40029 Arcam 40076 Audiolab 40029, 40229 Carver 40029 Denon 40076 Grundig 40029 Harman/Kardon 40029 Inkel 40070 JVC 40244 Kenwood 40070 Magnavox 40029 Marantz 40029 Myryad 40029 Onkyo 42157 Optimus 40027 Panasonic 40229 Philips 40029, 40229 Pioneer 40027 Polk Audio 40029 Radiola 40029 RCA 40027 Revox 40029 Sansui 40029 Sony 40243, 40170 Tascam 73095

Technics 40229 Thorens 40029 Victor 40244 Wards 40027, 40029 Yamaha 40097



Audio - Accessory

Apple 81115 Jamo 82228 Onkyo 81993, 82351,

82990

Polk Audio 82228



Receiver

Integra 52503 Onkyo 52503



Cable PVR Combination

Access Communications Adams Cable TV 01376 ADB 01920 Armstrong 01376, 01877 Arris 02187 Atlantic Broadband 01877 ATMC 01376 Bend Broadband 02187 Blue Ridge Communications Bright House 01877, 01376 Buckeye Cable System 01376, 01877,

Cable Axion Digitel 01376 Cable One 01376, 01877 Cablecom 01582 Cablevision 01877, 01376 Cablevision du Nord 01376 CCAP 01877

01376, 01877

01877

02187

Reference information

Charter 01376, 01877,

02187 Cincinnati Bell 01877, 01376 Cisco 01877, 02589,

01982, 01582,

01883, 02401,

03265 Citycable 03477 Cogeco 01376, 01877,

01982 Comcast 01376, 01877,

01982, 02187 Cox 01877, 01376 Darty Box 02436 Digeo 02187 Freebox 01976 Grande Communications Humax 02620, 02165 ImOn Communications 01877 Insight 01376, 01877 Inter Mountain Cable 01877 Kabel Deutschland 02165 Knology 01877 Mediacom 01376, 01877 MetroCast Cablevision 01877 Midcontinent Communications Motorola 01376 Moxi 02187 NET 01883 NorthwesTel 01376 Novus 01376, 01877 Numericable 02436 Pace 01877, 02620,

Panasonic 01982 Philips 01582 Pioneer 01877 RCN 01376 Rogers 01877, 01376 Sagem 02436

01877, 01376

01376, 01877

01582, 01883

Samsung 03477, 01877,

01987, 02589, 03265

5EKGPVKƂE#VNCPVC 01877, 01982,

01987, 02436,

02401 Service Electric 01376, 01877 Shaw 01376, 01877,

02187 SKY 02620 SKY Deutschland 02620 Source Cable 01376 Suddenlink 01877, 01376 Telenet 01920, 03477 Telewest 01987 Thomson 01582 Time Warner 01877, 01376,

02187 TiVo 03265 Unitymedia 03477 UPC 01582, 03477 UPC Cablecom 01582, 03477 Videotron 01877 Virgin Media 01987, 03265 Wave Broadband 01376 Western Iowa Telephone Westman Communications WideOpenWest 01877, 01376,

Ziggo 02589



IPTV

ADB 02586, 01481,

Alcom 02437 Altibox 02437 Amino 01615, 01481,

01877

01376, 02187

02187

01998, 03028

01898, 01998,

03028

Arkwest 01481, 01998 Arvig Communication Systems AT&T 00858 ATMC 01998, 03028 Ballard Rural Telephone Cooperative Bayland Communications Bell 01998 Bell Aliant 01998 Bell Fibe TV 01998 Bledsoe Telephone Cooperative Bloomingdale Communications Blue Valley Telecommunications Bouygues Telecom 03007 Brandenburg Telecom 01481, 01998 BT 02294 BTC Broadband 02586 Burlington Telecom 01481, 01615 Cabovis 02436 CalTel Connections 02586 Canby Telcom 01481 Cannon Valley Cablevision CenturyLink 01998 Cisco 00858, 03028,

ClubInternet 02132 CoopTel 00858, 01615,

CRST Telephone Authority Dakota Central Telecommunications Dalton Cable Television Delta Cable 01376

01998, 02345

02586

01481, 01998

01481, 01998, 03028 01898

01481, 01998

02345, 02378

01898 01481, 01998

02345

01877, 01982

Diverse Communications Du 02401 Eagle Broadband 01481, 01998 Eagle Valley Telephone 01481, 01998 EasyTEL 01481, 01998,

Echostar 03452 Etex 02586 Farmer's Telephone Cooperative Golden Belt Telephone 02586 Gorham Communications Griswold Cooperative Telephone GTI 01481, 01998,

Harrisonville Telephone Hathw@y 02043 Horizon Cable TV 02586 Hotwire 02586 HTC Communications 01481, 01998 Innovative Systems 01898 Inotel 02437 Integra Telecom 02345 Interstate Cablevision 01481, 01998 JP PTT 01615 Kiss 02132 KM Telecom 01481 KoolConnect 01481 KPN 02952, 02437 Lakeland Cablevision 01481, 01998 Lemonweir Valley Telephone Liberty Communications Lonsdale Video Ventures Lumos Networks 01998, 03028 Manawa Telecom 02586

01898

03028

01998, 03028

01481

01481, 01998

03028 02586

01481, 01998

02586

01481, 01998

Reference information

Manti Telecom 01481, 01998 Matanuska Telephone Association Meo 02401 MHTC 01481, 01998 Microwave Satellite Technologies Millennium Telecom 01481, 01998 Minburn Communications MM&G Enterprises 01481, 01998 Motorola 02378, 01998,

Movistar 03288 MTS 01998 NDTC 01481, 01998,

North Central Telephone North Dakota Telephone North State Communications Norvado 02586 Nsight 02345, 02586 NU Telecom 01998, 03028 Oi TV 03452, 03454 Open IPTV 01615 Optimus Clix 02437 Orange 02407 OTEC Communications Pace 02401, 03454 Panora Telecommunications Paul Bunyan Communications Pine Island Telephone 01481, 01998 Polar Communications 02586 Poplar Bluff Municipal Utilities

01481, 02586

01481, 01998

01481, 01998, 03028

02437, 0858, 02952, 01376

03028 02345

02586

00858

02586

01481

02586

01481, 01998

Portugal Telecom 02401 Price County Telephone Project Mutual Telephone PSC 01998 Quality One Technologies Qwerty.TV 01898 Randolph Telephone 02586 Readlyn Telephone 02586 Reservation Telephone 01998, 02345 River Valley Telecommunications S-GO Video 01877 Sagem 02407, 03288 Sagemcom 02407 Samsung 02407 Sasktel 01998 5EKGPVKƂE#VNCPVC 00858, 02345,

Silver Star Communications SingTel 01998 SKY Deutschland 02620 Skyline Cable 02586 SkyPix 01481, 01998 Smile Content 02437 Smithville 02586 Sogetel 01998 SureWest 01481, 01998,

Surry Telephone 02586 SWAT Cooperative 01481, 01998,

T-Home 02132 Telefonica 03288, 03028 Telus 03028 TeNeT 01898 Thomson 03007, 02407 TV Northeast 01481, 01998 TVB 01615

01481, 01998

03028

01481, 01998,

03028

02586

03028

Twin Valley Communications United Telephone 02586 Venture Communications Cooperative Verizon 02378 Viken Fibernett 02437 Vivo 03288 Watch TV 01481, 01998 West Carolina Telephone Western Wisconsin Communications Westphalia Broadband 02586 Wilkes Telecommunications Yadkin Valley Telecom 02345



IPTV PVR Combination

ADB 02437 Altibox 02437 Amino 01615, 01898 AT&T 00858 ATMC 03028 Beeline 03028 Belgacom TV 02132 Bell 01998 Bell Aliant 01998 Bell Fibe TV 01998 Bouygues Telecom 03007 BT 02294 Cabovis 02436 CenturyLink 01998 Cisco 00858, 03028,

ClubInternet 02132 Deutsche Telekom 02132 Du 02401 Echostar 03452

02586

01998

03028

02586

01481, 01998

02132, 02345, 02378

Freebox 01976 i-CAN 02437 Innovative Systems 01898 InviTV 02437 Kiss 02132 KPN 02952, 02437 Lumos Networks 01998 Magio Sat 02132 Magnet 01615 Meo 02401 Motorola 02437, 02378,

00858, 01998,

02952, 02401 MTS 01998 Numericable 02436 Oi TV 03452, 03454 Orange 02407 Pace 02401, 03454 Philips 02294 Portugal Telecom 02401 Sagem 02407, 03288 Sagemcom 02436, 02407,

03007 Samsung 02407 Sasktel 01998 5EKGPVKƂE#VNCPVC 00858, 02345,

02401, 03028 SKY Deutschland 02620 SureWest 01998 T-Home 02132 Telefonica 03028, 03288 Telus 03028 Thomson 03007 Verizon 02378 Vodafone 02401



PVR

DirecTV 20739 Humax 20739 Panasonic 20616 Philips 20739

RCN 20739 ReplayTV 20616 Sonic Blue 20616 Sony 20636 TiVo 20739, 20636

Reference information

Kitahama Chuo Bldg, 2-2-22 Kitahama, Chuo-ku, OSAKA 541-0041, JAPAN http://www.onkyo.com/

The Americas

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. For Dealer, Service, Order and all other Business Inquiries: Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/

For Product Support Team Only: 1-800-229-1687

Europe

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4208-213 http://www.eu.onkyo.com/

Meridien House, Ground ﬂoor, 69 - 71 Clarendon Road, Watford, Hertfordshire, WD17 1DS, United Kingdom Tel: +44 (0)8712-00-19-96 Fax: +44 (0)8712-00-19-95

China

(Hong Kong)

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong. Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.hk.onkyo.com/

(Mainland)

1301, 555 Tower, No.555 West NanJing Road, Jing’an District, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396 http://www.cn.onkyo.com/

Asia, Oceania, Middle East, Africa

Please contact an Onkyo distributor referring to Onkyo SUPPORT site. http://www.intl.onkyo.com/support/

The above-mentioned information is subject to change without prior notice. Visit the Onkyo web site for the latest update.

SN 29401849PDF_EN

D1410-0

* 2 9 4 0 1 8 4 9 *

Onkyo HT-R993 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

AM/FM Radio Receiving Function

Tuning into a Radio Station

Presetting an AM/FM Radio Station

Using RDS (European model)

Listening to Internet Radio

About Internet Radio

TuneIn

Pandora®–Getting Started (U.S. only)

SiriusXM Internet Radio (North American only)

Slacker Personal Radio (North American only)

Registering Other Internet Radios

DLNA Music Streaming

About DLNA

Configuring the Windows Media® Player

DLNA Playback

Controlling Remote Playback from a PC

Music Streaming from a Shared Folder

About Shared Folder

Setting PC

Playing from a Shared Folder

About the Remote Controller

Remote Controller Buttons

Using Remote Controller for Playing Music Files

Icons Displayed during Playback

Using the Listening Modes

Selecting Listening Mode

Effects of Listening Modes

Checking the Input Format

Advanced Settings

How to Set

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

Functions of REMOTE MODE Buttons

Programming Remote Control Codes

Operating Other Components with the Remote Controller

TV operation

Blu-ray Disc player/DVD player/DVD recorder operation

VCR/PVR operation

Satellite receiver / Cable receiver operation

CD player operation

Cassette tape deck operation

To operate CEC-compatible components

Installation and Connection of Height Speakers

Using the Height Speakers

Installation Method of the Height Speakers by Type

RI Connection and Setting

Connecting and Operating Onkyo RI Components

About RI Function

iPod/iPhone Operation

Firmware Update

About Firmware Update

Updating the Firmware via Network

Updating the Firmware via USB

Troubleshooting

Reference information
