C-70 ZOOM / C-7000 ZOOM
B. DISASSEMBLY AND ASSEMBLY
PROCEDURE
[1] REMOVAL OF FRONT COVER AND BACK COVER ............................................. B-2
[2] REMOVAL OF LENS PART AND HOLDER BATTERY PART ................................B-3
[3] REMOVAL OF CP1 BOARD, TB2 BOARD AND PW1 BOARD .............................. B-4
[4] REMOVAL OF TB4 BOARD, LCD, CA1 BOARD, TB3 BOARD
AND TB1 BOARD ....................................................................................................B-5
[5] REMOVAL OF FINDER-ASSY AND LENS-ASSY ...................................................B-6
[6] BOARD LOCATION ................................................................................................. B-7
B-1 Ver.1
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-70 ZOOM / C-7000 ZOOM
[1] REMOVAL OF FRONT COVER AND BACK COVER
Disassembly perform as follows and assembly perform by reversing the disassembly steps.
Be sure to discharge the main capacitor, then continue to disassembling.
! Beware of electric shock !
Danger of electric shock.
Use a discharging tool to remove
the electrical charge before working.
1. Four screws 1.7 x 4
2. Screw 1.7 x 2
3. Open Cover DC
4. Front cover
(Push the top of the back cover to
release the hook.)
5. DC Cover
6. Two screws 1.7 x 3
7. Screw 1.7 x 2
13
Notice
The lead free solder is applied to this product.
!
8. Screw 1.7 x 3
9. Two screws 1.7 x 4.5
10. FPC
11. Back cover
12. Multi cover
13. Discharge both of C5412.
12
Use the lead free solder in working.
(Refer to D-4 about how to remove the Back Cover Unit)
6
11
10
6
1
9
7
Do not add stress
1
4
at the part of the finder parts.
Do not touch the screw.
3,5
2
B-2 Ver. 1
C-70 ZOOM / C-7000 ZOOM
B. DISASSEMBLY AND ASSEMBLY PROCEDURE
[2] REMOVAL OF LENS PART AND HOLDER BATTERY PART
1. Multi holder
2. Flexible PWB CP1 & TB2
(Take care for the direction)
3. Remove the 4 solders
4. Remove the 2 solders
2
1
TB2
A
CP1
B
4
C
D
4. Spacer connector
5. FPC
6. Connector
7. Flexible PWB CP1 & TB1
8. Connector
9. Screw 1.7 x 3.5
10. Spring earth
11. Two screws 1.7 x 3.5
12. FPC
13. Stand
14. Spacer connector
15. Connector
16. Connector
17. Flexible PWB CP1 & TB1
15
17
14
3
A
B
C
D
12
13
16
5
8
9
10
11
7
6
B-3Ver. 1
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-70 ZOOM / C-7000 ZOOM
[3] REMOVAL OF CP1 BOARD, TB2 BOARD AND PW1 BOARD
1. Shield tape PWB CP1 PW1
2. Screw 1.7 x 2
3. Spring earth
4. Connector
5. CP1 board
6. Screw 1.7 x 3.5
7. Spring earth
8. Screw 1.7 x 3.5
9. TB2 board
10. Spacer wire side
11. Spacer wire crip pwb
12. Spacer TB2
13. Shield tape PWB PW1
10
14. Shield tape battery
15. Screw 1.7 x 2.2
16. Spring lever lock
17. Battery lock lever
18. Screw 1.7 x 3.5
19. Spring earth
20. Screw 1.7 x 3.5
21. Earth CP1 PW1
22. PW1 board
23. Remove the 2 solders
24. xD cover
25. xD cover tape
20
21
23
3
2
4
1
16
15
13
18
5
19
11
24
25
17
8
22
14
9
12
6
7
B-4 Ver. 1
C-70 ZOOM / C-7000 ZOOM
B. DISASSEMBLY AND ASSEMBLY PROCEDURE

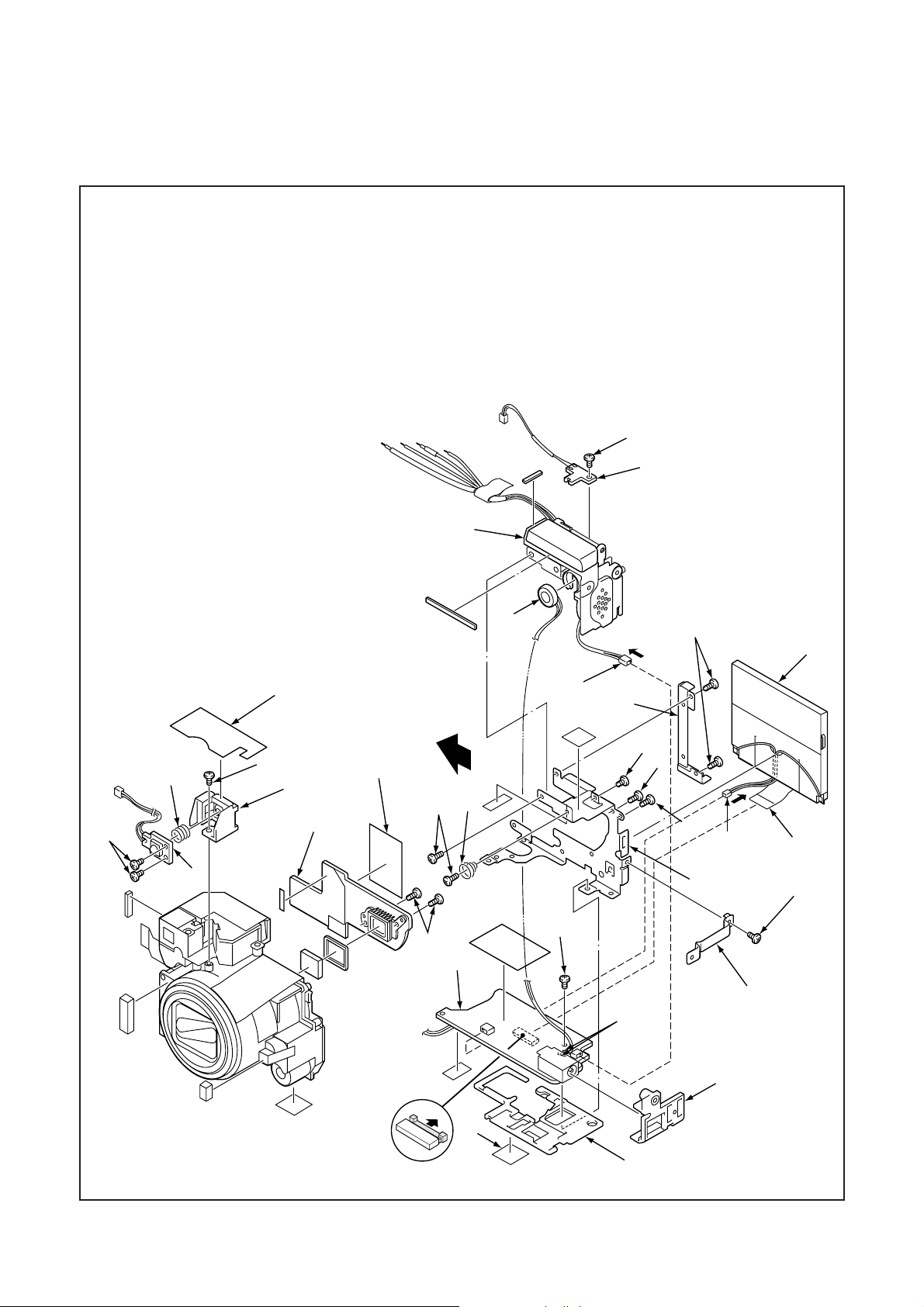

[4] REMOVAL OF TB4 BOARD, LCD, CA1 BOARD, TB3 BOARD AND TB1 BOARD
1. Screw 1.7 x 3.5
2. Two screws 1.7 x 5
3. TB4 board
4. Spring LED
5. Spacer LED
6. Holder LED
7. Screw 1.7 x 2
8. Earth right side
9. Holder DC
10. FPC
11. Spacer connector
12. Connector
13. LCD
14. Two screws 1.7 x 3.5
15. Holder monitor LCD
16. Screw 1.7 x 3.5
17. Separate the lens part and
the finder part
18. Spacer CP1 CA1
19. Two screws 1.7 x 4
20. CA1 board
21. Connector
22. Screws 1.7 x 3.5
23. Spring earth
24. Screws 1.7 x 3.5
25. Screws 1.7 x 2
26. Flash
26
27
27. Microphone
28. Screw 1.7 x 2
29. TB3 board
30. Screw 1.7 x 2
31. TB1 board
32. Bottom holder
33. Holder chassis
34. Remove the 2 solders
28
29
14
13
5
21
15
17
25
4
2
6
20
1
18
22
23
3
19
30
16
24
33
12
10
7
31
8
34
9
11
32
B-5Ver. 1
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-70 ZOOM / C-7000 ZOOM

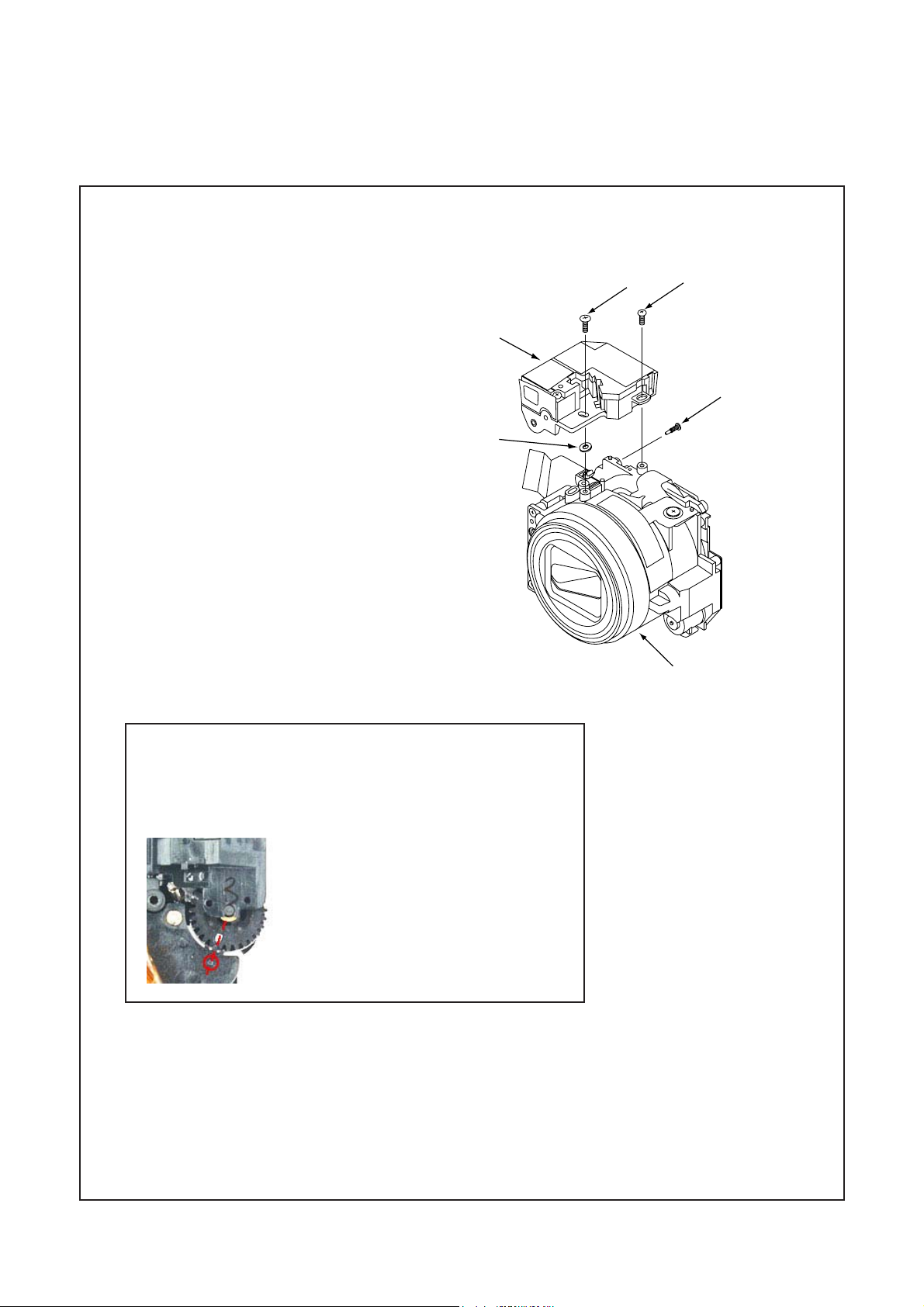

[5] REMOVAL OF FINDER-ASSY AND LENS-ASSY
1. F Screw
2. Screws 1.6 x 4
3. Screws 1.6 x 4.5
4. Finder-Assy
5. Parallax Spacer
(Refer to D-5 about how to select the Parallax Spacer)
6. Lens-Assy
3
2
4
1
5
6
How to attach the Finder
1. Rotate the finder gear until the set-down end.
2. Attach the finder to the lens, and confirm the position of the gear.
B-6 Ver. 1
C-70 ZOOM / C-7000 ZOOM

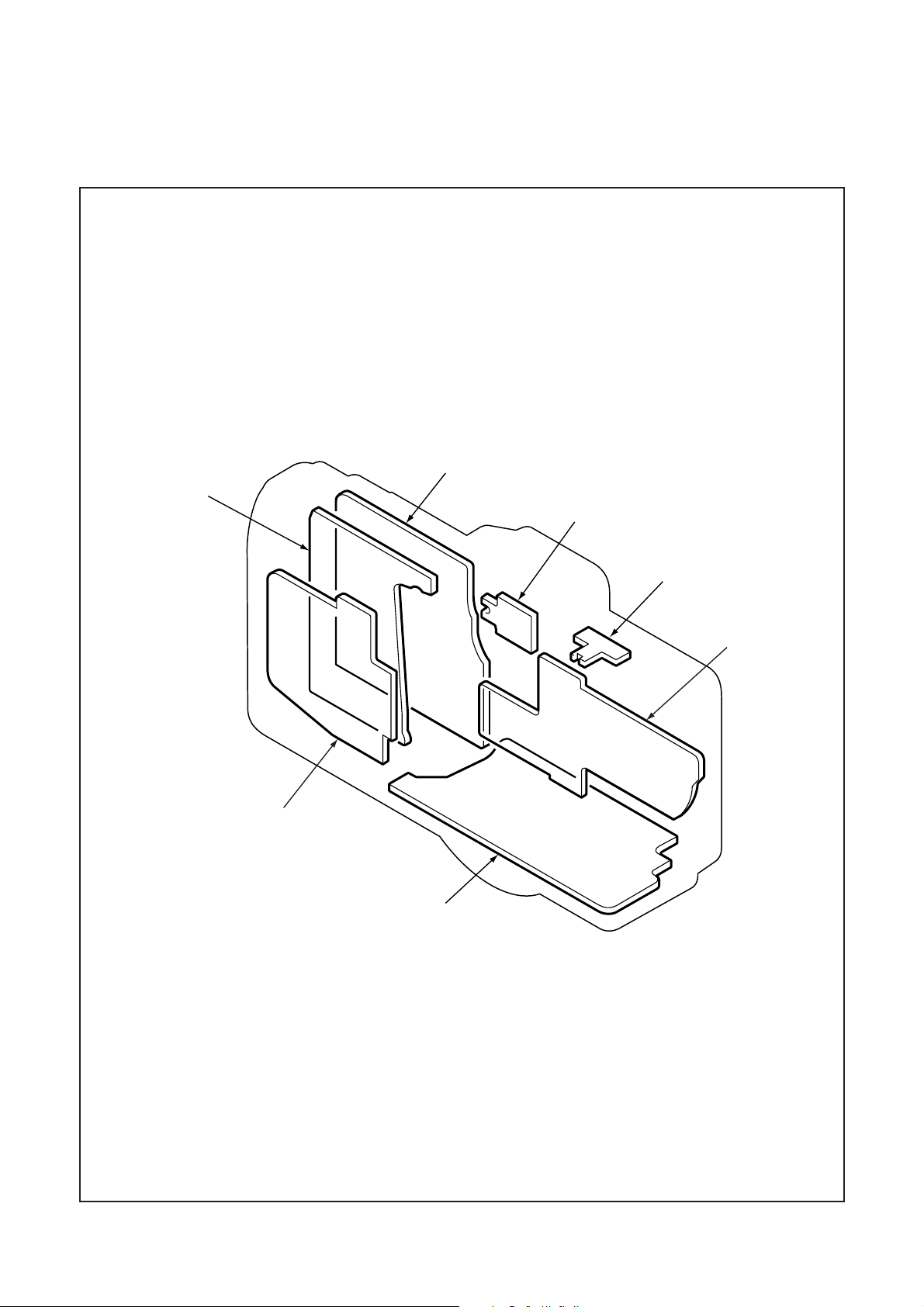

[6] BOARD LOCATION
PW1 board
B. DISASSEMBLY AND ASSEMBLY PROCEDURE
CP1 board
TB4 board
TB2 board
TB3 board
CA1 board
TB1 board
B-7Ver. 1
