B. DISASSEMBLY AND ASSEMBLY PROCEDURE
C-2Z/C-220Z/D-520Z
B. DISASSEMBLY AND ASSEMBLY
PROCEDURE
[1] REMOVAL OF CABINET ASSEMBLY (BACK)
AND LENS ASSEMBLY ................................................................................... B-2
[2] REMOVAL OF LCD ............................................................................................... B-3
[3] REMOVAL OF LENS ASSEMBLY AND VF .......................................................... B-4
[4] REMOVAL OF PST-PCA, MC-PCA1 AND BATTERY BOX .................................. B-5
[5] BOAD LOCATION ................................................................................................. B-6
B-1
Ver.1
Page 2
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-2Z/C-220Z/D-520Z
[1] REMOVAL OF CABINET ASSEMBLY (BACK) AND LENS ASSEMBLY
Disassembly perform as follows (1, 2...25) and assembly perform by reversing the disassembly steps (25, 21...1). Be sure to
discharge the main capacitor in procedure 11, then continue to disassembling.
! Beware of electric shock
Danger of electric shock.
Use a discharging tool to remove
the electrical charge before working.
8.Rear Cover
7.Open B-Cover
5.PUTB1.6X15SN
6.3PUTB1.6X15SN
15.3PUTB1.6X21SN
23.Connector
19.3PUTB1.6X4.5SB
24.Lens Unit
2.3PUTB1.6X5.5SN
22.Connector
2.PUTB1.6X5.5SN
1.PUTB1.6X4.5SN
4.3PUTB1.6X5.5SB
25.Front Cover
10.Connector
13.PUTB1.6-428SN
14.3PUTB1.6X4.5SN
17.FPC
18.Core
20.3PUTB1.6X4.5SB
3.Pop-Up
11.Discharge
9.Connector
21.3PUTB1.6X4.5SB
16.PUTB1.6-2140SN
12.Jack Plate
B-2 Ver.1
Page 3
C-2Z/C-220Z/D-520Z

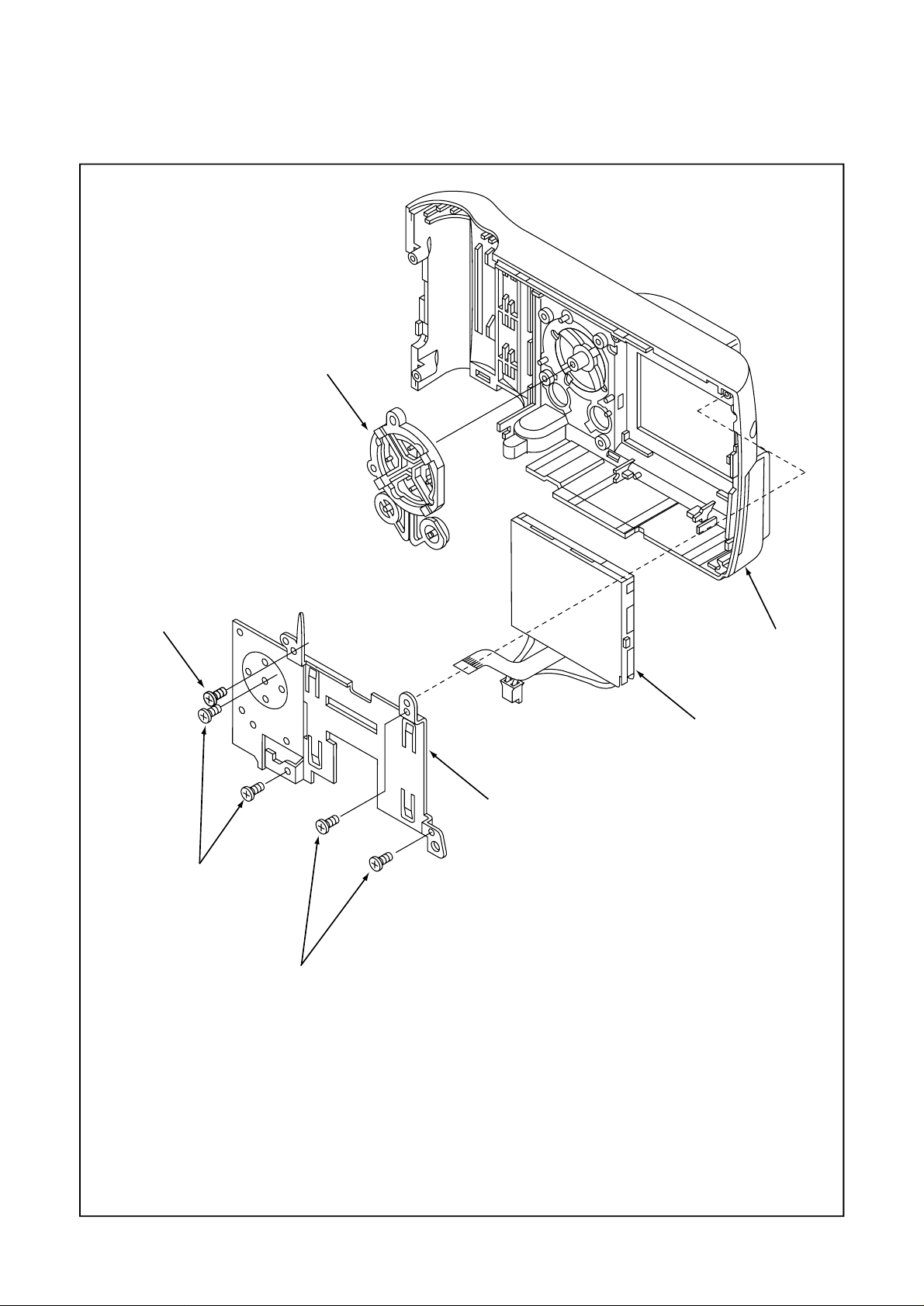

[2] REMOVAL OF LCD
B. DISASSEMBLY AND ASSEMBLY PROCEDURE
4.Cross Button
1.PUTB1.6X3SN
1.PUTB1.6X3SN
5.Rear Cover
3.TFT-PCA
2.HOLDER LCD
1.PUTB1.6X3SN
Ver.1
B-3
Page 4
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-2Z/C-220Z/D-520Z
[3] REMOVAL OF LENS ASSEMBLY AND VF
8.Lead Wire
9.FST-PCA
B
10.3PUTB1.6X4SN
4.3PUTB1.6X4.5SN
3.3PUTB1.6X4.5SN
5.CCD Screw
2.Connector
B
6.3PUTB1.6X3.5SN
A
7.CJ-PCA2
1.Connector
A
B-4 Ver.1
Page 5
C-2Z/C-220Z/D-520Z
B. DISASSEMBLY AND ASSEMBLY PROCEDURE
[4] REMOVAL OF FL-PCA2, MC-PCA1 AND BATTERY BOX
5. Button Base
3. Battery Box
1.Connector
6.PUTB1.6X4.5SN
7.Connector
4. Battery Cover
2.3PUTB1.6X4.5SN
DIGITAL CAMERA
Zoom
Megapixel
2.0
A
10.3PUTB1.6X4.5SN
12.3PUTB1.6X5.5SB
9.Connector
11.3PUTB1.6X4.5SN
13.MC-PCA2
8.FL-PCA2
A
15.BZ-UT
14.Front Cover
Ver.1
B-5
Page 6

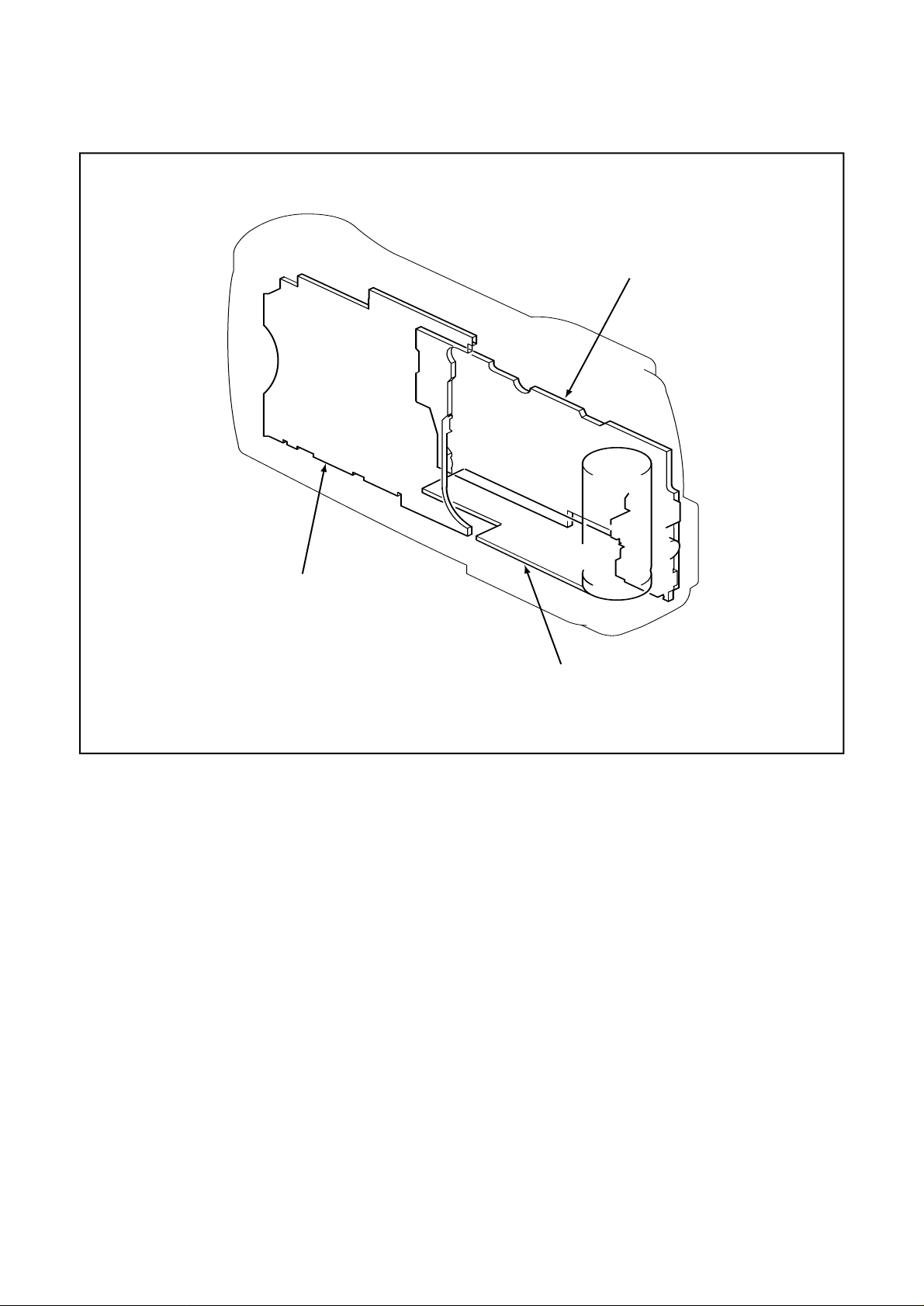

[5] BOARD LOCATION
B. DISASSEMBLY AND ASSEMBLY PROCEDURE C-2Z/C-220Z/D-520Z
CJ-PCA2
MC-PCA2
FL-PCA2
B-6 Ver.1
