OLYMPUS C-170 PRODUCT OUTLINE

C-170/D-425

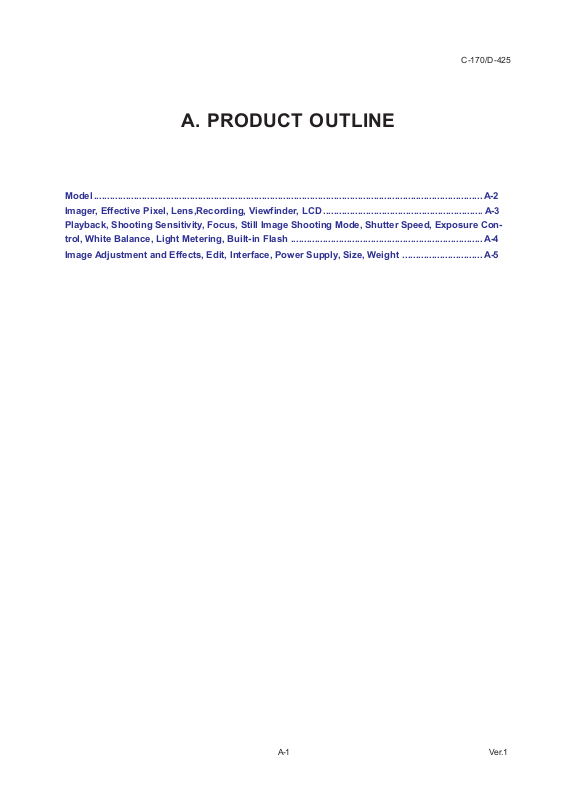

A. PRODUCT OUTLINE

Model .................................................................................................................................................. A-2

Imager, Effective Pixel, Lens,Recording, Viewfinder, LCD............................................................ A-3

Playback, Shooting Sensitivity, Focus, Still Image Shooting Mode, Shutter Speed, Exposure Con-

trol, White Balance, Light Metering, Built-in Flash ........................................................................ A-4

Image Adjustment and Effects, Edit, Interface, Power Supply, Size, Weight .............................. A-5

A-1 Ver. 1

Model

C-170/D-425A. PRODUCT OUTLINE

Model Name Destination Lauguage
C-170 (J) Japan J(d) / E

D-425 (U) US / Canada E(d) / F / S / P
C-170 (E) Europe E(d) / F / D/ S / R / I
D-425 (E2) Europe (Derivative) E(d) / F / D/ S / R / I
C-170 (B) Asia / Oceania E(d) / K / SC / TC
C-170 (CC) China E / K / SC(d) / TC

J : Japanese, E : English, F : French, G : German, S : Spanish, I : Italian, R :
Russian, P : Portuguese, K : Korean, TC : Traditional Chinese, SC : Simplified
Chinese

(d) : Default setting

One more language would be able to add by using OL YMPUS Master after
February 2005.

>Remarks:
One language only .
The languages feasible to add are;

All Languages mentioned above but English / Czech / Dutch
/ Swedish / Danish / Norwegian

A-2 Ver.1

A. PRODUCT OUTLINEC-170/D-425

Imager

Effective Pixel

Lens

Configuration
Focal Length
F No.
Optical Zoom
Digital Zoom
Focusing Range

Recording

Still Image
Recording Mode

Still Image
Adjustable
Resolutions and
number of Stor­able Photos

1/2.5" primary color filter CCD
4 megapixel

5 lenses in 4 groups

6.1mm (36.7mm equivalent in 35mm photography)
F2.8
No
4x
Standard AF : 0.5m - infinity

Macro Mode : 0.2m - 0.5m

JPEG (DCF), Exif2.21, Print Image Matching 2.5

2288 x 1712 / SHQ : 5 shots
2288 x 1712 / HQ : 16 shots
1600 x 1200 / SQ1 : 32 shots
640 x 480 / SQ2 : 165 shots
(With 16MB xD-Picture Card)

Movie Recording
Mode

Movie Resolution
and Frame Rate

Sound Recording
Recording Media

Viewfinder

LCD

Size and T ype
Pixels

QuickTime Motion JPEG

320 x 240 / HQ (30fps)
320 x 240 / SQ (15fps)

No
xD-Picture Card (16MB / 32MB / 64MB / 128MB / 256MB / 512MB)
Not equipped

2.0 inches TFT color LCD
85,000 pixels

A-3Ver.1

Playback

C-170/D-425A. PRODUCT OUTLINE

[Still Image]
Close up

Index
Scene rotation
Calendar
Slide Show
[Movie]

Play

Shooting

Sensitivity

Focus

Still Image

Shooting Mode

Shutter Speed

x 1.5 / 2 / 2.5 / 3 / 3.5 / 4

4 / 9
90[deg] / -90[deg] (Writing Exif tag)
No
Yes
Normal

AUTO (ISO 50-250)

TTL Contrast detection system (Detecting : S pot Area) / AF lock
Manual Focus is not available

P (Programmed Auto) / AUTO (Full Auto)
SCENE (Scene program) [Portrait, Landscape with Portrait, Landscape, Night
Scene, Sports, Self-Portrait, Beach & Snow ]

2 - 1/1500 sec

Exposure Con-

trol

White Balance

Light Metering

Auto-bracketing

Built-in Flash

Working Range
Flash Mode

Flash Compensa­tion

Sequential

Shooting

+/-2Ev , Step 1/3 Ev

AUTO
Digital ESP metering
No

approx. 3m (at P Mode)
Auto (automatic activation in low and backlight) / Red-eye reduction /

Fill-in (forced activation) / Off (no flash)
No

No

A-4 Ver.1

Image Adjust-

ment and Effects

A. PRODUCT OUTLINEC-170/D-425

Image Settings
Image Effects
Panorama

Edit

Still Image Edit
Movie Edit

Interface

PC / Printer

TV / AV out
Power Supply

Power Supply

AC Adapter

No
No
Y es (automatically stitchable with Olympus Master software when using an Olympus

brand xD Picture Card)

No
No

USB 2.0 interface ( Win XP / ME / 98SE / 2000, Mac OS 9.0 - 9.2 / X10.1 - 10.3,
PictBridge)

No
DC input

E-8AC

Battery

Weight

Size

CR-V3 Lithium battery LB-01
AA-Ni-MH Rechargeable battery
AA-Alkaline battery

101mm(W) x 51.5mm(H) x 34.5mm(D)

120g (without battery and media card)

A-5Ver.1
