Nokia 206 User Manual

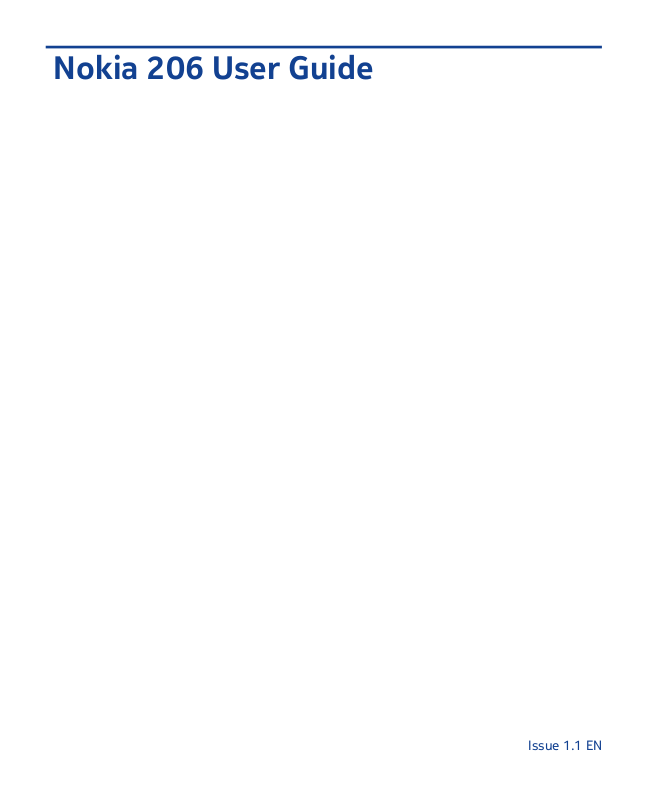

Nokia 206 User Guide
Issue 1.1 EN
Contents
Keys and parts.................................................................................................5
Insert a SIM card and battery..........................................................................8
Insert a memory card......................................................................................9
Charge the battery..........................................................................................9
Lock the keys ................................................................................................10
Explore your phone.......................................................................................10
Copy content from your old phone...............................................................11
Icons shown on your phone...........................................................................13
Make or answer a call....................................................................................14
Call the last dialled number..........................................................................15
View your missed calls..................................................................................15
Change the volume........................................................................................16
Save a name and phone number...................................................................16
Make calls quickly..........................................................................................18
Send a message.............................................................................................19
Write text.......................................................................................................20
Check your voicemail....................................................................................21
Personalise your home screen......................................................................22
2
Add shortcuts to your home screen.............................................................23
Change your ringtone....................................................................................24
Set an alarm...................................................................................................25
Add an appointment......................................................................................26
Listen to the radio.........................................................................................27
Play a song.....................................................................................................28
Take a photo..................................................................................................29
Record a video...............................................................................................30
Browse the web.............................................................................................31
Add a bookmark............................................................................................32
Set up your mail account...............................................................................32
Send a mail.....................................................................................................33
Set up chat in your phone.............................................................................34
Chat with your friends...................................................................................35
Send a photo using Bluetooth.......................................................................36
Share using Nokia Slam.................................................................................37
Restore original settings...............................................................................38
Update phone software using your phone...................................................39
3
Back up content to a memory card...............................................................40
Access codes..................................................................................................41
Support..........................................................................................................43
General information......................................................................................44
4
Keys and parts
1 Charger connector
2 Headset connector (3.5 mm)
3 Screen
4 Scroll key
5 End/Power key
6 Keypad
5
7 Microphone
13
8 Call key
9 Selection keys
10 Earpiece
11 Camera lens. Before using the
camera, remove the protective
tape from the lens.
12 Loudspeaker
13
Antenna area. See 1 in
"Feature-specific instructions".
Tip: You can set a shortcut to the
app you use the most. To use the
shortcut, press and hold the * key.
When you press and hold * for the first
time, select what it opens. To later set
what the key opens, select Menu >
Settings and My shortcuts.
6
Your phone uses S40 software.
7
Insert a SIM card and battery
1
Switch the phone off, and remove the
back cover.
2
If the battery is in the phone, lift it
out.
3
Lift the SIM holder, and put the SIM in,
contact area face down.See 3.
4
Line up the battery contacts, and
push the battery in.
5
Press the back cover down until it
locks into place.
6
To switch on, press and hold until
the phone vibrates.
8
Insert a memory card
Charge the battery
1
Switch the phone off, and remove the
back cover.
2
Push the card in, contact area face
down, until it locks into place.
3
Press the back cover down until it
locks into place. See 2.
1
Plug the charger into a wall outlet.
2
Connect the charger to the phone.
See 4.
3
Battery full? Unplug from the phone,
then from the wall outlet.
9
Lock the keys
Menu
Select
Select
Explore your phone
1
Lock the keys when not using your
phone.
1
Select Menu, then press *.
2
To unlock, select Unlock, then press
*.
To see the features and apps in your
phone, press Menu.
2
To go to an app or feature, press the
scroll key up, down, left, or right.
3
To open the app or select the feature,
press Select.
10
Back
Exit
Copy content from your
Select
old phone
4
To go back to the previous view, press
Back.
5
To go back to the home screen, press
.
Easily get your contacts, calendar,
and other stuff to your new phone.
1
Switch Bluetooth on in both phones.
2
Select Menu > Settings.
11
My shortcuts
Connectivity
Call
Sync & backup
Create backup
Sync w. server
Restore backup
Copy from dev.
Select
Select
3
Text messages
Multimedia msg.
Notes
Calendar
Contacts
Done
Connect
My laptop
Nokia XX
Clear
OK
Options
Enter passcode:
Yes
Does code match with
code on other device?
6
Select Sync & backup > Copy from
dev..
4
Select what you want to copy, and
select Done.
5
Select your old phone from the list of
found devices.
If asked, create a one-time passcode
(such as 123), and select OK.
7
Check that the codes match on both
phones.
8
Follow the instructions shown on
both phones.
12
Icons shown on your phone
— You have unread messages.
— You have unsent or failed
messages.
— The keys are locked.
— The phone doesn't ring when
somebody calls or sends a message.
— An alarm is set.
— Bluetooth is on.
— All incoming calls are
forwarded to another number.
— A headset is connected to the
phone.
The type of mobile network you're
currently connected to may be shown
with a single letter, a combination of
letters, or a combination of letters and
numbers. For example, , depending
on your network service provider.
The icons may vary depending on your
region or network service provider.
13
Make or answer a call
456789
123
123456789
In call
987654321
calling
3
Call your friend. See 13.
1
Type in the phone number, and press
.
2
To end the call, press .
When your phone rings, press to
answer. See 14.
14
Call the last dialled
Go to
NamesMenu
123456789
Today, 08:29
987654321
Today, 07:29
View
1 missed call
123456789
09:00
123456789
Today, 15:00
Select
Select
Names
Add new
Log
Synchronise all
number
1
View your missed calls
1
On the home screen, press .
2
Select the number, and press .
On the home screen, select View. See
5.
2
To call back, select the number, and
press .
Tip: To view missed calls later, select
Menu > Contacts > Log > Missed
calls.
15
Change the volume
Select
Synchronise all
Names
Select
Log
Add new
Save a name and phone number
Is the volume too loud during a call or
when listening to the radio?
1
Scroll up or down.
2
Better.
Add new contacts to your phone.
1
Select Menu > Contacts.
2
Select Add new.
16
