TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Contents of Technical Abstract
Product Selection 2–2
Handportables 2–2
Handportable Options 2–3
Desktop Option 2–4
HF Desktop Option 2–5
Light Car Kit Options 2–6
Compact Handsfree Car Kit Option 2–7
Handsfree Car Kit Options 2–8
Product and Module List 2–9
Technical Specifications 2–12
General Specifications of Transceiver NHE–3 2–12
Electrical Specifications 2–13
Transceiver General Specifications 2–13
Transmission Specifications 2–13
Reception Specifications 2–14
General Specifications of Accessories 2–15
Battery Pack BBH–9H 2–15
Battery Pack BBH–8S 2–15
Battery Pack BBH–8H 2–15
AC Fast Travel Charger ACH–4E/ACH–4P/ACH–4X 2–16
AC Power Supply ACS–6E/ACH–4P
Cigarette Lighter Charger LCH–2 2–16
Desktop Charger CHH–2 2–17
Desktop Charger CHH–8 2–17
Mobile Holder MBH–6 2–17
Mobile HF Charging Holder MCH–8 2–18
HF Junction Box HFJ–3 2–18
External HF Speaker HFS–6 2–18
HF Microphone HFM–4 2–18
Power Cable PCH–4 2–18
Handset HSU–1 2–18
Extension Cable SCE–4 2–19
Compact HF PHF–1 2–19
2–1
Copyright Nokia Mobile Phones
TECHNICAL ABSTRACT
NHE–3
Product Selection
Handportables
The NHE–3 is a handportable cellular phone for the pan–European GSM network.
12/97OJ
Technical Documentation
2–2
Copyright Nokia Mobile Phones
1.
2.
3.
4.
5.
Item/name: Type code: Material code:
1. Transceiver Nokia 2010 NHE–3DN 0500357
2. Transceiver Nokia 2010 NHE–3DN 0500487
2. Transceiver
Nokia 2010 (D2) NHE–3DN 0500219
2. Transceiver Nokia 2010, SIP NHE–3DN 0500279
2. Transceiver Nokia Itineris NHE–3DN 0500280
3. Transceiver Mobira 3000 NHE–3DA 0500358
4. Transceiver
Mobira 3000 NHE–3DA 0500488
4. Transceiver Nokia 2012 NHE–3DA 0500220
5. Transceiver
Nokia 2016 NHE–3DB 0500221
Transceiver Tecnophone NHE–3ZB 0500277
Transceiver Technophone NHE–3YB 0500278
Transceiver Philips NHE–3DP 0500367
TECHNICAL ABSTRACT
NHE–3
Handportable Options
The basic handportable package offers the user a battery pack and fast travel
charger for charging from mains. The package contains the following product:
1.
12/97OJ
Technical Documentation
2.
3. 4.
2–3
Copyright Nokia Mobile Phones
5.
Item/name: Type code: Material code:
1. Transceiver (see previous page)
2. Battery pack 700 mAh BBH–8S 0670060
2. Battery pack 1100 mAh BBH–8H 0670059
– Battery pack 500 mAh BBH–9H 0670061
3. Fast travel charger (Euro) ACH–4E 0675008
4. Fast travel charger (UK) ACH–4X 0675009
5. Fast travel charger (Austr.) ACH–4A 0675036
TECHNICAL ABSTRACT
NHE–3
Desktop Option
The desktop option allows the user to charge the handportable and spare battery from mains. With this option the user can also discharge the spare battery.
The desktop option contains the following product:
12/97OJ
Technical Documentation
2.
2–4
Copyright Nokia Mobile Phones
3.
4.
1.
Item/name: Type code: Material code:
1. Desktop charger CHH–2 0675022
2. Fast travel charger (Euro) ACH–4E 0675008
3. Fast travel charger (UK) ACH–4X 0675009
4. Fast travel charger (Austr.) ACH–4A 0675036
TECHNICAL ABSTRACT
NHE–3
HF Desktop Option
This option contains the same functions as the desktop option and also offers a
full handsfree functions which can be used when the phone is in the HF desktop charger. The use of the product can be extended for office use with following accessories:
12/97OJ
Technical Documentation
3.
2–5
Copyright Nokia Mobile Phones
2.
1.
Item/name: Type code: Material code:
1. HF desktop charger CHH–8 0675026
2. AC power supply (Euro) ACS–6E 0680016
3. AC power supply (UK) ACS–6X 0680019
– AC power supply (Austr.) ACS–6A 0680021
TECHNICAL ABSTRACT
NHE–3
Light Car Kit Options
This option offers a passive cradle and charging functions to the user in the car
installation. The light car kit option contains the following product:
1.
12/97OJ
Technical Documentation
3.
2.
2–6
Copyright Nokia Mobile Phones
4.
Item/name: Type code: Material code:
1. Mobile holder MBH–6 0620009
2. Cigarette lighter charger LCH–2 0675005
3. Mounting plate MKE–1 0650007
4. Swivel mount HHS–1 0650006
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation

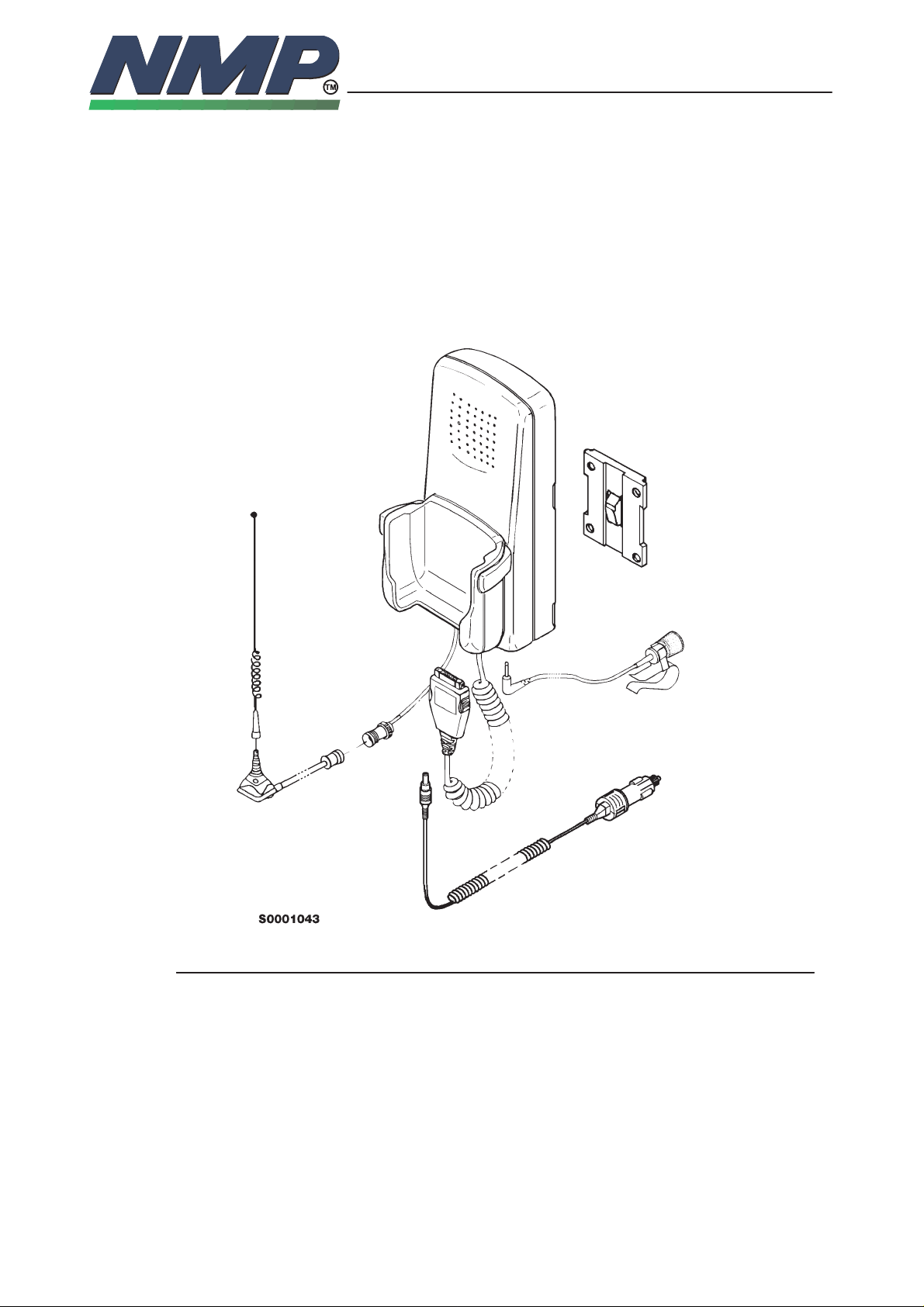

Compact Handsfree Car Kit Option
This option contains the same functions as the light car kit option and also offers full handsfree and external antenna functions. The use of the product can
be extended for car use with the following accessories:
2–7
Copyright Nokia Mobile Phones
2.
3.
1.
4.
6.
5.
Item/name: Type code: Material code:
1. Mobile holder MBH–6 0620009
2. Mounting plate MKE–1 0650007
3. Compact HF unit PHF–1 0700017
4. Microphone HFM–4 0690002
5. Cig. lighter cable LCP–2 0680022
6. Antenna (does not include in the sales package)
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Handsfree Car Kit Options
This option offers all possible accessories to the user in the car installation.
2.
1.
5.
4.
7.
3.
2–8
Copyright Nokia Mobile Phones
9.
8.
4.
6.
Item/name: Type code: Material code:
1. Mobile holder MCH–8 0620010
2. Swivel mount HHS–1 0650006
3. HF junction box HFJ–3 0694009
4. Mounting plate MKE–1 0650007
5. HF microphone HFM–4 0690002
6. HF speaker HFS–6 0692005
7. Power cable PCH–4 0730009
8. Handset HSU–1 0640047
9. Voice dialer VDM–2 0694011
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Product and Module List
Unit/type: Product code: Module code:
Transceiver NHE–3DN (Nokia 2010) (8 Mb flash) 0500357
• system module GS8 (not available separately) 0200382
• user interface module GU1N 0200467
• mechanics MNHE3XN 0260343
• SW module NHE–3 MCU 0240454
Transceiver NHE–3DN
• system module GS8M (not available separately) 0200603
• user interface module GU1MN 0200564
• mechanics MNHE3DN 0260703
• SW module NHE–3 MCU 0240404
Transceiver NHE–3ZB
• system module GS8 (not available separately) 0200382
• user interface module GU1MT 0200565
• mechanics MNHE3ZB 0260345
• SW module NHE–3 MCU 0240454
(Nokia 2010) (4 Mb flash) 0500487
(Technophone) (8 Mb flash) 0500277
2–9
Copyright Nokia Mobile Phones
Transceiver NHE–3YB
(Technophone) (8 Mb flash) 0500278
• system module GS8 (not available separately) 0200382
• user interface module GU1MT 0200565
• mechanics MNHE3YB 0260345
• SW module NHE–3 MCU 0240454
Transceiver NHE–3DN
(Nokia 2010 D2) 0500219
• system module GS8M (not available separately) 0200603
• user interface module GU1MN 0200564
• mechanics MNHE3DD 0260220
• SW module NHE–3 MCU 0240404
Transceiver NHE–3DN
(Nokia 2010 SIP) 0500279
• system module GS8M (not available separately) 0200603
• user interface module GU1MN 0200564
• mechanics MNHE3DS 0260650
• SW module NHE–3 MCU 0240404
Transceiver NHE–3DN
(Nokia Itineris) 0500280
• system module GS8M (not available separately) 0200603
• user interface module GU1MN 0200564
• mechanics MNHE3DI 0260713
• SW module NHE–3 MCU
Transceiver NHE–3DP
(Philips) (4 Mb flash) 0500367
• system module GS8M (not available separately) 0200603
• user interface module GU1MT 0200565
• mechanics MNHE3DP 0260520
• SW module NHE–3 MCU 0240404
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Copyright Nokia Mobile Phones
Transceiver NHE–3DA (Mobira 3000) (8 Mb flash) 0500358
• system module GS8 (not available separately) 0200382
• user interface module GU1T 0200468
• mechanics MNHE3DA 0260547
• SW module NHE–3 MCU 0240454
Transceiver NHE–3DA
(Mobira 3000) (4 Mb flash) 0500488
• system module GS8M (not available separately) 0200603
• user interface module GU1MT 0200565
• mechanics MNHE3XA 0260704
• SW module NHE–3 MCU 0240404
Transceiver NHE–3DA
(Nokia 2012) 0500220
• system module GS8M (not available separately) 0200603
• user interface module GU1MT 0200565
• mechanics MNHE3DO 0260619
• SW module NHE–3 MCU 0240404
Transceiver NHE–3DB
(Nokia 2016) 0500221
• system module GS8M (not available separately) 0200603
• user interface module GU1MT 0200565
• mechanics MNHE3XB 0260345
• SW module NHE–3 MCU 0240404
2–10
Slim battery BBH–9H (500 mAh; NiMH) 0670061
Extended battery BBH–8H (1100 mAh; NiMH) 0670059
Standart battery BBH–8S (700 mAh; NiCd) 0670060
Fast travel charger ACH–4E (Euro plug) 0675008
Fast travel charger ACH–4X (UK plug) 0675009
Fast travel charger ACH–4A (Australia plug) 0675036
Fast travel charger ACH–4P (Philippines plug) 0675065
AC power supply ACS–6E (Euro plug) 0680016
AC power supply ACS–6X (UK plug) 0680019
AC power supply ACS–6A (Australia plug) 0680021
Cigarette lighter charger LCH–2 0675005
• charging module AL4 0200315
• mechanics MLCH2 0260062
Desktop charger CHH–2 0675022
• charging module DC2 0200184
• mechanics MCHH2 0260217
HF desktop charger CHH–8 0675026
• main module DC3 0200211
• connector module DC4 0200235
• mechanics MCHH8 0260218
Mobile holder MBH–6 0620009
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Copyright Nokia Mobile Phones
Compact HF PHF–1 0700017
• charging module DH–3 0200179
• mechanics MPHF1
Cigarette lighter cable LCP–2 0680022
Mobile HF charging holder MCH–8 0620010
• charging module DH1 0200182
• mechanics MMCH8 0260220
HF junction box HFJ–3 0694009
• charging module BC4B 0200180
• mechanics MHFJ3 0260223
External HF speaker HFS–6 0692005
HF microphone HFM–4 0690002
Power cable PCH–4 (for HFJ–3) 0730009
Handset HSU–1 0640047
• handset module DG1 0200221
• mechanics MHSU1 0260222
2–11
Vibra module GV1
(only for 4 Mb flash version phones) 0200638
Carry strap SWH–1 0720005
Belt clip BCH–2 0720022
Carry bag CBH–5XN 0720020
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Copyright Nokia Mobile Phones
Technical Specifications
General Specifications of Transceiver NHE–3
Temperature range:
Operating time
• talk time (BBH–9H):
• talk time (BBH–8S):
• talk time (BBH–8H):
• standby time (BBH–9H):
• standby time (BBH–8S):
• standby time (BBH–8H):
Supply voltage:
Nominal current consumption
• standby mode:
• conversation mode:
–20...+55°C
70 min
100 min
150 min
20 h
30 h
40 h
5.3...8.8 V
25 mA
2–12
Dimensions (h x w x d)
• NHE–3 transceiver + BBH–8S:
Weight
• transceiver + BBH–9H:
• transceiver + BBH–8S:
• transceiver + BBH–8H:
169 x 56 s 37
271 g
318 g
323 g
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Electrical Specifications
Transceiver General Specifications
RX frequency band:
TX frequency band:
Power class:
Output power:
Duplex spacing:
Method of frequency synthesis:
Frequency control:
Receiver type:
Receiver IF:
Modulator type:
2–13
Copyright Nokia Mobile Phones
935...960 MHz
890...915 MHz
4
0.02...2 W
45 MHz
two digital PLLs
VCTCXO
two IF, linear
71 and 13 MHz
I/Q modulator
Number of RF channels:
Channel spacing:
Number of TX power levels:
Sensitivity:
Frequency error: ±
RMS phase error:
Transmission Specifications
TX frequency band:
Modulator type:
Power class:
Output power:
Power levels:
Power level steps:
Error at 2.0 W power: < ±
124
200 MHz
11
–102 dBm/S/N > 8 dB
0.1 ppm
5.0
890...915 MHz
I/Q modulator
4
20 mW...2 W
11
2 dB ±1.5 dB
2 dB (at extreme temp. ±2.5 dB)
Error at other power levels: < ±
Frequency error: < ±
RMS phase error: <
Peak phase error: <
5.0
20.0
3 dB (at extreme temp. ±4 dB)
0.1 ppm (with AFC)
TECHNICAL ABSTRACT
NHE–3
Spurious emissions
• allocated a channel in freq.band:
• idle mode in frequency band:
• spurious for receiving band:
Reception Specifications
RX frequency band:
Type:
IFs:
Sensitivity:
AGC dynamic range:
12/97OJ
Technical Documentation
Copyright Nokia Mobile Phones
9 kHz...1 GHz < –36 dB
1...12.75 GHz < –30 dBm
9 kHz...1 GHz < –57 dB
1...12.75 GHz < –47 dBm
935...960 MHz < –84 dBm
except for 5 channels
935...960 MHz
linear, two IF
71 and 13 MHz
–102 dBm RX channel input,
>
I/Q S/N ratio
8 dB, BN = 135 kHz
93 dBm
2–14
Receiver gain (Voltage gain)
Input dynamic range:
I/Q output (–102...0 dBm) RXI&RXQ
Gain relative accuracy in receiving band:
Gain relative accuracy on channel:
66 dB
–102 dBm...–10 dBm
10 mVpp – 25 mVpp
1 dB (reported RXlevel)
1 dB within every 20 dB range
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
General Specifications of Accessories
Battery Pack BBH–9H
Dimensions (h x w x d):
Weight:
Capacity:
Cells:
Quick charging temperature:
Battery Pack BBH–8S
Dimensions (h x w x d):
Weight:
Capacity:
2–15
Copyright Nokia Mobile Phones
123 x 56 x 16 mm
g
500 mAh
5
+5...45°C
123 x 56 x 23 mm
156 g
700 mAh
Cells:
Quick charging temperature:
Battery Pack BBH–8H
Dimensions (h x w x d):
Weight:
Capacity:
Cells:
Quick charging temperature:
5
+5...45°C
123 x 56 x 23 mm
161 g
1100 mAh
5
+5...45°C
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
AC Fast Travel Charger ACH–4E/ACH–4P/ACH–4X
Dimensions (h x w x d):
Weight:
Lenght of cable:
Input voltage:
• ACH–4E & ACH–4P
• ACH–4X
Output voltage:
Output current:
Charging time (uncharged –> 80 % full)
• BBH–9H:
• BBH–8S:
• BBH–8H:
52 x 35 x 73 mm
95 g
2 m ±10 %
230 V a.c. ±10 % 50 Hz
240 V a.c. ±10 % 50 Hz
12 ±1 V
800 ±70 mA
40 min
60 min
1 h 30 min
AC Power Supply ACS–6E
2–16
Copyright Nokia Mobile Phones
Dimensions (h x w x d):
Weight:
Lenght of cable:
Input voltage:
Output voltage:
Output current:
Cigarette Lighter Charger LCH–2
Dimensions (h x w x d):
Weight:
Lenght of spiral cable:
Input voltage:
Output voltage:
< 500 g
2.0 m
230...240 V a.c. ±10 %
13.8 V
900 mA
28 x 44 x 110 mm
120 g
2.0 m
9...32 V d.c.
5.0...10.0 V/800 mA
±
12.5 V
1.0 V/0...400 mA
TECHNICAL ABSTRACT
NHE–3
Desktop Charger CHH–2
Dimensions (h x w x d):
Weight:
Input voltage (from ACH–4U):
Output voltage to phone
• constant voltage:
• constant current:
Discharge current:
Discharge end voltage:
Charging time (uncharged –> 80 % full)
• BBH–9H:
• BBH–8S:
• BBH–8H:
Discharge time
• BBH–9H:
• BBH–8S:
• BBH–8H:
12/97OJ
Technical Documentation
2–17
Copyright Nokia Mobile Phones
37 x 71 x 99.5 mm
65 g
9...18 V d.c.
12.0 ±1 V at 0 to 800 mA
800 ±70 mA within 5...10 V
135 mA ±30 mA nominal
5 V (1 V/cell) ±4 %
40 min
60 min
1 h 30 min
4 h 20 min
6 h 15 min
10 h
Desktop Charger CHH–8
Dimensions (h x w x d):
Weight:
Input voltage (from ACS–6U):
Output voltage to phone
• constant voltage:
• constant current:
Charging time
• BBH–9H (500 mAh):
• BBH–8S (700 mAh):
• BBH–8H (1100 mAh):
Discharge time
• BBH–9H (500 mAh):
• BBH–8S (700 mAh):
• BBH–8H (1100 mAh):
Mobile Holder MBH–6
43 x 167 x 113 mm
360 g
11...20 V d.c.
12.0 ±1 V at 0 to 800 mA
800 ±70 mA within 5...10 V
40 min
60 min
1 h 30 min
4 h 20 min
6 h 15 min
10 h
Dimensions (h x w x d):
Weight:
73 x 69 x 51.5 mm
62 g
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
Mobile HF Charging Holder MCH–8
Dimensions (h x w x d):
Weight:
Lenght of antenna cable:
Lenght of system cable:
HF Junction Box HFJ–3
Dimensions (h x w x d):
Weight:
Input voltage:
Current consumption
• power off mode:
• power down mode:
• power on mode:
2–18
Copyright Nokia Mobile Phones
88 x 69 x 51.5 mm
115 g
31 x 87 x 123 mm
270 g
9...16 V
< 1 mA
< 1 mA
< 3 A
Output voltages
• charger voltage:
• accessory voltage:
Speaker output voltage:
External HF Speaker HFS–6
Dimensions (h x w x d):
Weight:
HF Microphone HFM–4
Dimensions (h x w x d):
Weight:
Power Cable PCH–4
Lenght:
Fuses:
11...13 V/800 mA
8.5...16 V/800 mA
4 W/4
Ω
4.3 m
2 x 4 A
Handset HSU–1
Dimensions (h x w x d):
Weight (with spiral cable):
Nominal supply voltage:
Nominal current consumption:
25 x 36 x 181 mm
app. 120 g
13 V
10 mA
TECHNICAL ABSTRACT
NHE–3
Extension Cable SCE–4
Lenght:
Compact HF PHF–1
Dimensions (h x w x d):
Weight:
Cable lenght:
12/97OJ
Technical Documentation
2–19
Copyright Nokia Mobile Phones
1.0 m
160 x 68 x 35 mm
320 g
610 mm
TECHNICAL ABSTRACT
NHE–3
12/97OJ
Technical Documentation
2–20
Copyright Nokia Mobile Phones
This page intentionally left blank.
Loading...
