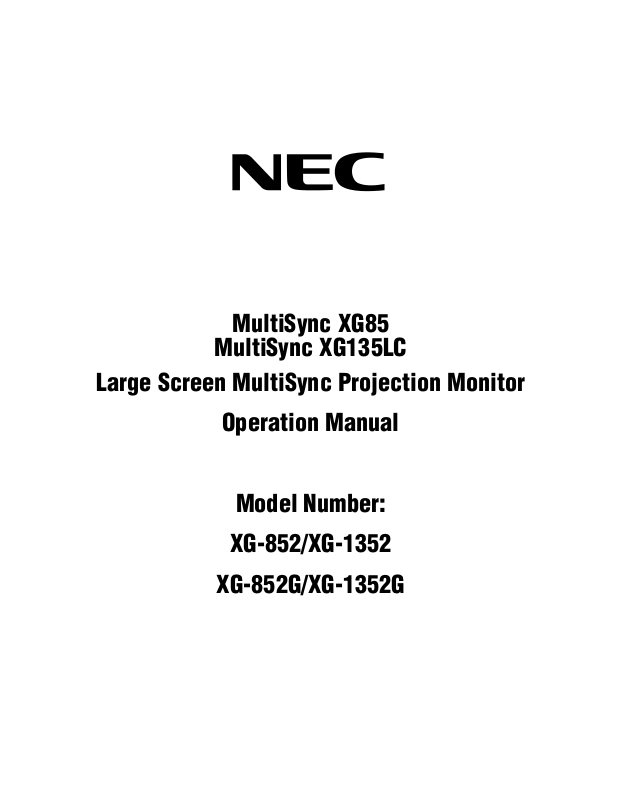

NEC XG135LC, XG-852G, XG-852, XG-1352, XG-1352G User Manual
...
MultiSync XG85
MultiSync XG135LC
Large Screen MultiSync Projection Monitor
Operation Manual
Model Number:
XG-852/XG-1352
XG-852G/XG-1352G
For the customers in Germany
CAUTION: To turn off main power, be sure to remove the plug from
power outlet. The power outlet socket should be installed as near to
the equipment as possible, and should be easily accessible.
3. GSGV Acoustic Noise Information Ordinance:
The sound pressure level is less than 70 dB(A) according to ISO 3744
or ISO 7779.
2
12345
6
6
6
6
6
12345
12345
12345
12345
INTRODUCTION.
Before operating this projector, please read this manual carefully and completely.
This manual will provide you with the basic instructions for operation of the
projector. Installation, preliminary adjustments and procedures which require the
opening of the projector and contact with electrical components should be
performed by service personnel. For continued safe and reliable operation, use
only cables supplied by the manufacturer for power. Adhere to all notes and
warnings.
Features
© Multi scan circuit automatically locks on video, superdata from 15 to 85 kHz
(XG85) and graphics signals 15 to 135 kHz (XG135LC).
You can interface video and high resolution RGB signals from various
computers, workstations and graphics boards.
© 8" CRTs with deflection angle 90 degrees produce a detailed picture with a
resolution of 250022000 (addressable) XG135LC and 160021200 (addressable) XG85.
© Newly developed video output circuit makes possible 110 MHz of Video
Bandwidth (XG85) and 150MHz (XG135LC) with 1100 lumens peak light
output (XG85) and 1200 lumens (XG135LC).
© ECP lens produces an image with true color reproduction.
© AKB circuit provides stable white balance.
© Display size can be altered to accommodate any picture size from 60" to 300"
diagonal. In addition to ceiling mounting, floor, desk top and rear installations
are possible. (The ceiling mounting kits can be purchased as an optional item
for ceiling installation.)
© Digital convergence provides high accuracy for projecting fine graphic
displays.
© On-screen menus provide easy access to adjustment items.
© ISS-6020/ISS-6020G interface allows 100 inputs.
© Video system compatible with NTSC, PAL, SECAM and NTSC 4.43.
© Up to 100 sources can be stored in digital memory.
© Quick copy convergence for fast easy set up from one pre-set signal.
© Built in self diagnostics for on-sight troubleshooting.
© Built in test patterns such as “CROSS HAIR”, “CROSS HATCH”, “DOT”,
“WINDOW” ,“ALL WHITE”, “GRAY SCALE”, and “H (FOCUS)” for
accurate setup.
© Source information status display.
© The SEQUENCER function allows the projector to automatically select input
signals one after another as programmed by the user.
© Compatible with a component video signal such as DVD.
3
INTRODUCTION
Important Safeguards
The following are important safety instructions designed to ensure the long life
of your projector and to prevent fire and shock hazards. Be sure to read these
safety instructions carefully and follow all warnings given below.
Installation
The projector must be installed by trained personnel.
Place the projector on a flat, level surface and in a dry area free from dust and
moisture. Do not place the projector in direct sunlight, near stoves or other heat
radiating appliances. Smoke, steam and exposure to direct sunlight could adversely affect the internal components. Avoid rough handling when moving your
equipment as a strong shock could damage its internal components. If installing
the projector on the ceiling, use only optional ceiling kits (two types) supplied by
the manufacturer. Observe all instructions and warnings. Since installing the
projector on the ceiling requires special techniques and a optional ceiling kit,
users must not try to install it. Contact your dealer for ceiling installation.When
ordering the ceiling kit, specify the part name, PG CMKIT-F or PG CMKIT.
Power supply
The XG-852 and XG-1352 projector are designed to operate on 120 V 60 Hz, and
the XG-852G and XG-1352G are designed to operate on 220-240 V 50 Hz AC
power supply. Make sure your local power supply matches these requirements
before operation.
Handle the power cord carefully and avoid excessive bending. A damaged cord
may cause electric shock or fire. If the projector is not to be used for an extended
period, remove the plug from the power outlet.
Cleaning
Unplug the projector from the power outlet before cleaning.
Clean the cabinet and front panel periodically with a soft cloth. If heavily stained,
use a mild detergent solution. Never use strong detergents or solvents such as
alcohol or thinner to clean your projector.
Lens cleaning: Avoid touching the lens surfaces.
Special coating is applied to the lens surfaces.
Consult your dealer for lens cleaning.
Fire and Shock Precautions
Adequate ventilation must be provided to prevent heat build-up inside the
projector. Make sure the ventilation holes are unobstructed.
Keep the inside of the projector free from foreign objects, such as paper clips,
nails, paper, etc. Do not attempt to retrieve such objects yourself or insert metal
objects such as wire and screw-drivers inside the projector. If a hazardous object
falls inside the projector, unplug it immediately and call a qualified electrical
repairman for removal.
Do not set liquids on top of the projector.
4
12345
6
6
6
6
6
12345
12345
12345
12345
CONTENTS.
PART NAMES AND FUNCTIONS ....................................................................6
Front Panel ..................................................................................................................... 7
Rear Panel ...................................................................................................................... 7
Remote Control Unit ....................................................................................................... 8
Battery installation and replacement ........................................................................ 9
Remote control cautions .......................................................................................... 9
Handling remote control and batteries ..................................................................... 9
EXAMPLES OF CONNECTIONS .................................................................... 10
Cautions on Connections .............................................................................................10
When Used in Stand Alone Operation .......................................................................... 10
When Used with One Switcher (ISS-6020/ISS-6020G) ................................................ 11
When Used with Two or More Switchers (100 Inputs)................................................ 12
REMOTE 1 Terminal ..................................................................................................... 14
BASIC OPERATION ................................................................................. 16
Picture Projection .........................................................................................................16
Displaying the Menu and Adjustment Screens ............................................................. 17
Storing Projector Settings (Automatic Save Feature) ................................................... 18
Picture Adjustment .......................................................................................................20
Position Adjustment ..................................................................................................... 21
Sound Adjustment
(only when used with the ISS-6020/ISS-6020G switcher)
............................................................ 23
Input Selection ............................................................................................................. 24
Source Information ...................................................................................................... 26
Static Convergence Adjustment ................................................................................... 27
Closed Caption Mode Selection .................................................................................... 28
Setting Timer................................................................................................................ 29
Mute ............................................................................................................................. 33
Normal, Load, and Cancel Function .............................................................................. 33
Data Area for Output and Storage ................................................................................ 34
Searching Registered Signals ....................................................................................... 35
Screen Format in Projecting a Picture .......................................................................... 36
SPECIFICATIONS ................................................................................... 37
This manual covers the XG135LC and XG85 projectors.
The operating procedures are common to the two models.
5
12345
6
6
6
6
6
12345
12345
12345
12345
PART NAMES AND FUNCTIONS.
Front Terminal Panel
1 32
Rear Control Panel
A cover is provided to attach the rear control panel.
I
H
ACAT OUT R/Cr G/Y B/Cb H/HV V S-VIDEO VIDEO OPTION REMOTE1 REMOTE2
4 65 7
89
INPUT SELECT POWER
INPUT SELECT ENTERON/OFFINDICATOR
OUT IN
0
I
GFEDCBA
6
PART NAMES AND FUNCTIONS
Front Panel
1 Power Switch (Main power)
To turn on the main power to the projector press the
switch to the ON position (I). The STANDBY and the RC
READY indicator will light.
In this condition you can start up the projector by pressing
the POWER ON button on the remote control or the
POWER button on the rear panel.
Press to the OFF position (0) to turn the main power off.
NOTE: When turning off the main power,first return the
projector to the standby condition by pressing the
POWER OFF button on the remote control or the POWER
button on the rear panel and then turn off the main
POWER switch.These procedures are necssary to
protect your projector and the connected equipment.
2 AC INPUT
Connect the supplied power cord here.
3 Remote Sensor
Receives the signal from the supplied remote control
when used in the wireless mode.
Rear Panel
4 Remote Sensor
Receives the signal from the supplied remote control
when used in the wireless mode.
0 POWER Button
Turns the projector on or off when the projector is in the
standby condition (Main Power switch must be on and the
STANDBY and the RC READY indicator lit).
A ACAT OUT Terminal
This is a video output connector for the optional built in
CCD camera. The CCD camera is needed in order to
perform automatic convergence with the optional ACAT
software.
B
R/Cr, G/Y, B/Cb, H H/V and V Input Terminals (INPUT A)
Connect R,G,B,H (Horizontal sync) and V (Vertical sync)
outputs of the external equipment (such as the Switcher).
If using a component with a combined sync (SYNC)
output,connect it to the H/V terminal. When using
luminance and color-difference signals of HDTV and
DVD, connect a Pr/Cr to the R, a Y to the G and a Pb/Cb
to the B input of the projector.
C S-VIDEO Input Terminal
(INPUT A)
Connect to the S-video output of the external equipment
such as a VCR with an S-video output.This terminal
allows switching between S2 and S1 VIDEO input modes.
D VIDEO Input Terminal
(INPUT A)
Connect to the video output of the external equipment
such as a VCR or laser disk player.
E OPTION Terminal
For system expansion such as PC-control.
5 POWER Indicator
Lights up when the projector is turned on.
6 STANDBY Indicator
Lights up when the projector’s main POWER switch is on
Flashes when the projector is not connected with the
Switcher correctly or when the Switcher is turned off.
7 RC READY Indicator
Lights up when the projector's main POWER switch is on.
Flashes when the projector receives a signal from the
remate control.
8 Two Digit Display
INDICATOR:
Displays projector error codes.(“00” in normal operation)
ON/OFF Switch:
Turns the INDICATOR on or off.
9 INPUT SELECT Buttons
INPUT: press to display the INPUT SELECT screen.
SELECT: press to select an input by highlighting the
input terminal.
ENTER: press to execute selection and to switch input.
F REMOTE 1 Terminal
This terminal allows external control of the projector from
either the Switcher or from an external control.When the
Switcher is used,connect to the REMOTE 1 terminal on
.
the back of the Switcher.
NOTE: The ISS-6020/ISS-6020G Switcher is compatible
with this projector.
G REMOTE 2 Terminal
IN: for the supplied service remote control.
OUT: connect to a second projector’s IN terminal to relay
the input at the IN terminal.
NOTE: The wireless control does not work when the plug
of the supplied remote cable is inserted into the REMOTE 2 IN terminal.
H INPUT B
Slot for adding optional RGB or video input cards.
I INPUT C
Slot for adding optional RGB or video input cards.
NOTE: The optional RGB INPUT and VIDEO INPUT
modules can be installed in the INPUT B and INPUT C
slots.
7
PART NAMES AND FUNCTIONS
Remote control unit
2
OPERATE
3
1 ABC 2 DEF 3 GHI
4 JKL 5 MNO 6 PQR
MUTE
SOUND
7 STU 8 VWX 9 YZ /
MUTE
4
5
DISPLAY
6
STATIC
R
7
B
NORMAL ENTER
8
POWER
ON OFF
10 ,.
CAPTION
ENDCTL
1
0
A
B
C
D9
4 SOUND MUTE Button
Press to mute the sound. Press again to return the sound.
NOTE: This works only with the ISS-6020/ISS-6020G
Switcher.
5 DISPLAY Button
Press to turn on or off the on-screen display. Pressing with
CTL eliminates the on-screen display; pressing with CTL
again restores it.
NOTE: Even if the on-screen display may be turned off
with pressing CTL and DISPLAY, any adjustment will
still change the projector’s memory settings. This mode
is available even when an input is switched to another or
the power is turned off using the POWER OFF button on
the remote control.
6 STATIC Button
Press to enter the STATIC mode. You can adjust the static
convergence.
7 R and B Buttons
Turn each CRT beam on and off separately. When using
with the CTL button, you can select the CRT to be
adjusted during static convergence.
User Remote Control
RC-6320
NOTE: The full function remote control is designed for setup
adjustment. Use the user remote control for normal
operation.
1 POWER Buttons (ON/OFF)
Press the ON button to turn the projector on when the
projector is in the standby condition (STANDBY and RC
READY indicators lit). Press the OFF button to return the
projector to the standby condition.
2 OPERATE Button
Press to display the “OPERATE” menu.
3 PICTURE MUTE Button
Press to mute the picture. Press again to display the
picture. You can also mute the picture by holding down
CTL and pressing PICTURE MUTE buttons. To restore
the picture, holding down CTL and press PICTURE
MUTE again. Or simply press END.
NOTE: When the picture is muted by using CTL and
PICTURE MUTE buttons, even if an input is switched to
another or the power is turned off using the remote
POWER OFF button, the mute cannot be canceled.
8 CTL Button
Used in conjunction with other buttons, similar to a shift
key on a computer.
9 NORMAL Button
Returns the standard level for each signal. When pressed
once, the confirmation message will be displayed. When
“YES” is selected and ENTER is pressed, the data will be
returned to the standard level. While holding down the
CTL button, press the NORMAL button to display the
“LOAD/CANCEL” menu to select either LOAD (last
stored level) or CANCEL (data cancelled).
0 INPUT Buttons
Select menus and switches input signals.
A CAPTION Button
Press to display the CLOSED CAPTION menu.
B CURSOR Buttons
Used for increasing and decreasing control levels, cursor
movement and convergence adjustments.
C END Button
Ends the adjustment mode.
D ENTER Button
Executes menu selection and switches to selected input.
8
Battery installation and replacement
User remote control (RC-6320)
Press down on the battery compartment cover and slide
1
the cover in the direction of the arrow.
2 Install the two new batteries, making sure that their
polarity matches the , . diagrams inside the battery
compartment. Incorrect polarity could damage the unit.
3 Close the battery compartment cover.
PART NAMES AND FUNCTIONS
NOTE: The remote control is powered by two alkaline 1.5V
AA batteries.
Remote control cautions
Use the remote control within a distance of about 7m (23 ft.) and at 30 degrees angle left and right.
Handling remote control and batteries
• Do not drop or mishandle the remote.
• Do not get the remote wet. If the remote gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote for a long period, remove the batteries.
• Do not use new and old batteries together, or use different types together.
• Do not take apart the batteries, heat them, or throw them into a fire.
9
12345
6
6
6
6
6
12345
12345
12345
12345
EXAMPLES OF CONNECTIONS.
CAUTIONS ON CONNECTIONS:
• Unplug the projector and other equipment from the AC
supply before making connections.
• Make sure that the plug of the power cord is properly
connected to the power outlet. A loose connection may cause
hum or noise.
When Used in Stand Alone Operation
•Confirm your connection layout with the user’s manual
accompanying the equipment to be connected with the ISS6020/ISS-6020G Switcher.
Components with RGB and H/V SYNC
outputs such as a personal computer
VCR with S-Video outputs
INPUT SELECT POWER
INPUT SELECT ENTERON/OFFINDICATOR
ACAT OUT R/Cr G/Y B/Cb H/HV V S-VIDEO VIDEO OPTION REMOTE1 REMOTE2
OUT IN
I
DVD Player with a COMPONENT video
output
VCR or Video disc player
External Control
NOTE: This projector does not have built-in speakers.
• Make sure that the STANDALONE mode is selected from the CONNECT CONDITION menu. Contact your dealer for the
information in detail.
10
EXAMPLES OF CONNECTIONS
When Used with One Switcher (ISS-6020/ISS-6020G)
Up to 10 input signals can be accepted when the projector is connected to one Switcher. Using the projector with the Switcher
allows easy adjustment and signal selection.
INPUT C
INPUT B
INPUT A
ACAT OUT R/Cr G/Y B/Cb H/HV V S-VIDEO VIDEO OPTION REMOTE1 REMOTE2
To INPUT A (RGB,
H/V,V inputs)
5BNC-5BNC coaxial cable
(separate sync)
(recommended)
From R, G, B, H/V on separate H and
V. on the RGB OUTPUT module
3BNC-3BNC cable
(sync on green)
4BNC-4BNC cable
(composite)
INPUT SELECT POWER
INPUT SELECT ENTERON/OFFINDICATOR
I
OUT IN
To REMOTE1
Optional control cable 15p-15p (CTL-6010)
From REMOTE 1 Terminal on the
SYSTEM CONTROL module
The Switcher ISS-6020/ISS-6020G
DVD Player
Personal computer
* To connect a COMPONENT signal
of the equipment such as DVD
player to the optional RGB input
board, the projector must
recognize the optional RGB input
board as a COMPONENT input
board. See “RGB/COMPONENT
Search Setting” of the Set-up
manual.
Audio equipment
VCR
• Make sure that the SW1 LEVEL mode is selected from the CONNECT CONDITION menu. Contact your dealer for the information in detail.
• For more information on the Switcher, refer to the user’s manual accompanying the ISS-6020/ISS-6020G Switcher.
• All cables mentioned above are optional.
11
EXAMPLES OF CONNECTIONS
When Used with Two or More Switchers (100 Inputs)
Up to 100 inputs can be accepted using the Switcher.
How to make connections:
1 Connect the REMOTE 1 terminal of the master Switcher
to the REMOTE 1 of the projector using the optional
control cable (15p-15p/CTL-6010).
2 Next connect the REMOTE 2 terminal of the master
Switcher to the REMOTE 1 terminal of the first slave
Switcher using the same optional control cable as mentioned above. Third, connect the REMOTE 2 terminal of
the first slave to the REMOTE 1 of the second slave, and
the REMOTE 2 terminal of the second slave to the
REMOTE 1 terminal of the third slave (— and the
REMOTE 2 of the ninth slave to the REMOTE 1 of the
tenth slave). Connect all the Switchers with optional
control cables.
NOTE:
• Be sure to set all the slide switches (S8603) of the
Switcher to RS-422 positions. Set the one on the last slave
Switcher to the appropriate position to match the connected equipment such as a personal computer. (RS-422/
RS-232C for PC control of projector)
• Set the DIP switch S8601 of the Switcher.
Signal
10 inputs
10 inputs
10 inputs
• Make sure that the SW2 LEVEL mode is selected from the CONNECT CONDITION menu. Contact your dealer for the information in detail.
• Refer to the user’s manual accompanying the Switcher.
• Cables mentioned are not included with the projector.
Switcher
SLAVE 1
SLAVE 2
SLAVE 9
SLAVE 10
Signal
REMOTE 1
REMOTE 2
Signal
REMOTE 1
REMOTE 2
REMOTE 1SLAVE 3
REMOTE 2
Signal
REMOTE 1
REMOTE 2
To SLOT 1
To SLOT 2
To SLOT 10
OPTION
(PC)
SWITCHER
To REMOTE 2
MASTER
REMOTE 1
OPTION (PC)
REMOTE
CONTROL
Signal
OPTION
REMOTE 1
OPTION
12
Loading...
