Nec X554UN, X464UNV, X464UNS, X554UNV, X464UN User Manual

Large Format Display

User’s Manual

MultiSync X464UN

MultiSync X464UNS

MultiSync X464UNV

MultiSync X554UN

MultiSync X554UNS

MultiSync X554UNV

Please fi nd your model name in the label on the backside of monitor.

Index

Declaration of conformity..............................................................................................................................	English-1
Important Information ...................................................................................................................................	English-2
WARNING.......................................................................................................................................	English-2
CAUTION........................................................................................................................................	English-2
Safety Precautions, Maintenance & Recommended Use.............................................................................	English-3
Contents .......................................................................................................................................................	English-4
Installation ....................................................................................................................................................	English-5
Attaching Mounting Accessories.....................................................................................................	English-6
Parts Name and Functions...........................................................................................................................	English-8
Control Panel ..................................................................................................................................	English-8
Terminal Panel ................................................................................................................................	English-9
Wireless Remote Control (Optional) ...............................................................................................	English-10
Operating Range for the Optional Remote Control.........................................................................	English-11
Setup ............................................................................................................................................................	English-12
Connections .................................................................................................................................................	English-14
Wiring Diagram ...............................................................................................................................	English-14
Connecting a Personal Computer...................................................................................................	English-15
Connecting a DVD Player or Computer with HDMI out ..................................................................	English-15
Connecting a Computer with DisplayPort .......................................................................................	English-15
Basic Operation............................................................................................................................................	English-16
Power ON and OFF Modes ............................................................................................................	English-16
Power Indicator...............................................................................................................................	English-17
Initial settings ..................................................................................................................................	English-17
Using Power Management .............................................................................................................	English-17
Selecting a video source.................................................................................................................	English-17
Picture Aspect.................................................................................................................................	English-17
Information OSD .............................................................................................................................	English-18
Picture Mode...................................................................................................................................	English-18
OSD (On-Screen-Display) Controls..............................................................................................................	English-19
PICTURE ........................................................................................................................................	English-20
ADJUST..........................................................................................................................................	English-20
AUDIO ............................................................................................................................................	English-21
SCHEDULE ....................................................................................................................................	English-22
PIP ..................................................................................................................................................	English-22
OSD ................................................................................................................................................	English-23
MULTI DISPLAY .............................................................................................................................	English-24
DISPLAY PROTECTION ................................................................................................................	English-26
EXTERNAL CONTROL...................................................................................................................	English-26
ADVANCED OPTION1 ...................................................................................................................	English-27
ADVANCED OPTION2 ...................................................................................................................	English-29
Remote Control Function ..............................................................................................................................	English-31
Multiple Monitors Connection .......................................................................................................................	English-32
Controlling the LCD monitor via RS-232C Remote Control..........................................................................	English-33
Controlling the LCD monitor via LAN Control ................................................................................................	English-35
Connecting to a Network ................................................................................................................	English-35

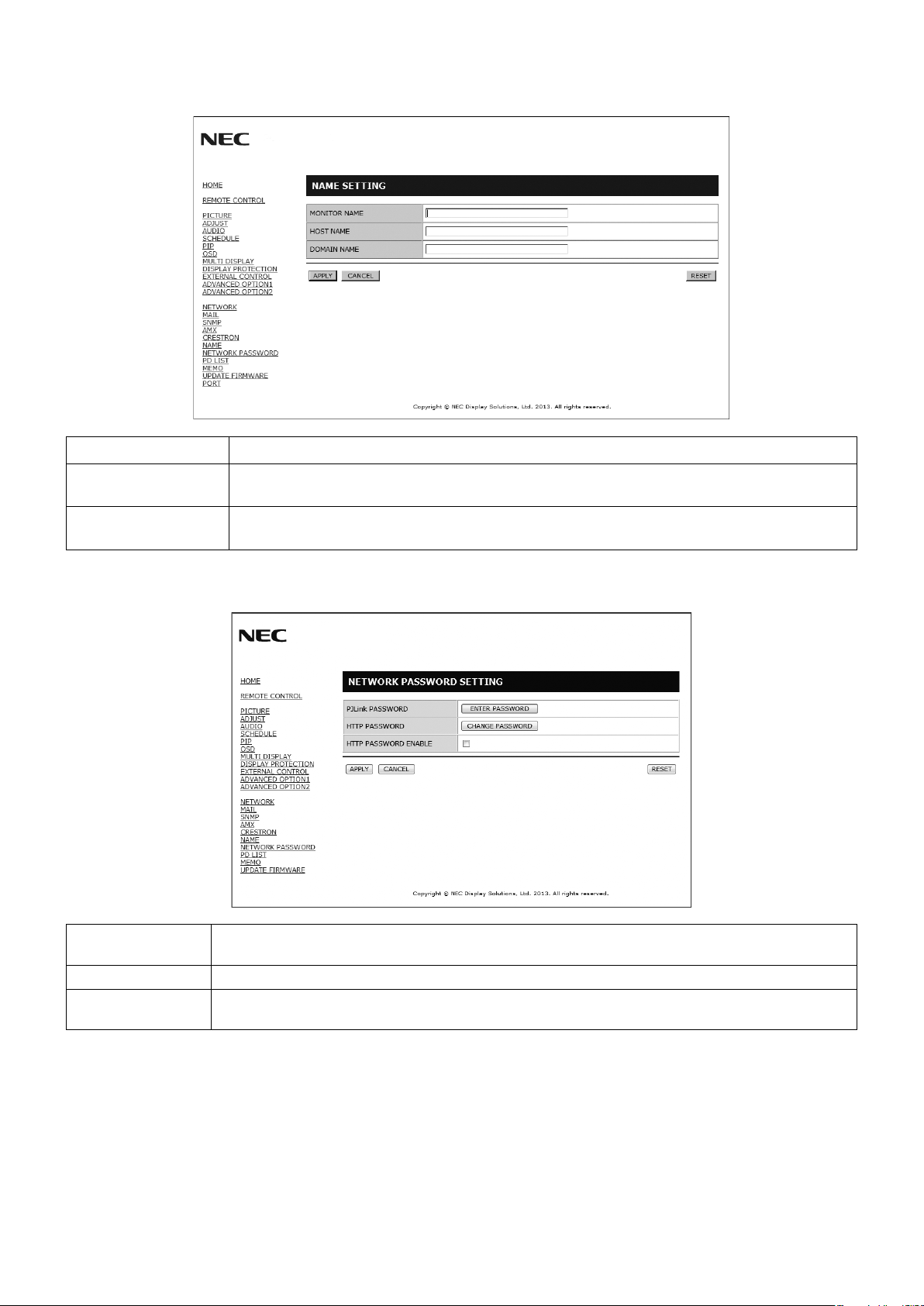

Network Setting by Using an HTTP Browser ..................................................................................	English-35
POINT ZOOM...............................................................................................................................................	English-44
PROOF OF PLAY.........................................................................................................................................	English-44
INTELLIGENT WIRELESS DATA.................................................................................................................	English-45
Features .......................................................................................................................................................	English-46
Troubleshooting............................................................................................................................................	English-47
Specifi cations - X464UN ..............................................................................................................................	English-48
Specifi cations - X464UNS ............................................................................................................................	English-49
Specifi cations - X464UNV ............................................................................................................................	English-50
Specifi cations - X554UN ..............................................................................................................................	English-51
Specifi cations - X554UNS ............................................................................................................................	English-52
Specifi cations - X554UNV ............................................................................................................................	English-53

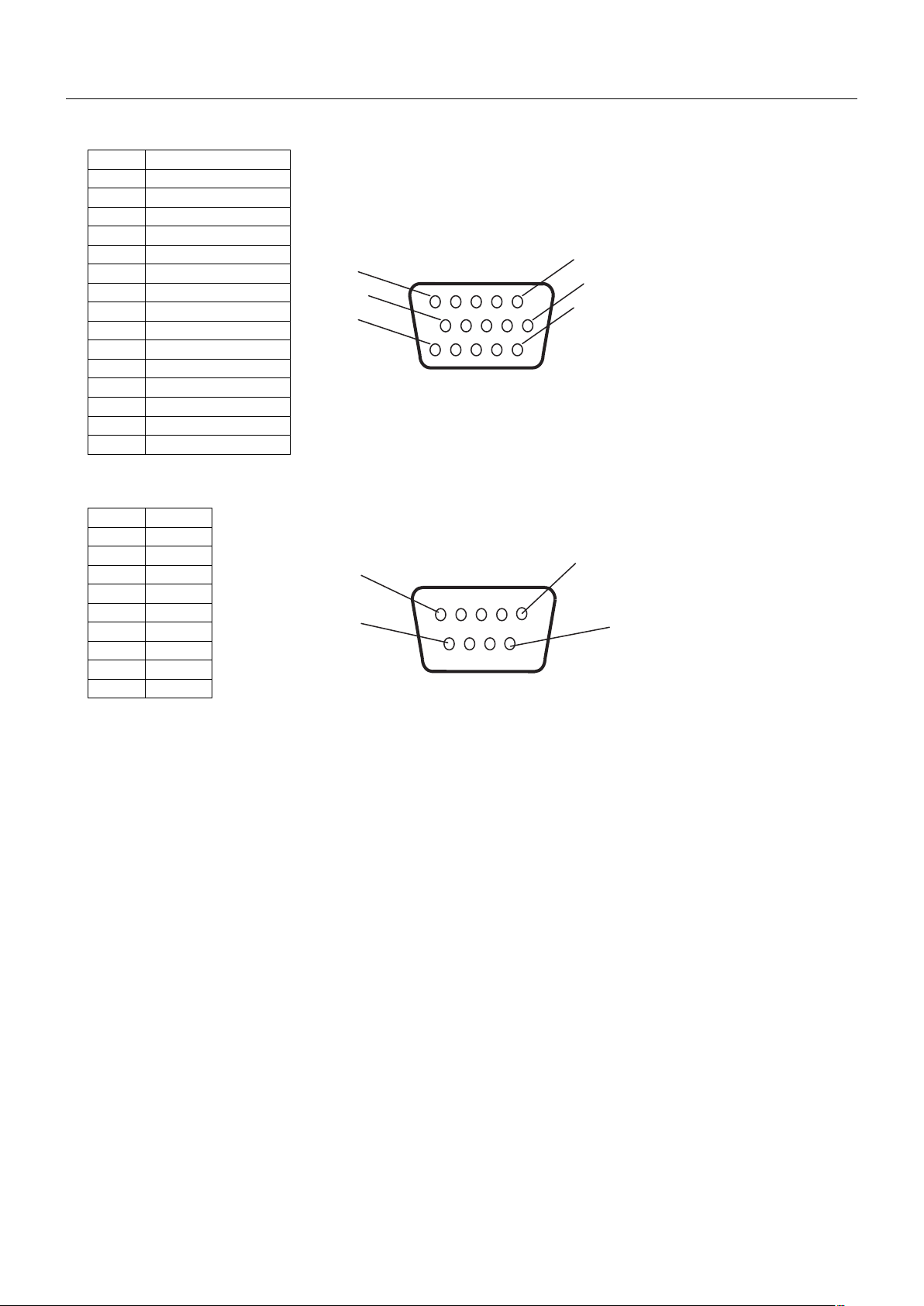

Pin Assignment.............................................................................................................................................	English-54
Manufacturer’s Recycling and Energy Information.......................................................................................	English-55

Declaration of conformity

FCC Information

1.Use the attached specifi ed cables with this display so as not to interfere with radio and television reception.

(1)Please use the supplied power cord or equivalent to ensure FCC compliance.

(2)Please use a good quality shielded video signal cable.

Use of other cables and adapters may cause interference with radio and television reception.

2.This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may fi nd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify

and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Offi ce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.

OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

DisplayPort and DisplayPort Compliance Logo are trademarks owned by the Video Electronics Standards Association.

All other brands and product names are trademarks or registered trademarks of their respective owners.

HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

CRESTRON and ROOMVIEW are registered trademarks of Crestron Electronics, Inc. in the United States and other countries.

GPL/LGPL Software Licenses

The product includes software licensed under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), and others.

For more information on each software, see “readme.pdf” inside the “about GPL&LGPL” folder on the supplied CD-ROM.

English

English-1

Important Information

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have suffi cient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION: Please use the power cord provided with this monitor in accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

	Plug Type	North America	European	U.K.	Chinese	Japanese
			Continental

Plug Shape

	Region	U.S.A./	Taiwan	EU (except U.K.)	U.K.	China	Japan
		Canada
	Voltage	120*	110	230	230	220	100

*When operating the MultiSync monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used.

NOTE: This product can only be serviced in the country where it was purchased.

Use the power cord which has BSMI mark at both ends when you use this monitor in Taiwan.

•The intended primary use of this product is as an Information Technical Equipment in an offi ce or domestic environment.

•The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

English-2

Safety Precautions, Maintenance & Recommended Use

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING

THE MULTI-FUNCTION MONITOR:

•DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualifi ed service personnel.

•Do not spill any liquids into the cabinet or use your monitor near water.

•Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fi re or equipment failure.

•Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fi re.

•Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

•Do not mount this product face up, face down or upside down for an extended period of time as it may cause permanent damage to the screen.

•The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F 3G 1mm2 should be used in Europe)

•In UK, use a BS-approved power cord with molded plug having a black (13A) fuse installed for use with this monitor.

•Do not place any objects onto the monitor and do not use the monitor outdoors.

•Do not bend, crimp or otherwise damage the power cord.

•If glass is broken, handle with care.

•Do not cover vent on monitor.

•Do not use monitor in high temperature, humid, dusty, or oily areas.

•If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

•Allow adequate ventilation around the monitor, so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources.

Do not put anything on top of the monitor.

•The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet, which is easily accessible.

•Do not move or mount this product by hanging a rope or wire to the backside handle.

Do not mount or secure this product by using the backside handle. It may fall and cause personal injury.

•Handle with care when transporting. Save packaging for transporting.

•If using the cooling fan continuously, it is recommended to wipe holes clean a minimum of once a month.

•Please clean the holes of back cabinet to reject dirt and dust at least once a year because of set reliability.

•When using a LAN cable, do not connect to a peripheral device with wiring that might have excessive voltage.

•Do not use monitor under rapid temperature and humidity change condition or avoid cold air from air-conditioning outlet directly, as it may shorten the lifetime of the monitor or cause condensation. If condensation happens, let the monitor stand unplugged until there is no condensation.

Connecting to a TV*

•Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

•The screen of the coaxial cable is intended to be connected to earth in the building installation.

Immediately unplug your monitor from the wall outlet and refer servicing to qualifi ed service personnel under the following conditions:

•When the power supply cord or plug is damaged.

•If liquid has been spilled, or objects have fallen into the monitor.

•If the monitor has been exposed to rain or water.

•If the monitor has been dropped or the cabinet damaged.

•If you notice any structural damage such as cracks or unnatural wobbling.

•If the monitor does not operate normally by following operating instructions.

Recommended Use

•For optimum performance, allow 20 minutes for warm-up.

•Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.

•Position the monitor at a 90° angle to windows and other light sources to minimize glare and refl ections.

•Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

•Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.

•Avoid displaying fi xed patterns on the monitor for long periods of time to avoid image persistence (after image effects).

•Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic benefi ts, we recommend the following:

•Use the preset Size and Position controls with standard signals.

•Use the preset Color Setting.

•Use non-interlaced signals.

•Do not use primary color blue on a dark background, as it is diffi cult to see and may produce eye fatigue due to insuffi cient contrast.

Cleaning the LCD Panel

•When the liquid crystal panel is dusty, please gently wipe with a soft cloth.

•Please do not rub the LCD panel with hard material.

•Please do not apply pressure to the LCD surface.

•Please do not use OA cleaner as it will cause deterioration or discolor on the LCD surface.

Cleaning the Cabinet

•Unplug the power supply

•Gently wipe the cabinet with a soft cloth

•To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.

NOTE: DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of fl uids and materials can cause the paint to deteriorate, crack or peel.

* The product you purchased may not have this feature.

English

English-3

Contents

Your new MultiSync monitor box* should contain the following:

•LCD monitor

•Power cord*1

•Video Signal Cable (DisplayPort cable)

•LAN cable

•Setup Manual

•Clamp x 1 (X464UN/X464UNS/X464UNV)/ x 3 (X554UN/X554UNS/X554UNV)

•Screw with washer (M4 x 10) x 1 (X464UN/X464UNS/ X464UNV)/x 3 (X554UN/X554UNS/X554UNV)

•Thumbscrew for optional stand x 2*2

•CD-ROM

Video Signal Cable

(DisplayPort cable)

Power Cord*1

LAN cable

Screw with washer (M4 x 10)

x 1 (X464UN/X464UNS/X464UNV)/ x 3 (X554UN/X554UNS/X554UNV)

Setup Manual

CD-ROM

Setup Manual

Clamp x 1 (X464UN/X464UNS/

X464UNV)/x 3 (X554UN/

X554UNS/X554UNV)

Thumbscrew for optional stand x 2*2

*Remember to save your original box and packing material to transport or ship the monitor.

*1	Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than one
	power cord is included, please use a power cord that matches the AC voltage of the power outlet and has been approved by
	and complies with the safety standard of your particular country.
*2	Only for X554UN/X554UNS/X554UNV.

Options:

•Wall mount

•Tabletop Stand

•Remote Control Kit (Remote control and sensor)

•Over-frame Kit

English-4

10-12 mm (X464UN/X464UNS/X464UNV)

10-14 mm (X554UN/X554UNS/X554UNV)

under8.5 mm

Unit No gap Mounting Bracket

Screw

Thickness of bracket and washers

No thread 4 mm

Washers

Installation

This device cannot be used or installed without the Tabletop Stand or other mounting accessory for support. For proper installation it is strongly recommended to use a trained, NEC authorized service person. Failure to follow NEC standard mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations could result in voiding the warranty.

Mounting

DO NOT mount the monitor yourself. Please ask dealer. For proper installation it is strongly recommended to use a trained, qualifi ed technician. Please inspect the location

where the unit is to be mounted. Mounting on wall or ceiling is the customer’s responsibility. Not all walls or ceilings are capable of supporting the weight of the unit. Product warranty does not cover damage caused by improper installation, remodelling, or natural disasters. Failure to comply with these recommendations could result in voiding the warranty.

DO NOT block ventilated openings with mounting accessories or other accessories.

For NEC Qualified Personnel:

To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation location.

Please note the following when mounting on wall or ceiling

•When using mounting accessories other than those that are NEC approved, they must comply with the VESAcompatible (FDMlv1) mounting method.

•NEC recommends mounting interfaces that comply with UL1678 standard in North America.

• X464UN/X464UNS/X464UNV:

NEC strongly recommends using size M6 screws

(10-12 mm + thickness of bracket and washer in length). If using screws longer than 10-12 mm,

check the depth of the hole. (Recommended Fasten Force:

470 - 635N•cm). Bracket hole should be under 8.5 mm.

•X554UN/X554UNS/X554UNV: NEC strongly recommends using size M6 screws (10-14 mm + thickness of bracket and washer in length). If using screws longer than

10-14 mm, check the depth of the hole. (Recommended Fasten Force: 470 - 635N•cm). Bracket hole should be under 8.5 mm.

•Prior to mounting, inspect the installation location to insure that it is strong enough to support the weight of the unit so that the unit will be safe from harm.

•Refer to the instructions included with the mounting equipment for detailed information.

•Make sure there is no gap between the monitor and the bracket.

•When used in a video wall confi guration for a longer time, slight expansion of the displays may happen due to temperature changes. Due to this it is recommended that over one millimeter gap is kept between adjacent display edges.

Orientation

•When using the display in the portrait position, the monitor should be rotated clockwise so that the left side is moved to the top, right side is moved to the bottom. This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten the lifetime of the monitor.

Mounting location

•The ceiling and wall must be strong enough to support the monitor and mounting accessories.

•DO NOT install in locations where a door or gate can hit the unit.

•DO NOT install in areas where the unit will be subjected to strong vibrations and dust.

•DO NOT install near where the main power supply enters the building.

•Do not install in where people can easily grab and hang onto the unit or the mounting apparatus.

•When mounting in a recessed area, as in a wall, leave at least 4 inches (100 mm) of space between the monitor and the wall for proper ventilation.

•Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus.

Mounting on ceiling

•Ensure that the ceiling is sturdy enough to support the weight of the unit and the mounting apparatus over time, against earthquakes, unexpected vibrations, and other external forces.

•Be sure the unit is mounted to a solid structure within the ceiling, such as a support beam. Secure the monitor using bolts, spring lock washers, washer and nut.

•DO NOT mount to areas that have no supporting internal structure. DO NOT use wood screws or anchor screws for mounting. DO NOT mount the unit to trim or to hanging

fi xtures.

Maintenance

•Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting apparatus. If a problem is detected, please refer to qualifi ed personnel for service.

•Regularly check the mounting location for signs of damage or weakness that may occur over time.

English-5

English

Attaching Mounting Accessories

The monitor is designed for use with the VESA mounting system.

1. Attach Mounting Accessories

Be careful to avoid tipping monitor when attaching accessories.

For NEC mounting accessory only*1

VESA Mounting Interface (M6)

300 mm (X464UN/ X464UNS/X464UNV) 400 mm (X554UN/ X554UNS/X554UNV)

300 mm (X464UN/

X464UNS/X464UNV)

400 mm (X554UN/

X554UNS/X554UNV)

Mounting accessories can be attached with the monitor in the face down position. To avoid damaging the screen face, place the protective sheet on the table underneath the LCD. The protective sheet was wrapped around the LCD in the original packaging. Make sure there is nothing on the table that can damage the monitor.

When using mounting accessories other than NEC compliant and approved, they must comply with the VESA-compatible mounting method.

*1: X464UN/X464UNV: WM-46UN-L2 or WM-46UN-P. X464UNS: WM-46UN-L3 or WM-46UN-P2. X554UN/X554UNS/X554UNV: WM-55UN-L or WM-55UN-P.

2. Using Option Board

1.Turn off the main power switch.

2.Remove the handle.*2

3.Remove the attached slot cover by unscrewing the installed screws (Figure 1).

4.Insert option board in to the monitor. Attach the slot cover by using the removed screws.

5.Attach the handle.*2

NOTE: Please contact your supplier for available option boards.

Do not apply excessive force to manipulate the optional board before fi xing it with screws.

(Only for X464UN/X464UNS/X464UNV)

Figure 1

*2: Only for X464UN/X464UNS/X464UNV.

3.Installing and removing optional table top stand

CAUTION: Installing and removing the stand must be done by two or more people.

To install, follow those instructions included with the stand or mounting apparatus. Use only those devices recommended by the manufacturer.

NOTE: For X464UN/X464UNS/X464UNV, use ONLY thumbscrews which are included with the optional table top stand.

For X554UN/X554UNS/X554UNV, use ONLY thumbscrews which are included in the monitor.

When installing the LCD monitor stand, handle the unit with care to avoid pinching your fi ngers.

Optional table top stand

Table

Protective Sheet

NOTE: Install the stand so the long end of the feet face forward. Use the ST-322 for the X464UN/ X464UNS/X464UNV and the ST-5220 for the X554UN/X554UNS/X554UNV.

4. Ventilation Requirements

When mounting in an enclosed space or recessed area, leave adequate room between the monitor and the enclosure to allow heat to disperse, as shown below.

Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus; especially when you use monitors in multiple screen.

English-6

5. Prevent Tipping

When using the display with the optional table top stand fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Fasten the cord or chain to the monitor using the provided clamps and screws.

For the X464UN/X464UNS/X464UNV, the clamps and screws are included with the optional table top stand.

640 mm*

100 mm*1

Screw Holes*1

Screw Holes*

Clamp	Cord or chain
	Screw (M4)

*: X554UN/X554UNS/X554UNV *1: X464UN/X464UNS/X464UNV

Before attaching the LCD monitor to the wall, make sure that the wall can support the weight of the monitor.

Be sure to remove the cord or chain from the wall before moving the LCD.

X464UNS and X554UNS only:

Installing Optional Sensor Unit

Fixed by screw: Remove the seal, which is pasted on the bezel you want to set, and then secure the sensor unit using the attached screw.

Fixed by double-sided tape: You can set the sensor unit at any side of the monitor.

NOTE: When installing the sensor on the upper and left sides of the monitor, follow instructions below to avoid damage to the monitor.

Installing on the upper and left side of the monitor.

Fixed by screw: Set the sensor unit close to the back side. Fixed by double-sided tape: Set the sensor unit keeping it 8 mm away from the front edge.

Screw Position

Seal

Double-sided tape

English

8 mm

English-7

Parts Name and Functions

Control Panel

POWER button ( )

Switches the power on/off. See also page 16.

MUTE button (MUTE)

Switches the audio mute ON/OFF.

INPUT button (INPUT)

Acts as SET/POINT ZOOM button within OSD menu. (Toggle switches between [DVI], [DPORT], [HDMI], [VGA] or [Y/Pb/Pr], [SCART]*, [VIDEO]*, [S-VIDEO]*, [HDMI2]*, [HDMI3]*, [RGB/HV]* or [Y/Pb/Pr2]*). These are available input only, shown as their factory preset name.

PLUS button (+)

Acts as (+) button to increase the adjustment with OSD menu. Increases the audio output level when the OSD menu is turned off.

MINUS button (-)

Acts as (-) button to decrease the adjustment with OSD menu. Decreases the audio output level when the OSD menu is turned off.

UP button ()

Activates the OSD menu when the OSD menu is turned-off. Acts as button to move the highlighted area up to select adjustment items within OSD menu.

DOWN button ()

Activates the OSD menu when the OSD menu is turned-off. Acts as button to move the highlighted area down to select adjustment items within OSD menu.

EXIT button (EXIT)

Activates the OSD menu when the OSD menu is turned-off. Acts as EXIT button within the OSD to move to previous menu.

Remote control sensor and Power Indicator

Receives the signal from the remote control (when using the wireless remote control). See also page 11.

Glows green when the LCD monitor is in active mode*. Glows red when the LCD is in POWER OFF mode. Glows amber when the monitor is in Power Save Mode. Green and Amber blink alternately while in Power Standby mode with the “SCHEDULE SETTINGS” function enabled.

When a component failure is detected within the monitor, the indicator will blink red.

* If “OFF” is selected in “POWER INDICATOR” (see page 25), LED will not light when the LCD monitor is in active mode.

Control Key Lock Mode

This control completely locks out access to all Control Key functions. To activate the control key lock function, press both and and hold down simultaneously for more than 3 seconds. To resume user mode, press both and and hold simultaneously for more than 3 seconds.

*: This function depends on which option board you use.

English-8

Terminal Panel

English

Option control unit

From Option control unit

AC IN connector

Connects with the supplied power cord.

Main Power Switch

On/Off switch to turn main power ON/OFF.

EXTERNAL SPEAKER TERMINAL

To output the audio signal from AUDIO 1, DPORT and HDMI. Red terminal is plus (+).

Black terminal is minus (-).

NOTE: This speaker terminal is for 15 W + 15 W (8 ohm) speaker.

AUDIO OUT

To output the audio signal from the AUDIO IN 1, 2, DPORT and HDMI to an external device (stereo receiver, amplifi er, etc.). This connector does not support Headphone terminal.

Service port

This USB slot is for future software upgrades.

LAN port (RJ-45)

LAN connection. See page 32 and 35.

NOTE: Please give priority for use to LAN1.

AUDIO IN 1, 2

To input audio signal from external equipment such as a computer or DVD player.

RS-232C (D-Sub 9 pin)

Connect RS-232C input from external equipment such as a PC in order to control RS-232C functions.

REMOTE IN

Use the optional wired remote control by connecting it to your monitor.

NOTE: Do not use this connector unless specifi ed.

VGA IN (mini D-Sub 15 pin)

To input analog RGB signals from a personal computer or from other RGB equipment. This input can be used with an RGB or COMPONENT source. Please select signal type in TERMINAL SETTING. See page 28.

NOTE: When you use this connector for COMPONENT, please use a suitable signal cable. If you have any questions, please ask your dealer.

DisplayPort connectors

IN connector: To input DisplayPort signals.

OUT connector: To output signal which is displayed. See page 25 VIDEO OUT SETTING.

To output signal which is displayed as a main picture when selected PIP mode. See page 11.

HDMI IN

To input digital HDMI signals.

DVI IN (DVI-D)

To input digital RGB signals from a computer or HDTV device having a digital RGB output.

* This connector does not support analog input.

Option board slot

Slot 2 and slot 3 type accessories are available. Please contact your supplier for detailed information.

NOTE: Please contact your supplier for available option board.

Remote control sensor, AMBIENT LIGHT SENSOR and HUMAN SENSOR

Receives the signal from the Remote control.

Detects the level of ambient light, allowing the monitor to make automatic adjustments to the brightness setting, resulting in a more comfortable viewing experience.

Do not cover this sensor. See page 19.

Detects human presence in front of the monitor. See page 46.

Kensington Lock

For security and theft prevention.

Intelligent wireless data sensor

Sensor for wireless communication of the monitor information and settings.

Rating Label

English-9

Wireless Remote Control (Optional)

POWER button

Switches the power on/standby.

INPUT button

Selects input signal.

DVI: DVI

HDMI: HDMI, HDMI2*2, HDMI3*2

DisplayPort: DPORT

VGA: VGA

Y/Pb/Pr: Y/Pb/Pr, SCART*2, Y/Pb/Pr2*2

RGB/HV*2: RGB/HV

VIDEO*2: VIDEO, S-VIDEO

OPTION: Depends on your connection

PICTURE MODE button

Selects picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA], [CUSTOM1], [CUSTOM2]. See page 18.

HIGHBRIGHT: for moving images such as DVD. STANDARD: for images.

sRGB: for text based images. CINEMA: for movies.

CUSTOM1 and CUSTOM2: activate auto dimming function. See page 29.

ASPECT button

Selects picture aspect, [FULL], [WIDE], [DYNAMIC], [1:1], [ZOOM] and [NORMAL]. See page 17.

AUDIO INPUT button

Selects audio input source [IN1], [IN2], [IN3]*2, [OPTION]*2, [HDMI], [DPORT], [HDMI2]*2, [HDMI3]*2.

OPTION MENU button*1

KEYPAD

Press buttons to set and change passwords, change channel and set REMOTE ID.

ENT button*1

DISPLAY button

Turns on/off the information OSD. See page 18.

MENU button

Turns on/off the menu mode.

AUTO SET UP button

Enters auto setup menu. See page 20.

EXIT button

Returns to previous menu within OSD menu.

UP/DOWN button (/)

Acts as button to move the highlighted area up or down to select adjustment items within OSD menu.

Small screen which adjusted “PIP” mode moves up or down.

MINUS/PLUS (-/+) button

Increases or decreases the adjustment level within OSD menu settings.

Small screen which adjusted “PIP” mode moves left or right and increases or decreases the size.

SET/POINT ZOOM button

Makes selection. Activates POINT ZOOM function when OSD menu is not shown.

VOLUME UP/DOWN button (VOL +/-)

Increases or decreases audio output level.

CH/ZOOM UP/DOWN button (CH/ZOOM +/-)*1

Increases or decreases POINT ZOOM level.

GUIDE button*1

MUTE button

Turns on/off mute function.

STILL button

ON/OFF button: Activates/deactivates still picture mode. STILL CAPTURE button: Captures still picture.

NOTE: This function is released when activating IMAGE FLIP.

IMAGE FLIP button

Toggle switches between H FLIP, V FLIP, 180° ROTATE and NONE. See page 21.

English-10

PIP (Picture In Picture) button

ON/OFF button: Toggle switches between PIP, POP, PICTURE BY PICTURE-ASPECT and PICTURE BY PICTURE-FULL. See page 22.

INPUT button: Selects the “picture in picture” input signal. CHANGE button: Replaces to the main picture and sub picture.

NOTE: Enable to change the sub picture size by pressing SET/POINT ZOOM button during PIP mode.

	Main picture	Connector			Sub picture				DP Out*5
			DPORT*3	DVI	HDMI	VGA	Y/Pb/Pr	OPTION
	DPORT	DisplayPort	No	Yes	Yes	Yes	Yes	Yes	DPORT
	DVI	DVI-D	Yes	No	Yes	Yes	Yes	Yes	DVI
	HDMI	HDMI	Yes	Yes	No	Yes	Yes	Yes	HDMI
	VGA	D-Sub*4	Yes	Yes	Yes	No	No	Yes	-
	Y/Pb/Pr		Yes	Yes	Yes	No	No	Yes	-
	OPTION	Option	Yes	Yes	Yes	Yes	Yes	No	OPTION
	*3: When VIDEO OUT SETTING is ON, DPORT cannot be selected as the sub picture.
	*4: If VGA or Y/Pb/Pr is selected as the main picture, DP out is disabled even when
	VIDEO OUT SETTING is ON.
	*5: DP out can output signal only when VIDEO OUT SETTING is ON.

REMOTE ID button

Activates REMOTE ID function.

MTS button*1

button*1

Activates closed captioning.

NOTE: VIDEO*2, S-VIDEO*2 inputs only.

*1: This button’s action depends on which option board you use. Refer to the option board’s manual for further information.

*2: This function depends on which option board you use.

Operating Range for the Optional Remote Control

Point the top of the remote control toward the sensor unit’s remote control sensor in optional control kit during button operation.

Use the remote control within a distance of about 7 m (23 ft.) from remote control sensor or at a horizontal and vertical angle of within 30° within a distance of about 3.5 m (10 ft.).

Caution: Important, the remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor or when there is an object in the path.

Handling the remote control

•Do not subject to strong shock.

•Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.

•Avoid exposure to heat and steam.

•Other than to install the batteries, do not open the remote control.

English

English-11

Setup

1. Determine the installation location

CAUTION: Installing your LCD monitor must be done by a qualifi ed technician. Contact your dealer for more information.

CAUTION: MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE BY TWO OR MORE PEOPLE. Failure to follow this caution may result in injury if the LCD monitor falls.

CAUTION: Do not mount or operate the monitor upside down, face up or face down.

CAUTION: This LCD has a temperature sensor and cooling fan, including a fan for the option board.

If the LCD becomes too hot, the cooling fan will turn on automatically.

The option board’s fan is active although the temperature is lower than normal operating temperature for cooling the option board. If the LCD becomes overheated while the cooling fan is running, a “Caution” warning will appear. If the “Caution” warning appears, discontinue use and allow the unit to cool. Using the cooling fan will reduce the likelihood of early circuit failure and may help reduce image degradation and “Image Persistance”.

If the LCD is used in an enclosed area or if the LCD panel is covered with a protective screen, please check the inside temperature of the monitor by using the “HEAT STATUS” control in the OSD (see page 26). If the temperature is higher than the normal operating temperature,

please turn the cooling fan to ON within the FAN CONTROL menu within the OSD (see page 26).

IMPORTANT: Lay the protective sheet, which was wrapped around the LCD monitor when it was packaged, beneath the LCD monitor so as not to scratch the panel.

2.Install the remote control (Optional) batteries

The remote control is powered by two 1.5V AAA batteries. To install or replace batteries:

A.Press and slide to open the cover.

B.Align the batteries according to the (+) and (–) indications inside the case.

C.Replace the cover.

CAUTION: Incorrect usage of batteries can result in leaks or bursting.

NEC recommends the following battery use:

•Place “AAA” size batteries matching the (+) and (-) signs on each battery to the (+) and (-) signs of the battery compartment.

•Do not mix battery brands.

•Do not combine new and old batteries. This can shorten battery life or cause liquid leakage of batteries.

•Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.

•Do not touch exposed battery acid, it may injure skin.

NOTE: If you do not intend to use the Remote Control for a long period of time, remove the batteries.

3. Connect external equipment (See pages 14 and 15)

•To protect the external equipment; turn off the main power before making connections.

•Refer to your equipment user manual for further information.

NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a loss of the monitor image.

4. Connect the supplied power cord

•The equipment should be installed close to an easily accessible power outlet.

•Please fasten power cord to the LCD monitor by attaching the screw and clamp.

•Fully insert the prongs into the power outlet socket. A loose connection may cause image degradation.

NOTE: Please refer to the “Safety Precautions and Maintenance” section of this manual for proper selection of AC power cord.

Screw

Clamp

English-12

5.Switch on the power of all the attached external equipment

When connected with a computer, switch on the power of the computer fi rst.

6. Operate the attached external equipment

Display the signal from the desired input source.

7. Adjust the sound

Make volume adjustments when required.

8. Adjust the screen (See pages 20 and 21)

Make adjustments of the screen display position when necessary.

9. Adjust the image (See page 20)

Make adjustments such as backlight or contrast when required.

10. Recommended Adjustments

To reduce the risk of the “Image Persistence”, please adjust the following items based on the application being used: “SCREEN SAVER”, “SIDE BORDER COLOR” (See page 26) “DATE & TIME”, “SCHEDULE SETTINGS” (See page 22).

It is recommended that the “FAN CONTROL” setting (See page 26) be turned to ON also.

English

English-13

Connections

NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a loss of the monitor image.

NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.

Before making connections:

*First turn off the power of all the attached equipment and make connections.

*Refer to the user manual included with each separate piece of equipment.

Wiring Diagram

DVD Player

Second monitor*

Solid lines = video signal

Dotted lines = audio signal

Stereo Amplifi er

Computer (Analog)

Computer (Digital)

*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.

	Connected	Connecting	Setting in terminal mode	Input signal name	Connecting	Input button
	equipment	terminal			audio terminal	in remote control
		DisplayPort	RAW/EXPAND*1	DP	DPORT	DisplayPort
		DVI (DVI-D)	DVI-HD	DVI	AUDIO IN1/IN2	DVI
	AV	HDMI	RAW/EXPAND*1	HDMI	HDMI	HDMI
		VGA (D-Sub)	D-SUB MODE RGB	VGA	AUDIO IN1/IN2	RGB/HV
		VGA (D-Sub)	D-SUB MODE COMPONENT	COMPONENT	AUDIO IN1/IN2	Y/Pb/Pr
		Option	RAW/EXPAND*1	OPTION	OPTION	OPTION
		DisplayPort	RAW/EXPAND*1	DP	DPORT	DisplayPort
		DVI (DVI-D)	DVI-PC	DVI	AUDIO IN1/IN2	DVI
	PC	HDMI	RAW/EXPAND*1	HDMI	HDMI	HDMI
		VGA (D-Sub)	-	VGA	AUDIO IN1/IN2	RGB/HV
		Option	RAW/EXPAND*1	OPTION	OPTION	OPTION

*1: depend on signal type.

English-14

Connecting a Personal Computer

Connecting your computer to your LCD monitor will enable you to display your computer’s screen image. Some display cards may not display an image correctly.

Your LCD monitor displays proper image by adjusting the factory preset timing signal automatically.

<Typical factory preset signal timing>

Resolution	Scanning frequency		Remarks
	Horizontal	Vertical
640 x 480	31.5 kHz	60 Hz
800 x 600	37.9 kHz	60 Hz
1024 x 768	48.4 kHz	60 Hz
1280 x 768	48 kHz	60 Hz
1360 x 768	48 kHz	60 Hz
1280 x 1024	64 kHz	60 Hz
1600 x 1200	75 kHz	60 Hz	Compressed image
1920 x 1080	67.5 kHz	60 Hz	Recommended resolution

•If you use with a Macintosh PowerBook, set “Mirroring” to Off on your PowerBook.

Refer to your Macintosh’s owner’s manual for more information about your computer’s video output requirements and any special identifi cation or confi guration your monitor’s image and monitor may require.

•Input TMDS signals conforming to DVI standards.

•To maintain display quality, use a cable that conforms to DVI standards.

Connecting a DVD Player or Computer with HDMI out

•Please use an HDMI cable with HDMI logo.

•It may take a moment for the signal to appear.

•Some display cards or drivers may not display an image correctly.

•When you use a computer with HDMI out, please set OVER SCAN to “OFF” (see page 28).

Connecting a Computer with DisplayPort

•Please use DisplayPort cable with DisplayPort compliance logo.

•It may take a moment for the signal to appear.

•Please note that when connecting a DisplayPort cable to a component with a signal conversion adapter, an image may not appear.

•Select DisplayPort cables feature a locking function. When removing this cable, hold down the top button to release the lock.

English

English-15

Basic Operation

Power ON and OFF Modes

The LCD monitor power indicator will turn green while powered on and will turn red or amber while powered off.

NOTE: The Main Power Switch must be in the ON position in order to power up the monitor using the remote control or the Power Button.

OFF

Main Power Switch

ON

Power Button

Using the optional remote control

English-16
