Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96

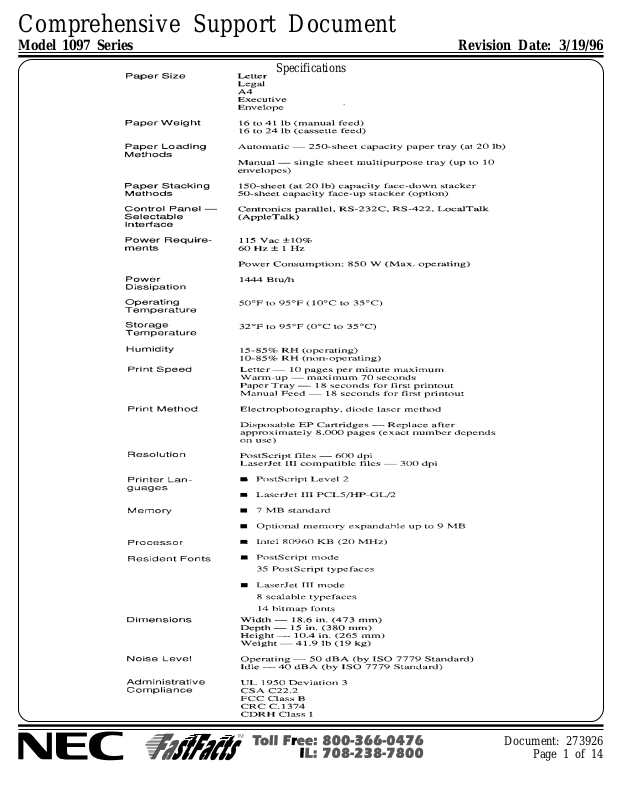

Specifications
Document: 273926
Page 1 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Software Driver and technical information
Model 1097 Select HP laserjet III if using in the HP emulation mode.
Model 1097 Select postscript or NEC 1097 if using in the postscript mode.
WIN31ALL.EXE is the Windows 3.1x driver, and can be download from one of the on-line services.
95-1097.EXE is the Windows 95 driver and can be download from one of the on-line services.
The driver for the MAC is PSPRT811.SEA this can be downloaded from America On-line and the NEC
BBS. If you need just a PPD file download NECPPDS
NECBBS 508-635-4706
America On-line keyword NECTECH
Microsoft Network keyword NECTECH
ftp site ftp.nectech.com
webpage www.nec.com
Compuserve go NECTECH
Fax Option for Win 95
At the present time NEC is not planning to offer updated PostScript Fax drivers for Windows 95.
Adobe Systems, the developer of the original PS Fax software has decided not to offer a Win95
compatible PS Fax driver. PostScript Fax was offered on NEC Silentwriter models 95, 97, and 1097.
All three models have been discontinued.
PCPanel for Win 95
Because of significant technical changes required to update the current PcPanel software for Win95,
as well as having limited resources, NEC Technologies, Inc. currently does not have plans to offer
updates to this Software.
QuickDraw GX Drivers Macintosh
Due to QDGX's limited acceptance in the Macintosh market and the amount of development effort
required to develope QDGX drivers for older model printers, NECTECH currently does not have plans
to offer QDGX drivers for older NEC printers. However it important to know that these printers can
function with the existing LaserWriter GX drivers which Apple ships with System 7.5.x. Apple ships an
extension called Desktop Print Monitor. This ships with 7.5.2 operating system and Apples 8.3 driver
and supports drag and drop, and True Type GX fonts.
To order parts for this printer please call 800-233-6321 in the U.S. and 800-727-2787 in Canada.
A second source for parts, manuals and supplies is Good Impressions at 800-370-9500 or 617-935-9500
Part number for user’s guide 808-870536-500A
Document: 273926
Page 2 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
SCSI
Parallel
RS-232
Document: 273926
Page 3 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Memory Switch Settings
Document: 273926
Page 4 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Memory Switch Settings (Cont'd)
Document: 273926
Page 5 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Memory Switch Settings (Cont'd)
Document: 273926
Page 6 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Memory Switch Settings (Concl'd)
Document: 273926
Page 7 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Error and Status Codes
Document: 273926
Page 8 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Control and Escape Codes
Document: 273926
Page 9 of 14
Comprehensive Support Document
m
Model 1097 Series Revision Date: 3/19/96
Table 4-8 lists the Silentwriter Model 1097 options.
Table 4-8 Silentwriter Model 1097 Options
Description Easy Order
Number
Options
Upper Paper Cassettes
Letter 8.5-in. x 11-in, (217mm x 280mm)9503 808-871314-001A
Legal 8.5-in. x 14-in. (217mm x 356mm)9504 808-871314-003A
4-MB Memory Expansion Module Kit
Face-Up Tray
Lower Paper Cassette Unit
Lower Paper Cassette (Universal)
Consumables
EP cartridge
9513
9509
9707
9508
20-555
Stocking ID Nu
135-005729-005A
808-871313-100A
808-871307-020A
808-871307-200A
808-870035-200A
Ozone filter
Fuser Roller Cleaner
FAX option kit
Ethernet LANCruiser Network board (10BASE-T)
Token Ring LANCruiser Network board (10BASE-2)
-
-
9514
9515
9516
808-821376-012A
808-861801-001A
135-006381-001A
158-051205-000
158-051206-000
Document: 273926
Page 10 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
This subsection contains the illustrated parts breakdown (IPB) and NEC part numbers for the Silentwriter
model 1097 printer. Tables 4-9 and 4-10 list the field-replaceable parts for the printer. Figures 4-50 and 4-51
show the illustrated parts breakdown
Table 4-9 Model 1097 Field-Replaceable Parts for Figure 4-50
Item Description Part Number
1 Left Side Cover 808-821160-007A
2 AC Power Cord 808-802104-015A
3 Laser Unit (Shoulder) Screw (3) 808-821163-003A
4 Laser Unit Pressure Spring (2) 808-821163-001A
5 Laser Unit (Print Head Assy) 808-821386-350A
6 Ozone Filter 808-821376-012A
7 Print Head Fan Motor 808-821376-013A
8 Left Rear Cover Assembly 808-821474-005A
9 Upper Unit Top Cover 808-821160-008A
9 a Upper Eject Roller 808-821376-002A
9 b Lower Eject Roller 808-821376-014A
10 Left Lock Lever 808-821161-011A
11 Lock Lever Torsion Spring 808-821161-012A
12 Right Lock Lever 808-821161-014A
13 Power Supply Top Cover 808-821160-015A
14 Font Cartridge Cover Assembly 808-821474-006A
15 Support Assembly Screw (2) 135-783671-A
16 Control Panel 808-812472-001A
17 Control Panel Front Cover 808-821474-003A
18 Left Frame 808-821377-016A
19 Lever 808-821165-011A
20 Left Guide (green) 808-821165-010A
Document: 273926
Page 11 of 14
Comprehensive Support Document
Model 1097 Series Revision Date: 3/19/96
Figure 4-50 Silentwriter Model 1097 Illustrated Parts Breakdown (Sheet 1 of 2)
Document: 273926
Page 12 of 14
Comprehensive Support Document
n
Model 1097 Series Revision Date: 3/19/96
Table 4-10 Model 1097 Field-Replaceable Parts for Figure 4-51
Item Description Part Number
1 Pick-up Roller (2) 808-821378-025A
1 a Pick-up Roller Clutch Assembly 808-821378-030A
2 Paper Empty Sensor 808-821378-017A
3 Separator Assembly 808-821382-024A
4 Toner Empty Sensor PCB 808-821382-010A
5 Paper Exit Sensor 808-821162-007A
6 Paper Size Switches (3) 808-821162-004A
7 Fuser Roller Cleaner 808-861801-001A
8 Fuser Unit Assembly 808-821380-115A
9 Lower Rear Guide 808-821162-022A
10 Upper Guide Plate 808-821378-007A
11 Transfer Corona Assembly 808-821377-100A
12 Synchronizing Roller Assembly 808-821377-200A
13 Manual Feed Sensor 808-821382-007A
14 Multi-Purpose Tray Guide Assembly 808-821382-900A
14 a Manual Feed Pick Roller 808-821382-002A
14 b SL4 Manual Feed Solenoid (see Appendix C for solenoid locations)808-821382-019A
14 c SL3 Transport Solenoid (see Appendix C for solenoid locations)808-821382-015A
15 Drive Unit (with Motor) 808-821379-500A
16 Power Supply Assembly 808-821381-115A
16 a DC Fan Motor 808-821091-001A
17 Power Supply Cable Cover 808-821381-007A
18 Mechanical Control PCB 808-821377-013A
19 DC Power Cable 808-858691-001A
20 Video Interface Cable 808-858692-001A
20 a RS-232C Interface Cable 808-740581-001A
21 Photomatch Board (G8LGU) 135-432986-001B
22 a 2-MB Memory Expansion Module (G8NLP) 135-433056-001A
22 b 4-MB Memory Expansion Module (GBJAK) 135-432961-001A
23 G8NQX Controller PCB without 2- and 4-MB Memory Expansion
Module or Photomatch Board
24 Density Knob 808-821167-011A
24 a Density Knob PCB 808-821379-012A
25 Right Gear Cover 808-821377-010A
26 Left Gear Cover 808-821377-015A
27 SL1 Pick-up Solenoid (see Appendix C for solenoid locations)808-821378-021A
28 SL2 Synchronization Solenoid (see Appendix C for solenoid locatio
29 FAX board 135-006381-001A
30 PostScript FAX User's Guide 819-151092-001
31 PostScript FAX Software Kit 819-050045-000
32 Ethernet LANCruiser board (10BASE-T) 158-051205-000
33 Token Ring LANCruiser board (10BASE-2) 158-051206-000
135-433060-001A
808-821378-020A
Document: 273926
Page 13 of 14
Comprehensive Support Document
Model 1097 Series Service Manual: 819-180744-000 Rev. 00 Revision Date: 3/19/96
Figure 4-51 Silentwriter Model 1097 Illustrated Parts Breakdown (Sheet 2 of 2)
Document: 273926
Page 14 of 14
