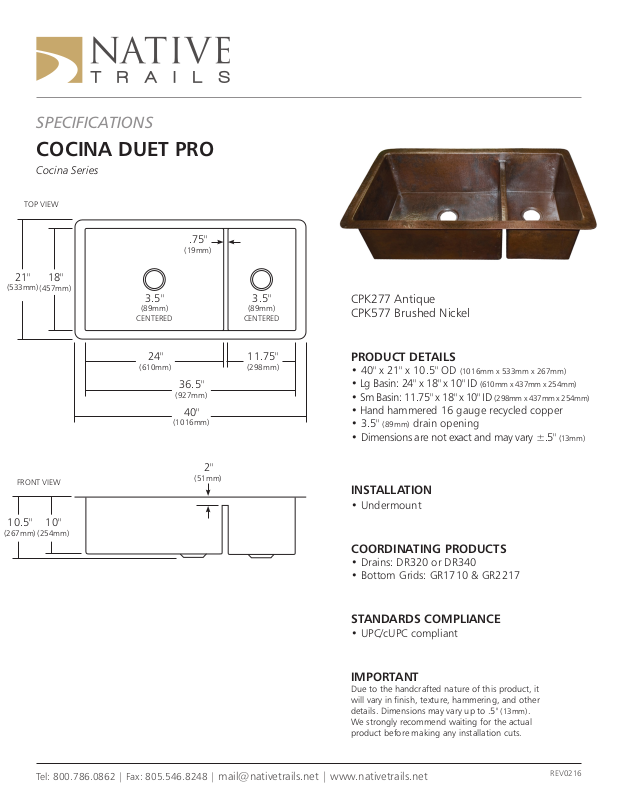

SPECIFICATIONS
COCINA DUET PRO
Cocina Series
TOP VIEW
.75"
(19mm)
21"
(533mm)
FRONT VIEW
10.5"
(267mm)
18"
(457mm)
10"
(254mm)
3.5"
(89mm)
CENTERED
24"
(610mm)
36.5"
(927mm)
40"
(1016mm)
(51mm)
2"
3.5"
(89mm)
CENTERED
11.75"
(298mm)
CPK277 Antique
CPK577 Brushed Nickel
PRODUCT DETAILS
• 40" x 21" x 10.5" OD (1016mm x 533mm x 267mm)
• Lg Basin: 24" x 18" x 10" ID (610mm x 437mm x 254mm)
• Sm Basin: 11.75" x 18" x 10" ID (298mm x 437mm x 254mm)
• Hand hammered 16 gauge recycled copper
• 3.5" (89mm) drain opening
• Dimensions are not exact and may vary ±.5" (13mm)
INSTALLATION
• Undermount
COORDINATING PRODUCTS
• Drains: DR320 or DR340
• Bottom Grids: GR1710 & GR2217
STANDARDS COMPLIANCE
• UPC/cUPC compliant
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to .5" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248 | mail@nativetrails.net | www.nativetrails.net
REV0216
