MSI MS-6398, 845 Ultra, 845 Ultra-AR, 845 Ultra-ARU Technical Manual

i

Version 2.0

G52-MA00516

MS-6398 (v2.X) ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

845 Ultra

ii

Manual Rev: 2.0
Release Date: Dec. 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6398

Tested to comply

with FCC Standard

For Home or Office Use

iii

Edition

Dec. 2001

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.

Trademarks

All trademarks used in this manual are the property of their respective owners.

Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95/98/2000 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

V 2.0 Changing to Full ATX Dec. 2001

form factor

iv

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri­cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

l The power cord or plug is damaged
l Liquid has penetrated into the equipment
l The equipment has been exposed to moisture
l The equipment has not work well or you can not get it work according

to User’s Manual.

l The equipment has dropped and damaged
l If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT
MAY DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

CONTENTS

Chapter 1. Getting S tarted ........................................................................ 1-1

Mainboard Specification ......................................................................1-2

Mainboard Layout ...............................................................................1-4

Quick Components Guide .................................................................... 1-7

Key Features ........................................................................................ 1-8

Chapter 2. Hardware Setup ....................................................................... 2-1

Central Processing Unit: CPU .............................................................. 2-2

CPU Installation Procedures ......................................................... 2- 2

Installing the CPU Fan .................................................................. 2- 3

CPU Core Speed Derivation Procedure .........................................2 - 4

Memory ................................................................................................ 2-5

Introduction to DDR SDRAM.......................................................2 - 5

DDR Module Combination ............................................................ 2-6

Installing DDR Modules ............................................................... 2- 6

Power Supply ....................................................................................... 2-7

A TX 20-Pin Power Connector: JWR1 ............................................ 2-7

A TX 12V Power Connector: JPW1 ................................................2-7

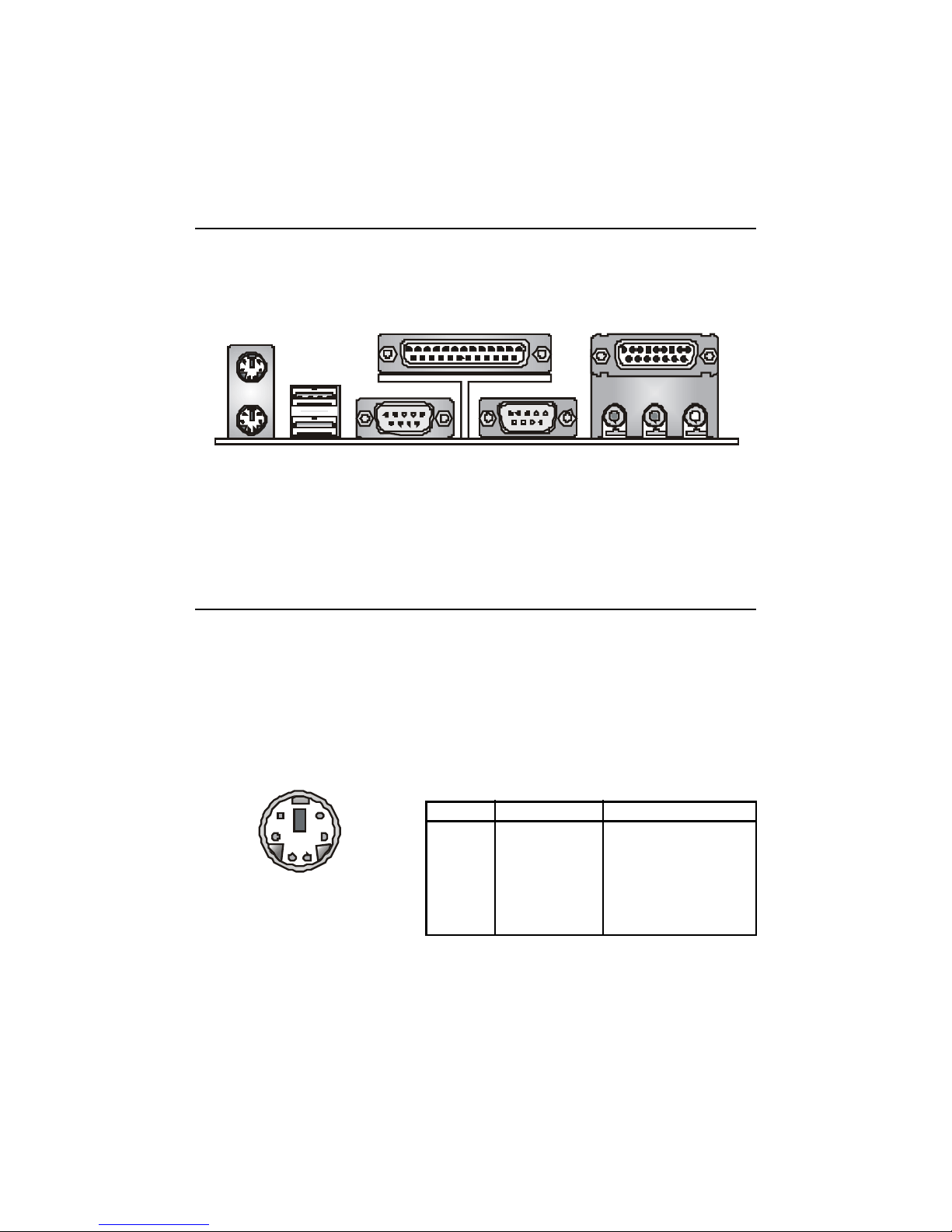

Back Panel ............................................................................................ 2-8

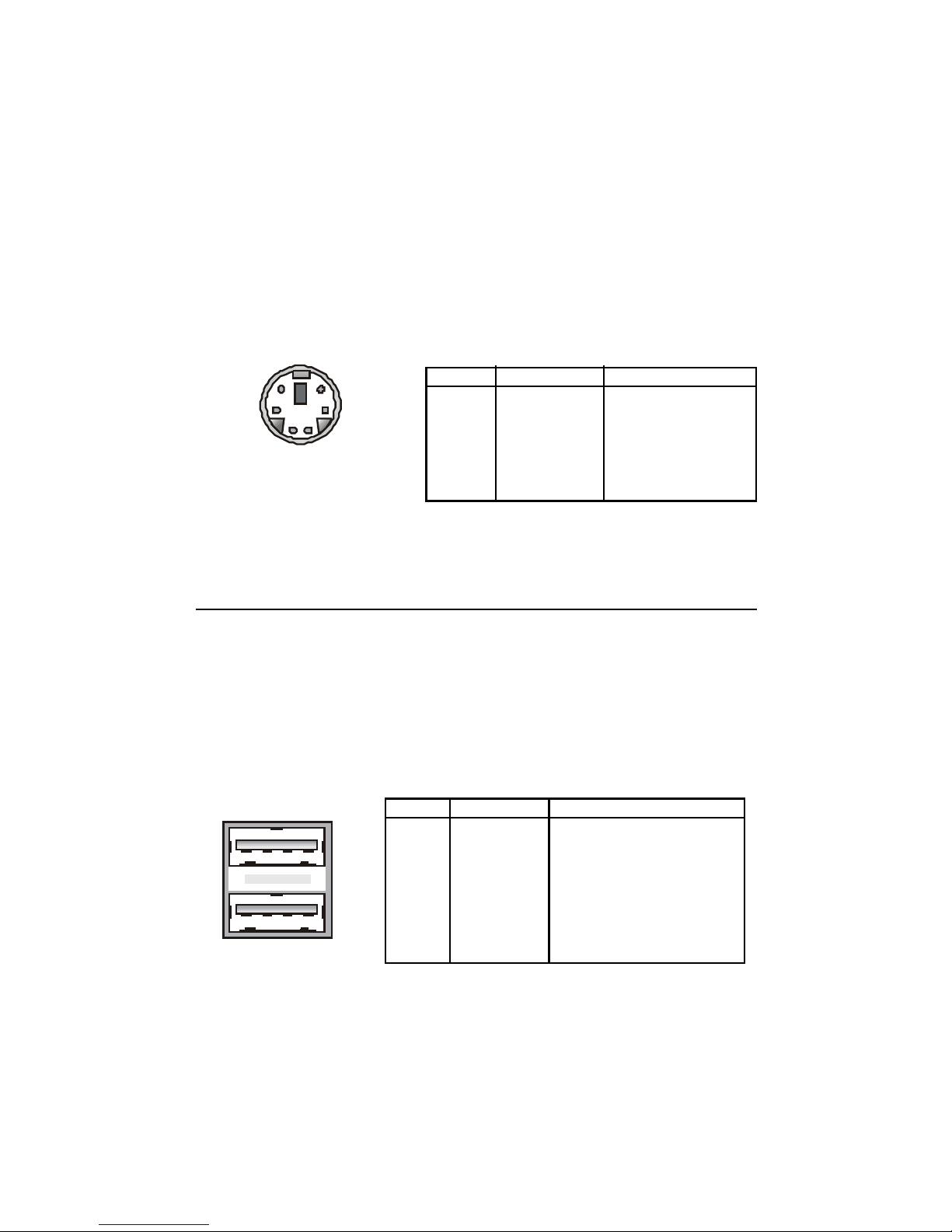

Mouse Connector: JKBMS1 ......................................................... 2- 8

Keyboard Connector: JKBMS1 .....................................................2-9

USB Connectors............................................................................2 - 9

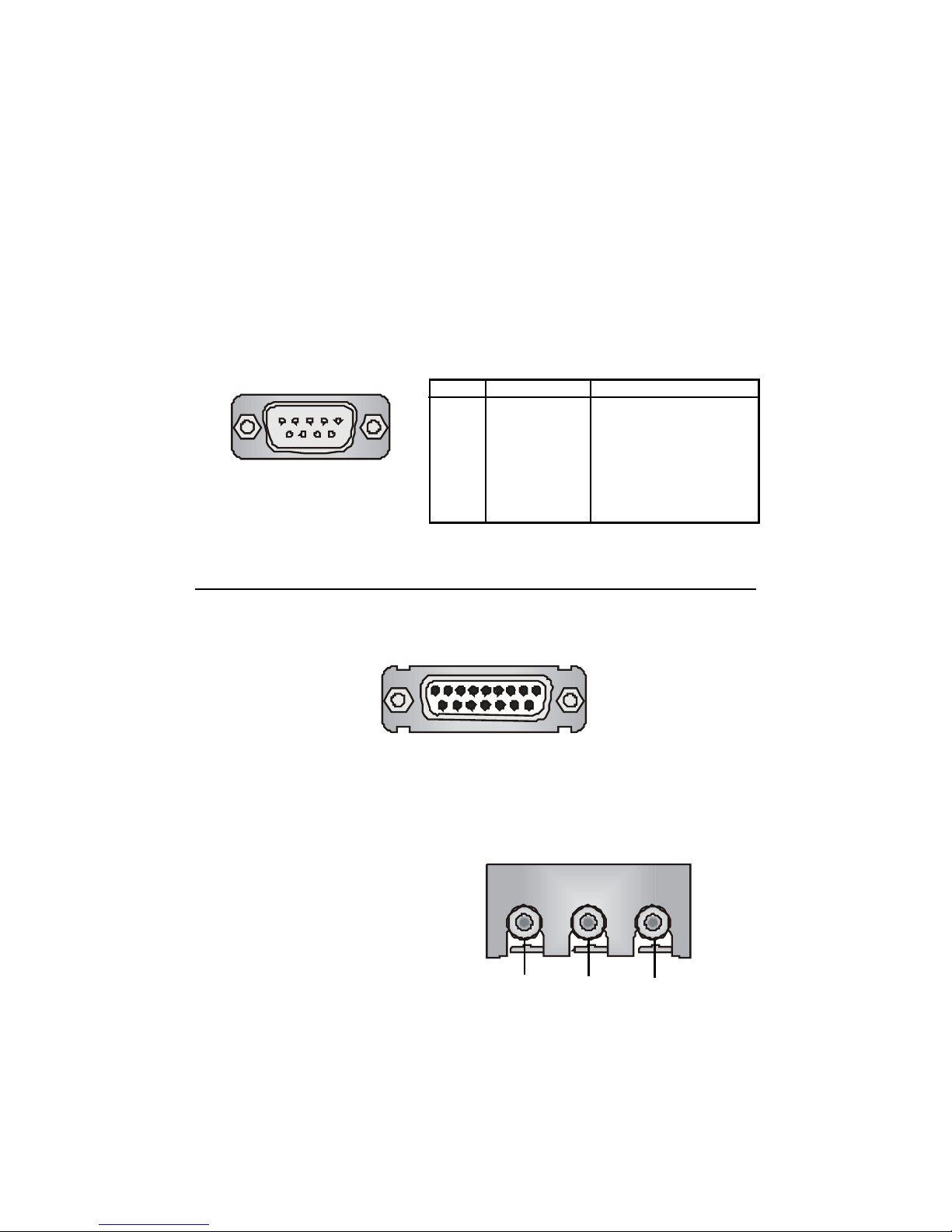

Serial Port Connector: COM A & COM B .................................... 2-10

Joystick/Midi Connectors ........................................................... 2-10

Audio Port Connectors ............................................................... 2-10

vi

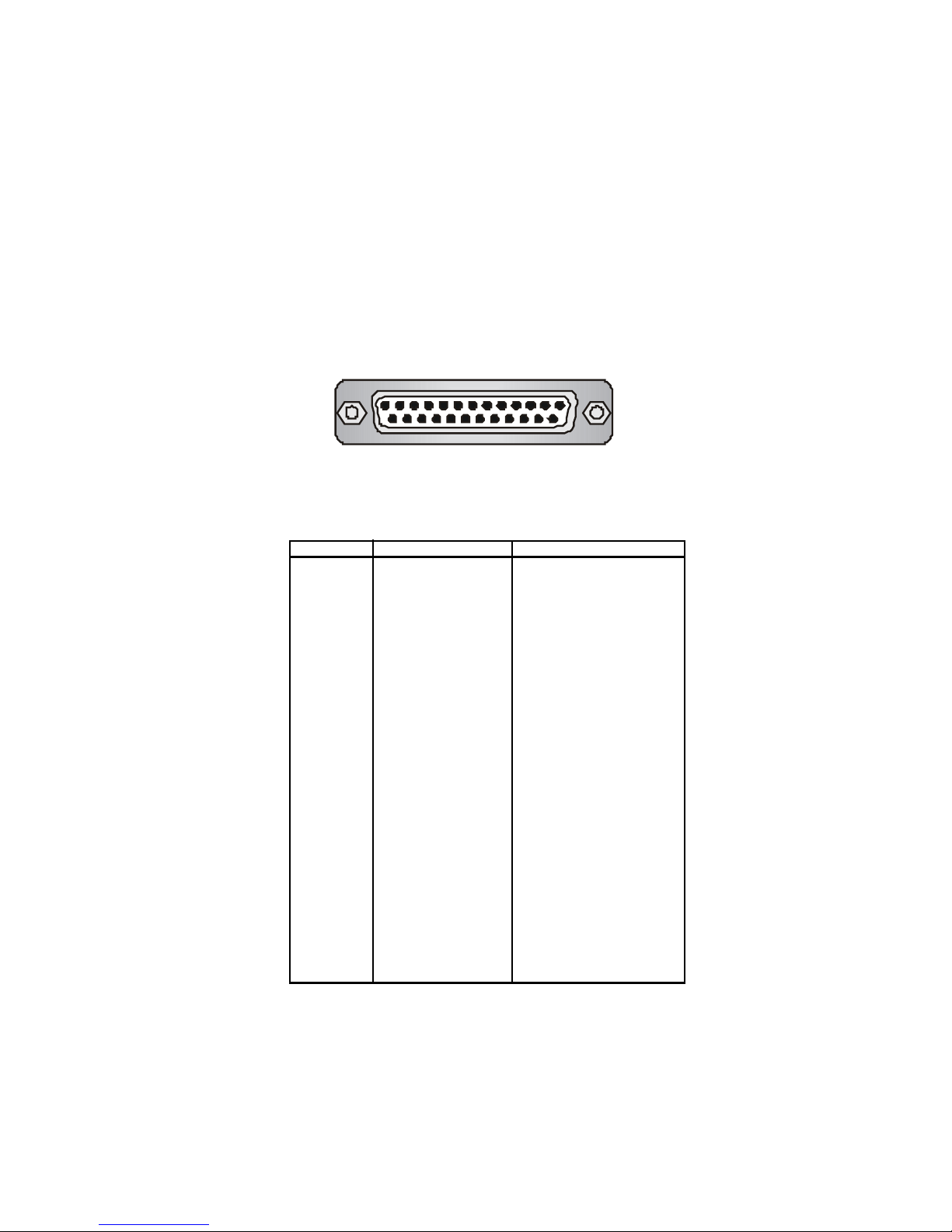

Parallel Port Connector: LPT1...................................................... 2-11

Connectors......................................................................................... 2-12

Floppy Disk Drive Connector: FDD1...........................................2-12

IrDA Infrared Module Header: IR2 .............................................. 2-12

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-13

A T A133 RAID Connectors: IDE3 & IDE4 ................................... 2-14

CD-In Connector: JCD1 ............................................................... 2-15

Aux Line-In Connector: JAUX1 .................................................. 2-15

Modem-In Connector: JPHN1 ..................................................... 2-15

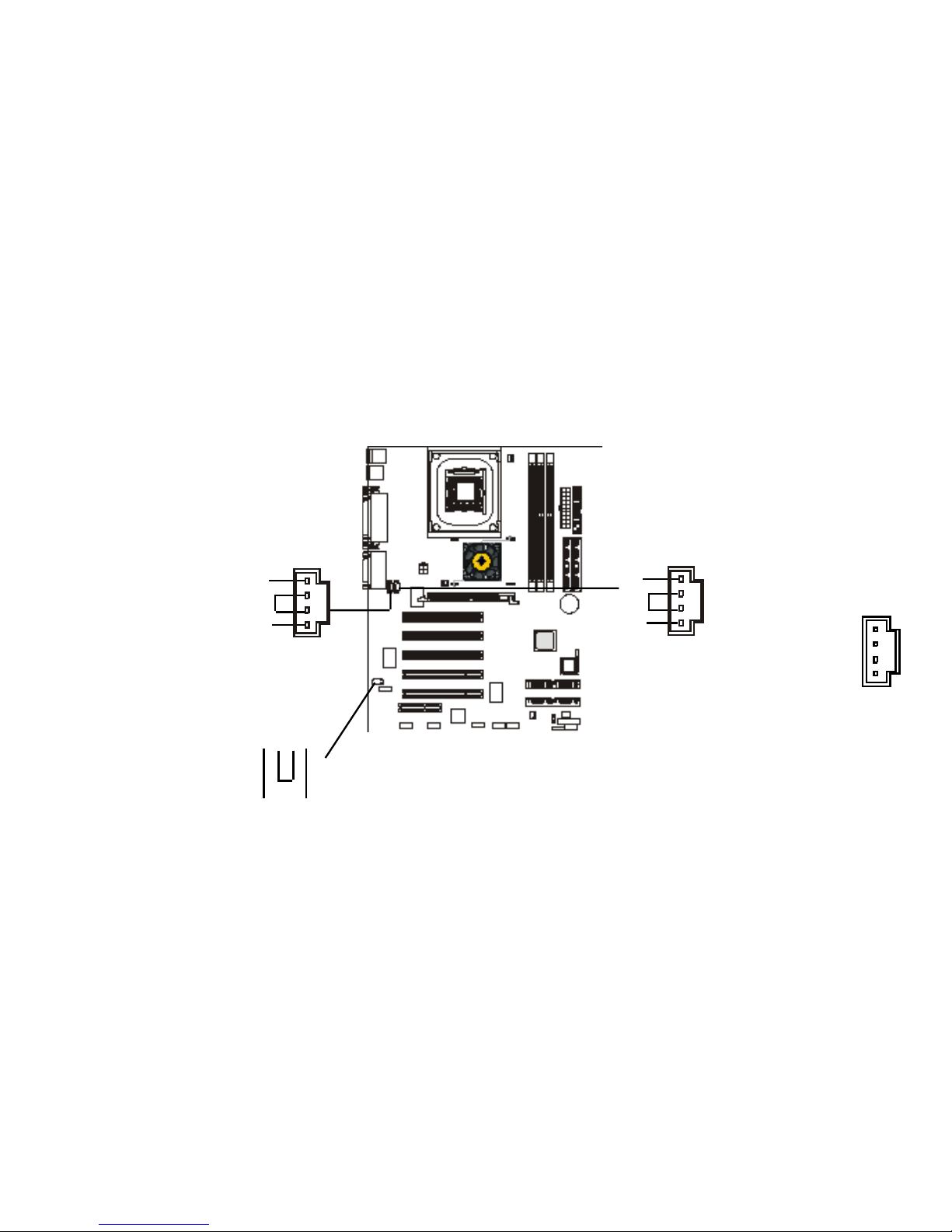

Fan Power Connectors: CF AN1/SFAN1/J7.................................. 2-16

W ake On Ring Connector: JMDM1.............................................2-17

W ake On LAN Connector: JWOL1.............................................. 2-17

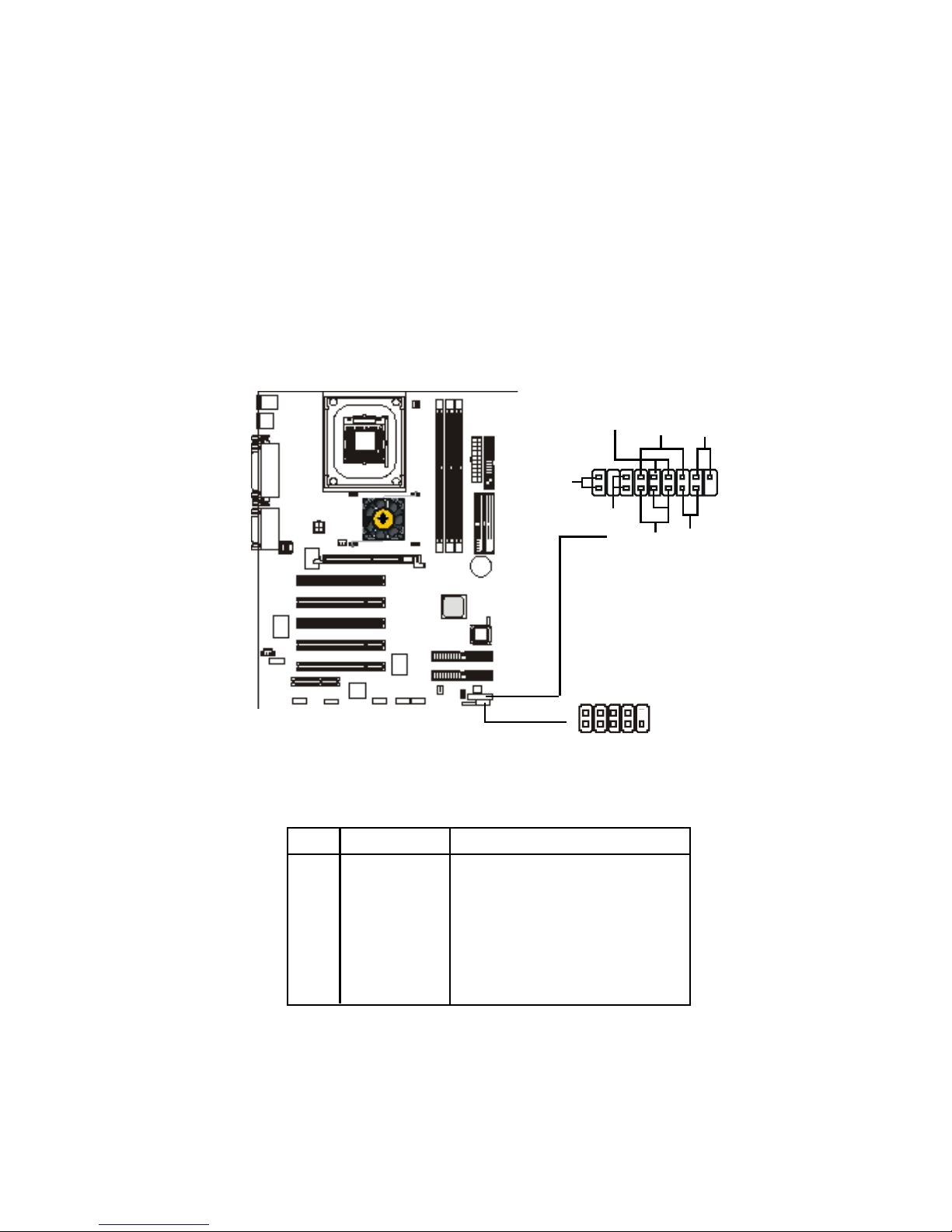

Front Panel Connector: JFP1 or F_P2 .......................................... 2-18

Front Panel Audio Connector: JAU1 ........................................... 2-19

Front USB Connectors: JUSB2/3/4 & USB3 ................................ 2-20

Jumpers .............................................................................................. 2-24

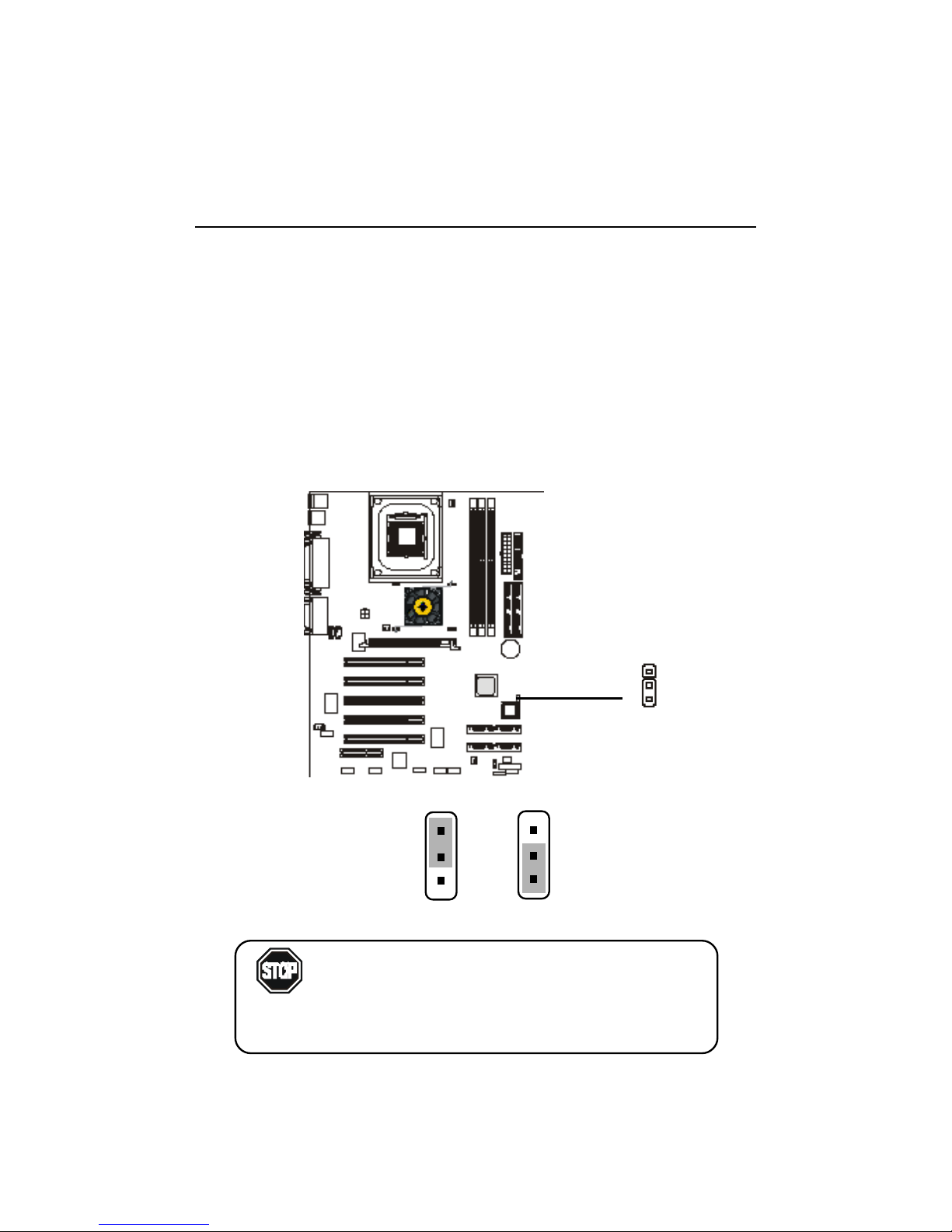

Clear CMOS Jumper: JBA T1........................................................ 2-24

Slots ................................................................................................... 2-25

AGP (Accelerated Graphics Port) Slot......................................... 2-25

PCI Slots...................................................................................... 2-25

CNR (Communication Network Riser) ......................................... 2-26

PCI Interrupt Request Routing .................................................... 2-26

Chapter 3. BIOS Setup.............................................................................. 3-1

Entering Setup......................................................................................3 - 2

Control Keys ................................................................................. 3- 2

Getting Help .................................................................................. 3-3

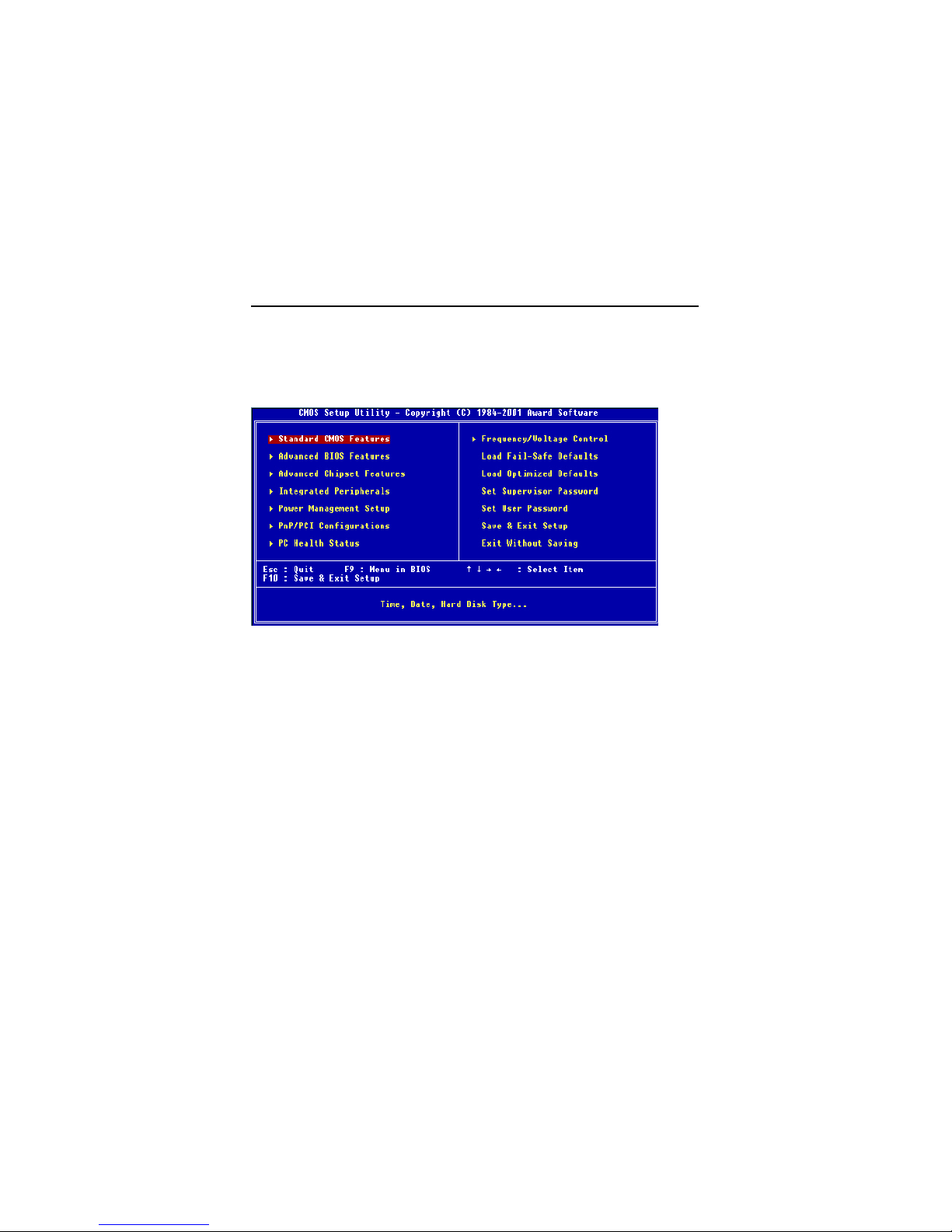

The Main Menu ................................................................................... 3-4

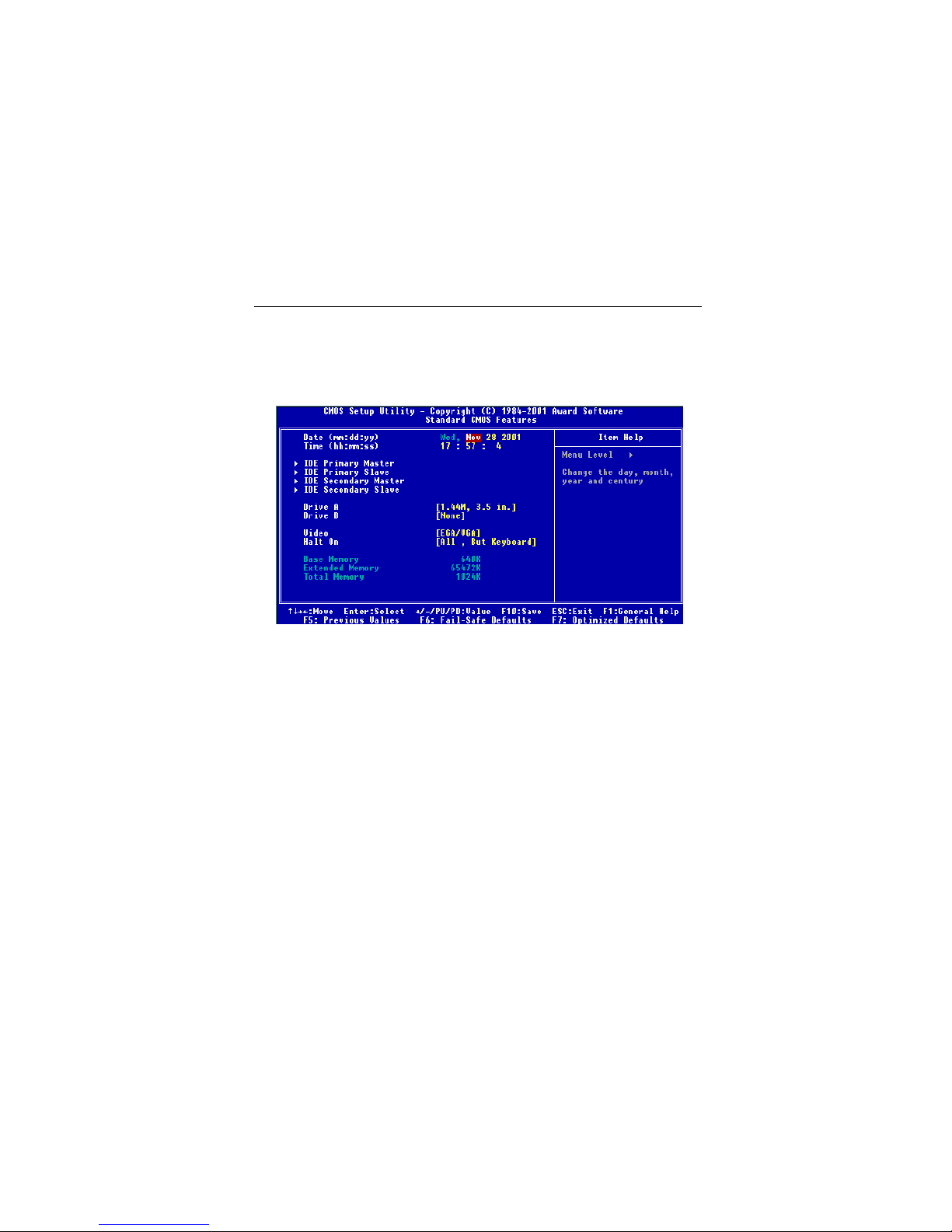

Standard CMOS Features .................................................................... 3-6

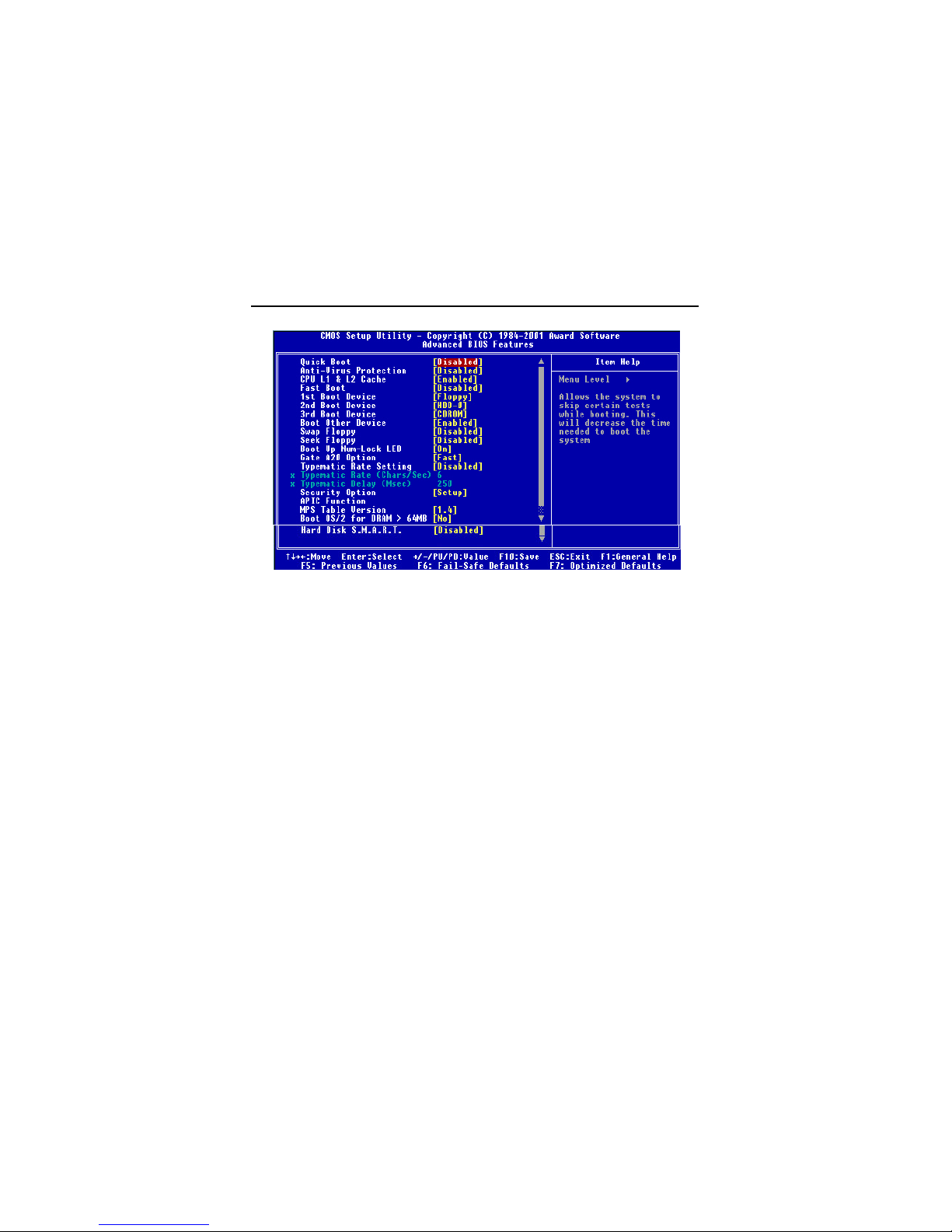

Advanced BIOS Features .................................................................... 3-8

vii

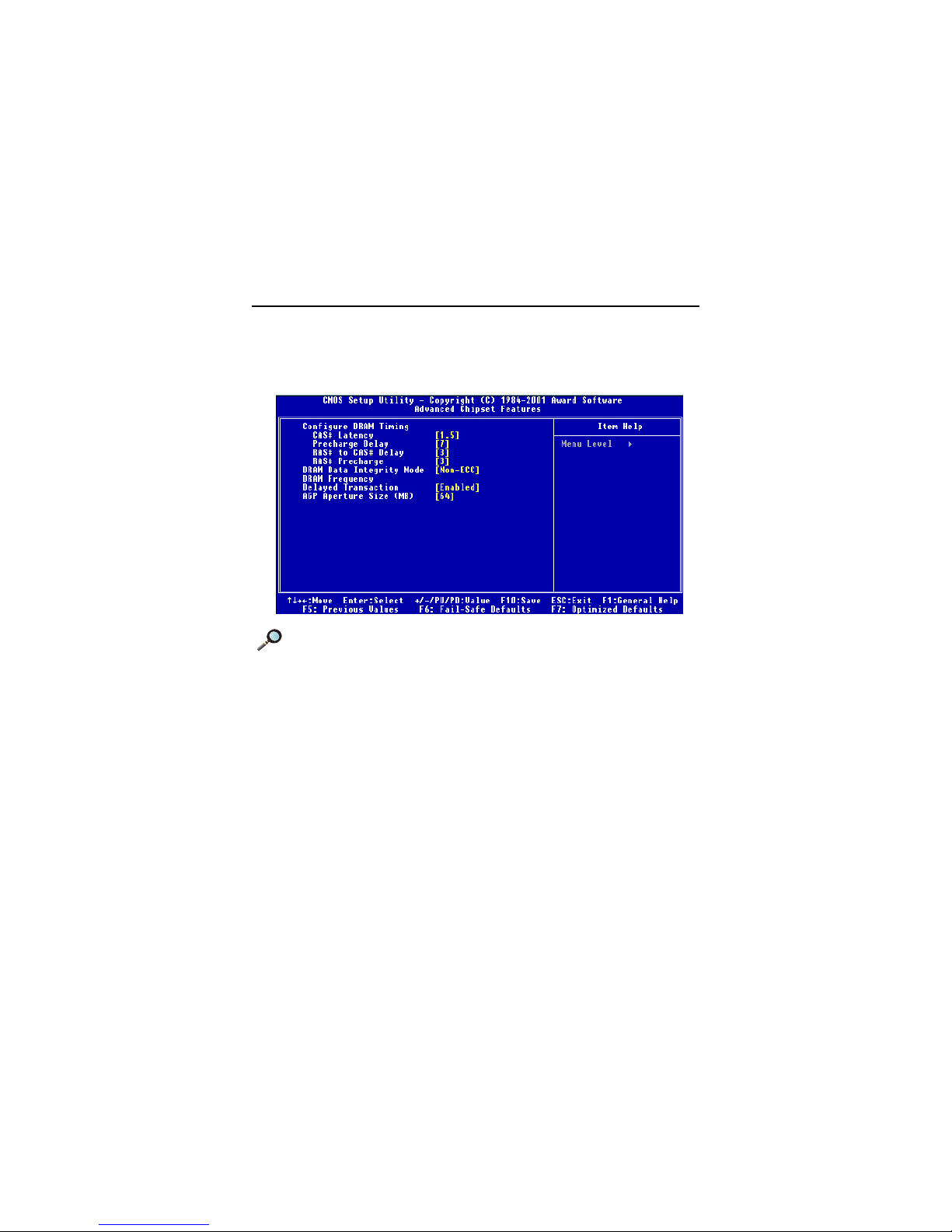

Advanced Chipset Features ............................................................... 3-12

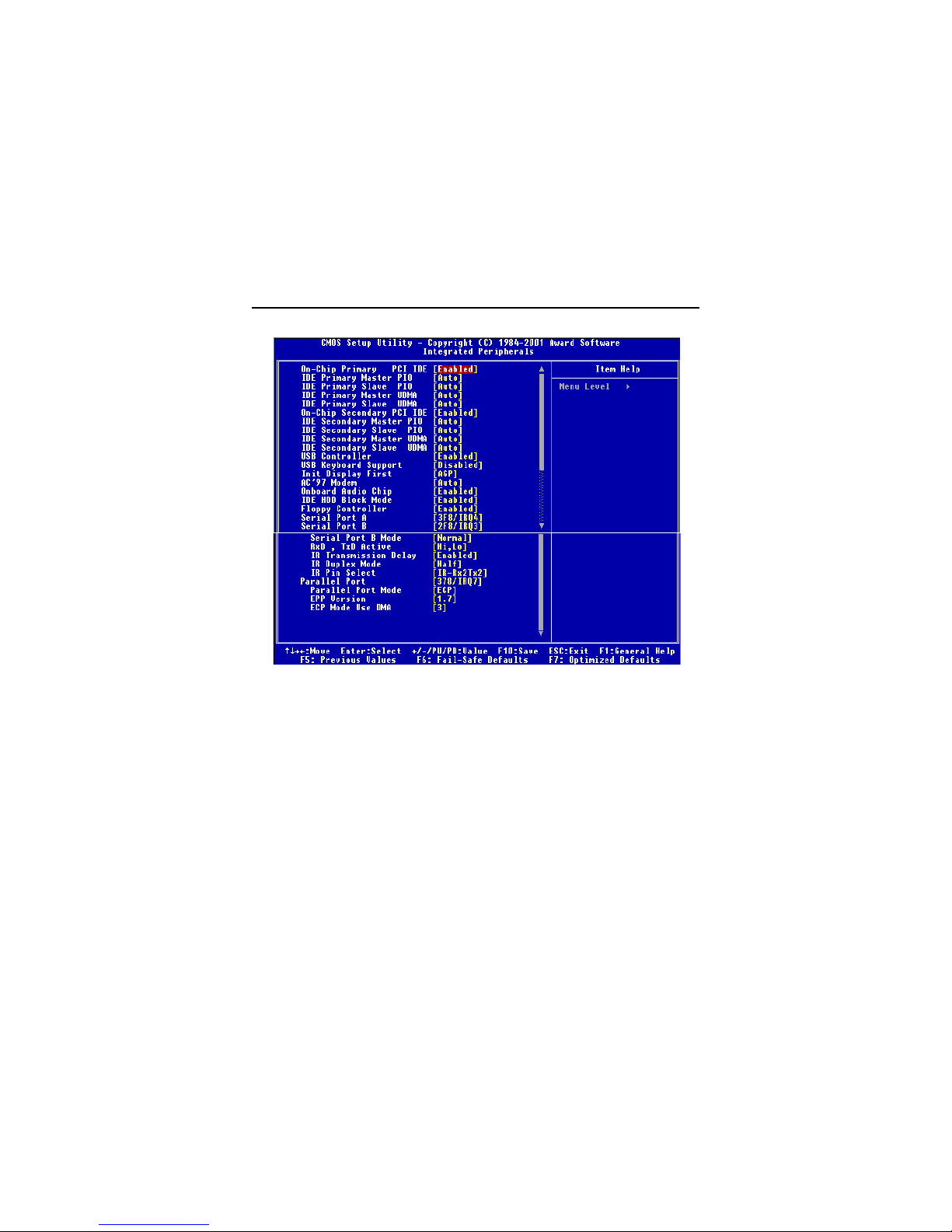

Integrated Peripherals ........................................................................ 3-14

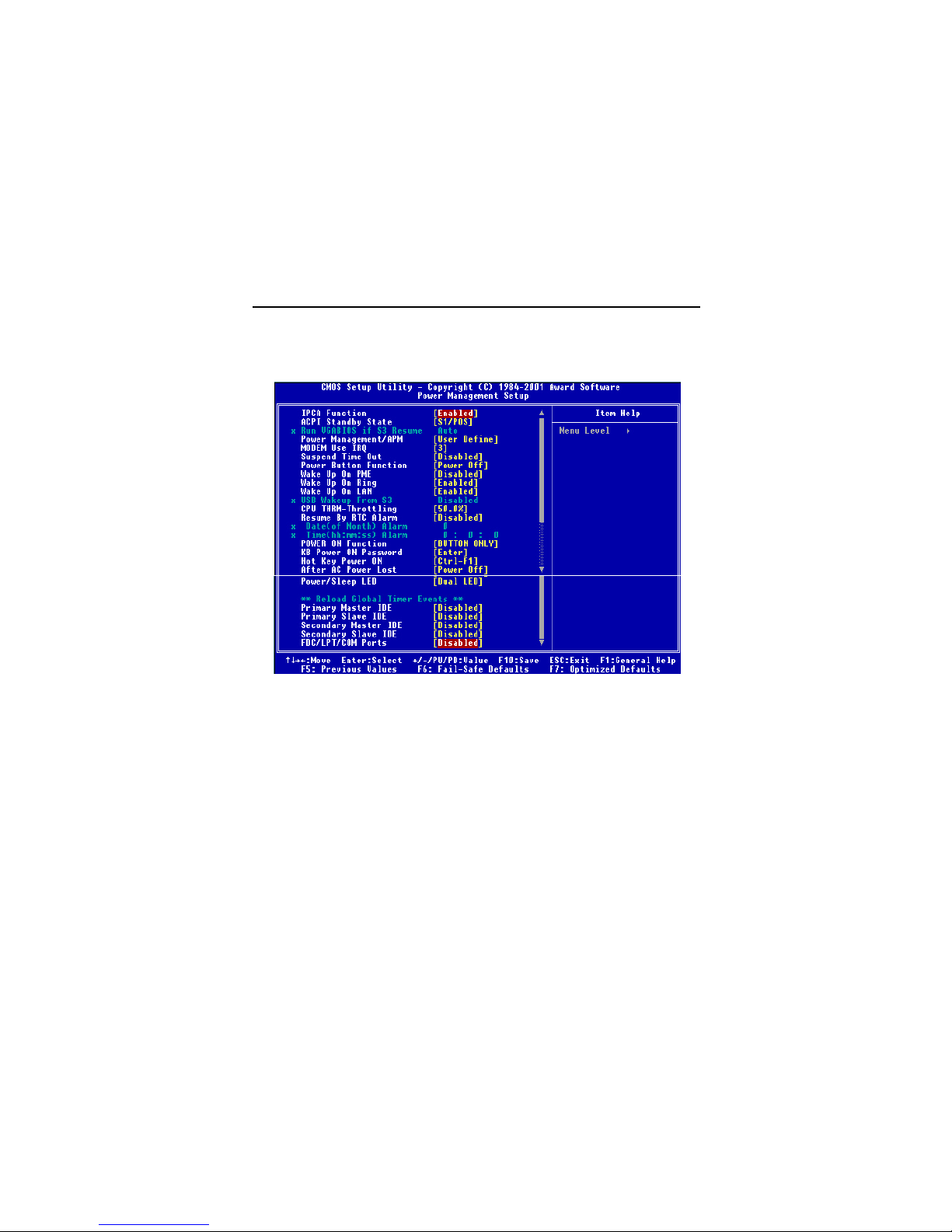

Power Management Setup ................................................................. 3-18

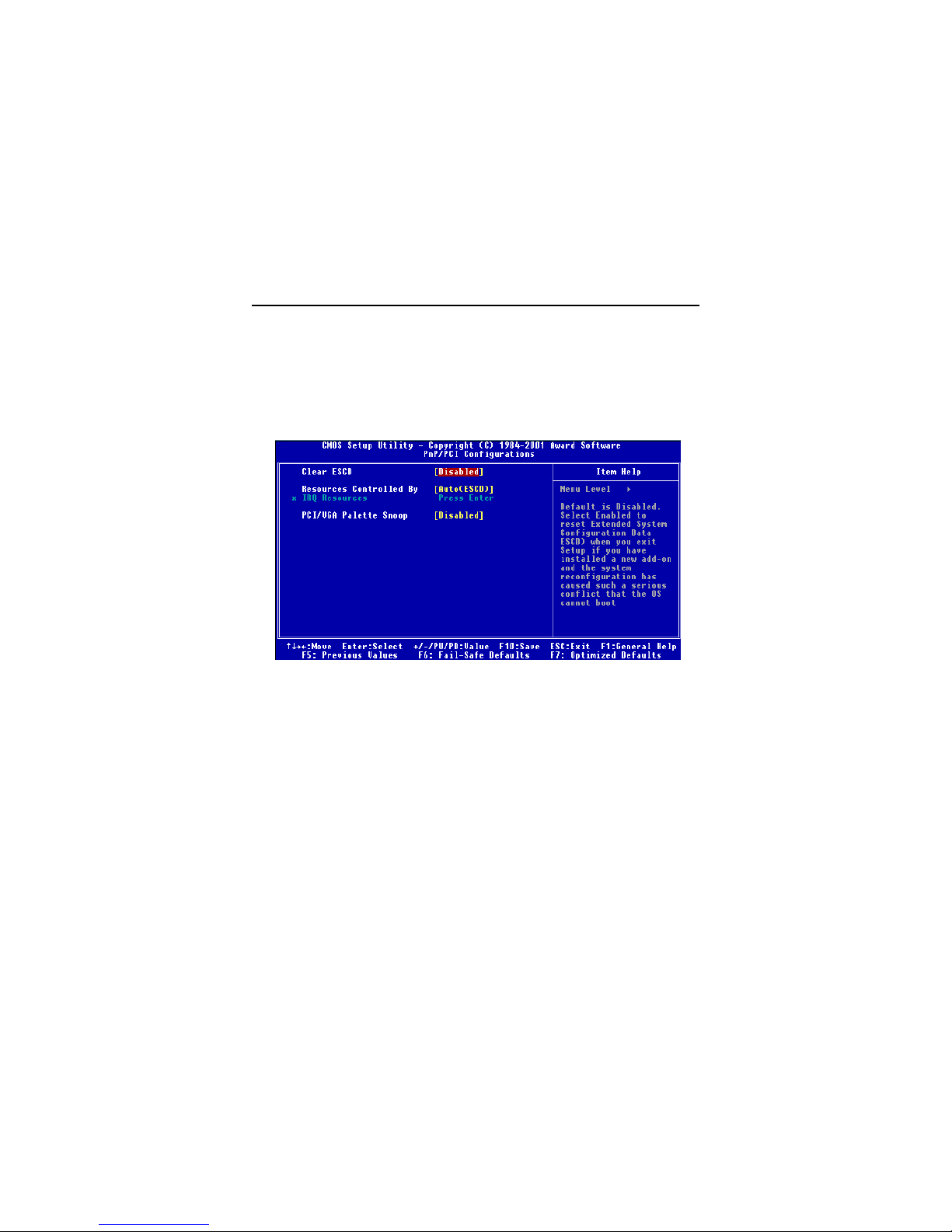

PNP/PCI Configurations..................................................................... 3-22

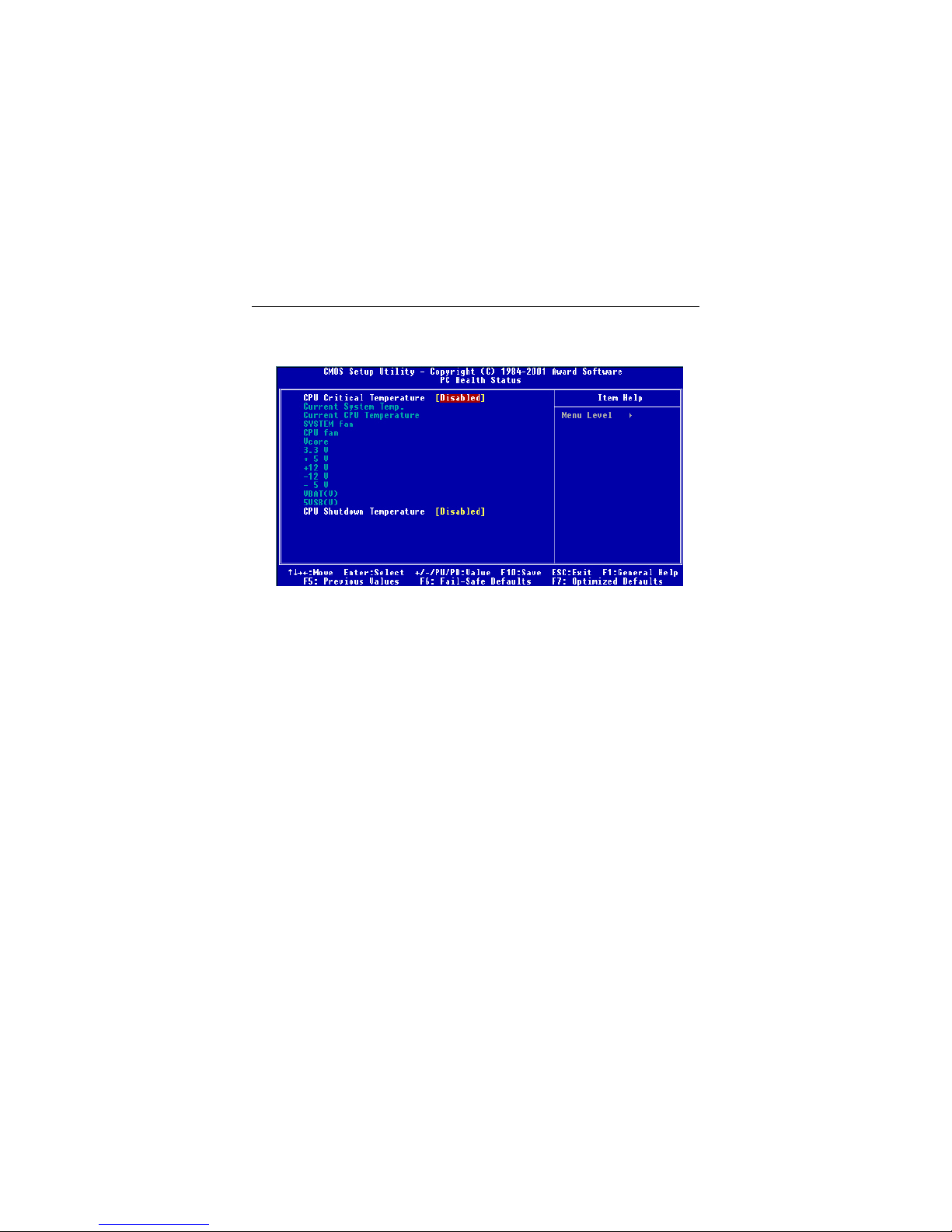

PC Health Status ................................................................................ 3-24

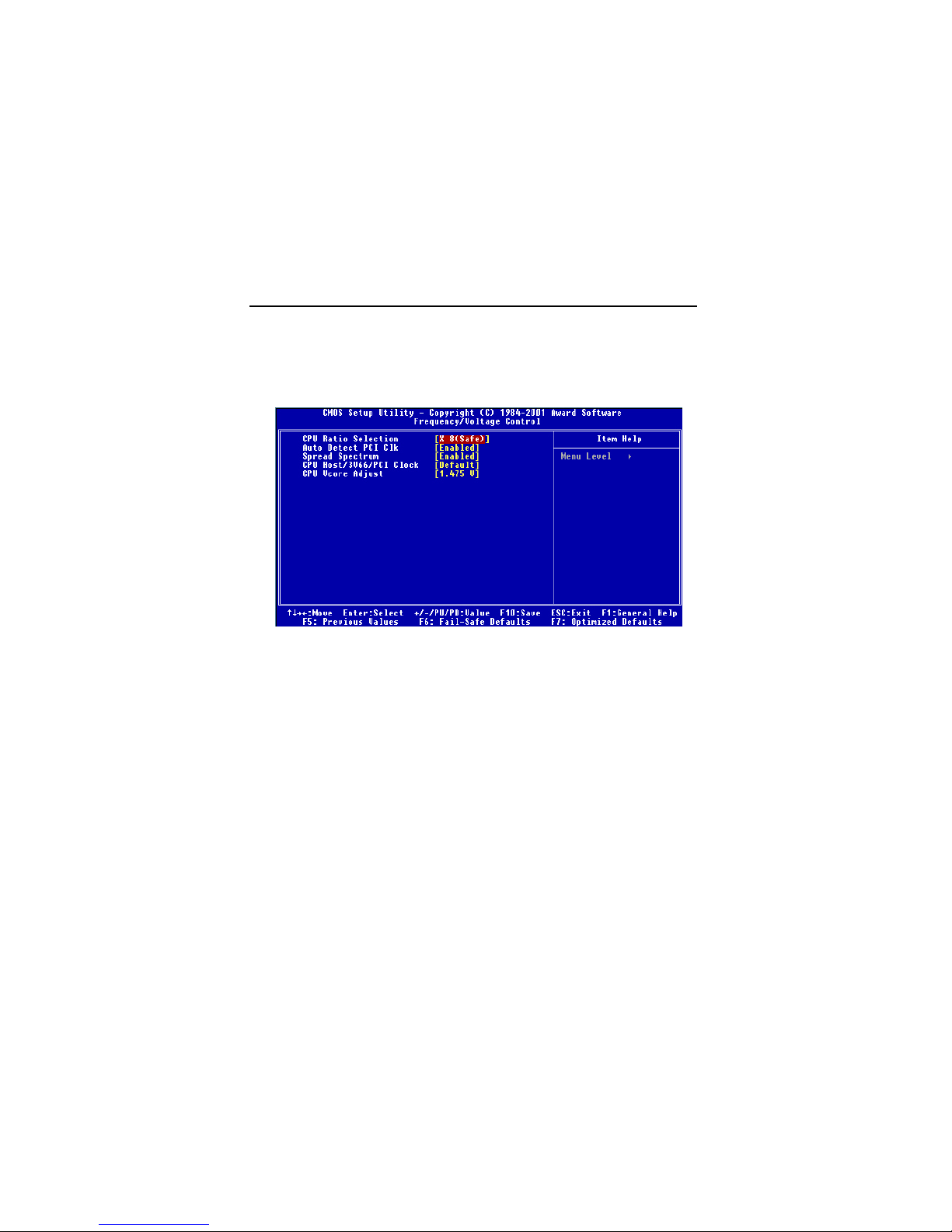

Frequency/Voltage Control ................................................................ 3-25

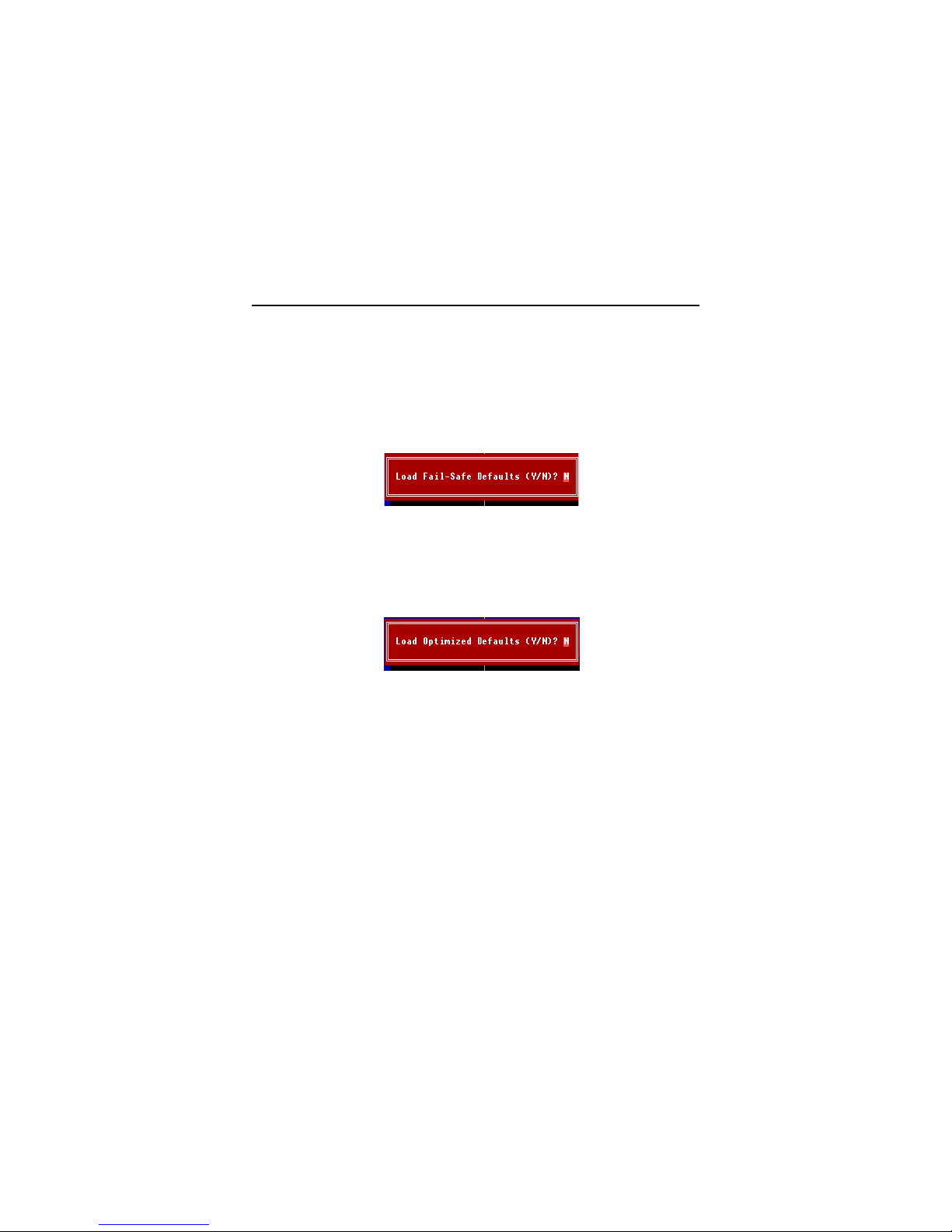

Load Fail-Safe/Optimized Defaults ..................................................... 3-27

Set Supervisor/User Password........................................................... 3-28

Getting Started

1-1

Chapter 1. Getting Started

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

1

Getting Started

Thank you for purchasing the MS-6398 v2.X ATX mainboard. The MS­6398 v2.X series include 845 Ultra, 845 Ultra-AR, and 845 Ultra-ARU mainboards.
The 845 Ultra is a standard version. In addition to standard features, the 845
Ultra-AR offers ATA133 RAID interface and the 845 Ultra-ARU supports
ATA133 RAID and USB 2.0 technology. All three models are based on Intel

®

82845 & 82801BA chipsets for optimal system efficiency. Designed to fit the
advanced Intel® Pentium® 4 processors in the 478 pin package, the MS-6398
delivers a high performance and professional desktop platform solution.

Chapter 1

1-2

CPU

- Supports Intel® Pentium® 4 processor in 478 pin package.

- Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.2GHz
and up.

Chipset

Intel® 845 chipset (593 FC-BGA)

- Supports DDR SDRAM at 200/266MHz operation (DDR200/DDR266).

- AGTL+ host bus with integrated termination supporting 32-bit host
addressing.

- 1.5V AGP interface with 4x data transfer and 4x fast write capability.

- 8-bit, 66MHz 4x hub interface to the Intel ICH2.

Intel® ICH2 chipset (360 EBGA)

- Upstream hub interface for access to the Intel MCH.

- 2-channel Ultra ATA/100 Bus Master IDE controller.

- USB controller 1.1 (expanded capabilities for 4 ports).

- I/O APIC.

- SMBus controller.

- FWH interface.

- LPC interface.

- AC’97 2.1 interface.

- PCI 2.2 interface.

- Integrated system management controller.

Main Memory

- Supports four memory banks using three184-pin DDR DIMM.

- Supports up to 2GB PC2100/PC1600 DDR SDRAMs.

- Supports 2.5v DDR SDRAM.

Slots

- One AGP (Accelerated Graphics Port) 4x slot (1.5V only).

- Five PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI bus interface).

- One CNR (Communication Network Riser) slot.

Mainboard Specification

Note: The AGP slot DOES NOT support 3.3V AGP card. Use of

3.3V AGP card may cause damage to the mainboard.

Getting Started

1-3

On-Board IDE

An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA66/100 operation modes.

- Can connect up to four IDE devices.

USB Interface

845 Ultra

- 4 USB 1.1 ports (Rear * 2/ Front * 2).

On-Board Peripherals

- On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COM A + COM B).

- 1 parallel port supports SPP/EPP/ECP mode.

- 1 IrDA connector for SIR/ASKIR/HPSIR.

- 1 audio/game port.

Audio

- C-Media CMI8738 / PCI-4ch supports 2/4 ch speaker.

BIOS

- The mainboard BIOS provides “Plug & Play” BIOS which detects the periph­eral devices and expansion cards of the board automatically.

- The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.

Dimension

- Full ATX Form Factor: 30.5cm x 25cm.

Mounting

- 9 mounting holes.

Chapter 1

1-4

Mainboard Layout

845 Ultra (MS-6398 v2.X) ATX Mainboard

CFAN1

SFAN1

+

B

A

T

T

ICH 2

D

D

R

1

D

D

R

2

D

D

R

3

A

T

X

P

o

w

e

r

S

u

p

p

l

y

JWOL1

JMDM1

FWH

PCI Slot 5

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

I

D

E

1

I

D

E

2

W

i

n

b

o

n

d

W

8

3

6

2

7

H

F

-

A

W

CNR

USB
ports

Top : mo use
Bottom: keyboard

J

C

D

1

C

M

I

8

7

3

8

JPW1

JBAT1

J

A

U

X

1

JPHN1

J10

Top :
Game port

Bottom:
Line-Out
Line-In
Mic

F

D

D

1

JUSB2

USB3

AGP Slot

I

n

t

e

l

8

4

5

c

h

i

p

s

e

t

J7

JAU1

IR2

JFP1

(optional)

F_P2

(optional)

Getting Started

1-5

Quick Components Guide

Component Function Reference

JWR1 ATX 20-pin power connector See p. 2-7

JPW1 ATX 12V power connector See p. 2-7

JKBMS1 Mouse connector See p. 2-8

JKBMS1 Keyboard connector See p. 2-9

USB Connectors Connecting to USB devices See p. 2-9

COM A & COM B Serial port connector See p. 2-10

LPT1 Parallel port connector See p. 2-11

FDD1 Floppy disk drive connector See p. 2-12

IR2 IrDA infrared module connector See p. 2-12

IDE1~ IDE2 Hard disk connectors See p. 2-13

IDE3~IDE4 ATA133 RAID connectors See p. 2-14

JCD1 CD-in connector See p. 2-15

JAUX1 Aux line-in connector See p. 2-15

JPHN1 Modem-in connector See p. 2-15

CFAN1/SFAN1 Fan power connectors See p. 2-16

JMDM1 Wake on ring connector See p. 2-17

JWOL1 Wake on LAN connector See p. 2-17

JFP1/F_P2 Front panel connector See p. 2-18

JAU1 Front panel audio connector See p. 2-19

JUSB2/3/4 & USB3 Front USB connectors See p. 2-20

JBAT1 Clear CMOS jumper See p. 2-24

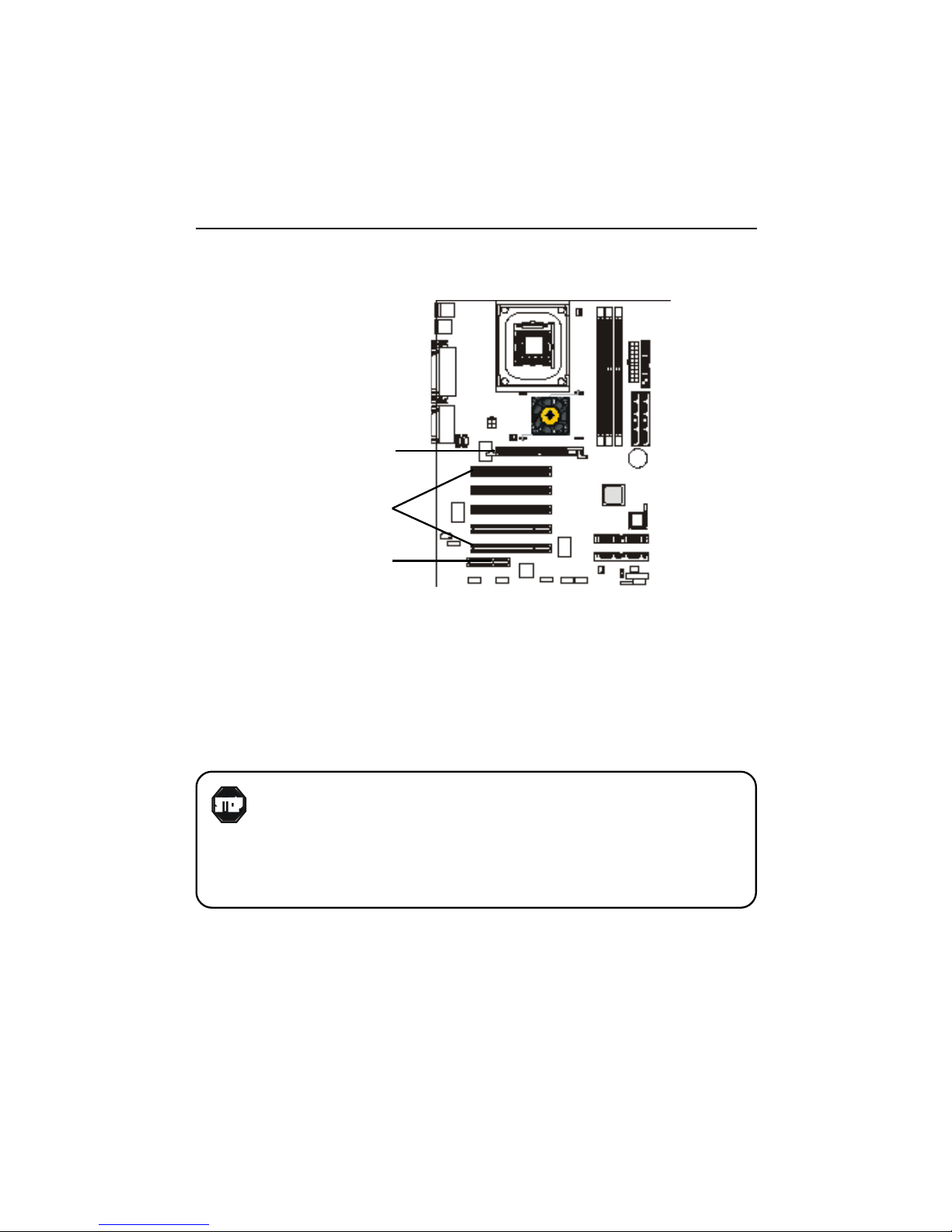

AGP Slot Connecting to AGP cards See p. 2-25

PCI Slots Connecting to expansion cards See p. 2-25

CNR Slot Connecting to expansion cards See p. 2-26

Chapter 1

1-6

- Full ATX Form Factor

- CPU: Intel® Pentium® 4 processor in the 478 pin package

- C-Media CMI8738/PCI-4ch supports 2/4 channel speaker

- LAN Wake Up Function

- Modem (Internal/External) Ring Wake Up Function

- Suspend to RAM/Disk

- PC2001 Compliant

Key Features

Hardware Setup

Chapter 2. Hardware Setup

Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

TOPICS

Central Processing Unit: CPU 2-2

Memory 2-5

Power Supply 2-7

Back Panel 2-8

Connectors 2-12

Jumpers 2-20

2

Slots 2-21

2-1

Chapter 2

Central Processing Unit: CPU

The mainboard supports Intel® Pentium® 4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sink and a cooling fan attached on the top to prevent overheating. If you do not
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.

Open Lever

CPU Installation Procedures

1. Pull the lever sideways away

from the socket. Then, raise
the lever up to a 90-degree
angle.

2. Look for the dot/cut edge. The

dot/cut edge should point to­wards the lever pivot. The
CPU will only fit in the correct
orientation.

3. Hold the CPU down firmly, and

then close the lever to
complete the installation.

Sliding

Plate

Dot / Cut ed ge

Close

Lever

Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.WARNING!

2-2

Hardware Setup

Installing the CPU Fan

As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly important. To dissi­pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:

1. Locate the CPU and its retention

mechanism on the motherboard.

retention mechanism

3. Mount the fan on top of the heatsink.

Press down the fan until its four clips
get wedged in the holes of the reten­tion mechanism.

2. Position the heatsink onto the reten-

tion mechanism.

4. Press the two levers down to fasten

the fan. Each lever can be pressed
down in only ONE direction.

levers

2-3

Chapter 2

5. Connect the fan power cable from the mounted fan

to the 3-pin fan power connector on the board.

fan power cable

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 14

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14
= 1.4GHz

Overclocking

This motherboard is designed to support overclocking.

WARNING!

However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks

caused by inadequate operation or beyond product
specifications.

2-4

Hardware Setup

Memory

The mainboard provides 3 slots for 184-pin, 2.5V DDR DIMM with 4
memory banks. You can install PC1600/PC2100 DDR SDRAM modules on the
DDR DIMM slots (DDR 1~3). To operate properly, at least one DIMM module
must be installed.

1

2

3

R

R

R

D

D

D

D

D

D

DDR DIMM Slots

(DDR 1~3)

Introduction to DDR SDRAM

DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod­ules rather than 168-pin DIMM modules used by SDR SDRAM. Two types of
DDR are available at the time of writing: PC1600 & PC2100. PC1600 DDR SDRAM
running at 100MHz will produce about 1.6GB/s memory bandwidth. PC2100
running at 133MHz will produce 2.1GB/s memory bandwidth. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta­tions and servers.

Note: DIMM 1~3 is separately 2-memory-bank capable. But as Intel

82845 chipset supports only 4 DDR memory banks, the total memory

banks installed cannot exceed the maximum quantity of 4. Improper

memory installation may possibly cause malfunction.

®

2-5

Chapter 2

DDR Module Combination

To enable normal operation, at least one DIMM module should be in­stalled on the motherboard. As Intel® 82845 chipset supports 4 DDR memory
banks at its maximum, the system memory installed can be up to 2GB.

All three slots can be single-sidedly or double-sidedly installed with 184­pin DDR DIMM modules. Please especially note that DDR 1 alone occupies
two memory banks; the rest two banks are shared by DDR 2 & DDR 3. You may
install memory modules in the following combination:

Combination Slot

1 2 3

DDR 1 S/D S/D S/D

DDR 2 D S

DDR 3 S D

Total Memory 64MB~2GB 64MB~2GB 64MB~2GB

S (Single Side): 64MB ~ 512MB D (Double Side): 128MB ~ 1GB

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in.

Volt

3. The plastic clip at each side of the DIMM slot will automatically close.

notch

2-6
