MSI MS-6539 Schematics

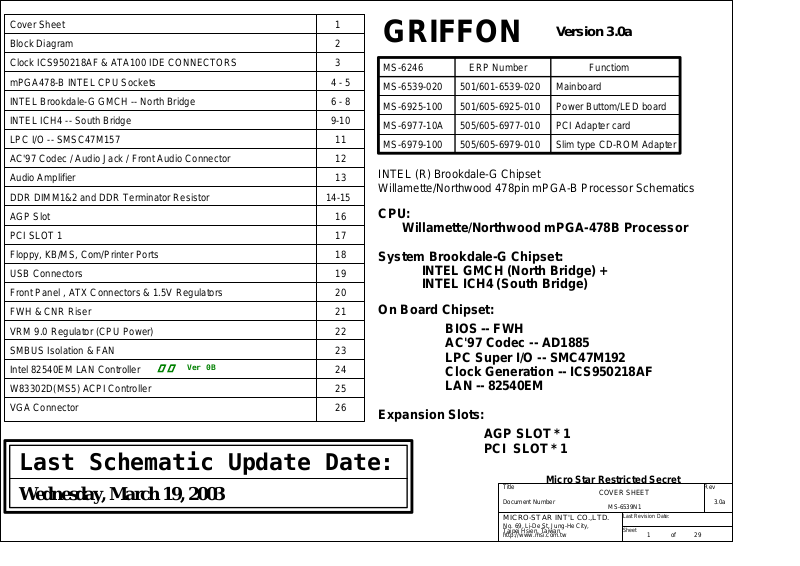

Cover Sheet
Block Diagram

1
2

GRIFFON

Version 3.0a

Clock ICS950218AF & ATA100 IDE CONNECTORS
mPGA478-B INTEL CPU Sockets
INTEL Brookdale-G GMCH -- North Bridge
INTEL ICH4 -- South Bridge
LPC I/O -- SMSC47M157

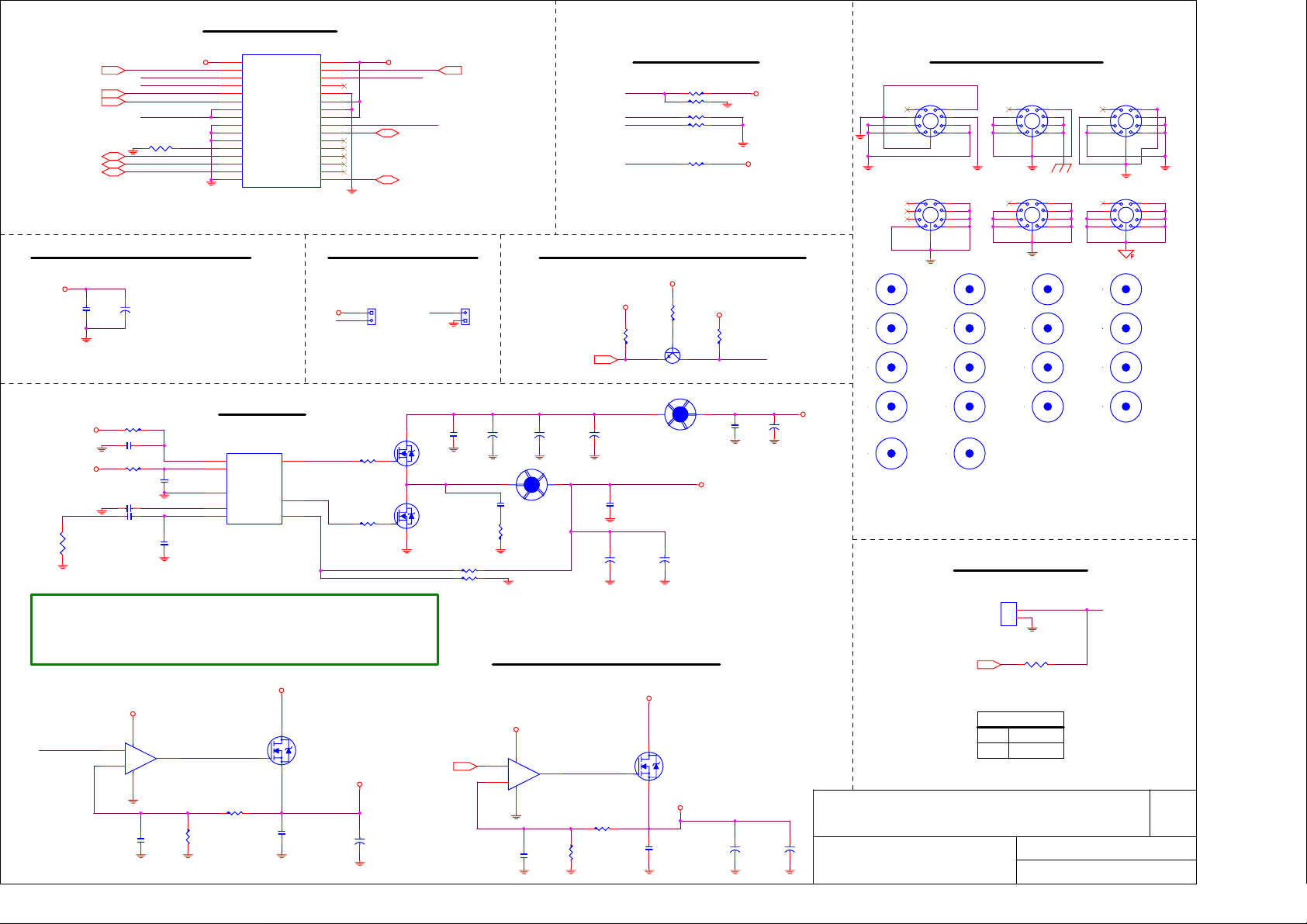

AC'97 Codec / Audio Jack / Front Audio Connector

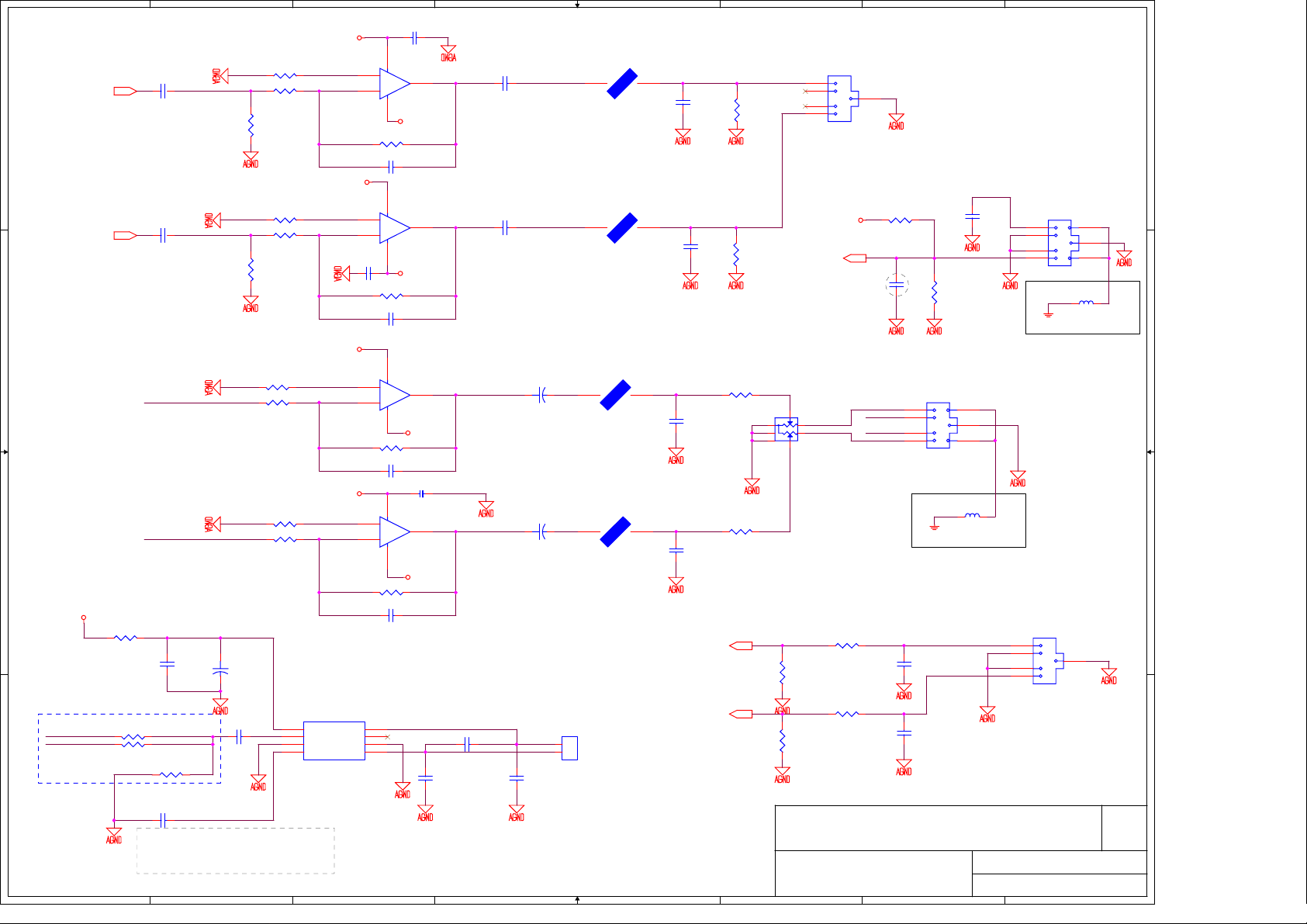

Audio Amplifier

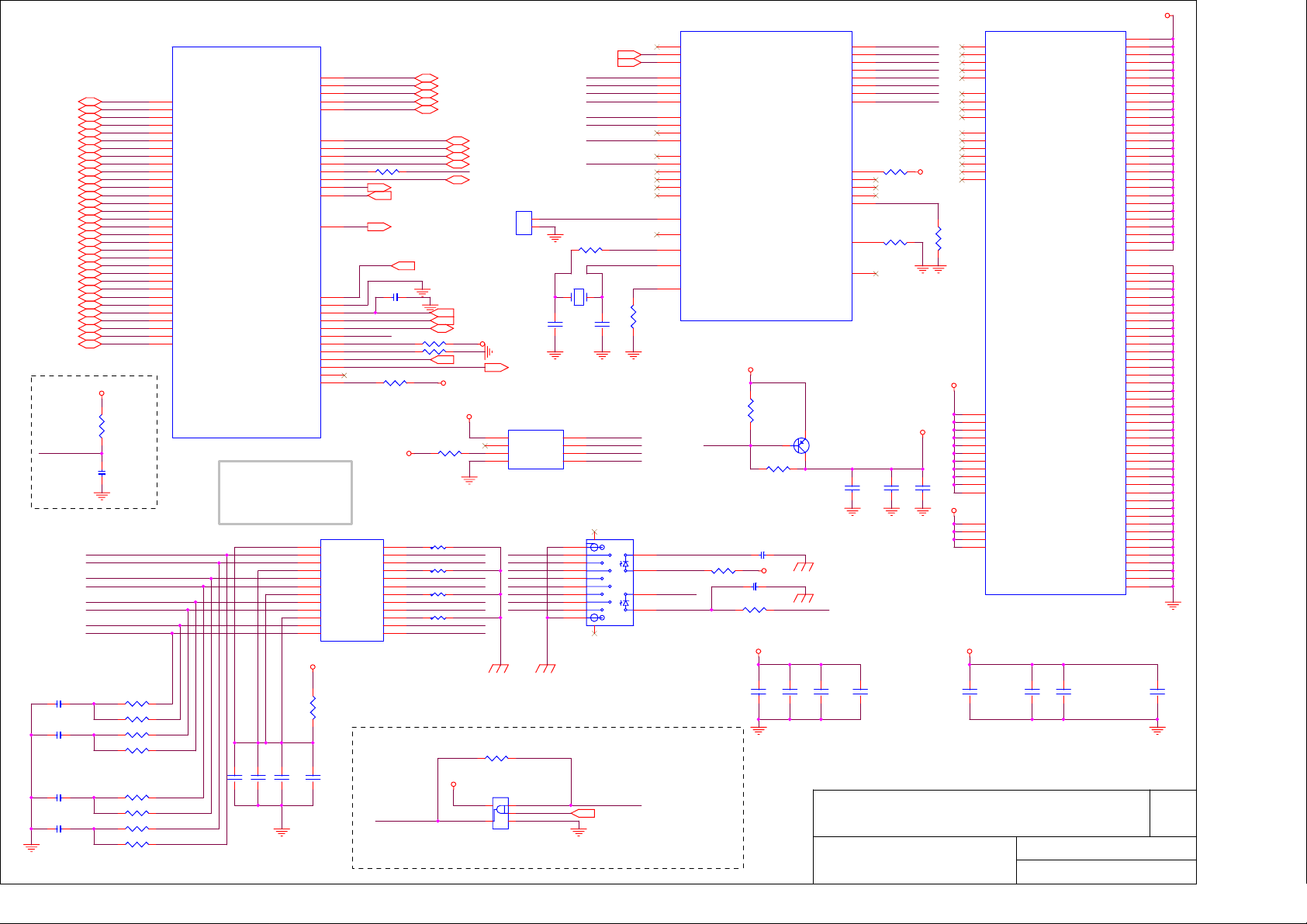

DDR DIMM1&2 and DDR Terminator Resistor
AGP Slot
PCI SLOT 1

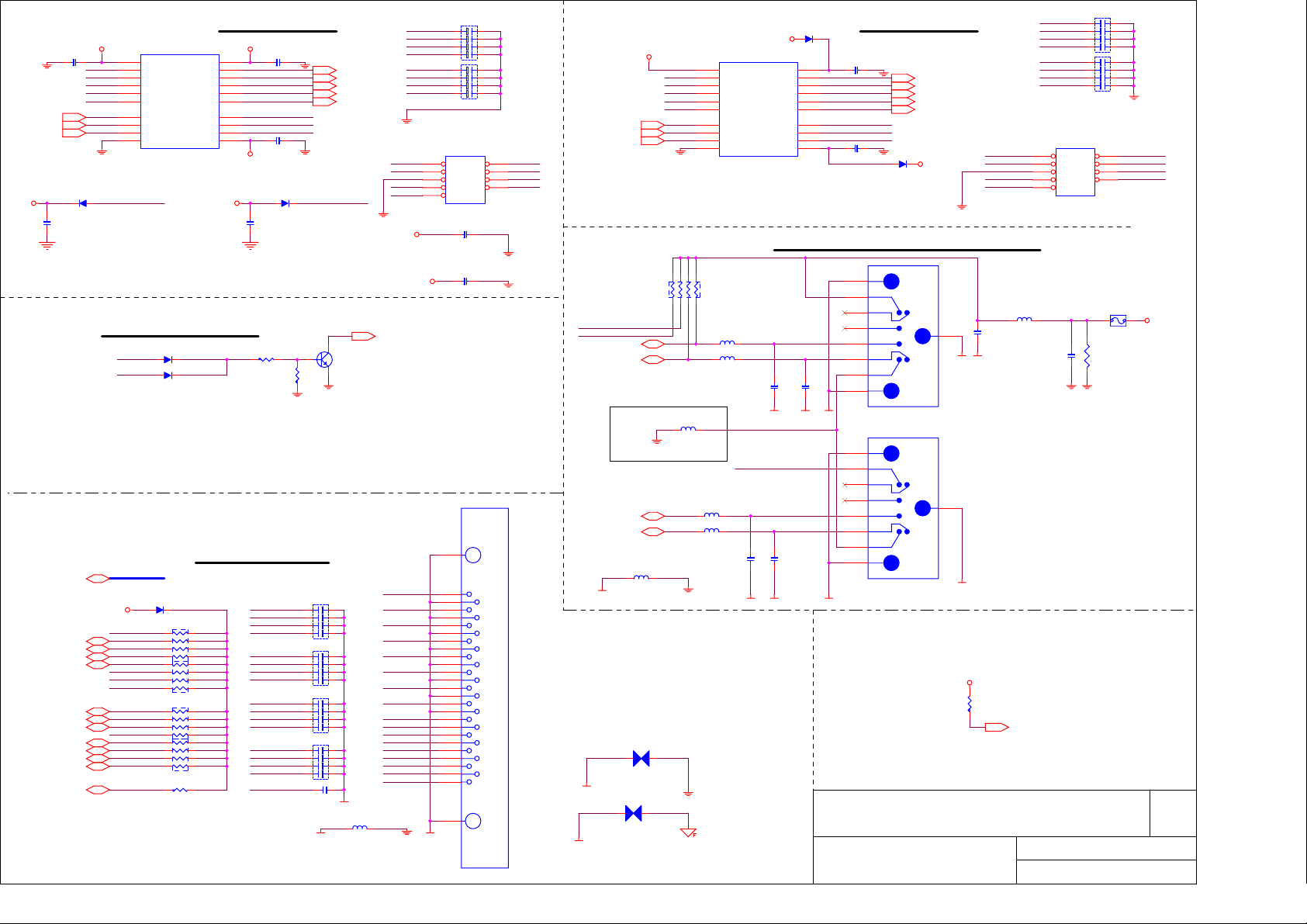

Floppy, KB/MS, Com/Printer Ports
USB Connectors

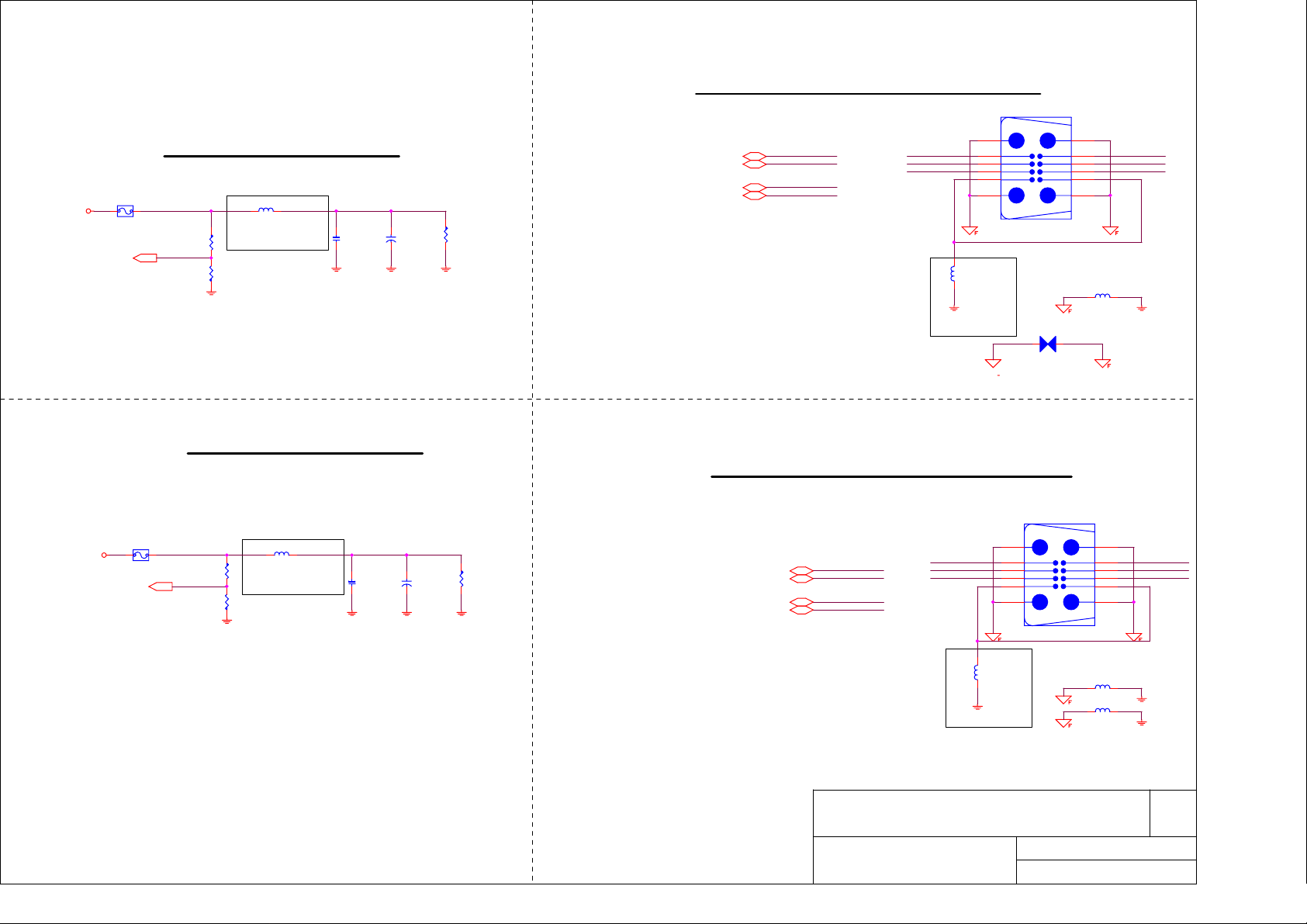

Front Panel , ATX Connectors & 1.5V Regulators
FWH & CNR Riser
VRM 9.0 Regulator (CPU Power)
SMBUS Isolation & FAN
Intel 82540EM LAN Controller
W83302D(MS5) ACPI Controller

新增

Ver 0B

3
4 - 5
6 - 8
9-10

11

12

13

14-15

16

17

18

19

20

21

22

23

24

25

MS-6246
MS-6539-020
MS-6925-100
MS-6977-10A
MS-6979-100

ERP Number
501/601-6539-020
501/605-6925-010
505/605-6977-010
505/605-6979-010

Functiom
Mainboard
Power Buttom/LED board
PCI Adapter card
Slim type CD-ROM Adapter

INTEL (R) Brookdale-G Chipset
Willamette/Northwood 478pin mPGA-B Processor Schematics

CPU:

Willamette/Northwood mPGA-478B Processor

System Brookdale-G Chipset:

INTEL GMCH (North Bridge) +
INTEL ICH4 (South Bridge)

On Board Chipset:

BIOS -- FWH
AC'97 Codec -- AD1885
LPC Super I/O -- SMC47M192
Clock Generation -- ICS950218AF
LAN -- 82540EM

VGA Connector

26

Last Schematic Update Date:

Wednesday, March 19, 2003

Expansion Slots:

AGP SLOT * 1
PCI SLOT * 1

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

Micro Star Restricted Secret

COVER SHEET

MS-6539N1

Last Revision Date:

Sheet

Rev

3.0a

129

of

VCC12 Power
Supply CONN

AGP 4X (1.5V)
VGA CONN

Hardware
Monitor

(100/133MHz)

VRM 9.2 Clock

4X (66MHz) AGP

Willamette/Northwood
Socket (mPGA478-B)

Scalable Bus

GMCH: Graphic &
Memory
Controller HUB

HUB Interface

(100/133MHz)

(200/266 MHz)

(14.318MHz)

Generator

DDR DIMM1,2

IDE CONN 1&2

USB Port 0:1
USB Front Panel

USB Port 2:3
USB Front Panel

ATA33/ATA66/ATA100

(48MHz)

LPC Bus

ICH4: I/O

Controller HUB

(33MHz)

PCI (33MHz)

PCI (33MHz)

AC Link

PCI Slots 1

LAN (82540EM)

AC '97 Audio

Codec

SMSC

FWH: Firmware HUB

LPC I/O

PS2 Mouse &
Keyboard

47M157

Parallel (1)
Serial (2)

Brookdale -G Chipset

Floppy Disk
Drive

CD-ROM (Option)

Model option table

Model type Function BOM Config ERP BOM No.

MIC In

Line In

Line Out

Title

Micro Star Restricted Secret

BLOCK DIAGRAM

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, J u n g - H e C i t y,
Taipei Hsien, Taiwan
http://www.msi.com.tw

MS-6539N1

Last Revision Date:

Sheet

Rev

3.0

Wednesday, March 19, 2003

229

of

L,ferritebead,80ohm/25%,0805,3A

VCC3

CB34

0.1u

filtering from 10K~1M

* Put GND copper under Clock Gen.
connect to every GND pin
* 40 mils Trace on Layer 4
with GND copper around
* put close to every power pin

it

Trace Width 7mils.

*

Same Group spacing 15mils

*

Different Group spacing 30mils

*

Differentical mode spacing 7mils on itself

*

VCC3

VCC3

VCCP

CB35

4.7u-0805

FB3 0_0805

CB43

0.1u

for good filtering from 10K~1M

CB44

4.7u-0805

R122 1K

R119 220 R102 33

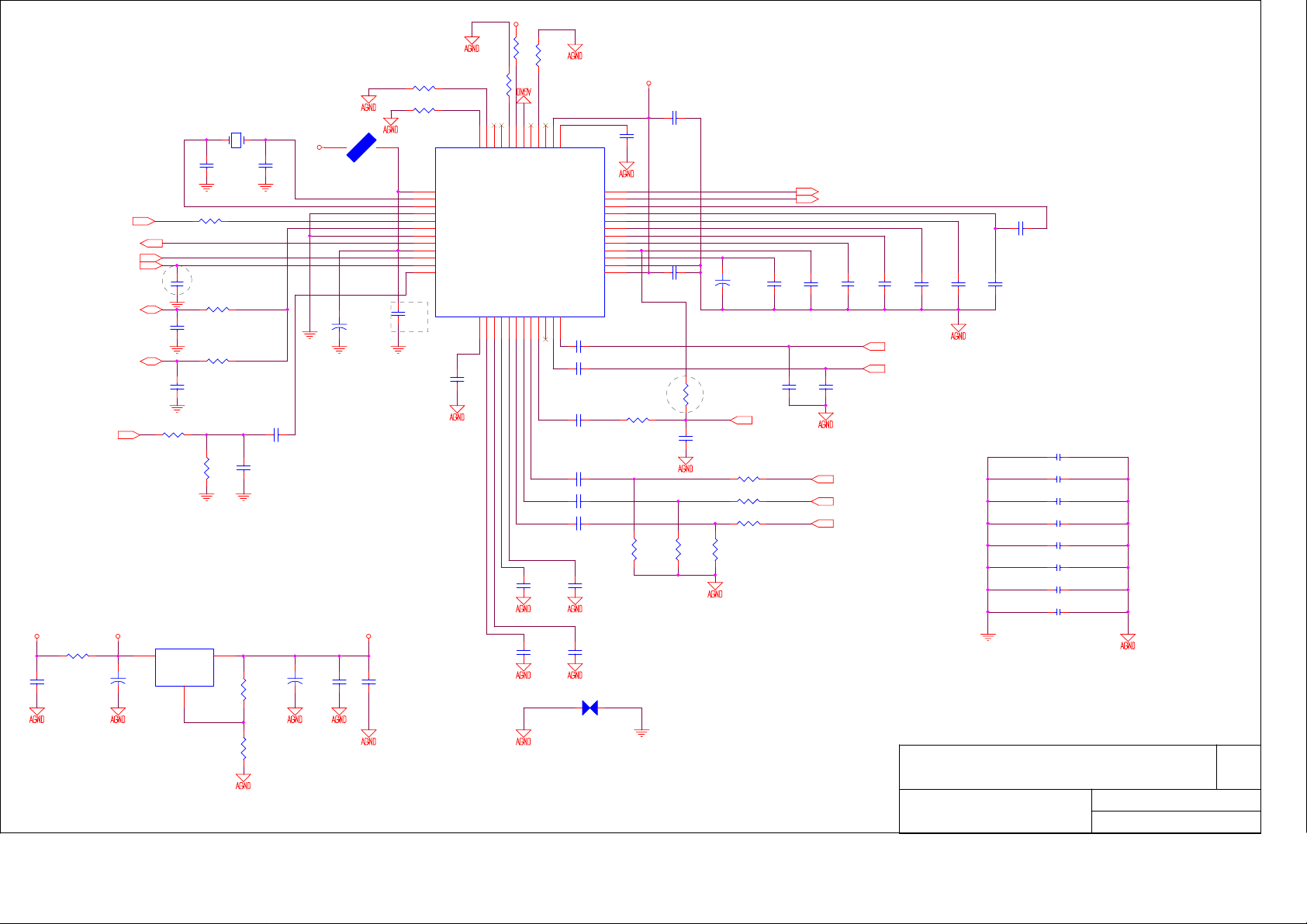

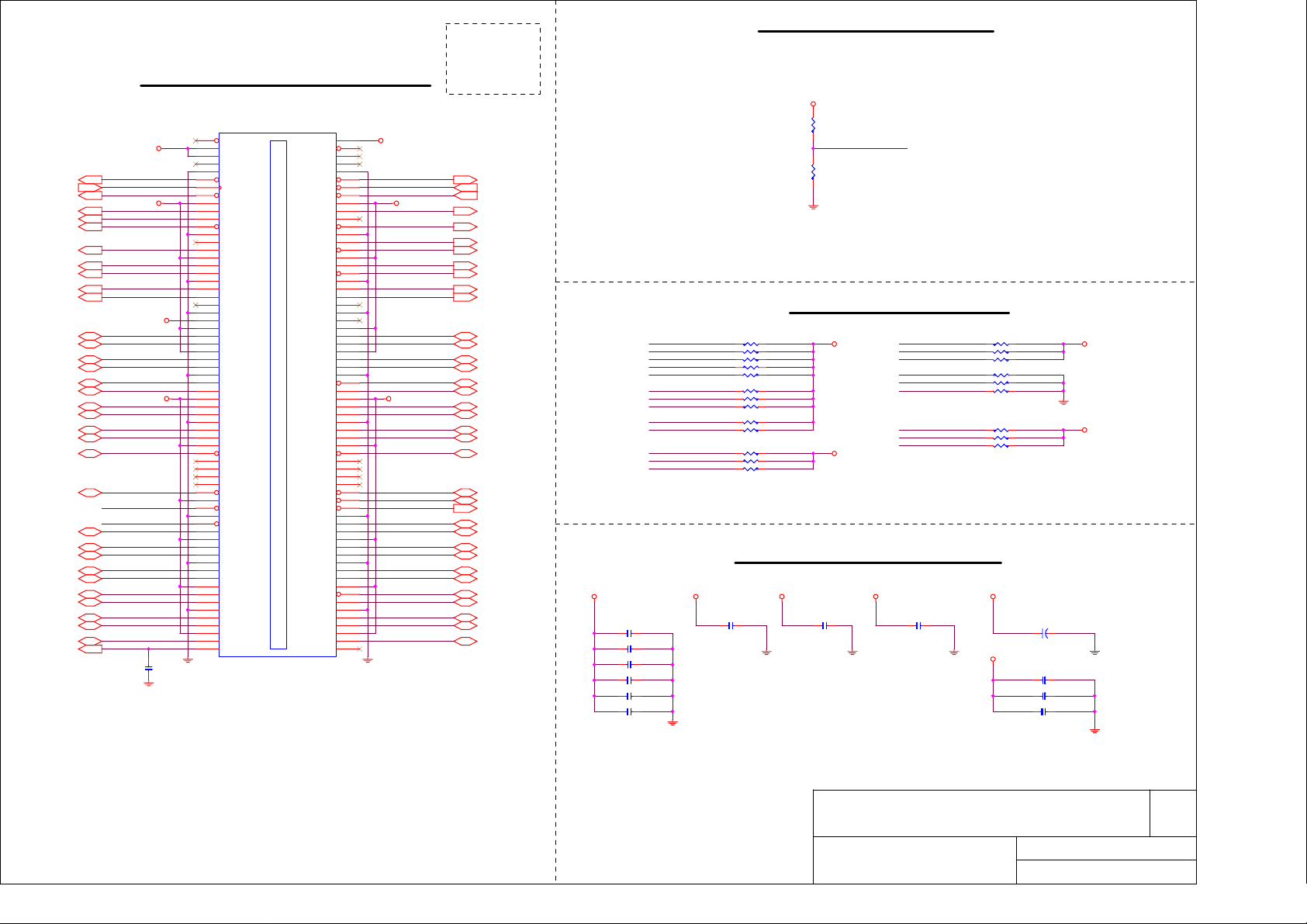

CLOCK GENERATOR BLOCK

VCC3V

CB36

0.1u

VDDA3V

SMBCLK_ISO11,14,23,25

SMBDATA_ISO11,14,23,25

CE

Q11

B

2N3904S

U9

39

CB39

0.1u

36

46

CB41

0.1u

43

CB40

0.1u

29

9

CB38

0.1u

5

18

CB37

0.1u

13

24

C86

0.01u

21

2

C74

0.01u

47
34

C92

0.01u

33
26

25
19

ICS-ICS950218-SSOP48

R127

X_1K

For debug only

CPU_VDD

CPU_GND

MREF_VDD

MREF_GND

3V66_GND

PCI_VDD

PCI_GND
PCI_VDD

PCI_GND

48_VDD

48_GND
REF_VDD

REF_GND
CORE_VDD

CORE_GND
SCLK

SDATA
VTT_GD#

CPUCLK0

CPUCLK0#

CPUCLK1

CPUCLK1#

CPUCLK2

CPUCLK2#

3V66_03V66_VDD
3V66_1
3V66_2

3V66_48/SEL66_48#

FS2/PCI_F0
FS3/PCI_F1

SEL48_24#/PCI_F2

FS4/PCI0

PCI1
PCI2
PCI3
PCI4
PCI5
PCI6

FS0/48MHz

FS1/24_48MHz

MUL0/REF0
MUL1/REF1

IREF

RESET#

PWR_DN#

41
40

38
37

45
44

3132
30
28
27

6
7
8

10
11
12
14
15
16
17

22
23

48
1

3

X1

4

X2

35
20

42

*Trace < 0.5"

CPU0
CPU0#

CPU1
CPU1# MCHCLK#

RMCH_66
RICH_66
RAGPCLK
SEL48_2

FS2
FS3
SEL48_1

FS4
RPCICLK0

RICH_PCLK ICH_PCLK

FS0
FS1 DOT_CLK

REF_14 ICH_14
R_LPC_14 LPC_14

X1

X2

CLK_IREF

CLK_RST#

PWR_DN#

R103 27.4_1%FB2 80_0805
R105 27.4_1%

R111 27.4_1%
R114 27.4_1%

R121 33
R125 33
R131 33

R486 33
R113 33

7 8
5 6
3 4
1 2

RN9 33

R133 33
R137 47

1 2

R101 33
R99 33

C76 22P

1 2

X1 14M-32pf-HC49S-D

C78 22P

32pF

1 2

R116 475_1%

R128 22

CPUCLK
CPUCLK#

MCHCLK

MCH_66
ICH_66
AGPCLK

新增

Ver 0B

PCICLK0
PCICLK1RPCICLK1
SIO_PCLKRSIO_PCLK
FWH_PCLKRFWH_PCLK
LAN_CLK FWH_PCLK

ICH_48

Iref = 2.32mA

VCC3V

CPUCLK 4
CPUCLK# 4

MCHCLK 6
MCHCLK# 6

MCH_66 6
ICH_66 10
AGPCLK 16

PCICLK0 17
PCICLK1 17
SIO_PCLK 11
FWH_PCLK 21
LAN_CLK 24
ICH_PCLK 9

ICH_48 10
DOT_CLK 6

ICH_14 10
LPC_14 11

FP_RST# 10,17,20,25

Shut Source Termination Resistors

CPUCLK
CPUCLK#
MCHCLK
MCHCLK#

Trace less 0.2"

49.9ohm for 50ohm M/B impedance

R104 49.9_1%
R106 49.9_1%
R112 49.9_1%
R115 49.9_1%

CLOCK STRAPPING RESISTORS

R146 1.5K

DOT_CLK

R147 8.2K

FS4 FS3 FS2 FS1 FS0

1 1 1 0 1
1 1 1 1 1

SMBCLK_ISO
SMBDATA_ISO

SEL48_2

MULTSEL0=0 -> 6X Iref
MULTSEL0=1 -> 7X Iref

FS4
SEL48_1
FS3
FS2

FS0

REF_14

R139 2.7K
R134 2.7K

RN8

8.2K

1 2
3 4
5 6
7 8

R132 10K

R136 10K

R97 10K
R98 10K

CPU (MHz)
100 MHz
133 MHz

VCC3

BSEL0 4,6

VCC3

VCC3

VCC3VR_LPC_14

Pull-Down Capacitors

CPUCLK
CPUCLK#
MCHCLK
MCHCLK#

AGPCLK
ICH_66
MCH_66

PCICLK1
SIO_PCLK
LAN_CLK

ICH_PCLK

ICH_48
DOT_CLK
ICH_14
PCICLK0

used only for EMI issu e

Trace less 0.2"

10pC77
10pC79
10pC81
10pC84

CN4 8P4C-10P

1

2

3

4

5

6

7

8

10pC82

1

2

3

4

5

6

7

8

CN3 8P4C-10P

10pC90
10pC93
10pC75
10pC255

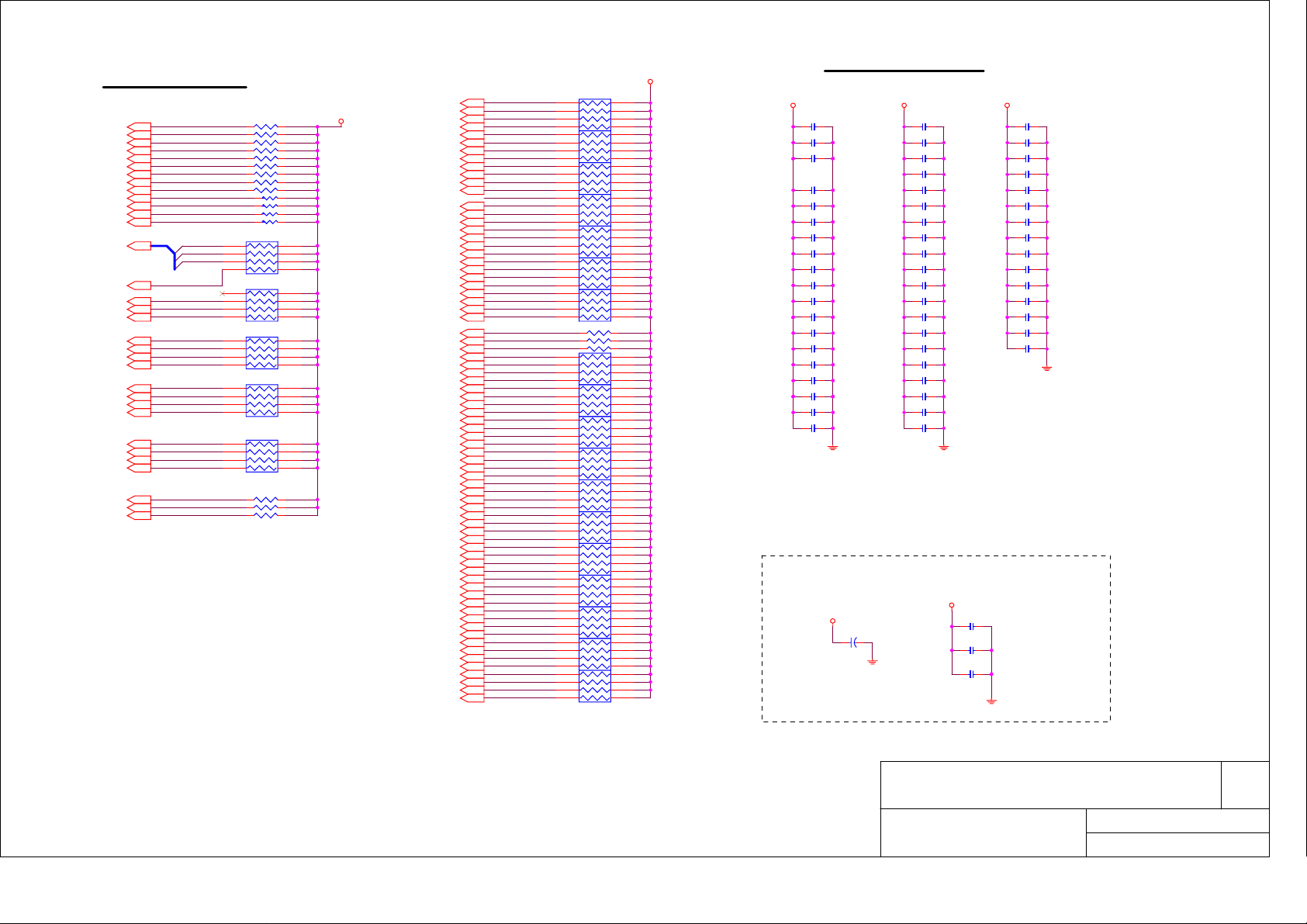

PRIMARY IDE B L O CK SECONDARY IDE BLOCK

IDE1

HD_RST#25
PDD[0..7]10

HD_RST#

PD_DREQ10

PD_IOW#10

PD_IOR#10
PD_IORDY10
PD_DACK#10

IRQ149

PD_A110

PD_CS#110 PD_CS#3 10

PD_LED20

R177 33

PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0

R176

4.7K

VCC5 VCC3

HD_RST#1R

C109
220p

CN-BH-D2x20-1:21-BL-ZBT-S1

1

2
3 4
5 6
7 8
91110

12

13 14

1615

17 18
19

22

21

24

23

26

25

28

27

30

29

32

31

34

33

36

35

38

37

4039

R174
10K

PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

C110
X_4700p

R175

15K

ATA100 IDE CONNECT OR S

LEFT_CD12

CD_AGND12

PDD[8..15] 10

* Trace Width : 5mils
* Trace Spacing : 7mils
* Length(longest)-Length(shortest)<0.5"
* Trace Length less than 6"

PD_DET 21
PD_A2 10PD_A010

SDD[0..7]10
SDD[8..15]10

HD_RST# HD_RST#2R

SDD[0..7]
SDD[8..15]

SD_DREQ10

SD_IOW#10

SD_IOR#10
SD_IORDY10
SD_DACK#10

IRQ159
SD_A110
SD_A010

SD_CS#110

SD_LED20

5" Notebook type

R144 33

SDD7
SDD6
SDD5
SDD4
SDD3
SDD2
SDD1
SDD0

VCC5

C95

R145

4.7K

VCC5 VCC3

R142

220p

10K

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

IDE2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

D2x25-WH-SBT

CD_AGND

SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15

VCC5

RIGHT_CD 12

R143

470_0603

C94
X_4700p

R141

15K

SD_DET 21
SD_A2 10
SD_CS#3 10

Micro Star Restricted Secret

Clock & IDE Conn.

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

329

Rev

3.0

of

HINV#[0..3]

HD#[0..63]

CPU GTL REFERNCE VOLTAGE BLOCKCPU SIGNAL BLOCK

HA#[3..31]6

C147
1u-0805

VCCP

R223

49.9_1%

R218

100_1%

VCCP

VCCP

VID[0..4] 11,22

HA#8

HA#22

HA#25

HA#23

HA#26

HA#27

HA#24

HA#28

HA#30

HA#29

HA#31

CPU1A

HINV#0
HINV#1
HINV#2
HINV#3

FERR#9

STPCLK#9

HINIT#9

HDBSY#6

HDRDY#6

HTRDY#6

HADS#6

HLOCK#6

HBNR#6

HIT#6

HITM#6

HBPRI#6

HDEFER#6

CPU_TMPA23

VTIN_GND23

TRMTRIP#9
SKTOCC#17
PROCHOT#10,17

IGNNE#9

HSMI#9
A20M#

SLP#9

BSEL03,6

CPU_GD10

CPURST#6

HINIT#

ITP_TDI
ITP_TDO
ITP_TMS
ITP_TRST#
ITP_TCK

TRMTRIP#
SKTOCC#

CPU_GD
CPURST#
HD#63

HD#62
HD#61
HD#60
HD#59
HD#58
HD#57
HD#56
HD#55
HD#54

AC3

AA3
AB2

AF26

AB26

AD2
AD3

AE21

AF24
AF25

AD6

AD5
AB23
AB25
AA24

AA22
AA25

W25
W26

E21
G25
P26
V21

A22

Y21
Y24
Y23

Y26
V24

V6
B6
Y4

W5

H5
H2

J6

G1
G4
G2
F3
E3
D2
E2

C1
D5
F7
E6
D4
B3
C4
A2

C3
B2
B5
C6

A7

DBI0#
DBI1#
DBI2#
DBI3#

IERR#
MCERR#
FERR#
STPCLK#
BINIT#
INIT#
RSP#

DBSY#
DRDY#
TRDY#

ADS#
LOCK#
BNR#
HIT#
HITM#
BPRI#
DEFER#

TDI
TDO
TMS
TRST#
TCK
THERMDA
THERMDC
THERMTRIP#
GND/SKTOCC#
PROCHOT#
IGNNE#
SMI#
A20M#
SLP#

RESERVED0
RESERVED1
RESERVED2
RESERVED3
RESERVED4
RESERVED5
RESERVED6

BSEL0
BSEL1

PWRGOOD
RESET#
D63#

D62#
D61#
D60#
D59#
D58#
D57#
D56#
D55#
D54#

AB1Y1W2V3U4T5W1R6V2T4U3P6U1T2R3P4P3R2T1N5N4N2M1N1M4M3L2M6L3K1L6K4K2

A35#

A34#

A33#

A32#

A31#

A30#

A29#

A28#

A27#

A26#

A25#

Deleted SKTOCC# circuit(Ver 3.0)

D53#

D52#

D51#

D50#

D49#

D48#

D47#

D46#

D45#

D44#

D43#

D42#

D41#

D40#

V22

U21

V25

U23

U24

U26

T23

T22

T25

T26

R24

R25

P24

R21

HA#18

HA#15

HA#16

HA#21

HA#20

HA#19

HA#17

A24#

A23#

A22#

A21#

A20#

A19#

A18#

A17#

A16#

D39#

D38#

D37#

D36#

D35#

D34#

D33#

D32#

D31#

N25

N26

M26

N23

M24

P21

N22

M23

H25

HA#9

HA#5

HA#4

HA#14

HA#10

HA#11

HA#13

HA#12

A15#

A14#

A13#

A12#

A11#

A10#

D30#

D29#

D28#

D27#

D26#

D25#

K23

J24

L22

M21

H24

G26

HA#3

HA#7

HA#6

AE25A5A4

AD26

A9#

A8#

A7#

A6#

A5#

A4#

A3#

DBR#

ITP_CLK1

VSS_SENSE

VCC_SENSE

D24#

D23#

D22#

D21#

D20#

D19#

D18#

D17#

D16#

D15#

D14#

D13#

D12#

D11#

D10#

L21

D26

F26

E25

F24

F23

G23

E24

H22

D25

J21

D23

C26

H21

G22

VID1

VID0

VID2

VID4

VID3

AC26

AE1

AE2

AE3

AE4

AE5

VID4#

VID3#

VID2#

VID1#

VID0#

B24

D6#

D22

D5#

D4#

C21

A25

GTLREF3
GTLREF2
GTLREF1
GTLREF0

BPM5#
BPM4#
BPM3#
BPM2#
BPM1#
BPM0#

REQ4#
REQ3#
REQ2#
REQ1#
REQ0#

TESTHI12
TESTHI11
TESTHI10

TESTHI9

TESTHI8
ITPCLKOUT1
ITPCLKOUT0

TESTHI5

TESTHI4

TESTHI3

TESTHI2

TESTHI1

TESTHI0

BCLK1#
BCLK0#

COMP1
COMP0

ADSTB1#
ADSTB0#
DSTBP3#
DSTBP2#
DSTBP1#
DSTBP0#
DSTBN3#
DSTBN2#
DSTBN1#
DSTBN0#

LINT1/NMI

LINT0/INTR

D3#

D2#

D1#

D0#

A23

B22

B21

RS2#
RS1#
RS0#

AP1#
AP0#
BR0#

DP3#
DP2#
DP1#
DP0#

SOCKET478

ITP_CLK0

D9#

D8#

D7#

B25

C24

C23

GTLREF1

AA21
AA6
F20
F6

BPM#5

AB4

BPM#4

AA5

BPM#3

Y6

BPM#2

AC4
AB5
AC6

HREQ#4

H3

HREQ#3

J3

HREQ#2

J4

HREQ#1

K5

HREQ#0

J1
AD25

R307 49.9_1%

A6

R279 49.9_1%

Y3

R275 49.9_1%

W4

R283 49.9_1%

U6
AB22
AA20
AC23
AC24
AC20
AC21

R265 1K

AA2
AD24

AF23
AF22

HRS#2

F4

HRS#1

G5

HRS#0

F1
V5

AC1
H6

R291 51.1_1%

P1

R300 51.1_1%

L24

* Short trace

L25
K26

Layout check( )

K25
J26

R5
L5
W23
P23
J23
F21
W22
R22
K22
E22

E5
D1

HREQ#[0..4] 6

VCCP

VCCP

CPUCLK# 3
CPUCLK 3

HRS#[0..2] 6

HBR#0 6

HADSTB#1 6
HADSTB#0 6
HDSTBP#3 6
HDSTBP#2 6
HDSTBP#1 6
HDSTBP#0 6
HDSTBN#3 6
HDSTBN#2 6
HDSTBN#1 6
HDSTBN#0 6

NMI 9
INTR 9

GTLREF1

Every pin put one 220pF cap near it.
Trace Width 7mils, Space 10mils.
Keep the voltage divider within

1.5" of the GETREF pin.

ITP_TDI
ITP_TRST#

ITP_TMS
ITP_TDO

ITP_TCK

2/3*Vccp

C143
220p

CPU ITP BLOC K

R311 150
R331 680

R329 39
R327 75_1%

R324 27.4_1%

BPM#4
BPM#5
BPM#2
BPM#3

HD#53

HD#51

HD#50

HD#49

HD#52

R262 49.9_1%
R253 49.9_1%
R240 49.9_1%
R244 49.9_1%

HD#5

HD#8

HD#7

HD#9

HD#48

HD#47

HD#41

HD#46

HD#45

HD#39

HD#42

HD#44

HD#43

HD#40

HD#38

HD#32

HD#29

HD#34

HD#37

HD#35

HD#33

HD#36

HD#26

HD#30

HD#28

HD#31

HD#25

HD#27

HD#19

HD#23

HD#22

HD#24

HD#20

HD#21

HD#14

HD#16

HD#18

HD#15

HD#17

HD#12

HD#13

HD#6

HD#10

HD#11

HD#0

HD#2

HD#4

HD#3

HD#1

ALL COMPONENTS CLOSE TO CPU

CPU STRAPPING RESISTORS

ALL COMPONENTS CLOSE TO CPU

PROCHOT#

VCCP

CPU_GD
HBR#0
CPURST#
HINIT#

R299 62
R235 300
R296 150
R236 49.9_1%
R248 X_300

VCCP

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

Micro Star Restricted Secret

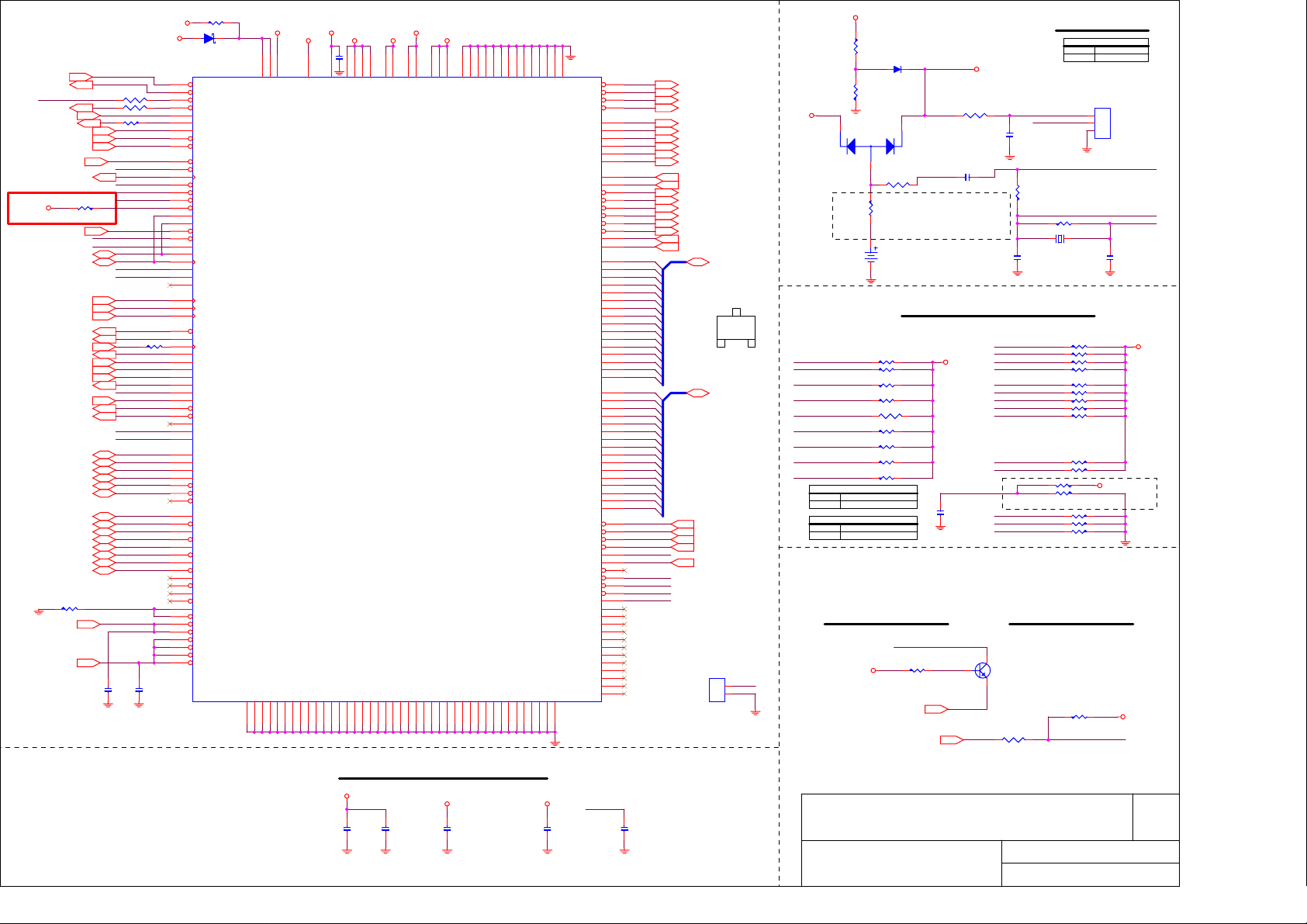

mPGA478-B Intel CPU Sock et Par t 1

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

429

of

Rev

3.0

D10
A11
A13
A15
A17
A19
A21
A24
A26

AA1
AA11
AA13
AA15
AA17
AA19
AA23
AA26

AA4

AA7

AA9
AB10
AB12
AB14
AB16
AB18
AB20
AB21
AB24

AB3

AB6

AB8
AC11
AC13
AC15
AC17
AC19

AC2
AC22
AC25

AC5

AC7

AC9

AD1

CPU VOLTAGE BLOCK

VCC_VID 25

C146
22u-1206

VSSA

L15 4.7uH-10%
L16 4.7uH-10%

C141
22u-1206

Keep the 22uF cap within 0.6"
of the CPU pin.
Trace Width 12mils, Space 10mils.

VCCP

AD20

AE23

VCCA

VCC-IOPLL

VCC-VIDPRG

VSS

VSS

VSS

VSS

VSS

J25J5K21

567

VCC_IOPLL

VCCA

181920

VSS

VSS

VSSA

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS

VSS

8

VSS

VSS

AD22
14
15
Y5
Y25
Y22
Y2
W6
W3
W24
W21
V4
V26
V23
V1
U5
U25
U22
U2
T6
T3
T24
T21
R4
R26
R23
R1
P5
P25
P22
P2
N6
N3
N24
N21
M5
M25
M22
M2
L4
L26
L23
L1
K6
K3
K24

VCCP

A10

A12

A14

A16

A18

A20A8AA10

AA12

AA14

AA16

AA18

AA8

AB11

AB13

AB15

AB17

AB19

AB7

AB9

AC10

AC12

AC14

AC16

AC18

AC8

AD11

AD13

AD15

AD17

AD19

AD7

AD9

AE10

AE12

AE14

AE16

AE18

AE20

AE6

AE8

AF11

AF13

AF15

AF17

AF19

AF2

AF21

AF5

AF7

AF9

B11

B13

B15

B17

B19B7B9

C10

C12

C14

C16

C18

C20C8D11

D13

D15

D17

D19D7D9

E10

E12

E14

E16

E18

E20E8F11

F13

F15

F17

F19

AF4

AF3

VCC

VSS

F9

VCC

VCC

VCC

VCC

VCC

VCC

VCC-VID

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

G21G6G24

G3H1H23

H26H4J2

J22

16

17

CPU1B

12

VSS

VSS

VSS

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VSS

VCC

VSS

VSS

VSS

VSS

VSS

VSS

F16

F18F2F22

F25F5F8

13

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

A3

VSS

A9

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

AD10

AD12

AD14

AD16

AD18

AD21

AD4

AD23

AD8

AE11

AE13

AE15

AE17

AE19

AE22

AE24

AE26

AE7

AE9

AF1

AF10

AF12

AF14

AF16

AF18

AF20

AF6

AF8

B10

B12

B14

B16

B18

B23

B20

B26B4B8

C11

C13

C15

C17C2C19

C22

C25C5C7C9D12

D14

D16

D18

D20

10119

D21D3D24D6D8E1E11

VSS

E13

E15

E17

E19

E23

E7E9F10

F12

F14

E4

E26

VCCP

CB83 10u-1206
CB89 10u-1206
CB88 10u-1206
CB86 10u-1206
CB87 10u-1206
CB84 10u-1206
CB85 10u-1206

Place 14 pcs 1206 size cap
north side of processor

CB123 47U/1210
CB111 47U/1210
CB110 47U/1210
CB122 47U/1210

VCCPVCCPVCCP

CB115 10u-1206
CB120 10u-1206
CB121 10u-1206

CB116 10u-1206
CB112 10u-1206
CB119 10u-1206

PLACE CAPS WITHIN CPU CAVITY

CPU DECOUPLING CAPACITORS

VCCP

CB147 10u-0805

SOCKET478

CB148 10u-0805
CB149 10u-0805

Place these caps on south
side of processor

VCCP

CB54 0.1u
CB58 0.1u
CB57 0.1u
CB60 0.1u
CB66 0.1u

VCCP

CB56 0.1u
CB59 0.1u
CB96 0.1u
CB53 0.1u
CB52 0.1u
CB65 0.1u

Title

Micro Star Restricted Secret

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

mPGA478-B Intel CPU Sock et Par t 2

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

529

Rev

3.0

of

HA#[3..31]4

* Length must be matched
within +/-0.1"of the Strobe
Signals

HBR#04

HBNR#4

HBPRI#4

HLOCK#4

HREQ#[0..4]4

HADS#4

HIT#4

HITM#4

HDEFER#4

HTRDY#4

HRS#[0..2]4

HDBSY#4

HDRDY#4

HADSTB#04
HADSTB#14

HDSTBN#04
HDSTBP#04
HDSTBN#14
HDSTBP#14
HDSTBN#24
HDSTBP#24
HDSTBN#34
HDSTBP#34

HINV#[0..3]4

MCHCLK3

MCHCLK#3

Trace 10 mils & 7mils space < 0.5"

HL[0..5]9

3

21

CRT_B26
CRT_B#26

CRT_G26
CRT_G#26

CRT_R26
CRT_R#26

VCC_AGP

3

D11
BAV99

HL_STB9

HL_STB#9

D9

1

3

BAV99

2

HA#3
HA#4
HA#5
HA#6
HA#7
HA#8
HA#9
HA#10
HA#11
HA#12
HA#13
HA#14
HA#15
HA#16
HA#17
HA#18
HA#19
HA#20
HA#21
HA#22
HA#23
HA#24
HA#25
HA#26
HA#27
HA#28
HA#29
HA#30
HA#31

HREQ#0
HREQ#1
HREQ#2
HREQ#3
HREQ#4

HRS#0
HRS#1
HRS#2

HINV#0
HINV#1
HINV#2
HINV#3

R267 24.9_1%
R214 24.9_1%

HL0
HL1
HL2
HL3
HL4
HL5

1

1

3

2

2

U16A

W31

HA3#

AA33

HA4#

AB30

HA5#

V34

HA6#

Y36

HA7#

AC33

HA8#

Y35

HA9#

AA36

HA10#

AC34

HA11#

AB34

HA12#

Y34

HA13#

AB36

HA14#

AC36

HA15#

AC31

HA16#

AF35

HA17#

AD36

HA18#

AD35

HA19#

AE34

HA20#

AD34

HA21#

AE36

HA22#

AF36

HA23#

AE33

HA24#

AF34

HA25#

AG34

HA26#

AG36

HA27#

AE31

HA28#

AH35

HA29#

AG33

HA30#

AG31

HA31#

U33

BREQ0#

T34

BNR#

M34

BPRI#

T35

HLOCK#

T36

ADS#

V36

HREQ0#

AA31

HREQ1#

W33

HREQ2#

AA34

HREQ3#

W35

HREQ4#

P36

HIT#

M36

HITM#

N36

DEFER#

V30

HTRDY#

R36

RS0#

U34

RS1#

P34

RS2#

U31

DBSY#

U36

DRDY#

AB35

HAD_STB0#

AF30

HAD_STB1#

N31

HD_STBN0#

L31

HD_STBP0#

G33

HD_STBN1#

J34

HD_STBP1#

C30

HD_STBN2#

E29

HD_STBP2#

D25

HD_STBN3#

E25

HD_STBP3#

N33

DINV_0#

C35

DINV_1#

B33

DINV_2#

C26 H30

DINV_3# HD_VREF0

K30

HCLKP

J31

HCLKN

V35

HY_RCOMP

B28

HX_RCOMP

AA7

HI0

AB8

HI1

AC7

HI2

AC5

HI3

AD8

HI4

AF4 AD3

HI5 HI_REF

AD4

HI_STBS

AC4

HI_STBF

G15

BLUE

H16

BLUE#

E15

GREEN

F16

GREEN#

C15

RED

D16

RED#

D10
BAV99

Y28T28M28K26K22K20K18AD

VTTFSB

VTTFSB

VTTFSB

VTTFSB

VTTFSB

VTTFSB

HOST

HUB LINK

VGA

VTTFSB

VCCP

HD0#
HD1#
HD2#

VTTFSB

HD3#
HD4#
HD5#
HD6#
HD7#
HD8#

HD9#
HD10#
HD11#
HD12#
HD13#
HD14#
HD15#
HD16#
HD17#
HD18#
HD19#
HD20#
HD21#
HD22#
HD23#
HD24#
HD25#
HD26#
HD27#
HD28#
HD29#
HD30#
HD31#
HD32#
HD33#
HD34#
HD35#
HD36#
HD37#
HD38#
HD39#
HD40#
HD41#
HD42#
HD43#
HD44#
HD45#
HD46#
HD47#
HD48#
HD49#
HD50#
HD51#
HD52#
HD53#
HD54#
HD55#
HD56#
HD57#
HD58#
HD59#
HD60#
HD61#
HD62#
HD63#

GCLKIN

RSTIN#

CPURST#

PWROK

HD_VREF1
HD_VREF2

HA_VREF

HCC_VREF

HY_SWNG
HX_SWNG

HI10

HI_SWING

HL_RCOMP

DDCA_DATA

DDCA_CLK

HSYNC
VSYNC

DREFCLK

REFSET

T30
R33
R34
N34
R31
L33
L36
P35
J36
K34
K36
M30
M35
L34
K35
H36
G34
G36
J33
D35
F36
F34
E36
H34
F35
D36
H35
E33
E34
B35
G31
C36
D33
D30
D29
E31
D32
C34
B34
D31
G29
C32
B31
B32
B30
B29
E27
C28
B27
D26
D28
B26
G27
H26
B25
C24
B23
B24
E23
C22
G25
B22
D24
G23

AE7
AJ31
D22
E7

H24
D27
AD30
P30

Y30
H28

AE4

HI6

AE5

HI7

AF3

HI8

AE2

HI9

AF2

AD2
AC2

C7
D7

B7
C6

D14
B16

HD#0
HD#1
HD#2
HD#3
HD#4
HD#5
HD#6
HD#7
HD#8
HD#9
HD#10
HD#11
HD#12
HD#13
HD#14
HD#15
HD#16
HD#17
HD#18
HD#19
HD#20
HD#21
HD#22
HD#23
HD#24
HD#25
HD#26
HD#27
HD#28
HD#29
HD#30
HD#31
HD#32
HD#33
HD#34
HD#35
HD#36
HD#37
HD#38
HD#39
HD#40
HD#41
HD#42
HD#43
HD#44
HD#45
HD#46
HD#47
HD#48
HD#49
HD#50
HD#51
HD#52
HD#53
HD#54
HD#55
HD#56
HD#57
HD#58
HD#59
HD#60
HD#61
HD#62
HD#63

C175 33p

HVREF

HSWNG

HL6
HL7
HL8
HL9
HL10

HUB_MREF
HI_SWING

GHCOMP

R203 2.7K
R202 2.7K

R201 22
R200 22

DOT_CLK

RFSET

Brookdale_GMCH

R280 68.1_1%

VCC3

R213 124_1%

HD#[0..63] 4

MCH_66 3

PCIRST#1 11,21,24,25
CPURST# 4
PWR_GD 10,25

HL[6..10] 9

Trace 10 mils &
7mils space < 0.5"

VCC_AGP

BSEL03,4
3VDDCDA 26
3VDDCCL 26

3V_HSYNC 26
3V_VSYNC 26

DOT_CLK 3

VCC_AGP

U16C

VCC_AGP

VCCA_SM VCCQ_SM

VCC_AGP

VCCA_DPLL

VCC3

CB68 0.1u

R211 8.2K

R210

8.2K

R277 X_10K

A3

VCC_AGP

A7
C1
D4
D6

G1

K6
L1
L9
P6
R1
R9

W9

V6

AD6
AC9

AC1
AE3

W19

Y19

AA19

W20

U21

W21

AA21

A9
B9
C9
D9

E9
B10
C10
D10
F10
H10
A11
B11
C11
D11
E11
G11

J11
B12
C12
D12
F12
H12
G13

J13
H14

J15

AA17

W18
W17

V19
U19

U17

AG2 AT20
AG1

A15
B14
A13

C14
B15

B6

Y3

Y2
AA2
AA4
AA3
AA5

W7

Y4

Y8
A37
AB2
AB3

POWER

VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP

VCC_AGP
VCC_AGP
VCC_HI

VCC_HI
VCC_HI

VCC_HI
VCC

VCC
VCC

VCC
VCC

VCC
VCC

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

VCC

VCC
VCC

VCC
VCC

VCC
VCC

VCCA_SM VCCQ_SM
VCCA_SM

VCCA_DAC
VCCA_DAC
VCCA_DPLL

VSSA_DAC
VSSA_DAC
VCC_GPIO

PSBSEL
RSVD

RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD

Other

GND

GND

M10

T10

Y10

GND

AH16

GND

VTT_DECAP
VTT_DECAP
VTT_DECAP
VTT_DECAP
VTT_DECAP

GND

GND

GND

GND

GND

GND

AH20

AH24

AH28

AF28

AB28

V28

VCCSM
VCCSM
VCCSM
VCCSM
VCCSM

VCCSM
VCCSM
VCCSM
VCCSM
VCCSM

VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM

VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM
VCCSM

VCCSM
VCCSM
VCCSM
VCCSM
VCCSM

VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB
VTTFSB

VTTFSB

VCCA_FSB

VCCQ_SM
VCCQ_SM

GND

GND

GND

P28

K24

K28

AH8
AK8
AG9
AJ9
AL9

AM22
AJ23
AL37
AU9
AK10

AJ11
AL11
AU25
AM26
AU13
AM14
AJ27
AJ1
AL1
AJ15
AP15
AU29
AH2
AJ2
AK2
AL2
AM30
AH3
AJ3
AK3
AL3
AH4
AJ4
AK4
AL4
AU17

AJ5
AL5
AU5
AM18
AJ19
AK32
AU33
AH6
AK6

AP20
AG7
AJ7
AL7
AP7

B18
C18
D18
H18
B19
C19
D19
E19
G19
J19
B20
C20
D20
F20
H20

F18
A17

AT21
AU21

G37
L37
R37
AC37
A31

A2

NC

A36

NC

AH34

NC

AJ35

NC

AT1

NC

AT37

NC

AU1

NC

AU2

NC

AU36

NC

AU37

NC

B1

NC

B37

NC

Brookdale_GMCH

MEM_STR

VCCP

VCCA_FSB

CB92 0.1u
CB98 0.1u
CB106 0.1u
CB118 0.1u
CB78 0.1u

GMCH REFERENCE B L OCK

VCCA_FSB

VCCA_DPLL

VCCA_SM

VCCQ_SM

HVREF

Place <0.1"

Layout check( )

Title

Micro Star Restricted Secret

Brookdale-G GMCH Pa rt 1 (P owe r, Hos t , VG A & H UB )

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

L11 0.82uH

CB75

C130

0.1u

22u-1206

L13
10uH-0805

+

CB74

C140

X_0.1u

470u-16V

CB124

0.1u

CB138

0.1u

VCCP VCCP

R197

49.9_1%

R198

C127

0.1u

100_1%

Place Cap. as Close as possible to

, Trace width 12 mils & 10mils space

GMCH

Keep the voltage divider within 3" of the
GMCH pin.

HI_SWING

0.01u

HUB_MREF

Place 0.01uF Cap. as Close as possible to
GMCH< 0.25"
Trace width 12 mils & 10mils space

I=30mA

L19 1uH-0805

EC12

+

47U/10V/S

L21 0.68uH-0805

C177

4.7u-0805

R333
1

C164

C162

0.01u

R212

1

I=35mA

I=500mA

I=150mA

VCC_AGP

C165

0.1u

C163

0.1u

HSWNG

VCC_AGP

VCC_AGP

VCC_AGP

R195

301 1%

C126

0.01u

R288
226_1%

0.704V

R289
100_1%

0.352V

R276
100_1%

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

629

of

MEM_STR

R194

150_1%

Rev

3.0

Trace lengh
must as short
as possible
for SRCVEN

Trace width 12
mil with 12 mil
space for
SM_VREF.

GAD[0..31]16

GC_BE#[0..3]16

R459

DDR_VREF

MDQ0
MDQ1
MDQ2
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
MDQ8
MDQ9
MDQ10
MDQ11
MDQ12
MDQ13
MDQ14
MDQ15
MDQ16
MDQ17
MDQ18
MDQ19
MDQ20
MDQ21
MDQ22
MDQ23
MDQ24
MDQ25
MDQ26
MDQ27
MDQ28
MDQ29
MDQ30
MDQ31
MDQ32
MDQ33
MDQ34
MDQ35
MDQ36
MDQ37
MDQ38
MDQ39
MDQ40
MDQ41
MDQ42
MDQ43
MDQ44
MDQ45
MDQ46
MDQ47
MDQ48
MDQ49
MDQ50
MDQ51
MDQ52
MDQ53
MDQ54
MDQ55
MDQ56
MDQ57
MDQ58
MDQ59
MDQ60
MDQ61
MDQ62
MDQ63

X_0_Solder

SR_OUT#
SR_IN#

C172 0.1u

GAD0
GAD1
GAD2
GAD3
GAD4
GAD5
GAD6
GAD7
GAD8
GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31

GC_BE#0
GC_BE#1
GC_BE#2
GC_BE#3

AN4
AP2
AT3
AP5
AN2
AP3
AR4
AT4
AT5
AR6
AT9

AR10

AT6
AP6
AT8
AP8

AP10

AT11
AT13
AT14

AT10
AR12
AR14
AP14

AT15
AP16

AT18

AT19
AR16

AT16
AP18
AR20
AR22
AP22
AP24

AT26

AT22

AT23

AT25
AR26
AP26

AT28
AR30
AP30

AT27
AR28

AT30

AT31
AR32

AT32
AR36
AP35
AP32

AT33
AP34

AT35
AN36
AM36
AK36

AJ36
AP36
AM35
AK35
AK34

AK24

AL23

V4

V2
W4
W5

U5

U4

U2

V3

T2

T3

T4

R2

R5

R7

T8

P3

P8

K4

K2

J2

M3

L5

L4

H4
G2

K3

J4
J5
J7

H3

K8

G4
R4

N4
M2
H2

U16B

SDQ0
SDQ1
SDQ2
SDQ3
SDQ4
SDQ5
SDQ6
SDQ7
SDQ8
SDQ9
SDQ10
SDQ11
SDQ12
SDQ13
SDQ14
SDQ15
SDQ16
SDQ17
SDQ18
SDQ19
SDQ20
SDQ21
SDQ22
SDQ23
SDQ24
SDQ25
SDQ26
SDQ27
SDQ28
SDQ29
SDQ30
SDQ31
SDQ32
SDQ33
SDQ34
SDQ35
SDQ36
SDQ37
SDQ38
SDQ39
SDQ40
SDQ41
SDQ42
SDQ43
SDQ44
SDQ45
SDQ46
SDQ47
SDQ48
SDQ49
SDQ50
SDQ51
SDQ52
SDQ53
SDQ54
SDQ55
SDQ56
SDQ57
SDQ58
SDQ59
SDQ60
SDQ61
SDQ62
SDQ63

SRCVEN_OUT#
SRCVEN_IN#

G_AD0
G_AD1
G_AD2
G_AD3
G_AD4
G_AD5
G_AD6
G_AD7
G_AD8
G_AD9
G_AD10
G_AD11
G_AD12
G_AD13
G_AD14
G_AD15
G_AD16
G_AD17
G_AD18
G_AD19
G_AD20
G_AD21
G_AD22
G_AD23
G_AD24
G_AD25
G_AD26
G_AD27
G_AD28
G_AD29
G_AD30
G_AD31

G_C/BE0#
G_C/BE1#
G_C/BE2#
G_C/BE3#

AGP

VCC_AGP

VCC_AGP

K10

K12

AHAHAHAHAH

VCCSM

VCCSM

VCCSM

VCCSM

DDR

VCC_AGP

VCC_AGP

VCC_AGP

VCC_AGP

K14

K16

P10

V10

AH

VCCSM

VCCSM

SCMDCL_K0

SCMDCLK_0#

SCMDCLK_1

SCMDCLK_1#

SCMDCLK_2

SCMDCLK_2#

SCMDCLK_3

SCMDCLK_3#

SCMDCLK_4

SCMDCLK_4#

SCMDCLK_5

SCMDCLK_5#

SMX_RCOMP0

SMY_RCOMPSM_VREF

G_FRAME#

G_TRDY#

G_DEVSEL#

G_STOP#

SB_STB#

AD_STB0

AD_STB0#

AD_STB1

AD_STB1#

AGP_VREF

AGP_RCOMP

VCC_AGP

VCC_AGP

Brookdale_GMCH

AB10

AD10

SMA0
SMA1
SMA2
SMA3
SMA4
SMA5
SMA6
SMA7
SMA8

SMA9
SMA10
SMA11
SMA12

SMAB1
SMAB2
SMAB4
SMAB5

SDQS0
SDQS1
SDQS2
SDQS3
SDQS4
SDQS5
SDQS6
SDQS7

SDM0

SDM1

SDM2

SDM3

SDM4

SDM5

SDM6

SDM7
SCKE0

SCKE1
SCKE2
SCKE3

SCS0#
SCS1#
SCS2#
SCS3#

SBA_0

SBA_1
SRAS#
SCAS#

SWE#

G_IRDY#

G_PAR

G_REQ#
G_GNT#

SBA0
SBA1
SBA2
SBA3
SBA4
SBA5
SBA6
SBA7

SB_STB

ST0
ST1
ST2

PIPE#

RBF#

WBF#

MEM_STR

AL25
AN25
AP23
AK20
AL19
AL17
AP19
AP17
AN17
AK16
AK26
AL15
AN15

AP25
AN23
AN19
AK18

AR2
AT7
AT12
AT17
AR24
AT29
AT34
AL36

AP4
AR8
AP12
AR18
AT24
AP28
AR34
AL34

AP13
AN13
AK14
AL13

AL29
AP31
AK30
AN31

AL21
AK22
AN11
AP11
AM34
AL33
AP21
AN21
AP9
AN9
AP33
AN34

AN27
AP27
AK28
AN29
AP29

AF10
AJ34AM2
M4

N7
N5
N2
P2
P4

D5
B5

C3
C2
D3
D2
E4
E2
F3
F2

F4
E5

C4
B4
B3

V8
U7
M8
L7

H8
G7
G5

W2
L2

MSDQS0
MSDQS1
MSDQS2
MSDQS3
MSDQS4
MSDQS5
MSDQS6
MSDQS7

MSDM0
MSDM1
MSDM2
MSDM3
MSDM4
MSDM5
MSDM6
MSDM7

MSCKE0
MSCKE1
MSCKE2
MSCKE3

MSCS0#
MSCS1#
MSCS2#
MSCS3#

DCLK0
DCLK0#
DCLK1
DCLK1#
DCLK2
DCLK2#
DCLK3
DCLK3#
DCLK4
DCLK4#
DCLK5
DCLK#5

MSBS0
MSBS1
MRAS#
MCAS#
MWE#

SMY

SBA0
SBA1
SBA2
SBA3
SBA4
SBA5
SBA6
SBA7

ST0
ST1
ST2

CB109 0.1u

R242 40.2_1%

VCC_AGP

DDRMAA0
DDRMAA1
DDRMAA2
DDRMAA3
DDRMAA4
DDRMAA5
DDRMAA6
DDRMAA7
DDRMAA8
DDRMAA9
DDRMAA10
DDRMAA11
DDRMAA12

DDRMAB1
DDRMAB2
DDRMAB4
DDRMAB5

Place < 0.5"

MSCS0# 14,15
MSCS1# 14,15
MSCS2# 14,15
MSCS3# 14,15

DCLK0 14
DCLK0# 14
DCLK1 14
DCLK1# 14
DCLK2 14
DCLK2# 14
DCLK3 14
DCLK3# 14
DCLK4 14
DCLK4# 14
DCLK5 14
DCLK5# 14

MSBS0 14,15
MSBS1 14,15
MRAS# 14,15
MCAS# 14,15
MWE# 14,15

SMX

GFRAME# 16
GIRDY# 16
GTRDY# 16
GDEVSEL# 16
GSTOP# 16
GPAR 16

GREQ# 16
GGNT# 16

SBA0 16
SBA1 16
SBA2 16
SBA3 16
SBA4 16
SBA5 16
SBA6 16
SBA7 16

SB_STB 16
SB_STB# 16

ST[0..2] 16

GAD_STB0 16
GAD_STB#0 16
GAD_STB1 16
GAD_STB#1 16

PIPE# 16
RBF# 16
WBF# 16

AGPREF 16

DDRMAA[0..12] 14,15

DDRMAB1 14,15
DDRMAB2 14,15
DDRMAB4 14,15
DDRMAB5 14,15

MSCKE[0..3] 14,15

R330

60.4

R325

60.4

Layout check( )

Trace width 12 mil
with 10 mil space.

Place 0.1uF <1" to GMCH

R317

60.4

C174

0.1u

R318

C170

60.4

0.1u

MEM_STR

DDR SERIAL RESI S T ORS

DDRMD[0..63]14,15

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

DDRMD1
DDRMD5
DDRMD4
DDRMD0
DDRMD3
DDRMD7
DDRMD6
DDRMD2
DDRMD13
DDRMD12
DDRMD9
DDRMD8
DDRMD11
DDRMD10
DDRMD15
DDRMD14
DDRMD21
DDRMD17
DDRMD16
DDRMD20
DDRMD23
DDRMD19
DDRMD22
DDRMD18
DDRMD25
DDRMD29
DDRMD28
DDRMD24
DDRMD31
DDRMD27
DDRMD30
DDRMD26
DDRMD37
DDRMD33
DDRMD36
DDRMD32
DDRMD35
DDRMD39
DDRMD38
DDRMD34
DDRMD41
DDRMD45
DDRMD44
DDRMD40
DDRMD47
DDRMD43
DDRMD46
DDRMD42
DDRMD53
DDRMD52
DDRMD49
DDRMD48
DDRMD51
DDRMD50
DDRMD55
DDRMD54
DDRMD57
DDRMD61
DDRMD56
DDRMD60
DDRMD59
DDRMD63
DDRMD58
DDRMD62

MSDM0 SDM0
MSDM1
MSDM2
MSDM3
MSDM4
MSDM5
MSDM6
MSDM7

MSDQS0
MSDQS1
MSDQS2
MSDQS3
MSDQS4
MSDQS5
MSDQS6
MSDQS7

Micro Star Restricted Secret

Brookdale-G GMCH Part 2 (DDR & AGP)

RN28 10

7 8
5 6
3 4
1 2

RN29 10

7 8
5 6
3 4
1 2

RN30 10

7 8
5 6
3 4
1 2

RN31 10

7 8
5 6
3 4
1 2

RN32 10

7 8
5 6
3 4
1 2

RN33 10

7 8
5 6
3 4
1 2

RN34 10

7 8
5 6
3 4
1 2

RN35 10

7 8
5 6
3 4
1 2

RN25 10

7 8
5 6
3 4
1 2

RN26 10

7 8
5 6
3 4
1 2

RN27 10

7 8
5 6
3 4
1 2

RN21 10

7 8
5 6
3 4
1 2

RN22 10

7 8
5 6
3 4
1 2

RN23 10

7 8
5 6
3 4
1 2

RN24 10

7 8
5 6
3 4
1 2

RN36 10

7 8
5 6
3 4
1 2

R397 10
R400 10
R402 10
R404 10
R396 10
R389 10
R391 10
R393 10

R398 10
R399 10
R401 10
R403 10
R395 10
R390 10
R392 10
R394 10

SDM1
SDM2
SDM3
SDM4
SDM5
SDM6
SDM7

SDQS0
SDQS1
SDQS2
SDQS3
SDQS4
SDQS5
SDQS6
SDQS7

MS-6539

MDQ1
MDQ5
MDQ4
MDQ0
MDQ3
MDQ7
MDQ6
MDQ2
MDQ13
MDQ12
MDQ9
MDQ8
MDQ11
MDQ10
MDQ15
MDQ14
MDQ21
MDQ17
MDQ16
MDQ20
MDQ23
MDQ19
MDQ22
MDQ18
MDQ25
MDQ29
MDQ28
MDQ24
MDQ31
MDQ27
MDQ30
MDQ26
MDQ37
MDQ33
MDQ36
MDQ32
MDQ35
MDQ39
MDQ38
MDQ34
MDQ41
MDQ45
MDQ44
MDQ40
MDQ47
MDQ43
MDQ46
MDQ42
MDQ53
MDQ52
MDQ49
MDQ48
MDQ51
MDQ50
MDQ55
MDQ54
MDQ57
MDQ61
MDQ56
MDQ60
MDQ59
MDQ63
MDQ58
MDQ62

SDM0 14,15
SDM1 14,15
SDM2 14,15
SDM3 14,15
SDM4 14,15
SDM5 14,15
SDM6 14,15
SDM7 14,15

SDQS[0..7] 14,15

Last Revision Date:

Wednesday, March 19, 2003

Sheet

729

of

Rev

3.0

U18
V18
Y18

AA18

AL31
AR31
AU31

F32
H32
K32
M32
P32
T32
V32

Y32
AB32
AD32

AF32

AH32

AM4

AG5

AN5

AR5

AR19
AM32

A33

C33

AJ33
AN33
AR33

AB6
AF6

AM6

U20
V20

Y20
AA20
AM20

A21

B21

C21

D21

E21

G21

D34

W34

A35

E35

G35

AN7

AR7

AU7

V21

Y21

AJ21

AR21

F22

H22

XX1

XX2

XX3

XX4

XX5

XX6

XX7

XX8

A5
C5

F6
H6

M6

T6
Y6

J21

J35
L35

B8
C8
D8
F8

U16D

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

C17

D17

E17

G17

J17

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

A29

C29

J29

L29

N29

U29

Brookdale_GMCH

GMCH DECOUPLING CAPACITOR

V17

AH30

C31

AC3

AG3

AM3

AN3

AR3

AU3

AB4

AG4

Y17

AJ17

AR17

AR9

AM10

AR23

AU23

F24

AM24

A25

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

R29

W29

AA29

AC29

AE29

AG29

AJ29

AR29

F30

AT2E3G3J3L3N3R3U3W3

AM16

B17

VSS

VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS
VSS
VSS
VSS

N35
R35
U35
AA35
AC35
AE35
AG35
AL35
AN35
AR35
AU35
B36
W36
AF8
AM8
G9
J9
N9
U9
AA9
AE9
A23
C23
D23
J23

AH36
AT36
C37
E37
J37
U37
AA37
AE37
AG37
AJ37
C25
AN37
AR37
AR11
AU11
J25
AJ25
AR25
F26
AK12
AM12
B13
C13
D13
E13
A27
C27
J27
AJ13
AR13
F14

AL27
AR27
AU27
F28
AM28
E1
J1
N1
U1
AA1
AE1
AN1
AR1
B2
D15

AR15
AU15
N37
C16

VCC_AGP

CB81

0.1u
CB97

0.1u
CB91

0.1u
CB100

0.1u
CB108

0.1u

Place decoupling cap
close to GMCH AGP
Interface < 0.1"

VCC_AGP

CB107

0.1u

Place decoupling cap
close to GMCH Core
Logic Interface <

0.1"

VCC5

X_0.1uC115

X_0.1uC80

0.1uC96
X_0.1uC219

VCC3 VCC5

VCC3

0.1uC68

0.1uC65

VCC_AGP

Pin A5
Pin E1
Pin J1
Pin N1
Pin U1

VCC_AGP

CB113

0.1u
CB117

0.1u

Pin AA1
Pin AE1

Place decoupling cap
close to GMCH
Hub-Link Interface<

0.1"

VCCP

CB72

0.1u
CB77

0.1u
CB76

0.1u
CB71

0.1u
CB73

0.1u

Place decoupling cap
close to GMCH CPU
Interface < 250mil
in the Vtt corridor

VCC_AGP

+

CT26

1000u/6.3V

Place Bulk cap for Core Logic,
AGP & Hub Link Interface

+

Place Bulk cap between
GMCH & DIMM slot

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

Micro Star Restricted Secret

MEM_STR

Place decoupling cap
close to GMCH Memory
Interface < 0.1", with
18 mil trach width

MEM_STR

CT24

100u_16V

Brookdale-G G MC H Pa rt 3 (G ND )

VCC_AGP

C134

0.01u
CB125

0.1u

Place decoupling cap
close to GMCH DAC
Interface< 0.1"

CB136

Pin AL37

0.1u
CB140

Pin AU5

0.1u
CB139

Pin AU9

0.1u
CB144

Pin AU13

0.1u
CB145

Pin AU17

0.1u
CB143

Pin AU25

0.1u
CB142

Pin AU29

0.1u
CB141

Pin AU33

0.1u

VCCP

CB63

10u-1206

EC22

+

47U/10V/S

MS-6539N1

CB243

10u-1206

Last Revision Date:

Wednesday, March 19, 2003

Sheet

829

of

Pin B14
Pin A15

CB62
10u-1206

CT27

+

100u_16V

Rev

3.0

ICH4 PCI / HUB LINK / CPU / LAN / INTERRUPT SIGNALS

ICH4 SMI# SI G N AL

C_BE#[0..3]17,24

AD[0..31]17,24

MS5RSMRST#10,24,25

DEVSEL#17,24

FRAME#17,24

IRDY#17,24

TRDY#17,24

STOP#17,24

PAR17,24

PLOCK#17

SERR#17,24
PERR#17,24

PME#16,17,24

ICH_PCLK3

PCIRST#16,25

Ver 1.0

VCC_AGP VCC3_SB

K12

K18

K22

P10

T18

U19

VCC1_5

VCC1_5

GND4

GND5

A22A4AA12

VCC1_5

VCC1_5

GND6

GND7

VCC1_5

GND8

AA16

VCC1_5

GND9

AA22

V14A5AC17

VCC1_5

GND10

GND11

AA3

AA9

VCC3_3

GND12

AB20

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C_BE#0
C_BE#1
C_BE#2
C_BE#3

PREQ#A PREQ#B
PGNT#A

D10
D11

C12

G5

G2
G4

M5

M4

M3

G1
M2

W2

H5

AD0

J3

AD1

H3

AD2

K1

AD3
AD4

J4

AD5

H4

AD6

J5

AD7

K2

AD8
AD9

L1

AD10
AD11

L2

AD12

H2

AD13

L3

AD14

F5

AD15

F4

AD16

N1

AD17

E5

AD18

N2

AD19

E3

AD20

N3

AD21

E4

AD22
AD23

E2

AD24

P1

AD25

E1

AD26

P2

AD27

D3

AD28

R1

AD29

D2

AD30

P4

AD31

J2

C/BE0#

K4

C/BE1#
C/BE2#

N4

C/BE3#
DEVSEL#

F1

FRAME#

L5

IRDY#

F2

TRDY#

F3

STOP#
PAR
PLOCK#

K5

SERR#

L4

PERR#
PME#

B5

GPIO0/REQA#

E8

GPIO16/GNTA#

P5

PCICLK

U5

PCIRST#

Y5

LAN_RST#
EE_CS

EE_DIN

A8

EE_DOUT
EE_SHCLK

GND1

A1

GND2

A16

K10

VCC1_5

GND3

A18

A20

AC8B2H18H6J1

VCC3_3

VCC3_3

GND13

GND14

AB7

AC1

AC10

VCC3

J18K6M10

P12P6U1

VCC3_3

VCC3_3

VCC3_3

VCC3_3

VCC3_3

VCC3_3

VCC3_3

VCC3_3

VCC3_3

VCC3_3

GND15

GND16

GND17

GND18

GND19

GND20

GND21

GND22

GND23

GND24

AC14

AC18

AC23

AC5

B12

B16

B18

B20

B22B9C15

VCC1_5SB

V10

V16

V18

E20

F14

G18R6T6

U6

E13

E12

VCC3_3

VCC3_3

VCC3_3

VCCSUS1_5

VCCSUS1_5

VCCSUS1_5

GND25

GND26

GND27

GND28

GND29

GND30

GND31

C17

C19

C21

C23C6D1

E11

F10

F15

F16

F17

F18

K14V7V8

V9

U12A

AB23

A20M#

U21

CPUSLP#

AA21

FERR#

W21

IGNNE#

V22

VCCSUS1_5

VCCSUS1_5

VCCSUS1_5

VCCSUS1_5

VCCSUS1_5

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

GPIO1/REQB#/REQ5#

GPIO17/GNTB#/GNT5#

GND32

GND33

GND34

GND35

GND36

GND37

D12

D15

D17

D19

D21

GND38

GND39

D23D4D8

GND43

GND40

GND41

GND42

E14

D22

E10

E16

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

THRMTRIP#

LAN_RSTSYNC

LAN_RXD0
LAN_RXD1
LAN_RXD2

GND44

GND45

GND46

GND47

E17

E18

E19

INIT#
INTR

NMI

SMI#

STPCLK#

RCIN#

A20GATE

NC

HI0
HI1
HI2
HI3
HI4
HI5
HI6
HI7
HI8

HI9
HI10
HI11

HI_STB
HL_STB#
HLCOMP

HI_SWING

HIREF

PIRQA#

PIRQB#

PIRQC#

PIRQD#

IRQ14
IRQ15

APICCLK

APICD0

APICD1

SERIRQ

REQ0#
REQ1#
REQ2#
REQ3#
REQ4#

GNT0#
GNT1#
GNT2#
GNT3#
GNT4#

LAN_CLK

LAN_TXD0
LAN_TXD1
LAN_TXD2

INT-FW82801DB

AB22
V21
W23
V23
U22
Y22
U23
W20

L19
L20
M19
M21
P19
R19
T20
R20
P23
L22
N22
K21
P21
N20
R23
R22
M23

D5
C2
B4
A3

AC13
AA19
J19
H19
K20
J22

B1
A2
B3
C7
B6
A6

C1
E6
A7
B7
D6
C5

C11
B11
A10
A9
A11
B10
C10
A12

HL11

SMI#
KB_RST#

A20GATE#
TRMTRIP#
HL0

HL1
HL2
HL3
HL4
HL5
HL6
HL7
HL8
HL9
HL10

R167 62

IHCOMP
HI_ISWING
HUB_IREF

APICCLK
APIC_D0
APIC_D1
SERIRQ

PREQ#0
PREQ#1
PREQ#2
PREQ#3
PREQ#4

PGNT#0
PGNT#1
PGNT#2
PGNT#3
PGNT#4
PGNT#B

R164 33

FINIT# 21
A20M#

SLP# 4
FERR# 4
IGNNE# 4
HINIT# 4
INTR 4
NMI 4

STPCLK# 4
KB_RST# 11
A20GATE# 11

TRMTRIP# 4

HL[0..10] 6

This resistor less than 0.5"
from ICH use 15 mils trace

HL_STB 6
HL_STB# 6

R183 68.1_1%

INTA# 16,17
INTB# 16,17
INTC# 17,24
INTD# 17

IRQ14 3
IRQ15 3

SERIRQ 11

PREQ#[0..4] 17,24

PGNT#0 17
PGNT#1 17
PGNT#2 24

VCC_AGP

新增

Ver 0B

SMI#

R159 33

100pC114

HSMI# 4

ICH4 STRAPPING RESISTORS

FERR#
TRMTRIP#

SERIRQ

KB_RST#
A20GATE#
PREQ#A
PGNT#A
PREQ#B
PGNT#B
PGNT#4

APIC_D0
APIC_D1
APICCLK

PGNT#2
PGNT#3

R171 62
R179 62

R168 8.2K
R163 10K
R169 10K
R233 10K
R231 X_10K
R226 10K
R234 X_10K
R230 X_10K

R180 10K
R182 10K

R225 X_10K
R227 X_10K

VCCP

VCC3

VCC3

ICH4 REFERENCE VOLTAGE

VCC_AGP

R162
226_1%

HI_ISWING

HUB_IREF

C112

X_0.01u

C111

X_0.01u

C103

0.1u

C102

0.1u

R165
100_1%

R166
100_1%

Pin A4

VCC3

Pin A1

CB90

0.1u

Pin H1

CB80

0.1u

ICH4 DECOUPLING CAPACITORS

Pin AC10

CB101

0.1u

Pin T1

CB104

0.1u

Pin AC18

CB103
X_0.1u

CB64

0.1u

Place one 0.1u close to ICH4 <100 mil

Pin K23 Pin C23 Pin A16 Pin AC1Pin T23 Pin N23 Pin C22 Pin C22

VCC_AGP VCC_AGP VCC_AGP

CB47
CB50
X_0.1u

CB70
X_0.1u

CB48
X_0.1u

CB55

0.1u

X_0.1u

C113
X_0.01u

FOR Core Logic FOR Hub Interface FOR PLL

VCC1_5SB

CB105

0.1u

Title

CB69

Document Numbe r

0.1u

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

Micro Star Restricted Secret

Place Cap. as Close as possible to ICH4 < 0.25"
Trace width use 12 mils and 10mils space

ICH4 Part 1 (Power, HUB, PC I & C P U I /F )

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

929

of

Rev

3.0

新增

VCC3_SB

MS5RSMRST#9,24,25

LFRAME#/FWH411,21

THRM#11

SLP_S3#25

SLP_S5#

R497 0

SLP_S5#25

PWR_GD6,25

CPU_GD4

INTRUDER#17

R498 X_0

VRM_GD17,22

PWRBTN#20

RING#18

SUSCLK11

R485 8.2K

Ver 0B

SMBDATA17,23,24

SMBCLK17,23,24

ICH_663
ICH_143
ICH_483

AC_RST#12,17
AC_SYNC12,17
AC_BCLK12

AC_SDOUT12,17

AC_SDIN017
AC_SDIN117
AC_SDIN212

SPKR20

SIO_PME#11

GPO2124
GPO2221

LAD0/FWH011,21
LAD1/FWH111,21
LAD2/FWH211,21
LAD3/FWH311,21

LDRQ#11

USBP0+19

USBP0-19

USBP1+19

USBP1-19

USBP2+19

USBP2-19

USBP3+19

USBP3-19

Place < 0.5"

R184 22.6 1%

OC#0_119

OC#2_319

Place Cap close
to Pin E7

THRM#

PWR_GD

R185 60.4

RING#

MS5RSMRST#

SUSSTAT#
SYS_RST#

BATLOW#
CDC_DN#

RTCRST#
VBIAS

RTCX1
RTCX2

R219 22

AC_SDIN0
AC_SDIN1
AC_SDIN2

GPI12

GPI27
GPI28

USBBIAS

C128

C125

0.1u

0.1u

Near ICH4

VCC5

VCC3

CPG

R266 1K

D14 SM5817S

V1

THRM#

Y4

SLP_S3#

Y2

SLP_S4#

AA2

SLP_S5#

AB6

PWROK

Y23

CPUPWRGD

V19

VRMPWRGD

AA1

PWRBTN#

Y1

RI#

AA6

RSMRST#

AB3

SUSSTAT#

AA4

SUSCLK

Y3

SYS_RESET#

AB2

BATLOW#/TP0

R2

AGPBUSY#/GPIO6

AA5

GPIO11/SMBALERT#

AC3

SMLINK0

AB1

SMLINK1

W6

INTRUDER#

W7

RTCRST#

Y6

VBIAS

AB4

SMBDATA

AC4

SMBCLK

AC7

RTCX1

AC6

RTCX2

V20

NC

T21

CLK66

J23

CLK14

F19

CLK48

C13

AC_RST#

C9

AC_SYNC

B8

AC_BITCLK

D9

AC_SDOUT

D13

AC_SDIN0

A13

AC_SDIN1

B13

AC_SDIN2

H23

SPKR

V5

GPIO12

W3

GPIO13

T3

C3_STAT#/GPIO21

Y20

CPUPERF#/GPIO22

J21

SSMUXSEL/GPIO23

W1

GPIO27

W4

GPIO28

T2

LAD0/FWH0

R4

LAD1/FWH1

T4

LAD2/FWH2

U2

LAD3/FWH3

T5

LFRAME#/FWH4

U3

LDRQ0#

U4

LDRQ1#

C20

USBP0+

D20

USBP0-

A21

USBP1+

B21

USBP1-

C18

USBP2+

D18

USBP2-

A19

USBP3+

B19

USBP3-

C16

USBP4+

D16

USBP4-

A17

USBP5+

B17

USBP5-

A23

USBRBIAS

B23

USBRBIAS#

B15

OC0#

C14

OC1#

A15

OC2#

B14

OC3#

A14

OC4#

D14

OC5#

VCC5_SB RTC_VCC

V5REF

E15E7V6

V5REF1

V5REF2

V5REF_SUS

GND48

GND49

GND50

GND51

GND52

GND53

E21

E22F8G19

G21G3G6H1J6

VCC_AGP

C22

VCCPLL

GND54

GND55

GND56

CB94
1u

VCC_AGP

AB5

L23

VCC_HI

VCCRTC

GND57

GND58

GND59

GND60

GND61

K11

K13

K19

K23K3L10

VCC1_5SB

M14

P18

T22F6F7E9F9

VCC_HI

VCC_HI

VCC_HI

GND62

GND63

GND64

L11

L12

VCC3_SB

VCCP

AA23

P14

Y7

U18

VCPU_IO0

VCPU_IO1

VCPU_IO2

VCCLAN1_5/VCCSUS1_5

VCCLAN1_5/VCCSUS1_5

VCCLAN3_3/VCCSUS3_3

VCCLAN3_3/VCCSUS3_3

GND65

GND66

GND67

GND68

GND69

GND70

GND71

GND72

GND73

GND74

GND75

L13

L14

L21M1M11

M12

M13

M20

M22

N10

N11

N12

V17V3W22W5W8

Y19

GND96

GND97

GND98

GND99

GND100

GND101

GND102

GND76

GND77

GND78

GND79

GND80

GND81

GND82

N13

N14

N19

N21

N23N5P11

T19

T23

U20

V15

GND92

GND93

GND94

GND95

GPIO2/PIRQE#

GPIO3/PIRQF#
GPIO4/PIRQG#
GPIO5/PIRQH#

STP_PCI#/GPIO18

SLP_S1#/GPIO19

STP_CPU#/GPIO20

CLKRUN#/GPIO24

GND83

GND84

GND85

GND86

P13

P20

P22P3R18

R21R5T1

PDCS1#
SDCS1#
PDCS3#

GND89

GND90

GND91

SDCS3#

PDDREQ

SDDREQ
PDDACK#
SDDACK#

PDIOR#

SDIOR#
PDIOW#
SDIOW#
PIORDY
SIORDY

GPIO25

GPIO32

GPIO33

GPIO34

GPIO35

GPIO36

GPIO37

GPIO38

GPIO39

GPIO40

GPIO41

GPIO42

GPIO43

GND87

GND88

INT-FW82801DB

PDA0
PDA1
PDA2
SDA0
SDA1
SDA2

PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8

PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

SDD0

SDD1

SDD2

SDD3

SDD4

SDD5

SDD6

SDD7

SDD8

SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15

GPIO7
GPIO8

U12B

Y13
AB21
AB14
AC22

AA13
AB13
W13
AA20
AC20
AC21

AA11
AB18
Y12
AB19
AC12
Y18
W12
AA18
AB12
AC19

AB11
AC11
Y10
AA10
AA7
AB8
Y8
AA8
AB9
Y9
AC9
W9
AB10
W10
W11
Y11

W17
AB17
W16
AC16
W15
AB15
W14
AA14
Y14
AC15
AA15
Y15
AB16
Y16
AA17
Y17

C8
D7
C3
C4
R3
V4
Y21
W18
W19
AC2
V2
J20
G22
F20
G20
F21
H20
F23
H22
G23
H21
F22
E23

PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15

GPO19
GPO20
GPI24
GPI25

GPI7

PD_CS#1 3
SD_CS#1 3
PD_CS#3 3
SD_CS#3 3

PD_A0 3
PD_A1 3
PD_A2 3
SD_A0 3
SD_A1 3
SD_A2 3

PD_DREQ 3
SD_DREQ 3
PD_DACK# 3
SD_DACK# 3
PD_IOR# 3
SD_IOR# 3
PD_IOW# 3
SD_IOW# 3
PD_IORDY 3
SD_IORDY 3

PDD[0..15] 3

SDD[0..15] 3

INTE# 17
INTF# 17
INTG# 17
INTH# 17

LAN_WAKE# 18

Pasword Clear
"0":Normal
"1":Clear

J3

YJ102

3

21

GPI7

2
1

VBAT

VCC5_SB

* Put a GND Plane under X'TAL

R270
1K

R264
3K

D12

BAT54A-S-SOT23

* Please put this block close ICH2

D13
1N4148-S-LL34

2

BAT1

1

3

R504 0

R243

1K

follow intel circuit

BAT

RTC_VCC

The RC delay time should
be in 15~28ms.

R263 22K

1 2

C152

BAT_R

0.047u

Ver 1.0

C138

15p

C159
105P

R221
10M

R228 10M
X2

32K-12.5pf-CSA-309-D

+-30PPM 32pF

ICH4 STRAPPING RESIST O R S

SMBDATA
SMBCLK

PD_IORDY

SD_IORDY

THRM#

GPI7

CDC_DN#

GPO19
GPO20

SPKR

AC_SDOUT

SPKR
HIGH
LOW

AC_SDOUT
HIGH
LOW

R205 4.7K
R196 4.7K

R268 8.2K

R261 X_232KST

1 2

R170 4.7K
R186 4.7K
R181 X_1K
R224 X_8.2K

No Reboot mode
Reboot mode

FSB Safe mode
FSB Auto mode

*

*

VCC3

MS5RSMRST#

C133
220p

BATLOW#

SUSSTAT#

GPI25
GPI27
RING#
GPI28
GPI24

CHECK THIS !

Check GPI24 Definition

GPI12
SIO_PME#

R216 4.7K
R209 10K

Ver 1.0

PWR_GD
AC_SDIN1
AC_SDIN2

PROCHOT BLOCK SYSTEM RESET

VCCP

THRM#

R255 X_4.7K

X_NPN-3904LT1-S-SOT23

PROCHOT#4,17

FP_RST#3,17,20,25

CE

Q22

B

R285 X_0

RTC BLOCK

CLR_CMOS
2 - 3
1 - 2 Clear CMOS

J_RTCRST#
RTCRST#

1 2

R245 2.7K
R241 2.7K
R251 4.7K
R259 4.7K

R256 4.7K
R257 4.7K
R258 8.2KR290 4.7K
R249 10K
R252 X_4.7K

R272 10K
R273 10K

R232 10K
R206 X_10K
R204 10K

R269 8.2K

SYS_RST#

Normal

CLR_CMOS1

3
2
1

D1x3-BK

VBIAS

RTCX1

RTCX2

C149
15p

VCC5_SB

*

VCC3_SB

VCC3_SB

ICH4 DECOUPLING CAPACITOR

VCC3_SB

CB49

0.1u

Pin A22 Pin AC5 Pin AA23

CB79

0.1u

VCCP

CB51

0.1u

Place one 0.1u close
to ICH4 <100 mil

CB67

VCC5_SB

0.1u

V5REF

CB102

0.1u

Pin A16 Pin E7

Title

Micro Star Restricted Secret

ICH4 Part 2 (RTC,GPIO,LPC,USB,ID E)

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

10 29

of

3.0

5

4

3

2

1

1/2" Notebook type

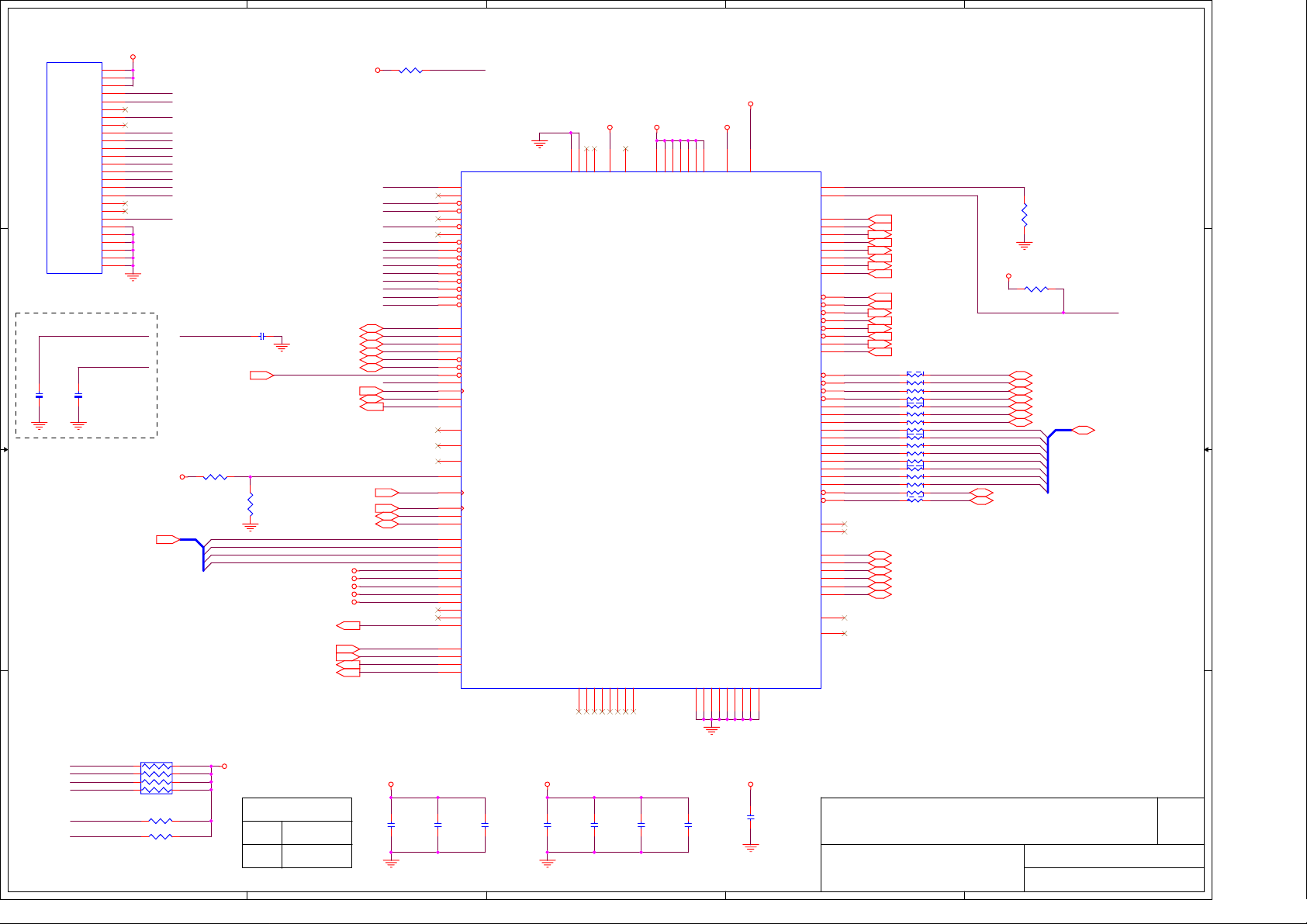

FLOPPY DISK HEADER

FDD1

INDEX#

D D

STEP#

TRACK0#

RDATA#

HEAD#

DSKCHG#

FPC-D26

C C

B B

Ver 1.0

C258
56p

VCC
VCC
VCC

MOA#

DSB#
DSA#

MOB#

DIR#
WD#

WE#
WP#

RSVD
RSVD
RSVD

GND
GND
GND
GND
GND
GND

SMBDATA_ISO

SMBCLK_ISO

C259
56p

VCC5

1
3
5

INDEX#

2

MOA#

10
8

DSA#

4
9

DIR#

12

STEP#

14

WRDATA#

16

WE#

18

TRACK0#

20

WP#

22

RDDATA#

24

HEAD#

26

DSKCHG#

6
7
11

DRVDEN0

13
15
17
19
21
23
25

Close U9 pin103,104

VCC3

VID[0..4]4,22

PCIRST#1

PCIRST#16,21,24,25

R7

X_4.7K

R50

LPCPD

4.7K

DRVDEN0

INDEX#

MOA#
DSA#
DIR#

STEP#
WRDATA#
WE#
TRACK0#
WP#
RDDATA#
HEAD#
DSKCHG#

LPCPD

VID0
VID1
VID2
VID3

THRM#

12

1

GP40/DRVDEN0

2

GP41/DRVDEN1

13

INDEX~

3

MTR0~

42

GP21/P16/DS1~

5

DS0~

43

GP22/P12/MTR1~

8

DIR~

9

STEP~

10

WDATA~

11

WGATE~

14

TRK0~

15

WRTPRT~

16

RDATA~

12

HDSEL~

4

DSKCHG~

20

LAD0

21

LAD1

22

LAD2

23

LAD3

24

LFRAME~

25

LDRQ~

26

PCI_RESET~

27

LPCPD~

29

PCI_CLK

30

SER_IRQ

17

GP42/IO_PME~

50

GP27/IO_SMI~

28

GP43/DDRC

41

GP20/P17

45

GP24/SYSOP

6

CLKI32

19

CLOCKI

103

SDA

104

SCLK

106

VID0

107

VID1

108

VID2

109

VID3

110

+12V_IN/VID4

115

+5V_IN

116

+3.3V_IN

117

+2.5_IN

118

Vccp_IN

114

D+

113

D- (XNOR_IN)

105

A0/RESET~/THERM~ (XNOR_OUT)

51

GP30/FAN_TACH2

52

GP31/FAN_TACH1

54

GP32/FAN2

55

GP33/FAN1

VCC_AGP

126

125

124

123

NC6

NC5

NC4

NC3

GP10/J1B1

GP11/J1B2

GP12/J2B1

32333435363738

VCC3

120

119

122

121

NC2

NC1

HVCC

HVCC

U5

SMSC-LPC47M192

GP13/J2B2

GP14/J1X

GP15/J1Y

GP16/J2X

GP17/J2Y

39

11118936553

102

VCC

HVCC

HVCC

7

VCC

GND

316076

VCC

GND

VCC5

GND

GND

44

VREF

HGND

101

VCC3_SB

112

VTR

GP53/TXD2(IRTX)

GP52/RXD2(IRRX)

STROBE~/DS0~

ALF~/DRVDEN0~

ERROR~/HDSEL~

SLCT/WGATE~

PD4/DSKCHG~

PD2/WRTPRT~

SLCTIN~/STEP~

GP26/MIDI_OUT

GP36/KBDRST~

AGND

HGND

HGND

HGND

40

127

128

IRTX2/GP35

IRRX2/GP34

GP51/DCD2~

GP50/RI2~
GP57/DTR2~
GP56/CTS2~
GP55/RTS2~
GP54/DSR2~

DCD1~

RI1~
DTR1~
CTS1~
RTS1~
DSR1~

TXD1

RXD1

ACK~/DS1~

BUSY/MTR1~

PE/WDATA~

PD7

PD6/MTR0~

PD5

PD3/RDATA~

PD1/TRK0~

PD0/INDEX~

INIT~/DIR~

GP25/MIDI_IN

GP37/A20M

MCLK
MDAT

KCLK

KDAT

GP61/LED2
GP60/LED1

62

IRRX

61

94
92
100
99
98
97
96
95

91
90
89
88
87
86
85
84

83
82
81
80
79
78
77
75
74
73
72
71
70
69
68
67
66

47
46

64
63
59
58
57
56

49
48

DCDB# 18
RIB# 18
DTRB# 18
CTSB# 18
RTSB# 18
DSRB# 18
SOUTB 18
SINB 18

DCDA# 18
RIA# 18
DTRA# 18
CTSA# 18
RTSA# 18
DSRA# 18
SOUTA 18
SINA 18

1 2
3 4
5 6

RN5 33

7 8
1 2
3 4
5 6

RN4 33

7 8
1 2
3 4
5 6

RN2 33

7 8
1 2
3 4
5 6

RN1 33

7 8

R20 33

A20GATE# 9
KB_RST# 9
MSCLK 18
MSDATA 18
KBCLK 18
KBDATA 18

LP_D7
LP_D6
LP_D5
LP_D4
LP_D3
LP_D2
LP_D1
LP_D0

VCC3_SB

LP_SLIN# 18
LP_INIT# 18

R12

4.7K_0603

R13

100K_0603

LP_STB# 18
LP_AFD# 18
LP_ERR# 18
LP_ACK# 18
LP_BUSY 18
LP_PE 18
LP_SLCT 18

IRRX

LP_D[0..7] 18

VCC3

C33

33p

12

12

R8

4.7K_0603

LAD0/FWH010,21
LAD1/FWH110,21
LAD2/FWH210,21
LAD3/FWH310,21

LFRAME#/FWH410,21

LDRQ#10

SIO_PCLK3

SERIRQ9

SIO_PME#10

SUSCLK10

LPC_143

SMBDATA_ISO3,14,23,25

SMBCLK_ISO3,14,23,25

+12V
VCC5
VCC3

MEM_STR

VCCP

THRM#10

CPU_FAN123

PFAN_FAN123

FANON123

SYS_CTRL23

RDDATA#
WP#

A A

TRACK0#
INDEX#

DSKCHG#
HEAD#

RN6

78
56
34
12

1K-0603
R82 1K_0603
R81 1K_0603

5

VCC5

GP24(Base I/O Addr e ss )

R425

02EH

R424

04EH

VCC5

0.1u

CB31

0.1u

CB24

4

CB3

0.1u

VCC3

CB23

0.1u

CB32

0.1u

3

CB2

0.1u

CB5

0.1u

VCC3_SB

CB19

0.1u

Title

Micro Star Restricted Secret

LPC I/O & GAME PORT

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

2

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

11 29

of

1

3.0

AUDIO CODEC
9708/9756/1885

AC_SDOUT10,17

AC_SDIN210

AC_SYNC10,17

AC_RST#10,17

AC_BCLK10

CNR_AC_BCLK

AC97_SPKR20

+12V +5VR+12VR

R60

1 2

22/1206

C32
104P

R90 10_0603

Close to pci slot

C56

X_100p

R85

1 2

10K

VR1
YLT1087S-0.8A

3 2

VIN VOUT

+

EC3

10U/16V/S

12

R86 0

12

1 2

NO STUFF

R83

1 2

10_0603
C54
10P

C284
10P

12

ADJ

1

Place crystal near CODEC,
and route 12 mils trace.

Y1

24.576MHZ

C53
20P

R84
1K

12

AU_BITCLK

C57

C58
104P

12

R17

100RST

12

R31
300RST

C52
20P

1U

VCC3

+

EC2
47U/10V/S

L3

1 2

60S/0603

For EMI request

EC5

+

10U/16V/S

C8

C9

104P

104P

R79

1 2

10K

R80

1 2

10K

EMI

C55

1 2

1U

1
2
3
4
5
6
7
8

9
10
11
12

DVDD1
XTL_IN
XTL_OUT
DVSS1
SDATA_OUT
BIT_CLK
DVSS2
SDATA_IN
DVDD2
SYNC
RESET#
PC_BEEP

12

+5VR

12

R77
0

12

R78
0

4847464544424140394338

NC

NC

TEST6

TEST5

TEST4

TEST1

PHONE

AUXL

AUXR

VIDEOL

VIDEOR

CDLNCCDR

1314151617181920212223

C59

1U

12

12

R75
0

1 2

B05-1881A04-A25

37

NC

TEST3

TEST2

MONO

AVSS2

AVDD2

MIC1

MIC2

LINL

LINR

24

C25

1 2

1 2

C26

C30

1 2

1U-0805

C34 1U/0805

1 2

C42 1U/0805

1 2

C45 1U/0805

1 2

12

C47

X_1U/0805

12

C50

X_1U/0805

1 2

U6

LOUTR

LOUTL

NC

NC
VRDA
VRAD

AFILT2
AFILT1

NC
VREF

AVSS1
AVDD1

C46

X_1U/0805

C49

X_1U/0805

CP9

X_COPPER

12

36
35
34
33
32
31
30
29
28
27
26
25

CODEC-AAD1885

1U-0805

1U-0805

1 2

+5VR

1 2

C37

C43 104P

1U

LINE_OUT_R
LINE_OUT_L

1 2

C24

104P

R56

1K

12

12

R61

4.7K

+

12

R44
X_4.7K

NO STUFF

12

C31
102P

R62 4.7K

R74 4.7K

12

R67

2.7K

EC1
10U/16V/S

1 2

R68

1 2

2.7K

1 2

R73

4.7K

12

MIC_IN 13

C23
104P

12

C15
X_180P

LINE_OUT_R 13
LINE_OUT_L 13

C12
1U

12

C16
X_180P

RIGHT_CD 3

CD_AGND 3

LEFT_CD 3

CD_IN

C19

1 2

104P

12

12

C22
270P

C21

C11
270P

LINE_IN_R 13

LINE_IN_L 13

Title

C10

1U

C20

1U

473P

Micro Star Restricted Secret

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

0.1uC261

0.1uC262

0.1uC263

0.1uC264

0.1uC265

0.1uC266

0.1uC267

0.1uC281

AC'97 CODEC

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

12 29

of

3.0

8

LINE_OUT_R12

D D

LINE_OUT_L12

C C

C28

1u-0805

X7R

C35

1u-0805

X7R

LINE_OUT_RR

LINE_OUT_LL

7

R47 24K_0603

1 2

R32

1 2

47K_0603

R46
220K_0603

R48 24K_0603

1 2

R49

1 2

47K_0603

R59
220K_0603

6

BC2

+

-

8 4

1 2

+

-

8 4

1 2

12

0.1u-0603
U4A

1

_

+12V

U4B

7

_

+12V

-12V

3
2

R33 47K_0603

1 2

C14 100p-0603

-12V

5
6

BC1

1 2

0.1u-0603

R34 47K_0603

1 2

C18 100p-0603

-12V

C36

1 2

1U/0805

C44

1 2

1U/0805

5

SPEAKER_R

SPEAKER_L

1 2

1 2

L1

120S/0603

L2

120S/0603

4

12

C27

180P

12

C48
180P

R55

R76

220K

220K

3

LINE-OUT

JLINEO1

1
2

3
4

JACK+PHONE+LI-D5-BL

+5VR

MIC_IN12

NO STUFF

2

5

MIC_IN

12

R43

4.7K

12

C171
X_102P

JACK+PHONE+MIC-D5-PK

R37

4.7K

12

C167
X_102P

12

1

MIC-IN

JMIC1

A
B

C
D

Ver 1.0a

F
E
G

FB18

80_0805

R28 24K_0603

1 2

104P

R22

1 2

47K_0603

R3 24K_0603

1 2

R2

1 2

47K_0603

CT32

+

100u_16V

C121

1 2

1U/0805

1
2
3
4 5

approve

7

R30 47K_0603

C13 100p-0603

-12V

R14 47K_0603

U11

VP

OUT­IN+
GND

GND2

VC OUT+

TDA7052

LINE_OUT_RR

LINE_OUT_LL

B B

+12V

R178

1 2

22/1206

Modify resistor value from 30Kohm to 47Kohm

R192 47K_ 0603

FR_R
FR_L

Modify resistor value from 56Kohm to 2.2Kohm

1 2

R193 47K_ 0603

1 2

Ver 0B

A A

12

C100

R191 3.3K

C120 1U/0805

1 2

Modify resistor value from 2.2Kohm to 3.3Kohm

Ver 30A Sugiyama san

8

U1A

3

+

1

2

-

_

8 4

+12V

1 2

1 2

U1B

5

+

7

6

-

_

8 4

+12V

1 2

C7 100p-0603

1 2

8
7

NC

6

12

6

FRONT_IF_R

CB1

0.1u

FRONT_IF_L

C108 X_104P

1 2

C119

X_104P

5

10U/16V/S

10U/16V/S

12

C101

EC7

+

EC9

+

X_104P

2
1

L17

1 2

120S/0603

L12

1 2

120S/0603

J2

Internal

2
1

speaker(1W,8ohm)

D1x2-WH

Front Panel

R208 100

SPKR_R

12

C135

180P

SPKR_L

12

C131
180P

LINE_IN_R12

LINE_IN_L12

R199 100

RV1

23

RSK010-1

5

1

4

6
7

R6 4.7K

12

R15

4.7K

R29 4.7K

12

R21

4.7K

Title

FR_R
FR_L

1 2

1 2

Micro Star Restricted Secret

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwan

4

http://www.msi.com.tw

3

PHONE

JLINEO2

A

F

B

E
C
D

G

JACK+PHONE+LI-D5-BL

FB19

80_0805

Ver 1.0a

12

C2
180P

12

C17
180P

LINER

LINEL

JLINEIN1

1
2

3
4

JACK+PHONE+LI-D5-BL

LINE-IN

Audio Amplifier & CD Panel Play

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

2

13 29

5

Rev

3.0

of

1

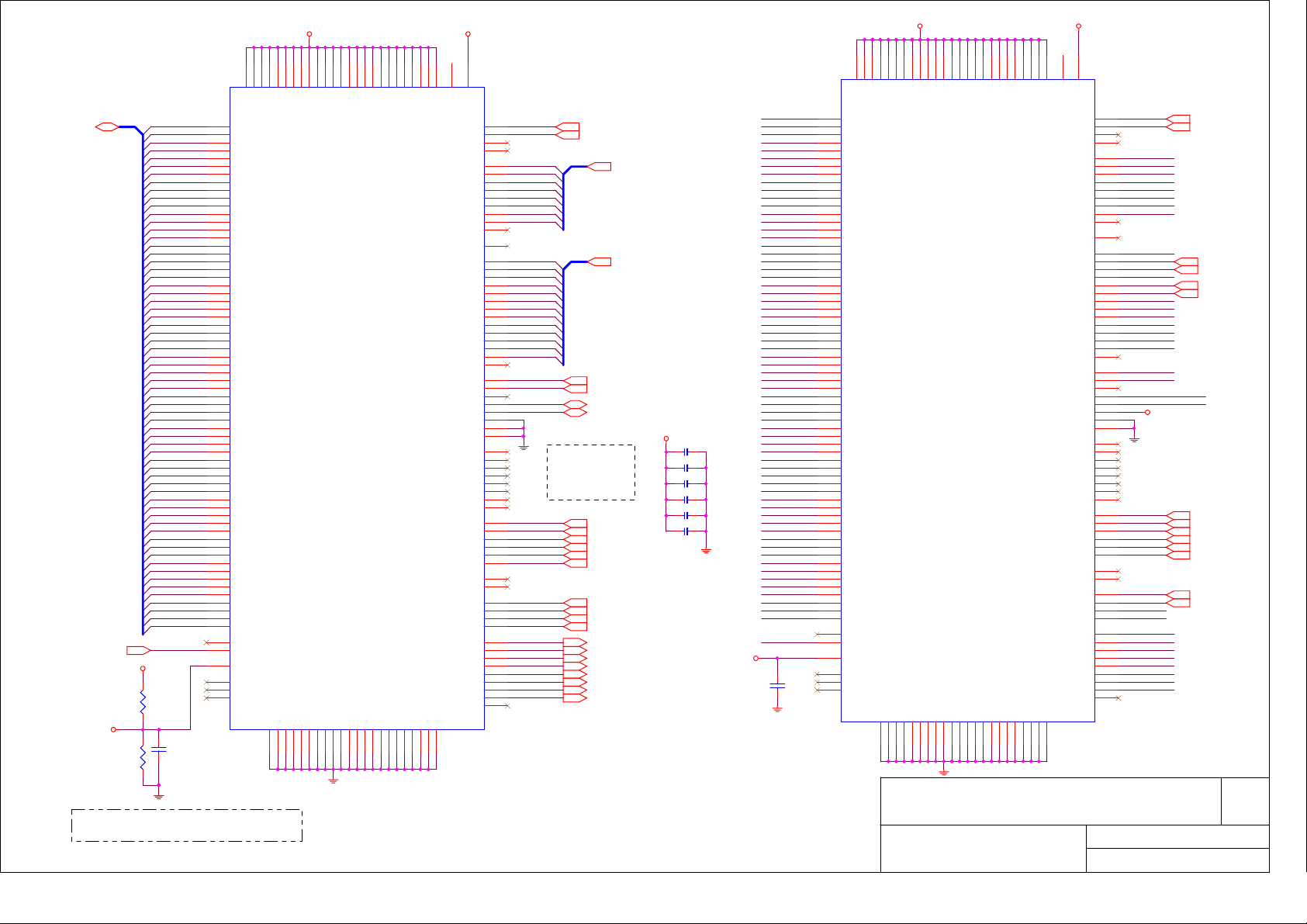

SYSTEM MEMORY

MEM_STR

DDRMD4
DDRMD1
DDRMD2
DDRMD3
DDRMD0
DDRMD5
DDRMD6
DDRMD7
DDRMD8
DDRMD9
DDRMD10
DDRMD11
DDRMD12
DDRMD13
DDRMD14
DDRMD15
DDRMD16
DDRMD17
DDRMD18
DDRMD19
DDRMD20
DDRMD21
DDRMD22
DDRMD23
DDRMD24
DDRMD29
DDRMD30
DDRMD27
DDRMD28
DDRMD25
DDRMD26
DDRMD31
DDRMD32
DDRMD33
DDRMD34
DDRMD35
DDRMD36
DDRMD37
DDRMD38
DDRMD39
DDRMD40
DDRMD41
DDRMD42
DDRMD43
DDRMD44
DDRMD45
DDRMD46
DDRMD47
DDRMD48
DDRMD49
DDRMD50
DDRMD51
DDRMD52
DDRMD53
DDRMD54
DDRMD55
DDRMD56
DDRMD57
DDRMD58
DDRMD59
DDRMD60

DDRMD62
DDRMD63

MWE#

C205

0.1u

DDRMD[0..63]7,15

MWE#7,15

R379

150_1%

DDR_VREF

R405

150_1%

CHECK LAYOUT

Keep the voltage divider within 1" of DIMM1.
Trace width 12 mil with 12 mil space.

Place 104p Cap. near the DIMM

MEM_STR

738467085

108

120

148

168223054627796

VDD0

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

2

DQ0

4

DQ1

6

DQ2

8

DQ3

94

DQ4

95

DQ5

98

DQ6

99

DQ7

12

DQ8

13

DQ9

19

DQ10

20

DQ11

105

DQ12

106

DQ13

109

DQ14

110

DQ15

23

DQ16

24

DQ17

28

DQ18

31

DQ19

114

DQ20

117

DQ21

121

DQ22

123

DQ23

33

DQ24

35

DQ25

39

DQ26

40

DQ27

126

DQ28

127

DQ29

131

DQ30

133

DQ31

53

DQ32

55

DQ33

57

DQ34

60

DQ35

146

DQ36

147

DQ37

150

DQ38

151

DQ39

61

DQ40

64

DQ41

68

DQ42

69

DQ43

153

DQ44

155

DQ45

161

DQ46

162

DQ47

72

DQ48

73

DQ49

79

DQ50

80

DQ51

165

DQ52

166

DQ53

170

DQ54

171

DQ55

83

DQ56

84

DQ57

87

DQ58

88

DQ59

174

DQ60

175

DQ61

178

DQ62

179

DQ63

90

WP(NC)

63

WE#

1

VREF

9

NC2

101

NC3

102

SLAVE ADDRESS = 1010000B

NC4

VSS0

VSS1

VSS2

VSS3

VSS4

VSS5

3111826344250586674818993

104

112

128

136

143

156

VDDQ0

VDDQ1

VDDQ2

VDDQ3

VDDQ4

VDDQ5

VDDQ6

VDDQ7

VDDQ8

VDDQ9

VDDQ10

DDR DIMM

SOCKET

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16

100

116

124

132

139

164

VDDQ11

VSS17

145

VCC3

172

1801582

184

VDDID

VDDQ12

VDDQ13

VDDQ14

VDDQ15

VDDSPD
CS0#
CS1#
CS2#
CS3#

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

FETEN

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10_AP

A11
A12
A13

BA0
BA1
BA2
SCL

SDA

SA0
SA1
SA2

CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7

CK0(DU)

CK0#(DU)

CK1(CK0)

CK1#(CK0#)

CK2(DU)

CK2#(DU)

NC5

NC(RESET#)

CKE0
CKE1
CAS#
RAS#

DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
DM8

VSS18

VSS19

VSS20

VSS21

152

160

176

Close to North-Bridge

157
158
71
163

SDQS0

5

SDQS1

14

SDQS2

25

SDQS3

36

SDQS4

56

SDQS5

67

SDQS6

78

SDQS7

86
47

167

DDRMAA0

48

DDRMAA1

43

DDRMAA2

41

DDRMAA3

130

DDRMAA4

37

DDRMAA5

32

DDRMAA6

125

DDRMAA7

29

DDRMAA8

122

DDRMAA9

27

DDRMAA10

141

DDRMAA11

118

DDRMAA12

115
103

59
52
113

SMBCLK_ISO

92

SMBDATA_ISO

91
181
182
183

44
45
49
51
134
135
142
144

16
17
137
138
76
75

173
10

21
111
65
154

SDM0

97

SDM1

107

SDM2

119

SDM3

129

SDM4

149

SDM5

159

SDM6

169

SDM7

177
140

DIMM1
N13-1840021

DIMM1

MSBS0
MSBS1

9Pcs doupling
caps place
between DDR1
and DDR2

DCLK1
DCLK1#
DCLK0
DCLK0#
DCLK2
DCLK2#

MSCKE0
MSCKE1DDRMD61
MCAS#
MRAS#

MSCS0# 7,15
MSCS1# 7,15

SDQS[0..7] 7,15

DDRMAA[0..12] 7,15

MSBS0 7,15
MSBS1 7,15

SMBCLK_ISO 3,11,23,25
SMBDATA_ISO 3,11,23,25

MEM_STR

DCLK1 7
DCLK1# 7
DCLK0 7
DCLK0# 7
DCLK2 7
DCLK2# 7

MSCKE0 7,15
MSCKE1 7,15
MCAS# 7,15
MRAS# 7,15

SDM0 7,15
SDM1 7,15
SDM2 7,15
SDM3 7,15
SDM4 7,15
SDM5 7,15
SDM6 7,15
SDM7 7,15

DDRMD4
DDRMD1
DDRMD2
DDRMD3
DDRMD0
DDRMD5
DDRMD6
DDRMD7
DDRMD8
DDRMD9
DDRMD10
DDRMD11
DDRMD12
DDRMD13
DDRMD14
DDRMD15
DDRMD16
DDRMD17
DDRMD18
DDRMD19
DDRMD20
DDRMD21
DDRMD22
DDRMD23
DDRMD24
DDRMD29
DDRMD30
DDRMD27
DDRMD28
DDRMD25
DDRMD26
DDRMD31
DDRMD32
DDRMD33
DDRMD34
DDRMD35
DDRMD36
DDRMD37
DDRMD38
DDRMD39
DDRMD40
DDRMD41

CB166

0.1u
CB176

0.1u
CB174

0.1u
CB175

0.1u
CB172

0.1u
CB146

0.1u

DDR_VREF

DDRMD42
DDRMD43
DDRMD44
DDRMD45
DDRMD46
DDRMD47
DDRMD48
DDRMD49
DDRMD50
DDRMD51
DDRMD52
DDRMD53
DDRMD54
DDRMD55
DDRMD56
DDRMD57
DDRMD58
DDRMD59
DDRMD60
DDRMD61
DDRMD62
DDRMD63

MWE#

C201

0.1u

Place 104p Cap. near the DIMM

738467085

2

DQ0

4

DQ1

6

DQ2

8

DQ3

94

DQ4

95

DQ5

98

DQ6

99

DQ7

12

DQ8

13

DQ9

19

DQ10

20

DQ11

105

DQ12

106

DQ13

109

DQ14

110

DQ15

23

DQ16

24

DQ17

28

DQ18

31

DQ19

114

DQ20

117

DQ21

121

DQ22

123

DQ23

33

DQ24

35

DQ25

39

DQ26

40

DQ27

126

DQ28

127

DQ29

131

DQ30

133

DQ31

53

DQ32

55

DQ33

57

DQ34

60

DQ35

146

DQ36

147

DQ37

150

DQ38

151

DQ39

61

DQ40

64

DQ41

68

DQ42

69

DQ43

153

DQ44

155

DQ45

161

DQ46

162

DQ47

72

DQ48

73

DQ49

79

DQ50

80

DQ51

165

DQ52

166

DQ53

170

DQ54

171

DQ55

83

DQ56

84

DQ57

87

DQ58

88

DQ59

174

DQ60

175

DQ61

178

DQ62

179

DQ63

90

WP(NC)

63

WE#

1

VREF

9

NC2

101

NC3

102

NC4

MEM_STR

108

120

148

VDD0

VDD1

VDD2

VDD3

VDD4

VDD5

168223054627796

VDD6

VDD7

VDD8

104

112

128

136

143

156

VDDQ0

VDDQ1

VDDQ2

VDDQ3

VDDQ4

VDDQ5

VDDQ6

VDDQ7

VDDQ8

VDDQ9

VDDQ10

DDR DIMM

SOCKET

164

VDDQ11

SLAVE ADDRESS = 1010010B

VSS0

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16

VSS17

3111826344250586674818993

Title

100

116

124

132

139

145

Micro Star Restricted Secret

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwa n
http://www.ms i . com.tw

VCC3

172

1801582

184

VDDID

VDDQ12

VDDQ13

VDDQ14

VDDQ15

CS0#
CS1#
CS2#
CS3#

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

FETEN

A10_AP

A11
A12
A13

BA0
BA1
BA2
SCL
SDA
SA0
SA1
SA2

CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7

CK0(DU)
CK0#(DU)
CK1(CK0)

CK1#(CK0#)

CK2(DU)
CK2#(DU)

NC5

NC(RESET#)

CKE0
CKE1
CAS#
RAS#

DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
DM8

VSS18

VSS19

VSS20

VSS21

152

160

176

DDR DIMM 1 & 2

MS-6539N1

VDDSPD

157
158
71
163

SDQS0

5

SDQS1

14

SDQS2

25

SDQS3

36

SDQS4

56

SDQS5

67

SDQS6

78

SDQS7

86
47

167

DDRMAA0

48

A0

DDRMAB1

43

A1

DDRMAB2

41

A2

DDRMAA3

130

A3

DDRMAB4

37

A4

DDRMAB5

32

A5

DDRMAA6

125

A6

DDRMAA7

29

A7

DDRMAA8

122

A8

DDRMAA9

27

A9

DDRMAA10

141

DDRMAA11

118

DDRMAA12

115
103

MSBS0

59

MSBS1

52
113

SMBCLK_ISO

92

SMBDATA_ISO

91
181
182
183

44
45
49
51
134
135
142
144

16
17
137
138
76
75

173
10

21
111
65
154

97
107
119
129
149
159
169
177
140

DIMM2
N13-1840021

DCLK4
DCLK4#
DCLK3
DCLK3#
DCLK5
DCLK5#

MSCKE2
MSCKE3
MCAS#
MRAS#

SDM0
SDM1
SDM2
SDM3
SDM4
SDM5
SDM6
SDM7

VCC3

DIMM2

Last Revision Date:

Wednesday, March 19, 2003

Sheet

14 29

of

MSCS2# 7,15
MSCS3# 7,15

DDRMAB1 7,15
DDRMAB2 7,15

DDRMAB4 7,15
DDRMAB5 7,15

DCLK4 7
DCLK4# 7
DCLK3 7
DCLK3# 7
DCLK5 7
DCLK5# 7

MSCKE2 7,15
MSCKE3 7,15

Rev

3.0

DDR TERMINATORS

SDM57,14
SDM37,14
SDQS47,14

SDQS57,14
DDRMAA127,14
DDRMAA67,14
DDRMAA37,14

MSBS07,14
DDRMD417,14
DDRMAB57,14
DDRMAB47,14
DDRMAA47,14
DDRMAA57,14

MSCKE[0..3]7,14

DDRMD117,14

MSBS17,14
DDRMAA107,14
DDRMAA07,14

DDRMAA87,14
DDRMAA77,14
DDRMAA97,14
DDRMAA117,14

MSCS1#7,14
MSCS3#7,14
MSCS0#7,14
MSCS2#7,14

DDRMAA17,14
DDRMAB17,14
DDRMAA27,14
DDRMAB27,14

MCAS#7,14
MWE#7,14

MRAS#7,14

DDRMD11

DDRMAA1
DDRMAB1
DDRMAA2
DDRMAB2

SDM5
SDM3
SDQS4
SDQS5
DDRMAA12
DDRMAA6
DDRMAA3
MSBS0
DDRMD41
DDRMAB5
DDRMAB4
DDRMAA4
DDRMAA5

MSCKE0
MSCKE2
MSCKE1

RN48 56

MSBS1
DDRMAA10
DDRMAA0

RN54 56

DDRMAA8
DDRMAA7
DDRMAA9
DDRMAA11

MSCS1#
MSCS3#
MSCS0#
MSCS2#

RN51 56

RN59 56

RN53 33

MCAS#
MWE#
MRAS#

R443 56
R448 56
R450 56
R442 56
R453 56
R455 56
R449 56
R451 56
R441 56

R446 33
R457 33
R456 33
R445 33

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

R440 56
R439 56
R438 56

VTT_DDR

VTT_DDR

VTT_DDR

Place at the end of
the VTT_DDR island

DDRMD24
DDRMD23
DDRMD19

RN44 56

1 2
3 4
5 6
7 8

RN45 56

1 2
3 4
5 6
7 8
1 2
3 4
5 6

RN58 56

7 8
1 2
3 4
5 6

RN47 56

7 8
1 2
3 4
5 6

RN46 56

7 8
1 2
3 4
5 6

RN49 56

7 8
1 2
3 4
5 6

RN50 56

7 8

R447 56
R444 56
R454 56

RN60 56

1 2
3 4
5 6
7 8

RN52 56

1 2
3 4
5 6
7 8

RN55 56

1 2
3 4
5 6
7 8

RN56 56

1 2
3 4
5 6
7 8

RN57 56

1 2
3 4
5 6
7 8

RN38 56

1 2
3 4
5 6
7 8

RN39 56

1 2
3 4
5 6
7 8

RN41 56

1 2
3 4
5 6
7 8

RN40 56

1 2
3 4
5 6
7 8

RN42 56

1 2
3 4
5 6
7 8

RN43 56

1 2
3 4
5 6
7 8

DDRMD17,14
DDRMD57,14
DDRMD47,14
DDRMD07,14
DDRMD67,14
DDRMD27,14
SDQS07,14
SDM07,14
DDRMD97,14
DDRMD87,14
DDRMD37,14
DDRMD77,14

DDRMD107,14
DDRMD157,14
DDRMD147,14
SDM17,14
SDQS17,14
DDRMD137,14
DDRMD127,14

DDRMD217,14

DDRMD177,14
DDRMD167,14
DDRMD207,14
DDRMD227,14
DDRMD187,14
SDM27,14
SDQS27,14

DDRMD247,14
DDRMD237,14
DDRMD197,14
SDQS37,14
DDRMD257,14
DDRMD297,14
DDRMD287,14
DDRMD317,14
DDRMD277,14
DDRMD307,14
DDRMD267,14
DDRMD377,14
DDRMD337,14
DDRMD367,14
DDRMD327,14
DDRMD397,14
DDRMD387,14
DDRMD347,14
SDM47,14
DDRMD457,14
DDRMD447,14
DDRMD407,14
DDRMD357,14
DDRMD477,14
DDRMD437,14
DDRMD467,14
DDRMD427,14
DDRMD537,14
DDRMD527,14
DDRMD497,14
DDRMD487,14
DDRMD567,14
DDRMD607,14
DDRMD517,14
DDRMD507,14
DDRMD557,14
DDRMD547,14
SDQS67,14
SDM67,14
SDQS77,14

SDM77,14

DDRMD577,14
DDRMD617,14
DDRMD597,14
DDRMD637,14
DDRMD587,14
DDRMD627,14

DDRMD1
DDRMD5
DDRMD4
DDRMD0
DDRMD6
DDRMD2
SDQS0
SDM0
DDRMD9
DDRMD8
DDRMD3
DDRMD7
MSCKE3
DDRMD10
DDRMD15
DDRMD14
SDM1
SDQS1
DDRMD13
DDRMD12
DDRMD21
DDRMD17
DDRMD16
DDRMD20
DDRMD22
DDRMD18
SDM2
SDQS2

SDQS3
DDRMD25
DDRMD29
DDRMD28
DDRMD31
DDRMD27
DDRMD30
DDRMD26
DDRMD37
DDRMD33
DDRMD36
DDRMD32
DDRMD39
DDRMD38
DDRMD34
SDM4
DDRMD45
DDRMD44
DDRMD40
DDRMD35
DDRMD47
DDRMD43
DDRMD46
DDRMD42
DDRMD53
DDRMD52
DDRMD49
DDRMD48
DDRMD56
DDRMD60
DDRMD51
DDRMD50
DDRMD55
DDRMD54
SDQS6
SDM6
SDQS7
SDM7
DDRMD57
DDRMD61
DDRMD59
DDRMD63
DDRMD58
DDRMD62

DDR Decouping Caps

VTT_DDR VTT_DDR

CB216

0.1u
CB215

0.1u
CB213

0.1u

CB206

0.1u
CB205

0.1u
CB198

0.1u
CB207

0.1u
CB217

0.1u
CB204

0.1u
CB209

0.1u
CB208

0.1u
CB211

0.1u
CB210

0.1u
CB188

0.1u
CB190

0.1u
CB189

0.1u
CB195

0.1u
CB194

0.1u
CB193

0.1u

CB228

0.1u
CB219

0.1u
CB183

0.1u
CB232

0.1u
CB234

0.1u
CB220

0.1u
CB222

0.1u
CB224

0.1u
CB227

0.1u
CB237

0.1u
CB235

0.1u
CB229

0.1u
CB182

0.1u
CB196

0.1u
CB199

0.1u
CB201

0.1u
CB187

0.1u
CB203

0.1u
CB192

0.1u
CB191

0.1u

Total 110 signal, need 55 pcs decoupling.

Place for VTT_DDR island

VTT_DDR

VTT_DDR

1000u/6.3V

CT31

+

C221 10u-1206

C224 10u-1206

C225
10u-1206

CB226

0.1u
CB214

0.1u
CB212

0.1u
CB230

0.1u
CB231

0.1u
CB218

0.1u
CB221

0.1u
CB223

0.1u
CB225

0.1u
CB236

0.1u
CB233

0.1u
CB238

0.1u
CB197

0.1u
CB200

0.1u
CB202

0.1u

Top Vtt

Center Vtt

Bottom Vtt

Title

Micro Star Restricted Secret

DDR Terminator Resisto r

Document Number

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, Jung-He City,
Taipei Hsien, Taiwa n
http://www.ms i . com.tw

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

15 29

of

3.0

AGP Slot Imax
VCC_AGP 2.0A

VCC3 6.0A
VCC12 1.0A

AGP 1.5V 2X/4X SL OT(A GP V E R :2 .0 C O M P L Y )

VCC5 2.0A
VCC3_SB 0.375A

VCC5 = 60mils trace / 15 mils space

AGP1

B1

-OVRCNT

VCC5

INTB#9,17

AGPCLK3

GREQ#7

ST07
ST27

RBF#7

SBA07
SBA27

SB_STB7

SBA47
SBA67

GAD317
GAD297

GAD277
GAD257

GAD_STB17

GAD237
GAD217

GAD197
GAD177

GC_BE#27

GIRDY#7

GDEVSEL#7

GC_BE#17

GAD147
GAD127

GAD107

GAD87

GAD_STB07

GAD77
GAD57

GAD37
GAD17

AGPREF7

INTB# INTA#
GREQ#

RBF#

SB_STB

VCC3_SB

GAD_STB1

VCC_AGP

GIRDY#

GPERR#
GSERR#

GAD_STB0

AGPREF

CB156

0.1u

B2

5V

B3

5V

B4

USB+

B5

GND

B6

-INTB

B7

CLK

B8

-REQ

B9

3.3V

B10

ST0

B11

ST2

B12

-RBF

B13

GND

B14

RESERVED

B15

SBA0

B16

3.3V

B17

SBA2

B18

SB_STB

B19

GND

B20

SBA4

B21

SBA6

B22

RSVD/KEY

B23

GND/KEY

B24

AUX3V/KEY

B25

3.3V/KEY

B26

AD31

B27

AD29

B28

3.3V

B29

AD27

B30

AD25

B31

GND

B32

AD_STB1

B33

AD23

B34

VDDQ

B35

AD21

B36

AD19

B37

GND

B38

AD17

B39

C/-BE2

B40

VDDQ

B41

-IRDY

B42

AUX3V/KEY

B43

GND/KEY

B44

RSVD/KEY

B45

3.3V/KEY

B46

-DEVSEL

B47

VDDQ

B48

-PERR

B49

GND

B50

-SERR

B51

C/-BE1

B52

VDDQ

B53

AD14

B54

AD12

B55

GND

B56

AD10

B57

AD8

B58

VDDQ

B59

AD_STB0

B60

AD7

B61

GND

B62

AD5

B63

AD3

B64

VDDQ

B65

AD1

B66

VREF_CG

AGP-D124-BN_1.5V

INTA# INTB#

12V

-TYPEDET

RESERVED

USB-

GND

-INTA

-RST

-GNT

3.3V
ST1

RESERVED

-PIPE
GND

-WBF

SBA1

3.3V

SBA3

-SB_STB
GND

SBA5
SBA7

RSVD/KEY

GND/KEY

RSVD/KEY

3.3V/KEY

AD30
AD28

3.3V
AD26
AD24

GND

-AD_STB1
C/-BE3

VDDQ

AD22
AD20

GND
AD18
AD16

VDDQ

-FRAME

RSVD/KEY

GND/KEY

RSVD/KEY

3.3V/KEY

-TRDY

-STOP

-PME

GND

PAR

AD15

VDDQ

AD13
AD11

GND

AD9

C/-BE0

VDDQ

-AD_STB0
AD6

GND

AD4
AD2

VDDQ

AD0

VREF_GC

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66

+12V

VCC_AGP

GGNT#

VCC_AGP3_3VCC_AGP3_3

PIPE#
WBF#

SB_STB#

GAD_STB#1

GFRAME#

GTRDY#GDEVSEL#
GSTOP#

GPAR

GAD_STB#0

INTA# 9,17
PCIRST# 9,25
GGNT# 7

ST1 7
PIPE# 7
WBF# 7

SBA1 7
SBA3 7

SB_STB# 7
SBA5 7

SBA7 7

GAD30 7
GAD28 7

GAD26 7
GAD24 7

GAD_STB#1 7
GC_BE#3 7

GAD22 7
GAD20 7

GAD18 7
GAD16 7

GFRAME# 7

GTRDY# 7
GSTOP# 7
PME# 9,17,24

GPAR 7
GAD15 7

GAD13 7
GAD11 7

GAD9 7
GC_BE#0 7

GAD_STB#0 7
GAD6 7

GAD4 7
GAD2 7

GAD0 7

GFRAME#
GIRDY#
GTRDY#
GDEVSEL#
GSTOP#

GPAR
GPERR#
GSERR#

GREQ#
GGNT#

PIPE#
RBF#
WBF#

LESS 100MILS STUB TRACE LENGTH FOR 2/4X
LESS 500MIL FOR 1X MUST BE FOLLOWING.

R336 X_6.8K
R350 X_6.8K
R351 X_6.8K
R337 X_6.8K
R338 X_6.8K

R352 X_6.8K
R362 6.8K
R365 6.8K

R364 X_6.8K
R363 X_6.8K

R341 X_6.8K
R346 X_6.8K
R342 X_6.8K

Place these resistors between AGP slot & GMCH

VCC_AGP

C186 0.1u
C198 0.1u

+12V

0.01uC184

0.01uC194

0.01uC195

0.01uC183

AGP SIGNAL REFERENCE CIRCUIT

VCC_AGP

R348

AGPREF: 10uA

1K_1%

AGPREF

R334
1K_1%

NEAR AGP SLOT

AGP TERMINATION RESISTORS

VCC_AGP

VCC_AGP

GAD_STB0
GAD_STB1
SB_STB

GAD_STB#1
GAD_STB#0
SB_STB#

ST0
ST1
ST2

AGP SLOT DECOUPLING CAPACITORS

VCC3_SB

0.01uC182

VCC5

0.01uC197

0.01uC192

R345 X_6.8K
R353 X_6.8K
R343 X_6.8K

R349 X_6.8K
R347 X_6.8K
R344 X_6.8K

R361 X_6.8K
R339 X_6.8K
R340 X_6.8K

VCC3

CT21 1000u/6.3V

VCC_AGP3_3

CB167 0.1u
CB165 0.1u

VCC_AGP

VCC_AGP

+

0.01uCB168

Title

Micro Star Restricted Secret

AGP 2.0

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

16 29

of

3.0

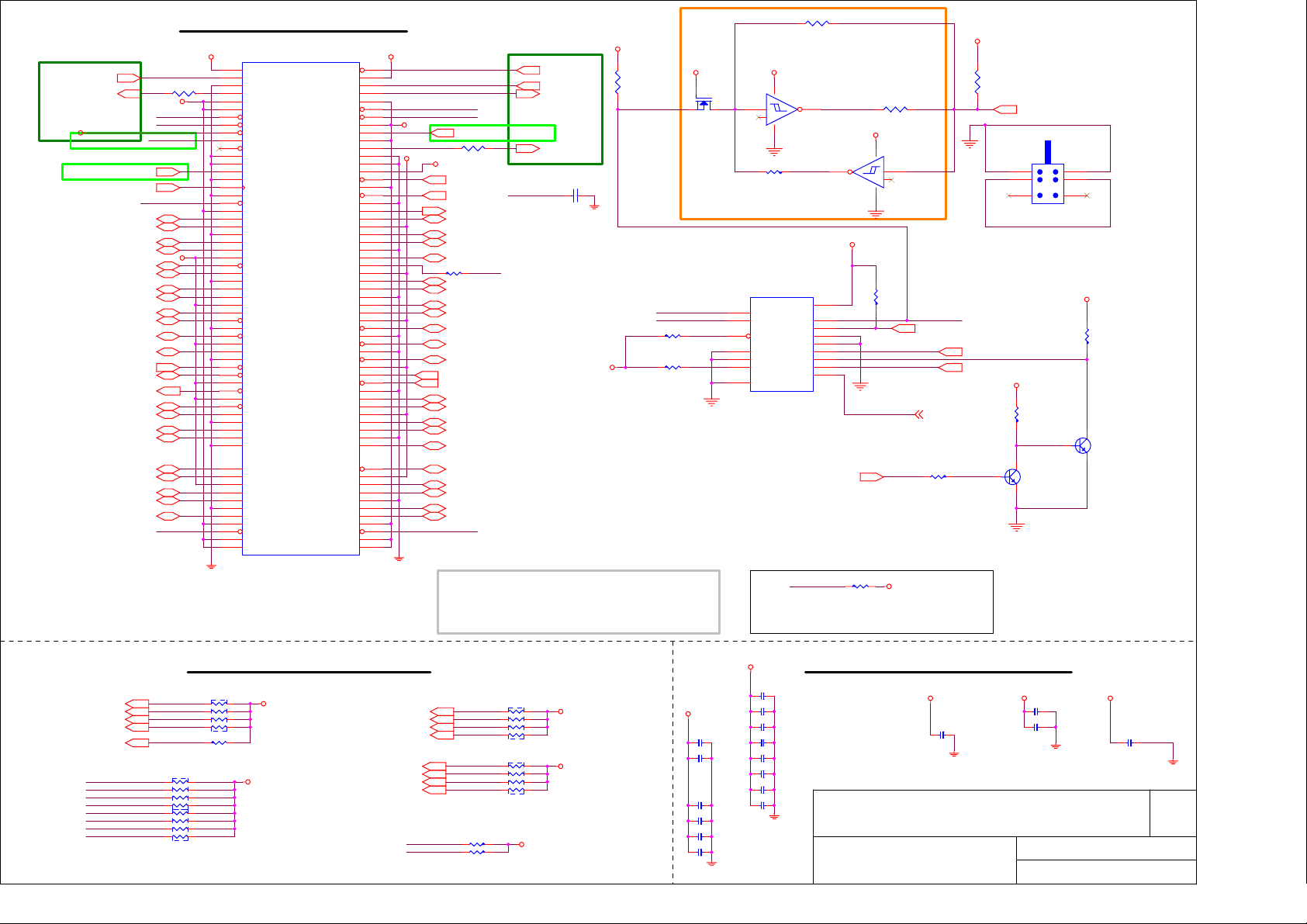

VCC5_SB

PCI SLOT 1 (PCI VER: 2.2 COMPLY)

-12V

PCI1

B1

-12V

AC_SDOUT10,12
AC_SDIN110

R321 0

VCC5

PREQ#1

PCICLK13
PCICLK03

PREQ#0

AD319,24
AD299,24

AD279,24
AD259,24

VCC3

C_BE#39,24

AD239,24
AD219,24

AD199,24
AD179,24

C_BE#29,24

IRDY#9,24

DEVSEL#9,24

PLOCK#9

PERR#9,24
SERR#9,24

C_BE#19,24

AD149,24
AD129,24

AD109,24

AD89,24
AD79,24

AD59,24
AD39,24

AD19,24

INTB#
INTD#

ACK#64

B2

TCK

B3

GND

B4

TDO

B5

+5V

B6

+5V

B7

INTB#

B8

INTD#

B9

PRSNT#1

B10

RESERVED

B11

PRSNT#2

B12

GND

B13

GND

B14

RESERVED

B15

GND

B16

CLK

B17

GND

B18

REQ#

B19

+5V(I/O)

B20

AD31

B21

AD29

B22

GND

B23

AD27

B24

AD25

B25

+3.3V

B26

C/BE#3

B27

AD23

B28

GND

B29

AD21

B30

AD19

B31

+3.3V

B32

AD17

B33

C/BE#2

B34

GND

B35

IRDY#

B36

+3.3V

B37

DEVSEL#

B38

GND

B39

LOCK#

B40

PERR#

B41

+3.3V

B42

SERR#

B43

+3.3V

B44

C/BE#1

B45

AD14

B46

GND

B47

AD12

B48

AD10

B49

GND

B52

AD8

B53

AD7

B54

+3.3V

B55

AD5

B56

AD3

B57

GND

B58

AD1

B59

+5V(I/O)

B60

ACK64#

B61

+5V

B62

+5V

PCI-D120-WH-SN

TRST#

INTA#
INTC#

RESERVED

+5V(I/O)

RESERVED

RESERVED

+5V(I/O)

RESERVED

IDSEL

FRAME#

TRDY#

STOP#

SDONE

C/BE#0

+5V(I/O)
REQ64#

IDSEL = AD16
MASTER = PREQ0
INTA#

+12V

TMS

GND
GND

RST#

GNT#

GND

AD30
+3.3V
AD28
AD26

GND

AD24

+3.3
AD22
AD20

GND
AD18
AD16
+3.3V

GND

GND
+3.3V

SBO#

GND

PAR
AD15
+3.3V
AD13
AD11

GND

+3.3V

GND

TDI

+5V

+5V

AD9

AD6
AD4

AD2
AD0

+5V
+5V

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

+12V

VCC5

VCC3

INTA#
INTC#

PGNT#1 9

R320 0

VCC3_SB

PCIRST#2 25
PGNT#0 9
PME# 9,16,24

AD30 9,24
AD28 9,24

AD26 9,24
AD24 9,24

R323 300

AD16

AD22 9,24
AD20 9,24

AD18 9,24
AD16 9,24

FRAME# 9,24
TRDY# 9,24
STOP# 9,24

SMBCLK 10,23,24
SMBDATA 10,23,24

PAR 9,24
AD15 9,24

AD13 9,24
AD11 9,24

AD9 9,24

C_BE#0 9,24
AD6 9,24

AD4 9,24
AD2 9,24

AD0 9,24

REQ#64

IDSEL = AD16
MASTER = PREQ0
INTA#

PCIRST#2

AC_RST# 10,12
AC_SYNC 10,12

CNR_AC_BCLK

AC_SDIN0 10

VCC3_SB

R531

10K

INTRUDER

C254

12

68p

R282 1K

VCC3_SB

R301 1K

IDSEL = AD17
MASTER = PREQ1
INTB#

VCC5_SB

G

SMBCLK
SMBDATA

Q30

DS

X_2N7002

R530 X_0

VBAT

U19

53

2 4
1

X_74AHC1G14S

R315 X_8.2K

Not install

VCC3_SB

U18

1

SCL

2

SDA

15

RESET#

3

A0

4

A1

5

A2

8

VSS

PCA9556

16

VDD

6

I/O0

7

I/O1

9

I/O2

10

I/O3

11

I/O4

12

I/O5

13

I/O6

14

I/O7

FOR NEC USE

PROCHOT#4,10

PME#

Koganezawa san
thank for your kindly
support.

R278 X_1M

VBAT

U20

X_74AHC1G14S

53

24
1

R314

8.2K

VRM_GD

AOL2_WAKE

R505 4.7K

VCC3_SB

INTRUDER

SKTOCC# 4

AOL2_WAKE 20

R281 4.7K

VBAT

R532

1M

INTRUDER# 10

VRM_GD 10,22
FP_RST# 3,10,20,25

VCC3

R322

8.2K

Q32

CE

B

2N3904S

SW1

1
2

3

PUSH-1B-OFF-D

INTRUDER#

4
5

6

VCC3

R310

8.2K

CE

Q33

B

2N3904S

INTB#9,16
PREQ#09
PREQ#29,24
PREQ#19

PREQ#39

DEVSEL#
TRDY#
IRDY#
FRAME#
SERR#
PERR#
PLOCK#
STOP#

INTB#

1 2

PREQ#0

3 4

PREQ#2

5 6

PREQ#1

7 8

R237 2.7K

PREQ#3

1 2
3 4
5 6

RN18 8.2K

7 8
1 2
3 4
5 6

RN19 8.2K

7 8

RN12

2.7K

VCC3

VCC5

VCC3

RN17 2.7K

INTC#

INTC#9,24
INTA#9,16
INTD#9
INTE#10

INTF#10

PREQ#49

INTG#10
INTH#10

REQ#64
ACK#64

INTA#
INTD#
INTE#

INTF#

PREQ#4

INTG#
INTH#

R319 4.7K
R326 4.7K

1 2
3 4
5 6
7 8

RN11 2.7K

1 2
3 4
5 6
7 8

VCC5

VCC5

VCC5

VCC5

CB137

0.1u
CB152

0.1u

CB155

0.1u
CB131
100p
CB127
100p
CB151
100p

PCI SLOT DECOUPLING CAPACITORSPCI PULL-UP / DOWN RESISTORS

CB134

0.1u
CB154

0.1u
CB132

0.1u
CB129

0.1u
CB128

0.1u
CB153
100p
CB133

0.1u

Title

CB135

0.1u

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

Micro Star Restricted Secret

-12V

C178
X_0.1u

PCI SLOT 1

MS-6539N1

+12V

CB93

0.1u
CB126

0.1u

Last Revision Date:

Wednesday, March 19, 2003

Sheet

17 29

VCC3_SB

of

CB130

0.1u

Rev

3.0

VCC5

C222 0.1u C220 0.1u

DCDA
RXDA
RIA
CTSA
DSRA

DTRA#11
RTSA#11

SOUTA11

D22

-12V

1N4148-S-LL34

CB181
X_0.1u

U25

20

VCC

2

RIN1

3

RIN2

4

RIN3

7

RIN4

9

RIN5

16

DIN1

15

DIN2

13

DIN3

11

GND

75232-1

-12VC

ROUT1
ROUT2
ROUT3
ROUT4
ROUT5

DOUT1
DOUT2
DOUT3

Wake On Mode m H e ad e r

RIA

D16 1N4148-S-LL34

RIB

D15 1N4148-S-LL34

VCC5

LP_D[0..7]

LP_D2
LP_D1
LP_D0
LP_SLIN#
LP_D3
LP_D4
LP_D5
LP_D6

LP_BUSY
LP_PE
LP_SLCT
LP_D7
LP_STB#
LP_AFD#
LP_ERR#
LP_ACK#

LP_INIT#

D17 1N4148-S-LL34

1 2
3 4
5 6
7 8
7 8
5 6
3 4
1 2

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

R328 2.2K

LP_D[0..7]11

LP_D111
LP_D011

LP_SLIN#11

LP_D311

LP_BUSY11

LP_PE11

LP_SLCT11

LP_STB#11

LP_AFD#11

LP_ERR#11

LP_ACK#11

LP_INIT#11

SERIAL PORT 1 SERIAL PORT 2

+12VC

1

V+

V-

+12V

19
18
17
14
12

5
6
8
10

-12VC

R292 10K

DTRA
RTSA
TXDA

C217 0.1u

D23

1N4148-S-LL34

CB186

X_0.1u

R298
10K

2N3904S

DCDA# 11
SINA 11
RIA# 11
CTSA# 11
DSRA# 11

+12VC

Q26

CE

B

PARALLAL PORT

LP_D2

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

2
4

CN8

6

220p

8

2
4

CN7

6

220p

8

2
4

CN6

6

220p

8

2
4

CN9

6

220p

8

33pC173

FB10 0_0805

RN15

2.2K

RN14

2.2K

RN13

2.2K

RN16

2.2K

LP_INIT#
LP_D3
LP_SLIN#

LP_D4
LP_D5
LP_D6
LP_D7

LP_ACK#
LP_BUSY
LP_PE
LP_SLCT

LP_D0
LP_AFD#
LP_D1
LP_ERR#

LP_STB#

DCDA

2

RXDA

4

RIA

6

DTRA

8

RTSA

2

CTSA

4

TXDA

6

DSRA

8

VCC5

LPT_GNDLPT_GND

COM1

12
34
56
78
9

D2x5-1:5-WH

C223 X_0.1u

C161 X_0.1u

LPT1

27

13
25
12
24
11
23
10
22

9

21

8

20

7

19

6

18

5

17

4

16

3

15

2

14

1

26

LPT-D25-BR

DCDA
TXDA DTRA

RTSA
RIA

+12V

RING# 10

LP_SLCT
LP_PE
LP_BUSY
LP_ACK#
LP_D7
LP_D6
LP_D5
LP_D4
LP_D3

LP_SLIN#
LP_D2
LP_INIT#
LP_D1
LP_ERR#
LP_D0
LP_AFD#
LP_STB#

1

CN11

3

220p

5
7

1

CN10

3

220p

5
7

RXDA
DSRA

CTSA

N59-25F0061-T05

LPT_GND

LPT_GND

VCC5

DTRB#11
RTSB#11

SOUTB11

MSDATA
MSCLK

KBDATA11

KBCLK11

Ver 1.0a

MSDATA11

MSCLK11

R95 80_0805

CP6

1 2

X_COPPER

CP5

1 2

X_COPPER

DCDB
RXDB
RIB
CTSB
DSRB

1 2

3 4

5 6

7 8

FB15

0_0805

L4 300ohm
L5 300ohm

U7

20

VCC

2

RIN1

3

RIN2

4

RIN3

7

RIN4

9

RIN5

16

DIN1

15

DIN2

13

DIN3

11

GND

75232-1

KBMSVCC

RN7

4.7K

L6 300ohm
L7 300ohm

C67
180p

D4

1N4148-S-LL34

+12V

C51

C66

0.1u

DTRB
RTSB
TXDB

0.1u
D3

1N4148-S-LL34

ROUT1
ROUT2
ROUT3
ROUT4
ROUT5

DOUT1
DOUT2
DOUT3

1

V+

19
18
17
14
12

5
6
8
10

V-

PS2 KEYBOARD & MOUSE CONNECTOR

KB1

7
4
6

KB_DT
KB_CK

C83
180p

KBMSVCC

MS_DT
MS_CK

C73
180p

C85
180p

2
1
5
3
8

PURPLE

MINIDIN-D6-ML

MS1

7
4
6
2
1
5
3
8

GREEN

MINIDIND6-ML

Title

Micro Star Restricted Secret

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

DTRB

2

RIB

4

RXDB

6

DCDB

8

DSRB

2

TXDB

4

CTSB

DCDB# 11
SINB 11
RIB# 11
CTSB# 11
DSRB# 11

-12V

9

9

R297
10K

C60

0.1u

N56-06F0061-F02

N56-06F0051-F02

VCC3_SB

COM2 HEADER

DCDB
TXDB DTRB

RTSB
RIB

FB1 80_0805

LAN_WAKE# 10

RTSB

COM2

12
34
56
78
9

D2x5-1:5-WH

C61
X_0.1u

6
8

12

KB,MS,SERIAL,PARALLEL & FLOPPY

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

18 29

FS1

YFUSE1.1AS-P

R89
X_56KST

of

1

CN1

3

220p

5
7

1

CN2

3

220p

5
7

RXDB
DSRB

CTSB

5VDUAL

Rev

3.0

5VDUAL

FS3

1 2

1.5A

OC#2_310

POWER CIRCUIT FOR USB PORT 2,3

L,ferritebead,80ohm/25%,0805,3A,RDC=0.1 ohm

OC#2_3

R190

2.7K

FB20 80_0805

Ver 1.0a

R189

5.1K

NEAR USB CONNECTOR

USBVCCP2

C129
1u-0805

+

CT19
1000u/6.3V

R207
1K

REAR PANEL USB CONNECTOR FOR USB PORT 2,3

USB1

9

USBP3-10
USBP3+10

USBP2-10
USBP2+10

USBP3­USBP3+

USBP2­USBP2+

USBVCCP2 USBVCCP2
USBP2­USBP2+

0_0805

9

1

1

2

2

3

3

4

4

12 11

12 11

USBx2-D8-BK

FB17

10

10

5

5

6

6

7

7

8

8

FB28 80_0805

USBP3­USBP3+

POWER CIRCUIT FOR USB PORT 0,1

FS4

5VDUAL

1 2

1.5A

OC#0_110

* USB Trace width : 7.5 mils
* USB Trace Spacing : Low speed 20 mils, High speed 50 mils
* Differential USB Signlas Trace, Spacing : 7.5 mils
* USB Power Trace must be 40mils width
* Length(longest)-Length(shortest)<150mils
* Maxium trace length <5"

L,ferritebead,80ohm/25%,0805,3A,RDC=0.1 ohm

FB21 80_0805

R370

2.7K

OC#0_1

Ver 1.0a

R372

5.1K

NEAR USB CONNECTOR

USBVCCP1

C191
1u-0805

+

CT22
1000u/6.3V

R357
1K

Ver 1.0a

1 2

VGAGND

FRONT PANEL USB CONNECTOR FOR USB PORT 0,1

USB2

9

USBVCCP1

USBP1-10
USBP1+10

USBP0-10
USBP0+10

USBP1­USBP1+

USBP0­USBP0+

USBP0­USBP0+

9

1

1

2

2

3

3

4

4

12 11

12 11

USBx2-D8-BK

FB16

0_0805

Ver 1.0a

CP4

X_COPPER

10

10

5

5

6

6

7

7

8

8

FB29 80_0805

FB30 80_0805

USBVCCP1
USBP1­USBP1+

Title

Micro Star Restricted Secret

USB Connectors

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

19 29

of

3.0

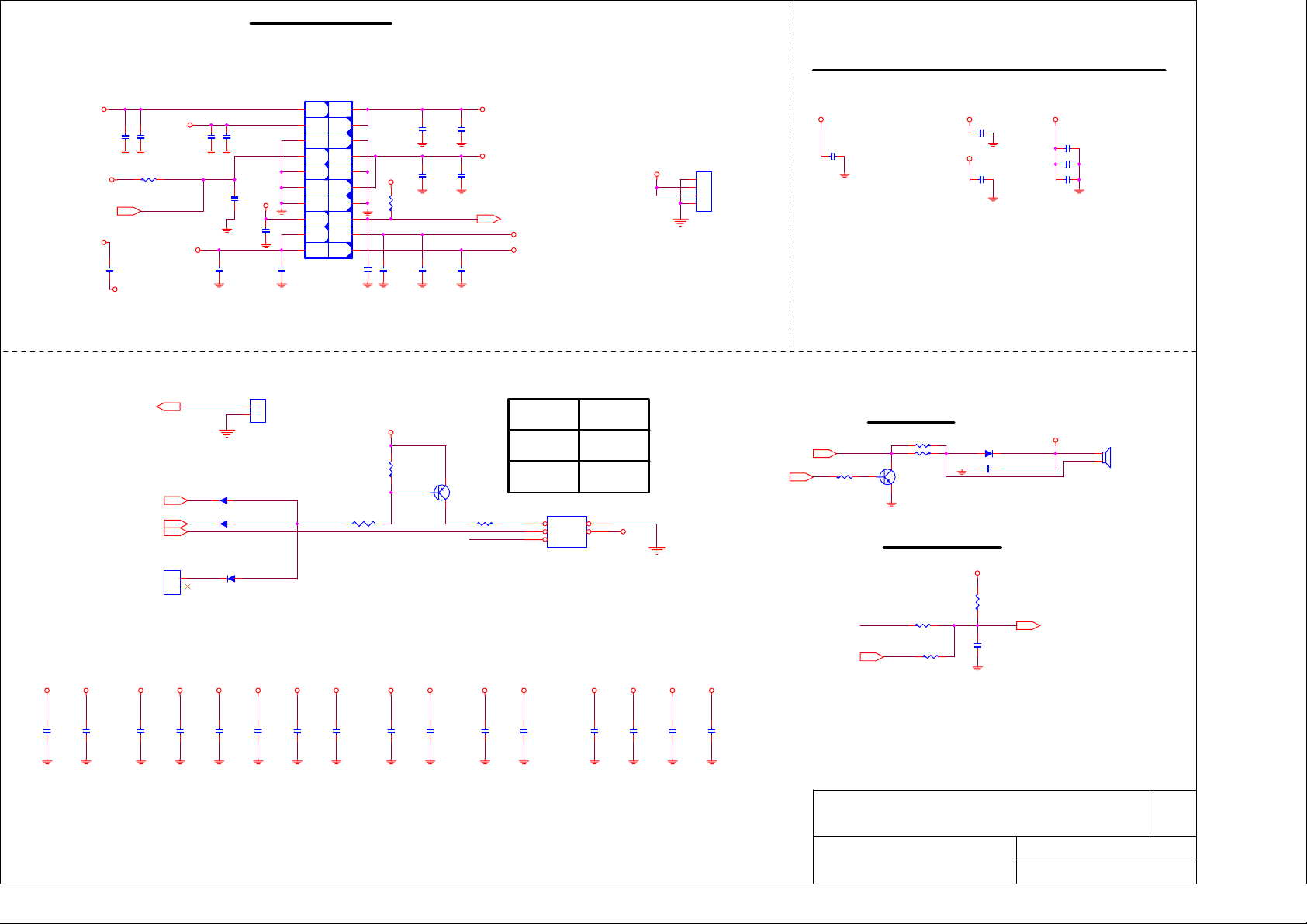

VCC3

CB13

VCC5_SB

PS_ON#25

VCC5

CB244
X_0.1u

X_0.1u

R71 2.2K

VCC3

CB28
33p

-12V

CB17

0.1u

VCC5

CB16
X_0.1u

Lo=4X,Hi=2X

C41
1000p

ATX CONNECTOR

11

CB18
33p

CB11

0.1u

12
13
14
15
16

-5V

17
18
19
20

CB20
33p

ATX_POWER1

3.3V

3.3V

-12V

3.3V

GND

GND

PSON

5V

GND

GND

GND

5V

GND

GND

-5V

POK

5V

5VSB

5V

12V

POWER

C38
1000p

REGULATORS OUTPUT DECOUPLING CAPACITORS

1
2
3
4
5

VCC5

6
7
8
9
10

CB15
33p

R66
1K

CB29
33p

CB10

0.1u

CB9

0.1u

CB12
X_1u-0805

CB14
33p

(VCC5_SB)

CB27

0.1u

VCC3

VCC5

PWR_OK 25

VCC5_SB
+12V

+12V

JPWR1

1
2
3
4

D1x4

CB8
1u-0805

VCC5VCC5_SB

VCC3

CB46

0.1u

CB173

0.1u

5VDUAL

CB61

0.1u
CB164
X_0.1u
CB25

0.1u

CB252
X_0.1u

J1

2
1

X_YJ102

CB253
X_0.1u

IDE_LED

CB254
X_0.1u

R129

1 2

4.7K

CB255
X_0.1u

VCC5

R120
10K

CB256
X_0.1u

Q10
L2_2N3906S

Ic=200mA
Vebo=5V
Vceo=40V

R110 220

PWRSW

CB257
X_0.1u

CB258
X_0.1u

HDD_LED

SLP_LED

POW_SW

JFP1

3

T_D2x3-BK

CB259

0.1u

41
52

GND

VCC5

NC

CB260

0.1u

VCC5

CB261

0.1u

FP_RST#3,10,17,25

FP_RST#

For Debug

PD_LED3

SD_LED3

SUS_LED25

VCCP VCCP VCC5 VCC5 VCC5 VCC5 VCC5 VCC5 5VDUAL 5VDUAL +12V +12V VCC3 VCC3 VCC3 VCC3

CB247
X_0.1u

CB248
X_0.1u

CB249
X_0.1u

CB250
X_0.1u

D6 1N4148-S-LL34

D7 1N4148-S-LL34

JLED1

D5 1N4148-S-LL34

1

1

2

2

PCI RAID card access LED connecter

D1x2-WH

CB251
X_0.1u

CB262

0.1u

SPEAKER

SPK

VCC5

BUZZER1
BUZZER

R135 220

AC97_SPKR12

SPKR10

R148 2.2K

R140 220

CE

Q12

B

2N3904S

D8 1N4148-S-LL34
C91 0.1u

POWER BUTTON

VCC3_SB

R286

PWRSW

R274 22

AOL2_WAKE17

Title

R287 22

Micro Star Restricted Secret

Front Panel,Power Conn. & Speaker

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

X_1K

C160
105P

MS-6539N1

Last Revision Date:

Sheet

PWRBTN# 10

Wednesday, March 19, 2003

20 29

of

Rev

3.0

Firware Hub (FWH)

PCIRST#16,11,24,25

SD_DET3
PD_DET3

LAD0/FWH010,11
LAD1/FWH110,11
LAD2/FWH210,11

R124 0

PRES3
PRES2

FWH_WP#

VCC3

FWH DECOUPLING CAPACITORS

VCC3

+12V

VCC5

R376

CB33

0.1u

100K_0603

+

CT1
10U/16V/S

R422 10

C206 1u-0805

R375 10

C203

0.1u

0.01uC202

C204 0.022u

Place Cap. as Close to
FWH< 350 mil

200KHz

2

4
8

7

U22

IRU3037

VC
U17_VCC

1uF

SS
COMP

CB177
X_470p

U8

1

VPP

2

RST#

3

FGPI3

4

FGPI2

5

FGPI1

6

FGPI0

7

WP#

8

TBL#

9

ID3

10

ID2

11

ID1

12

ID0

13

FWH0

14

FWH1

15

FWH2

16 17

GND FWH3

X_PLCC32-SMT

VCC
CLK

FGPI4

IC(VIL)

GNDA

VCCA

GND

VCC

INIT#

FWH4

RFU
RFU
RFU
RFU
RFU

M31-49004A8-S20

VCC5

AGP3.3V

56

HdrvVC

VCC

GND
SS

Comp

Ldrv

Q40_G

3
1

FB

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18

PRES4

VCC3

INIT#

LFRAME#/FWH4 10,11

LAD3/FWH3 10,11

SIMULATION TRACE

J4

X_PIN1*2

Q37

R358

Q42_G

3.3_0805

R335

0_0805

R336

IPD12N03L-S-TO252

FWH_PCLK 3

J5

X_PIN1*2

C189
1u-0805

Q38
IPD12N03L-S-TO252

CB162

R369 2.1KRST
R371 1.24KST

FWH INIT Signal V oltag e Translatio n B l o ck

FINIT#9

+

CHOK5 L04-12A7011

+

EC23
1000u/6.3V

1 2

X_2200pF

R360

X_3.3_0805

EC13
1000u/6.3V

1000u/6.3V

EC19

FWH RESISTORS

PRES2

PRES3
PRES4

FWH_WP#

VCCP

R92
10K

+

EC14
1000u/6.3V

C208

0.1u

+

EC16

1000u/6.3V

VCCP

Q5

2N3904S

CHOK4

R107 X_10K
R109 1K

R108 1K
R100 1K

R123 10K

R91
10K

B

CE

1.2U

+

VCC3

R93
330

INIT#

12

3.3V

VCC_AGP3_3

C190

0.1u

VCC3

VCC3

+

EC15
470u-16V

VCC5

PCB OTHER COMPONENT

BS1

X_150 Drill / 300 Pad

1
2
3
4 5

X_150 Drill / 300 Pad

1
2
3
4 5

9

BS3

9

FM15

X_FIDUCIAL

FM18

X_FIDUCIAL

FM14

X_FIDUCIAL

FM10

X_FIDUCIAL

FM5

X_FIDUCIAL

8
7
6

8
7
6

X_150 Drill / 300 Pad

X_150 Drill / 300 Pad

FM8

X_FIDUCIAL

FM17

X_FIDUCIAL

FM13

X_FIDUCIAL

FM9

X_FIDUCIAL

FM4

X_FIDUCIAL

FWH write protect

BS6

1
2
3
4 5

9

BS4

1
2
3
4 5

9

8
7
6

8
7
6

X_150 Drill / 300 Pad

1
2
3
4 5

X_150 Drill / 300 Pad

1
2
3
4 5

FM1

X_FIDUCIAL

FM2

X_FIDUCIAL

FM12

X_FIDUCIAL

FM7

X_FIDUCIAL

BS2

BS5

8
7
6

9

8
7
6

9

FM3

X_FIDUCIAL

FM16

X_FIDUCIAL

FM11

X_FIDUCIAL

FM6

X_FIDUCIAL

VCC_AGP=1.25 X (1 + R1232 / R1233)

3.36V=1.25 X (1 + 2.1K/ 1.24K)

VCC3

+12V

DS

VREF1_25

3
2

C153

X_0.01u

+

-

4 8

U14A
YLM358S-SOIC8

1

R238
1K_1%

R239

1K_1%

G

Q31
P3055LS-TO263

CB99

0.1u

EC11

1000u/6.3V

VCC2_5

+

BIOS_WP1
YJ102

GMCH 1.5V POWER TRANSLATOR

For internal AGP,Hun link interface

+12V

VREF1_2525

5
6

C137

X_0.01u

+

-

4 8

U14B
YLM358S-SOIC8

7

R217

4.99K_1%

R222

1.15K_1%

G

VCC2_5

DS

Q19
P3055LS-TO263

VCC_AGP

CB82

0.1u

EC10

1000u/6.3V

+

EC8

1000u/6.3V

Title

Micro Star Restricted Secret

Document Numbe r

+

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

GPO2210

GPO22:fix output
default=Hi-Z

BIOS_WP
Close
Open

FWH

MS-6539N1

FWH_WP#

1
2

R130

0

Locked
Unlocked

Last Revision Date:

Wednesday, March 19, 2003

Sheet

21 29

Rev

3.0

of

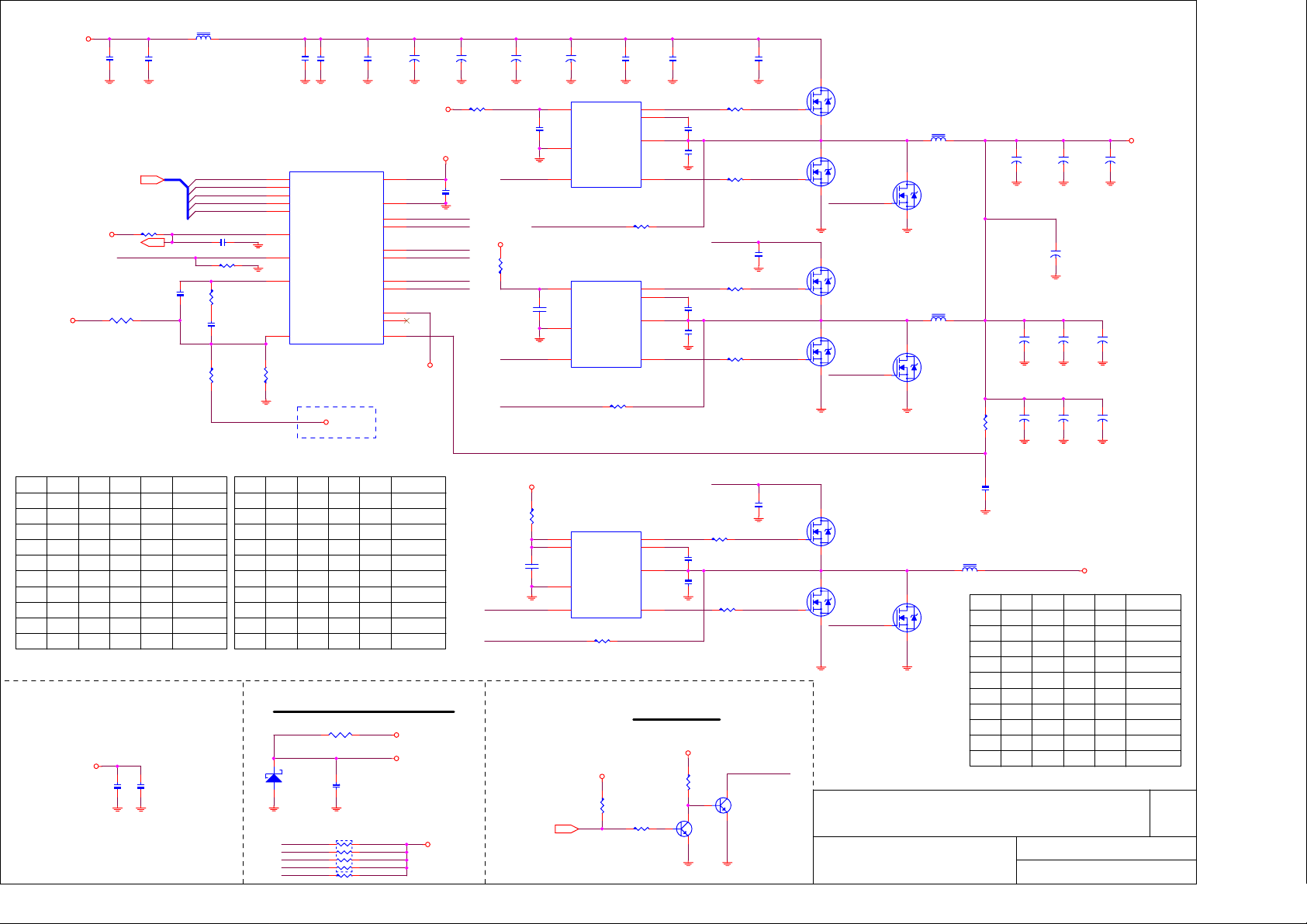

+12VCCP

CT5
1500u

20

9

PWM1

15

PHASE1R

16

PWM2

14

PHASE2R

138

PWM3

11

PHASE3R

12

18
17

10

VCC5

VCC5

+12V

VCC3

1 2

CB30

0.1u

VID[0..4]4,11

VRM_GD10,17

R516

301K_1%

CB26
33p

R511 10K

DIS_D

C273
15p

CHOK1 1.1uH-25A

VID4
VID3
VID2
VID1
VID0

X_100pC271

R512 154K

VCCPCOMP

/N

R515
10K

C275
5600p

VCCPFB

R518

1.62K_1%

C62

0.01u

1
2
3
4
5

19

/N

6

7

R519
X_0

C63
33p

U31

VID4
VID3
VID2
VID1
VID0

PGOOD

COMP

FB

HIP6301

VCCP

From CPU Side

VCC

GND

PWM1
ISEN1

PWM2
ISEN2FS/DIS

PWM3
ISEN3

PWM4
ISEN4

VSEN

C64
33p

HIP6301 -- VRM 9.0/9.2
VID4 VID3 VID2 VID1 VID0 VDC(V) VID4 VID3 VID2 VID1 VID0 VDC(V)

1

1111
1111
111 1

0

0

00111
11 11
11 1
11
1

0

00

00
0

100

1

10111

01101

OFF

1.100

1.125

1.150

1.175

1.200

1.225

1.250

1.275

1.300

1.325

10101

1.350

00101

1.375

11001

1.400

01001

1.425

10001

1.450

00001

1.475

11110

1.500

01110

1.525

10110

1.550

00110

VID PULL-UP RESISTORS

+12V

CB22

X_4.7u-1206

CB21

X_4.7u-1206

R525 820-1206

D24
RLZ3.3V

A C

CHECK THIS

RN61 1K

VID0
VID1
VID2
VID3
VID4

R529 1K

C280

0.1u

1
3
5
7

+12V

VCC3_VID

2
4
6
8

+12V

VCC5

VCC3_VID

R507

10_0805

C270
1u-0805

CT4
1500u

GVCC1

+12V

1u-0805

CB265
1u-0805

PWM1

PHASE1R

CB263

0.1u

R513
10_0805

GVCC2

CB264

PWM2

PHASE2R

+12V

VID_GD25

CT2
1500u

14

3

PWM3

1

PHASE3R

5 9

1 2

6

2

VCCPSEN

R521
10_0805

6
7

12

4

3

CT3
1500u

U30A

VCC

BOOT1

PHASE1

GND

PWM1

HIP6602B

U30B

PVCC U_G2

BOOT2

PHASE2

PGND

PWM2

HIP6602B

R520 3.3K_1%

U32

VCC

BOOT

PVCC

PHASE

GND

PWM

HIP6601-B

R524 3.3K_1%

VCC5

R527

4.7K

C70
1u-0805

12

U_G1

11

C268

0.1u

13

C269
1000p

VCCPGL1

4

L_G1

R510 3.3K_1%

10

C274

0.1u

8

C276
1000p

VCCPGL2

7

L_G2

VCCPGH3

1

U_G

2

C278
104P

8

C279
1000p

VCCPGL3 VCCPGL3R

5

L_G

PWM GOOD

R526

4.7K

R528

B

1K

C72
1u-0805

BT1

BT2

BT3

VCC5_SB

CE

R522

3.3_0805

B

Q63
2N3904S

R508

3.3_0805

PHASE3

R509

0_0805

+12VCCP

R514

3.3_0805

PHASE2

R517

0_0805

+12VCCP

R523

0_0805

CE

Q62

C71
1u-0805

VCCPGH1RVCCPGH1

VCCPGL1R

C272
1u-0805

VCCPGH2RVCCPGH2

VCCPGL2R

IPD06N03LA-TO252

C277
1u-0805

VCCPGH3R

PHASE1

DIS_D

2N3904S

Q56

DS

IPD09N03LA-TO252

G

0.9UH/25A-PB

DS

Q64

Solder
Side

G

DS

Q65

Solder
Side

G

DS

Q66

Solder
Side

G

Micro Star Restricted Secret

G

G

Q59

G

G

G

Q57

DS

IPD06N03LA-TO252

VCCPGL1R

X_IPD06N03LA-TO252

Q58

DS

IPD09N03LA-TO252

DS

VCCPGL2R

X_IPD06N03LA-TO252

Q60

DS

IPD09N03LA-TO252

Q61

DS

IPD06N03LA-TO252

VCCPGL3R

X_IPD06N03LA-TO252

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

CHOK6

1500UF/6.3V-FJ

CHOK7

0.9UH/25A-PB

C4
X_0.01u

1500UF/6.3V-FJ

R9
0

CHOK8

0.9UH/25A-PB

CT13

1500UF/6.3V-FJ

1500UF/6.3V-FJ

NOTE: INSIDE ON CPU SOCKET.

1500UF/6.3V-FJ

1500UF/6.3V-FJ

CT12

1500UF/6.3V-FJ

CT16

CT10

CT11

CT14

CT18

1500UF/6.3V-FJ

1500UF/6.3V-FJ

VID4 VID3 VID2 VID1 VID0 VDC(V)

VRM 9.0

MS-6539

Last Revision Date:

Wednesday, March 19, 2003

Sheet

22 29

CT9

1500UF/6.3V-FJ

CT15

CT17

VCCP

11010
01010
10010
00010
11100
01100
10100
00100
11000
01000

of

VCCP

1.575

1.600

1.625

1.650

1.675

1.700

1.725

1.750

1.775

1.800

Rev

3.0

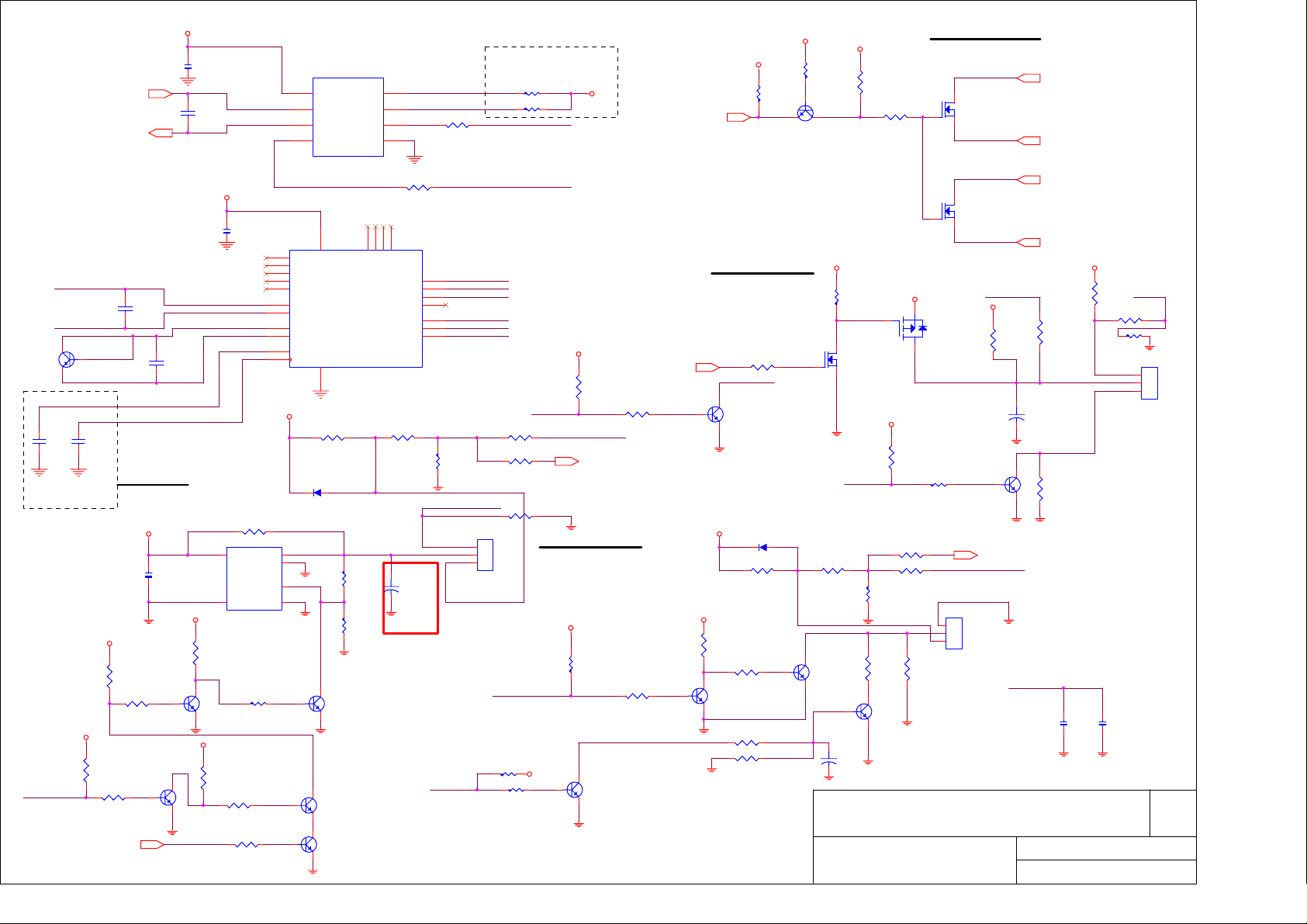

CPU_TMPA

VTIN_GND

CE

12

C256

X_68p

Ver 1.0

SMBALERT#

12

VCC5

2N3904S

B

Q25

C257

X_68p

VCC5

R433

10K
R432

X_10K

CPU_TMPA4

VTIN_GND4

FANON111

C157
2200P

SMBDATA_ISO
SMBCLK_ISO

CPU FAN

+12V

C218
X_0.1u

R419

X_10K
R417

X_2N3904S

X_10K

B

Q48

X_2N3904S

C156
2200P

B

Q44

CE

VCC3

VCC5

C166
X_0.1u

C168
X_2200P

R426

CE

VCC5

VCC3

C151

0.1u

R436 0

VR2

4 5

VIN VOUT

X

ON/OFF

X_LM2941CS

I31-029410B-N04

R425 X_1K

X_10K

ADJ

GND

X_2N3904S

X_2N3904S

2

X_10K

R418

R427 X_10K

R434 X_10K

1

VDD

2

D+

3

D-

4

THERM#

U15

5

VID0

6

VID1

7

VID2

8

VID3

19

VID4

18

Remote1+

17

Remote1-

16

Remote2+

15

Remote2-

1

SDA

2

SCL

+12V

R408 10K

D18 1N4148-S-LL34

6

1
3

B

Q51

X_2N3904S

CE

B

Q49

CE

B

Q50

U17

SDATA

ALERT#

X_ADM1032

TACH4/Address Select

PWM3/Address Enable#

GND VCC

3 4

R437

X_8.2K

R452

X_1.6K

CE

8

SCLK

7
6
5

GND

R492 X_0

232221

20

5V

12V

2.5V

VCCP

TACH1
TACH2
TACH3

PWM1/xTest Out

PWM2

ADM1027

R411 10K

CT33

+

新增

X_100u_16V

Ver 0B

SMBCLK_ISO
SMBDATA_ISO

R489 X_0

TACH1 : CPUFAN
TACH2 : PSUFAN
TACH3 : SYSFAN

11
12
9
14

1 Don't Care 0101110 (5Ch)

24
10
13

R415

4.7K

CFANGND

FANCONT

PWM2

Ver 1.0

R501 1K
R502 1K

SMBALERT#

TACH1
TACH2

TACH3

PWM1
PWM2
PWM3

R410 0

R407 X_0

R416 X_0

CPU_FAN1

1
2
3

D1x3-WH-SN

FANON1

From LPC47M192

R309 1K

R312 2.2K

SMBALERT#

PWM1

POWER FAN

VCC3

VCC3

B

Q36

MMBT2222

VCC3

VCC3

R368

470_0603

R380 0

TACH1

CPU_FAN1 11

R39

X_1K

R40 X_10K

SMBALERT#

From ADM1032

CE

VCC5

PWR_OK125

SYSTEM FAN

Rear FAN, Close to CPU

R356 X_470

SYS_CTRL11

MMBT2222

X_2N3904S

B

VCC5

B

Q1

1 2

CFANGND

CE

Q42

+12V

D1 1N4148-S-LL34

R10 10K

R26

X_10K

R42

CE

X_0

R64 0
R63 X_10K

R313
10K

2N3904S

B

Q2

X_2N3904S

VCC5

Q28

+12V

R316

R306
10K

3.3K

B

CE

+12V

DS

G

R24

10K

CE

2N3904S

+

Title

R359

X_1K

Q39
X_2N7002

PWM3

B

Q3

EC4

X_10U/16V/S

R308

G

0

G

+12V

S

G

Q40
X_SI2303DS-S-SOT23

D

VCC3

R254

470_0603

R428 X_2.2K

R23 X_0
R25 0

R11

4.7K

R35

R36

11K

3.9K

CE

Micro Star Restricted Secret

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

SMBus Isolatio n

SMBCLK

DS

Q35
2N7002

SMBCLK_ISO

SMBDATA

DS

Q34
2N7002

SMBDATA_ISO

FANCONT

+12V

R420

X_0

CT28

+

X_100u_16V

CE

B

Q45

X_MMBT2222

PFAN_FAN1 11

TACH2

PWR_FAN1

1
2
3

D1x3-WH-SN

FANCONT

CB245
X_0.1u

SMBUS Isolation & FAN Conn.

MS-6539N1

Last Revision Date:

Sheet

SMBCLK 10,17,24

SMBCLK_ISO 3,11,14,25

SMBDATA 10,17,24

SMBDATA_ISO 3,11,14,25

+12V

R421

TACH3

X_10K

R431 X_10K

R409

R435 4.7K

X_0

SYS_FAN1

X_D1x3-WH-SN

R429

X_0

CB246
X_0.1u

L04-2207020-T15
L04-4707010-T15

Wednesday, March 19, 2003

23 29

of

3
2
1

Rev

3.0

AD09,17
AD19,17
AD29,17
AD39,17
AD49,17
AD59,17
AD69,17
AD79,17
AD89,17

AD99,17
AD109,17
AD119,17
AD129,17
AD139,17
AD149,17
AD159,17
AD169,17
AD179,17
AD189,17
AD199,17
AD209,17
AD219,17
AD229,17
AD239,17
AD249,17
AD259,17
AD269,17
AD279,17
AD289,17
AD299,17
AD309,17
AD319,17

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

STUFF CLOSE TO CHIP

VCC5_SB

R473

100K

LAN_VIO

C228

0.1u

GA_LAN_MDI0P

GA_LAN_MDI0N

GA_LAN_MDI1P
GA_LAN_MDI1N

GA_LAN_MDI2P
GA_LAN_MDI2N

GA_LAN_MDI3P
GA_LAN_MDI3N

0.01uC232

R475 49.9_1%
R477 49.9_1%
R478 49.9_1%

0.01uC244
R479 49.9_1%

0.01uC249

R481 49.9_1%
R482 49.9_1%

0.01uC250

R483 49.9_1%
R484 49.9_1%

U26A

N7

AD0

M7

AD1

P6

AD2

P5

AD3

N5

AD4

M5

AD5

P4

AD6

N4

AD7

P3

AD8

N3

AD9

N2

AD10

M1

AD11

M2

AD12

M3

AD13

L1

AD14

L2

AD15

K1

AD16

E3

AD17

D1

AD18

D2

AD19

D3

AD20

C1

AD21

B1

AD22

B2

AD23

B4

AD24

A5

AD25

B5

AD26

B6

AD27

C6

AD28

C7

AD29

A8

AD30

B8

AD31

82540EM_BGA-196

KENAI32

CBE0#
CBE1#
CBE2#
CBE3#

FRAME#

IRDY#

TRDY#
STOP#
IDSEL#

DEVSEL#

REQ#
GNT#

INTA#

M66EN/PCIRST#

RST#/ISOLATE#

SERR#
PERR#

ZN_COMP/NC

LAN_PWR_GOOD/ALTRST#

ZP_COMP/NC

APM_WAKEUP/CSTCHG

AUX_PWR/FLSH_ADDR1

PME#

IDSEL = AD18
MASTER = PREQ2
INTC#

C246

C245
.1u

C247

.1u

.1u

IDSEL = AD18
MASTER = PREQ2
INTC#

C_BE#0

M4

C_BE#1

L3

C_BE#2

F3

C_BE#3

C4

PAR

J1

PAR

F2
F1
G3
H1

R462 100

A4
H3
C3
J3

H2

G1

CLK

C2
B9
A2
J2

LAN_VIO

G2

VIO

10
11
12 13

LAN_V25

H4
G4
A9
A6
C5
J12

U28

1

TCT1

2

TD1+

3

TD1-

4

TCT2

5

TD2+

6

TD2-

7

TCT3

8

TD3+

9

TD3­TCT4
TD4+
TD4- MX4-

H5009_SMT-24

R476
0_0805

C248
.1u

ZN_COMP
ZP_COMP

R470 3.3K

MCT1

MX1+

MX1-

MCT2

MX2+

MX2-

MCT3

MX3+

MX3-

MCT4

MX4+

FRAME#
IRDY#
TRDY#
STOP#

DEVSEL#

PREQ#2 9,17
PGNT#2 9

INTC# 9,17

M66EN

10pC260

PCIRST#1
SERR#
PERR#

R467 33.2_1%
R468 53.6_1%

VCC3_SB

R493 75_1%

24
23
22

R494 75_1%

21
20
19

R495 75_1%

18
17
16

R496 75_1%

15
14

LAN_ID_SEL

Ver 1.0a

C_BE#0 9,17
C_BE#1 9,17
C_BE#2 9,17
C_BE#3 9,17
PAR 9,17

LAN_ID_SEL

LAN_CLK 3

R474

4.7K

VCC3

FRAME# 9,17
IRDY# 9,17
TRDY# 9,17
STOP# 9,17

DEVSEL# 9,17

PCIRST#1 6,11,21,25
SERR# 9,17
PERR# 9,17

VCC3_SB

MS5RSMRST# 9,10,25

VCC3_SB

VCC3_SB

MX0+
MX0-

MX1+
MX1-

MX2+
MX2-

MX3+
MX3-

R506 X_0

8
7
6
5

U29

5
4 3

PME# 9,16,17

U27

512*8_SOIC-8

NC7S08-SOT23

X_D1x2

VCC
NC
NC
GND

MX0+
MX0­MX1+
MX2+
MX2­MX1­MX3+

1
2

1.5DVDD/NC

1.5DVDD/NC

GND
GND
GND
GND
GND
GND
GND
GND
GND

GND/TEXEC

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

VCC1_5SB

L10
E11
E12
G5
G6
G13
H5
H6
H7
H8
H11
J5
J6
J7
J8
J9
J10
J11
K5
K6
K7
K8
K9
K10
K11
L4
L5
L9

B3
D4
B7
C10
C12
D5
D6
D7
D8
D13
E2
E4
E5
E6
E7
E8
E9
E10
F4
F5
F6
F7
F8
F9
F10
F11
G7
G8
G9
G10
G11
G14
H9
H10
K2
K12
L6
L11
M6
N1
N12
P8

C243

.1u

TYP 470mA

C239

C240

.01u

.1u

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

1.5DVDD/3.3V

R464

3.3K

LAN_V25

VCC1_5SB

10u_1206

M11

G12

H12

J13
A14
D10

D12
D14

P14
F12

M9

A11

K13

P12

D11

C237

L7

A1

P1

N9
P9

A3
A7

E1
K3
K4

N6
N8
P2

D9

L8

U26B

NC/MODEM_CS#
NC/FLSH_DATA6
NC/FLSH_DATA0
NC
NC

NC
NC/TI
NC/TCK

J4

NC
NC

NC
PHY_TP/FLSH_DATA2
FLSH_CE#/FLSH_WE#
FLSH_SCK/FLSH_CE#
FLSH_SI/FLSH_ADDR12
NC/FLSH_ADDR9

3VDD
3VDD
3VDD
3VDD
3VDD
3VDD
3VDD
3VDD
3VDD
3VDD
3VDD

2.5AVDD/NC

2.5AVDD/NC

2.5AVDD/FLSH_DATA3

2.5AVDD/NC

82540EM_BGA-196

U26C

B10

SMBALRT#

G

Y

C9

A10

P7
M10
P10
N10

A12
C11
B11
B12

P11
B13
N14
P13
N13
M12

M8
N11
K14

J14

B14

R466

2.49K_1%

LAN1

9
10

LILED

11
12

RJ45-D8-BK-R

SMBDATA
SMBCLK

EE_CS
EE_SK
EE_DI
EE_DO

LINKA#/LINK_LED
ACT_A#/ACT_LED
LINKA100#/SPEED_LED
LINKA1000#/TO

CTRL_15/XTAL2
CTRL_25/RBIAS100
SDP0/IOCHRDY
SDP1/FLSH_ADDR9
SDP6/FLSH_ADDR10
SDP7/FLSH_ADDR12

CLK_VIEW/FLSH_OE#
NC/XTAL1
XTAL1/FLSH_ADDR2
XTAL2/FLSH_DATA7

PHY_REF/RBIAS10

82540EM_BGA-196

VCC3_SB

LAN_25

SPDLED

R424 300

CB158 103P

CB185 103P

R458 300

VCC3_SB

JTAG_TDO/FLSH_ADDR6
JTAG_TMS/FLSH_ADDR5

JTAG_TRST#/FLSH_ADDR4

R472

SMBDATA10,17,23

SMBCLK10,17,23

LAN_EECS
LAN_SHCLK
LAN_EEDIN
LAN_EEDOUT

LILED
ACTLED

SPDLED

LAN_25

TJ1

1
2

R503

0

LAN_KX1

LAN_KX2

Y2

12

25M_18p

C226

CS

SK

DI

DO

C227

15

1
2
3
4
5
6
7
8

16

22p

LAN_EECS
LAN_SHCLK
LAN_EEDIN
LAN_EEDOUT

14 13

22p

1
2
3
4

SPEED LED
If 1000Mbit ==> LED on
If 100Mbit ==> LED
off

MDIA0-/TX-

MDIA0+/TX+

MDIA1-/RX-

MDIA1+/RX+

MDIA2-/FLSH_DATA0

MDIA2+/FLSH_DATA1

MDIA3-/FLSH_DATA4

MDIA3+/FLSH_DATA5

JTAG_TCK/FLSH_ADDR3

JTAG_TDI/FLSH_ADDR7

TEST

NC/CLK_RUN#

ACTLEDMX3-

C234
.01u

TYP 250mA

Q54

MMBT4403LT1

C235
.01u

3.3K

R471

3.3K

VCC3_SB

C233
.1u

GA_LAN_MDI0N

C14

GA_LAN_MDI0P

C13

GA_LAN_MDI1N

E14

GA_LAN_MDI1P

E13

GA_LAN_MDI2N

F14

GA_LAN_MDI2P

F13

GA_LAN_MDI3N

H14

GA_LAN_MDI3P

H13

R463

L14
M13
M14

3.3K

L12
L13

R465

A13

3.3K

C8

C230

C229

.01u

4.7u

GREEN :
For Speed

AMBER : For
Active/Link

C236

.1u

VCC3

LAN_V25

VCC3_SB

C231
.1u

For NEC require

AD18

GPO21 10

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

Micro Star Restricted Secret

INTEL 82540EM LAN & Conn.

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

24 29

of

Rev

3.0

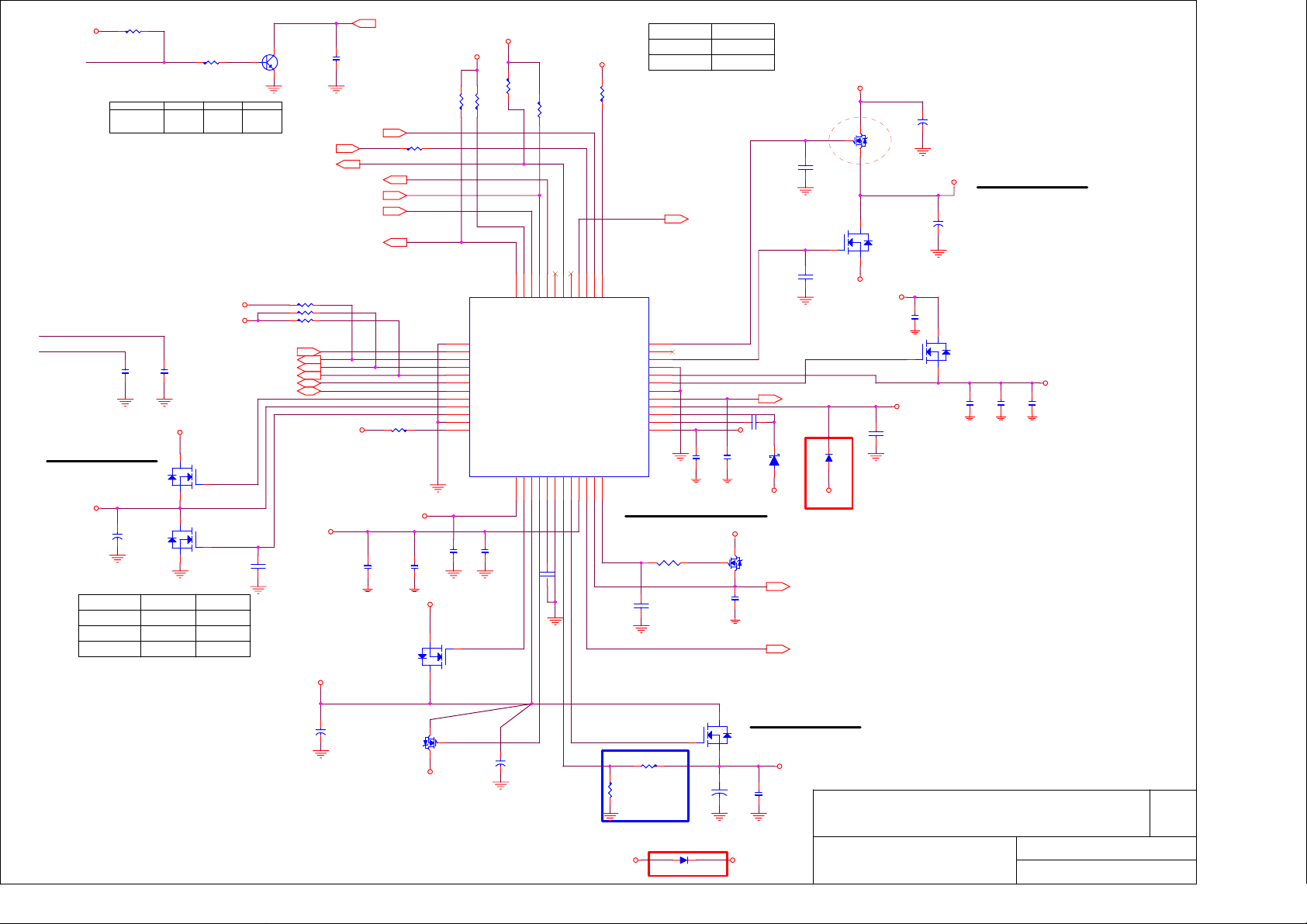

R367 270

VCC3_SB

SLP_S3#

VCC3_SB Main Standby
VCC5_STR

R366 1K

S0Power S5S3

Main

Standby

Main

Standby

TO 845G & ICH4

**INPUT 2 AND 3 MUST BE HI LEVEL WHEN USE
OUTPUT 1 AND 2 FOR GPIO FUNCTION

VCC5

D

S
D

S

Q52
P3055LD

G

G

Q53
P3055LD

VRAM_2.5

2.5V

2.5V

1.25V

VCC3

SMBDATA_ISO3,11,14,23

SMBDATA_ISO

SMBCLK_ISO

C282
56p

DDR VTT Power

1.25V/2.1A

VTT_DDR

1000u/6.3V

+

EC21

SEL1

TRI-STATE 3.3VSB

L

FOR 3VSB OR 3VSTR
SETTING BY SEL1

Pin 15,19,22,32 Must
reserve capacitor.

C283
56p

VCC_AGP3_3

VRAM

3.3VDUALH

3.3VSTR

CE

Q41

B

2N3904S

Standby

0V
0VMEM_STR

TO SMBUS Ctrl

SMBCLK_ISO3,11,14,23

PWR_GD6,10

Near
302D

R413 330
R412 X_220
R423 220

PCIRST#9,16
HD_RST#3
PCIRST#217
PCIRST#16,11,21,24

VCC5_SB

C211
X_102P

EC17

X_1000u/6.3V

SLP_S3#10

VTT_GATEH
VTT_GATEL

VCC5_SB

VCC3_SB

Dual_3.3V

+

PS_ON# 20

R387
330

SLP_S5#

CB242

10u-1206

S

P45N02LD-S-TO252

D

G

D S

VCC5_SB

VCC5_SB

1

DGND

2

PCIRST#/GPIOA

3

HDD_RST#/GPIOA

4

SLOT_RST#/GPIOA

5

DEV_RST#/GPIOA

6

I2C_DATA

7

I2C_CLK

8

BT_DRV

9

BT_SEN

10

BT_SINK

11

AGND0

12

SEL1

C212

0.1u

3VSB_GATE1

G

Q46

Wide Trace

3VSB_GATE2

Q43

EC18

NDS351

1000u/6.3V

C193

X_0.1u

SLP_S5#10

R385 1K

PWR_OK123

FP_RST#3,10,17,20
PWR_OK20

SUS_LED20

R430

10K

VCC5

CB241

10u-1206

VCC_AGP3_3

FOR 3VDUAL
SETTING BY
SEL1

** SETTING 3VSTR THEN VRAM_2.5
BECOME TO 1.25 VREF

VCC3

R383

4.7K
R388
330

C213

0.1u

R382

4.7K

MS5_S3#

48

PLED0

PLED1

PWR_OK

FP_RST#/GPIOB

PWR_OK1/GPIOC

EXTRA_PWGD/GPIOC

VCC

VRAMDRV2

VRAMSEN

VRAMDRV1SSAGND1

1314151617181920212223

C216

0.47u

+

CHIP_PWGD/GPIOC

VRAM_2.5_DEN

New ver.
MS-5 have
to deleted.

SEL0

H

VCC5_SB

SLP_S3#

RSM_RST#/GPIOB

CPU_PWGD/GPIOC

VRAM_2.5_DRV

5VSB

VRGOOD

R386
10K

MS5RSMRST#

3738394041424344454647

SLP_S5#

5V_USB

5VSB_DRV

5V_DRV

S5O#/GPIOB/SEL0

TYPEDET#
VAGP_SEN
VAGP_DRV

AGND2

1.25VREF

1.2V_SEN

1.2V_DRV

24

VCC3

9VSB

C2
C1

U23

36
35
34
33
32
31
30
29
28
27
26
25

W83302D

L

VCC_VID / VID_GOOD

Place MOSFET near CPU

VID_G1

THIS PIN IS OPEN DRAIN OUTPUT

MEM_GATE1

R460 0

新增

R461

X_8.2K_1%

R229

C148
X_102P

0

Ver 0B

D19

VCC_AGP

X_1N4001-S-SM-1

5VUSB
2 MOSFET
1 MOSFET

MS5RSMRST# 9,10,24

VREF1_25

VCC_AGP3_3

C207

C214

1000p

0.1u

VCC3

VID_G2

G

DS

G

C144
106P/1206

D

Q47

P3055LD

S

CT25

+

100u_16V

C94-1020641-S03
C94-1020651-T30

MEM_STR

5VUSB USE 2 MOSFET

**S5O# pin function(Hi level = 5V)
same as 5VUSB(Hi level = 12V)

5VDUAL_GATEH

5VDUAL_GATEL

VREF1_25 21

C209

4.7u-0805

D21

SM5817S

C124
222P

C104
X_102P

G

AGP1_G2

VCC5_SB

DS

Q16

G

NDS351

D

Q15

P45N02LD-S-TO252

S

Low RDS ON MOSFET

VCC5

VCC3_SB

D20

X_1N4148-S-LL34

CHARGE PUMP VOLTAGE OUTPUT

VCC5_SB +12V

New ver.
MS-5 have

Q17
2N7002

DDR 2.5V Power

to deleted.

VCC_VID 5

1.2V/0.1A

VID_GD 22

1.0V

2.5V/2.8A+5.92A

MEM_STR

C215

0.1u

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

+

CT6
470u-16V

5VDUAL

5V DUAL Power

+

CT20
470u-16V

C155

0.1u

D

Q55

P3055LD

S

For ICH4 standby 1.5V

VCC1_5SB

C150

C154

C145
100p

0.1u

4.7u-0805

C210
1u-0805

G

9VSB

Micro Star Restricted Secret

W83302D(MS-5) ACP I C ont ro ller

MS-6539N1

Last Revision Date:

Wednesday, March 19, 2003

Sheet

25 29

Rev

3.0

of

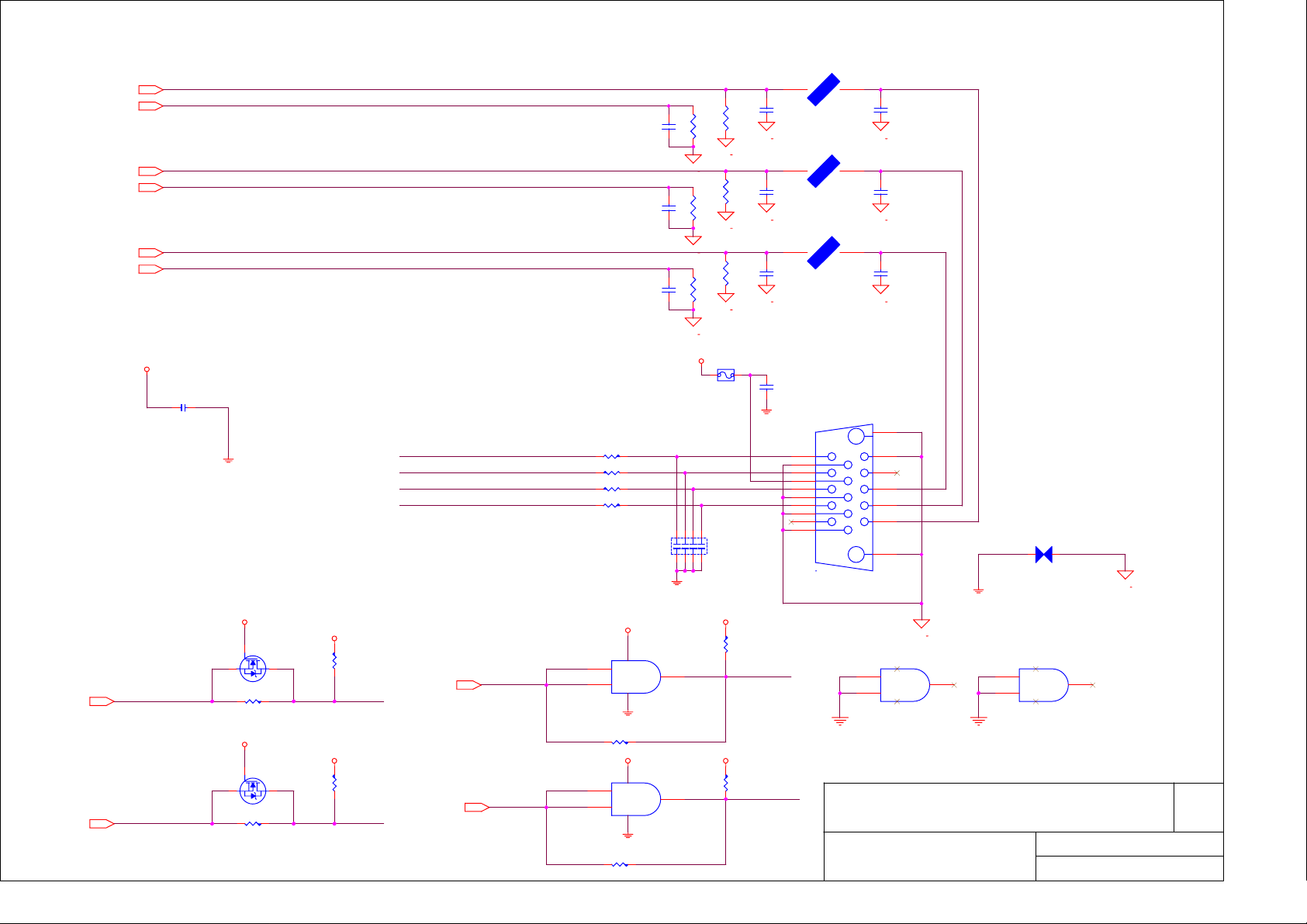

Video Connector

1 2

1 2

1 2

L10

1 2

C117

3.3p

L9

1 2

C106

3.3p

L8

1 2

C98

3.3p

60S/0603

60S/0603

60S/0603

1 2

VGAGND

1 2

VGAGND

1 2

VGAGND

C116

3.3p

C105

3.3p

C97

3.3p

CRT_R6
CRT_R#6

CRT_G6
CRT_G#6

CRT_B6
CRT_B#6

CRT_R

CRT_G

CRT_B

C118

2.2p

C107

2.2p

C99

2.2p

1 2

VGAGND

1 2

VGAGND

1 2

12

R188

37.4_1%

12

R172

37.4_1%

12

R160

37.4_1%

12

VGAGND

12

VGAGND

12

VGAGND

R187
75_1%

R173
75_1%

R161
75_1%

VGAGND

VGAGND

VGAGND

VGAGND

VCC5

FS2

135

246

YFUSE1.1AS-P

7

CN5

33P

8

12

CB42

0.1u

JVGA1

15
10
14

9

13

8

12

7

11

6

VGA-D15-BL-B-SC

17

5
4
3
2
1

16

CP8

X_COPPER

VGAGND

VCC5

EMI Issue

0.1uC87

Place clamping component & Level
shift circuit near to connector

5VDDCCL

5V_VSYNC

5V_HSYNC

5VDDCDA

R151 22
R149 22
R158 22
R157 22

VCC3

G

Q13
2N7002

DS

3VDDCDA6

3VDDCCL6

R153 X_0

VCC3

Q14

G

2N7002

R155 X_0

DS

VCC5

VCC5

R154

8.2K

5VDDCDA

R156

8.2K

5VDDCCL

3V_HSYNC6

3V_VSYNC6

3V_HSYNC

3V_VSYNC

VCC5

147

4
5

R138 X_0

VCC5

147

1
2

R152 X_0

U10B

6

74ACT08SC-SOIC14

U10A

3

74ACT08SC-SOIC14

R126
1K

R150
1K

VCC5

VCC5

5V_HSYNC

5V_VSYNC

VGAGND

U10C

147

9

10

Title

8

X_74ACT08SC-SOIC14

Micro Star Restricted Secret

VGA Conn

Document Num be r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De St, J ung-He Ci ty ,
Taipei Hsien, Taiwan
http://www.msi.com.tw

147

12
13

X_74ACT08SC-SOIC14

MS-6539N1

Last Revision Date:

Sheet

U10D

11

Wednesday, March 19, 2003

26 29

of

Rev

3.0

PCB1

PCB,M/B,6539,30A,4

12

BAT1_1

YSKTBT

U16_2
GMCH-PIN

U16_4
GMCH-PIN

U16_1

GMCH_Heatsink

U16_3
GMCH-PIN

U16_5
GMCH-PIN

U8_1

1

VPP

2

RST#

3

FGPI3

4

FGPI2

5

FGPI1

6

FGPI0

7

WP#

8

TBL#

9

ID3

10

ID2

11

ID1

12

ID0

13

FWH0

14

FWH1

15

FWH2

16 17

GND FWH3

SST-4M-33MHz-PLCC32

M31-49004A8-S20

VCC
CLK

FGPI4

IC(VIL)

GNDA

VCCA

GND

VCC

INIT#

FWH4

RFU
RFU
RFU
RFU
RFU

BIOS_WP(1)L2_YJUMPER-MG
CLR_CMOS1(2-3)YJUMPER-MG
J3(1-2)YJUMPER-MG

Pin Header Key Protect

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18

Q56-1

TO252-H

Q58-1

TO252-H

Q60-1

TO252-H

JFP1 Pin 6
COM1 Pin 10
COM2 Pin 10

Title

Micro Star Restricted Secret

Manual Parts

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

27 29

of

3.0

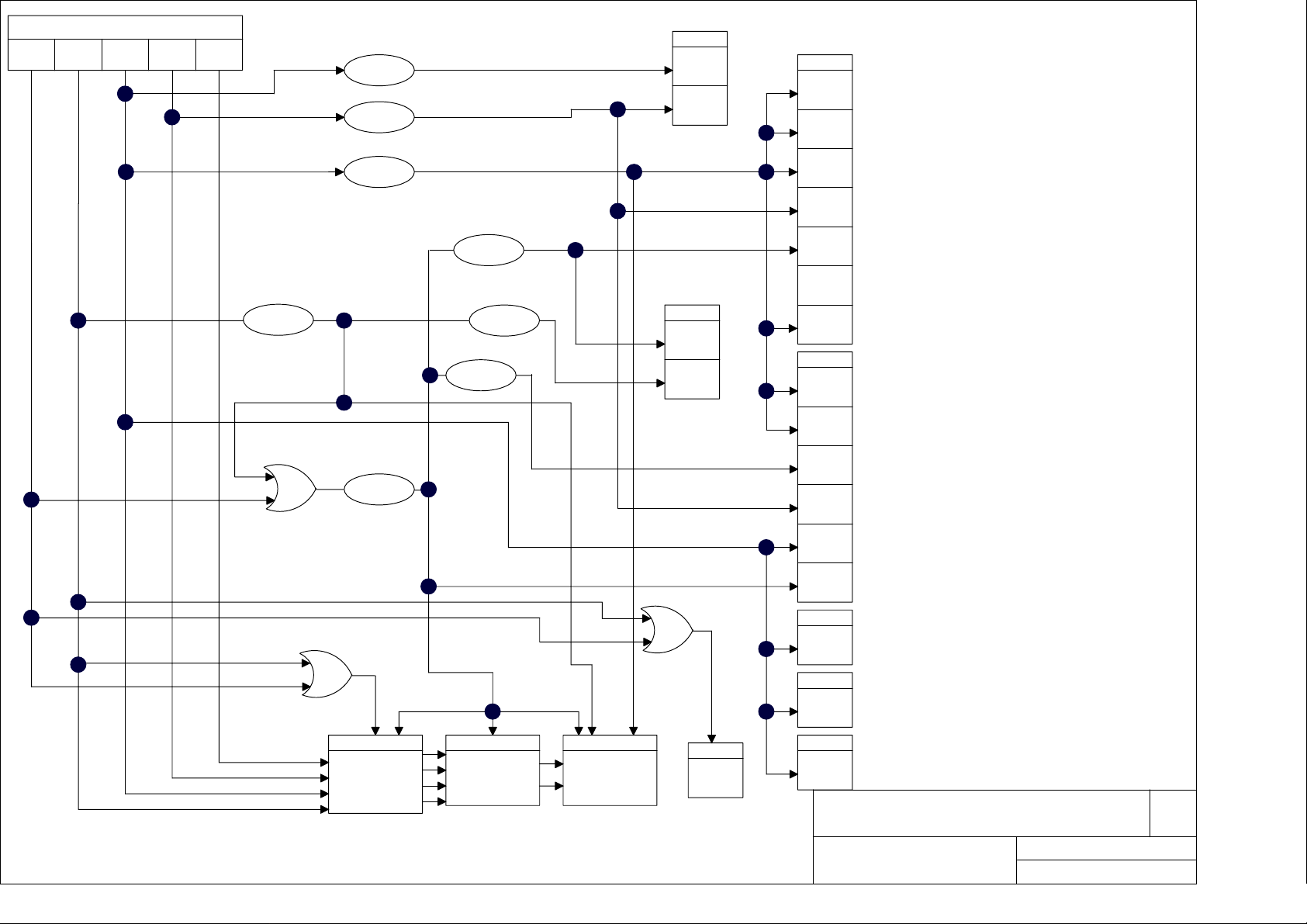

5VSB

+/-5%

ATX P/S

with 1A Stby current
5V 3.3V 12V -12V

+/-5% +/-5% +/-5% +/-10%

3.3V (PWM)
regulator

Power Delivery Map

VID voltage

regulator

VRM 9/0

1.5V regul at o r

2.5V

regulator

1.25V

regulator

1.5V Standby
regulator

Dual_3.3V

3.3V Standby
regulator

CNR Connecto r

5V

3.3V
12V

3.3Vaux

-12V
5VDual 0.5A

1.0A

1.0A

0.5A

1.0A

0.1A

PCI Slot (per slot)

5V

3.3V
12V

3.3Vaux

-12V

5.0A

7.6A

0.5A

0.375A

0.1A

AGP Slot

5V 2.0A

3.3V
12V

3.3Vaux

1.5V

6.0A

1.0A

0.375A

2.0A

Processor

VCCVID

1.2V

30mA

VccCORE/Vtt

1.15V-1.75V

60A

Memory

Vdd/Vddq

2.5V

5.92A

Vtt

1.25V

2.1A

USB

Vdd

5V

2.0A

BG GMCH

VccCORE

1.5V

2.46A

VccAGP

1.5V

370mA

VccHI

1.5V

90mA

VttFSB

1.15V-1.75V

2.4A

VccSM

2.5V

2.8A

VccGPIO

3.3V

30mA

Vcca_DAC

1.5V

65mA

ICH4

VccCORE

1.5V

970mA

VccHI

1.5V

90mA

Vccsus1_5

1.5V

85mA

V_CPU_IO

1.15V-1.75V

45mA

Vcc3_3

3.3V

610mA

Vccsus3_3

3.3V

70mA

CK-408

Vcc

3.3V

280mA

LPC Super I/O

Vdd

3.3V

25mA

FWH
Vdd

3.3V

67mA

Title

Micro Star Restricted Secret

Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

Manual Parts

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

28 29

of

3.0

FWH

GPIO Pin Type Function

Pull down through 8.2K ohms (unused)

IGPI 0
GPI 1
GPI 2
GPI 3
GPI 4

I

Pull down through 8.2K ohms (unused)

I

P1 customer defined

I

P1 customer defined

I

Pull down through 8.2K ohms (unused)

PCI Config.

DEVICE ICH INT Pin IDSEL

PCI Slot 1

PCI Slot 2

PCI LAN
82540EM

INTA#
INTB#
INTC#
INTD#

INTB#
INTC#
INTD#
INTA#

INTC#
INTD#
INTA#
INTB#

AD16

AD17

AD18 PIN 11LAN_CL K

*ICH4 reserved PCI address line AD22 for the PCI-to- I SA B r id g e ' s I DS E L i n put.

DATE

2002/ 5/18 0A

2002/ 6/10

2002/ 6/11 0B P.24 Modify LAN_V15 and LAN_V25 circuit because Total power

2002/ 6/13 P.23 Add the R490 and 491 for U15.

2002/ 6/17

2002/ 6/18 0B

2002/ 6/20 0B P.24 The U23-pin25 connect to VCC_AGP3_3 because layout issue .

2002/ 6/24 0B P.08 Deleted the CT23, Added the EC23 and CB243.

2002/ 6/27 0B P.10 ADd the R497 and 498 for S5.(To fix DDR 2.5V abnormally when

2002/ 7/25 1.0

2002/ 8/05 1.0 P.24 The Delete the CT29 for EMI issue.

2002/ 8/06 1.0 P.24 The Delete the CB239,240,FB18 for EMI issue.

2002/ 8/20 1.0a

2002/ 9/18 2.0 P.22 Modify the PWM circuit from two phase to three phase.
2003/ 1/06 3.0 P.17 Deleted U19-Latch Circuit.

Rev Description

The initial version.

0B

0B

0B

1.0a P.18 Deleted the CP1 and CP3.

1.0b

1.0c2002/ 9/03

P.03 To exchange the reference name with IDE1 and IDE2.
P.03 Add R486 for PCI_LAN clock.
P.09 Add the PREQ/PGNT2 for PCI_LAN.
P.09 Deleted the 82562ET circuit.
P.10 Add the R485 for ICH4-GPIO11 pull-up(SMBALERT#).
P.13 Modify headphone-out circuit(R280,R199).
P.13 Modify U11 circuit capcitor from 47uF(EC6) to 100uF(CT33).
P.13 Deleted the c122.
P.18 Deleted the WOM connector circuit for space saving.
P.18 Deleted the Wake On LAN Header circuit for space saving.
P.18 Deleted the CT7 and CT8.
P.18 To exchange the reference name with COM1 and COM2.
P.23 Modify CPU fan circuit capcitor from 22uF(EC20) to 100uF(CT33).
P.24 Modify LAN solution from 82562ET to 82540EM(NEC requirement).
P.25 Modify the MEM_STR circuit.

dissipation issue .

P.19 Deleted the L5,L17 from USB power circuit.
P.27 Add the C254 for PCI-SLOT RST#(for SI).

P.03 Add the C255 for LANCLK (EMI).
P.24 Modify LAN LED definition(GREEN for speed; AMBER for Active/link).

P.25 Deleted the CT30, Added the CB241 and CB242.

P.19 Deleted the L4,L16 from USB power circuit.0B2002/ 6/25

the system go to S4).
P.6 Deleted the R332(0ohm).

P.9 Deleted the R215(0ohm).
P.11 Deleted the R65(0ohm).
P.11 and P.23Add the RC256~259 for SMBus Signal integrityI.
P.18 Deleted the FB19(0ohm).
P.23 Modify FAN control circuit( follow AD recommand).
P.25 Deleted the R384(0ohm).
P.25 The MS5-RSMRST# circuit merge with discrete RSMRST# circuit.

P.13 Chassis GND and signal GND are isolated at JMIC and LINEO2.

P.19 Chassis GND and signal GND are isolated at USB.
P.21 The BS1and BS2,BS3 connect to GND.(for MIC noise issue when system in chassis)
P.24 Add the U29 for 82540-Lan diasble function .

Add the ESD solution.
Add the ESD solution.

P.23 Remove System FAN components from BOM(R428,Q45,SYS_FAN1,R421,R431).

CLOCK

PCICLK0

PCICLK1

CLK GEN PIN OUT

PIN 12

PIN 14

DIMM Config.

DEVICE ADDRESS CLOCK

DIMM 1 1010000B DCLK0/DCLK0 #

DIMM 2 1010001B

DCLK1/DCLK1#
DCLK2/DCLK2#

DCLK3/DCLK3#
DCLK4/DCLK4#
DCLK5/DCLK5#

General SPEC

ICH4

GPIO 0
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14~15
GPIO 16
GPIO 17
GPIO 18*
GPIO 19
GPIO 20
GPIO 21
GPIO 22
GPIO 23
GPIO 24
GPIO 25
GPIO 26
GPIO 27
GPIO 28
GPIO 29~31
GPIO 32
GPIO 33
GPIO 34
GPIO 35
GPIO 36
GPIO 37
GPIO 38
GPIO 39
GPIO 40
GPIO 41
GPIO 42
GPIO 43
GPIO 44~47

* GPIO18 will togg le a t 1 Hz fr eque n c y .

Title
Document Numbe r

MICRO-STAR INT'L CO.,LTD.

No. 69, Li-De S t , Jung-He City,
Taipei Hsien, Taiwan
http://www.msi.com.tw

I/O
I/O
I/O
I/O
I/O

I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O

FunctionTypeGPIO Pin

REQ#A (multifunction pin)

I

REQ#B (multifunction pin)

I

Pull up through 8.2K ohms (PIRQE#)

I

Pull up through 8.2K ohms (PIRQF#)

I

Pull up through 8.2K ohms (PIRQG#)

I

Pull up through 8.2K ohms (PIRQH#)

I
I

Pull down through 10K ohms (unused)

I

For password Clear
Pull Up to 3.3VSBY through 4.7K ohms (SIO_PME)

I

Not Implement ed

I

Not Implement ed

I
I

SMB_ALERT (multifuntion pin)

I

EXTSMI# with Pull up 10K ohms to VCC3_SB

I

Pull down through 10K ohms (unused)

I

Not Implement ed
GNT#A (multifunction pin)

O
O

GNT#B (multifuntion pin)

O

No Connected

O

No Connected

O

No Connected

O

Lan disabl e

OD

No Connected
Pull Up to 3.3V through 8.2K ohms (BIOS protect )

O

No Connected
No Connected
Not Implement ed
No Connected
No Connected
Not Implement ed

O

No Connected
No Connected
Primary IDE ATA66/100 detection (P D _ D E T )
Secondary IDE ATA66/100 detection (SD_DET)
No Connected
No Connected
No Connected
No Connected
No Connected
No Connected
No Connected
No Connected
Not Implement ed

Micro Star Restricted Secret

Manual Parts

MS-6539N1

Last Revision Date:

Sheet

Rev

Wednesday, March 19, 2003

29 29

of

3.0
