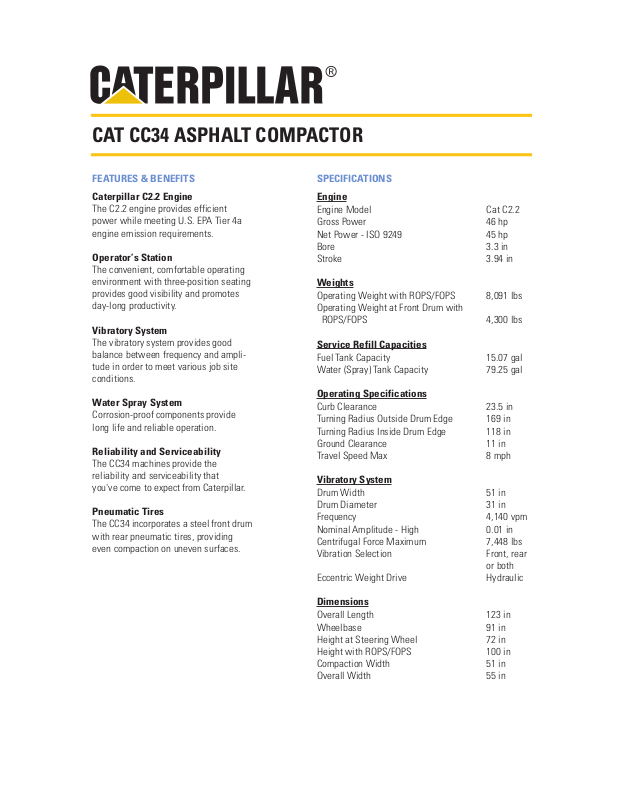

CAT CC34 ASPHALT COMPACTOR
FEATURES & BENEFITS
Caterpillar C2.2 Engine
The C2.2 engine provides efficient
power while meeting U.S. EPA Tier 4a
engine emission requirements.
Operator’s Station
The convenient, comfortable operating
environment with three-position seating
provides good visibility and promotes
day-long productivity.
Vibratory System
The vibratory system provides good
balance between frequency and amplitude in order to meet various job site
conditions.
Water Spray System
Corrosion-proof components provide
long life and reliable operation.
Reliability and Serviceability
The CC34 machines provide the
reliability and serviceability that
you've come to expect from Caterpillar.
Pneumatic Tires
The CC34 incorporates a steel front drum
with rear pneumatic tires, providing
even compaction on uneven surfaces.
SPECIFICATIONS
Engine
Engine Model Cat C2.2
Gross Power 46 hp
Net Power - ISO 9249 45 hp
Bore 3.3 in
Stroke 3.94 in
Weights
Operating Weight with ROPS/FOPS 8,091 lbs
Operating Weight at Front Drum with
ROPS/FOPS 4,300 lbs
Service Refill Capacities
Fuel Tank Capacity 15.07 gal
Water (Spray) Tank Capacity 79.25 gal
Operating Specifications
Curb Clearance 23.5 in
Turning Radius Outside Drum Edge 169 in
Turning Radius Inside Drum Edge 118 in
Ground Clearance 11 in
Travel Speed Max 8 mph
Vibratory System
Drum Width 51 in
Drum Diameter 31 in
Frequency 4,140 vpm
Nominal Amplitude - High 0.01 in
Centrifugal Force Maximum 7,448 lbs
Vibration Selection Front, rear
or both
Eccentric Weight Drive Hydraulic
Dimensions
Overall Length 123 in
Wheelbase 91 in
Height at Steering Wheel 72 in
Height with ROPS/FOPS 100 in
Compaction Width 51 in
Overall Width 55 in
