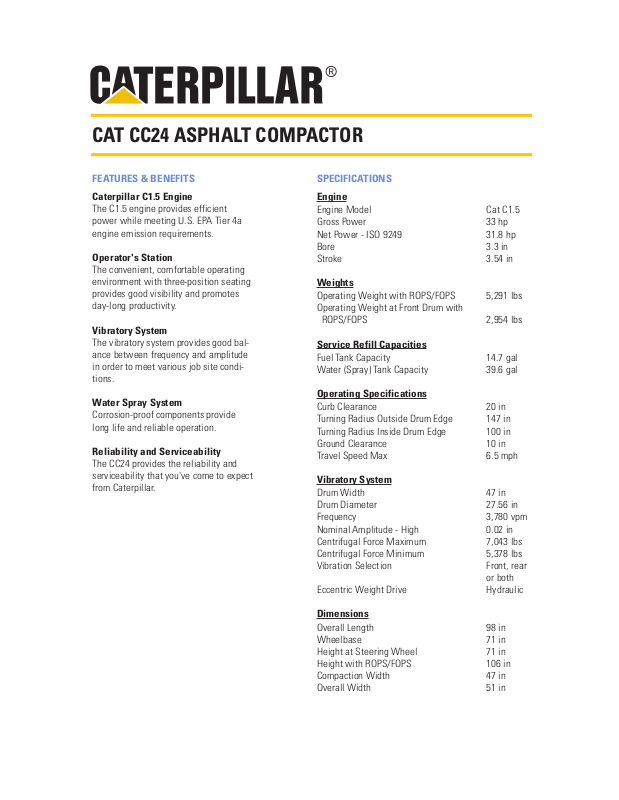

CAT CC24 ASPHALT COMPACTOR
FEATURES & BENEFITS
Caterpillar C1.5 Engine
The C1.5 engine provides efficient
power while meeting U.S. EPA Tier 4a
engine emission requirements.
Operator's Station
The convenient, comfortable operating
environment with three-position seating
provides good visibility and promotes
day-long productivity.
Vibratory System
The vibratory system provides good balance between frequency and amplitude
in order to meet various job site conditions.
Water Spray System
Corrosion-proof components provide
long life and reliable operation.
Reliability and Serviceability
The CC24 provides the reliability and
serviceability that you've come to expect
from Caterpillar.
SPECIFICATIONS
Engine
Engine Model Cat C1.5
Gross Power 33 hp
Net Power - ISO 9249 31.8 hp
Bore 3.3 in
Stroke 3.54 in
Weights
Operating Weight with ROPS/FOPS 5,291 lbs
Operating Weight at Front Drum with
ROPS/FOPS 2,954 lbs
Service Refill Capacities
Fuel Tank Capacity 14.7 gal
Water (Spray) Tank Capacity 39.6 gal
Operating Specifications
Curb Clearance 20 in
Turning Radius Outside Drum Edge 147 in
Turning Radius Inside Drum Edge 100 in
Ground Clearance 10 in
Travel Speed Max 6.5 mph
Vibratory System
Drum Width 47 in
Drum Diameter 27.56 in
Frequency 3,780 vpm
Nominal Amplitude - High 0.02 in
Centrifugal Force Maximum 7,043 lbs
Centrifugal Force Minimum 5,378 lbs
Vibration Selection Front, rear
or both
Eccentric Weight Drive Hydraulic
Dimensions
Overall Length 98 in
Wheelbase 71 in
Height at Steering Wheel 71 in
Height with ROPS/FOPS 106 in
Compaction Width 47 in
Overall Width 51 in
