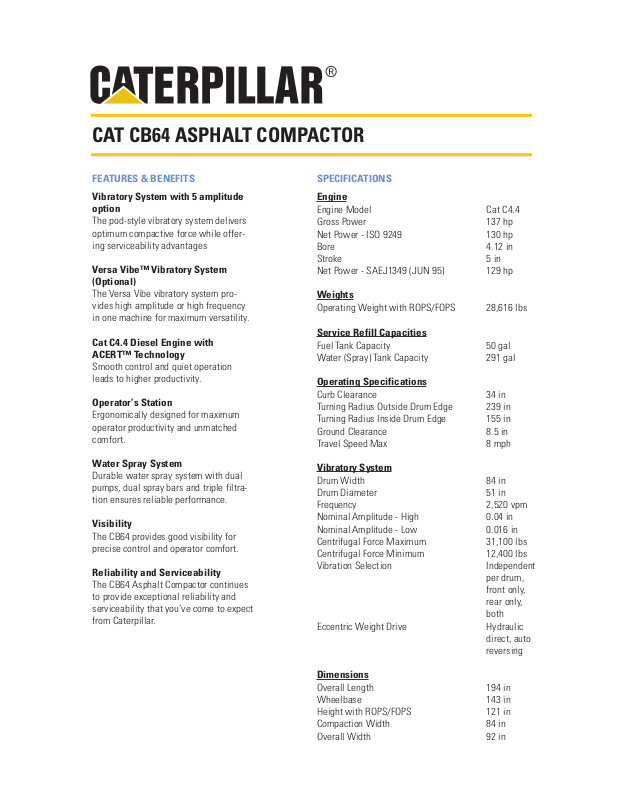

CAT CB64 ASPHALT COMPACTOR

FEATURES & BENEFITS

Vibratory System with 5 amplitude
option

The pod-style vibratory system delivers
optimum compactive force while offer­ing serviceability advantages

Versa Vibe™ Vibratory System
(Optional)

The Versa Vibe vibratory system pro­vides high amplitude or high frequency
in one machine for maximum versatility.

Cat C4.4 Diesel Engine with
ACERT™ Technology

Smooth control and quiet operation
leads to higher productivity.

Operator’s Station

Ergonomically designed for maximum
operator productivity and unmatched
comfort.

Water Spray System

Durable water spray system with dual
pumps, dual spray bars and triple filtra­tion ensures reliable performance.

Visibility

The CB64 provides good visibility for
precise control and operator comfort.

Reliability and Serviceability

The CB64 Asphalt Compactor continues
to provide exceptional reliability and
serviceability that you’ve come to expect
from Caterpillar.

SPECIFICATIONS

Engine

Engine Model Cat C4.4
Gross Power 137 hp
Net Power - ISO 9249 130 hp
Bore 4.12 in
Stroke 5 in
Net Power - SAEJ1349 (JUN 95) 129 hp

Weights

Operating Weight with ROPS/FOPS 28,616 lbs

Service Refill Capacities

Fuel Tank Capacity 50 gal
Water (Spray) Tank Capacity 291 gal

Operating Specifications

Curb Clearance 34 in
Turning Radius Outside Drum Edge 239 in
Turning Radius Inside Drum Edge 155 in
Ground Clearance 8.5 in
Travel Speed Max 8 mph

Vibratory System

Drum Width 84 in
Drum Diameter 51 in
Frequency 2,520 vpm
Nominal Amplitude - High 0.04 in
Nominal Amplitude - Low 0.016 in
Centrifugal Force Maximum 31,100 lbs
Centrifugal Force Minimum 12,400 lbs
Vibration Selection Independent

per drum,
front only,
rear only,
both

Eccentric Weight Drive Hydraulic

direct, auto
reversing

Dimensions

Overall Length 194 in
Wheelbase 143 in
Height with ROPS/FOPS 121 in
Compaction Width 84 in
Overall Width 92 in
