Miele H 6280 BP Specification

PureLine Truffle Brown
30” Convection Oven

H 6280 BP HVBR

8mieleusa.com

PureLine 30” Convection Oven
H 6280 BP HVBR

H 6280 BP HVBR

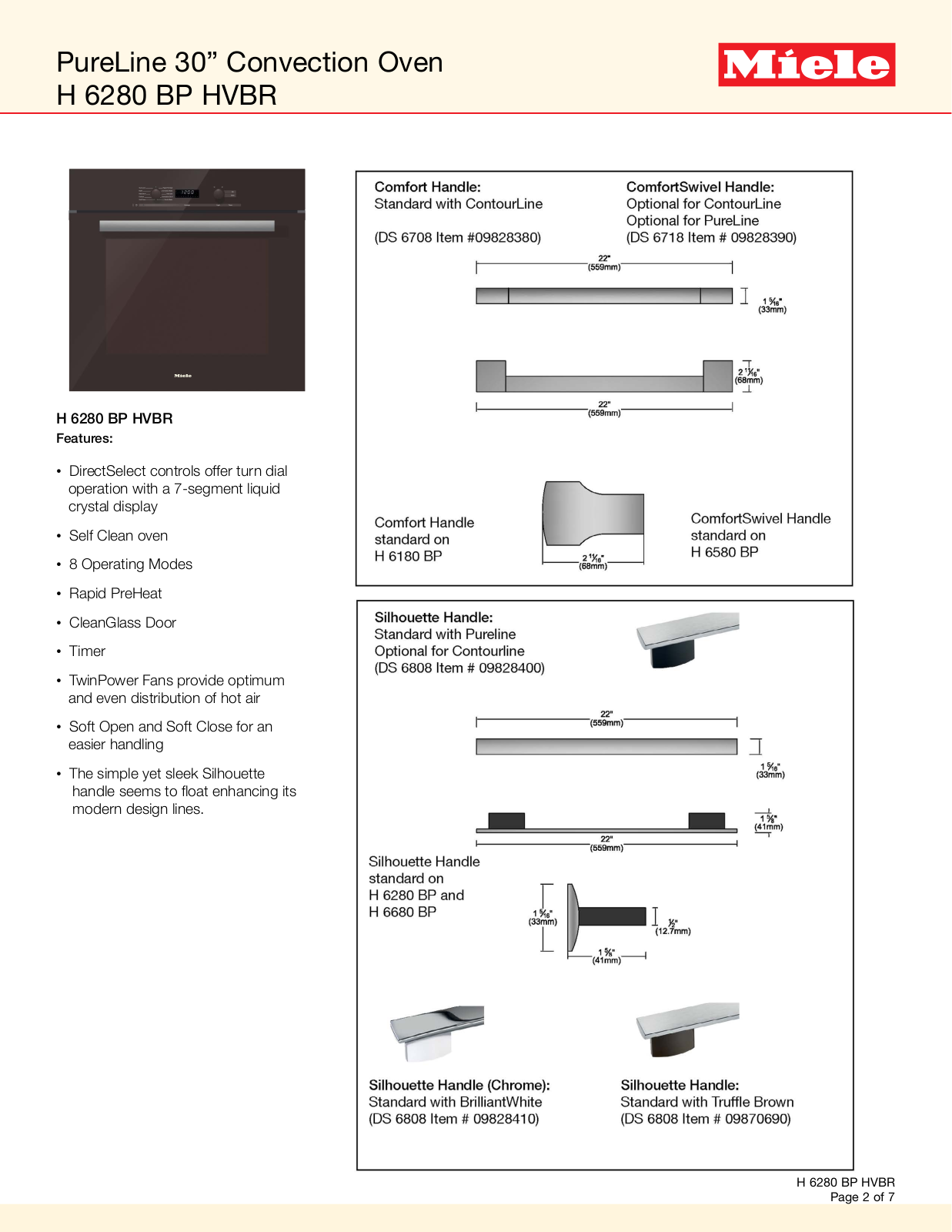

Features:

• DirectSelect controls offer turn dial
operation with a 7-segment liquid
crystal display

• Self Clean oven

• 8 Operating Modes

• Rapid PreHeat

• CleanGlass Door

• Timer

• TwinPower Fans provide optimum

and even distribution of hot air

• Soft Open and Soft Close for an
easier handling

• The simple yet sleek Silhouette

handle seems to oat enhancing its

modern design lines.

H 6280 BP HVBR

Page 2 of 7

PureLine 30” Convection Oven
H 6280 BP HVBR

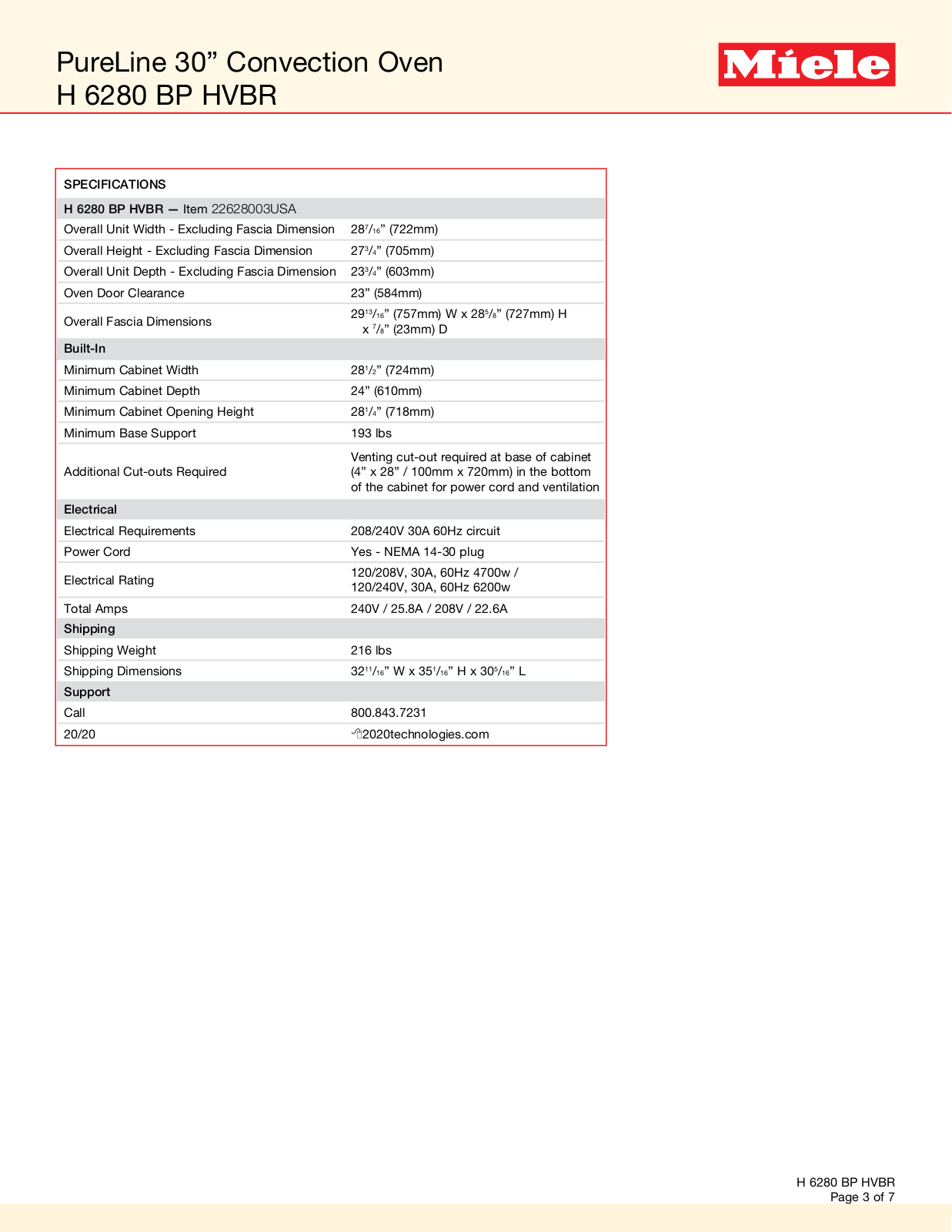

SPECIFICATIONS

H 6280 BP HVBR — Item

Overall Unit Width - Excluding Fascia Dimension 287/16” (722mm)

Overall Height - Excluding Fascia Dimension 27

Overall Unit Depth - Excluding Fascia Dimension 23

Oven Door Clearance 23” (584mm)

Overall Fascia Dimensions

Built-In

Minimum Cabinet Width 28

Minimum Cabinet Depth 24” (610mm)

Minimum Cabinet Opening Height 28

Minimum Base Support 193 lbs

Additional Cut-outs Required

Electrical

Electrical Requirements 208/240V 30A 60Hz circuit

Power Cord Yes - NEMA 14-30 plug

Electrical Rating

Total Amps 240V / 25.8A / 208V / 22.6A

Shipping

Shipping Weight 216 lbs

Shipping Dimensions 32

Support

Call 800.843.7231

20/20

22628003USA

3

/4” (705mm)

3

/4” (603mm)

13

29

/16” (757mm) W x 285/8” (727mm) H

7

/8” (23mm) D

x

1

/2” (724mm)

1

/4” (718mm)

Venting cut-out required at base of cabinet
(4” x 28” / 100mm x 720mm) in the bottom
of the cabinet for power cord and ventilation

120/208V, 30A, 60Hz 4700w /
120/240V, 30A, 60Hz 6200w

11

/16” W x 351/16” H x 305/16” L

82020technologies.com

H 6280 BP HVBR

Page 3 of 7
