PureLine
30” Convection Oven
H 6281 BP
8mieleusa.com
Specification Sheets TRS 07312017
PureLine 30” Convection Oven
H 6281 BP
H 6281 BP
Features:
•DirectSelect controls offer turn dial operation with a 7-segment liquid crystal display
•Self Clean oven
•8 Operating Modes
•Rapid PreHeat
•CleanGlass Door
•Timer
•TwinPower Fans provide optimum and even distribution of hot air
•Soft Open and Soft Close for an easier handling
•The simple yet sleek Silhouette handle seems to float enhancing its modern design lines.
SPECIFICATIONS
H 6281 BP — Item 22628153USA
Overal Unit Width - Excluding Fascia Dimension 287/16” (722 mm)
Overall Unit Height - Excluding Fascia Dimension 2713/16” (707 mm)
|
Overall Unit DepthExcluding Fascia Dimension |
233/4” (603 mm) |
|
|
Oven Door Clearance |
22” (558 mm) |
|
|
|
|
|
|
Overall Fascia Dimensions |
2913/16” (757 mm) W x 285/8” (727 mm) H |
|
|
x 7/8” (23mm) D |
|
|
|
|
|
|
|
Built-In |
|
|
|
|
|
|
|
Minimum Cabinet Opening Width |
281/2” (724 mm) |
|
|
Minimum Cabinet Opening Depth |
24” (610 mm) |
|
|
|
|
|
|
Minimum Cabinet Opening Height |
281/4” (718 mm) |
|
|
Minimum Base Support |
250 lbs (113 kg) |
|
|
|
|
|
|
|

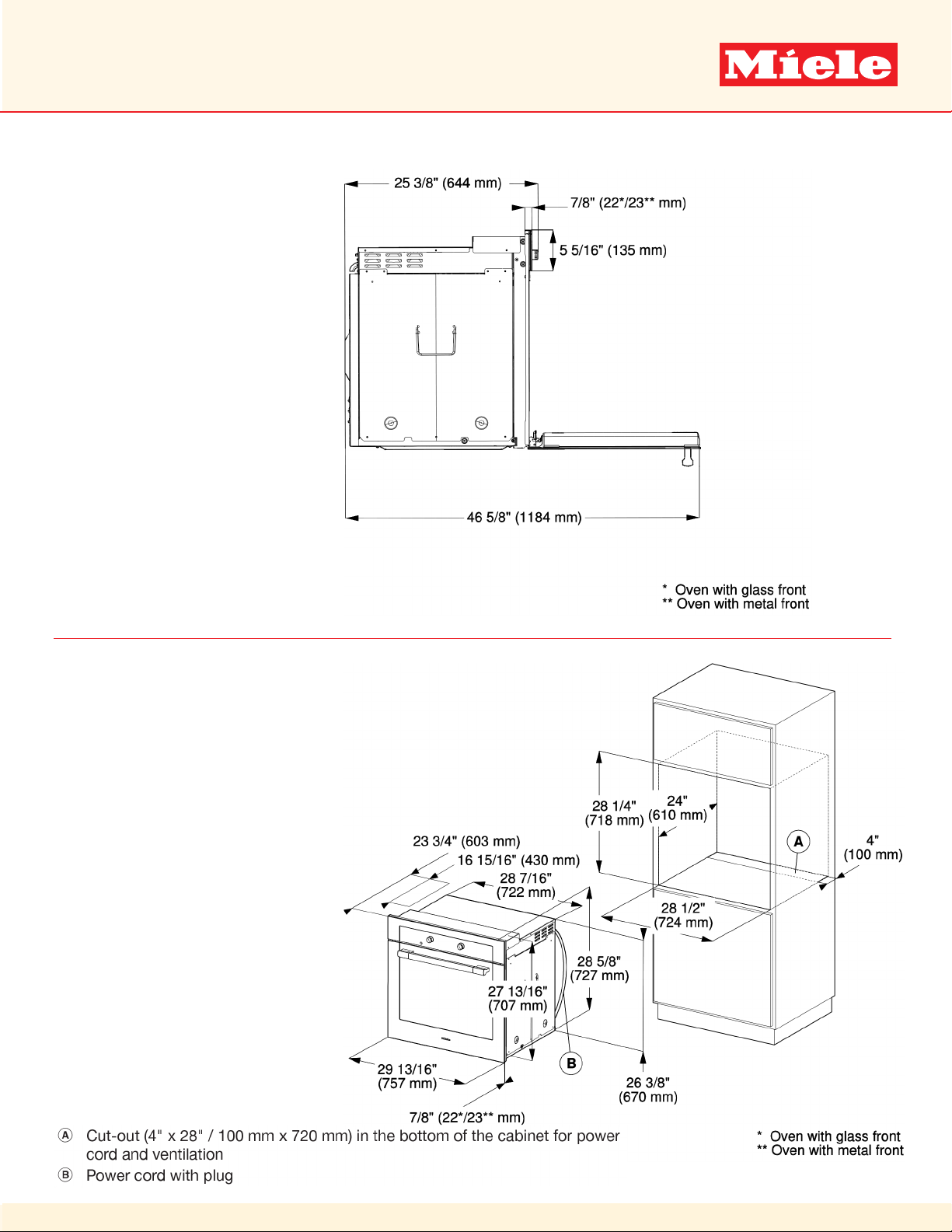

Cut-out 4” x 28” (100 cm x 720 cm) in the |
|
|
Additional Cut-Outs Required |
bottom of the cabinet for power cord and |
|
|
|
ventilation |
|
|
Electrical |
|
|
|
Electrical Requirements |
120/240V, 60Hz, 30A |
|
|
120/208V, 60Hz, 30A |
|
|
|
|
|
|
|
Power Cord |
NEMA 14-30 plug, 6 ft (1.8 m) |
|
|
Shipping |
|
|
|
Shipping Weight |
216 lbs |
|
|
|
|
|
|
Shipping Dimensions |
3211/16” W x 351/16” H x 305/16” L |
|
|
Support |
|
|
|
Call Miele |
(800) 999-1360 |
|
|
|
|
|
|
Miele Website |
8www.mieleusa.com |
|
|
|
|
|
|
20/20 Link |
82020technologies.com |
|
H 6281 BP
Page 2 of 7
Specification Sheets TRS 07312017
PureLine 30” Convection Oven
H 6281 BP

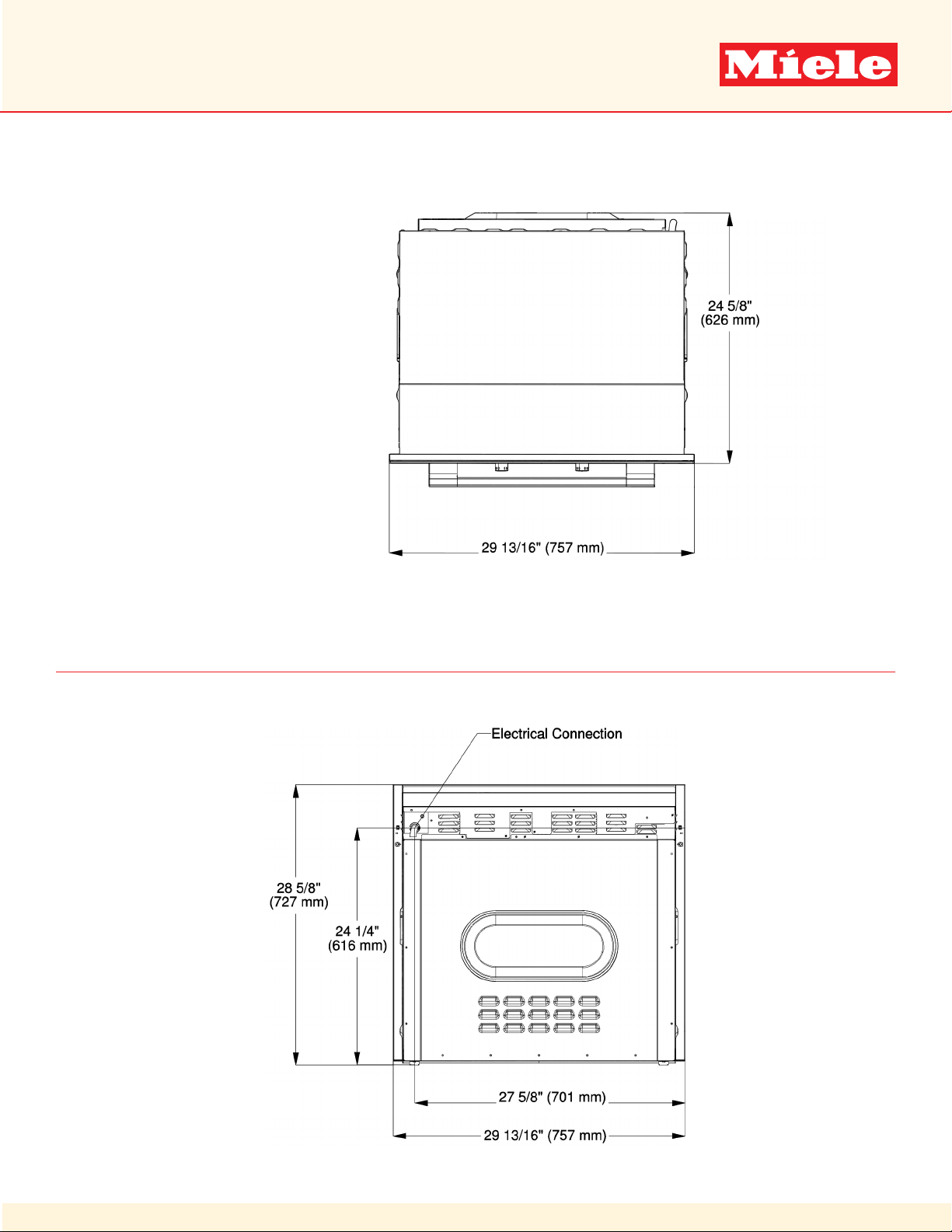

PRODUCT VIEWS
Isometric
Front
H 6281 BP
Please note the H 6180 BP is shown Page 3 of 7 Specification Sheets TRS 07312017
