Miele G 7911, G 7916 Operating instructions

Operating Instructions Dishwashers
To prevent accidents and machine damage, read these instructions before installation or use.
en-US M.-Nr. 11 838 280HG07-W
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 6
Guide to the appliance...................................................................................... 16
Appliance overview ............................................................................................. 16
Control panel....................................................................................................... 17
Display functions................................................................................................. 18
Caring for the environment .............................................................................. 21
Before using for the first time .......................................................................... 22
Opening the door ................................................................................................ 22
Closing the door.................................................................................................. 23
Activating the safety lock .................................................................................... 23
Miele@home ........................................................................................................ 24
Basic settings...................................................................................................... 25
Reactivation salt.................................................................................................. 28
Rinse aid.............................................................................................................. 31
Settings .............................................................................................................. 33
Opening the settings menu ................................................................................. 33
Changing settings ............................................................................................... 33
Closing the settings menu................................................................................... 33
Language......................................................................................................... 34
Time..................................................................................................................... 34
Water hardness ................................................................................................... 35
AutoDos (AutoDos).............................................................................................. 36
Rinse aid.............................................................................................................. 37
Miele@home ........................................................................................................ 37
Remote control.................................................................................................... 41
Remote Update ................................................................................................... 41
SmartStart ........................................................................................................... 42
EcoStart............................................................................................................... 43
Temperature ........................................................................................................ 44
2
Contents
Display................................................................................................................. 44
Volume................................................................................................................. 45
Memory ............................................................................................................... 45
Refill indicators.................................................................................................... 45
AutoOpen ............................................................................................................ 46
2nd interim rinse.................................................................................................. 46
BrilliantLight......................................................................................................... 46
SaniWash Cycle .................................................................................................. 46
System Lock........................................................................................................ 47
Software version.................................................................................................. 47
Legal Information................................................................................................. 47
Copyrights and licenses for operator and control software ................................ 48
Copyrights and licenses for the communication module.................................... 48
Showroom ........................................................................................................... 49
Factory default..................................................................................................... 49
Caring for the environment .............................................................................. 50
Energy-saving dishwashing................................................................................. 50
Loading the dishwasher.................................................................................... 51
General information............................................................................................. 51
Loading examples ............................................................................................... 53
Upper basket....................................................................................................... 55
Adjusting the upper basket ................................................................................. 58
Lower basket....................................................................................................... 59
Filters................................................................................................................... 62
Cutlery tray .......................................................................................................... 63
Detergents ......................................................................................................... 64
Active ingredients ............................................................................................... 64
Detergent dispensing .......................................................................................... 65
Automatic dispensing/AutoDos........................................................................... 66
Manual detergent dispensing.............................................................................. 69
Operation............................................................................................................ 71
Turning on the dishwasher .................................................................................. 71
3
Contents
Selecting a program ............................................................................................ 71
Display of program duration................................................................................ 72
Starting a program .............................................................................................. 72
End of program.................................................................................................... 73
Energy management ........................................................................................... 73
Turning off the dishwasher .................................................................................. 74
Unloading the dishwasher................................................................................... 74
Interrupting a program......................................................................................... 75
Canceling or changing a program....................................................................... 75
Options ............................................................................................................... 76
Timer .............................................................................................................. 76
Activating Remote start....................................................................................... 79
Program overview ............................................................................................. 80
Options ............................................................................................................... 84
Selecting options................................................................................................. 84
Cleaning and care ............................................................................................. 86
Cleaning the wash cabinet .................................................................................. 86
Cleaning the door and the door seal................................................................... 87
Cleaning the control panel .................................................................................. 87
Cleaning the front of the machine ....................................................................... 87
Cleaning the AutoDos assembly ......................................................................... 89
Cleaning the spray arms...................................................................................... 91
Checking the filters in the wash cabinet ............................................................. 94
Cleaning the filters............................................................................................... 94
Cleaning the drain pump..................................................................................... 96
Frequently Asked Questions ............................................................................ 98
Technical faults.................................................................................................... 98
Fault messages ................................................................................................... 99
Door release ........................................................................................................ 100
Water intake fault................................................................................................. 101
Water drainage fault ............................................................................................ 102
Fault in the AutoDos (automatic dispensing)....................................................... 103
Spray arm fault .................................................................................................... 105
General dishwasher problems............................................................................. 106
Noises.................................................................................................................. 107
Poor cleaning results........................................................................................... 108
Customer Service.............................................................................................. 112
Contact in the event of a fault ............................................................................. 112
4
Contents
Appliance warranty and product registration ...................................................... 112
Optional accessories ........................................................................................ 113
Installation.......................................................................................................... 115
Water intake ........................................................................................................ 115
Water drainage .................................................................................................... 117
Electrical connection ........................................................................................... 119
Sound emission testing .................................................................................... 121
5

IMPORTANT SAFETY INSTRUCTIONS

This dishwasher complies with all current local and national safety requirements. Inappropriate use can, however, lead to personal in­jury and material damage.
Please observe the installation sheet and read the operating in­structions carefully before setting up the dishwasher and using it for the first time. They both contain important information on the installation, safety, use, and maintenance of the machine. This pre­vents both personal injury and damage to the dishwasher.
Miele expressly and strongly advises that you read and follow the instructions in the section on installing the dishwasher as well as the IMPORTANT SAFETY INSTRUCTIONS. Miele cannot be held liable for injury or damage caused by non­compliance with these instructions.
Keep the installation sheet and the operating instructions in a safe place and pass them on to any future owner.
6
IMPORTANT SAFETY INSTRUCTIONS

Appropriate use

This dishwasher is intended for use in domestic households and
similar residential environments.
This dishwasher is not suitable for outdoor use.This dishwasher is intended for use at altitudes of up to 13,000ft
(4,000m) above sea level.
This dishwasher must only be used for cleaning domestic dishes
and cutlery. All other types of use are not permitted.
This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
7
IMPORTANT SAFETY INSTRUCTIONS

Safety with children

Children must be kept away from the dishwasher unless they are
constantly supervised.
Children must not be allowed to clean or maintain the appliance.Children should be supervised in the vicinity of the dishwasher.
Never allow children to play with the dishwasher. There is a danger that children might shut themselves in the dishwasher.
If the automatic door opening mechanism is active (depending on
the model), keep young children away from the area in which the door opens.
Danger of suffocation. While playing, children may become entan-
gled in packaging material (such as plastic wrapping) or pull it over their head with the risk of suffocation. Keep packaging material away from children.
Keep children away from detergents. Detergents cause severe
skin burns and severe eye damage. They can cause burning in the mouth and throat, or inhibit breathing. It is therefore important to keep children away from the dishwasher when the door is open. De­tergent residues could still be present in the machine. Seek medical advice immediately if a child has swallowed or inhaled any deter­gents.
8
IMPORTANT SAFETY INSTRUCTIONS

Technical safety

Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and re­pairs should only be carried out by a Miele authorized technician.
Damage to the dishwasher can compromise your safety. Before
using the dishwasher and in particular following transport, check it for any visible damage. Never use a damaged dishwasher.
The electrical safety of the dishwasher can only be guaranteed
when correctly grounded. It is most important that this basic safety requirement is fulfilled. If in doubt, the electrical installation should be checked by a qualified service technician. Miele cannot be held liable for the consequences of an inadequate or lack of grounding system (e.g., electric shock).
Reliable and safe operation of this dishwasher can only be as-
sured if it has been connected to the power supply.
Where the dishwasher is plugged into the electricity supply using
a 3-pin plug with a grounding contact, the electrical socket must be easily accessible after the dishwasher is installed so that it can be disconnected from the electricity supply at any time.
There must be no electrical sockets behind the dishwasher be-
cause the building-in niche may be too small. Danger of overheating and fire risk if the dishwasher were to be pushed up against a plug.
The dishwasher must not be installed underneath a cooktop. The
high temperatures radiated by cooktops could damage the dish­washer below. For the same reason, the dishwasher must not be in­stalled next to open fires or other appliances that give off heat, such as heaters etc., not normally found in a kitchen.
9
IMPORTANT SAFETY INSTRUCTIONS
Ensure that the connection data on the dishwasher’s data plate
(fuse rating, frequency, and voltage) match the electricity supply. This data must correspond in order to avoid the risk of damage to the dishwasher. Compare these before connecting the appliance to the electricity supply. If in any doubt, consult a qualified service technician.
Do not connect the dishwasher to the electricity supply until it has
been fully installed and any adjustment has been made to the door springs.
The dishwasher may only be operated if the door opening mecha-
nism is working correctly. Otherwise there could be a risk of danger while the automatic door opening mechanism (depending on the model) is active. To check that the door opening mechanism is working correctly:
- The door springs must be evenly adjusted on both sides. They are correctly adjusted when the door remains stationary when left half open (approx. 45° opening angle). It is also important that the door cannot fall open.
- The door locking pins automatically retract when the door opens at the end of the drying phase.
Power bars and extension cords do not guarantee the required
safety of the appliance (risk of fire). Do not connect the dishwasher to the electricity supply using a power bar or an extension cord.
The dishwasher must not be used in a non-stationary location
(e.g., on a ship).
Do not install the dishwasher in a room where there is a risk of
frost. Frozen hoses are at risk of tearing or bursting. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
To avoid any damage to the appliance, the dishwasher must only
be operated when it is connected to a fully vented plumbing system.
10
IMPORTANT SAFETY INSTRUCTIONS
The water-connection pressure needs to be between 7.25 and
145 psi (50 and 1,000kPa).
A damaged dishwasher could be dangerous. If the dishwasher
gets damaged, turn it off at the electricity supply immediately and contact your Miele dealer or Miele Customer Service.
The manufacturer’s warranty may be invalidated if the appliance is
not repaired to Miele authorized service standards.
We recommend replacing defective components with original
parts. If original Miele parts are installed correctly, Miele ensures full compliance with safety requirements and the warranty remains valid.
During installation, maintenance, and repair work, the dishwasher
must be disconnected from the electricity supply (turn it off and with­draw the plug from the socket).
If the power cord is damaged, it must only be replaced with a spe-
cific cord of the same type (available from Miele Customer Service). For safety reasons, this must only be done by Miele Customer Ser­vice or a service technician authorized by Miele.
Do not sit the dishwasher on the hose. The hose needs to be free
of kinks and able to move freely after installation. Do not place hose or power cord next to a heat source e.g. hot water pipes. Do not ex­pose hose or power cord to corrosive substances or their vapors (e.g. chloride). Damage of hose or power cord could cause electrical shock or water damage.
This dishwasher is supplied with a special bulb (depending on the
model) to cope with particular conditions (e.g., in terms of tempera­ture, moisture, chemical resistance, abrasion resistance, and vibra­tion). This lamp must only be used for the purpose for which it is in­tended. The lamp is not suitable for room lighting. Replacement bulbs may only be installed by a Miele authorized technician or by Miele Customer Service.
11
IMPORTANT SAFETY INSTRUCTIONS

Correct installation

The dishwasher must be installed and connected in compliance
with the supplied installation sheet.
Be careful before and while installing the dishwasher.
Some metal parts pose a risk of injury/being cut. Wear pro­tective gloves.
The dishwasher must be correctly aligned horizontally to ensure
problem-free operation.
In order to ensure stability, built-under and integrated dishwashers
must only be installed under a continuous countertop which is se­cured to adjacent cabinetry.
The dishwasher must only be built into a tall cabinet if additional
safety precautions are taken. In order to safely install the appliance in a tall cabinet, please use the tall cabinet installation kit and ob­serve the installation sheet provided. Otherwise there is the danger of the cabinet tipping over.
The door springs must be evenly adjusted on both sides. They are
correctly adjusted when the door remains stationary when left half open (approx. 45° opening angle). It is also important that the door cannot fall open. The appliance must only be operated with properly adjusted door springs. If the door cannot be adjusted properly, contact the Miele Customer Service.
The maximum weight of the front panel that can be aligned with the factory-installed door springs is 22-26.5 lb (10–12kg) depending on model.

Correct use

Do not use solvents in the dishwasher. There is a danger of explo-
sion.
12
IMPORTANT SAFETY INSTRUCTIONS
Dishwasher detergents can cause burning on the skin and in the
eyes, nose, mouth, and throat. Avoid contact with detergents. Do not inhale powder detergents. Do not swallow dishwasher detergents. Seek medical attention immediately if detergent has been swallowed or inhaled.
Avoid leaving the dishwasher door open unnecessarily. You could
injure yourself on the opened door or trip over it.
Do not sit, stand, or lean on the opened door. The dishwasher
could tip over. This could injure you or damage the dishwasher.
Dishes may be very hot at the end of the program. Allow the
dishes to cool until they are comfortable enough to handle before unloading them.
Only use detergent and rinse aid formulated for domestic dish-
washers. Do not use liquid dish soap.
Do not use any commercial or industrial detergents. These may
cause material damage, and there is a risk of a severe explosive chemical reaction (such as an explosive oxyhydrogen gas reaction).
Do not fill the rinse aid reservoir with powder or liquid detergent.
This will cause damage to the rinse aid reservoir.
Do not fill the AutoDos (depending on model) with powder or liq-
uid detergent. Loose detergent will damage the AutoDos.
Do not fill the salt reservoir with powder or liquid detergent. Dish-
washer detergent will damage the softener assembly.
Use only special, coarse-grained reactivation salt. Other types of
salt may contain insoluble components which can cause the water softener to malfunction.
13
IMPORTANT SAFETY INSTRUCTIONS
In dishwashers with a cutlery basket (depending on model), knives
and forks should be placed with the handles upwards in the basket for safety reasons. Knives and forks placed with the handles down­wards pose a danger of injury. However, cutlery placed handle down in the cutlery basket will come out cleaner and drier.
Plastic items which cannot withstand being washed in hot water,
such as disposable plastic containers or plastic cutlery, should not be cleaned in the dishwasher. The high temperatures in the dish­washer may cause them to melt or lose shape.
If you use the timer option (depending on model), the detergent
compartment must be dry. Wipe dry with a cloth first if necessary. The detergent will clump together if the detergent compartment is not dry, and this may mean that it is not fully rinsed out.

Accessories and parts

Only use original Miele accessories. If other parts are used, war-
ranty, performance, and, if applicable, product liability claims will be invalidated.
Miele will guarantee to supply functional spare parts for a mini-
mum of 10years and up to 15years following the discontinuation of your dishwasher.

Transport

Damage to the dishwasher can compromise your safety. Before
using the dishwasher, check it for any visible transport damage. Never use a damaged dishwasher.
Only transport the dishwasher in an upright position so that no
water flows into the electrical controls, as this would cause faults.
If you wish to transport the dishwasher, empty it and securely fas-
ten all loose parts such as baskets, hoses, and power cords.
14
IMPORTANT SAFETY INSTRUCTIONS

Disposal of your old dishwasher

Remove the door of the dishwasher so that children cannot be-
come trapped inside.

FCC Declaration of Conformity

These devices comply with FCC Rules Part15. This equipment
has been tested and found to be in compliance with the limits for a ClassB digital device, pursuant to Part15 of the FCC Rules of Oper­ation and is subject to the following conditions: These devices may not cause harmful interference. These devices must accept any interference received, including in­terference that may cause undesired operation.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be in­stalled and operated with minimum distance 8" (20cm) between the radiator and your body.

Industry Canada Statement

This digital apparatus does not exceed the ClassB limits for Ra-
dio Noise Emissions from digital apparatus set out in the Radio Inter­ference Regulations of the Canadian Department of Communica­tions.
Complies with Canadian ICES-003 ClassB specifications.
15

Guide to the appliance

Appliance overview

a
Door locking pins
b
Top spray arm
c
3D MultiFlex Cutlery Tray (depending on model)
d
Upper basket (depending on model)
e
Middle spray arm
f
Aeration valve
g
Bottom spray arm
16
h
Filter combination
i
Salt reservoir
j
Data plate
k
Rinse aid reservoir
l
Detergent compartment
m
AutoDos detergent outlet
n
AutoDos (automatic dispensing)

Control panel

Guide to the appliance
a
On/Offsensor button For turning the dishwasher on and off.
b
Optical interface For Miele Customer Service.
c
Remote sensor button For activating/deactivating the Re­mote start option.
These operating instructions apply to several different dishwasher models of different heights. The specific dishwasher models are referred to as follows: Standard = 31 11/16" (80.5cm) high dishwashers (integrated) and 33 1/4" (84.5cm) high dishwash­ers (freestanding) XXL = 33 1/4" (84.5cm) high dish­washers (integrated).
d
Touch display For further information, see “Display functions” under “Guide to the appli­ance”.
e
Back sensor button For navigating back to the previous menu or deleting values which have been set previously.
f
Start sensor button For starting the selected program.
17
Guide to the appliance

Display functions

The display is used to select or set the following:
- the program
- any Options
- the Timer
- the Settings
The display can show the following:
- the program name
- the program stage
- The estimated time left for the pro­gram to run
- Any relevant fault messages and in­formation
To save energy, the dishwasher turns off after a few minutes if you do not press any sensor buttons during this time. Touch the sensor button to turn the dishwasher back on.
The sensor button on the control field and in the display react to fingertip con­tact.
The touch display can be scratched by pointed or sharp objects, e.g., pens.
Only touch the display with your fin­gers.
Touch the required menu option to se­lect it.
The currently selected setting is marked in orange and can be changed.
The OKsensor button in the display is used to confirm a message or setting and to move to another menu level.
To exit a sub-menu again, use the Back sensor button.
Touch the sensor button at any time to return to the Programs menu.
If you do not press any sensor buttons for several seconds, the display will re­vert to the previous menu. You will then have to enter your settings again.
18
Guide to the appliance
11:02
Settings
Programs
11:02
2:59 2:45
1:13
Programs
h h
h
Quick IntenseWash
China & Crystal
Normal
3:29
h
Pots & Pans
12 00
11 59
10 58
13 01
14 02
OK
Time
Examples of how to operate the ap­pliance

Main menu

Use the Back sensor button to switch from the Programs menu to the main menu.
In the main menu, you can choose the Programs menu to select programs as well as the Settings menu.
You can alter the dishwasher’s controls to suit changing requirements in the “Settings” menu (see “Settings”).

Option lists

You can scroll to the right or the left by swiping your finger across the display.
You can change the order of programs listed in the Programs menu by pressing and holding a program name and drag­ging it to the place you want.
After selecting a program, the Options menu is displayed. This is where you can select any options you want and activate the timer.

Numerical values

You can set numerical values in some menus.
You can set the numbers by swiping your finger up and down on the display.
Use the OK sensor button to accept the set numerical value.
Tip: Briefly touching the numbers will bring up the numerical keypad. Once a valid number has been entered, the OK sensor button will be highlighted in green.
The orange scroll bar at the bottom of the display indicates that further op­tions are available.
19
Guide to the appliance
11:02
Normal
2:59
h
Options
 Timer
Extra Clean
Extra Dry
AutoDos
Express
IntenseZone
11:02
2:59 2:45
1:13
Programs
h h
h
Quick IntenseWash
China & Crystal
Normal
3:29
h
Pots & Pans
SuperVision

Roll-down menu

The roll-down menu can be used to dis­play information about the selected pro­gram.
To open the roll-down menu, touch the orange bar at the top edge of the screen and swipe down with your fin­ger.
The energy and water consumption as well as any selected options and the dishwasher network status (con­nected, not connected) are displayed in the roll-down menu.

SuperVision menu

You can use the SuperVision sensor button in the display to show the status of your Miele household appliances.
All Miele household appliances that are connected to your WiFi network and that have SuperVision display activated are displayed in the appliance list (see “SuperVision” under “Settings”).
20

Caring for the environment

Disposal of the packing mate­rial
The cardboard box and packing materi­als protect the appliance during ship­ping. They have been designed to be biodegradable and recyclable.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Dan­ger of suffocation!

Disposal of your old appliance

Electrical and electronic appliances contain valuable materials. They also contain certain substances, compounds and components which were essential for the proper functioning and safe use of the equipment. Handling these mate­rials improperly by disposing of them in your household waste can be harmful to your health and the environment. There­fore, please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal.
Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed. Please en­sure that your old appliance is kept away from children until removal. Ob­serve safety requirements for appli­ances that may tip over or pose an en­trapment hazard.
21

Before using for the first time

Every dishwasher is tested at the fac­tory. There will be residual water in the machine from this test. It is not an in­dication that the dishwasher has been used previously.

Opening the door

In some programs the door automati­cally opens slightly to assist the drying process. This function can be deactivated, if pre­ferred (see “AutoOpen” under “Set­tings”).
At the end of the program, if the Au­toOpen function is on, the door locking pins automatically retract.
To prevent a technical fault, do not hold the door locking pins firmly when they are retracting.
If the door is opened during operation, all functions are automatically inter­rupted.
Risk of scalding due to hot wa-
ter. During operation, water in the dish-
washer may be very hot. During operation, only open the door
with extreme caution.
Risk of injury due to door open-
ing automatically. The door may open automatically at
the end of a program. Keep the area around the door free
of obstructions.
To open the door, reach under the re-
cessed grip and pull the handle.
Open the door fully to disengage the
locking mechanism.
22
Before using for the first time

Closing the door

Insert the baskets.Raise the door upwards until the
catch engages.
Risk of crushing due to the door
closing. When closing the door, you are at
risk of shutting your fingers in it. Do not put your hand inside the door
as it is closing.

Activating the safety lock

Use the safety lock to prevent children opening the dishwasher door. The door can then only be opened by using a lot of force.
To lock the door, push the slide un-
derneath the recessed grip to the right.
To unlock the door, push the slide to
the left.
23
Before using for the first time

Miele@home

Your dishwasher is equipped with an integrated WiFi module.
To use this feature, you will need:
- A WiFi network

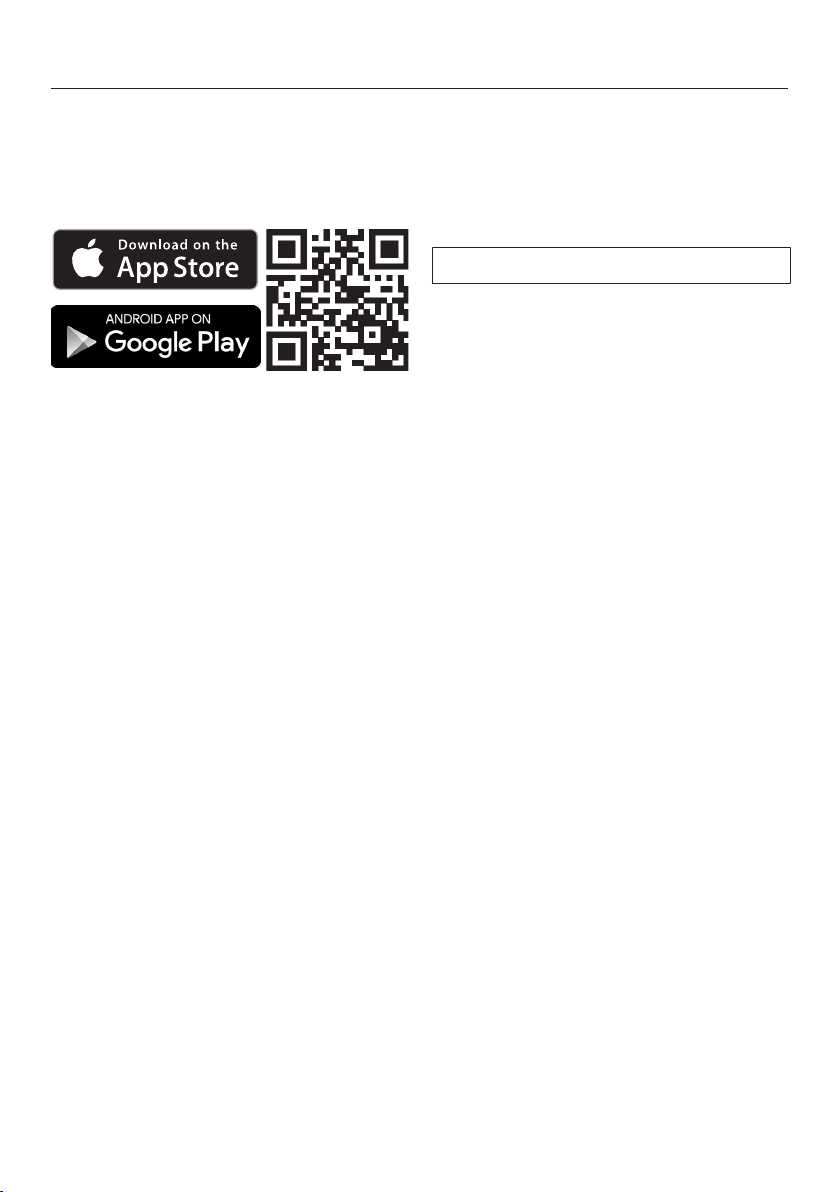

- The Miele app
- A Miele user account. The user ac­count can be created via the Miele app
The Miele app will guide you as you connect your dishwasher to your home WiFi network.
Once your dishwasher is connected to your WiFi network, you can use the app, for example, to carry out the fol­lowing activities:
- Control your dishwasher remotely
- Call up information on the operating status of your dishwasher
- Call up information on the program sequence of your dishwasher

Availability of the WiFi connection

The WiFi connection shares a frequency range with other appliances (including microwave ovens and remote control toys). This can cause sporadic or even complete connection failures. There­fore, the availability of featured func­tions cannot be guaranteed.

Miele@home availability

The ability to use the Miele app de­pends on the availability of the Miele@home service in your country.
The Miele@home service is not avail­able in every country.
For information about availability, please visit www.miele.com.

Miele App

The Miele App is available to download free of charge from the Apple App
Store® or from the Google Play Store™.
Connecting your dishwasher to your WiFi network will increase energy con­sumption, even when the dishwasher is turned off.
Make sure that your WiFi network signal strength is strong enough at the installation site of your dish­washer.
24
Before using for the first time

Basic settings

Turning on the dishwasher

Turn the dishwasher on using the
sensor button.
The welcome screen will appear when the dishwasher is turned on and the welcome melody will sound.
For further information about the dis­play functionality, see “Display func­tions” under “Guide to the appliance”.

Setting the language

The display will change automatically to the screen for setting the language.
Select the language you want as well
as the country if applicable.
For further information on setting the language, see “Language” under “Set­tings”.
The set language is marked orange.

Setting up Miele@home

The message Set up Miele@home? will appear on the display.
If you want to set up Miele@home
now, select the Continue option.
Tip: To postpone setup until later, select the Skip option.
There are 2ways of connecting your dishwasher to your WiFi network:
Select the connection method you
wish to use.
1. App
2. WPS
You will then be guided by the display and the Miele app.
For further information on Miele@home, see “Miele@home” un­der “Settings”.
25
Before using for the first time

Setting the time

The time is updated automatically if a connection is established with the WiFi network.
The display will then change to the screen for setting the time.
The current time of day must be set be­fore you can use the timer option.
Set the hours and the minutes and
confirm by pressing OK.

Setting the water hardness

The display changes to the screen for setting the water hardness.
- The dishwasher must be pro­grammed to the correct water hard­ness for your area.
- Your local water authority will be able to advise you of the water hardness level in your area.
- Where the water hardness fluctuates, e.g., between 10-16 gpg (10–15°dH), always program the dishwasher to the higher value (16 gpg (15°dH) in this example).
It is useful to know your water hardness so that you can provide the service technician with this information in the event of any service calls.
Enter the water hardness below:
____________gpg (°dH)
The dishwasher is programmed at the factory for a water hardness level 1 gpg (1°dH).
26
Set the water hardness level in your
area and confirm with OK.
See “Water hardness” under “Set­tings” for more information.
Before using for the first time

Activating AutoDos

The display changes to the settings screen for AutoDos (see “Automatic dis­pensing/AutoDos” under “Detergent”).
Even if you do not wish to use Auto­Dos, you must remove the transport locking device from the PowerDisk compartment before running the first program (see “Activating AutoDos” under “Detergent”).
You can activate AutoDos. If you do not wish to use AutoDos, you can manually dispense the detergent via the detergent compartment (see “Manual detergent dispensing” under “Detergent”).
Select the setting you want and con-
firm with OK.
This setting applies to all programs and you can change it in a program's Op­tions menu.
Finally, prompts will appear in the dis­play.
After confirming these prompts with OK, the messages Refill salt and start
the “QuickIntenseWash” program with the “Express” option without a load and Re­fill rinse aid may appear.
Add salt and rinse aid if necessary
(see “Reactivation salt” and “Rinse aid” under “Before using for the first time”).
Select OK to confirm the messages.
The display will change to the Programs menu.
27
Before using for the first time

Reactivation salt

In order to achieve good cleaning re­sults, the dishwasher needs to operate with soft water. Hard water results in the build-up of calcium deposits on dishes and on the inner surfaces of the machine. Domestic water with a hardness level higher than 5 gpg (5°dH – German scale) must be softened. This occurs automatically in the integrated water softener. The water softener is suitable for a water hardness level of up to 73 gpg (70°dH – German scale).
In order to be reactivated, the water softener requires reactivation salt. Depending on the water hardness level (<22 gpg, or <21°dH – German scale), reactivation salt may not be required if combination detergents are being used (see “Active ingredients” under “Deter­gents”).
If the water in your area is very soft and constantly lower than 5 gpg (5°dH – German scale), you do not need to add reactivation salt. The salt refill indicator will automatically turn off after the water hardness has been set accordingly (see “Water hardness” under “Settings”).
Damage to the water softener
from detergent. Dishwasher detergent will damage
the softener assembly. Do not fill the salt reservoir with pow-
der or liquid detergent.
Damage caused by using unsuit-
able salts. Some types of salt may contain in-
soluble components which can cause the water softener to malfunc­tion.
Use only special, coarse-grained re­activation salt.
28
If you only ever use combination de­tergent products in your dishwasher, you can turn off both refill reminders if you wish (see “Refill reminders” under “Settings”).
Please make sure that if you stop us­ing combination detergents, you refill the reactivation salt and rinse aid. Turn the refill reminders back on if re­quired.

Filling the salt reservoir

Before filling the salt reservoir for the first time, you must fill it with approx. 1/2gallon (2l) of water to enable the salt to dissolve.
Once the dishwasher has been used once, there is always sufficient water in the salt reservoir.
Remove the lower basket from the
wash cabinet and unscrew the salt reservoir cap.
Before using for the first time
Danger of corrosion due to saline
solution. Water or saline solution will run out
of the reservoir when the cap is opened. Salt solution that runs out can cause corrosion in the wash cabinet and to the wash items.
The cap should therefore only be re­moved in order to refill the salt reser­voir.
Fill the salt reservoir with approx.
1/2gallon (2l) of water (first use only).
Place the funnel provided over the
salt reservoir and carefully fill with re­activation salt until the reservoir is full. The salt reservoir holds up to
4.4lb (2kg) of salt, depending on the type of salt used.
Clean off salt residues from around
the salt reservoir opening. Next, screw the salt reservoir cap on again firmly.
Immediately after filling the salt reser-
voir and each time you remove the salt reservoir cap, run the Quick-
IntenseWash program with the Ex­press program option selected with-
out wash items in the dishwasher to dissolve and remove any traces of salt from the wash cabinet.
29
Before using for the first time

Refilling the salt

Fill the salt reservoir with reactivation
salt when Refill salt and start the
“QuickIntenseWash” program with the “Express” option without a load appears
in the display.
Confirm with OK.
The salt refill indicator will go out.
Danger of corrosion due to saline
solution. Salt solution that runs out can cause
corrosion in the wash cabinet and to the wash items.
Each time you remove the salt reser­voir cap, you must run the QuickIntenseWash program with the Express program option se­lected without wash items in the dishwasher. This will dissolve and re­move any traces of salt from the wash cabinet.
After the salt reservoir has been filled, the refill indicator may still appear in the display if the salt concentration has not yet reached the correct level. In this case, still confirm the message with OK.
The salt refill indicator will be turned off if you have programmed the dishwasher for a water hardness below 5gpg (5°dH – German scale).
30
Loading...
+ 94 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
