DGC 6800 XL
PureLine
Combi-Steam Oven
DGC 6800 XL
8mieleusa.com
PureLine Combi-Steam Oven
DGC 6800 XL
DGC 6800 XL

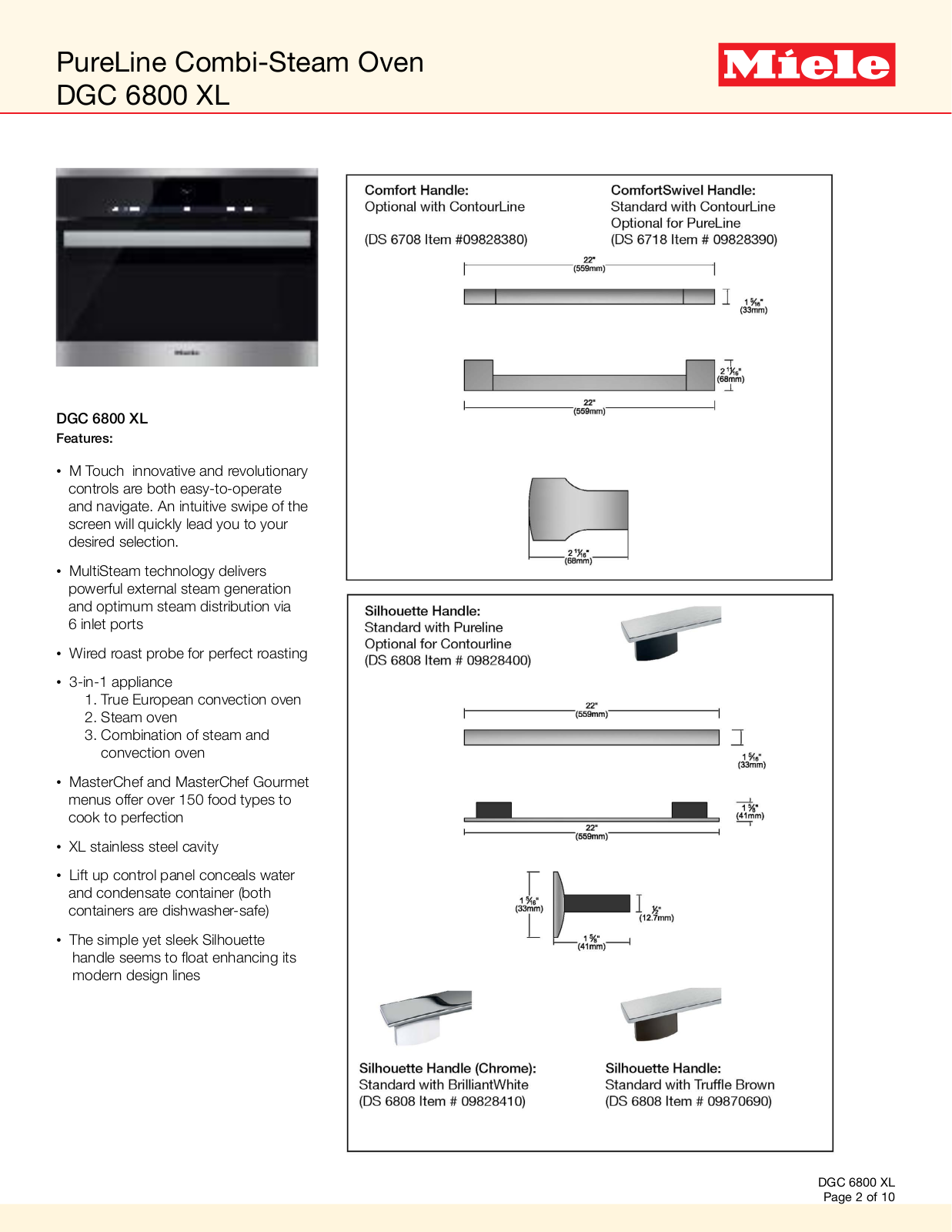

Features:
• M Touch innovative and revolutionary
controls are both easy-to-operate
and navigate. An intuitive swipe of the
screen will quickly lead you to your
desired selection.
• MultiSteam technology delivers
powerful external steam generation
and optimum steam distribution via
6 inlet ports
• Wired roast probe for perfect roasting
• 3-in-1 appliance
1. True European convection oven
2. Steam oven
3. Combination of steam and
convection oven
• MasterChef and MasterChef Gourmet
menus offer over 150 food types to
cook to perfection
• XL stainless steel cavity
• Lift up control panel conceals water
and condensate container (both
containers are dishwasher-safe)
• The simple yet sleek Silhouette
handle seems to oat enhancing its
modern design lines
DGC 6800 XL
Page 2 of 10
PureLine Combi-Steam Oven
DGC 6800 XL

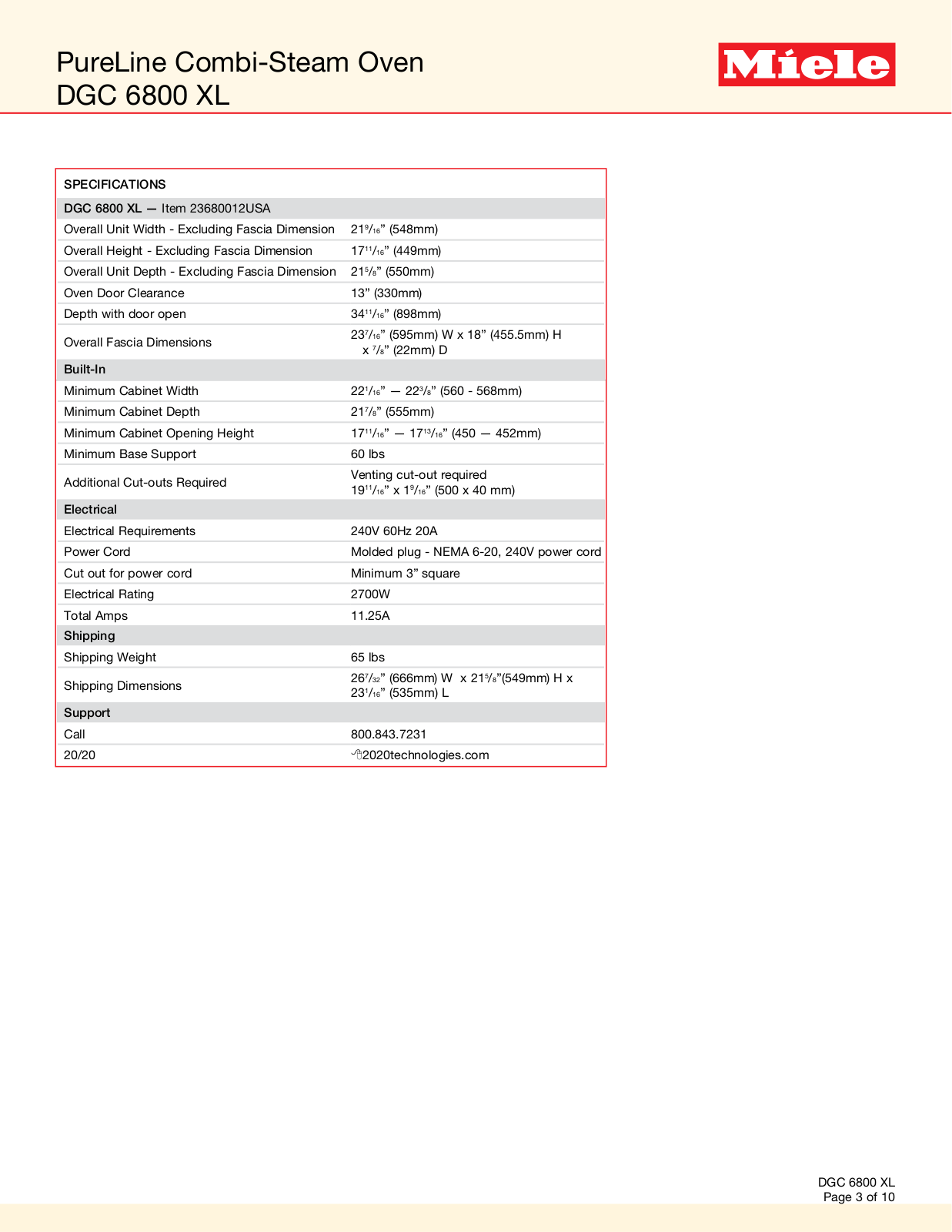

SPECIFICATIONS
DGC 6800 XL — Item 23680012USA
Overall Unit Width - Excluding Fascia Dimension 21
Overall Height - Excluding Fascia Dimension 17
Overall Unit Depth - Excluding Fascia Dimension 21
Oven Door Clearance 13” (330mm)

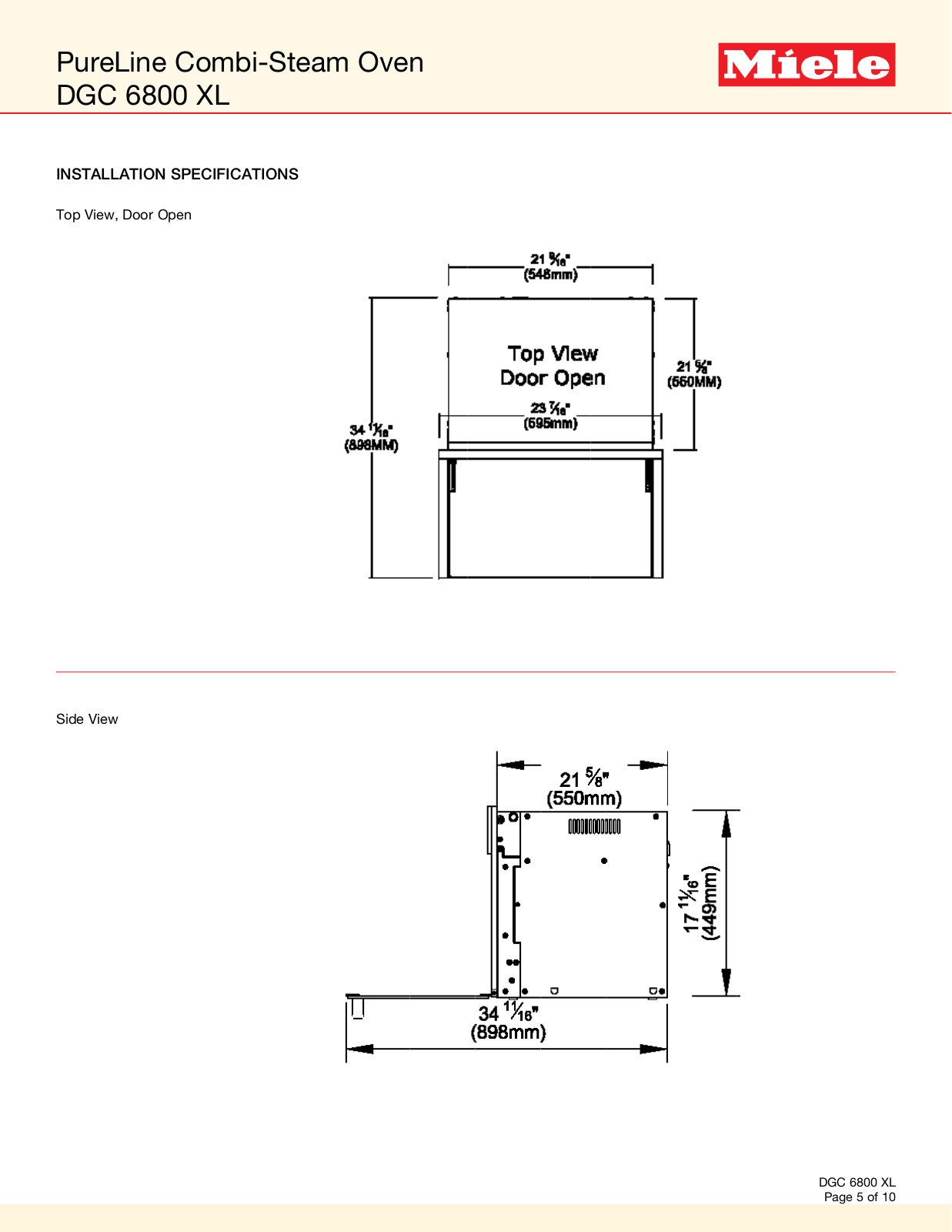

Depth with door open 34
Overall Fascia Dimensions
Built-In
Minimum Cabinet Width 22
Minimum Cabinet Depth 21
Minimum Cabinet Opening Height 17
Minimum Base Support 60 lbs
Additional Cut-outs Required
Electrical
Electrical Requirements 240V 60Hz 20A
Power Cord Molded plug - NEMA 6-20, 240V power cord
Cut out for power cord Minimum 3” square
Electrical Rating 2700W
Total Amps 11.25A
Shipping
Shipping Weight 65 lbs
Shipping Dimensions
Support
Call 800.843.7231
20/20
9
/16” (548mm)
11
/16” (449mm)
5
/8” (550mm)
11
/16” (898mm)
7
23
/16” (595mm) W x 18” (455.5mm) H
7
/8” (22mm) D
x
1
/16” — 223/8” (560 - 568mm)
7
/8” (555mm)
11
/16” — 1713/16” (450 — 452mm)

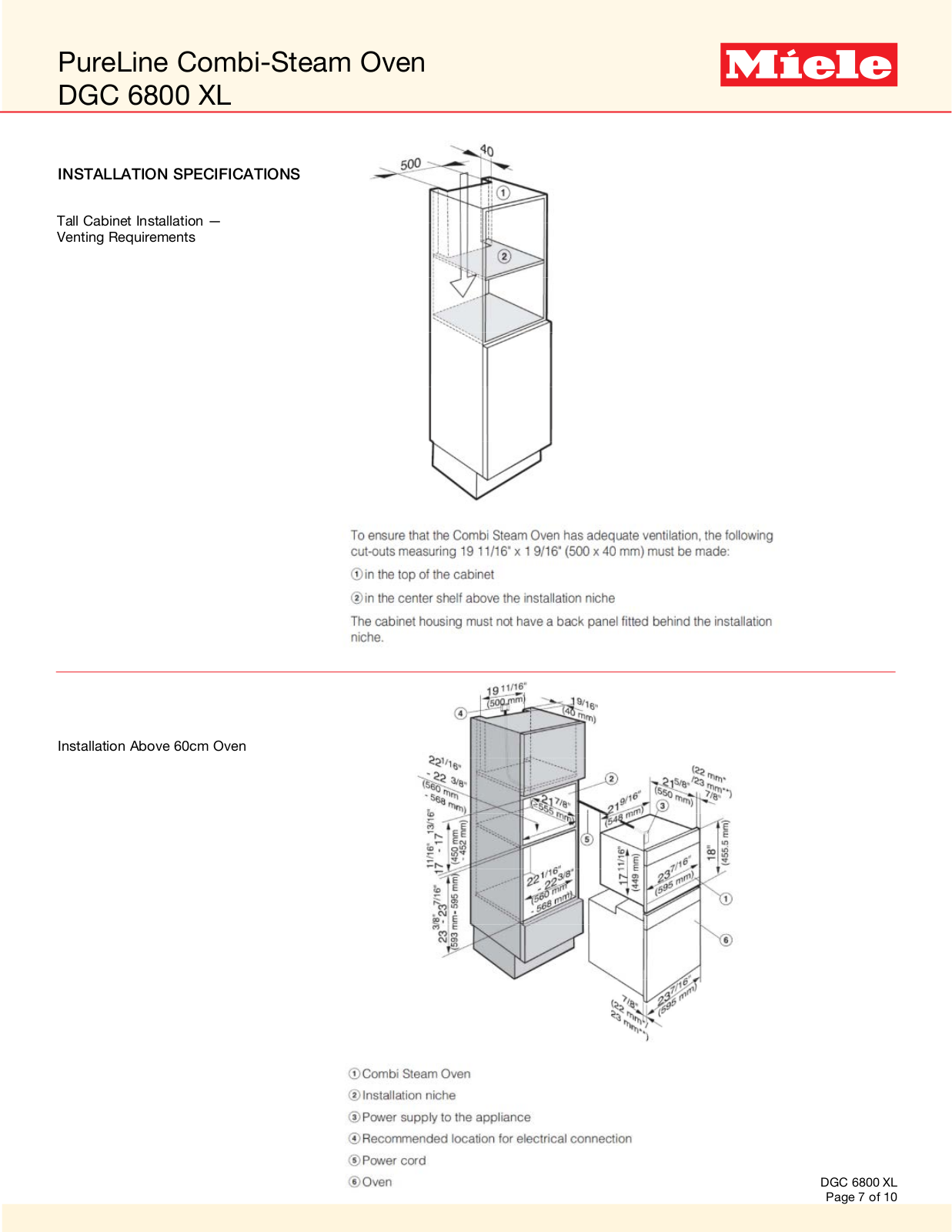

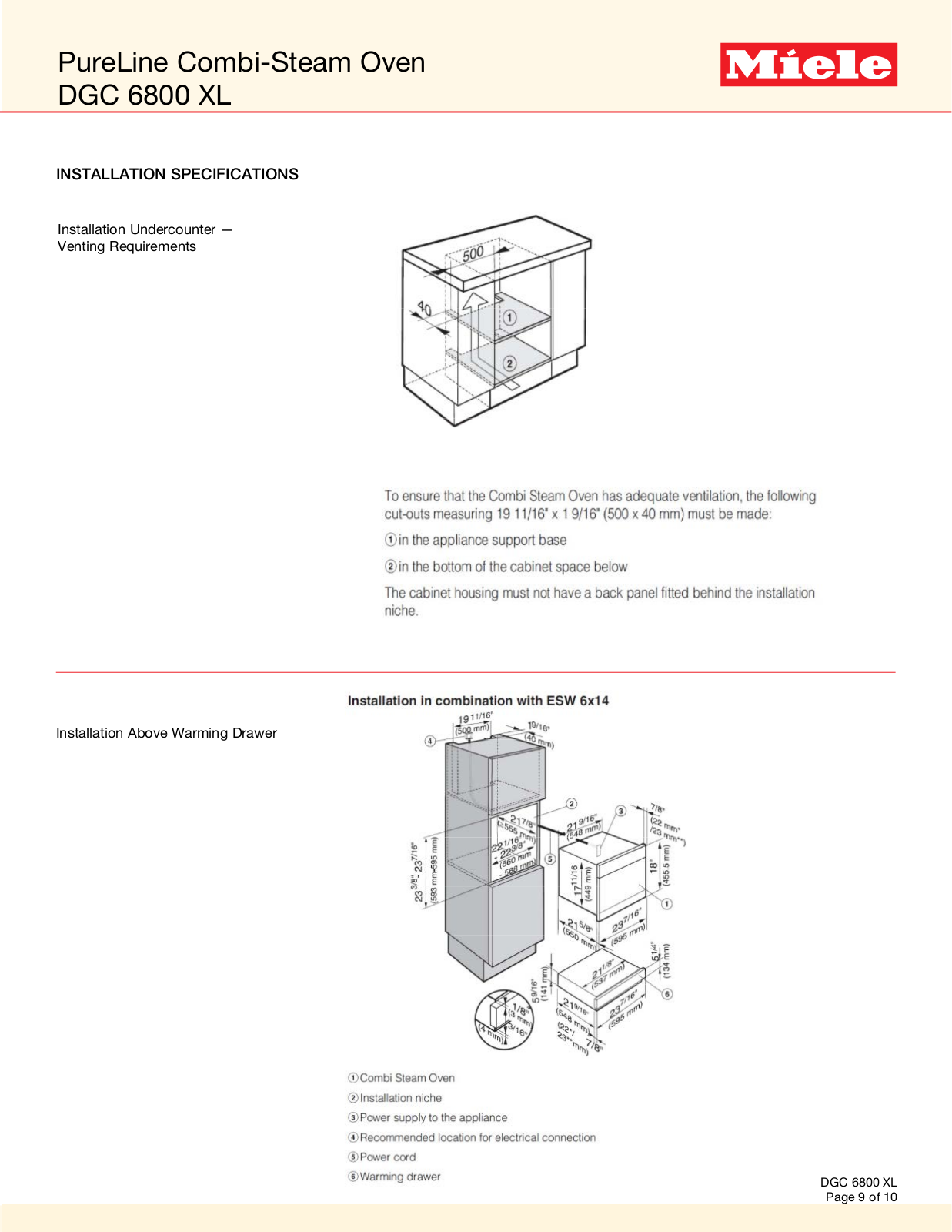

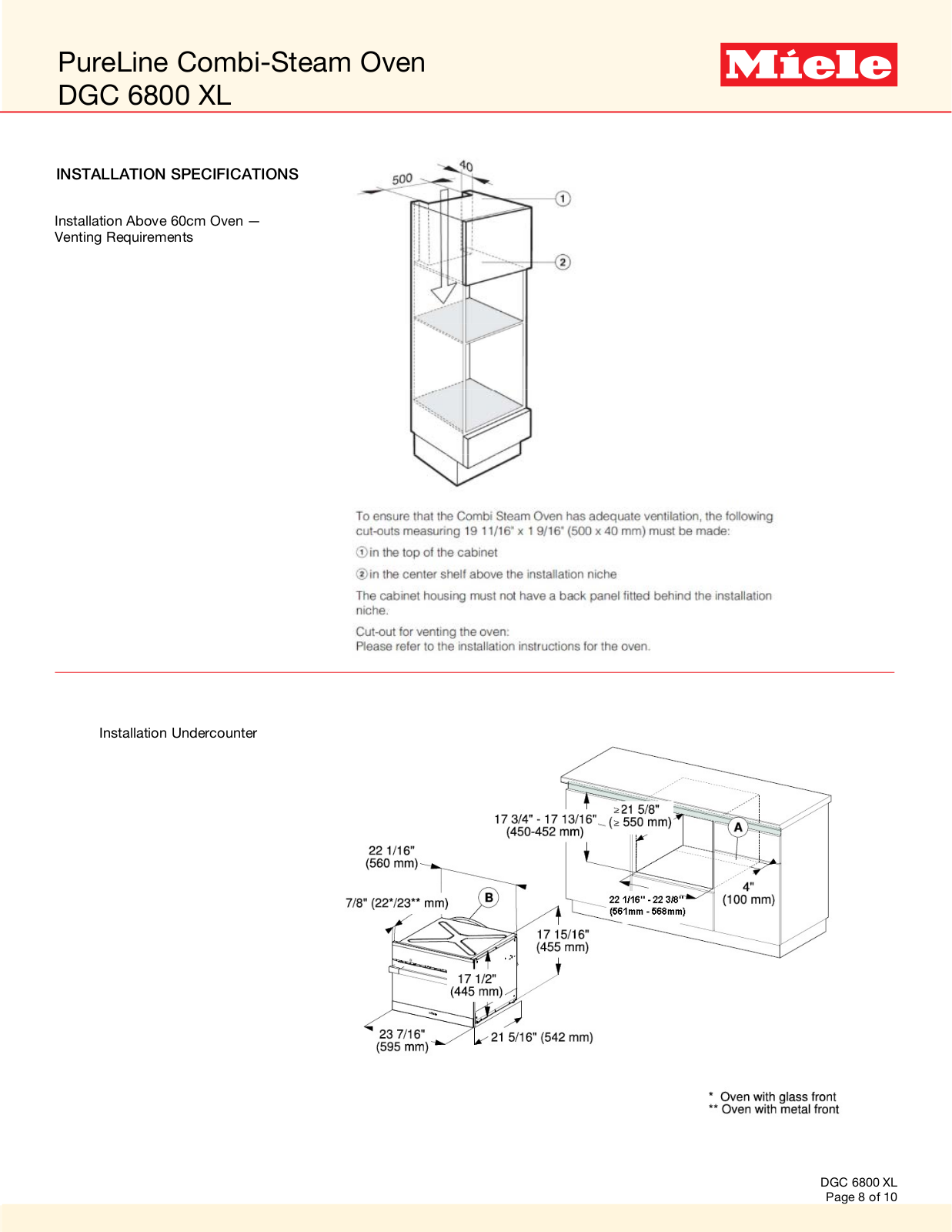

Venting cut-out required
11
19
/16” x 19/16” (500 x 40 mm)
7
26
/32” (666mm) W x 215/8”(549mm) H x
1
/16” (535mm) L
23
82020technologies.com
DGC 6800 XL
Page 3 of 10
