MAYTAG MCD2257KES, MCD2257HE User Manual

R

Table of Contents

Important Safety Instructions	..... 1-2
Installation ......................................	3-7
Temperature Controls .................	8-10
Fresh Food Features .................	11-14
Freezer Features ..............................	15
Ice and Water.............................	16-18
Water Filter .................................	19-21

Side-by-Side

Use & Care Guide
Food Storage Tips .....................	22-24
Care and Cleaning ....................	25-28
Operating Sounds ...........................	29
Troubleshooting.........................	30-33
Warranty & Service .........................	35

Guide d’utilisation et d’entretien . 36

Guía de uso y cuidado ...................

74

Form No. A/01/06

Part No. 12842123

www.maytag.com

©2006 Maytag Appliances Sales Co.

Litho USA

Downloaded from www.Manualslib.com manuals search engine

Important Safety Instructions

Installer: Please leave this guide with this appliance.

Consumer: Please read and keep this Use and Care Guide for future reference; it provides the proper use and maintenance information.

Keep sales receipt and/or canceled check as proof of purchase.

Call: 1-800-688-9900 USA

1-800-688-2002 Canada

Have complete model and serial number identification of your refrigerator. This is located on a data plate inside the fresh food compartment, on the upper right side. Record these numbers below for easy access.

Model Number _______________________________

Serial Number ________________________________

Date of Purchase ______________________________

In our continuing effort to improve the quality and performance of our appliances, it may be necessary to make changes to the appliance without revising this guide.

What You Need to Know About Safety Instructions

Warning and Important Safety Instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating appliance.

Always contact the manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

DANGER

DANGER – Immediate hazards which WILL result in severe personal injury or death.

WARNING

WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION – Hazards or unsafe practices which COULD result in minor personal injury or property damage.

DANGER

To reduce risk of injury or death, follow basic precautions, including the following:

Important: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they sit out for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so children may not easily climb inside.

• Cut off power cord plug.

This appliance is equipped with a three-prong grounded plug for your protection against possible electrical shock hazards. It must be plugged into a properly grounded wall receptacle. Where a standard two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded threeprong wall receptacle. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Do not use an adapter plug.

Power supply cord with three-prong grounded plug

Properly grounded type wall receptacle

1

Downloaded from www.Manualslib.com manuals search engine

Important Safety Instructions

WARNING

	To reduce risk of fire, electric shock, serious		13.	Always disconnect refrigerator from electrical
	injury or death when using your refrigerator,			supply before attempting any service. Disconnect
	follow basic precautions, including the following:			power cord by grasping the plug, not the cord.
	1.	Read all instructions before using the refrigerator.	14.	Install refrigerator according to Installation
	2.	Observe all local codes and ordinances.		Instructions. All connections for water, electrical
				power and grounding must comply with local
	3.	Be sure to follow grounding instructions.
				codes and be made by licensed personnel when
	4.	Check with a qualified electrician if you are not		required.
		sure this appliance is properly grounded.	15.	Keep your refrigerator in good condition. Bumping
	5.	Do not ground to a gas line.		or dropping refrigerator can damage refrigerator
				or cause refrigerator to malfunction or leak. If
	6.	Do not ground to a cold-water pipe.
				damage occurs, have refrigerator checked by
	7.	Refrigerator is designed to operate on a separate		qualified service technician.
		115 volt, 15 amp., 60 cycle line.	16.	Have worn power cords and/or loose plugs
	8.	Do not modify plug on power cord. If plug does		replaced by a qualified service technician.
		not fit wall receptacle, have proper receptacle	17.	Always read and follow manufacturer’s storage
		installed by a qualified electrician.		and ideal environment instructions for items being
	9.	Do not use a two-prong adapter, extension cord		stored in refrigerator.
		or power strip.	18.	Your refrigerator should not be operated in the
	10.	Do not remove warning tag from power cord.		presence of explosive fumes.
	11.	Do not tamper with refrigerator controls.	19.	Children should not climb, hang or stand on any
				part of the refrigerator.
	12.	Do not service or replace any part of refrigerator
			20.	Clean up spills or water leakage associated with

	unless specifically recommended in Use and Care	water installation.
	Guide or published user-repair instructions.
	Do not attempt service if instructions are not
	understood or if they are beyond personal skill
	level.

SAVE THESE INSTRUCTIONS

2

Downloaded from www.Manualslib.com manuals search engine

Installation

Location

•Do not install refrigerator near oven, radiator or other heat source. If not possible, shield refrigerator with cabinet material.

•Do not install where temperature falls below 55° F (13° C) or rises above 110° F (43° C). Malfunction may occur at this temperature.

•Refrigerator is designed for indoor household application only.

Measuring the Opening

When installing your refrigerator, allow 1⁄2” space at top and 1⁄2” space behind machine compartment cover (located in the rear) for proper air circulation. If the refrigerator is placed with the door hinge side against a wall, you may want to allow additional space so the door can be opened wider.

Subflooring or floor coverings (i.e. carpet, tile, wood floors, rugs) may make your opening smaller than anticipated.

Some clearance may be gained by using the leveling procedure under Leveling.

Important: If refrigerator is to be installed into a recess where the top of the refrigerator is completely covered, use dimensions from floor to top of hinge cap to verify proper clearance.

Transporting Your Refrigerator

•NEVER transport refrigerator on its side. If an upright position is not possible, lay refrigerator on its back. Allow refrigerator to sit upright for approximately 30 minutes before plugging it in to assure oil returns to the compressor. Plugging refrigerator in immediately may cause damage to internal parts.

•Use an appliance dolly when moving refrigerator. ALWAYS truck refrigerator from its side or back–NEVER from its front.

•Protect outside finish of refrigerator during transport by wrapping cabinet in blankets or inserting padding between the refrigerator and dolly.

•Secure refrigerator to dolly firmly with straps or bungee cords. Thread straps through handles when possible. Do not over-tighten. Over-tightening restraints may dent or damage outside finish.

3

Door and Hinge Removal

Some installations require door removal to get refrigerator to final location.

WARNING

To avoid severe personal injury or death, observe the following:

•Disconnect power to refrigerator before removing doors. Connect power only after replacing doors.

•Green ground wire must be attached to top hinge while performing door removal and replacement.

•Tape decorative panels (select models) securely into place before removing door handles.

CAUTION

To avoid property damage, observe the following:

•Protect vinyl or other flooring with cardboard, rugs or other protective material prior to moving refrigerator.

•Do not adjust refrigerator to be any shorter than 681⁄2” tall (minus hinge and cap). Doing so may damage underside components.

1.Unplug power cord from power source.

2.Remove toe grille (see page 4).

• Open both doors 180°, or as wide as possible.

Note: For refrigerators in operation, shut off water before removing water line from the door.

To Disconnect the Water Line:

•Push in white collar (A) and hold.

•Pull the door-side tube from the connector (B).

To Reconnect the Water Line:

•Firmly push tube 5⁄8” into the connector. Use lines on the tube as a guide for full insertion.

•If tube end is damaged, cut off 5⁄8” before reconnecting.

•If leaking occurs, reconnect the line.

B

Downloaded from www.Manualslib.com manuals search engine

Installation

3. Close doors.

4. Remove top hinge covers by removing Phillips screws.

5. Unscrew 5⁄16” hex head screws from top hinges.

For water dispensing models only:

• Do not remove screw connecting green ground wire.

6.For ice and water dispensing models only:

Detach main wire connector harness and red wire harness.

• To detach main wire harness, use a flat blade tool or fingernail to press junction point between two connectors to release.

• To detach red wire harness, press tab on underside of connector to release.

7. Remove top hinges along with doors.

8. Remove bottom hinges with a 3⁄8” hex head driver.

Replacing the Doors

•To replace the doors, follow the steps in Door and Hinge Removal in reverse order.

Important: If water line tube end is damaged, cut off 5⁄8” before reconnecting.

Leveling

CAUTION

To protect personal property and refrigerator from damage, observe the following:

•Protect vinyl or other flooring with cardboard, rugs, or other protective material.

•Do not use power tools when performing leveling procedure.

To enhance the appearance and maintain performance, the refrigerator should be level.

Notes:

•Complete any required door reversal, panel installation and/or a water supply connection before leveling.

•Some models only have adjustment screws (A).

Materials Needed:

•3⁄8” hex head driver

•Carpenter’s level

1. Remove toe grille.

• Grasp firmly and pull outward to unclip.

2.Using hex head driver, turn front adjustment screws (A) clockwise to raise and counterclockwise to lower the front of the refrigerator.

A B B A

3.Select models also have rear adjustment screws

(B). Using the hex head driver, turn each of these adjustment screws (B) to raise or lower the rear of the refrigerator.

4.Using the carpenter’s level, make sure front of refrigerator is 1⁄4” (6 mm) or 1⁄2 bubble higher than back of refrigerator and that the refrigerator is level from side to side.

5.If required, correct rocking of refrigerator by turning rear adjustment screw clockwise to raise rocking corner. If doors are uneven, do the following:

Cont.

4

Downloaded from www.Manualslib.com manuals search engine

Installation

• Determine which door needs to be raised.

• Turn front roller adjustment screw

(A) clockwise to raise front corner of door.

•If one refrigerator door has reached the limit of its adjustment range and doors are still not level, raise or lower the opposite door by turning roller adjustment screw clockwise or counterclockwise.

•Check with level to verify 1⁄4” tilt to the back for proper door closure.

•If refrigerator is aligned and stable, replace toe grille.

•Align the toe grille mounting clips with the lower cabinet slots.

•Push the toe grille firmly until it snaps into place.

Connecting the Water Supply

(select models)

WARNING

To reduce the risk of injury or death, follow basic precautions, including the following:

•Read all instructions before installing ice maker.

•Do not attempt installation if instructions are not understood or if they are beyond personal skill level.

•Observe all local codes and ordinances.

•Do not service ice maker unless specifically recommended in Use & Care Guide or published user-repair instructions.

•Disconnect power to refrigerator before installing ice maker.

•Water damage due to an improper water connection may cause mold/mildew growth. Clean up spills or leakage immediately!

CAUTION

To avoid property damage or possible injury, follow basic precautions, including the following:

•Consult a plumber to connect 1⁄4” O.D. copper tubing to household plumbing to assure compliance with local codes and ordinances.

•Confirm water pressure to water valve is between 35 and 100 pounds per square inch, 20 pounds per square inch without filter.

•Do not use a self-piercing, or 3⁄16” saddle valve. Both reduce water flow and can become clogged over time, and may cause leaks if repair is attempted.

•Tighten nuts by hand to prevent cross threading. Finish tightening nuts with pliers and wrenches. Do not over-tighten.

•Wait two to three hours before placing refrigerator into final position to check and correct any water leaks. Recheck for leaks after 24 hours.

•Verify the copper tubing under the sleeve is smooth and free from defects. Do not reuse an old sleeve.

Materials Needed:

•1⁄4” outer diameter flexible copper tubing

•Shut-off valve (requires a 1⁄4” hole to be drilled into

water supply line before valve attachment)

•Adjustable wrench (2)

•1⁄4” hex nut driver

Notes:

•Use copper tubing only for installation. Plastic is less durable and can cause damage.

•Add 8’ to tubing length needed to reach water supply for creation of service loop.

1.Create service loop with copper tubing (minimum 2’ diameter). Avoid kinks in the copper tubing when bending the service loop. Do not use plastic tubing.

2.Remove plastic cap from water valve inlet port.

2’ diameter minimum

5

Downloaded from www.Manualslib.com manuals search engine

Installation

3. Place brass nut (A) and sleeve (B)

	on copper tube end as illustrated.
	Reminder: Do not use an old
	sleeve. The nut and sleeve are	B
	provided in the Use and Care
		A
	packet.
	4. Place end of copper tubing into
	water valve inlet port. Shape	B
	tubing slightly. Do not kink – so
	that tubing feeds straight into inlet	A
	port.

5.Slide brass nut over sleeve and screw nut into inlet port.

	Place adjustable wrench on nut
	(1) attached to plastic waterline	1
	and maintain position.
		2
	Using second adjustable wrench
	turn the lower nut (2)
	counterclockwise and fully
	tighten while holding the upper
	nut in place.

Important: Do not over-tighten. Cross threading may occur.

6. Pull on tubing to confirm
connection is secure.
Connect tubing to frame
with water tubing clamp (C)
and turn on water supply.
Check for leaks and correct
if necessary. Continue to	C
observe the water supply
connection for two to three
hours prior to moving the
refrigerator to its permanent
location.

7.Monitor water connection for 24 hours. Correct leaks, if necessary.

Handle Installation

If not installed, the handle is located in the interior of the fresh food section or attached to the back of your refrigerator. Remove and discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator. Please reference the appropriate instructions for your model.

Plastic Handle with Extensions

Attach Extensions to Handle:

1.Align handle and extension as shown.

2.Place extension in handle opening.

3.Apply slight pressure to both sides of the

extension piece.

4. Slide extension until it stops on inside edge of handle.

To Install:

1.The handles are to be oriented as shown.

2.Align door handle with the door studs.

3.Ensure the large hole in the mounting clip is positioned down on both ends of the handle.

Door

Stud

4.Rotate the handle so that the handle is flat against the door.

5. Grasp the handle firmly and slide down.

Cont.

6

Downloaded from www.Manualslib.com manuals search engine

Installation

To Remove:

1. Grasp the lower part of the handle firmly, slide up, lift and remove from the surface.

Wide-by-Side™ Handles

Materials Needed:

• Gloves to protect hands

• Plastic door handle removal card (or 1⁄32” thick plastic card), retain the card

• Flat blade screwdriver

To Install:

1. Align fresh food handle with trim retainer and door clip.

2. Make sure the tabs of the handle clip are below the tabs of the door clip.

3. Rotate the handle so that the handle is flat against the door (see page 6).

4. The tab on the lower part of the handle will align with the hole in the handle cap.

5. Slide handle upward until it clicks.

6.Snap top of handle into trim retainer clip.

7.Repeat for freezer handle.

To Remove:

1.Protect the area above the handle trim with tape. Insert the tip of a flat blade screwdriver between the handle trim and door panel. Carefully pry the trim away from the door panel.

2.Pull trim free from the trim retainer.

3.Insert door removal card (or 1⁄32” thick plastic card) between the handle and door panel (approximately 11⁄2”).

4. Grasp the handle firmly and pull downward to remove.

5. Repeat for freezer handle.

Full-Length Aluminum

Handles

Materials Needed:

• Phillips screwdriver

7

To Install:

1. Release top door trim by removing Phillips screws from Door Clip top of fresh food door, retaining

screws for later use.

2. Align notches on back of handle with retaining clips on doors. Insert clips into notches and slide handle down until it contacts bottom trim.

3.Replace top door trim and Phillips screws.

4.Repeat instructions 1-3 to install other handle.

WARNING

To avoid possible injury and damage to property, tape decorative panels (select models) securely into place before removing door handles.

To Remove:

1. Release top door trim by removing Phillips screws from top of fresh food door, retaining screws for later use.

2.Grasp handle firmly with both hands. Slide handle upward

approximately 3⁄4” to release.

3.Repeat instructions 1-2 to remove other handle.

To Reinstall:

1. Repeat in reverse order.

Metal Handle

Materials Needed:

•3⁄32” Allen wrench

•Gloves to protect hands

Note: Metal handles can scratch doors.

To Remove:

•Loosen set screws in handle using 3⁄32” Allen wrench.

•Repeat the procedure on all screws.

To Replace:

•Align handle with the mounting posts.

•Apply upward pressure to the handle and hold.

•Fully tighten all set screws to secure handle in place.

Downloaded from www.Manualslib.com manuals search engine

Temperature Controls

Dial Temperature Controls

(select models)

The controls are located at the back left of the refrigerator compartment.

Note: The Freezer control turns the cooling system on. Neither section will cool if freezer control is set to OFF.

Initial Control Settings

After plugging the refrigerator in, set the controls.

• To adjust the controls, turn the control knob to the left or right as desired.

• Set the Freezer control on 4.

• Set the Refrigerator control on 4.

• Let the refrigerator run at least 8 to 12 hours before adding food.

Temperature Control Guide

Refrigerator too warm Turn the Refrigerator control to next higher number.

Refrigerator too cold Turn the Refrigerator control to next lower number.

Freezer too warm Turn the Freezer control to next higher number.

Freezer too cold Turn the Freezer control to next lower number.

Turn refrigerator OFF Turn the Freezer control to OFF.

Note: Turning Freezer control to OFF stops cooling in both compartments. It does not shut off power to the refrigerator.

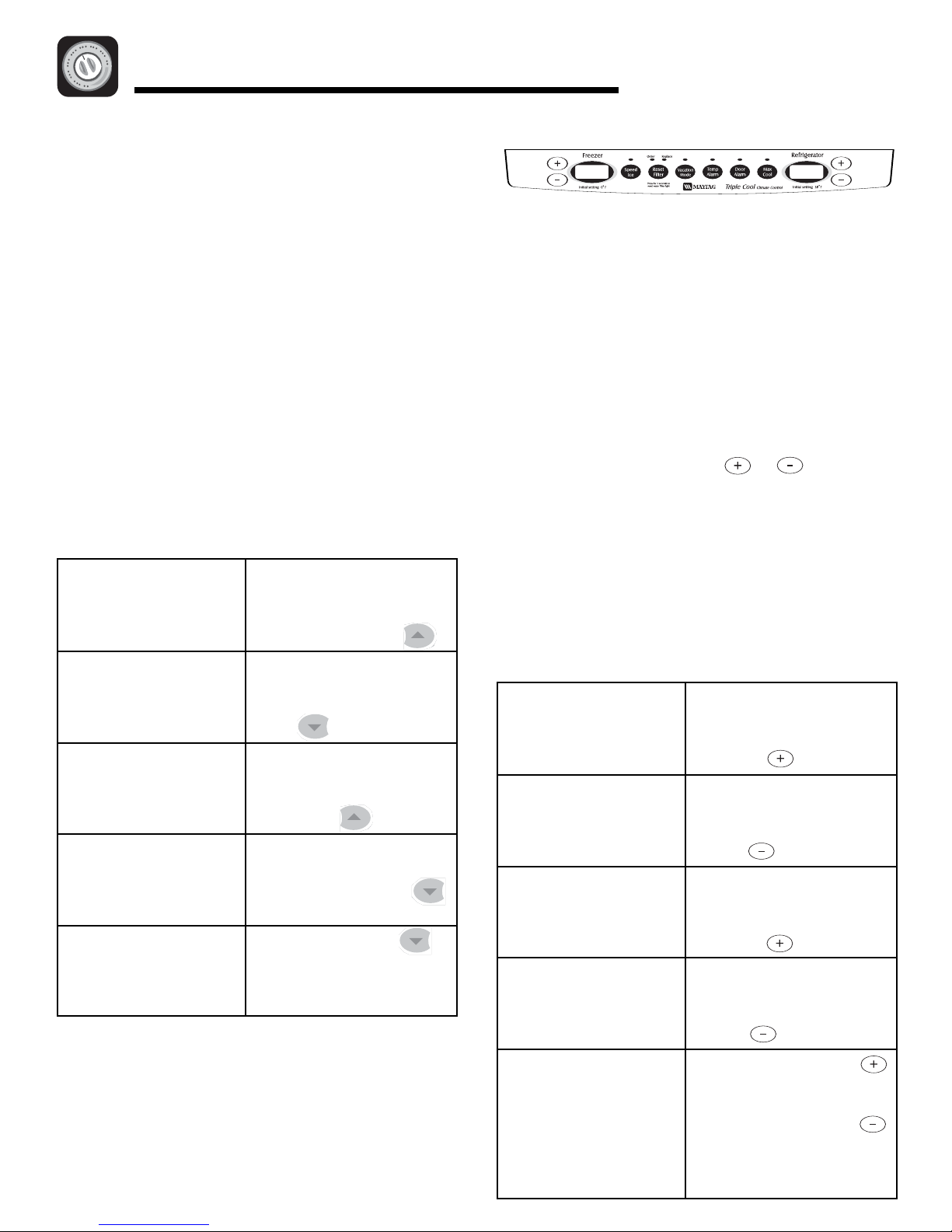

Touch Temperature Controls

(select models, style varies by model)

The controls are located at the top front of the refrigerator compartment.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be warm to the touch. This is a normal occurrence that helps prevent moisture from condensing on the cabinet. This condition will be more noticeable when you first start the refrigerator, during hot weather and after excessive or lengthy door openings.

Adjusting the Controls

•24 hours after adding food, you may decide that one or both compartments should be colder or warmer. If so, adjust the control(s) as indicated in the

Temperature Control Guide table. See page 22 for instructions on checking compartment temperature.

•Except when starting the refrigerator, do not change either control more than one number at a time.

•Allow 24 hours for temperatures to stabilize.

•Changing either control will have some effect on the temperature of the other compartment.

Control

Initial Control Settings

After plugging the refrigerator in, set the controls.

•Pressing the or pads adjusts the controls to the desired setting.

•Set the Freezer control on 4.

•Set the Refrigerator control on 4.

•Let the refrigerator run at least 8 to 12 hours before adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be warm to the touch. This is a normal occurrence that helps prevent moisture from condensing on the cabinet. This condition will be more noticeable when you first start the refrigerator, during hot weather and after excessive or lengthy door openings.

Adjusting the Controls

•24 hours after adding food, you may decide that one or both compartments should be colder or warmer. If

so, adjust the control(s) as indicated in the
Temperature Control Guide, page 9.	Cont. 8

Downloaded from www.Manualslib.com manuals search engine

Temperature Controls

•Except when starting the refrigerator, do not change either control more than one number at a time.

•Allow 24 hours for temperatures to stabilize.

Temperature Control Guide

Refrigerator too warm Set the Refrigerator control to next higher number by pressing the pad.

Refrigerator too cold Set the Refrigerator control to next lower number by pressing the pad.

Freezer too warm		Set the Freezer control to next
			number by pressing the
		higher
			pad.
Freezer too cold
		Set the Freezer control to next
		lower number by pressing the
			pad.
Turn refrigerator OFF		Press the Freezer or
		Refrigerator		pad until a
		dash “–” appears in the
		display.

Triple Cool Climate Control

(select models)

The control is located at the top front of the fresh food compartment.

Control

Initial Temperature Setting

Temperatures are preset at the factory at 38° F (3° C) in the fresh food compartment and 0° F (-17° C) in the freezer compartment.

Adjusting the Control

24 hours after adding food, you may decide that one or both compartments should be colder or warmer. If so, adjust the control as indicated in the Temperature Control Guide.

•The first touch of the or pads shows the current temperature setting.

•The display will show the new setting for approximately three seconds, and then return to the actual temperature currently within that compartment.

•Do not change either control more than one degree at a time. Allow temperature to stabilize for 24 hours

9before making a new temperature adjustment.

Temperature Control Guide

Refrigerator too cold Set the Refrigerator control to next higher number by pressing the pad.

Refrigerator too warm Set the Refrigerator control to next lower number by pressing the pad.

Freezer too cold	Set the Freezer control to next
	higher number by pressing the
			pad.
Freezer too warm	Set the Freezer control to next
	lower number by pressing the
			pad.
Turn refrigerator OFF	Press the Freezer			pad
	until “OFF” appears in the
	display. Press either the
	Freezer or Refrigerator
	pad to turn back on.

Speed Ice

When activated, Speed Ice reduces the freezer temperature to the optimum setting for 24 hours in order to produce more ice. Important: When the Speed Ice feature is in operation, the and pads for the Freezer control will not operate.

Reset Filter (select models)

When a water filter has been installed in the refrigerator, the yellow Order light will illuminate when 90 % of the volume of water for which the filter is rated has passed through the filter OR 11 months have elapsed since the filter has been installed.

The red Replace light will illuminate when the rated volume of water has passed through the filter OR 12 months have elapsed since the filter was installed. A new filter should be installed immediately when the Replace light is illuminated.

After replacing the filter, press and hold the Reset Filter pad for three seconds. The Order and Replace lights will go off.

Vacation Mode

The Vacation Mode feature causes the freezer to defrost less frequently, conserving energy. The Vacation Mode indicator light will illuminate when the feature is activated. To deactivate, press the Vacation Mode pad again OR open either door. The indicator light will go off.

Downloaded from www.Manualslib.com manuals search engine

Temperature Controls

Notes:

•Door openings will not deactivate Vacation Mode for approximately one hour after activation.

•If vacationing for more than a few days, see the

Preparing for Vacation section, page 28.

Temp Alarm

The Temp Alarm system will alert you if the freezer or fresh food temperatures exceed normal operating temperatures due to a power outage or other event. When activated, the Temp Alarm light will illuminate.

If the freezer or fresh food temperatures have exceeded these limits, the display will alternately show the current compartment temperatures and the highest compartment temperatures reached when the power was out. An audible alarm will sound repeatedly.

Press the Temp Alarm pad once to stop the audible alarm. The Temp Alarm light will continue to flash and the temperatures will alternate until the temperatures have stabilized.

To turn off Temp Alarm, press and hold the Temp Alarm pad for three seconds. The indicator light will go off.

Door Alarm

The Door Alarm will alert you when one of the doors has been left open for five continuous minutes. When this happens, an audible alarm will sound every few seconds until the door is closed OR the Door Alarm pad is pressed to deactivate the feature.

Max Cool

When activated, Max Cool causes the fresh food and freezer temperatures to drop to the minimum settings on the control. This cools down the refrigerator and freezer after extended door openings or when loading the refrigerator or freezer with warm food. Important: When the Max Cool feature is in operation, the

and pads for the refrigerator and freezer controls will not operate.

To activate, press the Max Cool pad. Max Cool will deactivate automatically after 12 hours, OR press the Max Cool pad to deactivate the feature.

User Preferences

Access the User Preferences menu to:

•Activate or turn off Super Cool (select models).

•Change the temperature display from °F to °C .

•Enable or disable audible alarms.

•Adjust the light level at which the Dispenser Auto Light will illuminate (when this feature is activated on the ice and water dispenser) (select models).

•Activate the Sabbath Mode.

To access the User Preferences menu, press and hold the Door Alarm pad for three seconds. When in the User Preferences mode, a short title for the feature will appear in the Freezer temperature display and the feature status will appear in the Refrigerator display.

1.Use the Freezer up and down controls to scroll through the features.

2.When the desired feature is displayed, use the Refrigerator up and down controls to change the status.

3.When changes are complete, press the Door Alarm pad for three seconds OR close the Fresh Food door.

Super Cool (CC) (select models)

When Super Cool is ON, an air-mixing fan in the fresh food compartment is activated to improve air flow and temperature control. To save energy, this feature may be deactivated by pressing OFF.

Temperature Display (F_C)

Change the display to show temperatures in degrees Fahrenheit or degrees Celsius.

Alarm (AL)

When the Alarm mode is OFF, all audible alarms will be disabled until the feature is turned ON.

Auto Light Level Selection (LL) (select models)

This setting adjusts the light level at which the dispenser light will illuminate when the sensor detects that the light levels in the room are low. Setting 1 is the darkest light level setting, setting 9 is the lightest light level setting. Important: The Auto Light (select models) must be activated on the ice and water dispenser control to take advantage of this option.

Sabbath Mode (SAB)

When the Sabbath Mode is ON, all control lights and the night light will be disabled until the feature is turned OFF. This feature does not disable the interior lights. Press any pad to restore the control lights.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be warm to the touch. This is a normal occurrence that helps prevent moisture from condensing on the cabinet. This condition will be more noticeable when the refrigerator is first started, during hot weather and after excessive or lengthy door openings.

10

Downloaded from www.Manualslib.com manuals search engine

Fresh Food Features

Shelves

CAUTION

To avoid personal injury or property damage, observe the following:

•Never attempt to adjust a shelf that is loaded with food, except in the case of the ElevatorTM Shelf.

•Confirm shelf is secure before placing items on shelf.

•Handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

Your refrigerator has either Spill-Catcher™ or nonsealed shelves. Spill-Catcher™ shelves have a spill retainer edge which allows for easier clean up and some are equipped with the Easy-Glide slide out feature. To slide out (select models), grasp the front of the shelf and pull forward. Push in the shelf to return to the original position.

To Remove a Shelf:

• Slightly tilt up the front and lift up the rear of the shelf, then pull the shelf straight out.

To Lock the Shelf Into Another Position:

•Tilt up the front edge of the shelf.

•Insert the hooks into the desired frame openings and let the shelf settle into place.

•Be sure the shelf is securely locked at the rear.

The Crisper Top serves as the lower fresh food shelf.

To Remove the Crisper Top:

•Remove drawers as indicated (see page 13).

•Place hand under the frame to push up the glass. Lift glass out.

To Install:

• Repeat above instructions in reverse order.

Elevator™ Shelf (select models)

The Elevator™ Shelf is equipped with a spill-retaining edge and the Easy-Glide™ slide-out feature. It can be adjusted up or down without unloading.

To Slide Out Elevator™ Shelf:

•Grasp the front of the shelf and pull forward.

•Push the shelf in to return to original position.

To Adjust the Elevator™ Shelf:

•Pull out the knob on the crank handle.

•Rotate the crank clockwise to raise the shelf, and counterclockwise to lower the height of the shelf.

To Remove Elevator™ Shelf:

•Completely unload the shelf and pull the shelf forward.

•Pull until the shelf stops.

•Press up on the tabs located underneath its outside edges and continue pulling forward until the shelf is clear of the frame.

To Replace Elevator™ Shelf:

•Align the shelf to the frame and push it all the way back. It is not necessary to press up on the tabs for reinstallation.

In ordinary use, the Elevator™ Shelf frame assembly does NOT require removal. Though unlikely, and not recommended, the correct removal procedure is as follows:

To Remove Frame Assembly:

•Unload the shelf completely.

•Slide the shelf forward about 2” and manually move the two rear latches toward the shelf center.

•While supporting the entire shelf and frame from underneath, lift slightly and rotate the assembly approximately 30° to allow the rear mechanism to clear the vertical rear side rails.

•The entire assembly can then be moved forward and clear of the refrigerator compartment.

To Reinstall Frame Assembly:

•Reverse the removal procedure. Be sure the shelf is in a level position. When the sliding shelf is pushed to the rear, it will reposition the rear latches to their correct operating position.

(style may vary)

11

Downloaded from www.Manualslib.com manuals search engine

Fresh Food Features

Refrigerator Pak Can

Organizer (select models)

The Refrigerator Pak Can Organizer conveniently dispenses up to a 12-pack of individual beverage cans. To load beverages into the organizer:

•Open a 12-pack sleeve of beverages.

•Slide can organizer over the cutout portion of beverage

sleeve.

• Place container and sleeve in an upright position in a door bucket located in the fresh food door compartment.

The dispenser sits in the door bucket and can be moved to accommodate a variety of storage needs.

Dairy Center

The Dairy Center provides convenient door storage for spreadable items such as butter and margarine. On select models, this compartment can be moved to several different locations to accommodate storage needs.

To Remove:

• Slide dairy center up and pull out.

To Install:

•Slide assembly in and down so that the hooks are firmly seated on the door liner.

To Remove Dairy Door:

• Press in sides of dairy door and pull out.

To Install Dairy Door:

•Slide sides of dairy door inside dairy center until hinge points snap into place.

Adjustable Deep Tilt-Out Door Buckets

(select models)

The Adjustable Deep Tilt-Out Door Bucket provides easy access to food items stored in the door.

To Remove Bucket:

• Tilt bucket out.

• Pull straight out of the bracket.

To Install Bucket:

•Tilt the front of the bucket down slightly.

•Slide into bracket and tip upright.

To Move Bucket Frame to

Another Location:

• Remove bucket.

•Lift bracket up and pull straight out.

•Place the bracket in a new location.

Door Buckets

Door Buckets can be moved to meet individual storage needs.

To Remove:

• Lift bucket up and pull straight out.

To Install:

•Place bucket in desired door liner retainer, push down until bucket stops.

Storage Drawers

Humidity-Controlled Crisper Drawers

The Crisper Drawers provide a higher humidity environment for fresh fruit and vegetable storage.

Controls

The crisper controls regulate the amount of humidity in the crisper drawer. Slide control toward the FRUIT setting for produce with outer skins. Slide control toward the VEGETABLES setting for leafy produce.

Cont.

12

Downloaded from www.Manualslib.com manuals search engine

Fresh Food Features

To Remove:

•Pull drawer out to full extension. (On select models, press tabs toward

oneself to release drawer from rails.) Tilt up front of drawer and pull straight out.

To Install:

•Insert drawer into frame rails and push back into place.

Note: For best results, keep the crispers tightly closed.

Automatic Humidity Control

Some crispers are equipped with an Automatic Humidity Control system, eliminating the need for manual humidity slide controls on the drawer. A fabric-like material* covers small air vents in the shelf insert above the crispers.

This material controls the flow of moisture out of the crisper. If a food spill should occur on the air vent or fabric-like material, wipe with a clean, damp cloth.

*The Maytag Automatic Humidity Control system features a unique, patented material called Shape

Memory Polymer (SMP) that when laminated to fabric, becomes DIAPLEX. DIAPLEX is manufactured by Mitsubishi.

To Remove:

•Pull drawer out to full extension. Tilt up front of drawer and pull straight out.

To Install:

•Insert drawer into frame rails and push back into place.

Note: For best results, keep the crispers tightly closed.

Temperature-Controlled

Drawer (select models)

This drawer can be used for storage of miscellaneous items.

The drawer features a control that

regulates the air temperature in the drawer. Set the control to Cheese to provide normal refrigerator temperature. Use the Meats setting for meats.

Can Rack™ (select models)

The Can Rack™ slides out from underneath the Spillsaver™ stationary shelf. The Can Rack™ holds up to twelve 12-ounce beverage cans.

To Remove:

•Empty contents of Can Rack™. Pull forward to full extension and lift front to release from shelf rail assembly. Pull straight out to remove.

To Install:

•Insert drawer into frame rails and push back into place.

Accessories

Grip Pads (select models)

The Grip Pads prevent objects from sliding in the door buckets. Grip Pads are removable and are top-rack dishwasher safe for easy cleaning.

Covered Storage Bucket

(select models)

The Storage Bucket has a lid and removable egg tray. When tray is removed, bucket will accept items such as a standard egg carton, ice, etc.

13

Downloaded from www.Manualslib.com manuals search engine

Fresh Food Features

Tall Bottle Retainer/Snugger

(select models)

The Tall Bottle Retainer prevents tall bottles from tipping forward. The Retainer can be placed above any removable door bucket.

The Snugger attached to the Tall Bottle Retainer keeps bottles and other containers in place when the door is opened or closed. Adjust the Snugger by sliding from side to side.

Wine Rack (select models)

The Wine Rack provides a place for horizontally storing wine. The rack can also hold an egg carton.

Position the rack to rest on the left hand side of a refrigerator shelf (this rack cannot be positioned on an Elevator Shelf™).

Egg Tray With Handle

(style may vary/select models)

The Egg Tray with Handle holds a “dozen-plus” eggs. It can be

removed to carry to a work area or to be washed.

14

Downloaded from www.Manualslib.com manuals search engine

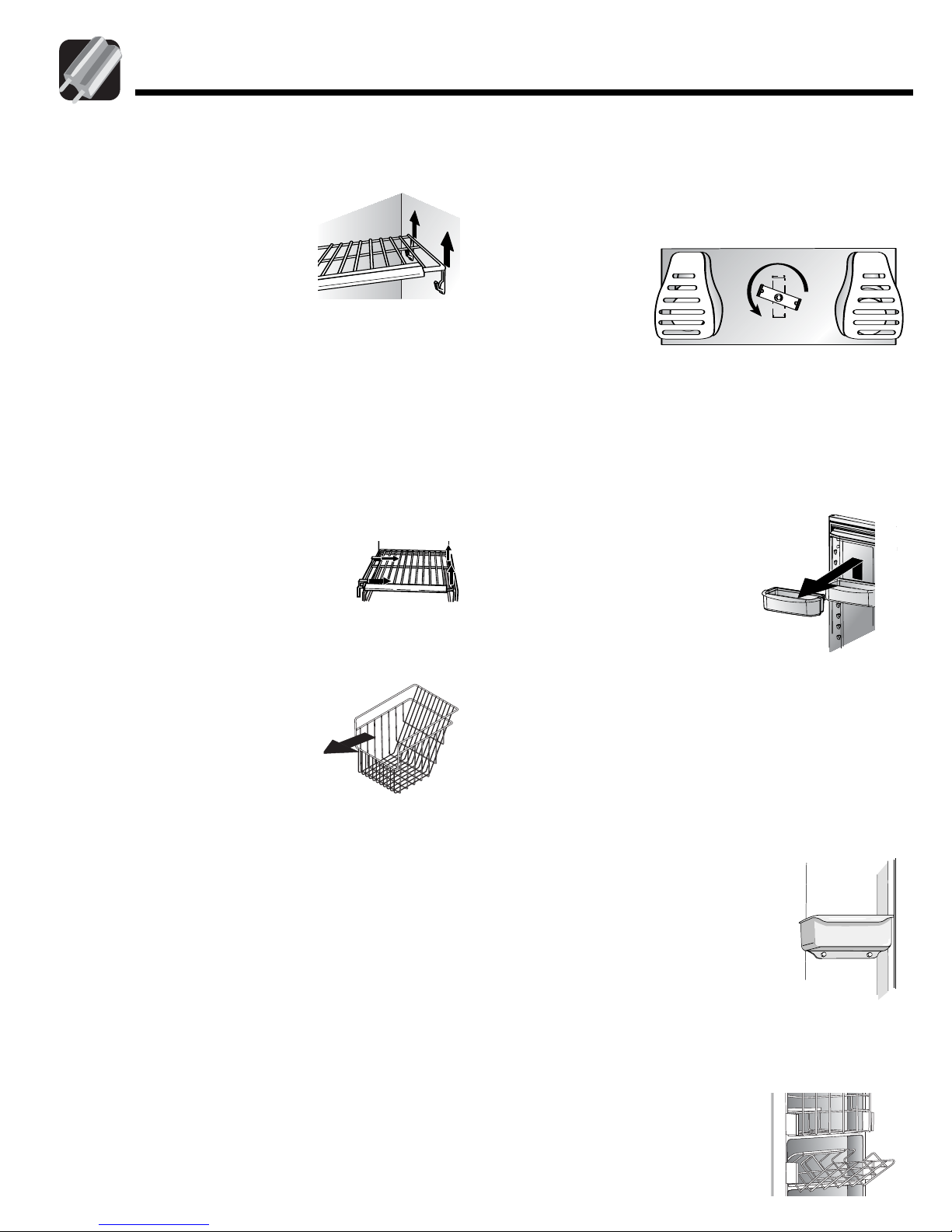

Freezer Features

Shelves and Baskets

Fixed Freezer Shelf

To Remove Clip-Mounted Shelves:

• Lift shelf from wall mounting clips and pull left side of shelf out of wall mounting holes.

To Install Clip-Mounted Shelves:

•Place left side of shelf in mounting holes and press down into wall mounting clips.

Shelves

Shelves can be removed to meet individual storage needs.

To Remove Shelf:

• Snap right side of shelf up from cabinet railing and slide to right.

To Install Shelf:

•Place shelf in left side cabinet railing snapping shelf into right side cabinet railing.

Baskets and Drawers

Baskets and drawers (style may vary) slide out for easy access to items in back.

To Remove:

•Pull out to its full extension. Lift up front of basket and remove.

To Install:

•Slide basket or drawer into cabinet railing. Lift up front of basket or drawer, and slide to the back of refrigerator.

Ice Storage Bin

The Ice Storage Bin is located below the automatic ice maker.

To Remove:

•Raise ice maker arm to deactivate ice maker. Lift front of bin and pull out to its full extension. Lift up front of bin and remove.

15

To Install:

•Slide bin into railing below ice maker until bin locks into place. Drop ice maker arm to activate ice maker.

Important: Ice bin must be locked in place for proper ice dispensing. Turn auger driver behind bin counterclockwise (as shown) to properly align ice bin with auger driver.

Door Storage

Adjustable Door Buckets

Door Buckets can be moved to meet individual storage needs.

To Remove:

• Lift the door bucket up until it clears the retainers on the door liner, then

pull the door bucket straight out.

To Install:

•Slide bucket in above desired door liner retainer and push down until bucket stops.

Fixed Door Bucket (select models)

The Fixed Door Bucket is located in the upper section of the freezer door.

Important: Fixed door bucket is NOT adjustable. If bucket is removed, freezer light will not deactivate when door is closed.

Drop-Down Freezer Door Baskets

(select models)

These baskets provide convenient storage space for frozen food items that tend to shift, such as bagged vegetables.

Downloaded from www.Manualslib.com manuals search engine

Ice and Water

Automatic Ice Maker

(non-dispenser models)

Note: Energy rating guides that are posted on the refrigerator at the time of purchase do not include optional ice maker energy usage.

Some models are automatic ice maker ready. The number of the appropriate ice maker kit is IC10S. The kit contains installation instructions and water connection instructions.

Other models have a factory installed ice maker. Connect the ice maker to the water supply as instructed on pages 5-6. Proper water flow and a level refrigerator are essential for optimal ice maker performance.

Operating Instructions

•Confirm ice bin is in place and ice maker arm is down.

• After freezer section reaches between 0° to 2° F (-18° to -17° C), ice maker fills with water and begins operating. You will have a complete harvest of ice approximately every three hours.

•Allow approximately 3-6 hours after installation to receive first harvest of ice.

•Discard ice created within first 12 hours of operation to verify system is flushed of impurities.

•Stop ice production by raising ice maker arm until click is heard.

•Ice maker will remain in the OFF position until arm is pushed down.

•The first one or two batches will probably contain undersized and irregular cubes because of air in the supply line.

•When the ice cubes are ejected it is normal for several cubes to be joined together at the ends. They can easily be broken apart. The ice maker will continue to make ice until the supply of ice cubes raises the sensor arm, shutting the ice maker off.

•Certain sounds may accompany the various cycles of the ice maker. The motor may have a slight hum, the

cubes will rattle as they fall into an empty storage pan and the water valve may click or “buzz” occasionally.

•If the ice is not used frequently, the ice cubes will become cloudy, shrink, stick together and taste stale. Empty the ice storage bin periodically and wash it in lukewarm water. Be sure to dry the bin thoroughly before replacing it.

•Beverages and foods should not be placed in the ice storage bin for quick chilling. These items can block the sensor arm, causing the ice maker to malfunction.

•Turn OFF (arm up) the ice maker when the water supply is to be shut off for several hours.

To Remove the Ice Bin:

•Pull it forward, away from the ice maker. To avoid the ice maker dumping ice while the bin is removed, turn the ice maker OFF by raising the sensor arm.

To Install the Ice Bin:

•Reverse the above procedure. Turn the ice maker ON by lowering the sensor arm.

WARNING

To avoid personal injury or property damage, observe the following:

•Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. This will help protect you from possible injury. It will also prevent interference with moving parts of the ejector mechanism and the heating element that releases the cubes.

•Under certain rare circumstances, ice cubes may be discolored, usually appearing with a greenbluish hue. The cause of this unusual discoloration can be a combination of factors such as certain characteristics of local waters, household plumbing and the accumulation of copper salts in an inactive water supply line which feeds the ice maker. Continued consumption of such discolored ice cubes may be injurious to health. If such discoloration is observed, discard the ice cubes and contact your dealer to purchase and install a water line filter.

•Water damage due to improper water connection may cause mold/mildew growth.

•Clean up water and ice spills to avoid personal injury and to prevent mold/mildew growth.

16

Downloaded from www.Manualslib.com manuals search engine

Ice and Water

Dispenser Features

(select models)

	Main
	Dispenser	Removable
	Pad
		Tray

Dispenser Light (select models)

A light activates within the dispenser area at full power when dispensing ice or water with the main dispenser pad.

Dispenser Pad

The Dispenser Pad is located on the back wall of the dispensing area. When the dispenser pad is pressed, the selection chosen on the dispenser control panel will dispense.

Removable Tray

The Removable Tray at the bottom of the dispenser area is designed to collect small spills and may be easily removed for cleaning and emptying purposes.

Important: Removable tray does not drain. Do not allow tray to overflow. If it does, remove tray and wipe up overflow.

Water Dispenser Operation

CAUTION

To avoid personal injury or property damage, observe the following:

•Do not put fingers, hands or any foreign object into dispenser opening.

•Do not use sharp objects to break ice.

•Do not dispense ice directly into thin glass, fine china or delicate crystal.

17

Note: During initial use of water dispenser, there will be a oneto two-minute delay while water tank fills before water dispenses. Discard first 10-14 glasses of water after initially connecting refrigerator to household water supply and after extended periods of nonuse.

To Use Dispenser Pad:

•Choose water selection from dispenser control panel.

•Press a sturdy, wide-mouthed container against dispenser pad. When dispensing crushed ice, hold container as close to chute as possible to reduce spraying.

•Release pressure on dispenser pad to stop water dispensing. A small amount of water may continue to dispense and collect in dispenser tray. Large spills should be wiped dry.

Dispenser Control (select models)

(control features vary by model)

Ice Dispenser Operation

To Dispense Ice and

Water:

• Select Water, Crush or Cube ice mode by pushing button on dispenser control panel. A green light above button indicates mode selection.

• Press container against dispenser pad. When dispensing crushed ice, hold container as close to chute as possible to

reduce spraying.

Notes:

•Mode may not be changed while ice dispenser is in operation.

•If dispenser (select models) is active for more than five minutes, an automatic lock out sensor will shut down power to dispenser area. See Dispenser Lock for unlocking information.

Downloaded from www.Manualslib.com manuals search engine

Ice and Water

Dispenser Lock (select models)

The Dispenser Lock prevents ice or water from being dispensed.

To Lock Dispenser:

•Press and hold the Lock button for three seconds. A green indicator light above button will illuminate when the dispenser is locked.

To Unlock Dispenser:

•Hold the Lock button for three seconds. The green indicator light above button will go out.

Water Filter Status Indicator

Light (select models)

The Water Filter Status Indicator Light serves as a reminder to replace the water filter. A green light indicates that the filter is in good condition. A red light indicates the filter should be changed. Once light turns red, it will remain red until function is reset.

To Reset Indicator:

•Press and hold both the Lock and Water buttons simultaneously for four seconds. The

green filter status indicator light will flash three times when the function has successfully reset.

Auto Light (select models)

The Auto Light function activates the dispenser light at half-power when the Light Sensor

detects that the light levels in room are low.

To Activate Auto Light:

•Press Auto Light button. A green indicator light above button illuminates when the sensor is active.

To Deactivate Auto Light:

•Press Auto Light button. The green indicator light will go out.

Note: The dispenser light will operate when Auto Light is ON or OFF.

Light (select models)

Press the Light pad once to select the Auto Light function which activates the dispenser

light at half-power when the light sensor detects that the light levels in room are low. The Auto indicator light will illuminate.

To Activate Light:

•Press the Light pad again to turn the dispenser light on continuously. The On indicator light will illuminate.

To Deactivate Light:

•Press the Light pad a third time to turn the dispenser light off.

Sabbath Mode (select models)

When activated, the Sabbath Mode deactivates the control lights while leaving the control operational.

To Activate Sabbath Mode:

• Press and hold the Lock and Auto Light buttons simultaneously for three to four seconds. After three to four seconds, the dispenser lights will turn off.

To Deactivate Sabbath Mode:

•Press and hold both the Lock and Auto Light buttons simultaneously for three to four seconds. After three to four seconds, the dispenser lights will activate.

Notes:

•Dispenser light will not activate during dispensing while in this mode.

•If the power fails, the control will remain in Sabbath Mode when power returns.

FrontFill™ Button (select models)

The FrontFill™ button works independently of the dispenser controls, providing an up-front alternative to the dispenser pad for dispensing water. This feature is convenient for filling large items that will not fit into the dispenser area (i.e. sport bottles, pitchers, large pans, coffee pots).

This feature allows added convenience of dispensing ice and water simultaneously. To use, choose your preferred ice mode from dispenser control panel. Press container against dispenser pad while pressing the

FrontFill™ button.

18

Downloaded from www.Manualslib.com manuals search engine

Water Filter

Water Filter Removal and

Installation (select models)

WARNING

To avoid serious illness or death, do not use refrigerator where water is unsafe or of unknown quality without adequate disinfection before or after use of filter.

CAUTION

After installing a new water filter, always dispense water for two minutes before removing the filter for any reason. Air trapped in system may cause water and cartridge to eject. Use caution when removing.

•The bypass cap does not filter water. Be sure to have replacement cartridge available when filter change is required.

•If water filtration system has been allowed to freeze, replace filter cartridge.

•If system has not been used for several months, or water has an unpleasant taste or odor, flush system by dispensing water for two to three minutes. If unpleasant taste or odor persists, change filter cartridge.

Initial Installation

The water filter is located in the upper right-hand corner of the fresh food compartment.

1. Remove blue bypass cap and retain for later use.

2. Remove sealing label from end of filter and insert into filter head.

3. Rotate gently clockwise until filter stops. Snap filter cover closed.

4. Reduce water spurts by flushing air from system.

Run water continuously for two minutes through dispenser until water runs steady. During initial use,

allow about a oneto two-minute delay in water dispersal to allow internal water tank to fill.

•Additional flushing may be required in some households where water is of poor quality.

19

Replacing Water Filter

Important: Air trapped in system may cause water and cartridge to eject. Use caution when removing.

1.Turn filter counterclockwise until it releases from filter head.

2.Drain water from filter into sink, and dispose in normal household trash.

3.Wipe up excess water in filter cover and continue with Initial Installation, steps 2 and 4.

The filter should be changed at least every 12 months.

Important: Condition of water and amount used determines life span of water filter cartridge. If water use is high, or if water is of poor quality, replacement may need to take place more often.

To purchase a replacement water filter cartridge, contact your dealer or call 1-877-232-6771 USA or 1-800-688-8408 Canada.

The dispenser feature may be used without a water filter cartridge. If you choose this option, replace filter with blue bypass cap.

Downloaded from www.Manualslib.com manuals search engine

Water Filter

System Specification and Performance Data Sheet

TM Refrigerator Water Filter Cartridge Model UKF8001AXX

Specifications

Service Flow Rate (Maximum).............................................	0.78 GPM (2.9 L/min)
Rated Service Life UKF8001AXX-750 (Maximum) ......	750 gallons /2838 liters
Maximum Operating Temperature .....................................	100° F / 38° C
Minimum Pressure Requirement ........................................	35 psi / 241 kPA
Minimum Operating Temperature ......................................	33° F/ 1° C
Maximum Operating Pressure .............................................	100 psi /689 kPA
Performance Data

1000 Apollo Road

Eagan, Minnesota 55121-2240

651.450.4913

EPA EST #35917-MN-1

100834/B

Standard No. 42: Aesthetic Effects

	USEPA	Influent	Influent	Effluent		% Reduction		Min. Required
Parameter	MCL	Challenge Concentration	Average	Average	Maximum	Average	Minimum	Reduction
Chlorine	—	2.0 mg/L ± 10%	1.88 mg/L	< 0.05136364 mg/L	0.06 mg/L	>97.26%	96.84%	50%
T & O	—	—	—	—	—	—	—	—
Particulate**	—	at least 10,000 particles/ml	5,700,000 #/ml	30,583 #/ml	69,000 #/ml	99.52%	98.94%	85%
		Standard No. 53: Health Effects
	USEPA	Influent	Influent	Effluent		% Reduction		Min. Required
Parameter	MCL	Challenge Concentration	Average	Average	Maximum	Average	Minimum	Reduction
Turbidity	1 NTU**	11 ± 1 NTU***	10.7 NTU	0.31 NTU	.049 NTU	97.09%	95.20%	0.5 NTU
Cysts	99.5% Reduction	Minimum 50,000/L	166,500 #/L	<1 #/L	<1 #/L	>99.99%	>99.99%	>99.95%
Asbestos	99% Reduction	107 108 fibers/L; fibers >10 micrometers in length	155 MF/L	<1 MF/L	< 1 MF/L	>99.99%	>99.99%	99%
Lead at pH 6.5	0.015 mg/L	0.15 mg/L + 10%	0.153 mg/L	< .001 mg/L	< .001 mg/L	>99.35%	>99.29%	0.10 mg/L
Lead at pH 8.5	0.015 mg/L	0.15 mg/L + 10%	0.150 mg/L	< .001 mg/L	< .001 mg/L	>99.33%	>99.29%	0.10 mg/L
Mercury at pH 6.5	0.002 mg/L	.006 mg/L ± 10%	0.006 mg/L	0.0003 mg/L	0.0005 mg/L	95.70%	90.91%	0.002 mg/L
Mercury at pH 8.5	0.002 mg/L	.006 mg/L ± 10%	0.006 mg/L	0.0008 mg/L	0.0015 mg/L	86.22%	75.93%	0.002 mg/L
Atrazine	0.003 mg/L	0.009 mg/L + 10%	0.009 mg/L	<0.002 mg/L	0.002 mg/L	76.99%	75.31%	0.003 mg/L
Benzene	0.005 mg/L	0.015 mg/L ± 10%	0.014 mg/L	0.0006 mg/L	0.0011 mg/L	95.71%	92.14%	0.005 mg/L
Carbofuran	0.04 mg/L	0.08 mg/L ± 10%	0.081 mg/L	<0.001 mg/L	<0.001 mg/L	98.74%	98.46%	0.04 mg/L
p-Dichlorobenzene	0.075 mg/L	.225 mg/L ± 10%	0.208 mg/L	<0.0005 mg/L	<0.0005 mg/L	99.76%	99.74%	0.075 mg/L
Lindane	0.0002 mg/L	0.002 mg/L + 10%	0.002 mg/L	0.000 mg/L	<0.0001 mg/L	98.72%	96.50%	0.0002 mg/L
Toxaphene	0.003 mg/L	0.015 ± 10%	0.015 mg/L	<0.001 mg/L	<0.001 mg/L	92.97%	91.67%	0.003 mg/L

*Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of 7.5 + 0.5; temp. of 68° + 5° F (20° + 3° C)

**Measurement in Particles /ml. Particles used were 0.5 - 1 microns

***NTU - Nephelometric Turbidity Units

Tested and certified by NSF International against ANSI/NSF Standards 42 & 53 in models UKF8001AXX-750 for the reduction of:

Standard No. 42: Aesthetic Effects	Standard No. 53: Health Effects
Taste and Odor Reduction	Chemical Reduction Unit
Chlorine Taste & Odor	Lead, Atrazine, Lindane, Benzene,
Mechanical Filtration Unit	Carbofuran, p-Dichlorobenzene, Mercury
Particulate Reduction Class 1	& Toxaphene Reduction
	Mechanical Filtration Unit
	Cyst, Turbidity and Asbestos Reduction

General Use Conditions

Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs.

DO NOT use this product where water is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. System certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

USE ONLY WITH COLD WATER SUPPLY. CHECK FOR COMPLIANCE WITH THE STATE AND LOCAL LAWS AND REGULATIONS.

The PuriClean® II retractable water filtration system uses a UKF8001AXX replacement cartridge. Timely replacement of filter cartridge is essential for performance satisfaction from this filtration system. Please refer to the applicable section of your Use & Care Guide for general operation, maintenance requirements and troubleshooting. Suggested retail price of replacement water filter is $39.99.

This system has been tested according to ANSI/NSF 42 and 53 for reduction of the substance listed above. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in ANSI/NSF 42 and 53.

20

Downloaded from www.Manualslib.com manuals search engine

Water Filter

State of California

Department of Health Services

			Water Treatment Device
			Certificate Number
			03 - 1583
			Date Issued: September 16, 2003
			Date Revised: April 22, 2004
Trademark /Model Designation			Replacement Elements
		UKF8001AXX750	UKF8001AXX
469006-750			46 9006
67003523-750			67003523
Manufacturer: PentaPure Inc.

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:

Microbiological Contaminants and Turbidity		Inorganic/Radiological Contaminants
Cysts		Asbestos
Turbidity		Lead
		Mercury
Organic Contaminants
Atrazine
Lindane
Benzene
Carbofuran
p-dichlorobenzene
Toxaphene

Rated Service Capacity: 750 gal.	Rated Service Flow: 0.78 gpm

Conditions of Certification:

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

21

Downloaded from www.Manualslib.com manuals search engine

Food Storage Tips

Fresh Food Storage

•The fresh food compartment of a refrigerator should be kept between 34°- 40° F (1°- 4° C) with an optimum temperature of 37° F (3° C). To check the temperature, place an appliance thermometer in a glass of water and place in the center of the refrigerator. Check after 24 hours. If the temperature is above 40° F (4° C) adjust the controls as explained on pages 8 and 9.

•Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven cooling.

Fruits and Vegetables

•Storage in the crisper drawers traps humidity to help preserve the fruit and vegetable quality for longer time periods (see pages 12 and 13).

•Sort fruits and vegetables before storage and use bruised or soft items first. Discard those showing signs of decay.

•Always wrap odorous foods such as onions and cabbage so the odor does not transfer to other foods.

•While vegetables need a certain amount of humidity to remain fresh, too much humidity can shorten storage times (especially leafy vegetables). Drain vegetables well before storing.

•Wait to wash fresh produce until right before use.

Meat and Cheese

•Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not occur.

•Occasionally mold will develop on the surface of hard cheeses (Swiss, Cheddar, Parmesan). Cut off at least an inch around and below the moldy area. Keep your knife or instrument out of the mold itself. Do not try to save individual cheese slices, soft cheese, cottage cheese, cream, sour cream or yogurt when mold appears.

Frozen Food Storage

•The freezer compartment of a refrigerator should be kept at approximately 0° F (-17° C). To check the temperature, place an appliance thermometer between the frozen packages and check after 24 hours. If the temperature is above 0° F (-17° C), adjust the control as described on pages 8 and 9.

•A freezer operates more efficiently when it is at least 2⁄3 full.

Packaging Foods for Freezing

•To minimize dehydration and quality deterioration use aluminum foil, freezer wrap, freezer bags or airtight containers. Force as much air out of the packages as possible and be sure they are tightly sealed. Trapped air can cause the food to dry out, change color and develop an off-flavor (freezer burn).

•Overwrap fresh meats and poultry with suitable freezer wrap prior to freezing.

•Do not refreeze meat that has completely thawed.

Loading the Freezer

•Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing and can raise the temperature of frozen foods.

•Leave space between the packages so cold air can circulate freely, allowing food to freeze as quickly as possible.

•Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are best stored in the freezer interior where the temperature varies less with door openings.

Refer to the Food Storage Chart on pages 23 and 24 for approximate storage times.

Dairy Food

•Most dairy foods such as milk, yogurt, sour cream and cottage cheese have freshness dates on their cartons for appropriate length of storage. Store these foods in the original carton and refrigerate immediately after purchasing and after each use.

22

Downloaded from www.Manualslib.com manuals search engine

Food Storage Tips

Food Storage Chart

Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality of the food when purchased.

FOODS	REFRIGERATOR	FREEZER	STORAGE TIPS
DAIRY PRODUCTS
Butter	1 month	6 to 9 months	Wrap tightly or cover.
Milk and cream	1 week	Not recommended	Check carton date. Close tightly.
			Do not return unused portions to
			original container. Do not freeze
			cream unless whipped.
Cream cheese, cheese	1 to 2 weeks	Not recommended	Wrap tightly.
spread and cheese food
Cottage cheese	3 to 5 days	Not recommended	Store in original carton.
			Check carton date.
Sour cream	10 days	Not recommended	Store in original carton.
			Check carton date.
Hard cheese	1 to 2 months	4 to 6 months	Wrap tightly.
(Swiss, Cheddar and Parmesan)		May become	Cut off any mold.
		crumbly
EGGS
Eggs in the shell	3 weeks	Not recommended	Refrigerate small ends down.
Leftover yolks or whites	2 to 4 days	9 to 12 months	For each cup of yolks to be frozen,
			add 1 tsp. sugar for use in sweet, or
			1 tsp. salt for non-sweet dishes.
FRUITS
Apples	1 month	8 months (cooked)	May also store unripe or hard apples
			at 60° to 70° F (16° to 21° C).
Bananas	2 to 4 days	6 months	Ripen at room temperature before
		(whole/peeled)	refrigerating. Note: Bananas will
			darken when refrigerated.
Pears, plums, avocados	3 to 4 days	Not recommended	Ripen at room temperature before
			refrigerating. Note: Avocados will
			darken when refrigerated.
Berries, cherries, apricots	2 to 3 days	6 months	Ripen at room temperature before
			refrigerating.
Grapes	3 to 5 days	1 month (whole)	Ripen at room temperature before
			refrigerating.
Citrus fruits	1 to 2 weeks	Not recommended	May also store at 60° to 70° F
			(16° to 21° C).
			If refrigerated, store uncovered.
Pineapples, cut	2 to 3 days	6 to 12 months	Will not ripen after purchase.
			Use quickly.

23

Downloaded from www.Manualslib.com manuals search engine

Food Storage Tips

	FOODS	REFRIGERATOR	FREEZER	STORAGE TIPS
	VEGETABLES
	Asparagus	1 to 2 days	8 to 10 months	Do not wash before refrigerating.
				Store in crisper.
	Brussels sprouts, broccoli,	3 to 5 days	8 to 10 months	Wrap odorous foods.
	cauliflower, green peas,			Leave peas in pods.
	lima beans, onions, peppers
	Cabbage, celery	1 to 2 weeks	Not recommended	Wrap odorous foods and refrigerate
				in crisper.
	Carrots, parsnips, beets and	7 to 10 days	8 to 10 months	Remove tops. Wrap odorous foods
	turnips			and refrigerate in the crisper.
	Lettuce	7 to 10 days	Not recommended
	POULTRY and FISH
	Chicken and turkey, whole	1 to 2 days	12 months	Keep in original packaging for
				refrigeration. Place in the meat and
	Chicken and turkey, pieces	1 to 2 days	9 months
				cheese drawer. When freezing longer
	Fish	1 to 2 days	2 to 6 months
				than two weeks, overwrap with
				freezer wrap.
	MEATS
	Bacon	7 days	1 month
	Beef or lamb, ground	1 to 2 days	3 to 4 months	Fresh meats can be kept in original
				packaging for refrigeration.
	Beef or lamb, roast and steak	3 to 5 days	6 to 9 months	Place in the meat and cheese drawer.
				When freezing longer than two
				weeks, overwrap with freezer wrap.
	Ham, fully cooked, whole	7 days	1 to 2 months
	half	5 days	1 to 2 months
	slices	3 days	1 to 2 months
	Luncheon meat	3 to 5 days	1 to 2 months	Unopened, vacuum-packed luncheon
				meat may be kept up to two weeks
				in the meat and cheese drawer.
	Pork, roast	3 to 5 days	4 to 6 months
	Pork, chops	3 to 5 days	4 months
	Sausage, ground	1 to 2 days	1 to 2 months
	Sausage, smoked	7 days	1 to 2 months
	Veal	3 to 5 days	4 to 6 months
	Frankfurters	7 days	1 month	Processed meats should be tightly
				wrapped and stored in the meat and
				cheese drawer.

Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa State University

24

Downloaded from www.Manualslib.com manuals search engine

Care and Cleaning

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before cleaning. After cleaning, reconnect power.

Refrigerator Cleaning Chart

CAUTION

To avoid personal injury or property damage, observe the following:

•Read and follow manufacturer’s directions for all cleaning products.

•Do not place buckets, shelves or accessories in dishwasher. Cracking or warping of accessories may result.

	PART	DO NOT USE	DO
	Smooth or Textured Painted	Abrasive or harsh cleaners	Use 4 tablespoons of baking soda dissolved in 1
	Doors and Exterior	Ammonia	quart (1 liter) warm, soapy water.
	(select models)	Chlorine bleach	Rinse surfaces with clean, warm water and dry
	Damage to finish due to improper	Concentrated detergents	immediately to avoid water spots.
		or solvents
	use of cleaning products or
		Metal or plastic-textured
	non-recommended products
		scouring pads
	is not covered under this
	product’s warranty.
	Cabinet Interior
	Stainless Steel Doors	Abrasive or harsh cleaners	Use warm, soapy water and a soft, clean cloth or
	and Exterior (select models)	Ammonia	sponge.
	Important:	Chlorine bleach	Rinse surfaces with clean, warm water and dry
	Damage to stainless steel	Concentrated detergents or	immediately to avoid water spots.
	finish due to improper use	solvents	To polish and help prevent fingerprints, follow with
	of cleaning products or	Metal or plastic-textured	Stainless Steel Magic Spray (part no. 20000008*).
	non-recommended products	scouring pads
	is not covered under this	Vinegar-based products
	product’s warranty.	Citrus-based cleaners
	Door Gaskets	Abrasive or harsh cleaners	Use warm, soapy water and a soft, clean cloth or
		Metal or plastic-textured	sponge.
		scouring pads
	Condenser Coil	Anything other than a vacuum	Use a vacuum cleaner hose nozzle.
	Remove base grille to access.
		cleaner
	Condenser Fan Outlet Grille		Use a vacuum cleaner hose nozzle with brush
	See back of refrigerator.		attachment.
	Accessories	A dishwasher	Follow removal and installation instructions from
	Shelves, buckets,		appropriate feature section.
	drawers, etc.		Allow items to adjust to room temperature.
			Dilute mild detergent and use a soft, clean cloth or
			sponge for cleaning.
			Use a plastic bristle brush to get into crevices. Rinse
			surfaces with clean, warm water.
			Dry glass and clear items immediately to avoid spots.

* To order, call 1-877-232-6771 USA or 1-800-688-8408 Canada.

25

Downloaded from www.Manualslib.com manuals search engine

Care and Cleaning

Removing Odors From Refrigerator

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before cleaning. After cleaning, reconnect power.

1.Remove all food and turn the refrigerator OFF.

2.Disconnect power to the refrigerator.

3.Clean the walls, floor, ceiling of cabinet interior, drawers, shelves and gaskets according to the instructions (see page 25).

4.Dilute mild detergent and brush solution into crevices using a plastic bristle brush. Let stand for five minutes. Rinse surfaces with warm water. Dry surfaces with a soft, clean cloth.

5.Wash and dry all bottles, containers and jars. Discard spoiled or expired items.

6.Wrap or store odor-causing foods in tightly sealed containers to prevent reoccurring odors.

7.Reconnect power to refrigerator and return food to refrigerator.

8.Allow the refrigerator to cool.

9.After 24 hours, check if odor has been eliminated.

If odor is still present:

1.Remove drawers and place on top shelf of refrigerator.

2.Pack refrigerator and freezer sections – including doors – with crumpled sheets of black and white newspaper.

3.Place charcoal briquettes randomly on crumpled newspaper in both freezer and refrigerator compartments.

4.Close doors and let stand 24 to 48 hours.

Energy Saving Tips

•Avoid overcrowding refrigerator shelves. This reduces air circulation around food and causes refrigerator to run longer.

•Avoid adding too much warm food to refrigerator at one time. This overloads compartments and slows rate of cooling.

•Do not use aluminum foil, wax paper, or paper toweling as shelf liners. This decreases air flow and causes refrigerator to run less efficiently.

•A freezer that is two-thirds full runs most efficiently.

•Locate refrigerator in coolest part of room. Avoid areas of direct sunlight, or near heating ducts, registers or other heat producing appliances. If this is not possible, isolate exterior by using a section of cabinet or an added layer of insulation.

•Clean door gaskets every three months according to cleaning instructions. This will assure that door seals properly and refrigerator runs efficiently.

•Take time to organize items in refrigerator to reduce time that door is open.

•Be sure your doors are closing securely by leveling refrigerator as instructed in your installation instructions.

•Clean condenser coils as indicated in the cleaning instructions every three months. This will increase energy efficiency and cooling performance.

26

Downloaded from www.Manualslib.com manuals search engine

Care and Cleaning

Replacing Light Bulbs

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before replacing light bulb. After replacing light bulb, reconnect power.

CAUTION

To avoid personal injury or property damage, observe the following:

•Allow light bulb to cool.

•Wear gloves when replacing light bulb.

Upper Freezer Section

1. Remove ice bin by lifting front of bin and pulling out.

2.Remove light shield by pressing the upper

right side of the shield and rotating downward.

3.Remove light bulb. Replace with appliance bulb no greater than 40 watts.

4.Rotate the shield upward, press in slightly and snap into place.

5.Replace ice bin by sliding in until bin locks into place.

Upper Fresh Food Section

The upper fresh food light bulbs are located behind the front panel. Reach behind the panel to remove the bulbs.

Lower Fresh Food Section

1. Push up on bottom tabs on light cover. Rotate cover up and release tabs.

2.Remove light bulb.

3.Replace bulb with appliance bulb

no greater than 40 watts.

4. Insert top tabs of light cover into liner slots and snap bottom tabs into liner slots.

Lower Freezer Section

1.Pinch both sides of light cover to remove.

2.Remove light bulb. Replace with appliance bulb no greater than 40 watts.

3.Pinch both sides of the light cover to snap into place.

Ice and Water Dispenser

1. Locate light bulb inside top edge of dispenser frame. Unscrew to remove.

2. Replace light bulb with a

7-watt, 120 volt bulb.

Light Bulb

Location

27

Downloaded from www.Manualslib.com manuals search engine

Care and Cleaning

Preparing for Vacation

CAUTION

If your refrigerator has a dispenser and there is any possibility that the temperature can drop below freezing where the refrigerator is located, the water supply system (including the water tank and the water valve) must be drained by a qualified servicer.

For short vacations or absences (three months or less):

1.Remove all perishables.

2.If no one will be checking in on the refrigerator during your absence, remove all frozen items also.

3.If your refrigerator has an automatic ice maker:

•Shut off the water supply to the ice maker at least one day ahead of time.

•After the last load of ice drops, raise the wire shut off arm to the OFF position.

•Empty the ice bin.

4.If the room temperature will drop below 55° F

(12° C), follow the instructions for longer absences.

For long vacations, absences (more than three months) OR if the room temperature will drop below 55° F (12° C):

1.Remove food.

2.If your refrigerator has an automatic ice maker:

•Shut off the water supply to the ice maker at least one day ahead of time.

•After the last load of ice drops, raise the wire shut off arm to the OFF position.

•Empty the ice bin.

3.If your refrigerator has a dispenser system with water filter, remove the water filter cartridge and install the filter bypass. Dispose of the used cartridge.

4.Turn the Freezer control to OFF.

5.Unplug the refrigerator.

6.Thoroughly clean the interior of both compartments with a baking soda solution and a clean, soft cloth (four tablespoons of baking soda in one quart of warm water.).

7.Dry thoroughly.

8.Leave the doors open to prevent the formation of mold and mildew.

Upon Your Return:

After a Short Vacation or Absence:

For models with automatic ice makers or dispensers:

•Reconnect the water supply and turn on supply valve (see pages 5-6).

•Monitor water connection for 24 hours and correct leaks if necessary.

•Run 10-15 glasses of water from the dispenser to flush out the system.

•Restart the ice maker.

•Discard at least the first three ice harvests.

After a Long Vacation or Absence:

•If your refrigerator has an automatic ice maker, reconnect the water supply and turn on supply valve (see pages 5-6).

•Plug the refrigerator back in and reset controls (see pages 8, 9 and 10).

•Monitor water connection for 24 hours and correct leaks, if necessary.

For dispenser models, run water through the dispenser for at least three minutes with the filter bypass in place, then install water filter (see page 19).

•After installing the water filter, run water through the dispenser continuously for at least two minutes, or until water runs steady. Initially you may notice a one to two minute delay in water dispersal as the internal tanks fills.

•Restart the ice maker.

•Discard ice produced within the first 12 hours (at least the first three harvests).

Preparing to Move

•Follow the instructions for long vacations/absences, through step 7.

•Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.

•Tape the doors shut.

•Use an appliance dolly when moving the refrigerator. ALWAYS truck the refrigerator from its side or backNEVER from its front.

•Be sure the refrigerator stays in an upright position during moving.

28

Downloaded from www.Manualslib.com manuals search engine

Operating Sounds

Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not present in an older model. These improvements were made to create a refrigerator that is better at preserving food, is more energy efficient, and is quieter overall. Because new units run quieter, sounds may be detected that were present in older units, but were masked by higher sound levels. Many of these sounds are normal. Please note that the surfaces adjacent to a refrigerator, such as hard walls, floors and cabinetry may make these sounds seem even louder. The following are some of the normal sounds that may be noticed in a new refrigerator.

SOUND		POSSIBLE CAUSE		SOLUTION
Clicking	•	Freezer control (A) clicks when starting or	•	Normal operation
		stopping compressor.
	•	Defrost timer or electric damper control (select	•	Normal operation
		models) (B) sounds like an electric clock and
		snaps in and out of defrost cycle.
Air rushing	• Condenser fan (D) makes this noise while		• Normal operation
or whirring		operating.
	• Freezer fan (C) makes this noise while operating.		• Normal operation
	• Freezer fan (C) slows to a stop as the freezer		• Normal operation
		door is opened.
Gurgling or	• Evaporator (E) and heat exchanger (F)		• Normal operation
boiling sound		refrigerant make this noise when flowing.
Thumping	• Ice cubes from ice maker drop into ice bucket (G).		• Normal operation
	• Dispenser ice chute (H) closing.		• Normal operation
Vibrating	• Compressor (I) makes a pulsating sound while		• Normal operation
noise		running.
	•	Refrigerator is not level.	•	See Leveling, pages 4-5.
Buzzing	• Ice maker water valve (J) hookup buzzes when		• Normal operation
		ice maker fills with water.
Humming	•	Ice maker (K) is in the ‘on’ position without water	•	Normal operation
		connection.
	• Ice auger (L) hums as auger agitates ice during		• Stop sound by raising ice maker arm to
		dispensing.		OFF position. See Automatic Ice Maker,
				page 16 for details.
	• Compressor (I) can make a high-pitched hum		• Normal operation
		while operating.
	• Solenoid valve (M) operating ice chute door.		• Normal operation

29

Downloaded from www.Manualslib.com manuals search engine
