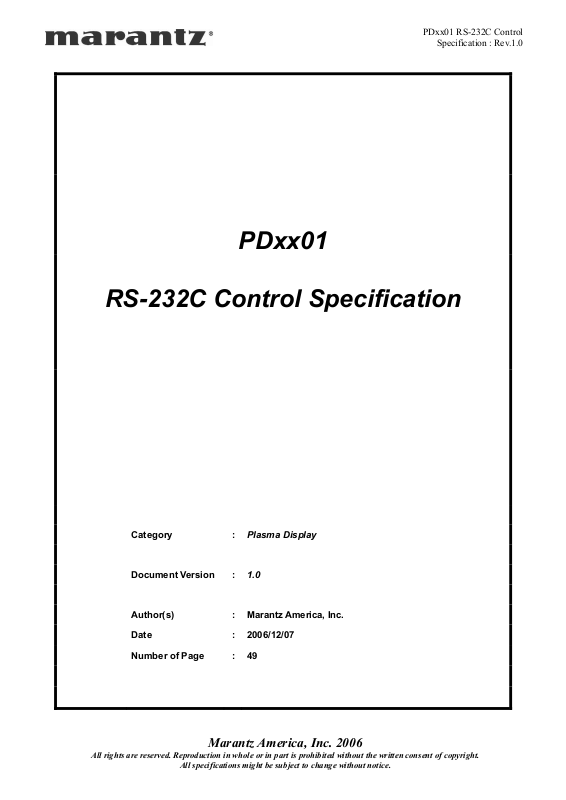

PDxx01 RS-232C Control
Specification : Rev.1.0
PDxx01
RS-232C Control Specification
Category :
Document Version :
Author(s) : Marantz America, Inc.
Date : 2006/12/07
Plasma Display
1.0
Number of Page : 49
Marantz America, Inc. 2006
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of copyright.
All specifications might be subject to change without notice.
PDxx01 RS-232C Control Specification Page: 2 / 49
Document Version [1.0]
Table of Contents
1. Application........................................................................................................................................... 4
2. Connections......................................................................................................................................... 4
2-1. Connector on the plasma monitor side: EXTERNAL CONTROL connector. ................................................ 4
2-2. Connector on the external equipment side: Serial port (RS-232C) connector.............................................. 4
2-3. Wiring............................................................................................................................................................. 4
2-4. Communication Parameters .......................................................................................................................... 4
3. Communication Format...................................................................................................................... 5
3-1. Command1 .................................................................................................................................................... 5
3-2. Unit ID1,2 (UA1,UA2) .................................................................................................................................... 5
3-3. Command 2 ................................................................................................................................................... 5
3-4. Check Sum (CKS), Error Processing, and ACK............................................................................................ 5
4. Command Reference List................................................................................................................... 6
5. Command............................................................................................................................................. 8
5-1. Power ON ...................................................................................................................................................... 8
5-2. Power OFF .................................................................................................................................................... 8
5-3. Input Switch Change ..................................................................................................................................... 8
5-4. VOLUME Gain Data ...................................................................................................................................... 9
5-5. AUDIO Mute ON............................................................................................................................................ 9
5-6. AUDIO Mute OFF .......................................................................................................................................... 9
5-7. CONTRAST Gain Data................................................................................................................................ 10
5-8. BRIGHT Gain Data...................................................................................................................................... 10
5-9. SHARPNESS Gain Data ..............................................................................................................................11
5-10. COLOR Gain Data........................................................................................................................................11
5-11. TINT Gain Data............................................................................................................................................ 12
5-12. PICTURE MODE Select.............................................................................................................................. 12
5-13. COLOR TEMP SELECT.............................................................................................................................. 13
5-14. RED Gain Data............................................................................................................................................ 13
5-15. GREEN Gain Data....................................................................................................................................... 14
5-16. BLUE Gain Data.......................................................................................................................................... 14
5-17. NR MODE Set ............................................................................................................................................. 15
5-18. BASS Gain Data.......................................................................................................................................... 15
5-19. TREBLE Gain Data ..................................................................................................................................... 16
5-20. BALANCE Gain Data................................................................................................................................... 16
5-21. SCREEN MODE Select............................................................................................................................... 17
5-22. V. POSITION Gain Data .............................................................................................................................. 17
5-23. H. POSITION Gain Data.............................................................................................................................. 18
5-24. V. HEIGHT Gain Data.................................................................................................................................. 18
5-25. H. WIDTH Gain Data................................................................................................................................... 18
5-26. AUTO PICTURE Select............................................................................................................................... 19
5-27. PHASE (FINE PICTURE) Gain Data........................................................................................................... 19
5-28. CLOCK (PICTURE ADJUST) Gain Data..................................................................................................... 20
5-29. OSM ADJ. POSITION Data ......................................................................................................................... 20
5-30. POWER MGT Select................................................................................................................................... 20
5-31. GRAY LEVEL Set ........................................................................................................................................ 21
5-32. CINEMA MODE Set..................................................................................................................................... 21
5-33. LONG LIFE Set (PDP SAVER Set) ............................................................................................................. 21
5-34. SCREEN WIPER Set .................................................................................................................................. 22
5-35. ALL RESET ................................................................................................................................................. 22
5-36. Audio Select Set.......................................................................................................................................... 23
5-37. RGB Select.................................................................................................................................................. 24
Company Restricted
PDxx01 RS-232C Control Specification Page: 3 / 49
Document Version [1.0]
HD Select..................................................................................................................................................... 26
5-38.
5-39. LANGUAGE Select...................................................................................................................................... 26
5-40. COLOR SYSTEM Select............................................................................................................................. 27
5-41. FREQUENCY Request (SIGNAL INFORMATION)..................................................................................... 27
5-42. Input MODE Request .................................................................................................................................. 29
5-43. VIDEO ADJ. Request .................................................................................................................................. 29
5-44. Audio Select Request.................................................................................................................................. 31
5-45. Failure Mode Request ................................................................................................................................. 32
5-46. MODEL NAME Request .............................................................................................................................. 33
5-47. LOW TONE (50inch only)............................................................................................................................ 34
5-48. COLOR TUNE ............................................................................................................................................. 34
5-49. GAMMA GAIN Data..................................................................................................................................... 35
5-50. Running Sense............................................................................................................................................ 35
5-51. OSM ORBITER ........................................................................................................................................... 36
5-52. Input Skip..................................................................................................................................................... 36
5-53. SERIAL No. Request................................................................................................................................... 36
5-54. S1/S2 SELECT............................................................................................................................................ 37
5-55. SOFT FOCUS.............................................................................................................................................. 37
5-56. BLACK LEVEL SELECT.............................................................................................................................. 37
5-57. MULTI (SPRIT) SCREEN Select................................................................................................................. 38
5-58. SUB PICTURE DETECT SELECT.............................................................................................................. 39
5-59. ZOOM NAVIGATION SELECT.................................................................................................................... 40
5-60. PICTURE FREEZE SELECT....................................................................................................................... 40
5-61. PICTURE FREEZE (Pause) Command ...................................................................................................... 41
5-62. OSM CONTRAST SELECT......................................................................................................................... 41
5-63. CC (Closed caption) SELECT ..................................................................................................................... 41
5-64. CC (Closed caption) CONTRAST SELECT ................................................................................................ 42
5-65. PICTURE MEMORY Select......................................................................................................................... 42
5-66. PICTURE MEMORY Set ............................................................................................................................. 43
5-67. PICTURE MEMORY NOTE WRITE Set...................................................................................................... 43
5-68. SET UP LEVEL SELECT............................................................................................................................. 44
5-69. BACK GROUND SELECT........................................................................................................................... 44
5-70. PDP SAVER AUTO Select........................................................................................................................... 45
5-71. Audio HDMI Request................................................................................................................................... 45
5-72. POWER ON MODE (INPUT)....................................................................................................................... 45
5-73. POWER ON MODE (VOLUME).................................................................................................................. 46
5-74. 74. SUB PICTURE RATE set ...................................................................................................................... 46
5-75. MULTI (SPRIT) SCREEN POWER ON MODE SET................................................................................... 47
5-76. REMOTE CODE SETTING ......................................................................................................................... 48
5-77. VOLUME Gain Data REQUEST.................................................................................................................. 48
5-78. UNDER SCAN SETTING ............................................................................................................................ 48
6. Revision history ................................................................................................................................ 49
Company Restricted
PDxx01 RS-232C Control Specification Page: 4 / 49
r
Document Version [1.0]
1. Application
These specifications are applicable to plasma monitors and communications control from external equipment.
"Please also support the command of VP series and refer to the manual of the conventional model about
specification."
2. Connections
Connections should be made as described below.
plasma monitor
2-1. Connector on the plasma monitor side: EXTERNAL CONTROL connector.
Type of connector: D-Sub 9-pin male
No. Pin Name
1 No Connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
2-2. Connector on the external equipment side: Serial port (RS-232C) connector.
See the specifications of the equipment that is to be connected for the type of connector and pin assignment.
2-3. Wiring
Use a crossed (reverse) cable.
Wire the cable so that each pair of data lines crosses between the two devices. These data line pairs are RXD (Receive data)
and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to
send).
2-4. Communication Parameters
(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex
External equipment
e.g., Personal compute
Company Restricted
PDxx01 RS-232C Control Specification Page: 5 / 49
m
Document Version [1.0]
3. Communication Format
8bit 8bit 8bit 8bit 8bit 8bit 8bit 8bit
Command 1
Unit ID 1
Unit ID 2
Command 2
Data length
Data
Check su
3-1. Command1
Command 1, along with command 2, is a number used to distinguish each command.
Bit1, Bit0: 11B or 10B :Usually, a form
In the case of ACK, when the lower order 4 bits is FH (as in 3FH and 7FH), this indicates that the commands and data of the
supported equipment have been received. When the lower order 4 bits is BH (as in 3BH and 7BH), this indicates that
unsupported commands and data have been received.
3-2. Unit ID1,2 (UA1,UA2)
Unit ID 1 and unit ID 2 are numbers used to identify the equipment that is to be connected.
60H is used for the plasma monitor and 80H is used for external control equipment such as a personal computer.
3-3. Command 2
Command 2, along with command 1, is a number used to distinguish each command.
3-4. Check Sum (CKS), Error Processing, and ACK
1) The check sum described below and RS-232C odd parity are used together for a check of the received data. The check
sum is the lower order 8 bits of one frame of sent or received data comprising the sum total of Command 1, Unit ID 1 and
2, Command 2, Data Length, and Data.
Check Sum Example
DFH 80H 60H 47H 01H 01H 08H
Command1 Unit ID1 Unit ID2 Command2 Data Length Data Check Sum
Total 208H
2) Error Processing
• When the communication interval is vacant for more than 4 ms, thereafter a received Command 1 will be recognized. If,
at this time, meaningful data cannot be recognized, that data will not be recognized (as valid data).
• An ACK will not be returned unless the receive data error, the check sum error, and the receive data are all taken in.
Company Restricted
PDxx01 RS-232C Control Specification Page: 6 / 49
Document Version [1.0]
4. Command Reference List
CMD1 CMD2 LEN
01 Power ON 9FH 4EH 00H
02 Power OFF 9FH 4FH 00H
03 Input Switch Change DFH 47H 01H
04 VOLUME Gain Data DFH 7FH 03H
05 AUDIO Mute ON 9FH 3EH 00H
06 AUDIO Mute OFF 9FH 3FH 00H
07 CONTRAST Gain Data DFH 7FH 03H
08 BRIGHT Gain Data DFH 7FH 03H
09 SHARPNESS Gain Data DFH 7FH 03H
10 Color Gain Data DFH 7FH 03H
11 TINT Gain Data DFH 7FH 03H
12 PICTURE MODE Select DFH 0AH 01H
13 COLOR TEMP SELECT DFH 00H 01H
14 RED Gain Data DFH 7FH 04H
15 GREEN Gain Data DFH 7FH 04H
16 BLUE Gain Data DFH 7FH 04H
17 NR MODE Set DFH C0H 01H
18 BASS Gain Data DFH 7FH 03H
19 TREBLE Gain Data DFH 7FH 03H
20 BALANCE Gain Data DFH 7FH 03H
21 SCREEN MODE Select DFH 51H 01H
22 V.POSITION Gain Data DFH 7FH 03H
23 H.POSITION Gain Data DFH 7FH 03H
24 V-HEIGHT Gain Data DFH 7FH 03H
25 H-WIDTH Gain Data DFH 7FH 03H
26 AUTO PICTURE Select DFH 7FH 03H
27 PHASE Gain Data (FINE PICTURE Set) DFH 7FH 03H
28 CLOCK Gain Data (PICTURE ADJUST Set) DFH 7FH 03H
29 OSM ADJ. position Data DFH 1AH 02H
30 POWER MGT Select DFH 1AH 02H
31 GRAY LEVEL Set DFH C6H 01H
32 CINEMA MODE Set DFH C1H 01H
33 LONG LIFE Set (PDP SAVER Set) DFH 6BH 03H
34 SCREEN WIPER Set DFH C8H 04H
35 ALL RESET 1FH 54H 00H
36 Audio Select Set DFH 70H 02H
37 RGB Select DFH 8BH 01H
38 HD Select DFH 8AH 01H
39 LANGUAGE Select DFH 5BH 01H
40 COLOR SYSTEM Select DFH 5CH 01H
41 FREQUENCY Request 1FH 26H 00H
42 Input MODE Request 1FH 41H 00H
43 VIDEO ADJ Request 1FH 45H 00H
44 Audio Select Request 1FH 6FH 00H
45 Failure Mode Request 1FH 3FH 00H
46 MODEL NAME Request 1FH 17H 00H
47 LOW TONE DFH 0CH 01H
48 COLOR TUNE DFH 0DH 08H
49 GAMMA Gain Data DFH 13H 04H
50 Running Sense 1FH 88H 00H
51 OSM OBITER DFH 5FH 01H
52 Input Skip 5FH 61H 01H
53 SERIAL No. Request 1FH 15H 00H
54 S1/S2 SELECT DFH 89H 01H
55 SOFT FOCUS DFH 65H 01H
56 BLACK LEVEL (DIGITAL SIGNAL LEVEL) DFH 8FH 01H
57 MULTI(SPRIT) SCREEN Select DFH 07H 01H
58 SUB.P DETECT DFH 7AH 01H
59 ZOOM NAV DFH 7BH 01H
Company Restricted
PDxx01 RS-232C Control Specification Page: 7 / 49
Document Version [1.0]
60 PICTURE FREEZE DFH 7CH 01H
61 PAUSE COMMAND DFH 7DH 01H
62 OSM CONTRAST DFH 37H 01H
63 CLOSED CAPTION DFH 3CH 01H
64 CAPTION CONTRAST DFH 3DH 01H
65 PICTURE MEMORY Select DFH 38H 01H
66 PICTURE MEMORY Set DFH 25H 02H
67 PICTURE MEMORY NOTE WRITE DFH 2DH 0CH
68 SET UP LEVEL DFH 35H 01H
69 BACK GROUND DFH 36H 01H
70 PDP SAVER AUTO select DFH 2CH 01H
71 Audio HDMI Request 1FH 3AH 00H
72 POWER ON MODE (INPUT) DFH 63H 04H
73 POWER ON MODE (VOLUME) DFH 0FH 01H
74 SUB PICTURE RATE set DFH DAH 02H
75 MULTI (SPRIT) SCREEN POWER ON MODE SET DFH 33H 04H
76 REMOTE ID CODE SETTING DFH 2BH 01H
77 VOLUME Gain Request 1FH 0EH 00H
78 UNDER SCAN SETTING DFH 22H 01H
Company Restricted
PDxx01 RS-232C Control Specification Page: 8 / 49
Document Version [1.0]
5. Command
5-1. Power ON
Function
The external control equipment switches on the power of the plasma monitor.
Transmission Data
9FH 80H 60H 4EH 00H CKS
ACK
The plasma monitor returns the following ACK when the power is switched on.
3FH 60H 80H 4EH 00H CKS
NOTE: Do not set the Power ON or Power OFF command continuously.
5-2. Power OFF
Function
The external control equipment switches off the power of the plasma monitor.
Transmission Data
9FH 80H 60H 4FH 00H CKS
ACK
The plasma monitor returns the following ACK when the power is switched off.
3FH 60H 80H 4FH 00H CKS
NOTE: Do not set the Power ON or Power OFF command continuously.
5-3. Input Switch Change
Function
The external control equipment switches the input of the plasma monitor.
Transmission Data
DFH 80H 60H 47H 01H DATA00 CKS
DATA00 : Input Select 01H : Video1
02H : Video2
05H : DVD/HD1
06H : DVD/HD2
07H : PC/RGB
0EH : DVD/HD3(HDMI)
1AH : DVD/HD4(HDMI)
ACK
The plasma monitor returns the following ACK when the input is switched.
3FH 60H 80H 47H 00H CKS
Company Restricted
PDxx01 RS-232C Control Specification Page: 9 / 49
Document Version [1.0]
5-4. VOLUME Gain Data
Function
The external control equipment changes the VOLUME gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER SOUND Gain Flag 05H
DATA01: VOLUME Gain Flag 01H
DATA02: VOLUME Gain 00H: Step0
:
0AH: Step10 (Default)
:
2AH: Step42
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER SOUND Gain Flag 05H
DATA01: VOLUME Gain Flag 01H
5-5. AUDIO Mute ON
Function
The external control equipment switches on AUDIO Mute of the plasma monitor.
Transmission Data
9FH 80H 60H 3EH 00H CKS
ACK
3FH 60H 80H 3EH 00H CKS
5-6. AUDIO Mute OFF
Function
The external control equipment switches off AUDIO Mute of the plasma monitor.
Transmission Data
9FH 80H 60H 3FH 00H CKS
ACK
3FH 60H 80H 3FH 00H CKS
Company Restricted
PDxx01 RS-232C Control Specification Page: 10 / 49
Document Version [1.0]
5-7. CONTRAST Gain Data
Function
The external control equipment changes the CONTRAST gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: CONTRAST Gain Flag 07H
DATA02: CONTRAST Gain CCH: -52
:
FFH: -01
00H: 0
01H: +01
:
14H: +20
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: CONTRAST Gain Flag 07H
5-8. BRIGHT Gain Data
Function
The external control equipment changes the BRIGHT gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BRIGHT Gain Flag 08H
DATA02: BRIGHT Gain E0H: -32
:
FFH: -01
00H: 0
01H: +01
:
20H: +32
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BRIGHT Gain Flag 08H
Company Restricted
PDxx01 RS-232C Control Specification Page: 11 / 49
Document Version [1.0]
5-9. SHARPNESS Gain Data
Function
The external control equipment changes the SHARPNESS gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: SHARPNESS Gain Flag 06H
DATA02: SHARPNESS Gain F0H: -16
:
FFH: -01
00H: 0
01H: +01
:
10H: +16
Only when a RGB signal is connected
DATA02 : SHARPNESS Gain 01H: 1
02H: 2
03H: 3
04H: 4
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: SHARPNESS Gain Flag 06H
5-10. COLOR Gain Data
Function
The external control equipment changes the COLOR gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: COLOR Gain Flag 04H
DATA02: COLOR Gain E0H: -32
:
FFH: -01
00H: 0
01H: +01
:
20H: +32
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: COLOR Gain Flag 04H
Company Restricted
PDxx01 RS-232C Control Specification Page: 12 / 49
Document Version [1.0]
5-11. TINT Gain Data
Function
The external control equipment changes the TINT gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: TINT Gain Flag 05H
DATA02: TINT Gain E0H: -32
:
* TINT Gain is from -22 (EAH) to FFH: -01
+22 (16H) only during video. 00H: 0
01H: +01
:
20H: +32
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: TINT Gain Flag 05H
5-12. PICTURE MODE Select
Function
The external control equipment sets the picture mode of the plasma monitor.
Transmission Data
DFH 80H 60H 0AH 01H DATA00 CKS
DATA00: 01H: NORMAL
02H: THEATER1 (It cannot choose in the still picture input of a personal computer.)
03H: THEATER2 (It cannot choose in the still picture input of a personal computer.)
04H: Default
05H: Bright
ACK
7FH 60H 80H 0AH 01H DATA00 CKS
DATA00: 01H: NORMAL
02H: THEATER1
03H: THEATER2
04H: Default
05H: Bright
Company Restricted
PDxx01 RS-232C Control Specification Page: 13 / 49
Document Version [1.0]
5-13. COLOR TEMP SELECT
Function
The external control equipment changes the COLOR TEMP of the plasma monitor.
Transmission Data
DFH 80H 60H 00H 01H DATA00 CKS
DATA00: 00H: low
01H: middle
02H: high
03H: middle low
ACK
7FH 60H 80H 00H 01H DATA00 CKS
DATA00: 00H: low
01H: middle
02H: high
03H: middle low
5-14. RED Gain Data
Function
The external control equipment changes the RED Gain Data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: RED Gain Flag 01H
DATA02: RED Gain 1(Bias) D8H : -40
:
FFH : -01
00H : 0
01H : +01
:
1EH : +30
DATA03: RED Gain 2(Drive) D8H : -40
:
FFH : -01
00H : 0
01H : +01
:
1EH : +30
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: RED Gain Flag 01H
Company Restricted
PDxx01 RS-232C Control Specification Page: 14 / 49
Document Version [1.0]
5-15. GREEN Gain Data
Function
The external control equipment changes the GREEN Gain Data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: GREEN Gain Flag 02H
DATA02: GREEN Gain1 (Bias) D8H: -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
DATA03: GREEN Gain2(Drive) D8H : -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: GREEN Gain Flag 02H
5-16. BLUE Gain Data
Function
The external control equipment changes the BLUE Gain Data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 04H DATA00 to DATA03 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BLUE Gain Flag 03H
DATA02: BLUE Gain1 (Bias) D8H :-40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
DATA03: BLUE Gain2 (Drive) D8H:-40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 01H
DATA01: BLUE Gain Flag 03H
Company Restricted
PDxx01 RS-232C Control Specification Page: 15 / 49
Document Version [1.0]
5-17. NR MODE Set
Function
The external control equipment sets the NR (Noise Reduction) mode of the plasma monitor.
Transmission Data
DFH 80H 60H C0H 01H DATA00 CKS
DATA00: 01H: NR OFF
02H: NR-1
03H: NR-2
04H: NR-3
ACK
7FH 60H 80H C0H 01H DATA00 CKS
DATA00: 01H: NR OFF
02H: NR-1
03H: NR-2
04H: NR-3
5-18. BASS Gain Data
Function
The external control equipment changes the BASS gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BASS Gain Flag 03H
DATA02: BASS Gain F3H: -13
:
FFH : -01
00H: 0
01H: +01
:
0DH : +13
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BASS Gain Flag 03H
Company Restricted
PDxx01 RS-232C Control Specification Page: 16 / 49
Document Version [1.0]
5-19. TREBLE Gain Data
Function
The external control equipment changes the TREBLE gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA0 CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: TREBLE Gain Flag 04H
DATA02: TREBLE Gain F3H: -13
:
FFH: -01
00H: 0
01H: +01
:
0DH: +13
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: TREBLE Gain Flag 04H
5-20. BALANCE Gain Data
Function
The external control equipment changes the BALANCE gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BALANCE Gain Flag 02H
DATA02: BALANCE Gain EAH: -22
:
FFH: -01
00H: 0
01H: +01
:
16H: +22
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 05H
DATA01: BALANCE Gain Flag 02H
Company Restricted
PDxx01 RS-232C Control Specification Page: 17 / 49
Document Version [1.0]
5-21. SCREEN MODE Select
Function
The external control equipment switches the screen mode of the plasma monitor.
Transmission Data
DFH 80H 60H 51H 01H DATA00 CKS
DATA00 02H: STADIUM
03H: ZOOM
04H: NORMAL
05H: ANAMORHIC (FULL)
06H: REAL
08H: UNDERSCAN
09H: 14:9
0AH: 2.35:1
ACK
7FH 60H 80H 51H 01H DATA00 CKS
DATA00 02H: STADIUM
03H: ZOOM
04H: NORMAL
05H: ANAMORHIC(FULL)
06H: REAL
08H: UNDERSCAN
09H: 14:9
0AH: 2.35:1
*If it selects DATA00 “08: UNDERSCAN”, it need to set No.78 UNDERSCAN setting ON.
5-22. V. POSITION Gain Data
Function
The external control equipment changes the V. POSITION gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V.POSITION Gain Flag 01H
DATA02: V.POSITION Gain C0H: -64
:
FFH: -01
00H: 0
01H: +01
:
40H: +64
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V.POSITION Gain Flag 01H
Company Restricted
PDxx01 RS-232C Control Specification Page: 18 / 49
Document Version [1.0]
5-23. H. POSITION Gain Data
Function
The external control equipment changes the H. POSITION gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H.POSITION Gain Flag 02H
DATA02: H.POSITION Gain 80H: -128
:
FFH: -01
00H: 0
01H: +01
:
7FH: +127
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H.POSITION Gain Flag 02H
5-24. V. HEIGHT Gain Data
Function
The external control equipment changes the V-HEIGHT gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V-HEIGHT Gain Flag 07H
DATA02: V-HEIGHT Gain 00H: 0
:
40H: +64
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: V-HEIGHT Gain Flag 07H
5-25. H. WIDTH Gain Data
Function
The external control equipment changes the H-WIDTH gain data of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H-WIDTH Gain Flag 08H
DATA02: H-WIDTH Gain 00H: 0
:
40H: +64
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: H-WIDTH Gain Flag 08H
Company Restricted
PDxx01 RS-232C Control Specification Page: 19 / 49
Document Version [1.0]
5-26. AUTO PICTURE Select
Function
The external control equipment switches on or off the AUTO PICTURE of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: AUTO PICTURE Select Flag 09H
DATA02 00H: ON
01H: OFF
ACK
7FH 60H 80H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: AUTO PICTURE Select Flag 09H
DATA02 00H: ON
01H: OFF
5-27. PHASE (FINE PICTURE) Gain Data
Function
The external control equipment changes the PHASE gain data (Phase) of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: PHASE Gain Flag 03H
DATA02: PHASE Gain 00H: 0
:
40H: +64 :
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: PHASE Gain Flag 03H
Company Restricted
PDxx01 RS-232C Control Specification Page: 20 / 49
Document Version [1.0]
5-28. CLOCK (PICTURE ADJUST) Gain Data
Function
The external control equipment changes the CLOCK gain data (ratio of frequency division) of the plasma monitor.
Transmission Data
DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: CLOCK Gain Flag 04H
DATA02: CLOCK Gain C0H: -64
:
FFH: -01
00H: 0
01H: +01
:
40H: +64
ACK
7FH 60H 80H 7FH 02H DATA00 DATA01 CKS
DATA00: USER PICTURE Gain Flag 03H
DATA01: CLOCK Gain Flag 04H
5-29. OSM ADJ. POSITION Data
Function
The external control equipment sets the position of the OSM menu of the plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H DATA00 DATA01 CKS
DATA00: OSM ADJ. Gain Flag 02H
DATA01 01H: 1(TOP LEFT)
02H: 2(TOP CENTER)
03H: 3(TOP RIGHT)
04H: 4(BOTTOM LEFT)
05H: 5(BOTTOM CENTER)
06H: 6(BOTTOM RIGHT)
ACK
7FH 60H 80H 1AH 01H DATA00 CKS
DATA00: OSM ADJ. Gain Flag 02H
5-30. POWER MGT Select
Function
The external control equipment switches on or off the POWER MANAGEMENT of the plasma monitor.
Transmission Data
DFH 80H 60H 1AH 02H DATA00 DATA01 CKS
DATA00: POWER MGT Select 03H
DATA01 01H: ON
02H: OFF
ACK
7FH 60H 80H 1AH 02H DATA00 DATA01 CKS
DATA00: POWER MGT Select 03H
DATA01 01H: ON
02H: OFF
Company Restricted
PDxx01 RS-232C Control Specification Page: 21 / 49
Document Version [1.0]
5-31. GRAY LEVEL Set
Function
The external control equipment sets the GRAY LEVEL of the plasma monitor.
Transmission Data
DFH 80H 60H C6H 01H DATA00 CKS
DATA00: GRAY LEVEL 00H: 0
:
0FH: 15
ACK
7FH 60H 80H C6H 01H DATA00 CKS
DATA00: GRAY LEVEL 00H: 0
:
0FH: 15
5-32. CINEMA MODE Set
Function
The external control equipment switches on or off the CINEMA MODE of the plasma monitor.
Transmission Data
DFH 80H 60H C1H 01H DATA00 CKS
DATA00: CINEMA MODE Set 01H: ON
02H: OFF
ACK
7FH 60H 80H C1H 01H DATA00 CKS
DATA00: CINEMA MODE Set 01H: ON
02H: OFF
5-33. LONG LIFE Set (PDP SAVER Set)
Function
The external control equipment sets the PLE, ORBITER, and INVERSE (inverse of image brightness) or WHITE of the plasma
monitor.
Transmission Data
DFH 80H 60H 6BH 03H DATA00 DATA01 DATA02 CKS
DATA00: PLE 01H: 100% (AUTO)
02H: 75% (LOCK1)
03H: 50% (LOCK2)
04H: 25% (LOCK3)
DATA01: INVERSE/WHITE 01H: INVERSE
02H: OFF
03H: WHITE
DATA02: ORBITER (PICTURE SHIFT) 01H: AUTO1
02H: OFF
03H: AUTO2
ACK
The plasma monitor returns the following ACK when setting the PLE, ORBITER, and INVERSE (inverse of image brightness) or
WHITE:
3FH 60H 80H 6BH 00H CKS
Company Restricted
PDxx01 RS-232C Control Specification Page: 22 / 49
Document Version [1.0]
5-34. SCREEN WIPER Set
Function
The external control equipment sets the SCREEN WIPER of the plasma monitor.
Transmission Data
DFH 80H 60H C8H 04H DATA00 to DATA03 CKS
DATA00: SCREEN WIPER 00H: No operation
01H: ON
02H: OFF
DATA01: 00H: fixed
DATA02: FFH: fixed
DATA03: 01H: fixed
ACK
3FH 60H 80H C8H 00H CKS
5-35. ALL RESET
Function
The external control equipment resets the user adjustment of the plasma monitor.
Transmission Data
1FH 80H 60H 54H 00H CKS
ACK
3FH 60H 80H 54H 00H CKS
Company Restricted
PDxx01 RS-232C Control Specification Page: 23 / 49
Document Version [1.0]
5-36. Audio Select Set
Function
The external control equipment sets combinations of audio and video inputs for the plasma monitor.
Transmission Data
DFH 80H 60H 70H 02H DATA00 DATA01 CKS
DATA00: AUDIO INPUT 01H: AUDIO1
02H: AUDIO2
03H: AUDIO3
04H: DVD/HD3 INPUT1
05H: DVD/HD4 INPUT1
DATA01: VISUAL INPUT 01H: VIDEO1
02H: VIDEO2
05H: DVD/HD1
06H: DVD/HD2
07H: PC/RGB
0EH: DVD/HD 3
1AH: DVD/HD 4
20H: DVD/HD INPUT HDMI
21H: DVD/HD INPUT AUDIO INPUT1-3
ACK
The plasma monitor returns the following ACK when the input is switched.
3FH 60H 80H 70H 00H CKS
* The plasma monitor returns “Not Available” when selecting the video input same as the one set at one of the AUDIO 1 to 3.
Example:
The plasma monitor returns “Not Available” when selecting the VIDEO1 for AUDIO2 or VIDEO2 after VIDEO1 has been set to
AUDIO1.
* When selected 04H or 05H of Data00,it can be selected 20H or 21H of Data01.
Company Restricted
PDxx01 RS-232C Control Specification Page: 24 / 49
Document Version [1.0]
5-37. RGB Select
Function
The external control equipment sets the RGB SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8BH 01H DATA00 CKS
DATA00 01H: AUTO
11H: type1
12H: type2
13H: type3
14H: type4
15H: type5
16H: type6
17H: type7
18H: type8
19H: type9
1AH: type10
ACK
7FH 60H 80H 8BH 01H DATA00 CKS
DATA00 01H: AUTO
11H: type1
12H: type2
13H: type3
14H: type4
15H: type5
16H: type6
17H: type7
18H: type8
19H: type9
1AH: type10
Correspond to Analog RGB.
The type is following as below.
HD_MODE1 :10KHz 以下 VD_MODE1:15.00~24.50Hz
HD_MODE2 :14.0~20.9KHz VD_MODE2:24.60~27.50Hz
HD_MODE3 :21.0~26.4KHz VD_MODE3:27.60~40.00Hz
HD_MODE4 :26.5~32.7KHz VD_MODE4:40.01~48.50Hz
HD_MODE5 :32.8~36.6KHz VD_MODE5:48.60~55.00Hz
HD_MODE6 :36.7~38.5KHz VD_MODE6:55.01~61.76Hz
HD_MODE7 :38.6~45.9KHz VD_MODE7:61.77~73.50Hz
HD_MODE8 :46.0~49.0KHz VD_MODE8:73.51~79.50Hz
HD_MODE9 :49.1~55.0KHz VD_MODE9:79.51~92.50Hz
HD_MODE10:55.1~76.9KHz VD_MODE10:92.51~110.00Hz
HD_MODE11:77.0~83.5KHz VD_MODE11:110.01~131.00Hz
HD_MODE12:83.6~115.0KHz VD_MODE12: other
HD_MODE13: other
Company Restricted
PDxx01 RS-232C Control Specification Page: 25 / 49
@60
educe b
g
sig
.
Document Version [1.0]
Type1 Type2 Type3 Type4 Type5 Type6 Type7 Type8 Type9 Type10
H mode:3
V mode:5
H mode:4
V mode:5
H mode:4
V mode:6
H mode:4
V mode:7
H mode:5
V mode:6
H mode:7
V mode:6
H mode:8
V mode:6
V mode:6
H mode：10
V mode：5
H mode：10
V mode：6
H mode：10
Vmode：7
H mode：10
V mode：8
848x480
@50
768×576
@50
640×480
@60_1
720×400
@70
800×600
@56
1280×768@5
6.2
1024×768
@60_1
1152x864
@60_1 H mode:9
1024×768
@60
1080P
@50
1280×1024
@60
1024×768
@70
1024×768
@75
640x480
@50
1920×1080
@50
852×480
@60
720×350
@70
1920×1035
@60
(1035I)
1920×1080
@60
(1080A)
1920×1080
@60
(1080B)
1280x768
@60
1360×765
@60
1280*800
@60
1250P
@50
1400×1050
@60_1
1024x768
@72
1152×864
848×480
@60
1280×720
@60
1376×768
@60
1280*854
@60
1920×1080
@50
1920*1200
@60
1280x768
@70
640×480
@60_2
1280×768
@60_1
1152x864
@60_2
1920*1200RB
@60
1280x768
@72
640×480
@60_3
1280×768
@60_2
1600×1200
@60
1024*768
@60_2
Only DVI(PC)
1400x1050
@60_2
lankin
1366×768
＠60
nal
1680*1050
@60
1080P
@60
“1920*1200RB
1920×1080
@60
”is R
Company Restricted
PDxx01 RS-232C Control Specification Page: 26 / 49
Document Version [1.0]
5-38. HD Select
Function
The external control equipment sets the HD SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 8AH 01H DATA00 CKS
DATA00 01H: 1035I
02H: 540P (1080A)
03H: 1080I (1080B)
ACK
7FH 60H 80H 8AH 01H DATA00 CKS
DATA00 01H: 1035I
02H: 540P (1080A)
03H: 1080I (1080B)
5-39. LANGUAGE Select
Function
The external control equipment sets the LANGUAGE SELECT of the plasma monitor.
Transmission Data
DFH 80H 60H 5BH 01H DATA00 CKS
DATA00: 01H: ENGLISH
02H: GERMAN
03H: FRENCH
04H: SPANISH
05H: ITALIAN
06H: SWEDISH
0BH: RUSSIAN
0DH: PORTUGUESE
ACK
7FH 60H 80H 5BH 01H DATA00 CKS
DATA00: 01H: ENGLISH
02H: GERMAN
03H: FRENCH
04H: SPANISH
05H: ITALIAN
06H: SWEDISH
0BH: RUSSIAN
0DH: PORTUGUESE
Company Restricted
PDxx01 RS-232C Control Specification Page: 27 / 49
Document Version [1.0]
5-40. COLOR SYSTEM Select
Function
The external control equipment sets the COLOR SYSTEM of the plasma monitor.
Transmission Data
DFH 80H 60H 5CH 01H DATA00 CKS
DATA00: 01H: 3.58NTSC
02H: 4.43NTSC
03H: PAL
04H: SECAM
0AH: AUTO
0BH: PAL60
0DH: PAL-M
0EH: PAL-N
ACK
7FH 60H 80H 5CH 01H DATA00 CKS
DATA00: 01H: 3.58NTSC
02H: 4.43NTSC
03H: PAL
04H: SECAM
0AH: AUTO
0BH: PAL60
0DH: PAL-M
0EH: PAL-N
5-41. FREQUENCY Request (SIGNAL INFORMATION)
Function
The external control equipment inquires the Horizontal frequency, Vertical frequency, Horizontal sync polarity, Vertical sync polarity,
Mode, and Resolution of the plasma monitor.
Transmission Data
1FH 80H 60H 26H 00H CKS
ACK
7FH 60H 80H 26H 0BH DATA00 to DATA0A CKS
Horizontal frequency
DATA00: Integer part 00H: 0 (No signal: 00H)
:
FFH: 255
DATA01: One decimal place 00H: 0 (No signal: 00H)
:
09H: 9
Vertical frequency
DATA02: Integer part 00H: 0 (No signal: 00H)
:
FFH: 255
DATA03: One decimal place 00H: 0 (No signal: 00H)
:
09H: 9
Company Restricted
PDxx01 RS-232C Control Specification Page: 28 / 49
Document Version [1.0]
Horizontal sync polarity
DATA04 00H: -
01H: Positive
02H: Negative
Vertical sync polarity
DATA05 00H: -
01H: Positive
02H: Negative
MODE
DATA06 00H :
01H to 80H :
81H :
No signal -
RGB signal Identification number of PC mode
Video signal 3.58NTSC
82H : 4.43NTSC
83H : PAL
84H : PAL-M
85H : PAL-N
86H : PAL60
87H : SECAM
88H : B/W60
89H : B/W50
A0H :
HD/DVD/DTV signal 480I
A1H : 480P
A2H : 576I
A3H : 576P
A4H : 720P
A5H : 1035I
A6H : 1080I
RESOLUTION
DATA07: Dots (Low-order byte) 00H: 0 (No signal: 00H)
:
FFH 255
DATA08: Dots (High-order byte) 00H: 257 (No signal: 00H)
:
FFH
DATA09: Lines (Low-order byte) 00H: 0 (No signal: 00H)
:
FFH: 255
DATA10: Lines (High-order byte) 00H: 257 (No signal: 00H)
:
FFH
Company Restricted
PDxx01 RS-232C Control Specification Page: 29 / 49
Document Version [1.0]
5-42. Input MODE Request
Function
The display returns the current input information by the external control equipment’s request.
Transmission Data
1FH 80H 60H 41H 00H CKS
ACK
7FH 60H 80H 41H 01H DATA00 CKS
DATA00: Input Select 01H: Video1
02H: Video2
05H: DVD/HD1
06H: DVD/HD2
07H: PC/RGB
0EH: DVD/HD3 (HDMI)
1AH: DVD/HD4 (HDMI)
5-43. VIDEO ADJ. Request
Function
The display returns the video adjustments information by the external control equipment’s request.
Transmission Data
1FH 80H 60H 45H 00H CKS
ACK
7FH 60H 80H 45H 0CH DATA00 to DATA0B CKS
DATA00: RED Gain (Bias) D8H: -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
DATA01: GREEN Gain (Bias) D8H: -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
DATA02: BLUE Gain (Bias) D8H: -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
Company Restricted
PDxx01 RS-232C Control Specification Page: 30 / 49
Document Version [1.0]
DATA03: COLOR Gain E0H: -32
:
FFH: -01
00H: 0
01H: +01
:
20H: +32
DATA04: TINT Gain E0H: -32
:
FFH: -01
00H: 0
01H: +01
:
20H: +32
DATA05: SHARPNESS Gain F0H: -16
:
FFH: -01
00H: 0
01H: +01
:
10H: +16
DATA06: CONTRAST Gain CCH: -52
:
FFH: -01
00H: 0
01H: +01
:
14H: +20
DATA07: BRIGHT Gain E0H: -32
:
FFH: -01
00H: 0
01H: +01
:
20H: +32
DATA08: RED Gain (Drive) D8H: -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
Company Restricted
PDxx01 RS-232C Control Specification Page: 31 / 49
Document Version [1.0]
DATA09: GREEN Gain (Drive) D8H: -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
DATA0A: BLUE Gain (Drive) D8H: -40
:
FFH: -01
00H: 0
01H: +01
:
1EH: +30
DATA0B: COLOR TEMP SELECT 00H: low
01H: middle
02H: high
03H: middle low
5-44. Audio Select Request
Function
The external control equipment inquires the current combinations of audio and video inputs for the plasma monitor.
Transmission Data
1FH 80H 60H 6FH 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 6FH 03H DATA00 DATA01 DATA02 CKS
DATA00: AUDIO1
01H-0CH: VISUAL INPUT DATA
DATA01: AUDIO2
01H-0CH: VISUAL INPUT DATA
DATA02: AUDIO3
01H-0CH: VISUAL INPUT DATA
<VISUAL INPUT DATA>
01H: VIDEO1
02H: VIDEO2
05H: DVD/HD1
06H: DVD/HD2
07H: PC/RGB
0EH: DVD/HD3
1AH: DVD/HD4
Company Restricted
PDxx01 RS-232C Control Specification Page: 32 / 49
Document Version [1.0]
5-45. Failure Mode Request
Function
The external control equipment inquires the detection of failures of the plasma monitor.
Transmission Data
1FH 80H 60H 3FH 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 3FH 02H DATA00 DATA01 CKS
DATA00: FAILURE MODE 1
Bit 0: PDP MODULE
0: Abnormal
1: Normal
Bit 1: 1: fixed (backup)
Bit 2: TEMPERATURE
0: Abnormal
1: Normal
Bit 3: FAN
0: Abnormal
1: Normal
Bit 4: TEMPERATURE SENSOR
0: Abnormal
1: Normal
Bit 5: 1: fixed (backup)
Bit 6: 1: fixed (backup)
Bit 7: 1: fixed (backup)
DATA01: FAILURE MODE 2
Bit 0-7: 1: fixed (backup)
Note: When 42 inch, “FAN” of DATA00-Bit3 is fixed “1”.
Company Restricted
PDxx01 RS-232C Control Specification Page: 33 / 49
Document Version [1.0]
5-46. MODEL NAME Request
Function
The external control equipment inquires the product code of the plasma monitor.
Transmission Data
1FH 80H 60H 17H 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 17H 0CH DATA00 to DATA11 CKS
DATA00: 1st character of the product code
DATA01: 2nd character of the product code
:
DATA11: 12th character of the product code
Received data 00H-09H : 0-9
80H : - (Hyphen)
81H : +
82H :
83H : /
84H : (
85H : )
86H : .
87H : ‘
96H : Blank
10H-29H : A-Z
If there are fewer than 12 characters in the product code, product code would be padded right with blanks.
Example: If the product code of your plasma monitor is “PX-50XR5A”, the returned codes would be as follows.
DATA00:1FH, DATA01:27H, DATA02:80H, DATA03:05H, DATA04:00H, DATA05:27H, DATA06:21H, DATA07:05H,
DATA08:10H, DATA09:96H, DATA10:96H, DATA11:96H
Corresponding
character
Received data (H) 10 11 12 13 14 15 16 17 18 19
Corresponding
character
Received data (H) 1A 1B 1C 1D 1E 1F 20 21 22 23
Corresponding
character
Received data (H) 24 25 26 27 28 29
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z
Company Restricted
PDxx01 RS-232C Control Specification Page: 34 / 49
Document Version [1.0]
5-47. LOW TONE (50inch only)
Function
The external control equipment sets the Low toned of the plasma monitor.
Transmission Data
DFH 80H 60H 0CH 01H DATA00 CKS
DATA00:
ACK
01H: Mode1
02H: Mode2
7FH 60H 80H 0CH 01H DATA00 CKS
DATA00:
01H: Mode1
02H: Mode2
5-48. COLOR TUNE
Function
External control equipment can adjust RGB each color which a plasma monitor wants to emphasize.
Transmission Data
DFH 80H 60H 0DH 07H DATA00 to DATA06 CKS
DATA00: RED
DATA01: GREEN
DATA02: BLUE
DATA03: YELLOW
DATA04: MAZENTA
DATA05: CYAN
00H: -32
:
20H: 0
:
40H: +32
00H: -32
:
20H: 0
:
40H: +32
00H: -32
:
20H: 0
:
40H: +32
00H: -32
:
20H: 0
:
40H: +32
00H: -32
:
20H: 0
:
40H: +32
00H: -32
:
20H: 0
:
40H: +32
Company Restricted
PDxx01 RS-232C Control Specification Page: 35 / 49
Document Version [1.0]
DATA06: RESET
ACK
00H: OFF
01H: ON
7FH 60H 80H 0DH 00H CKS
5-49. GAMMA GAIN Data
Function
External control apparatus changes Gamma of a plasma monitor.
Transmission Data
DFH 80H 60H 13H 02H DATA00 DATA01 CKS
DATA00: GAMMA FLAG 01H: Gamma change
DATA01:
01H: 2(GAMMA2.2)
02H: 3(GAMMA2.3)
03H: 4(GAMMA2.4)
ACK
GAMMA 00H: 1(GAMMA2.1)
7FH 60H 80H 13H 01H DATA00 CKS
DATA00: GAMMA FLAG 01H: Gamma change
5-50. Running Sense
Function
External control apparatus grasps the power supply state of a plasma monitor.
A plasma monitor is made to recognize connection of PC CONTROL.
Transmission Data
1FH 80H 60H 88H 00H CKS
ACK
7FH 60H 80H 88H 01H DATA CKS
DATA: Bit0: Connect Condition
0: No connection
1: Connected
Bit1 0: Fixed
1:-
Bit2: Power Status
0: POWER ON
1: POWER OFF (STANBY)
Bit3 0: Fixed
Bit4 0: Fixed
Bit5 0: Fixed
Bit6 0: Fixed
Bit7 0: Fixed
Company Restricted
PDxx01 RS-232C Control Specification Page: 36 / 49
Document Version [1.0]
5-51. OSM ORBITER
Function
In order to decrease printing of a screen by OSM display, whenever it displays OSM, shift operation of the OSM is carried out.
Transmission Data
DFH 80H 60H 5FH 01H DATA00 CKS
DATA00 01H: ORBITER ON
02H: ORBITER OFF
ACK
7FH 60H 80H 5FH 01H DATA00 CKS
DATA00 01H: ORBITER ON
02H: ORBITER OFF
5-52. Input Skip
Function
In a monitor's key "an input change", when there is no signal, it flies and shifts to the following channel.
Transmission Data
DFH 80H 60H 61H 01H DATA00 CKS
DATA00 01H: ON
02H: OFF
ACK
7FH 60H 80H 61H 01H DATA00 CKS
DATA00 01H: ON
02H: OFF
5-53. SERIAL No. Request
Function
External control apparatus read
Transmission Data
1FH 80H 60H 15H 00H CKS
ACK
7FH 60H 80H 15H 0CH DATA00 to DATA11 CKS
Even DATA00-DATA11 is set up as follows.
Setting value 00H-09H : 0 - 9
96H : Blank
the serial number of the set recorded by EEPROM of a plasma display.
10H-29H : A-Z of Alphabet
Company Restricted
PDxx01 RS-232C Control Specification Page: 37 / 49
Document Version [1.0]
5-54. S1/S2 SELECT
Function
External control apparatus sets up the S1/S2 detection of a plasma monitor.
Transmission Data
DFH 80H 60H 89H 01H DATA00 CKS
DATA00 01H: AUTO
02H: OFF
ACK
7FH 60H 80H 89H 01H DATA00 CKS
DATA00 01H: AUTO
02H: OFF
5-55. SOFT FOCUS
Function
External control apparatus sets up the Soft Focus of a plasma monitor.
Transmission Data
DFH 80H 60H 65H 01H DATA00 CKS
DATA00 01H: OFF
02H: LEVEL1
03H: LEVEL2
04H: LEVEL3
05H: LEVEL4
ACK
7FH 60H 80H 65H 01H DATA00 CKS
DATA00 01H: OFF
02H: LEVEL1
03H: LEVEL2
04H: LEVEL3
05H: LEVEL4
5-56. BLACK LEVEL SELECT
Function
External control apparatus sets up the black level (digital signal level) of a plasma monitor.
Transmission Data
DFH 80H 60H 8FH 01H DATA00 CKS
DATA00 01H: LOW
02H: HIGH
ACK
7FH 60H 80H 8FH 01H DATA00 CKS
DATA00 01H: LOW
02H: HIGH
Company Restricted
PDxx01 RS-232C Control Specification Page: 38 / 49
Document Version [1.0]
5-57. MULTI (SPRIT) SCREEN Select
Function
External control apparatus
picture in picture, etc., of Plasma Monitor.
Transmission Data
DFH 80H 60H 07H 01H DATA00 CKS
DATA00: 00H: Single Screen
01H: Side by Side 1 (Same Size Screen)
02H: Side by Side 2R (Left Screen smaller)
03H: Picture in Picture 1 (sub screen Bottom Left) with size1
04H: Picturein Picture 2(sub screen Bottom Right) with size1
05H: Side by Side 2L (Left Screen Bigger)
06H: Picturein Picture 1(sub screen Bottom Left) with size2
07H: Picturein Picture 2(sub screen Bottom Right) with size2
08H: Picturein Picture 1(sub screen Bottom Left) with size3
09H: Picturein Picture 2(sub screen Bottom Righ) with size3
0AH: Picturein Picture 1(sub screen Bottom Left) with size4
0BH: Picturein Picture 2(sub screen Bottom Right) withsize4
41H: Picturein Picture 3(sub screen Top Right) with size1
42H: Picturein Picture 3(sub screen Top Right) with size2
43H: Picturein Picture 3(sub screen Top Right) with size3
44H: Picturein Picture 3(sub screen Top Right) with size4
45H: Picturein Picture 4(sub screen Top Left) with size1
46H: Picturein Picture 4(sub screen Top Left) with size2
47H: Picturein Picture 4(sub screen Top Left) with size3
48H: Picturein Picture 4(sub screen Top Left) with size4
49H: Side by Side 3 (Same Size Screen vertical expand)
4AH: Side by Side 4R (Left Screen smaller vertical expand)
4BH: Side by Side 4L (Left Screen Bigger vertical expand)
10H: SWAP
A0H: PIP OFF
A1H: PIP ON
In case of Side by Side mode;
20H: Active Left
21H: Active Right
In case of Picture in picture mode;
30H: Active Main
31H: Active Sub
selects a screen mode from alternatives mentioned below, such as single mode, side by side,
Company Restricted
PDxx01 RS-232C Control Specification Page: 39 / 49
Document Version [1.0]
ACK
7FH 60H 80H 07H 01H DATA00 CKS
DATA00: 00H: Single Screen
01H: Side by Side 1 (Same Size Screen)
02H: Side by Side 2R (Left Screen smaller)
03H: Picture in Picture 1 (sub screen Bottom Left) with size1
04H: Picturein Picture 2(sub screen Bottom Right) with size1
05H: Side by Side 2L (Left Screen Bigger)
06H: Picturein Picture 1(sub screen Bottom Left) with size2
07H: Picturein Picture 2(sub screen Bottom Right) with size2
08H: Picturein Picture 1(sub screen Bottom Left) with size3
09H: Picturein Picture 2(sub screen Bottom Righ) with size3
0AH: Picturein Picture 1(sub screen Bottom Left) with size4
0BH: Picturein Picture 2(sub screen Bottom Right) withsize4
41H: Picturein Picture 3(sub screen Top Right) with size1
42H: Picturein Picture 3(sub screen Top Right) with size2
43H: Picturein Picture 3(sub screen Top Right) with size3
44H: Picturein Picture 3(sub screen Top Right) with size4
45H: Picturein Picture 4(sub screen Top Left) with size1
46H: Picturein Picture 4(sub screen Top Left) with size2
47H: Picturein Picture 4(sub screen Top Left) with size3
48H: Picturein Picture 4(sub screen Top Left) with size4
49H: Side by Side 3 (Same Size Screen vertical expand)
4AH: Side by Side 4R (Left Screen smaller vertical expand)
4BH: Side by Side 4L (Left Screen Bigger vertical expand)
10H: SWAP
A0H: PIP OFF
A1H: PIP ON
In case of Side by Side mode;
20H: Active Left
21H: Active Right
In case of Picture in picture mode;
30H: Active Main
31H: Active Sub
5-58. SUB PICTURE DETECT SELECT
Function
External control apparatus selects whether to display the sub picture or not, under picture in picture mode, of plasma monitor.
Transmission Data
DFH 80H 60H 7AH 01H DATA00 CKS
DATA00 01H: OFF
02H: AUTO
ACK
7FH 60H 80H 7AH 01H DATA00 CKS
DATA00 01H: OFF
02H: AUTO
Company Restricted
PDxx01 RS-232C Control Specification Page: 40 / 49
Document Version [1.0]
5-59. ZOOM NAVIGATION SELECT
Function
External control apparatus selects digital zoom display of a plasma monitor, from the alternatives mentioned below;
Transmission Data
DFH 80H 60H 7BH 01H DATA00 CKS
DATA00 01H: OFF (single screen)
02H: Side By Side (Left Screen smaller)
03H: Picture in Picture1 (Sub Screen Bottom Left)
04H: Picture in Picture2 (Sub Screen Bottom Right)
05H: Picture in Picture3 (Sub Screen Top Right)
06H: Picture in Picture4 (Sub Screen Top Left)
ACK
7FH 60H 80H 7BH 01H DATA00 CKS
DATA00 01H: OFF (single screen)
02H: Side By Side2R (Left Screen smaller)
03H: Picture in Picture1 (Sub Screen Bottom Left)
04H: Picture in Picture2 (Sub Screen Bottom Right)
05H: Picture in Picture3 (Sub Screen Top Right)
06H: Picture in Picture4 (Sub Screen Top Left)
5-60. PICTURE FREEZE SELECT
Function
External control apparatus selects the picture freeze function of a plasma monitor.
Transmission Data
DFH 80H 60H 7CH 01H DATA00 CKS
DATA00 01H: OFF (single screen)
02H: Side By Side1 (Same Size Screen)
03H: Picture in Picture1 (Sub Screen Bottom Left)
04H: Picture in Picture2 (Sub Screen Bottom Right)
05H: Picture in Picture3 (Sub Screen Top Right)
06H: Picture in Picture4 (Sub Screen Top Left)
07H: Side by Side 2 (Same Size Screen vertical expand)
ACK
7FH 60H 80H 7CH 01H DATA00 CKS
DATA00 01H: OFF (single screen)
02H: Side By Side1 (Same Size Screen)
03H: Picture in Picture1 (Sub Screen Bottom Left)
04H: Picture in Picture2 (Sub Screen Bottom Right)
05H: Picture in Picture3 (Sub Screen Top Right)
06H: Picture in Picture4 (Sub Screen Top Left)
07H: Side by Side2 (Same Size Screen vertical expand)
Company Restricted
PDxx01 RS-232C Control Specification Page: 41 / 49
Document Version [1.0]
5-61. PICTURE FREEZE (Pause) Command
Function
External control apparatus sets picture freeze or remove picture freeze of a plasma monitor.
Transmission Data
DFH 80H 60H 7DH 01H DATA00 CKS
DATA00 01H: FREEZE
02H: FREEZE OFF
ACK
7FH 60H 80H 7DH 01H DATA00 CKS
DATA00 01H: FREEZE
02H: FREEZE OFF
5-62. OSM CONTRAST SELECT
Function
External control apparatus selects the OSM contrast function of a plasma monitor.
Transmission Data
DFH 80H 60H 37H 01H DATA00 CKS
DATA00 01H: NORMAL
02H: LOW
ACK
7FH 60H 80H 37H 01H DATA00 CKS
DATA00 01H: NORMAL
02H: LOW
5-63. CC (Closed caption) SELECT
Function
External control apparatus selects the Closed Caption function of a plasma monitor.
Transmission Data
DFH 80H 60H 3CH 01H DATA00 CKS
DATA00 00H: OFF
01H: CC1 (closed caption1)
02H: CC2 (closed caption2)
03H: CC3 (closed caption3)
04H: CC4 (closed caption4)
05H: TEXT1
06H: TEXT2
07H: TEXT3
08H: TEXT4
Company Restricted
PDxx01 RS-232C Control Specification Page: 42 / 49
Document Version [1.0]
ACK
7FH 60H 80H 3CH 01H DATA00 CKS
DATA00 00H: OFF
01H: CC1 (closed caption1)
02H: CC2 (closed caption2)
03H: CC3 (closed caption3)
04H: CC4 (closed caption4)
05H: TEXT1
06H: TEXT2
07H: TEXT3
08H: TEXT4
5-64. CC (Closed caption) CONTRAST SELECT
Function
External control apparatus selects the Closed Caption Contrast function of a plasma monitor.
Transmission Data
DFH 80H 60H 3DH 01H DATA00 CKS
DATA00 01H: NORMAL
02H: LOW
ACK
7FH 60H 80H 3DH 01H DATA00 CKS
DATA00 01H: NORMAL
02H: LOW
5-65. PICTURE MEMORY Select
Function
The external control equipment selects the Picture Memory function of a plasma monitor.
Transmission Data
DFH 80H 60H 38H 01H DATA00 CKS
DATA00: MEMORY select 00H: OFF
01H: MEMORY1
02H: MEMORY2
03H: MEMORY3
04H: MEMORY4
05H: MEMORY5
06H: MEMORY6
ACK
The plasma monitor returns the following ACK when the input is switched.
7FH 60H 80H 38H 01H CKS
DATA00: 00H: OFF
01H: MEMORY1
02H: MEMORY2
03H: MEMORY3
04H: MEMORY4
05H: MEMORY5
06H: MEMORY6
Company Restricted
PDxx01 RS-232C Control Specification Page: 43 / 49
Document Version [1.0]
5-66. PICTURE MEMORY Set
Function
The external control equipment ser and reset the Picture Memory function of a plasma monitor.
Transmission Data
DFH 80H 60H 25H 02H DATA00 DATA01 CKS
DATA00: 01H: SET
02H: RESET
DATA01: MEMORY select 00H: OFF
01H: MEMORY1
02H: MEMORY2
03H: MEMORY3
04H: MEMORY4
05H: MEMORY5
06H: MEMORY6
ACK
The plasma monitor returns the following ACK when the input is switched.
7FH 60H 80H 25H 01H CKS
DATA00: 01H: SET
02H: RESET
NOTE: When “PICTURE MEMORY” selects “OFF”, this command is no support.
5-67. PICTURE MEMORY NOTE WRITE Set
Function
External control apparatus writes to NOTE of PICTURE MEMORY o
Transmission Data
DFH 80H 60H 2DH 0FH DATA00 to DATA14 CKS
Even DATA00-DATA14 is set up as follows.
Setting value 00H-09H : 0 - 9
80H : - (Hyphen)
81H : +
82H :
83H : /
84H : (
85H : )
86H : .
87H : ‘
96H : Blank
10H-29H: A-Z of Alphabet
f a plasma display.
Company Restricted
PDxx01 RS-232C Control Specification Page: 44 / 49
Document Version [1.0]
ACK
Corresponding
character
Received data (H) 10 11 12 13 14 15 16 17 18 19
Corresponding
character
Received data (H) 1A 1B 1C 1D 1E 1F 20 21 22 23
Corresponding
character
Received data (H) 24 25 26 27 28 29
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z
3FH 60H 80H 2DH 00H CKS
NOTE) Please select the memory you like to write by “68.PICTURE MEMORY Select” before setting “PICTURE
MEMORY NOTE WRITE”
5-68. SET UP LEVEL SELECT
Function
External control apparatus selects the Set up level function of a plasma monitor.
Transmission Data
DFH 80H 60H 35H 01H DATA00 CKS
DATA00 01H: 0%
02H: 3.75%
03H: 7.5%
ACK
7FH 60H 80H 35H 01H DATA00 CKS
DATA00 01H: 0%
02H: 3.75%
03H: 7.5%
5-69. BACK GROUND SELECT
Function
External control apparatus selects the Back ground function of a plasma monitor.
Transmission Data
DFH 80H 60H 36H 01H DATA00 CKS
DATA00 01H: Black
02H: Gray
ACK
7FH 60H 80H 36H 01H DATA00 CKS
DATA00 01H: Black
02H: Gray
Company Restricted
PDxx01 RS-232C Control Specification Page: 45 / 49
Document Version [1.0]
5-70. PDP SAVER AUTO Select
Function
External control apparatus selects automatic or manual of the PDP saver function of a plasma monitor.
Transmission Data
DFH 80H 60H 2CH 01H DATA00 CKS
DATA00 01H: MANUAL
02H: AUTO
ACK
7FH 60H 80H 2CH 01H DATA00 CKS
DATA00 01H: MANUAL
02H: AUTO
5-71. Audio HDMI Request
Function
The external control equipment inquires the current combinations of HDMI audio inputs for the plasma monitor.
Transmission Data
1FH 80H 60H 3AH 00H CKS
ACK
The plasma monitor returns the following ACK:
7FH 60H 80H 6FH 02H DATA00 DATA01 CKS
DATA00: DVD/HD3 INPUT 01H: HDMI
02H: AUDIO INPUT1-3
DATA01: DVD/HD4 INPUT 01H: HDMI
02H: AUDIO INPUT1-3
5-72. POWER ON MODE (INPUT)
Function
Power-on modes (input) are set up.
Transmission Data
DFH 80H 60H 63H 04H DATA00 to DATA03 CKS
DATA00: Power ON mode(INPUT) 00H: LAST
01H: Video1
02H: Video2
05H: DVD/HD1
06H: DVD/HD2
07H: PC/RGB
0EH: DVD/HD3 (HDMI)
1AH: DVD/HD4 (HDMI)
DATA01: FIX 00H
DATA02: FIX 01H
DATA03: FIX 00H
ACK
7FH 60H 80H 63H 00H CKS
Company Restricted
PDxx01 RS-232C Control Specification Page: 46 / 49
Document Version [1.0]
5-73. POWER ON MODE (VOLUME)
Function
Power-on modes (Volume) are set up.
Transmission Data
DFH 80H 60H 0FH 01H DATA00 CKS
DATA00: Power ON mode (VOLUME)
A0H: LAST
00H: volume0
:
2A H: volume42
ACK
7FH 60H 80H 0FH 00H CKS
5-74. 74. SUB PICTURE RATE set
Function
Sub screen rate of PIP are set up.
Transmission Data
DFH 80H 60H DAH 02H DATA00 DATA01 CKS
DATA00: Sub screen rate Gain flag 01H
DATA01: Sub screen rate Gain 00H: 20%
01H: 30%
02H: 40%
03H: 50%
04H: 60%
05H: 70%
06H: 80%
07H: 90%
08H: 100%
DATA02: FADE 00H: NORMAL
01H: FADE
ACK
7FH 60H 80H DAH 01H DATA00 CKS
DATA00: Sub screen rate Gain flag 01H
Company Restricted
PDxx01 RS-232C Control Specification Page: 47 / 49
Document Version [1.0]
5-75. MULTI (SPRIT) SCREEN POWER ON MODE SET
Function
Power-on modes (Input) for sprit screen are set up.
Transmission Data
DFH 80H 60H 33H 04H DATA00 to DATA03 CKS
DATA00 POWER ON MODE 01H: LAST
02H: MULTI
DATA01 MULTI MODE 01H: Side By Side1 (Same Size Screen)
02H: Side By Side2 (Left Screen Smaller)
03H: Side By Side2 (Left ScreenBigger)
04H: Picture in Picture1 (Sub screen bottom left)
05H: Picture in Picture2 (Sub screen bottom right)
06H: Picture in Picture3 (Sub screen top right)
07H: Picture in Picture4 (Sub screen top left)
DATA02 INPUT1 (Left or main)
01H: Video1
02H: Video2
05H: DVD/HD1
06H: DVD/HD2
07H: PC/RGB
0EH: DVD/HD3
1AH: DVD/HD4
DATA03 INPUT2 (Right or Sub)
01H: Video1
01H: Video1
02H: Video2
05H: DVD/HD1
06H: DVD/HD2
07H: PC/RGB
0EH: DVD/HD3
1AH: DVD/HD4
ACK
7FH 0H 80H 33H 00H CKS
Company Restricted
PDxx01 RS-232C Control Specification Page: 48 / 49
Document Version [1.0]
5-76. REMOTE CODE SETTING
Function
Remotecontroler codes are set.
Transmission Data
DFH 80H 60H 2BH 01H DATA00 CKS
DATA00 00H: ALL
01H: CODE1
02H: CODE2
03H: CODE3
04H: CODE4
ACK
7FH 60H 80H 2BH 01H DATA00 CKS
DATA00 00H: ALL
01H: CODE1
02H: CODE2
03H: CODE3
04H: CODE4
5-77. VOLUME Gain Data REQUEST
Function
The external control equipment inquires the volume gain for Plasma diaplay.
Transmission Data
1FH 80H 60H 0EH 00H CKS
ACK
DFH 60H 80H 0EH 01H DATA00 CKS
DATA00: VOLUME Gain : 00H~2AH
(00H: 0､0FH:15､10H:16､1FH､31･･･2AH:42)
: FFH: MUTE
5-78. UNDER SCAN SETTING
Function
Under scan are set up.
Transmission Data
DFH 80H 60H 22H 01H DATA00 CKS
DATA00: 00H OFF
01H ON
ACK
7FH 60H 80H 22H 01H DATA00 CKS
DATA00: 00H OFF
01H ON
Company Restricted
PDxx01 RS-232C Control Specification Page: 49 / 49
Document Version [1.0]
6. Revision history
Rev. Date Owner Change description
1.0 12/06/06 Marantz America, Inc. Issued Revision1.0
Company Restricted
Loading...
