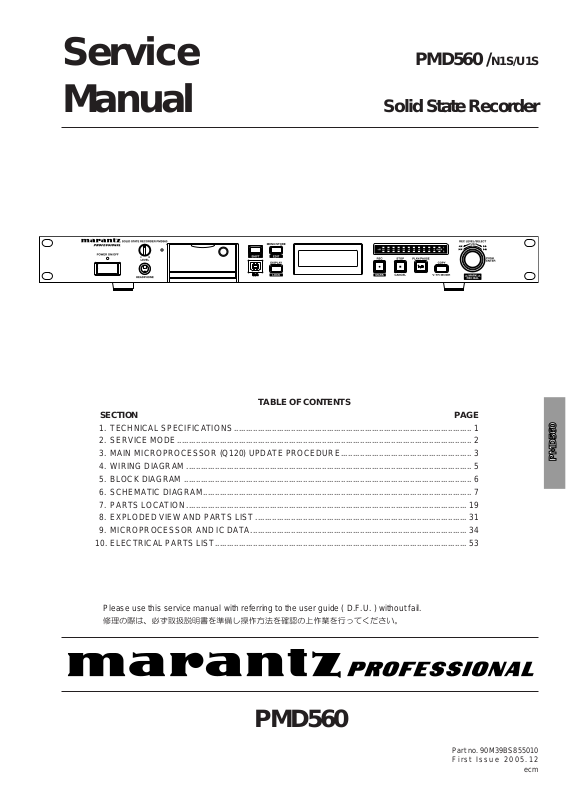

Marantz PMD-560 Service Manual

Service

PMD560 /N1S/U1S

Manual

Solid State Recorder

TABLE OF CONTENTS

SECTION PAGE

1. TECHNICAL SPECIFICATIONS .................................................................................................... 1

2. SERVICE MODE ............................................................................................................................ 2

3. MAIN MICROPROCESSOR (Q120) UPDATE PROCEDURE .......................................................3

4. WIRING DIAGRAM ........................................................................................................................ 5

5. BLOCK DIAGRAM ......................................................................................................................... 6

6. SCHEMATIC DIAGRAM ................................................................................................................. 7

7. PARTS LOCATION ...................................................................................................................... 19

8. EXPLODED VIEW AND PARTS LIST ......................................................................................... 31

9. MICROPROCESSOR AND IC DATA ........................................................................................... 34

10. ELECTRICAL PARTS LIST .......................................................................................................... 53

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

PMD560

Part no. 90M39BS855010 First Issue 2005.12

ecm

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC

cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verified before it is return to the user/customer. Ref. UL Standard No. 60950.

In case of difficulties, do not hesitate to contact the Technical Department at above mentioned address.

030307MIT

1. TECHNICAL SPECIFICATIONS

Digital audio system

System..................................................Solid State Recorder

Compatible media .................................... CF memory cards

Microdrive

Recording and media methods

mp3 .......................................MPEG1 Layer III compression

PCM ........................................................... 16 bit linear PCM

Recording bit rate

MP3 mono ................................................................ 64 kbps

MP3 stereo (PCM) .................................................. 128 kbps

Sampling frequency ...........................................44.1, 48 kHz

Number of channels ..............................2 (stereo), 1 (mono)

Frequency response .........20Hz to 20,000 Hz (+0dB,-2.0dB)

Included accessories

Power cord

Americas model ...............................................................1

Europe model ...................................................................2

USB cable ...........................................................................1

Audio cable ..........................................................................2

Screws (ISO 3x10 mm) .......................................................2

Plastic pin and retainer ........................................................ 1

CD-ROM ..............................................................................1

User Guide ..........................................................................1

Optional accessories

(See www.d-mpro.com for description and/or ordering information)

Wired remote ......................................................RC600PMD

Signal-to-Noise Ratio

IEC-A weighted ............................................................86 dB

Total harmonic distortion

at 0 VU (PCM) .............................................................0.01%

Dynamic range .............................................................86 dB

Inputs

LINE IN

Type ....................................................................... RCA jack

Input sensitivity ................................... 500 mVrms/22 kohms

Outputs

LINE OUT

Type .......................................................................RCA jack

Standard level ..........................................2 Vrms /300 ohms

General

Headphone output power ...........................20 mW/ 32 ohms

Power requirement

Americas model ........................................AC 120V/ 60Hz

Europe model ................................AC 100-240V 50/60Hz

Power consumption .......................................................12 W

Dimensions

Width .........................................................482.6 mm (19.0")

Height ............................................................... 52 mm (2.0")

Depth ......................................................... 300.5 mm (11.8")

Weight ..........................................................3.0 kg (6.6 lbs.)

* Specifications subject to change without notice.

1

2. SERVICE MODE

Ȣȸȉ

ᄩᛐ

1. Micro-Processor(Q120) Version check

1) Press POWER switch on the unit.

2) Press MENU/STORE button.

3) Preset-1 is displayed on LCD.

Ȣȸȉ

2. SERVICE

1. Micro-Processor(Q120) VERSION

1) POWER

2) MENU/STORE

3) DISPLAYƴPreset-1

ǹǤȃȁǛ 10 ƠᩓเǛλǕǇƢŵ

ȜǿȳǛƠǇƢŵ

ƱᘙᅆƞǕǇƢŵ

ᄩᛐ

4) Press REC LEVEL/SELECT button.

5) Date/Time is displayed on LCD.

6) Turn REC LEVEL/SELECT button.

7) VERSION is displayed on LCD.

MARK

-

IN REMAIN

P

MARK

-

IN REMAIN

D

MARK

-

IN REMAIN

V

re

at

er

S.SKIP STEREO MP3

44.1K 48K

set -1

4) REC LEVEL/SELECT

5) DISPLAYƴDate/Time

S.SKIP STEREO MP3

44.1K 48K

e /T i me

6) REC LEVEL/SELECT

7) DISPLAYƴVersion

S.SKIP STEREO MP3

44.1K 48K

sion

LOCK

ȜǿȳǛƠǇƢŵ

ƱᘙᅆƞǕǇƢŵ

LOCK

ȜǿȳǛǇǘƠǇƢŵ

ƱᘙᅆƞǕǇƢŵ

LOCK

8) Press REC LEVEL/SELECT button.

9) Version number is displayed on LCD. Example: A-1.00

10) Turn off power to quit Service mode.

-1

S.SKIP STEREO MP3

MARK

-

IN REMAIN

P

A-1.00

8) REC LEVEL/SELECT

9) DISPLAYƴMicro-Processor Version

 ᘙᅆų

44.1K 48K

10) SERVCICE

A-1.00

LOCK

ȢȸȉᚐᨊƸŴᩓเǛЏǓǇƢŵ

ȜǿȳǛƠǇƢŵ

ƕᘙᅆƞǕǇƢŵ

2

3. MAIN MICROPROCESSOR (Q120) UPDATE

ƷǢȃȗ

ȇȸȈ૾ඥ

࣏ᙲೞ֥

ዓ૾ඥ

ǢȃȗȇȸȈ૾ඥ

PROCEDURE

Necessary Equipment

•

Windows PC (Windows2000 or WindowsXP)

•

USB cable (Series A - Series B)

•

CompactFlash (with format)

•

Update Disc (90M-PMD560CDR)

Connection

1. Connect Windows PC and PMD560 with USB cable

2. Insert the CompactFlash

3.

MAIN MICROPROCESSOR (Q120)

ȇȸȈ૾ඥ

࣏ᙲೞ֥

• Windows PC (Windows2000

• USB

•

ዓ૾ඥ

ǱȸȖȫ ǳȳȑǯȈȕȩȃǷȥ ǢȃȗȇȸȈȇǣǹǯ

(Series A - Series B)

(90M-PMD560CDR)

1. Windows PCƱPMD560

ǳȳȑǯȈȕȩȃǷȥǛ

2.

ǇƨƸ

CompactFlash

ƱǛ

USB

PMD560

ƴࠀƠᡂǈǇƢŵ

ǱȸȖȫưዓƠǇƢŵ

ƷǢȃȗ

WindowsXP)

ȕǩȸȞȃȈฎǈ

(

)

Writing procedure

When you have already written the update file in CompactFlash, please go to No9. NOTICE : Do not turn off the power during the update. When

turn off the power, you must change Flash Rom (Q120).

1. Press POWER switch to turn on the unit.

2. "USB" is displayed on LCD.

MARK

-

IN REMAIN

S.SKIP STEREO MP3

USB

3. It confirms that it was recognized as Removable Disk (CompactFlash) by a PC.

ǢȃȗȇȸȈ૾ඥ

ଏƴ

CompactFlash

ئӳƸ৖᪯ ද

)

9

ǢȃȗȇȸȈɶƸᩓเǛЏǒƳƍưƘƩƞƍŵᡦɶưᩓเ

ǛЏǔƱȞǤǳȳ

1. PMD560ƷPOWER

2. PMD560

44.1K 48K

ƷȇǣǹȗȬǤƴ

3. Windows PC

ƠƯᛐᜤƞǕƨƷǛᄩᛐƠǇƢŵ

ƴǢȃȗȇȸȈȕǡǤȫǛ୿ƖᡂǜưƋǔ

ƴᡶǜưƘƩƞƍŵ

(Q120)

LOCK

ƴȪȠȸȐȖȫȇǣǹǯ

ǛʩƢǔ࣏ᙲƕƋǓǇƢ

ǹǤȃȁǛONƠᩓเǛλǕǇƢŵ

ƱᘙᅆƞǕǇƢ

USB

(CompactFlash)

Ʊ

3

4. "pmd560up.bin" of the update disk is copied to the route

Ȣȸȉ

ᄩᛐ

of Removable Disk (CompactFlash).

ǢȃȗȇȸȈȇǣǹǯƷ

4.

ǣǹǯ

(CompactFlash)

pmd560up.bin

ƷȫȸȈƴǳȔȸƠǇƢŵ

ǛȪȠȸȐȖȫȇ

5. Click the "Unplug or Eject Hardware" on the task bar at Windows PC, and Click the "Stop USB Mass Storage Device".

6. Press POWER switch to turn off the unit.

7. Disconnect USB cable from the unit.

8. Keep inserting (or insert) the CompactFlash, connect mains cable to unit.

9. After "Update" is displayed for a second on the display of PMD560, the version number of the higher version is displayed, and the display "OK?" blinks at the same time.

MARK

-

IN REMAIN

A1-.01

S.SKIP STEREO MP3

5. Windows PC

ǛǯȪȃǯƠ ƠǇƢŵ

ƷǿǹǯȐȸƔǒ

Unplug or Eject Hardware

Stop USB Mass Storage Device

ǛǯȪȃǯ

6. PMD560

7. PMD560

 ǳȳȑǯȈȕȩȃǷȥǛࠀƠᡂǜƩǇǇ(ǇƨƸࠀƠᡂǜư

8. PMD560 ƷᩓเǛ ON ƴƠǇƢ

ƷᩓเǛЏǓǇƢŵ Ɣǒ

ǱȸȖȫǛٳƠǇƢŵ

USB

ŵ

9. PMD560 ƷȇǣǹȗȬǤƴ Update ƕ  ᅺ᧓ᘙᅆƞǕƨ ࢸŴȐȸǸȧȳǢȃȗƢǔȐȸǸȧȳǛᘙᅆƠŴӷ଺ƴ "OK?" Ǜໜ๒ᘙᅆƠǇƢŵ

44.1K 48K

LOCK

O

K?

)

NOTICE : In the case of the same firmware version, no dis-

plays appear on LCD. Please check the firmware version.

10. Press the REC LEVEL/SELECT button.

11. MPU Firmware updating will be done automatically.

12. During the updating, "Update" is displayed on LCD with blink.

13. Uploading takes about 30 seconds.

14. After Firmware rewriting is completed, the display will show the information display of initial automatically.

15. The firmware has been Updated.

16. Check the version number of the firmware.

Refer to 2-page "2. SERVICE MODE" for "Micro-Proces-

sor (Q120) Version check" confirmation.

ද

) ӷơȐȸǸȧȳƷئӳƸᘙᅆƞǕǇƤǜŵȐȸǸȧȳǛ

ᄩᛐƠƯ

10.REC LEVEL/SELECT

ᐯѣႎƴȡǤȳȞǤǳȳƷ

11.

ƜƷƱƖ

12.

ǕǇƢŵ ୿ƖƑ଺᧓Ƹኖ30ᅺưƢŵ

13.

୿ƖƑƕኳǘǔƱᐯѣႎƴИ஖ဒ᩿ƴƳǓǇƢŵ

14. 15 . VERSION

2 ȚȸǸ

(Q120)

୿ƖᡂǜƩ

16.

ʕưƢŵ

ƘƩƞƍŵ

PMD560

ƷᄩᛐǛƠǇƢŵ

ƷȇǣǹȗȬǤƴ

"2. SERVICE

ᄩᛐ"ưᄩᛐǛƠǇƢŵ

VERSION

firmware

ȜǿȳǛƠǇƢŵ

firmware

Ǜ୿ƖƑǇƢŵ

Update

Ȣȸȉ"Ʒ

ƷȐȸǸȧȳƕദƠƚǕƹ୿ƖƑܦ

"

Micro-Processor

1.

4

ƕໜ๒ᘙᅆƞ

4. WIRING DIAGRAM

Cable 7

(PH connector)

(P206)

JOG UNIT

I/O UNIT(P201)

J505

Cable 2

(PH connector)

J506J504

J507

Cable 8

(PH connector)

J102J104

FFC2

(17P FFC)

J103

J100J108J107J110

MAIN UNIT(P101)

FFC1

(10P FFC)

Cable 6

(PH connector)

LCD UNIT

(LCD MODULE)

J650 J930

(P202)

PANEL UNIT

ACC LED

UNIT(P205)

AC IN

Cable 9

AC INLET

Cable 1

(VH connector)

Cable 3

(PH connector)

J706J702

POWER UNIT

(P201)

J704 J705

5

J101

Cable 4

(PH connector)

Cable 5

(PH connector)

HP JACK

J970 J801 J900

STB LED

UNIT(P204)

UNIT(P207)

5. BLOCK DIAGRAM

OUT

RCA

J501

H.P.

JACK

J802

AMP

MUTE

AMP

AK4537

CODEC

RJ02

AMP

MUTE

AMP

12.288MHz

DSP

uPD77115GK-9EU

CPLD

XCR3256XLTQ144

STATIC RAM

uPD444012AGY

FLASH ROM

LH28F800BVEBTL90

RTC

CF SOCKET

NJU6350B

J109

32.768KHz

CPU

DSP

SYSTEM

DC+1.5V

DC+3.3V

DC+2.5V

ANALOG +

ANALOG-

CF/MICRO DRIVE

LCD BACKLIGHT

CODEC

DC-9.0V

DC+3.3V

DC+9.0V

DC+3.3V

DC+5.0V

TC9459

SW

AMP

MIX

SW

AMP

OSC

48MHz

J106

LCD

I/F

SERIAL

J500

LED

uPD4721GS

LED

12Point

BUFF

NJU3716AM

BUFF

NJU3716AM

2chLED

CPU

uPD703111GM0-15

A/D

TR

KEY

LED

S930

18.75MHz

POWER CIRCUIT

POWER CONTROL CIRCUIT

JOGDIAL

S701

RCA

J501

RCA

J501

USB

CONNECTOR

DSUB9P

CONNECTOR

J502

J503

REMOTE1

REMOTE2

FRONT

POWER

SW

AC IN

6

7 8

B8B-PH-K-S

J506

1

LCH_IN

2

GND_A

3

RCH_IN

4

LCH_OUT

5

GND_A

6

RCH_OUT

7

-9V

8

+9V

B10B-PH-K-S

J505

1 -9V 2 GND_A 3 GND_A 4 +9V 5 232C_ON 6 RXD 7RTS 8 TXD 9 CTS

10 +3.3VU

TC9459BFG

Q511

1

NC

2

VSS

3

L-OUT

4

NC

5

L-IN

6

L-LD1

7

L-LD2

8

L-A-GND

9

NC

10

CS1

11

NC

12

D_GND

13

CK

14

NC

15

NC

16

DATA

17

STB

18

NC

19

CS2

20

NC

21

R-A-GND

22

R-LD2

23

R-LD1

24

R-IN

26

R-OUT

25

NC

27

VDD

28

NC

0

R578

OPEN

R579

OPEN

C572

OPEN

R580

OPEN

C573

100p

C569

100p

C570

0

R576

OPEN

R575

OPEN

R577

OPEN

C562

OPEN

C561

GND_A

100p

C564

0.1

C565

0.1

C567

47u/16V

C566

47u/16V

C568

+9V-9V

10u/16V

C563

47K

R574

GND_A

10u/16V

C571

GND_A

47K

R581

NJM2068M

Q5126

5

7

4

NJM2068M

Q512

2

3

1

8

-9V

+9V

0.1

C578

GND_A

0.1

C579

GND_A

47pC577

47pC576

1.5K

R582

GND_A

10u/16V

C582

10u/16V

C583

100K

R593

GND_A

100K

R594

100

R595

100

R596

GND_A

+9V

-9V

GND_A

+3.3VU

0R561

100u/16V

C551

0R556

100u/16VC552

+9V

BU4052BCF-E2

Q507

B

9

X-COM(R)

13

INH

6

0Y(Lch)

1

1X

14

A

10

0X(Rch)

12

2X

15

1Y

5

2Y

2

3Y

4

3X

11

Y-COM(L)

3

Q507

BU4052BCF-E2

VCC

16

GND

8

VEE

7

B7B-PH-K-S

J507

1

FG

2

-9V

3

+9V

4

L_OUT

5

GND_A

6

R_OUT

7

MUTE

17FMN-BMTTN-TFT

J504

1

D_GND

2

+3VU

3

MUTE

4

(L+R)/2

5

ST-MONO

6

CK

7

DATA

8

STB

9

CTS

10

TXD

11

RTS

12

RXD

13

S-STB

14

LED1

15

LED2

16

REMOTE2

17

REMOTE1

GND_A

OPEN

R599

220K

R600

-9V

+9V

NJM2068M

Q513

6

5

7

8

NJM2068M

Q513

2

3

1

4

10u/16V

C585

10u/16V

C586

100K

R597

GND_A

100K

R598

GND_A

C584

47p

C581

47p

10K

R585

10K

R590

GND_A

10K

R586

GND_A

10K

R589

+9V

-9V

C580

0.1

GND_A

OPEN

R583

GND_A

OPEN

R584

GND_A

FG2

22R563 22R564

UPD4721GS-GJG

Q516

1

VDD

2

C1

3

Vcc

4

C1-

5

C5+

6

C5-

7

Din1

8

Din2

9

Rout1

10

Rout2

11

Rin2

12

Rin1

13

Dout2

14

Dout1

15

Vdna

16

STBY

17

Vss

18

C4-

19

GND

20

C4+

OPENR562

J503

HSJ1637-010512

1

4

3

2

D504

NNCD43C

L500

BLM11B601

C504

0.01

R502

10

100

R5061KR508

0

R5030R505

D_GND

10

R504

BLM11B601

L501

BLM11B601L502 BLM11B601L503

BLM11B601

L504

D_GND

0

R507

C505

220p

D_GND

+3.3VU

4.7u/35V

C530

0.01

C531

4.7u/35V

C533

0.01

C535

0.01

C542

4.7u/35V

C538

4.7u/35V

C541

0.01

C543

D_GNDD_GND

4.7u/35V

C532

0.01

C534

Q517

TC74LCX125FT

GND

7

VCC

14

+3.3VU

D_GND

0.1

C529

TC74LCX125FT

Q517

23

1

22

R529

22R528

22KR522

22KR521

1K

R527

0.01

C515

4.7u/35V

C513

0.01

C511

4.7u/35V

C510

D_GND

100pC517

100pC516

100p

C514

100pC512

BLM11B601L509

BLM11B601

L512

BLM11B601

L510

D_GND

OPEN

D506

123

OPEN

D50512

3

BLM11B601

L511

D_GND

DT11121-125T

J500

1

2

TXD

9

8 CTS

3

RXD

7RTS

4

6

5

D_GND

TC74LCX125FT

Q517

56

4

TC74LCX125FT

Q517

9

8

10

TC74LCX125FT

Q517

12

11

13

D_GND

-9V

GND_A

+8.2V-8.2V

GND_A

0.1

C548

0.1

C547

GND_A

10u/16V

C550

47K

R555

GND_A

NJM2068M

Q508

2

3

1

4

NJM2068M

Q508

6

5

7

8

OPEN

R560

GND_A

10u/16V

C558

GND_A

100K

R573

+9V

0.1

C555

GND_A

0R569

OPENC556

GND_A

100K

R572

-9V

GND_A

0.1

C554

GND_A

OPENC553

OPEN

R559

GND_A

10u/16V

C557

100K

R554

GND_A

10u/16V

C549

OPEN

R552

0

R551

0

R550

GND_A

OPENR553

DTC114EU

Q510

GND_A

DTC114EU

Q509

GND_A

220KR558

220KR557

OPEN

R567

OPEN

R568

D507

02SZ8.2Y

8.2V

123

D508

02SZ8.2Y

8.2V

123

220

R570

1W

GND_A

+9V

100u/16V

C559

+8.2V

GND_A

220

R571

1W

GND_A

100u/16V

C560

-8.2V-9V

+9V

+8.2V

100K

R549

+9V

0.1u

C539

GND_A

4.7KR542

100pC536

NJM2068M

Q502

6

5

7

8

3.3K

R540

GND_A

10u/16V

C544

GND_A

10K

R539

GND_A

NJM2068M

Q502

2

3

1

4

-9V

0.1u

C540

GND_A

100pC537

10KR543

3.3K

R541

10K

R537

10K

R536

47K

R530

47K

R531

-9V

0R523

OPEN

C518

GND_A

NJM2068M

Q500

2

3

1

4

0.1

C522

47u/25V

C526

+9V

0.1

C523

GND_A

NJM2068M

Q500

6

5

7

8

OPENC519

0R524

GND_A

OPEN

R517

OPEN

R518

47K

R512

47K

R513

GND_A

J501

YKC21-3215

4

5

6

7

1

2

3

-9V

+9V

GND_A

+9V

-9V

DAP202K

D501

1

2

3

DAP202K

D503

1

2

3

DAN202K

D500

1

2

3

DAN202K

D502

1

2

3

1000p

C500

1000p

C501

47p

C502

47p

C503

47K

R500

47K

R501

BLM11B601

L505

BLM11B601

L506

BLM11B601

L507

BLM11B601

L508

47u/25V

C506

47u/25V

C507

NJM2068M

Q501

2

3

1

8

GND_A

100

R535

15KR526

GND_A

-9V

10K

R533

10K

R532

33pC521

15KR525

10u/16V

C527NJM2068M

Q501

6

5

7

4

0.1

C525

100

R534

GND_A

+9V

33pC520

4.7K

R519

0.1

C524

10u/16V

C528

GND_A

4.7K

R520

10K

R514

10K

R515

OPEN

R510

GND_A

OPEN

R511

100

R544

100

R545

GND_A

GND_AGND_A

100

R548

100

R547

BLM11B601

L513

BLM11B601

L514

100p

C545

GND_A

100p

C546

00MWG39BS2010P201

C587

0.1

GND_A

TPF501

TPF502

TPF503

TPF504

TPF505

J502

YKB21-5261

1

2 3

0

R601

0

R602

1.5K

R603

GND_A

0

R605

0

R604

TPF556

TPF555

TPF554

TPF553

TPF552

TPF551

TPF550

100u/16V

C588

100u/16V

C589

TPF549

TPF548

TPF547

TPF546

TPF545

TPF544

TPF512

TPF513

C591

220p

C590

220p

D_GND GND_AFG1

0

R606

TPF514

TPF515 TPF516 TPF517

TPF506

TPF507

TPF508 TPF509 TPF510

TPF511

D_GND

D509

OPEN

12

0

R608

22R610

22R609

OPEN

R612

22R613 22R614

22R615 22R616

22R617 22R618 22R619

22R620 22R621 22R622 22R623

0R624

10u/16V

C592

D_GND

TPF518 TPF519 TPF520 TPF521 TPF522 TPF523 TPF524 TPF525 TPF526 TPF527 TPF528 TPF529 TPF530 TPF531 TPF532 TPF533 TPF534

TPF535 TPF536

TPF537 TPF538 TPF539 TPF540 TPF541 TPF542 TPF543

47u/25V

C593

J508

J500

10

TPF557

TPF558

Q503 2SC3326

Q504 2SC3326

Q505 2SC3326

Q506 2SC3326

2.7k

R625

2.7k

R626

2.7k

R627

2.7k

R628

0

R566

330

R587

330

R588

18k

R592

18k

R591

10k

R538

0

R546

F1BR630 U1BR631

N1BR629

D_GND D_GND

R607

OPEN

I/O UNIT

LINE IN

LINE OUT

TO HPJACK UNIT

TO MAIN UNIT

REMOTE1

REMOTE2

9PDSUB RS-232C

TO POWER UNIT

MAIN UNIT

TO

(1/4)

(2/4)

(3/4)

(4/4)

6. SCHEMATIC DIAGRAM

109

T701

J701

S701

C701 F701

R701

C702

C703C704

D701

C705

D702

C713

J703

D706

C714 C715

C716

L702

L703

R713

R714

R712

L701

F702

Q701

C706

D703

C707 R704

R702

R703

D705

C709

C708

D704

C710

G701

Q702

C711

R709

R705

R706R707

Q703

D707

D708

C712

C717

C718

R720

R719

C719

R715

R724

R718

C740

L707

L709

C735C739

C737

D710

D711

Q709

Q710

R753

R755

Q708

C728

R746 C731

R747

R744

C732

R749

R748

C729

R754

R752

R740C726

R737

R736

C725

R739

C727

R738

R731

R732

Q706

D709

C723

R728

R729R730

L705

C722

C721

R727

R726

Q705

R725

R721

R722

R741

R723

J704

R733

Q707

J705

J706

Q712

P203

C743

R770

R769

R771R772R773

R774

C744

C745

Q711

C741

R761

R765

R764

R763

R762

R766

Q712

C742

R757

R756

TP701

TP702

R758

Q713

R768

D712

R777

R778

R779

TPF722 TPF723

TPF721

TPF724 TPF725 TPF726

X701

R780

R781

R782 R783 R784

TPF712

TPF713 TPF714 TPF715 TPF716 TPF717 TPF718 TPF719

TPF720

TPF701 TPF702

TPF703

TPF704

TPF705

D714

TPF706

TPF707

TPF708 TPF709

TPF710

TPF711

D715D716

L704

S705S704

J702

TPF727

TPF728

TPF729

TPF730 TPF731

TPF732

Q712

Q714

R790

D717

J707

C749

R708

C750

R792

R745

C736

C733

L708

L706

R735

C720

C724

R793

R716

R717

R760

C748

D713

D718

R794

R710

R750 R751

R742 R743

R734

R775

D720

D721

Q716

R791

Q715

R711

R799

R759

Q704

R767

R776

R785

J708

R797

R796

R795

R788

R789

C746

C747

R798

R786R787

C730

Q717

TPF733

TPF734

TPF735

TPF736

TPF737

TPF738

TPF739

TPF740

TPF741

TPF742

TPF743

TPF744

0.01u 1.6A

1M

0.22u

OPENOPEN

120u/400V

680p

1000p 1000p

470u/35V

10uH

100uH

OPEN

33

1/2W

800mA

0.1u

47u/25 15

1/4W

56

0.47u

470p

470NR-07D

0.1u

OPEN

15

5.6k33k

47u/35

0.1u

0.01u

0

1/10W

0 1/10W

100u/16

0

10k

0

10u/16

10uH

0.1u0.1u

560u/35V

220

33u/25

10k 0.01u

10k

0.1u

18k

39k

0.1u

220

10k0.01u

10k

18k

0.1u 10k

220p

39k

0

1/10W

0

1/10W

4700p

150k

39k10k

100uH

0.1u

10u

390k

10k

0

1/10W

0

1/10W

10k

0

1/10W

OPEN

0.1u

10k

0

1/10W

6801k1k

100k

0.1u 100u/16

0.1u

100k

0.1u

100k

0

100k

8MHz

22

22 22 22

100k

0.1u

22k

10u/50

10k

2.2k

10u/16

560u/35V

100uH

1.2k

560u/35V

680u/16V

3.3k

OPEN

100k

OPEN

0

18k

1.8k 18k

68k 0

180

OPEN

0

47k

10k

0

OPEN

OPENOPEN

0.1u

AC INLET

1

2

3

56

24

2/1

13

3

2

1

4

2

9

10

11

12

8

1

3

7

5

6

132

高周波コイル

12

34

12

43

123

1 23

4

1

2

3

2

1

3

123

12345678

9 10111213141516

1 6 7

2

3

5

4

B3B-PH-K-S

1 2 3

B6B-PH-K-S

1 2 3 4 5 6

B10B-PH-K-S

1

2

3

4

5

6

7

8

9

10

23

1

98

10

12 11

13

00MWG39BS2030

POWER UNIT

12345678910

11 12 13 14 15 16 17 18 19 20

7

14

VI

1

VADJ 4

GND

5

VO

3

CNT

2

12

8

1

75

24

12

34

5

12

34

5

1 2

56

4

1

2

3

1

2

3

12

1 2 3 4 5

M1910-D

SDDFE10100

S1WBA60

ST03D-170

FG3

FMB 26L

RIE9-866200

LF-4Z-E223

MIP3E50MY

OPEN

PC-123F2

1SS301

TL431CZ

F_GND

DTC114EUA

OPEN

D_GND

RB160L-40

2SA1797

BA9741FS

D_GND

BD9778/HFP

RB051L-40

D_GND

DTC114EU

D_GND

B3B-PH-K-S

DTC114EU

D_GND

B6B-PH-K-S

B10B-PH-K-S

TC74LCX125FT

D_GND

+3VU

UPD78F9222

+3VU

D_GND

+3VU

TC74LCX125FT

+3VU

D_GND

+3VU

NJM2387DL2

D_GND

OPEN

+3VU

D_GND

OPEN

D_GND

OPENOPEN

D_GND

FTR-F1

OPENOPEN

B2P3-VH

DTC114EU

D_GND

MA151WA-(TX) SIZE 2916 2DI SW

D_GND

OPEN

DAN202K

D_GND

+3VU

OPEN

D_GND

UDZSTE-173.6B

DTC114EU

D_GND D_GND

OPEN

+3VU

2SC4116-GR-TE85L

OPEN

DTC114EU

D_GND

N

R

GSD

A

REF

C

VIN RT ENSWFB

INV

GND

+5V +5V D_GND D_GND POWERSW POWERRYOFF

-9V

D_GND

+9V

232CON

RXD

RTS

TXD

CTS

+3VU

VSS P121/X1

P122/X2 P123

VDD RESET P31 P30 P40

P41/INTP3

P42

TXD

RXD

P45

P130

P23/ANI3

P22/ANI2

P21/ANI1

P20/ANI0

AVREF

GND

VCC

D_GND

F_GND

DG_CLK

DG_DATA

RESET

+3VU GND

(1/4)

(2/4)

(3/4)

(4/4)

"NOTE ON SAFETY: The parts marked with are IMPORTANT PARTS on the safety. Please use the parts having the designated parts number without fail"

11 12

P12

P11

P10

P9

P8

P7

P6

P5

P4

P3

P2

P1

P81

P71

P61

P51

P41

P31

P21

P111

P16

P15

P14

P13

P7 P8 P9 P10 P11

P12

P13 P14 P15 P16

P6 P5 P4 P3 P2

P1

P71 P81 P91 P101

P61 P51 P41 P31 P21

P111

P101

P91

J930 S930

J900

S900

R900

D900

J970

D970

V990

P207

P205

P206

J650

R650 R651 R652 R653

C652

C651

C650

Q650

Q651

R660

R659

R658

R657

R656

R655

C655

C654

C653

D652

D653

D654

D655

D656

D657

D658

D659

D660

D661

D662

D663

R674

R673

R672

R671

R670

R669

R668

R663

R681

R675

R686

D668

R685

D672

D669

D671

D666

D673

R682

D667

R680

R684

D664

D665

D670

D675

D674

R683

C659

C658

C660

C656

C657

D650D651

C662

C661

R662 R661

R687R688R689R690R691R692

R693R694R695R696R697R698

R699

R649

S653

S654

S651

S652 S656

S655

S653

S654

S650

P202

C811

C815

P204

R813

C803

C806

R805

C818

L802

R815

Q801

R800

C804

C816

R806

R820

C807

R807

R802

R818

C817

C802

C812

C809

R816

Q801

D801

R801

C813

C808

D802

R803

R801

R817

R808

R819

C810

L803

R804

C814

L801

C801

C805

J802

L805

J801

L804

R814

R932

R931

R809

R810

R821

R648

R647

TP1 TP2 TP3 TP4 TP5 TP6

TPF650

TPF651

TPF652

TPF653

TPF654

TPF655

TPF656

TPF657

TPF809

TPF808

TPF807

TPF800

TPF801 TPF802 TPF803 TPF804 TPF805 TPF806

TPF900 TPF901 TPF902

TPF930 TPF931 TPF932 TPF933

TPF970

TPF971

TPF682

TPF683

TPF684

TPF658

TPF659

TPF660

TPF661

TPF662

TPF663

TPF664

TPF665

TPF666

TPF667

TPF668

TPF669

TPF670

TPF671

TPF672

TPF673

TPF674

TPF675

TPF676

TPF677

TPF678

TPF679

TPF680

TPF681

R970

R654

Q803

Q802

Q805

Q804

R664

R665

R666

R667

R676

R677

R678

R679

R826R827

R811

R812

R823

R822

R824

R825

120

22 22 22 22

0.01u

0.1u

1u

47k

0.01u

0.1u

1u

120

0.01u

0.1u

1u

0.1u

0.01u

OPENOPEN

0.01u

0.1u 47k OPEN

1.2k1802403605601k

120

OPEN

47p

47k

47u/16

22p

15k

0.1u

82

0

1/10W

47u/16

47p

15k

OPEN

0.1u

47k

0

1/10W

0

0.1u

47u/16

OPEN

220u/16

82

2200p

0.1u

22k

10k

0

47k

OPEN

220u/16

22k

2200p

47u/16

22p

47k

0

OPEN

0

22

180

330

220

10k

82

270

1 2 3 4

1

2

3

54

1 2 3

12

1 2 3

BLUE

12

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

00MWG39BS2070

00MWG39BS2050

00MWG39BS2060

10 9 8 7 6 5 4 3 2 1

123456789101112

13 14 15 16 17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8

9 10 11 12 13

14

15

16

17

18

19

20

21

22

23

24

12

43

13

13 13

13

1212

12

00MWG39BS2020

00MWG39BS2040

2

3

1

8

6

5

7

4

123

4

6

5

123

31

2

1

2 3

1 2 3 4 5 6 7

(MUTE OFF)

(MUTE_ON)

JOGSW ENCORDER_B ENCORDER_A

D_GND

ACCESS_LED

DOOR

D_GND

LED

NC

D_GND

+3.3V

+3.3V D_GND D_GND

DATA

CLR STB CLK AN1 AN2

P7 P8 P9 P10 P11 VSS P12 P13 P14 P15 P16 SO DATA

CLK

STB

CLR

P1

VSS

P2

P3

P4

P5

P6

VDD

P7 P8 P9 P10 P11 VSS P12 P13 P14 P15 P16 SO DATA

CLK

STB

CLR

P1

VSS

P2

P3

P4

P5

P6

VDD

FG

-9V

+9V

LIN

GND_A

RIN

MUTE

S4B-PH-K-S EC11B20244

D_GND

S3B-PH-K-S

SPPB62

SML-A12MT

S3B-PH-K-S

SML311BBT

C-51914GNJ-SLW-AB

C-51914GNJ-SLM-AB

10FMN-SMT-TF

+3.3V

D_GND

NJU3716AM

D_GND D_GND

D_GNDD_GND

+3.3V

D_GND

SML-512UW

SML-512DW

SML-512MW

SML-512DW

SML-512MW

SML-512DW

SML-512MW

SML-512DW

SML-512UW

SML-512DW

SML-512MW

+3.3V

D_GND

NNCD4.3C

+3.3V

D_GNDD_GND D_GNDD_GND

D_GNDD_GND D_GND

SKHMPW

SKHMPW SKHMPW

SKHMPW

SKECFKA010

SKECFLA010

SKECAFA010

D_GND

+3.3V

GND_A

-9V

GND_A

BLM18BD601SN1D

GND_A

NJM4556M

GND_A

+9V

GND_A

-9V

GND_A

NJM4556M

GND_A

DAN202K T146

GND_A

DAP202K T146

GND_A

RK0971220

+9V

GND_A

BLM18BD601SN1D

+9V

BLM18BD601SN1D

YKB21-5265

BLM18BD601SN1D

S7B-PH-SM4-TB

BLM18BD601SN1D

GND_A

-9V

GND_A

2SC3326

GND_A

JOG UNIT

ACC LED UNIT

STB LED UNIT

LCD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

2324

LIGHT BACK

LCD UNIT

L-OVER

L-0

L-2

L-4

L-6

L-8

L-10

L-12

L-20

L-30

L-40

L-60

R-CVER

R-0

R-2

R-4

R-6

R-8

R-10

R-12

R-20

R-30

R-40

R-60

(GRN)

(ORG)

(RD)

(GRN)

(RD)

(ORG)

(LOW)

(HIGHT)

REC

PLAY

(GRN)

(RD)

PLAY

(DIP)

REC

STOP

(DIP)

SHIFT

COPY

MENU

DISPLAY

PANEL UNIT

2Vrms

5Vrms

0.8Vrms/32ohm

5Vrms

2Vrms

HP JACK UNIT

LCH

RCH

1413

C183

R185

R275

R229

C162

C144

R316

R208

R314

C143

R259

Q125

Q121

R267

R230

TP123

C215

TP139

Q125

R263

C147

C164

R369

R197

C171

X101

TP125

R201

C166

C178

TP148

R282

TP122

R196

X100

C191

TP118

R233

R283

Q125

R268

R198

C148

R219

R284

TP129

R184

C173

R237

TP126

R223

R236

TP127

X102

TP146

C145

D114

Q116

R260

Q109

R274

R258

R217

R220

C214

R234

TP141

R187

R227

C151

R239

Q119

R231

TP128

C146

C174

R186

TP142

R313

R264

R209

TP136

R203

TP147

Q117

C172

TP120

C211

TP145

TP117

TP121

C210

C175

TP124

R317

C165

C152

R218

R202

R224

C154

R232

Q122

Q110

R238

C142

Q118

Q120

R221

TP140

C149

TP137

C184

R226

C179

C221

R315

R228

TP119

Q125

R210

R222

R277

R276

R365

R367

R285

R269

R286

R287

R216

R215

R214

R213

R200

C150

C153

C213

J106

C223

C224

C192

C193

R255

R256

L115

L114

C168

C169

C170

L137R257

C189

C167

C163

C190

R270

C186

C161

R188

D111

R211

C250

D115

C212

D116

R225

C204

R332

C205

R333

C203 R331

R330C202

C201 R329

C200

R328

C199

R327

C198

R326

R345

C197

C196

R325

C195

R324

R248

R247

R246

R245 R241

R242

R243

D120D119

L118

C216

C217

R235

C209

C208

C207

C206

C218

C182

C187

C194

C188

C245

C246 C247

C248

C249

C181

C185

C180

C176 C177

D126

R308

C244

C155

C225

C227

C226

R262

R271

R272

R280

R279

R278

R281

R309

R305

R310

R311

R347 R348

R346

R318

R319

R320

R312

L111

L112

L132

L131

L130

L129

L128

D121

C222

L136

C220

C219

D117 D118

TP130

R334 R335 R336 R337 R338 R339 R340 R341 R342

R212

R288

R289

R290

R291

R292

R293

R294

R295

R296

R297

R298

R299

R300

R301

R302

R303

R304

J107

C228

L126 L127

L124 L125

J108

R250

R251

C243

C229

C230C232

C231

C234

C233

R252R253

R249

R244

TP131

TP132

TP133

TP134

TP135

TP143

TP144

TP149

R349 R350 R351 R352 R353 R354 R355 R356

R357 R358

R361 R363

R360 R362 R364

R359

J104

R273

R199

R306

R307

R366

R322

R323

R343 R344

J105

R177

R179

R181

R183

TP150

TP151

TP152

R182

R180

TP202

TP205

R178

TP206

R176

TP211

R175

R174

TP220 TP222

R173

TP221

R172

R168

R368

R169

R170

R165 R166

Q112

Q113

L106

L107

L108 L109 L110

R167

C141

R207

TP210

TP201

TP154

TP153

C156

C157

R205

R206

Q123

Q114

Q114 Q114 Q115

Q127

R192

R190

R189

C160

D113

Q110

R321

R171

R204

L113

R254

R461

TP224

TP225

TP226 TP227

TP228

R462

R463

C281

R464

R240R465R470

R471

R472

TP236

TP237

TP262

C282

R473

D112

TP261

TP260

TP259

TP138

TP276 TP240

R474

C283

C284

C285

C286

R475

R476

D128

D129

TP238 TP239 TP241 TP242 TP243 TP244 TP245 TP246 TP247

TP248 TP249 TP250 TP251 TP252 TP253 TP254

TP255

Q124

P101

TP283

TP277

C291

TP278 TP279

TP284

R195

R194

R858

R859

C235

C236

C237

C238

C239

C240

C241

C242

R860

R861

R862

R863

C158

C159

D132

D131

D130

R864

R866

C295

R867

J112

R879

R191

R193

Q133

Q134

R880

R881

R882

R883

R886 R887

R884

R885

R865

R888

R261

R477

R478

L121

34

1234

5678

12

98

321

1234567891011121314151617181920212223

24

26 25

27 28 29 30 31 32 33 34 35 36 37 38 39 40

41 42 43 44 45 46 47 48

2

1

3

1234

5678

1234567891011121314151617181920212223

24

26 25

27 28 29 30 31 32 33 34 35 36 37 38 39 40

41 42 43 44 45 46 47 48

31

4

2

23

1

1234

5678

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

41 42 43 44

45464748495051525354555657585960616263646566676869707172737475

76

8384858687

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

37 38

777881

82

123

124

39 40

79

80

119

120

121

122

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

56

1 2 3 4 5 6

321321321

1

23

4

321321

1

+3.3V

2

+3.3V

3

GND

4

GND

5

DATA

6

*CLR

7

STB

8

CLK

9

AN1

10

AN2

1

NC

2

D87/CS

3

D86/S10

4

D85

5

D84

6

NC

7

E/SEL

8

R/W

9

RS

10

/RES

11

OSC2 12 OSC1 13

VDD 14

VCI 15

C1+ 16

C117

C2+ 18

C219

V5OUT 20

VSS 21

V5 22

NC

1

REMOTE1

2

REMOTE2

3

LED2

4LED1 5

S-STB

6

RXD

7

RTS

8

TXD

9

CTS

10

STB

11

DATA

12

CK

13

ST-MONO

14

(L+R)/2

15

MUTE

16

+3VU

17D_GND

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

2125

1 2 3 4 5 6 7 8

9 10 11 12 13

1617181920212223242526

27

28

29

30

31

32

33

34

35

36

37

38

39

4041424344454647484950515214

15

1 2

34

5

6

10

9

8

56

4

12

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

21222324252627282930313233343536373839

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61626364656667686970717273747576777879

80

00MWI39BS1010

3

2

1

3

2

1

3

2

1

2

EJECTnINT

DSPnINT1

CF_nINT

DSPnRES DSPnHRE DSP_ON DSPnINT1 DSPnHWE

CPLD_nRES

A1

LCD_E

DATA

STB

CLK

A1

CF_CLK

EJECTnINT CF_nINT CPU_WAIT CPLD_nRES nCS2 nRD nWR

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19

D1

D2D3D4

D5

A17

A9

A10

A11

A12

A13

A14

A15

A16

A19 A18

A2

A3

A4

A5

A6

A7

A8

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16 A17

A18

DSPnHWE DSPnHRE

CPU_WAIT

USB_CNT

A19

A18

A17

A16

A15

A14

A13

A12

A11

A10A9A8A7A6A5A4A3A2

A1

D8D9D10

D11

D12

D13

D14

D15

D0

D6

D7

AN1

DSPnRES

DSP_ON

nCS2 nWR

DB5

DB6

DB7

DB4

LCD_RS

DATA

D15 D14 D13 D12 D11 D10

D9 D8

D1

D6

D0

D3

D4 D2

D5

D7

STB CLK

D0

D8

D1

D9

D2

D10

D3

D11

D4

D12

D5

D13

D6

D14

D7

D15

D0

D8

D1

D9

D2

D10

D3

D11

D4

D12

D5

D13

D6

D14

D7

D15

P144 P143 P142 P141 P140 P139 P138 P137 P136 P133 P132

P143

P140

P139 P138

P137

P136

P133

P132

P149 P148

AN2

P141

D0 D1 D2 D3 D4 D5 D6 D7 D8

D10 D11 D12 D13 D14 D15

D9

AN0

P172

P171

LED2

P148

P149

P77

nEPON

CF_CLK

nRD

P144

*CLR

P142

LCD_RS

LCD_E

DB4

DB5

DB6

DB7

AN2

AN1

*CLR

LED1

P172

AN0

nEPON

LED1

LED2

P77

P171 P175 P174 P173

P173

P174

P175

LCD_nRES

LCD_R/W

LCD_nRES

1u

47K

0

47K

0.1u

2.2u/50V

0

0.1u

1K

0

0.1u

0

0.1u

1u

22

47K

0.1u

12.288MHz

10K

0.1u

1u

47K

18.75MHz

0.1u

OPEN

47K

0

47K

0.01u 47K

47K

OPEN

22

0

1.5K

32.768KHz

0.1u

1K

0

330

47K

1u

47K

0

0.1u

1K

OPEN

100u/10V

OPEN

47K

0

0.1u

0.01u

0.1u

0

0.1u

4700p

47K

0

1u

OPEN

22

1u

47K

100u/10V

0.1u

0

0.1u

0

47k

330

0

0.01u

0.1u

OPEN

15p

100

1u

100

1u

0.01u

1K

0.01u

22

0.01u

22

OPEN

4.7K

4.7K 4.7K

4.7K

0.01u

OPEN

0.01u

4.7K

OPEN

1u/50V

22p

0

330

330 330

330

22p

0 0 0 0 0 0 0 0 0

0

330

100u/10V

OPEN

0.01u

OPEN

1u/50V1u/50V

OPEN

0.01u

4.7K4.7K

22

1K

330 330 330 330 330 330 330 330

330 330

330 330 330

330

47K

OPEN

47K

47k

0

47K

0 0

47K

22

47K

4.7K

0 0

0

OPEN

10K

0.22u

10K

0

OPEN

47K

4.7K

47K

100

0

47k

10u/16V

0

1K1K

100K

OPEN

10u/16V

0

4.7K

100u/10V

10u/16V

100u/10V

47K

6.8k

100u/10V

0

47K

0

56p

22

10k

330

15p

0

OPEN

330

OPEN

10k

47K

0 0

0

1.2k

OPEN

0

FOUT XIN XOUT VSS CE

CK

DATA

VDD

A15 A14 A13 A12 A11 A10 A9 A8 NC NC WE CE2 NC BHE BLE NC A17 A7 A6 A5 A4 A3 A2A1CE1

A0

VSS

OE

I/DO1

I/DO9

I/DO2

I/DO10

I/DO3

I/DO11

I/DO4

I/DO12

VDD

I/DO5

I/DO13

I/DO6

I/DO14

I/DO7

I/DO15

I/DO8

I/DO16

VSS

NC

A16

CKIN OE 1Y0 GND 1Y1

VDD

1Y2

1Y3

A15 A14 A13 A12 A11 A10 A9 A8 NC NC WE RP VCCW WP RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1

CE

A0

GND

OE

DQ0

DQ8

DQ1

DQ9

DQ2

DQ10

DQ3

DQ11

VCC

DQ4

DQ12

DQ5

DQ12

DQ6

DQ14

DQ7

DQ15/A_1

GND

BYTE

A16

OUTST

VCC

GND

NC NC NC GND SDA

SCL

WP

VCC

JIT1 JIT0 AVDD AVREFP AN10 AN11 AN12 AN13 AN14 AN15 AN16 AN17 AVRFEM AVSS MODE1 MODE0 INTP67/TOC1/P67 INTP66/NTPC11P/P66 INTP65/TIC1/INTPC10/P65 TOCO/TC1/P55 INTOC01/DMAAK1/P54 INTPCO0/TICO/DMARQ1/P53 INTO52/TCO/P52 INT051/DMAAK0/P51 INTP50/DMARQ0/P50 IVDD IVSS RSET ADTRG/SELFREF/PCM5 REFRQ/PCM44 HLDRQ/PCM3 HLDAK/PCM2 PCM1 WAIT/PCM0 CS7/PCS7 CS6/PCS6

CS3 CS2 CS1 CS0

PAH9

PAH8

PAH7

PAH6

PAH5

PAH4

A19

A18

EVDD

EVSS

IVDD

IVSS

A17

A16

A15

A14

A13

A12

A11

A10A9A8A7A6A5EVDD

EVSSA4A3A2A1

INTPLO

PCT0

IVDD

IVSS

PCD3

PCD2

PCD1

EVDD

EVSS

SOCKE/PCD0

D0

D1

D2

D3

D4

D5

D6

D7

EVDD

EVSS

UVSS

IVSS

D8

D9

D10

D11

D12

D13

D14

D15

D16

D17

D18

EVDD

EVSS

D19

D20

D27

D28

D29

EVDD

EVSS

D30

D31

DATA3

TRCDATA2

IVDD

IVSS

TRCDATA1

TRCDATA0

TRCEND

TRCCLK

DDO

DDI

DRST

DMS

CDK

SD1

SI1

SCK1

TXDO

RXDO

EVDD

EVSS

P20

P13

P12

P11

PLLSEL

IVDD

IVSS

P10

UDP

IORD/CS5/PCS5 EVDD

PCT7WRPCT2

PCT1

D25

D26

EVSS CS4

RD

PCT3

D21

D22

D23

D24

UDM

UVDD

OSCVDD

PLLVDD

PLLVSS

OSCVSS

PLLVDD

PLLCSS

SSEL1

SSEL0

P77

P76

P75

P74

P73

P72

MICOUTL MICOUTR EXT MPE MPI INT VCOM AVSS AVDD PVDD PVSS VCOC NC

CSN/CAD1

CCLK/SCL

CDTI/SDA

CDT0

I2C

SDIT

SDTO

LRCK

BICK

MCKO

NC

DVDD

DVSS

XTO

XTI/MCKI

M/S

SPP

SPN

HVDD

HVSS

HRR

HPL

MUTET

MIN

MOUT2

ROUT

LOUT

MOUT-

MOUT+

RIN2

LIN2

BEEPM

BEEPR

BEEPL

LIN1

RIN1CAD0

PDN

SI NC SIEN/MCLK SCK/BLCK SO SOEN/LRCLK P7/PLL3 GND P6/PLL2 P5/PLL1 P4/PLL0 EVDD P3 P2 P1 P0 HD15 GND NC HD14

EVDD

GND

HD13

HD12

HD11

HD10

HD9

HD8

HD7

EVDD

GND

HD6

HD5

HD4

HD3

HD2

IVDD

GND

I.C.

HD1

HD0

GND

EVDD

HRE

HWE

HCS

HRD

HWR

CLKOUT

CLKIN

EVDD

GND

DMD

GND

HA0

HA1

TDO

I.C.

TICE

TCK

I.C.

TDI

TMS

TRST

RESET

INT4

INT3

INT2

INT1

WAKEUP

IVDD

GND

SDCLK

EVDD

GND

SDCR

NC

SDDAT

EVDD

NJU6350R

+3.3V_DSY

TC74LCX14FT

+3.3V_DSY

+1.5V_DCP

+3.3V_DSY

+3.3V_DCO

+3.3V_DSY

DAN202K

UPD444012AGY

TC74LCX08FT

CDCV304PW

+3.3V_DSY

LH28F800BJE(PMD560)

+2.5V_DDS

+3.3V_DSY

SG-8002JF

TC74LCX125FT

S24C01

uPD703111GMO-15-UEU

TC74LCX14FT

nUB

nLB

BLM11B601S

NNCD4.3C

+3.3V_DSY

OPENNSAD500F

NNCD4.3C

BLM11B601S

OPEN

DLP11SN161HL2

NSAD500FNSAD500F

10FMN-BMTTN-A-TFT

52559-2270

17FMN-BMTTN-TFT

+3.3V_DSY

SSL00-20S

+3.3V_DSY

DTC114EU

AK4537VN

OPEN

DTC114EU

DTA114EU

OPEN

+3.3V_DSY

TC74LCX125FT

+3.3V_DSY

BLM11B601S

+3.3V_DSY

ST-MONOout

(L+R)/2out

NNCD4.3C

+3.3V_DSY

OPEN

LINE-L

D15

D14

D5

CF_nINT

A12

D13

D12

*DOOR

D6

POWERRYOFF D11

A8 A9

A7

D4

A19

D3

D2

RIN

*RP

D1

LIN

A13

nCS2

CPU_WAIT

SOFTnRES

NMI

EJECTnINT

A17

A15

ST-MONO

A14

A10

A6

ENCORDERB

A11

A5

nWR

(L+R)/2

LINE-R

A16

ENCORDERA

D0

CF_CLK

A4

D10

A18

D9

A2

*JOGSW

CPLD_nRES

D8

nRD

A1 A3

D7

D_GND

GND_A

D_GND

GND_A

D_GND

FG_2

uPD77115GK-9EU

+3.3V_DSY

D_GND D_GND

OPEN

DAN202K

D_GND

+3.3V_DSY

CR2032(20H-1T)

D_GND

DTA114EU

D_GND

DTA114EU

+3.3V_DSY

75MHz

48MHz

(3/6)

(1/4)

(1/6)

(2/6)

(4/6)

(1/4)

(2/4)

MAIN UNIT

(1/3)

15 16

47K

0.1u

47K

0.1u

47K

10K

0

0.1u

47K

000

330

0.1u

47K

0.1u

100u/10V

1u

0

330

10K

0.1u

330

47K

330

0

330

0

330

0.01u

100u/10V

0.1u

22

1K

0.1u

0.01u

0

OPEN

0.1u

0.01u

0

OPEN

0

OPEN

0

OPEN0OPEN

22

N1B F1B U1B

330 330 330

0

330

0.1u

47K

100k

680k

100k

0

0.47u

0

OPEN

0

0.1u

1u

0.22u OPEN

220

0

D0D1D2D3D4D5D6D7D8

D9

D10

D11

D12

D13

D15

D14

A1 A2 A3 A4 A5 A6 A7 A8

A9 A10 A11

A12 A13

A14 A15

A16 A17

A19

A18

A1 A2 A3 A4 A5 A6 A7 A8

A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19

D0

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10 D11 D12 D13 D14 D15

C_D3

C_D4

C_D5

C_D6

C_D7

nCE1

C_A10

nOE

C_A6

C_A5

C_A4

C_A3

C_A2

C_A1

C_A0

C_D0

C_D1

C_D2

WP/nIOIS16

nCD2

nCD1

C_D11

C_D12

C_D13

C_D14

C_D15

nCE/nCS

nVS1

nWE

READY/nIREQ/INTQ

nCSCEL

nVS2

nRESET

IORDY

nINPACK

nREG

C_D10

C_D9

C_D8

nPDIAG

nDAP

C_D12 C_D13 C_D14 C_D15 nCE/nCS

nIORD nIOWR nWE

nCSCEL

nREG

C_D8 C_D9 C_D10

nPDIAG

nDAP

IORDY

nVS1

WP/nIOIS16

C_D11

nCD2 nCD1

C_A9

C_A8

C_A7

nRESET

nVS2

C_D3 C_D4 C_D5

nINPACK

READY/nIREQ/INTQ

C_A6 C_A5 C_A4 C_A3 C_A2 C_A1 C_A0 C_D0 C_D1 C_D2

C_A7

C_A8

C_A9

nOE

C_A10

nCE1

C_D7

C_D6

nIOWR

nIORD

TP207

TP165

TP178

TP208

TP188

TP159

TP195

TP204

TP179

TP169

TP193

TP157

R398

TP199

TP182

R389

TP160

R392

C256

R396

TP190

TP155

TP185

TP156

TP158

TP181

C255

R391

TP180

TP174

TP177

TP189

TP187

TP109

R393

TP194

TP172

TP163

R394

TP175

TP184

TP196

TP198

R390

TP171

TP164

R374

R371

R373

R457

C259

TP191

R388

TP108 TP107

TP186

TP106

TP116

TP104

TP168

TP103

TP102

TP101

TP100

TP105

TP173

TP113

TP114

TP115

R436

R437

R438

R439

R440

R441

R442

R443

R444

R445

R446

R451

R447

R448

R449

R450

R452

R453

C260

C262

C261

R399

TP170

TP203

C257

C258

TP161

C254

C253

C252

C251

R376

R375

R377

R380

R381

R382

R383

R384

R434

C263

TP192

C264

TP166

TP197

TP209

C265

R433

R432

R431

R430

R429

R428

R427

R426

R425

R424

R423

R422

R421

R397

J109

TP162

R419

TP167

R418

R417

R416

R415

TP176

R413

TP200

R412

R411

TP112

TP183

TP111 TP110

TP223

TP212

TP213

J111

TP214 TP215

TP216 TP217 TP218 TP219

C271

C270

C272

R456

R395

D124

C274

C273

R378

R379C277

C278

D125

J113

R403

C269

R402

C268

R400

C266

R401

C267

R410

R435

R372

R370

R385 R386 R387

R404 R405 R406

R407

R455

R408

R409

L133

L135

L134

J110

C275

Q125

D123

Q126

R479

TP263 TP264

TP265

TP266 TP267 TP268

TP269

TP280

TP285

R868

R869

Q131

Q130 Q132

R872

R873

R870

R871

C296

R874

R875

R876

R877

R878

TP296 TP297

C301

C297

C298

C299

C300

R454

R420

R414

C_D3 C_D4 C_D5 C_D6 C_D7 nCE1 C_A10 nOE C_A9 C_A8 C_A7 +3.3 C_A6 C_A5 C_A4 C_A3 C_A2 C_A1 C_A0 C_D0 C_D1 C_D2 WP/nIOIS16 nCD2 nCD1 C_D11 C_D12 C_D13 C_D14 C_D15 nCE/nCS nVS1 nIORD nIOWR nWE READY/nIREQ/INTQ +3.3 nCSCEL nVS2 nRESET IORDY nINPACK nREG nDAP nPDIAG C_D8 C_D9 C_D10 D_GND

D_GND

TMS

TCK

TDI

TDO

+3.3V_DSY

nRD nWR GND TDI A1 A2 A3 A4 A5 A6 A7 A8 PORT_EN A9 A10 A11 GND A12 A13 TMS A14 A15 23 VCC A16 A17 A18 A19 29 nCS2 31 32 GND 34 35 36

3738394041424344C_D3

C_D4

C_D5

C_D6

C_D7

VCC

GND53nCE1

C_A10

nOE

GND

VCC

GND60C_A9

C_A8

C_A7

GND65C_A6

C_A5

C_A4

C_A3

C_A2

C_A1

C_A0

VCC

74

75

VCC

77

78

C_D0

C_D1

C_D2

WP/nIOIS16

nCD2

nCD1

GND

86

87

C_D11

TCK

C_D12

C_D13

C_D14

C_D15

nCE/nCS

VCC

nVS1

nIORD

nIOWR

nWE

READY/nIREQ/INTQ

nCSCEL

nVS2

nRESET

TDO

GND

IORDY

nINPACK

nREG

109

nDAP

nPDIAG

C_D8

C_D9

C_D10

VCC

D15

D14

D13

D12

D11

NC

122

VCC

GND

IN3/CLK3

IN2/CLK2

IN1/CLK1

IN0/CLK0

GND

VCC

131

D10

D9

D8

GND

D7D6D5D4D3D2D1

D0

VCC

1A1B1Y2A2B2YGND 3Y

3A

3B

4Y

4A

4B

VCC

1A1B1Y2A2B2YGND 3Y

3A

3B

4Y

4A

4B

VCC

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

1 2 3 4 5 6

1 2 3 4

2125

1

2

3

13 12

14

7

11 10

12

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

3738394041424344454647484950515253545556575859606162636465666768697071

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

12345678

910111213141516

1234567

891011121314

1234567

891011121314

+3.3V_DCF+3.3V_DSY

+3.3V_DSY

nLB nUB

6P ZH WHT SMD TOP

NNCD4.3C

+3.3V_DSY

NNCD4.3C

3P PH TOP SMD WHT

+3.3V_DSY

TC74LCX14FT

*DOOR

OPEN

CPU_WAIT

CF_nINT

nCS2

CF_P

EJECTnINT

A11

A17 A18

A15

A5

A9

A19

A4

A8

A13

A7

A3

A16

A2

A1

A6

A10

A14

A12

D_GND

D14

D9

D7

D4 D6

D5

D11

nRD

D0

D3

D1

CPLD_nRES

D13

D10 D12

CF_CLK

nWR

D2

D8

D15

D_GND

D_GNDD_GND

XCR3256XLTQ144

+3.3V_DSY

D_GND

TC74HC123AFTC74LCX00FT TC74LCX00FT

D_GND

+3.3V_DSY

D_GND

+3.3V_DSY

D_GND

(5/6)

(6/6)

SCFB3A0400

MAIN UNIT(2/3)

P101 00MWI39BS1010

1817

R101

R100

C100

C101

C102

C103

D101

R102

C104

C105

C106

R107 R106

R108

R105

C113

C114

R124

R125

R122

R123

C115

C110

R117

C111

R119

C112

R116

R118

C116

R130

C117

R132

C118

R129

R131

C107

C108

C109

D104

D102

R109

D106

R133

R115

R114

R126

D105

R120

R111

D103

C120

R136

D107

R137

Q110

C140

Q110

C139

Q109

C137

R161

R162

R159

D110

R158

Q109

C135

C136

C138

R160

R163

R164

Q107

C124

C128

R142

R148

R143R149

R141R139

R138

C122

C123

R144

C127

R147R145

C126

C121

C125

C129

R151

R152

R150

R155

R153

C130

R154

C131

C132

C134

D108

D109

J103 L102 L103 L104 L105

Q106

Q105

Q114

C276

R460

S100

C279

C280

C133

J101

R466 R467

R468R469

L101

C119

D100

J100

L100

R480

R481

S101

C289

D127

R486

R487

R488

R489

R495

R496

TP258 TP257 TP256 TP271 TP272 TP273 TP274 TP275

R490

R491

R492

R493

R494

TP234 TP233 TP232

TP231

C290

TP229

TP230

TP235 TP270

J102

TP281

TP282

R135

R498

R499

R850

R851

R852

R853

R854

R855

R857

R856

R497

R140R146

Q100

Q102

Q101

Q103

Q104

Q128

Q108

TP290

TP291

TP292

TP293

TP294

TP295

R458

R459

D134

D135

R104

R483

R484R482R485

C288

C287

R110

R113

R112

R121R128

R127

R134

R103

R156

R157

0

0.1u

0.01u 100u/10V

OPEN

0

0.1u

0.1u 100u/10V

1K 1K

100K

10K

0.1u

1K

100K

10K

100

100u/10V

0.1u

1K

0.1u

100K

100u/10V

OPEN

1K

0.1u

1K

0.1u

100K

100u/10V

10K

1K

0.1u

0.1u 10u/16V

0

10K

0

OPEN

10K

47K

0.1u

0.01u

47K

10K

0

100u/10V

0.01u

OPEN

1k

0

OPEN

10u/16V

100

100K100K

022K

100K

47p

100K

47p

022K

47p

10u/16V

OPEN

100K

OPEN

100K

OPEN

10u/16V

OPEN

100u/10V

0.1u

0

0.1u

100u/10V

680 680

680100

100u/10V

0

OPEN

0

100K

OPEN

0

47K

OPEN

0

47K47K

OPEN

OPENOPENOPEN

OPEN

OPENOPEN

OPEN

2125

12

2125

12

2125

12

2125

12

2125

12

98

10

12 11

13

7

14

12 13

11

14

7

4 5

6

10

9

8

6

5

7

8

4

2

3

1

12

1

*JOGSW

2

ENCORDERB

3

ENCORDERA

4

GND

13 12

11

7

14

12

3

1

+5V

2

+5V

3

D_GND

4

D_GND

5

POWERSW

6

POWERRYOFF

12

1

LEDA

2

NC

3

LEDK

2125

12

3

2125

1

LchIN

2

GND

3

RchIN

4

Lchout

5

GND

6

Rchout

7

-9V

8

+9V

2125

1

4

2

3

5

1

4

2

3

5

1

4

2

3

5

1

4

2

3

5

3

2

4

1

4

2

3

5

1 2 3

321321

GND

VCC

GND

VCC

VIN

VADJ

CTL

VO

GND

VIN

VADJ

CTL

VO

GND

VIN

VADJ

CTL

VO

GND

VIN

VADJ

CTL

VO

GND

VIN

NC

GND

VO

GTL

VIN

VADJ

CTL

VO

GND

VCC GND

VOUT

POWERRYOFF

OPEN

D_GND

OPEN

+3.3V_DCF

OPEN

+3.3V_DSY

OPEN

+3.3V_DCO

+1.5V_DCP

OPEN

+2.5V_DDS

CF_P

D_GND

UDZSTE-173.6B

+3.3V_DSY

TC74LCX125FT

D_GND

NMI

+3.3V_DSY

TC74LCX125FT

TC74LCX08FT

MA151WA

TC74LCX08FT

SOFTnRES

ST-MONO

(L+R)/2

ST-MONOout

(L+R)/2out

+3.3V_DSY

LINE-R

LINE-L

RIN

LIN

NJM2068M

GND_A

-9V+9V

+9V

-9V

OPEN

GND_A

4P PH TOP SMD WHT

*JOGSW ENCORDERB ENCORDERA

OPEN

D_GND

OPEN

*RP

OPEN

6P PH SMD TOP WHT

BLM11B601S

D_GND

OPEN

53398-0371

BLM11B601S

+5V_DLC

OPEN

+5V_DLC

OPEN

+3.3V_DSY

8P PH SMD TOP WHT

GND_A

FG_3

FG_4

D_GND

FG_5

D_GND

FG_6

FG_7

D_GND

NJM2387DL2

NJM2865F3-25

OPEN

MN1382S-H(TX)

OPEN

D_GND D_GND

(CODEC OUT)

(4/4)

(3/4)

(4/4)

(2/4)

(3/4)

"NOTE ON SAFETY: The parts marked with are IMPORTANT PARTS on the safety. Please use the parts having the designated parts number without fail"

MAIN UNIT(3/3)

P101 00MWI39BS1010

2019

7. PARTS LOCATION

C100 F1 C101 F1 C102 F2 C103 F2 C106 E2 C107 F4 C108 F4 C109 F4 C110 B5 C111 B4 C112 B4 C114 D5 C115 D5 C116 D9 C117 D9 C118 D10 C119 B7 C120 F2 C121 E11 C122 E11 C123 E11 C124 E11 C125 E10 C126 E10 C127 E10 C128 E10 C129 F10 C130 F10 C131 F11 C132 F11 C133 F11 C134 F11 C135 D5 C136 D4 C140 F3 C141 F9 C144 D11 C145 D11 C146 D10 C147 D10 C148 D10 C149 C10 C150 D10 C151 D10 C152 D10 C153 D10 C154 D11 C155 D11 C158 C10 C159 C10 C160 G3 C162 F4 C163 F4 C166 E5 C167 E5 C168 D8 C173 D9 C174 E9 C177 D6 C190 E8 C191 C6 C192 C7 C193 C7 C212 E6 C213 E6 C218 F6 C221 B5 C222 B5 C223 B5 C225 B5 C226 B5 C227 B5 C228 C8 C230 C9 C232 C9 C235 B9 C236 B9 C237 B9 C238 B9

C239 B9 C240 B9 C241 B9 C242 B9 C243 B9 C244 D6 C245 D6 C250 D10 C251 D2 C252 E4 C253 E3 C254 E3 C263 C3 C264 C3 C265 C3 C266 B1 C267 C2 C268 B3 C269 B4 C270 B3 C271 B3 C272 B3 C273 C2 C274 C2 C275 C4 C276 F3 C279 E11 C280 E11 C281 C9 C282 F5 C283 F7 C284 F4 C285 D6 C286 D8 C287 B6 C288 B6 C289 F2 C291 F5 C295 F9 C301 C1 D100 B7 D101 E2 D102 E2 D103 E4 D104 C4 D105 D5 D106 D10 D107 F2 D108 F11 D109 F11 D111 D10 D112 D10 D115 D10 D116 E6 D117 B5 D118 B5 D119 B5 D120 B5 D121 B5 D123 D2 D124 C2 D126 E8 D127 F2 D128 F8 D129 F8 D130 F9 D131 F9 D132 F9 J100 C7 J101 F2 J102 F10 J103 D11 J104 G8 J105 C5 J106 A5 J107 C8 J108 C9 J110 D1 J111 E1

J112 E9 J113 A1 L102 D11 L103 D11 L104 C11 L105 C11 L106 F8 L107 F8 L108 F8 L109 F8 L110 F8 L113 D8 L124 C8 L125 C8 L126 C8 L127 C8 L133 D2 L134 D2 L135 D2 Q100 E1 Q102 D5 Q104 F4 Q105 E5 Q106 F4 Q107 E11 Q109 C4 Q110 F3 Q112 F8 Q113 F8 Q114 F3 Q115 F4 Q118 D8 Q120 D7 Q121 D8 Q122 C7 Q123 D10 Q124 F6 Q125 C4 Q126 D3 Q127 F4 Q128 B6 Q132 C2 R100 F1 R101 F1 R102 B6 R103 B7 R104 E2 R110 E2 R111 F4 R112 F4 R113 E4 R114 B5 R115 B4 R116 B4 R117 B4 R118 B4 R119 B4 R120 B4 R121 C4 R122 D4 R125 D5 R126 D5 R127 E5 R128 D5 R129 D9 R130 D9 R131 D9 R132 E10 R133 D10 R134 E10 R135 B6 R136 F2 R137 F2 R138 E11 R139 E11 R140 E11 R141 E11 R142 E11 R143 E11

R144 E10 R145 E10 R146 E10 R147 E10 R148 E10 R149 F10 R150 F10 R151 F10 R152 F10 R153 F10 R154 F10 R155 F10 R156 F11 R157 F11 R165 F8 R166 F8 R167 F9 R171 F8 R173 C6 R174 C5 R175 C5 R176 C5 R178 C5 R180 C5 R182 C5 R187 F5 R190 F3 R191 F4 R192 F4 R193 F3 R194 F7 R195 E7 R199 C9 R200 D9 R201 D10 R202 D11 R203 D11 R204 D11 R207 D11 R208 C10 R209 C10 R210 D10 R211 D10 R212 C10 R213 D10 R214 D10 R215 D10 R216 F6 R217 F6 R218 F6 R219 F6 R220 F6 R221 F6 R222 F6 R223 F6 R224 F6 R225 E6 R226 F5 R227 F5 R228 F5 R229 F6 R230 F5 R231 F5 R239 B5 R240 B5 R250 B9 R251 B9 R252 C9 R253 C8 R254 D8 R261 D8 R263 D8 R264 D8 R268 D8 R270 E8 R274 D8 R275 E8 R278 E8 R279 E8

R280 E8 R281 E8 R282 F5 R283 F5 R284 E8 R285 F7 R286 E7 R287 F7 R288 E7 R289 F7 R290 E7 R291 F7 R292 E7 R293 F7 R294 E7 R295 F7 R296 E7 R297 F7 R298 E7 R299 F7 R300 E7 R301 F7 R302 E7 R303 F6 R304 E6 R305 F6 R306 F6 R307 E6 R308 E6 R309 E6 R310 F6 R311 E6 R313 D7 R315 D7 R316 D7 R318 D7 R319 D7 R320 D7 R321 C6 R334 D7 R335 D6 R336 D6 R337 D6 R338 D6 R339 D6 R340 D6 R341 D6 R342 D6 R343 D6 R344 D6 R346 D6 R349 D6 R350 D6 R351 E6 R352 E6 R353 E6 R354 E6 R355 E6 R356 E6 R357 E6 R358 E6 R359 E6 R360 E6 R361 E6 R362 E6 R363 E6 R364 E6 R365 E6 R366 E7 R367 F7 R369 C7 R370 E1 R371 E2 R372 D1 R373 D2 R380 D4 R381 D4 R382 D4 R383 D4

P101 A

ᤲȕȪȸҞဋᤲȕȪȸҞဋ

Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ Sn-Ag-Cu ǛဇƠƯƘƩƞƍŵ

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

R384 D4 R385 A3 R386 A3 R387 A3 R388 C3 R389 C2 R390 C2 R391 C3 R392 C2 R393 C2 R394 C3 R395 C3 R396 C3 R397 C3 R398 C3 R399 C3

R400 B1 R401 C1 R402 B4 R403 B4 R404 C2 R405 C2 R406 C2 R407 C3 R408 C2 R409 C3 R410 E1 R411 C4 R412 C4 R413 C4 R414 C3 R415 C3 R416 C3

R417 C3 R418 C3 R419 C3 R420 C3 R421 C3 R422 C3 R423 C3 R424 C3 R425 C3 R426 C3 R427 C3 R428 C3 R429 C3 R430 C3 R431 C3 R432 C3 R433 C3

R434 D2 R435 D1 R436 E2 R437 E2 R438 D2 R439 D2 R440 D2 R441 D2 R442 D2 R443 D2 R444 D2 R445 D2 R446 D2 R447 D2 R448 D2 R449 D2 R450 D2

R451 D2 R452 D2 R453 D2 R454 C2 R455 C3 R456 C3 R458 F3 R459 F3 R462 E7 R463 F7 R464 C10 R465 B5 R466 D9 R468 B4 R473 D9 R474 F6 R475 F7

R476 F7 R477 F8 R478 F8 R479 D2 R481 F4 R482 B6 R483 B6 R484 B6 R485 B6 R486 B4 R487 D4 R488 D9 R490 F11 R491 F11 R495 E10 R496 E11 R497 B6

R861 D8 R864 F3 R865 F3 R866 F9 R867 F4 R875 C4 R876 C4 R878 C1 R884 B5 R885 B5 R888 F9 S100 C5 S101 F2 X100 C7 X101 C10 X102 D9

21 22

C104 E1 C105 E1 C113 D4 C137 C4 C138 C4 C139 C4 C142 F3 C143 F3 C156 D11 C157 D11 C161 E3 C164 E3 C165 E3 C169 D8 C170 D8 C171 D8 C172 D7 C175 D8 C176 D7 C178 D7 C179 D7 C180 E7 C181 E7 C182 E7 C183 D6 C184 D6 C185 D7 C186 E7 C187 E7 C188 D6 C189 D8 C194 D7 C195 D7 C196 D6 C197 D6 C198 D6 C199 D6 C200 D6 C201 D6 C202 D6 C203 D6 C204 D6 C205 D6 C206 F6 C207 F6 C208 F5 C209 F5 C210 F6 C211 F5

C214 F5 C215 F6 C216 F5 C217 F5 C219 B5 C220 B5 C224 B5 C229 C9 C231 C9 C233 C8 C234 C8 C246 E6 C247 E6 C248 E6 C249 E6 C255 E4 C256 D4 C257 D4 C258 D4 C259 E3 C260 D3 C261 D3 C262 D3 C277 D4 C278 D4 C290 D4 C296 D2 C297 C1 C298 C1 C299 C1 C300 C1 D110 C5 D113 F3 D114 D8 D125 D4 D134 D11 D135 C11 J109 B3 L100 C7 L101 C7 L111 E7 L112 E6 L114 D8 L115 D8 L118 B5 L121 B5 L128 D6 L129 D7 L130 D7

L131 D7 L132 D7 L136 B5 L137 D8 Q101 B4 Q103 D10 Q108 C4 Q116 F4 Q117 E4 Q119 E7 Q130 C2 Q131 D1 Q133 F8 Q134 F8 R105 E1 R106 E1 R107 E1 R108 E2 R109 E2 R123 D4 R124 D4 R158 D4 R159 C4 R160 C5 R161 C4 R162 C4 R163 C4 R164 C4 R168 C6 R169 C6 R170 C6 R172 C5 R177 C5 R179 C5 R181 C5 R183 C5 R184 F3 R185 F3 R186 F3 R188 E3 R189 F3 R196 F3 R197 F3 R198 E3 R205 D11 R206 D11 R232 F5 R233 F5 R234 F5

R235 F5 R236 B5 R237 B5 R238 B5 R241 C8 R242 C8 R243 C8 R244 B9 R245 B9 R246 B9 R247 B9 R248 B9 R249 C8 R255 D8 R256 D8 R257 D8 R258 E7 R259 D8 R260 D8 R262 D7 R267 D8 R269 E6 R271 E8 R272 E8 R273 E7 R276 E7 R277 E7 R312 D7 R314 D7 R317 D7 R322 D7 R323 D7 R324 D7 R325 D6 R326 D6 R327 D6 R328 D6 R329 D6 R330 D6 R331 D6 R332 D6 R333 D6 R345 D6 R347 D6 R348 D6 R368 C6 R374 E3 R375 D3 R376 D3

R377 D4 R378 D4 R379 D4 R457 E3 R460 F2 R461 E8 R467 E1 R469 D4 R470 C7 R471 C8 R472 C8 R480 E1 R489 C7 R492 D11 R493 D11 R494 C11 R498 G11 R499 F12 R850 C1 R851 C1 R852 F1 R853 F1 R854 F7 R855 G7 R856 C11 R857 C11 R858 B5 R859 B5 R860 D6 R862 D8 R863 D8 R868 D2 R869 D2 R870 C2 R871 C2 R872 C1 R873 C2 R874 C4 R877 C4 R879 D8 R880 F8 R881 F8 R882 G8 R883 G8 R886 B5 R887 B5

P101 B

ᤲȕȪȸҞဋᤲȕȪȸҞဋ

Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ Sn-Ag-Cu ǛဇƠƯƘƩƞƍŵ

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

2423

P201 A

P201 B

ᤲȕȪȸҞဋᤲȕȪȸҞဋ

Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ Sn-Ag-Cu ǛဇƠƯƘƩƞƍŵ

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

C500 D10 C501 D10 C502 D9 C503 D9 C504 D4 C505 D6 C506 D10 C507 D10 C510 D3 C511 D3 C512 D4 C513 C2 C514 D3 C515 C3 C516 D4 C517 D3 C518 C10 C519 D10 C520 C8 C521 C8 C522 C10 C523 D10 C524 C8 C525 C8 C526 C9 C527 C9 C528 C9 C529 C2 C530 C3 C531 C3 C532 C3 C533 C2 C534 C3 C535 C3 C536 C10 C537 B10 C538 C3 C539 C10 C540 C10 C541 B3 C542 C3 C543 B3 C544 C9 C545 D9 C546 D9 C547 B10 C548 B10 C549 B9 C550 B9 C551 B1 C552 B1 C553 B9 C554 B9 C555 B9 C556 B9 C557 B9 C558 B9 C559 B8 C560 B8 C561 C7 C562 C7 C563 C8 C564 D7 C565 C7 C566 C7 C567 C7 C568 C7

C569 D7 C570 D7 C571 B6 C572 C7 C573 C7 C576 B6 C577 B6 C578 B6 C579 B6 C580 B7 C581 A7 C582 B6 C583 B6 C584 B7 C585 B8 C586 B8 C587 B7 C588 A6 C589 A7 C590 D6 C591 D6 C592 D1 C593 D9 D500 D10 D501 D10 D502 D9 D503 D9 D504 D5 D505 D3 D506 D3 D507 B8 D508 B8 D509 B1 J500 E3 J501 E9 J502 E5 J503 E6 J504 A2 J505 C1 J506 A6 J507 A8 J508 A10 L500 D5 L501 E6 L502 D6 L503 D6 L504 D6 L505 D10 L506 D10 L507 D9 L508 D9 L509 D3 L510 D3 L511 D3 L512 D4 L513 D9 L514 D9 Q500 D10 Q501 C8 Q502 C10 Q503 D9 Q504 D9 Q505 D9 Q506 D9 Q507 B10 Q508 B9 Q509 B10

Q510 B10 Q511 C7 Q512 B6 Q513 B7 Q516 C3 Q517 C2 R500 D10 R501 D10 R502 D5 R503 D5 R504 D6 R505 D5 R506 D4 R507 D6 R508 D4 R510 C8 R511 C8 R512 D10 R513 D10 R514 C8 R515 C8 R517 C10 R518 D10 R519 C8 R520 C8 R521 D3 R522 D3 R523 C10 R524 D10 R525 C8 R526 C8 R527 B2 R528 C2 R529 C2 R530 D9 R531 D9 R532 C9 R533 C9 R534 C9 R535 C9 R536 C10 R537 C10 R538 C1 R539 B10 R540 C10 R541 C10 R542 C10 R543 C10 R544 D9 R545 D9 R546 A2 R547 D9 R548 D9 R549 C10 R550 B10 R551 B10 R552 B10 R553 B10 R554 B9 R555 B9 R556 B1 R557 B10 R558 B10 R559 B9 R560 B9 R561 B1 R562 A2

R563 B2 R564 A2 R566 B9 R567 B10 R568 B10 R569 B9 R570 B8 R571 B8 R572 B9 R573 B9 R574 C8 R575 C7 R576 C7 R577 C7 R578 C6 R579 C6 R580 C7 R581 B6 R582 B6 R583 B7 R584 A7 R585 B7 R586 A7 R587 B6 R588 B6 R589 B7 R590 B7 R591 B7 R592 B7 R593 B6 R594 B6 R595 B6 R596 B6 R597 B7 R598 B7 R599 A8 R600 A8 R601 B10 R602 B10 R603 B6 R604 B7 R605 B7 R606 D3 R607 B1 R608 B2 R609 C2 R610 C2 R612 E7 R613 A2 R614 B2 R615 B2 R616 A2 R617 B2 R618 A2 R619 A2 R620 C1 R621 C1 R622 C1 R623 C1 R624 D1 R625 D9 R626 D9 R627 D9 R628 D9 R629 D2 R630 D2 R631 D2

25 26

C650 B4 C651 B4 C652 B4 C653 B5 C654 B5 C655 B5 C656 B5 C657 B5 C658 B6 C659 B6 C660 B6 C661 B6 C662 B6 D650 B6 D651 B6 D652 B10 D653 B10 D654 B10 D655 B9 D656 B9

P202 A

ᤲȕȪȸҞဋᤲȕȪȸҞဋ

Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ Sn-Ag-Cu ǛဇƠƯƘƩƞƍŵ

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

P204 BP204 A

C801 A2 C802 B2 C803 C2 C804 C2 C805 C2 C806 B2 C807 B2 C808 C2 C809 A1 C810 B2 C811 C1 C812 C1 C813 C1 C814 C1 C815 C1 C816 C1 C817 A1 C818 A1 D801 C2 D802 C1

J801 A2 J802 D1 L801 C1 L802 C1 L803 C1 L804 C1 L805 A1 Q801 B2 Q802 B1 Q803 B1 Q804 B1 Q805 B1 R800 A1 R801 D2 R802 B2 R803 C2 R804 B2 R805 C2 R806 B2 R807 C2

R808 B2 R809 C2 R810 B2 R811 B1 R812 B1 R813 B1 R814 B1 R815 B1 R816 B1 R817 B1 R818 B1 R819 C1 R820 C1 R821 A1 R822 B1 R823 B1 R824 B1 R825 B1 R826 C2 R827 C2

P205 A

D900 A1 J900 B1 R900 A1 S900 B2

P202 B

P205 B

D657 B9 D658 B9 D659 B8 D660 B8 D661 B8 D662 B8 D663 B7 D664 B10 D665 B10 D666 B10 D667 B9 D668 B9 D669 B9 D670 B9 D671 B8 D672 B8 D673 B8 D674 B8 D675 B7 J650 B4

Q650 B5 Q651 B6 R647 B4 R648 B4 R649 A9 R650 B4 R651 B4 R652 B4 R653 B4 R654 B6 R655 A6 R656 A6 R657 A6 R658 A6 R659 A7 R660 A7 R661 B7 R662 B7 R663 B10 R664 B10

R665 B10 R666 B9 R667 B9 R668 B9 R669 B9 R670 B8 R671 B8 R672 B8 R673 B8 R674 B7 R675 B10 R676 B10 R677 B10 R678 B9 R679 B9 R680 B9 R681 B9 R682 B8 R683 B8 R684 B8

R685 B8 R686 B7 R687 A8 R688 A8 R689 A8 R690 A8 R691 A8 R692 B2 R693 A7 R694 A7 R695 A3 R696 A3 R697 A3 R698 B2 R699 A7 S650 A8 S651 A10 S652 B1 S653 A7 S654 A9 S655 A2 S656 B2

27

28

ᤲȕȪȸҞဋᤲȕȪȸҞဋ

Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ Sn-Ag-Cu ǛဇƠƯƘƩƞƍŵ

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

C701 B3 C702 E3 C703 E3 C704 E2 C705 G4 C706 G4 C707 H5 C708 E4 C709 E4 C710 E5 C711 D5 C712 E6 C713 D5 C714 F6 C715 F6 C716 F7 C717 F7 C718 F8 C719 F8 C720 E8 C721 E8 C722 D8 C723 D7 C724 D7 C725 E9 C726 D9 C727 D9 C728 E10 C729 E10 C730 E9 C731 E9 C732 E9 C733 D9 C735 D10 C736 D10 C737 E9 C739 E10 C740 E10 C741 H9 C742 F9 C743 G7 C744 H8 C745 H8 C746 H8 C747 H8 C748 H9 C749 E6 C750 G7 D701 H2 D702 F4 D703 H4 D704 E4 D705 D5 D706 F6 D707 F6 D708 F6 D709 E8 D710 D9 D711 F9 D712 F7

P203 A

P206 A

P206 B

D713 H9 D714 D8 D715 D10 D716 E10 D717 G7 D718 D7 D720 G9 D721 D7 F701 C4 F702 E7 G701 D2 J702 C1 J703 H1 J704 D1 J705 D7 J706 F10 J707 A4 J708 G10 L701 G3 L702 F6 L703 E6 L704 G7 L705 E7 L706 D9 L707 D10 L708 E9 L709 F10 Q701 G4 Q702 E5 Q703 D5 Q704 G8 Q705 D7 Q706 D8 Q707 E1 Q708 E9 Q709 D9 Q710 E8 Q711 H9 Q712 F10 Q713 H7 Q714 F10 Q715 G9 Q716 D7 Q717 H8 R701 D3 R702 E4 R703 E4 R704 H4 R705 D5 R706 D5 R707 D5 R708 D5 R709 D5 R710 D5 R711 D8 R712 F7 R713 E6 R714 E6 R715 G7 R716 F8

R717 F8 R718 G8 R719 F8 R720 F8 R721 E8 R722 E8 R723 F8 R724 D7 R725 D7 R726 D8 R727 D8 R728 D7 R729 D7 R730 D8 R731 D7 R732 D8 R733 E1 R734 D1 R735 D1 R736 E9 R737 E9 R738 E10 R739 D9 R740 D9 R741 D9 R742 D9 R743 D10 R744 E9 R745 E9 R746 E9 R747 E9 R748 E9 R749 E9 R750 E9 R751 E9 R752 D9 R753 D9 R754 E9 R755 E8 R756 G9 R757 H9 R758 H9 R759 G9 R760 F9 R761 H9 R762 F9 R763 F9 R764 F9 R765 F9 R766 F9 R767 F10 R768 D7 R769 G7 R770 H7 R771 H8 R772 H8 R773 H8 R774 G8 R775 D5 R776 F7

R777 H9 R778 H9 R779 H9 R780 G10 R781 G10 R782 F10 R783 F10 R784 F10 R785 D8 R786 D10 R787 F10 R788 H9 R789 H9 R790 F10 R791 D7 R792 E9 R793 D7 R794 D7 R795 G10 R796 G10 R797 G10 R798 G9 R799 D7 S701 A2 S704 G8 S705 G8 T701 F4 X701 H9

J930 A2 R931 A2 R932 A2 S930 A1

29

30

D970 A1 J970 A2 R970 A1

P203 B P207 A

P207 B

ᤲȕȪȸҞဋᤲȕȪȸҞဋ

Ҟဋ˄ƚƴƸŴᤲȕȪȸҞဋ Sn-Ag-Cu ǛဇƠƯƘƩƞƍŵ

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

3231

8. EXPLODED VIEW AND PARTS LIST

5128

5104

STEEL/BLACK

(U)

SYMBOL STYLE

PARTS NAME

MATERIAL/FINISH

MARK

+F.H.M.SCREW

5110

+B.H.M.SCREW +B.H.TAP TITE SCREW(B TYPE)

STEEL/CHROMATE

(A)

5405

TOOTHED LOCK WASHERS

5128 ø3X8(U) x3

002D

5128 ø4X8(U) x4

5128 ø3X8(U) x6

006D x2

Z10Z

5110

ø3X6(A)

x3

P201

040G

004G x4

5128

ø3X8(U)

x4

5128 ø3X8(U)

ø3X8(U) x2

J701

026G

024G

5110

ø3X6(A)

x8

007G

015Gx3

028G

002G

030G

5110

ø3X6(A)

x6

030B

V990

031B

P206

024B

026B

022B

5128 ø3X8(U) x2

P202

P203

P101

5405 ø4(R)

010G

008G

019B

021B

008B

014B

x2

P207

ø3X8(U)

P205

040B

017B

016B

5128 ø3X8(U)

P204

5128 ø3X8(U) x2

012B

010B

034B

036B

5104

ø3X6(A)

x3

002B

004B x2

006B

x2

5128

020Bx4

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

002B 00M39BS248010 00M39BS248010 FRONT PANEL FRONT PANEL(AL) 004B 00M238H355020 00M238H355020 LENS LENS FOR POWER,ACCESS 006B 00M204N122110 00M204N122110 ADHESIVE ADHESSIVE FOR LENS 008B 00M39BS105020 00M39BS105020 CHASSIS FRONT MOLD 010B 00M04AS162110 00M04AS162110 DOOR CF DOOR 012B 00M2912259020 00M2912259020 BUSHING DOOR HOLE BUSH 014B 00M39BS112010 00M39BS112010 SHAFT DOOR SHAFT 019B 00M284T154360 00M284T154360 KNOB HP VOL KNOB 020B 00M39BS270010 00M39BS270010 BUTTON BUTTON 022B 00M49AS270110 00M49AS270110 BUTTON PLAY BUTTON 024B 00M49AS270210 00M49AS270210 BUTTON STOP BUTTON 026B 00M49AS270310 00M49AS270310 BUTTON REC BUTTON 030B 00M05AK154210 00M05AK154210 KNOB REC/SELECT KNOB 034B 00M39BS158010 00M39BS158010 WINDOW LCD WINDOW 036B 00M39BS158020 00M39BS158020 WINDOW LED WINDOW 004G 00M416H057010 00M416H057010 LEG LEG 028G 00M023J270120 00M023J270120 BUTTON POWER BUTTON 030G 00M416T121010 00M416T121010 LINK LINK J701 00MYJ04002450 00MYJ04002450 JACK ! 3P MAINS INLET M1910-D

!

P101 90MZZ39BS1000 90MZZ39BS1000 PWB ASSY MAIN PWB P201 nsp nsp PWB ASSY I/O UNIT PWB P202 nsp nsp PWB ASSY PANEL UNIT PWB P203 90MZZ39BS2000 90MZZ39BS2000 PWB ASSY POWER UNIT PWB P204 nsp nsp PWB ASSY HP JACK UNIT PWB P205 nsp nsp PWB ASSY ACC LED UNIT PWB P206 nsp nsp PWB ASSY JOG UNIT PWB P207 nsp nsp PWB ASSY STB LED UNIT PWB V990 00D3936027002 00D3936027002 DISPLAY LCD MODULE W010 nsp 00MYU10080520 FPC SMCD-10X80-BDX6(BL)-P1.0-S4-M W011 nsp 00MYU17100520 FPC SMCD-17X100-BDX6(BL)-P1.0-S4-M

PACKING

002T 00M39BS851250 00M39BS851250 USER GUIDE USER GUIDE 4LANGUAGES 004T 00M39BS851020 00M39BS851020 USER GUIDE CD-ROM (USER GUIDE) 010Z /N1S 00MZC02003190 00MZC02003190 MAINS CORD # MAINS CORD 3P FOR N 10A 250V AC

!

010Z /U1S 00MZC02002180 00MZC02002180 MAINS CORD # MAINS CORD 3P 10A 125V NM U KAW

!

011Z /N1S 00MZC01804100 00MZC01804100 MAINS CORD # MAINS CORD 250V 10A FOR UK

!

NOT STANDARD SPARE PART

002S nsp 00M39BS801010 PACKING CASE PACKING CASE PMD560 004S nsp 00M39BS809010 CUSHION CUSHION L 005S nsp 00M39BS809020 CUSHION CUSHION R 002D nsp 00M14AS257030 LID TOP COVER 006D nsp 00M49AS253010 HANDLE HANDLE

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

33

9. MICROPROCESSOR AND IC DATA

Q120 : µPD703111AGM (MAIN uP) 1/3

No. PORT

1 JIT1 JIT1 I 2 JIT0 JIT0 I 3 AVcc AVcc

4 AVreft AVreft 5 ANI0 ANI0 I

6 ANI1 ANI1 I 7 ANI2 ANI2 I 8 ANI3 ANI3 I

9 ANI4 ANI4 I 10 ANI5 ANI5 I 11 ANI6 ANI6 I 12 ANI7 ANI7 I 13 AVrefm AVrefm 14 AVss AVss 15 MODE1 MODE1 I 16 MODE0 MODE0 I 17 _INTP67/TOC1/P67 CLK IN O 18 _INTP66/INTPC11/P66 SDA O 19 _INTP65/TIC1/INTOC10/P65 SCL O 20 TOC0/_TC1/P55 P55 O 21 INTPC01/_DMAAk1/P54 DSPnRST O 22 INTPC00/TIC0/_DMARQ1/P53 DSPnHRE I/O 23 _INTP52/_TC0/P52 DSP_ON O 24 _INTP51/_DMAAK0/P51 DSPnINT1 I 25 _INTP50/_DMARQ0/P50 DSPnHWE I/O 26 IVcc IVcc 27 IVss IVss 28 _RESET nRES I 29 ADTRG/_SELFREF/PCM5 SOFTnRES O 30 _REFRQ/PCM4 PCM4 I 31 _HLDRQ/PCM3 PCM3 I 32 _HLDAK/PCM2 PDN O 33 PCM1 CSN O 34 _WAIT/PCM0 CPU_WAIT I 35 _CS7/PCS7 RTCCE O 36 _CS6/PCS6 RTCCLK O 37 _IORD/_CS5/PCS5 RTCDATA I/O 38 EVdd EVdd 39 EVss EVss 40 _CS4/PCS4 CPLD_nRES O 41 _CS3/PCS3 nCS3 I 42 _IOWR/_CS2/PCS2 nCS2 I 43 _CS1/PCS1 nCS1 I 44 _CS0/PCS0 nCS0 I 45 A25/PAH9 nLBO I 46 A24/PAH8 PHANTOM ON O 47 A23/PAH7 PAH7 I 48 A22/PAH6 MUTE O 49 A21/PAH5 50 A20/PAH4 PAH4 I 51 A19/PAH3 A19 O 52 A18/PAH2 A18 O 53 EVdd EVdd 54 EVss EVss 55 IVdd IVdd 56 IVss IVss 57 A17/PAH1 A17 O 58 A16/PAH0 A16 O 59 A15 A15 O 60 A14 A14 O 61 A13 A13 O 62 A12 A12 O

Function I/O DET Ext Ini Res

PHANTOM MUTE

–

Pd L L MODE SELECT for SSCG Pd

–

Pd L L MODE SELECT for SSCG Pd

––––– –––––

–

Pu

–

Pu

–

Pu –––– –––– –––– –––– ––––

––––– –––––

–

Pd L L MODE SELECT Pd –

Pu H H MODE SELECT Pu –––– –––– –––– –

Pu H H POWER OFF L:ON SUB CPU –––– –––– –– –––– ––––

––––– –––––

–

Pu H L RESET SIGNAL L: RESET POWER UNIT –

Pu H L SOFTWARE RESET L:RESET POWER UNIT –

Pu H H NO USE Pu –

Pu H H NO USE Pu –––– –––– –––– –––– –––– ––––

––––– –––––

–

Pu H L CPLD RESET L:RESET CPLD –––– –––– –––– –––– –

Pu H H MUTE AUDIO UNIT –

Pu H H PHANTOM OUTPUT Pu –

Pu H H INPUT SEL(ST/MO) AUDIO UNIT –

Pu L H INPUT SEL(L/2+R/2) AUDIO UNIT

O

–

Pu L H LED Seri-Para TRANS.(CLR) NJU3716AM –

Pu H H FUNCTION CHECKER Pu –––– ––––

––––– ––––– ––––– –––––

–––– –––– –––– –––– –––– ––––

PMD560

–– –– ––

Connection

POWER SUPPLY for ADC(+3.3V) +3.3V REFERENCE VOLTAGE for

ADC(+3.3V) KEY PAD SIGNAL2(for Remote REMOTE KEY PAD SIGNAL0 PANEL KEY PAD SIGNAL1 PANEL NO USE GND NO USE GND NO USE GND NO USE GND NO USE GND REFERENCE VOLTAGE for ADC(GND) GND for ADC GND

CF CLK CDCV304 EEPROM SDA EEPROM EEPROM SCL EEPROM

DSP RESET SIGNAL LRESET DSP DSP HRE DSP DSP ON DSP DSP INTERRUPT1 DSP DSP HWE DSP POWER SUPPLY(+1.5V) +1.5V GND GND

CODEC PDN CODEC CODEC CSN CODEC CPU WAIT CPLD RTC CE RTC RTC CLK RTC RTC DATA RTC POWER SUPPLY(+3.3V) +3.3V GND GND

CS3 DSP CS2 CPLD CS1 SRAM CS0 FROM

EXT. MEMORY ADDRESS BUS19 ROM/RAM EXT. MEMORY ADDRESS BUS18 ROM/RAM POWER SUPPLY(+3.3V) +3.3V GND GND POWER SUPPLY(+1.5V) +1.5V GND GND EXT. MEMORY ADDRESS BUS17 ROM/RAM EXT. MEMORY ADDRESS BUS16 ROM/RAM EXT. MEMORY ADDRESS BUS15 ROM/RAM EXT. MEMORY ADDRESS BUS14 ROM/RAM EXT. MEMORY ADDRESS BUS13 ROM/RAM EXT. MEMORY ADDRESS BUS12 ROM/RAM

+3.3V

GND

34

Q120 : µPD703111AGM (MAIN uP) 2/3

63 A11 A11 O 64 A10 A10 O 65 A9 A9 O 66 A8 A8 O 67 A7 A7 O 68 A6 A6 O 69 A5 A5 O 70 EVdd EVdd 71 EVss EVss 72 A4 A4 O 73 A3 A3 O 74 A2 A2 O 75 _INTPL1/A1/PAL1 A1 O 76 _INTPL0/A0/PAL0 _INTPL0 I 77 _BCYST/PCT7 PCT7 O 78 _WE/_WR/PCT5 nWR O 79 _RD/PCT4 nRD O 80

UUDQM/_UUBE/_UUWR/PCT3 81 PCT2/_ULWR/_ULBE/ULDQM PCT2 O 82 PCT1/_LUWR/_LUBE/LUDQM nUB O 83 PCT0/_LLWR/_LLBE/LLDQM nLB O 84 IVdd IVdd 85 IVss IVss 86 _SDRAS/PCD3 PCD3 I 87 _SDCAS/PCD2 EPON O 88 BUSCLK/PCD1 PCD1 O 89 EVdd EVdd 90 EVss EVss

91 SDCKE/PCD0 USB_CNT O 92 D0 D0 I/O

93 D1 D1 I/O 94 D2 D2 I/O 95 D3 D3 I/O 96 D4 D4 I/O 97 D5 D5 I/O 98 D6 D6 I/O 99 D7 D7 I/O

100 EVdd EVdd 101 EVss EVss 102 IVdd IVdd 103 IVss IVss 104 D8 D8 I/O 105 D9 D9 I/O 106 D10 D10 I/O 107 D11 D11 I/O 108 D12 D12 I/O 109 D13 D13 I/O 110 D14 D14 I/O 111 D15 D15 I/O 112 PDH0/D16/_INTPD0 DB4 O 113 PDH1/D17/_INTPD1 DB5 O 114 PDH2/D18/_INTPD2/TOC4 DB6 O 115 EVdd EVdd 116 EVss EVss 117 PDH3/D19/_INTPD3 DB7 O 118 PDH4/D20/_INTPD4 LCD_E O 119 PDH5/D21/_INTPD5/TOC5 LCD_R/W O

PDH6/D22/_INTPD6/INTP100/

120

TCUD10

PDH7/D23/_INTPD7/INTP101/

121

TCLR10

122 PDH8/D24/_INTPD8/TO10 USB_INT I 123 PDH9/D25/_INTPD9/TIUD10 CF_OP I

PCT3 O

LCD_RS O

LCD_nRES O

––––– –––––

––––– ––––– ––––– –––––

––––– –––––

–––– –––– –––– –––– –––– –––– ––––

–––– –––– –––– –––– –

Pu

–– –– –––– –––– – – – –

–––– –––– ––––

–––– ––––

–––– –––– –––– –––– –––– –––– ––––

–––– –––– –––– –––– –––– –––– –––– –––– –––– –––– ––––

–––– –––– ––––

––––

–––– ––––

––––

H H RS-232C CONTROL (STB) RS-232C

Pu H H NO USE Pu Pu H H NO USE Pu Pu

––

Pu

––

EXT. MEMORY ADDRESS BUS11 ROM/RAM EXT. MEMORY ADDRESS BUS10 ROM/RAM EXT. MEMORY ADDRESS BUS9 ROM/RAM EXT. MEMORY ADDRESS BUS8 ROM/RAM EXT. MEMORY ADDRESS BUS7 ROM/RAM EXT. MEMORY ADDRESS BUS6 ROM/RAM EXT. MEMORY ADDRESS BUS5 ROM/RAM POWER SULLPY(+3.3V) +3.3V GND GND EXT. MEMORY ADDRESS BUS4 ROM/RAM EXT. MEMORY ADDRESS BUS3 ROM/RAM EXT. MEMORY ADDRESS BUS2 ROM/RAM EXT. MEMORY ADDRESS BUS1 ROM/RAM FROM CONTROL FROM

CF CONTROL CPLD CF CONTROL CPLD

SRAM CONTROL SRAM SRAM CONTROL SRAM POWER SUPPLY(+1.5V) +1.5V GND GND REMOTE1 INPUT REMOTE1 REMOTE2 LED(RED) REMOTE2 REMOTE2 LED(GREEN) REMOTE2 POWER SUPPLY(+3.3V) +3.3V GND GND

USB CONNECT EXT. MEMORY DATA BUS0 ROM/RAM

EXT. MEMORY DATA BUS1 ROM/RAM EXT. MEMORY DATA BUS2 ROM/RAM EXT. MEMORY DATA BUS3 ROM/RAM EXT. MEMORY DATA BUS4 ROM/RAM EXT. MEMORY DATA BUS5 ROM/RAM EXT. MEMORY DATA BUS6 ROM/RAM EXT. MEMORY DATA BUS7 ROM/RAM POWER SUPPLY(+3.3V) +3.3V GND GND POWER SUPPLY(+1.5V) +1.5V GND GND EXT. MEMORY DATA BUS8 ROM/RAM EXT. MEMORY DATA BUS9 ROM/RAM EXT. MEMORY DATA BUS10 ROM/RAM EXT. MEMORY DATA BUS11 ROM/RAM EXT. MEMORY DATA BUS12 ROM/RAM EXT. MEMORY DATA BUS13 ROM/RAM EXT. MEMORY DATA BUS14 ROM/RAM EXT. MEMORY DATA BUS15 ROM/RAM LCD DB4 LCD LCD DB5 LCD LCD DB6 LCD POWER SUPPLY(+3.3V) +3.3V GND GND LCD DB7 LCD LCD E LCD LCD R/W LCD

LCD RS LCD

LCD RESET LCD USB INTERRUPT

CF DOOR CF DOOR

USB CONNECTER

35

Q120 : µPD703111AGM (MAIN uP) 3/3

PDH10/D26/_INTPD10/

124

INTP110/TCUD11 PDH11/D27/_INTPD11/

125

INTP111/TCLD11

126 PDH12/D28/_INTPD12/TO11 D28 I

PDH13/D29/_INTPD13/

127

TIUD11 128 EVdd EVdd 129 EVss EVss 130 PDH14/D30/_INTPD14/PWM0 D30 O 131 PDH15/D31/_INTPD15/PWM1 DSPnINT2 I 132 TRCDATA3 TRCDATA3 O 133 TRCDATA2 TRCDATA2 O 134 IVdd IVdd 135 IVss IVss 136 TRCDATA1 TRCDATA1 O 137 TRCDATA0 TRCDATA0 O 138 TRCEND TRCEND O 139 TRCCLK TRCCLK O 140 DDO DDO O 141 DDI DDI I 142 _DRST _DRST I 143 DMS DMS I 144 DCK DCK I 145 P25/SO1/_INTP25 SO1 O 146 P24/SI1/_INTP24 SI1 I 147 P23/SCK1/_INTP23 SCLK O 148 P22/TXD1/_INTP22 TXD1 O 149 P21/RXD1/_INTP21 RXD1 I 150 EVdd EVdd 151 EVss EVss 152 P20/NMI NMI I 153 P13/TXD0/SO0 SPDATA O 154 P12/RXD0/SI0 SPnSTB O 155 P11/_SCK0/_INTP11 SPCLK O

156 PLLSEL PULLSEL I 157 IVdd IVdd

158 IVss IVss 159 P10/UCLK/_INTP10 UCLK I 160 UDP UDP I/O 161 UDM UDM I/O 162 UVdd UVdd

163 OSCVdd OSCVdd 164 X1 X1 I

165 X2 X2 I 166 OSCVss OSCVss

167 PLLVdd PLLVdd 168 PLLVss PLLVss

169 SSEL1 SSEL1 I

170 SSEL0 SSEL0 I 171 P77/TC3/TOC3 P77 O

172 P76/_DMAAK3/INTPC31 P76 I 173 P75/_DMARQ3/INTPC30/TIC3 P75 O 174 P74/_TC2/TOC2 P74 O 175 P73/_DMAAK2/INTPC21 P73 O 176 P72/_DMARQ2/INTPC20/TIC2 CF_nINT I

PDH10 I

PDH11 I

PDH13 I

––––

––––– –––––

–––– –––– ––––

–––– ––––– –––––

––––

–––– ––––– –––––

––––

–

Pd L L

––––– –––––

––––

–––– –––––

–––––

––––

–––– –––––

––––– –––––

–

Pu H H

–

Pd L L

–

Pu H L RS-232C CONTROL (CTS) RS-232C

–

Pu H L RS-232C CONTROL (RTS) RS-232C –––– –––– –––– ––––

JOG B JOG

JOG PUSH JOG

USB IN

JOG A JOG POWER SUPPLY(+3.3V) +3.3V

GND GND NO USE NC DSP INTERRUPT2 DSP ICE ICE ICE ICE POWER SUPPLY(+1.5V) +1.5V GND GND ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE ICE CODEC CONTROL CODEC CODEC CONTROL CODEC CODEC CLK CODEC RS-232C CONTROL (TxD) RS-232C RS-232C CONTROL (RxD) RS-232C POWER SUPPLY(+3.3V) +3.3V GND GND NMI POWER SW LED Seri-Para TRANS. NJU3718AM LED Seri-Para TRANS. NJU3718AM LED Seri-Para TRANS. NJU3718AM MODE SELECT for PLL

SYNTHESIZER POWER SUPPLY(+1.5V) +1.5V GND GND USB CLK USB DATA(+) USB DATA(-) POWER SUPPLY for USB(+3.3V) +3.3V POWER SUPPLY for CLK

GENERATOR(+3.3V) OSC(SYSTEM CLK 18.75MHz) X'TAL OSC(SYSTEM CLK) X'TAL GND for CLK GENERATOR GND POWER SUPPLY for PLL

SYNTHESIZER(+3.3V) GND for PLL SYNTHESIZER GND MODE SELECT for CLK

GENERATOR MODE SELECT for CLK

GENERATOR

INPUT VOL(CLK) TC9459BFG INPUT VOL(DATA) TC9459BFG INPUT VOL(STB) TC9459BFG CF INTERRUPT CPLD

USB CONNECTER

Pd

USB CONNECTER USB CONNECTER USB CONNECTER

+3.3V

Pu

Pd

36

Q119 : CDCV304PW(140-MHz PCI-X CLOCK BUFFER)

INPUTS OUTPUT

CLKIN OE 1Y (0:3)

L H L H

functional block diagram

FUNCTION TABLE

L

L H H

L L L H

OE

CLKIN

Q121 : NJU6350B(REAL TIME CLOCK)

2

1

Logic

Control

3

1Y0

5

1Y1

7

1Y2

8

1Y3

37

Q123 : AK4537(CODEC)

38

Q123 : AK4537(CODEC)

39

Q124 : µPD77115 (DSP)

40

Q108 : MN1382S-H

Block Diagram

2

V

DD

Voltage Reference 1

+

Comparator

–

Level Converter

* Output Circuit

1

OUT

1

+

Voltage Reference 2

Note *1: Circuits vary slightly depending on the output type (CMOS output, N-channel open drain output, or inverted CMOS

output)

Comparator

–

3

V

SS

Pin Descriptions

Pin No. Symbol Function Description

1 OUT Reset signal output pin 2VDDPower supply pin 3VSSGround pin

41

Q110 : TC74LCX125FT

Q121 : TC74LCX08FT

Q125 : TC74LCX14FT

Q130, 132 : TC74LCX00FT

42

Q507 : BU4052BCF

Block diagram

Y

0

COMMON

Y

INH

V

1

Y

2

3

Y

4

1

Y

5

6

EE

7

SS

8

2

Y Y OUT / IN

Y

3

Y

1

INH

EE

V

0

Y

OUT / IN

B

16

15

X

2

14

X

1

X

13

X

0

12

X

3

11

A

10

9

Logic circuit diagram Truth table

INH A B ON SWITCH

VDD (16)

INH (6)

A (10) B (9)

SS

V

EE

V

0

(12)

X

1

(14)

X

2

(15)

3

(11)

X Y

0

1

Y

2

Y

3

Y

(8) (7)

(1) (5) (2) (4)

LEVEL

CONVERTER

BINARY TO 1of 4

DECODER WITH INH

(13) X

(3) Y

LL LX LH LX LL HX LHHX H X X NONE

X: Irrelevant

DD

V

X

2

X

1

COMMON

X

0

X

3

A

B

0Y0

1Y1

2Y2

3Y3

64

43

Q511 : TC9459BFG

L-ch

L-OUT

NC

L-IN L-LD1 L-LD2

L-A-GND

NC

CS1

NC

TC9459BFG

1NC28NC 2VDD27VSS 3 R-OUT26 4NC25 5 R-IN

24 6 R-LD123 7 R-LD222 8 R-A-GND21 9NC20 10 CS219 11 NC18 12 STB17GND 13 DATA16CK 14 NC15NC

R-ch

VSS

L-OUT

NC

L-IN L-LD1 L-LD2

L-A-GND

NC

CS1

NC

GND

CK NC

2 3 4 5 6 7 8 9

10 11 12 13 14

50k

91STEP

VR

NC

1

L-ch 7 to 91

decoder

L-ch data

latch circuit

Shift register(24BIT)

Level shift circuit

NC

28

Same as L-ch

R-ch 7 to 91

decoder

R-ch data

latch circuit

Circuit

VDD

27 26

R-OUT

25

NC

24

R-IN

23

R-LD1

22

R-LD2

21

R-A-GND

20

NC

CS2

19 18

NC

17

STB

16

DATA

15

NC

44

Q511 : TC9459BFG

45

Q516 : µPD4721GS-GJG

1

+10V

+3.3V

or

+5V

-

10V

C

3

V

DD

C

4

+

C

1

+

GND

V

CC

C

4

-

C

1

-

V

SS

C

5

+

STBY

C

5

-

V

CHA

D

INT1

D

OUT1

D

INT2

D

OUT2

R

OUT1

R

IN1

R

OUT2

R

IN2

300Ω

Note 4

300Ω

5.5kΩ

C

1

C

4

C

2

C

5

+

20

2

19

3

18

4

17

5

16

6

15

7

14

8

13

9

12

10 11

Q708 : BA9741FS-E2

46

Q650, Q651 : NJU3716AM

1VDD24P7 2P623P8 3P522P9 4P421P10 5P320P11 6P219V

SS

7VSS18P12 8P117P13 9 CLR16P14 10 STB15P15 11 CLK14P16 12 DATA13

SO

NJU3716AM

TERMINAL DESCRIPTION

DATA

CLK

STB CLR

Shift Register

Controller Circuit

P1 P2 P3

Latch Circuit

P15 P16

SO

No. SYMBOL I/O FUNCTION

1 P7 O 2 P8 O 3 P9 O

Parallel Conversion Data Output Terminals 4 P10 O 5 P11 O 6 V

- GND

SS

7 P12 O 8 P13 O 9 P14 O

Parallel Conversion Data Output Terminals

10 P15 O 11 P16 O 12 SO O Serial Data Output Terminal 13 DATA I Serial Data Input Terminal 14 CLK I Clock Signal Input Terminal 15 16

STB

CLR

I Strobe Signal Input Terminal

I Clear Signal Input Terminal 17 P1 O Parallel Conversion Data Output Terminal 18 V

- GND

SS

19 P2 O 20 P3 O 21 P4 O

Parallel Conversion Data Output Terminals 22 P5 O 23 P6 O 24 V

- Power Supply Terminal (2.4 to 5.5V)

DD

47

Q701 : MIP3E50MY

1

23

TO-220-A1 Package

1 : Control 2 : Control 3 : Drain

Control 1

Error amplifier

Oscillator

Max,duty

clock

Over-current

protection

Light load detection For intermittent oscillation control

Overheat

protection

Circuit

Restart

trigger

For drain current detection

At startup Startup constant current

Internal power supply

Timer intermittent

operation circuit

S

Q

R

Q

Gate driver

Q

RSQ

Turn-on blanking pulse generation circuit

Drain

Power MOSFET

Source

48

Q706 : BD9778HFP

IN

V

1

ON/OFF

L : OFF

7

EN

H : ON

INV

FB

SOFT

Vref

START

ERROR AMP

5

PWM COMPARATR

LATCH

Vref

OSC

RESET

TSD

CURRENT LIMT

3

6

RT

Refer to the Technical Note about the details of the application.

DRIVER

VIN

SW

2

4

GND

Pin No. Pin Name

1 VIN 2SW 3FB 4 GND 5 INV 6RT 7EN

FIN FIN

49

Q711 : µPD78F9222

NOTE

Vss P121/X1 P122/X2

P123

V

RESET/P34

P31/T1010/TO00/INTP2

P30/TI000/INTP3

P40

P41/INTP3

DD

1 2 3 4 5 6 7 8 9 10

20 19 18 17 16 15 14 13 12 11

REF

AV P20/ANI0 P21/ANI1 P22/ANI2 P23/ANI3 P130 P45 P44/RxD6 P43/TxD6INTP1 P42/TOH1

ANI0 to ANI3: Analog input RESET: Reset AV

REF: Analog reference voltage RxD6: Receive data

INTP0 to INTP3: External interrupt input TI000, TI010: Timer input P20 to P23: Port 2 TO00, TOH1: Timer output P30, P31, P34: Port 3 TxD6: T ransmit data P40 to P45: Port 4 V P121 to P123: Port 12 V

DD: Power supply SS: Ground

P130: Port 13 X1, X2: Crystal oscillator (X1 input clock)

TO00/TI010/P31

TI000/P30

TOH1/P42

RxD6/P44

TxD6/P43

ANIO/P20 to

ANI3/P23

AVREF

INTP0/P30 INTP1/P43 INTP2/P31 INTP3/P41

18-bit timer/avent

counter 00

8-bit timer 80

8-bit timer H1

Low-speed

Internal osclliator

Watchdog timer

Serial Interface

UARTS

4

A/D convertor

Interrupt control

78K08

CPU

core

Internal

high-speed

V

RAM

DD VSS

Flaash

memory

note

Port 3

Port 4

Port 12

Port 13

Power om clear/

low voltage

indlcator

Reset control

System control

High-speed

internal osclliator

P20 to P23

4Port 2

P30,P31

2

P34

6

P40 to P43

P121 to P1233

P130

POC/LVI

control

RESET/P34 X1/P121 X2/P122

50

Q711 : µPD78F9222

(1) Port functions

Pin Name I/O Function After Reset Alternate-

Function Pin

P20 to P23 I/O Port 2.

Input ANI0 to ANI3

4-bit I/O port.

Can be set to input or output mode in 1-bit units.

An on-chip pull-up resistor can be connected by setting software.

P30 TI000/INTP0

I/O Can be set to input or output mode in 1-

P31

Note

Input

P34

P40

I/O Port 4.

P41 INTP3

P42 TOH1

Port 3

bit units.

An on-chip pull-up resistor can be

connected by setting software.

Input only Input RESET

6-bit I/O port.

Can be set to input or output mode in 1-bit units.

An on-chip pull-up resistor can be connected by setting software.

Input

TI010/TO00/

INTP2

Note

−

P43 TxD6/INTP1

P44 RxD6

P45

P121

P122

P123

Note

I/O Port 12.

3-bit I/O port.

Can be set to input or output mode in 1-bit units.

An on-chip pull-up resistor can be connected only to P123 by

Input

X1

X2

−

Note

−

setting software.

P130 Output Port 13.

Output

−

1-bit output-only port

Caution The P121/X1 and P122/X2 pins are pulled down during reset.

51

Q711 : µPD78F9222

(2) Non-port functions

Pin Name I/O Function After Reset Alternate-

Function Pin

INTP0 P30/TI000

INTP1 P43/TxD6

Input External interrupt input for which the valid edge (rising edge,

falling edge, or both rising and falling edges) can be specified

Input

INTP2 P31/TI010/TO00

INTP3

P41

RxD6 Input Serial data input for asynchronous serial interface Input P44

TxD6 Output Serial data output for asynchronous serial interface Input P43/INTP1

TI000 External count clock input to 16-bit timer/event counter 00.

Input

P30/INTP0

Capture trigger input to capture registers (CR000 and CR010) of

16-bit timer/event counter 00

TI010

Capture trigger input to capture register (CR000) of 16-bit

P31/TO00/INTP2

timer/event counter 00

TO00 Output 16-bit timer/event counter 00 output Input P31/TI010/INTP2

TOH1 Output 8-bit timer H1 output Input P42

ANI0 to ANI3 Input Analog input of A/D converter Input P20 to P23

REF

AV

Note

RESET

X1

Input System reset input

Note

Input Connection of crystal/ceramic resonator for system clock

Reference voltage of A/D converter

−

−−

Note

−

P34

P121

Note

oscillation.

External clock input

X2

Note

Connection of crystal/ceramic resonator for system clock

−

P122

Note

oscillation.

VDD

V

SS

Positive power supply

−

Ground potential

−

−−

Caution The P121/X1 and P122/X2 pins are pulled down during reset.

52

10. ELECTRICAL PARTS LIST

PARTS INFORMATION

RESISTORS

1) 00MGD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W

2) 00MGD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W

Examples ;

Resistance value

➀

0.1 Ω.... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω.... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105

6.8 Ω.... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475

Note : Please distinguish 1/4W from 1/6W by the shape of parts

used actually.

CAPACITORS

CERAMIC CAP.

3) 00MDD1 × × × × 370 Ceramic capacitor

Examples ;

Tolerance (Capacity deviation)

➁

Tolerance of COMMON PARTS handled here are as follows :

Capacity value

➂

CERAMIC CAP.

4) 00MDK16 × × × 300, High dielectric constant ceramic

Examples ;

Capacity value

➃

ELECTROLY CAP. ( ) .

5) 00MEA × × × × × × 10, Electrolytic capacitor

Examples ;

Capacity value

➄

Working voltage

➅

FILM CAP.

6) 00MDF15 × × × 350 Plastic film capacitor 00MDF15 × × × 310 One-way type, Mylar ±5% 50V 00MDF16 × × × 310 Plastic film capacitor

Examples ;

Capacity value

➆

0.001 µF(1000 pF) ....... 102 0.1 µF....104

0.0018 µF........................ 182 0.56 µF....564

0.015 µF........................ 153

{

Capacity value Tolerance

{

➅

Working voltage Capacity value

{

Resistance value

Disc type Temp.coeff.P350 N1000, 50V

capacitor Disc type Temp.chara. 2B4, 50V

Capacity value

One-way lead type, Tolerance ±20%

2200 µF....228

One-way type, Mylar ±10% 50V

Capacity value

➀

{

➁

➂

±0.25 pF .... 0

±0.5 pF .... 1

±5%.... 5

0.5 pF 5 pF .... ±0.25 pF

6 pF 10 pF .... ±0.5 pF

12 pF 560 pF.... ±5%

0.5 pF .... 005 3 pF ....030 100 pF .... 101

1 pF .... 010 10 pF ....100 220 pF .... 221

1.5 pF .... 015 47 pF .... 470 560 pF .... 561

➃

100 pF .... 101 1000 pF ....102 10000 pF ....103

470 pF .... 471 2200 pF ....222

{

➄

0.1 µF....104 4.7 µF ....475 100 µF ....107

0.33 µF....334 10 µF ....106 330 µF ....337

1 µF ....105 22 µF ....226 1100 µF....118

6.3V....006 25V ....025

10V....010 35V ....035

16V....016 50V ....050

( )

➆

0.01 µF........................ 103 1 µF....105

NOTE ON SAFETY FOR FUSIBLE RESISTOR :

The suppliers and their type numbers of fusible resistors are as follows;

1. KOA Corporation Part No. (MJI) Type No. (KOA) Description 00MNH05 × × × 140 RF25S × × × × ΩJ(±5% 1/4W) 00MNH05 × × × 120 RF50S × × × × ΩJ(±5% 1/2W) 00MNH85 × × × 110 RF73B2A × × × × ΩJ(±5% 1/10W) 00MNH95 × × × 140 RF73B2E × × × × ΩJ(±5% 1/4W)

2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description 00MNF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) 00MRF05 × × × 140 00MNF02 × × × 140 00MRF02 × × × 140

Examples ;

Resistance value

0.1 Ω.... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω.... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684

6.8 Ω.... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ .... 475

{

Resistance value

ERD-2FCG

{

Resistance value

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105

{

Resistance value (0.1 Ω − 10 kΩ)

× × × (±2% 1/4W)

{

Resistance value

ABBREVIATION AND MARKS

ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL

NOTE ON FUSE :

Regarding to all parts of parts code 00MFS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse.

NOTE ON SAFETY :

Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol . Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.

53

040623ecm

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

MAIN PWB P101 (00MWI39BS101-)

P101 C100 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C101 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C102 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C104 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C105 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C106 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C107 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C108 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C109 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C110 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C111 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C112 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C113 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C114 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C115 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C116 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C117 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C118 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C119 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C121 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C122 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P101 C123 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P101 C124 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C125 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C126 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P101 C127 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P101 C128 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C129 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C130 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C131 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C132 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C133 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C134 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C135 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C136 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C137 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C139 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C140 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C142 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C143 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C144 00MEY22505020 00MEY22505020 ELECT CAP. 2.2UF/ 50V P101 C145 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C146 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C147 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C148 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C149 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C150 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C151 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C152 nsp 00MDK96472300 CER. CAP. 4700 PF +- 10 % B 50V GR39 P101 C153 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C154 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C155 00MEY10505020 00MEY10505020 ELECT CAP. 1UF/ 50V P101 C156 nsp 00MDK98224200 CER. CAP. GRM39F224Z16 0.22UF P101 C157 nsp 00MDK98224200 CER. CAP. GRM39F224Z16 0.22UF P101 C158 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39 P101 C159 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39 P101 C161 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C162 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

54

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 C163 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C164 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C165 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C166 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C167 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C168 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C169 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C170 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C171 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C172 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C175 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C176 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C177 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C178 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C179 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C180 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C181 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C182 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C183 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C184 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C185 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C186 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C187 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C188 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C189 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C190 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C191 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C192 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39 P101 C193 nsp 00MDD95150300 CER. CAP. 15 PF +- 5 % CG 50V GR39 P101 C194 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C206 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C207 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C208 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C209 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C210 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C211 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C212 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C213 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C214 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C215 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C216 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C217 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C218 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C219 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P101 C220 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P101 C221 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C222 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P101 C225 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P101 C226 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P101 C227 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P101 C228 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C230 00MEY10505020 00MEY10505020 ELECT CAP. 1UF/ 50V P101 C232 00MEY10505020 00MEY10505020 ELECT CAP. 1UF/ 50V P101 C233 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C234 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C235 nsp 00MDD95560300 CER. CAP. 56PF (GR39) P101 C236 nsp 00MDD95560300 CER. CAP. 56PF (GR39) P101 C237 nsp 00MDD95560300 CER. CAP. 56PF (GR39) P101 C238 nsp 00MDD95560300 CER. CAP. 56PF (GR39)

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

55

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 C239 nsp 00MDD95560300 CER. CAP. 56PF (GR39) P101 C240 nsp 00MDD95560300 CER. CAP. 56PF (GR39) P101 C241 nsp 00MDD95560300 CER. CAP. 56PF (GR39) P101 C242 nsp 00MDD95560300 CER. CAP. 56PF (GR39) P101 C243 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C245 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C246 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C247 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C248 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C249 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C250 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C251 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C252 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C253 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C254 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C255 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C256 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C257 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C258 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C259 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C260 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C261 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C262 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C263 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C264 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C265 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C270 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C271 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C272 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C273 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C274 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C275 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C276 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C277 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C278 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P101 C279 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C280 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C281 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C282 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C283 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C284 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C285 00MEY10601620 00MEY10601620 ELECT CAP. 10UF/ 16V P101 C286 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C291 00MEY10701020 00MEY10701020 ELECT CAP. 100UF/ 10V P101 C296 nsp 00MDK96474200 CER. CAP. 0.47UF/10V B(BJ) +-10% P101 C297 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C298 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 C299 nsp 00MDK98105200 CER. CAP. 1UF 10V F P101 C300 nsp 00MDK98224200 CER. CAP. GRM39F224Z16 0.22UF P101 C301 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P101 D107 00D2760683943 00D2760683943 DIODE UDZS3.6B-TE17 P101 D110 00MHZ20002020 00MHZ20002020 CHIP DIODE MA151WA-(TX) P101 D111 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D112 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D114 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K P101 D115 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D116 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D117 00MHZ30012060 00MHZ30012060 CHIP DIODE NSAD500F SURGE ABSORBER P101 D118 00MHZ30012060 00MHZ30012060 CHIP DIODE NSAD500F SURGE ABSORBER

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

56

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 D119 00MHZ30012060 00MHZ30012060 CHIP DIODE NSAD500F SURGE ABSORBER P101 D124 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D125 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D126 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES P101 D130 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K P101 J106 00D2051295008 00D2051295008 TERMINAL USB(B)CONNECTOR P101 J108 00MYJ07061450 00MYJ07061450 JACK 52559-2270 P101 J109 00MYJ90014620 00MYJ90014620 JACK SCFB1A0600(HEADER) P101 J111 00MYP06015160 00MYP06015160 PLUG B6B-ZR-SM4-TF(LF)(SN) P101 J112 00MYJ14000080 00MYJ14000080 BATTERY CASE 20H-1T (CR2032 HOLDER) P101 J114 00MYJ90014670 00MYJ90014670 JACK SCFB3A0400(EJECTOR) P101 L100 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L101 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L102 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L103 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L104 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L105 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L106 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L107 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L108 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L109 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L110 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L111 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L112 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L113 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L114 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L115 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L118 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L121 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 L124 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L125 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L126 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L127 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L128 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L129 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L130 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L131 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L132 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L133 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L134 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L135 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 L136 00MFN21020040 00MFN21020040 EMI FILTER DLP11SN161SL2 P101 L137 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P101 P101

P101 P101 P101

Q100 00MHC12252090 00MHC12252090 IC ! NJM2387DL2

!

Q101 00MHC12252090 00MHC12252090 IC ! NJM2387DL2

!

Q102 00MHC12252090 00MHC12252090 IC ! NJM2387DL2

!

Q103 00MHC12252090 00MHC12252090 IC ! NJM2387DL2

!

Q104 00MHC96A25090 00MHC96A25090 IC ! NJM2865F3-25

!

P101 Q107 00MHC10102090 00MHC10102090 IC NJM2068M-TE1 P101 Q108 00MHC10179020 00MHC10179020 IC MN1382S-H(TX) P101 Q109 00MHC10475050 00MHC10475050 IC TC74LCX08FT P101 Q110 00MHC010905K0 00MHC010905K0 IC TC74LCX125FT(EL.K) P101 Q112 00MBA20035210 00MBA20035210 TRS. DTC114EU P101 Q113 00MBA20035210 00MBA20035210 TRS. DTC114EU P101 Q115 00MBA20035210 00MBA20035210 TRS. DTC114EU P101 Q116 00D2623469000 00D2623469000 IC UPD444012AGY-B55X P101 Q117 00MHC1005532F 00MHC1005532F U-PRO LH28F800BJE(PMD560) P101 Q118 00D2623114902 00D2623114902 IC S-24C01BFJ-TB P101 Q119 00MHC10144370 00MHC10144370 IC CDCV304PWR

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

57

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 Q120 00D2623468001 00D2623468001 U-PRO UPD703111AGM-15-UEU P101 Q121 00MHC12251090 00MHC12251090 IC NJU6350R P101 Q122 00MJX48001390 00MJX48001390 X'TAL SG-8002JF SC F=48MHZ P101 Q123 00D2623466906 00D2623466906 IC AK4537VN P101 Q124 00D2623467002 00D2623467002 IC UPD77115GK-9EU P101 Q125 00MHC10474050 00MHC10474050 IC TC74LCX14FT P101 Q126 nsp nsp IC XCR3256 (BLANK) P101 Q127 00MBA10026210 00MBA10026210 TRS. DTA114EU P101 Q130 00MHC011705K0 00MHC011705K0 IC TC74LCX00FT(EL.K) P101 Q131 00MHC712300Z0 00MHC712300Z0 IC CMOS LOGIC IC 74HC123 (FLAT) P101 Q132 00MHC011705K0 00MHC011705K0 IC TC74LCX00FT(EL.K) P101 Q133 00MBA10026210 00MBA10026210 TRS. DTA114EU P101 Q134 00MBA10026210 00MBA10026210 TRS. DTA114EU P101 R100 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R101 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R102 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R105 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R106 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R107 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R108 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R109 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R111 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R114 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R115 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R117 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R118 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R119 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R120 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R122 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R123 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P101 R124 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R125 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R126 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R129 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R130 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R131 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R132 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R133 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R135 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R136 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R137 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R138 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R139 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W P101 R140 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R141 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R142 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P101 R143 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R144 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R145 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W P101 R146 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R147 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R148 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P101 R149 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R152 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R155 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R158 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R159 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R160 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R161 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

58

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 R162 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R163 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R165 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R166 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R167 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R168 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W

P101 R169 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W

P101 R170 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W

P101 R171 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W

P101 R172 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R173 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R174 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R175 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R176 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R177 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R178 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R179 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R180 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R181 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R182 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R183 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R184 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R185 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R186 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R187 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R188 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R192 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R194 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R195 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R196 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R197 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R198 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R200 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R201 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P101 R202 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R203 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R204 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R205 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P101 R206 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P101 R207 00MNI05103110 00MNI05103110 CHIP RES. 10K OHM +- 5% 1/10W

P101 R208 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R209 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R210 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R211 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R212 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R213 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R214 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R215 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R216 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R217 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R218 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R219 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R220 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R221 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R222 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R223 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R224 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R225 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R226 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

59

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 R227 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R228 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R229 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R230 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R234 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R236 nsp 00MNN05152610 CHIP RES. 1.5K OHM +- 5% 1/16W P101 R237 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R238 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R239 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R240 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R241 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R242 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R243 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R244 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R245 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R246 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R247 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R248 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R249 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R252 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R253 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R254 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P101 R255 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P101 R256 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P101 R257 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P101 R258 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R259 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R260 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R262 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R263 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R264 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R267 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R268 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R269 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R270 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R271 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R272 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R273 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R274 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R275 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R276 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R277 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R278 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R279 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R280 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R281 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R282 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R283 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R284 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R285 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R286 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R287 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R288 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R289 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R290 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R291 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R292 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R293 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R294 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

60

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 R295 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R296 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R297 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R298 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R299 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R300 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R301 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R302 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R303 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R304 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R305 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R306 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R307 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R308 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W

P101 R309 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R310 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R311 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R312 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R313 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R314 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R315 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R316 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R317 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R318 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R319 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R320 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R321 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R322 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R323 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R334 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R335 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R336 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R337 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R338 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R339 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R340 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R341 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R342 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R343 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R344 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R346 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R347 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R348 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R349 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R350 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R351 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R352 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R353 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R354 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R355 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R356 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R357 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R358 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R359 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R360 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R361 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R362 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R363 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R364 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

61

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 R365 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R366 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R367 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R368 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P101 R369 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R370 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R371 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R372 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R373 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R374 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R375 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R376 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R377 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R378 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R380 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R381 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R382 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R383 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R384 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R388 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R389 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R390 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R391 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R392 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R393 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R394 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R395 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P101 R396 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R397 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R398 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R399 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R400 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R401 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R402 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R403 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R404 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R405 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R406 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R407 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P101 R408 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R409 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R410 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R411 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R412 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R413 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R414 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R415 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R416 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R417 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R418 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R419 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R420 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W P101 R421 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R422 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R423 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R424 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R425 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R426 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R427 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

62

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 R428 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R429 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R430 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R431 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R432 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R433 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R434 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P101 R435 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R436 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R437 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R438 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R439 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R440 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R441 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R442 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R443 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R444 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R445 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R446 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R447 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R448 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R449 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R450 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R451 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R452 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R453 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P101 R455 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P101 R456 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P101 R457 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R460 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R461 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R462 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R463 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R464 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R465 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W

P101 R466 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W

P101 R467 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W

P101 R468 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W

P101 R469 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W

P101 R470 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P101 R471 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P101 R473 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R474 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W

P101 R475 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R476 nsp 00MNN05682610 CHIP RES. 6.8K OHM +- 5% 1/16W

P101 R479 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R480 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P101 R481 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P101 R486 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P101 R487 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P101 R488 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P101 R489 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P101 R490 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R491 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P101 R492 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R493 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R494 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P101 R497 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P101 R498 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

63

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P101 R499 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R850 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R851 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R852 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R853 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R854 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R855 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R856 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R857 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R858 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R859 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R860 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P101 R861 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R862 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R863 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R864 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R865 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W P101 R868 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R869 nsp 00MNN05684610 CHIP RES. 680K OHM +- 5% 1/16W P101 R870 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R871 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R872 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P101 R873 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R874 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R875 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R878 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R879 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W P101 R880 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R881 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P101 R882 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R883 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P101 R884 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R885 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R886 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 R887 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P101 X100 00D3990957901 00D3990957901 X'TAL XTAL(18.75MHZ) P101 X101 00D3990988909 00D3990988909 X'TAL X'TAL (12.288MHZ) P101 X102 00D3990984903 00D3990984903 X'TAL X'TAL (32.768MHZ)

I/O UNIT PWB P201 (00MWG39BS201-)

P201 C500 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 P201 C501 nsp 00MDK96102300 CER. CAP. 1000 PF +- 10 % B 50V GR36 P201 C502 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P201 C503 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P201 C504 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P201 C505 nsp 00MDD95221300 CER. CAP. 220 PF +- 5 % CG 50V GR39 P201 C506 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P201 C507 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2 P201 C511 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P201 C512 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39 P201 C514 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39 P201 C515 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P201 C516 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39 P201 C517 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39 P201 C520 nsp 00MDD95330300 CER. CAP. 33 PF +- 5 % CG 50V P201 C521 nsp 00MDD95330300 CER. CAP. 33 PF +- 5 % CG 50V P201 C522 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P201 C523 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P201 C524 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P201 C525 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

64

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P201 C526 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2

P201 C529 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C531 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K

P201 C534 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K

P201 C535 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K

P201 C536 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39

P201 C537 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39

P201 C539 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C540 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C542 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K

P201 C543 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K

P201 C545 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39

P201 C546 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39

P201 C547 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C548 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C551 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2

P201 C552 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2

P201 C554 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C555 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C559 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2

P201 C560 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2

P201 C564 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39

P201 C565 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C566 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2

P201 C567 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C568 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2

P201 C569 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39

P201 C570 nsp 00MDD95101300 CER. CAP. 100 PF +- 5 % CG 50V GR39

P201 C576 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39

P201 C577 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39

P201 C578 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C579 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C580 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C581 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39

P201 C584 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39

P201 C587 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P201 C588 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2

P201 C589 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2

P201 C590 nsp 00MDD95221300 CER. CAP. 220 PF +- 5 % CG 50V GR39

P201 C591 nsp 00MDD95221300 CER. CAP. 220 PF +- 5 % CG 50V GR39

P201 C593 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2

P201 D500 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K

P201 D501 00MHZ20001210 00MHZ20001210 CHIP DIODE DAP202K

P201 D502 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K

P201 D503 00MHZ20001210 00MHZ20001210 CHIP DIODE DAP202K

P201 D504 00MHZ30014060 00MHZ30014060 CHIP DIODE NNCD4.3C ESD NOISE CLIPPING DIODES

P201 D507 00MHZ30004050 00MHZ30004050 CHIP DIODE 02CZ8.2-Y TE85L

P201 D508 00MHZ30004050 00MHZ30004050 CHIP DIODE 02CZ8.2-Y TE85L

P201 J500 00MYT02090160 00MYT02090160 TERMINAL D-SUB 9PIN F

P201 J501 00MYT02041040 00MYT02041040 TERMINAL 14X14 RA 2L4P W/R NI FRNT-GND

P201 J502 00MYJ01004920 00MYJ01004920 JACK YKB21-5261

P201 J503 00MYJ01004520 00MYJ01004520 JACK 4P MINI JACK HSJ 1637-010512

P201 L500 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P201 L501 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P201 L502 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P201 L503 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P201 L504 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P201 L505 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P201 L506 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

65

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P201 L507 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L508 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L509 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L510 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L511 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L512 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L513 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L514 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 Q500 00MHC10102090 00MHC10102090 IC NJM2068M-TE1 P201 Q501 00MHC10102090 00MHC10102090 IC NJM2068M-TE1 P201 Q502 00MHC10102090 00MHC10102090 IC NJM2068M-TE1 P201 Q503 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP P201 Q504 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP P201 Q505 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP P201 Q506 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP P201 Q507 00MHC405221I0 00MHC405221I0 IC BU4052BCF-E2 P201 Q508 00MHC10102090 00MHC10102090 IC NJM2068M-TE1 P201 Q509 00MBA20035210 00MBA20035210 TRS. DTC114EU P201 Q510 00MBA20035210 00MBA20035210 TRS. DTC114EU P201 Q511 00MHC10486050 00MHC10486050 IC TC9459BFG-EL P201 Q512 00MHC10102090 00MHC10102090 IC NJM2068M-TE1 P201 Q513 00MHC10102090 00MHC10102090 IC NJM2068M-TE1 P201 Q516 00MHC10292060 00MHC10292060 IC UPD4721GS-GJG IC RS232C P201 Q517 00MHC010905K0 00MHC010905K0 IC TC74LCX125FT(EL.K) P201 R500 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P201 R501 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P201 R502 nsp 00MNN05100610 CHIP RES. 10 OHM +- 5% 1/16W P201 R503 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P201 R504 nsp 00MNN05100610 CHIP RES. 10 OHM +- 5% 1/16W P201 R505 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P201 R506 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P201 R507 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P201 R508 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P201 R512 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P201 R513 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P201 R514 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R515 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R519 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P201 R520 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W P201 R521 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W P201 R522 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W P201 R523 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P201 R524 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P201 R525 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W P201 R526 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W P201 R527 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P201 R528 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R529 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R530 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P201 R531 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P201 R532 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R533 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R534 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P201 R535 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W P201 R536 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R537 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R538 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R539 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P201 R540 nsp 00MNN05332610 CHIP RES. 3.3K OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

66

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P201 R541 nsp 00MNN05332610 CHIP RES. 3.3K OHM +- 5% 1/16W

P201 R542 nsp 00MNN05472610 CHIP RES. 4.7K OHM +- 5% 1/16W

P201 R543 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P201 R544 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W

P201 R545 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W

P201 R546 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R547 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W

P201 R548 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W

P201 R549 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R550 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R551 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R554 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R555 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P201 R556 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R557 nsp 00MNN05224610 CHIP RES. 220K OHM +- 5% 1/16W

P201 R558 nsp 00MNN05224610 CHIP RES. 220K OHM +- 5% 1/16W

P201 R561 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R563 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R564 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R566 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R569 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R570 00MRI05221010 00MRI05221010 CHIP RES. 220 OHM J 1W

P201 R571 00MRI05221010 00MRI05221010 CHIP RES. 220 OHM J 1W

P201 R572 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R573 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R574 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P201 R576 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R578 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R581 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P201 R582 nsp 00MNN05152610 CHIP RES. 1.5K OHM +- 5% 1/16W

P201 R585 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P201 R586 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P201 R587 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P201 R588 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

P201 R589 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P201 R590 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P201 R591 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W

P201 R592 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W

P201 R593 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R594 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R595 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W

P201 R596 nsp 00MNN05101610 CHIP RES. 100 OHM +- 5% 1/16W

P201 R597 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R598 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W

P201 R600 nsp 00MNN05224610 CHIP RES. 220K OHM +- 5% 1/16W

P201 R601 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R602 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R603 nsp 00MNN05152610 CHIP RES. 1.5K OHM +- 5% 1/16W

P201 R604 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R605 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R606 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R608 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P201 R609 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R610 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R613 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R614 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R615 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R616 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

P201 R617 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

67

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P201 R618 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R619 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R620 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R621 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R622 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R623 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P201 R624 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P201 R625 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W P201 R626 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W P201 R627 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W P201 R628 nsp 00MNN05272610 CHIP RES. 2.7K OHM +- 5% 1/16W

PANEL UNIT PWB P202 (00MWG39BS202-)

P202 C650 nsp 00MDK98105200 CER. CAP. 1UF 10V F P202 C651 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P202 C652 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P202 C653 nsp 00MDK98105200 CER. CAP. 1UF 10V F P202 C654 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P202 C655 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P202 C656 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P202 C657 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P202 C658 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P202 C659 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P202 C660 nsp 00MDK98105200 CER. CAP. 1UF 10V F P202 C661 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P202 C662 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P202 D652 00MHI10116210 00MHI10116210 L.E.D. SML-512UW RED LED P202 D653 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D654 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D655 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D656 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D657 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D658 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D659 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D660 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D661 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D662 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D663 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D664 00MHI10116210 00MHI10116210 L.E.D. SML-512UW RED LED P202 D665 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D666 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D667 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D668 00MHI10123210 00MHI10123210 L.E.D. SML-512DW P202 D669 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D670 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D671 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D672 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D673 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D674 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 D675 00MHI10124210 00MHI10124210 L.E.D. SML-512MW P202 Q650 00MHC10244090 00MHC10244090 IC NJU3716AM-TE1 P202 Q651 00MHC10244090 00MHC10244090 IC NJU3716AM-TE1 P202 R647 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P202 R648 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P202 R649 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W P202 R650 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P202 R651 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P202 R652 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P202 R653 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P202 R654 nsp 00MNN05331610 CHIP RES. 330 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

68

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P202 R655 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P202 R656 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P202 R657 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P202 R658 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P202 R659 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P202 R660 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P202 R662 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P202 R663 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R664 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R665 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R666 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R667 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R668 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R669 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R670 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R671 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R672 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R673 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R674 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R675 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R676 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R677 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R678 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R679 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P202 R680 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R681 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R682 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R683 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R684 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R685 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R686 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 R687 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W

P202 R688 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W

P202 R689 nsp 00D2472005990 CHIP RES. RM73B--241JT +1608

P202 R690 nsp 00D2472006931 CHIP RES. RM73B--361JT +1608

P202 R691 nsp 00MNN05561610 CHIP RES. 560 OHM +- 5% 1/16W

P202 R692 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W

P202 R693 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W

P202 R694 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W

P202 R695 nsp 00D2472005990 CHIP RES. RM73B--241JT +1608

P202 R696 nsp 00D2472006931 CHIP RES. RM73B--361JT +1608

P202 R697 nsp 00MNN05561610 CHIP RES. 560 OHM +- 5% 1/16W

P202 R698 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W

P202 R699 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P202 S650 00MSP01013950 00MSP01013950 PUSH SW SKECAFA010 JOINT STEM

P202 S651 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW

P202 S652 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW

P202 S653 00MSP01013960 00MSP01013960 PUSH SW SKECFKA010 LED BUILT IN RED

P202 S654 00MSP01013970 00MSP01013970 PUSH SW SKECFLA010 PURE GREEN

P202 S655 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW

P202 S656 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW

POWER UNIT PWB P203 (00MWG39BS203-)

P203

C701 00MDF77103500 00MDF77103500 FILM CAP. ! 0.01UF M 250V AC

!

C702 00MDF17224570 00MDF17224570 FILM CAP. # ECQU2A224ML 0.22UF/250V

!

C705 00MEA12740080 00MEA12740080 ELECT CAP. ! 120UF/400V YOKOOKI

!

P203 C706 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

P203 C707 nsp 00MOA47602520 ELECT. CAP. 47 UF M 25V RA-2

P203

C710 00MDK17471520 00MDK17471520 CER. CAP. ! DE0910 B 471K -KX 470PF 250V

!

P203 C711 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

69

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P203 C712 nsp 00MOA47603520 ELECT. CAP. 47UF M 35V RA-2 P203

C713 00MDK17681520 00MDK17681520 CER. CAP. # DE1B3KX681KB5B

!

P203 C716 nsp 00D2544522783 ELECT CAP. CE04W1V471MC SMG/RE3 P203 C717 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C718 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P203 C719 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2 P203 C720 00MEF56703520 00MEF56703520 ELECT CAP. RJH-35V561MI5#-S1 P203 C721 00MDK38106010 00MDK38106010 CER. CAP. 10UF 50V F +22-88% GRM32DF51H106ZA01L P203 C722 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C723 nsp 00MDK96472300 CER. CAP. 4700 PF +- 10 % B 50V GR39 P203 C724 00MEF68701610 00MEF68701610 ELECT CAP. RJH-16V681MH5#-S1 P203 C725 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C726 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P203 C727 nsp 00MDD95221300 CER. CAP. 220 PF +- 5 % CG 50V GR39 P203 C728 nsp 00MOA33602520 ELECT. CAP. 33 UF M 25V RA-2 P203 C729 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C730 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C731 nsp 00MDK96103300 CER. CAP. 0.01UF +-10% 50V C1608JB1H103K P203 C732 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C733 00MEF56703520 00MEF56703520 ELECT CAP. RJH-35V561MI5#-S1 P203 C735 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C736 nsp 00MOA10601620 ELECT. CAP. 10 UF M 16V RA-2 P203 C737 00MEF56703520 00MEF56703520 ELECT CAP. RJH-35V561MI5#-S1 P203 C739 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C740 nsp 00MOA10601620 ELECT. CAP. 10 UF M 16V RA-2 P203 C741 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C742 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C743 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C744 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C745 nsp 00MOA10701620 ELECT. CAP. 100 UF M 16V RA-2 P203 C749 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P203 C750 nsp 00MOA10605020 ELECT. CAP. 10 UF M 50V RA-2 P203 P203

D701 00MHD20031290 00MHD20031290 DIODE ! S1WB(A)60 30A 600V

!

D702 00MHV00001290 00MHV00001290 VARISTOR ! ST03D-170

!

P203 D704 00MHZ21005000 00MHZ21005000 CHIP DIODE 1SS301,DAN202U UMT P203 P203

D705 00MHW10032320 00MHW10032320 PHOTO UNIT ! PC-123F2 PHOTO CUPLER

!

D706 00MHE10010080 00MHE10010080 DIODE ! FMB26L

!

P203 D709 00MHZ20058210 00MHZ20058210 CHIP DIODE RB051L-40 P203 D710 00MHZ20061210 00MHZ20061210 CHIP DIODE RB160L-40 TE25 SBD 40V 1A PMDS P203 D711 00MHZ20061210 00MHZ20061210 CHIP DIODE RB160L-40 TE25 SBD 40V 1A PMDS P203 D717 00MHZ20002020 00MHZ20002020 CHIP DIODE MA151WA-(TX) P203 D718 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K P203 D721 00D2760683943 00D2760683943 DIODE UDZS3.6B-TE17 P203 P203 P203 P203

F701 00MFS20160200 00MFS20160200 FUSE # FUSE 1.6A 250V SEMKO VDE

!

F702 00MFS20080200 00MFS20080200 FUSE # FUSE 0.8A 250V SEMKO VDE

!

G701 00MHV00033020 00MHV00033020 VARISTOR # ERZV07D471

!

L701 00MLC22260740 00MLC22260740 COIL # 22MHX2 LINE FILTER

!

P203 L702 00MLU83103030 00MLU83103030 CHIP INDUCTANCE CDRH5D28 10UH +- 30% P203 L703 00MLC11040190 00MLC11040190 COIL 100UH COM.MODE COIL P203 L704 00D2140195006 00D2140195006 RELAY RELAY FTR-F1 P203 L705 00MLU80104020 00MLU80104020 CHIP INDUCTANCE CDRH8D43-101NC P203 L706 00MLU80104030 00MLU80104030 CHIP INDUCTANCE CDRH5D28-101 P203 L707 00MLU12103010 00MLU12103010 CHIP INDUCTANCE NL322522-100K P203 L708 00MLU80104030 00MLU80104030 CHIP INDUCTANCE CDRH5D28-101 P203 L709 00MLU12103010 00MLU12103010 CHIP INDUCTANCE NL322522-100K P203 P203

Q701 nsp nsp IC ! MIP3E50MY

!

Q702 00MHC33036590 00MHC33036590 IC ! TL431CZ PROG.VOLTAGE REFERENCE

!

P203 Q703 00MBA20035210 00MBA20035210 TRS. DTC114EU P203 Q704 00MHX300012B0 00MHX300012B0 CHIP TRS. 2SC4081(R.S) 2SC4116(GR.BL)

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

70

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P203 Q705 00MBA20035210 00MBA20035210 TRS. DTC114EU

P203

Q706 00MHC10209210 00MHC10209210 IC ! BD9778HFP

!

P203 Q707 00MBA20035210 00MBA20035210 TRS. DTC114EU

P203

Q708 00MHC10226210 00MHC10226210 IC ! BA9741FS-E2 2CH DC/DC

!

Q709 00MHX117971A0 00MHX117971A0 CHIP TRS. ! 2SA1797

!

Q710 00MHX117971A0 00MHX117971A0 CHIP TRS. ! 2SA1797

!

P203 Q711 00MHS39BSN01F 00MHS39BSN01F U-PRO UPD78F9222(PMD560)

P203 Q712 00MHC010905K0 00MHC010905K0 IC TC74LCX125FT(EL.K)

P203

Q713 00MHC12252090 00MHC12252090 IC ! NJM2387DL2

!

P203 Q714 00MBA20035210 00MBA20035210 TRS. DTC114EU

P203 Q716 00MBA20035210 00MBA20035210 TRS. DTC114EU

P203 Q717 00MBA20035210 00MBA20035210 TRS. DTC114EU

P203

R701 00MRC05105010 00MRC05105010 RES. ! 1M OHM +-5% 1W RCR60 L15

!

P203 R702 nsp 00MNN05560610 CHIP RES. 56 OHM +- 5% 1/16W

P203 R703 nsp 00MNN05560610 CHIP RES. 56 OHM +- 5% 1/16W

P203 R704 00MRI05150140 00MRI05150140 CHIP RES. 15 OHM +- 5% 1/4W

P203 R705 nsp 00MNN05150610 CHIP RES. 15 OHM +- 5% 1/16W

P203 R706 nsp 00MNN05562610 CHIP RES. 5.6K OHM +- 5% 1/16W

P203 R707 nsp 00MNN05333610 CHIP RES. 33K OHM +- 5% 1/16W

P203 R708 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W

P203 R710 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W

P203 R711 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P203 R712 00MRI05330120 00MRI05330120 CHIP RES. 33 OHM +- 5% 1/2W

P203 R715 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P203 R718 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P203 R719 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P203 R720 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P203 R721 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P203 R722 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P203 R723 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P203 R724 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R725 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R726 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R727 nsp 00MNN05394610 CHIP RES. 390K OHM +- 5% 1/16W

P203 R728 nsp 00MNN05154610 CHIP RES. 150K OHM +- 5% 1/16W

P203 R729 nsp 00MNN05393610 CHIP RES. 39K OHM +- 5% 1/16W

P203 R730 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R731 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P203 R732 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P203 R734 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W

P203 R735 nsp 00MNN05122610 CHIP RES. 1.2K OHM +- 5% 1/16W

P203 R736 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W

P203 R737 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R738 nsp 00MNN05393610 CHIP RES. 39K OHM +- 5% 1/16W

P203 R739 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R740 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R741 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R742 nsp 00MNN05683610 CHIP RES. 68K OHM +- 5% 1/16W

P203 R743 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P203 R744 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R745 nsp 00MNN05222610 CHIP RES. 2.2K OHM +- 5% 1/16W

P203 R746 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R747 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P203 R748 nsp 00MNN05393610 CHIP RES. 39K OHM +- 5% 1/16W

P203 R749 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W

P203 R750 nsp 00MNN05182610 CHIP RES. 1.8K OHM +- 5% 1/16W

P203 R751 nsp 00MNN05183610 CHIP RES. 18K OHM +- 5% 1/16W

P203 R752 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

P203 R753 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

71

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P203 R754 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W P203 R755 nsp 00MNN05221610 CHIP RES. 220 OHM +- 5% 1/16W P203 R756 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R757 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R758 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R759 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P203 R760 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R761 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R762 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R763 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R764 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R765 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R766 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R767 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P203 R768 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P203 R769 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W P203 R770 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P203 R771 nsp 00MNN05681610 CHIP RES. 680 OHM +- 5% 1/16W P203 R772 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P203 R773 nsp 00MNN05102610 CHIP RES. 1K OHM +- 5% 1/16W P203 R774 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R777 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R778 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R779 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R780 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P203 R781 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P203 R782 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P203 R783 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P203 R784 nsp 00MNN05220610 CHIP RES. 22 OHM +- 5% 1/16W P203 R790 nsp 00MNN05104610 CHIP RES. 100K OHM +- 5% 1/16W P203 R791 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P203 R792 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W P203 R793 nsp 00MNN05332610 CHIP RES. 3.3K OHM +- 5% 1/16W P203 R794 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W P203 R799 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W P203 P203

S701 00MSP02012310 00MSP02012310 PUSH SW # SDDFE10100 POWER SWITCH

!

T701 00MTS12900090 00MTS12900090 TRANSF. # ER28 SW TRANS FOR PMD570

!

HP JACK UNIT PWB P204 (00MWG39BS204-)

P204 C801 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2 P204 C802 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2 P204 C803 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2 P204 C804 nsp 00MOA47601620 ELECT. CAP. 47 UF M 16V RA-2 P204 C805 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P204 C806 nsp 00MDD95220300 CER. CAP. 22 PF +- 5 % CG 50V GR39 P204 C807 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P204 C808 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P204 C809 nsp 00MOA22701620 ELECT. CAP. 220 UF M 16V RA-2 P204 C810 nsp 00MOA22701620 ELECT. CAP. 220 UF M 16V RA-2 P204 C813 nsp 00MDK96222300 CER. CAP. 2200PF (GR39) P204 C814 nsp 00MDK96222300 CER. CAP. 2200PF (GR39) P204 C815 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P204 C816 nsp 00MDD95470300 CER. CAP. 47 PF +- 5 % CG 50V GR39 P204 C817 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P204 C818 nsp 00MDK98104200 CER. CAP. GRM39F104Z16 0.1UF P204 D801 00MHZ20002210 00MHZ20002210 CHIP DIODE DAN202K P204 D802 00MHZ20001210 00MHZ20001210 CHIP DIODE DAP202K P204 J802 00MYJ01080220 00MYJ01080220 JACK YKB21-5265 6.3MM STEREO PHONE P204 L801 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P204 L802 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

72

PWB

(

)

(MZ)

NAME

POS. NO.

VERS.

COLOR

PART NO.

FOR EUR

PART NO.

PART NAME DESCRIPTION

P204 L803 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P204 L804 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P204 L805 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE

P204 Q801 00MHC10045090 00MHC10045090 IC NJM4556AM-TE1

P204 Q802 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP

P204 Q803 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP

P204 Q804 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP

P204 Q805 00MHX333261A0 00MHX333261A0 CHIP TRS. 2SC3326 A CHIP

P204 R800 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P204 R801 00MRM01031250 00MRM01031250 VAR. RES. RK0971220 10K A (D-CUT REV)

P204 R802 00MNI05000110 00MNI05000110 CHIP RES. 0 OHM +- 5% 1/10W

P204 R803 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W

P204 R804 nsp 00MNN05223610 CHIP RES. 22K OHM +- 5% 1/16W

P204 R805 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W

P204 R806 nsp 00MNN05153610 CHIP RES. 15K OHM +- 5% 1/16W

P204 R807 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P204 R808 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P204 R811 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W

P204 R812 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W

P204 R813 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P204 R814 nsp 00MNN05473610 CHIP RES. 47K OHM +- 5% 1/16W

P204 R815 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W

P204 R816 nsp 00MNN05820610 CHIP RES. 82 OHM +- 5% 1/16W

P204 R817 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P204 R818 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P204 R821 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P204 R822 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W

P204 R823 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W

P204 R824 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W

P204 R825 nsp 00MNN05271610 CHIP RES. 270 OHM +- 5% 1/16W

P204 R826 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

P204 R827 nsp 00MNN05103610 CHIP RES. 10K OHM +- 5% 1/16W

ACC LED UNIT PWB P205 (00MWG39BS205-)

P205 D900 00MHI10118210 00MHI10118210 L.E.D. SML-A12MT(GREEN)

P205 R900 nsp 00MNN05121610 CHIP RES. 120 OHM +- 5% 1/16W

P205 S900 00MSC01010500 00MSC01010500 SW SPPB62 DETECTOR SW

JOG UNIT PWB P206 (00MWG39BS206-)

P206 R931 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P206 R932 nsp 00MNN05000610 CHIP RES. 0 OHM +- 5% 1/16W

P206 S930 00MSR03030060 00MSR03030060 ROTARY SW EC11B20244 V L=15MM

STB LED UNIT PWB P207 (00MWG39BS207-)

P207 D970 00MHI10125210 00MHI10125210 L.E.D. SML-311BBT

P207 R970 nsp 00MNN05181610 CHIP RES. 180 OHM +- 5% 1/16W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

73

Marantz PMD-560 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
