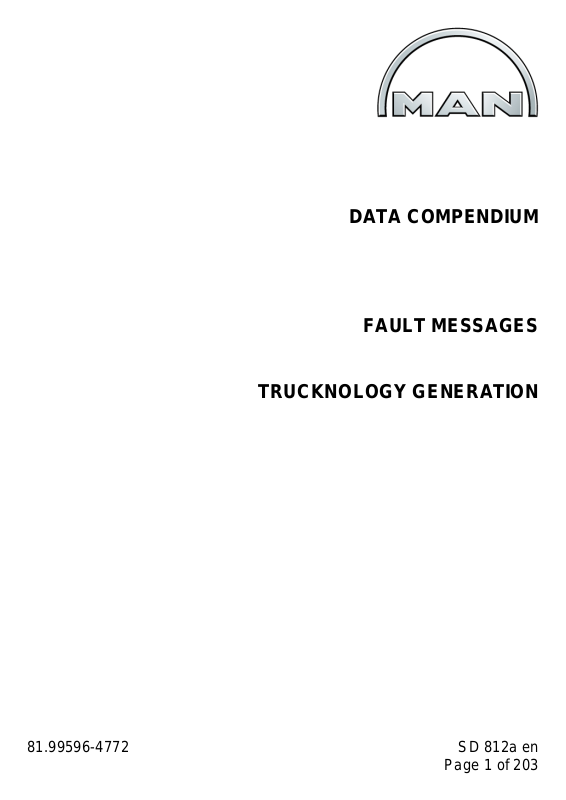

DATA COMPENDIUM
FAULT MESSAGES
TRUCKNOLOGY GENERATION
SD 812a en
Page 2 of 203
For notes on setting or repairing the individual systems
please see the repair manuals or the relevant Service Infor-
mation sheets.
After completing repairs delete the fault memory.
The last page folds out; on the inside you will find the FMI
code and its meaning.
The SPN for the door module – driver's and co-driver's side
– can be read out only with MAN-cats II; the SPN is not
shown in the display.
If one SPN refers to the same fault/component in several
control units/systems, only the generic term of the system is
given.
Example: "03512 EBS OBD, request, red warning lamp for
diagnosis": this SPN applies to all EBS variants although
they are not all expressly named (EBS2, EBS5 etc.)
Ifo ne SPN refers to different fauls/components in several
control units/systems each relevant variant is named.
Example: 03099 EDC (Common Rail) fuel pressure sensor –
rail pressure
03099 EDC (no Common Rail) fuel pressure sensor
This SD supersedes SD 812-
08.2001
© 2006 MAN Nutzfahrzeuge Aktiengesellschaft
VAST, mr 02.2006
SD 812a en
Page 3 of 203
Main instrument
Message in display Message via check lamp panels
SD 812a en
Page 4 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
ABS in trailer
yel-
low
yes
Line to trailer ABS to earth, fault in
trailer ABS or trailer ABS speed sen-
sor test
ABS in trailer, failure
yel-
low
yes
Power supply to trailer ABS is not
between 100mA and 2A
ABS in tractor, failure
yel-
low
yes ABS function is restricted
CAN network failure
yel-
low
yes Reaction stored in instrument
ASR failure
yel-
low
yes
Connection to engine control unit
disrupted
EBS failure
red yes EBS not on CAN
Reservoir pressure too low
red yes
Pressure is below warning pressure
ECAM substitute function in ZBR
Reservoir pressure K1
red yes
Reservoir pressure K2
red yes
Reservoir pressure K3
red yes
Reservoir pressure K4
red yes
Reservoir pressure implausible,
shown only with ECAM
SD 812a en
Page 5 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Reservoir pressure K1 too low
red yes
Reservoir pressure K2 too low
red yes
Reservoir pressure K3 too low
red yes
Reservoir pressure K4 too low
red yes
Pressure below warning pressure or
ECAM substitute function in ZBR or
short-circuit/interruption in sen-
sor/sensor cable or pressure
constantly below reservoir pressure
ECAM failure
red yes ECAM not on CAN
Fault in trailer brake
red yes CAN brake, tractor to trailer
CAN network failure
red yes Reaction saved in instruments
Brake pads/linings warn
red yes
INFO Not driving level
yel-
low
yes No valid ride level set
ECAS failure
red yes ECAS not on CAN
Lock cab!
red yes
A
t least one of switching contacts for
cab lock is open
Tipper operation
red yes
Cable from tipper switch contact to
earth
SD 812a en
Page 6 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Lock liftgate
red yes
Cable from liftgate switch to High
Potential
Gas filter contaminated
red yes
Comfort Shift defective
red yes Comfort Shift cannot be used
Reservoir pressure – do not shift
red yes No reservoir pressure on gearbox
Gearbox temp. too high
red yes Gearbox temp. much too high
Change air filter
yel-
low
yes Partial vacuum has exceeded limit
Oil pressure too low
red yes
Oil pressure too high
red yes
Coolant level too low
red yes
Cooling system
red yes
Gradient for coolant > 102° C too
high
Cooling system – switch off en-
gine
red yes To EDC anti-boiling feature
Coolant temp. too high
red yes
Engine speed too high
red yes EDC speed monitoring
Engine brake failure
red yes EGR valve above/below position
SD 812a en
Page 7 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Engine oil temp. too high
red yes
ESP failure
yel-
low
yes
ESP no onCAN or CAN message
with ESP contents is missing
ESP failure
yel-
low
yes
FDR function is restricted or not pre-
sent
- No text
yel-
low
no
ABS switch-off or
ABS OFFROAD
- No text
yel-
low
yes
Reaction in instrument saved on
CAN in event of failure
- No text
yel-
low
yes
Reaction in instrument saved on
CAN in event of failure
- No text
yel-
low
no No ABS on trailer
-
No text
red no
Comes on when ignition is switched
on, remains on after bulb test ,
-
No text
red no Cable for belt check is on earth
- No text
yel-
low
no
ASR intervention (LED comes on) or
ASR OFFROAD (LED flashes)
SD 812a en
Page 8 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
-
No text
grün no Flasher check for trailer
-
No text
yel-
low
no ESP (FDR) interventions
- No text
blau no High beam function check
-
No text
red no Parking brake function check
- No text
yel-
low
no Flame start function check
- No text
yel-
low
no
Overload on rear axle or
overload on front axle
- - yes
Level not reached - - yes
Ride level implausible or cannot be
set by ECAS
TCO failure - - yes EU tachograph not on CAN
Check TCO - - yes EU tachograph not in order.
Brake lights without function - - yes Brake light signal failure on CAN
SD 812a en
Page 9 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Tractor brake lights failure - - yes
Lamp defective short-circuit, cable
interrupted
Trailer brake lights failure - - yes
Lamp defective short-circuit, cable
interrupted
Trailer flashers rh failure or
Trailer flashers lh failure
- - yes
Failure of flasher lamp, or lamp load
out of tolerance
Tractor flashers rh failure or
Tractor flashers lh failure
- - yes
Clear lighting monitoring - - no
Block lighting monitoring - - no
Flasher test - - no
Light test - - no
Light test aborted - - no
Light test again - - no
End of light test - - no
SD 812a en
Page 10 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
New trailer, learn light test - - no
High beam rh failure or
high beam lh failure
- - yes
Add. headlight failure - - yes Relay for add. high beam (roof)
Add. headlight lh failure or
Add. headlight rh failure
- - yes
Foglamp lh failure or
Foglamp rh failure
- - yes
Rear foglamp failure on tractor
rear foglamp failure on trailer
- - yes
Fault in lh side marker lights or
fault in rh side marker lights
- - yes
Failure of at least one side marker
light on tractor
Parking lights failure - - yes Relay for parking lights (ZBR output)
Trailer parking lights lh failure or
trailer parking lights rh failure
- - yes
Tractor parking lights lh failure or
tractor parking lights rh failure
- - yes
Winter service lighting failure - - yes
Relay for winter service cannot be
triggered
SD 812a en
Page 11 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Switch defective - foglamps - - yes
Switch defective – low beam - - yes
Switch defective – high beam - - yes
Switch defective – headlight flash - - yes
Switch defective – parking lights - - yes
Brake pad/lining wear -
yel-
low
yes
Limit of wear reached in at least one
brake lining/pad
Parking brake display defective - - yes
Parking brake display not possible,
as CAN signal not available
Apply parking brake - - yes
Pre-glow - - yes Refers to pre-glow period
Pre-glow again - - yes
Shows that readiness for starting
has expired, pre-glow must be re-
peated
Start engine - - yes Refers to readiness for starting
SD 812a en
Page 12 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Flammstart Ausfall - - yes
Danger black ice - - yes Refers to black ice
Clutch lining worn - - yes Limit of wear for clutch lining
Clutch overloaded – shift down - - yes Load too high during moving off
Actuate clutch - - yes Clutch did not open during shifting
Clutch oil level too low - - yes Clutch fluid level too low
Alternator display defective - - yes
When ignition is on cable from ter-
minal L is not on earth
Alternator failure - - yes
Terminal L is on earth and engine
running
Charge voltage too low - - yes Charge voltage constantly too low
Tension V-belts - - yes
Charge voltage too high - - yes
At rated speed (engine) charge
voltage is too high
Battery undervoltage - - yes
Battery undervoltage after standing
too long
Switch defective – warning
flashers
- - yes
SD 812a en
Page 13 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Service due - - yes
TBM failure - - yes TBM not on CAN
Apply parking brake - - yes Tells you to apply parking brake
Engage neutral - - yes Tells you to shift gearbox to neutral
SET xxkm/h - - no
MEMO xxkm/h - - no
LIMIT - - no
Info ! Fault or
grease fault in central lube
- - yes
EDC failure - - yes EDC not on CAN
Boost pressure sensor defective - - yes
Boost pressure cannot be measured
correctly
No text - - no
Engine brake (in vehicles without re-
tarder)
FFR failure - - yes FFR not on CAN
LGS failure - - yes LGS not on CAN
SD 812a en
Page 14 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
KSM failure - - yes KSM not on CAN
No text - - no
Engine brake (in vehicles with re-
tarder)
RET P failure - - yes
Primary retarder (water pump) not
on CAN
RET S failure - - yes Secondary retarder not on CAN
Retarder temp. too high - - yes
Oil temperature at retarder outlet too
high (advance warning)
Retarder temp. too high - - yes Retarder temp. much too high
No text - - no
CAN Verbund Ausfall - - yes
T-CAN BusOff,
Reaction saved in instruments
Low beam lh failure or
low beam rh failure
- - yes Low beam lh on tractor
Headlight height lh failure autom. - - yes
Automatic beam regulator
implausible on lh side
Headlight height rh failure autom. - - yes
Automatic beam regulator
implausible on rh side
Steering oil level fault - - yes Oil level too low
SD 812a en
Page 15 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
Steering oil pressure too low - - yes
Switch for flow meter in emerg.
steering pump is closed
TCU failure - - yes Automatic gearbox not on CAN
Comfort Shift defective - - yes
Comfort Shift button is not being
evaluated
Engage higher gear - - yes
Speed difference between engine
and gearbox too high
No idle gas - - yes Tells you to take foot off accelerator
Gearbox temp. too high - - yes
Temperature in gearbox oil sump
(advance warning)
Fill tank - - yes Tank on reserve
Tank pickup failure - - yes Monitoring of tank pickup 1 in ZBR
Tank pickup 2 failure - - yes Monitoring of tank pickup 2 in ZBR
Coolant level too low - - yes Coolant level below min.
No text - - no
No text - - no Function feedback from rear foglamp
SD 812a en
Page 16 of 203
Display
Text in display
Check
lamp panel
LED
Buz-
zer-
Remarks
No text - - no
No text - - no
No text - - no
Display message for moving-off aid
ECAS Nordland or
ECAS EFR Nordland
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 17 of 203
00001.....all except MTS................................. Date, time, mileage in km
00001.....MTS .................................................Expansion module door 2
00002.....MTS .................................................Expansion module door 3
00002.....ZBRO................................................................. Engine Speed
00003.....MTS .................................................Expansion module door 4
00003.....ZBRO.....................................................................Oil pressure
00004.....MTS .................................................Expansion module door 5
00004.....ZBRO..................................Reservoir pressure brake circuit 1
00005.....MTS ......................................... Motor/door valve door 1 (front)
00005.....ZBRO..................................Reservoir pressure brake circuit 2
00006.....MTS ..........................................Motor/door valve door 1 (rear)
00006.....ZBRO........................................Brake pressure brake circuit 1
00007.....MTS ......................................... Motor/door valve door 2 (front)
00007.....ZBRO........................................Brake pressure brake circuit 2
00008.....MTS ..........................................Motor/door valve door 1 (rear)
00008.....ZBRO...............................................Accelerator pedal position
00009.....MTS ......................................... Motor/door valve door 3 (front)
00009.....ZBRO.............................................................Preselected gear
00010.....MTS ..........................................Motor/door valve door 3 (rear)
00010.....ZBRO................................................................. Engaged gear
00011.....MTS ......................................... Motor/door valve door 4 (front)
00011.....ZBRO..............................................Cooling water temperature
00012.....MTS ..........................................Motor/door valve door 4 (rear)
00012.....ZBRO...................................................................Tank fill level
00013.....MTS ......................................... Motor/door valve door 5 (front)
00013.....ZBRO..................................Reservoir pressure brake circuit 1
00014.....MTS ..........................................Motor/door valve door 5 (rear)
00014.....ZBRO..................................Reservoir pressure brake circuit 2
00015.....MTS ..........................................................Entry lighting door 1
00015.....ZBRO............................................................On-board voltage
00016.....MTS ..........................................................Entry lighting door 2
00017.....MTS ..........................................................Entry lighting door 3
00018.....MTS ..........................................................Entry lighting door 4
00019.....MTS ..........................................................Entry lighting door 5
00020.....MTS ..................................Door closing warning device door 1
00021.....MTS ..................................Door closing warning device door 2
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 18 of 203
00022.....MTS ..................................Door closing warning device door 3
00023.....MTS ..................................Door closing warning device door 4
00024.....MTS ..................................Door closing warning device door 5
00025.....MTS .....................................................Ramp activation door 1
00026.....MTS .....................................................Ramp activation door 2
00027.....MTS .....................................................Ramp activation door 3
00028.....MTS .....................................................Ramp activation door 4
00029.....MTS .....................................................Ramp activation door 5
00030.....MTS ..............................................Stop request display door 1
00031.....MTS ..............................................Stop request display door 2
00032.....all except MTS......................................................Split position
00032.....MTS ..............................................Stop request display door 3
00033.....all except MTS..........................................Clutch travel sensor
00033.....MTS ..............................................Stop request display door 4
00034.....MTS ..............................................Stop request display door 5
00035.....MTS ...............................................Door enable display door 1
00036.....MTS ...............................................Door enable display door 2
00037.....MTS ...............................................Door enable display door 3
00038.....all except MTS...................................................Fuel fill level 2
00038.....MTS ...............................................Door enable display door 4
00039.....MTS ...............................................Door enable display door 5
00040.....MTS ....................................................Workshop switch door 1
00041.....MTS ....................................................Workshop switch door 2
00042.....MTS ....................................................Workshop switch door 3
00043.....MTS ....................................................Workshop switch door 4
00044.....MTS ....................................................Workshop switch door 5
00045.....MTS ........................................................Pressure shaft door 1
00046.....EMOS ........................................ Cruise control nominal speed
00046.....MTS ........................................................Pressure shaft door 2
00047.....MTS ........................................................Pressure shaft door 3
00048.....MTS ........................................................Pressure shaft door 4
00049.....MTS ........................................................Pressure shaft door 5
00050.....MTS ............................................... Stop request button door 1
00051.....CNG................................................................Throttle butterfly
00051.....MTS ............................................... Stop request button door 2
00052.....MTS ............................................... Stop request button door 3
00053.....MTS ............................................... Stop request button door 4
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 19 of 203
00054.....MTS ............................................... Stop request button door 5
00055.....MTS ..............................................Baby carriage button door 1
00056.....MTS ..............................................Baby carriage button door 2
00057.....MTS ..............................................Baby carriage button door 3
00058.....MTS ..............................................Baby carriage button door 4
00059.....MTS ..............................................Baby carriage button door 5
00060.....MTS ..................................Limit switch CLOSED door 1 (front)
00061.....MTS ...................................Limit switch CLOSED door 1 (rear)
00062.....MTS ..................................Limit switch CLOSED door 2 (front)
00063.....MTS ...................................Limit switch CLOSED door 2 (rear)
00064.....MTS ..................................Limit switch CLOSED door 3 (front)
00065.....MTS ...................................Limit switch CLOSED door 3 (rear)
00066.....MTS ..................................Limit switch CLOSED door 4 (front)
00067.....MTS ...................................Limit switch CLOSED door 4 (rear)
00068.....MTS ..................................Limit switch CLOSED door 5 (front)
00069.....MTS ...................................Limit switch CLOSED door 5 (rear)
00070.....MTS ...............................................Pressure monitoring door 1
00070.....OBDU.....................................................Parking brake applied
00070.....ZBR2..................................................No 'parking brake' signal
00071.....MTS ...............................................Pressure monitoring door 2
00072.....MTS ...............................................Pressure monitoring door 3
00073.....MTS ...............................................Pressure monitoring door 4
00074.....all except MTS.................................Lamp, road speed limiting
00074.....MTS ...............................................Pressure monitoring door 5
00075.....all except MTS.................................Steering axle temperature
00075.....MTS ............................Reference voltage door sensors door 1
00076.....MTS ............................Reference voltage door sensors door 2
00077.....MTS ............................Reference voltage door sensors door 3
00078.....MTS ............................Reference voltage door sensors door 4
00079.....MTS ............................Reference voltage door sensors door 5
00080.....MTS ...................................................Door sensor door 1 front
00081.....EDC ............................................ Exhaust differential pressure
00081.....MTS ....................................................Door sensor door 1 rear
00082.....MTS ...................................................Door sensor door 2 front
00083.....MTS ....................................................Door sensor door 2 rear
00084.....all except MTS...............................wheel-based vehicle speed
00084.....MTS ...................................................Door sensor door 3 front
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 20 of 203
00085.....MTS ....................................................Door sensor door 3 rear
00086.....all except MTS...............................Road speed, cruise control
00086.....MTS ...................................................Door sensor door 4 front
00087.....MTS ....................................................Door sensor door 4 rear
00088.....MTS ...................................................Door sensor door 5 front
00089.....MTS ....................................................Door sensor door 5 rear
00090.....MTS ...........................................................................C3 signal
00091.....all except MTS.................................Accelerator pedal position
00091.....MTS ..........................................Checklamp driver's workplace
00092.....all except MTS...................Current torque to maximum torque
00092.....MTS ................................................................. Pneumatic seal
00094.....EDC .........................................................Fuel supply pressure
00094.....MTS .............................................................Red/green display
00095.....MTS .......................................................Depressurised buzzer
00096.....all except MTS...................................................Fuel fill level 1
00096.....MTS ..................................................................Bus-stop brake
00097.....MTS ............................................... Stop request display driver
00098.....all except MTS..................................................Engine oil level
00098.....MTS ..............................................Baby carriage display driver
00100.....all ...........................................................................Oil pressure
00102.....all ......................................................................Boost pressure
00105.....all .........................................................Charge air temperature
00107.....all ...................................................................Air filter pressure
00108.....all .............................................................Barometric Pressure
00109.....all .........................................................Cooling water pressure
00110.....all .............................................................Coolant temperature
00111.....all ........................................................................Coolant Level
00119.....RET...............................................................Housing pressure
00120.....DIW5................................Temperature acquisition retarder oil
00132.....CNG............................................................................Air mass
00157.....EDC, Common Rail................................... Fuel pressure in rail
00157.....EDC6, not Common Rail.....................................Fuel pressure
00158.....all ................................... Battery Potential (Voltage), Switched
00159.....all ............................................................Gas Supply Pressure
00161.....all .............................................................Gearbox input speed
00168.....all ......................................................................Battery voltage
00171.....all .............................................................Outside temperature
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 21 of 203
00173.....CNG.............................................Exhaust temperature sensor
00173.....EDC ....................Exhaust temperature before particulate filter
00174.....all ...................................................................Fuel temperature
00175.....all ..........................................................Engine oil temperature
00177.....all .............................................Transmission fluid temperature
00190.....all ........................................................................Engine speed
00191.....all .......................................................... Gearbox output speed
00228.....RAS........................................Speed speedometer and sensor
00245.....all .....................................................................Vehicle mileage
00359.....all .........................................................Kickdown switch signal
00512.....EMOS .....................................................Driver request torque
00513.....all ........................................................................Engine torque
00514.....CRT....................................................................Friction torque
00514.....EMOS ...............................'Engine friction loss moment' signal
00518.....all ................................................................Requested Torque
00520.....all .........................................................Current retarder torque
00521.....all ...............................................................Brake pedal setting
00523.....all ..........................................................................Current gear
00525.....EMOS .......................................................Nominal gear signal
00544.....CRT................................................Faulty engine speed signal
00556.....all ...........................................Reference torque of the retarder
00558.....all ................................................Unladen driving switch signal
00560.....CRT.........................................................CAN message ETC 1
00561.....all ..................................................... ASR engine check switch
00562.....all .......................................................ASR brake check switch
00563.....all ..................................................................ABS active signal
00572.....all ..............................................Retarder switch shift assistant
00578.....all ..........................................................Rear axle temperature
00582.....all ...............................................................................Axle load
00595.....all ...................................................Cruise control active signal
00597.....all ...............................................................Brake switch signal
00598.....KSM.......................................................... Clutch switch signal
00601.....all ................................... Road speed governor resume switch
00603.....EBS.............................................Pedal brake module switch 2
00609.....EBS.......................................Central control unit - B-controller
00609.....EDC ......................................................................Engine CAN
00617.....all .............................................................Parking brake output
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 22 of 203
00620.....RAS.............Electrical power supply to steering angle sensors
00627.....EBS...........Monitoring of voltage supply on PIN X1/16 - X1/17
00627.....RAS.................................................Voltage supply terminal 30
00629.....all ............................................. No text! Specific to control unit
00637.....all .......................................................................Timing Sensor
00638.....all ....................................................................... Rack Actuator
00639.....all .............................................................Sae J1939 Data Link
00645.....EBS..External sequential fault: Time overrun or fault condition
in communication with tachograph on CAN (SA=0xEE)
00645.....RAS...........................................................Speedometer signal
00647.....all ............................................................................. Fan clutch
00651.....CNG...............................................Injection valve of cylinder 1
00651.....EDC ..................................................................Solenoid valve:
4-cylinder engine: Cyl. 1;
6-cylinder engine: Cyl. 1;
8-cylinder engine: Master cyl. 1, slave cyl. 5;
10-cylinder engine: Master cyl. 1, slave cyl. 6;
12-cylinder engine: Master cyl. 1, slave cyl. 12
00652.....CNG...............................................Injection valve of cylinder 2
00652.....EDC ..................................................................Solenoid valve:
4-cylinder engine: Cyl. 3;
6-cylinder engine: Cyl. 5;
8-cylinder engine: Master cyl. 2, slave cyl. 7;
10-cylinder engine: Master cyl. 5, slave cyl. 10;
12-cylinder engine: Master cyl. 5, slave cyl. 8
00653.....CNG...............................................Injection valve of cylinder 3
00653.....EDC ..................................................................Solenoid valve:
4-cylinder engine: Cyl. 4;
6-cylinder engine: Cyl. 3;
8-cylinder engine: Master cyl. 3, slave cyl. 6;
10-cylinder engine: Master cyl. 2, slave cyl. 7;
12-cylinder engine: Master cyl. 3, slave cyl. 10
00654.....CNG...............................................Injection valve of cylinder 4
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 23 of 203
00654.....EDC ..................................................................Solenoid valve:
4-cylinder engine: Cyl. 2;
6-cylinder engine: Cyl. 6;
8-cylinder engine: Master cyl. 4, slave cyl. 8;
10-cylinder engine: Master cyl. 3, slave cyl. 8;
12-cylinder engine: Master cyl. 6, slave cyl. 7
00655.....CNG...............................................Injection valve of cylinder 5
00655.....EDC ..................................................................Solenoid valve:
6-cylinder engine: Cyl. 2;
10-cylinder engine: Master cyl. 4, slave cyl. 9;
12-cylinder engine: Master cyl. 2, slave cyl. 11
00656.....CNG...............................................Injection valve of cylinder 6
00656.....EDC ..................................................................Solenoid valve:
6-cylinder engine: Cyl. 4;
12-cylinder engine: Master cyl. 4, slave cyl. 9
00697.....all ............................................Accelerator pedal PWM1 signal
00698.....all ............................................Accelerator pedal PWM2 signal
00699.....all .........................Accelerator pedal PWM1 and PWM2 signal
00702.....KSM......................Earth switch output, adjustable parameters
00703.....KSM............Switch terminal 30 output, adjustable parameters
00704.....KSM.........Switch 2 terminal 30 output, adjustable parameters
00705.....KSM.........Switch 3 terminal 30 output, adjustable parameters
00706.....KSM.........Switch 4 terminal 30 output, adjustable parameters
00707.....KSM.........Switch 5 terminal 30 output, adjustable parameters
00708.....KSM...................Earth switch 2 output, adjustable parameters
00709.....KSM...................Earth switch 3 output, adjustable parameters
00711.....EDC ................................................. Duration of main injection
00723.....all ..............................................Auxiliary engine speed sensor
00731.....CNG.................................................................Knock sensor 1
00734.....all .........................................................Solenoid valve circuit 1
00735.....all .........................................................Solenoid valve circuit 2
00736.....all .........................................................Solenoid valve circuit 3
00737.....all .........................................................Solenoid valve circuit 4
00738.....all ........................................ Solenoid valve pressure regulator
00739.....all ................................................. Solenoid valve regeneration
00743.....RET........................................................................On/off valve
00744.....RET..............................................................Proportional valve
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 24 of 203
00746.....EBS...................Differential lock valve (differential lock switch)
00748.....all .................................................................Retarder actuated
00764.....RET....................................Pressure sensor housing pressure
00767.....all ............................... Transmission Reverse Direction Switch
00770.....all ................................................................................... Split H
00771.....all ....................................................................................Split L
00773.....all ...........................................................................DNR switch
00780.....all ......................................................Gearbox neutral indicator
00789.....EBS........................................................Wheel sensor wheel 1
00790.....EBS........................................................Wheel sensor wheel 2
00791.....EBS........................................................Wheel sensor wheel 3
00792.....EBS........................................................Wheel sensor wheel 4
00793.....EBS........................................................Wheel sensor wheel 5
00794.....EBS........................................................Wheel sensor wheel 6
00833.....all ....................................................Fuel Rack Position Sensor
00835.....RAS....................................................................Oil level signal
00876.....GKR........................................................Compressor coupling
00877.....GKR........................................Evaporator temperature sensor
00898.....all ..............................................Maximum speed limiter switch
00904.....all ...................................................................Front axle speed
00929.....TPM ...........................................................................Tyre data
00932.....EBS.........................Pressure regulating valve left intake valve
00933.....EBS...................... Pressure regulating valve right intake valve
00938.....EBS......................Pressure regulating valve left exhaust valve
00939.....EBS................... Pressure regulating valve right exhaust valve
00944.....AB.........................................................Driver’s airbag (loop 1)
00944.....all except airbag....................... No text! Specific to control unit
00946.....AB..................................................................... left BT (loop 2)
00946.....all except airbag....................... No text! Specific to control unit
00948.....AB.............................................................................SRS lamp
00948.....all except airbag....................... No text! Specific to control unit
00959.....all ................................................................................Seconds
00960.....all ................................................................................. Minutes
00961.....all .................................................................................... Hours
00962.....all ........................................................................................Day
00963.....all ....................................................................................Month
00964.....all ...................................................................................... Year
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 25 of 203
00974.....KSM........................................................... Pedal value sensor
00976.....KSM.....................................................................Ready output
01007.....ZBR2................................. Trip Drive Fuel Used (Natural Gas)
01031.....ZBR2.............................Trip Average Fuel Rate (Natural Gas)
01042.....EBS................ ISO 11992 (trailer CAN): Data bus switched off
01043.....ECAS........................................ Supply voltage for peripherals
01045.....all ........................................................................Gate interlock
(auxiliary engines also brake lamp output stage)
01056.....EBS............................ Trailer control module pressure control,
maximum pressure
01057.....EBS......................................Central control unit - B-controller:
Implausible pressure from trailer control module pressure sensor,
when brakes not applied
01058.....EBS.................Trailer control module - pressure sensor signal
01060.....EBS..............................Brake pad wear sensor signal wheel 1
01061.....EBS..............................Brake pad wear sensor signal wheel 2
01062.....EBS..............................Brake pad wear sensor signal wheel 3
01063.....EBS..............................Brake pad wear sensor signal wheel 4
01064.....EBS..............................Brake pad wear sensor signal wheel 5
01065.....EBS..............................Brake pad wear sensor signal wheel 6
01066.....EBS........................................................Service brake module
01067.....EBS.......................Service brake module signal 1 (increasing)
01068.....EBS......................Service brake module signal 2 (decreasing)
01072.....all ..............................................................Engine brake switch
01079.....CNG..................................................Supply voltage sensors 1
01079.....EDC .......................................... Supply to rail pressure sensor
01079.....HDS ....................................................Supply voltage sensor 1
01079.....RET.............................Supply voltage pressure sensor 5 volts
01080.....CNG..................................................Supply voltage sensors 2
01080.....EDC .............................................Supply fuel supply pressure,
charge air pressure and oil pressure sensor
01080.....HDS ....................................................Supply voltage sensor 2
01086.....all ....................................Pressure, pressure sensor - circuit 3
01087.....all ....................................Pressure, pressure sensor - circuit 1
01088.....all ....................................Pressure, pressure sensor - circuit 2
01089.....all ....................................Pressure, pressure sensor - circuit 4
01090.....all ....................................Pressure, pressure sensor - circuit 5
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 26 of 203
01131.....EDC ..........................Charge air temperature ahead of engine
01210.....all ............................................. No text! Specific to control unit
01213.....KSM.............................................................Checklamp output
01231.....CRT.......................................................................Engine CAN
01231.....EDC ......................................................................Engine CAN
01235.....all ................................................................J 1939 Network #3
01352.....CNG....................................................Knock control cylinder 1
01353.....CNG....................................................Knock control cylinder 2
01354.....CNG....................................................Knock control cylinder 3
01355.....CNG....................................................Knock control cylinder 4
01356.....CNG....................................................Knock control cylinder 5
01357.....CNG....................................................Knock control cylinder 6
01376.....all ................................................................Tl. 30-1 connected
01485.....HDS ..................................................... Main relay switched off
01542.....HDS ..........................................Voltage supply metering valve
01624.....all ...........................................................................Road speed
01669.....KSM....................................................................A-CAN busoff
01673.....ZBRO......................................................... Status body 3 CAN
01675.....EMOS ........................................................'Engine start' signal
01676.....ZBR2.......No 'Break light request' signal in ERC_RX (timeout)
01761.....HDS ..............................................................Urea fill level tank
02000.....OBDU....................................... No text! Specific to control unit
02001.....OBDU................................................... EDC slave not on CAN
02003.....OBDU.......................................................Gearbox not on CAN
02009.....OBDU......................MAN Hydro Drive control unit not on CAN
02011.....OBDU.............EBS not on CAN (pneumatic backup operation)
02015.....OBDU...........................................Retarder engine not on CAN
02016.....OBDU.........................................Driveline retarder not on CAN
02023.....OBDU............................................Instrumentation not on CAN
02037.....OBDU..............................................Radio module not on CAN
02039.....OBDU............................................................. FFR not on CAN
02042.....OBDU.............................................................ACC not on CAN
02047.....OBDU...........................................................ECAS not on CAN
02048.....OBDU..........................................................ECAM not on CAN
02051.....OBDU...........Tyre pressure control system (TPM) not on CAN
02056.....OBDU Control unit of the steering rear axle (RAS) not on CAN
02061.....OBDU..Control unit of the exhaust post-treatment not on CAN
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 27 of 203
02062.....OBDU.............................................................ESP not on CAN
02064.....OBDU........................................................ECAS 2 not on CAN
02067.....OBDUTorque converter and clutch system (WSK) not on CAN
02114.....OBDU.............................................................VSM not on CAN
02120.....OBDU............................................................. ZFR not on CAN
02232.....OBDU......................................Lane guard system not on CAN
02238.....OBDU.................................................Tachograph not on CAN
02251.....OBDU..........................Telematic onboard module not on CAN
02253.....OBDU.............................................................KSM not on CAN
02987.....INST............................Parameter set in combination gauge or
chassis number in tachograph not adapted to the vehicle
02987.....STON............................Parameter set in instrument cluster or
in tachograph not adapted
02987.....ZBR2...........Parameter record in central on-board computer 2
or chassis number in tachograph not adapted to vehicle
02999.....ECO2.................................................... Retarder reduction if a
temperature threshold is exceeded
02999.....RET.................................Power limit (temperature adaptation)
03000.....EBS...............................................................................No fault
03000.....EHLA.................................Electronics error function computer
03000.....KSM................... CAN data bus: Time overrun when receiving
VMC message ETC1.
03000.....SKG ..... Temperature at outfeed of evaporator (KTT n. KTBV)
03000.....TBM ...............................An unexpected RESET has occurred
03000.....TPM ....................................................................Tyre pressure
03000.....ZBR2..................................................................... ZBR system
03001.....ACC .................................................... Additional information 1
03001.....EBS....................Control unit defective; unknown µC interrupt,
µC self-test, RAM or ROM test
03001.....ECAS...............................................Control unit (internal fault)
03001.....EDC ..............................Engine speed sensor, reverse polarity
03001.....EHLA......................................Electronic error safety computer
03001.....FFR............................................Term. 30, continuous positive
03001.....GKR..........................................Interior air temperature sensor
03001.....KSM................... CAN data bus: Time overrun when receiving
VMC message ETC2.
03001.....RET............................Temperature sensor before engine (T1)
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 28 of 203
03001.....SFFR................................................................Driver's request
03001.....SKG .Temperature at outfeed of ice accumulator (KTT n ESP)
03001.....TBM .........................................................Real-time clock TBM
03001.....TUER............................................................................RESET
03001.....ZBR2..........................................................Wake up, computer
03001.....ZBRO...................................................... External wake-up ZR
03002.....ACC .................................................... Additional information 2
03002.....AST...........................................................Y2 valve splitter low
03002.....EBS........................................................Control unit defective,
timeout in data exchange µC active – µC passive
03002.....EDC .................................................................Segment speed
03002.....EHLA.................................................Digital output parameters
03002.....GKR........................................External air temperature sensor
03002.....KSM................... CAN data bus: Time overrun when receiving
VMC message ETC3.
03002.....RET...............................Temperature sensor after engine (T2)
03002.....SFFR........Speed request ship vehicle management computer
03002.....TBM ..............................................................Fault in EEPROM
03002.....TUER..............................................EE_CHECKSUM_ERROR
03002.....ZBRO.................................................... External wake-up1 ZR
03003.....ACC .................................................... Additional information 3
03003.....AST..........................................................Y3 valve splitter high
03003.....EBS.... Control unit defective; redundancy fault µc input signal
03003.....EDC .......................................................Engine speed sensor/
auxiliary speed sensor swapped over
03003.....GKR.......................................Blow-out air temperature sensor
03003.....KSM................... CAN data bus: Time overrun when receiving
EBS message EBC1.
03003.....RET....Fault (watchdog drop-out / internal error in control unit)
03003.....SFFR......................................................................Terminal 15
03003.....SKG ..................................................................Motor / valve B
03003.....TBM ..............................................................Fault in RAM disk
03003.....TUER..................................... SIDE_INFORMATION_ERROR
03003.....ZBRO.................................................... External wake-up2 ZR
03004.....ACC .................................................... Additional information 4
03004.....AST................................................Y4 valve gate position 3 / 4
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 29 of 203
03004.....EBS........................................................Control unit defective,
checksum data exchange µC active – µC passive
03004.....EDC ........................................................... EGR valve position
03004.....GKR......................................Bypass flap motor potentiometer
03004.....KSM................... CAN data bus: Time overrun when receiving
EDC message CcVeh_speed.
03004.....LGS.........................................................................Control unit
03004.....RET..............................................EEPROM (data record fault)
03004.....SFFR...................................................... Voltage selector lever
03004.....SKG ..................................................................Motor / valve C
03004.....TBM .............................................Operating temperature TBM
03004.....TUER............................................................ILLEGAL_STATE
03004.....ZBRO...........................................External wake-up ZR by IKN
03005.....AST................................................Y5 valve gate position 1 / 2
03005.....EBS...............................Control unit defective; EEPROM fault:
Checksum not correct
03005.....EDC ..........................................Timeout, message location 13
03005.....EHLA............................................... Proportional valve outputs
03005.....GKR....................................................................Heating valve
03005.....KSM................... CAN data bus: Time overrun when receiving
EDC message EEC1.
03005.....RET................................................ROM (checksum incorrect)
03005.....SFFR..............................................Voltage pedal value sensor
03005.....SKG ........................................................................Main pump
03005.....TBM .....................Overcurrent at digital power current outputs
03005.....TUER........................................................... ILLEGAL_EVENT
03005.....ZBRO...................................................Status ZR fault number
03006.....AST................................................Y6 valve shift position 1 / R
03006.....EDC ...................................................................Primary speed
03006.....GKR...................................Recirculation ventilation flap motor
03006.....KSM................... CAN data bus: Time overrun when receiving
EDC message EEC2.
03006.....RET........................................CAN data bus, TSC1 - message
03006.....SKG ...........................................................Recirculating pump
03006.....TUER.........................................................Window lifter motor
03006.....ZBRO...........................................................K3-CAN activation
03007.....AST................................................Y3 valve shift position 2 / 3
SPN.....Control unit/System.............................................. Fault message
SD 812a en
Page 30 of 203
03007.....EDC ................................................ DM4 request, invalid PGN
03007.....GKR.............................................................Bypass flap motor
03007.....KSM................... CAN data bus: Time overrun when receiving
EDC message Eng_Temp.
03007.....RET....................................... CAN data bus, EEC1 - message
03007.....SKG ..................Communication control element – control unit
03007.....TUER..................................................right/left switch (mirrors)
03007.....ZBRO.............................................................T-CAN activation
03008.....AST..................................... Y3 valve range-change group low
03008.....EBS........................................................Control unit defective;
test transfer from µc to CAN trailer IC
03008.....EDC .............................FFR3: Retarder oil temperature invalid
03008.....EHLA..................................................Sensor supply, deviation
03008.....GKR.......................................................Blower control voltage
03008.....KSM................... CAN data bus: Time overrun when receiving
EDC message EngFlui_LevPre.
03008.....RET.......................................CAN data bus, TCO1 - message
03008.....SKG ..................Filling/bleeding mode not completed correctly
03008.....TUER...................................................... Window lifter shut-off
03008.....ZBRO.......................................... Central computer running on
03009.....AST....................................Y3 valve range-change group high
03009.....EBS..Control unit defective; redundancy fault µc output signal
03009.....EDC ........................................................................ Overspeed
03009.....EHLA...........Voltage supply switched on when vehicle moving
03009.....KSM...................................................................CAN data bus:
Time overrun when receiving EDC message Amb_Cond.
03009.....RET.......................................CAN data bus, ERC1 - message
03009.....SKG ................................................................ Controller mode
03009.....TUER............................................Mirror adjust time exceeded
03010.....AST.................................................................. Y10 main valve
03010.....EBS........................................................Control unit defective;
wheel diameter compensation value not correct
03010.....ECAS....................Control unit (checksum ECU-specific data)
03010.....EDC ........................................Control deviation, injection start
03010.....EHLA....................Signature EOL parameter advance warning
03010.....FFR......................... Torque and engine speed limiting system
Loading...
