Logitech Z407 User Manual

Z407 BLUETOOTH®

COMPUTER SPEAKERS

HAUT-PARLEURS POUR

ORDINATEUR Z407 BLUETOOTH

®

WITH SUBWOOFER

AVEC CAISSON DE BASSES

Setup Guide

Guide d’installation

CONTENTS

English . . . . . . . . . . . . . . . . .3

Français . . . . . . . . . . . . . . . 11

Español . . . . . . . . . . . . . . . . 19

Português . . . . . . . . . . . . . . 27

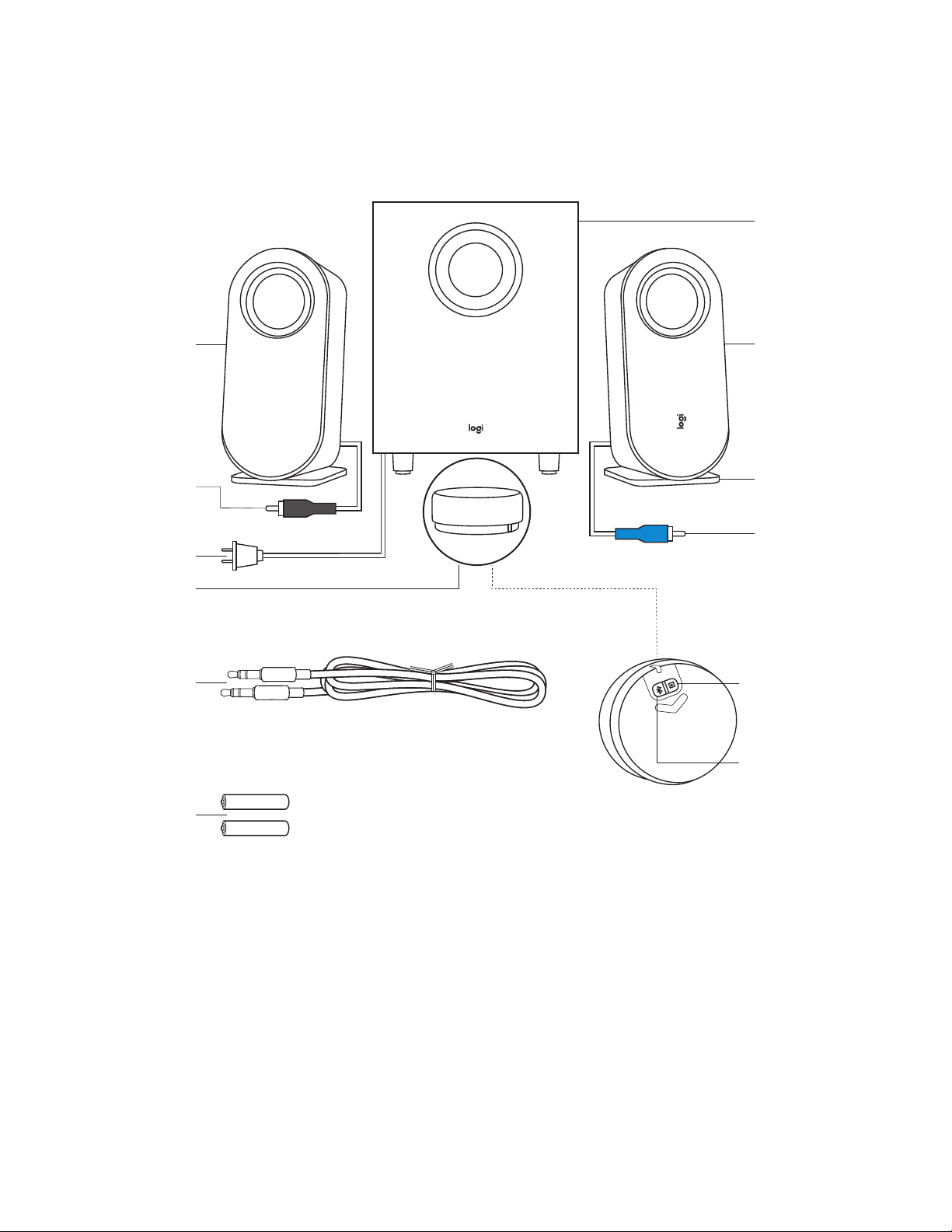

KNOW YOUR PRODUCT

Subwoofer

Left satellite

RCA cable

tosubwoofer

Power cord

Wireless

control dial

3.5mm auxiliary
cable (3-pole)

Right satellite

Satellite stands

RCA cable
tosubwoofer

Wired input button
(USB/3.5mm)

Bluetooth® button

AAA batteries

AAA

AAA

3 English

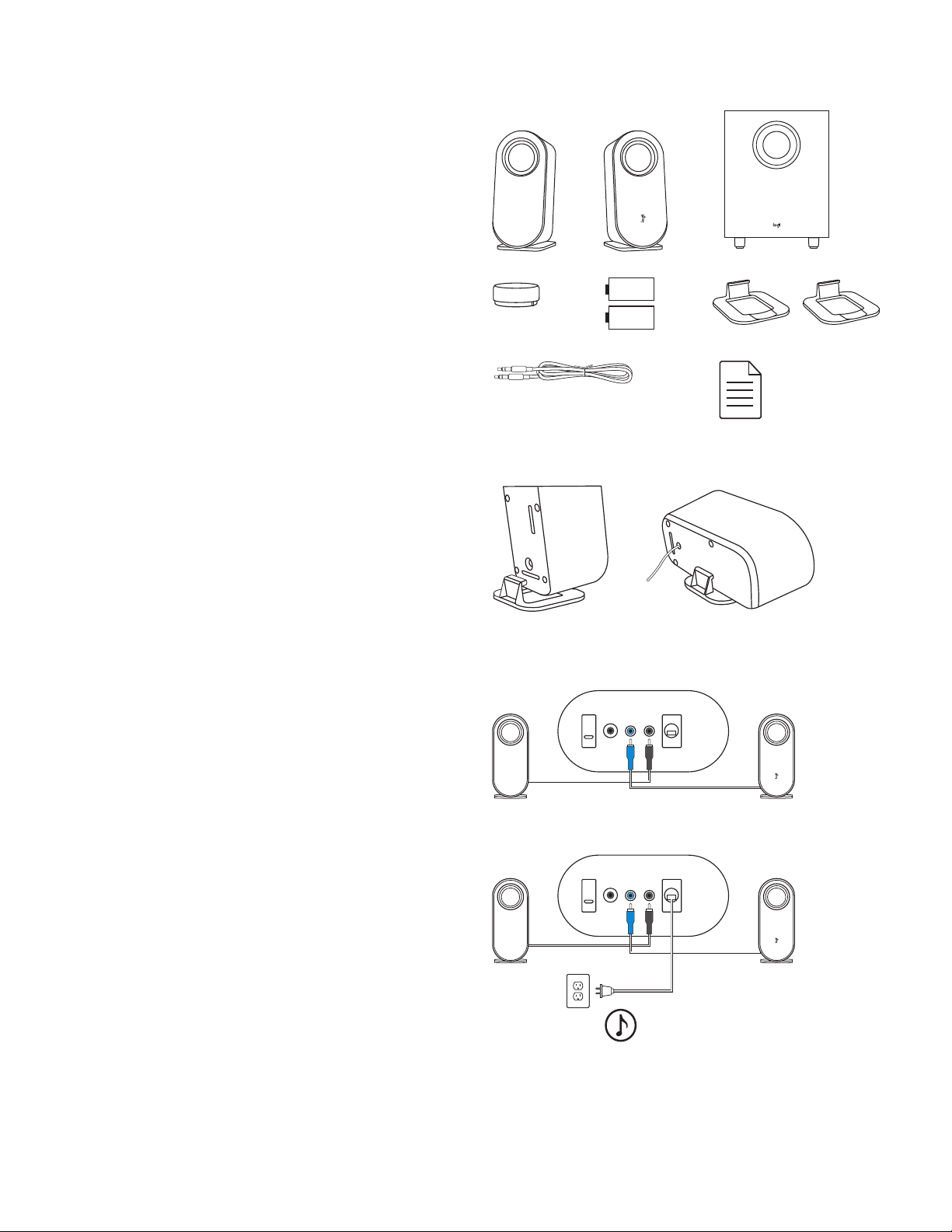

BOX CONTENT

1. Left satellite

2. Right satellite

3. Subwoofer

4. Wireless control dial

5. 2 AAA batteries

6. Satellite stands

7. 3.5 mm cable

8. User documentation

CONNECT THE SPEAKERS

Place the stands to each satellite separately.
Lay the speakers vertically or horizontally
as per your preference. Make sure that
thestands t tightly in the speakers.

1

4

2 3

AAA

5 6

AAA

7 8

• Plug the right satellite cable into the blue
subwoofer jack.

• Plug the left satellite cable into the gray
subwoofer jack.

Plug the power cord into an electrical outlet.
You will hear a welcome notication sound.

Vertical placement Horizontal placement

RAUXUSB L

RAUXUSB L

Welcome tone

4 English

CONNECT THE SPEAKERS (CONT’D)

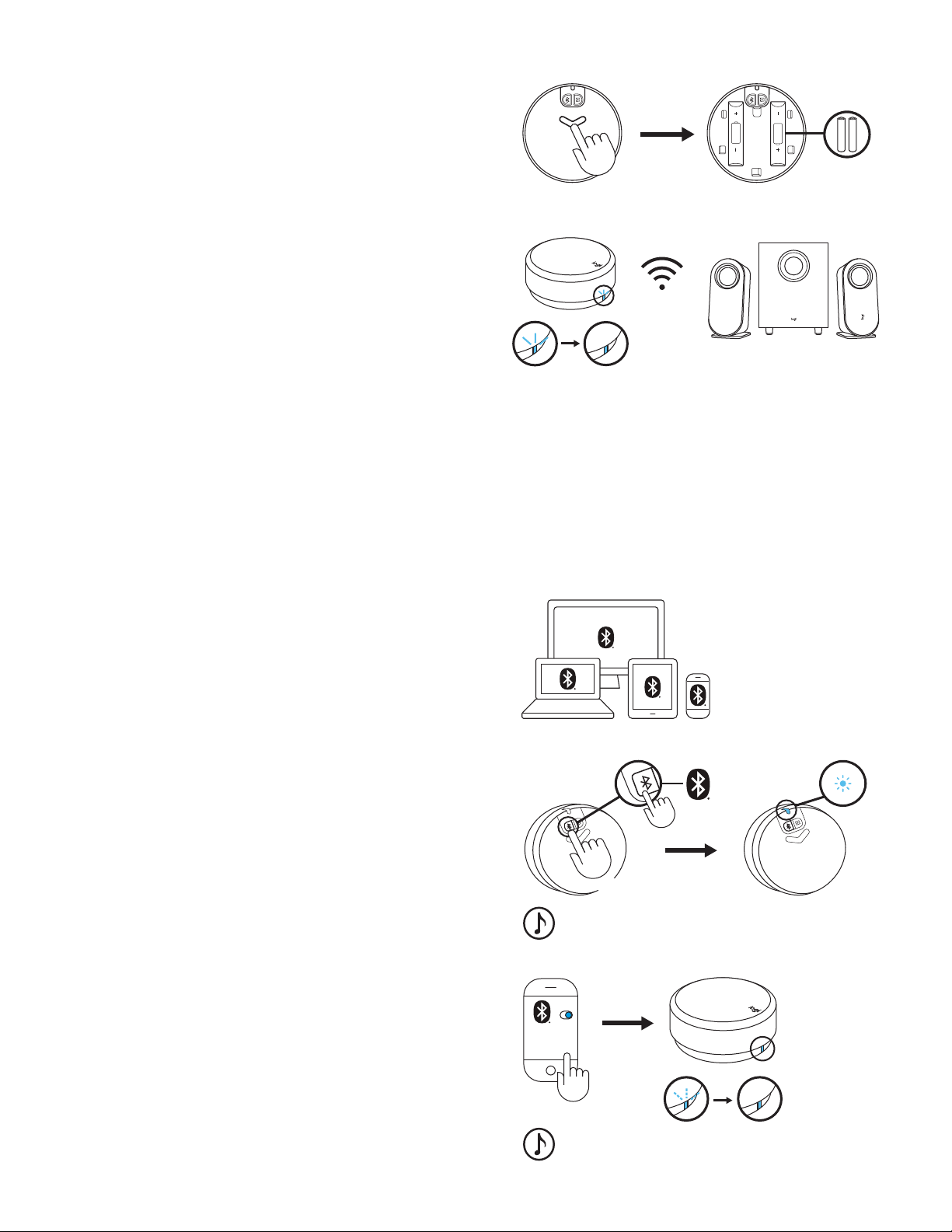

Long press and push downwards to open the back lid,
place two AAA batteries to the corresponding space.

Do not mix using akaline battery with rechargeable battery.
Do not mix using new and old batteries.
Do not leave the batteries unused in the product for extended periods.

The LED indicator will then start blinking in blue.
Oncethe wireless control dial is successfully
connected to the speaker, the LED will turn into
asteady blue light.

CONNECT TO AUDIO SOURCE

The LED on the control dial will change correspondingly
when connected to dierent connectivity.

• The LED will turn blue when connected via Bluetooth.

• The LED will turn purple when connected via 3.5 mm.

• The LED will turn white when connected via USB.

AAA

AAA

AAA

AAA

CONNECT VIA BLUETOOTH

®

Make sure Bluetooth® is activated on the source device.

• Press and hold (2sec.) the Bluetooth® button on
thebottom of the dial to activate pairing mode.

• The LED indicator will blink quickly. You will start
tohear a pairing sound notication.

Select and connect to “Logi Z407” on your

Bluetooth® device list. You will hear a connected tone.

The LED will turn into a steady blue light.

2 sec.

BT pairing tone

Logi

Z407

BT connected tone

5 English

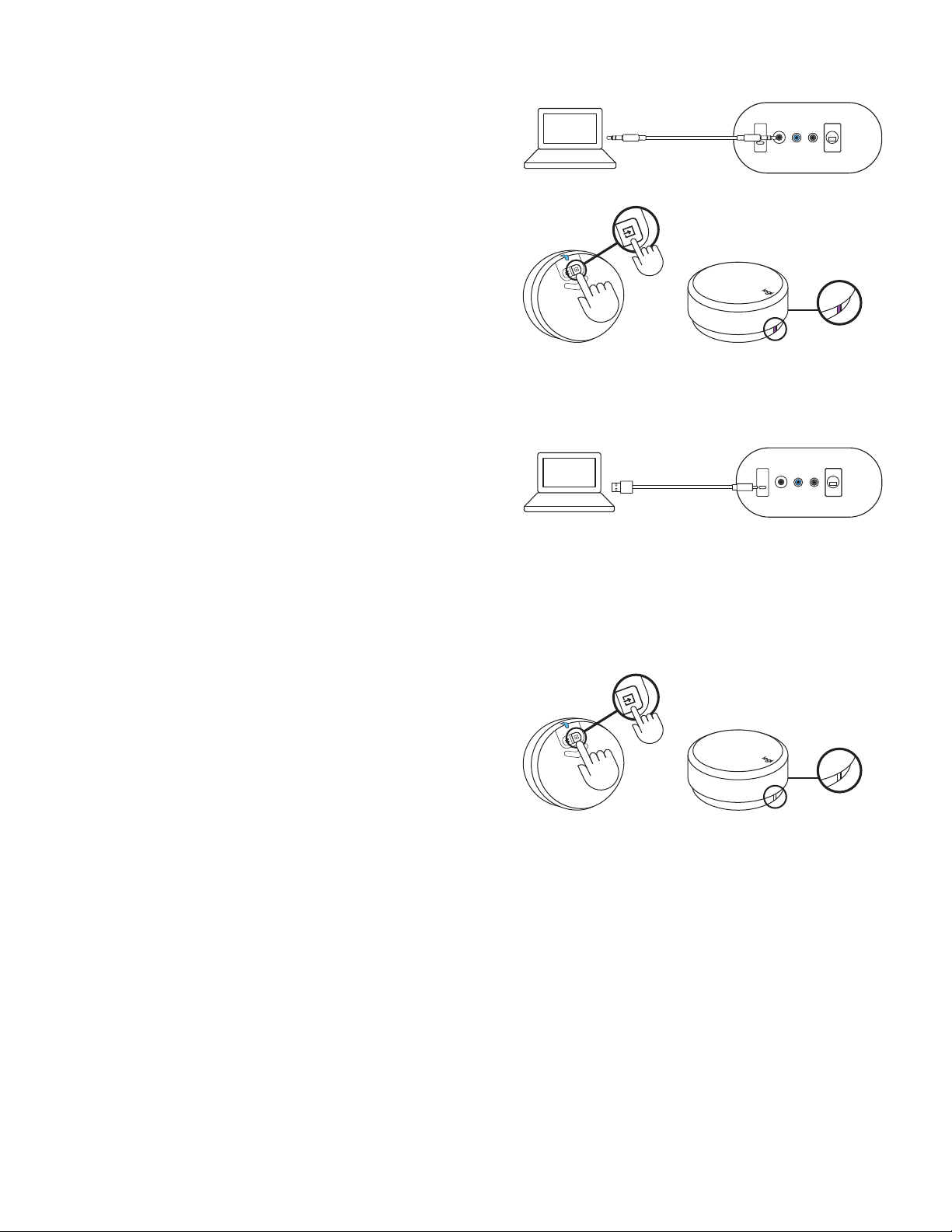

CONNECT VIA 3.5MM CABLE

Connect one end of the provided 3.5 mm cable to
theauxiliary input on the back of the subwoofer.
Then connect the other end of the cable to the 3.5 mm
audio jack on your device.

The default connectivity is Bluetooth®. To play
through3.5 mm connectivity, press the wired input
button on the back of the dial.
The LED light will turn purple.

CONNECT VIA USB CABLE

Connect one end of the USB cable to the micro
USBinput on the back of the subwoofer.
Then connect the other end of the cable to USB-A input
on your device.

RAUXUSB L

RAUXUSB L

NOTE: USB cable is not included in the box and must be

purchased separately.

The default connectivity is Bluetooth®.
ToplaythroughUSB connectivity, press the wired
inputbutton on the back of the dial.
The LED light will turn white.

6 English

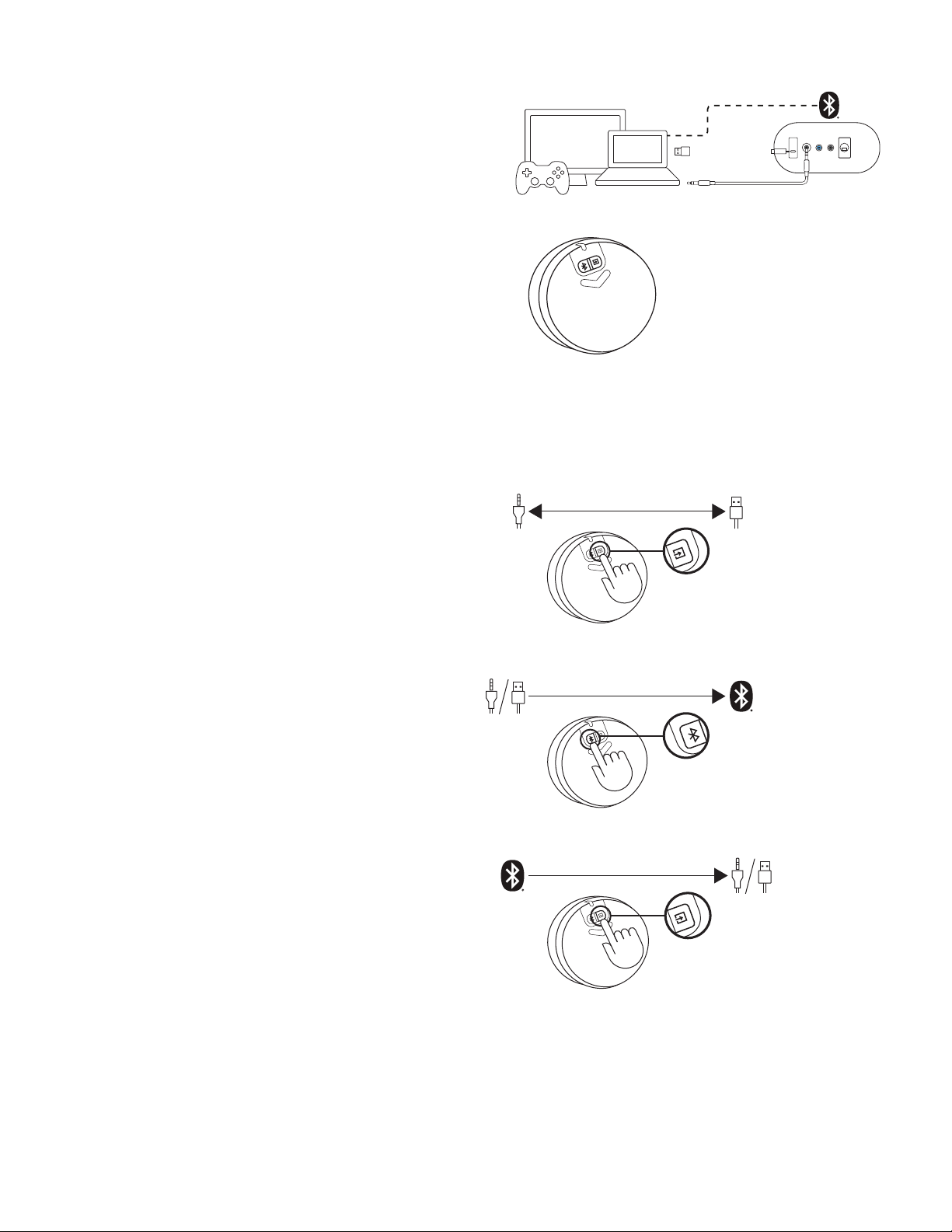

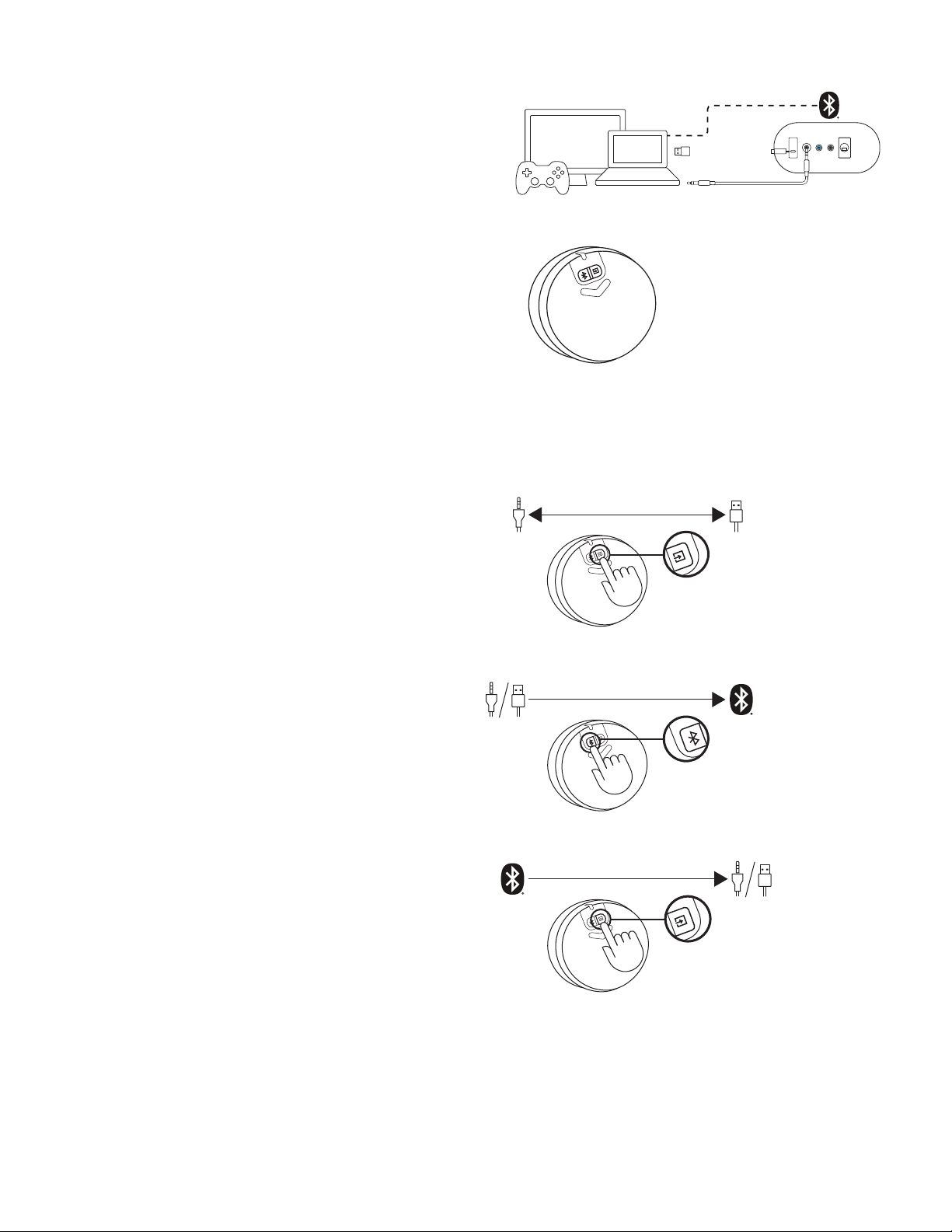

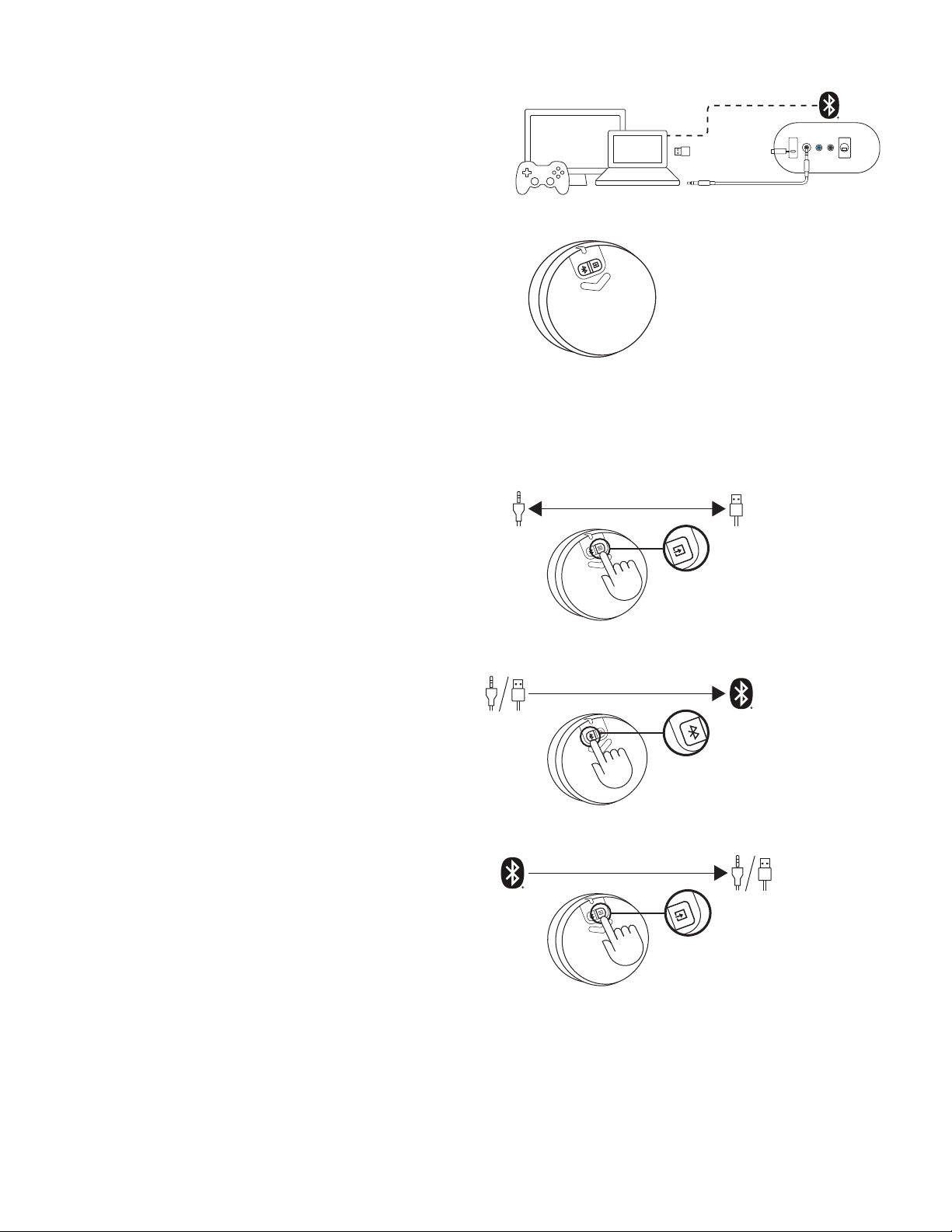

CONNECT TO THREE DEVICES SIMULTANEOUSLY

Connect up to three devices at the same time
throughthe micro USB input, 3.5 mm input
onthebackof the subwoofer, and Bluetooth®.

You can pair up to eight Bluetooth® source devices
withyour speakers.

To switch between wired and wireless audio sources,
press the Bluetooth® button and the wired input button
on the back of the wireless control dial.

SWITCH BETWEEN DIFFERENT
AUDIOSOURCES

SWITCH BETWEEN TWO WIRED CONNECTIVITY

To switch between wired connection
(3.5mmandUSB),press wired input button
onthebottom of the dial.
The LED color will change correspondingly.

RAUXUSB L

SWITCH BETWEEN WIRED AND WIRELESS
CONNECTIVITY

To switch from wired connection to wireless connection
(Bluetooth®), press Bluetooth® button on the bottom
ofthe dial.

To switch from wireless connection to wired connection,
press wired input button on the bottom of the dial.

7 English

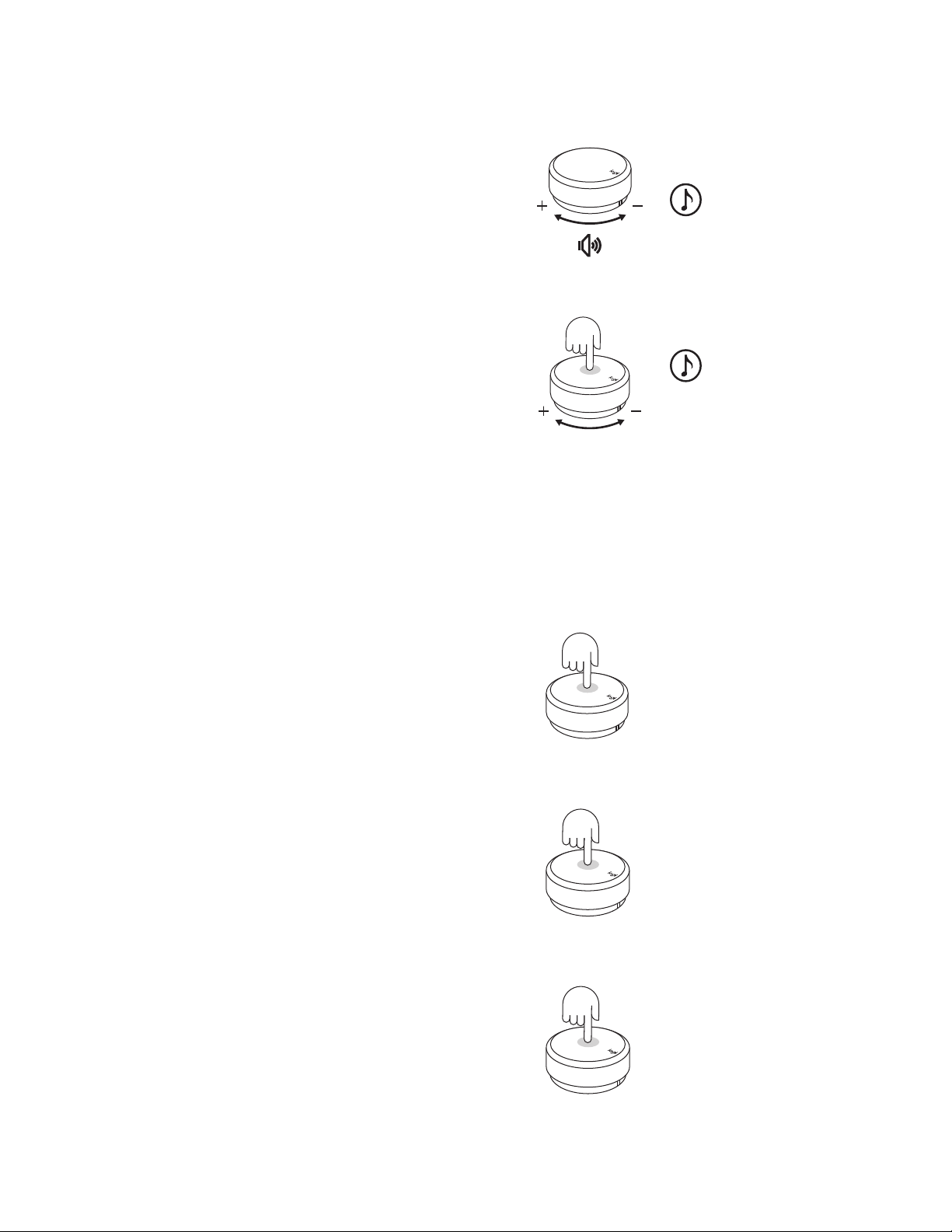

CONTROL YOUR AUDIO CONTENT

ADJUST THE VOLUME

• To adjust the volume of the speaker,
rotatethewireless dial control clockwise
(counterclockwise) to increase
(decrease) the volume.

• When reaching to MAX volume, you will hear
anotication tone.

ADJUST THE BASS

• To adjust the bass level, long press the dial
for2sec.and enter bass mode, you will
hear anotication sound. Rotate clockwise
(counterclockwise) to increase (decrease)
thebassvolume.

• Long press 2 sec. to exit bass mode, you will hear
anexit notication sound.

• If you did not exit bass mode after adjusting the bass,
the system will automatically change back to volume
mode after 15 seconds without using.

• You will hear a notication sound when you reach
Max and Min bass level.

BASS

2 sec.

Max volume

Enter bass

Exit bass

Max bass volume
Min bass volume

PLAY / PAUSE (MUTE/ UNMUTE)

• Press once on the dial to play / pause (mute/ unmute)
your audio content.

• Play / pause (Mute/ unmute) will only be activated
when the speaker is connected via Bluetooth®
orUSBinput (3.5 mm).

SKIP

• Press twice on the dial to skip your current track.

• Skip will only be activated when the speaker
isconnected via Bluetooth® or USB input.

REWIND

• Triple press on the dial to replay the soundtrack.

• Rewind will only be activated when the speaker
isconnected via Bluetooth® or USB input.

X 1

X 2

X 3

8 English

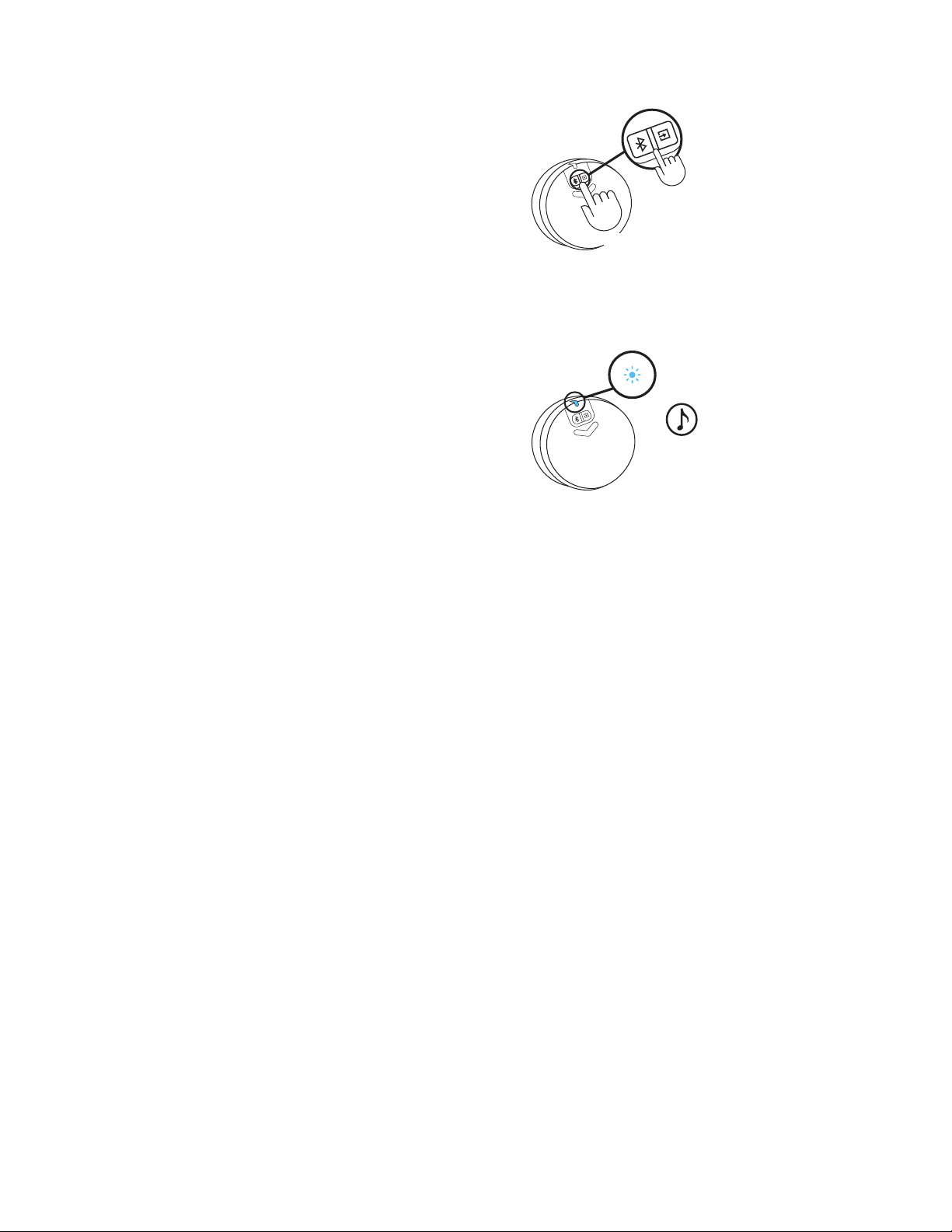

RESET ALL SETTINGS

Long press the Bluetooth® button and the wired
input button at the same time for 8 sec. toreset
the system.

The LED will start to fast blink twice and then
youwill hear a reset tone. The LED will turn
tosolidblue after you successfully reset the speaker
system.

8 sec.

Reset tone

9 English

CONTROL DIAL EXPERIENCE

Usage Description LED Status LED Color Sonication Actions

1

2

Connection
(Dial - Speaker)

3 Dial link lost Slow blink

Default connected to the speaker Solid Blue

Waiting for connection to
thespeaker

Slow blink Blue

White (USB)/
Blue (BT) /
Purple(AUX)

4 New dial connects to the speaker Solid Blue V

White (USB)/

5

Connected / Normal Operation Solid

Blue (BT) /
Purple(AUX)

Connection

6 Bluetooth pairing to device

(Speaker - Device)

Fast
blinking

Blue V

Long press Bluetooth button
for 2 sec.

7 Bluetooth connected Solid Blue V

8 Bluetooth disconnected Solid Blue V

9

Play / Pause

White (USB) /
Blue (BT)

One press

10 Mute / Unmute Purple (AUX) One press

Media controls

11 Track forward

12 Rewind (Track backward)

13

Adjust the system volume

Solid

White (USB) /
Blue (BT)

White (USB) /
Blue (BT)

Double press

Triple press

Rotate the dial

14

Volume controls

15 Max volume V

Adjust the bass volume

Solid

White (USB) /
Blue (BT) /
Purple (AUX)

16 Max bass V

17

18 Extreme low battery Fast blink Red

System

19 Reset all settings

Low Battery Solid Red

Fast blink →
Solid

Status color →
Blue

www.logitech.com/support/Z407

© 2020 Logitech, Logi and the Logitech logo are trademarks or registered trademarks of Logitech Europ e S.A. and/
or its aliates in the U.S. and other countries. The Bluetooth® word mark and logos are registered trademarks owned
byBluetooth SIG, Inc. and any use of such marks by Logitech is under license. All other trademarks are the property of
their respective owners.

WEB-621-001788.002

Long press 2 sec. to enter and
exit bass mode

V

Press & hold BT and wired
input button for 8 sec.

10 English

PRÉSENTATION DU PRODUIT

Caisson de basses

Satellite

gauche

Câble RCA vers

lecaisson de basses

Cordon d'alimentation

Bouton de réglage

sans l

Câble auxiliaire

3,5 mm (3 pôles)

Satellite droit

Supports
satellites

Câble RCA vers
lecaisson de basses

Bouton d’entrée
laire (USB/3,5mm)

Bouton Bluetooth

®

Piles AAA

AAA

AAA

11 Français
