Logitech C922 User manual

C922 PRO STREAM WEBCAM

Setup Guide | Guide d’installation

LANGUAGES

English . . . . . . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . . . . . . 11

Español . . . . . . . . . . . . . . . . . . . . .19

Português . . . . . . . . . . . . . . . . . . . 27

C922 PRO STREAM WEBCAM

DESIGNED FOR SERIOUS STREAMERS

Designed for serious streamers only, the Logitech®
C922 Pro Stream Webcam comes fully equipped
to let you broadcast your talent to the world:
full HD 1080p at 30fps or 720p at 60fps streaming
and customizable background replacement.

3 English

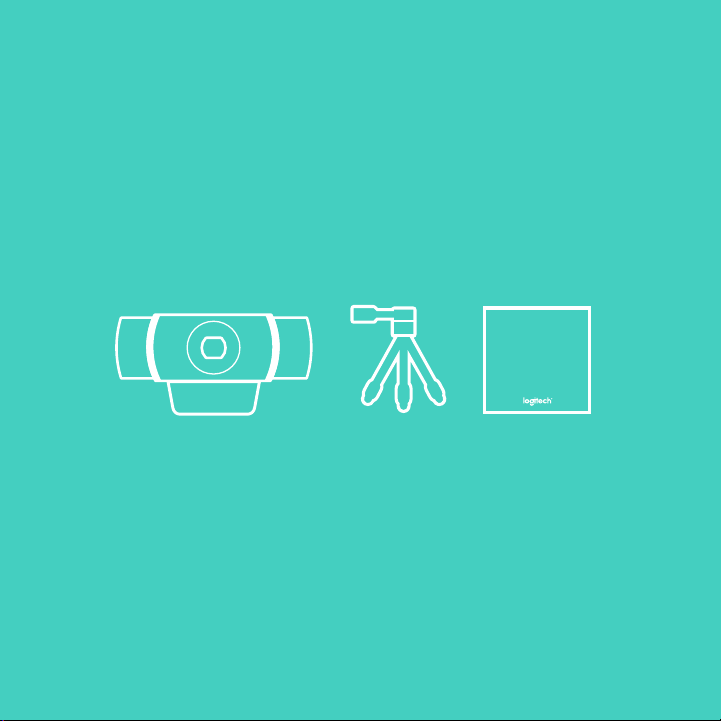

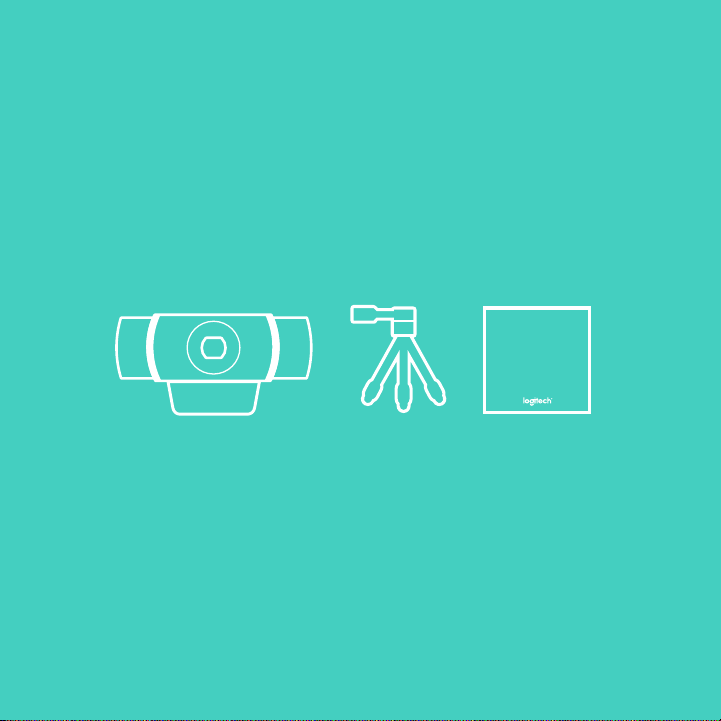

WHAT’S IN THE BOX

– C922 Pro Stream Webcam
– User documentation
– Tripod*
– 3-Month XSplit License*

*Tripod and 3-month XS plit license only su pplied with some p ackages.

Important
Information

4 English

WEBCAM FEATURES

1. Full HD glass lens with autofocus

2. Dual Microphone

3. Activity light

4. Flexible clip/base

5. Tripod attachment

1

2

3

4

5

5 English

QUICK SETUP

1

1 2 3

2 3

To use your C922 Pro Stream Webcam, simply plug
it into your computer, using the USB cable, and run
your favorite app:

– XSplit or OBS to stream online
– Microsoft Camera App (Windows) or QuickTime

Player (Mac) to record photos or video

– Skype, Facetime® for Mac or Google HangoutsTM

for video call

6 English

To update your camera settings,
such as exposure or focus, please go to

www.logitech.com/support/c922.

Download the ChromaCam by Personify
for C922 app to use the background
replacement technology in your live streams:

www.logitech.com/support/c922.

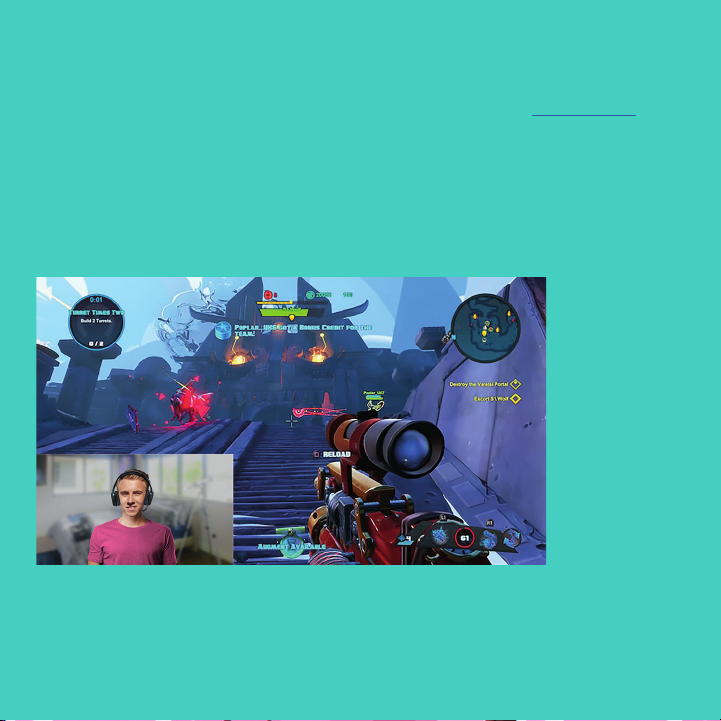

HOW TO STREAM WITH C922 –
XSPLIT BROADCASTER

To stream with Logitech C922,
complete the following steps:

1. Launch XSplit Broadcaster.

2. Go to Add > Webcam…> Logitech C922

Pro Stream Webcam.

3. Use Logitech recommended settings

or adjust them manually to you liking.

Refer to the XSplit Documentation at

http://xsplit.com for more information.

7 English

HOW TO STREAM
WITH ACUSTOMBACKGROUND –
XSPLITBROADCASTER

To stream with Logitech C922 and a custom
background, complete the following steps:

1. Install ChromaCam by Personify for C922

from www.logitech.com/support.

2. Launch XSplit Broadcaster.

3. Go to Add > Webcam…> ChromaCam

by Personify for C922. The ChromaCam app
will launch automatically.

4. Select the required background or add

your own in ChromaCam.

Refer to the XSplit Documentation at

http://xsplit.com for more information.

8 English

HOW TO STREAM WITHOUT
BACKGROUND– XSPLIT
BROADCASTER

To stream with Logitech C922 without
background, complete the following steps:

– Install ChromaCam by Personify for C922

from www.logitech.com/support.

– Launch XSplit Broadcaster.
– Go to Add > Webcam…> ChromaCam

by Personify for C922. The ChromaCam app
will launch automatically.

– Select the default virtual green screen

background in ChromaCam.

– In XSplit Broadcaster, right-click your webcam

capture to go into Camera Settings.

– Navigate to the “Color” tab.
– Select “ChromaKey” option, and make

sure green is selected to remove the virtual
green screen.

Refer to the XSplit Documentation at

http://xsplit.com for more information.

9 English

TIPS/ADVICE

To achieve the best results when streaming,
the following points should be followed:

– Avoid wearing green outts when using

the virtual green screen.

– Make sure that you are well-lit to appear

at your best during streaming.

To achieve a constant 720p/60fps stream:
– Ensure that any lighting comes from behind

the webcam

– Use a “keylight”, a main light source to light up

your face.

– Use a softer “ll light” to reduce shadows on

your face from the keylight.

– Keep lighting behind you to a minimum.
– Use natural lighting or bright white lights

to provide neutral colors.

– Try to use lighting that you can control

the brightness on.

10 English
