Logitech® Bluetooth® Illuminated Keyboard K811
for Mac, iPad, iPhone
Setup Guide
Logitech Bluetooth Illuminated Keyboard K811
English. . . . . . . . . . . . . . . . . . 3
Deutsch . . . . . . . . . . . . . . . . 15
Français . . . . . . . . . . . . . . . . 27
Italiano. . . . . . . . . . . . . . . . . 39
www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
2
Know your product
1 2 4
75 6 8
Logitech Bluetooth Illuminated Keyboard K811
3
1. Bluetooth® status lights
2. Bluetooth keys
3. Function keys
4. Battery status light
5. On/O switch
6. Bluetooth connect button
7. Micro-USB port
8. Micro-USB charging cable
English 3
Logitech Bluetooth Illuminated Keyboard K811
Set up your product

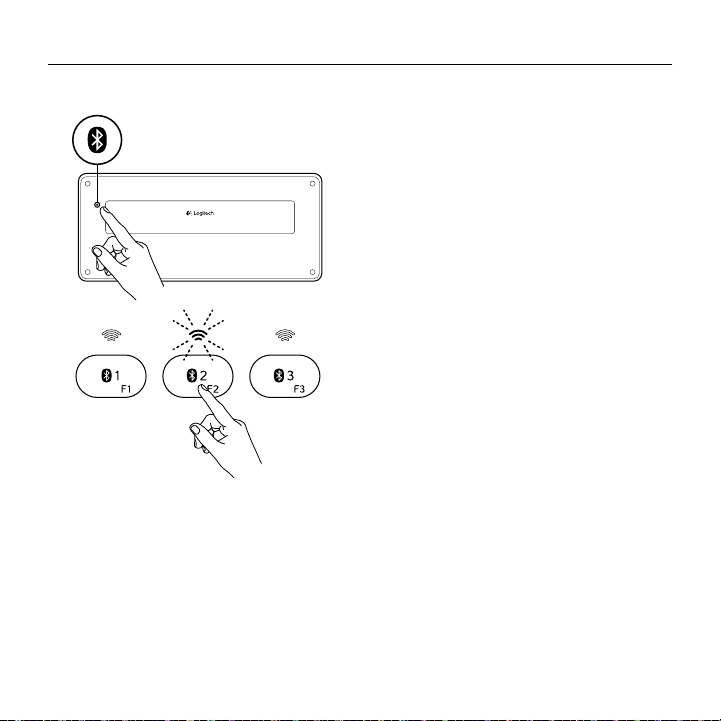

Pair your first Apple® device
1. Turn on the keyboard.
2. Press the Bluetooth connect button.
The lights above the Bluetooth keys
rapidly blink blue.
3. Press a Bluetooth key to assign
your first Apple device to that key:
• The light above the selected key
continues to blink blue.
• The keyboard is discoverable for
15 minutes.
4 English
Logitech Bluetooth Illuminated Keyboard K811
4. Complete Bluetooth pairing on your Apple device:
Mac OS® X:
a. Go to System Preferences > Bluetooth.
b. Click the “Setup new device” (+)
button, and follow the on-screen
instructions.
c. Choose “Logitech K811” from
the device list.
d. Click “Continue.”
The keyboard and your Apple device are now paired. The light above the Bluetooth key
you have selected turns blue for 30 seconds.
5. Go to www.logitech.com/support/k811 to download and install software for your Mac
to fully activate the function keys and to specify backlight settings.
Apple iOS® (iPad® or iPhone®):
a. In Settings, choose General >
Bluetooth, and then turn on
Bluetooth.
b. Choose “Logitech K811”
from the Devices menu.
Note: If your Apple device requests a PIN,
enter the code using the keyboard and not
the virtual keyboard on your Apple device.
English 5
Logitech Bluetooth Illuminated Keyboard K811

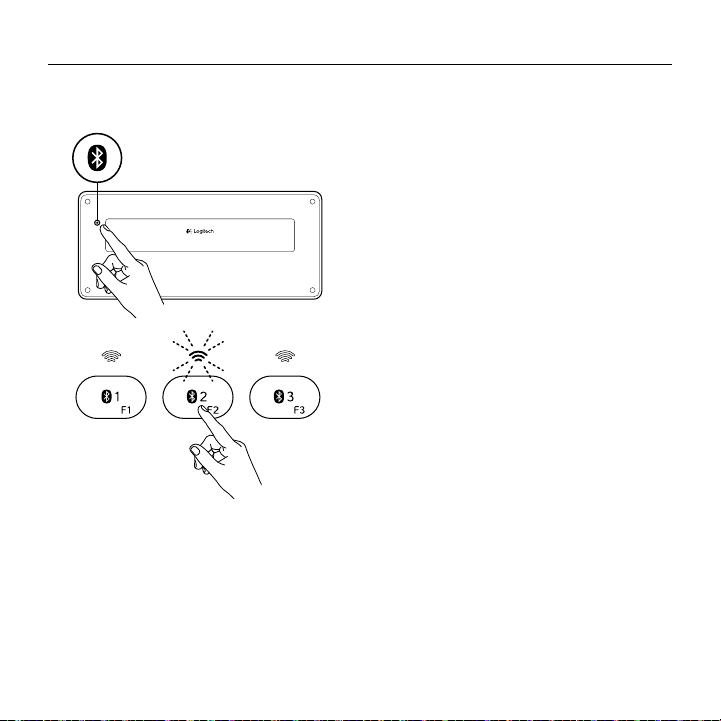

Pair or reassign a Bluetooth key to another Apple device
Pair up to three compatible Apple devices with the keyboard.
1. Make sure the keyboard is on.
2. Press the Bluetooth connect button.
The lights above the Bluetooth keys
rapidly blink blue.
3. Press a Bluetooth key to assign
your Apple device to that key.
For example, if you already paired
an Apple device to Bluetooth key 1,
press the Bluetooth key 2.
• The light above the selected key
continues to blink blue.
• The keyboard is discoverable
for 3 minutes.
4. Go to “Pair your first Apple device”
and follow step 4 to complete
Bluetooth pairing.
Note: After you press the Bluetooth connect
button, the lights above the Bluetooth keys
rapidly blink blue. All three Bluetooth keys can
be assigned or reassigned, and the keyboard
is discoverable for 3 minutes.
6 English
Switching among paired Apple devices
Logitech Bluetooth Illuminated Keyboard K811
1. To select an Apple device to use,
press the Bluetooth key (1, 2, or 3)
associated with it.
2. The light above the selected Bluetooth
key slowly blinks blue to show it is
connecting. Then it turns solid blue
for 5 seconds to confirm that the
Bluetooth connection has been made.
For example, if an iPad is paired with
the Bluetooth 2 key, press that key
to use the iPad with the keyboard.
Note: Only one Apple device can be active
at a time.
English 7
Logitech Bluetooth Illuminated Keyboard K811

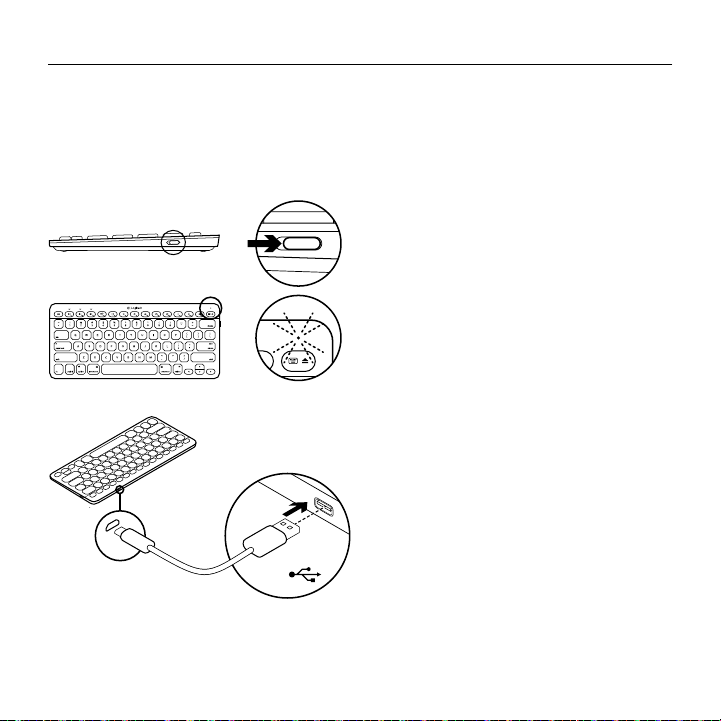

Charge the batteries
A three-hour charge provides up to 10 days of use when you type about two hours a day
with backlight on, or about one year without backlight. You can use the keyboard while
it charges.
To check battery power and to charge the keyboard, do the following:
1. Turn on the keyboard.
• Battery Status light flashes green:
the battery has an adequate charge.
• Battery Status light flashes red:
recharge the battery. Go to step 2.
2. Connect the keyboard to a computer
using the Micro-USB charging cable.
Charge for 1 to 3 hours, or until the
Battery Status light turns solid green.
Note: If the battery power is critically low,
the keyboard backlight is disabled and
the battery status light will blink red.
USB
8 English
Visit Product Central
There’s more information and support
online for your product. Take a moment
to visit Product Central to learn more about
your new keyboard.
Browse online articles for setup help,
usage tips, or information about additional
features. If your keyboard has optional
software, learn about its benefits and how
it can help you customize your product.
Connect with other users in our Community
Forums to get advice, ask questions,
and share solutions.
Logitech Bluetooth Illuminated Keyboard K811
At Product Central, you’ll find a wide
selection of content
• Tutorials
• Troubleshooting
• Support community
• Software downloads
• Online documentation
• Warranty information
• Spare parts (when available)
Go to www.logitech.com/support/k811
English 9
Logitech Bluetooth Illuminated Keyboard K811
Use your product
1 2 4 5 6 7 8 1093
Function and media keys
1. Bluetooth keys 1, 2 and 3 Pair up
to three compatible Apple devices
(Mac®, iPad, or iPhone)
2. Mission control Only works with
Mac OS X v10.7 (Lion).
3. Multifunction key
Home Only works with iPad
and iPhone
Launchpad Only works with a Mac
and requires the Logitech® Software
for Mac. See “Software for your Mac”.
4. Decrease (F6) and Increase (F7)
screen brightness Only works with
Mac computers and Apple displays.
5. Decrease (F8) and Increase (F9)
keyboard backlight intensity
6. Play/Pause
7. Mute
8. Volume down
9. Volume up
10. Multifunction key
Virtual keyboard Only works
with iPad and iPhone.
Eject Only works with Mac.
10 English
Software for your Mac
Download and install the Logitech Software
for your Mac to:
• Fully activate the function keys
• Use the Launch pad
• Adjust settings for the keyboard
backlight
Go to www.logitech.com/support/k811
Logitech Bluetooth Illuminated Keyboard K811
Keyboard backlight
Keyboard sensors detect your hands,
turning the backlight on and o.
The backlight adjusts automatically to
the level of your room light. Bright light
and low battery power cause the backlight
to turn o, which helps conserve battery
power. In bright light, the F8 and F9 keys
are disabled.
Automatic backlight control turns o
when you use the F8 or F9 keys to adjust
backlight intensity. You can restore
automatic backlight control by turning
the keyboard o then on. If the keyboard
is idle for two hours or more, automatic
backlight control is restored automatically.
English 11
Logitech Bluetooth Illuminated Keyboard K811
Troubleshooting
Keyboard not working
• Slide the On/O switch to O
then to On.
• If the Battery Status light flashes
red, recharge the batteries. For more
information, see “Charge the batteries.”
• Restart your Apple device.
• Go to Bluetooth settings on your Apple
device to check if “Logitech K811”
is present. If it is, remove it. Then follow
steps 2–4 in “Pair your first Apple
device” to redo Bluetooth pairing.
What do you think?
Please take a minute to tell us.
Thank you for purchasing our product.
www.logitech.com/ithink
Mission Control (F4 key)
is not working
• Downloading and installing available
Logitech software will solve the issue.
12 English
Logitech Bluetooth Illuminated Keyboard K811

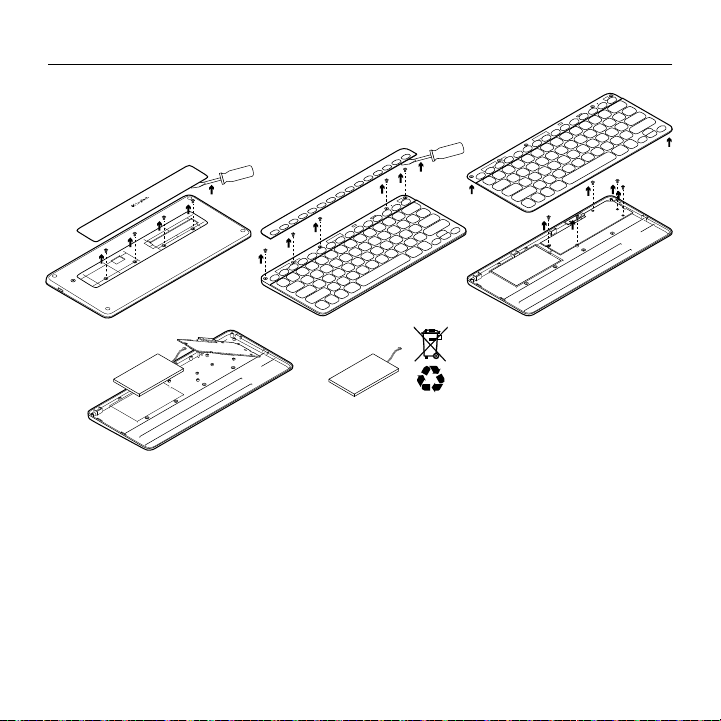

Battery disposal at product end of life
1 2
5 6
1. On keyboard bottom, pry o cover
and remove 4 screws.
2. On keyboard top, pry o cover
surrounding F-keys and remove
5 screws.
3. Separate top and bottom cases.
43
4. Remove 5 screws securing circuit board.
5. On bottom of circuit board,
remove battery cable. Remove battery
from bottom case.
6. Dispose of battery and product
according to local laws.
English 13
Produkt auf einen Blick
1 2 4
75 6 8
Logitech Bluetooth Illuminated Keyboard K811
3
1. Bluetooth®-Anzeige
2. Bluetooth-Tasten
3. Funktionstasten
4. Akkustandsanzeige
5. Ein-/Ausschalter
6. Bluetooth-Verbindungstaste
7. Mikro-USB-Anschluss
8. Mikro-USB-Ladekabel
Deutsch 15
Logitech Bluetooth Illuminated Keyboard K811
Einrichtung des Produkts
Pairen des ersten Apple®-Geräts
1. Schalten Sie die Tastatur ein.
2. Drücken Sie die Bluetooth-Verbindungs-
taste. Die Lämpchen über den BluetoothTasten blinken schnell in Blau.
3. Drücken Sie eine Bluetooth-Taste, um dieser
das erste Apple-Gerät zuzuweisen:
• Das Lämpchen über der ausgewählten
Taste blinkt weiterhin blau.
• Die Tastatur ist für 15 Minuten erkennbar.
16 Deutsch
