Logitech 981-000750 User Manual

G635
Wired 7.1 LIGHTSYNC Gaming Headset
Casque gaming laire
7.1LIGHTSYNC
User Manual Manuel
de l’utilisateur
English . . . . . . . . . . . . . . . . . . .3
Français . . . . . . . . . . . . . . . . . 13
www.logitech.com/support/g635
Español . . . . . . . . . . . . . . . . . 23
Português . . . . . . . . . . . . . . . . 33
WHAT’S IN THE BOX
1
2 2
1. G635 Headset
2. Custom tags (L/R)
3
4
3. PC cable (USB to Micro-USB, 2.8m)
4. 3.5mm cable (1.5m)
3 ENGLISH
FEATURES
1
6
2
3
4 5
1. Adjustable padded sports mesh
headband
2. Removable backlit custom tags
3. Boom mic mute indicator LED
4. Retractable boom microphone
Automatically mutes in “up” position
5. Lighting zones (2)
6. Washable soft sports mesh earpads
7. PC/3.5mm mode switch
7
9
10
8. Pro-G Audio Drivers
9. Programmable buttons (3)
10. Microphone Mute
11. Volume Wheel
12. 3.5mm (mobile) connection
13. USB connection
4 ENGLISH
8
11
12 13

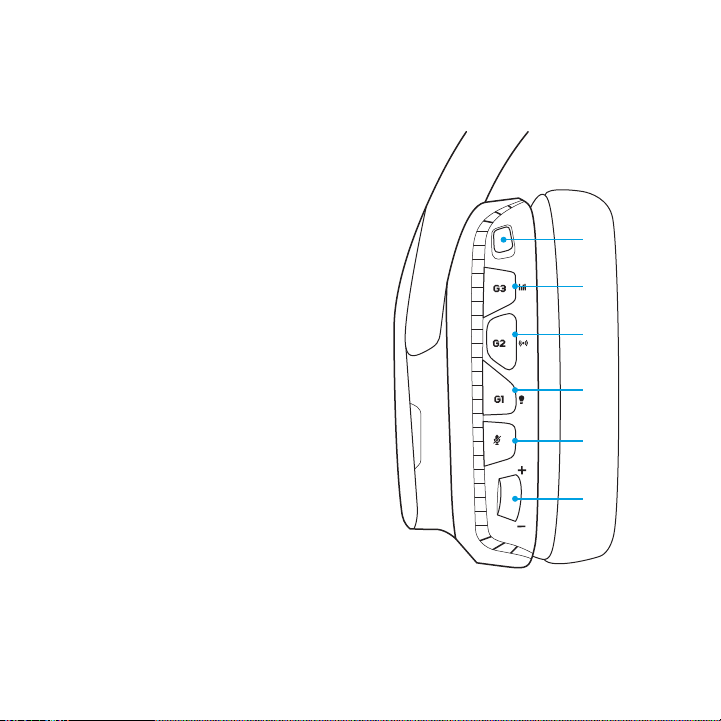

HEADSET BUTTON LAYOUT
1. PC mode /3.5mm (mobile) mode switch
2. G3 (programmable):
Default equalizer (EQ) cycle
• Will cycle through EQ settings in
Logitech G HUB software
3. G2 (programmable): Default DTS:
Headphone X surround sound on/o
4. G1 (programmable): Lighting cycle
• Will cycle through lighting settings in
Logitech G HUB Software, including: breathing, solid cyan, custom, and o
5. Microphone mute
6. Volume wheel
G1, G2, and G3 are programmable using the Logitech G HUB Software (in PC mode only):
www.logitech.com/support/g635
Note: Buttons and volume wheel only operate in PC mode while connected to a PC with Logitech G HUB software.
1
2
3
4
5
6
5 ENGLISH

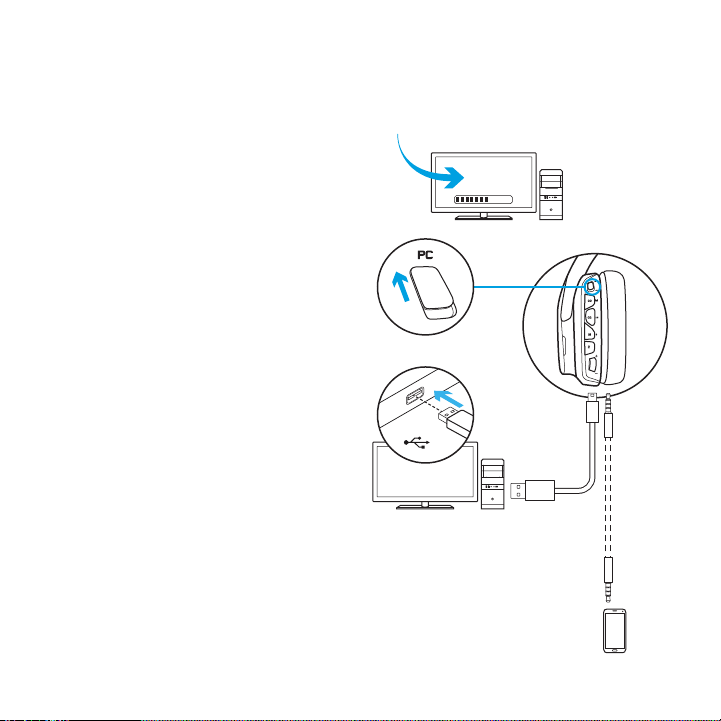

SETUP FOR PC PC MODE
1. Download and install
Logitech G HUB Software:
www.logitech.com/support/g635
2. Set mode switch to PC.
3. Connect the G635 to PC via USB cable.
Mixing audio sources
While in PC mode and connected via USB, the G635 can also use the 3.5mm cable to connect to another audio source (ex. smartphone). Both audio sources can be played simultaneously. Inline controls and inline microphone can be used to answer calls, adjust volume, etc independently for the mobile device.
6 ENGLISH
1
2
3
USB

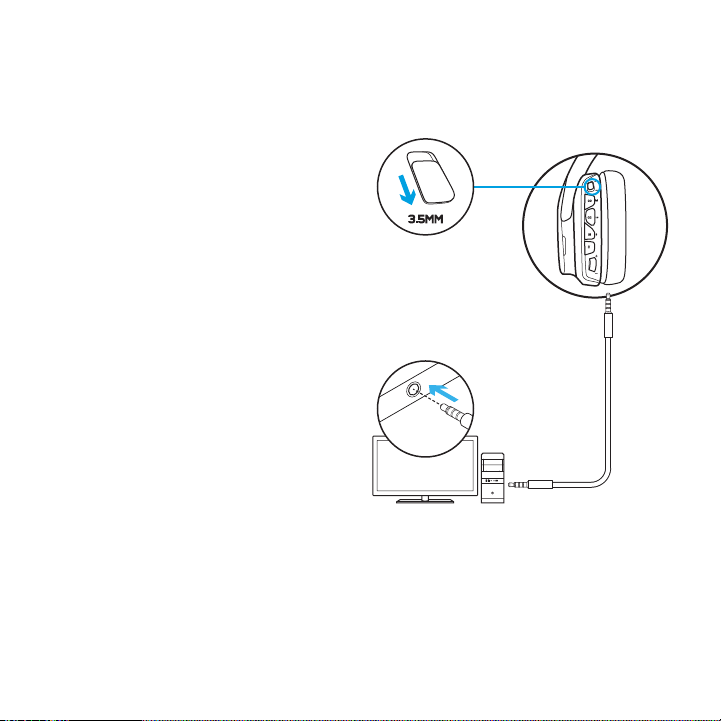

SETUP FOR PC 3.5MM MODE
The G635 can also connect to audio devices solely via 3.5mm cable.
1. Set mode switch to 3.5mm
2. Connect to PC using the 3.5mm cable
Features that require USB power, including 7.1 surround sound, on-headset buttons, volume wheel operation, and customization of lighting and button functions are not available without USB connection.
Some PCs may require a 3.5mm 4-pole to mic/stereo splitter adapter (not included) to use microphone features in this mode.
7 ENGLISH
1
2
3.5mm
SETUP FOR MOBILE
1. Set the mode switch to 3.5mm.
2. Connect the headset to the mobile
device via the 3.5mm cable.
Features that require USB power, including 7.1 surround sound, on-headset buttons, volume wheel operation, and customization of lighting and button functions are not available without USB connection.
8 ENGLISH
1
2
3.5mm

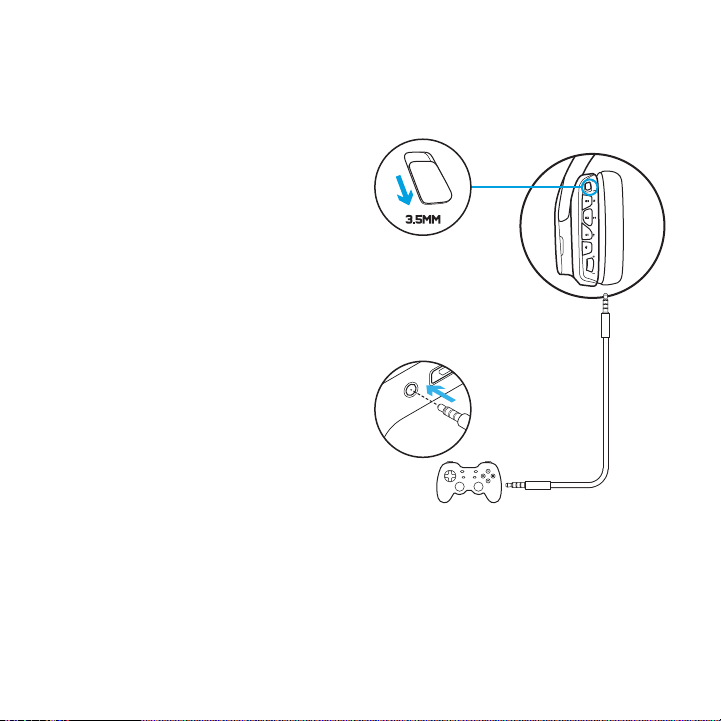

SETUP FOR CONSOLE: XBOX ONE™, PS4™ OR SWITCH™
1. Set switch to 3.5mm mode.
2. Connect the headset to the console
controller using the 3.5mm cable.
• Xbox One may require Xbox One
headset adapter (sold separately).
PlayStation setup (settings)
1. Connect headset to console
2. Open Settings
3. Select “Sound and Screen”
4. Select “Audio Output Settings”
5. Set “Output to Headphones”
to “All Audio”
Headset will not operate via USB cable on Xbox One.
1
2
3.5mm
9 ENGLISH

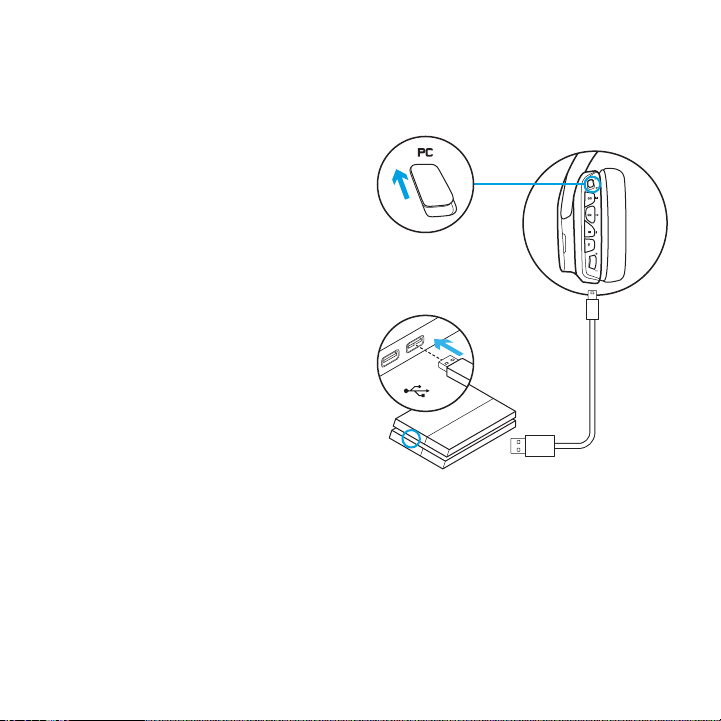

ALTERNATE SETUP FOR SONY PLAYSTATION® 4
USB powered operation
1. Set the mode switch to PC mode.
2. Connect the headset to the console
using the USB cable.
Note: although set in PC mode, buttons do not operate when connected to the PlayStation 4. Programming of lighting and buttons is not possible on the PlayStation 7.1 surround sound is not available while connected to PlayStation. Volume wheel does not work on PlayStation.
PlayStation setup (settings)
1. Plug in headset via USB or 3.5mm cables
2. Open Settings
3. Select “Sound and Screen”
4. Select “Audio Output Settings”
5. Set “Output to Headphones”
to “All Audio”
10 ENGLISH
1
2
USB
RGB LIGHTING ZONE CUSTOMIZATION
1 2
1 2 3 4
Zone 1: G logo
Zone 2: Lighting strip
Each lighting zone can be programmed with the Logitech G HUB Software (PC mode only).
www.logitech.com/support/g635

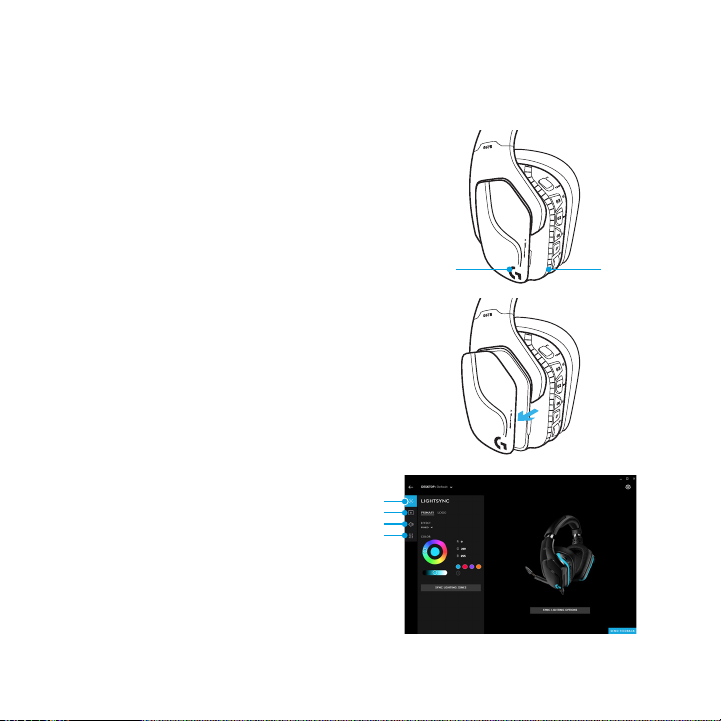

TAG CUSTOMIZATION
The left and right custom tags can be removed and replaced with custom tags.
LOGITECH G HUB SOFTWARE
G-key buttons, lighting, equalizer, and surround sound prole programming is possible through the Logitech G HUB Software.
1. LIGHTSYNC Lighting
2. Assignments
3. Acoustics
4. Equalizer
11 ENGLISH

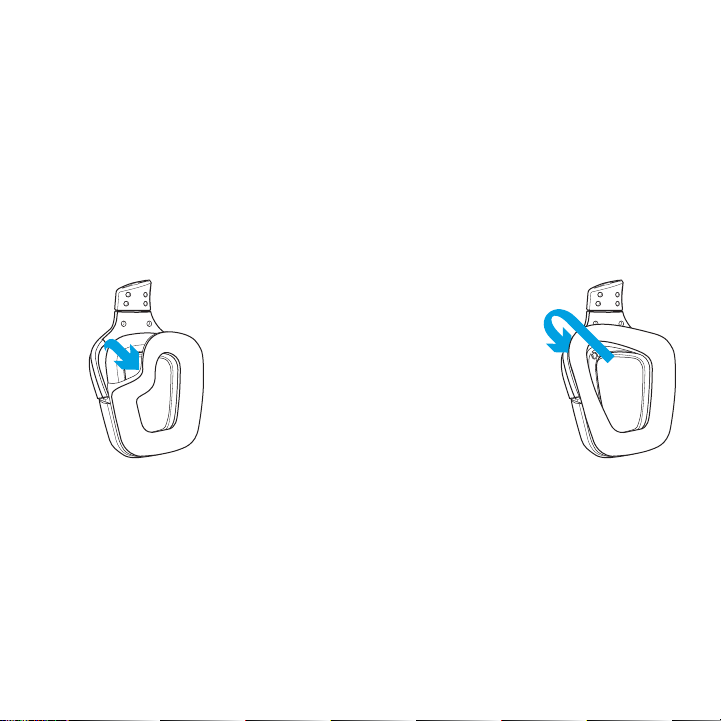

EARPAD CLEANING
1. Removal 2. Washing
a. Once removed,
the earpads can be hand washed in warm water.
b. Press with soft towel
to dry, do not wring.
c. Allow to air dry before
reattaching.
12 ENGLISH
3. Replacement
CONTENU DU COFFRET
1
2 2
1. Casque G635
2. Étiquettes personnalisées (Gauche/
Droite)
3
4
3. Câble PC (USB à micro-USB, 2,8m)
4. Câble 3,5 mm (1,5 m)
13 FRANÇAIS
