Linx Technologies HumDT Quickstart Reference

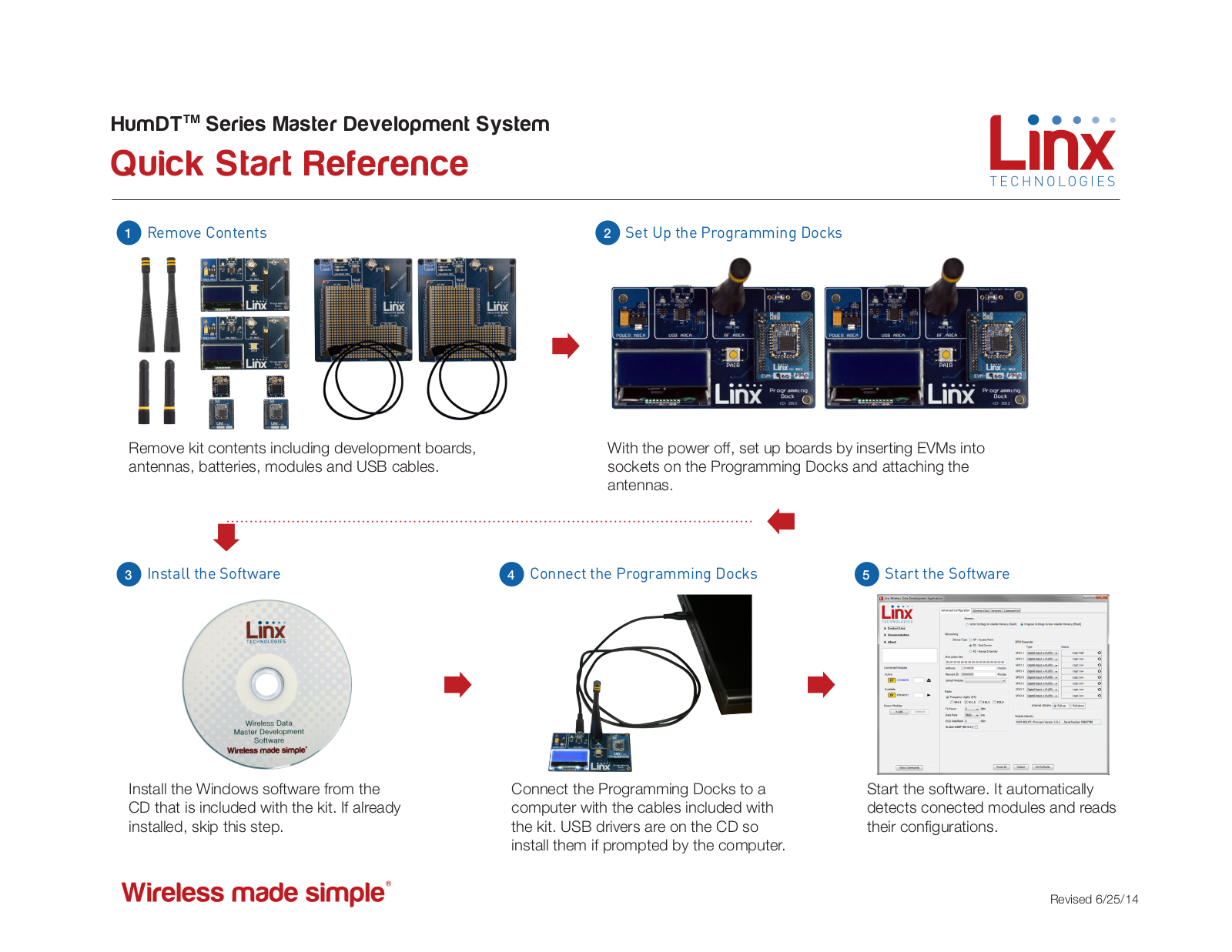

HumDTTM Series Master Development System

Quick Start Reference

Remove Contents

1

Remove kit contents including development boards,
antennas, batteries, modules and USB cables.

Install the Software

3

Set Up the Programming Docks

2

With the power off, set up boards by inserting EVMs into
sockets on the Programming Docks and attaching the
antennas.

Connect the Programming Docks

4

Start the Software

5

Install the Windows software from the
CD that is included with the kit. If already
installed, skip this step.

Connect the Programming Docks to a
computer with the cables included with
the kit. USB drivers are on the CD so
install them if prompted by the computer.

Start the software. It automatically
detects conected modules and reads
their configurations.

Revised 6/25/14

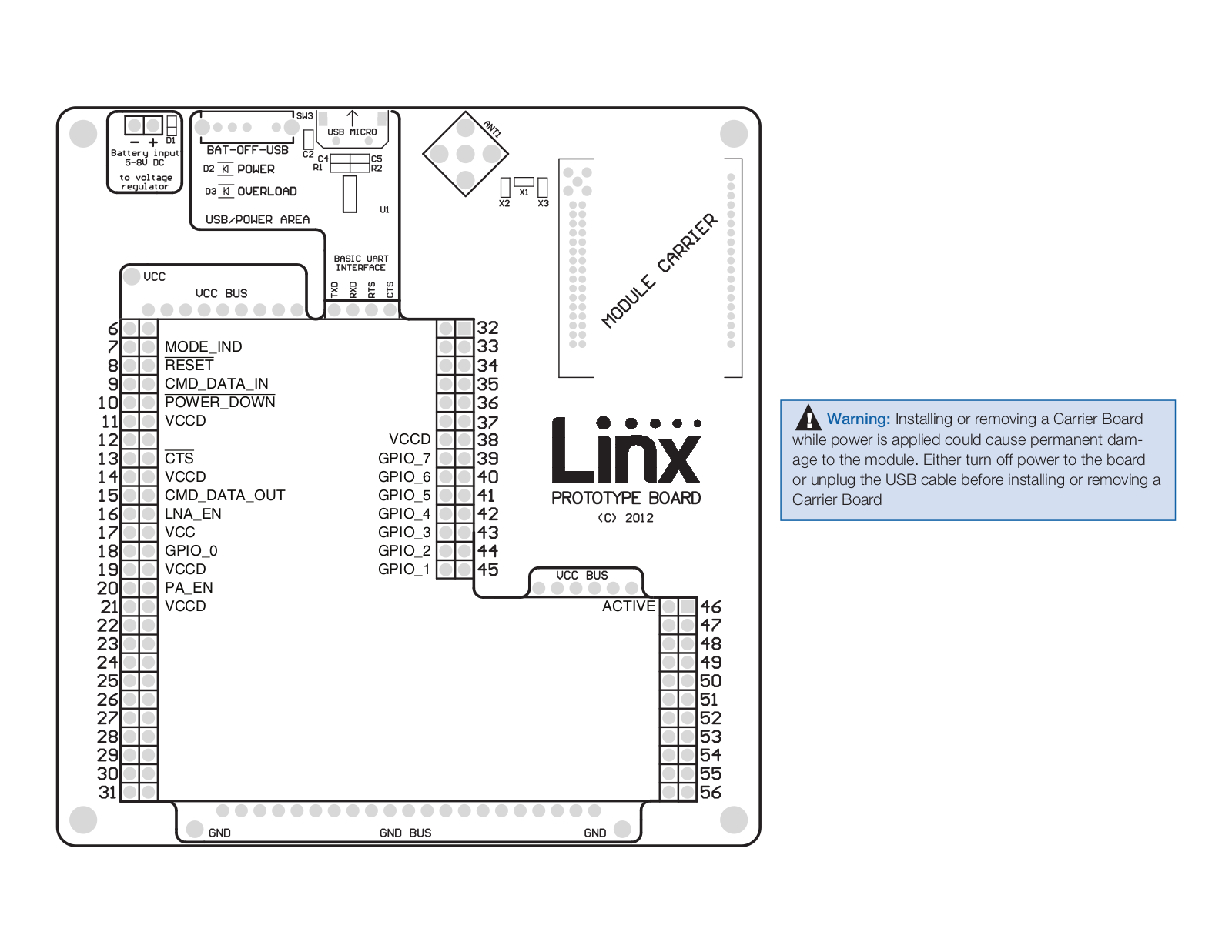

MODE_IND
RESET
CMD_DATA_IN
POWER_DOWN
VCCD

CTS
VCCD
CMD_DATA_OUT
LNA_EN
VCC
GPIO_0
VCCD
PA_EN
VCCD

VCCD
GPIO_7
GPIO_6
GPIO_5
GPIO_4
GPIO_3
GPIO_2
GPIO_1

ACTIVE

Warning: Installing or removing a Carrier Board

!

while power is applied could cause permanent dam­age to the module. Either turn off power to the board
or unplug the USB cable before installing or removing a
Carrier Board
