MS Compact
Handheld Transmitter
Master Development System
User's Guide
Page 2
Warning: Some customers may want Linx radio frequency (“RF”)
!
products to control machinery or devices remotely, including machinery
or devices that can cause death, bodily injuries, and/or property
damage if improperly or inadvertently triggered, particularly in industrial
settings or other applications implicating life-safety concerns (“Life and
Property Safety Situations”).
Table of Contents
1 Introduction
2 Ordering Information
2 MS Series Decoder Development Board
NO OEM LINX REMOTE CONTROL OR FUNCTION MODULE
SHOULD EVER BE USED IN LIFE AND PROPERTY SAFETY
SITUATIONS. No OEM Linx Remote Control or Function Module
should be modified for Life and Property Safety Situations. Such
modification cannot provide sufficient safety and will void the product’s
regulatory certification and warranty.
Customers may use our (non-Function) Modules, Antenna and
Connectors as part of other systems in Life Safety Situations, but
only with necessary and industry appropriate redundancies and
in compliance with applicable safety standards, including without
limitation, ANSI and NFPA standards. It is solely the responsibility
of any Linx customer who uses one or more of these products to
incorporate appropriate redundancies and safety standards for the Life
and Property Safety Situation application.
Do not use this or any Linx product to trigger an action directly
from the data line or RSSI lines without a protocol or encoder/
decoder to validate the data. Without validation, any signal from
another unrelated transmitter in the environment received by the module
could inadvertently trigger the action.
All RF products are susceptible to RF interference that can prevent
communication. RF products without frequency agility or hopping
implemented are more subject to interference. This module does not
have a frequency hopping protocol built in.
3 Using the Master Development System
3 Troubleshooting
4 Setting the Transmitter Address
4 OTX-***-HH-CP8-MS Button Assignments
5 Contention Considerations
5 Battery Replacement
5 Assembly Diagram
6 The Decoder Board
11 Installing the Software and Drivers
12 Master Development Software
15 Resources
Do not use any Linx product over the limits in this data guide.
Excessive voltage or extended operation at the maximum voltage could
cause product failure. Exceeding the reflow temperature profile could
cause product failure which is not immediately evident.
Do not make any physical or electrical modifications to any Linx
product. This will void the warranty and regulatory and UL certifications
and may cause product failure which is not immediately evident.
Page 3
MS Compact Handheld Transmitter
Master Development System
Data Guide
Figure 1: MS Compact Handheld Transmitter Master Development System
Introduction
The Linx MS Compact Handheld transmitter offers a simple, efficient and
cost-effective method of adding remote control capabilities to any product.
This Master Development System gives a designer all the tools necessary
to incorporate the transmitter, LR Series receiver and MS Series decoder
into a product. The Master Development System serves several important
functions:
• Rapid Evaluation: It allows the performance and features of the
transmitter, LR Series receiver and MS Series encoders and decoders
to be evaluated quickly in a user’s environment.
• Range Testing: The transmitter and receiver board form a full remote
control system so that the range performance can be evaluated.
• Design Benchmark: The boards provide a known benchmark against
which the performance of a custom design may be judged.
• Application Development: An onboard prototyping area allows for the
development of custom circuits directly on the development board. All
signal lines are available on a header for easy access.
The Master Development System includes 2 MS Compact Handheld
transmitters, 2 LR Series receivers*, 2 MS Series decoders*, 1 receiver /
decoder development board,1 CW Series antenna, demonstration software
CD and full documentation.
*One part is soldered to the board, one extra is for use on your first prototype board
– –
1
Revised 3/18/2015
Page 4
Ordering Information
Ordering Information
Part Number Description
MDEV-***-HH-CP8-MS MS Compact Transmitter Master Development System
*** = 315, 418 (Standard) or 433.92MHz
Using the Master Development System
Using the Master Development System is straightforward. After unpacking
the board, screw the antenna onto the connector, install the supplied
9V battery, and turn on the power switch. The encoder and decoder are
configured from the factory and work straight out of the box. To create a
new address (if desired), follow these easy steps:
Figure 2: Ordering Information

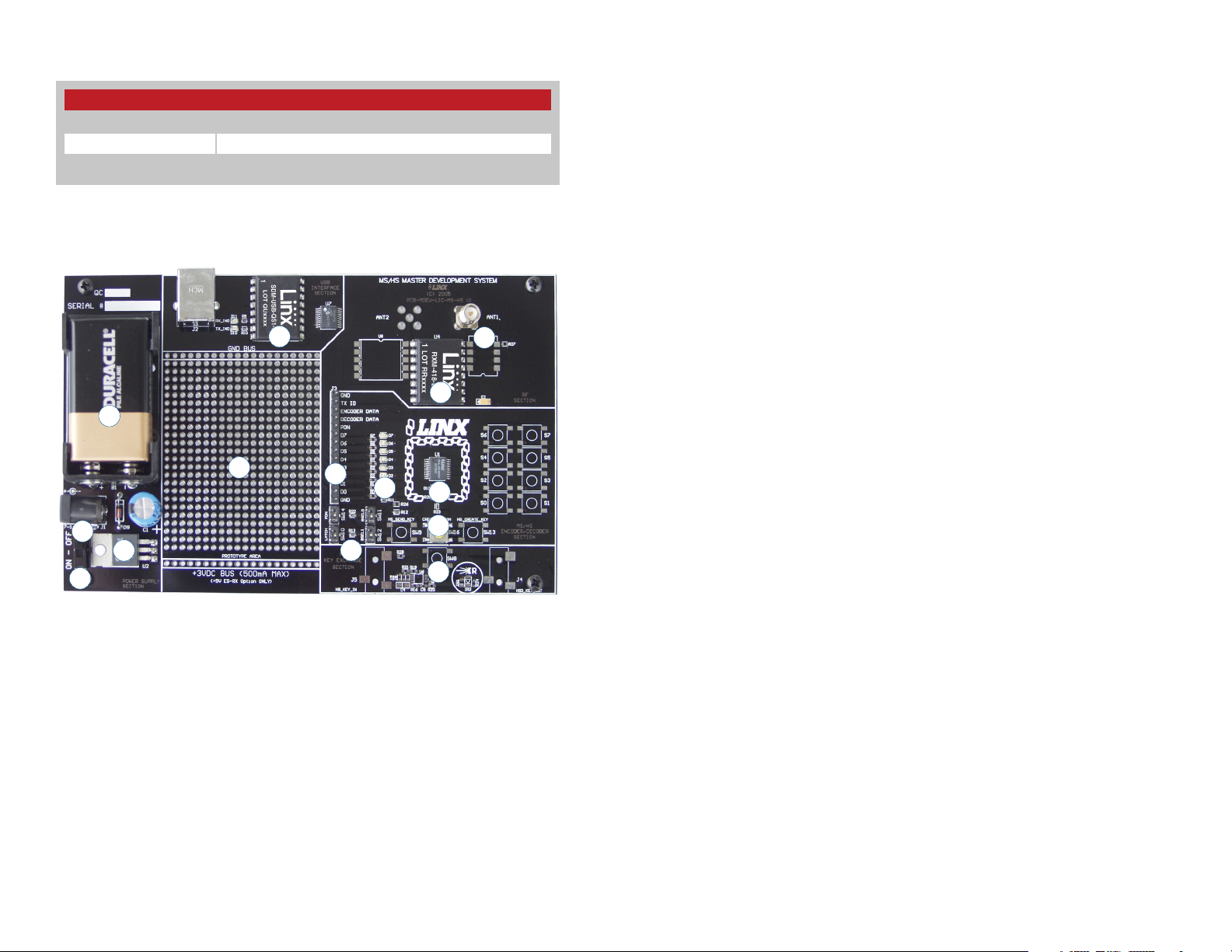

MS Series Decoder Development Board
5
1
6
2
4
3
Figure 3: The MS Series Decoder Development Board
7
13
11
10
12
14
1. Press and hold the CREATE button on the transmitter to create a new
Code Word. This is done by sticking a paper clip through the hole on
the back of the case and pressing the button inside. The Code Word is
randomized for as long as the button is held down. Once comfortable
that the number is sufficiently random, release the button.
2. Once the button is released, the MODE_IND LED begins flashing to
8
indicate that it is ready to accept Control Permissions. Press all of the
data line buttons that are to be recognized, then press the CREATE
button again or let it time out after seventeen seconds.
9
3. Press the LEARN button on the decoder board and the MODE_IND
LED starts flashing. Press any of the data line buttons on the
transmitter and press the LEARN button again. The encoder’s Code
Word has now been learned by the decoder and they will operate
together.
Troubleshooting
If the boards fail to work out of the box, then try the following:
• Check the battery to make sure it is not dead.
• Make sure the baud rate switches are set to 9,600bps on the decoder
board.
1. 9V Battery
2. Power Jack
3. On-Off Switch
4. Voltage Regulator
5. QS Series USB Module
6. Prototype Area
7. Break-Out Header
8. RP-SMA Antenna Connector
• Make sure that the antenna is connected.
9. LR Series Receiver
10. MS Series Decoder
11. Data Line LEDs
12. Indicator LEDs
13. Function Switches
14. LEARN Button
• Check to see if the PDN switch is on, placing the decoder into Power
Down Mode. In most cases, the decoder PDN switch should be on.
• Make sure that the Control Permissions are set correctly. If the encoder
has not been set to use a particular line, then when that button is
pressed on the transmitter, the MODE_IND LED on the decoder board
lights up, but the data line LED does not light up.
If all of these appear to be in order, then you can call +1 800 736 6677 or
e-mail [email protected] for technical support.
– – – –
2 3
Page 5
Setting the Transmitter Address
MODE_IND Window
The MS Compact Handheld
Transmitter allows the selection
of one of 16,777,216 (224) unique
addresses. All transmitters are
supplied set to a unique address
to avoid contention with other
units; however, the address can be
changed. This is accomplished by
CREATE Button
using a paper clip or probe to press
the CREATE button on the board
through the hole in the back of the

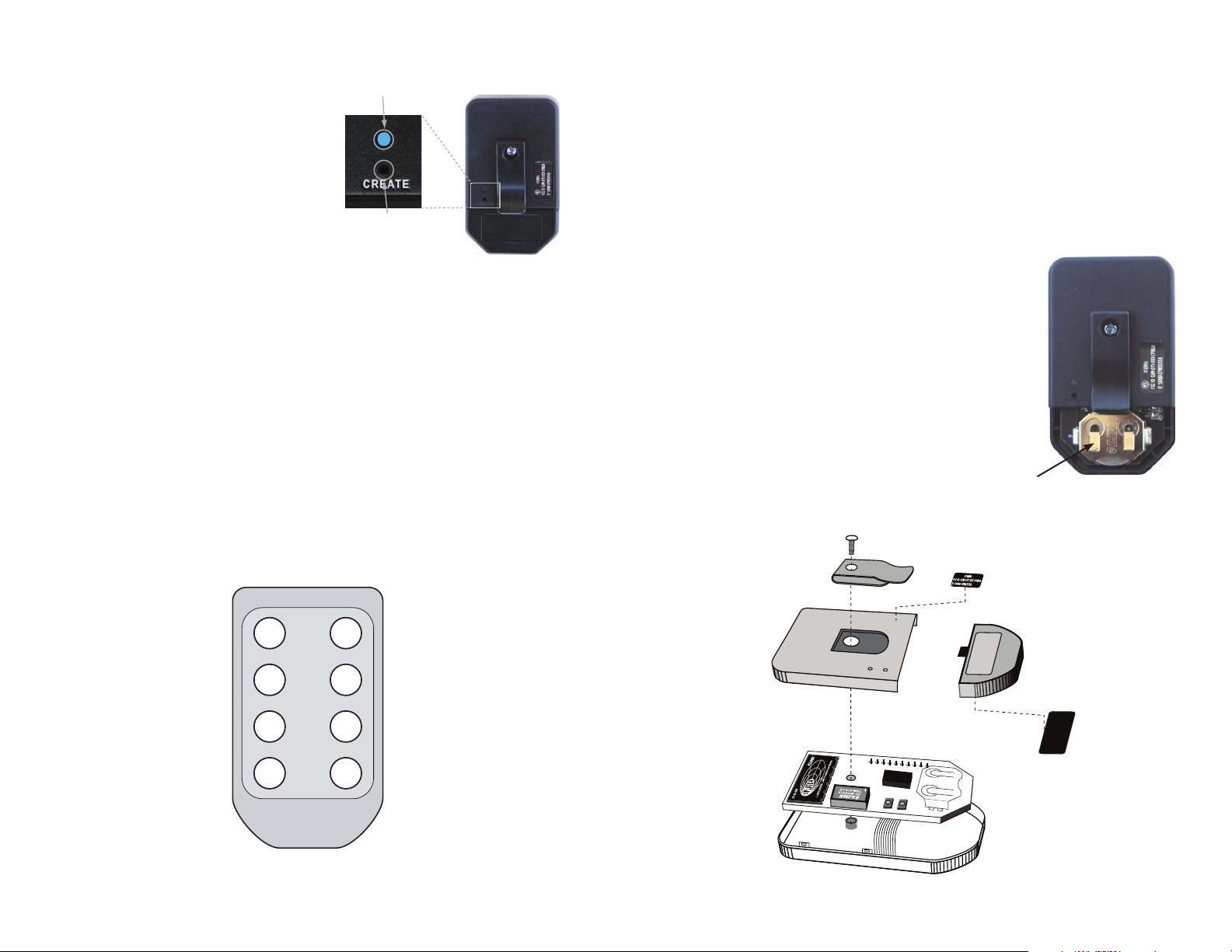

Figure 4: CREATE Button Access
case. Press the button and an LED lights up in the MODE_IND window,
indicating that the address is being created. The address is randomized for
as long as the button is held down. Release the button and the randomized
address is saved and the LED begins flashing to indicate that the Control
Permissions may now be set. Press the buttons that the transmitter should
have the authority to access. Press the CREATE button with the paper
clip again or wait 17 seconds for it to time out. The address and Control
Permissions are now set. The decoder needs to learn the address before it
will accept any transmissions. Please see the Typical Applications section
of this data guide or the MS Series Decoder Data Guide for details.
OTX-***-HH-CP8-MS Button Assignments
Figure 5 illustrates the relationship between the button locations and
encoder data lines.
Contention Considerations
It is important to understand that only one transmitter at a time can be
activated within a reception area. While the transmitted signal consists
of encoded digital data, only one carrier of any particular frequency can
occupy airspace without contention at any given time. If two transmitters
are activated in the same area at the same time, then the signals will
interfere with each other and the decoder will not see a valid transmission,
so it will not take any action.
Battery Replacement
The remote unit utilizes a standard CR2032 lithium
button cell. In normal use, it provides 1 to 2 years of
operation. To replace the battery, remove the access
cover by pressing firmly on the label area and sliding it
off. Once the unit is open, remove the battery by sliding
it from beneath the holder. Replace it with the same
type of battery while observing the polarity shown in
Figure 6.
There may be the risk of explosion if the battery is
replaced by the wrong type.
Battery access
Figure 6: Battery Access
+
Assembly Diagram
418MHz
FCC ID: OJM-OTX-XXX-CPMSA
IC: 5840A-CPMSXXXA
D6 D7
D4 D5
D2 D3
D0 D1
Figure 5: OTX-***-HH-CP8-MS Button Assignments
– – – –
4 5
Figure 7: OTX-***-HH-CP8-MS Assembly
Page 6
The Decoder Board
The decoder board included with the evaluation kit uses an LR Series
receiver to receive the signal from the Handheld transmitter and then
feeds it into an MS Series decoder. The board is designed to allow full
access to the many features of the decoder and to speed development
and integration of the LR and MS into a product. The following sections
describe the features of this board in detail.

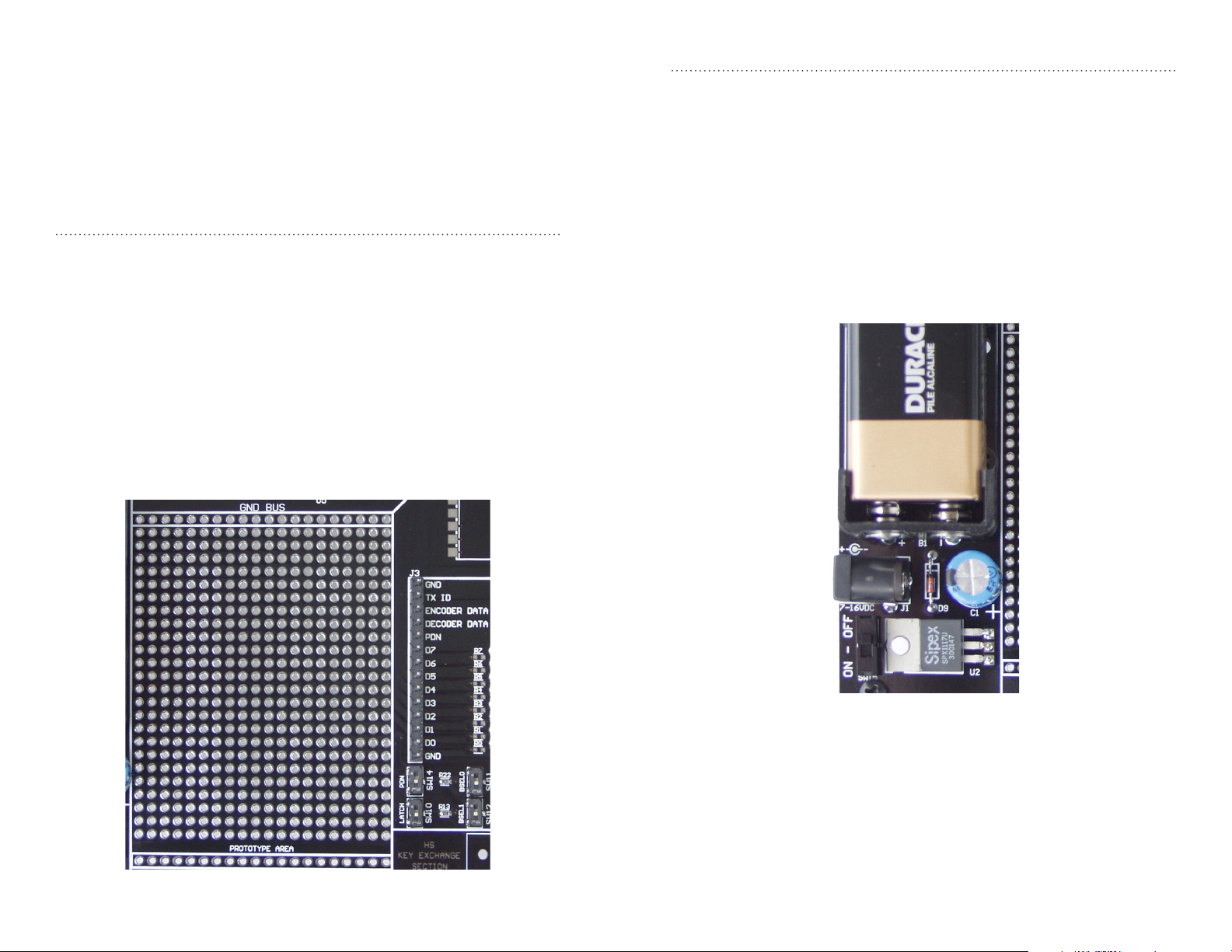

The Prototyping Area
The prototyping area on the decoder board contains a large section of
plated through-holes so that external circuitry can be placed on the board.
This circuitry can be interfaced with the MS Series decoder through the
breakout header to the right of the holes. At the bottom of this area is a row
connected to the 3V power supply and at the top is a row connected to
ground.
All of the data lines are connected to a wire-wrap header to the right,
allowing easy access from the prototyping area. The Decoder Data and
TX ID lines are also available on the header as well as the PDN line from
the RF module. This allows complete control of the entire system from the
prototyping area, giving the designer a great deal of flexibility in using the
board.
The Power Supply
The power supply on the decoder board consists of a 9V battery
and power jack connected to a 3.0V voltage regulator. It can provide
approximately 500mA of current to the prototyping area, so if the added
circuitry will need more than this, the designer must add an external supply.
If the circuit consistently draws more than 100mA of current, it might be
better to use the power jack rather than the battery, as the battery may run
down fairly quickly, reducing testing and development time.
The jack accepts a standard 5.5mm plug with the tip ground and the outer
shell 7 to 16VDC positive supply. While a reverse voltage protection diode
has been included on the board to protect the circuitry in case the voltage
on the plug is reversed, it is still a good idea to double-check the polarity.
Figure 8: The Decoder Board Prototyping Area
– – – –
6 7
Figure 9: The Decoder Board Power Supply Area
Page 7
The RF Area

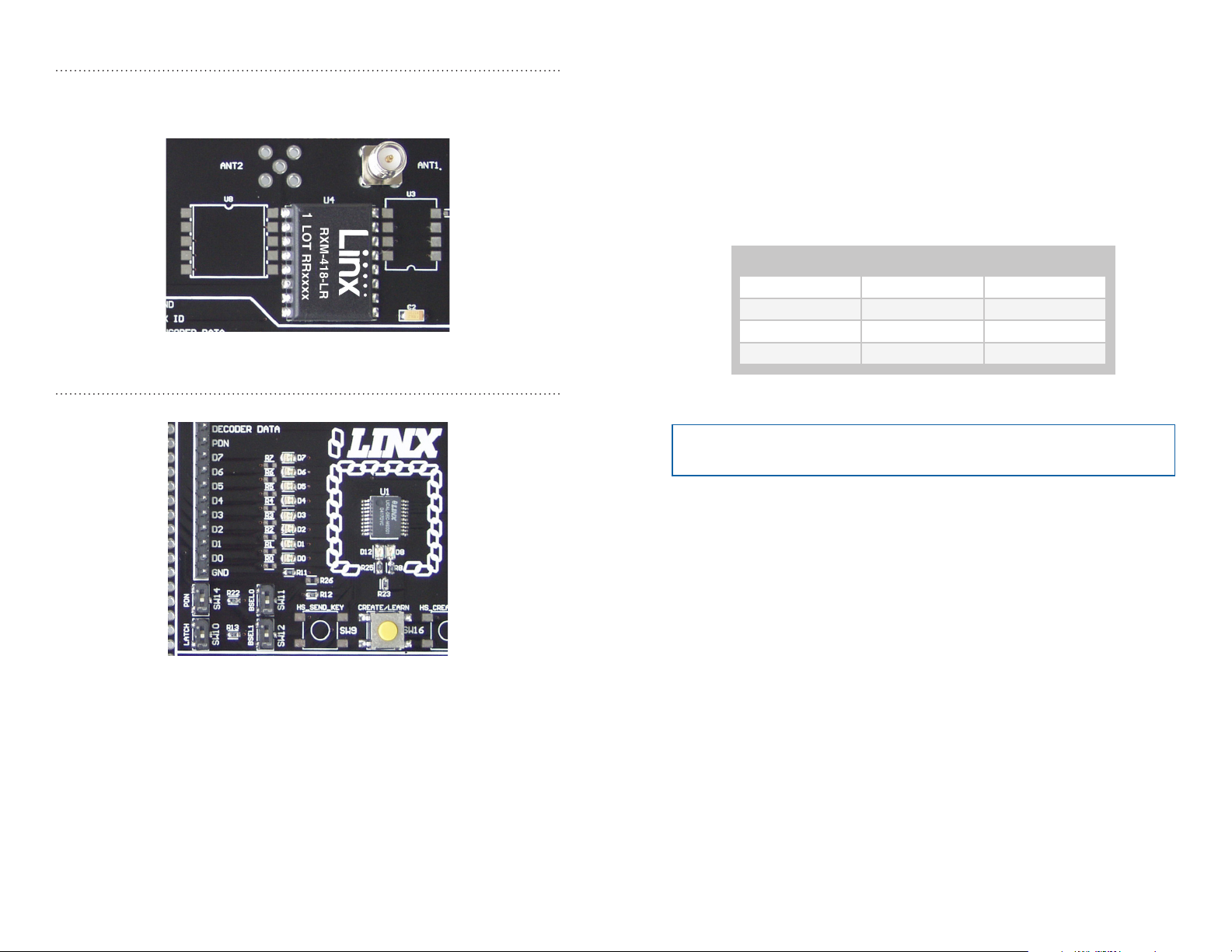

The Figure 10 shows the RF area of the development board. The board
uses the LR Series receiver as shown. Attach the included antenna to the
reverse polarity SMA connector before operation.
Figure 10: The Decoder Board RF Area
Under the LEDs is a button that is connected to the LEARN line. This
button is used to learn the Code Word from the encoder as described in
the MS Series Decoder Data Guide.
There are four switches to the left of the CREATE / LEARN button. BSEL0
and BSEL1 are used to set the baud rate of the decoder as shown in
Figure 12. The Keyfob transmitter is set to 9,600bps, so BSEL0 should be
on and BSEL1 should be off. If the switch is up, then the line is high (on); if
down, then the line is low (off).
BSEL1 BSEL0 Baud Rate
0 0 2,400
0 1 9,600
1 0 19,200
1 1 28,800
The Decoder Area
Figure 11 shows the decoder area of the development board.
Figure 11: The Decoder Area
The decoder is in the center beneath the Linx logo. To the left are LEDs that
are connected to the decoder data lines. These light up when the decoder
receives a signal from the transmitter instructing it to take the data line high.
LED D0 corresponds to data line D0 and so forth.
Beneath the decoder are two LEDs. D12 is connected to the MODE_IND
line. D8 is connected to the RX_CNTL line and provides visual feedback
by lighting up when the decoder activates the receiver when in RX Control
Mode.
Figure 12: Baud Rate Controls
Note: The decoder board must be set to the same baud rate as the
transmitter in order for the signal to be received correctly.
The PDN switch connects the RX_CNTL line of the encoder to the PDN line
of the receiver so that the RX Control Mode can be tested. This mode is
described in the MS Series Decoder Data Guide.
The LATCH switch places the decoder into Latch Mode when on, so that
the data lines go high when a valid signal is received and stay high until
a second valid signal is received. If the switch is off, the data lines are
momentary.
– – – –
8 9
Page 8
The USB Area
The decoder board has a Linx SDM-USB-QS-S USB module for use with
the included development software. This module is powered by the USB
bus, so it does not pull any current from the battery. Figure 13 shows this
section.

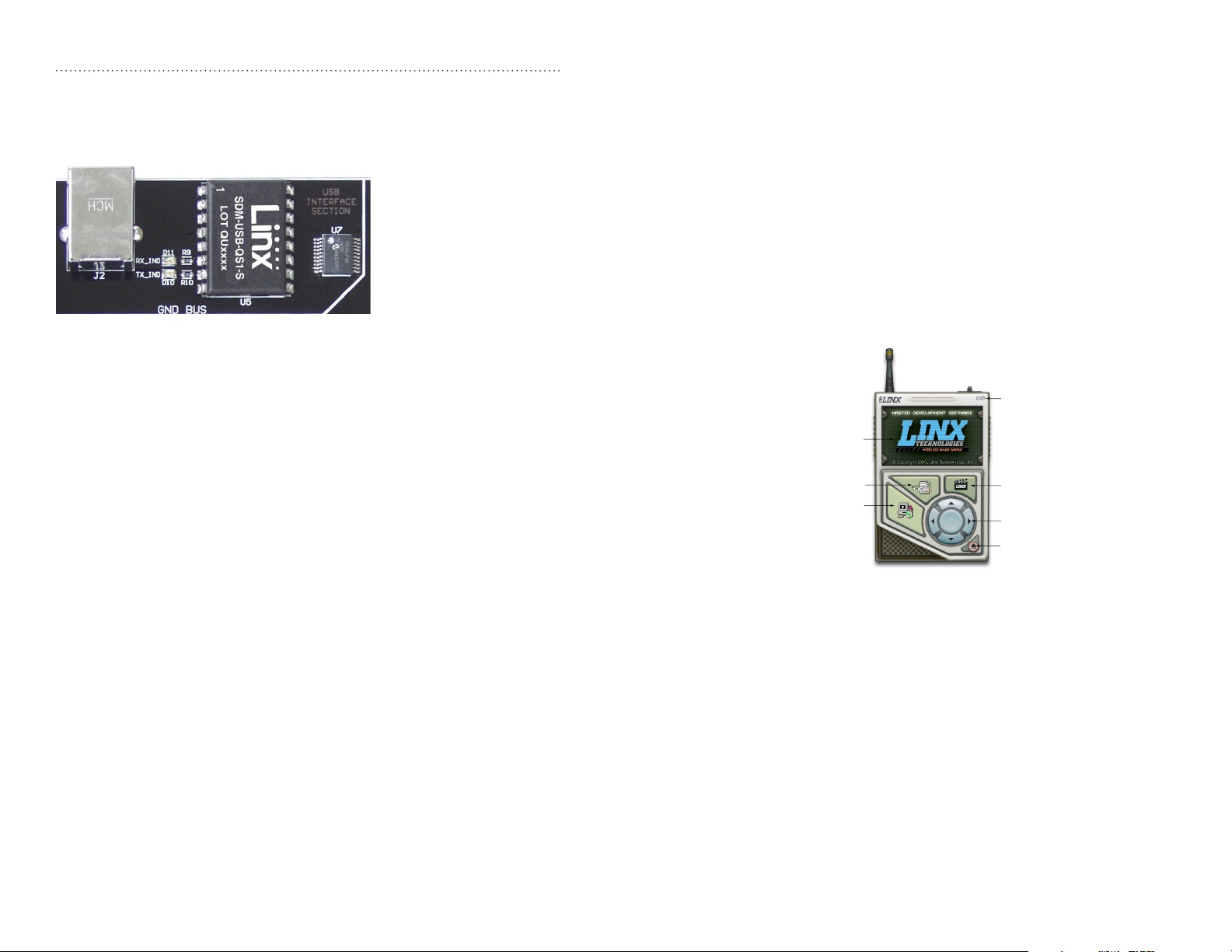

Figure 13: The Decoder Board USB Area
The microcontroller on the right monitors the data lines and generates
commands that are sent to the development software on the PC via the
QS Series USB module. The RX_IND LED to the left of the module flashes
to indicate that data is being received from the PC, and the TX_IND line
flashes to indicate that the module is sending data to the PC.
Installing the Software and Drivers
The Master Development System uses the QS Series USB module to
provide a simple serial interface to a PC via a USB connection. The module
requires drivers to be installed on the PC before it can function properly.
The QS Series Drivers are included on the CD with the software.
The first time the QS module is plugged into the computer, Windows
displays the Found New Hardware Wizard, which guides the installation
of the drivers. Application Note AN-00201 describes the installation of
the drivers in detail. The drivers should be installed before running the
Development Software.
The MS Master Development Software automatically starts when the CD is
inserted and the player in Figure 14 appears.
Exit
Player Screen
The QS Series USB module provides a simple serial link to a PC via a
USB connection. It converts logic-level serial signals to USB-compliant
signals and vice versa, so it can be connected to virtually any serial device,
including microcontrollers, RS-232 / RS-485 level converters, or Linx RF
modules. It is completely self-contained, requiring only a USB type B jack,
and includes all necessary firmware and drivers.
– – – –
10 11
View Documentation
Install Software
Figure 14: Software Installer
Play Movie
Selection Keypad
Go to the
Linx Website
Clicking the Install Software button starts the Installation Wizard,
which guides the installation of the development software. The View
Documentation button shows a list of the application notes and manuals
related to the MS Series. Selecting one of these opens the file in Adobe
Acrobat. The Play Movie button plays a short video about Linx on the
Player Screen, which can be controlled with the Selection Keypad. Clicking
the button on the bottom right of the player opens the Linx Technologies
website in the computer’s default browser.
The View Documentation list allows for the installation of Adobe Acrobat
Reader so that the documents may be viewed. There is also the option
of installing Flash, which may be required if the Linx video does not play
correctly.
Page 9
LATCH
RA2/AN2
1
RA3/AN3
2
RA4/AN4
3
RA5/MCLR
4
GND
5
GND
6
RB0/INT
7
RB1
8
RB2/RX
9
RB3
10
RB4
11
RB5/TX
12
RB6/AN5
13
RB7/AN6
14
VCC
15
VCC
16
RA6
17
RA7
18
RA0/AN0
19
RA1/AN1
20
U7
PIC16LF88
GND
VCC
GND VCC
GND
GND
GND
GND
GND
D7
D4
TX_ID
D6
D3
D0
D1
D2 D5
DATA_PC
PDN
DEC_DATA
GND
GND
VCC
RF1ES RF
1
GND
2
NC
3
GND
4
VCC
5
LR PDN
6
LR RSSI
7
LR DATA
8
NC
9
ES AUDIO REF
10
ES AUDIO
11
ES DATA
12
ES RSSI
13
ES PDN
14
GND
15
LR RF
16
U4
RXM-XXX-LR
RXM-XXX-ES
GND
PDN
DEC_DATA
RF2
ANT1
REVSMAPCB
GND
RF1
ANT2
REVSMAPCB
GND
RF2
DATA_PC
5V
1
DAT -
2
DAT+
3
GND
4
GSHD
5
GSHD
6
J2
USB-B
USBDP
1
USBDM
2
GND
3
VCC
4
SUSP IND
5
RX IND
6
TX IND
7
485 TX
8
DTR
9
CTS
10
RTS
11
DATA OUT
12
DATA IN
13
DSR
14
DCD
15
RI
16
U5
SDM-USB-QS
GND
GND
GNDGND
R9
200
D11
RX_IND
R10
200
D10
TX_ID
B1
9V BATTERY
GND
SW15
POWER SWITCH
GND
+
C1
220uF
GND
VCC
C2
10uF
GND
VCC
D9
DIODE400
Vb
SW Vb
Va
J1
PWRJACK
GND
GND
1
Vout
2
Vin
3
U2
VREG-3V
VREG-5V (ES RX ONLY)
PDN
1
LVL/AM
2
VCC
3
GND
4
DATA
5
/CLK
6
/CLK SEL
7
LV DET
8
GND
9
RF
10
U8
TXM-xxx-ES
GND
VCC
DATA_OUT
PDN RF2
GND
VCC
GND
1
DATA IN
2
GND
3
LADJ/VCC
4
RF OUT
5
GND
6
VCC
7
PDN
8
U3
TXM-xxx-LR
GND
VCC
GND
GND
DATA_OUT
PDN
RF1
R27
620ohm
POWER SUPPLY SECTION
USB SECTION
RF SECTION
Master Development Software
This software is designed to give a complete understanding of how the MS
Series encoders and decoders work together, as well as showing how they
can be used in a system.
The Master Development software can be used in one of two modes.
The default mode is a software simulation of the system and does not
require any hardware. It simulates two handheld transmitters as well as two
receiving devices. This is a good way of showing how the MS Series can
work in a system by turning on lights and opening doors.
VCC
D5
S6D6S7
D7D4D6
D4S3D3S2D2S1D1S0D0
S5
D5
D5
S4
VCC
VCC
D3D0D1
D2
D2D3D4
VCC
VCC
D0
D1
SEND/DEC_DATA_IN
CREATE/LEARN
SW16
R23
100K
GND
R26
0K
DEC_DATA
SEND
D7
The second mode is for use with the Master Development System. When
the decoder board is plugged into a USB port on the PC, the transmitter
can be used to activate the features in the software. If the LEDs on the
evaluation board turn on, then the LEDs in the program turn on and
activate the corresponding data line function.
Figure 15 is a screen shot of the program set up in Software Operation
Mode for simulating the operation of the system.
Figure 15: MS Encoder / Decoder Demonstration Software
The transmitters are on the right hand side and the receivers are at the
bottom. Complete instructions for using the software can be found by
clicking on the Help label at the top right of the window.
– – – –
12 13
U1
D6D7SEL_BAUD0
SEL_BAUD1/HSE_GND/HSD_SEND_KEY
GND
GND
GND
GND
SW11
SEL_BAUD0
SW12
VCC
GND
VCC
VCC
HS-ENC
VCC
SEL_BAUD1
SW9
HS_SEND_KEY
9.1M
R15
R17
R12
9.1M
VCC
Figure 16: Encoder / Decoder Section
GND
200
R25
D12
KEY_IN/MSE_GND/MSD_LATCH
TX_CNTL/MSD_RX_CNTL/HSD_CREATE_KEY
DATA_OUT/MSD_TX_ID/HSD_KEY_OUT
MODE_IND CREATE_ADDR/DEC_LEARN
LICAL-XXX-MS
LICAL-XXX-HS
SW13
SW14
HS_CREATE_KEY
PDN
VCC
SW10
LATCH
VCC
100k
GND
R28
10K
R21
100K
R19
10K
VCC
5
6
7
8
CIN-
VCC
CIN+
COUT
AIN-2AIN+3GND
AOUT
U6
1
4
GND
R14
5.1M
SW8
SW-PB
MODE_IND
R22
100k
TX_EN
D8
PDN
R8
200
100k
R13
GND
LATCH
J5
HS_KEY_IN
C5
0.01uF
R18
9.1M
R20
51K
IR1
PS1102
GND
TLV2302
R16
9.1M
GND
C4
4.7uF
GND
GND
GND
GND
GND
GND
GND
R24
150 ohm
IR2
IR KEY_OUT
GND
TX_ID
DATA_OUT
J4
HSD_KEY_OUT
SEND
D0_INDD1D1_IND
D0
R0
100KR1100KR2100KR3100KR4100KR5100K
GND
GND
D3D0D1D2D5
9
1011121314
J3
D2_INDD3D3_INDD4D4_INDD5D5_INDD6D6_IND
D2
GND
GND
GND
D7D4D6
DEC_DATA
PDN
DATA_OUT
TX_ID
1
2345678
CON14
GND
200
R11
GND
D7_IND
D7
100K
R6
100K
GND
R7
GND
GND
GND
Page 10
POWER SUPPLY SECTION
B1
9V BATTERY
GND
SW15
POWER SWITCH
GND
+
C1
220uF
GND
VCC
C2
10uF
GND
VCC
D9
DIODE400
Vb
SW Vb
Va
J1
PWRJACK
GND
GND
1
Vout
2
Vin
3
U2
VREG-3V
VREG-5V (ES RX ONLY)
POWER SUPPLY SECTION
USB SECTION
LATCH
RA2/AN2
1
RA3/AN3
2
RA4/AN4
3
RA5/MCLR
4
GND
5
GND
6
RB0/INT
7
RB1
8
RB2/RX
9
RB3
10
RB4
11
RB5/TX
12
RB6/AN5
13
RB7/AN6
14
VCC
15
VCC
16
RA6
17
RA7
18
RA0/AN0
19
RA1/AN1
20
U7
PIC16LF88
GND
VCC
GND VCC
GND
GND
GND
GND
GND
D7
D4
TX_ID
D6
D3
D0
D1
D2 D5
DATA_PC
DATA_PC
5V
1
DAT -
2
DAT+
3
GND
4
GSHD
5
USBDP
1
USBDM
2
GND
3
VCC
4
SUSP IND
5
RX IND
6
TX IND
7
485 TX
8
DTR
9
CTS
10
RTS
11
DATA OUT
12
DATA IN
13
DSR
14
DCD
15
RI
16
U5
SDM-USB-QS
GND
GND
R9
200
D11
RX_IND
R10
200
D10
TX_ID
B1
9V BATTERY
GND
SW15
POWER SWITCH
GND
+
C1
220uF
GND
VCC
C2
10uF
GND
VCC
D9
DIODE400
Vb
SW Vb
Va
J1
PWRJACK
GND
GND
1
Vout
2
Vin
3
U2
VREG-3V
VREG-5V (ES RX ONLY)
POWER SUPPLY SECTION
USB SECTION
RF SECTION

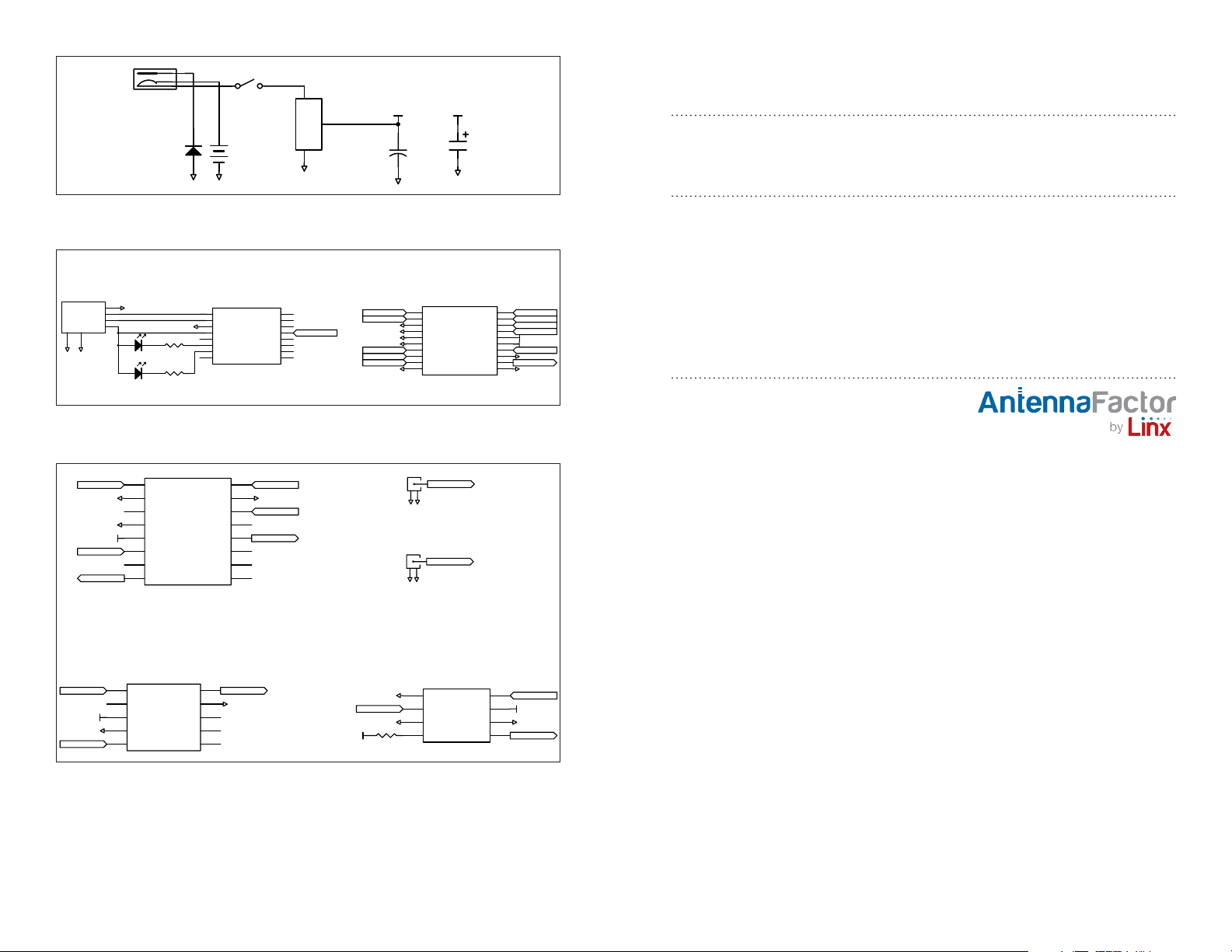

Figure 17: Power Supply Section
J2
USB-B
GND
DAT+
DAT -
GSHD
GSHD
5
6
GNDGND
Figure 18: USB Section
RF2
PDN
DEC_DATA
PDN RF2
VCC
GND
DATA_OUT
J1
Va
Vb
PWRJACK
DIODE400
4
GND
3
2
1
5V
D11
RX_IND
D10
TX_ID
U4
1
2
GND
3
4
GND
5
VCC
6
7
8
RXM-XXX-LR
RXM-XXX-ES
U8
1
PDN
2
LVL/AM
3
VCC
4
GND
5
DATA
TXM-xxx-ES
D9
GND
GND
R9
200
R10
200
GND
NC
GND
VCC
LR PDN
ES AUDIO REF
LR RSSI
LR DATA
RF
GND
LV DET
/CLK SEL
/CLK
SW Vb
POWER SWITCH
GND
U5
1
USBDP
2
USBDM
3
GND
4
VCC
5
SUSP IND
6
RX IND
7
TX IND
8
485 TX
SDM-USB-QS
LR RF
GND
ES PDN
ES RSSI
ES DATA
ES AUDIO
NC
10
9
8
7
6
SW15
B1
9V BATTERY
DATA OUT
16
15
14
13
12
11
10
9
GND
3
Vin
U2
Vout
DATA IN
RF1ES RF
GND
PDN
DEC_DATA
GND
1
GND
16
RI
15
DCD
14
DSR
13
DATA_PC
12
11
RTS
10
CTS
9
DTR
VREG-3V
VREG-5V (ES RX ONLY)
2
VCC
+
GND
D3
D2 D5
GND
GND
GND
GND VCC
D1
D0
TX_ID
GND
GND
DATA_OUT
GND
R27
VCC
620ohm
C1
220uF
U7
1
RA2/AN2
2
RA3/AN3
3
RA4/AN4
4
RA5/MCLR
5
GND
6
GND
7
RB0/INT
8
RB1
9
RB2/RX
10
RB3
PIC16LF88
ANT1
REVSMAPCB
GND
ANT2
REVSMAPCB
GND
U3
1
GND
2
DATA IN
3
GND
4
LADJ/VCC
TXM-xxx-LR
VCC
C2
10uF
GND
RA1/AN1
RA0/AN0
RB7/AN6
RB6/AN5
RF1
RF2
RF OUT
RA7
RA6
VCC
VCC
RB5/TX
RB4
PDN
VCC
GND
Resources
Support
For technical support, product documentation, application notes, regulatory
guidelines and software updates, visit www.linxtechnologies.com
RF Design Services
For customers who need help implementing Linx modules, Linx offers
design services including board layout assistance, programming,
certification advice and packaging design. For more complex RF solutions,
Apex Wireless, a division of Linx Technologies, creates optimized designs
with RF components and firmware selected for the customer’s application.
20
D4
19
18
D6
17
D7
16
VCC
15
14
LATCH
13
GND
12
DATA_PC
11
GND
8
PDN
7
VCC
6
GND
5
RF1
Call +1 800 736 6677 (+1 541 471 6256 if outside the United States) for
more information.
Antenna Factor Antennas
Linx’s Antenna Factor division has the
industry’s broadest selection of antennas
for a wide variety of applications. For
customers with specialized needs, custom
antennas and design services are available along with simulations of
antenna performance to speed development. Learn more at
www.linxtechnologies.com.
Figure 19: RF Section
– – – –
14 15
Page 11
Linx Technologies
159 Ort Lane
Merlin, OR, US 97532
Phone: +1 541 471 6256
Fax: +1 541 471 6251
www.linxtechnologies.com
Disclaimer
Linx Technologies is continually striving to improve the quality and function of its products. For this reason, we
reserve the right to make changes to our products without notice. The information contained in this Data Guide
is believed to be accurate as of the time of publication. Specifications are based on representative lot samples.
Values may vary from lot-to-lot and are not guaranteed. “Typical” parameters can and do vary over lots and
application. Linx Technologies makes no guarantee, warranty, or representation regarding the suitability of any
product for use in any specific application. It is the customer’s responsibility to verify the suitability of the part for
the intended application. NO LINX PRODUCT IS INTENDED FOR USE IN ANY APPLICATION WHERE THE SAFETY
OF LIFE OR PROPERTY IS AT RISK.
Linx Technologies DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT SHALL LINX TECHNOLOGIES BE LIABLE FOR ANY OF CUSTOMER’S INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING IN ANY WAY FROM ANY DEFECTIVE OR NON-CONFORMING PRODUCTS
OR FOR ANY OTHER BREACH OF CONTRACT BY LINX TECHNOLOGIES. The limitations on Linx Technologies’
liability are applicable to any and all claims or theories of recovery asserted by Customer, including, without
limitation, breach of contract, breach of warranty, strict liability, or negligence. Customer assumes all liability
(including, without limitation, liability for injury to person or property, economic loss, or business interruption) for
all claims, including claims from third parties, arising from the use of the Products. The Customer will indemnify,
defend, protect, and hold harmless Linx Technologies and its officers, employees, subsidiaries, affiliates,
distributors, and representatives from and against all claims, damages, actions, suits, proceedings, demands,
assessments, adjustments, costs, and expenses incurred by Linx Technologies as a result of or arising from any
Products sold by Linx Technologies to Customer. Under no conditions will Linx Technologies be responsible for
losses arising from the use or failure of the device in any application, other than the repair, replacement, or refund
limited to the original product purchase price. Devices described in this publication may contain proprietary,
patented, or copyrighted techniques, components, or materials. Under no circumstances shall any user be
conveyed any license or right to the use or ownership of such items.
©2015 Linx Technologies. All rights reserved.
The stylized Linx logo, Wireless Made Simple, WiSE, CipherLinx and the stylized CL logo are trademarks of Linx Technologies.
Loading...
