Pilot’s Guide for Spider III 15, 30 & HD75
Manuel de pilotage pour le Spider III 15, 30 & HD75
Spider III 15, 30 & HD75 Pilotenhandbuch
Pilotenhandboek voor de Spider III 15, 30 & HD75
Manual del Piloto para Spider III 15, 30 y HD75
40-00-0106 Electrophonic Limited Edition available @ www.line6.com Rev A
All product names referred to in this manual
are trademarks of their respective owners,
which are in no way associated or affiliated
with Line 6. These trademarks of other
manufacturers are used solely to identify
the products of those manufacturers whose
tones and sounds were studied during Line
6’s sound model development.
Line 6, Spider III, FBV, FBV Shortboard, FBV Express, FBV2, Floor Board, FB4 and Vetta are trademarks
of Line 6, Inc. All other product names, trademarks, and artists’ names are the property of their
respective owners, which are in no way associated or affiliated with Line 6. Product names, images,
song names and artists’ names are used solely to identify the products whose tones and sounds were
studied during Line 6’s sound model development for this product. The use of these products,
trademarks, images, and artists’ names does not imply any cooperation or endorsement.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to
Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
CAUTION: To reduce the risk of fire or electric shock, do
not remove screws. No user-serviceable parts inside. Refer
servicing to qualified service personnel.
Spider III Pilot’s Guide © 2005, Line 6, Inc.
The exclamation point within a triangle means,
“Caution!” Please read the information next to
all caution signs.
The lightning symbol within a triangle means,
“Electrical caution!” It indicates the presence
of information about operating voltage and
potential risks of electrical shock.
This symbol within a triangle means, “Caution!
Hot surface!” It is shown in areas that may
become too hot to touch when the device is in
operation.
You should read these Important Safety Instructions.
Keep these instructions in a safe place.
Before using your Spider III, carefully read the applicable items of these operating instructions and the safety suggestions.
1. Obey all warnings on the amp and in the Spider III Manual.
2. Connect only to AC power outlets rated 100-120V or 200-240V 47-63Hz (depending on voltage range of the unit; refer to back panel).
3. Do not perform service operations beyond those described in the Spider III Manual. Service is required when the apparatus has been
damaged in any way, such as:
• power-supply cord or plug is damaged
• liquid has been spilled or objects have fallen into the apparatus
• the unit has been exposed to rain or moisture
• the unit does not operate normally or changes in performance in a significant way
• the unit is dropped or the enclosure is damaged.
4. The bottom of the metal chassis can get hot during operation. Do not touch during operation or shortly after.
5. Do not place near heat sources, such as radiators, heat registers, or appliances which produce heat. Keep the rear of the unit at least
three inches from walls or other items that might block heat radiation.
6. Do not block any of the ventilation openings or use in an enclosed space.
7. Guard against objects or liquids entering the enclosure. Do not use or place unit near water.
8. Do not step on power cords. Do not place items on top of power cords so that they are pinched or leaned on. Pay particular attention
to the cord at the plug end and the point where it connects to the amp.
9. Unplug the amp when not in use for extended periods of time. Unplug the amp during lightning storms.
10. Clean only with a damp cloth.
11. Do not defeat the safety purpose of the grounding type plug. A grounding type plug has two blades and a third grounding prong.
The third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
12. Only use attachments/accessories specified by the manufacturer.
13. Prolonged listening at high volume levels may cause irreparable hearing loss and/or damage. Always be sure to practice “safe listening.”
Plug In Here
1
Channel Memories / Amp Models
The four channels each use a different Amp Model, and all come
2
pre-loaded with a factory preset dialed in to nail a great tone. Press
one of these buttons to hear the presets. To replace any preset with
your own “snapshot” of all tone and effect knob positions (except
Master Volume), press and hold one of these four buttons for two
seconds. The light flashes when the save is complete.
GUITAR
GUITAR
Tone Controls
Drive is like the volume or gain
3
knob on other amps; controls how
much “dirt” you get in your sound.
Bass, Mid, and Treble controls are
customized for each Channel to
give you optimal tonal control.
CLEAN
DRIVE BASS MID TREBLE
CRUNCH METAL INSANECHANNELS:
4
Channel Volume
This control helps you balance the
volumes of the amp-and-effect setups
that you store in your Spider III’s
channels. See (2) above for the lowdown on channels.
CHAN VOL
6
CHORUS
FLANGE
Tap Delay Time
Tap the Tap Delay Time button at least two times
to set the delay time when either Tape Echo or
Sweep Echo is active. The light will be lit solid
when Reverb is active, and will be off when no
echo or reverb effect is active. (Also see ”Tap
Button Extra Functions”).
TAP DELAY TIME
PHASER
SWEEP
ECHO
TAPE ECHO
Headphone/Record Out
Listen with headphones, or use this as a direct out for
9
recording! (The speaker is muted when this jack is in use).
FBV Pedal (not on Spider III
15)
See “Footwork” section below for
details.
POWER
FBV
PEDAL
CD /
MP3 IN
PHONES /
RECORD OUT
10
OFF
SMART CONTROL FX MASTER
5
TREMOLO
OFF
Smart Control FX
Spin one of these knobs to get great FX, fast
and easy:
The first knob picks chorus/flange, phaser
or tremolo, with a range of settings—from
subtle to overpowering—for each effect.
The second knob picks tape echo, sweep
echo or reverb with a range of mix settings
from low to high. When you select an echo
effect the Tap Delay Time light flashes the
delay time; tap it to change the time.
REVERB
Master Volume
You can choose
7
the overall volume
of the amplifier,
without affecting
your tone.
8
CD/MP3 In
Listen and
play along
with CD or
MP3 tracks by
connecting to
this 1/8-inch
input.
Welcome The Spider III...
Thank you for inviting Spider III home with you. This amp mines the tonal heritage of the past forty years of
guitar amplifier design and matches it up with the kind of digital signal processing magic that will still be ahead
of its time ten years from now.
Each of the four programmable channels is built on a different Amp Model with its own unique tone:
Clean
Select this Amp Model and adjust the tone controls
to get crisp, amazing clean tones, great warm jazz tones,
and all the high-end shimmer you’ll need with a
generous amount of bottom end to boot. Then dial up
a little chorus and delay to get the ultimate clean
sound!
Crunch
Plexi On Fire! This Amp Model is based on a ‘68
Marshall Plexi 100 watt with a few added extras; The
combination of a Variac and the jumpered input
channels creates that infamous brown sound that will
feel like flames are shooting out the input jack! “Come
on Dave… Give me a break!”
*All product names are trademarks of their respective owners, which are in no way associated or affiliated with Line 6.
These product names, descriptions and images are provided for the sole purpose of identifying the specific products that
were studied during Line 6’s sound model development. MARSHALL® is a registered trademark of Marshall Amplification
PLC. MESA/BOOGIE® and RECTIFIER® are registered trademarks of Mesa/Boogie, Limited.
Metal
This Amp Model is based on the Mesa Dual Rectifier.
For Spider III, we made careful enhancements to this
classic tone. The resulting Amp Model has a definite
modern flavor. This monster truck of tone delivers a
tight bottom end that’s big, powerful, tight and fast.
Use this Amp Model to get a tight and punchy, high
gain Metal sound.
Insane
Our goal with Insane was to provide you with as much
input gain distortion as possible short of complete
meltdown. You get an obscene helping of distortion,
while still retaining tonal definition and character. As
a result, you get way more bottom end and cabinet
character than other small amps. Crank up the Drive
control and prepare to dominate!
Tap Button Extra Functions
Special Hidden Functions
The Tap Delay Time button, in addition to setting the
time of your echo effects, also lets you access a Distortion
Boost and a built-in Noise Gate.
Distortion Boost
Press and hold the Tap Delay Time button as you turn
the Drive knob up past twelve o’clock. As you do this,
Spider III’s CLEAN Channel light comes on to indicate
that the Distortion Boost is on. This gives the kind of
extra ‘dirt’ that you’d expect from a Distortion pedal
with the distortion control set low and the output
control set high. It boosts your guitar signal before it
reaches the Amp Model, so that you hit the model
harder and get a more distorted sound.
Noise Gate
Press and hold the Tap Delay Time button as you turn
the echo/reverb FX knob up past twelve o’clock, and
you’ll turn on a built-in Noise Gate to help cut down
on hiss and noise. As you do this, the INSANE
Channel light comes on to indicate the Gate is on.
When you select an Amp Model, Spider III
automatically sets its tone controls and effects to match
that Amp Model. You can disable the auto-FX selection
(but not tone control auto-selection) by powering up
Spider III with the INSANE Channel button held.
The auto-selection will be re-enabled next time you
power up.
You can also reset your Spider III’s programmable
channels to their factory-programmed states by holding
down the CLEAN Channel button as you turn on
the power. Warning: This will erase ALL custom
sounds you might have saved. Ask yourself, “Do I really
want to do this?” If your answer is yes, then go for it!
Note for Spider III HD75 Users
The Spider III HD75’s speaker outputs are set up for
4 ohm cabinets only. Cabinets of other impedances
may cause the HD75 to overheat and shutdown to
prevent damage.
Footwork
(Spider III 30 & HD75 only)
Two optional foot controllers can be used with the
Spider III 30 and HD75: the FBV Express for channel
switching and delay time tap, or the FBV2 for channel
scroll. Note that the FBV, FBV Shortboard, Floor Board
and FB4 foot controllers will not work with Spider III
30 and HD75.
FBV foot controllers come with a RJ-45 cable. Connect
it between the front panel of the Spider III and the side
of the FBV. If you ever need a replacement cable, look
for a Category 5 (or higher), “10 Base-T” or “RJ-45”
cable with male connectors on both ends. These can
be found at almost any computer supply retailer.
UNTIL DISPLAY SHOWS
FBV2
The FBV2 functions as a two button channel scroll foot
switch. Step on its switches to scroll through the four
channels (Clean, Crunch, Metal, and Insane) of your
Spider III 30 or HD75.

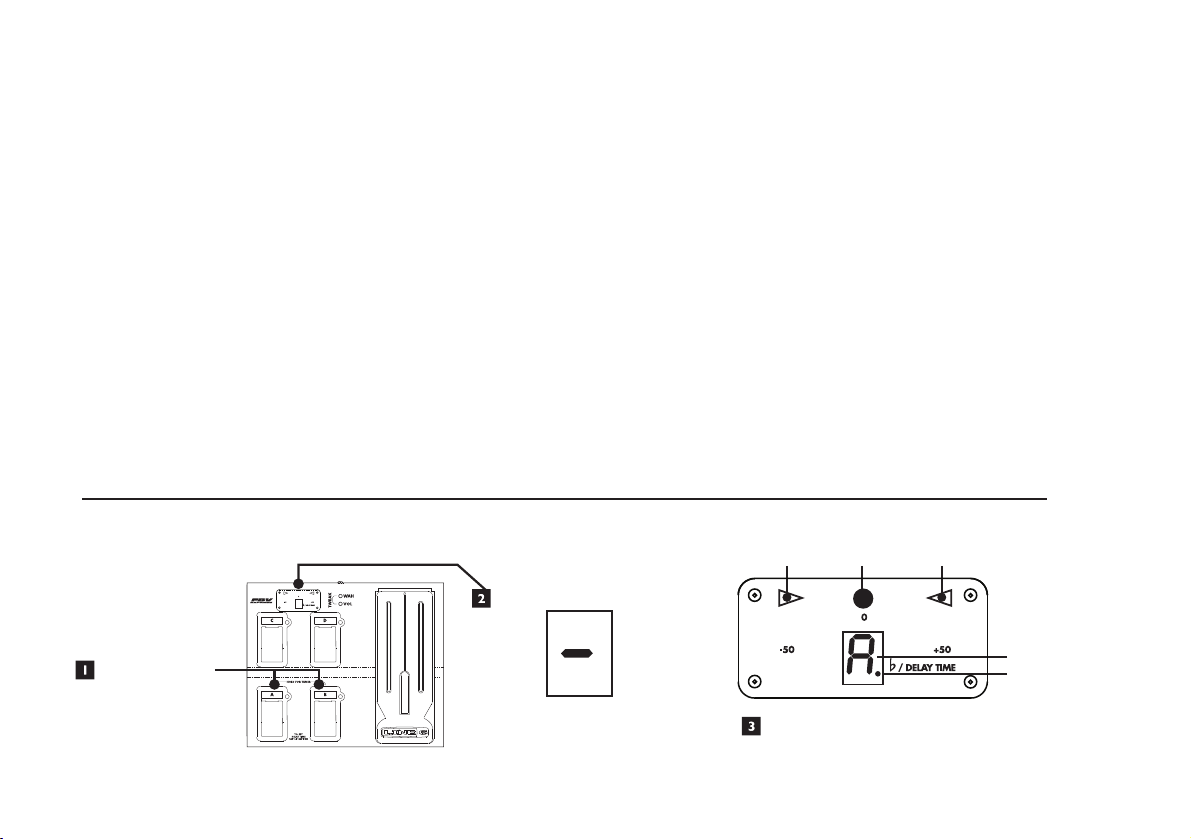

FBV Express
Step on a switch to choose from your Spider III's four
channels. Want to change your Delay Time? Just tap
the lit footswitch two or more times to the drummer’s
beat and presto—you’re locked in! Press down the toe
of the pedal to switch between wah and volume control.
FLAT SHARPIN TUNE
PRESS & HOLD
NOTE
FLAT
DONE TUNING?
PRESS ANY OF THE A,B,C OR D FOOTSWITCHES
